各系统多路径检测
# fget_config -Av (适用于DS3K/DS4K的RDAC路径查询）
3、 查看SDDPCM存储盘的路径
# pcmpath query device (适用于DS6K/DS8K和v7000的SDDPCM路径查询)
#pcmpath query adapter 检查 SDDPCM 适配器状态
.执行重新配置
# powermt check
Warning: CLARiiON device path c2t0d0s0 is currently dead.
Do you want to remove it (y/n/a/q)? y
Warning: CLARiiON device path c2t0d1s0 is currently dead.
Do you want to remove it (y/n/a/q)? y
Warning: CLARiiON device path c2t0d2s0 is currently dead (y/n/a/q)? a
Warning: CLARiiON device path c2t0d3s0 is currently dead.
查看父设备
lsdev -Cl fscsi0 -F parent
lsdev -Cc disk
lsdev -Cc adapter
lscfg -vpl
AIX多路径：
1、 查看MPIO的存储盘的路径
# lspath (适用于所有存储的MPIO路径查询）
# mpio_get_config -Av (适用于DS3K/DS4K的MPIO路径查询）
Warning: CLARiiON device path c2t0d4s0 is currently dead.
AIX 下安装HDLM多路径软件概要
AIX下安装HDS HDLM多路径软件1.安装环境和软件准备 (2)1.1安装环境 (2)1.2软件上传至服务器 (2)1.3修改目录权限 (2)2．安装ODM包 (3)2.1.拷贝license文件 (3)2.2解压ODM (3)2.3安装ODM 软件 (3)2. 3.1 使用smit 安装 (3)2.3.2选择安装软件：Install Software (3)2.3.3目录选择当前：./ (4)2.3.4 ACCEPT new license agreements选择 yes和选择组件 (4)2.3.5回车安装 (5)2.3.6 重启VIOS (5)3.安装HDLM软件 (5)3.1删除旧的光纤卡 (6)3.2手动执行安装 (6)3.3重新扫描设备 (6)3.4.验证 (6)4.后续配置 (9)4.1修改光纤卡配置 (9)4.2修改磁盘属性 (10)1.安装环境和软件准备1.1安装环境VIO server ioslevel 2.2.1.0 oslevel 6.1.0.0HDLM软件版本 Dynamic Link Manager 6.6.0.01.2软件上传至服务器上传hdlm_license.plk、HTCODM3.tar、HDLM_AIX至/home/padmin/iso1.3修改目录权限chown -R root:staff /home/padmin/iso2．安装ODM包2.1.拷贝和重命名license文件cp /home/padmin/iso/hdlm_license.plk /var/tmp/hdlm_license2.2解压ODMcd /home/padmin/isotar -xvf HTCODM3.tar2.12.3安装ODM 软件2. 3.1 使用smit 安装smit installp2.3.2选择安装软件：Install Software Move cursor to desired item and press Enter. Install SoftwareUpdate Installed Software to Latest Level (Update All) Install Software Bundle Update Software by Fix (APAR)Install and Update from ALL Available Software2.3.3目录选择当前：./Install SoftwareType or select a value for the entry field.Press Enter AFTER making all desired changes.[Entry Fields]* INPUT device / directory for software [./]2.3.4 ACCEPT new license agreements选择 yes和选择组件 Install SoftwareType or select values in entry fields.Press Enter AFTER making all desired changes.[Entry Fields]* INPUT device / directory for software ./* SOFTWARE to install [_all_latest] +(标移到软件安装，按F4(esc+4)选择要安装的包，如果是HACMP环境，就将所有包选择上，如果是环境就选择除HACMP包外的所有包安装)Install SoftwarePREVIEW only? (install operation will NOT occur) no +COMMIT software updates? yes +SAVE replaced files? no +AUTOMATICALLY install requisite software? yes +EXTEND file systems if space needed? yes +OVERWRITE same or newer versions? no +VERIFY install and check file sizes? no +Include corresponding LANGUAGE filesets? yes +DETAILED output? no + Process multiple volumes? yes +ACCEPT new license agreements? yes + #按F4（Esc+4）选择Preview new LICENSE agreements? no +2.3.5回车安装2.3.6 重启VIOS登陆IVM关闭所有LPARshutdown –Fr3.安装HDLM软件3.1删除旧的光纤卡rmdev -Rdl fcs0rmdev -Rdl fcs13.2手动执行安装installp -aXgd /home/padmin/iso/HDLM_AIX/HDLM_AIX all3.3重新扫描设备cfgmgr3.4.验证查看磁盘：# lspvhdisk0 0001eb2b7fcddab9 rootvgactivehdisk1 0001eb2bdc16a0ad rootvgactivehdisk2 0001eb2b019d78ea None hdisk3 0001eb2b019d7b85 None hdisk40001eb2b019d7e45 None hdisk5 0001eb2b019d8107 None hdisk6 0001eb2b019d83c7 None# lsdev -Cc diskhdisk0 Available 00-08-00 SAS Disk Drivehdisk1 Available 00-08-00 SAS Disk Drivehdisk2 Available 01-00-01 Hitachi Disk Array (Fibre)hdisk3 Available 01-00-01 Hitachi Disk Array (Fibre)hdisk4 Available 01-00-01 Hitachi Disk Array (Fibre)hdisk5 Available 01-00-01 Hitachi Disk Array (Fibre)hdisk6 Available 01-00-01 Hitachi Disk Array (Fibre)出现：Hitachi Disk Array (Fibre) 表示磁盘使用HDLM软件，多路径软件安装成功查看安装软件：# lslpp -la DLManager.mpio.rteFileset Level State Description ----------------------------------------------------------------------------Path: /usr/lib/objreposDLManager.mpio.rte 6.6.0.0 COMMITTED Dynamic Link ManagerPath: /etc/objreposDLManager.mpio.rte 6.6.0.0 COMMITTED Dynamic Link Manager验证多路径链路和磁盘详细信息：/usr/DynamicLinkManager/bin/dlnkmgr view -luProduct : AMSSerialNumber : 85005322LUs : 5iLU HDevName OSPathID PathID Status0091 hdisk2 00001 000005 Online00000 000006 Online0092 hdisk3 00000 000000 Online00001 000001 Online0093 hdisk4 00001 000003 Online00000 000004 Online0094 hdisk5 00000 000002 Online00001 000009 Online0095 hdisk6 00001 000007 Online00000 000008 OnlineKAPL01001-I The HDLM command completed normally. Operation name = view, completion time = 2012/06/25 11:08:03查看Status为Online,表示所有链路正常4.后续配置4.1修改光纤卡配置修改光纤卡fc_err_recov属性值(链路出现故障后快速切换策略)通过lspath命令查找到磁盘从那个光纤卡上映射过来的，然后对查到的光纤卡属性做修改lspathlsattr -El fscsi0lsattr -El fscsi1删除rmdev -l fscsi0 -Rrmdev -l fscsi1 -R更改属性chdev -l fscsi0 -a fc_err_recov=fast_failchdev -l fscsi1 -a fc_err_recov=fast_fail确认更改是否成功lsattr -El fscsi0lsattr -El fscsi1重新扫描cfgmgr4.2修改磁盘属性查看当前属性：# lsattr -El hdisk2PCM PCM/friend/hitachifcp N/A True PR_key_value 0x2c9f4204c Reserve Key True algorithm round_robin N/A Falseclr_q no Device CLEARS its Queue on error True dvc_support N/A Falselocation Location Label Truelun_id 0x0 Logical Unit Number ID Falsemax_transfer 0x40000 Maximum TRANSFER Size True node_name0x50060e80058f0c34 FC Node Name False pvid none Physical Volume ID Falseq_err yes Use QERR bit False q_type simple Queue TYPE Truequeue_depth 2 Queue DEPTH True reassign_to 120 REASSIGN time out True reserve_policy PR_exclusive Reserve Policy True rw_timeout 60 READ/WRITE time out True scsi_id 0x11d00 SCSI ID Falsestart_timeout 60 START UNIT time out Trueww_name 0x50060e80058f0c34 FC World Wide Name False修改属性：修改queue_depth值,推荐值为8chdev -l hdisk-name -a queue_depth=8 -a rw_timeout=60 查看修改后属性：# lsattr -El hdisk2PCM PCM/friend/hitachifcp N/A True PR_key_value 0x3c9f4604c Reserve Key True algorithm round_robin N/A Falseclr_q no Device CLEARS its Queue on error True dvc_support N/A Falselocation Location Label Truelun_id 0x0 Logical Unit Number ID Falsemax_transfer 0x40000 Maximum TRANSFER Size True node_name0x50060e80058f0c34 FC Node Name False pvid none Physical Volume ID False q_err yes Use QERR bit False q_type simple Queue TYPE Truequeue_depth 8 Queue DEPTH True reassign_to 120 REASSIGN time out True reserve_policy no_reserve Reserve Policy True rw_timeout 60 READ/WRITE time out True scsi_id 0x11d00 SCSI ID Falsestart_timeout 60 START UNIT time out Trueww_name 0x50060e80058f0c34 FC World Wide Name False。
ERPMRP管理方法及多路径冗余软件POWERPATH安装配置测试报
（ERPMRP管理)方法及多路径冗余软件POWERPATH安装配置测试报EMC磁盘连接AIX的方法及多路径冗余软件POWERPATH安装、配置、测试报告第一、ODM部分21.安装前准备工作2获取EMC ODM文件22.安装配置过程23、安装后确认3第二、POWERPATH部分4准备工作4安装配置过程4性能测试工作54、powermt提供的其他功能245、测试环境拓扑图26第三、Appendix：28第一、ODM部分1.安装前准备工作说明：一般情况下，AIX自带的FC驱动也可以让AIX正常识别出EMC的磁盘，但是会显示为otherFCdisk之类，这样powerpath是无法管理的，所以要加装ODM。
获取EMCODM文件1、下载EMCodm文件，这是针对emc在aix提供的驱动。
下载地址：ftp.emc./pub/elab/aix/ODM_DEFINITIONS2.安装配置过程1、下载的文件类型这个名字：EMC.AIX.5.3.0.1.tar.Z，通过FTP传到AIX上。
使用binary的方式传，否则无法解压。
2、gzip–d，tarxvf命令接包。
3、解包之后用installp命令。
4、安装的时候重点先看看包里面的readme文件，里面重点提到的是不管链接那种EMC设备都只能安装一种support软件，对于symmetric而言，只能安装如下3种文件的任意1种。
EMCSymmetrixFCPSupportSoftware;IBMFibreChanneldriversupport.EMCSymmetrixFCPMPIOSupportSoftware;IBMdefaultPCMMPIOsupport.EMCSymmetrixFCPPowerMPIOSupportSoftware;PowerPathcustomPCMMPIOsu pport.（这次测试大部分时间都耗在这个问题上，以前没有认真看readme，把全部的fileset都全部安装了。
AIX-多路径安装

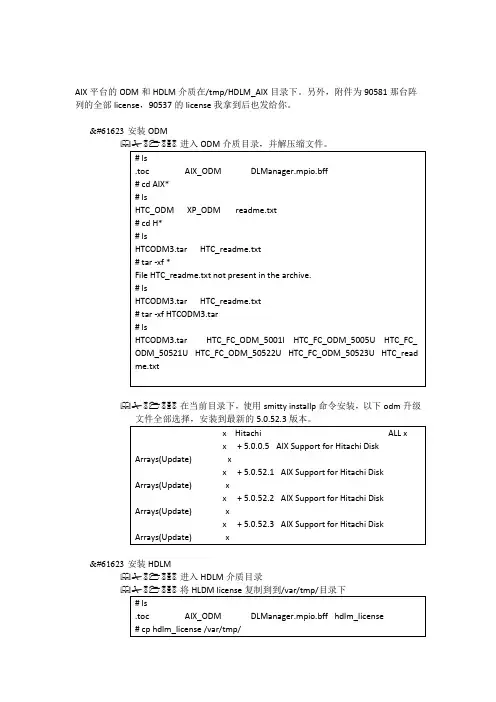

hdisk5 Available 05-00-01 Hitachi Disk Array (Fibre)
