Item 1: 模具结构 . Die and Mold
• Prepared by : Danny • Date: 2024-1月
压铸模具零件结构-Mold components.
✓ 前模固定板 Cavity Fixing Plate/ A Plate
✓ 料套 Sprue Bush
模具安装在压铸机上。 Tooling fixed in the die casting machine.
模具常用术语中英文对照
模具常用术语中英文对照
中文
英文
回针
Return Pin
斜导柱 Angle Pin
推板
Stripper Plate
A’板 A'Plate
B’板 B'Plate
方铁（垫铁） Spacer Block
顶针板 Ejector Plate
顶针底板 Ejector Retainer Plate
三打螺丝毫（限螺丝）
Stripper Bolt
盖板
Cover Plate
齿轮
Gear
油唧
Hydraulic Cylinder9（液压缸）
司筒
Ejector Sleeve （脱模弹簧）
导柱
Leader Pin
模具常用术语中英文对照
中文
英文
冷料# Cold Sllig
线切割 Wire E.D.M.
轮廓
Contour
截水口镶件
Runner Shut-Off Insert
早回
Early Ejector Return
加速顶 Accelerated Ejector
扁顶
Blade
模具常用术语中英文对照 中文 英文 出模斜波 Draft 手动滑块模具 Hand Slide-In Txpe Mold 回针板 Backup 合模 Shutoff 空隙槽 Clearance Slot 导柱及导套 Leader Pin Bushing 水口拉钩 Spuer Pulzer 模框镶件 Pocket Insert 成型热固性塑胶模具 Thermoset Mold 三板模 3-Plat Mold 分型面 Parting Line 司筒 Sleeve 垫圈 Washer 熔接线（夹水纹） Weldline 吸针 Sucker Pin 回针板 Retainer Plate 顶出板 Knock -Out Plate 电动安全开关 Electrical Safety Switch 脱开 Cut Of Positon

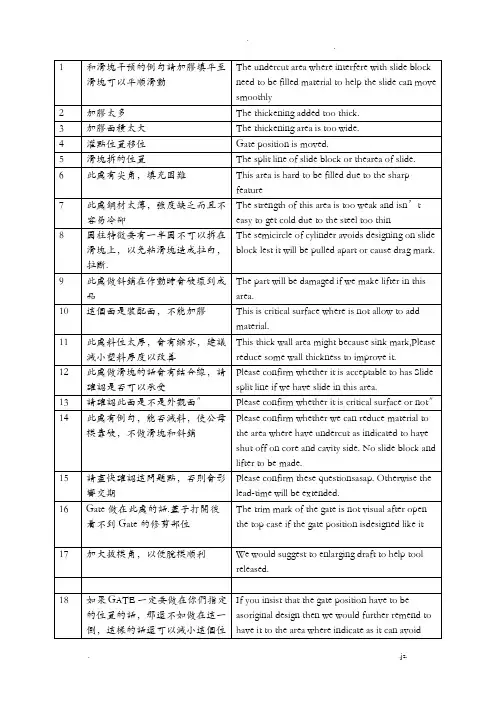

塑胶模具DFM_用英文对照超级实用
DFM常用中英文对照1、这个红色面在前模方向/后模方向/行位方向有倒扣。
This red surface is undercut at cavity side / core side / slider side.2、这些红色面在前模方向/后模方向/行位方向有倒扣。
These red surfaces are undercut at cavity side / core side / slider side.3、产品的这个位置太小，导致模具在前模方向/后模方向/行位方向有薄钢位。
This position is too small and it will bring the thin steel at cavity side / core side / slider side. 4、这些红色线是前后模/镶件/行位/斜顶分型线。
These red lines are the parting line of cavity and core / insert / slider / lifter.5、此产品使用推板/推块顶出。
Use the stripper plate / ejector block to eject this part.6、前模/后模斜行位。
Inner angle slider at cavity / core side.7、为了简化模具构造建议改变此处出模方向。
Suggest to change the draft direction of this position to make the mold structure simply.8、最终的进胶位置根据模流分析。
Finally gate position according the mold flow analysis.9、斜顶与后面的柱位空间太小，斜顶在运动时会干预到柱子，请考虑移动这个柱子的位置。
This lifter intervene with the pole during ejection, please consider changing the position of the pole.10、此处有薄钢位，强度缺乏而且不容易冷却。
模具DFM常用中英文对照之欧阳化创编
DFM常用中英文对照15、如果分型面此处，模具上会有尖角和刀口，对模具寿命有影响。
There are sharp edges if we set the parting line here, it will reduce the tool life.16、此处料厚段差很大，成品表面会有应力痕，建议修改如图示。
The thickness is not equal and it will bring the stress lines on the surface, suggest to improve the part as the picture shown.17、此大行位上有小行位，开模时小行位需先退，大行位做延时，合模时则相反。
The small slider is inside the big slider, when the mold open, the small slider need to recede first and the big slider have to postpone. When the mold close, it is contrary.18、此处需做强顶。
This position need to force ejection.19、由于此处没有足够空间下热咀，所以需做一个柱子进胶。
This position need to make a pole for gating because there have no enough space for hot sprue.20、沾模，Stick1.High shrinkage values could indicate sink marks or voids at gate location 高缩水率的产品容易产生缩印，但在浇口附近可以避免。
2.Welding line on the cosmetic surface 熔接线在外表面3.Two banana gate was to being confluent in the end of melt flow. 两个香蕉浇口在流动未端熔合。
模具DFM常用中英文对照
DFM常用中英文对照15、如果分型面此处，模具上会有尖角和刀口，对模具寿命有影响。
There are sharp edges if we set the parting line here, it will reduce the tool life.16、此处料厚段差很大，成品表面会有应力痕，建议修改如图示。
The thickness is not equal and it will bring the stress lines on the surface, suggest to improve the part as the picture shown.17、此大行位上有小行位，开模时小行位需先退，大行位做延时，合模时则相反。
The small slider is inside the big slider, when the mold open, the small slider need to recede first and the big slider have to postpone. When the mold close, it is contrary.18、此处需做强顶。
This position need to force ejection.19、由于此处没有足够空间下热咀，所以需做一个柱子进胶。
This position need to make a pole for gating because there have no enough space for hot sprue.20、沾模，Stick1.High shrinkage values could indicate sink marks or voids at gate location 高缩水率的产品容易产生缩印，但在浇口附近可以避免。
2.Welding line on the cosmetic surface 熔接线在外表面3.Two banana gate was to being confluent in the end of melt flow. 两个香蕉浇口在流动未端熔合。

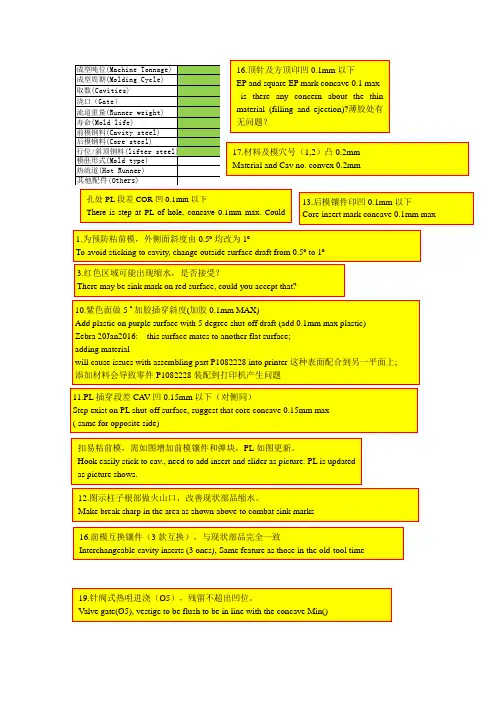

塑胶模具DFM翻译参考
1.图示红色面做3ﾟ减胶插穿斜度，改善现有产品易出现披锋的问题。
The red area to be tapered 3through thinning to combatFlash.6.行位镶针距离骨太近，导致后模钢料只有0.6mm，建议红色面减胶1mm，以增强钢料，避免开裂。
For better steel strength ,the red area to be thinned 1mm(the cam steel pin is too close to the boss with the resultThat the core steel in this area leaves only 0.6mm) thickness.6.此后是针阀单点进浇口及2点进浇口的模流分析。
The mold flow analysis with one gate and two gates by using valve gate建议做一个热咀的进胶口，原因如下：propose one gate is based on:1>两个热咀的距离太近，造成两个热流道靠得近，从而造成热流道制作困难。
Geographically,two gates are two close, which entails the two respective manifolds too close. To design the two manifolds is way too difficult.2>做两个热流道后前模芯就会挖空的更多，从而造成前模芯的强度变弱很多With two manifolds, the cavity to be cored out too much, as a result the strength of it weakens.Thin steel risk here-To combat this complication, a removal of R in red should be performed为防止粘前模，建议孔修改如右图示Sticking in the cavity here-To prevent this process issue, please use the feature changes stated in the rightfiguresub gate 潜水banana gate 牛角进胶pin gate 点浇口direct gate 大水口插穿shutoff斜顶lifter行位slider。
修订版模具DFM常用中英文对照【精选】
DFM常用中英文对照15、如果分型面此处，模具上会有尖角和刀口，对模具寿命有影响。
There are sharp edges if we set the parting line here, it will reduce the tool life.16、此处料厚段差很大，成品表面会有应力痕，建议修改如图示。
The thickness is not equal and it will bring the stress lines on the surface, suggest to improve the part as the picture shown.17、此大行位上有小行位，开模时小行位需先退，大行位做延时，合模时则相反。
The small slider is inside the big slider, when the mold open, the small slider need to recede first and the big slider have to postpone. When the mold close, it is contrary.18、此处需做强顶。
This position need to force ejection.19、由于此处没有足够空间下热咀，所以需做一个柱子进胶。
This position need to make a pole for gating because there have no enough space for hot sprue.20、沾模，Stick1.High shrinkage values could indicate sink marks or voids at gate location 高缩水率的产品容易产生缩印，但在浇口附近可以避免。
2.Welding line on the cosmetic surface 熔接线在外表面3.Two banana gate was to being confluent in the end of melt flow. 两个香蕉浇口在流动未端熔合。
模具DFM常用中英文对照
DFM常用中英文对照15、如果分型面此处，模具上会有尖角和刀口，对模具寿命有影响。
There are sharp edges if we set the parting line here, it will reduce the tool life.16、此处料厚段差很大，成品表面会有应力痕，建议修改如图示。
The thickness is not equal and it will bring the stress lines on the surface, suggest to improve the part as the picture shown.17、此大行位上有小行位，开模时小行位需先退，大行位做延时，合模时则相反。
The small slider is inside the big slider, when the mold open, the smallslider need to recede first and the big slider have to postpone. When the mold close, it is contrary.18、此处需做强顶。
This position need to force ejection.19、由于此处没有足够空间下热咀，所以需做一个柱子进胶。
This position need to make a pole for gating because there have noenough space for hot sprue.20、沾模，Stick1.High shrinkage values could indicate sink marks or voids at gate location 高缩水率的产品容易产生缩印，但在浇口附近可以避免。
2.Welding line on the cosmetic surface 熔接线在外表面3.Two banana gate was to being confluent in the end of melt flow. 两个香蕉浇口在流动未端熔合。
工程DFM常用英语（学习资料）
工程DFM常用語1.紅色區域要咬花(拋光).The red area should be textured(polished).2.紅色區域要作1度拔模角.The red area should be 1 degree draft angle.3.紅色區域要減(加)膠0.05mm.The red area should be reduced(added)0.05mm.4.修改前Before modifying5.修改後After modifying6.修改Modify7.此位做頂針The location of ejector is here.8.此位做扁頂針The location of ejector blade is here.9.此位做司筒The location of ejector sleeve is here.10.此位做斜頂The location of lifter is here.11.此位做滑塊The location of slide is here.12.此位要做入子The location of insert is here.13.此線條表示PLThis line is PL.14.涂色區域會產生縮水The coloured area will be shrinkadge.15.此處會有毛邊There will be flash here.16.此處尖角建議改成0.5R角The sharp angle is suggested to change to 0.5R angle.17.此處膠位太薄不易入膠This material is too thin to shot.18.此處膠位太厚會縮水This material is too thick so as to be shrinkadge. 19.此段差為0.05mmThe mismatch is 0.05mm.20.此處易產生段差(此處會有段差)Here is easy to be mismatch.21.建議用放電花替代咬花紋Suggest to spark erosion instead of texture.22.此位要拋光Here should be polished.23.此位要增加0.05度拔模角度Here should be added 0.05 degree draft.24.一次灌點的位置The location of the first gate.25.此位不能有水口殘留Here can’t be residual gate.26.水口殘留最大0.1mm.The maximal residual gate is 0.1mm.27.此水口會用CNC銑平The gate will be milled to flat by CNC.28.此位會作凹陷Here will be recess.29.此位會做击出Here will be bluge.30.此處設置火山口A crater is will be here.31.此位會做平或是下沉0.05mmHere will be flat or recess 0.05mm.32.此位會有斜頂痕Here will be lifer markings.33.此處會有線痕.Here will be line markings.34.此位一次減膠,讓二次膠延伸下來Here the first material is to be cut to let the second material to flow .35.此位一二次封膠困難,二次會溢料Here the first and second material is difficult to envelop and the second will overflow.36.分析此位無拔模,建議作一度By analysis,here is no draft and suggest to be one degree.37.頂針位置如圖,穴號刻在頂針上The location of ejector is shown as in the picture and the cavity number is graved on ejector.38.滑塊拆在肋位中間Slide should be part in the middle of rib.39.公模仁拔模修改到一度The draft of core is modified to one degree.40.此位是擋膠用(圖示中的位置是為擋膠)It is used to slow down the moldflow.41.此位會產生結合線Splite line will outcome here.42.此位會有包風There will be airtrap here.43.此膠位先填充頂部Moldflow will fill in the top first.44.此位有倒扣It’s undercut here.45.此處要做枕位It is should be shut-off here.46.此位模具強度不夠The tooling is lack of strength.47.建議取消此處圓角It suggests to cancle the rad angle.48.二次進膠點作搭接The second gate should be49.公母模靠破(碰穿)The cavity and core mold shut off.50.此位間隙太小The gap here is too narrow.51.此柱位容易粘模This boss is easy to stick mold.52.在此骨位上作扁頂針Ejector blade is on the rib.53.此骨位太深,建議加大拔模角The rib is too deep so it suggests to enlarge the draft.54.此位要作排氣孔Here should be an air-vent hole.。
模具常用中英文对照
DFM常用中英文对照15、如果分型面此处，模具上会有尖角和刀口，对模具寿命有影响。
There are sharp edges if we set the parting line here, it will reduce the tool life.16、此处料厚段差很大，成品表面会有应力痕，建议修改如图示。
The thickness is not equal and it will bring the stress lines on the surface, suggest to improve the part as the picture shown.17、此大行位上有小行位，开模时小行位需先退，大行位做延时，合模时则相反。
The small slider is inside the big slider, when the mold open, the small slider need to recede first and the big. slider have to postpone. When the mold close, it is contrary.13、此处需做强顶。
This position need to force ejection.19、由于此处没有足够空间下热咀，所以需做一个柱子进胶。
This position need to make a pole for gating because there have no enough space for hot sprue. 20、沾模Stick1.High shrinkage values could indicate sink marks or voids at gate location高缩水率的产品容易产生缩印,但在浇口附近可以避免。
2.Welding line on the cosmetic surface 熔接线在外表面3. Two banana gate was to being confluent in the end of melt flow两个香蕉浇口在流动未端熔合。
模具DFM常用中英文对照 (2)
DFM常用中英文对照15、如果分型面此处，模具上会有尖角和刀口，对模具寿命有影响。
There are sharp edges if we set the parting line here, it will reduce the tool life.16、此处料厚段差很大，成品表面会有应力痕，建议修改如图示。
The thickness is not equal and it will bring the stress lines on the surface, suggest to improve the part as the picture shown.17、此大行位上有小行位，开模时小行位需先退，大行位做延时，合模时则相反。
The small slider is inside the big slider, when the mold open, the smallslider need to recede first and the big slider have to postpone. When the mold close, it is contrary.18、此处需做强顶。
This position need to force ejection.19、由于此处没有足够空间下热咀，所以需做一个柱子进胶。
This position need to make a pole for gating because there have noenough space for hot sprue.20、沾模，Stick1.High shrinkage values could indicate sink marks or voids at gate location 高缩水率的产品容易产生缩印，但在浇口附近可以避免。
2.Welding line on the cosmetic surface 熔接线在外表面3.Two banana gate was to being confluent in the end of melt flow. 两个香蕉浇口在流动未端熔合。
塑胶模具常用DFM 英语
1.这个红色面在前模方向/后模方向/行位方向有倒扣。
This red surface is undercut at cavity side / core side / slider side.2、这些红色面在前模方向/后模方向/行位方向有倒扣。
These red surfaces are undercut at cavity side / core side / slider side.3、产品的这个位置太小，导致模具在前模方向/后模方向/行位方向有薄钢位。
This position is too small and it will bring the thin steel at cavity side / core side / slider side.4、这些红色线是前后模/镶件/行位/斜顶分型线。
These red lines are the parting line of cavity and core / insert / slider / lifter.5、此产品使用推板/推块顶出。
Use the stripper plate / ejector block to eject this part.6、前模/后模斜内行位。
Inner angle slider at cavity / core side.7、为了简化模具结构建议改变此处出模方向。
Suggest to change the draft direction of this position to make the mold structure simply.8、最终的进胶位置根据模流分析。
Finally gate position according the mold flow analysis.9、斜顶与后面的柱位空间太小，斜顶在运动时会干涉到柱子，请考虑移动这个柱子的位置。
This lifter intervene with the pole during ejection, please consider changing the position of the pole.10、此处有薄钢位，强度不足而且不容易冷却。
模具专业单词(中英文对照)
模具专业单词模具工程常用词汇die 模具figure file, chart file图档cutting die, blanking die冲裁模progressive die, follow (-on)die 连续模compound die复合模punched hole冲孔panel board镶块to cutedges=side cut=side scrap切边to bending折弯to pull, to stretch拉伸Line streching, line pulling线拉伸engraving, to engrave刻印upsiding down edges翻边to stake铆合design modification设计变化die block模块folded block折弯块sliding block滑块location pin定位销lifting pin顶料销die plate, front board模板adding block垫块stepping bar垫条upper die base上模座lower die base下模座upper supporting blank上承板upper padding plate blank上垫板spare dies模具备品spring 弹簧bolt螺栓plate电镀mold成型material for engineering mold testing工程试模材料not included in physical inventory不列入盘点incoming material to be inspected进货待验PCE assembly production schedule sheet PCE组装厂生产排配表model机锺work order工令revision版次production control confirmation生产确认checked by初审approved by核准stock age analysis sheet库存货龄分析表on-hand inventory现有库存available material良品可使用obsolete material良品已呆滞to be inspected or reworked 待验或重工cause description原因说明part number/ P/N 料号item/group/class类别prepared by制表year-end physical inventory difference analysis sheet 年终盘点差异分析表physical inventory盘点数量physical count quantity帐面数量difference quantity差异量good product/accepted goods/ accepted parts/good parts良品defective product/non-good parts不良品disposed goods处理品on way location在途仓oversea location海外仓spare parts physical inventory list备品盘点清单spare molds location模具备品仓skid/pallet栈板tox machine自铆机wire EDM线割EDM放电机coil stock卷料sheet stock片料tolerance工差score=groove压线cam block滑块pilot导正筒trim剪外边pierce剪内边drag form压锻差pocket for the punch head挂钩槽slug hole废料孔feature die公母模expansion dwg展开图radius半径shim(wedge)楔子torch-flame cut火焰切割set screw止付螺丝form block折刀stop pin定位销round pierce punch=die button圆冲子shape punch=die insert异形子stock locater block定位块under cut=scrap chopper清角active plate活动板baffle plate挡块cover plate盖板male die公模female die母模groove punch压线冲子air-cushion eject-rod气垫顶杆spring-box eject-plate弹簧箱顶板bushing block衬套insert 入块capability能力parameter参数factor系数phosphate皮膜化成viscosity涂料粘度alkalidipping脱脂main manifold主集流脉bezel斜视规blanking穿落模dejecting顶固模demagnetization去磁;消磁high-speed transmission高速传递heat dissipation热传rack上料degrease脱脂rinse水洗alkaline etch龄咬desmut剥黑膜D.I. rinse纯水次Chromate铬酸处理Anodize阳性处理seal封孔revision版次part number/P/N料号good products良品scraped products报放心品defective products不良品finished products成品disposed products处理品barcode条码flow chart流程表单assembly组装stamping冲压molding成型spare parts=buffer备品coordinate座标dismantle the die折模auxiliary fuction辅助功能poly-line多义线heater band 加热片thermocouple热电偶sand blasting喷沙grit 砂砾derusting machine除锈机degate打浇口dryer烘干机induction感应induction light感应光response=reaction=interaction感应ram连杆edge finder巡边器concave凸convex凹short射料不足nick缺口speck瑕疵shine亮班splay 银纹gas mark焦痕delamination起鳞cold slug冷块blush 导色gouge沟槽;凿槽satin texture段面咬花witness line证示线patent专利grit沙砾granule=peuet=grain细粒grit maker抽粒机cushion缓冲magnalium镁铝合金magnesium镁金metal plate钣金lathe车mill锉plane刨grind磨drill铝boring镗blinster气泡fillet镶;嵌边through-hole form通孔形式voller pin formality滚针形式cam driver铡楔shank摸柄crank shaft曲柄轴augular offset角度偏差velocity速度production tempo生产进度现状torque扭矩spline=the multiple keys花键quenching淬火tempering回火annealing退火arbonization碳化alloy合金tungsten high speed steel钨高速的moly high speed steel钼高速的organic solvent有机溶剂bracket小磁导liaison联络单volatile挥发性resistance电阻ion离子titrator滴定仪beacon警示灯coolant冷却液crusher破碎机模具工程类plain die简易模pierce die冲孔模forming die成型模progressive die连续模gang dies复合模shearing die剪边模riveting die铆合模pierce冲孔forming成型(抽凸,冲凸)draw hole抽孔bending折弯trim切边emboss凸点dome凸圆semi-shearing半剪stamp mark冲记号deburr or coin压毛边punch riveting冲压铆合side stretch侧冲压平reel stretch卷圆压平groove压线blanking下料stamp letter冲字(料号)shearing剪断tick-mark nearside正面压印tick-mark farside反面压印冲压名称类extension dwg展开图procedure dwg工程图die structure dwg模具结构图material材质material thickness料片厚度press specification冲床规格die height range适用模高die height闭模高度burr毛边gap间隙punch wt.上模重量五金零件类inner guiding post内导柱inner hexagon screw内六角螺钉dowel pin固定销coil spring弹簧lifter pin顶料销eq-height sleeves=spool等高套筒pin销lifter guide pin浮升导料销guide pin导正销wire spring圆线弹簧outer guiding post外导柱stop screw止付螺丝located pin定位销outer bush外导套模板类top plate上托板（顶板）top block上垫脚punch set上模座punch pad上垫板punch holder上夹板stripper pad脱料背板up stripper上脱料板male die公模(凸模)feature die公母模female die母模(凹模)upper plate上模板lower plate下模板die pad下垫板die holder下夹板die set下模座bottom block下垫脚bottom plate下托板(底板)stripping plate内外打(脱料板)outer stripper外脱料板inner stripper内脱料板lower stripper下脱料板零件类punch冲头insert入块(嵌入件)deburring punch压毛边冲子roove punch压线冲子stamped punch字模冲子round punch圆冲子ecial shape punch异形冲子bending block折刀roller滚轴baffle plate挡块ocated block定位块supporting block for location 定位支承块air cushion plate气垫板air-cushion eject-rod气垫顶杆trimming punch切边冲子stiffening rib punch = stinger 加强筋冲子ribbon punch压筋冲子reel-stretch punch卷圆压平冲子guide plate定位板sliding block滑块sliding dowel block滑块固定块active plate活动板lower sliding plate下滑块板upper holder block上压块upper mid plate上中间板spring box弹簧箱spring-box eject-rod弹簧箱顶杆spring-box eject-plate弹簧箱顶板bushing bolck衬套cover plate盖板guide pad导料块塑件&模具相关英文compre sion molding压缩成型flash mold溢流式模具plsitive mold挤压式模具split mold分割式模具cavity型控母模core模心公模taper锥拔leather cloak仿皮革shiver饰纹flow mark流痕welding mark溶合痕post screw insert螺纹套筒埋值self tapping screw自攻螺丝striper plate脱料板piston活塞cylinder汽缸套chip细碎物handle mold手持式模具（移转成型用模具）encapsulation molding低压封装成型（射出成型用模具）two plate两极式（模具）well type蓄料井insulated runner绝缘浇道方式hot runner热浇道runner plat浇道模块valve gate阀门浇口band heater环带状的电热器spindle阀针spear head刨尖头slag well冷料井cold slag冷料渣air vent排气道welding line熔合痕eject pin顶出针knock pin顶出销return pin回位销反顶针sleave套筒stripper plate脱料板insert core放置入子runner stripper plate浇道脱料板guide pin导销eject rod (bar)（成型机）顶业捧subzero深冷处理three plate三极式模具runner system浇道系统stress crack应力电裂orientation定向sprue gate射料浇口，直浇口nozzle射嘴sprue lock pin料头钩销(拉料杆) slag well冷料井side gate侧浇口edge gate侧缘浇口tab gate搭接浇口film gate薄膜浇口flash gate闸门浇口slit gate缝隙浇口fan gate扇形浇口dish gate因盘形浇口diaphragm gate隔膜浇口ring gate环形浇口subarine gate潜入式浇口tunnel gate隧道式浇口pin gate针点浇口Runner less无浇道(sprue less)无射料管方式long nozzle延长喷嘴方式sprue浇口;溶渣各种模具常用成形方式accurate die casting 精密压铸powder forming 粉末成形calendaring molding 压延成形powder metal forging 粉末锻造cold chamber die casting 冷式压铸precision forging 精密锻造cold forging 冷锻press forging 冲锻compacting molding 粉末压出成形rocking die forging 摇动锻造compound molding 复合成形rotary forging 回转锻造compression molding 压缩成形rotational molding 离心成形dip mold 浸渍成形rubber molding 橡胶成形encapsulation molding 注入成形sand mold casting 砂模铸造extrusion molding 挤出成形shell casting 壳模铸造foam forming 泡沫成形sinter forging 烧结锻造forging roll 轧锻six sides forging 六面锻造gravity casting 重力铸造slush molding 凝塑成形hollow(blow)molding 中空(吹出)成形squeeze casting 高压铸造hot chamber die casting 热室压铸swaging 挤锻hot forging 热锻transfer molding 转送成形injection molding 射出成形warm forging 温锻investment casting 精密铸造matched die method 对模成形法laminating method 被覆淋膜成形low pressure casting 低压铸造lost wax casting 脱蜡铸造matched mould thermal forming 对模热成形模各式模具分类用语bismuth mold 铋铸模landed plunger mold 有肩柱塞式模具burnishing die 挤光模landed positive mold 有肩全压式模具button die 镶入式圆形凹模loading shoe mold 料套式模具center-gated mold 中心浇口式模具loose detail mold 活零件模具chill mold 冷硬用铸模loose mold 活动式模具clod hobbing 冷挤压制模louvering die 百叶窗冲切模composite dies 复合模具manifold die 分歧管模具counter punch 反凸模modular mold 组合式模具double stack mold 双层模具multi-cavity mold 多模穴模具electroformed mold 电铸成形模multi-gate mold 复式浇口模具expander die 扩径模offswt bending die 双折冷弯模具extrusion die 挤出模palletizing die 叠层模family mold 反套制品模具plaster mold 石膏模blank through dies 漏件式落料模porous mold 通气性模具duplicated cavity plate 复板模positive mold 全压式模具fantail die 扇尾形模具pressure die 压紧模fishtail die 鱼尾形模具profile die 轮廓模flash mold 溢料式模具progressive die 顺序模gypsum mold 石膏铸模protable mold 手提式模具hot-runner mold 热流道模具prototype mold 雏形试验模具ingot mold 钢锭模punching die 落料模lancing die 切口模raising(embossing) 压花起伏成形re-entrant mold 倒角式模具sectional die 拼合模runless injection mold 无流道冷料模具sectional die 对合模具segment mold 组合模semi-positive mold 半全压式模具shaper 定型模套single cavity mold 单腔模具solid forging die 整体锻模split forging die 拼合锻模split mold 双并式模具sprueless mold 无注道残料模具squeezing die 挤压模stretch form die 拉伸成形模sweeping mold 平刮铸模swing die 振动模具three plates mold 三片式模具trimming die 切边模unit mold 单元式模具universal mold 通用模具unscrewing mold 退扣式模具yoke type die 轭型模模具厂常用之标准零配件air vent vale 通气阀anchor pin 锚梢angular pin 角梢baffle 调节阻板angular pin 倾斜梢baffle plate 折流档板ball button 球塞套ball plunger 定位球塞ball slider 球塞滑块binder plate 压板blank holder 防皱压板blanking die 落料冲头bolster 上下模板bottom board 浇注底板bolster 垫板bottom plate 下固定板bracket 托架bumper block 缓冲块buster 堵口casting ladle 浇注包casting lug 铸耳cavity 模穴(模仁)cavity retainer plate 模穴托板center pin 中心梢clamping block 锁定块coil spring 螺旋弹簧cold punched nut 冷冲螺母cooling spiral 螺旋冷却栓core 心型core pin 心型梢cotter 开口梢cross 十字接头cushion pin 缓冲梢diaphragm gate 盘形浇口die approach 模头料道die bed 型底die block 块形模体die body 铸模座die bush 合模衬套die button 冲模母模die clamper 夹模器die fastener 模具固定用零件die holder 母模固定板die lip 模唇die plate 冲模板die set 冲压模座direct gate 直接浇口dog chuck 爪牙夹头dowel 定位梢dowel hole 导套孔dowel pin 合模梢ozzle 辅助浇口dowel pin 定位梢draft 拔模锥度draw bead 张力调整杆drive bearing 传动轴承ejection pad 顶出衬垫ejector 脱模器ejector guide pin 顶出导梢ejector leader busher 顶出导梢衬套ejector pad 顶出垫ejector pin 顶出梢ejector plate 顶出板ejector rod 顶出杆ejector sleeve 顶出衬套ejector valve 顶出阀eye bolt 环首螺栓filling core 椿入蕊film gate 薄膜形浇口finger pin 指形梢finish machined plate 角形模板finish machined round plate 圆形模板fixed bolster plate 固定侧模板flanged pin 带凸缘销flash gate 毛边形浇口flask 上箱floating punch 浮动冲头gate 浇口gate land 浇口面gib 凹形拉紧楔goose neck 鹅颈管guide bushing 引导衬套guide pin 导梢guide post 引导柱guide plate 导板guide rail 导轨head punch 顶头冲孔headless punch 直柄冲头heavily tapered solid 整体模蕊盒hose nippler 管接头impact damper 缓冲器injection ram 压射柱塞inlay busher 嵌入衬套inner plunger 内柱塞inner punch 内冲头insert 嵌件insert pin 嵌件梢king pin 转向梢king pin bush 主梢衬套knockout bar 脱模杵land 合模平坦面land area 合模面leader busher 导梢衬套lifting pin 起模顶销lining 内衬locating center punch 定位中心冲头locating pilot pin 定位导梢locating ring 定位环lock block 压块locking block 定位块locking plate 定位板loose bush 活动衬套making die 打印冲子manifold block 歧管档块master plate 靠模样板match plate 分型板mold base 塑胶模座mold clamp 铸模紧固夹mold platen 模用板moving bolster 换模保持装置moving bolster plate 可动侧模板one piece casting 整体铸件parallel block 平行垫块paring line 分模线parting lock set 合模定位器pass guide 穴型导板peened head punch 镶入式冲头pilot pin 导销pin gate 针尖浇口plate 衬板pre extrusion punch 顶挤冲头punch 冲头puncher 推杆pusher pin 衬套梢rack 机架rapping rod 起模杆re-entrant mold 凹入模retainer pin 嵌件梢retainer plate 托料板return pin 回位梢riding stripper 浮动脱模器ring gate 环型浇口roller 滚筒runner 流道runner ejector set 流道顶出器runner lock pin 流道拉梢screw plug 头塞set screw 固定螺丝shedder 脱模装置shim 分隔片shoe 模座之上下模板shoot 流道shoulder bolt 肩部螺丝skeleton 骨架slag riser 冒渣口slide(slide core) 滑块slip joint 滑配接头spacer block 间隔块spacer ring 间隔环spider 模蕊支架spindle 主轴sprue 注道sprue bushing 注道衬套sprue bushing guide 注道导套sprue lock bushing 注道定位衬套sprue puller 注道拉料spue line 合模线square key 方键quare nut 方螺帽square thread 方螺纹stop collar 限位套stop pin 止动梢stop ring 止动环stopper 定位停止梢straight pin 圆柱销stripper bolt 脱料螺栓stripper bushing 脱模衬套stripper plate 剥料板stroke end block 行程止梢submarine gate 潜入式浇口support pillar 支撑支柱/顶出支柱support pin 支撑梢supporting plate 托板sweep templete 造模刮板tab gate 辅助浇口taper key 推拔键taper pin 拔锥梢/锥形梢teeming 浇注three start screw 三条螺纹thrust pin 推力销tie bar 拉杵tunnel gate 隧道形浇口vent 通气孔wortle plate 拉丝模板模具常用之工作机械3D coordinate measurement 三次元量床boring machine 搪孔机cnc milling machine CNC铣床contouring machine 轮廓锯床copy grinding machine 仿形磨床copy lathe 仿形车床copy milling machine 仿形铣床copy shaping machine 仿形刨床cylindrical grinding machine 外圆磨床die spotting machine 合模机drilling machine 冲孔机engraving machine 雕刻机engraving E.D.M. 雕模放置加工机form grinding machine 成形磨床graphite machine 石墨加工机horizontal boring machine 卧式搪孔机orizontal machine center 卧式加工制造中心internal cylindrical machine 内圆磨床jig boring machine 冶具搪孔机jig grinding machine 冶具磨床lap machine 研磨机machine center 加工制造中心multi model miller 靠磨铣床NC drilling machine NC钻床NC grinding machine NC磨床NC lathe NC车床NC programming system NC程式制作系统planer 龙门刨床profile grinding machine 投影磨床projection grinder 投影磨床radial drilling machine 旋臂钻床shaper 牛头刨床surface grinder 平面磨床try machine 试模机turret lathe 转塔车床universal tool grinding machine 万能工具磨床vertical machine center 立式加工制造中心wire E.D.M. 线割放电加工机模具钢材alloy tool steel 合金工具钢aluminium alloy 铝合金钢bearing alloy 轴承合金blister steel 浸碳钢bonderized steel sheet 邦德防蚀钢板carbon tool steel 碳素工具钢clad sheet 被覆板clod work die steel 冷锻模用钢emery 金钢砂ferrostatic pressure 钢铁水静压力forging die steel 锻造模用钢galvanized steel sheet 镀锌铁板hard alloy steel 超硬合金钢high speed tool steel 高速度工具钢hot work die steel 热锻模用钢ow alloy tool steel 特殊工具钢low manganese casting steel 低锰铸钢marging steel 马式体高强度热处理钢martrix alloy 马特里斯合金meehanite cast iron 米汉纳铸钢meehanite metal 米汉纳铁merchant iron 市售钢材molybdenum high speed steel 钼系高速钢molybdenum steel 钼钢nickel chromium steel 镍铬钢prehardened steel 顶硬钢silicon steel sheet 矽钢板stainless steel 不锈钢tin plated steel sheet 镀锡铁板tough pitch copper 韧铜troostite 吐粒散铁tungsten steel 钨钢vinyl tapped steel sheet 塑胶覆面钢板表面处理关连用语age hardening 时效硬化ageing 老化处理air hardening 气体硬化air patenting 空气韧化annealing 退火anode effect 阳极效应anodizing 阳极氧化处理atomloy treatment 阿托木洛伊表面austempering 奥氏体等温淬火austenite 奥斯田体/奥氏体bainite 贝氏体banded structure 条纹状组织barrel plating 滚镀barrel tumbling 滚筒打光blackening 染黑法blue shortness 青熟脆性bonderizing 磷酸盐皮膜处理box annealing 箱型退火box carburizing 封箱渗碳bright electroplating 辉面电镀bright heat treatment 光辉热处理bypass heat treatment 旁路热处理carbide 炭化物carburized case depth 浸碳硬化深层carburizing 渗碳cementite 炭化铁chemical plating 化学电镀chemical vapor deposition 化学蒸镀coarsening 结晶粒粗大化coating 涂布被覆cold shortness 低温脆性comemtite 渗碳体controlled atmosphere 大气热处理corner effect 锐角效应creeping discharge 蠕缓放电decarburization 脱碳处理decarburizing 脱碳退火depth of hardening 硬化深层diffusion 扩散diffusion annealing 扩散退火electrolytic hardening 电解淬火embossing 压花etching 表面蚀刻ferrite 肥粒铁first stage annealing 第一段退火flame hardening 火焰硬化flame treatment 火焰处理full annealing 完全退火gaseous cyaniding 气体氧化法globular cementite 球状炭化铁grain size 结晶粒度granolite treatment 磷酸溶液热处理graphitizing 石墨退火hardenability 硬化性hardenability curve 硬化性曲线hardening 硬化heat treatment 热处理hot bath quenching 热浴淬火hot dipping 热浸镀induction hardening 高周波硬化ion carbonitriding 离子渗碳氮化ion carburizing 离子渗碳处理ion plating 离子电镀isothermal annealing 等温退火liquid honing 液体喷砂法ow temperature annealing 低温退火malleablizing 可锻化退火martempering 麻回火处理martensite 马氏体/硬化铁炭metallikon 金属喷镀法metallizing 真空涂膜nitriding 氮化处理nitrocarburizing 软氮化normalizing 正常化oil quenching 油淬化overageing 过老化overheating 过热pearlite 针尖组织phosphating 磷酸盐皮膜处理physical vapor deposition 物理蒸镀plasma nitriding 离子氮化pre-annealing 预备退火precipitation 析出precipitation hardening 析出硬化press quenching 加压硬化process annealing 制程退火quench ageing 淬火老化quench hardening 淬火quenching crack 淬火裂痕quenching distortion 淬火变形quenching stress 淬火应力reconditioning 再调质recrystallization 再结晶red shortness 红热脆性residual stress 残留应力retained austenite 残留奥rust prevention 防蚀salt bath quenching 盐浴淬火sand blast 喷砂处理seasoning 时效处理second stage annealing 第二段退火secular distortion 经年变形segregation 偏析selective hardening 部分淬火shot blast 喷丸处理shot peening 珠击法ingle stage nitriding 等温渗氮sintering 烧结处理soaking 均热处理softening 软化退火solution treatment 固溶化热处理spheroidizing 球状化退火stabilizing treatment 安定化处理straightening annealing 矫直退火strain ageing 应变老化stress relieving annealing 应力消除退火subzero treatment 生冷处理supercooling 过冷surface hardening 表面硬化处理temper brittleness 回火脆性temper colour 回火颜色tempering 回火tempering crack 回火裂痕texture 咬花thermal refining 调质处理thermoechanical treatment 加工热处理time quenching 时间淬火transformation 变态tufftride process 软氮化处理under annealing 不完全退火vacuum carbonitriding 真空渗碳氮化vacuum carburizing 真空渗碳处理vacuum hardening 真空淬火vacuum heat treatment 真空热处理vacuum nitriding 真空氮化water quenching 水淬火wetout 浸润处理射出成形关联用语activator 活化剂bag moulding 气胎施压成形bonding strength 黏合强度breathing 排气caulking compound 填隙料cell 气孔cold slug 半凝式射出colorant 著色剂color matching 调色color masterbatch 色母料compound 混合料copolymer 共聚合体cull 残料废品cure 凝固化cryptometer 不透明度仪daylight 开隙dry cycle time 空料试车周期时间ductility 延性elastomer 弹性体extruded bead sealing 压出粒涂层法feed 供料filler 充填剂film blowing 薄膜吹制法floating platen 活动模板foaming agent 发泡剂gloss 光泽granule 颗粒料gunk 料斗hot mark 热斑hot stamping 烫印injection nozzle 射出喷嘴injection plunger 射出柱塞injection ram 射出冲柱isomer 同分异构物kneader 混合机leveling agent 匀涂剂lubricant 润滑剂matched die method 配合成形法mould clamping force 锁模力mould release agent 脱模剂nozzle 喷嘴oriented film 取向薄膜parison 吹气成形坏料pellet 粒料plasticizer 可塑剂plunger 压料柱塞porosity 孔隙率post cure 後固化premix 预混料purging 清除reciprocating screw 往复螺杆resilience 回弹性resin injection 树脂射出法rheology 流变学sheet 塑胶片shot 注射shot cycle 射出循环slip agent 光滑剂take out device 取料装置tie bar 拉杆toggle type mould clamping system 肘杆式锁模装置torpedo spreader 鱼雷形分流板transparency 透明性void content 空洞率塑胶原料acrylic 压克力casein 酪素cellulose acetate 醋酸纤维素CA cellulose acetate butyrate 醋酸丁酸纤维素CAB composite material 复合材料cresol resin 甲酚树脂CF dially phthalate 苯二甲酸二烯丙酯disperse reinforcement 分散性强化复合材料engineering plastics 工程塑胶epoxy resin 环氧树脂EP ethyl cellulose 乙基纤维素ethylene vinylacetate copolymer 乙烯-醋酸乙烯EVA ethylene-vinlacetate copolyme 醋酸乙烯共聚物EVA fiber reinforcement 纤维强化热固性/纤维强化复合材料high density polyethylene 高密度聚乙烯HDPE high impact polystyrene 高冲击聚苯乙烯HIPS high impact polystyrene rigidity 高冲击性聚苯乙烯low density polyethylene 低密度聚乙烯LDPE melamine resin 三聚氰胺酚醛树脂MF nitrocellulose 硝酸纤维素phenolic resin 酚醛树脂plastic 塑胶polyacrylic acid 聚丙烯酸PAP polyamide 耐龙PA polybutyleneterephthalate 聚对苯二甲酸丁酯PBT polycarbonate 聚碳酸酯PC polyethyleneglycol 聚乙二醇PFG polyethyleneoxide 聚氧化乙烯PEO polyethyleneterephthalate 聚乙醇对苯PETP polymetylmethacrylate 聚甲基丙烯酸甲酯PMMA polyoxymethylene 聚缩醛POM polyphenylene oxide 聚硫化亚苯polyphenyleneoxide 聚苯醚PPO polypropylene 聚丙烯PP polystyrene 聚苯乙烯PS polytetrafluoroethylene 聚四氟乙烯PTFE polytetrafluoroethylene 聚四氟乙烯polythene 聚乙烯PEpolyurethane 聚氨基甲酸酯PU polyvinylacetate 聚醋酸乙烯PVAC polyvinylalcohol 聚乙烯醇PVA polyvinylbutyral 聚乙烯醇缩丁醛PVB polyvinylchloride 聚氯乙烯PVC polyvinylfuoride 聚氟乙烯PVF polyvinylidenechloride 聚偏二氯乙烯PVDC prepolymer 预聚物silicone resin 矽树脂thermoplastic 热塑性thermosetting 热固性thermosetting plastic 塑胶unsaturated polyester 不饱和聚酯树脂成形不良用语aberration 色差bite 咬入blacking hole 涂料孔(铸疵)blacking scab 涂料疤blister 起泡blooming 起霜blow hole 破孔blushing 泛白body wrinkle 侧壁皱纹reaking-in 冒口带肉bubble 膜泡burn mark 糊斑burr 毛边camber 翘曲cell 气泡center buckle 表面中部波皱check 细裂痕checking 龟裂chipping 修整表面缺陷clamp-off 铸件凹痕collapse 塌陷color mottle 色斑corrosion 腐蚀crack 裂痕crazing 碎裂crazing 龟裂deformation 变形edge 切边碎片edge crack 裂边fading 退色filler speak 填充料斑fissure 裂纹flange wrinkle 凸缘起皱flaw 刮伤flow mark 流痕galling 毛边glazing 光滑gloss 光泽grease pits 污斑grinding defect 磨痕haircrack 发裂haze 雾度incrustation 水锈indentation 压痕internal porosity 内部气孔mismatch 偏模mottle 斑点necking 缩颈nick 割痕range peel 橘皮状表面缺陷overflow 溢流peeling 剥离pit 坑pitting corrosion 点状腐蚀plate mark 模板印痕pock 麻点pock mark 痘斑resin streak 树脂流纹resin wear 树脂脱落riding 凹陷sagging 松垂saponification 皂化scar 疤痕scrap 废料scrap jam 废料阻塞scratch 刮伤/划痕scuffing 深冲表面划伤seam 裂痕shock line 模口挤痕short shot 充填不足shrinkage pool 凹孔sink mark 凹痕skin inclusion 表皮摺叠straightening 矫直streak 条状痕surface check 表面裂痕surface roughening 橘皮状表皮皱摺surging 波动torsion 扭曲warpage 翘曲waviness 波痕webbing 熔塌weld mark 焊痕whitening 白化wrinkle 皱纹模具常用刀具工作法用语adjustable spanner 活动扳手angle cutter 角铣刀arbour 心轴backing 衬垫belt sander 带式打磨机buffing 抛光chamfering machine 倒角机chamfering tool 去角刀具chisel 扁錾chuck 夹具compass 两角规concave cutter 凹面铣刀convex cutter 凸形铣刀cross joint 十字接头cutting edge clearance 刃口余隙角drill stand 钻台edge file 刃用锉刀file 锉刀flange joint 凸缘接头grinder 砂轮机hammer 铁锤hand brace 手摇钻hatching 剖面线hexagon headed bolt 六角头螺栓hexagon nut 六角螺帽index head 分度头jack 千斤顶jig 治具kit 工具箱lapping 研磨metal saw 金工锯nose angle 刀角pinchers 钳子pliers 铗钳plug 柱塞头polisher 磨光器protable driller 手提钻孔机punch 冲头sand paper 砂纸scraper 刮刀screw driver 螺丝起子scribing 划线second out file 中纹锉spanner 扳手spline broach 方栓槽拉刀square 直角尺square sleeker 方形镘刀square trowel 直角度stripping 剥离工具T-slot T形槽tool for lathe 车刀tool point angle 刀刃角tool post 刀架tosecan 划线盘trimming 去毛边waffle die flattening 压纹效平wiper 脱模钳wrench 螺旋扳手各种冲模加工关连用语barreling 滚光加工belling 压凸加工bending 弯曲加工blanking 下料加工bulging 撑压加工burring 冲缘加工cam die bending 凸轮弯曲加工coining 压印加工compressing 压缩加工compression bending 押弯曲加工crowning 凸面加工curl bending 卷边弯曲加工curling 卷曲加工cutting 切削加工dinking 切断蕊骨double shearing 叠板裁断drawing 引伸加工drawing with ironing 抽引光滑加工embossing 浮花压制加工extrusion 挤制加工filing 锉削加工fine blanking 精密下料加工finish blanking 光制下料加工finishing 精整加工flanging 凸缘加工folding 折边弯曲加工folding 摺叠加工forming 成形加工impact extrusion 冲击挤压加工indenting 压痕加工ironing 引缩加工knurling 滚花lock seaming 固定接合louvering 百叶窗板加工marking 刻印加工necking 颈缩加工notching 冲口加工parting 分断加工piercing 冲孔加工progressive bending 连续弯曲加工progressive blanking 连续下料加工progressive drawing 连续引伸加工progressive forming 连续成形加工reaming 铰孔加工restriking 二次精冲加工riveting 铆接加工roll bending 滚筒弯曲加工roll finishing 滚压加工rolling 压延加工roughing 粗加工scrapless machining 无废料加工seaming 折弯重叠加工shaving 缺口修整加工shearing 切断加工sizing 精压加工/矫正加工slitting 割缝加工spinning 卷边?接stamping 锻压加工swaging 挤锻压加工trimming 整缘加工upsetting 锻粗加工wiring 抽线加工冲压机械及周边关连用语ack shaft 支撑轴blank determination 胚料展开bottom slide press 下传动式压力机board drop hammer 板落锤brake 煞车buckle 剥砂面camlachie cramp 铸包chamotte sand 烧磨砂charging hopper 加料漏斗clearance 间隙closed-die forging 合模锻造clump 夹紧clutch 离合器clutch brake 离合器制动器clutch boss 离合器轮壳clutch lining 离合器覆盖coil car 带卷升降运输机coil cradle 卷材进料装置coil reel stand 钢材卷料架column 圆柱connection screw 连杆调节螺钉core compound 砂心黏结剂counter blow hammer 对击锻锤cradle 送料架crank 曲柄轴crankless 无曲柄式cross crank 横向曲轴cushion 缓冲depression 外缩凹孔dial feed 分度送料die approach 模口角度die assembly 合模die cushion 模具缓冲垫die height 冲压闭合高度die life 模具寿命die opening 母模逃孔die spotting press 调整冲模用压力机double crank press 双曲柄轴冲床draght angle 逃料倾斜角edging 边锻伸embedded core 加装砂心feed length 送料长度feed level 送料高度filling core 埋入砂心filling in 填砂film play 液面花纹fine blanking press 精密下料冲床forging roll 辊锻机finishing slag 炼後熔渣fly wheel 飞轮fly wheel brake 飞轮制动器foot press 脚踏冲床formboard 进模口板frame 床身机架friction 摩擦friction brake 摩擦煞车gap shear 凹口剪床gear 齿轮gib 滑块引导部gripper 夹具gripper feed 夹持进料gripper feeder 夹紧传送装置hammer 槌机hand press 手动冲床hand rack pinion press 手动齿轮齿条式冲床hand screw press 手动螺旋式冲床hopper feed 料斗送料idle stage 空站inching 微调尺寸isothermal forging 恒温锻造key clutch 键槽离合器knockout 脱模装置knuckle mechanic 转向机构land 模具直线刀面部loader 供料器unloader 卸料机loop controller 闭回路控制器lower die 下模micro inching device 微寸动装置microinching equipment 微动装置moving bolster 活动工作台notching press 冲缺口压力机opening 排料逃孔overload protection device 防超载装置pinch roll 导正滚轮pinion 小齿轮pitch 节距pressfit 压入progressive 连续送料pusher feed 推杆式送料pusher feeder 料片押片装置quick die change system 快速换模系统regrinding 再次研磨releasing 松释动作reversed blanking 反转下料robot 机器人roll forming machine 辊轧成形roll forming machine 辊轧成形机roll release 脱辊roller feed 辊式送料roller leveler 辊式矫直机rotary bender 卷弯成形机safety guard 安全保护装置scrap cutter 废料切刀scrap press 废料冲床seamless forging 无缝锻造shave 崩砂shear angle 剪角sheet loader 薄板装料机shot 单行程工作shrinkage fit 收缩配合shut height 闭合高度sieve mesh 筛孔sintering of sand 铸砂烧贴slide balancer 滑动平衡器slug hole 逃料孔spin forming machine 旋压成形机spotting 合模stack feeder 堆叠拨送料机stickness 黏模性straight side frame 冲床侧板stretcher leveler 拉伸矫直机strip feeder 料材送料装置stripping pressure 弹出压力stroke 冲程take out device 取料装置toggle press 肘杆式压力机transfer feed 连续自动送料装置turrent punch press 转塔冲床two speed clutch 双速离合器uncoiler 闭卷送料机unloader 卸载机vibration feeder 振动送料机wiring press 嵌线卷边机线切割放电加工关连用语abnormal glow 不规则辉光放电arc discharge 电弧放电belt 皮带centreless 无心chrome bronze 铭铜clearance angle 後角corner shear drop 直角压陷deflection 桡曲度discharge energy 放电能量dressing 修整dwell 保压flange 凸缘gap 间隙graphite 石墨graphite contraction allowance 电极缩小余量graphite holder 电极夹座hair crack 发裂horn 电极臂jump 跳刀magnetic base 磁性座master graphite 标准电极pipe graphite 管状电极pulse 脉冲rib working 肋部加工roller electrode 滚轮式电极rotary surface 旋转面shank 柄部sharp edge 锐角部tough bronze 韧铜traverse 摇臂tungsten bronze 钨青铜waviness 波形起伏working allowance 加工余量working dischard 加工废料锻铸造关连用语accretion 炉瘤acid converter 酸性转炉acid lining cupola 酸性熔铁炉acid open-hearth furnace 酸性平炉aerator 松砂机air set mold 常温自硬铸模airless blasting cleaning 离心喷光all core molding 集合式铸模all round die holder 通用模座assembly mark 铸造合模记号back pouring 补浇注backing sand 背砂base bullion 粗金属锭base permeability 原砂透气度belling 压凸billet 坏料bleed 漏铸blocker 预锻模膛blocking 粗胚锻件。
Tooling Concept中英对照表DFM报告常用语
溢出。
remnant exceed the plane.
剪胶后残料在 0.3 mm 以内
The remnant after degating is within 0.3 mm.
Gate处建议成品减肉0.3MM(如上图所示)，避免残料
凸出成ቤተ መጻሕፍቲ ባይዱ。
Suggest to reduce 0.3mm part thickness at gate area to avoid remnant protrusion.
进胶点增肉0.3mm方便塑胶流动.
Make a dome in 0.3 mm height to increase flow ability.
此处需二次剪胶,所以建议"底座"相对位置作圆孔,以避 Secondary process for degating is required. Suggest a dimple at the related
Degating after molding is required due to pin gate design. Secondary process for degating is required. Trim in 2nd operation
需二次剪胶加工,建议容许铣胶深度 0.1MM,避免影响 Secondary process for degating is required. Suggest to allow 0.1 mm depth for
如果浇口在这里,成品脆弱处会有会胶线.有必要更改进 There will be weld line at part weakness area if the gate locate here. It is necessary
模具常用中英文对照
模具常用中英文对照DFM常用中英文对照15、如果分型面此处，模具上会有尖角和刀口，对模具寿命有影响。
There are sharp edges if we set the parting line here, it will reduce the tool life.16、此处料厚段差很大，成品表面会有应力痕，建议修改如图示。
The thickness is not equal and it will bring the stress lines on the surface, suggest to improve the part as the picture shown.17、此大行位上有小行位，开模时小行位需先退，大行位做延时，合模时则相反。
The small slider is inside the big slider, when the mold open, the small slider need to recede first and the big. slider have to postpone. When the mold close, it is contrary.13、此处需做强顶。
This position need to force ejection.19、由于此处没有足够空间下热咀，所以需做一个柱子进胶。
This position need to make a pole for gating because there have no enough space for hot sprue. 20、沾模Stick1.High shrinkage values could indicate sink marks or voids at gate location高缩水率的产品容易产生缩印,但在浇口附近可以避免。
2.Welding line on the cosmetic surface 熔接线在外表面3. Two banana gate was to being confluent in the end of melt flow两个香蕉浇口在流动未端熔合。
模具常用语中英文对照
种类中文名称英文名称中文名称英文名称模具种类连续模Progressive die 冲孔模Pierce die 机械手Transfer die 剪边模Trimming die 手动机械手Hand transfer die 下料模Blanking die 单工程模Single die 成形模Forming die 铸造结构模Cast die 折弯模Bending die 简易模Prototype die 围边模Flange die 铆合模Riveting die 拉伸模Draw die 复合模Compound die 快换模Changeable die工序类料带strip 料带图strip layout 工序process 冲导正孔pilot pierce 冲孔pierce 侧冲cam pierce 切边notch 切侧刃notch french 折弯bend 墩薄coin成形form 侧成形cam form 整形restrike 围边flange打凸米boss / dimple 打凸包emboss打字印stamp 打沙拉孔hourglass 面押coin burr 抽孔extrude hole 拍平flat 卷圆curl种类中文名称英文名称中文名称英文名称工序类旋转rotate 铆接rivet产品切边线trim line 铆螺母stake nut 切断cutoff 接刀口mismatch 料带带料处carrier tab 毛刺方向burr direction 压线groove 下料blanking模板类上托板top plate 下托板bottom plate 上垫脚upper parallel 下垫脚lower parallel 上模座upper die set 下模座lower die set 上垫板punch backup 下垫板lower backup 上夹板punch holder 下夹板die holder 上脱料板stripper 下模板die plate 冲头punch 凹模die零件类浮块lifter 浮料板lifter plate 成型公form punch 压料块pressure pad 切边冲头trim punch 刀口trim steel 沉头孔counter bore 冲孔入子button 顶针kick off / ejector 废料切断刀slug breaker 成型凹模forming die 整形公restrike punch 导尺rail 导尺顶杆lifter bolt 导料板rail plate 镶件/入子insert侧冲组件cam 滑块slide滑块上油槽oil groove 铲机driver码模槽mounting slot 储运块storage block 限位柱stop block 起吊孔handing hole 起吊环eyebolt 靠块heel脱料拉杆spool 模座导正块thrust heel种类中文名称英文名称中文名称英文名称零件类耐磨片wear plate 垫片shim压块keeper 初始管位first start pin键槽key slot 键key氮气弹簧nitrogen spring 螺旋弹簧coil spring聚氨酯弹簧urethane导柱guide post 导套guide bushing 插针pilot pin插针套pilot bushing 侧刃french传感器sensor 销dowel螺丝screw 拔牙jackscrew垫圈washer 盲销blind dowel压毛边冲头deburring punch 挡块stopping plate压线冲头groove punch 定位块location block字模冲头stamp punch 圆冲头round punch压筋冲头ribbon punch 气垫板air cushion plate 异形冲头special shape punch 气垫顶杆air-cushion eject-rod 切边冲头trimming punch 上压块pressure block加强筋冲头stiffening rib punch 弹簧箱spring box 定位板guide plate 弹簧箱顶杆spring-box eject-rod 压边圈binder 弹簧箱顶板spring-box eject-plate公差类公差tolerance 公差范围tolerance range 上公差upper tolerance 下公差lower tolerance 公差+/- 0.05 plus minus 0.05 形位公差图GD&T 平面度flatness 直线度Straightness 倾斜度angularity 垂直度perpendicularity 平行度parallelism 圆度roundness种类中文名称英文名称中文名称英文名称公圆柱度cylindricity 面轮廓度surface profile差类线轮廓度line profile 位置度true position 同轴度concentricity 对称度symmetry 圆跳动runout 全跳动total runout 尺寸dimension 角度值angle degree 尺寸全检报告dimensional layout 三次元尺寸报告CMM report冲床相关机械冲床mechanical press 油压机hydraulic press 吨位tonnage 行程stroke / travel 冲床上台面ram 冲床下台面bolster冲床台面布置图press layout 冲床上的快速对正QDC 冲床气垫air cushion 码仔stirrup 闭合高度shut height T型槽T-slot送料机feeder 送料高度feeding height工具卡尺caliper 千分尺micrometer 直尺ruler 高度尺height gage 丝攻screw tap 起子screwdriver 拨牙器jacker 扳手wrench风磨机hand grinder 油石oil stone加工类开料cutting material 钻drill (DR) 攻牙tap 铰ream铣mill 车lathe电脑锣NC mill 线切割wire cutting(W/C) 磨grind 刨planer电火花EDM 镭射laser cutting 倒角chamfer xx的精加工finish XX真空热处理vacuum heattreatment镀钛TD coating 退磁demagnetization 烧焊weld4.1.2 加工说明对照表：加工说明Machining Note注:有0.00的地方为数据填入处外导套OUTER GUIDE BUISHING 起吊杆HANDING PIN实数铣通MILL THRU 正反两面各铣TOP SIDE AND OPP SIDE MILLX:-￠0.00（氮气弹弓过孔，锣穿）单+0.00X:-￠0.00 (DR.THRU FOR GAS SPRING) S+0.00X:-￠0.00（氮气弹弓沉头，正面CNC单+0.00,锣深0.00.)X:-￠0.00 ( CNC C'BORE TOP SIDE FOR GAS SPRING, S+0.00, DP0.00)X:-￠0.00（氮气弹弓沉头，反面CNC单+0.00,锣深0.00.)X:-￠0.00 (CNC C'BORE OPP SIDE FOR GAS SPRING, S+0.00, DP0.00)X:-￠0.00（合销孔,铰)X:-￠0.00 (REAM FOR DOWEL)X:-￠0.00（合销孔,割)单+0.00X:-￠0.00 (W/C FOR DOWEL) S+0.00(正面沉头￠0.00*0.00深,内攻M0.00*1.5牙)(￠0.00*0.00 C'BORE DP0.00 TOP SIDE, TAP M0.00*1.5 THR)(反面沉头￠0.00*0.00深,内攻M0.00*1.5牙)(￠0.00*0.00 C'BORE DP.0.00 OPP. SIDE, TAP M0.00*1.5 THR)X:-￠0.00（合销孔,钻穿)X:-￠0.00 (DR.THRU FOR DOWEL)X:-￠0.00（一般孔,钻穿)X:-￠0.00 (DR.THRU HL)X:-￠0.00（穿丝孔,钻穿)X:-￠0.00 (DR.THRU FOR WEDM S.H.)X:-￠0.00（漏油孔,钻穿) 按向视图加工X:-￠0.00 (DR.THRU FOR DRAIN HL) ACCORDING VIEW DRAWING TO MACHINING X:-（漏油槽,反面CNC单+0.00,锣深0.00)X:- (CNC POCKET OPP.SIDE FOR DRAIN, S+0.00, DP0.00)X:-￠0.00（基准孔,铰)X:-￠0.00 (REAM FOR DATUM HL)X:-￠0.00钻穿（螺丝过孔)内攻M0.00牙X:-￠0.00 (DR.THRU FOR CLEARANCE HL, TAP M0.00 THR)(正面沉头￠0.00*0.00深)(￠0.00*0.00 C'BORE DP0.00 TOP SIDE)(反面沉头￠0.00*0.00深)(￠0.00*0.00 C'BORE DP0.00 OPP. SIDE)(侧面沉头￠0.00*0.00深)(￠0.00*0.00 C'BORE DP0.00 EDGE SIDE)X:-M0.00钻穿,反面攻深0.00,有效牙0.00X:-M0.00 DR.THRU, TAP DP0.00 OPP.SIDE, THR DP0.00)X:-M0.00钻穿,正面攻深0.00，有效牙0.00X:-M0.00 DR.THRU, TAP DP0.00 TOP SIDE, THR DP0.00)X:-M0.00钻穿,正反面攻深0.00，有效牙0.00X:-M0.00 DR.THRU, TAP DP0.00 TOP&OPP. SIDE, THR DP0.00)X:-M0.00盲孔,反面攻深0.00,有效牙0.00X:-M0.00 BLIND HL, TAP WORK DP0.00 OPP. SIDE)X:-M0.00盲孔,正面攻深0.00，有效牙0.00X:-M0.00 BLIND HL, TAP WORK DP0.00 TOP SIDE, THR DP0.00)X:-M0.00盲孔,正反面攻深0.00，有效牙0.00X:-M0.00 BLIND HL, TAP DP0.00 TOP&OPP. SIDE, THR DP0.00)X:-M0.00盲孔,侧面分中攻深0.00,组模自配X:-M0.00 BLIND HL, TAP DP0.00 ON EDGE FROM CENTER , DIE MAKER FIT) (侧面沉头￠0.00*0.00深)(￠0.00*0.00 C'BORE DP0.00 EDGE SIDE)X:-M0.00盲孔,侧面分中钻深0.00X:-M0.00 BLIND HL, DR. DP0.00 ON EDGE FROM CENTERX:-M0.00（拨牙螺丝孔，攻穿）X:-M0.00 TAP.THRU FOR JACK SCREWX:-￠0.00（塞打过孔,钻穿)X:-￠0.00 DR.THRU FOR SPOOLX:-￠0.00（弹弓过孔,钻穿)X:-￠0.00 DR.THRU FOR SPRINGX:-￠0.00（弹弓孔,反面沉深0.00)有效深0.00X:-￠0.00 (C'BORE FOR SPRING DP.0.00 OPP.SIDE, USED DP.0.00)X:-￠0.00（弹弓孔,正面沉深0.00)有效深0.00X:-￠0.00 (C'BORE FOR SPRING DP.0.00 TOP.SIDE, WORK DP.0.00)X:-（避空孔,锣穿)单+0.00X:- (POCKET THRU)S+0.00X:-（避空孔,正面CNC单+0.00,锣深0.00)X:- (POCKET, CNC MILL S+0.00 DP0.00 TOP SIDE)X:-（避空孔,反面CNC单+0.00,锣深0.00)X:- (POCKET, CNC MILL S+0.00 DP0.00 OPP SIDE)X:-￠0.00（避空孔,反面CNC单+0.00,锣深0.00)X:-￠0.00 (POCKET, CNC MILL S+0.00, DP0.00 OPP.SIDE)X:-￠0.00（避空孔,正面CNC单+0.00,锣深0.00)X:-￠0.00 (POCKET, CNC MILL S+0.00, DP0.00 EDGE SIDE)X:-￠0.00（两用销过孔,割)单+0.00X:-￠0.00 (LIFTER PIN, W/C S+0.00)X:-（导尺避空,CNC单+0.00锣穿)X:- (POCKET FOR RAIL, CNC MILL THRU, S+0.00)X:-（导尺避空,正面CNC单+0.00，锣深0.00)X:- (POCKET FOR RAIL, CNC MILL DP.0.00 TOP SIDE, S+0.00) X:-（导尺避空,反面CNC单+0.00，锣深0.00)X:- (POCKET FOR RAIL, CNC MILL DP.0.00 OPP. SIDE, S+0.00) X:-（浮块避空,正面CNC单+0.00，锣深0.00)X:- (POCKET FOR LIFTER, CNC MILL DP.0.00 TOP SIDE, S+0.00) X:-（浮块孔,割）单+0.00(反面避空单+0.00，锣深0.00)X:-（LIFTER HL, W/C)S+0.00(POCKET DP0.00 S+0.00 OPP.SIDE)X:-（浮块孔,锣）单+0.00(反面避空单+0.00，锣深0.00)X:-（LIFTER HL, MILL)S+0.00(POCKET DP0.00 S+0.00 OPP.SIDE)X:-￠0.00（顶针孔,钻穿)（反面沉头￠0.00*0.00深，内攻M0.00*1.5牙)X:-￠0.00 (EJECT PIN, DR.THRU.)(￠0.00 C'BORE DP0.00 OPP. SIDE, TAP M0.00*1.5 THR)X:-￠0.00（顶针孔,钻穿)（正面沉头￠0.00*0.00深，内攻M0.00*1.5牙)X:-￠0.00 (EJECT PIN, DR.THRU.)(￠0.00 C'BORE DP0.00 TOP SIDE, TAP M0.00*1.5 THR)X:-￠0.00（导柱（导套）孔,CNC锣)单+0.00X:-￠0.00 CNC MILL FOR GUIDE PIN(BUSHING) S+0.00X:-￠0.00（导柱（导套）孔,割)单+0.00X:-￠0.00 W/C FOR GUIDE PIN(BUSHING) S+0.00X:-M0.00*1.5(止付螺丝，正面攻深0.00)X:-M0.00*1.5(SET SCREW, TAP DP0.00 TOP SIDE)X:-M0.00*1.5(止付螺丝，反面攻深0.00)X:-M0.00*1.5(SET SCREW, TAP DP0.00 OPP SIDE)X:-（入子孔,CNC单+0.00,锣穿)X:-（INSERT HL, CNC MILL THRU S+0.00)(阴影部分正面沉头单+0.00，锣深0.00)(SHADE AREA, MILL DP0.00 S+0.00 TOP SIDE)(阴影部分反面沉头单+0.00，锣深0.00)(SHADE AREA, MILL DP0.00 S+0.00 OPP SIDE)X:-（入子孔,割）单+0.00X:-（INSERT HL, W/C S+0.00)(阴影部分扣位正面锣深0.00)(SHADE AREA FOR HEAD POCKET, MILL DP0.00 TOP SIDE)(阴影部分扣位反面锣深0.00)(SHADE AREA FOR HEAD POCKET, MILL DP0.00 OPP. SIDE)(正面沉头单+0.00，锣深0.00)(POCKET, MILL DP0.00 TOP SIDE)注: 此处的沉头不能用C'BORE, 只有圆形的沉头才用C'BORE.(反面沉头单+0.00，锣深0.00)(POCKET, MILL DP0.00 TOP SIDE)X:-（入子孔,CNC单+0.00,锣穿)X:- (INSERT HL, CNC MILL THRU. S+0.00)X:-（入子孔,正面CNC单+0.00,锣深0.00)X:- (INSERT HL, CNC MILL DP0.00 S+0.00 TOP SIDE)X:-（入子孔,反面CNC单+0.00,锣深0.00)X:- (INSERT HL, CNC MILL DP0.00 S+0.00 OPP. SIDE)X:-￠0.00（插针孔,铰)单+0.00X:-￠0.00（REAM S+0.00 FOR PILOT PIN)X:-￠0.00（插针孔,割)单+0.00(正面沉头￠0.00*0.00深)X:-￠0.00（W/C FOR PILOT PIN)(￠0.00 C'BORE DP0.00 TOP SIDE)X:-￠0.00（插针孔,钻穿)(正面沉头￠0.00*0.00深)X:-￠0.00（DR.THRU FOR PILOT PIN)(￠0.00 C'BORE DP0.00 TOP SIDE)X:-（冲头过孔,割)单+0.00(正面避空，CNC单+0.00，锣深0.00)(阴影部分扣位正面锣深0.00)X:-（W/C S+0.00 FOR PUNCH CLEARANCE HL)(POCKET, CNC DP 0.00 S+0.00 TOP SIDE)(POCKET SHADE FOR HEAD, DP0.00 TOP SIDE)X:-（冲头过孔,锣穿)单+0.00(正面避空，CNC单+0.00，锣深0.00)X:-（MILL THRU.FOR PUNCH CLEARANCE HL)(POCKET DP0.00 CNC S+ TOP SIDE)X:-（异形冲孔,直x斜x,割)单+0.00(双线部分，割)单+0.00X:-（W/C FOR SPECIAL HL, 0.00 LAND 0.00 TAPER, S+0.00) (W/C PER DOUBLE LINE S+0.00)X:-（冲孔,直x斜x,割)单+0.00X:-（W/C FOR PIERCE DIE HL, 0.00 LAND 0.00 TAPER S+0.00) X:-（冲孔,割)单+0.00X:-（W/C FOR PIERCE DIE HL S+0.00)X:-￠0.00（冲孔漏屎,钻穿)X:-￠0.00 (DR. THRU FOR CHUTE)X:-（异形冲孔漏屎,CNC单+0.00,锣穿）X:-￠0.00 (MILL. THRU FOR SPECIAL CHUTE S+0.00)X:-（产品落料斜度，实数斜30º锣）X:-（MILL 30 TAPER FOR PART RAMP NO CLEARANCE)X:-（漏屎斜度，直x斜45º锣）X:-（MILL FOR CHUTE 0.00 LAND 45 TAPER)反面沉深底面留0.00MILL UNTIL DP正面沉深底面留MILL UNTIL DP五金模具单词总结模具种类:连续模progressive die机械手transfer die手动机械手hand transfer die单工程模single die/line die复合模compound die铆接模riveting die铸造结构模cast die能快换的模changeover die泡沫模pattern互换性:公差tolerance上公差upper tolerance下公差lower tolerance公差范围tolerance range公差+/- 0.05 plus minus 0.05形位公差图GD&T平面度flatness直线度straightness倾斜度angularity垂直度perpendicularity / squareness平行度parallelism圆度roundness / circularity圆柱度cylindricity面轮廓度surface profile线轮廓度line profile位置度true position同轴度concentricity对称度symmetry圆跳动runout全跳动total runout尺寸dimension角度angle degree全尺寸报告dimensional layout工艺性:料带strip料带图strip layout工序process冲导正孔pilot pierce冲孔pierce侧冲cam pierce切边notch成形后的切边trim切侧刃french trim / fringe trim 厚料切边后的精修边shave折弯bend墩薄coin折弯处压筋gusset成形form侧成形cam form整形restrike / rehit围边flange压线/压长条状筋ribbon打凸米boss / dimple打凸包emboss打字印stamp打沙拉孔hourglass面押coin burr抽孔extrude hole拍平flat / spanking包边hem edge压角cone张角flare切舌lance半剪knockout卷圆curl/热恶劣旋转rotate铆接rivet铆螺母stake nut切断cutoff接刀口mismatch料带带料处carrier tabs毛刺方向burr direction产品切边线trim line模具零件:模具die / tool上托板upper mounting plate 上垫脚upper parallel上模座upper die set上垫板punch backup上夹板punch holder止挡板traveling stop脱料板stripper下模板die plate下垫板die backup plate下模座lower die set下垫脚lower parallel上托板base mounting plate浮块lifter浮料板lifter plate成型公form punch压料块pressure pad切边冲头trim punch刀口trim steel刀口直身位land直5斜1 5mm Land 1 taper 刀口上沉头的深度die life 沉头counter bore冲头倒斜shear高低冲stagger punch球锁冲头ball-lock punch球锁座ball-lock retainer冲孔入子button顶针kick off / ejector废料切断刀slug breaker成型凹模form die整形公restrike form punch 导尺rail /stock guidance导尺顶杆lifter bolt导料板rail plate镶件/入子insert侧冲组件cam滑块slide滑块上油槽oil groove铲机driver码模槽mounting slot储运块storage block限位柱stop block起吊孔handing hole起吊环eyebolt模柄shank靠块heel摆块rocker bender脱料板拉杆stripper bolt模座导正块thrust耐磨片wear sheet耐磨板wear plate垫片shim两用销lifter pin初始管位first start pin内限位standoff压块keeper导柱导套压块keeper/ boss 键槽key slot键key氮气弹簧gas spring / nitrogen spring 氮气弹簧安装法兰mounting flange 氮气弹簧系统nitrogen manifold螺旋弹簧coil spring聚氨酯弹簧urethane弹簧套spring cage导柱guide post导套guide bushing插针pilot pin插针套pilot bushing插针通孔pilot through hole侧刃french误检装置misfeeder传感器sensor误检杆trigger油嘴oil nipple销针dowel pin螺丝screw牙thread拔牙jackscrew内六角螺钉socket head screw垫圈washer螺塞screw plug盲销blind dowel行程,走位stroke / travel吨位tonnage机械冲床mechanical press油压机hydraulic press冲床下台面bolster冲床上台面ram冲床台面布置图press layout冲床码模槽press mounting slot冲床气垫air cushion码模钳stirrup闭合高度shut height送料高度feeding height送料机feederT型槽T-slot避位clearance /pocket掏空pocket挂台head扣位pocket of head通气孔air vent hole漏油孔drain hole漏料孔slug hole基准孔datum hole通孔through hole穿丝孔first wire holeT型槽T-slot拔牙jackscrew摆块rocker bender闭合高度shut height避位clearance /pocket侧冲组件cam侧刃french插针pilot pin插针套pilot bushing插针通孔pilot through hole铲机driver沉头counter bore成型凹模form die成型公form punch冲床码模槽press mounting slot冲床气垫air cushion冲床上台面ram冲床台面布置图press layout冲床下台面bolster冲孔入子button冲头倒斜shear初始管位first start pin储运块storage block穿丝孔first wire hole传感器sensor弹簧套spring cage氮气弹簧gas spring / nitrogen spring 氮气弹簧安装法兰mounting flange氮气弹簧系统nitrogen manifold刀口trim steel刀口上沉头的深度die life刀口直身位land导尺rail /stock guidance导尺顶杆lifter bolt导料板rail plate导套guide bushing导柱guide post导柱导套压块keeper/ boss垫片shim垫圈washer顶针kick off / ejector吨位tonnage废料切断刀slug breaker浮块lifter浮料板lifter plate高低冲stagger punch挂台head滑块slide滑块上油槽oil groove机械冲床mechanical press基准孔datum hole键key键槽key slot聚氨酯弹簧urethane靠块heel扣位pocket of head两用销lifter pin漏料孔slug hole漏油孔drain hole螺塞screw plug螺丝screw螺旋弹簧coil spring码模槽mounting slot码模钳stirrup盲销blind dowel模柄shank模具die / tool模座导正块thrust内六角螺钉socket head screw 内限位standoff耐磨板wear plate耐磨片wear sheet起吊环eyebolt起吊孔handing hole切边冲头trim punch球锁冲头ball-lock punch球锁座ball-lock retainer上垫板punch backup上垫脚upper parallel上夹板punch holder上模座upper die set下托板base mounting plate 上托板upper mounting plate 送料高度feeding height送料机feeder掏空pocket通孔through hole通气孔air vent hole脱料板stripper脱料板拉杆stripper bolt误检杆trigger误检装置misfeeder下垫板die backup plate下垫脚lower parallel下模板die plate下模座lower die set限位柱stop block镶件/入子insert销针dowel pin行程,走位stroke / travel压块keeper压料块pressure pad牙thread油压机hydraulic press油嘴oil nipple整形公restrike form punch 直5斜1 5mm Land 1 taper 止挡板traveling stop机加工:开料cutting material钻drill (DR)攻牙tap铰ream铣mill车lathe电脑锣NC mill线切割wire cutting (W/C)磨grind刨planer电火花EDM镭射laser cutting倒角chamfer精加工finish XX真空热处理vacuum heat treatment镀钛TD coating退磁demagnetization烧焊weldG :40-M6BLIND HL,TAP DP18.00 OPP SIDE,THR DP18.00) 盲孔，反面攻深**G10:4-M30BLIND HL,TAP DP18.00 EDGE SIDE)盲孔，侧攻深**(%%c34.00*14.00 C'BORE DP14.00 TOP SIDE) 正面沉头多少×多少深G2 :24-%%c8.00(REAM FOR DOWEL WORK DP16.00 OPP SIDE,DR%%c6.00 HL)G2 :24-%%c8.00(合销,背铰深16.00,有效深,内钻%%C6.00通孔)G4 :3-%%c10.00(基准孔,背铰深20.00)背面锣25.00*25.00方形沉头，深1.00%%P0.01 (REAM FOR DATUM HL DP20.00,MILL25.00*25.00 OPP SIDE DP1.00%%P0.01)M:2-%%c15.00(弹簧孔,锣深33.00) (C'BORE OR SPRING DP33.00 TOP SIDE,WORK DP33.00)X :3-%%c32.00(导套孔,锣穿,单+0.01)(MILL THRU FOR GUIDE BUSHING S+0.01)G :2-M10盲孔,侧攻深30.00(有效深)(BLIND HL,TAP WORK DP30.00 EDGE SIDE)(沉头5.20%%P0.05深)(SLOT DP5.20%%P0.05 TOP SIDE)L :2-%%c8.000(合销,割)单+0.005 (W/C FOR DOWEL)S+0.005盲孔,攻深20.00(有效深) (BLIND HL,TAP DP20.00 TOP SIDE,THR DP20.00)(插针孔,割,单+0.01) (W/C S+0.01 FOR PILOT PIN)(避位孔,背锣9.80(有效深) (POCKET,MILL DP9.80 OPP SIDE WORK)(冲头过孔,锣穿) (MILL THRU FOR PUNCH CLEARANCE HL)(导柱孔,锣穿,单+0.005) (MILL FOR GUIDE PIN) S+0.005避位槽,背锣深19.00) (POCKET,MILL DP15.40 OPP SIDE)(背,沉头%%c14.00，掏深留11.00) (%%c14.00 C'BORE UNTIL DP14.00 OPP SIDE)下模刀口，实数割，直5斜1.5 （内钻%%C5.0穿丝孔）W/C S+0.00 TRIM STEEL,5.0LAND 1.5TAPER,(DR THRU%%c3.00 WEDM S.H)(MILL FOR INSERT DP30.0%%P0.01 S+0.01)(入子槽,锣深30.00%%p0.01,单+0.01)(氮气槽,背锣深4.00%%P0.1,单+0.1) (GAS SPRING MILL DP4.00 OPP SIDE)S+0.1按向视图加工ACCORDING VIEW DRAWING TO MACHINING试模材料:热扎板HRS (hot-roll steel)冷扎板CRS (cold-roll steel)不锈钢板Stainless steel镀锌板galvanized steel镀铝锌板galvalume steel热扎酸洗板HRPO steel (hot-rolled pickled and oiled steel)工具:卡尺caliper千分尺micrometer拨牙器jacker扳手wrench丝攻screw tap起子screwdriver码模钳stirrup设备/工具:3D Programmable CMM三次元检测仪3D CMM Beam Drilling Machine摇臂钻Bench Drilling Machine钻铣床Caliper卡尺CNC EDM电火花机CNC Machine Center加工中心CNCCNC Milling Machine数控铣床CNCCNC Planer Type Milling Machine龙门刨铣床Hardness Tester硬度计Height Gauge高度仪High Wire Cutting快走丝Hole Puncher 打孔机Horizontal surface grinder小水磨/卧式平面磨床Horizontal surface large grinder大水磨Lathe车床Measurement Surface Plate测量平台Metal Saw Machine锯床Milling Machine铣床Oil Press油压机Pin Gauge标准针规Plastic Injection Machine注塑机Point to Point CMM三次元测量仪Precision surface grinder精密手摇磨Press冲床Projector profile投影机Shear Press剪板机Slow Wire Cutting慢走丝Vertical Milling Machine卧式强力铣床扳手wrench拨牙器jacker卡尺caliper码模钳stirrup起子screwdriver千分尺micrometer丝攻screw tapCARVE 雕刻pothook 挂钩SPECIAL HL 异形孔漏斗 filler角铁 ANGLE IRON展开 expanding微调开关 INCHING SWITCH合叶 HINGE优力胶 RUBBER球锁垫板 LOCK WASHER双线边刀口,不倒角TRIM STEEL NEAR THE DOUBLE LINE NO CHAMFER滑块座:SLIDE SET机械:（engine type) liquid cooled, in-line, 4cylinder, carb (发动机型号)水冷，直列，四缸，化油器式(engine) compression ratio (发动机)压缩比(engine) displacement (发动机)排量(engine) fuel (发动机)燃料13-mode 13工况3rd gear 三档齿轮3-way seat 三向座椅4WD control device 四轮驱动控制装置4WD indicator switch 四轮驱动指示灯开关4WD lamp electrical connection 四轮驱动指示灯接线4WD switch 四轮驱动开关5th synchromesh assy. 五档同步器总成6PK belt 6PK 多楔驱动皮带A / C compressor assembly 空调压缩机总成A / C control assembly 空调控制装置A/C & heater assy. 空调加热器总成A/C blower 空调鼓风机A/C clutch 空调压缩机离合器A/C compressor MTG bracket 空调压缩机安装支架A/C control assy. 空调控制器A/C housing assy. 空调箱总成A/C low pressure switch 空调低压开关A/C mode select switch 空调状态选择开关abdomen performance criterion 腹部性能指标Abdominal Peak Force 腹部力峰值ABS 防抱死制动系统acceleration fuel system 加速系统acceleration running noise level 加速行驶噪声accelerator interlocking type 加速踏板联锁式accounting foundation 财政基础Actual cycle work 实际循环功Actual torso angle 实际躯干角adapter 连接器additional features 附加装置additional rule 附加法规adjust screw 调整螺钉adjuster cable 调整拉线adjuster plug 调整盖adjuster screw assy. 调整螺栓总成adjuster washer 调整棘片adjuster, diff. bearing 差速器轴承调整螺母Adjustment system 调节装置Administration and Registration Division 管理科Agreement Concerning the Adoption of Uniform Technical Prescriptions for Wheeled Vehicles, Equipment and Parts Which Can Be Fitted and/or Be Used on Wheeled Vehicles and the Conditions for Reciprocal Recognition of Approvals Granted on the Basis of These Prescriptions关于对轮式车辆、安装和/或用于轮式车辆的装备和部件采用统一条件并相互认可基于上述条件批准的协定书Agreement Regulations 协定法规air cleaner 空气滤清器air cleaner assy. 空气滤清器总成air cleaner cartridge 空气滤清器滤芯Air compressor 空压机air condition compressor 空调压缩机air direct 空气走向air filter 空气滤清器air flow 空气流向Air flow meter 空气流量计air jet 空气量孔air metering hole 空气量孔air path 气道Air Pressure of Tire 轮胎气压Air type 空气型air valve 空气阀air-cooled 风冷Aisles 通道Alcohol 酒精all bearing 球轴承alternater bracket 发动机支架alternator 交流发电机alterntor assembly 交流发电机总成alumininum-rim 铝合金钢圈alumininum opposed model 铝制对开式AM/FM cassette stereo radio 调幅/调频立体声收放机ambulance 救护车Amended by 修正文amount of exhaust emission 排气排放量Amplitude resolution 幅度分辨率Analogue magnetic recorder 模拟式磁记录仪ANALYZER 分析仪anchor plate, brake caliper 制动钳安装支架Anchorage 座椅固定装置Angle of divergence 偏离角Angle of rotation 旋转角angles drift off vertical line 指针偏离垂直线的角度Angular diameter of the retro-reflecting device 回复反射装置的角直径annex 附件Announcement 公告anti, shutdown screw 防不灭车调整螺钉Antilock Brake System 防抱死制动系统appendix 附录Applicable motor vehicle 适用机动车Applicable scope 适用范围applicant 申请人application 申请application for notification 认可申请书approval 认可arm, valve rocket 摇臂armature 转子总成armature shaft 电枢轴Arm-rests 靠手Article 条Article 1 第1条Asphalt solution 沥青溶剂Attached document 附署文件attached sheet 附表Attached Table 附表attaching location of seat belt anchorage 座椅安全带固定装置的固定位置attachment 附属文件Attendants onboard 车上值班人员automatic chock cover setting 自动阻风门盖调到automotive electric system 汽车电系automotive engine system 引擎系统automatic transmission 自动变速器，自动排挡变速箱Auxiliary Brake 辅助制动器Auxiliary Direction Indicator Lamps 辅助转向信号灯auxiliary spring 副簧Auxiliary Stop Lamp 辅助驻车灯axle case 桥壳axle case assy. 桥壳总成axle ratio 桥速比axle tube 桥管axle weight 轴重back angle level 靠背角水平仪back angle quadrant 靠背角量角器back pan 靠板back spring 回位弹簧backing plate 制动底板Backing sheet 衬背板Back-Up Light 倒车灯backup washer 支撑挡圈bail wire 卡紧环balance tube 平衡管ball 钢球ball bearing 球轴承ball joint assy. , upper 上球销总成ball valve 球阀ball valve, inlet 进油口球阀bar 拉杆barrier 障碍壁battery 蓄电池battery terminal 蓄电池接线柱bearing cap 轴承盖bearing cover, input shaft 输入轴轴承盖bearing, connecting rod 连杆轴承bearing, input shaft 输入轴轴承Bed for babies 婴儿床bell 带束层bench seat 长条座椅berived cap 轴承盖bezel assy. 框板总成bezel, cluster 表框be pilot 小批量产品blead door 混合风门bleeder screw 放气螺钉blower assy. 鼓风机总成blower motor 鼓风发电机blower resistor 鼓风机电阻blower switch 鼓风机开关body 车身,阀体body & liftgate assembly 车身和举升门总成body assy. 车身总成body block 人体模块body of A/C & heater 空调加热器壳体bolt 主缸连接螺栓bolt, connecting rod 连杆螺栓Booster 助力器boot 护罩BOSCH starter motor assembly “波舍”起动机总成bottle assy. , coolant recover 冷却液回收罐总成bottom houseing, fuel pump 燃油泵下壳体bottom housing, fuel tank 燃油箱下壳体bracket 支架bracket assy. , spring seat 弹簧座支架bracket, steering damper mounting 转向减振器支架brake alarm lamp 制动报警灯brake alarm lamp switch 制动报警灯开关Brake booster 制动助力器brake caliper 制动钳brake caliper assy. 制动钳总成brake caliper piston 制动钳活塞brake combination valve 制动组合阀brake disc 制动盘Brake drum 制动鼓brake fluid 刹车油Brake hose 制动软管brake lining 刹车来令brake line, LF 左前制动油管brake line, RF 右前制动油管brake oil flow 制动液流向brake paddle 制动踏板brake pedal 制动踏板Brake pipe 制动管brake shoes 刹车蹄片brake shoe 制动衬块Brake System 制动系Brake Systems for Tractors and Trailers 牵引车及挂车的制动装置Brake tester 制动器试验台brake valve 制动阀brake warning lamp 制动报警灯brake warning switch 制动报警开关Braking efficiency 制动效能braking force control system 制动控制装置Braking wheel 制动轮branch office 分署breaker 断电器bridge 过桥broadcasting vehicle 广播车brush 碳刷总成Buckle 带扣bulkhead 隔板Bulldozer 推土机bumper 保险杠Bumper element 保险杠构件bus transfer 车辆转移台bushing 衬套bushing, upper control arm 上控制臂衬套Business Place 业务场所bypass valve 旁通阀Cabinet Decision 内阁决议cable guide 拉线导向块cable-operated control system 液压式离合器系统Calibration factor of a data channel 数据通道校正系数calibration gas 标定气体calibration method 标定方法caliper assy. , front brake 前制动钳总成Camber 外倾camber angle 前轮外倾角camshaft 凸轮轴camshaft oil gallery 凸轮轴油道cap 加机油口盖cap assy. , power steering fluid reservoir 动力转向液油罐盖cap assy. , radiator 散热器盖总成cap screws 螺钉cap, connecting rod 连杆盖Capacity 容量,规格Capacity of the fuel tank 燃油箱容量capillary tube 毛细管carbon brushes & brush holder 电刷支架总成Carbon monoxide measuring instrument 一氧化碳分析仪Carburetor 化油器carburetor assy. 化油器总成carburetor bowl 化油器浮子室carburetor bowl vent system 化油器浮子室通风系统carburetor overhaul scheme 化油器分解图carburetor working scheme 化油器工作示意图carcase 胎体case runout (Max.) 差速器壳圆跳动（最大）Caster 后倾Catalyst 催化器category 类别cement and aggregate 水泥和混凝料Centreplane of occupant 乘员中心面Certified 经认证的Cetane number 十六烷值chain 驱动链chain drive 驱动链Channel amplitude class 幅度级通道Channel Frequency Class 频率级通道chassis 底盘chassis dynamometer 底盘测功机chassis shuttle 底盘平移台chassis number 底盘号Check and Maintenance 检查和保养check assy. , front door 前门限位器总成check assy. , rear door 后门限位器总成check ball 回止球check bracket 限位器支架check nut 限位器螺母check valve 单向阀check valve hole 回止阀孔check valve retainer 单向阀保持架check valve spring 单向阀弹簧check weight 回止块Chigi Circular No. 地技第…号Chigi No. 地技第…号Child Restraints 儿童约束装置chime module 蜂鸣器Chishin Circular No. 地审第…号Chishin No. 地审第…号chock heater 阻风门加热器总成chock plate 阻风门chock unloaded 阻风门连动装置choke 阻风门choke device 阻风装置choke unload mode 阻风门卸载状态cigarette lighter 点烟器circuit breaker, wiper/washer 刮水器/洗涤器电器断路器Circular 通告circular notice 通告clamp 卡圈Clamp ring type 锁紧圈式Cleaning efficiency 清洗效率Cleaning period 清洗周期clearance 最小离地间隙Clearance Lamp 示廓灯clinder head 气缸盖clip 卡子cluster housing 组合仪表壳Clutch system 离合器clutch assembly 离合器总成clutch control device 离合器控制装置clutch disc,clutch 离合器片clutch housing 离合器壳clutch master cylinder 离合器主缸clutch working cylinder 离合器工作缸Coating 涂层Code No. 型号Code of Federal Regulations 美国联邦法规总览Coefficient of luminous intensity (CIL) 亮度系数coil spring 圈状弹簧cold air 冷空气cold cranking voltage(min.) 最小冷启动电压collapsible spacer 可压缩隔垫collector 拼装台colorimeter 色度计coloured-light unit 有色灯光组column assy. 转向管柱总成combination brake switch and proporting 组合阀combined lamp 复合灯combined pump 复合泵combined pump diaphragm 复合泵膜片combined pump diaphragm rod 复合泵膜片杆combined pump lifter link 复合泵举升拉杆combined pump move direct 复合泵运动方向Combustion Chamber 燃烧室commutator 换向器compensate opening 补偿孔completion inspection certificate 终了检验证书Completion of notification 完成认可compressor 压缩机compression (both) 气环槽（两个）compression ignition type 压燃式Compression ratio 压缩比concrete mixer truck 混凝土搅拌车condenser 冷凝器condenser assy. 冷凝器总成conduit pipe 导管cone , diff. side bearing 差速器轴承，内圈带滚子cone, pinion front bearing 主动齿轮前轴承内圈带滚子cone, pinion rear bearing 主动齿轮后轴承内圈带滚子Confirmor 确认者connecting rod 连接杆connecting link 连接杆connecting rod journal diameter 连杆轴径connecting rod journal width 连杆轴径宽度connecting rod throttle 连杆喷油孔connector 连接器connector of service valve 维修阀接口Constant speed 等速construction and device 结构和装置control & tube assy. , hyd clutch 离合器工作缸和油管总成Control System 操纵系control valve 控制阀阀门control valve model 控制阀型式control valve seat 控制阀阀座convex plate 凸台cooling fan 冷却风扇cooling system 冷却系统Cornering Lamp 转弯灯corrected 修正的cotter 开口销counter 5th gear 中间轴五档齿轮counter shaft 中间轴coupled condition 连接状态Coupling Device 牵引装置cover 端盖cover & plate assy. 离合器盖及压盘总成cover assy. , air cleaner 空气滤清器盖总成cover, gear 侧盖cover, heater air 空气加热罩cover, rear axle case 后桥壳盖crane vehicle 起重车crankcase 曲轴箱crankshaft 曲轴crankshaft gear 曲轴齿轮crankshaft & connecting 曲轴连杆机构crankshaft oil gallery 曲轴油道crankshaft sprocket 轴承链轮critical flow 临界流Cross sensitivity of a linear transducer 线性传感器的横向灵敏度Crush distance 压碎距离Crush rate 压碎速率Crush Strength 压碎强度Cumulative time 累计时间cup 皮碗cup, diff. side bearing 差速器轴承外圈cup, pinion front bearing 主动齿轮前轴承外圈cup, pinion rear bearing 主动齿轮后轴承外圈Cut-off 明暗截止线cycle 冲程cyclinder head cover 气门室罩Cylinder 气缸cylinder block 汽缸体cylinder body 缸体Cylinder bore 缸径cylinder head 汽缸盖cylinder head cover 气门室罩cylinder number 气缸数cylinder working order(clockwise) 气缸工作顺序（顺时针）damper 转向减振器dangerous article 危险物darkroom 暗室Data channel 数据通道Data Processing 数据处理Date of notification 认可日期Deceleration of the structure 地板减速度Definitions 定义Definitions 术语deflection 偏移defroster 除霜器dehydrator 储液器和干燥器。
