马铃薯立式去皮机结构设计
马铃薯立式去皮机结构设计
殷建国;刘滨
【期刊名称】《中国农机化学报》
【年(卷),期】2015(36)1
【摘要】设计了一种高效率的立式马铃薯去皮机。
该去皮机主要包括外筒体、第一和第二两层可升降内筒体、波浪形圆盘、驱动装置、喷淋装置、加料和卸料装置等。
该机结构紧凑、制造容易、工作可靠,马铃薯去皮均匀、清洁度好、剥离损失小于3%,生产效率高,是一种较理想的农产品加工设备。
【总页数】3页(P171-173)
【关键词】马铃薯;去皮;农产品加工;设备
【作者】殷建国;刘滨
【作者单位】南京工业职业技术学院机械工程学院
【正文语种】中文
【中图分类】S226.4
【相关文献】
1.新型立式马铃薯连续去皮机仿真设计 [J], 苗红涛;夏晶晶
2.马铃薯连续机械式去皮机优化与试验 [J], 孟庆书;朱立学;黄键裕;詹旭峰
3.真空包装机/糖衣机/冲洗灌装旋盖机/油水一体调温式油炸机/螺杆式制冷压缩机/立式超微粉碎机/高速斩拌机/马铃薯切片机/瓜子炒干机/山海关膨化机械厂 [J],
4.立式半夏去皮机的设计与研究 [J], 张淑娟;吴海平
5.马铃薯去皮机的设计 [J], 朱颖
因版权原因，仅展示原文概要，查看原文内容请购买。
机械手臂外文文献翻译、中英文翻译、外文翻译
机械手臂外文文献翻译、中英文翻译、外文翻译外文出处：《Manufacturing Engineering and Technology—Machining》附件1：外文原文XXXRobot XXX decades as high-XXX branch of industrial robots. It features can be programmed to perform tasks in a variety of expectations, in both structure and performance advantages of their own people and machines, in particular, XXX the work in the field of national economy and there are broad prospects for development. With the development of industrial automation, there has been CNC machining center, it is in reducing labor intensity, XXX, the upper and lower common in CNC machining processesmaterial, usually still use XXX relay-controlled semi-automatic device. The former time-consuming and labor intensive, inefficient; XXX, require more relays, XXX, XXX interference, XXX, XXX Programmable Logic Controller PLC-controlled robot control system formaterials up and down movement is simple, circuit design is reasonable, with a strong anti-jamming capability, ensuring the system'XXX, reduced maintenance rate,and XXXmechanics, mechanics, XXX, XXX, XXX and other fields of science, is a cross-disciplinary XXX.First, an overview of industrial manipulatorRobot is a kind of positioning control can be automated and can be re-programmedto change in multi-functional machine, which has multiple degrees of freedom can beused to carry an object in order to XXX China, plastic products industry, although still a labor-intensive, XXX1Europe and the United XXX, XXX-intensive South China, East China's coastal areas, XXX, because they have to face a high turnover rate of workers, as well as for theworkers to pay work-related injuries XXX.With the rapid development of China's industrial production, especially the reformand XXX workpiece handling, steering, XXX brazing, spray gun, wrenches and other tools for processing and assembly operations since, which has more and more attracted our attention. Robot is to imitate the manual part of the action,according toa given program, track and requirements for automatic capture, XXX.In real life, you will find this a problem. In the machine shop, the processing of parts loading time is not annoying, and labor productivity is not high, the cost of production major, and sometimes man-made incidents will occur, resulting in processing wereinjured. Think about what could replace it with the processing time of a tour as long as there are a few people, and can operate 24 hours saturated human right? The answeris yes, but the robot can come to replace it.XXX can increase XXX; XXX, ensuring product quality, to achieve safe production; particularly in the high-temperature, high pressure, low temperature, low pressure, dust, explosive, XXX the normal working people. Here I would like to think of designing a robot tobe used in actual production.XXX power: pneumatic robot refersto the compressed air as power source-driven robot. With pressure-driven and other energy-driven comparison have the following advantages: 1. Air inexhaustible, used XXX, does not require recycling and disposal,do not pollute the XXX. (Concept of environmental protection) 2. Air stick is small, the pi2peline pressure loss is small (typically less than asphalt gas path pressure drop of one-thousandth), to facilitate long-distance transport. 3. Compressed air of the working pressure is low (usually 4 to 8 kg / per square centimeter), and therefore moving the material components and XXX. With the hydraulic transmission, compared to its faster action and reaction, which is one of the advantages pneumatic outstanding. 5. The air cleaner media, it will not degenerate, not easy to plug the pipeline. But there are also places where it fly in the ointment: 1. As the compressibility of air, XXX the work, XXX as the precision of the velocity and not easily controlled. 2. As the use of low atmospheric pressure, the output power can not be too large; in order to increase the output power is bound to the structure of the entire pneumatic system size increased.With pneumatic drive and compare with other energy sources drive has the following advantages:Air inexhaustible, used XXX, without recycling anddisposal, do not pollute the XXX or a small amount of leakage would not be a XXX of air is small, the pipeline pressure loss also is very small, easy long-distance transport.The lower working pressure of compressed air, XXX general, reciprocating thrust in 1 to 2 tons XXX.Compared with the hydraulic transmission, and its faster action and reaction, XXX.Clean air medium, it will not degenerate, not easy to plug the pipeline. It can be safely used in flammable, XXX.Second, XXX, mechanical handRobot in the form of a variety of forms, some relatively simple, some more complicated, but the basic form is the same as the composition of the , Usually by the implementing agencies, transmission systems, control systems and auxiliary devices compose3d.1.Implementing agenciesXXX hands, wrists, arms, pillars. Hands are crawling institutions, is used to clamp and release the workpiece, and similar to human fingers, XXXXXX used to support the arm can also be made mobile as needed.2. TransmissionXXX, hydraulic transmission, XXX.3. Control SystemManipulator control system's main role is to control the robot according to certain procedures, direction, position, speed of action, a simple mechanical hand is generallynot set up a dedicated control system, using only trip switches, relays, control valves and circuits can be achieved dynamic drive system control, so that XXX of action. Action will have to use complex programmable robot controller, the micro-computer control.Three, XXX characteristicsXXX: the first is the general machinerydoes not require manual hand. It is an independent not affiliated with a particular hostdevice. It can be programmed according to the needs of thetask to complete the operation of the provisions. It is XXX, alsohas general machinery, memory, XXX second categoryis the need to manually do it, called the operation of aircraft. It originated in the atom,military industry, first through the operation of machines to complete a particular job,XXX such as the Moon. Used in industrial manipulator also fall into this category. The third category is dedicated manipulator, the XXX auto4matic lines, to solve the machine up and down the XXX known as the "Mechanical Hand", which is the host of services, from the host-driven; exception of a few outside the XXX, XXX.Main features:First, mechanical hand (the upper and lower material robot, assembly robot, handling robot, stacking robot, help robot, vacuum handling machines, vacuum suction crane,labor-saving spreader, pneumatic balancer, etc.).Second, cantilever cranes (cantilever crane, electric chain hoist crane, air balance the hanging, etc.)Third, rail-type transport system (hanging rail, light rail, single girder cranes, double-beam crane)Four, industrial machinery, application of handXXX of the production process developed a new type of device. In recent years, as electronic technology, especially computer extensive use of robot development and production of high-tech fields has XXX, XXX, XXX.Although the robot is not as flexible as staff, but it has to the continuous duplicationof work and labor, I do not know fatigue, not afraid of danger, XXX characteristics when compared with manual large, therefore, mechanical hand has been of great importance to many sectors, and increasingly has been applied widely, forexample:(1) Machining the workpiece loading and unloading, especially in the automatic lathe, combination machine tool use is more common.(2) XXX industry, it can beused to assemble printed circuit boards, XXX industry It can be used to assemble parts and components.(3) The working conditions may be poor, monotonous, repetitive easy to sub-fatigu5XXX.(4) XXX, XXX, XXX..(5) XXX.(6), XXX and testing.Help mechanical hands: also known as the balancer, balance suspended, labor-savingspreader, manual Transfer machine is a kind of weightlessness of manual load system,a novel, time-XXX,belonging to kinds of non-standard design of series products. Customer application needs, XXX of the automatic machinery, it can be a fixed program draws﹑XXX. Application of robot can replace the peopleengaged in monotonous﹑XXX, XXX of production, instead of people in hazardous XXX, XXX personal safety. The late 20th century, 40, the United XXX experiments, the first use of radioactive material handling robot, human robot in a safe room to XXX 50 years later, XXX, for the temperatures, polluted areas, and loading and unloading to take place the work piece material, but also as an auxiliary device in automaticmachine tools, machine tools, automatic production lines and processing center applications, the completion of the upper and lower material, or From the library take place XXX operation. Robot body mainly by the hand and sports XXX with the use of hands and operation of objects of different occasions, often there are clamping﹑XXX﹑﹑XXX﹑XXX, generally 2 to 3 degrees of XXX industry, machinery manufacture, XXX some of the staff and arm motor function, a fixd procedure for the captu6re, handling objects or operating tools, automatic operation device. It can replace human labor in order to achieve the production of heavy XXX the personal safety, which is XXX, metallurgy, electronics, light industry and nuclear power sectors. Mechanical hand tools or other XXX used for additional devices, such as the automatic machines or automatic production line handling and transmission of the workpiece, XXX centers, etc. generally do not have a separate control device. Some operating devices XXX.XXX and sports XXX. Task of hand is holding the workpiece (or tool) components, according to grasping objects by shape, size,weight, material and XXX structural forms, such as clamp type,type and adsorption-based care such as holding. Sports organizations, XXX (swing), XXX the required action, to change the location of objects by grasping and posture.Robot is the automated production of a kind used in the process of crawling and moving piece features automatic device, which is XXX a new type of device. In recent years, as electronic technology, especially computer extensive use of robot development and production of high-tech fields has XXX, XXX, XXX. Robot can replace humans completed the risk of duplication ofboring work, to reduce human XXX widely, in the machinery industry, it can be used for parts assembly, work piece handling, loading and unloadingXXX component of the FMC. The machine tool equip7XXX a flexible manufacturing cell, it was adapted to small and medium volume production, you can save a huge amount of the work piece conveyor device, compact, and adaptable. When the work piece changes, flexible production system is very easy to change will help XXX, improve product quality, and better adapt to market XXX, China'XXX isa certain distance, application andindustrialization of the size of the low level of robot research and development of a direct impact on raising the level of automation in China, from the economy, XXX, the study of mechanical hand design is very meaningful.8附件1：外文资料翻译译文呆板手机械手是近几十年发展起来的一种高科技自动化生产设备。
农业用机械设备外文文献翻译、中英文翻译、外文翻译
中国地质大学长城学院本科毕业设计外文资料翻译系别：工程技术系专业：机械设计制造及其自动化姓名：黄晓鹏学号： 052116322015 年 4 月 28 日外文资料翻译译文公元前1世纪，中国已推广使用耧，这是世界上最早的条播机具，今仍在北方旱作区应用。
1636年在希腊制成第一台播种机。
1830 年俄国人在畜力多铧犁上制成犁播机。
1860年后，英美等国开始大量生产畜力谷物条播机。
20世纪后相继出现了牵引和悬挂式谷物条播机，以及运用气力排种的播种机。
50年代发展精密播种机。
中国从20世纪50年代引进了谷物条播机、棉花播种机等。
60年代先后研制成悬挂式谷物播种机、离心式播种机、通用机架播种机和气吸式播种机等多种类型，并研制成磨纹式排种器。
到70年代，已形成播种中耕通用机和谷物联合播种机两个系列，同时研制成功了精密播种机。
欧洲第一台播种机于1636年在希腊制成。
1830年，俄国人在畜力多铧犁上加装播种装置制成犁播机。
英、美等国在1860年以后开始大量生产畜力谷物条播机。
20世纪以后相继出现了牵引和悬挂式谷物条播机，以及运用气力排种的播种机。
1958年挪威出现第一台离心式播种机，50年代以后逐步发展各种精密播种机。
中国在20世纪50年代从国外引进谷物条播机、棉花播种机等，60年代先后研制成功悬挂式谷物播种机、离心式播种机、通用机架播种机和气吸式播种机等多种机型,并研制成功了磨纹式排种器。
到70年代,已形成播种中耕通用机和谷物联合播种机两个系列并投入生产。
供谷物、中耕作物、牧草、蔬菜用的各种条播机和穴播机都已得到推广使用。
与此同时，还研制成功了多种精密播种机。
播种机的使用方法播种机具有播种均匀、深浅一致、行距稳定、覆土良好、节省种子、工作效率高等特点。
正确使用播种机应注意掌握以下10要点：1 进田作业前的保养要清理播种箱内的杂物和开沟器上的缠草、泥土，确保状态良好，并对拖拉机及播种机的各传动、转动部位，按说明书的要求加注润滑油，尤其是每次作业前要注意传动链条润滑和张紧情况以及播种机上螺栓的紧固情况。
机械制造专业毕业论文--土豆(马铃薯)去皮机说明书

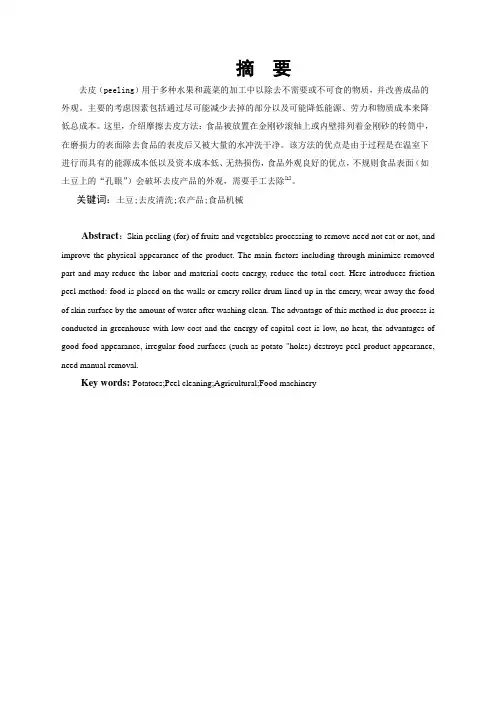

摘要去皮（peeling）用于多种水果和蔬菜的加工中以除去不需要或不可食的物质，并改善成品的外观。
主要的考虑因素包括通过尽可能减少去掉的部分以及可能降低能源、劳力和物质成本来降低总成本。
这里，介绍摩擦去皮方法：食品被放置在金刚砂滚轴上或内壁排列着金刚砂的转筒中，在磨损力的表面除去食品的表皮后又被大量的水冲洗干净。
该方法的优点是由于过程是在温室下进行而具有的能源成本低以及资本成本低、无热损伤，食品外观良好的优点，不规则食品表面（如土豆上的“孔眼”）会破坏去皮产品的外观，需要手工去除[1]。
关键词：土豆;去皮清洗;农产品;食品机械Abstract：Skin peeling (for) of fruits and vegetables processing to remove need not eat or not, and improve the physical appearance of the product. The main factors including through minimize removed part and may reduce the labor and material costs energy, reduce the total cost. Here introduces friction peel method: food is placed on the walls or emery roller drum lined up in the emery, wear away the food of skin surface by the amount of water after washing clean. The advantage of this method is due process is conducted in greenhouse with low cost and the energy of capital cost is low, no heat, the advantages of good food appearance, irregular food surfaces (such as potato "holes) destroys peel product appearance, need manual removal.Key words: Potatoes;Peel cleaning;Agricultural;Food machinery1 前言综观食品加工业对加工技术的要求，食品加工技术的发展趋势大致如下：第一，提高原料的利用率。
马铃薯去皮机设计
毕业设计马铃薯去皮机的设计目录摘要 (I)Abstract (II)第一章引言 (1)1.1目的意义和国内外现状概况 (1)1.2马铃薯原料加工预处理工艺流程简介 (2)1.2.1马铃薯的分级 (2)1.2.2马铃薯的清洗 (2)1.2.3马铃薯的去皮 (2)1.2.4马铃薯的护色 (3)1.3 国内外马铃薯去皮设备简介 (3)1.3.1机械装置 (3)1.3.2 蒸煮装置 (4)1.3.3 化学去皮装置 (5)第二章马铃薯去皮机的结构设计 (7)2.1 马铃薯去皮机的设计及特点 (7)2.2摩擦式马铃薯去皮机基本结构 (10)2.2.1工作圆筒 (10)2.2.2工作转盘 (10)2.2.3传动系统 (11)2.2.4其他 (11)2.3工作原理 (11)第三章马铃薯去皮机的参数确定 (13)3.1 物料在工作圆筒内的受力分析 (13)3.2工作转盘转速的确定 (14)3.3马铃薯去皮机功率的确定 (15)3.4整机主要参数指标 (17)第四章主要零件的结构设计与计算 (18)4.1 V带轮结构设计计算 (18)4．2传动主轴的结构设计计算 (19)4.2.1轴上零件的周向定位 (20)4.2.2确定轴上圆角和倒角尺寸 (21)4.3滚动轴承的初步选择 (21)第五章主要零件的校核 (22)5.1滚动轴承的寿命计算 (22)5.2轴的计算和校核 (22)5.2.1作出轴的计算简图 (22)5.1.2轴的强度校核计算 (23)5.1.3按弯扭合成应力校核轴的强度 (24)5.1.4轴的扭转刚度校核计算 (24)总结 (25)致谢 (26)参考文献 (27)摘要:马铃薯去皮是所有马铃薯制品加工工艺过程的重要环节，目前存在的各种去皮方法都各自有其一定的局限性。
随着马铃薯产业的发展和我国社会经济的进步，如何寻找一种优质、高效、节能几环保的马铃薯剥皮方法己成为马铃薯加工工艺过程中迫切需要解决的问题。
本文主要介绍了以摩擦原理为基础的、适合食品加工工厂等场所使用的大型马铃薯去皮机的设计要点、工作原理和设备组成。
