350kw康明斯柴油发电机组技术参数型号6ZTAA13-G2
康明斯发动机6CTAA8.3-G2柴油发电机组说明书
DALIAN PUYANG POWER GENERATOR TECHNOLOGY SET CO.LTD TEL ：400-007-6777 FAX ：地址：辽宁省大连市普兰店区普东社区

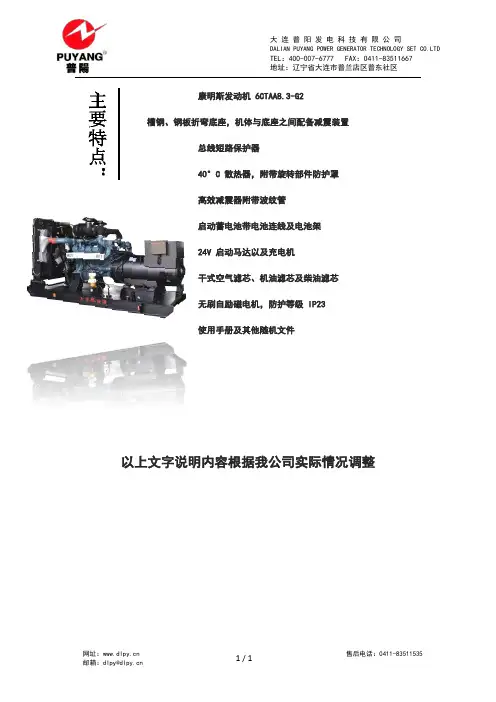

康明斯发动机 6CTAA8.3-G2
槽钢、钢板折弯底座，机体与底座之间配备减震装置
总线短路保护器
40°C 散热器，附带旋转部件防护罩
高效减震器附带波纹管
启动蓄电池带电池连线及电池架
24V 启动马达以及充电机
干式空气滤芯、机油滤芯及柴油滤芯
无刷自励磁电机，防护等级 IP23
使用手册及其他随机文件
以上文字说明内容根据我公司实际情况调整
参数配置
外形图
售后承诺
我公司将对出售的机组提供50KW以下机组6个月或500 小时保修（以先到为准）。
50KW以上机组12个月或 1000 小时保修（以先到为准）。
一切因发电机组制造缺陷引起的机组故障，由我公司负责保修。
（因人为操作失误、疏忽保养或不按操作规程引起的机组故障，机组易损件、日常使用配件、均不在保修范围内）。
设备发生买方无能力处理和修复的故障后，买方应立即通知卖方，在接到买方通知后，维修响应时间不超过2小时，对于一般简单故障问题，技术人员通过电话与客户沟通，指导解决问题；如通过电话解决不了的问题，则技术人员以最快的时间赶赴现场为客户排除故障，一般接电后本市24小时内处理；外埠48小时内处理；边远地区72小时处理。
公司每年将对售出机组进行2次以上回访，免费指导安装。

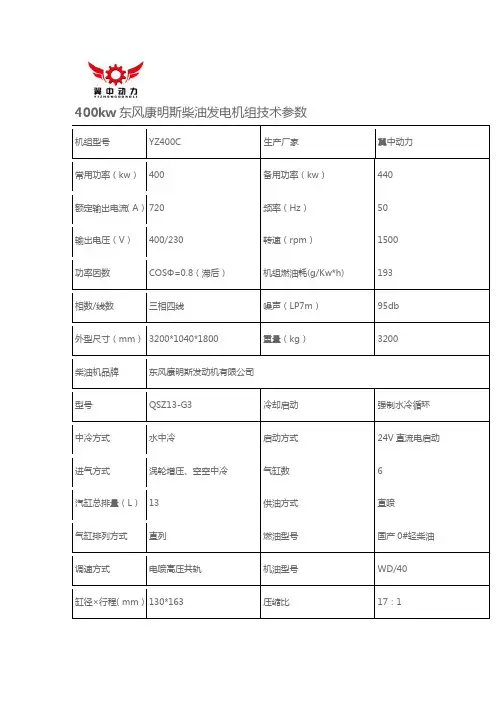

400kw康明斯柴油发电机组技术参数型号QSZ13-G3
400kw东风康明斯柴油发电机组技术参数
机组型号YZ400C生产厂家翼中动力
常用功率（kw）400备用功率（kw）440
额定输出电流（A）720 频率（Hz）50
输出电压（V）400/230转速（rpm）1500
功率因数COSΦ=0.8（滞后）机组燃油耗(g/Kw*h)193
相数/线数三相四线噪声（LP7m）95db
外型尺寸（mm）3200*1040*1800重量（kg）3200
柴油机品牌东风康明斯发动机有限公司
型号QSZ13-G3 冷却启动强制水冷循环中冷方式水中冷启动方式24V直流电启动进气方式涡轮增压、空空中冷气缸数 6
汽缸总排量（L）13供油方式直喷
气缸排列方式直列燃油型号国产0#轻柴油调速方式电喷高压共轨机油型号WD/40
缸径×行程（mm）130*163压缩比17：1。
康明斯系列燃气发电机组
280GF-T
常用功率Prime Rating(kW)
183
195
205
247
263
277
备用功率Standby Power
201
215
226
272
289
305
热耗Heat Consumption(MJ/kWh)
11
发动机
Engine
原型发动机品牌Diesel Engine
康明斯CUMMINS
80GF-SZ
85GF-T
常用功率Prime Rating(kW)
51
54
57
77
82
86
备用功率Standby Power
56
59
63
85
90
95
热耗Heat Consumption(MJ/kWh)
12
发动机
Engine
原型发动机品牌Diesel Engine
康明斯CUMMINS
发动机型号Engine Model
21.3
23.0
23.8
30.6
32.3
34.0
冷却水流量Coolant Flux(kg/s)
0.8
0.9
0.9
1.2
1.3
1.3
风扇空气流量Fan-air Flux(m3/h)
1.5
1.6
1.6
2.1
2.2
2.3
参考排气流量Exhaust Flux(m3/h)
398
338
350
573
476
501
启动方式Starting Method
4BTAA3.9-SJ
100kw康明斯柴油发电机组技术参数型号6BTAA5.9-G2
100kw东风康明斯柴油发电机组技术参数
机组型号YZ100C生产厂家翼中动力
常用功率（kw）100备用功率（kw）120
额定输出电流（A）216 频率（Hz）50
输出电压（V）400/230转速（rpm）1500
功率因数COSΦ=0.8（滞后）机组燃油耗(g/Kw*h)216
相数/线数三相四线噪声（LP7m）95db
外型尺寸（mm）2200*840*1350重量（kg）1260
柴油机品牌东风康明斯发动机有限公司
型号6BTAA5.9-G2 冷却启动强制水冷循
中冷方式水中冷启动方式24V直流电启动进气方式涡轮增压气缸数 6
汽缸总排量（L） 5.9供油方式直喷
气缸排列方式直列燃油型号国产0#轻柴油调速方式电子调速机油型号WD/40
缸径×行程（mm）102*120压缩比17.3:1。
发电机组技术参数
1、柴油发电机组技术参数
机组型号
LH-320
机组常用功率(KW/KVA)
320/400
机组备用功率(KW/KVA)
350/438
额定电压(V)
400/230
额定电流(A)
576
额定频率(Hz)
50
功率因数
（滞后）
线制
三相四线制
额定转速(r/min)
1500
电压调整范围（%）
95～105
海拔高度
＜1000m
3、柴油机技术参数
柴油机型号
NTAA855-G7A
柴油机品牌
重庆康明斯
最大功率 (KW)
407
类型
水冷、四冲程、废气涡轮增压、中冷
冷却方式自ຫໍສະໝຸດ 风扇闭式循环冷却汽缸数量及排列方式
6缸直列
缸径(mm)×冲程(mm)
140*152
压缩比
18:1
排烟温度(℃)(涡轮后)
520
机油容量L
38
随机资料
发动机零件目录、发动机使用及保养手册、发电机说明书、产品合格证
润滑方式
压力和飞溅润滑
调速方式
电调
散热器
管带式水箱
4、发电机技术参数
发电机型号
MP-350-4A/S
发电机品牌
马拉松
额定功率(KW)
350
励磁方式
无刷自励（AVR）
额定电压(V)
400/230
额定频率(Hz)
50
额定转速(r/min)
1500
功率因数
(滞后)
空气流量(m³/s)
绝缘等级
H
防护等级
IP23
120kw康明斯柴油发电机组技术参数型号6BTAA5.9-G12
120kw东风康明斯柴油发电机组技术参数
机组型号YZ120C生产厂家翼中动力
常用功率（kw）120备用功率（kw）140
额定输出电流（A）216 频率（Hz）50
输出电压（V）400/230转速（rpm）1500
功率因数COSΦ=0.8（滞后）机组燃油耗(g/Kw*h)216
相数/线数三相四线噪声（LP7m）95db
外型尺寸（mm）2350*1000*1400重量（kg）1260
柴油机品牌东风康明斯发动机有限公司
型号6BTAA5.9-G12 冷却启动强制水冷循
中冷方式水中冷启动方式24V直流电启动进气方式涡轮增压&空空中冷气缸数 6
汽缸总排量（L） 5.9供油方式直喷
气缸排列方式直列燃油型号国产0#轻柴油调速方式电子调速机油型号WD/40
缸径×行程（mm）102*120压缩比17.3:1。
300kw康明斯柴油发电机组技术参数型号6ZTAA13-G3
300kw东风康明斯柴油发电机组技术参数
机组型号YZ300C生产厂家翼中动力
常用功率（kw）300备用功率（kw）340
额定输出电流（A）540 频率（Hz）50
输出电压（V）400/230转速（rpm）1500
功率因数COSΦ=0.8（滞后）机组燃油耗(g/Kw*h)197
相数/线数三相四线噪声（LP7m）95db
外型尺寸（mm）3300*1500*1700重量（kg）3200
柴油机品牌东风康明斯发动机有限公司
型号6ZTAA13-G3 冷却启动强制水冷循环中冷方式水中冷启动方式24V直流电启动进气方式涡轮增压、空空中冷气缸数 6
汽缸总排量（L）8.3供油方式直喷
气缸排列方式直列燃油型号国产0#轻柴油调速方式电子调速机油型号WD/40
缸径×行程（mm）130*163压缩比15：1。
50kw康明斯柴油发电机组技术参数型号4BTA3.9-G2
外型尺寸（mm）
1750*740*1300
重量（kg）
800
柴油机品牌
东风康明斯发动机有限公司
型号
4BTA3.9-G2
冷却启动
强制水冷循
中冷方式
水中冷
启动方式
12V直流电启动
进气方式
自然吸气
气缸数
4
汽缸总排量（L）
3.9
供油方式
直喷
气缸排列方式
直列
燃油型号
国产0#轻柴油
调速方式
电子调速
机油型号
压调整率（%）
≤±0.5（稳态）+20～-15（瞬态）
频率波动率（%）
≤±0.5
电压波动率（%）
≤±0.5
WD/40
缸径×行程（mm）
102*120
压缩比
16.5:1
发电机品牌
可选择无锡斯坦福、英格、马拉松、上海麦格特、威力等电机
型号
YZ-50
材质
纯铜绝缘等级ຫໍສະໝຸດ H电压控制方式AVR
电压
≤4%
额定电压（V）
400/230
防护等级
IP23
相数/接线
三相四线/Y型绕接
频率调整率（%）
≤±0.5（稳态）+10～-7（瞬态）
50kw东风康明斯柴油发电机组技术参数
机组型号
YZ50C
生产厂家
翼中动力
常用功率（kw）
50
备用功率（kw）
58
额定输出电流（A）
72
频率（Hz）
50
输出电压（V）
400/230
转速（rpm）
1500
功率因数
COSΦ=0.8（滞后）
康明斯柴油发动机技术参数说明书
-;HA?DIBasic technical dataNumber of cylinders.. ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... .12 Cylinder arrangement ... ... ... ... ... ... ... ... ... ... ... ... ... ... 60° Vee Cycle. ... ... ... ... ... ... ... ... ... ... ... ..4 stroke, compression ignition Induction system... ... ... ... ... ... ... ... ... ... ... ... ... ...Turbocharged Compression ratio. ... ... ... ... ... ... ... ... ... ... ... ... ..13,6:1 nominal Bore... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... 160 mm Stroke ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... 190 mm Cubic capacity... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ..45.842 litres Direction of rotation... ... ... ... ...Anti-clockwise viewed on flywheel Firing order ... ... ... ... ... ... ...1A,6B,5A,2B,3A,4B,6A,1B,2A,5B.4A,3B Cylinder 1 furthest from flywheelCylinders designated ‘A’ are on the left side of the engine when viewed from the front (opposite end to flywheel)Total weight Electrounit (engine only)4012TAG1A/2A(dry).. ... ... ... ... ... ... ... ... ... ... ... ... ... ... 4400 kg 4012TAG1A/2A(wet) ... ... ... ... ... ... ... ... ... ... ... ... ... ... 4604 kg Overall dimensions ... ... ... ... ... ... ... ... ... ... ... ...Height 2118 mm .. ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ..Length 2731 mm .. ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ....Width 1723 mm Moment of inertia.. ... ... ... ... ... ... ... ... ... ... ... .Engine 9.73 kgm2 .. ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ..Flywheel 9.57 kgm2 Cyclic irregularity for engine/flywheel (Prime power):4012TAG1A ... 1500 rev/min ... ... ... ... ... ... ... ... ... ... ... ... 1,714 4012TAG2A ... 1500 rev/min ... ... ... ... ... ... ... ... ... ... ... ... 1,669RatingsSteady state speed stability at constant load. ... ... ... ... ...± 0,25% Electrical ratings are based on average alternator efficiency and are for guidance only (0,8 power factor being used). Operating pointEngine speed. ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...1500 rev/min Static injection timing.. ... ... ... ... ... ... ... See engine number plate Cooling water exit temperature.. ... ... ... ... ... ... ... ... ... ... .<98 °C Fuel dataTo conform to BS2869 class A1, A2.PerformanceSound pressure level 1500 rev/min ... ... ... ... ... ... ...106/112 dBA Note:All data based on operation to ISO 3046/1, BS 5514 and DIN 6271 standard reference conditions.Test conditionsAir temperature... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...25 °C Barometric pressure... ... ... ... ... ... ... ... ... ... ... ... ... ... ...100 kPa Relative humidity ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... (30)Air inlet restriction at maximum power (nominal)... ... ... ... 2,5 kPa Exhaust back pressure (nominal)... ... ... ... ... ... ... ... ... ... 3,0 kPa4000 Series 4012TAG1A 4012TAG2AGeneral installation 4012TAG1ADesignation Units50Hz 1500 rev/min60Hz 1800 rev/min ContinuousBaseloadPrimePowerStandbyMaximumContinuousBaseloadPrimePowerStandbyMaximumGross engine power kWb94211781292---Fan power kWm42---Net engine power kWm90011361250---BMEP gross bar1620,522,5---Combustion air flow m3/min7695105---Exhaust gas temperature max (after turbo)°C435460470---Exhaust gas flow max (after turbo)m3/min257---Boost pressure ratio-2,73,223,53---Mechanical efficiency%899192---Overall thermal efficiency%424342---Friction power and pumping losses kWm120---Mean piston speed m/s9,5---Engine coolant flow (min)l/s17---Typical Genset Electrical Output 0,8 pf 25 °C (100 kPa)kVA108013631500---kWe86410911200---Assumed alternator efficiency%96---Diesel Engine - ElectrounitGeneral installation 4012TAG2ANote:Not to be used for CHP design purposes. (Indicative figures only). Consult Perkins Engines Co. Ltd. Assumes complete combustion.Continuous Baseload rating Power available for continuous full load operation. Prime Power rating is available for unlimited hours per year with a variable load of which the average engine load factor is 80% of the published prime power rating, incorporation of a 10% overload for 1 hour in every 12 hours of operation which is permitted. Standby Power rating is for the supply of emergency power at variable load for the duration of the non-availability of the mains power supply. NO OVERLOAD capacity is available at this rating. Engines must not be allowed to have facilities for parallel operation with the mains supply. This rating should be applied only when reliable mains power is available. Should this not be the case then refer to Prime Power rating. A standby rated engine should be sized for an average load factor of 80% based on published standby rating for 500 operating hours per year. Standby ratings should never be applied except in true emergency power failure conditions.DesignationUnits 50Hz 1500 rev/min60Hz 1800 rev/minContinuous BaseloadPrime Power Standby Maximum Continuous BaseloadPrime Power Standby MaximumGross engine power kWb 103712961422---Fan power kWm 42---Net engine power kWm 99512541380---BMEP gross bar 18,122,624,8---Combustion air flowm 3/min 83,6106110---Exhaust gas temperature max (after turbo)°C 442472483---Exhaust gas flow max (after turbo)m 3/min 285---Boost pressure ratio -2,83,533,84---Mechanical efficiency %889292---Overall thermal efficiency%424241---Friction power and pumping losses kWm 120---Mean piston speed m/s 9,5---Engine coolant flowl/s 17---Typical Genset Electrical Output 0,8 pf 25 °C (100 kPa)kVA 119415051656---kWe 95512041325---Assumed alternator efficiency%96---Energy balanceNote:Not to be used for CHP design purposes. (Indicative figures only). Consult Perkins Engines Co Ltd. Assumes complete combustion. 4012TAG1A4012TAG2A Units1500 rev/min1800 rev/min ContinuousBaseloadPrimePowerStandbyMaximumContinuousBaseloadPrimePowerStandbyMaximumEnergy in fuel kWt223827703117---Energy in power output (gross) kWb94211781292---Energy to cooling fan kWm424242---Energy in power output (net)kWm90011361250---Energy to exhaust kWt680760924---Energy to coolant and oil kWt353434465---Energy to radiation kWt4495100---Energy to charge coolers kWt219303336---Units1500 rev/min1800 rev/min ContinuousBaseloadPrimePowerStandbyMaximumContinuousBaseloadPrimePowerStandbyMaximumEnergy in fuel kWt244430783477---Energy in power output (gross) kWb103712961422---Energy to cooling fan kWm424242---Energy in power output (net)kWm99512541380---Energy to exhaust kWt7508771013---Energy to coolant and oil kWt372464511---Energy to radiation kWt4995108---Energy to charge coolers kWt236346423---Cooling systemRecommended coolant: 50% inhibited ethylene glycol or 50% inhibited propylene glycol and 50% clean fresh water. For combined heat and power systems and where there is no likelihood of ambient temperatures below 10 °C then clean ‘soft’ water may be used, treated with 1% by volume of Perkins inhibitor in the cooling system. The inhibitor is available in bottles under Perkins Part No. 21825 735.Nominal jacket water pressure in crankcase. ... ... ... ... ... .1,7 bar The following is a guide based on ambient air conditions of 52 °C on a Perkins supplied radiator.Total coolant capacity:Electrounit (engine only) ... ... ... ... ... ... ... ... ... ... ... ... ... 73 litres ElectropaK (engine/radiator) . ... ... ... ... ... ... ... ... ... ... ..235 litres Pressure cap setting.. ... ... ... ... ... ... ... ... ... ... ... ... ... ...0,69 bar Fan. ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...Incorporated in radiator Diameter ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... 1524 mm pusher) Ambient cooling clearance (open ElectropaK Prime power) based on air temperature at fan 3 °C above ambient.4012TAG1A4012TAG2ACoolant pump speed andmethod of drive.. ... ... ... ... ... ... ... ... ... ... ... 1,4 x e rev/min gear Maximum static pressure head on pumpabove engine crank centre line.. ... ... ... ... ... ... ... ... ... ... ... ..7 m Maximum external permissible restrictionto coolant pump flow.. ... ... ... ... ... ... ... ... ... ... ... ... ... ... .20 kPa Thermostat operating range... ... ... ... ... ... ... ... ... ... ... ..71-85 °C Shutdown switch setting ... ... ... ... ... ... ... ... ... ... ... 101 °C rising Coolant immersion heater capacity ... ... ... ... ... ... ... ... ..4 kW x 2 *4012TAG2A **4012TAG1A Lubrication systemRecommended lubricating oil to conform with the specification of API CG4 15W/40 .Lubricating oil capacity:Sump maximum.. ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... 159 litres Sump minimum... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... 136 litres Lubricating oil temperature maximum to bearings.. ... ... ... 105 °C Lubricating oil pressure:at 80 °C temperature to bearing gallery (minimum) ... ... 0,34 MPa 4012TAG1A4012TAG2A*Typical after 250 hoursSump drain plug tapping size.. ... ... ... ... ... ... ... ... ... ... ... ... ..G1 Oil pump speed and method of drive..1,4 x e rev/min, gear driven Oil pump flow 1500 rev/min. ... ... ... ... ... ... ... ... ... ...6,0 litres/sec Shutdown switch setting.. ... ... ... ... ... ... ... ... ... ...1,93 bar falling Normal operating anglesFore and aft. ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...5°Side tilt ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... (10)Maximum additional restriction (duct allowance) to cooling airflow (Prime power) and resultant minimum airflowAmbient clearance 50% glycol Duct allowancemm H20Min airflowm3/minrev/min rev/min rev/min 150018001500180015001800 52 °C52 °20-1872-Maximum additional restriction (duct allowance) to cooling airflow (Prime power) and resultant minimum airflowAmbient clearance 50% glycol Duct allowancemm H20Min airflowm3/minrev/min rev/min rev/min 150018001500180015001800 52 °C52 °20-1872-Jacket cooling water data Units1500rev/min1800rev/minCoolant flow 4012TAG1A/2A l/s17,0-Coolant exit temperature (max)°C98-Coolant entry temperature (min)°C70-Coolant entry temperature (max) *°C85-Coolant entry temperature (max)**°C88-Oil consumptionPrime PowerUnits1500rev/min1800rev/min After running-in*g/kWhr0,50-Oil flow rate from pump I/s6,0-Oil consumptionPrime PowerUnits1500rev/min1800rev/min After running-in*g/kWhr0,51-Oil flow rate from pump I/s6,0-Fuel systemRecommended fuel... ..To conform to BS2869 1998 Class A1, A2 Type of injection system ... ... ... ... ... ... ... ... ... ... ..Direct injection Fuel injection pump... ... ... ... ... ... ... ... ... .Combined unit injector Fuel injector... ... ... ... ... ... ... ... ... ... ... ... .Combined unit injector Fuel injector opening pressure.. ... ... ... ... ... ... ... ... ... ... .234 bar Fuel lift pump. ... ... ... ... ... ... ... ... ... ... ... ... ... .Tuthill TCH 1-089 Delivery/hour at 1500 rev/min... ... ... ... ... ... ... ... ... ... .1020 litres Heat retained in fuel to tank . ... ... ... ... ... ... ... ... ... ... ... ..9,5 kW Temperature of fuel at lift pump to be less than ... ... ... ... ... 58 °C Fuel lift pump pressure.. ... ... ... ... ... ... ... ... ... ... ... ... ... ..3,0 bar Fuel lift pump maximum suction head... ... ... ... ... ... ... ... ... 2,5 m Fuel lift pump maximum pressure head (see Installation Manual) Fuel filter spacing.. ... ... ... ... ... ... ... ... ... ... ... ... ... ..10 microns) Governor type... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... .Electronic Torque at the governor output shaft.. ... ... ... ... ... ... ... 1,631 kgm Static injection timing ... ... ... ... ... ... ... .See engine number plate Tolerance on fuel consumption. ... ... ... ... ... .To ISO 8528-1 1993 4012TAG1A4012TAG2A Induction systemMaximum air intake restriction of engine:Clean filter.. ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... 127 mm H20 Dirty filter ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... 380 mm H20 Air filter type... ... ... ... ... ... ... ... ... ... ... ... ... ...4998-00-00 MF&T Exhaust systemMaximum back pressure for total system.Exhaust outlet flange size.. ... ... ... ... ... ... .2 x 254 mm (table ‘D’) For recommended pipe sizes, refer to the Installation Manual. Electrical systemType... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...Insulated return Alternator ... ... ... ... ... ... ... ... ... ... 24 volts with integral regulator Alternator output. ... ... ...40 amps at a stabilised output 28 volts at20 °C ambient Starter motor.. ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... .. 24 volts Starter motor power ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...16,4 kW Number of teeth on flywheel... ... ... ... ... ... ... ... ... ... ... ... ... ..156 Number of teeth on starter motor... ... ... ... ... ... ... ... ... ... ... (12)Minimum cranking speed at (0 °C). ... ... ... ... ... ... ... .120 rev/min Pull-in current of each starter motor solenoid... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... .30 amps at 24 volts Hold-in current of each starter motor solenoid... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...9 amps at 24 volts Engine stop solenoid.. ... ... ... ... ... ... ... ... ... ... ... ... ... ...24 volts Pull-in current of stop solenoid... ... ... ... ... ... .60 amps at 24 volts Hold-in current of stop solenoid.. ... ... ... ... ... 1,1 amps at 24 voltsFuel consumption (gross)Designation g/kWh Litres/hr rev/min1500180015001800 At Standby Max power rating203-309-At Prime Power rating199-276-At Continuous Baseload rating197-218-At 75% of Prime Power rating195-203-At 50% of Prime Power rating194-134-At 25% of Prime power rating207-72-Fuel consumption (gross)Designation g/kWh Litres/hr rev/min1500180015001800 At Standby Max power rating206-345-At Prime Power rating201-306-At Continuous Baseload rating197-240-At 75% of Prime Power rating197-225-At 50% of Prime Power rating195-149-At 25% of Prime power rating207-79-Designation Units1500rev/min1800rev/min 4012TAG1A mmH20949-4012TAG2A mmH20612-Engine mountingPosition of centre of gravity (wet engine) forward from rearface of crankcase .. ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...771 mm Engine vertical centre line above crankshaft centre line ... .38 mm Maximum additional load applied to flywheel due to all rotating components ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... .850 kgStarting requirementsNotes:l Battery capacity is defined by the 20 hour rate at 0 °C.lThe oil specification should be for the minimum ambient temperature as the oil will not be warmed by the immersion heater.lBreakaway current is dependent on battery capacity available. Cables should be capable of handling the transient current which may be up to double the steady cranking current.TemperaturerangeRange Down to 0 °C(32 °F)Oil:Starter:Battery:Max breakaway current:Cranking current:Aids:Starter cable size:Maximum length:API CG4 15W/402 x 24V4 x 12 volts x 286 Ah 1600 amps 810 ampsNot necessary 120 mm 26mGA DrawingLoad acceptance (cold)4012TAG1A1500 rev/min4012TAG2A1500 rev/minAbove complies with requirements of Classifications 3 & 4 of ISO 8528-12 and G2 operating limits stated in ISO 8528-5.The above figures were obtained under test conditions as follows:Engine block temperature.. ... ... ... ... ... ..45 °C Alternator efficiency ... ... ... ... ... ... ... ... ... 96%Minimum ambient temperature.. ... ... ... ..10 °C Isochronous GoverningUnder Frequency Roll Off (UFRO) set to 1 Hz below rated frequency Typical alternator inertia. ... ... ... ... ... .50 Kgm 2All tests were conducted using an engine which was installed and serviced to Perkins Engines Company Limited recommendations.Initial load applicationwhen engine reaches rated speed(15 seconds max after engine starts to crank)2nd Load applicationImmediately after engine has recovered to rated speed(5 seconds after initial load application)Prime power%Load kWm/kWe Nett Transient frequency deviation%Frequency recovery time secondsPrime power%Load kWm/kWe Nett Transient frequency deviation%Frequency recovery time seconds63715/686< -10537422/405< -105Initial load applicationwhen engine reaches rated speed(15 seconds max after engine starts to crank)2nd Load applicationImmediately after engine has recovered to rated speed(5 seconds after initial load application)Prime power%Load kWm/kWe Nett Transient frequency deviation%Frequency recovery time secondsPrime power%Load kWm/kWe Nett Transient frequency deviation%Frequency recovery time seconds57715/686< -10543539/518< -105Noise levelsThe figures for total noise levels are typical for an engine running at Prime Power rating in a semi-reverberant environment and measured at a distance of one metre from the periphery of the engine.Octave analysisThe following histograms show an octave band analysis at the position of the maximum noise level.Total noise levelSound pressure level re: -20 x 10-6 paSpeed 1500 rev/min......Ambient noise level 84 dBA.Octave analysis performed at the position of maximum noise.4012TAG1A4012TAG2APOSITION 11500 rev/min 106 - dBA1800 rev/min ------- dBA1500 rev/min 106 - dBA1800 rev/min ------- dBAPOSITION 21500 rev/min 108 - dBA 1800 rev/min ------- dBA 1500 rev/min 108 - dBA 1800 rev/min ------- dBA POSITION 3 1500 rev/min 111 - dBA 1800 rev/min ------- dBA 1500 rev/min 111 - dBA 1800 rev/min ------- dBA POSITION 4 1500 rev/min 111 - dBA 1800 rev/min ------- dBA 1500 rev/min 111 - dBA 1800 rev/min ------- dBA 4012TAG1A 4012TAG2A 4012TAG1A 4012TAG2A 4012TAG1A 4012TAG2A4012TAG1A4012TAG2A POSITION 71500 rev/min 108 - dBA 1800 rev/min ------- dBA 1500 rev/min 108 - dBA 1800 rev/min ------- dBA POSITION 6 1500 rev/min 112 - dBA 1800 rev/min ------- dBA 1500 rev/min 112 - dBA 1800 rev/min ------- dBA POSITION 5 1500 rev/min 112 - dBA 1800 rev/min ------- dBA 1500 rev/min 112 - dBA 1800 rev/min ------- dBA 4012TAG14012TAG24012TAG14012TAG24012TAG1A4012TAG2AFR4012TAG1A4012TAG2AThe information given on technical data sheets are for standard ratings only. For ratings other than shown contact Perkins Engines Company Limited, Stafford.Notes-;HA?DI All information in the document is substantially correct at the time of printing but may be subsequently altered by the company.Distributed by 4000 Series4012TAG1A 4012TAG2A P u bl i c a t i o n N o . T S L 4253, I s s u e 3, J a n u a r y 2003. P r i n t e d i n E n g l a n d . © P e r k i n s E n g i n e s C o m p a n y L i m i t e d .Perkins Engines Company Limited Stafford ST16 3UB United Kingdom Telephone +44 (0)1785 223141Fax +44 (0)1785 。
门诊大楼350KW柴油发电机组.doc
羅技术指标膅1、门诊大楼350KW柴油发电机组自动化性能1.市电异常断电机组能在10秒内自动启动，市电恢复正常后机组能自动降速停机,切换成市电供电（全自动负载转换柜）。
2.机组能三次启动，并有三次启动失败报警。
3.机组具有四保护功能，水温高、油压低、过电流、转速非常、飞车等保护并报声光报警。
4.机组在市电情况下能对蓄电池自动恒压充电。
5.可任意选择手动启动或自动启动、停机、送电、断电。
6.机组能自动稳压、调整。
注：1、发电机组包括：发动机（柴油滤清器、机油滤清器、空气滤清器、自充电系统）、散热器、发电机、空气开关、公共底座、减震器，以上各件均已装备在机组上。
2、附件：消声器、蓄电池、电池连线、随机工具箱、使用手册（柴油机及发电机原厂技术文件、发电机组使用说明书）3、确保无漏油、漏水、漏电等不良现象；4、直喷式发电机组在海拔小于1000米时，无需修正功率；1000-3000米之间，每上升500米，修正4% 3000-5000米之间，每上升500米，修正6%2、住院大楼600KW柴油发电机组自动化性能1.市电异常断电机组能在10秒内自动启动，市电恢复正常后机组能自动降速停机,切换成市电供电（全自动负载转换柜）。
2.机组能三次启动，并有三次启动失败报警。
3.机组具有四保护功能，水温高、油压低、过电流、转速非常、飞车等保护并报声光报警。
4.机组在市电情况下能对蓄电池自动恒压充电。
5.可任意选择手动启动或自动启动、停机、送电、断电。
6.机组能自动稳压、调整。
注：1、发电机组包括：发动机（柴油滤清器、机油滤清器、空气滤清器、自充电系统）、散热器、发电机、空气开关、公共底座、减震器，以上各件均已装备在机组上。
2、附件：消声器、蓄电池、电池连线、随机工具箱、使用手册（柴油机及发电机原厂技术文件、发电机组使用说明书）3、确保无漏油、漏水、漏电等不良现象；4、直喷式发电机组在海拔小于1000米时，无需修正功率；1000-3000米之间，每上升500米，修正4% 3000-5000米之间，每上升500米，修正6%3、医技大楼800KW柴油发电机组1.市电异常断电机组能在10秒内自动启动，市电恢复正常后机组能自动降速停机，切换成市电供电（全自动负载转换柜）。
350kw康明斯柴油发电机组技术参数型号QSZ13-G2
350kw东风康明斯柴油发电机组技术参数
机组型号YZ350C生产厂家翼中动力
常用功率（kw）350备用功率（kw）400
额定输出电流（A）630 频率（Hz）50
输出电压（V）400/230转速（rpm）1500
功率因数COSΦ=0.8（滞后）机组燃油耗(g/Kw*h)212
相数/线数三相四线噪声（LP7m）95db
外型尺寸（mm）3150*1040*1800重量（kg）3200
柴油机品牌东风康明斯发动机有限公司
型号QSZ13-G2 冷却启动强制水冷循环中冷方式水中冷启动方式24V直流电启动进气方式涡轮增压、空空中冷气缸数 6
汽缸总排量（L）13供油方式直喷
气缸排列方式直列燃油型号国产0#轻柴油调速方式电喷高压共轨机油型号WD/40
缸径×行程（mm）130*163压缩比17：1。
250kw康明斯柴油发电机组技术参数型号QSM11-G2
250kw东风康明斯柴油发电机组技术参数
机组型号YZ250C生产厂家翼中动力
常用功率（kw）250备用功率（kw）292
额定输出电流（A）450 频率（Hz）50
输出电压（V）400/230转速（rpm）1500
功率因数COSΦ=0.8（滞后）机组燃油耗(g/Kw*h)193
相数/线数三相四线噪声（LP7m）95db
外型尺寸（mm）2800*1000*1500重量（kg）2000
柴油机品牌东风康明斯发动机有限公司
型号QSM11-G2 冷却启动强制水冷循环中冷方式水中冷启动方式24V直流电启动进气方式增压中冷气缸数 6
汽缸总排量（L）10.8供油方式电喷
气缸排列方式直列燃油型号国产0#轻柴油调速方式电子调速机油型号WD/40
缸径×行程（mm）125*147压缩比16.3:1。
康明斯100KW柴油发电机组技术参数
康明斯100KW柴油发电机组技术参数1、发电机组额定功率：100KW/125KVA额定电压：400V/230V额定电流：180A额定频率：50Hz额定功率因素：COS=0.8（滞后）稳态电压调整率：≤±0.5%瞬态电压调整率：≤-10%/ +15%电压稳定时间：≤1.5sec电压波动率：≤0.5%电压波形失真度≤8%稳态频率调整率：≤3%瞬态频率调整率：≤±5%频率稳定时间：3sec频率波动率：≤0.25%噪音：≤95分贝满载燃油耗量：207g/kw/h外形尺寸（mm）：2300*800*1350重量：1500KG2、柴油发动机柴油机型号：6BTA5.9-G2备用功率：116KW额定转速：1500r/min工作循环：四冲程进汽方式：涡轮增压、空空中冷冷却方式：闭式循环水冷却，自带水箱风扇散热调速方式：数字电子调速散热水箱风扇为发动机原厂配套闭式曲轴箱，具有油气过滤分离装置发动机具有电子管理系统发动机具有故障自诊断功能，LCD直接显示故障代码，便于维护检修发动机有24V直流启动马达，启动马达24 VDC / 1 x 7.5 kW发动机具有高强度的金属材质油底壳柴油发动机大修时间≥12000小时3、发电机类型：封闭、防滴自通风保护、自励磁、自调节、带自动电压调节器的旋转无刷同步发电机额定容量： 120KVA相数接法：三相四线绝缘等级： H级温升： H级防护等级： IP23额定频率： 50HZ额定功率因数：0.8（滞后）额定电压：400/230V额定转速：1500r/min励磁方式：无刷自励磁波形畸变率：≤4%短路电流能力： 300% ：10S超速能力：≥2250rpm电话影响因数（TIF）小于50，电磁影响（THF）小于2％4、双电源自动切换（ATS)四级机械、电气联锁切换开关市电、发电、输出状态灯自动手动选择开关自动切换时间不超过10秒屏体坚固、操作方便5、符合标准本企业制造的该系列发电机组满足国家JB/T10303-2001《工频柴油发电机组通用技术条件》标准。
