3.5寸TFT驱动板 SPEC
ICOP Vortex86DX2 800MHz 3.5寸 CPU 模块说明书
VDX2-6526DM&P Vortex86DX2 800MHz3.5” CPU Modulewith 4S/4USB/VGA/LCD/LVDS/AUDIO/ 3LAN/GPIO/PWMx16512MB/1GB DDR2 OnboardUser’s Manual(Revision 1.2A)CopyrightThe information in this manual is subject to change without notice for continuous improvement in the product. All rights are reserved. The manufacturer assumes no responsibility for any inaccuracies that may be contained in this document and makes no commitment to update or to keep current the information contained in this manual.No part of this manual may be reproduced, copied, translated or transmitted, in whole or in part, in any form or by any means without the prior written permission of the ICOP Technology Inc.Copyright 2014 ICOP Technology Inc.Manual No. IUM6526000-01 Ver.1.0ATrademarks AcknowledgmentVortex86DX2 is the registered trademark of DM&P Electronics Inc.Other brand names and product names that appear in this document are the properties and registered trademarks of their respective owners. All names mentioned herewith are served for identification purpose only.T a b l e o f C o n t e n t sT a b l e o f C o n t e n t s ............................................................. i iiC h a p t e r 1 Introduction (1)1.1 Packing List (1)1.2 Product Description (2)1.3 Specifications (3)1.4 Board Dimension (5)C h a p t e r 2 Installation (6)2.1 Board Outline (6)2.2 Connectors Location ...................................... .. (7)2.3 Connectors & Jumpers Summary (8)2.4 Pin Assignments & Jumper Settings (9)2.5 System Mapping (17)2.6 Watchdog Timer (22)2.7 GPIO (23)2.8 SPI Flash (24)2.9 PWM (25)C h a p t e r 3 Driver Installation (26)Appendix (27)A. TFT Flat Panel Data Output (27)B. TFT Flat Panel Support List (28)C. LVDS Flat Panel Support List (29)D. Flat Panel Wiring and Lighting (30)E. TCP/IP Library for DOS Real Mode (31)F. BIOS Default Setting (32)Warranty (33)This page is blankC h a p t e r 1Introduction 1.1 Packing ListProduct Name PackageSOM304D2-65261.2 Product DescriptionThe VDX2-6526 family of low-power x86 embedded controller is designed to meet 3.5” specification, and integrated with the following features.800 MHz Vortex86DX2 SoCVGA, TFT/ LVDS LCD support up to 1280x1024 resolution512MB/ 1GB DDR2 system memory 10/100/1000 Mbps Ethernet4 USB 2.0 (host)Up to 4 serial portsParallel port16-bit GPIOs AudioOnboard 4MB SPI FlashMeet PC/104 stacking spec.2 watchdog timerPWM 16~24 channelsJTAG interfaceAMI BIOSSingle voltage +5V DCSupport operating temperature range of -10°C to +60°CThe VDX2-6526 3.5” family of embedded controller is designed with backward compatibility in mind, to provide migration path for projects facing end-of-life challenges with their existing x86 based 3.5” controller. The VDX2-6526 family of controller is designed as a plug in replacement, with backward compatibility to support legacy software to help extend existing product life cycle without heavy re-engineering.VDX2-6526 is suitable for broad range of data-acquisition, industrial automation, process control, automotive controller, AVL, intelligent vehicle management device, medical device, human machine interface, robotics, machinery control and more.1.3 SpecificationsFeatures VDX2-6526CPU DM&P SoC CPU Vortex86DX2- 800MHzReal Time Clock with Lithium Battery BackupCache L1:16K I-Cache, 16K D-Cache L2:256KB CacheBIOS AMI BIOSBus Interface PC/104 Standard CompliantSystem Memory 512MB/ 1 GB DDR2 OnboardWatchdog Timer Software programmable from 30.5 us to 512 seconds x2sets(Watchdog 1 fully compatible with M6117D) VGA Integrated 2D VGA chipVGA and TFT/LVDS Flat Panel Interface Support( Either VGA orLCD)Share system memory 16MB/32MBMono, DSTN, STN, TFT Flat Panel interface support & resolutionup to 1280x1024, 16M colorsLAN Integrated 10/100M Ethernet x1Realtek 8111F 10/100/1000Mbps Ethernet x2AUDIO ALC 262 (HD Audio)Touch Controller PS/2 interface (Optional)I /O Interface SATA 7P Connector x 1RS-232/485 port x4USB port x4 (USB 2.0 version)USB hot SWAP x 1 (Optional)16-bit GPIO port x110/100Mbps Ethernet port x110/100/1000 Mbps Ethernet port x2Connectors SATA 7P for SATA x 12.00 mm ∅ 44-pin box header for LCD x 12.00 mm ∅ 26-pin box header for Printer x12.00 mm ∅ 20-pin box header for 16-bit GPIO x12.00 mm ∅ 20-pin header for LVDS x 12.00 mm ∅ 10-pin box header for VGA x12.00 mm ∅ 10-pin box header for USB x22.00 mm ∅ 10-pin box header for RS-232 x32.00 mm ∅ 8-pin header for Ethernet x 22.54 mm ∅ 4-pin header for DC-in x12.54 mm ∅ 2-pin header for Reset x11.25 mm ∅ 4-pin Wafer for Line-out/MIC-in x21.25 mm ∅ 4-pin Wafer for Touch screen x1(Optional)External RJ-45 connector for Ethernet x1External Mini DIN connector for KBD/Mouse x1External D-Sub 15 pin female connector for VGA x1External D-Sub 9 pin male connector for RS232 x1Flash Disk Support Onboard 4MB SPI Flash Disk (Driver: A) PWM 16 channelsPower Requirement Single Voltage +5V@1ADimension 102 X 146mm (4.01 x 5.75 inches) Weight 150gOperatingTemperature -10o C ~ +60o COperating System Support Free DOS, DOS 6.22, PCDOS 7.1, DR-DOS, x-DOS, OD/2, CE6.0, CE7.0, Windows XP Professional, Windows Embedded Standard (XPE), POS Ready(WePOS), Embedded Linux, X-linux, QNX, Vxworks and FreeBSD.1.4 Board DimensionC h a p t e r 2Installation2.1 Board Outline(Note1: COM RS232/485 is selected by BIOS setting)(Note2: USB4 hot SWAP optional. USB4 has no function if hot SWAP is not selected)(Note3: Touchscreen optional. No onboard SPI ROM if Touchscreen function is selected)2.2 Connectors Location Connectors2.3 Connectors & Jumpers SummarySummary TableNbr Description Type of Connections Pin nbrs.J1 LCD Box Header, 2.0∅, 22x2 44-pinJ2 LVDS Pin Header, 2.0∅, 10x2 20-pinJ3 VGA Pin Header, 2.0∅, 5x2 10-pinJ4 SATA DOM SATA 7P Connector, 7x1 7-pinJ5 PS/2 Keyboard / Mouse Mini-DIN Female6-pinJ6 SATA DOM Power Box Header, 2.0∅, 1x22-pinJ7 Reset Pin Header, 2.54∅, 1x2 2-pinJ8 GPIO( Port 0/1/PWMx16) Box Header, 2.0∅, 10x220-pinJ9 10/100/1000 Ethernet LAN RJ45 Connector 8-pinJ10 10/100 Ethernet LAN Pin Header, 2.0∅, 4x2 8-pinJ11 10/100/1000 Ethernet LAN Pin Header, 2.0∅, 4x2 8-pinJ12 USB2 USB connector 4-pinJ13 USB0&1 Box Header, 2.0∅, 5x2 10-pinJ14 USB3 Box Header, 2.0∅, 5x2 10-pinJ15 COM1(RS232/485/TTL/P4) D-Sub Male 9-pinJ17 COM2(RS232/485/TTL/P5) Box Header, 2.0∅, 5x2 10-pinJ18 COM3(RS232/485/TTL/P6) Box Header, 2.0∅, 5x2 10-pinJ19 COM4(RS232/485/TTL/P7) Box Header, 2.0∅, 5x2 10-pinJ20A PC104 Connector – 64 pin Box Header, 2.54∅, 32x2 64-pinJ20B PC104 Connector – 40 pin Box Header, 2.54∅, 20x2 40-pinJ21 4P Power Source (InterconnectPin Header, 2,54∅, 4x1 1-pin to PC/104 – J20)J23 LINE-OUT Wafer, 1.25∅, 4x14-pinJ24 MIC-IN Wafer, 1.25∅, 4x14-pinJ25 Touch Screen (Optional) Wafer, 1.25∅, 4x1 4-pinJ26 PRINT Box Header, 2.0∅, 13x2 26-pinJ27 Power Connector Terminal Block, 5.0∅, 2x1 2-pinPWR-Power Active LED (Red) LED-SMDLEDLED 3 LAN Link/Active LED (Green) LED-SMDLED 4 LAN Duplex LED ( Yellow ) LED-SMDSP1 BUZZER2.4 Pin Assignments & Jumper Settings J1: LCD (DVO) ConnectorPin # Signal Name Pin # Signal Name1 +3.3V2 +3.3V3 LG24 LG35 LG46 LG57 NC 8 NC9 LR0 10 LR111 LR2 12 LR313 LR4 14 LR515 GND 16 NC17 NC 18 NC19 NC 20 GND21 NC 22 NC23 LB0 24 LB125 LB2 26 LB327 LB4 28 LB529 NC 30 NC31 LG0 32 LG133 GND 34 GND35 NC 36 LCLK37 NC 38 LDE39 NC 40 LHSYNC41 NC 42 LVSYNC43 LBACKL 44 LVDDEN(Please refer to Appendix A, for TFT Flat Panel Data Output)J2: LVDS (24-bit support only)Pin # Signal Name Pin # Signal Name1 VCC3 (+3.3V)2 VCC3 (+3.3V)3 GND4 GND5 RxIN0+6 RxIN0-7 RxIN1- 8 GND9 GND 10 RxIN1+11 RxIN2+ 12 RxIN2-13 CKIN- 14 GND15 GND 16 CKIN+17 RxIN3- 18 GND19 GND 20 RxIN3+ J3: VGAPin # SignalNamePin #SignalName1 R OUT2 GND3 G OUT4 GND5 B OUT6 GND7 HSYNC 8 GND9 VSYNCD 10 GNDJ4: SATA DOMPin # Signal Name Pin # Signal Name1 GND2 TX+3 TX-4 GND5 RX-6 RX+7 GNDJ5: PS/2 MousePin # Signal Name Pin # Signal Name1 MSCLK2 MSDATA3 NC4 GND5 VCCJ6: SATA DOM POWERPin # Signal Name Pin # Signal Name1 VCC2 GNDJ7: RESETPin # Signal Name Pin # Signal Name1 RST_SW2 GNDJ8: GPIO (Port 0/1 / PWMx16)J9: LAN1 (RJ45) Pin # Signal Name Pin # Signal Name1 GTX+2 GTX-3 GRX+4 GTXC+5 GTXC-6 GRX-7 GRXD+8 GRXD-J10: LAN2 Pin # Signal Name Pin # Signal Name1 ATX+2 ATX-3 ARX+4 LED005 LED0+6 ARX-7 LED1+8 LED1J11: LAN3 Pin # Signal Name Pin # Signal Name1 GTX+12 GTX-13 GRX+14 GTXC+15 GTXC-16 GRX-17 GRXD+18 GRXD-1Pin # Signal Name Pin # Signal Name1 GND2 VCC3 GP004 GP105 GP016 GP117 GP028 GP129 GP03 10 GP1311 GP04 12 GP14 13 GP05 14 GP15 15 GP06 16 GP1617 GP07 18 GP17 19 VCC 20 GNDJ12: USB2 (USB type A)Pin # Signal Name Pin # Signal Name1 VCC2 LUSBD2-3 LUSBD2+4 GND5 GGND6 GGND7 GGND 8 GGNDJ13: USB0&1Pin # Signal Name Pin # Signal Name1 VCC2 VCC3 LUSBD0-4 LUSBD1-5 LUSBD0+6 LUSBD1+7 GND 8 GND9 GGND 10 GGNDJ14: USB3&4 (Optional: USB4 hot SWAP)Pin # Signal Name Pin # Signal Name1 VCC2 VCC3 LUSBD3-4 LUSBD4-5 LUSBD3+6 LUSBD4+7 GND 8 GND9 GGND 10 GGND*USB4 has no function if hot SWAP is not selectedJ15: COM1 RS232 / 485 D-SUB 9 pin (Optional: TTL / GPIO-P4)Pin # Signal Name Pin#Signal Name1 DCD1 / 1RS485-2 RXD1 / 1RS485+3 TXD14 DTR15 GND6 DSR17 RTS1 8 CTS19 RI1 10 NCJ17: COM2 RS232 / 485 (Optional: TTL / GPIO-P5)Pin # Signal Name Pin#Signal Name1 DCD1/ 1RS485-2 RXD1/ 1RS485+3 TXD14 DTR15 GND6 DSR17 RTS1 8 CTS19 RI1 10 NCJ18: COM3 RS232 / 485 (Optional: TTL / GPIO-P6)Pin # Signal Name Pin#Signal Name1 DCD1/ 1RS485-2 RXD1/ 1RS485+3 TXD14 DTR15 GND6 DSR17 RTS1 8 CTS19 RI1 10 NCJ19: COM4 RS232 / 485 (Optional: TTL / GPIO-P7)Pin # Signal Name Pin#Signal Name1 DCD1/ 1RS485-2 RXD1/ 1RS485+3 TXD14 DTR15 GND6 DSR17 RTS1 8 CTS19 RI1 10 NC1 IOCHCHK *2 GND3 SD74 RESETDRV5 SD6 6 VCC7 SD5 8 IRQ99 SD4 10 -5V11 SD3 12 DRQ2 13 SD2 14 -12V15 SD1 16 OWS 17 SD0 18 +12V 19 IOCHRDY 20 GND21 AEN 22 SMEMW * 23 SA19 24 SMEMR * 25 SA18 26 IOW * 27 SA17 28 IOR * 29 SA16 30 DACK3 * 31 SA15 32 DRQ3 33 SA14 34 DACK1 * 35 SA13 36 DRQ1 37 SA12 38 REFRESH * 39 SA11 40 SYSCLK 41 SA10 42 IRQ7 43 SA9 44 IRQ6 45 SA8 46 IRQ5 47 SA7 48 IRQ4 49 SA6 50 IRQ3 51 SA5 52 DACK2 * 53 SA4 54 TC55 SA3 56 BALE 57 SA2 58 VCC59 SA1 60 OSC61 SA0 62 GND63 GND 64 GND1 GND2 GND3 MEMCS16 *4 SBHE *5 IOCS16 * 6 SA237 IRQ10 8 SA229 IRQ11 10 SA2111 IRQ12 12 SA2013 IRQ15 14 SA1915 IRQ14 16 SA1817 DACK0 * 18 SA1719 DRQ0 20 MEMR *21 DACK5 * 22 MEMW *23 DRQ5 24 SD825 DACK6 * 26 SD927 DRQ6 28 SD1029 DACK7 * 30 SD1131 DRQ7 32 SD1233 VCC 34 SD1335 MASTER * 36 SD1437 GND 38 SD1539 GND 40 NCJ21: 4P Power Source (Interconnect to PC/104 – J20) Pin # Signal Name1 -5V2 -12V3 +12V4 GNDJ23: LINE OUTPin # Signal Name1 LOUTR2 GND3 GND4 LOUTLJ24: MIC-INPin # Signal Name1 MICVREF2 GND3 GND4 MIC-INJ25: Touch Screen (Optional)Pin # Signal Name1 Y-2 X-3 Y+4 X+*No onboard SPI ROM if Touch Screen function is selectedJ26: PRINTPin # Signal Name Pin # Signal Name1 STB- 14 AFD-2 PD0 15 ERR-3 PD1 16 INIT-4 PD2 17 SLIN-5 PD3 18 GND6 PD4 19 GND7 PD5 20 GND8 PD6 21 GND9 PD7 22 GND10 ACK- 23 GND11 BUSY 24 GND12 PE 25 GND13 SLCT 26 NCJ27: Power Connector (Terminal Block 5.0mm)Pin # Signal Name1 +5V2 GND2.5 System Mapping2.6 Watchdog TimerThere are two watchdog timers in Vortex86SX/DX/DX2 CPU. One is compatible with M6117D watchdog timer and the other is new. The M6117D compatible watchdog timer is called WDT0 and new one is called WDT1.We also provide DOS, Linux and WinCE example for your reference. For more technical support, please visit: /tech2.7 GPIO (General Purpose Input / Output)20 GPIO pins (16 channels without ACC and Ground) are provided by the Vortex86DX2 for general usage in the system. All GPIO pins are independent and can be configured as inputs or outputs, with or without pull-up/pull-down resistors.We also offer DOS, Linux and WinCE example for your reference. For more technical support, please visit: /tech2.8 SPI flash (Serial Peripheral Interface)As SPI Flash (Serial Peripheral Interface) offers many benefits including: reduced controller pin count, smaller and simpler PCBs, reduced switching noise, less power consumption, and lower system costMany of users may consider using a formatted SPI flash to boot for the system or emulate SPI flash as Floppy (A: Driver or B: Driver). Then you must know how to set for this condition in CMOS Setup and boot up under DOS 6.22, X-DOS, DR-DOS and Free DOS.For more technical support, please visit: /tech2.9 PWM (Pulse-width modulation)Pulse-width modulation (PWM) of a signal or power source involves the modulation of its duty cycle, to either convey information over a communications channel or control the amount of power sent to a load.The popular applications of pulse width modulation are in speed control of electric motors, volume control of Class D audio amplifiers or brightness control of light sources and many other power electronics applications.The Vortex86DX2 SoC integrated 16 channels of PWM interface enabling the Automation, robotic industry to a New Age x86 SoC platform and we also offer the sample code of PWM which will guide the engineer to control the PWM functionality smoothly.For more inquire of this sample code that please contact our sales team or mail to:*************.twC h a p t e r 3Driver InstallationVGAThe Vortex86DX2 processor integrated a 2D VGA chip within. It is capable in providing VGA display resolution up to 1280x1024 and also support TFT/ LVDS flat panel while share system memory of 16MB/ 32MB.LANThe Vortex86DX2 processor also integrated 10/100Mbps Ethernet controller that supports both 10/100BASE-T and allows direct connection to your 10/100Mbps Ethernet based Local Area Network for full interaction with local servers, wide area networks such as the Internet.The controller supports: Half / Full-Duplex Ethernet function to double channel bandwidth, auto media detection.For using 1000Mbps LAN, please download the corresponding drivers at the following link: Drivers for RTL8111F and if you have any question about it, please contact us at *************.twHD AudioBesides the above mentioned, the Vortex86DX2 processor includes an ALC 262 (HD Audio) in the CPU as well.Operating system supportThe Vortex86DX2-6526 3.5” CPU board supports embedded software: Free DOS, DOS 6.22, PCDOS 7.1, DR-DOS, x-DOS, OS/2, Windows CE 6.0, Windows XP Professional, and Windows Embedded standard (XPE). Windows 7 is not officially supported but we have drivers for your testing.For drivers, please visit DMP official website: /tech for them and if you cannot locate them, please mail us at *************.twVortex86DX2-6526 also supports most of the popular Linux distributions, for more detail information, please also visit DMP official website: /techAppendixA. TFT Flat Panel Data OutputB. TFT Flat Panel Support ListSize Brand Resolution Model No.3.5” Planar 160x120 EL320.240.36-HB5.7” Planar 320x240 EL160.120.395.7” TOSHIBA 320x240 LTA057A343F5.7” Sharp 320x240 (QVGA/VGA) LQ057Q3DC025.7” Data Image 640x480 FG050710DSSWJG01/DG015.7” Ampire 640x480 AM-640480GTMQW-T00H6.4” PVI 640x480 PD064VT56.4” LG 640x480 LB064V026.5” Optrex 640x480 T-51750GD065J-FW-ADN7” Ampire 800x480 AM-80480STMQW-TA0 7” Data Image 800x480 FG0700A0DSSWBG01 7” URT 800x480 UMSH-8173MD-1T7” Emerging Display 800x480 ET0700G0DH67” Innolux 800x480 AT070TN83 V.1 (10131) 8” Sharp 640x480 LQ080V3DG0110.4” Toshiba 640x480 LTD104C11S10.4” Optrex 640x480 T-55532D104J-LW-A-AAN12.1” LG 800x600 LB121S03C. LVDS Flat Panel Support ListApproved LVDS Flat Panel ListSize Brand Resolution Model No.5.7” AMPIRE 640x480 AM-640480G4TNQW6.5” AUO 640x480 G065VN017” HannStar 800x480 HSD070LDW17” Ampire 800x480 AM-800480R3TMQW8.4” AUO 800x600 G084SN03 V38.9” CPT 1024x600 CLAA089NA0ACW8.9” HannStar 1024x600 HSD089IFW110.1” HannStar 1024x600 HSD100IFW110.1” AUO 1024x600 B101AW06_V010.4” AUO 800x600 G104SN02 V210.4” Ampire 800x600 AM-800600LTNQW12.1” AUO 800x600 G121SN0115” AUO 1024x768 G150XG01D. Flat Panel Wiring and LightingHardwareBefore you connect the TFT LCD Flat Panel with Vortex86DX2-6526, please make surethat the input Voltage of LCD is + 3.3V or NotBIOSPlease contact or e-mail our regional sales to get the special BIOS for the any TFT LCD Flat Panels.Wiring LCD CablePlease refer to Page 9 (J1: LCD connector) and Page 27~29. If you have further questions about LCD lighting and integration service, please contact our regional sales or mail to *************.twE. TCP/IP library for DOS real modeDSock is a TCP/IP library for DOS real mode, which is used by RSIP. It provides simple C functions for programmer to write Internet applications. ICOP also provide Internet examples using DSock: BOOTP/DHCP, FTP server, SMTP client/server, HTTP server, TELNET server, Talk client/server, etc.DSock provides a lot of example source code. Programmer can add Internet functions to their project easily and save development time. With a utility "MakeROM”, programmer also can make a ROM image to fit their application, those examples can be seen in the following Application systems: Mity-Mite Serial Server,Web Camera Tiny Server and RSIP Serial Server.DSock is free for All ICOP products using M6117D/ Vortex86/ Vortex86SX/ Vortex86DX/ Vortex86DX2 CPU and ICOP also provide the business version of DSock for those customers who are using other x86 CPUs.If you would like to use DSock or business version of DSock, Please mail to *************.tw or contact your regional sales.Please download the trial DSock software and Utilities from our website:/tech/dmp-lib/dsock/F. BIOS Default settingIf the system cannot be booted after BIOS changes are made, Please follow below procedures in order to restore the CMOS as default setting.Press “End” Key, when the power onPress <Del> to enter the AMI BIOS setupPress “F9” to Load Optimized DefaultsPress “F10” to Save configuration changes and exit setupWarrantyThis product is warranted to be in good working order for a period of one year from the date of purchase. Should this product fail to be in good working order at any time during this period, we will, at our option, replace or repair it at no additional charge except as set forth in the following terms. This warranty does not apply to products damaged by misuse, modifications, accident or disaster. Vendor assumes no liability for any damages, lost profits, lost savings or any other incidental or consequential damage resulting from the use, misuse of, originality to use this product. Vendor will not be liable for any claim made by any other related party. Return authorization must be obtained from the vendor before returned merchandise will be accepted. Authorization can be obtained by calling or faxing the vendor and requesting a Return Merchandise Authorization (RMA) number. Returned goods should always be accompanied by a clear problem description.。
SPEC_TM035KDH03
天马3.5英寸数字液晶屏技术规格1、通用规格接口类型是根据内存条金手指上导电触片的数量来划分的，金手指上的导电触片也习惯称为针脚数（Pin）。
TSP：touch Screen panel主要指触摸屏的面板。
注解一：查看最佳的图像质量的方向是不同于TFT定义，有一个180度的转变。
注解二：关于环境保护的要求：符合RoHS（限制在电子电气产品中使用有害物质的指令）注解三:LCM重量公差：±5％AS13LCM35D驱动板技术规格AS13LCM35D工作原理图图中名词解释Decoder：解码器，译码器VR（voltage regulation）：电压调节（调压）MCU（Microprogrammed Control Unit）：微程序控制器AS13LCM35D接口定义J3插座定义AS13LCM35D连接线示意图3、绝对最大额定参数（Absolute Maximum Ratings）3.1操作TFT-LCD面板（Driving TFT LCD Panel）4、电特性（Electrical Characteristics）4.1操作TFT-LCD面板（Driving TFT LCD Panel）GND=0V，Ta=25℃4.2控制背光（Driving Backlight）注解一：下图显示的LED背光连接。
注解二：一个LED：IF=20毫安，VF= 3.2V注解三：最小的LED寿命：20,000小时6、光学特性（Optical Characteristics）6.1光学鉴定（Optical Specification）Ta=25℃实验条件（Test Conditions）1. VF= 3.2V，IF = 20mA下的LED电流，环境温度为25℃。
2. 测试系统是指注解1和注解2。
注解一：光学测量系统的定义。
在黑暗的房间，应测量的光学特性。
运行5分钟后，测量的光学性质在液晶屏幕的中心点。
所有输入端子的液晶面板必须是地面测量时面板的中心区域。
tft驱动方案
tft驱动方案第一部分：tft显示技术及其应用TFT是"薄膜晶体管"的缩写，是一种用于液晶显示器的驱动方案。
随着移动设备、电视和电脑显示器的普及，TFT显示技术成为现代显示设备中最重要的一种。
TFT驱动方案具备许多优点，例如高对比度、快速响应时间和低功耗等。
第二部分：TFT驱动方案的原理及工作方式TFT显示器利用薄膜晶体管驱动每一个像素点。
一个TFT显示器通常由数百万个像素点组成，每个像素点都包含一个液晶单元和一个薄膜晶体管。
当信号被传输到液晶单元时，晶体管会通过改变液晶的状态来控制每一个像素点的亮度和颜色。
这种方式使得TFT驱动方案具备了很高的灵活性和准确性。
第三部分：TFT驱动方案的优势和应用由于TFT驱动方案具备许多优点，因此得到了广泛应用。
首先，TFT驱动方案具有高对比度和准确的色彩重现能力，使得显示的画面更加清晰和真实。
这使得TFT驱动方案成为电视和电脑显示器的首选方案。
其次，TFT驱动方案的响应时间很快，可以保证快速移动画面的流畅显示。
这使得TFT驱动方案广泛应用于游戏主机和移动设备。
此外，TFT驱动方案具备低功耗特性，可延长显示设备的续航时间。
这使得TFT驱动方案成为智能手机、平板电脑和手持游戏机等移动设备的首选方案。
第四部分：TFT驱动方案的未来发展趋势随着科技的不断进步，TFT驱动方案也在不断发展。
未来，TFT驱动方案有望实现更高的像素密度和更快的刷新率，以提供更高质量的图像和视频显示。
此外，随着无线技术的普及，TFT驱动方案可以通过无线连接进行音频和视频传输，进一步提升使用体验。
同时，新型材料和技术的引入将使得TFT驱动方案在柔性显示和电子墨水等领域得到更广泛的应用。
第五部分：结语TFT驱动方案作为一种重要的显示技术，不仅在现有设备上得到广泛应用，而且在未来的发展中仍然具备巨大的潜力。
通过不断创新和改进，TFT驱动方案将为我们带来更加精彩和绚丽的显示体验。
3.5寸液晶屏驱动板说明书
3.5央寸显示屏驱动板技术说明.系统规格:输入电源：USB接口DC5V，内置电池供电驱动显示屏： 3.5英寸TFT显示屏320*240像素（具体型号由乙方来推荐，甲方来确认的。
）USB 接口：MINI USB 接口1.1信号输入输出接口：AV输入（指定摄像头信号）/ AV输出与摄像头同制式充电接口：锂聚合物充电电池（3.7V ）,支持给电池充电。
储存媒介：SD卡（最大容量4G ）压缩格式：MPEG4图像存储格式：JPEJ(640*480)视频录制格式：ASF(320*240)语言：英语+（任意一种语言）工作温度：-10-70 度。
充电环境温度：0-40 度.驱动板结构:尺寸：105*75MM接口：（以下接口由甲方提供结构尺寸或者模具，参考板。
）1 : SD存储卡接口；2 :充电接口，给3.7V锂电池充电。
（外接口，和手机充电接口一样）3 :电源开关（用逻辑电平控制），电源开关与手机模式一样（常按键5秒开机），电源开关要切断总电源，或者打开总电源。
（6*6的按纽开关键，）4 :供电接口，3.7V锂电池供电接口。
（这个接口是电源座，把 3.7V的锂电池接到驱动板上，电源座子是3针，1.25，锂电池连同摄像头一起给你）。
5 : USB接口。
与电脑连接，可以直接读取SD卡信息，也可给锂电池充电。
6 : AV输出口，由我CMOS摄像头输入的AV信号，可以直接连接其它显示器上的。
例如电视。
（样板上已经有了）7 : AV输入口视频/电源接口。
（2.54间距，5针插头。
）由我CMOS模组提供的AV（模拟信号）。
电源接口是提供我CMOS驱动板的3.3V电源。
（总电流连同LED灯80-100mA ）8 :按键接口，数字按钮，低电平触发。
（按钮我CMOS驱动板已经做好了，不需要确定，只需要接口就可以，后一个没有器件的样板上有接口，接口按键是0电平有触发,）线路板背面需要一个系统复位按钮，具体位置与样板相同。
长按电源按钮3-5秒开机，操作完毕后，长按3-5秒，关机。
(整理)普通51单片机驱动35寸TFT的应用实例与源代码
普通51单片机驱动3.5寸TFT的应用实例与源代码！发布: 2010-1-15 16:59 | 作者: pcb_dz | 来源: 网络 | 查看: 675次前市场流行的3.5寸屏基本上都是只内置了驱动器，而不带控制器，这样给用户的使用造成了一些难度。
基本上很多朋友在用彩屏时选择一些带LCD控制器的ARM7或ARM9去开发，对于不会ARM开发的朋友来说，只使用普通MCU，这样可以选择的3.5寸TFT模块，就很难找到了。
本文就是基于市场上一款比较使用的3.5寸TFT模块编写的，用户只需要帮该TFT模块当作普通的单色液晶的开发思路来使用，就可以很容易去编程。
一、硬件选择1、 MCU：AT89S512、开发编译环境：Keil C513、 3.5寸TFT模块型号：MzT35C1二、TFT模块基本性能：1、基本参数模块结构：内置控制器屏幕大小： 3.5英寸屏幕分辩率：320*240屏幕颜色数：65536色（16位真彩色）工作电压： 3.3V/5V可选总线结构： Intel8080总线宽度： 8Bit背光形式：LED；可指令控制，0-127可调连接方式：排针插座触摸屏：标准配置不带触摸屏；模组留有触摸屏芯片焊盘和触摸屏接口2、接口引脚说明3、操作时序（8位并行Intel 8080总线）MzT35C1模块支持intel8080总线，总线的最高速度可达20MHz（当然总线的速度能否达到最高接口速度，还与用户的总线布线、线长等有关），也就是说，如果控制MCU速度足够快的话，是可以支持视频的显示的。
注意：MzT35C1模块的总线接口是8位的，也就意味着对显存的数据操作时，需要连续进行两次操作方可完成，先传高字节再传低字节；但对于寄存器的操作（写入寄存器地址，即A0为低时的写入操作）8位的操作方可。
三、MzT35C1与51硬件接口连接图本例程使用GPIO来模拟总线时序。
上图的模块供电为5V的模块，而模块的端口电平为3.3V的，所以在所有的51端口与模块间的连接串入了一个100欧的电阻，有关MCS51的其它电路不在图中画出，请用户具体参考其它的开发板文档进行了解。

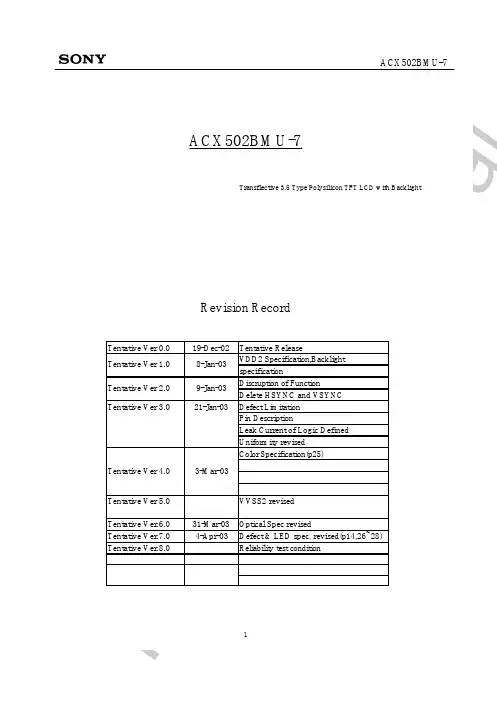

ACX502BMU索尼3.5寸液晶屏
HT CC on f i d e n t i aHT CC on f i d e n t i aHT CC on f i d e n t i aHT CC on f i d e n t i aHT CC on f i d e n t i aHT CC on f i d e n t i aHT CC on f i d e n t i aHT CC on f i d e n t i aHT CC on f i d e n t i aHT CC on f i d e n t i aHT CC on f i d e n t i aHT CC on f i d e n t i aHT CC on f i d e n t i aHT CC on f i d e n t i aHT CC on f i d e n t i aHT CC on f i d e n t i aHT CC on f i d e n t i aHT CC on f i d e n t i aHT CC on f i d e n t i aHT CC on f i d e n t i aHT CC on f i d e n t i aHT CC on f i d e n t i aHT CC on f i d e n t i aHT CC on f i d e n t i aHT CC on f i d e n t i aHT CC on f i d e n t i aHT CC on f i d e n t i aHT CC on f i d e n t i aHT CC on f i d e n t i aACX502BMU-7LCD panel Light source 30•‹ Oscilloscope Optical detectorDisplay Data 100% 90% Optical Instruments ResponseWhite(111111) ToffBlack(000000)Ton10% 0%Fig.3 Measurement system-3100% 90%Relative Reflectivity50%10% 0%HT CV10Fig.4 V-R characteristics** Liquid crystal voltage = |Selected voltage level - Common voltage + Reference voltage center - Common voltage center | See page17 for ‘Selected voltage level ‘.CoV50 V90 Selected voltage level (V)31nfide nti aWhite(111111) TimeACX502BMU-7400•}50mm1 •KReflective LCD Module(a)The apparatus for Luminance measurementK K/6 K/3 K/3L/6 1 L/3 L 4 L/3 7 L/6 2Co5 6 8 9 Fig.5 Measurement system-432HT C(b)The spot locations for luminance measurementnfiK/6 3 FPCde nti aIlluminance Colorimeter BM-5AACX502BMU-7Amplifier (Rion NA-42)FFT (Rion SA-01A2)PCLCD10mm LCD module Wood plate Measurement SystemMeasurement pointFig.6 Measurement system-5HT CCo33nfide nti aMicrophone (Rion NH-34)ACX502BMU-721. Note on handling(1) Static charge prevention Be sure to take the following protective measures. TFT-LCD panels are easily damaged by static charges. A) Use non-chargeable gloves, or simply use bare hands. B) Use an earth-band when handling. C) Do not touch any electrodes of a panel. D) Wear non-chargeable clothes and conductive shoes. E) Install grounded conductive mats on the working floor and working table. F) Keep panels away from any charged materials. G) Use ionized air to discharge the panels. (2) Protection from dust and dirt A) Operate in a clean environment. B) Do not touch the front light surface. The surface is easily scratched . C) Use ionized air to blow dust off the panel.(3) Other handling precautions A) Do not twist or bend the flexible PC board especially at the connection region because the board is easily deformed. B) Do not drop the module. C) Do not twist or bend the module. D) Keep the module away from heat sources. E) Do not dampen the module with water or other solvents. F) Avoid storage or using the module at high temperatures or high humidity , as this may result in damage.HT CCo34nfide nti a。
Panel-SPEC
讲师：PE工程师
Jan-13-05
1
目录
一、PANEL工作原理
1. PANEL成像原理 2. PANEL旳特点及其原则
二、TFT-LCD驱动电路和模块 三、PANEL工作时序简介
Jan-13-05
2
1. PANEL 成像原理
LCD(Liquid Crystal Display)液晶显示屏使用了目前最新旳全彩 显示技术。
4、观察屏幕视角：是指操作员能够从不同旳方向清楚地观察屏幕 上全部内容旳角度，这与LCD是双层超扭曲向列(Double Super Twist Nematic)还是薄膜式晶体管(Thin Film Transister)有很大关系。因为 前者是靠屏幕两边旳晶体管扫描屏幕发光，后者是靠本身每个像素背 面旳晶体管发光，其对比度和亮度旳差别，决定了它们观察屏幕旳视 角有较大区别。DSTN－LCD一般只有60度，TFT－LCD则有160度。
显示屏有M条信号电 极母线和N条扫描电 极母线。
Jan-13-05
13
PANEL技术缺陷
PANEL克服了CRT体积庞大、耗电和闪烁旳缺陷，但也同步带来了造价 过高、视角不广以及彩色显示不理想等问题。CRT显示可选择一系列辨别率， 而且能按屏幕要求加以调整，但PANEL只具有固定数量旳液晶单元，只能在 全屏幕使用一种辨别率显示(每个单元就是一种像素)。CRT一般有三个电子 枪，射出旳电子流必须精确汇集，不然就得不到清楚旳图像显示。但PANEL 不存在聚焦问题，因为每个液晶单元都是单独开关旳。这正是一样一幅图在 PANEL屏幕上为何如此清楚旳原因。PANEL也不必关心刷新频率和闪烁，液 晶单元要么开，要么关，所以在40-60Hz这么旳低刷新频率下显示旳图像不 会比75Hz下显示旳图像更闪烁。
A060SE02 V1 TFT Spec 091014_1
CUSTOMER APPROVAL SHEETCompany NameMODEL A060SE02 V1CUSTOMERAPPROVED□ APPROVAL FOR SPECIFICATIONS ONLY (Spec. Ver. 0.5)□ APPROVAL FOR SPECIFICATIONS AND ES SAMPLE (Spec. Ver. 0.5)□ APPROVAL FOR SPECIFICATIONS AND CS SAMPLE (Spec. Ver. 0.5)□ CUSTOMER REMARK :AUO PM : YW LiuP/N :Comment :1 Li-Hsin Rd. 2. Science-Based Industrial ParkHsinchu 300, Taiwan, R.O.C.Tel: +886-3-500-8899Fax: +886-3-577-2730Doc. version : 0.5Total pages : 24Date : 2009/10/14Product Specification6" EPD MODULE Model Name：A060SE02 V1 Planned Lifetime: From 2009/Jul. To2011/Jul. Phase-out Control: From 2011/Mar. To2011/Jul.EOL Schedule: 2011/Jul.< >Preliminary Specification◆< >Final SpecificationNote: The content of this specification is subject to change.© 2009 AU Optronics All Rights Reserved, Do Not Copy.Record of RevisionVersion Revise Date Page Content0.0 2009/05/04 All First Draft.7、9 Update VCOMDC、VCOMH、VCOML、VDPS、VDNS pin define16 Add VCOM relationship.0.1 2009/07/0617~18 Update power on/off sequence19 Update reflectance21 Update RA condition10 Add I/O pin sturcture0.2 2009/07/0919 Update Optical condition21 Update RA condition3 Update thickness4 Update module drawing0.3 2009/09/0410 Update power consumption17 Update optical performance19 Update RA condition0.4 2009/09/08 17 Update optical performance10 Update Power Consumption15 Update Power On/Off Characteristics0.5 2009/10/1418~19 Update RA conditions24 Update application CircuitContentsA.General Information (3)B.Outline Dimension (4)C.Electrical Specifications (5)1.Pin Assignment (5)2.Absolute Maximum Ratings (9)D.Electrical Characteristics (10)E.Input timing AC Characteristics (11)1. Horizontal input timing (11)1.1 Relation ship of input data and source output voltage (12)2. Vertical input timing (13)3. VCOM voltage definition (14)4. VCOM relationship (14)F.Power On/Off Characteristics (15)G.Optical Specification (16)H.Reliability Test Items (18)I.Packing and Marking (20)1. Packing Form (20)2. Module/Panel Label Information (21)3. Carton Label Information (21)J.Application Note (22)1. Application Circuit (22)A. General InformationThis product is for Electric Book application.NO. Item Unit Specification Remark1 Screen Size inch 6 (Diagonal)2 Display Resolution dot 800 (H)× 600(V)3 Overall Dimension mm 130.4(H) × 104.6(V) × 1.33(T) Note 14 Active Area mm 122.4(H)×90.6(V)5 Dot Pitch mm 0.153 (H)x 0.151(V)6 Gray level -- 167 Weight g (34.3)Note 1: Not include FPC but include sealant. Refer next page to get further information.ALL RIGHTS STRICTLY RESERVED. ANY PORTION OF THIS PAPER SHALL NOT BE REPRODUCED, COPIED, OR TRANSFORMED TO ANY OTHER FORMSWITHOUT PERMISSION FROM AU OPTRONICS CORP.B. Outline DimensionC. Electrical Specifications1. Pin AssignmentRecommended connector : FH12-50S-0.5SH.Pin No. Symbol I/OI/OStructureDescription Remark1 Dummy -- -- Dummy pin2 VCOM O -- VCOM polarity output signal3 VCOM_BOT I -- VCOM signal setting pin4 VCOMDC P Type2 External voltage for VCOMDC power.5 VCOMH P -- External voltage for VCOM high power.6 VCOML P -- External voltage for VCOM low power.7 RST_N I Type 3 Global reset pin. Low reset.8 SHD_N I Type 3 DC-DC converter shut down pin. “0” : Enable.(Panel shut down;Default) “1” : Disable.9 PWR_RDY O Type 1 Power ready output.When SHD_N from “1” to “0”: PWR_RDY will become “0”.When SHD_N from “0” to “1”: after 100ms, PWR_RDY willbecome “1”.Note110 VCOMIN_0 I Type 2 Logic Input for VCOM voltage generate.11 VCOMIN_1 I Type 2 Logic Input for VCOM voltage generate.12 YOE I Type 3 Vertical output enable pin. Note213 YCLK I Type 3 Vertical clock. input Note214 UD I Type 3 Vertical (up/down) scan direction. U/D = "L": Shift up to down. Default U/D = "H": Shift down to up.15 YDIOD I/O Type 516 YDIOU I/O Type 5 Vertical start pulse input/output.These pins are used to input and output shift data. These pins are switched as input or output by setting the UD pin as follow.UD YDIOU YDIODL Output InputH Input Output17 XDIOL I/O Type 518 XDIOR I/O Type 5 Horizontal start pulse input/output.These pins are used to input and output shift data. These pins are switched as input or output by setting the SHL pin as follow.SHL XDIOL XDIORL Input OutputH Output Input19 LD I Type 3 Latch data.20 D0 I Type 3 Data input, First pixel LSB21 D1 I Type 3 Data input, First pixel MSB22 D2 I Type 3 Data input, Second pixel LSB23 D3 I Type 3 Data input, Second pixel MSB24 D4 I Type 3 Data input, Third pixel LSB25 D5 I Type 3 Data input, Third pixel MSB26 D6 I Type 3 Data input, Forth pixel LSB27 D7 I Type 3 Data input, Forth pixel MSB28 SHL I Type 3 Horizontal (left/right) scan direction. SHL = “L”: Shift right to left.SHL = “H”:Shift left to right. Default29 XCLK I Type 3 Horizontal Clock input.. Note330 VREF C -- For power setting capactor connected pin.31 VR P -- VCOMDC reference voltage32 AVDD C -- For power setting capactor connected pin.33 C1P C -- For charge pump capactor connected pin.34 C1N C -- For charge pump capactor connected pin.35 VSS P -- Digital ground36 VSSA P -- Analog ground.37 VDD P -- Analog power.38 VREF_POS C -- For power setting capactor connected pin.39 VREF_NEG C -- For power setting capactor connected pin.40 VDDX8 P -- DCDC positive voltage41 NVDDX8 P -- DCDC negative voltage42 VDD_DRV P -- DCDC power.43 ADRVU O Type 1 PWM output for DCDC converter.44 ADRVD O Type 1 PWM output for DCDC converter.45 VSS_DRV P -- DCDC ground.46 VDPS P -- External voltage for source postive power.47 VDNS P -- External voltage for source negative power.48 VDPG C -- For power setting capactor connected pin.49 VDNG C -- For power setting capactor connected pin.50 Dummy D -- Dummy pinI: Input pin; O:output pin, I/O: Input / Output; P: Power pin; C: capacitor pin; D：Dummy Note 1: Please reference chapter FNote 2: Please reference chapter ENote 3: Please reference chapter EI/O Pin Structure:2. Absolute Maximum RatingsItem Symbol Condition Min. Max. Unit Remark Power voltage VDD VSSA=VSS=0 -0.3 +5.0 VPower voltage VDD_DRV VSS_DRV=0 -0.3 +5.0 VVDPS VSSA=VSS=0 +20 V Source voltageVDNS VSSA=VSS=0 -20 VVDPG VSSA=VSS=0 -0.3 VDNG+40Gate voltageVDNG VSSA=VSS=0 VDPG-40 +0.3Storage temperature Tstg - -25 70 ℃Operating Topa - 0 50 ℃D. Electrical CharacteristicsItem Symbol Condition Min. Typical Max. UnitVDD VSSA=VSS=VSS_DRV=0V -- 3.3 -- V Supply VoltageVDD_DRV VSSA=VSS=VSS_DRV=0V -- 3.3 -- Low Level InputVoltageVil Digital input pins GND - 0.3xVDD V High Level InputVoltageVih Digital input pins 0.7xVDD - VDD V OperatingtemperatureT op- -- - °COperation Power Dissipation VDD=VDD_DRV=3.3VVDNS＝-15VVDPS＝15VVCOMH＝11.5V，VCOML＝-18.5V-- (21) (28) mAStandby Power Dissipation VDD=VDD_DRV=3.3VVDNS＝0VVDPS＝0VVCOMH＝0V，VCOML＝0V-- (0.2) (1) mAE. Input timing AC Characteristics1. Horizontal input timingFigure 1: LD input timingN=800Figure 2: Horizontal data Input timing(VDD=VDD_DRV=3.3V, VSSA=VSS=VSS_DRV=0V, TA=25℃)PARAMETER SYMBOL MIN. TYP. MAX. UNIT Clock pulse width T WXDCLK13 nsData setup time T setup 2 - - nsData hold time T hold 2 - - nsLD pulse width T WLD 1 - - XCLKTime from LD to XDIOL/XDIOR T LD_DIO 5 - - XCLK1.1 Relation ship of input data and source output voltageThe source driver output voltage will base on input 2 bits data, and the relationship is as below:MSB LSB Function0 0 Source output is 0V0 1 Source output is VDPS(+15V)1 0 Source output is VDNS(-15V)1 1 Source output is floating2. Vertical input timingYCLKYDIOU/YDIOD (Input)YDIOU/YDIOD (Output)YOEG1G212N3G3GNN=600Figure 3: Vertical input timing3. VCOM voltage definitionThe VCOM output voltage will base on input pins VCOMIN[1:0], and the relationship is as below:VCOMIN[1 :0] Function00 VCOM output is (-VDC) v01 VCOM output is (VDPS-VDC) v10 VCOM output is (VDNS-VDC) v11 VCOM output is floating4. VCOM relationshipVCOM will change while VOCMIN changeSource output will change while LD signal falling edge.F. Power On/Off Characteristics1. Recommended Power On/off SequenceThe suggested power on/off sequence is below:2. Power off sequence:G. Optical SpecificationAll optical specification is measured under typical condition (Note 1, 2)Item Symbol Condition Min. Typ. Max. Unit Remark Reflectance R white 30 33 -- %Note1,4Contrast RatioCRAt optimized viewing angle56--Note1, 5Response timeT r T f 30V 30V(300)(300)ms Note 3Note 1. Ambient temperature =25℃Note 2. Reflectance and constrast ratio are measured by KONICA MINOLTA spectrophotometerCM-2600d.Note 3. Definition of response time:The response time is defined as the time from image load to full updated display.The output signals of photo detector are measured when the input signals are changed from “black” to “white”(raising time) and from “white” to “black”(falling time), respectively. Refer to figure as below.Note 4. Definition of Reflectance:The Reflectance is expressed as:R = Reflectance Factor white board x (L center / L white board )L center is the luminance measured at center in a white area. L white board is the luminance of a standard white board.Note 5. Definition of contrast ratio:The contrast ratio (CR) is the ratio between the reflectance in a full white area (Rl) and reflectance in a dark area (Rd).RdRl(CR) ratio Contrast =S i g n a l (R e l a t i v e V a l u e )"Black"0 %90 %100 %H. Reliability Test ItemsTest Condition Condition Remark1 High-TemperatureOperationTamb=+50℃, RH=30% for 240hrs IEC 60068-2-2BpAt the end of the test electric,mechanical,and optical specifications shall besatisfied.2 Low-TemperatureOperationTamb=0℃for 240hrs IEC 60068-2-2AbAt the end of the test electric,mechanical,and optical specifications shall besatisfied.3 High-TemperaturefunctionalTamb=+60℃, RH=26% for 240hrs IEC 60068-2-2BpAt the end of the test electric,mechanical,specifications shall be satisfied.4 Low-TemperaturefunctionalTamb=-10℃for 240hrs IEC 60068-2-2AbAt the end of the test electric,mechanical,specifications shall be satisfied.5 High-TemperatureStorageTamb=+70℃, RH=23% for 240hrs IEC 60068-2-2BpAt the end of the test electric,mechanical,and optical specifications shall besatisfied.6 Low-TemperatureStorageTamb=-25℃for 240hrs IEC 60068-2-2AbAt the end of the test electric,mechanical,and optical specifications shall besatisfied.7 High-Temperature,High-HumidityOperationTamb=+40℃, RH=90% for 168hrs IEC 60068-2-3CAAt the end of the test electric,mechanical,specifications shall be satisfied.8 High-Temperature,High-HumidityStorageTamb=+60℃, RH=80% for 240hrs IEC 60068-2-3CAAt the end of the test electric,mechanical,specifications shall be satisfied.9 Temperature Cycle 1 Cycle：[-25∘C 30min] ->[+70∘C 30min]：100 cyclesIEC 60068-2-14At the end of the test electric,mechanical,specifications shall be satisfied.10 Sunlight effect1120mW/cm2 for 168hrs, 40℃IEC 60068-2-5Sa At the end of the test electric,mechanical, and optical specifications shall be satisfied.11 Package Vibration 1.04G, Frequency：10 ~ 500HZDirection：X, Y, ZDuration： 1 hours in eachdirectionAt the end of the test electric,mechanical,and optical specifications shall besatisfied.12 Package Drop Impact Drop from height of 100 cm onconcrete surface.Drop sequence：1 corner, 3edges, 6 faces one drop for each.At the end of the test electric,mechanical,and optical specifications shall besatisfied.13Electrostatic discharge Air-mode : +/- 8kV Contact-mode : +/- 4kV IEC 61000-4-2At the end of the test electric,mechanical, specifications shall be satisfied. (Note. 3) 14 Altitude test Operation700hPa(=3,000m) 48hrsAt the end of the test electric,mechanical, specifications shall be satisfied.15 Altitude test Storage 260hPa(=10,000m) 48hrsAt the end of the test electric,mechanical, specifications shall be satisfied.16FPC Soldering StrengthPull the FPC soldered part with a force of 500g in the horizontal and vertical directionsAt the end of the test electric,mechanical, specifications shall be satisfied.17FPC bending PerformanceApply MIT method.Bending rate radius ：1.0mm Weight 500gf, Bending angle ：±135∘Bending cycle ：20 timesAt the end of the test electric,mechanical, specifications shall be satisfied.18Stylus TappingPOLYACETAL Pen ：Top R0.8mmLoad ：300gf Speed ：3 times/sec Total 13,500 timesPass criteria - no glass breakage or damage to microcapsules.Note 1. Tamb: Ambient Temperature = 25℃Note 2. In the standard conditions, there is not display function NG issue occurred. All the cosmetic specification is judged before the reliability stress.Note 3. ESD testing method.1. Ambient: 24~26℃, 56~65%RH, atmospheric pressure : 940~960hPa2. Instruments:NoisekenESS-2000,3. Operation System: AUO pattern generator4. Test Mode: Non-operating mode, test pattern: chess5. Test Method:a. Contact Discharge: 150pF(330Ω) 1sec, 8 points, 25 times/pointb. Air Discharge: 150pF(330Ω) 1sec, 8 points, 25 times/point6. Test point:I. Packing and Marking1. Packing Form2. Module/Panel Label InformationThe module/panel (collectively called as the “Product”) will be attached with a label of Shipping Number which represents the identification of the Product at a specific location.Refer to the Product outline drawing for detailed location and size of the label. The label is composed of a 22-digit serial number and printed with code 39/128 with the following definition:3. Carton Label InformationThe packing carton will be attached with a carton label where packing Q’ty, AUO Model Name, AUO Part Number, Customer Part Number (Optional) and a series of Carton Number in 13 or14 digits are printed. The Carton Number is apparing in the following format:Refer to the drawing of packing format for the location and size of the carton label.J. Application Note1. Application CircuitPrecautions1. Do not twist or bend the module and prevent the unsuitable external force for display moduleduring assembly.2. Adopt measures for good heat radiation. Be sure to use the module with in the specifiedtemperature.3. Avoid dust or oil mist during assembly.4. Follow the correct power sequence while operating. Do not apply the invalid signal, otherwise,it will cause improper shut down and damage the module.5. Less EMI: it will be more safety and less noise.6. Please operate module in suitable temperature. The response time & brightness will drift bydifferent temperature.7. Be sure to turn off the power when connecting or disconnecting the circuit.8. Display surface never likes dirt or stains.9. A dewdrop may lead to destruction. Please wipe off any moisture before using module.10. High temperature and humidity may degrade performance. Please do not expose themodule to the direct sunlight and so on.11. Acetic acid or chlorine compounds are not friends with display module.12. Static electricity will damage the module, please do not touch the module without anygrounded device.13. Do not disassemble and reassemble the module by self.14. Be careful do not touch the rear side directly.15. No strong vibration or shock. It will cause module broken.16. Storage the modules in suitable environment with regular packing.17. Be careful of injury from a broken display module.18. Please avoid the pressure adding to the surface (front or rear side) of modules, because itwill cause the display non-uniformity or other function issue.。
SPEC-SX-020HS1001N0-07A0-S0
产品规格书SX-020HS1001N0-07A0-S0公司名称项目型号客户签回产品: 2.0TFT240*320版本:V01日期:批准审核制表目录：项目内容页码1版本历史1 2结构说明2 3机构图3 4接口定义4 5各参数极限值5 6电气特性6 7光学特性7 8可靠性测试8 9包装9 10出货检验标准10--141.版本历史样品版本文件版本日期描述修改人V01首次开发Z2．机构说明项目内容单位外型尺寸35.7*51.2*2.4mm显示尺寸 2.0inch 显示形式240*(RGB)*320Pixels-显示区（A.A）30.6(W)*40.8(H)mm 视角ALL-驱动IC ST7789V-背光类型3LEDS-3.机构图4.接口定义：NO.SYMBOL Description 1LEDK Backlight-.2LEDA Backlight+.3VDD Supply voltage(3.3V).4TE Tearing effect output pin to synchronize MPU to frame writing, activated by S/W command.When this pin is not activated,this pin is low.If not used,open this pin.5CSChip select input pin(“Low”enable). fix this pin at VCI or GND when not in use.6RESETThis signal will reset the device and it must be applied to properlyinitialize the chip.Signal is active low.7D/C -Write enable in MCU parallel interface.-Display data/command selection pin in4-line serial interface. -Second Data lane in2data lane serial interface.-If not used,please fix this pin at VDDI or DGND.8SCLK -Display data/command selection pin in parallel interface.-This pin is used to be serial interface clock.DC=’1’:display data or parameter.DC=’0’:command data.-If not used,please fix this pin at VDDI or DGND.9SDA Serial input signal. 10GND Ground5.各参数极限值：项目符号最小值典型值最大值单位操作温度T OP-20-70℃存储温度T ST-30-80℃6.电气特性背光：项目符号额定值单位60mA 工作电流IBL3.2V V工作电压VBL亮度--CD/M2（*）*此亮度值为组装LCD时的的值。
驱动主板规格及承认书
目录一、概述二、主要特性三、A/D驱动板外观图四、VGA预设支持模式表五、输入/输出接口定义及接口电气要求六、主板结构与尺寸七、运输，存储，使用要求一、功能概述JRY1A31液晶显示器控制板卡(支持1440*900及以下分辨率TFT Panel,主芯片用TSUM1PFR-LF或TSUM1PLR-LF。
)它完成从PC输出的VGA模拟信号到液晶模块能够支持的LVDS 信号的转换，该设计主要用于配接TFT LCD PANEL，该产品适用于1440*900及以下分辨率8-BIT和6-BIT屏，实现模拟R、G、B输入和输出，实现最高分辨率可达UXGA的模拟R、G、B输入信号的再现，色彩再现可支持到24bit,最高可达16.7百万像素,ADC 频率达165MHz,并具有去抖动，降躁，锐度增强等特殊功能，使色彩再现更逼真、更鲜艳、更生动。
可实现同步自动检测。
同步方式要求使用行场分离的同步信号；具有精美的OSD界面风格，7种可供选择的OSD语言。
软件支持16:10与4:3显示模式的切换功能，此功能为玩游戏的用户提供了很大的方便，主板上的软件支持在线更新，本产品支持VGA功能，最大输出分辨率支持1440*900。
非另有说明，产品所符合规范在本文档内描述。
二、主要特性控制板支持规格：输入信号：模拟RGB(0.7Vp-p)，行场分离同步信号支持模式：DOS，VGA，SVGA，XGA，SXGA，WXGA, 色彩：18bit/24bit (根据屏参数可选择)行同步范围：31.5-80KHz场同步范围：60-75Hz输出信号：LVDS 标准控制按键：POWER、LEFT、RIGHT、AUTO、MENU、UP、DOWN、7键（可根据客户要求，通过软件更改成5键或6键）OSD 菜单：亮度，对比度，自动校正，相位，时钟，行场位置，功能设置，复位等目前国际流行标准功能OSD 语言：English,Espanlo,Francais,Deutsch，中文，韩语等多国语言程序升级: 支持VGA在线升级电源输入：此板配内置二合一电源板，5.0 VDC（+/-0.2V）电源操作：正常工作模式，低功耗模式待机功耗：＜1.0WPCB尺寸：62mm(L)×62mm(W)×1.2mm(H)即插即用：支持配接 TFT LCD PANEL类型可支持AU,SAMSUNG，CPT，SHARP，CHIMEI，HUAMMSTAR，TOSHIBA ,LG-Philips 等等厂家的19英寸及其以下的大多数型号的数字TFT LCD，具体可能需要对 LCD接口电缆和软件做一定修改。
3.5寸TFT液晶规格书
Contents TFT transmissive, Normally white 6 O’clock 54.66（W）X82.94(H)X2.3(T) 48.96(W) x 73.44(H) 320(H) x (R.G.B.) x480(W) HX8357B 262K LED NC 8080 system 8/16 bit parallel T.B.D.
TEL： 86-0755-23000930 FAX ： 86-0755-23000936
Doc No: Rev.:
XC-T0353701 0 2012.03.26
6 of 23
深圳信创光电技术有限公司
SHEN ZHEN SHI SINGSTART OPTOELECTRONIC CO．， ．，LTD ．，
Item Contrast ratio (Center point) Response Rising: Tr Time Falling:Tf White Color Chromaticit y (CIE 1931) Red Green Blue Hor Ver
Symbol C/R Tr Tf Wx Wy Rx Ry Gx Gy Bx By θL1 θR1 øU1 øD1
Min -0.3 -0.3 -10 -20 -
Max 3.3 Vcc+0.3 60 70 90%(Max60°C) 15
Unit V V °C °C Dot mA(each Led)
Doc No: Rev.:
XC-T0353701 0 2012.03.26
8 of 23
深圳信创光电技术有限公司
SHEN ZHEN SHI SINGSTART OPTOELECTRONIC CO．， ．，LTD ．，
TFT基本驱动测试说明
如图 5 (a) (b)分别表示 TFT 导通和关断时的状态。Clc 为辅助保
持电容，Cgd 为 TFT 的栅极、漏极间的寄生电容。当 TFT 导通时，
以(a)状态充电的像素在 TFT 断开时迁移到(b)状态。此时，通过 Cgd
而受到栅极电压迁移（由 VGH 向 VGL）的影响，像素电极的电位下
降。将这种降低的电压叫做栅极引入电压（馈通电压），简单理解就
TFT 测试辅助电路
TFT 面板的 Gate、Vdata、Vcom 电压通过线路直接和驱动 IC 连 接，是 PIN-PIN 的对应连接，但是在测试时，如果要实现每个电极和 测试驱动单元的连接，则需要高密度的 PROBE-CARD 连接，测试成 本高到无法接受。那如何才能实现在没有连接驱动器的状态下，快速 判断 TFT 显示器的品质呢？于是，设计了以下测试辅助电路： TFT 电路结构示意图：
图 5. TFT 测试辅助电路示意图
TFT 制造商在面板显示电路以外设计了测试辅助电路。例如：将 所有的 VR 信号端通过一个场效应管连接后，并在一起形成一个测试 电极 VR ，这些场效应管在截至状态下，TFT 显示器处于正常工作 模式，每个数据端分别于 IC 对应的信号端连接。当显示器要进行测 试时，将所有测试场效应管的栅极施加 VGG 电压，这个电压一定要
电极，则是另外利用位于与显示电极同一片玻璃上的走线，这个和 Clc 上的公共电极是不一样的，虽然他们最后都是接到相同的电压， 但是走线的方式并不一样。采用存储电容在公共极这种方式的 TFT-LCD，由于在显示电极所在的面板上仍然存在大量的公共电极走 线，因此穿透率会比采用存储电容在栅极结构的面板要小。
公共电极驱动方式
为了达到极性不停变换的目的，我们通常采用两种方法来实现： 1.公共电极电压固定不变，只变换显示电压；
天马3.5寸工业液晶屏TM035KDH03规格书-杭州旭虹科技有限公司
杭州旭虹科技有限公司
SHANGHAI TIANMA MICRO-ELECTRONICS TM035KDH03 V1.3
Table of Contents
Coversheet........................................................................................................................................ 1 Record of Revision............................................................................................................................ 3 1. 2. 3 4 5 6 7 8 9 General Specifications ............................................................................................................... 4 Input/Output Terminals ............................................................................................................... 5 Absolute Maximum Ratings ....................................................................................................... 8 Electrical Characteristics............................................................................................................ 8 Timing Chart............................................................................................................................. 10 Optical Characteristics ............................................................................................................. 17 Environmental / Reliability Tests............................................................................................... 21 Mechanical Drawing................................................................................................................. 22 Packing drawing ...................................................................................................................... 23
TFT
TFT LCD使用心得最近一段时间工作上一直在使用TFT LCD，主要是 3.5寸LCD，以SAMSUNG的LTV350QV及其一些台湾的兼容产品为主。
工作的内容就是把这些屏在我们的产品上应用起来，经过这一段时间后，发觉对TFT LCD的内部结构还是不怎么清楚，所以最近几天花了一些时间了解TFT LCD的结构以及工作原理，并整理下来加深自己的理解以及提供大家参考，这只是我自己的一些理解，错误的地方请大家多指正。
首先，我们了解一些TFT LCD的结构，如下图所示，主要由偏振片、虑色器基板、液晶、TFT基板、片振片、背光源组成。
在虑色器基板和TFT基板封入扭曲向列型液晶（TN），构成液晶盒，虑色器基板上制作有透明的公共电极，TFT基板上制作了矩阵式薄模晶体管，用来开光象素电极的电压信号，为了使液晶层保持一定的厚度，在两块玻璃基板中间放有透明隔垫（聚酯模片或玻璃小球）。
TFT LCD电信号部件组成：主要由背光电路和显示电路组成。
背光电路： 3.5寸TFT LCD背光，大都采用白光LED作为背光源，一般由6个串连的白光LED组成（如下图），驱动电压大概20V左右，20mA电流左右，是一个耗电量很大的部件。
对于电池供电系统，大都采用升压型DC/DC进行驱动，很多厂家都有推出专门针对串连白光LED的驱动器。
显示电路：显示电路一般由Timing Controller、Source Driver、Gate Driver组成。
有的IC 把Timing Controller和Source Driver集成在一起了，也有的IC把三个部分都集成了。
这三部分电路一般都集成在TFT LCD模组里面了，也有的TFT LCD把Timing Controller IC放到外面了（如SHARP的一些LCD）。
SAMSUNG LTV350QV LCD框图分析（如下图）：LTV350QV的DRIVER IC是S6F2002，S6F2002集成了Timing Controller、Source Driver、Gate Driver部分和电源管理部分，164RGB X 240驱动能力，所以对于320 X 240 QVGA的分辨率，需要两片S6F2002。
ST7703 数据手册：TFT 移动单片机驱动器，适用于 720RGB x 1280 点，a-Si
ST7703 Data SheetTFT Mobile Single Chip DriverFor 720RGB x 1280 dot, a-Si TFT LCD, 16.7M color With MIPI InterfaceVersion 01 PreliminaryOctober 2015List of Contents1.2.3.104.4.14.24.34.4124.5124.6124.7134.8145.155.1151516175.21920315.3445.44647485.55050515.65253545.7555.8Reset function (56)5.8.1Standard Command Default Value (56)5.8.2Input Pins (57)5.8.3Output or Bi-directional Pins (57)5.9OTP Sequence (58)5.9.1OTP Sequence (58)5.9.2OTP Standard Programming Table (59)5.10CABC (60)mand Description (62)6.1Command Table (62)6.2Command description (79)6.2.1NOP (00h) (79)6.2.2Software reset (01h) (80)6.2.3Read Display ID (04h) (81)6.2.4Read Display Power Mode (0Ah) (82)6.2.5Read Display MADCTR (0Bh) (83)6.2.6Read Display Pixel Format (0Ch) (84)6.2.7Read Display Image Mode (0Dh) (85)6.2.8Read Display Signal Mode (0Eh) (86)6.2.9Read Display Self-Diagnostic Result (0Fh) (87)6.2.10Sleep In (10h) (88)6.2.11Sleep Out (11h) (89)9293949596979899100102103104105106107108109111120121122123124125127128 6.2.48Read ID2 Value (DBh) (129)6.2.49Read ID3 Value (DCh) (130)6.2.50SETEXTC (B9h) (131)6.2.51SETDISP (B2h) (132)6.2.52SETRGBIF (B3h) (134)6.2.53SETCYC (B4h) (135)6.2.54SETBGP (B5h) (136)6.2.55SETVCOM (B6h) (137)6.2.56SETOTP (B7h) (140)6.2.57SETPOWER_EXT (B8h) (142)6.2.58SETMIPI (BAh) (144)6.2.59SETVDC (BCh) (146)6.2.60SETSCR (C0h) (147)6.2.61SETPOWER (C1h) (149)6.2.62SETID (C3h) (152)6.2.63SETDDB (C4h) (152)6.2.64SETIO (C7h) (153)6.2.65SETCABC (C8h) (154)6.2.66SETPANEL (CCh) (154)6.2.67DGC_R (CDh) (155)6.2.68DGC_G (CEh) (156)6.2.69DGC_B (CFh) (157)6.2.70SETGAMMA (E0h) (158)161162163170173174176 7.1777.11777.21781781797.3181181182186 8.1878.11878.21888.31891891901918.41921921931941958.5196 (46)Figure 5.34: Case 2: RESX line is held low by host at power on (54)Figure 5.35: Power flow chart for different power modes (55)Figure 5.36: Two kinds of CABC Architecture (60)Figure 7.1: Input glitch rejections of low-power receivers (179)Figure 7.2: Differential voltage range and Command mode voltage (180)Figure 7.3: Serial Interface Characteristics (181)Figure 7.4: DSI clock timing Characteristics (182)Figure 7.5: Rising and falling time on clock and data channel (182)Figure 7.6: BTA from HOST to Display Module Timing (183)Figure 7.7: BTA from Display Module Timing to HOST (183)Figure 7.8: Reset input timing (186)Figure 8.1: Interfacing for MIPI by Setting Lane [1:0]=”11” (187)Figure 8.2: Source Pin Connection for Panel (188)Figure 8.3: Using External Power IC Application (189)Figure 8.4: Using PFM - Type C Application (190)Figure 8.5: Using Three Power Mode Application (191)Figure 8-6: DSI Power On Sequence of Power IC Mode (192)Figure 8-7: DSI Power Off Sequence of Power IC Mode (193)Figure 8-8: DSI Power On Sequence of 3 Power Mode (194)Figure 8-9: DSI Power Off Sequence of 3 Power Mode (195)dots at The driveimageand⏹⏹⏹⏹⏹⏹- Three-Power Mode：●I/O and interface power supply (IOVCC)：1.65V to 2.0V●Analog power supply (VSP)：4.5V to 6.0V●Analog power supply (VSN)：-4.5V to -6.0V⏹Output voltage：Positive source output voltage level: VSPR=3.3V to 5.6VNegative source output voltage level: VSNR=-5.6V to -3.3V Positive gate driver output voltage level: VGH=+10V to +20V Negative gate driver output voltage level: VGL=-7.5V to -15V VCOM=-3.5V to 0VIM1~0CSX DCX SCL SDA SDO DSI_CP DSI_CN DSI_D0P DSI_D0N DSI_D3~1DSI_VSSNote: “X” = Don’t care.5.5.1 5.1.1Figure 5.1: DBI Type C interface Option 1 write modeSDASCLCSX 1SDA SCLCSX 1SDASCL CSX15.1.3sentFigure 5.4: Break during parameterSDA SCL CSX 2. Between frameWith breakThelow5.2The and DSI setvisibleHighis5.2.1.1Low Power Mode (LP-11: Stop) DSI-C2.Ultra Low Power Mode (LP-00: ULPM)DSI-CLK+/- lanes can be driven to the Ultra Low power Mode (ULPM), when DSI-CLK lanes are entering LP-00 State. The entering way is from the Low Power Mode (LPM, LP-11 State) =>LP-10 =>LP-00 (ULPM). This sequence is illustrated below.Figure 5.9: From LPM mode to ULPMCLK+ CLK- LP10 LP00 LP11ThisFigure 5.11: Switching the Clock Lane between HSCM and LPMD0+ D0-ESCAPE MODEData lanes (DSI-D0+/-) can be used in different Escape Modes when data lanes are in Low Power (LP) mode.Figure 5.13: DSI Data Lane D0 general escape mode sequenceD0+ D0-LP11 LP10 LP00 LP01 LP00Time LP10 LP11 LP00 Escape Mode EntryST7703 can support three different Escape Commands. The commands (EC) can be divided 2Figure 5.14: DSI Data Lane D0 LPDT sequenceUltra Low Power State (ULPS)Remote Application Reset (RAR)Tearing Effect (TEE)aAcknowledge (ACK)byHigh Speed Data TransmissionThe ClockFigure 5.20: DSI Data Lane Entering High Speed Data TransmissionD0+ D0- If the last bit is HS-0, the transmitter changes from HS-0 to HS-1If the last bit is HS-0, the transmitter changes from HS-1 to HS-0Bus Turnaround (BTA)D0+D0-5.2.25.2.2.1Header The 6 toDI (Data ID)：Contain Virtual Channel Identifier and Data Type.WC (Word Count)：8+8 bits The receiver use WC to define packet end.ECC (Error Correction Code)：The Error Correction Code allows single-bit errors to be corrected and 2-bit errors to be detected in the Packet Header. PF(Packet Footer)：Mean 16-bit Checksum.Figure 5.24: Structure of the long packetHeader (PH)Footer (PF)Packet Data (Payload)Table 5.7: Data Types from the Driver IC to Host• PLong5.2.2.2IC. TheDisplay Command Set Write, 1 Parameter, Data Type = 01 0101 (15h)Display Command Set (DCS) Write, 1 Parameter is always using a Short Packet from the HOST to the driver IC. The content of 2 payload bytes is “command” and“parameter”.Display Command Set Long Write, Data Type = 11 1001 (39h)Display Command Set (DCS) Long Write is always using a Long Packet from the HOST to the driver IC.The content can include Command (No Parameters) or Command with 1 or more parameters.Display Command Set (DCS) Read, No Parameter, Data Type = 00 0110 (06h)Display Command Set (DCS) Read, No Parameter is always using a Short Packet, from the HOST to the driver IC. The HOST has to define to the driver IC, what is the maximum size of the return packet. A command, what is used for this purpose, is “Set Maximu m Return Packet Size”, which Data Type is 11 0111 and which is using Short Packet before the HOST can send “Display Command Set (DCS) Read, No Parameter” to the driver IC.Null Packet, No Data , Data Type = 00 1001 (09h)mode to normal display operation.Shutdown Peripheral Command, Data Type = 10 0010 (22h)Shutdown Peripheral command is a Short packet command that turns off the display in a Video Mode driver IC for power saving. Note the interface shall remain powered in order to receive the turn-on, or wake-up command.Turn On Peripheral Command, Data Type = 11 0010 (32h)Turn On Peripheral command is Short packet command that turns on the display in a Video Mode driver IC for normal display operation.Figure 5.26: 16-bit RGB Color Format, Long packetPacked Pixel Stream, 18-bit Format, Long packet, Data type = 01 1110 (1Eh)Pixel Stream, 18-bit Format in Three Bytes, Long packet, Data Type = 101110 (2Eh)Packed Pixel Stream, 24-bit Format, Long packet, Data Type = 11 1110 (3Eh)when a corrandDCS Read Long Response is always using a Long Packet, from the driver IC to the Host. “DCS Read Long Response” is used when the driver IC wants to response a DCS Read command, which the Host has sent to the driver IC.DCS Read Short Response, 1 Byte Returned, Data Type = 10 0001(21h)DCS Read Short Response, 1 Byte Returned is always using a Short Packet from the driver IC to the Host. “DCS Read Short Response, 1 Byte Returned” is used when the driver IC wants to response a DCS Read command, which the Host has sent to the driver IC.DCS Read Short Response, 2 Bytes Returned, Data Type = 10 0010(22h)DCS Read Short Response, 2 Bytes Returned is always using a Short Packet from the driver IC to the Host. “DCS Read Short Response, 2 Bytes Returned” is used when the driver IC wants to response a DCS Read command, which the Host has sent to the driver IC.Generic to the to the5.3of IntheS1S2401G 2Figure 5.27: Source channels of ZigZag inversion modeFigure 5.28: Gamma adjustments different of source driver with digital gamma correctionVV0 VV4 VV8 VV12VV28 VV52 VV76 VV100 VV131 VV155VV179 VV203 VV227VV243 VV247 VV251 VV2555.4.2RGB.5.55.5.1If Figure 5.30: Sleep out flow chart–command and self-diagnostic functions。
LQ035NC111
Page: 6 of 28
VGL -11 -10 -8
V
Vcom High Voltage VcomH
3.7
V
Note1
Vcom low Voltage VcomL
-1.6
V
Note1
Vcom level max
VcomA
6
V
Note1. VcomH& VcomL：Adjust the color with gamma data. Vp-p should be higher then
CONTENTS
No.
ITEM
0
RECORD OF REVISION
1
SUMMARY
2
FEATURES
3
GENERAL SPECIFICATIONS
4
ABSOLUTE MAXIMUM RATINGS
5
ELECTRICAL CHARACTERISTICS
6
DC CHARATERISTICS
7
AC CHARACTERISTICS
2. FEATURES High Resolution: 230,400 Dots (320 RGB x 240). LQ035NC111 is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT LCD panel, driver ICs, FPC and a backlight unit.
各种液晶屏信号描述及时序分析
结语
本文设计实现了一个简单的基于 Avalon 总线的 TFT LCD 控制器，能实现 640×480，颜色深度为 16bit 的彩色图形显示，可应用于各种 TFT LCD，亦可改写 为 VGA 控制器，有较大的灵活性。根据设计好的控制器编写了相应的 Linux 下的 Frame buffer 驱动程序。很好的实现了界面环境的开发，可以用于很多手持 设备的电子产品。该设计最大的特点是有很强的可移植性，不论是控制器的设计还是 Frame buffer 驱动程序的设计都很灵活。
LCD 控制器的 FPGA 实现
Avalon Bus Slaver 从总线接口模块实现
Avalon 从总线接口负责处理器与 LCD 控制器的接口控制，LCD 控制器在整个系统中作为从设备，NIOS II 通过该接口对控制寄存器进行设置，控制 LCD。
LCD 从模块有四个 32bit 的可读写寄存器，用于控制 LCD 控制器的工作和指示其工作状态。
深入谈谈 TFT LCD 的使用心得
最近一段时间工作上一直在使用 TFT LCD，主要是 3、5 寸 LCD，以 SAMSUNG 的 LTV350QV 及其一些台湾的 兼容产品为主。工作的内容就是把这些屏在我们的产品上应用起来，经过这一段时间后，发觉对 TFT LCD 的内部 结构还是不怎么清楚，所以最近几天花了一些时间了解 TFT LCD 的结构以及工作原理，并整理下来加深自己的理 解以及提供大家参考，这只是我自己的一些理解，错误的地方请大家多指正。
TFT LCD 电信号部件组成：主要由背光电路和显示电路组成。
背光电路：
3、5 寸 TFT LCD 背光，大都采用白光 LED 作为背光源，一般由 6 个串连的白光 LED 组成（如下图），驱 动电压大概 20V 左右，20mA 电流左右，是一个耗电量很大的部件。对于电池供电系统，大都采用升压型 DC/DC 进行驱动，很多厂家都有推出专门针对串连白光 LED 的驱动器。
普通51单片机驱动3.5寸TFT的应用实例与源代码!
普通51单片机驱动3.5寸TFT的应用实例与源代码！发布: 2010-1-15 16:59 | 作者: pcb_dz | 来源: 网络 | 查看: 675次前市场流行的3.5寸屏基本上都是只内置了驱动器，而不带控制器，这样给用户的使用造成了一些难度。
基本上很多朋友在用彩屏时选择一些带LCD控制器的ARM7或ARM9去开发，对于不会ARM开发的朋友来说，只使用普通MCU，这样可以选择的3.5寸TFT模块，就很难找到了。
本文就是基于市场上一款比较使用的3.5寸TFT模块编写的，用户只需要帮该TFT模块当作普通的单色液晶的开发思路来使用，就可以很容易去编程。
一、硬件选择1、 MCU：AT89S512、开发编译环境：Keil C513、 3.5寸TFT模块型号：MzT35C1二、TFT模块基本性能：1、基本参数模块结构：内置控制器屏幕大小： 3.5英寸屏幕分辩率：320*240屏幕颜色数：65536色（16位真彩色）工作电压： 3.3V/5V可选总线结构： Intel8080总线宽度： 8Bit背光形式：LED；可指令控制，0-127可调连接方式：排针插座触摸屏：标准配置不带触摸屏；模组留有触摸屏芯片焊盘和触摸屏接口2、接口引脚说明3、操作时序（8位并行Intel 8080总线）MzT35C1模块支持intel8080总线，总线的最高速度可达20MHz（当然总线的速度能否达到最高接口速度，还与用户的总线布线、线长等有关），也就是说，如果控制MCU速度足够快的话，是可以支持视频的显示的。
注意：MzT35C1模块的总线接口是8位的，也就意味着对显存的数据操作时，需要连续进行两次操作方可完成，先传高字节再传低字节；但对于寄存器的操作（写入寄存器地址，即A0为低时的写入操作）8位的操作方可。
三、MzT35C1与51硬件接口连接图本例程使用GPIO来模拟总线时序。
上图的模块供电为5V的模块，而模块的端口电平为3.3V的，所以在所有的51端口与模块间的连接串入了一个100欧的电阻，有关MCS51的其它电路不在图中画出，请用户具体参考其它的开发板文档进行了解。
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
源科科技（THREE-TECH ）
3.5/2.7/2.5/2.4TFT 驱动板规格书
V3.0
2010-12-8
源
科科
技
一、 电气特性：
型号: 3T035 屏类型： 天马/奇美
电压： 12V(6-28V) 电流： 50mA （12V ）
二、 驱动板参数与功能:
信号输入: A V1（常用输入端）/A V2(倒车信号线，当两个信号一起来的时候，A V2优先显示) 支持格式: PAL/NTSC 。
1V Vpp 典型输入。
电源按键： S1:待机/工作状态切换。
亮度按键： S2:调节显示亮度(高/中/低) 镜像按键： S3:图像的镜像显示。
三、 PCB 尺寸特性：
长宽: 72mm × 55mm 高度: 8mm （与PCB 板
厚度有关）
源科科技
四、 PCB 接口J3 1.25mm 4pin 插座：
五、 驱动板工作特性：
无视频输入: 画面显示蓝屏，无视频输入30秒后进入待机状态。
当有视频输入，或者按电源按键，恢复工作状态。
制式检测： PAL/NTSC 制式自动检测。
六、
产品图片：
12V 电源输入
地线
A V1输入
A V2输入
源科科技
技
科
科
源。
