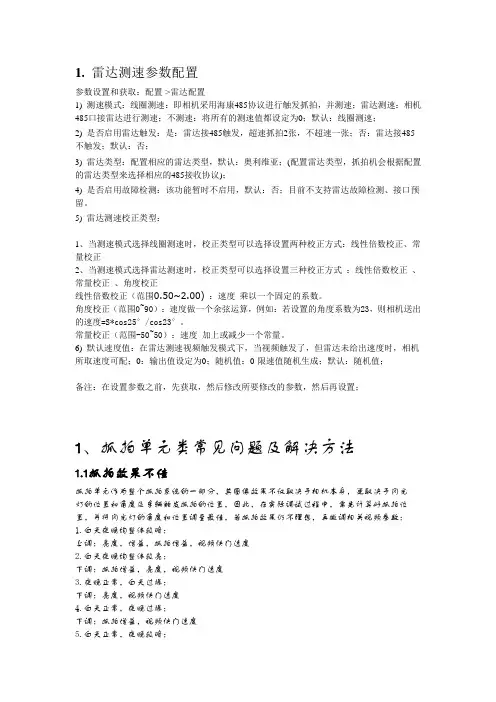

1. 雷达测速参数配置参数设置和获取:配置->雷达配置1) 测速模式:线圈测速:即相机采用海康485协议进行触发抓拍,并测速;雷达测速:相机485口接雷达进行测速;不测速:将所有的测速值都设定为0;默认:线圈测速;2) 是否启用雷达触发:是:雷达接485触发,超速抓拍2张,不超速一张;否:雷达接485不触发;默认:否;3) 雷达类型:配置相应的雷达类型,默认:奥利维亚;(配置雷达类型,抓拍机会根据配置的雷达类型来选择相应的485接收协议);4) 是否启用故障检测:该功能暂时不启用,默认:否;目前不支持雷达故障检测、接口预留。

5) 雷达测速校正类型:1、当测速模式选择线圈测速时,校正类型可以选择设置两种校正方式:线性倍数校正、常量校正2、当测速模式选择雷达测速时,校正类型可以选择设置三种校正方式:线性倍数校正、常量校正、角度校正线性倍数校正(范围0.50~2.00) :速度乘以一个固定的系数。

角度校正(范围0~90):速度做一个余弦运算,例如:若设置的角度系数为23,则相机送出的速度=S*cos25°/cos23°。

常量校正(范围-50~50):速度加上或减少一个常量。

6) 默认速度值:在雷达测速视频触发模式下,当视频触发了,但雷达未给出速度时,相机所取速度可配;0:输出值设定为0;随机值:0-限速值随机生成;默认:随机值;备注:在设置参数之前,先获取,然后修改所要修改的参数,然后再设置;1、抓拍单元类常见问题及解决方法1.1抓拍效果不佳抓拍单元作为整个抓拍系统的一部分,其图像效果不仅取决于相机本身,更取决于闪光灯的位置和角度及车辆触发抓拍的位置,因此,在实际调试过程中,需先计算好抓拍位置,并将闪光灯的角度和位置调至最佳,若抓拍效果仍不理想,再微调相关视频参数:1.白天夜晚均整体较暗:上调:亮度,增益,抓拍增益,视频快门速度2.白天夜晚均整体较亮:下调:抓拍增益,亮度,视频快门速度3.夜晚正常,白天过爆:下调:亮度,视频快门速度4.白天正常,夜晚过爆:下调:抓拍增益,视频快门速度5.白天正常,夜晚较暗:上调:抓拍增益,增益,视频快门速度6.晴天正常,清晨、傍晚或阴天较暗:上调:视频快门速度,增益,抓拍快门速度,抓拍增益7.有拖影:下调:抓拍快门速度1.2相机不抓拍在确保车检器正常运行的情况下,可能相机程序与车检器不对应,升级为基线版本110112(相机程序不是定制的)后,更改相机里相应的车道号后即可;如果相机程序没问题,只要设对车道号即可。
