领航卫士一氧化碳报警器PGST-PA-003W中文说明书
CROUSE-HINDS SERIESMEDC信号和警报 BG3范围手动报警器说明书

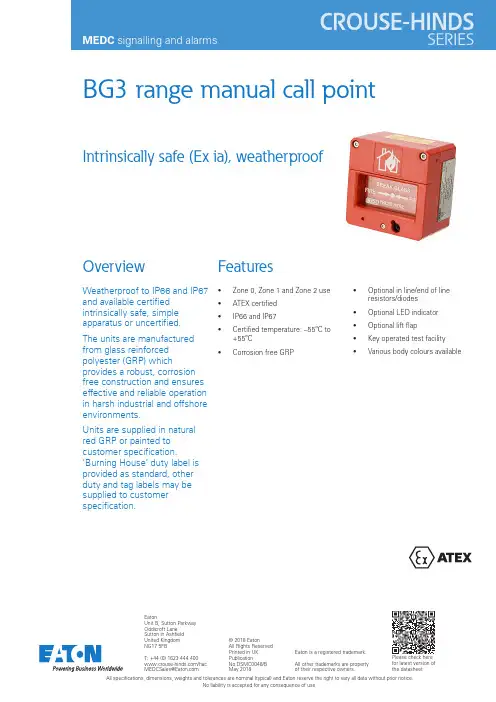

BG3 range manual call pointIntrinsically safe (Ex ia), weatherproofOverviewWeatherproof to IP66 and IP67 and available certified intrinsically safe, simple apparatus or uncertified. The units are manufactured from glass reinforced polyester (GRP) whichprovides a robust, corrosion free construction and ensures effective and reliable operation in harsh industrial and offshore environments.Units are supplied in natural red GRP or painted to customer specification.‘Burning House’ duty label is provided as standard, other duty and tag labels may be supplied to customer specification.Features• Zone 0, Zone 1 and Zone 2 use • ATEX certified • IP66 and IP67• Certified temperature: –55ºC to +55ºC•Corrosion free GRP•Optional in line/end of line resistors/diodes • Optional LED indicator • Optional lift flap• Key operated test facility • Various body colours availableAll specifications, dimensions, weights and tolerances are nominal (typical) and Eaton reserve the right to vary all data without prior notice.No liability is accepted for any consequence of use.EatonUnit B, Sutton Parkway Oddicroft Lane Sutton in Ashfield United Kingdom NG17 5FBT: +44 (0) 1623 444 /hac *******************© 2018 EatonAll Rights Reserved Printed in UK PublicationNo.DSMC0048/B May 2018Eaton is a registered trademark.All other trademarks are property of their respective owners.Please check here for latest version of the datasheetDSMC0048/B 05/18Protection Explosion protected Ex ia dust-tight & weatherproof (intrinsically safe)CertificationCert. no BAS00ATEX1067XCertified to: EN50014, EN50020, EN50284ATEX Ex ia IIC T4Suitable for use in Zones 0, 1 & 2VoltageUp to 28V (IS)Certified temperature -55ºC to +55ºC Ingress protection IP66 & IP67T erminals 6 x 4.0mm 2Resistor values 470R minimumLED indicationA high intensity red LED can be fitted as an optional extra to indi-cate operation on all 24V systemsAs standard the LED is not provided with over current protection. The forward current (If) should be limited to 20mA Cable entries 2 x M20 top or bottom Weight 0.5KgMaterial UV resistant glass reinforced polyesterFinish Natural red GRP or painted GRP to customer requirements Duty/tag labelsStainless steel as standard BG3WProtection Dust-tight & weatherproof Certification Not applicable VoltageUp to 250V a.c Certified temperature Not applicable Ingress protection IP66 & IP67T erminals 6 x 4.0mm 2Switch ratings30Vdc 3A 30-50Vdc 1A 250Vac 3A Resistor values 270R minimumLED indicationA high intensity red LED can be fitted as an optional extra to indi-cate operation on all 24V systemsAs standard the LED is not provided with over current protection. The forward current (If) should be limited to 20mA Cable entries 2 x M20 top or bottom Weight 0.5KgMaterial UV resistant glass reinforced polyesterFinish Natural red GRP or painted GRP to customer requirements Duty/tag labelsPlastic as standardModel Certification Labels Options FinishEntries *Specify wordingOrdering requirementsThe following code is designed to help in selection of the correct unit. Build up the reference number by inserting the code for each component into the appropriate box。
报警器使用说明书

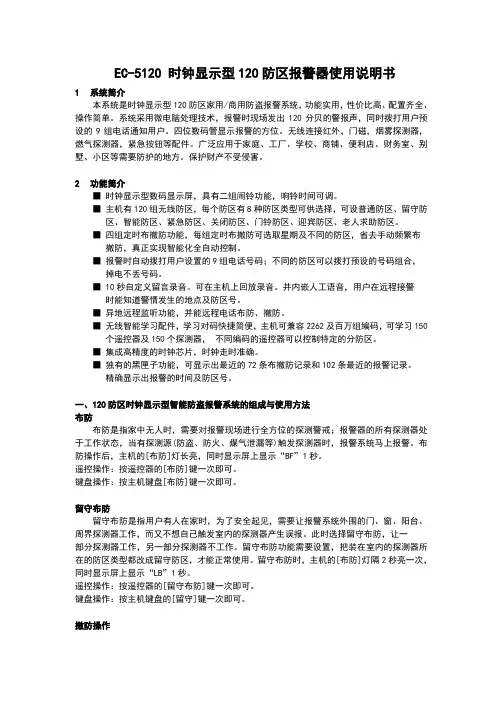

EC-5120 时钟显示型120防区报警器使用说明书1系统简介本系统是时钟显示型120防区家用/商用防盗报警系统，功能实用，性价比高、配置齐全、操作简单。
系统采用微电脑处理技术，报警时现场发出120分贝的警报声，同时拨打用户预设的9组电话通知用户。
四位数码管显示报警的方位。
无线连接红外，门磁，烟雾探测器，燃气探测器，紧急按钮等配件。
广泛应用于家庭、工厂、学校、商铺、便利店、财务室、别墅、小区等需要防护的地方。
保护财产不受侵害。
2功能简介■时钟显示型数码显示屏，具有二组闹铃功能，响铃时间可调。
■主机有120组无线防区，每个防区有8种防区类型可供选择，可设普通防区、留守防区、智能防区、紧急防区、关闭防区、门铃防区、迎宾防区、老人求助防区。
■四组定时布撤防功能，每组定时布撤防可选取星期及不同的防区，省去手动频繁布撤防，真正实现智能化全自动控制。
■报警时自动拨打用户设置的9组电话号码；不同的防区可以拨打预设的号码组合，掉电不丢号码。
■ 10秒自定义留言录音。
可在主机上回放录音。
并内嵌人工语音，用户在远程接警时能知道警情发生的地点及防区号。
■异地远程监听功能，并能远程电话布防、撤防。
■无线智能学习配件，学习对码快捷简便，主机可兼容2262及百万组编码，可学习150个遥控器及150个探测器，不同编码的遥控器可以控制特定的分防区。
■集成高精度的时钟芯片，时钟走时准确。
■独有的黑匣子功能，可显示出最近的72条布撤防记录和102条最近的报警记录。
精确显示出报警的时间及防区号。
一、120防区时钟显示型智能防盗报警系统的组成与使用方法布防布防是指家中无人时，需要对报警现场进行全方位的探测警戒；报警器的所有探测器处于工作状态，当有探测源(防盗、防火、煤气泄漏等)触发探测器时，报警系统马上报警。
布防操作后，主机的[布防]灯长亮，同时显示屏上显示“BF”1秒。
遥控操作：按遥控器的[布防]键一次即可。
键盘操作：按主机键盘[布防]键一次即可。
报警器使用说明书
一、概述：品牌大眼睛型号HP-99GSM类型防盗报警电话工作电压12（V）无线接收频率315（MHz）报警喇叭声强120（dB）录音留言时长6（S）储存电话号二、详细说明：品牌大眼睛型号HP-99GSM类型防盗报警电话工作电压12（V）无线接收频率315（MHz）报警喇叭声强120（dB）录音留言时长6（S）电话号码位长11（位）密码设置功能有系统安装系统简介本报警器由报警主机和各种无线连接的配件组成。
当有人非法进入设防区域时，主机就会发出警报声，并且拨打主人的电话，主人收到通知后可立即赶回家或通知附近的亲朋好友处理，也可以通过电话监听现场的声音，进行远程操作。
报警器安装把电话线外线插头插入主机的LINE2孔，用报警器附带的电话线将主机的LINE1孔与电话机相连，然后接上电源和警号，此时主机会发出“B”的一声，电源指示灯常亮，表示主机已开始工作。
门磁安装将随机配备的双面胶把磁条贴在门上，门磁发射盒贴在门框上，安装时注意将磁条靠近发射盒上有指示灯一侧，两者对齐，间距越小越好。
xx探测器的安装红外探测器的原理是感应人体发出的红外线信号，它能感应到人体的移动，探测距离通常为5-12米，红外探头应装在离地2.2米左右的位置，对准要探测的区域。
红外只能安装在室内，不要对着太阳光，不要对着窗户及温度容易改变的地方。
红外安装的位置会影响到探测距离及探测的准确性。
GSMxx安装抽出主机背后的SIM卡盖，用手指压住SIM卡座向后推动，翻开卡座盖板，将SIM卡按豁口位置插入盖板，保持SIM卡缺角与板上缺角方向一致，压下盖板向前推动扣住SIM卡即可。
功能设置所有设置都需要在撤防下进行，所有正确的操作均是长响一声，错误的操作都是两声短响储存电话号码6（个）报警项目多功能调节报警时警笛音量# 0（0～99）#报警时调节警笛音量大小，0到99之间选择，0是无声，99是最大声。
设置普通报警电话号码#(1～5)?...?#设置1～5组电话号码，“1～5”为电话号码的序号；此处“?...?”代表电话号码。
Eaton ROLPSB SV 火警设备- 室内使用声音报警器说明说明书
Technical DataTechnical DaTa 25-10378-H August 2021 S 107D UFire Alarm Device - Sounder for indoor (type A) useEssential CharacteristicsHarmonized Technical Specification: EN54-3:2001+A1:2002+A2:2006Clause(s)Performance4.2, 4.3,5.2, 5.3 Pass 4.4, 4.5, 4.6, 5.4 Pass 5.5, 5.7, 5.8, 5.9 Pass 5.8, 5.9Pass 5.11Pass 5.12, 5.13, 5.14, 5.15Pass 5.16Pass 5.17PassTechnical DataeatonEMEA Headquarters Route de la Longeraie 71110 Morges, Switzerland Eaton.euTEL: +44 (0) 1302 321541FAX: +44 (0) 1302 303220********************************************© 2021 EatonAll Rights ReservedEaton is a registered trademark.All trademarks are property of their respective Eaton Electrical Products Ltd.Llantarnam Park Cwmbran NP44 3AWTel: +44 (0) 1633 628500Fax: +44 (0) 1633 866346in the column marked EN54-3II.All other SPL measurements are taken ‘on axis’ & are not third party verified.III. Detailed EN54-3 polar SPL measurements are available in M96-024IV. A SPL of at least 65dB(A) is achieved in at least one direction at minimum volume/voltage.I. Les tons certifiés dans le cadre de la RPC (application alarme incendie) sont indiqués dans la colonne intitulée EN54-3.II. Toutes les autres mesures NPA sont relevées « sur axe » et ne sont pas vérifiées par un tiers.III. Les mesures NPA polaires détaillées EN54-3 sont disponibles dans M96-024I. Die nach CPR (Feuermelderanwendung) zertifizierten Töne sind in Spalte EN54-3.II.Alle anderen Schalldruckmessungen wurden vom akustischen Mittelpunkt ab gelesen und von keiner unabhängigen Stelle verifiziert.III. Detaillierte Polar-SPL -Messungen gemäß EN54-3 sind erhältlich in M96-024I. I toni della sirena certificati CPR (applicazione allarme antincendio) sono indicate nella colonna contrassegnata con EN54-3.II.Tutte le altre misurazioni SPL sono state rilevate “sull’asse” e non sono state verificate da terzi.III. Le misurazioni SPL polari ai sensi della norma EN54-3 sono disponibili in M96-024kolom waar EN54-3 staat vermeld.II. Alle andere SPL -afmetingen zijn via de ‘as’ gedaan en niet door derden geverifieerd.III. Uitgebreide polaire SPL -afmetingen voor EN54-3 zijn beschikbaar in M96-024I. Los sonidos certificados por el CPR (aplicación para alarmas de incendios) se muestran en la columna marcada con EN54-3.II.Cualquier otra medida del SPL (nivel de intensidad acústica) se toma “sobre el eje” y no está verificada por terceras partes.III. Las medidas detalladas del SPL polar EN54-3 están disponibles en M96-024I. Signaler som är certifierade för CPR (brandvarnare) visas i kolumnen märkt EN54-3.II.Alla övriga mätningar av ljudtrycket har genomförts “direkt intill” och är inte bekräftade av tredje part.III. Detaljerade polära mätningar av ljudtrycket enligt EN54-3 finns under M96-024I. Sygnały d źwiękowe zgodne z CPR (do zastosowań pożarowych) wskazane są w kolumnie EN54-3.II.Pomiary SPL wszystkich pozostałych sygnałów zostały wykonane …w osi” i nie były poddane weryfikacji przez stronę trzecią.III. Szczegółowe dane pomiarów kątowych SPL wg EN54-3 dostępnesą w dokumencie M96-024.。
中文说明书GP-03
可燃性气体检测仪GP-03使用说明书目录1.产品概要—————————————————————————————— 31.1概要—————————————————————————————— 31.2使用目的———————————————————————————— 31.3危险、警告、警示、注意的定义———————————————————— 32.安全注意事项———————————————————————————— 42.1危险事项———————————————————————————— 42.2警告事项———————————————————————————— 42.3预防—————————————————————————————— 43.产品部件—————————————————————————————— 53.1检查包装———————————————————————————— 53.2各部分名称和功能————————————————————————— 54.如何使用—————————————————————————————— 64.1预备开机———————————————————————————— 64.2开机和关机———————————————————————————— 64.3执行空气校准——————————————————————————— 74.4如何检测———————————————————————————— 74.5查看信息———————————————————————————— 85.操作和功能—————————————————————————————— 95.1气体报警启动——————————————————————————95.2故障报警启动——————————————————————————95.3数据存储功能——————————————————————————96.产品维护—————————————————————————————— 106.1维护周期和项目——————————————————————————— 106.2用户模式————————————————————————————— 106.3如何清洁————————————————————————————— 136.4推荐更换配件列表————————————————————————— 136.5过滤器的更换——————————————————————————— 137.存储和丢弃—————————————————————————————— 147.1存储或长期不用——————————————————————————— 147.2重新使用仪器——————————————————————————— 147.3产品的丢弃——————————————————————————148.故障消除—————————————————————————————— 149.产品特性—————————————————————————————— 151.产品概要1.1概要感谢您购买我司个人用可燃气体检测仪GP-03（简称气体检测仪）。
SONAR-SOCTA点型复合式感烟感温一氧化碳探测器说明书

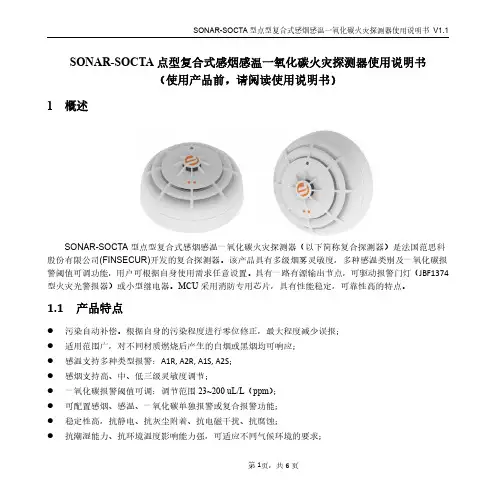

SONAR-SOCTA点型复合式感烟感温一氧化碳火灾探测器使用说明书（使用产品前，请阅读使用说明书）1概述SONAR-SOCTA型点型复合式感烟感温一氧化碳火灾探测器（以下简称复合探测器）是法国范思科股份有限公司(FINSECUR)开发的复合探测器。
该产品具有多级烟雾灵敏度，多种感温类别及一氧化碳报警阈值可调功能，用户可根据自身使用需求任意设置。
具有一路有源输出节点，可驱动报警门灯（JBF1374型火灾光警报器）或小型继电器。
MCU采用消防专用芯片，具有性能稳定，可靠性高的特点。
1.1产品特点●污染自动补偿。
根据自身的污染程度进行零位修正，最大程度减少误报；●适用范围广，对不同材质燃烧后产生的白烟或黑烟均可响应；●感温支持多种类型报警：A1R,A2R,A1S,A2S；●感烟支持高、中、低三级灵敏度调节；●一氧化碳报警阈值可调：调节范围23~200uL/L（ppm）；●可配置感烟、感温、一氧化碳单独报警或复合报警功能；●稳定性高，抗静电、抗灰尘附着、抗电磁干扰、抗腐蚀；●抗潮湿能力、抗环境温度影响能力强，可适应不同气候环境的要求；●采用SMT表面贴装工艺，采用导光柱；●内置短路隔离器（电源负极），隔离回路中存在短路故障的线路。
1.2适用范围●复合探测器应用于两总线火灾报警系统中，可配接青鸟消防报警控制器使用；●应用设计遵照国家标准GB50116-2013《火灾自动报警系统设计规范》；●主要用来探测可见的燃烧产物及起火速度缓慢的初期火灾，适用于宾馆客房、办公楼、图书馆、影剧院邮政大楼以及锂离子储能电站等场所。
1.3型号组成2工作原理复合探测器感烟探测部分由迷宫，红外发射部分、红外接收部分及相应的放大处理等电路组成。
正常工作时，当迷宫中没有烟时，红外发射管发出的红外光不能到达接收管，因此，放大器没有输出；而当迷宫中有烟时，红外发光管发出的光由于烟的散色作用，有部分红外光到达接收管，迷宫中烟的浓度越大，放大器输出就越大，当烟浓度达到设定报警阈值时电路给出报警信号。
一氧化碳检测仪使用方法
产品型号及其含义
CTH1000 1000 -----测量范围：0~1000×10-6 CO H--------电化学 T--------一氧化碳（CO） C -------测定器
第三页，共19页。
一． 用途 CTH1000 型一氧化碳测定器适用于煤矿井下、 巷道等处连续监 测环境中一氧化碳气体浓度。当一氧化碳气体浓度超限时，能自动 发出声、光报警。可供相关工作人员、管理人员、专业人员、流动 工作人员、煤矿通防人员等随身携带使用，也可供上述场所固定使 用。仪器防爆型式为矿用本质安全型，防爆标志为 ExibI。 在具有甲烷爆炸性危险的煤矿井下： a）温 度：0～40℃； b）湿度：≤98％(25℃)； c）大气压力：80～116kPa； d）风 速：0～8m／s； e）贮存温度为-40～+60℃。 f）在具有爆炸性气体混合物的危险场所 警示：当仪器使用环境条件超出上述使用条件时，可能会造成仪器 误差增大。
第十三页，共19页。
第十四页，共19页。
5．3 报警点设定
仪器出厂时报警点设定为 24×10-6CO，在某些地区或场合需要改变报 警点值时，操作方法如下： ①、仪器在开机过程中显示报警点时可以调整报警点，在其它状态下不可 以调整报警点 ② 、仪器开机显示报警点时长按设置键（SET）进入报警点设置状态，光 条全部点亮； ③ 、通过上箭头（▲）或下箭头（▼）按键调节使报警点显示值与期望值 相同； ④ 、长按功能键（OK）存储新报警点值并退出设置状态；仪器继续自检， 然后返回工作状态 注意：此时如果短按功能键（OK）则不存储新报警点，设定失败！
第十二页，共19页。
5．2 仪器的校准
注意：本仪器为了防止非专业调校人员不规范操作，特别为进入校准状态 设置了密码，具体密码为 1XXX，即进入校准状态后，将首位设为 1 即可进 入通气校准状态； 操作步骤： ① 在仪器浓度显示状态下，长按设置键（SET） ，进入密码（口令）设定； 此时密码第一位、浓度显示标志、四个光条闪烁；此时如果按功能键（OK） 会退出。 ② 按上箭头（▲） ，将第一位设成 1，然后按功能键（OK）可进入下一步 通气校准；此时按功能键（OK）或设置键（SET）可退出校准状态 ③ 进入通气校准时仪器首先显示原始零点，按功能键（OK）调零并进入通 气状态，可以通入一氧化碳标准气体。 注意：试验中所使用的标准气样（以下简称标准气样）应具有国家授权机构 发放的标准物质证书，其不确定度不大于 3%。推荐校准用标准气样 500×10-6CO。 ④ 使用厂家提供的专用通气校准罩，连接减压阀及流量计，流量调节为 200ml/min，空放半分钟将气路中杂质气体排出； ⑤ 将专用通气校准罩紧密插到仪器前端，待仪器数字显示值稳定后，通过 上箭头（▲）或下箭头（▼）按键调节使显示值与标准气体浓度值相同，等 待半分钟使数值稳定后，长按功能键（OK）存储校准结果，撤离校准罩；校 准完毕。如图： 注意：此时如果短按功能键（OK）则不存储校准结果，本次校准失败！
烟雾报警器用户手册说明书
User ManualCOMBINED STROBE & VIBRATING PADW2-SVP-630LINTRODUCTION IMPORTANT: If you are installing this product for use by others, you must leave this manual (or a copy of it) for the end user.Wi-Safe 2 technology enables wireless interlinking between Wi-Safe 2 products.The Strobe and Vibrating Pad, when interlinked with Wi-Safe 2 smoke, heat and/or carbon monoxide (CO) alarms will provide warning of danger from smoke and/or carbon monoxide.In addition to the audible sound from your smoke, heat or CO alarm, the flashing Strobe and Vibrating Pad will be triggered to alert those who may not be able to hear the audible alarm. The flashing strobe provides a visual warning for waking hours, while the vibrating pad is designed to be placed under a pillow or a mattress and is suitable for waking an individual to alert them when an alarm sounds. If placed under a mattress, ensure the thickness of the mattress does not cushion the pad to the extent it cannot be felt adequately.KEY FEATURES• Wi-Safe 2 products can be interlinked to createa network, meaning if smoke or CO triggers any alarm in the network, all other networked alarms and ancillary devices activate.• When used with Wi-Safe 2 enabled smoke, heat and/or CO alarms, the kit provides additional protection when sound alone may not be enough.• Provides a simple two button “learn in” process to wirelessly interlink with Wi-Safe 2 smoke, heat or CO alarms.• The Strobe provides a remote low level testing facility for testing interlinked smoke and CO4alarms, avoiding the need to reach up to ceiling mounted alarms to test.• Mains powered with rechargable battery back-up (must be replaced after 5 years).• The Strobe will detect and demonstrate a fault or low battery warning with any smoke alarm or CO alarm within the interlinked network.• The Strobe is suitable for wall mounting with 2 screw fixings or free standing.• Designed for use with smoke, heat and CO alarms from the Wi-Safe 2 range.Wi-Safe 2 Strobe and Vibrating Pad pack contains:1. CP-LED - Strobe light with integrated control unit (referred to as “strobe”)2. CP-VPAD - Vibrating Pad to be placed under pillow or chair (referred to as ”pad”)3. AD-DC12V05A - AC mains adaptor, 12V, 0.5A rated output4. B-450L - Replaceable, rechargeable 5 yearlife battery5. Wall fixing screwsNOTE: The Strobe and Vibrating Pad is only compatible with Wi-Safe 2 alarms from FireAngel Safety Technology Limited.I t cannot be wirelessly interlinked with other manufacturers’ products. I t is not compatible with products from FireAngel Safety Technology Limited original Wi-Safe range.I NSTALLI NG THE STROBEAND VIBRATING PADPREPARATION: Please ensure you have read and understood this manual before installing your Strobe and Vibrating Pad.It is recommended that for optimum protection from smoke and/or carbon monoxide, one Wi-Safe 2 smoke alarm is fitted in each living room of your home, including bedrooms, and oneWi-Safe 2 CO alarm is fitted in every room containinga fossil-fuel appliance, connected to your Strobe and Vibrating Pad.510TESTI NG THE WI -SAFE 2 STROBE AND VIBRATINGPAD WI TH SMOKE /CO ALARMSTesting the network from the smoke alarm or CO alarmBriefly press the test button on the smoke alarm or CO alarm and release (fig5). The alarm will give an audible sound (consisting of 2 cycles of 3 loud beeps on smoke alarms, 2 cycles of 4 rapid beeps on CO alarms), then stop automatically. The red (alarm) LED on the alarm will flash rapidly during the audible signal. Any other wirelessly interlinked alarms which are also part of the network will also give an audible alarm, and then stop automatically.3. T he red LEDs will then perform a sequence of two long and three short flashes. T he amber fault LED will illuminate continuously to confirm that the Strobe is no longer interlinked to the wireless network.4. Press the test button on the Strobe. It should not cause other Wi-Safe 2 alarms to sound. If the Strobe is still interlinked, repeat the above procedure.IMPORTANT : If you wish to remove the Strobe and Vibrating Pad from the wireless network, it is important to “unlearn” the unit from the network. Failure to do so means that the unit continues to try and communicate with the removed unit, and will result in a system fault.12Position the Vibrating Pad:• Under your pillow.• Under a cushion on a chair where you are likely to fall asleep.Test and check that the Vibrating Pad can be felt in all circumstances where you may fall asleep. Ensure it is placed securely and cannot fall out – ideally within the pillowcase or cushion cover.Position the Strobe:• Close to a power socket where it can be easily plugged in and the cable does not create a tripping hazard.• Where you can see the Strobe flashing from anywhere in the room.• Where you can see the LEDs on the front of the unit.NOTE: The Strobe can be fitted to a wall or it can be placed on a table.POSITIONINGWhere should the Strobe and Vibrating Pad be installed?If you have one Strobe and Vibrating Pad, it should be installed in the main room where you sleep. You may wirelessly interlink additional Strobes and Vibrating Pads to the network and install them in any room where you may need to be alerted in the event of an alarm. It is important that if you install additional Strobes and Vibrating Pads you test each of these upon installation to check they are “learned in” to the rest of the network.Wireless Range: The wireless range of Wi-Safe 2 products is over 200 metres in clear air/clear line of sight.However it is recommended not to exceed 35m as the maximum distance between any interlinked Wi-Safe 2 smoke alarm or carbon monoxide alarm and the Strobe and Vibrating Pad. This is because the range can be reduced by walls, and other obstructions in the building.all other alarms in the network, for a period of 2minutes, except the alarm that has sensed smoke or carbon monoxide. This will enable theinstigating alarm to be located. UNPLUGGI NG FROM THEMAI NS / POWER CUTThe Strobe and Vibrating Pad is designed to bemains powered. The internal rechargeable batterywill still provide power if the mains is disconnected.A fully charged battery will allow the Strobe and Padto continue to operate for three days. Only use thebattery supplied in the pack or a genuine FireAngelreplacement. Other rechargeable batteries maydamage the equipment or create a safety hazard. WARN I NG: When the mains power is disconnected, the green power LED will no longer illuminate and the amber (Fault) LED will double flash every 5 seconds. Plug the Strobe back into the mains as soon as possible to recharge the battery and maintain operation.f the amber LED is flashing once every 5 seconds when the green power LED is off then URGENTL Y restore power to the unit as battery status is very low, and may fail to operate in an alarm situation.NOTE: Once the Strobe is plugged back into the mains, the amber (Fault) LED will continue to flash once every 5 seconds until the battery has fully recharged.16PRODUCT INDICATORS (LEDs)STATUS STROBE/PADACTIVITYPOWERGREENSMOKEREDFAULTAMBERCOREDACTIONNEEDEDStandby mode Illuminated None requiredMains not connectedor on battery power Double flashevery fivesecondsReconnectStrobe to mainspowerVibrating Pad not connected to Strobe Illuminated(providing Strobeis plugged intomains)Flashing once persecondReconnectVibrating Pad tostrobeMains notconnected and battery capacity low Strobe will chirpFlashing onceevery 5 secsURGENTL Yrestore powerto unit asbattery status isvery lowAlarm mode Smoke Strobe flashing/Pad vibratingIlluminated(providing Strobeis plugged intomains)FlashingAlarm – fire- evacuatepropertyAlarm mode CO Strobe flashing/Pad vibratingIlluminated(providing Strobeis plugged intomains)FlashingAlarm – CO –Open windowsand evacuateproperty17If after proceeding with extreme caution you have been able to confirm that your Strobe and Vibrating Pad System was triggered by a nuisance alarm (which may occur from time to time from cooking or other non-emergency situations) you should silence the alarm that has been triggered. T his will stop the Vibrating Pad from vibrating and the Strobe from flashing. It is important to practice escape plans and show everyone in the house, including children, what to do in the event of an alarm.WHAT TO DO IN THE EVENT OF A CARBON MONOXIDE ALARM TRI GGERI NG THESTROBE AND PADAssume carbon monoxide has been detected in your home!WHAT TO DO IN THE EVENT OF A CO ALARM WARNING: A loud alarm is a warning that unusually high and potentially lethal levels of carbon monoxide are present. Never ignore this alarm; further exposure could be fatal. Immediately check residents for symptoms of carbon monoxide poisoning, (see product manual) and contact the proper authorities to resolve all CO problems. NEVER IGNORE ANY ALARM.What to do during an alarm• Keep calm and open the doors and windows to ventilate the property.• Stop using all fuel-burning appliances and ensure, if possible, that they are turned off.• Evacuate the property leaving the doors and windows open.• Ring your gas or other fuel supplier on their emergency number; keep the number in a prominent place.• Do not re-enter the property until the alarmhas stopped. When exposed to fresh air it can take up to 10 minutes for the sensor to clear and the alarm to stop depending on the level of carbon monoxide detected.20• Get medical help immediately for anyone suffering the effects of carbon monoxide poisoning (headache, nausea, drowsiness), and advise that carbon monoxide poisoningis suspected.• Do not use the appliances again until they have been checked by an expert. Contact a Gas Safe registered engineer in the case of a gas appliance.REPAIRWARNING: DO NOT attempt to repair your Strobe and Vibrating Pad System. Y our Wi-Safe 2 Strobe and Vibrating Pad is a sealed AC electrical device, and no attempt should be made to open the casing on any part of the system. Attempting to open any case will:• Damage your system.• Possibly result in exposure to a potentially lethal electric shock.• Impair its operation.• Invalidate your warranty.If your Wi-Safe 2 Strobe and Vibrating Pad is not working correctly and you are unable to resolve the problem after consulting the “Troubleshooting” section, please contact T echnical Support.The battery provided has been chosen specifically for this application but will need to be replaced every 5 years under normal operating conditions. If during normal operation (i.e. connected to the mains supply for at least 72 hours) the amber LED flashes once every 5 seconds while the green LED is illuminated, contact T echnical Support for advice. IMPORTANT: Do not replace with any other type of battery.21To remove the Vibrating Pad from anestablished network:Switch the power off at the socket and disconnectthe battery. Disconnect the Vibrating Pad from thestobe unit (Fig.3). Press and hold the test button ofthe Strobe. Whilst doing so, switch the power onand continue to hold the test button. After about 5seconds, the Strobe will beep and both red LEDswill flash. You can now release the test button andconnect the battery. No fault conditions, indicated bya flashing amber LED, should be present even withthe Vibrating Pad disconnected.PLEASE NOTE:The V ibrating Pad can be reconnectedat any point and will operate correctly. If the VibratingPad is then removed the system will show a fault,indicated by a flashing amber LED once per second.If this occurs and you require the Strobe to operateindependently, please follow the steps above.23TROUBLESHOOTINGThe Vibrating Pad does not vibrate when testing Check the Vibrating Pad is correctly connected to the Strobe. If it is correctly connected and the Fault (amber) LED is flashing after 2 minutes, contact T echnical Support on ***********.The Strobe is connected to the power supply but the Power (green) LED is not illuminated Check the power supply is plugged in and switched on at a working power socket.The fault (amber) LED flashes once every 5 seconds continuously Urgently restore mains power to the strobe unit. If the strobe unit is plugged in to the mains supply and has been switched on for at least 72 hours, the battery may be faulty. Call T echnical Support on ***********.The Power (green) LED is illuminated, and the Fault (amber) LED is also continuously lit The strobe unit is not interlinked (“learned in”) to the rest of the network. If you have learned in the unit, and this is happening regularly, call T echnical Support on ***********.The Strobe and Vibrating Pad does not respond to a smoke or CO alarm that is being tested Check that the alarm and the Strobe and Vibrating Pad have been interlinked (“learned in”) correctly. Check that the units are in range, see “Positioning”. If the Strobe and Vibrating Pad still fails to respond, call T echnical Support on ***********.The Fault (amber) LED double flashes, rapidly One or more alarms in the network are missing, faulty or disabled (removed from its base).Unit chirps once per minute Refer to product indicators for LED flash pattern. If in doubt contact Technical Support on ***********.24DISPOSALWaste electrical products should not be disposed of with regular household waste. Your Strobe and Vibrating Pad should be disposed of in line with the waste electronic and electrical equipment (WEEE) regulations. Please recycle where facilities exist. Check with your local authority, retailer or contact our technical support team for recycling/disposal advice as regional variations apply. Please “unlearn” the Strobe from its wireless network and disconnect the battery within the Strobe before disposal. Failure to do so could result in a system fault. WARNING: DO NOT ATTEMPT TO OPEN. DO NOT BURN.WARRANTYFireAngel Safety Technology Limited warrants to the original purchaser that its enclosed W i-Safe 2 Strobe and V ibrating Pad alert (W2-SVP-630L) be free from defects in materials and workmanship under normal residential use and service for a period of 5 (five) years from the date of purchase. Provided it is returned with postage prepaid and proof of purchase date, FireAngel Safety Technology Limited hereby warrants that during the 5 (five) year period commencing from the date of purchase FireAngel Safety Technology Limited, at its discretion, agrees to replace the unit free of charge. The warranty on any replacement W2-SVP-630L will last for the remainder of the period of the original warranty in respect of the product originally purchased – that is from the date of original purchase and not from the date of receipt of the replacement product. FireAngel Safety Technology Limited reserves the right to offer an alternative product similar to that being replaced if the original model is no longer available or in stock. This warranty applies to the original retail purchaser from the date of original retail purchase and is not transferable. Proof of purchase is required. This warranty does not cover damage resulting from accident, misuse, disassembly, abuse or lack of reasonable care of the product, or applications not in accordance with the user manual. It does not cover events and conditions outside of FireAngel Safety Technology Limited’s control, such as Acts of God (fire, severe weather etc.). It does not apply to retail stores, service centres or any distributors or agents. FireAngel Safety Technology Limited will not recognise any changes to this warranty by third parties. FireAngel Safety Technology Limited shall not be liable for any incidental or consequential damages caused by the breach of any expressed or implied warranty. Except to the extent prohibited by applicable law, any implied warranty of merchantability or fitness for a particular purpose is limited in duration for 5 (five) years. This warranty does not affect your statutory rights. Except for death or personal injury, FireAngel Safety Technology Limited shall not be liable for any loss of use, damage, cost or expense relating to this product or for any indirect or consequential loss, damages or costs incurred by you or any other user of this product.25(UK)********************************** (DE)*************************(FR)********************************** (NL)******************************** (INT)**************************************。
新单点壁挂气体检测报警仪说明书
单点壁挂气体报警仪使用说明操作必读1、所有操作和测试本公司出产之仪器的操作人员，在操作前必须仔细阅读说明书。
本公司的仪器仅在按照制造厂商的要求操作时，才能正常工作。
2、本公司仪器的使用必须按照说明书确定的规则操作。
3、仪器的维修和部件的更换由本公司或各地维修站处理。
4、如果用户不依照以上说明擅自开机修理或更换部件，仪表的可靠性由操作者负责。
同时本公司不再负责保修。
5、本公司仪器的使用还应遵守国内有关部门及工厂内仪器管理方面的法令和规则。
6、仪器需要3至6个月标定一次，在保质期内本公司免费提供标定。
保修说明所有本公司生产的仪器享有24个月的保修期（电化学传感器除外，电化学传感器保修期12个月），保修期从出厂之日算起。
用户在使用中，应遵守使用说明，由于用户使用不当，或工作环境恶劣而造成仪器损坏，不在保修范围之内。
用户应妥善保管出厂合格证，保修期以合格证上的日期为准。
返修时请注意附上出厂合格证。
态。
在报警值输入状态，系统会自动显示上次设置的报警值。
此时最低位数值处于闪烁状态，表示可以修改最低位的值，通过按使闪烁位的数值在0～9 之间循环变化，而按来改变闪烁位置，这样通过和的组合来输入要设置的值。
参数值设置好之后必须按进行确认退出，否则将一直处于报警值输入状态。
2、恢复出厂设置值：在正常的显示状态下，按“”键和“”键，进入恢复出厂设置值状态。
此时系统进行倒计时，如果一直按住这2个键，则四位数码管的显示由 3333 到 2222再到 1111 最后显示 HFTC，此时表示出厂值恢复成功。
如果在显示 HFTC 之前的任何时间松开“”键或者“”键或者同时松开两个按键，则都会显示–OFF，此时表示出厂值恢复失败。
七、其它说明1、对于壁挂式的可燃气监控报警器，当可燃气的浓度达到 110％LEL 左右时，系统会自动关闭气体探测器的供电，使探测器停止工作，达到防爆的功能。
此时数码管会一直显示 100，继电器的常开开关端接通，两个发光二极管同时闪烁，蜂鸣器报警。
固定式CO报警器手册
重 要 提 示 １．在使用和安装仪器前，请仔细阅读本说明书； ２．仪器的日常保养和维修要遵循本产品说明书中的要求进行； ３．仪器的修理和零部件的更换必须采用本公司所提供的备品备件，并由受过培训的专业人员完成； ４．如果用户不依照以上说明擅自安装或修理更换部件，产品的安全性和可靠性将会受到影响，由此产生的责任由用户负责。
注意：本仪器严禁在危险场所开盖进行任何操作。
在您使用过程中，如果遇到疑难问题请打电话８００－８１０－１３３６咨询。
目 录１．０用途及特点 (2)２．０ 工作原理 (3)３．０ 技术性能及参数 (3)４．０ 安装说明 (5)５．０状态指示说明 (9)６．０操作说明 (11)７．０ 更换传感器 (17)８．０开关量输出 (18)９．０使用注意事项 (20)１０．０ 仪器的成套性 (20)１１．０ 标定记录 (21)１２．０ 更换件清单 (22)1１．０用途及特点 SP-2104（H2S）硫化氢气体检测仪（以下简称探头）可以将空气中的硫化氢气体按照正比关系转换成电压信号，通过单片机处理后输出4~20mA标准电流信号，并将相应的气体浓度值通过液晶显示器显示在探头上，可与SP系列控制器或其它二次仪表配套使用，用于固定式连续检测空气中的硫化氢气体的浓度，对其进行显示、报警以及控制输出处理，探头具有RS-485通信功能。
可与工控机进行通信连接。
探头的防爆性能是经过国家指定的防爆产品检测单位认证并取得了防爆合格证，防爆标志Ex dⅡCT6。
适用于冶金、化学工业、环保等部门及其他存在硫化氢气体的场所。
SP-2104（H2S）硫化氢气体检测仪具有以下特点：n传感器采用了国外最先进的英国CT公司电化学传感器。
n具有现场气体浓度显示（不同气体量程不同），使现场工作人员及时了解情况。
n4-20mA标准信号输出。
具有RS-485传输功能，可与智能控制器或工控机连接。
n具有报警开关量输出及故障报警开关量输出，可现场控制通风设备及故障报警设备。
Kidde KN-COSM-IBACA 900-0119 煤气氧氣警報用戶指南说明书
V AC Operated with2-AA Front-Loading Battery Backup ATTENTION:Please take a few minutes to thoroughly user guide,which should be saved for future reference on to any subsequent owner.Guide P/N2544-7202-03EN1/2015Carbon Monoxide Alarm ProcedureWARNING:Activation of the COAlarm indicates the presence of CarbonMonoxide(CO)which can kill you.If the alarm sounds4quick“beeps”,5seconds off:1)Immediately move to fresh air–outdoors or by an opendoor/window.Do a head count to check that all personsare accounted for.Do not re-enter the premises nor moveaway from the open door/window until the emergencyservices responders have arrived,the premises have beenaired out,and your alarm remains in its normal condition.2)Call your local emergency service.(fire department or911)PHONE NUMBER:Never restart the source of a CO problem until it has been corrected.Never ignore the sound of the alarm!If the alarm is sounding,pressing the test/reset button will terminate the alarm.If the CO condition that caused the alert in the first place continues,the alarm will reactivate.If the unit alarms again within six minutes,it is sensing high levels of CO which can quickly become a dangerous situation.NEVER IGNORE THE SOUND OF THE ALARM! Determining what type of alarm has sounded is easy with your Combination Smoke/CO Alarm.The voice message warning system will inform you of the type of situation occurring.Refer to the Features section on pages4-5for a detailed description of each alarm pattern.What To Do If The Alarm SoundsWhen the smoke alarm sounds:Smoke alarms are designed to minimize false alarms.Cigarette smoke will not normally set off the alarm,unless the smoke is blown directly into the alarm.This unit contains nuisance alarm protection,which will reduce the impact of cooking particles. However,large quantities of combustible particles from spills or broiling could still cause the unit to alarm.Careful location of the unit away from the kitchen area will give the maximum nuisance alarm bustion particles from cooking may set off the alarm if located too close to the cooking rge quantities of combustible particles are generated from spills or when broiling. Using the fan on a range hood which vents to the outside(non-recirculating type)will also help remove these combustible products from the kitchen.If the alarm sounds,check for fires first.If a fire is discovered follow these steps.Become thoroughly familiar with these items, and review with all family members!•Alert small children in the home.Children sleep verysound and may not be awakened by the sound of thesmoke alarms.•Leave immediately using one of your planned escaperoutes(see page26).Every second counts,don’t stopto get dressed or pick up valuables.•Before opening inside doors look for smoke seeping in around the edges,and feel with the back of your handIf the door is hot use your second exit.If you feel it’s safe,open the door very slowly and be prepared toclose immediately if smoke and heat rush in.•If the escape route requires you to go through smoke, crawl low under the smoke where the air is clearer.•Go to your predetermined meeting place.When two people have arrived one should leave to call911froma neighbor’s home,and the other should stay toperform a head count.•Do not reenter under any circumstance until fire officials say that it is safe to do so.•There are situations where a smoke alarm maynot be effective to protect against fire as notedby the NFPA Standard72.For instance:-Smoking in bed-Leaving children unsupervised-Cleaning with flammable liquids,such as gasoline -Fires where the victim is intimate with a flaminginitiated fire;for example,when a person'sclothes catch fire while cooking-Fires where the smoke is prevented from reaching the detector due to a closed door or otherobstruction-Incendiary fires where the fire grows so rapidly that an occupant's egress is blocked even withproperly located detectorsback into the electrical box mounting bracket.Installing AC Quick Connect FIGURE 3A APostsFIGUREFIGURE4BTamper Resist Featuremake your smoke/CO alarm tamper resistant,a tamper resist feature has been provided.Activate the tamper resist feature by breaking off the four posts in the square holes in the trim ring(see figure4A).When the posts are broken off,the tamper resist tab base is allowed to engage the mounting bracket.Rotate the alarm onto the mounting bracket until you hear the tamper resist snap into place,locking the alarm on the mounting bracket. Using the tamper resist feature help deter children and others from removing the alarm from bracket.NOTE:T o remove the alarmSLIDE OPEN INSERTFIGURE520FIGURE6batteries twice a year,atis to replace the batterieschange your clocks forto high or lowlife.A good safety battery at least once a year,。
手持式氧气报警仪使用说明书
O2 GAS DETECTION AND ALARM INSTRUMENT GIR INST氧气检测报警仪O2型使用说明书O2 GAS DETECTION AND ALARM INSTRUMENT GIR INST氧气检测报警仪O2型使用说明书—11—保修说明我公司负责BG-O2型气体检测报警仪12个月的保修期，保修期从用户拿到仪器之日算起。
用户在使用中，应遵守使用说明，由于用户使用不当，或工作环境恶劣而造成仪器损坏，不在保修范围之内。
重要提示1. 在使用仪器之前，请仔细阅读操作手册。
2. 本仪器需由经过培训的人员使用与维护。
3. 本仪器的使用必须按我公司确定的规则操作。
4. 仪器的维修和部件的更换必须采用我公司的原装备件。
5. 如果用户不依照以上说明擅自开机修理更换部件，仪表的可靠性责任由操作者负责。
6. 本仪器的使用还应遵守国内有关部门及工厂内仪器管理方面的法令和规则。
保修说明我公司负责BG-O2型气体检测报警仪12个月的保修期，保修期从用户拿到仪器之日算起。
用户在使用中，应遵守使用说明，由于用户使用不当，或工作环境恶劣而造成仪器损坏，不在保修范围之内。
重要提示1. 在使用仪器之前，请仔细阅读操作手册。
2. 本仪器需由经过培训的人员使用与维护。
3. 本仪器的使用必须按我公司确定的规则操作。
4. 仪器的维修和部件的更换必须采用我公司的原装备件。
5. 如果用户不依照以上说明擅自开机修理更换部件，仪表的可靠性责任由操作者负责。
6. 本仪器的使用还应遵守国内有关部门及工厂内仪器管理方面的法令和规则。
目录一、概述二、工作原理和仪表结构三、技术参数四、使用注意事项五、电池的安装和更换六、检查零点与标定七、报警点调整八、应用九、传感器的安装和更换十、仪器的成套性十一、常见故障与维修—1—目录一、概述二、工作原理和仪表结构三、技术参数四、使用注意事项五、电池的安装和更换六、检查零点与标定七、报警点调整八、应用九、传感器的安装和更换十、仪器的成套性十一、常见故障与维修—1—3.将新传感器的插针对好仪表上的插座并可靠插牢，再将传感器装好。
GasAlertQuattro中文说明书
1, 2, 3, 与 4 复合气体探测仪有限保证和责任限制BW Technologies LP (BW) 保证本产品自交付客户之日起在正常使用和保养情况下两年内不会出现材料和工艺方面的缺陷。
本保证仅适用于原客户购买的、未使用过的新产品。
BW 的保证责任为有限责任，对于在保证期内返回 BW 授权服务中心的缺陷产品，BW 有权自行选择是全额退款、维修还是更换。
在任何情况下，BW 依据本保证承担的责任均不超过客户购买产品时实际支付的价款。
以下情况不属于本担保范围：a)保险丝、一次性电池或使用过程中因产品正常磨损和破损而需要定期更换的零件；b)根据 BW 鉴定，任何因误用、改装、疏忽、意外事故或操作、处理、使用条件异常而损坏的产品；c)任何因非授权经销商维修或在产品上安装了未经许可的零件而造成的损坏或缺陷。
本担保所列出的责任受以下条件限制：a)保管、安装、校准、使用、维护并遵守产品手册说明和 BW 科技有限公司的其他任何应用建议议；b)客户及时就任何产品缺陷通知 BW，必要时应迅速对产品进行修复。
除非客户收到 BW 的发货指示，否则不能返回任何产品；c)BW 有权要求客户提供购买凭证，如原始发票、销售契约或包装收据，以确定产品是否在保证期内。
客户同意本保证是客户可以获得的唯一补偿，并取代所有其他保证（无论是明示的还是暗含的），包括但不限于对于特殊目的适销性或适合性的任何暗含保证。
不论是由于违背了本保证还是依据合同、侵权行为或信赖或任何其他理论，BW 对特殊、间接、偶然或附带的任何损坏或损失，包括数据丢失，概不负责。
由于某些国家/地区或州/省不允许限制暗含保证的条款，或不允许排除或限制偶然或附带产生的损坏，因此本保证的限制和排除情况可能并不适用于每位客户。
如果本保证的任何规定被有资格的司法管辖法院认为无效或不可执行，将不会影响任何其他规定的有效性或可执行性。
BW Technologies by Honeywell 联系方式中国: +86-25-8637-7444 加拿大: 1-800-663-4164欧洲: +44(0) 1295 700300其他国家/地区: +1-403-248-9226电子邮件地址: njhse@BW Technologies by Honeywell 网址: GasAlertQuattro 气体检测仪引言本操作员手册提供了操作 GasAlertQuattro 气体检测仪的基本信息。
一氧化碳CO气体报警器使用规范 说明书
深圳东日瀛能科技有限公司有毒有害智能气体变送器产品说明书深圳东日瀛能科技有限公司目录1、概况-------------------------------------------------------------------------------22、技术特点-------------------------------------------------------------------------23、技术参数-------------------------------------------------------------------------34、外形尺寸及安装方式----------------------------------------------------------44.1安装位置--------------------------------------------------------------------54.2安装方法--------------------------------------------------------------------55、电气连接-------------------------------------------------------------------------66、负载特性--------------------------------------------------------------------------77、操作说明--------------------------------------------------------------------------87.1LCD显示说明---------------------------------------------------------------87.2按键操作说明---------------------------------------------------------------817.3变送器设置------------------------------------------------------------------98、设备维护--------------------------------------------------------------------------159、注意事项--------------------------------------------------------------------------1510、检测气体一览表----------------------------------------------------------------161．概述固定式气体变送器通过对大气中氧气、可燃气体、有毒有害气体进行连续在线检测及声光报警，不仅对特殊场合气体浓度起到控制作用，对危险现场气体泄漏更有预警作用，及时保护各种现场的生命以及财产安全。
HT201EX型可燃气体检测报警器说明书
本报警器具有零点自动补偿功能和负漂移自动调节功能，当显示数值低于“0”时报警器 进行零点自动检测，使报警器的检测数值不会出现负值。该功能在报警器开机并连续工作 2 小时以后才有效。
严禁在作业场所内带电打开报警器的外盖。报警器底部的探头内装有金属 粉末过滤罩，当该装置损坏或遗失时，严禁使用本报警器，否则暴露的电 子元件将成为潜在的点火源。
HT201EX 型可燃气体检测报警器说明书
一 产品简介
HT201EX 型可燃气体检测报警器,是固定式连续检测空气中存在的可燃性气体浓度的安 全检测仪表。本报警器采用进口的催化燃烧式传感器，隔爆结构设计，采用抗雷击电路、高 稳定数字处理电路、记忆探头等先进专利技术。军工级防雷性能，防雷型变送器 专利号： ZL201520106483.3 ；无需现场标定，智能记忆探头，专利号：ZL201520183008.6，高稳定性， 数字桥电路 专利号：ZL201510143523.6。具有安装接线方便，操作维护简单，性能稳定可靠 等特点。
如果需要将报警器安装固定到墙面上，可先将随机的固定脚架用膨胀螺栓固定在墙面上， 然后参照上面的办法固定好报警器。报警器的安装示意图见图 3。
防爆软管（G1/2＇阳螺纹)
报警器壳体 报警器安装螺丝
传感器
七 连接方法
支架紧固螺丝 传感器支架 图 3 报警器的安装示意图
第4页
U 型螺栓 固定柱子
HT201EX 型可燃气体检测报警器说明书
(1) 应用参数的调整 …………………………………………………………………… 8 (2) 4mA～20mA 电流环输出性能调整…………………………………………………… 9 九 使用方法……………………………………………………………………………………… 9 十 校准设备……………………………………………………………………………………… 10 十一 报警器的校准 …………………………………………………………………………… 10 1．零点校准 ………………………………………………………………………………… 11 2．量程校准 ………………………………………………………………………………… 11 3．输出电流校准 …………………………………………………………………………… 11 十二 配套附件…………………………………………………………………………………… 12 十三 常见故障及处理方法……………………………………………………………………… 13 十四 注意事项…………………………………………………………………………………… 13 十五 常见物质主要危险特性表………………………………………………………………… 14 十六 保修须知…………………………………………………………………………………… 15 十七 备忘录……………………………………………………………………………………… 15
Omega HHAQ-105 二氧化碳浓度报警器说明书
HHAQ-105e-mail:**************For latest product manuals: Shop online at SM User’s GuideINTRODUCTIONFeatures•Adjustable CO warning level•Dual digital display•Backlight•Low battery•Auto power off function•W rist strap.CO LEVELS & THEIR EFFECTPPM Symbols and applicable standard.0-1Maximum background levels9Maximum indoor air quality level:Maximum allowable concentration per ASHRAE Resi-dential standards62-1989for living area.25Maximum limit8hrs of continuous exposure per Cali-fornia OSHA workplace standards.35Maximum8hrs average exposure level per US OSHA workplace standards.50Maximum concentration for continuous exposure in any8hrs average level per OSHA standards.100Remove employees from enclosed space if the CO con-centration exceeds100ppm per OSHA exposure limit. 200Mild headache,fatigue,nausea and dizziness w/i2-3 hrs.400Frontal headache,life threatening after3hrs.Maximum concentrations in flue gas the US EPA and AGAstandards.800Dizziness,nausea,convulsions,death w/I2-3hrs.CONTROLS AND INDICATORSLCD Display 8888 ppmMax 18881. Primary display: Current CO value.2. Secondary display: Max CO value3. Low battery indicator.Function Keys1. Ф Turns the meter on and off. Selects the alarm value.2. Turns the backlight on and off.Switch temperature unit C and F.Reset the maximum CO value.Select the calibration value.3. Ф + : Enter calibration mode. OPERATING INSTRUCTIONS1. Power on/offPress Ф to turn the meter on and off. When meter is on, the preset alarm value and current air temperature will blink on the LCD. The meter is now running its Self- Test and will finish in about 15 seconds with a short beep. The meter will then be in the measuring mode.A 25 ppm72 FIMPORTANT:Turn on the meter in an area free of CO since high CO level may cause failure in passing Self-Test.2. F/C SwitchingUser can select °C or °F as the temperature mode by press ing for temperature more than 1 sec. during Self-Test.3. Alarm SettingThe meter is preset at the alarm value of 25 ppm to give warnings of possible danger. Users can adjust the value for different needs or standard by:1. Turn off the meter.2. Press and hold Ф until the value options show. There will be 25, 30, 35, 45, 50, 70, 100, and 200ppm display ing in cycles.3. Release the button to select the preferred value.4. The meter will return to Self- Test mode.4. MeasurementsThe meter detects the existence of CO in the environment and displays the reading in PPM. It also indicates the maxi mum value (on the bottom LCD display) of all readings since the meter has been on. Users may reset the maximum value by pressing for two seconds in the measuring mode.5. BacklightThe meter features backlight function for using in dark areas. Press to turn the backlight on and off.6. Low Battery indicatorShows on the LCD when battery voltage gets low. Auto Power offThe meter turns itself off automatically after 15 minutes of non-operation is disabled during calibration.CALIBRATIONTo enter the calibration mode, turn off meter and press Ф + simultaneously for 2 seconds. It will show blinking ppm on the upper display and calibration value “0” at lower side. Now the meter is running 0 ppm calibration as default.0 ppm calibration.The meter has a preset calibration value at 0 ppm. Put the meter in the area free of CO and enter calibration mode. The meter will calibrate automatically. The LCD is now display-ing a blinking ppm value at upper side which will slowly runs down to 0 or a minus value, completed. This takes about 10 minutes.Note:Don’t be alarmed if high PPM or minus value shows up when entering calibration mode. It will go down and approach to 0 seconds. The erratic readings are caused by electromagnetic interfere (EMI) in the environment, such as computers or cell phones. It is suggested to remove the meter from the interfer-ence otherwise the calibration may take much longer time or never complete.100ppm/500ppm calibrationFor other standard calibrations press and hold to select the calibration value. (0, 100, 500 ppm).1. Place the meter into the sealed box filled with standard gas2. (e.g. 100ppm/500ppm) for 15 minutes. Then the calibra tion will be done automatically.3. Check if the reading meets calibration value. If it does, the calibration is well completed. If not repeat theOPERATING NOTICE1. Keep the meter off from electromagnetic interference (EMI) which may cause erratic readings.2. Recovering time is required when meter exposed to high level CO. The longer the exposure, the longer recovering time is needed.3. Self- Test after power is on to the test sensor andcircuit condition. TROUBLESHOOTING•Power on but no displaya) The power must be on for at least 300ms.b) Make sure the batteries are in good contact andcorrect polarity.c) Replace a new battery and try again.•Displays disappearsCheck whether the low battery indicator shows beforedisplay disappears. If so, replace with new battery.•Calibration failurea) Check if the low battery indicator shows beforecalibration. If so, replace with new battery and try again.b) Make sure the standard gas is correct.E 2. : The value is underflow.E 3. : The value is overflow.E 4. : The value is erroneous.E 31.: A/D failure, return the meter to your distributor for repair.E 33.: Measurement circuit failure, return the meter to your distributor for repair.E 35.: Self-Test failure. Turn on the meter again in the other area free of CO. Sensor failure. ReturnSPECIFICATIONS1.CO range:0~999PPM2.Resolution:1ppm.3.Accuracy:+/-20%at0~100ppm+/-15%at100~500ppm(at20+/-5°C,50+/-20%RH)4.Battery:3AAA alkaline.Battery life is250hours when the backlight is off and35hrswhen the backlight is on.ACCESSORIES INCLUDED(3)AAA alkaline batteries,Operation manual, Wrist Strap&Carrying pouchWARRANTY/DISCLAIMER OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a period of 13 months from date of purchase. OMEGA’s WARRANTY adds an additional one (1) month grace period to the normal one (1) year product warranty to cover handling and shipping time. This ensures that OMEGA’s customers receive maximum coverage on each product.If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer Service Department will issue an Authorized Return (AR) number immediately upon phone or written request. Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser, including but not limited to mishandling, improper interfacing, operation outside of design limits, improper repair, or unauthorized modification. T his WARRANT Y is VOID if the unit shows evidence of having been tampered with or shows evidence of having been damaged as a result of excessive corrosion; or current, heat, moisture or vibration; improper specification; misapplication; misuse or other operating conditions outside of OMEGA’s control. Components in which wear is not warranted, include but are not limited to contact points, fuses, and triacs.OMEGA is pleased to offer suggestions on the use of its various products. However, OMEGA neither assumes responsibility for any omissions or errors nor assumes liability for any damages that result from the use of its products in accordance with information provided by OMEGA, either verbal or written. OMEGA warrants only that the parts manufactured by the company will be as specified and free of defects. OMEGA MAKES NO OTHER W ARRANTIES OR REPRESENTATIONS OF ANY KIND W HATSOEVER, EXPRESSED OR IMPLIED, EXCEPT THAT OF TITLE, AND ALL IMPLIED W ARRANTIES INCLUDING ANY W ARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION OF LIABILITY: The remedies of purchaser set forth herein are exclusive, and the total liability of OMEGA with respect to this order, whether based on contract, warranty, negligence, indemnification, strict liability or otherwise, shall not exceed the purchase price of the component upon which liability is based. In no event shall OMEGA be liable for consequential, incidental or special damages.CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a “Basic Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or activity; or (2) in medical applications or used on humans. Should any Product(s) be used in or with any nuclear installation or activity, medical application, used on humans, or misused in any way, OMEGA assumes no responsibility as set forth in our basic WARRANT Y / DISCLAIMER language, and, additionally, purchaser will indemnify OMEGA and hold OMEGA harmless from any liability or damage whatsoever arising out of the use of the Product(s) in such a manner.RETURN REQUESTS / INQUIRIES Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department. BEFORE RET URNING ANY PRODUCT (S) T O OMEGA, PURCHASER MUST OBT AIN AN AUT HORIZED RET URN (AR) NUMBER FROM OMEGA’S CUST OMER SERVICE DEPART MENT (IN ORDER T O AVOID PROCESSING DELAYS). The assigned AR number should then be marked on the outside of the return package and on any correspondence.T he purchaser is responsible for shipping charges, freight, insurance and proper packaging to prevent breakage in transit.FOR WARRANTY RETURNS, please have the following information available BEFORE contacting OMEGA:1. P urchase Order number under which the product was PURCHASED,2. M odel and serial number of the product under warranty, and3. R epair instructions and/or specific problems relative to the product.FOR NON-WARRANTY REPAIRS, consult OMEGA for current repair charges. Have the following information available BEFORE contacting OMEGA:1. P urchase Order number to cover the COST of the repair,2. Model and serial number of the product, and 3. R epair instructions and/or specific problems relative to the product.OMEGA’s policy is to make running changes, not model changes, whenever an improvement is possible. This affords our customers the latest in technology and engineering. OMEGA is a registered trademark of OMEGA ENGINEERING, INC.© Copyright 2015 OMEGA ENGINEERING, INC. All rights reserved. T his document may not be copied, photocopied, reproduced, translated, or reduced to any electronic medium or machine-readable form, in whole errors it contains, and reserves the right to alter specifications without notice.。
船用火灾报警控制器使用说明书20120801v11
JB-QB-2000 火灾报警控制器
使用说明书
进行控制，回路接收探测器的电信号，转换成模拟值，与预设的报警阈值进行比较，如果超限， 判定是火警还是故障，并立即传送给主机部分，主机部分进行声、光报警，提醒用户注意；并 输出相应的无源触点。 火灾报警控制器的原理见图 2-1.
对外通讯接口 触点输出 主机部分 液晶显示 指示灯 键盘 1-4#回路
图 4-2 嵌入式火灾报警控制器外形图 4.3 安装尺寸 4.3.1 壁挂式结构 火灾报警控制器壁挂式结构主机固定在垂直壁上，固定采用 Φ6~Φ8 的螺栓，具体安装尺寸 见图 4-3. 火灾报警控制器安装的高度，请参照相关的标准和工程设计图纸。
3
JB-QB-2000 火灾报警控制器
使用说明书
图 4-3 火灾报警控制器壁挂式主机安装尺寸图（单位：mm） 4.3.2 嵌入式结构 火灾报警控制器嵌入式结构主机固定在操控台上，具体安装尺寸见图 4-4.
2 组成部件与工作原理
2.1 主要部件 本控制器内部主要包括主机、回路、电源及接线端子。这些部件安装在壁挂式或嵌入式的 金属箱体内。 2.1.1 主机部分 火灾报警控制器主机部分控制整个系统的运行，核心采用 32 位高性能 ARM 处理器，技术 先进，功能强大，功耗低，通讯接口丰富。主机板设置大容量存储芯片，记忆系统配置和运行 中发生的各种事件，设置通讯驱动芯片，外接火灾显示盘、VDR 等设备，具备外控触点，用于 对外控制。主机板上设置回路通讯接口，连接回路板。并设置液晶、指示灯、键盘的接口。 2.1.2 回路部分 回路部分核心同样采用 ARM 处理器，控制二总线收发码电路、总线供电电路，除了收发码 外，还实时检测总线的状态，判断总线是否短路、开路。回路设置通讯接口，与主机部分进行 实时通讯。回路设置存储芯片，存储回路的配置。每个回路具有各自独立的电源 DC/DC 转换电 路。 2.1.3 电源部分 电源部分负责把 AC220V 交流主电源转换成机器内部使用的 DC24V、DC5V 等直流电源， 具有充电电路，向所接的备用电池充电。电源具有 4 路输入：主电 AC220V、应急电 AC220V、 备用 DC24V，备用电池。整个电源的工作由电源监控电路控制，当 AC220V 电源停电时，电源 转换成备电供电。 电源的主要任务是给控制器内各板卡供电，同时也给回路总线上的探测器、手动报警按钮、 声光警报器等供电。 2.2 工作原理 本控制器采用多处理器协调工作方式，主机和回路部分均采用高性能 32 位 ARM 微处理器
Searchzone Sonik 风向无关的燃气泄漏探测器说明书
Gas DetectionSearchzone Sonik™The Sound of Safety in Any EnvironmentThe Hazard is Blowing in the WindField studies have shown that around 30% of flammable gas leaks can go undetected because the gas is blown away by the wind. But if the weather conditions change, and the wind drops, the chances are that a flammable gas cloud might build up and trigger incidents and hazards.Since traditional point and open-path devices cannot detect leaks unless the gas reaches the sensor, the need arose for a revolutionary and complementary type of gas detectiontechnology. Instead of waiting for the gas to reach the detection device, an ultrasonic detector operates by responding to the sound created by high-pressure gas leaks at source.Suppose you are servicing an ultrasonic device that complements the point and open path gas detectors of an offshore platform. It’s raining, the wind is blowing heavily, and you’re on a slippery deck, a long way below the Searchzone Sonik you need to reach. Concerned about working at heights, in awkward positions that may even threaten your safety? Think again. Thanks to an easy-to-use mobile app and a dedicated testing tool, you can connect from ground level and test the Searchzone Sonik remotely, without exposing yourself to hazards. All you need to do is to stand on the deck, connect with your smartphone, and use the testing tool to check the detector’s response – it’s as easy as 1, 2, 3 to have the high ground.Search. Detect. Protect.ULTRASONICALLYYou Own the High GroundHow do you sense what you can’t hear?Since gas does not need to come into contact with their sensors, ultrasonic (or acoustic)detectors respond instantly upon “hearing” the distinct sound pattern of a leak, operating at a frequency outside the range of human hearing. Unaffected by airflows and adverse weatherconditions, they are particularly suited to open and well-ventilated areas, such as floating production storage and offloading vessels, gas turbine power plants, compressor stations, gas storage facilities, petrochemical processing plants, refineries, or offshore and onshore oil and gas installations.Searchzone Sonik – Safe and Ultra soundThe new Honeywell Searchzone Sonik is a robust and reliable gas leak detector that will efficiently “hear” the loss of containment of any high-pressure gas within its listening zone. An advanced, SIL 2 certified, hazardous area ultrasonic gas leak detector, the Searchzone Sonik responds to the ultrasonic sound pressure level produced by pressurized gas leaks and is therefore unaffected by environmental conditions.Searchzone Sonik is factory calibrated. Its robust sealed design with no moving parts and the solid-state sensor allow for mounting in any orientation, even in the harshest environments. The gas leak detector will respond quickly to a gas leak within a sensing range radius of typically 20m (65 ft), dependent upon background noise. The intelligent background noise detection system allows the detector to be set up for maximum sensitivity while Focus Mode means that the detection area can be restricted to only include the hazard being monitored. This way you have confidence that you’ll always stay safe and ultra sound.Normal Mode will detect ultrasonic noise from a wide angle, which is ideal for areas that have lower or constant levels of background noise. However generally you will generally know where the potential source of the leak is.That is where Searchzone SonikTM comes into it’s own. Switch to Focus Mode (patent pending) and Searchzone SonikTM will enable special algorithms that effectively screen ultrasonic noise generated outside of the specific area of interest. This dramatically reduces the risk of alarms from spurious noise sources.Bluetooth ConnectivitySet-up and interrogation from ground level via Bluetooth using a dedicated application on mobile phones or tablets.Harsh Weather Conditions? Ultra Gas Detection Additions.Safety, Reliability and Comfort. On the Spot.• Provides reliable gas leak detection in a wide range of applications and working environments By using a solid state sensor, completely sealed from moisture and contaminants, the Searchzone Sonik will identify gas leaks even in the harshest environments and adverse weather conditions.• Lowers the risks of false alarms Thanks to its background noise detection system, the detector has maximum sensitivity and is immune to false alarms produced by process or maintenance activities.• Increases mobility and ease of use You can test your Searchzone Sonik and run confidence checks on your smartphone from up to 20m (65 ft) away. • Minimizes cost of ownership and saves time The Searchzone Sonik is easy to install, commission and maintain; and by using the dedicated mobile app, you can access it in the blink of an eye.• Ensures reliable response in case of emergencies With a Safety Integrity Level rating of 2, the Searchzone Sonik is appropriate for applications requiring an emergency shutdown and other automatic controls.• Prevents fires, explosions and toxic exposure By identifying any high pressure gas leak, the Searchzone Sonik allows proactive action to avoid fatal hazards that might endanger the workers’ life and the integrity of your business assets.Instrument Status at a Glance The Searchzone Sonik features a bright indicator light – green, yellow, red, or blue – providing clear indication of the instrument status.Inbuilt Diagnostics and Full Operational Logs Enables post-event analysis to assess overallperformance and allows security checks.No Moving PartsThe solid-state sensors work flawlessly even in the harshest environments and don’t need additional calibration.Robust Materials Low copper aluminum or stainless steel housing.Simple Installation and AlignmentThe versatile adjustable mount issupplied as standard and features graduated 3 degrees of freedomenabling easy mechanical set-up with a wide range of mounting options.Wide Zone Coverage20m (65 ft) detection radius, dependent upon background ultrasonic noise levels.Focus ModeEffectively an ultrasonic screen. Ignore sources of spurious noise to the sidesand behind the detector so that it only monitors the immediate hazard.Complements Existing Gas DetectorsThe Searchzone Sonik seamlessly integrates with existing point and open-path detectors in the gas detection layer.Afraid of Missing Gas Leaks? Set Your Mind at Ease .Ease of Operation•Robust, solid state sensor design, fit fordemanding environments including pressure wash-downs.• Factory calibrated – no field calibration needed.• Built-in test and diagnostics to maintain operation.•A wide range of outputs to enable system design, including 4 to 20 mA, HART, Modbus, Relays.•Bright light indicator for safety awareness; a unit needing maintenance is easier to locate.•Real-time detection readings and full logging simplify asset management.Ease of Installation•Universal mount with three degrees of freedom enables pole, wall, or strut mounting and easy alignment with the area to be covered.• Wiring compartment with angled cable entry and plugged terminals, separated from the sensing electronics.•App for smartphones and tablets withinstallation guide and logging helps set-up and asset management.GAS JOURNEYSearchzone Sonik applicationsC OMP RE SS ORG A S P R OC E S S I N G P L A N TC O M P R E S S O RC O M P R E S S O RL AR G E I N D U S T R I A L (E GP O W E R P L A N T )R E S I D E N T I A LM E T E R I N GN A T U R A L G A S PR O D U C T I O N L N G T R A N S P O R T A T I O N BY S E A , R A I L O R R O A D N A T U R A L G A S PR O D U C T I O N L NG T ER MI NA LR ES I DE N T I ALC OMME RC IA LS TO RA GEG AT EST AT IO NApplications and Operating EnvironmentProductionExploration vessels • Wellheads • Compressors • Metering skids • Valves.StoragePumps • Valves • Seals.Gathering and ProcessingCompressors • Processing plant • Turbines • Gas safety valves.Transmission and DistributionCompressors • Pipelines • Metering stations • Valves.Ease of Commissioning• The high visibility bright light provides clear indication of the device status.•No need to work at height thanks to the ability to run remote set-up using the Bluetooth app on your phone or tablet.• The easy-to-use Ultrasonic Test Tool enables fast checking of the area of coverage. •Automatic generation of commissioning log.Ease of Maintenance• The reliable internal self-testing and diagnosis enable pro-active maintenance.• Via a Bluetooth app, non-intrusive interaction reduces maintenance time and safety risks.• Simple module replacement if necessary; plug and play.•Automatic generation of maintenance logs.Searchzone Sonik_DS01203_V1_0418_A4_EN © 2018 Honeywell International Inc.Find out moreFor more information visit:Europe, Middle East, Africa**************************Americas***********************Asia Pacific**************************Technical ServicesEMEA:**********************US:***************************AP:***************************Dedicated to Your Safety for More than 50 YearsAs the industry leader for more than 50 years, Honeywell is the partner that workers worldwide trust to provide reliable gas detection. Honeywell proudly stands behind each fixed or portable gas detection product, built to withstand the most rigorous needs and to meet or exceed applicable requirements and standards.Even the best products need to be serviced regularly. Each Honeywell service contract is designed to help maximize your hardware uptime while minimizing your related costs and risks to your production and employees’ health.For a tailored gas detection solution to meet the requirements of your applications and industry ask your sales representative or visit /products/Searchzone-SonikWhile every effort has been made to ensure accuracy in this publication, no responsibility can be accepted for errors or omissions. Data may change, as well as legislation, and you are strongly advised to obtain copies of the most recently issued regulations, standards, andguidelines. This publication is not intended to form the basis of a contract.。
