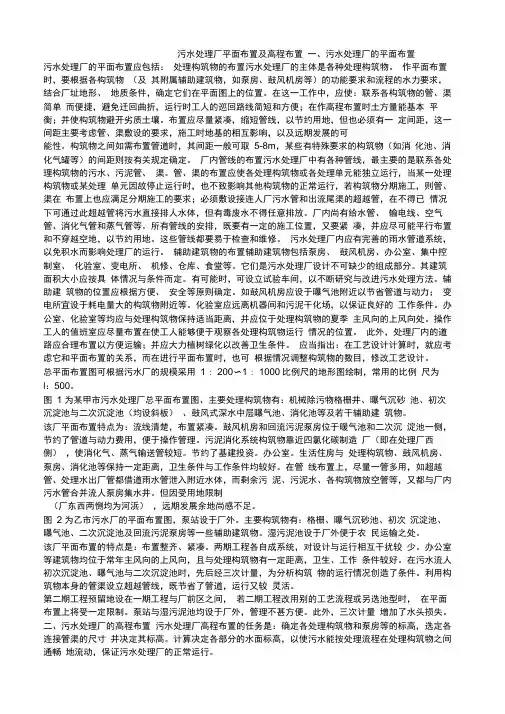

污水处理厂平面布置及高程布置一、污水处理厂的平面布置污水处理厂的平面布置应包括：处理构筑物的布置污水处理厂的主体是各种处理构筑物。
作平面布置时，要根据各构筑物（及其附属辅助建筑物，如泵房、鼓风机房等）的功能要求和流程的水力要求，结合厂址地形、地质条件，确定它们在平面图上的位置。
在这一工作中，应使：联系各构筑物的管、渠简单而便捷，避免迁回曲折，运行时工人的巡回路线简短和方便；在作高程布置时土方量能基本平衡；并使构筑物避开劣质土壤。
布置应尽量紧凑，缩短管线，以节约用地，但也必须有一定间距，这一间距主要考虑管、渠敷设的要求，施工时地基的相互影响，以及远期发展的可能性。
构筑物之间如需布置管道时，其间距一般可取5-8m，某些有特殊要求的构筑物（如消化池、消化气罐等）的间距则按有关规定确定。
厂内管线的布置污水处理厂中有各种管线，最主要的是联系各处理构筑物的污水、污泥管、渠。
管、渠的布置应使各处理构筑物或各处理单元能独立运行，当某一处理构筑物或某处理单元因故停止运行时，也不致影响其他构筑物的正常运行，若构筑物分期施工，则管、渠在布置上也应满足分期施工的要求；必须敷设接连人厂污水管和出流尾渠的超越管，在不得已情况下可通过此超越管将污水直接排人水体，但有毒废水不得任意排放。
厂内尚有给水管、输电线、空气管、消化气管和蒸气管等。
所有管线的安排，既要有一定的施工位置，又要紧凑，并应尽可能平行布置和不穿越空地，以节约用地。
这些管线都要易于检查和维修。
污水处理厂内应有完善的雨水管道系统，以免积水而影响处理厂的运行。
辅助建筑物的布置辅助建筑物包括泵房、鼓风机房、办公室、集中控制室、化验室、变电所、机修、仓库、食堂等。
它们是污水处理厂设计不可缺少的组成部分。
其建筑面积大小应按具体情况与条件而定。
有可能时，可设立试验车间，以不断研究与改进污水处理方法。
辅助建筑物的位置应根据方便、安全等原则确定。
如鼓风机房应设于曝气池附近以节省管道与动力；变电所宜设于耗电量大的构筑物附近等。
20000m3d城市污水处理厂综合设计(含11个CAD作图图纸)--优秀毕业设计{修}
本设计污水处理厂综合设计包括15个图纸，十分全面，具体详见报告后附图。
本报告附图全面详细。
图纸内容如下：A2O池，初沉池，幅流式二沉池，隔栅，工艺简单图，工艺流程图（高程图），回转耙式格栅除污机图，平面布置图，污泥浓缩池，厌氧消化池，钟式沉砂池等。
全为CAD制图。
下载后复制放大或打印可看清！题目20000m3/d城市污水处理厂综合设计专业: 环境工程年级: 2005级学号: 3105001286姓名: 莫笑伟指导教师:2008年12 月摘要我国水体污染主要来自两方面，一是工业发展超标排放工业废水，二是城市化中由于城市污水排放和集中处理设施严重缺乏，大量生活污水未经处理直接进入水体造成环境污染。
工业废水近年来经过治理虽有所减少，但城市生活污水有增无减，占水质污染的51%以上。
我国水体污染主要来自两方面，一是工业发展超标排放工业废水，二是城市化中由于城市污水排放和集中处理设施严重缺乏，大量生活污水未经处理直接进入水体造成环境污染。
工业废水近年来经过治理虽有所减少，但城市生活污水有增无减，占水质污染的51%以上。
本设计要求处理水量为20000m3/d的城市生活污水，设计方案针对已运行稳定有效的A2/O活性污泥法工艺处理城市生活污水。
A2O工艺由于不同环境条件，不同功能的微）能生物群落的有机配合，加之厌氧、缺氧条件下，部分不可生物降解的有机物（CODNB被开环或断链，使得N、P、有机碳被同时去除，并提高对COD的去除效果。
它可以同NB－－时完成有机物的去除，硝化脱氮、磷的过量摄取而被去除等功能，脱氮的前提是NH3N应完全硝化，好氧池能完成这一功能，缺氧池则完成脱氮功能。
厌氧池和好氧池联合完成除磷功能。
关键词：城市生活污水，活性污泥，A2/O目录摘要 (III)目录 (IV)第一章设计概述 ······································································- 7 -1设计任务 ······································································- 7 - 2设计原则 ······································································- 7 - 3设计依据 ······································································- 8 - 第二章工艺流程及说明 ·····························································- 8 -1工艺方案分析 ································································- 8 - 2工艺流程 ······································································- 9 - 3流程各结构介绍 ·····························································- 9 -3.1格栅······························································································· - 9 -3.2沉砂池··························································································- 10 -3.3初沉池··························································································- 10 -3.4生物化反应池··············································································- 10 -3.5二沉池··························································································- 12 -3.6浓缩池··························································································- 12 - 第三章构筑物设计计算 ··························································· - 12 -1格栅 ·········································································· - 12 -1.1设计说明······················································································- 12 -1.2设计计算······················································································- 13 -2沉砂池 ······································································· - 16 -2.1设计说明······················································································- 16 - 3初沉池 ······································································· - 17 -3.1设计说明······················································································- 17 -3.2设计计算······················································································- 17 - 4生化池 ······································································· - 19 -4.1设计说明······················································································- 19 -4.2设计计算······················································································- 19 - 5二沉池 ······································································· - 26 -5.1设计说明······················································································- 26 -5.2设计计算······················································································- 26 - 6液氯消毒 ···································································· - 29 -6.1设计说明······················································································- 29 -6.2设计计算······················································································- 29 - 7污泥浓缩池 ································································· - 30 -7.1设计说明······················································································- 30 -7.2设计计算······················································································- 30 -8 污泥消化池 ································································· - 31 -8.1设计说明······················································································- 31 -8.2设计计算······················································································- 32 - 9浓缩污泥提升泵房 ························································ - 38 -9.1设计选型······················································································- 38 -9.2提升泵房······················································································- 38 -9.3污泥回流泵站··············································································- 38 -10污泥脱水间 ······························································· - 39 -10.1设计说明······················································································- 39 -11鼓风机房 ·································································· - 39 - 12恶臭处理系统 ···························································· - 39 -12.1设计说明······················································································- 39 -12.2设计计算······················································································- 39 -12.3风机选型······················································································- 40 - 第四章污水处理厂总体布置 ····················································· - 41 -1总平面布置 ································································· - 41 -1.1总平面布置原则··········································································- 41 -1.2总平面布置结果··········································································- 41 -2高程布置································································································- 42 -2.1高程布置原则··············································································- 42 - 第五章参考文献 ···································································· - 42 -第一章设计概述1设计任务本次课程设计的主要任务是完成某城市污水厂的A2/O工艺设计处理生活污水，处理水量为20000m3/d，按近期规划人口10万人计算（自定）。
污水处理厂平面布置及高程布置资料
污水处理厂平面布置及高程布置一污水处理厂的平面布置污水处理厂的平面布置应包括：处理构筑物的布置污水处理厂的主体是各种处理构筑物。
作平面布置时，要根据各构筑物（及其附属辅助建筑物，如泵房、鼓风机房等）的功能要求和流程的水力要求，结合厂址地形、地质条件，确定它们在平面图上的位置。
在这一工作中，应使：联系各构筑物的管、渠简单而便捷，避免迁回曲折，运行时工人的巡回路线简短和方便；在作高程布置时土方量能基本平衡；并使构筑物避开劣质土壤。
布置应尽量紧凑，缩短管线，以节约用地，但也必须有一定间距，这一间距主要考虑管、渠敷设的要求，施工时地基的相互影响，以及远期发展的可能性。
构筑物之间如需布置管道时，其间距一般可取5—8m,某些有特殊要求的构筑物（如消化池、消化气罐等）的间距则按有关规定确定。
厂内管线的布置污水处理厂中有各种管线，最主要的是联系各处理构筑物的污水、污泥管、渠。
管、渠的布置应使各处理构筑物或各处理单元能独立运行，当某一处理构筑物或某处理单元因故停止运行时，也不致影响其他构筑物的正常运行，若构筑物分期施工，则管、渠在布置上也应满足分期施工的要求；必须敷设接连人厂污水管和出流尾渠的超越管，在不得已情况下可通过此超越管将污水直接排人水体，但有毒废水不得任意排放。
厂内尚有给水管、输电线、空气管、消化气管和蒸气管等。
所有管线的安排，既要有一定的施工位置，又要紧凑，并应尽可能平行布置和不穿越空地，以节约用地。
这些管线都要易于检查和维修。
污水处理厂内应有完善的雨水管道系统，以免积水而影响处理厂的运行。
辅助建筑物的布置辅助建筑物包括泵房、鼓风机房、办公室、集中控制室、化验室、变电所、机修、仓库、食堂等。
它们是污水处理厂设计不可缺少的组成部分。
其建筑面积大小应按具体情况与条件而定。
有可能时，可设立试验车间，以不断研究与改进污水处理方法。
辅助建筑物的位置应根据方便、安全等原则确定。
如鼓风机房应设于曝气池附近以节省管道与动力；变电所宜设于耗电量大的构筑物附近等。

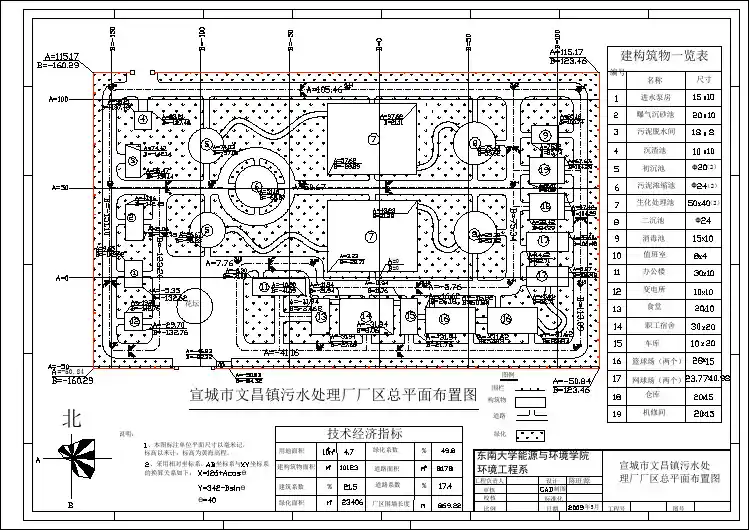

污水处理_城镇生活污水处理厂总平面布置CAD图纸
