德国坦克声卡使用手册
德国坦克 声卡,DMX 6Fire USB,中文说明书

V 1.02009.04.06使用手册DMX 6Fire USB TerraTec DMX 6Fire USB 使用手册DMX 6 Fire USB设备连接介绍2前面 (2)背面 (4)模拟输出5LINE OUT 1/2, 3/4, 5/6 (背面) (5)耳机输出(前置) (5)驱动5控制面板5混音器 (6)音量 (6)信号 (6)绕送 (7)输出和设定 (7)音量 (7)频率设定 (8)设备设定 (8)场景 (9)其它 (9)TerraTec DMX 6Fire USB 使用手册DMX 6 Fire USB设备连接介绍DMX6 Fire USB 音效界面提供你连接许多专业录音外围设备和Hi-Fi 设备。
前面1. 麦克风接口(XLR-1/4" or 6.3 mm 复合式接口)这个插座接受XLR接头和需要幻象电源(通常是电容式麦克风)的专业麦克风,和”一般” 耳机插头。
这个接口与背板上Line In 1接口是同时只能择一使用,而且假如XLR or 1/4" (6.3 mm)插头插上时,会自动重新重导信号路径(自动优先选择),此时在背板的Line In 1 和Line In 2 会自动关掉。
2. 耳机的音量控制当你将耳机插入进去,先把音量转到最左边0的位置,否则可能相当大声。
你可以在插入耳机后再转大声。
3. 耳机接口如上所述:插上耳机之前将音量控制转到最低。
这个接口仅会送出Line Out1/2的信号。
4. 麦克风控制的LED指示灯。
LED灯是提供视觉上监看麦克风的录音。
蓝灯代表”有信号” ,假如看到亮红色LED,请将Gain 1控制转小。
红色LED灯亮时代表是削峰失真,造成了录音信号失真。
5. 麦克风孔的音量控制控制前置放大的信号在麦克风输入端。
同样的,麦克风插入控制在麦克风输入端的信号前级放大。
6. 48伏幻象电源:当你连接电容式麦克风时拨到”on”。
TerraTec DMX 6Fire USB 使用手册7. -20dB切换开关假如你的麦克风的录音太大声,将PAD开关切换到”on”-信号会被降低20dB。
ASIO4ALL_v2中文手册

ASIO4ALL v2中文手册ASIO4ALL v2通用 ASIO 驱动 & 适应于 WDM 音频- 中文手册 -(发布日期: 12/07/04)目录简介 (1)入门指南 (1)软件配置 (1)简易设置 (2)高级设置 (3)应用指南 (5)疑难解答 (5)简介欢迎使用ASIO4ALL v2!这份手册希望能帮助你充分使用好已安装的ASIO4ALL,本手册尤其将重点介绍最新加入到这个ASIO4ALL版本中的高级功能。
ASIO4ALL v2在安装之后将自动添加两个新的快捷方式图标到你的系统桌面上,一个链接到本手册,另一个则用来以脱机状态调用ASIO4ALL的控制面板。
入门指南软件配置在使用ASIO4ALL之前,你需要对相关的音频软件进行适当地配置。
要如何设置,这完全取决于你指定的应用程序。
通常,你可以在该软件的音频配置菜单中将ASIO驱动指定为“ASIO4ALL v2”。
现在你应该可以找到一个用来开启ASIO 控制面板的按钮。
这个按钮被定义到哪个选项卡内也完全取决于应用程序本身。
当你找到并按下此按钮,ASIO4ALL控制面板将弹出。
如果需要的话,请查阅该音频软件的联机帮助以获取更多信息。
有时,音频软件并没有提供可用的ASIO控制面板选项。
像Winamp和Foobar2000 的某些ASIO 输出插件就存在这种情况。
不管怎样,为配置ASIO4ALL 和这些应用程序,你还是可以从桌面上调用ASIO4ALL 的脱机控制面板。
注意,脱机控制面板在工作上如同自身的ASIO宿主,它无法同时反映出任何ASIO4ALL请求所打开的当前设备状态!只有当你重新启动音频软件后,脱机控制面板中所作的设置更改才会生效。
也就是说,相对于从已进行了适当配置的音频软件内部加载ASIO4ALL(联机)控制面板的方式而言,用户在脱机控制面板所作的设置将完全无法取得实时效果。
一旦你进入ASIO4ALL控制面板,就已经可以进行一些基本的设置操作了。
声卡说明书

产品清单
您的 TANK ATTACK USB AUDIO PRO产品包装中应包括下列项目,请确认。 l TANK ATTACK USB AUDIO PRO 音频接口 1 台
l USB 连接线 1 条 l 驱动 CD1 张
联系方式
南通达尔科技有限公司 地址:江苏省南通市崇川区工农路57号 电话:0513-83561908 传真:0513-83561908
3.1. 前面 .......................................................................................................................6 3.2. 背面 .......................................................................................................................6 44.. 连连接接 ............................................................................................................................................................................................77 55.. 使使用用 ............................................................................................................................................................................................88 5.1. 直接使用................................................................................................................8 5.2. 安装 ASIO 驱动 .....................................................................................................9 5.3. 在 Guitar Rig 中应用............................................................................................12 5.4. 在 AmpliTube 中应用...........................................................................................15 5.5. 在其他 VST 和 VSTi 中应用 ................................................................................16 5.6. 在 Nuendo 中应用 ...............................................................................................16 5.7. 在 Sonar 中应用 ..................................................................................................19 5.8. 在其他音频软件中应用 ........................................................................................22 66.. 规规格格 ........................................................................................................................................................................................2233

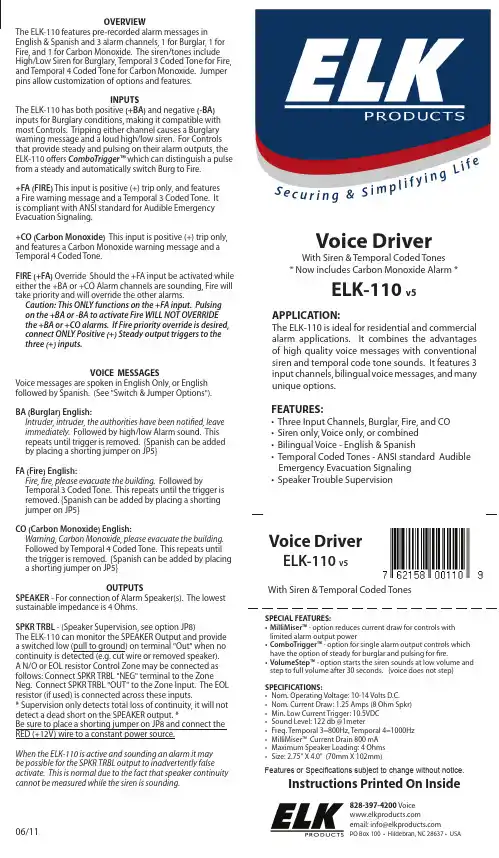

ELK-110 声卡驱动手册说明书

Voice Driver APPLICATION:The ELK-110 is ideal for residential and commercial alarm applications. It combines the advantages of high quality voice messages with conventional siren and temporal code tone sounds. It features 3 input channels, bilingual voice messages, and many unique options.Features or Specifi cations subject to change without notice.Voice Driver ELK-110 v5Instructions Printed On Inside ELK-110 v5FEATURES:• Three Input Channels, Burglar, Fire, and CO • Siren only, Voice only, or combined • Bilingual Voice - English & Spanish • Temporal Coded Tones - ANSI standard Audible Emergency Evacuation Signaling • Speaker Trouble Supervision SPECIFICATIONS:• Nom. Operating Voltage: 10-14 Volts D.C.• Nom. Current Draw: 1.25 Amps (8 Ohm Spkr)• Min. Low Current Trigger: 10.5VDC • Sound Level: 122 db @1meter • Freq. Temporal 3=800Hz, Temporal 4=1000Hz•MilliMiser™ Current Drain 800 mA •Maximum Speaker Loading: 4 Ohms • Size: 2.75" X 4.0" (70mm X 102mm)06/11With Siren & Temporal Coded Tones * Now includes Carbon Monoxide Alarm *With Siren & Temporal Coded Tones OVERVIEWThe ELK-110 features pre-recorded alarm messages in English & Spanish and 3 alarm channels, 1 for Burglar, 1 for Fire, and 1 for Carbon Monoxide. The siren/tones include High/Low Siren for Burglary, Temporal 3 Coded Tone for Fire, and Temporal 4 Coded Tone for Carbon Monoxide. Jumper pins allow customization of options and features.INPUTSThe ELK-110 has both positive (+BA) and negative (-BA) inputs for Burglary conditions, making it compatible with most Controls. Tripping either channel causes a Burglary warning message and a loud high/low siren. For Controls that provide steady and pulsing on their alarm outputs, the ELK-110 o ers ComboTrigger™ which can distinguish a pulse from a steady and automatically switch Burg to Fire.+FA (FIRE) This input is positive (+) trip only, and features a Fire warning message and a Temporal 3 Coded Tone. It is compliant with ANSI standard for Audible Emergency Evacuation Signaling.+CO (Carbon Monoxide) This input is positive (+) trip only, and features a Carbon Monoxide warning message and a Temporal 4 Coded Tone.FIRE (+FA) Override Should the +FA input be activated while either the +BA or +CO Alarm channels are sounding, Fire will take priority and will override the other alarms. Caution: This ONLY functions on the +FA input. Pulsing on the +BA or -BA to activate Fire WILL NOT OVERRIDE the +BA or +CO alarms. If Fire priority override is desired, connect ONLY Positive (+) Steady output triggers to the three (+) inputs.VOICE MESSAGESVoice messages are spoken in English Only, or English followed by Spanish. (See "Switch & Jumper Options"). BA (Burglar) English:Intruder, intruder, the authorities have been noti ed, leave immediately. Followed by high/low Alarm sound. This repeats until trigger is removed. {Spanish can be added by placing a shorting jumper on JP5}FA (Fire) English: Fire, re, please evacuate the building. Followed byTemporal 3 Coded Tone. This repeats until the trigger is removed. {Spanish can be added by placing a shorting jumper on JP5}CO (Carbon Monoxide) English: Warning, Carbon Monoxide, please evacuate the building.Followed by Temporal 4 Coded Tone. This repeats until the trigger is removed. {Spanish can be added by placing a shorting jumper on JP5}OUTPUTSSPEAKER - For connection of Alarm Speaker(s). The lowest sustainable impedance is 4 Ohms. SPKR TRBL - (Speaker Supervision, see option JP8)The ELK-110 can monitor the SPEAKER Output and provide a switched low (pull to ground) on terminal "Out" when no continuity is detected (e.g. cut wire or removed speaker). A N/O or EOL resistor Control Zone may be connected as follows: Connect SPKR TRBL "NEG" terminal to the Zone Neg. Connect SPKR TRBL "OUT" to the Zone Input. The EOL resistor (if used) is connected across these inputs. * Supervision only detects total loss of continuity, it will not detect a dead short on the SPEAKER output. * Be sure to place a shorting jumper on JP8 and connect the RED (+12V) wire to a constant power source.When the ELK-110 is active and sounding an alarm it may be possible for the SPKR TRBL output to inadvertently false activate. This is normal due to the fact that speaker continuity cannot be measured while the siren is sounding.SPECIAL FEATURES: • MilliMiser™ - option reduces current draw for controls with limited alarm output power • ComboTrigger™ - option for single alarm output controls which have the option of steady for burglar and pulsing for re.• VolumeStep™ - option starts the siren sounds at low volume and step to full volume after 30 seconds. {voice does not step}828-397-4200 Voice email:********************PO Box 100 • Hildebran, NC 28637 • USAS e c u r i n g & S i m p l i f y i n g L i f e。

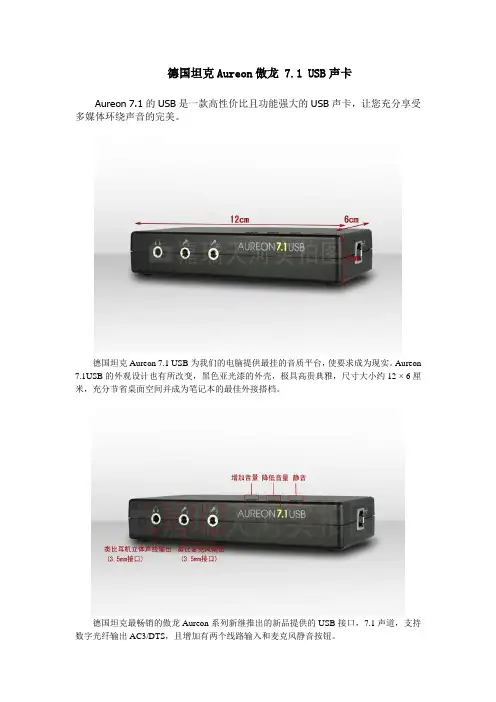

德国坦克Aureon傲龙 7.1声卡

德国坦克Aureon傲龙 7.1 USB声卡Aureon 7.1的USB是一款高性价比且功能强大的USB声卡,让您充分享受多媒体环绕声音的完美。
德国坦克Aureon 7.1 USB为我们的电脑提供最挂的音质平台,使要求成为现实。
Aureon 7.1USB的外观设计也有所改变,黑色亚光漆的外壳,极具高贵典雅,尺寸大小约12 × 6厘米,充分节省桌面空间并成为笔记本的最佳外接搭档。
德国坦克最畅销的傲龙Aureon系列新继推出的新品提供的USB接口,7.1声道,支持数字光纤输出AC3/DTS,且增加有两个线路输入和麦克风静音按钮。
德国坦克做为欧洲专业的声音专家在此款Aureon 7.1 USB产品上不仅可支持到7.1声道输出,而且配备了数字光纤输入和输出(I / O),充分支持多声道的AC3和DTS格式的应用。
另外拥有两个麦克风输入和线路输入接口,更增加了音量控制和静音按钮。
USB接口方便Aureon 7.1USB声卡非常方便迅速的与计算机连接。
产品配件图产品规格:USB 1.1接口(兼容USB 2.0)USB音频类规范版本1.0通过USB总线供电4个模拟输出(3.5毫米立体声插头)2麦克风输入(3.5毫米插头)1个耳机插孔(3.5毫米立体声插头)光纤S / P - DIF数字输入(TOS的链接)光纤S / P - DIF数字输出(TOS的链接)Line-in 输入(3.5毫米立体声插头)AC3和DTS输出通过数字输出直接在设备上进行音量调节音频分辨率:16位采样率的模拟:32,44.1和48 kHz,数字:48千赫驱动支持Windows XP (SP2/3)/ Vista/ Windows7(32/64)重量:100g尺寸:约12 × 6 × 2.2厘米(长x宽x高)颜色:黑色包装盒内容:*1个Aureon 7.1 USB 声卡*1条USB线*1条光纤线*1张CD光碟*1份快速安装手册*1张客户服务卡一、安装方法:要联接Aureon 7.1 USB 到你的电脑,你需要一个USB A 接口。
德国坦克声卡001.doc

德国坦克声卡AUREON 5.1fun声卡(娱乐版)媒体价:199元功能简介:TerraTecAureon5.1 FUN是一套能让您毫不费力就能使PC拥有环绕音效的声卡。
傲龙 5.1娱乐版可支持自最新的游戏3D定位音效至DVD电影等环绕效果,就如同传统音频应用一样好。
使用者可选择在二、四或六个音箱上播放,并且在6声道播放令人赞赏地48kHz取样率的讯号。
音箱组的架构因此能保有弹性并适合各种不同的播放模式。
各一个光学输入和输出接口,确保能以无损音质的方式式连接DVD、DAT和MiniDisc等录放音设备。
傲龙 5。
1娱乐版支持所有一般的3D音效标准,以EAX 2.0/1。
0、3DI2到DirectSound 3D及Sensaura 3D,让您沉浸在真实的游戏环境中。
不用多说,傲龙 5.1娱乐版附有精致且最佳化的软件,它可以使您的个人计算机拥有剧院效果的DVD播放软件,亦可用Musicmatch Jukebox轻松方便的创造、编辑MP3,以及具备录音与MIDI等多样功能的Emagic Logic Fun.因此您可以轻易的将傲龙5。
1娱乐版的功能发挥至淋漓尽致.傲龙5.1娱乐版即将于12月中旬与中国消费者见面,德国坦克此次在中国推出全中文化的特别版本,除了上述的种种软硬件优点外,更附赠了两首”78bpm”的创作音乐MP3。
78 bpm是一个专注于「Indi」音乐创作的电音团体,以独立发片的方式创作自己风格的音乐,在亚洲他们陆续发表了「红月亮」及「沉默的约定」两张专辑。
而其中「沉默的约定」是第一张由两岸三地的电音创作合辑,也是TerraTec、中音公司、志和公司及瑞丽科技等亚洲合作伙伴在亚洲的第一个音乐赞助团体与音乐专辑。
TerratTec希望藉此鼓励有潜力、热忱的年轻音乐创作人,发挥他们的创作力,热爱音乐创作的你,心动了吗?下一个机会可能就是你!主要特色:六声道输出光纤数字输入/ 输出线性及麦克风输入透过光纤输出AC3 (杜比数位)及DTS*3D音效兼容于EAX2。
德国坦克傲龙7.1PCIe魔音师声源PCIeMaX声卡驱动皮肤

cannotreadpropertyencryptቤተ መጻሕፍቲ ባይዱonofnull请尝试刷新页面或更换浏览器重试
德国坦克傲龙 7.1PCIe魔音师声源 PCIeMaX声卡驱动皮肤
适用于德国坦克傲龙7.1PCIe和魔音师 声源PCIe MaX 声卡驱动皮肤的皮肤。 皮肤使用方法:退出声卡驱动程序(托盘图标右键退出),之 后删除声卡驱动目录里面的TERRATECAudioCenter_x64.exe文件和Skin文件夹, 下载文件: https:///s/1_ThfUW07eklywCZ1Xs_PVQ 提取码:sai6 然后把下载的文件解压出来的Skin文件夹和 TERRATECAudioCenter_x64.exe放到声卡驱动目录里面,这两个文件就是你之前删除的同名文件。 主题不支持在驱动界面切换,每次切 换需要关闭声卡驱动软件,并且要去到Skin目录把需要使用的主题名称改名为FaceLift Windows7~Windows10系统通用。
注意事项

注意事项您好!感谢您使用TANK ATTACK丨PLOYTEC系列声卡!请认真阅读以下注意事项,可能会对您快速、正确地使用有帮助!1. 关于输入输出✓耳机输出音量可根据需要调节,以听着舒适、没有爆音为准。
✓输入增益调节对音色、噪声有重要影响,需要根据实际情况仔细调节!一般是在中间0db的位置。
对于一些失真音色,可能动态不够,需要适当调大,但一定保证旁边的红灯不能亮!而有些清音音色则需要调小一点以减小噪声!✓以上这套规则对于Guitar Rig 4等效果器里面的输入、输出调节同样适用!Guitar Rig 输入一般调到0DB。
有些失真音色需要适当调大,有些清音音色则需要调小一点以减小噪声。
输出调到-7~-10dB为宜,用耳机听着合适。
✓任何地方的输入、输出音量都不要出现红色警报的状态!!2. 关于听歌✓如果系统没有自动为您设置默认声卡,请按说明书的步骤在控制面板中设置。
设置前请退出各种播放器、软件,设置好再打开。
更简单的方法是设置好后重启电脑!✓安装ASIO驱动后,如果播放音乐有杂音或爆音,请调节系统音量(电脑右下角那个小喇叭),调到中间左右的位置,这样对音量没有丝毫影响,但会完全消除杂音或爆音!3. 关于ASIO参数设置✓安装完ASIO驱动后,请注册!Key文件有注册码!✓ASIO驱动参数一般是不需要调节的,如果您需要调节,请注意,如果想在44.1KHz 和48KHz之间切换,切换之前,需确保System performance和Application priority 均处于Normal状态;如果System performance想设为Highspeed,最好事先将采样率设为48KHz。
4. 关于噪声只有极少数人会遇到噪声问题,如果您不巧正好遇到了噪声问题,请检查一下几点:✓吉他是很大的噪音源,单线圈的比双线圈的噪声大得多!如果内部接线不良,没有屏蔽,没有接地(护弦和不护弦噪声没有区别),会有较大的噪声特别是电流声!可以动手改造一下琴,增加一些屏蔽措施。
soundcheck中文说明书

soundcheck中文说明书Sound check中文操作说明书声仪科技Soundcheck 安装计算机配置:奔4以上CPU,1G以上内存,Windows XP Pro and Vista 32 系统。
Soundcheck 初次安装1(安装解密狗,开机提示自动进入USB解密狗的Status.dat装载文件,自动安装解密狗的驱动程序,如果更换USB端口重新安装驱动。
2(关闭计算机安装声卡,重新启动,并记录声卡的序列号。
3(安装声卡的驱动,选择声卡的类型:CardDeluxe, Digigram V2 &VX 440 and Lynx 2。
4(安装Ni-Visa的驱动,拷贝CD文件到如图所示目录下,5(建立Soundcheck的桌面快捷方式如图所示6(进入控制面板选择声卡的控制设置如图所示7(打开设备管理器,检查声卡安装是否正常如图所示8(控制面板打开电源管理器,设置如图所示Soundcheck 系统设置1(声卡的设置如图所示2(设备校准z 设置激励信号如图所示z 功放校准连接如图所示确保功放关闭状态,连接上图接线所示。
打开功放电源进入Soundchek系统,进入扬声器的sequences,进入校正编辑器,设置输入为Right In,输出为Left Out,调节功放增益旋钮的合适位置,按“Calibrate”测试功放的增益和频响曲线。
z 屏蔽Windows系统的声音如图所示SSound check 8.0 新特性多通道的采集功能,最多可以扩展8个通道(NI PCI 4461)同时测试。
包括以下功能:zzz 环绕立体声多通道测试。
立体耳机测试。
多通道的音频电子设备。
(如:调音台)Sound check 测试应用Sound check 可以支持二次开发,可在库文件修改存在的测试,每一个测试对应一个“Sequence”,一个Sequence是由一系列的Step组成,每一个STEP执行一个特定的任务,一个简单SEQUENCE结构如下:z Hardware Step(定义和配置数据采集设备)z CALBRATION STEP (定义这个硬件的灵敏度和校准曲线)z STIMULUS STEP (定义一个信号产生器的输出。
在天猫运营德国坦克声卡的一些思想体会

运营德国坦克声卡的一些思想体会●SWOT之:Opportunites机会音响是满足人们耳朵的心灵产品,随着近几年来,市场经济的迅猛发展,尤其是电子产品的快速攀升和普及,已经陆续走入普通人的家庭,成为大众消费。
据市场统计机构的报告,音响正以每年14%增速逐年增长。
80-90年代音响主要有收录机、唱片机,进入新世纪后VCD/DVD等音响产品也风靡一时,但是随着生活水平的提高,人们开始向往拥有更专业的音质效果,已经不在满足于简单听的水平,还要听出音质效果,听出感觉。
分众与垂直化的电商及人群分析平台化和垂直化就像太极里的阴与阳相生相存着,亦可理解为横纵两轴。
集众和分众是指人群,就像太极里的两个鱼珠对子,是最活灵活现。
天猫、淘宝、拍拍、京东、1号店都是平台化电商的代表,平台拥有丰沛的流量,一般具有解决支付、物流、供应链、渠道、品牌传播等职能,但往往会受制于平台的广告价格、规则协议等硬性因素。
成功垂直电商例子有很多如唯品会、酒仙网、尚品宅配、麦包包、裂帛就是目前成功垂直电商例子,尽管刘强东说垂直电商必死,但其实京东一开始也是做数码产品的垂直电商。
能不能活,主要还是要看两仪上的对子,就是能不能圈到人气围绕。
会不会死,要看能不能转型,像京东经过几年聚集人气,之后开展平台业务自然可以活。
京东现在的人气有了,自营有了,品牌商家也有了,只要投资人“不死”就很难死,资金链不断,也就是剩下管理最关键了,人才管理,职能管理,业务管理,方方面面。
声卡的主要作用是提升输入输出音质,当然也有其他作用之分,后面会讲到。
声卡是3C数码垂直市场里的一小块,今天依然没有多少人享用过独立声卡,知道独立显卡的人比较多,但是知道独立声卡的人少,因此决定了我们分众的人群是小众的,小部分具有音质有追求的人群。
之所以选择德国坦克的声卡,第1,从今天阿里巴巴的研究报告来说,就是天猫以后会多为中产阶级提供优质产品与服务。
德国的制造和产品一直在全球范围内都是有口皆碑的,现在天猫仍是走在进口国际品牌这个大趋势的前列,近年开了很多专门的天猫国际馆,其中就有德国馆。
德国坦克 Aureon 傲龙 7.1 USB 声卡使用手册说明书

Copyright@2014 唐德国际有限公司 All R ights R eserved德国坦克Aureon 傲龙7.1 USB 声卡使用手册(此说明书基于Windows7,其它版本略有不同)Copyright@2014 唐德国际有限公司 All R ights R eserved 目录安全性须知 ........................................................................................................................... 1 1. 简介 (2)1.1 包装内容 ...................................................................................................................................................................... 2 1.2系统要求 ....................................................................................................................................................................... 2 1.3 规格概要 ...................................................................................................................................................................... 2 1.4 接口 .............................................................................................................................................................................. 3 1.5输出连接 .. (4)2. 软件安装和卸载 (4)2.1 软件安装 ...................................................................................................................................................................... 4 2.2 软件卸载 . (8)3. AUREON 7.1 USB 音频中心图形化用户界面 (10)3.1 打开Aureon 7.1 USB 音频中心图形化用户界面 ................................................................................................... 10 3.2 Aureon 7.1 USB 音频中心图形化用户界面功能介绍 ............................................................................................. 11 3.2.1打开Aureon 7.1 USB ........................................................................................................................................... 11 3.2.2 主设置控制界面 ................................................................................................................................................. 12 3.2.3混音器控制界面 .................................................................................................................................................. 14 3.2.4效果控制界面 ...................................................................................................................................................... 15 3.2.5信息界面介绍 ...................................................................................................................................................... 16 3.2.6信息界面介绍 ...................................................................................................................................................... 17 3.2.7托盘图标功能介绍 . (17)Copyright@2014 唐德国际有限公司 All R ights R eserved1安全性须知* 在您安装声卡以及加入硬件设备之前,请务必详加阅读本手册所提供的相关信息。
TANKE声组

坦克声组说明书此声组有4通道和6通道两种类型。
6通坦克声组接线通道说明:一输入通道(3芯线中,白色或黄色线靠上)输入通道为6通道,接接收机的6个通道,如果是美国手的遥控,输入1、2、3、4、5、6通道可以分别接遥控接收机的5、6、2、1、4、3通道(也可以根据自己的习惯接)如果是日本手的遥控,输入1、2、3、4、5、6通道可以分别接遥控接收机的5、6、2、4、1、3通道(也可以根据自己的习惯接)输入通道为4通道,接接收机的4个通道,如果是美国手的遥控,输入1、2、3、4通道可以分别接遥控接收机的4、3、2、1、通道(也可以根据自己的习惯接)如果是日本手的遥控,输入1、2、3、4通道可以分别接遥控接收机的1、3、2、4通道(也可以根据自己的习惯接)二输出通道(3芯线中,白色或黄色线靠上)输出1(电调通道)接双路混控电调电调前进后退通道输出2(转向通道)接双路混控电调电调的转向通道(注:发动机关闭的时候,电调没有输出,电机不转)输出3(炮塔转动)接炮塔转动双向电调输出4(方向通道)接炮管上下双向电调声组输出1、2、3、4分别接集成电调输入的3、4、1、2通道三喇叭支持2个喇叭,2根线不分正负极,接到8欧姆喇叭上,喇叭最好有箱体货隔板,这样音响效果会好很多。
四BB电机接开炮的BB电机(注意BB电机的标定电压必须和电源电压相一致或者接近)五6-9V电源此电源可以和电调的电源并联,注意正负极性,红色是正极,黑色是地线(千万不要接反了,否则必烧,后果自负),此插头采用3芯线,具有防止接反的功能,不要擅自更换为2芯插头!六灯光包括5-7种灯光,红色靠近上面,直接接LED正极(不用串电阻),可以并联同一批次的LED多灯(否则亮度可能不一致)使用说明:电源说明(此电路必须提供以下2种电源才能正常工作):1、接通6-9V电源,转向灯灯会亮1S左右,会有开机的提示声音。
2、电路工作必须接上电调,电调给接收机提供5V电源,否则接收机没有电!不能实现遥控功能选择:6通道的辅助功能实现接好接收机,电调,喇叭等以后,先选择功能通道的5个功能位置(摇杆在5个不同的位置,代表将要执行的5个功能,见下图),然后扳动开关通道,相应的功能就执行。
德国坦克声卡使用手册

德国坦克声卡使用手册(适用型号:剧场版SiXPack 5.1+)前言感谢您购买使用本公司的产品,为了让您更方便与正确的安装使用,本手册提供了开於硬件及驱动程式的安装详细解说。
请您务必依照本手册之指示完成程序。
倘若仍有其他疑问或安装使用上的困难,请来电或以电子邮件将您的问题告诉我们,我们一定全力为您服务。
谢谢您!主要功能1 采用知名crystal cs4630高效能处理晶片2 420 mips高速运算的独家(cclstn)音讯处理技术3 符合ac 97 2.1、pci 2.1规范4 完全支援windows 98se/me/2000/xp作业系统相容5 完全硬体支援微软directsound、directsound3d、directlnput、以及声波合成技术6 支援最新sensaura 3d定位音效技术,支援2/4声道7 相容及支援eax 1.0、eax 2.0、a3d 1.0、i3dl2、macrofx、multidrive zoomfx、environmentfx、(dolby surround)多声道音效技术8 支援同时64个硬体声波合成发声9 内建8mb音色取样且与mpu—401/gm/yamaha xg midi规范相容10 支援midi dls技术无限制软体音色声波合成支援11 支援硬体wavetable音源子卡12 支援对netmeeting网路语音视讯软体提供aec自动回授抑制功能13 支援16bit全双工且与soundblasterpro完全相容14 符合pci电源管理规范apm 1.2和acpi 1.0版15 符合pc 98和pc 99规范要求16 s/n讯噪比达90 db以上,音质传真自然17 具备18bita/d类比/数位转换器18 具备20bit d/a数位/类比转换器19 支援利用directshow和directsound 3d输出播放20 支援立体声,4声道和6声道喇叭模式输出21 支援标准24bit s/pdif光纤数位输入(32/44.1/48khz)和输出(48kh pcm数位讯号,如ac—35.1讯号。
德国坦克声卡,DMX6FireUSB,中文使用说明

V 1.02009.04.06使用手册DMX 6Fire USB TerraTec DMX 6Fire USB 使用手册DMX 6 Fire USB设备连接介绍2前面 (2)背面 (4)模拟输出5LINE OUT 1/2, 3/4, 5/6 (背面) (5)耳机输出(前置) (5)驱动5控制面板5混音器 (6)音量 (6)信号 (6)绕送 (7)输出和设定 (7)音量 (7)频率设定 (8)设备设定 (8)场景 (9)其它 (9)TerraTec DMX 6Fire USB 使用手册DMX 6 Fire USB设备连接介绍DMX6 Fire USB 音效界面提供你连接许多专业录音外围设备和Hi-Fi设备。
前面1. 麦克风接口(XLR-1/4" or 6.3 mm 复合式接口)这个插座接受XLR接头和需要幻象电源(通常是电容式麦克风)的专业麦克风,和”一般”耳机插头。
这个接口与背板上Line In 1接口是同时只能择一使用,而且假如XLR or 1/4" (6.3 mm)插头插上时,会自动重新重导信号路径(自动优先选择),此时在背板的Line In 1 和Line In 2 会自动关掉。
2. 耳机的音量控制当你将耳机插入进去,先把音量转到最左边0的位置,否则可能相当大声。
你可以在插入耳机后再转大声。
3. 耳机接口如上所述:插上耳机之前将音量控制转到最低。
这个接口仅会送出Line Out1/2的信号。
4. 麦克风控制的LED指示灯。
LED灯是提供视觉上监看麦克风的录音。
蓝灯代表”有信号”,假如看到亮红色LED,请将Gain 1控制转小。
红色LED灯亮时代表是削峰失真,造成了录音信号失真。
5. 麦克风孔的音量控制控制前置放大的信号在麦克风输入端。
同样的,麦克风插入控制在麦克风输入端的信号前级放大。
6. 48伏幻象电源:当你连接电容式麦克风时拨到”on”。
TerraTec DMX 6Fire USB 使用手册7. -20dB切换开关假如你的麦克风的录音太大声,将PAD开关切换到”on”-信号会被降低20dB。
Soundcraft Vi Dante 卡用户指南与设置指南说明书

Vi DANTE TM Card User & Setup GuideThe Soundcraft® Vi DANTE™ card is a 64 x 64 interface between a Viseries console and any Dante compatible device from Harman or other 3rd party manufacturer. The card is available in two versions: Local Rack/CSB (D21m 3U format) and Vi Stagebox (6U format). Note that the Stagebox version is an IO card only and does not allow you to connect a Stagebox to the console using Dante instead of MADI.Dante provides a digital audio network that uses standard Internet Protocols over both 100Mbps and 1 Gigabit Ethernet. Dante uses audio independent, high accuracy network synchronization standards to ensure all Dante devices are synchronized at all times. Dante runs on standard computer networking hardware, and does not require dedicated network infrastructure.The Audinate Dante Virtual Soundcard software allows connection of a PC/Mac to a Dante audio network. This system allows the computer to record from and playback to the Dante network using most common DAW packages. Dante Virtual Soundcard uses the Ethernet port on the computer to communicate with the Dante network; no special hardware is required other than installing Dante Virtual Soundcard software. One DVS license token is provided FOC with the card, this license can only be installed on one specific computer.Additional information about the DANTE system including the latest software set‐up and tools may be found on the Audinate® web site /Configuring The Dante CardIn a manner similar to CobraNet™, patching on the console makes a connection between console I/Oslot channels and up to 64 channels on the Dante card. Connections between the Dante cards are set using a tool, in this case the Dante Controller software from Audinate®. As communication across the Dante network is essentially between named cards and channels the configuration must be correctto ensure cards talk and listen to the correct/desired channels on the Dante network.This user guide summarises the process and provides a simple worked example; full setup details and configuration tools are downloadable from the Audinate web site .In addition it is necessary to set the clock status of the Dante card both within the network and inrelation to the console hardware. This is described below.Channel Count SetupThe Dante card uses 64 in and 64 out channels by default, but can be restricted to use less input or output channels if required. This may be necessary on Vi consoles in order to avoid exceeding the192in/192out channel limit of the local rack (or the 64in/64out channel limit if fitted in a Vi or Compact Stagebox). For example, if only output channels are required on the Dante card, the input channels can be set to 0, to maximise the number of input channels available for other cards.The DIP switch S1 on the Dante card main PCB is used to set the input and output channel count, in steps of 8chs from 0‐64 channels. Refer to the diagram on the next page which shows the location ofthe channel count DIP switch S1 and the factory default setup of 64 in/64 out. To create other channel count settings that are not marked on the switch, add any two or 3 switch settings together,ie to select 48chs, the 32 and 16 switches should be moved down to the selected position. Note the maximum channel count (input or output) is 64 and minimum is zero.Sync SetupThe Dante card can act as either a main clock source for the Dante network, or as a synchronised clock. If there is only one console on the network, this will generally be set as the main clock source for the network, but in cases with more than one console, or where another device acts asthe main source clock, it will be necessary to set the console's Dante card to be a synchronised clock.The Dante clock sync status is set up using Dante Controller software (see later in this guide), but in addition to the Dante clock setup, the card's clock status within the console has to be set. This is done using a DIP switch S2 on the Dante card main PCB. Refer to the diagram on the next page for the location and setting of this switch.MIX: Select this position to make the Dante module lock to the console's internal Wordclock, onlyto be used when the Dante card is set as the Preferred Master for the Dante network. This setting is the factory default.CARD: Select this position to make the console lock to the Dante network clock, to be used whenthe Dante card is synchronised to the network. Note: In this case, a BNC wordclock cable must also be connected from the Wordclock Out BNC connector on the Dante card, to the console's Wordclock IN.Note that it is also necessary to set up the clocking scheme of the Dante network correctly, to avoidaudio clicks and dropouts, please refer to the section titled Device Status and Clock Status in thefollowing pages.DIP switches S1 & S2 Location DiagramRefer to the previous page for information on the function of these switches.Setting up the Dante card for operation on the networkAs mentioned earlier, it is necessary to use a software tool connected externally to the card, in order to route audio from the card to/from another Dante‐enabled device.1.Download & install the latest software for the Vi consoles from .(Software Version must be 4.7.5.205 or later). With earlier versions of the console software, the Dante card will not be recognised by the console and will not appear in the patch.2.Download and install latest Dante Controller software from .3.Connect a Mac/PC to the Dante card, this may be via a switch/router or direct to either thePRIMARY or SECONDARY ports. The LINK indicator on the card will begin to flash indicating an active connection.NOTE: A crossover cable is not required as the network ports on the Dante card will automatically sort out the transmit and receive connections to the other device.NOTE: Ensure any firewall operating on the network port of the computer is switched off.4.Start the Dante Controller application, after a few moments a screen similar to the onebelow will appear:Using DanteThe following sections cover basic setup and use of the Vi Dante cards. For detailed information regarding Dante please refer to information on Audinate’s web site .Network ViewRouting – Matrix view of routing (click on a‘+’ symbol to expand the matrix view).Device Status – Displays information about discovered Dante devices; double click a device name to enable its configuration.Clock Status – View and edit Dante Network clock configuration.Clock Role column:Setting a single ‘Preferred Master’ will ensure that device is selected as the main clock source, if two or more devices are set for ‘Preferred Master’ the main clock source will be elected by the Dante system. NOTE: Clock Status settings apply to the clocking of the Dante network, therefore attached devices such a s c onsoles m ust b e c locked t o/from t he D ante n etwork a s a ppropriate o r required in any given system.It is suggested that in most simple cases with one console connecting to peripheral equipment (eg a computer recording device) via Dante that the console is set as preferred master, which means thatthe item ‘Sync to External Word Clock’ must also be checked’. If there are two or more consoles connected together then obviously only one should be set as preferred master.‘Sync to External Word Clock’:When checked the Dante card will clock from the console internal word clock, if not checked the console must be clocked to the Dante card or system word clock as appropriate or required in the given system. Normally this is achieved by connecting a short BNC jumper cable from the wordclock OUT of the Dante card, to the wordclock IN of the console.Note on Clock status when connecting the Dante card to a Vi3000 console’s Dante interfaceThe Vi3000 console includes a built‐in Dante interface, and as such has the capability for the consoleto automatically sync to the internal Dante card’s clock, when the Vi3000’s Dante interface is set to‘sync’ clock status (ie another device is set as Preferred Master), and the setting ‘S ync to External wordclock’ is NOT checked (ie console synchroni sed to Dante network clock). Therefore with the Vi3000, an external BNC jumper cable is not required and the console will automaticallyswitch to indicate ‘Dante’ as the clock source (viewable in the Menu‐Sync page of the Vi3000).Failure to set up the clocking scheme of the network correctly is likely to result in audio clicks during operation.Device ViewThe Device View allows viewing and editing of aselected Dante device.Receive – This tab presents information about allchannels being received, and channels availableto the current device. The tab is arranged intotwo areas:Receive Channels: Lists the Rx channels in the leftpane of the window. It shows whether or not they areconnected and, if connected, the channel they areconnected to and the status of that connection.Available Channels: On the right pane of the window, lists the Tx channels from other devices that are available for subscription by the current device. You may drag and drop Available Channels to Receive Channels.Transmit: This tab is used to view and edit thetransmit configuration of a device.Transmit Channels: The area on the left pane of thetab shows the Tx channels for the device, and anyuser‐defined channel label. It allows the user tocreate labels for transmit channels. Input to thetable is filtered to prevent illegal characters frombeing used in channel labels. To change a Txchannel label double click on the label and type in anew one. Tx channel labels must be unique on asingle device.Status: The Status tab is used to view informationabout a Dante device, this information may berequired for trouble shooting and checking software /firmware is up‐to‐date.Device Config: This tab on the device view allowsviewing and editing of the following device specificparameters.Rename Device: Allows renaming of the Dante device.Sample Rate: 48K – this is fixed and cannot be edited.Latency: Allows selection of an appropriate latency.NOTE: The 0.15 msec setting is unavailable on ViDante cards as these include an internal switch. Factory Reset: Allows remote reboot of the Dante interface and to reapply factory settings. Following a reboot it is recommended to power‐cycle the console including disconnection of the AC powercord. Factory Reset wipes the following device configuration settings:∙User‐defined device name∙User‐defined channel labels∙Clock configuration (clock master / external clock master setting)∙Static IP addresses∙Redundancy configuration∙Sample rate setting (including pull‐up/down)∙Latency setting∙Any existing audio routesNetwork Config: This tab enables viewing andediting of Dante Redundancy mode.Switched Mode ‐ When set to Switched, thesecondary Ethernet port will behave as astandard switch port, allowing daisy‐chainingthrough the device.Redundant Mode ‐ When set to Redundant,the device will duplicate Dante audio trafficto both Ethernet ports, allowing theimplementation of a redundant network viathe secondary port. In this case care must betaken to avoid accidently making anyconnection between the two parallelnetworks.Note: All devices on a Dante network MUSTbe set to the same Mode (Switched orRedundant), otherwise the network will notfunction reliably.Dante PresetsAlthough patching to and from the Dante card in the console is stored as part of a show or part of a cue the configuration and routing of the Dante cards and Dante audio streams is not.In the event a Dante card is replaced orsimilar, the ‘new’ card will requireconfiguring, this may be done manually or byloading a previously stored preset from the‘File’ menu of the Dante Controller softwareConnecting Dante DevicesThe following example illustrates two Vi1 consoles ‘House’ and ‘Monitor’.Audio inputs are sent to the monitor console, these can be connected directly to the console or via a stagebox attached via a MADI card to the monitor console.A direct output from each input of the monitor console feeds the FOH console which is patched to receive audio from the Dante option card.The FOH console mix is returned to two spare channels of the monitor console and the direct outputs of those inputs are in turn patched to the system outputs; once again these can be directly on the console or attached via a MADI card to the monitor console.The link between the Dante cards may be via a switch as shown with a solid green line or direct from card to card as shown by the dotted green line.NOTE: Once configured the PC is not required.NOTE: Dante may operate in redundant mode, this is not shown for simplicity.Alternative OptionsOnce audio is in the Dante domain the possibilities become near endless, in this alternative system: ∙All system outputs leave via a Dante enabled processor such as the BSS BLU 806∙An additional console does a live stereo mix‐down for web streaming or similar∙A laptop running the Audinate Virtual Soundcard makes a multi‐track recording。
中文说明书_DMX_6Fire_德国坦克声卡

Gpsm V1.34 TerraTec DMX 6Fire USBDMX 6Fire USB.中文使用手册2014.08.20DMX 6 Fire USB设备连接介绍声卡前面 (2)声卡背面 (5)模拟输出LINE OUT 1/2, 3/4, 5/6 (背面) (6)耳机输出(前面) (6)驱动调设音量 (7)绕送 (8)控制面板 (9)信号 (9)混音器 (9)输出和设定 (10)频率设定 (11)驱动工作模式 (12)设备设定 (14)场景 (15)其它 (15)DMX 6 Fire USB设备连接介绍声卡音效界面提供你连接许多专业录音外围设备和Hi-Fi设备。
声卡正面1. 麦克风接口(XLR 1/4或6.3mm母复合式二合一接口)这个插座接受XLR接头和需要幻象电源(通常是电容式麦克风)的专业麦克风,和“一般”耳机插头(6.3mm孔通常是接动圈麦)。
这个接口与背板上LineIn 1接口是同时只能择一使用(意思是如果麦克风和LINE IN 1同时有接入时,只能选择一个作为输入),而且假如XLR 1/4 或6.3mm 插头插上时,会自动重新重导信号路径(自动优先选择),此时在背板的Line In 1 和Line In 2 会自动关掉。
2. 耳机的音量控制当你将耳机插入进去,先把音量转到最左边0的位置,否则可能相当大声。
你可以在插入耳机后再转大声。
3. 耳机接口如上所述:插上耳机之前将音量控制转到最低。
这个接口仅会送出信号到Line Out 1/2。
4. 麦克风动态的LED监控指示灯LED灯是提供视觉上监看麦克风的录音。
“蓝灯”代表有信号,假如看到亮红色LED,请将Gain 1旋转按钮调小。
红色LED灯亮时代表是削峰失真,造成了录音信号失真。
5. 麦克风孔的音量控制控制前置放大的信号在麦克风输入端。
同样的,麦克风插入控制在麦克风输入端的信号前级放大。
6. 48伏幻象电源:当你连接电容式麦克风时拨到“ON”,如果电容麦已启用了幻想电源,不要重复开启,否则可能烧坏声卡!7.-20dB切换开关假如你的麦克风的录音太大声,嘯叫声等,请将PAD开关切换到“ON”,信号会被降低20dB,录入音量会变小。
soundcheck中文说明书

Sound check中文操作说明书声仪科技Soundcheck 安装计算机配置:奔4以上CPU,1G以上内存,Windows XP Pro and Vista 32 系统。
Soundcheck 初次安装1.安装解密狗,开机提示自动进入USB解密狗的Status.dat装载文件,自动安装解密狗的驱动程序,如果更换USB端口重新安装驱动。
2.关闭计算机安装声卡,重新启动,并记录声卡的序列号。
3.安装声卡的驱动,选择声卡的类型:CardDeluxe, Digigram V2 & VX 440 and Lynx 2。
4.安装Ni-Visa的驱动,拷贝CD文件到如图所示目录下,5.建立Soundcheck的桌面快捷方式如图所示6.进入控制面板选择声卡的控制设置如图所示7.打开设备管理器,检查声卡安装是否正常如图所示8.控制面板打开电源管理器,设置如图所示Soundcheck 系统设置1.声卡的设置如图所示2.设备校准z设置激励信号如图所示z功放校准连接如图所示确保功放关闭状态,连接上图接线所示。
打开功放电源进入Soundchek系统,进入扬声器的sequences,进入校正编辑器,设置输入为Right In,输出为Left Out,调节功放增益旋钮的合适位置,按“Calibrate”测试功放的增益和频响曲线。
z屏蔽Windows系统的声音如图所示SSound check 8.0 新特性多通道的采集功能,最多可以扩展8个通道(NI PCI 4461)同时测试。
包括以下功能:z环绕立体声多通道测试。
z立体耳机测试。
z多通道的音频电子设备。
(如:调音台)Sound check 测试应用Sound check 可以支持二次开发,可在库文件修改存在的测试,每一个测试对应一个“Sequence”,一个Sequence是由一系列的Step组成,每一个STEP执行一个特定的任务,一个简单SEQUENCE结构如下:z Hardware Step(定义和配置数据采集设备)z CALBRATION STEP (定义这个硬件的灵敏度和校准曲线)z STIMULUS STEP (定义一个信号产生器的输出。
坦克Audio HX-P930产品说明书

STUFF THE GOVERNMENT MAKES US SAYA MESSAGE FROM THE ENVIRONMENTFCC Compliance:Note: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept anyinterference received, including interference that may cause undesired operation.Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with theinstructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help.Note: Changes or modifications not expressly approved by HMDX could void the user's authority to operate this equipment.IC Caution: RSS-GEN Issue 4 November 2014This device complies with Industry Canada’s licence-exempt RSSs.Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device.WARNING:This product has an internal, non-replaceable lithium battery. Please dispose in accordance with your local, state, province, and country guidelines.This product contains small parts that may present a choking hazard for young children.CAUTION: All servicing of this product must be performed by authorized HMDX Service Personnel only.©2015 HMDX. All Rights Reserved.IB-HXP930BCCOMING CLEANA soft, dry towel is all you need to clean off your speaker. Using water, harsh cleaners, or anything else only starts messing with the mechanics inside. So, yeah, don’t do it.1 YEAR LIMITED WARRANTYFor detailed warranty instructions and information visit: USA: /customer-support/warranty-1yr CAN: /warranty-1yrTo obtain warranty service on your JAM product, contact a Consumer Relations representative by telephone or email for assistance (you can find their contact info on page 1). Please make sure to have the model number of the product available.THE VOICE FROM WITHINWhen your JAM Trance Plus isn’t rocking out, it can tell you all sorts of things it’s doing: when it’s powering on, ready to pair, paired, at maximum volume, charging, receiving a call, ending a call, rejecting a call, and powering off.Just like the global gadget it is, your speaker toggles between several languages or no language at all. Your speaker can parlay with you in English, Spanish, French, or Portuguese. Making the change between language and tone is as simple as poking a paperclip, safety pin, or the included language selector pin into the small hole on the bottom of the speaker. Click though until the speaker starts speaking your language.。
UGT-S110 7.1 声卡说明书

7.1 Channel PCIe Sound CardUser ManualModel: UGT-S110All brand names and trademarks are properties of their respective owners. Featuresz Full-duplex playback and recordingz Full-duplex 8CH DAC/2CH ADCz Support 48/44.1 KHz sampling rate for both playback and recordingz Supports the latest Dolby® Digital EX and DTS ES 6.1/7.1 CH DVD soundtrack playbackz DirectSound™ 3 HW accelerationz Compliant with PCI Express Base Specification 1.0az ACPI compliant power down managementz Support Windows® 2000/XP/2003/Vista/7 (32/64 bit)System Requirementsz PCI Express-enabled system with an available PCI Express slot z Windows® 2000/XP/2003/Vista/7 (32/64 bit)z DirectX 8.1 above is requiredPackage Contentsz Vantec 7.1 Channel PCIe Sound Card x 1z Mini-DIN To 3.5mm Port ( fan-out cable) x 1UGT‐S110 Page 2z Installation Guide x 1z Driver CD x 1* User’s Manual Is on Driver CDNote: Contents may vary depending on the market/country.Hardware Installation1.Turn off the computer, Unplug the power cord.2.Open the computer case. Check with your computermanufacturer if you need additional instructions. Remove any oldthird-party sound cards or the metal PCIe slot bracket.3.Insert the sound card into a blank PCIe slot. Make sure that all ofits pins are touching the PCIe slot’s contacts.4.Check the sound card is inserted into the PCIe slot firmly, andsecure it with a screw.5.Close the case. Plug in the power cord and other cables.6.Connect the Mini-DIN to 3.5mm fan-out cable bundled in thispackage and use for 8-channel line output jack.Software InstallationFor Windows® 2000/ XP/2003/Vista/7 (32/64 bit)UGT‐S110 Page 31.Start your PC, place the Driver CD into the CD-ROM drive.Click the Start button on the taskbar and click Run. Type “D:\UGT-S110\2000_XP_2003_Vista_7\Setup.exe”.(Assuming you have placed the CD in CD-ROM drive labeled asD).2.Follow any on-screen instructions to complete the softwareinstallation.3.Restart your system.4.Once you have rebooted the computer, this 7.1 Channel PCIeSound card is ready to be used.Physical ConnectionsUGT‐S110 Page 4The rear panel of this 7.1 Channel PCIe Sound Card has the following jacks:1.Line In (blue): Connect to tape/CD/DVD player, or other audiosources for output mixing and/or recording2.MIC In (pink): Connect to microphone3.Line Out (green): Connect to headphone or amplifying speakers.In 4-channel, 6-channel, and 8-channnel configurations, the function of this port becomes Front Speaker Out4.Rear-Speaker/Surround-Speaker (black): Connect to Rearspeakers while 4/6/8 channel speaker mode is enabled (via external amplifier)UGT‐S110 Page 55.Center/Subwoofer (orange): Connect to center/subwooferspeakers while 6/8 channel speaker mode is enabled (via externalamplifier)6.Back-Speaker (gray): Connect to back speakers while 8 channelspeaker mode is enabled (via external amplifier)7.S/PDIF Out: Connect to digital input of external audio devicevia an optical S/PDIF cablePlease refer to the audio configuration table below for the function of the audio ports in 2, 4, 6, 8-channel configuration.UGT‐S110 Page 6Port 2-channel4-channel(*)6-channel 8-channelGreen LineOutFrontSpeaker FrontSpeakerFrontSpeakerBlack - RearSpeaker RearSpeakerRearSpeakerOrange - - Center/Subwoofer Center/SubwooferGray - - - BackSpeaker (*) 4-Channel mode is not available on Vista/7 (32/64 bit)In addition to the rear panel jacks, this 7.1 Channel PCIe Sound Card also has the following internal connection:TheFunctionJ3 Analog CD/IN Port(Signals: L-G-G-R)J5 Analog CD/IN Port(Signals: G-R-G-L)WarrantyThe Vantec 7.1 Channel PCIe Sound Card comes with a 1 year limited warranty(90 day parts). If your unit becomes defective within that time frame, please go to for information on how to receive warranty exchange or repair. Cosmetic defects and missing parts are not covered under this warranty. Please check the contents of the unit to make sure you received all parts. Also, check for any cosmetic flaws. If any parts are missing or if there are cosmetic defects, please contact the retailer from which you purchased the unit immediately and ask for a replacement.Vantec Thermal TechnologiesUGT‐S110 Page 8。
- 1、下载文档前请自行甄别文档内容的完整性,平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益,请联系客服反馈,我们会尽快为您处理(人工客服工作时间:9:00-18:30)。
德国坦克声卡使用手册(适用型号:剧场版SiXPack 5.1+)前言感谢您购买使用本公司的产品,为了让您更方便与正确的安装使用,本手册提供了开於硬件及驱动程式的安装详细解说。
请您务必依照本手册之指示完成程序。
倘若仍有其他疑问或安装使用上的困难,请来电或以电子邮件将您的问题告诉我们,我们一定全力为您服务。
谢谢您!主要功能1 采用知名crystal cs4630高效能处理晶片2 420 mips高速运算的独家(cclstn)音讯处理技术3 符合ac 97 2.1、pci 2.1规范4 完全支援windows 98se/me/2000/xp作业系统相容5 完全硬体支援微软directsound、directsound3d、directlnput、以及声波合成技术6 支援最新sensaura 3d定位音效技术,支援2/4声道7 相容及支援eax 1.0、eax 2.0、a3d 1.0、i3dl2、macrofx、multidrive zoomfx、environmentfx、(dolby surround)多声道音效技术8 支援同时64个硬体声波合成发声9 内建8mb音色取样且与mpu—401/gm/yamaha xg midi规范相容10 支援midi dls技术无限制软体音色声波合成支援11 支援硬体wavetable音源子卡12 支援对netmeeting网路语音视讯软体提供aec自动回授抑制功能13 支援16bit全双工且与soundblasterpro完全相容14 符合pci电源管理规范apm 1.2和acpi 1.0版15 符合pc 98和pc 99规范要求16 s/n讯噪比达90 db以上,音质传真自然17 具备18bita/d类比/数位转换器18 具备20bit d/a数位/类比转换器19 支援利用directshow和directsound 3d输出播放20 支援立体声,4声道和6声道喇叭模式输出21 支援标准24bit s/pdif光纤数位输入(32/44.1/48khz)和输出(48kh pcm数位讯号,如ac—35.1讯号。
22 内建10段硬体可调式彩色eq等化器23 耳机专用放大输出功能(与line in切换共用)基本系统需求1 pentium iii cpu或amd k6iii 500以上2 pci插槽(相容pci 2.1规范)3 64mb以上记忆体4 显示支援16bit,800×600以上模式5 80mb以上可用硬碟空间6 cd—rom或dvd—rom光碟机7 microsoftwindows@me、98se、2000、xp作业系统8 directx 6.0以上、win 2000必须安装sp2以上、winxp必须安装spl9 至少具备立体式耳机或喇叭(2/4/6声道)SixPack5.1+硬体安装各部分连接器与跳线设定SixPack5.1+硬体安装注意事项1 在安装本产品前请确定您的电脑主机电源已经完全关闭。
2 请先检查sixpack5.1+音效卡上的金属pci插槽接点保持干净。
3 sixpack5.1+插立入pci插槽後,请再次确认接脚与插槽已经完全密合未松脱且必须用螺丝将音效卡确实锁紧。
4 sixpack5.1+的游戏摇杆/midi子板排线请同时先插好在sixpack5.1+等传接线上。
5 若您的主机板有内建音效装置,请先在主机板的bios设定内容中将他完全关闭(本项操作请参阅各家主机板说明书)。
6 若您在安装sixpack5.1+之前已经安装过其他的类似音效产品驱动程再重开机安装sixpack5.1+驱动程式。
7 在电脑电源使用中的状态下绝对不可任意插拔插槽上任何装置以免造成毁损。
(若因此不当操作而造成损坏者,不在保固范围)。
8 请勿任意自行更动sixpack5.1+上面的零件以及预设设定(请参阅第3—1说明)。
9 安装完sixpack5.1+後请确实将喇叭音源线或其他欲使用之连接线依在输出入孔位中。
10 请在电脑开机或关机之前先把喇叭的电源关闭以免产生音爆伤害喇叭和音效卡。
驱动程式安装请依照以下各个不同作业系统个别安装所需之驱动程式版本和安装步骤安装。
Windows 2000/XP驱动程式安装1.windows2000/xp会找到新硬体且直接安装完相容的驱动程式。
回到windows画面之后,接著放入sixpack5.1+驱动程式光碟片後,请依照画面选项选择『driver installation』进入安装画面。
2.请按『install』程式会自动解压缩完成安装。
同时系统会要求您重新开机如下图,请按『确定』键。
3.重开机之後,会找到新的装置名称『sixpack5.1+,win2000请按『是(y)』,win xp请按『仍然继续』。
(对於出现之数位签章提示请忽略,本产品可正确安装无误)4.系统会要求输入所需档案的路径,请直接输入c:\sixpack5.1+然后按『确定』5.系统会继续通知您输入驱动程式路径,请直接输入c:\sixpack5.1+然后按『确定』6.请重复第4步骤,即可将其他以下连带装置全部安装完毕如下图(对於出现之数位签章提示请忽略,本产品可正确安装无误)。
对於所有要求继续安装的讯息请都按『是』即可。
7.完成安装后,最后您可以看见在屏幕最右下角的时间旁边出现一个黄色小喇叭图示,即告正确安装完毕,您此时已安装正确无误。
音效控制台安装本程式为一项完整控制使用sixpack5.1+所有相关设定的管理中心,不管是音量,音频,midi,数位音源,3d音效,音场模拟等都能够在这里依您的需要作更改。
本安装程式适用windows98 se,windows me,windows2000和windows xp共用。
1 方法一:放入sixpack5.1+驱动程式光碟片後请依照画面选项选择『control panel』进入安装面画。
方法二:若系统不会出现自动安装画面则请按画面左下方工作列的『开始』选择『执行』,然后按『浏览』选择光碟代号目录至:\drivers\controlpanel\setup.exe,执行後出现安装画面如下图:2 请选择『english』后按『确定』键则进入安装程式画面,请『next』下一步:3 继续按『next』下一步,当程式安装完毕则请按『finish』4 程式若正常安装无误则会自动执行mixer且出现下方画面。
此时mixer已正确安装无误。
过程中windows 98se可能会询问您是否要安装q269601升级档案,请选择『是』更新安装,然后按『yes』。
最后系统会要求重新启动电脑,请按『是(y)』。
音效控制台设定本章节会逐步一一的带领您利用本控制台来充分发挥sixpack5.1+带来的的震撼魅力和强大功能。
以下包含各个不同的操作画面:5.2.1 playback(播放):控制显示各志道的输出音量的舆静音功能。
请使用滑鼠移动调整杆上下移动调整所需各声道音量大小。
按『mute』静音钮则使该声道保声状态,再按一次则恢复志音输出。
移动左右拉杆则可控制该声道之左,右声道音量比例。
master(主音量):同步控制全部总音量输出front(前置):只单独控制前方左佑声道音量输出rear(後置):只单独控制後方左佑环绕声道音量输出lfe(重低音):只单独控制重低音音量输出center(中央):只单独控制中央声道音量输出5.2.2(sources)来源:设定不同讯源输入各类的静音及音量控制。
请使用滑鼠移动调整杆上下移动调整所需各讯号输入种类音量大小。
按mute(静音)钮则使该讯号输入种类保持无志状态。
再按一次则陕复声音输入。
移动左右拉杆则可控制该声道之左,右声道音量比例。
boost(增益)钮可针对不同麦克风种类特性提供输入讯号放大功能以提升音量。
(本功能打开可能会同时收纳更多背景噪音进入麦克风)wave(声频):只针对像wav,mp3,wma,cd排线和cdl输入不同,已在内部转成数位志波格式)等声波格式音源作音量控制。
synth(合成器):只针对像mid,midi格式的音源作音量控制aux(辅助):只针对本卡上连接於aux输入的类比音源作音量控制cd:只针对本卡上连接於cdl/cd2输入的内部cd-rom类比音源作音量控制line(线级):只针对连接至本卡上linein线级输入孔之外部类比输入音源作音量控制mic(麦克风):只针对连接至本卡上mic麦克风输入孔之外部输入音源作音量控制s/pdif(数位):只针对连接至本卡上内部的数位输入和外部光纤输入数位s/pdif音源作音量控制5.2.3 record(源音);可选择不同绵路输入来作源音音量控制或静音。
请使用滑鼠移动调整杆上下移动调整所需各讯号输入种类音量大小。
按mute(静音)钮则使该号输入种类保持无志状态,再按一次则陕复声音输入。
移动左右拉杆则可控制该声道之左,右声道音量比例。
boost(增益)钮可针对不同麦克风种类特性提供输入讯号放大功台拟提升音量。
aec(麦克风回音自动抑制)可针对麦克风产生之回授干扰现象来选择是否要将此功能always(恒开启),auto(自动)或never(恒关闭))。
mix(混音):将任何同时间产生之输入音源都混合录制之音量控制aux(辅助):只选择录制来自於连接於本卡上aux输入之类比音源之音量控制cd:只选择录制来自於连接於本卡上cdl/cd2输入之cd—rom类比音源之音量控制line(线级):只选择录制来自於连接於本卡上linein线级输入之外部类比音源之音量控制s/pdif(数位):只选择录制来自於内部的数位输入和外部光纤输入数位s/pdif音源作音量控制5.2.4 digital(数位):可以设定s/pdif数位讯号的输入和输出。
fddigital in(数位输入):可开启或关闭自动侦测输入的数位信号格式功能或按mute(静音)。
always on(恒启动):永远开启侦测数位信号功能aautomatic sensing(自动侦测):当有讯号输入时才会启动侦测功能ooff(关闭):不开启数位信号侦测功能信号讯息包含sample(取样率),(copyright)”著作权显示,50/15us pre—emphasis(频率预矫等)digital out(数位输出):可选择数位输出形式或关闭。
digital in source(direct)(数位输入来源直接转出):本项允许您直接将数位输入信号直接但在本模式中不能够调整音量。
digital mix/dvd(数位混音/dvd):本选项适用於大部分数位pcm讯源(像是wave,midioff关闭:关闭数位输出功能。
著作权位元:送出的数位信号中包含著作权位元资料。
5.2.5 eq(等化器):10段可调整的音频等化器和预设音色设定。
