基于Zigbee 的智能家居系统设计外文翻译
基于ZigBee技术的智能家居系统
基于ZigBee技术的智能家居系统吴海军;吴伯农;杨芬【摘要】为了满足手机短信远程控制家电设备的需要,应用GR64和CC2430为核心开发了一种基于无线传感器网络的智能化短信远程控制系统.系统硬件部分主要由短信(SMS)收发模块、红外收发模块、微处理器模块、存储模块和供电模块等组成；软件部分给出了ZigBee无线通信协议的工作原理、家庭网关的设计流程.试验表明,该系统具有良好的可扩展性、低成本、低功耗、低延时、低复杂度等特点,在智能家居系统中具有广阔的应用前景.%To meet the need of SMS remote controlling household appliances, an intelligent SMS remote controlling system by using SMS transceiver module GR64 and microcontrollerCC2430 was developed based on wireless sensor network. The hardware and software of the system are introduced, and the test results are given. The system hardware has many functions, such as SMS transceiver, infrared transceiver, microprocessor module, nonvolatile memory module and power supply module. The flow chart and home gateway are given based on ZigBee protocol. The experiment shows that the system has characteristics of good expansibility, low cost, low power consumption, low latency, low complexity and so on, which also has a wide range of application prospects in smart home.【期刊名称】《现代电子技术》【年(卷),期】2011(034)015【总页数】4页(P43-46)【关键词】智能家居;家庭网关;红外线通信;SMS;ZigBee;GR64;CC2430【作者】吴海军;吴伯农;杨芬【作者单位】北方工业大学,北京 100144;北方工业大学,北京 100144;北方工业大学,北京 100144【正文语种】中文【中图分类】TN915-340 引言智能家居(Smart Home)又称智能住宅。
基于ZigBee无线网络的智能家居控制系统设计
收稿日期：2019-03-11基金项目:吉林省教育厅科学技术研究项目（吉教科合字【2014】第224号）作者简介：孙威（1995~），女，山东省潍坊市人，在读硕士研究生，研究方向：智能家居。
智能家居作为物联网产业中的重要部分之一，逐渐成为全世界关注的热点。
并且随着移动互联网和智能手机的普及，智能家居的远程操控功能也更加吸引人们的注意力。
在各种无线技术中，ZigBee 技术凭借其自身多种优势脱颖而出，满足人们对智能家居由“价格”向“价值”转换的需求，更好的提升家居的舒适性和安全性，发展前景可观[1-2]。
1系统方案说明一个完整的智能家居是能够将家庭内部各种电子设备集成在一个网络之中，包括照明设备；用于各种以监控为目的的传感器，如温度和湿度传感器；还有需要控制的家用电器，如电冰箱、自动窗帘等。
除此之外，终端设备还应该具有可以自动调节的能力，如能够实现光感传感器可以控制照明设备、温度传感器可以控制空调等功能，为用户提供最舒适便利的家居环境，在无人工干预的情况下可实现家庭内部远程控制。
然而，在家居生活中，只使用一种通信网络就将家庭内部所有的家用电器和电子设备集成起来几乎是不可能实现的，因为各种智能化的终端设备接口有很大的差异，且不同品牌的通信标准也存在或多或少的差异，因此，需要构建多种通信网络，来实现完整的智能家居系统[3-5]。
一般来说，智能家居系统由3部分组成：外部网络，家庭网关和内部网络。
其中，家庭网关主要负责家庭内外网络数据的转换；家庭内部的网络主要是负责将内部的各个设备相互连接在一起，其中涵盖家用电器、照明设备和所需的对应的传感器；用基于ZigBee 无线网络的智能家居控制系统设计孙威魏立明（吉林建筑大学电气与计算机学院，吉林长春130118）摘要:本文基于ZigBee 无线网络技术对智能家居控制系统进行了设计,整个系统选定CC2530为硬件开发平台,软件开发采用以Z-Stack 为基础的程序设计,选定PC 为家庭的网关,连接互联网与智能家居系统,最终实现远程控制家庭内部传感器,提高人们日常生活的便利感与舒适感。
基于Zigbee技术的智能家居系统设计方案
基于Zigbee技术的智能家居系统设计方案基于Zigbee技术的智能家居系统设计方案摘要：对基于ZigBee 技术对嵌入式Web 的智能家居远程监控系统进行研究和设计。
对家居设备通过Zigbee 进行无线组网，把家居设备的信息和数字视频传输到因特网网络上，在因特网上设立一个"无线视频网关"WEB 服务器，可供外部访问；实现将家居信息如温度进行实时的显示并进行后续的利用和控制；同时将收集各处传输进来的数字视频信息进行后续的处理和识别。
如入侵检测，人脸检测和识别等。
智能家居又称为智能住宅，在国外常用Smart Home 表示。
与智能家居含义近似的有家庭自动化（Home Automation）、电子家庭（Electr ON ic Home、E-home）、数字家园（Digital Family）、家庭网络（Home Net/Networks for Home）、网络家居（NetworkHome）、智能家庭/建筑（Intel ligent Home/Building）等。
智能家居系统利用先进的计算机技术、网络通讯技术、综合布线技术将与家居生活有关的各种子系统有机地结合在一起，通过统筹管理，让家居生活更加舒适、安全。
智能家居可以提供全方位的信息交换功能，帮助家庭与外部保持信息交流通畅，优化人们的生活方式，增强家居生活的安全性，甚至为各种能源费用节约资金。
1 项目概述1.1 智能家居发展概况智能家居是利用先进的计算机技术、嵌入式系统和网络通讯技术，将家庭中的各种设备（如照明系统、环境控制、安防系统、网络家电）通过家庭网络连接到一起的，自从美国在1984 真正的智能建筑出现以来，国外已经有将近30 年的研究历史，而国内在这方面的研究相对较晚，从2003 年才逐步应用于高端市场，而且标准不统一，如海信、海尔、清华大学等大家各自为营。
由于智能家居系统具有安全、方便、高效、快捷、智能化和个性化的独特魅力，使得智能家居的开发与建设成为21 世纪科技发展的必然趋势。
基于Zigbee技术的智能家居控制系统设计—课程设计论文
机器人3课程设计（论文）题目：基于Zigbee技术的智能家居控制系统设计基于Zigbee技术的智能家居控制系统设计摘要随着生活质量的日益改善和生活节奏的不断加快，人们的工作、生活日益信息化。
信息化社会改变了人们的生活方式与工作习惯，使得家居系统的智能化成为一种消费需求，智能家居系统越来越被重视。
因此，将家庭中各种通信设备、家用电器和家庭安保装置通过家居控制系统进行整合，并进行远程控制和管理，已经成为近年来一个热门研究课题。
关键词: Zigbee ；Z-Stack；CC2530芯片；智能家居The Design of Smart Home Control System Based on ZigBee Technology TechnologyABSTRACTWith the development of the science and economy，people’s living standard improves enormously.People may pay more and more attention to their living environment.Information society has changed people’S lifestyle and work habits to makeintelligent home system a consumer demand．Intelligent home system catches moreand more people’S attention.Thereforethe topic about the integration andmanagement of various communication equipments in home，household appliancesand home security devices combined by the intelligent home c ontrol system remotel，has become a hot research point in recent years．Key words: Zigbee; Z-stack;CC2530;Smart Home目录1绪论 (1)1.1无线传感器网络 (1)1.1.1无线传感器网络概况 (1)1.1.2无线传感器的应用现状 (1)1.1.3无线传感器的未来前景 (2)1.2基于Zigbee技术的无线传感器网络 (2)1.3论文结构 (3)2 Z-Stack协议栈 (4)2.1 Zigbee协议介绍 (4)2.1.1 Zigbee协议栈的结构 (4)2.2 Zigbee网络结构 (5)2.3 Z-Stack协议栈介绍 (6)2.3.1寻址 (6)2.3.2绑定 (9)2.3.3路由协议 (9)2.3.4数据发送函数 (10)2.3.5网络组建过程 (10)2.3.6数据接收函数 (10)3智能家居系统的实现 (13)3.1系统的整体介绍 (13)3.2系统硬件介绍 (13)3.2.1各类传感器模块 (13)3.2.2终端节点和数据汇聚模块 (15)3.3系统软件介绍 (16)3.3.1终端节点和数据汇聚模块软件设计 (16)3.3.2上位机（PC机）的监控界面 (18)4结论 (21)参考文献 (22)附录 (23)1 绪论1.1无线传感器网络1.1.1无线传感器网络概况无线传感器网络是指大量的移动的或静止的传感器以自组织和多跳的方式构成的无线网络。
基于ZigBee技术的智能家居系统设计

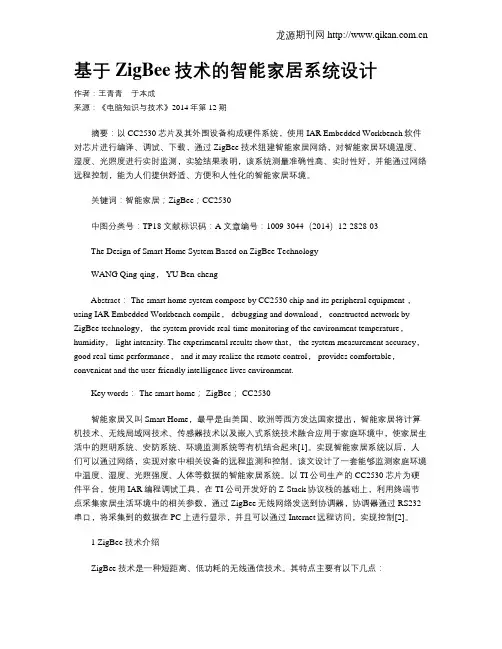

基于ZigBee技术的智能家居系统设计作者：王青青于本成来源：《电脑知识与技术》2014年第12期摘要：以CC2530芯片及其外围设备构成硬件系统，使用IAR Embedded Workbench软件对芯片进行编译、调试、下载，通过ZigBee技术组建智能家居网络，对智能家居环境温度、湿度、光照度进行实时监测，实验结果表明，该系统测量准确性高、实时性好，并能通过网络远程控制，能为人们提供舒适、方便和人性化的智能家居环境。
关键词：智能家居；ZigBee；CC2530中图分类号：TP18 文献标识码：A 文章编号：1009-3044（2014）12-2828-03The Design of Smart Home System Based on ZigBee TechnologyWANG Qing-qing， YU Ben-chengAbstract： The smart home system compose by CC2530 chip and its peripheral equipment ，using IAR Embedded Workbench compile， debugging and download， constructed network by ZigBee technology， the system provide real-time monitoring of the environment temperature，humidity， light intensity. The experimental results show that， the system measurement accuracy，good real-time performance， and it may realize the remote control， provides comfortable，convenient and the user-friendly intelligence lives environment.Key words： The smart home； ZigBee； CC2530智能家居又叫Smart Home，最早是由美国、欧洲等西方发达国家提出，智能家居将计算机技术、无线局域网技术、传感器技术以及嵌入式系统技术融合应用于家庭环境中，使家居生活中的照明系统、安防系统、环境监测系统等有机结合起来[1]。
一种基于ZigBee的智能家居环境信号采集与控制系统设计
图1 感知家居需求与用户用例图图2 感知家居系统与芯片选型原有的信息孤岛相互联系起来将成为未来的大趋势。
2016年3月8日，海尔向开发者开放了U+平台，美的集团也向第三方开放了M-Smart 的SDK(软件开发工具包)；3月31日，微软也发布了MS Bot Framework 机器人框架，巨头们的纷纷表率预示着更多的厂商将会开放自身的软硬件平台，使得家电设备，以及越来越多的智能硬件单品可以整合到一起。
旧版本的智能家居系统大多采用总线控制，装修布线的成本非常高，并且严重降低用户体验。
新一代智能家居产品以小米和华为的最新产品为例，均采用Wi-Fi 与ZigBee 协议。
本文介绍了一种兼容性强、性价比高的环境信息采集和家电控制系统。
1 系统概述要实现一套性价比较高的智能家居系统，所需的功能由用户的核心需求来决定。
根据马斯洛需求层级，生理和安全方面的需求应当放在首要实现的位置，实现的功能必须包含安全防盗、火警、有害气体检测和危险情况及时报警；其次是生活的便利化，包括对家庭环境的随时随地查看，家电的远程控制等；最后是需求的个性化，例如SOHU 办公、孕婴或行动不便、视力障碍或听觉障碍等情况，是用户分散的长尾需求指标。
用户用例如图1所示，通过PC 电脑浏览器或移动APP 均可传感器型号传感器描述DHT11温湿度传感器，有效测量范围：0～50℃；湿度有效测量范围：20%～90%RH 。
MQ-2烟雾传感器，可采集甲烷、丙烷、氢气、酒精和液化气等常见家用厨房可燃气体。
有效监测范围：100～20000ppm ；工作环境温度：-10℃～50℃；湿度65%±5%RH 。
BH1750FVI 光照传感器，其测量范围约为(1～65535lx)，工作温度范围：-40℃～50℃。
HC-SR501人体红外活动探测传感器，工作温度：-15℃～70℃，有效范围15m 。
DSM501AP M 2.5探测传感器，工作温度范围：-20℃～80℃ 。
基于ZigBee的智能家居设备设计
基于ZigBee的智能家居设备设计李琪;秦会斌;张雄【摘要】According to the shortcoming of wiring dififculties, poor mobility, high-cost maintenance and so on in the traditional smart home, a smart home scheme based on Zigee wireless sensor network technology is designed. The whole system regards S3C2440 as the server combining with the ZigBee network technology to control the sub-node terminals by the coordinator. The sub-node terminals contain the common devices such as the smart home environment information real-time display, ten-level dimming and simulate curtain are controlled by STM32. The currentdate(including lunar calendar and weekdays), time and room temperature are displayed on the LCD in real time, and the lighting intensity and the degree of the curtain’s closure c an be controlled between 0 and 100% by sending instructions to the coordinator on the smart phone after veriifcation.%针对传统智能家居存在布线困难、移动性差、维护成本高等缺点，提出了一种基于ZigBee无线传感网技术的智能家居方案。
基于ZigBee的智能家居控制系统设计开题报告
[8]Texas Instruments．CC2530manul [S]．2009．
指导教师意见
指导教师（签名）：
年月日
所在系（所）意见
负责人（签章）：
年月日
智能家居控制系统（smart home control systems），是以智能家居系统为平台，家居电器及家电设备为主要控制对象，利用综合布线技术、网络通信技术、安全防范技术、自动控制技术、音视频技术等将家居生活有关的设施进行高效集成，构建高效的住宅设施与家庭日程事务的控制管理系统，提升家居智能、安全、便利、舒适，从而实现具有一定自动、智能控制功能的系统平台。智能家居控制系统是智能家居的核心，是智能家居控制功能实现的基础。
四、拟解决的关键问题
1.如何设计一种切实可行的基于ZigBee的智能家居控制系统。
2.硬件电路搭建问题的解决。
3.软件程序编程问题的解决。
4.如何实现ZigBee & Wi-Fi网关跨网间的数据同步。
五、研究思路和方法
1.分析当代智能家居的现状以及市面上成熟的产品，尝试分析这些产品的功能是用什么方式来实现的。初步确定设计的思路以及需要实现的功能，从而选择合理可行的设计方式来实现的智能家居控制系统的设计。
基于ZigBee的智能家居控制系统，将以无需布线和使用相对自由，建立起人们对无线家居设备的全新体验和享受。它组网灵活，成本低廉，消除了开槽、穿墙等繁琐的工作程序，总体费用低;移动性强、扩张性强，可摆脱“线”的限制，在设定的覆盖范围内，用户可轻松接入到家居设备网络系统。
基于ZigBee的智能家居控制系统具有以下几点优势特征：
基于 ZigBee 的智能家居系统设计
基于 ZigBee 的智能家居系统设计随着科技的快速发展，越来越多的人开始关注智能家居系统的设计和实现。
而其中，基于ZigBee 技术的智能家居系统则成为了近年来最具热度的研究方向之一。
本文将详细探讨基于 ZigBee 的智能家居系统的设计和实现。
一、ZigBee 技术简介ZigBee 技术是一种低功耗、近距离、无线通讯技术，它是一种基于 IEEE802.15.4 标准的无线网协议。
ZigBee 技术能够支持多种应用场景，适用于环境监测、医疗保健、智能家居、能源管理等领域。
ZigBee 技术采用了低功耗、低速率的传输方式，具有低成本、低噪声和低干扰的特点。
同时，ZigBee 网络结构简单，有很强的自组织能力，能够让各种设备快速建立通讯。
二、ZigBee 技术在智能家居中的应用智能家居系统是指通过各种网络技术，将家居中传统的电器设备和其他可编程设备进行集成，从而达到自动化控制的目的。
而 ZigBee 技术在智能家居中的应用则包括以下几个方面：1、家庭网络化ZigBee 技术可以帮助实现家庭网络化。
通过 ZigBee 网络，家庭中的各种设备都可以实现互联，实现智能化自动控制。
比如，用户可以通过智能手机控制家中的照明、温度、音乐等设备，从而达到智能控制的目的。
2、安防保护智能家居系统中的安防保护是智能家居最重要的应用之一。
而 ZigBee 技术可以帮助实现安全保护，可以通过智能传感器实时监控家庭的安全情况，当检测到异常情况时进行即时报警，从而保护家庭安全。
3、娱乐化智能家居系统中的娱乐化应用也是很重要的。
通过 ZigBee 技术，用户可以轻松地控制家庭中的音乐、影像等设备，达到家庭娱乐化的目的。
三、基于 ZigBee 的智能家居系统设计在设计基于 ZigBee 的智能家居系统时，应遵循以下设计理念：1、低功耗智能家居系统的常承担着长期、甚至是持续的工作，因此对于功耗的要求极高。
因此在基于 ZigBee 技术的智能家居系统设计中，应注重低功耗、智能化的设计，以延长系统设备的使用寿命。
基于Zigbee无线网络智能家居系统的设计
基于Zigbee无线网络智能家居系统的设计智能家居系统是指利用物联网技术将家电、照明、暖通等家居设备互联起来，实现设备之间的信息传递、控制与管理，提高家庭的生活品质、安全性、舒适度和能源利用效率等方面的综合性服务。
其中，Zigbee无线网络技术是智能家居系统中较为流行且成熟的技术之一，可以实现对家居设备的智能控制和管理。
一、硬件系统设计智能家居系统涉及到多种硬件设备，如传感器、执行器、无线网关等。
其中，传感器可以接收环境信息并将其转换成数字信号，执行器通过控制器的指令来执行某些操作，无线网关则是连接多个执行器和传感器的桥梁，控制着整个智能家居系统的运行。
1. Zigbee无线网关Zigbee无线网关是整个智能家居系统的核心部件，它实现了家庭中的各种设备的联网功能。
Zigbee无线网关可分为有线网关和无线网关两类，其中有线网关需要连入宽带路由器，则可以通过手机APP等方式进行远程控制。
Zigbee传感器主要负责收集环境信息，如室温、湿度、烟雾等，并将其转换成数字信号进行传输，让智能家居系统的中央控制器能够及时地处理这些信息，然后根据处理结果控制家电、照明、暖通等设备工作。
Zigbee执行器主要负责根据控制指令对某些家电、照明、暖通等设备进行控制。
如Zigbee智能电灯执行器，具有远程调节亮度、色温、颜色等多种功能。
实现智能家居控制功能需要配合软件系统。
智能家居系统需要根据不同的应用场景，制定不同的控制策略。
整套系统由网关设备组成，可以通过Zigbee协议与其他传感器和执行器相互通信，采用多种算法完成相应的智能控制操作。
其中，控制策略包括以下几个方面：1. 情景控制情景控制是指能够通过指定的场景、活动或者用户的智能要求自动执行一系列指令，比如说，当某房间内有人时，自动把房间内的灯光亮度调至适宜的光度。
2. 定时控制定时控制是指设计好特定时间点的智能控制，比如说，特定时间点自动启动加湿器、空气净化器等，提高室内空气质量。
基于ZIGBEE的智能家居系统的设计
几种 无线通信 技术 ， 往往 比较复 杂 ， 不但 消耗资 源很多 ， 而且 成本也 不低 ， 不太适合 应用在短 距离无 线通信 的场
合 。本 文介绍 了一种复杂 度、成本和功耗都 很低 的低速 率短距 离无线技术—— Ｚｇ ｅｔ。 ｉｂ ｅｌ １
本协议 引入能量 量 化变量 ： 一级能 量量 化值 ； Ｅ１， Ｅ２ 二级 能量量 化值 。其 中网络 中除协调器 外 ， ， 其它 节 点 均设 有 能量量 化变 量 。
（ 动 技 与 用 ２１年 Ｏ 第ｌ期 （ 化 术 应 》０１ 第３卷 １ 自
计 算 机 应 用
Ｃｏｍｐ ｔ ｒＡｐ ｌ ａ ｉ ｓ ｕ ｅ ｐｉ ｔ ｃ ｏｎ
Байду номын сангаас
基于 Ｚ Ｅ Ｂ Ｉ Ｅ的智 能家居 系统 的设计 Ｇ
关学忠 ， 刘 鹏． 唐 磊 ， 华 斐 迁
（ 东北石油大学 ， 黑龙江 大庆 １ ３ １ ） ６ ３ ８
１ 引 言
基于GSM网络的智能家居系统设计外文文献及译稿正文
The smart home control system solutionsPart 1Intelligent home network with the network technology and communication technology continues to evolve and requirements of people living continuously improve and achieve family intelligent remote control has become an inevitable trend. Ministry of Construction and Housing Industrialization Promotion Center proposed residential area to achieve the six intelligence requirements, including safety precautions implemented automated monitoring and management: on residential fires, toxic gas leak to implement automatic alarm; anti-theft alarm system should be installed such as infrared or microwave various types of alarm detector; system should be integrated with the computer security management system network; computer system burglar alarm system can be centrally managed and controlled. However, as wireless technology immature, operating expenses of higher malpractice, intelligent home controller and the external network of wireless communications technology as leading to a low degree of market acceptance of the important factors, the characteristics of GPRS system can be a good solution to the problem. GPRS network communication business Communication Company launched a data communication service, the GPRS network coverage area, unlimited transmission distance, communication cost is relatively low transfer rate faster. This article related to intelligent systems and GPRS technology family background, analysis of its basic characteristics and their basic functions to be achieved, and on this basis was proposed the overall intelligent control system solutions based on GPRS wireless communication service. At last, the core GPRS chip system software and hardware realization.Overall system architecture The popularity of network applications and the production of a variety of information appliances are made within the family visit on the Internet, no longer limited to a single PC, each family will be faced with how to transfer Internet data within the family and how the various appliances problems connecting, based on this, intelligent home networks come into being. Intelligent home network is the basic unit of information society. The future of the family, all kinds of appliances will form a home LAN and Internet access through the smart home controller. Intelligent home network market potential is considerable, several large manufacturers Intel, IBM, Microsoft and Sony are already involved in them.Intelligent home network that is in a home in a communications network, the various appliances connected together, to achieve all the intelligent home network appliances for remote access and control, and any request for information exchange, such as music, television or data. Intelligent home network architecture, including within the family network system, intelligent home controller and the intelligent home network and external Internet networks of data communications. Among them, the smart home smart home network controller is an integral part of the core to play the management, control and communications role with the external network. It is the management platform and home through the family life of the combination of the various subsystems of a system is to connect the family intelligence network inside and outside the physical interfaces, complete with external communication networks within the family, the data exchange between functions, but also for families equipment management and control.Smart home controller on the one hand the need for cabling to provide communication interface within the family, to collect information on household equipment, and processing, automatic control and regulation; other smart home controller as a home gateway, to provide for external network interfaces, connectivity within the family network and external Internet networks, so users can access the home network, internal network, to achieve monitoring and control. In addition, smart home controller should also be equipped with automatic alarm and other functions, that is, when found, such as alarm signal: it was a malicious intrusion, high temperature, etc., the controller can be dealt with immediately send alarm signals to the user.ARM embedded system design can be used to automatically run, processing of data, management and control through the RS485 bus, the control terminal. And the controller through the GPRS module to achieve the family system and the external network communications, so users can SMS and the Internet, etc. to achieve the family system, remote control, while the controller through the keyboard and display for the user interface, easy users to achieve local control. Control terminal for the SCM control system composed of a number of small control various home appliances, and by controlling the bus, the control system composed of these small networks, connected to the smart home controller, by the smart home controller.Specific smart home controller features include: Household equipment data collection: Collection of household equipment, including indoor temperature, lighting appliances, security doors and other equipment of the state data, processed by the controller feedback to the user.Local control: the user through the controller keyboard and display, for home monitoring equipment.Remote Control: Remote users can send text messages or via the Internet on the family system to control and query.Automatic alarm: when the controller detects high temperature, such as illegal intrusion or alarm signal, triggering indoor alarm in time and send alert messages by means of promptly notify the user.Temperature check: the user can check the room temperature by the controller. Security door password settings: local or remote user can modify the password security door; enter the correct password at the door before they can open the door.Infrared Appliance Control: receiving user commands via infrared transmitter control TV, air conditioning and other infrared controlled appliances.Other lamps and so on-off control: receiving user commands control the amount of lighting and other switching equipment.Smart home controller through GPRS module, to achieve the family system and the external network communication as a central part of the smart home system to solve the bottleneck before the key technology. GPRS (General Packet Radio Service) is short, the existing GSM system is to add a new GGSN (Gateway Support Node) and SGSN (Service Support Node) node developed a new packet data bearer services. GPRS with the existing GSM system the most fundamental difference is, GPRS is a packet switching system, particularly suitable for intermittent, sudden or frequent, small amounts of data transfer, but also to the occasional large data transfers. The main advantage of GPRS network transmissions are: always online, according to traffic accounting, quick log on, high-speed transmission, within a restricted range (transmission distance, terrain, weather, etc.), and data transmission reliability.Part 21. IntroductionThe booming Internet has broadened the traditional concept of smart consumer appliances. Originally, smart consumer appliances are just stand-alone devices that have the control program running by themselves. Due to hardware limitations, these appliances can only implement somesimple control algorithms that can at most achieve local optimal control effects. Nowadays more and more consumer appliances have the capabilities to benter connected by many kinds of communication media such as phone lines, utility lines, and wireless technology, and even can be connected to the Internet. This trend of development brings promising prospects to future home appliances that will not only let users maintain, monitor, and control appliances more easily and conveniently, but also will make the long-time expected remote-controlled home appliances feasible.A remote-controllable home appliance can be considered as a slave device to the remote controller that resides in far end and has powerful mainframe running advanced control algorithms. The appliance runs its own control program while at the same time can receive control commands, configuration parameters or even updated control algorithms from there mote controller to achieve optimal control effect in the global level. In order to meet this challenge, a new architecture for smart consumer appliances systems needs to be proposed.On the other hand, Hardware implementation of control systems will be one of important issues in the development of smart consumer electronics. For simple applications, such as smart toys, microwaves, and washing machines, simple control algorithms can be used and implemented on a single chip that may cost very little. However, for more complex problems, such as smart heating, ventilation, and air conditioning (WAC) for individual houses or office buildings, advanced control methods must be utilized and implemented with sophisticated hardware that would cost significantly more than the conventional controllers. For example, an intelligent PLC (programmable logic controller) for energy efficient and waving temperature control may cost several times more than a household air conditioning unit. This might be justified for some industrial applications but obviously not acceptable for average individual customers. Therefore, to make smart consumer electronics marketable for this type of applications, innovative approach for implementation must be established to reduce the cost to a level acceptable to average customers.In the following sections, the architecture of intelligent control systems for consumer appliances via Internet is briefly presented, and then a network-based memos-fuzzy implementation is described. 2. Architecture of Networked AppliancesFigure shows two versions of architecture for networked appliances. Both architectures can be seen composed of two different types of functional devices: home-based appliances, and remote controllers. The remote controllers in both architectures play the same role as: a) running advanced control algorithms and issue control commands; b) monitoring the running status of appliances.The difference between these two architectures is on the home side. In architecture (I), home appliances must first connect to Home Control System, which functions in part as a common gateway to the Internet for all appliances. This architecture is suitable for current implementation because networked appliance is still in its early stage of development; they are still lack of standard software and hardware interfaces to the Internet. Besides, the data exchange between home appliances and remote controller at current stage are limited, therefore the utility lines and phone lines are enough for transmitting simple control signals. Architecture (II) is the choice for future development while all home appliances have direct access to the Internet. In this case, large amounts of real-time data from home appliances can be fed back to remote controller as the control input through Internet, and control output, which could vary from simple control parameters or set values to updated algorithms, can also be downloaded to the corresponding appliances.The architectures proposed here have their origins in Distributed Control Systems (DCS), which is widely used in industrial automation and proved to be mature and reliable. From topologypoint of view, the networked appliances systems and DCS are similar, and those functional devices in networked appliances systems can also find their counterpart in DCS. But a significant difference lies in the fact that DCS uses proprietary communication protocols in a local area network for data exchange, thus it is not an open architecture that makes devices from different vendors very difficult, if it’s not impossible to be interconnected, while networked appliances systems rely on the Internet that uses TCP/IP, the de facto protocol for network communication, so any appliances that is TCP/IP compatible can be easily interconnected and communicate with other appliances that are already on the net.3. ConclusionThis paper presents architecture of the intelligent control systems for consumer appliances by applying the idea of Distributed Control Systems (DCS) to the home environment, and a network-based neuron-fuzzy implementation of this architecture. The basic idea of this implementation is to use simple and reliable in-system programmable devices for on-line field control execution with fuzzy logic, and communication networks and computers for off-line learning and optimization through neural networks. An ongoing research project in consumer electronics is to implement this architecture to the network- based intelligent control of smart heating and air-conditioning systems, which could lead to significant saving in energy and reduction in pollution.家庭智能控制系统解决方案第一部分随着网络技术和通信技术的智能家庭网络的不断发展和生活水平不断提高，实现家庭智能远程控制已成为必然趋势人的要求。
设计智能家居系统,让生活更智能化!(英文中文双语版优质文档)
设计智能家居系统，让生活更智能化！（英文中文双语版优质文档）As an important application field of the Internet of Things, the smart home system is getting more and more attention. The system can connect various smart home appliances, sensors, network communication and other equipment, and realize remote control and intelligent management through the Internet. This article will introduce the design and implementation of a smart home system.1. Basic structure of smart home systemThe basic structure of a smart home system includes three parts: hardware devices, cloud platform, and mobile applications. Hardware devices are the entities of the smart home system, including various sensors, controllers, and smart home appliances. The cloud platform is the core of the smart home system, responsible for processing data, controlling equipment, managing users and other tasks. A mobile application is the user interface of a smart home system that allows users to control the smart home system from a smartphone or tablet.2. Selection and connection of hardware equipmentAmong the hardware devices of the smart home system, various sensors are the most important. Sensors can collect data such as indoor temperature, humidity, smog, and carbon dioxide, which can help users understand the state of the home environment and take timely measures. In addition, smart home appliances are also an important part of the smart home system, which can realize automatic management through remote control.For the selection of hardware devices, factors such as device functions, reliability, and compatibility need to be considered. When connecting hardware devices, technologies such as wireless network and Bluetooth can be used to connect each device to a local area network.3. Design and implementation of cloud platformThe cloud platform is the core of the smart home system, it can process data, control equipment, manage users and other tasks. When designing a cloud platform, the following aspects need to be considered:1. Data storage and processingThe cloud platform needs to process a large amount of data, including data collected by sensors, device status, user information, etc. In order to ensure data security and stability, the cloud platform needs to use reliable database and data processing technologies, such as NoSQL database, distributed storage and other technologies.2. Device Control and ManagementThe cloud platform needs to control and manage the equipment, which can be realized through remote control and scheduled tasks. At the same time, the cloud platform needs to monitor the equipment status, detect equipment failures in time and take measures.3. User management and authorizationThe cloud platform needs to manage and authorize users, and different user permissions can be set to ensure the security and stability of the system.4. Design and implementation of mobile applicationsA mobile application is the user interface of a smart home system that allows users to control the smart home system from a smartphone or tablet. When designing a mobile application, there are several aspects to consider:1. User interface designThe user interface of the mobile application needs to be concise, clear, and easy to use. It can adopt a graphical interface and intuitive operation mode, so that users can quickly grasp the usage method of the system.2. Functional designMobile applications need to provide rich functions, including device control, data monitoring, device status query, alarm reminder and other functions. At the same time, it should provide users with customizable functions, allowing users to set up according to their own needs.3. Data interaction and communicationMobile applications need to perform data interaction and communication with the cloud platform, which can be realized through API interfaces, message queues, etc. At the same time, the security and stability of data should be guaranteed to avoid data loss or tampering.5. Security and Privacy ProtectionThe smart home system needs to ensure data security and privacy protection, and the following measures can be adopted:1. Data encryption and authenticationFor the transmitted data, encryption and authentication technologies are required to ensure the security and reliability of data transmission.2. User rights managementThe smart home system needs to manage the rights of users to ensure that only authorized users can operate the system.3. Protection against attacks and intrusionsSmart home systems need to adopt security measures such as firewalls and anti-virus software to prevent malicious attacks and intrusions.4. Privacy ProtectionSmart home systems need to adopt privacy protection technology to protect users' private information from being leaked or abused.6. SummaryAs an important application field of the Internet of Things, the smart home system can bring convenience and comfort to people's lives. When designing and implementing a smart home system, it is necessary to consider the selection and connection of hardware devices, the design and implementation of cloud platforms, the design and implementation of mobile applications, security and privacy protection, etc. Only by fully considering all aspects can we design a safe, reliable, and easy-to-use smart home system that will bring more convenience and comfort to people's lives.智能家居系统作为物联网的一个重要应用领域，正在得到越来越多的关注。
基于Zigbee的智能家居环境监测系统的设计 毕业论文
智能家居监测系统的设计Design of The Intelligent Home Furnishing Mornitorning System毕业设计成绩单毕业设计任务书毕业设计开题报告摘要随着嵌入式计算、传感器、无线通信等技术的飞速发展，无线传感网被广泛应用于环境监测、军事国防和工农业控制等诸多领域，已成为电子信息技术发展的一个热点。
CC2530是TI公司针对Zigbee的无线传感网芯片解决方案，具有功耗低，可靠性高，组网简单等优势。
基于CC2530和Zigbee协议，设计了温湿度数据采集系统。
在干扰环境下测试表明，网络具有较强的鲁棒性和自组能力。
本课题主要介绍基于CC2530为核心的家庭环境监测系统的硬件电路设计和软件流程设计，实现了在家庭环境中对温度、湿度、烟雾的监测。
将温度、湿度的信息量经过单片机处理后通过无线发送给上位机。
本设计使用Zigbee无线网络协议，将系统参数传输及控制，可与上位机实时通讯和监控。
关键词：CC2530 传感器Zigbee 环境监测ABSTRACTWith the rapid development of embedded computing, sensor, wireless communication technology, wireless sensor network is widely used in environmental monitoring, military defense, industrial and agricultural control fields, has become a hotspot in the development of electronic information technology. CC2530 is a wireless sensor network chip for Zigbee TI solution, with low power consumption, high reliability, simple networking advantages. CC2530 and based on Zigbee protocol, design the temperature and humidity data acquisition system, the software algorithm coordinator and ordinary nodes are given respectively, tested in interference environment, the network has strong robustness and self-organizing ability.This paper mainly introduces the design of hardware circuit and software flow design of family environment monitoring system based on CC2530 as the core, realizes in the home environment of temperature, humidity. Among them, the analog temperature, humidity, light sensor through the SCM processing output control action corresponding adjusting the corresponding parameters; SCM outputs corresponding protection control: instantaneous over current protection. This design uses Zigbee wireless network protocol, the system parameters of transmission and control, is also available with a PC real-time communication and monitoring.Key words: CC2530 Sensor Zigbee Environmental Monitoring目录第1章绪论 (1)1.1 本文研究背景与意义 (1)1.2 智能家居环境监测系统的特点 (1)1.3 国内外发展现状及分析 (2)1.4 典型无线网络技术介绍 (2)1.4.1 Zigbee技术 (2)1.4.2 Wi-Fi技术 (3)1.4.3 蓝牙技术 (3)1.5.1 本文主要研究内容 (3)1.5.2 本文主要研究创新点 (4)第2章Zigbee技术综述 (5)2.1 Zigbee技术介绍 (5)2.2 Zigbee技术的特点 (6)2.3 Zigbee网络设备组成和网络结构 (6)2.4 Zigbee协议分析 (7)2.4.1 网络层(NWK) (7)2.4.2 应用层(APP) (8)第3章家居环境监测系统方案 (11)3.1 系统结构 (11)3.2 系统功能定义 (12)3.3 系统设计要求 (12)第4章家居环境监测系统硬件设计 (14)4.1 系统电源电路 (14)4.2 Zigbee芯片CC2530 (15)4.3 家居环境参数采集模块 (15)4.3.1 数字温湿度传感器DHT11 (15)4.3.2 烟雾传感器MQ-2 (16)4.4 CC2530通讯 (17)4.5 LCD液晶显示模块 (18)第5章系统软件设计 (19)5.1 Zigbee无线通讯协议 (19)5.2 温湿度传感器程序 (20)5.3 烟雾传感器程序 (20)第6章系统性能测试与评述 (21)6.1 硬件测试 (21)6.2 软件测试 (21)第7章结论与展望 (22)7.1 结论 (22)7.2 展望 (22)总结 (23)参考文献 (24)致谢 (25)附录 (26)附录A 外文文献 (26)附录B 中文翻译 (34)附录C 程序 (39)第1章绪论1.1 本文研究背景与意义千百年来，人类都在关注着自身的生活和居住条件，并努力改善和提高之。
基于Zigbee无线网络智能家居系统的设计
基于Zigbee无线网络智能家居系统的设计随着科技的不断发展，智能家居系统已经成为了人们生活中不可或缺的一部分。
它不仅能够提高家居的舒适度和便利性，还能够带来更好的节能效果和安全保障。
而基于Zigbee无线网络的智能家居系统则是其中的一种常见设计方案之一。
本文将重点介绍基于Zigbee无线网络的智能家居系统的设计内容和相关技术细节。
1. Zigbee无线网络技术概述Zigbee是一种基于IEEE 802.15.4标准的无线网络通信技术，它采用了低功耗、低数据速率、短距离通信和自组织网络等特点，适用于各种低功耗、低速率的无线传感器和控制网络。
在智能家居系统中，Zigbee无线网络技术常用于连接各种智能设备，实现设备之间的通信和控制。
基于Zigbee无线网络的智能家居系统设计原理主要包括传感器节点、通信网关和智能控制中心三个主要组成部分。
传感器节点主要负责采集环境信息，例如温度、湿度、光照等数据；通信网关负责将传感器节点采集到的数据上传到智能控制中心；智能控制中心则负责对接收到的数据进行分析判断，并实现对智能设备的远程控制。
（1）传感器节点设计：传感器节点是整个智能家居系统中最基础的组件，它主要用于采集环境信息。
在设计传感器节点时，需要考虑传感器种类的选择、传感器节点的功耗控制、数据采集的准确性和稳定性等方面的要点。
（3）智能控制中心设计：智能控制中心是整个智能家居系统的核心部分，它负责对传感器节点采集到的数据进行分析判断，并实现对智能设备的远程控制。
在设计智能控制中心时，需要考虑数据处理的速度和准确性、远程控制的安全性、用户界面设计等方面的要点。
下面以一个基于Zigbee无线网络的智能家居系统设计案例进行分享，来展示该系统的设计和应用。
（1）传感器节点设计：选用低功耗的温湿度传感器和光照传感器，并通过Zigbee模块实现与通信网关的连接。
传感器节点由AA电池供电，具有较低的功耗。
（2）通信网关设计：采用Zigbee通信模块和Wi-Fi模块实现与智能控制中心的连接，通过Zigbee模块与传感器节点通信，通过Wi-Fi模块实现与智能控制中心的远程连接。
基于Zigbee技术外文翻译(英汉对照)
集成低功耗无线传感器网络通信系统的设计摘要无线传感器网络系统目前在国际社会关键应用在贸易，医疗保健和安全方面。
这些系统具有独特的特点和面临的许多实施的挑战。
在所有系统中，长寿命的要求是对无线传感器节点能源供应施加的最严重的设计约束。
这就需要创新的设计方法来解决这一严格的要求。
本文首先提供了无线传感器网络技术的概述。
然后介绍了通信系统，电路设计和系统包装的考虑。
在无线电架构和电路技术的选择是重点讨论了关于低功耗的实施和经营特色相匹配的传感器网络应用需求。
最后，设计，实施和最具挑战性的组成部分，一个完整的低功耗CMOS接收系统，提出证明这些设计原则。
简介一个无线传感器网络由自组织无线通信系统相连密集分布的节点。
传感器节点架构包括传感，信号处理，嵌入式计算和无线网络组件。
每个节点可配备多种应用程序特定的传感器和节点信号所需的物理环境信息的提取处理系统。
相邻节点之间的合作可能有助于信号处理的敏感性和特异性环境事件检测。
通过节能高效的无线通讯，局部处理的信息（需要大大减少数据未处理的传感器有效载荷的数据传输带宽）可传达给用户。
低功耗是最重要的，以便为无线传感器网络的长期工作寿命。
虽然这是促进了低工作周期操作，本地信号处理，多跳网络节点间的部分也可以引进，以减少传感器网络中的每个节点的通信链路的范围。
由于通信路径作为一个尺度范围内的损失功法（有4或更大权力的规则在许多应用中指数），这在连接范围大幅度减少导致电力需求减少。
与传统远程无线系统的特点相比，减少的范围和数据链路带宽产量为典型的无线传感器应用的一个重要的链路预算的优势。
然而，极为有限的能源为无线感应器（小型电池系统）建立更强的设计挑战。
随着低成本的要求，这些极大地激发了新的基于低功耗无线通信系统和传感器应用优化技术的有利互补金属氧化物半导体（CMOS）电路技术的发展。
在下面的章节中，我们将介绍基于无线传感器网络的无线通信系统和电路设计。
无线技术不同的电路设计要求大大不同无线通信技术。
基于Zigbee技术的智能家居系统设计
文章编号：1006-1576（2008）03-0080-02基于Zigbee技术的智能家居系统设计戴敏，陈波（西南科技大学计算机科学与技术学院，四川绵阳 621010）摘要：采用Zigbee技术实现智能家庭的无线传输。
其无线收发模块射频芯片使用CC2420，并以单片机PIC18LF4620作为微控制器。
该微控制器通过SPI总线和一些离散控制信号与RF收发器通信。
控制器（PIC18LF4620）充当SPI主器件而RF收发器充当从器件。
控制器还实现了IEEE802.15.4MAC层和Zigbee协议层，并使用SPI总线和RF收发器交互。
关键词：Zigbee；无线通信；智能家居中图分类号：TP393.02; TN914.4 文献标识码：ADesign for Smart Home System Based on ZigbeeDAI Min, CHEN Bo(School of Computer Science & Technology, Southwest University of Science & Technology, Mianyang 621010, China) Abstract: Adopt Zigbee to realize the wireless communication of smart home system. Its transceiver module adopts CC2420 as the radio frequency chip. The system uses singlechip PIC18LF4620 as micro controller, which communicates with RF transceiver based on SPI bus and some disperse control signal. Adopt controller (PIC18LF4620) as the SPI master part and RF transceiver as servant part. The controller realizes the IEEE802.15.4MAC layer and Zigbee protocol layer and uses SPI bus to communicate with RF transceiver.Keywords: Zigbee; Wireless communication; Smart home0 引言家庭网络已成为互联网中重要的组成部分。
