ZGB系列渣浆泵说明书样本
渣浆泵
操作第三讲碱渣泵各位大家好，这次我们要用4个小时的时间来学习碱渣泵。
今天我们既然是来学习的，学习是不是要有一个非常好的状态？一个好的学习状态对我们的学习效果是不是有帮助呢。
大家请看，在韩国LG公司。
（省略500字）。
今天这一堂课的主角不是我，而是在座的每一位，我希望在座的每一位都做一个积极的参与者，而不是做一个旁观者。
今天我在这里，不是让大家来看我讲了多少，讲得多好，而是我讲的内容，你收获了多少，哪一点对你帮助最大。
我也希望在我讲课的过程中，大家能积极的回应我，如果我提问题，所有人都跟木头人一样看着我，那我就不知道你们到底有没有收获，所以希望等一下在我讲课的过程中，大家能多多配合。
好吗？那为了让大家更好的进入状态，我先和大家做一个游戏。
请各位把双手伸出来，我喊123，当我喊到3的时候各位把双手合拢。
听我口令（游戏。
）当我喊到几的时候各位把双手合拢锁紧？为什么我刚刚喊到2的时候，各位就把双手合拢了呢？很简单，因为看到我把手合起来了，所以大家也把手合起来了，是不是？我想跟大家分享一个结论，在沟通过程中大家首先要学会聆听，刚刚我跟大家说听我口令，有没有说看我动作？没有，所以证明大家还没有学会聆听。
我们在座的各位以后在工作中经常要跟领导沟通，同时要跟同事沟通，跟徒弟沟通，所以我们在沟通过程中首先要学会聆听。
可能在我们聆听的过程中会有很多因素在干扰着我们，但是我们不能因为受到干扰而不注意聆听。
我们今天讲课也是一个沟通，所以我们各位今天什么都可以不带，但是至少要带一个器官过来，是什么？对，是耳朵，那刚刚大家的聆听成功了没有？没有，我跟大家的沟通有没有成功？没有，那再来一次，大家有没有信心跟我沟通成功？、、、、、、大家说有还是没有？这个可以有！非常好！沟通成功，听我口令（游戏。
）非常好！大家合起来双手之后先不要动，让我们把双手交叉起来。
看看你们的双手交叉起来之后，是左手大拇指在右手大拇指上边，还是右手大拇指在左手大拇指上边，看完了就先把双手放下来。
渣浆泵说明书
目录一、概述 (2)二、特点 (2)三、型号和表示方法 (3)四、工作原理 (3)五、结构说明 (3)六、装配和拆卸 (4)七、设备安装 (5)八、运转 (6)九、维护保养 (7)十、故障分析 (9)附录1（耐磨材料选择表）附录2（密封型式选择表）附录3（泵传动方式选择）一、概述1、本系列渣浆泵系高效节能、单级、单吸、悬臂式离心泵，用来输送含有固体颗粒的磨蚀性或腐蚀性浆体。
广泛用电力、矿山、冶金、煤炭、建材、化工、食品、水利及污水处理等行业。
其固液混合体的最大重量浓度：灰浆为45%，矿浆为60%。
2、本系列泵有50多个基本型号，通过变速可获得300多种性能供用户选择。
3、过流部件材质应根据输送浆体的物理（颗粒组成、粒径、形状、硬度、浓度）和化学（酸、碱、油）特性而定。
（各种材质及特点可通过附录1查得）4、泵的传动方式有直联传动和皮带传动两种形式，共分为DC、HC、CR、CL、ZV、CV等多种方式。
（详见附录3）从原动机方向看，泵为顺时针方向旋转。
二、特点针对渣浆泵的三大技术难题：寿命短、密封难、能耗大，我厂通过技术攻关设计制造了独具特点的ZJA及ZJLA系列两相流渣浆泵。
由于两相流渣浆泵的水利设计充分考虑了固液流场的运动情况，所以在渣浆输送时能保持良好的性能。
其技术特点如下：（1）高效节能：一般的杂质泵输送浆体时，其效率总是下降的，而且浓度越高，粒径越大，降低的幅度也越大。
而二相流渣浆泵输送浆体时，其效率一般高于清水。
这是因为泵的水力设计是以固液二相流场设计的，对清水和渣浆的输送来讲，更适应渣浆的输送。
这一降一升，二相流泵的运行效率提高了3~10%。
所以二相流泵具有新的能量转换规律。
（2）耐磨蚀、使用寿命延长：一般杂质泵输送浆体时，固体发生的主要是撞击磨损，水泵的汽蚀性能随着流量的加大而恶化。
而二相流渣浆泵的流道设计符合固体流场的变化规律，固体沿着叶轮型线运动，叶轮发生的主要是磨擦磨损，泵的汽蚀性能随着流量的加大变化比较平稳，所以二相流泵具有新的磨损规律。
渣浆泵 规格型号：80ZGB
543
付叶轮A05
KmTBCr26
32
件
1317
减压盖A05
KmTBCr26
42
件
1728
固定板
２０
0.32
件
9
泵盖螺柱
４５
6.2
件
153
托架体
ＨＴ２００
329
件
3876
托架盖
ＨＴ２００
81.6
件
924
防尘盘
ＨＴ２００
5
件
105
前轴承压盖
ＨＴ１５０
7.77
件
121
甩油盘
ＨＴ１５０
9.52
件
147
油圈
Ａ３．Ａ３Ｆ
1.3
件
33
调整螺母甲
４５
10.56
件
195
调整孔盖
ＨＴ１５０
1.47
件
33
后轴承压盖
ＨＴ１５０
14.9
件
243
调整螺母乙
４５
8.32
件
195
垫圈
ＨＴ１５０
3.8
件
88
长套
ＨＴ２００
2.8
件
65
水冷压盖
ＨＴ１５０
6.39
件
99
进油垫圈
ＨＴ１５０
2.73
件
42
拆卸垫圈
Ａ３．ＡＦ
8.01
件
147
HT200
157
件
2027
叶轮A05D=485（标准）
KmTBCr26
82
件
3698
护套A05
KmTBCr26
ZGB中文说明书
（6） 在泵的吸入管处装一段可拆卸的短管或伸缩节， 其长度应足以拆开 泵盖和更换易损件， 以便于泵的检修。
（7） 对于副叶轮加填料组合式密封， 应检查填料处泄漏量： 起动前， 先 打开轴封水， 如果泄漏量过大， 应拧紧填料压盖螺母， 直至泄漏呈点滴状为 止。 开泵后， 如果泄漏量不大， 且填料发热， 可适当松开压盖螺母； 如果填 料仍继续发热， 则停泵， 使之冷却， 调整压盖螺母， 放松填料， 使泄漏量稍 增大， 重新开泵， 待填料与轴套跑合后， 再调整压盖螺母， 减少泄漏量。
1.前护板 2.叶轮 3.护套 4.托架体 5.轴 6.调整螺母乙 7.调整螺母甲 8.调整孔盖 9.减压盖 10.副叶轮 11.后护板 12.泵体 13.泵盖 图 1 SPH 型渣浆泵结构图
1.前护板 2.叶轮 3.护套 4.托架体 5.轴 6.机械密封 7.密封箱 8.后护板 9.泵体 10.泵盖 图 2 SPHP 型渣浆泵结构图
（8） 对于机械密封， 在泵起动前， 应检查机械密封是否安装正确： 将机 械密封的接口连通轴封水管路 （新安装的轴封水管路应事先将残存在管路内 的焊渣、 泥沙等杂物清理或清洗干净）， 起动轴封泵， 打开轴封水管路阀门， 人工转动泵轴， 如有滴漏现象说明密封端有脏物存在， 应将压盖螺栓松开， 用清洁水冲洗后， 再将压盖压紧。 检查无泄漏， 表明安装正确。
净外， 还应将密封腔端面及内孔壁、 轴和轴套表面擦洗干净， 检查有无毛 刺、 损伤等， 并及时作处理。 特别是机械密封动、 静环密封端面应用脱脂棉 或档次较高的卫生纸仔细擦洗干净,确保无划伤或擦伤,并在其上涂一层清洁
—4—
的机油， 保证密封端面在安装贴合之前高度洁净， 否则将会影响密封效果。 机械密封零件是精密机件， 装配时严禁强行敲打。 特别是动、 静环密封
渣浆泵操作
渣浆泵操作、维护、检修规程1渣浆泵操作规程1.1渣浆泵规格与技术参数1.1.1渣浆泵1.1.1.1型号12/10X-AH12 ――进口直径12英寸10 ――出口直径10英寸X ——x型托架HA ------- AH型泵（低杨程重型渣浆泵）100ZGB100 ——进口、出口100mmZ ――渣浆泵G 咼扬程B ------- 系列代号150ZGB150 ——进口、出口150mmZ ――渣浆泵G 咼扬程B ------- 系列代号1.2技术操作规程1.2.1开车前准备工作1.2.1.1用电源牌换取操作牌，操作者必须手持操作牌1.2.1.2检查泵体、电机、底座及联接部位螺丝是否松动和欠缺。
1.2.1.3 检查供电设备是否完好。
1.2.1.4 盘车以检查泵及电动机内有无不正常的现象。
1.2.1.5 打开出水管排气阀，灌泵，满足泵入口处形成必须的真空值。
1.2.1.6 检查各管道是否堵塞，泵池注入1/2 以上矿浆。
1.2.1.7 注意机械传动部位周围有无人和障碍物。
各方面准备完毕方可开车，并上报集控室。
1.2.2开车顺序：启动精磁选一启动高频细筛一启动二段1#泵(2# )-启动二磁选—启动二段球磨机—启动脱水磁选—启动一磁选—启动旋流器—启动一段泵f启动一段球磨f启动原矿皮带。
1.2.3停车顺序：停车与开车顺序相反。
1.2.4停车前一定先停止给矿，加清水冲洗，停车后放干矿池。
1.2.2技术操作规程1.2.2.1检查各个仪表工作是否正常，稳定。
1.2.2.2检查出水量与给矿量是否平衡，是否池内有沉积。
1.2.2.3检查填料箱处是否发热，滴水是否正常，滴水应呈滴状连续渗出。
1.2.2.4检查泵与电机的轴承和机壳温升，轴承温升一般不得超过周围温度35C,最高不过65C。
1.2.2.5注意油环，要让它自由地随同泵轴作不同步的转动，随时听机组声音是否正常。
1.2.2.6泵启动前要先开通冷却水，冷却水压力要比泵工作压力高出O.IMPa以上。

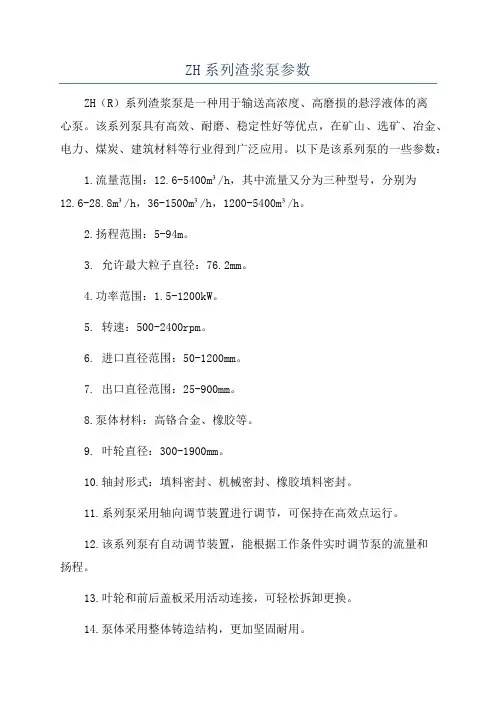

ZH系列渣浆泵参数
ZH系列渣浆泵参数ZH（R）系列渣浆泵是一种用于输送高浓度、高磨损的悬浮液体的离心泵。
该系列泵具有高效、耐磨、稳定性好等优点，在矿山、选矿、冶金、电力、煤炭、建筑材料等行业得到广泛应用。
以下是该系列泵的一些参数：1.流量范围：12.6-5400m³/h，其中流量又分为三种型号，分别为12.6-28.8m³/h，36-1500m³/h，1200-5400m³/h。
2.扬程范围：5-94m。
3. 允许最大粒子直径：76.2mm。
4.功率范围：1.5-1200kW。
5. 转速：500-2400rpm。
6. 进口直径范围：50-1200mm。
7. 出口直径范围：25-900mm。
8.泵体材料：高铬合金、橡胶等。
9. 叶轮直径：300-1900mm。
10.轴封形式：填料密封、机械密封、橡胶填料密封。
11.系列泵采用轴向调节装置进行调节，可保持在高效点运行。
12.该系列泵有自动调节装置，能根据工作条件实时调节泵的流量和扬程。
13.叶轮和前后盖板采用活动连接，可轻松拆卸更换。
14.泵体采用整体铸造结构，更加坚固耐用。
15.泵的进、出口均可根据使用要求进行360度旋转。
16.泵轴采用多段结构，可避免由于过大的泵轴造成的挠曲和震动。
17.该系列泵可根据用户需求配备不同材质的叶轮，适应不同工况。
18.电机配备了过载保护装置，可以有效预防电机过载。
以上仅为ZH（R）系列渣浆泵的一些参数，该系列泵还有更多的技术参数和特点。
这些参数和特点决定了其适用于输送高浓度、高磨损的悬浮液体，并确保了其高效、稳定的工作性能。
M、AH、HH、G型渣浆泵、砂砾泵装配与拆卸说明及安装使用说明
M AH HH型渣浆泵使用、装配和维护说明书2013年01月版安全须知（一）泵是一种即承压又传动的机器，在安装、操作和维修前及安装操作和维修期间，必须遵守所规定的安全措施。
辅机（如电机、皮带传动装置、联轴器、高速箱、无级变速装置等等）也要遵守这项安全措施，并在安装、操作和维修前参考有关规程。
（二）装皮带或联轴器之前，必须检查转动方向，因为不正确的转动方向将使泵在运转中损坏或个别零件的损坏。
（三）未经专门人员许可，不得使泵超出原来销售时规定的工况运转，否则将导致设备或人身事故。
（四）泵不可在较低或零流量点或在其他可能引起泵送介质汽化的情况下运转，否则将因为压力巨增而可能造成设备人身事故。
（五）维修或泵送期间，内部真空的泵必须隔离，如果不能完好隔离，可能使叶轮变为“飞轮”，从而造成设备和人身事故。
注释应备有包括液池、泵送管路、阀门、控制装置等等在内的系列安装图，以免错装给泵带来不利影响M、AH、HH型渣浆泵使用、装配和使用说明书目录第一节：1、泵规格型号代号说明32、泵装配33、基础34、泵轴（与电机轴）对中35、管道36、启动47、维修5&备件79、润滑脂710、建议米用的润滑脂量和润滑周期8第二节：轴承装配说明B、C、D、E、F和G型托架9—14第三节：轴承装配说明R、Rs、S、ST、T 和Tu 型托架15—18第四节：轴承组件试验说明书19第五节：托架装配说明书20第八节：泵头的组装说明书21 —36第七节：叶轮间隙的调整37第八节：泵的拆卸38附表1：泵的基本零件号39附表2：装泵工具目录41第一节使用说明1、泵规格型号代号说明每台沃曼泵都有一个铭牌，钉在托架上，铭牌上印有泵规格号，泵的规格号由数字和字母组成，并排列如下：数字数字字母字母(a)(b) ( c) ( d)(a) 、吸入口直径，以英寸表示，女口1.5、2.4、10、20、36等等。
(b) 、吐出口直径，也以英寸表示，如1、1.5、3、8、18、36等等。
ZGB系列耐磨渣浆泵
63.2 72.7 76.3 63.2 73.7 76.3 64.1 77 78.2 64.1 77 78.2 64.1 77 78.2 64.1 77 78.2
219.1 310.5 342.9 94.3 134.3 147.5 137.9 247.7 278.8 59.4 106.4 120.1 233.2 315.9 356.7 100.5 136.1 153.1
100ZGB(P )-500
1480
100ZGB(P )-500 150GB(P) -630 150GB(P) -685 150GB(P) -630 150GB(P) -685
980
980
980
740
740
0.6 0.9 1.6 1.3 1.7 1.9 2.7
150GB(P) -740
601.2 720
355 560 160 200 220 400 450
Y4006/6KV Y4506/6KV Y315M2-8 Y355L2-8 Y4008/6KV Y4006/6KV Y4506/6KV
200GB(P) -740
740
1254.96 357.84 250GB(P) 789.84 -645 987.52 681.12 250GB(P) 1135.08 -700 1362.24 514.44 250GB(P) -700 857.16 1028.52
24.7 23.9 74.4 71.4 68.9 32.6 31.3 30.2 91.8 88.2 85.1 40.3 38.7 37.3 65.2 63.4 61.8 77.1 75 73 37.2 36.1 35.2 44 42.8 41.6 90 87.5 85.2 51.3 49.9 48.6 70.5 69.9 66.6 40.2 39.9 38 84.3 83.4 79.6 48.1 47.6 45.4
渣浆泵使用说明书英文版
CONTENTSⅠUSES AND SCOPE OF APPLICATION (1)ⅡPATTERN、STRUCTURAL FEATURE OF PUMPS (1)ⅢSLING、INSTALLATION、ADJUSTMENT AND TEST RUN OF PUMPS (4)ⅣCOMMON FAILURE AND HANDING MEASURE (11)ⅤMAINTENANCE AND DISMOUNTING OF PUMPS (15)ⅥLIST OF QUICK-WEAR PARTS (20)ATTENTION1. The direction of motor must keep consistent with arrow on the Front casing. Before testing running the motor, the motor must be separated from pump. The shafts of Motor and pump are strictly forbidden to rotate reversely; otherwise some parts will be damaged.2. Before operating the pump, the packing must be installed.3. Before operation we must add oil (N32 summer or N46 winter) according to the oil level of oil gauge. Pump is strictly forbidden to operate without lube; otherwise bearings will be burned out.4. When equipping the belt wheel of motor, the shaft of motor should manufactured in according to drawings provided by SHIJIAZHUANG INDUSTORIAL PUMP F ACTORY if the shaft diameter is higher than 65mm so that the belt wheel operating safely.5. Please read this technical manual carefully before installation and operation.Ⅰ USES AND SCOPE OF APPLICATIONType ZJ series Slurry Pump is a new energy-saving centrifugal pump. The products are designed and developed by The Pump Technology Corporation, Hydromining Research Institute Tangshan Branch and SHIJIAZHUANG INDUSTORIAL PUMP FACTORY. They are innovative in hydraulic designs, structural designs and materials of castings after integrating congeneric products throughout the world. They have many features: high efficiency, reasonable design, reliable operation, long in service time, easy maintenance, and low running costs and so on. The ZJ series pump’s lead their domestic counterparts in various technical performances, with most of them approaching the advanced world level, and widely used for handling abrasive or corrosive slurries in power, metallurgical, mining, coal, as well as chemical industries. For example, flushing ash in power plants and pumping coal slurry in coal preparation plants. They are suitable for handlingabrasive and corrosive solids-bearing slurry with maximum concentrations of wt.45%(ash) and wt.60%(ore).Ⅱ PATTERN、STRUCTURAL FEATURE OF PUMPSThe ZJ series slurry pumps are single-stage, single-suction, axial-suction and centrifugal slurry pumps. They classified into the horizontal version (ZJ type) and the vertical version (ZJL type).1. Structural feature and type of ZJ slurry pumps(1) Structural feature of ZJ slurry pumpsPump head:It is a horizontal cantilevered slurry double-cases pump. The pump head includes cases, impeller, and shaft seal. Double-cases pump centrally split vertical spilt direction. Discharge port can be positioned at 8 different position at an interval of 45°. The outside cases made by HT200 or HT500-7, connecting with bolts. The inside cases (volute case, front liner, back liner) made by high-chrome alloy or rubber materials.Impeller front and back cover plates with back vanes to reduce leakage and increase operating life, impeller and shaft is firmly connected by ladder-shaped with disassembly ring, ”O” rubber ring is used between liner and volute casing and it is very convenient and reliable.Shaft Seal: expeller seal and packing seal.SupportThe supports can be lubricated by oil. Supports are made up with support body, support cover, shaft, bearing box, bearing, bearing cover, baffle sleeve, nut, oil seal wash plate and so on (See Figure, 1). The supports have water-cooling above 150ZJ.Figure 1Structural Drawing Of ZJ Slurry Pumps1. Coupling2. Shaft3. Bearing housing4. Disassembly ring5. Expeller6. Rear liner plate7. V olute casing 8. Impeller 9. Front liner plate10. Front casing 11.Rear casing 12. Stuffing box13. Water-seal ring 14. Base 15. Support16. Adjusting bolts 17. Inlet stub 18. Outlet stub(2) Type Designation of ZJ slurry pumpsExternal diameter of impeller after incision(cm)Diameter of impeller (cm)Number of vanes of impellerI denotes single stage pumpZJ denotes slurry pumpsOutlet diameter (mm)2. Structural feature and type of ZJL series slurry pumps(1) Structural feature of ZJL series slurry pumpsZJL series slurry pumps are made up of Impeller、V olute casing、Rear line plate、Shaft sleeve、Support、Supporting plate、Shaft、Bearing、Bearing body and so on. The materials of Impeller、V olute casing and Rear line plate is cast iron which contains high-chrome alloy. The impeller can be installed with shaft through screw thread. V olute casing、support and bearing body are connected with bolts. The driving patterns of the shaft and the motor could choose the coupling direct driven or the belt driven. The bearings of ZJL slurry pumps are lubricated by grease. Structure of the ZJL series slurry pumps (See Figure2)(2) Type and meaning of ZJL series slurry pumps80 ZJL —36External diameter of impeller (cm)Vertical version slurry pumpsOutlet diameter (mm)1. V olute casing2. Impeller3. Rear line plate4. Seal ring5. Oil seal6. Bearing7. Oil cupFigure 2 The structural drawing of ZJL series vertical slurry pumpsⅢ SLING、INSTALLATION、ADJUSTMENT AND TEST RUN OF PUMPS1. SlingWhen slinging a packed pump, we operate in accordance with marks on the packing case. The packing case shall avoid vibrating violently, overinclining, landing on the body with pointed ends and being placed upside down.When slinging an unpacked pump, we operate according as the following requirement.(1) When lifting the horizontal pump without base or with singly base, the liftgravity is on the side of support square hole that near the pump head. Wirerope pass through this place to join with lift hook. In order to keep the balance of pump, the auxiliary wirerope should be added between inlet pipeline and lifting screw. The lifting screws on support cover and casings are assembled to dismount support cover and casings. They cannot be used when lift the whole pump in case of accident. (2) When slinging the horizontal pump with motor and common base, the lift gravity is on the side of support square hole that near couplings. Wirerope pass through this place to join with lift hook. In order to keep the balance of pump, the auxiliary wirerope should be installed among inlet pipeline, lifting screws on motor and lift hook.(3) The horizontal pump units with intermediate speed-transformation, such as coupled apparatus, should be lift separately.(4) Cushion should be added between wirerope and body of pump to prevent damaging appearance of pump and cutting off wirerope.2. Installation(1) Examination before installationThe pumps have been inspected and tested before ex-factory. Pumps should be set up correctly in order to possess good operating mode. We must check up types of pumps、parameters of pumps and components and parts in accordance with Packing List before installation. We ensure that technical data and quality certificate of pump is complete. Pump can be installed after reading correlation technical data carefully, especially such as THE INSTRUCTIONS OF INSTALLATION AND APPLICATION FOR TYPE ZJ SLURRY PUMPS and mastering related technical requirements.(2) Installation and capturing of pumpThe horizontal pump units should be equipped by making use of twice grouting. The central line of pumps is consistent with the central line of foundation. The deviation between center-height of pump and design value is smaller than ±2 mm vertically and 0.1/1000 horizontally.We assure axis of pump units by adjusting couplings when pumps are drove by couplings. There are two methods.The first method is the use of knife ruler and plug gauge. We adjust outside diameter of couplings with knife ruler to guarantee alignment in every direction and the max tolerance (δ) less than 0.1 mm [See Figure3,(a)]. We examine the interval between coupling to guarantee the max tolerance △(△=δ1-δ2) smaller than 0.1mm[See Figure3, (b)]. The other method is the use of plug gauge and magnetic centigrade scale. We fix magnetic centigradescale on outside diameter of one coupling and put measuring head on outside diameter of the other coupling. The pulsation of centigrade scale should be smaller than 0.15mm [See Figure3, (c)] when turn rotor. We check up the space between couplings with plug gauge to ensure the max tolerance less than 0.1mm [See Figure3, (b)].(a) (b) (c)Figure 3 Capturing of couplingThe shaft of pump and the motor should assured the parallelism when pumps are drove by belts, so we adjust direction on the basis of pulley. When central distance is small, we can align end faces of pulley with ruler; when central distance is big, and we can adjust them by aligning end faces through span wire system [See Figure, (4)].Figure 4 Capturing of belt wheels(3) Configuration and requirement of discharge pipeline and suction pipeline According to the applied condition and the cavitation performance of pump, the arrangement of pump can be classified into exalted setting [See Figure5, (a)] and low setting [See Figure5, ( b)].(a) (b)Figure 5 Arrangement of suction pipeline and discharge pipeline①Suction pipelineDiameter of suction pipeline: diameter of suction pipeline should be equal to pump inlet or larger than it so as to avoid cavitation and deposition of slurry in pipeline. Gate valve of suction pipeline: In order to maintain easily, we should install inletgate valves whose diameter is equal to the diameter of suction pipeline. The expansion pipe should be set up between inlet of pump and suction pipeline so as to disassemble pump.②Discharge pipelineDiameter of discharge pipeline: diameter of discharge pipeline is usually bigger than outlet of pump because diameter of discharge pipeline is related to properties of slurries and sedimentation flow rate.Gate valve of discharge pipeline: Diameter of outlet gate valve is equal to diameter of discharge pipeline.Piezometer: The piezometer should be set up on the ascending pipe between outlet of pump and the first valve.③Points for configuration of pipelineThe diameter of pipeline is related to system resistance, critical sedimentation velocity of slurry etc. Before inlet of pump, one-stage pipe longer than 3 times diameter of pipeline had better be installed. The velocity of slurry is between 1.5 and 3.0 m/s, which is determined by critical sedimentation velocity of slurry.When we install suction pipe in suction arrangement we adopt pipe of varying diameter whose upper generating line is horizontal to avoid cavitation (See Figure, 6).Figure 6 Reducing pipe with horizontal upper generating lineWhen we adjust the capacity of pump with throttle, throttle should be installed on the discharge pipeline. When throttle is fixed on suction pipeline, cavity will happen easily.(4) Pipelines of water-sealing and water-coolingPacking seal will be equipped with stubs and piezometer. We must install pressure gauge on shaft seal water pipeline to adjust the pressure of shaft seal water. The setting of shaft seal water pipeline and water-cooling pipeline are seen Figure7.Shaft seal water Water-coolingFigure 7 Arrangement of shaft seal water pipelineThe pressure of shaft seal water should be computed according as the following formula.Table 1 Pressure and Capacity of shaft seal waterNote: This Table is suitable to single stage pump.When the suction pressure of pump is 0 (Pin=0), the pressure of shaft seal water is equal to the half of the pressure of pump exit (P’=1/2P out).The pressure of water-cooling is between 0.05～0.2MPa, the capacity is between 1～3 m3/h.The type of water-cooling see Table 2.Table 2 Type of Packing, water-sealing and water-cooling(5)Packing selectionAsbestos packing with mica should be often used when the working pressure of pump is less than 0.5MPa and asbestos packing with ploytetrafluoroethylene should be used when the pressure is more than 0.5 MPa. The type of packing see Table 2. The packing standard should be accord with stuffing box size, and from thedirection of shaft, joints of the adjacent packing rings included 120°.3. Adjustment of pumpWe examine and adjust pumps after assembly.(1) Adjustment of the interval between impeller and front liner (See Following)(2) Adjustment of rotation direction of motorMotor's direction of rotation must be in accordance with pump's direction of rotation. When pump operate in opposite direction, some parts will be damaged. After pumps are divorced from motors completely, we can regulate motor direction of rotation. When they are in the same direction, we attach pumps to motors. We must not start motor blindly.(3) Adjustment of transmissionWhen pumps are drove by elastic pin coupling, protective cover and pins should be set up carefully. When pumps are drove by belt, we adjust sliding track so as that every belt has the same pretightening force and install protective cover attentively. When pumps are drove by speed controllers, they are adjusted according to installation instructions.(4)All of fasteners must be reinforced again.(5) Put the tools and the lumbers aside to avoid accident, which was set on pump units4. Test run of pumpsPump sets can be tested run after adjustment. If possible, slurry can be transported after test run with clear water.(1) Starting of pump①Before starting of pump we must turn the impeller around in the stated direction in order that whether running is flexible.②Switch on shaft seal water. Adjust pressure up to specified value.③Suction valves are opened completely.④Open water-flooding valves to pour the water into pump.⑤Open the outlet valves and adjust the opening degree of valve gate to quarter.⑥Start the pump units. We turn on piezometer on discharge pipeline after speed of rotation was stable. If pressure of discharge pipeline was stable, we can open discharge valves slowly up to required working conditions.Attention:When discharge valves are opened fully, starting pumps will make motor overloaded. Opening suction valves partly will bring about cavity.(2) Notes of pumpAfter operation of pumps normally, we should examine the following①Examine whether the capacity and head of pump stable and fit for requirementof work condition.②Examine whether the electric current of motor is stable.③Examine sound、noise and vibration in pump units is normal or not.④The temperature rise of bearings is under 35℃, but the highest temperature of bearings is lower than 75℃.⑤For packing seal, should open the shaft sealing water and check whether shaft sealing water quantity and water pressure are suitable, adjust the bolts on packing gland so as to adjust packing and shaft sealing water, it is better to leak out drop by drop, if packing is very tight, heating will be produced on the bearing consuming power, if packing is very loose, amount of liquid leakage will be excessive large.(4) Shutting down①Pumping clear water on pump for 30 minutes before shutting down in order to clear any slurry through pump.②Shut off discharge valves.③Close the water of shaft seal and water-cooling.④Shut off suction valves.Attention: we must stop each stage pump at the same time when discharge valves are opened fully, lest water hammer happen and parts will be damaged.Ⅳ COMMON FAILURE AND HANDING MEASURENO.1(1) Appearance of faultyThere is no water in pipeline when pumps operated normally. The pointers of pressure gage and vacuum meter move up and down violently.(2) Analysis of reasona. There is not enough water in suction pipeline.b. Pipeline is blocked up and suction valves are not opened completely.c. There is a serious leakage of air in suction pipeline、apparatus、stuffing box etc.(3) Processing measurea. We fill water into suction pipeline.b. Open suction valves and clean plugging cement in pipeline.c. Stop a leakage of air.NO.2(1) Appearance of faultyThere is no water in pipeline when pumps operate normally. The vacuum metershows high vacuum.(2) Analysis of reasona. The suction valves are closed or stopped up.b. The resistance of pipeline is too big. Pipeline is stopped up.c. The mounting height is too high.(3) Processing measurea. Open suctions valves or clean dirt.b. We improve the suction pipeline design or clean dirt.c. We can lower mounting height.NO.3(1) Appearance of faultyThere is no water in pipeline when pumps operate normally. The pressure gages show a little pressure.(2) Analysis of reasona. The resistance of discharge pipeline is too high.b. Impellers are clogging.c. Rotation speed of pump is smaller.(3) Processing measurea. We examine and adjust discharge pipeline.b. Clean impellers.c. Improve rotation speed of pump.NO.4(1) Appearance of faultyThe pump cannot rotate normally.(2) Analysis of reasona. There are blocks in volutes.b. Outlet valve doesn't closes fully and slurry was put into pump.(3) Processing measurea. Clean dirt in volutes.b. Examine and replace valve and clean dirt.NO. 5(1) Appearance of faultyThe capacity of pump is not enough.(2) Analysis of reasona. Impeller、discharge pipeline、and suction pipeline are blocked up.b. Expellers are worn down.c. Rotation speed of pump is smaller than designed value.e. The resistance of pipeline is too high.f. Suction valves are opened partly.g. Pumps are unfit for working condition.(3) Processing measurea. Clean impellers and pipeline.b. Exchange impellers.c. Readjust rotation speed of pump motors.d. Remount pumps and reduce a leakage of air.e. Lower height of transport. Reduce resistance of pipeline.f. Open suction valves completely.g. Choose pumps again.NO.6(1) Appearance of faultyMotors are overloaded.(2) Analysis of reasona. Delivery head of pump is higher than necessary head, so value of working condition moves to the larger capacity.b. Proportion of slurry is not considered when we choose motors.(3) Processing measurea. Cut down impellers. Bring down rotation speed of pump.b. Choose motor again.NO.7(1) Appearance of faultyThere is no water in pipeline. Sound in pump is abnormal.(2) Analysis of reasona. Resistance of suction pipeline is too high.b. Height of suction is too large.c. Cavitation happens.d. Air goes into suction pipeline.e. The temperature of slurry is high.(3) Processing measurea. Clean suction pipeline and inlet gate valves.b. Bring down height of suction.c. Adjust discharge valves so as that flow of pumps goes into the prescribed limit.d. Reduce the leakage of air.e. Bring down the temperature of slurry.NO.8Pumps vibrate violently.(2) Analysis of reasona. Cavitation happens.b. Expellers are blocked up.c. The shaft of pump and the shaft of motor are not concentric.d. Fastening parts or foundation becomes flexible.(3) Processing measurea. Bring down height of installation. Lessen the resistance of suction pipeline.b. Clean the impellers.c. Readjust central line again.d. Fasten anchor nuts and reinforce ground.NO.9(1) Appearance of faultyBearings have a fever.(2) Analysis of reasona. Cooling water cocks are not opened.b. Bearings cannot be lubricated normally.c. Lubricant oil is not clean.d. The installation direction of thrust bearing is not proper.e. Quality of bearing is not up to standard.(3) Processing measurea. Turn on cooling water.b. Adjust oil level according to specification instructions.c. Clean bearings and replace lubricant oil.d. Determine installation direction of bearing according to direction of pressure.e. Change bearings.NO.10(1)Appearance of faultya. Excessive leakage from stuffing box.b. Packing was burned down.(2) Analysis of reasona. Packing worn.b. No water-sealing(3) Processing measurea. Replace new packing.b. Open the water-sealingNO.11Oil is leaked from pump.(2) Analysis of reasona. Oil level is too high.b. Seal parts loss efficacy.c. Pumps are assembled unreasonably.(3) Processing measurea. Bring down oil level.b. Exchange seal parts.c. Reassemble pumps.NO.12(1) Appearance of faultyWater is leaked from pump head.(2) Analysis of reasona. There are questions in rubber parts.(3) Processing measurea.Press rubber parts or reassemble pumps.Ⅴ MAINTENANCE AND DISMOUNTING OF PUMPSIn order that ZJ series pumps operate safely and play to strong points, maintenance and way of disassemble & assemble is important. According to the feature of the ZJ series pumps, we establish the requirement of maintenance. When the pump is working, must ensure that the packing are installed.1. MaintenanceThe ZJ series pumps have been adjusted before delivery. During 6 months after purchasing customers need not take apart pumps. Before using pumps, we should examine the flexibility of rotation and add lubricant oil.⑴Keep facilities clean、dry、without dirties and leakage.⑵Examine oil level in support every day, its deviation from the oil level of support is ±2 mm⑶Examine operation、vibration and leakage every day. We must solve them in time when we find problems.⑷No operating when pump-out. When operating on that condition, pumps will vibrate violently and reduce service life.⑸Metal body and big block, which cannot pass through pumps, must not enter pumps, neither do rubbers, plastics, and cottons, lest wet parts are damaged and stopped up so as to operate abnormally.⑹We should check up flow and pressure of shaft seal water and cooling waterHigher temperature shows short of water.⑺Examine leakage of shaft seal water regularly. When leakage becomes big we should adjust bolts of stuff cover and exchange stuff in time.⑻Assembly of the packing①The packing length should be accord with sleeve circle, and from the direction of shaft, joints of the adjacent packing rings crossed 120°.②After packing, test run with supplying water, meantime, adjust gland bolts carefully to make the leakage be drop not line. Packing is very important to be pay attention to, it not only related state of seal, but also affect performances of pump.⑼In order to make pumps operate efficiently we must adjust the interval between impeller and front liner so as that it is between 0.75-1.00 mm. The interval has been adjusted before delivery. You can stop pump and adjust it if you find it isn't up to mustard or you find problem in pump's work. Adjust them as following.①Undo nuts of support cover.②Undo adjustable bolt screws.③Tighten nuts of bearing box averagely so as that rotor moves to pump head until rotor cannot rotate. Attention: direction of winding impellers should be in accordance with work direction.④Measure the interval (δ=a) between flange of bearing box and end face of support. Now the interval between impeller and front line is zero.⑤Undo nuts of bearing box.⑥Tighten adjustable screws averagely so as that rotor moves to motor. Check up the interval until it is equal to a+(0.75-1.00mm). Attention: ensure the rotor stated firmly.⑦Tighten nuts of bearing box in order to fix rotor in axial direction.⑽Examine temperature of bearings and ensure it lower than 75℃.⑾Exchange lubricating oil after pumps operate for 800 hours running.⑿Auxiliary pumps rotate the quarter circle weekly so as that shaft of pumps bears static load and vibration of base evenly.⒀If auxiliary pumps are not operating for a long time, we should clean sediment with water before running pumps.⒁Examine supporting mechanism of pipeline regularly so as that supporting is reliable and body of pump does not bear supporting force.⒂Examine fastening parts of base frequently in order that fasting is reliable.⒃Pins can be set up after testing rotor direction of rotation for pumps assembled just now and repaired. Belts can be set up after testing motor direction of rotationloss of power, slurry in pipeline can make impellers rotate oppositely. But when head of pump is above 80m, we should prevent slurry from flowing back lest pumps rotate oppositely.⒄Before starting pumps, we should switch on shaft seal water and cooling water. After stop pumps for 15 minutes, we switch off shaft seal water and cooling water. 2. Assembly、dismantlement and examinationAll elements and parts should be checked up and washed before assembly. We examine if all elements and parts are fit for requirement. After exchanging damaged parts, we assemble pumps.Sequence and requirement of assembling(1) Assembly of rotor partsBearings in the ZJ series Slurry pumps are made in China generally. And the system of lubrication applies to oil.①Assembling of bearinga. Use qualified bearings.b. Examine depth of parallelism and degree of roughness of inner diameter、outer diameter、width and two end faces. Check up flexibility of rotation、rust、stain and so on.c. We should check up the endplay to angle joint bearing and double self-aligning bearings. After we find the center of ball track, we determine whether to add washer and what deep the washer is to guarantee the standard endplay of bearings. Don't assemble radial thrust bearing contrarily.d. When we assemble separable bearings, we should set up them according to marks of inner rings and outer rings in order to avoid assembling them improperly.e. For bearings that can be installed in double direction, we should make the end with marks outward so as to recognize.②Assembly of shafta. To avoid occlusion of seating and damaging axle holes, we should smear oil on seating before installation.b. We install bearings by using hot-pack method. We put bearings into oil into heating apparatus to immerse all seating into oil. We heat the oil to 80-100℃. We should install thermometer in oil to control temperature. After installation, bearings should be cooled down naturally to avoid damaging elements and deforming elements.c. After installing back bearing, we assemble the baffle sleeves and knuckle nuts to press bearing.rotate flexibly. After that, assemble bearing box as hot-pack method.e. Assemble front bearings last as above.f. Fix the seal rings on bearing box.g. After parts of shaft and support are installed, assemble other parts as assembly drawing.⑵Assembly of supportAbove all, clear support cover 、support body’s oil pool and bearing hole.①After we clean the seating between support cover and support body we add paper washer to guarantee bearing holes fit for tolerance of ±0.015mm.②We assemble hexagonal plug screw and oil scale-plate. We scratch a line through the center of oil scale-plate and smear red paint to express oil level.③Assemble cooling parts and cooling cavity covers (Note: Some pumps are not equipped with cooling cavity covers.).④Assembly of parts of shaft and supportLift shaft and put parts of shaft into seating of support. Lift support cover to close support after swearing glue on paper washer. Interval between inner end face of bearing box and end face support is 3mm. We set up taper pin and tighten bolts in advance.⑤Set up oil seal in front bearing cover. After add washer between front bearing cover and end face support, we can tighten bolts.⑥After we examine the interval between back bearing cover and bearing box, we can repair depth of covers and add cushion to let bearing cover leave on the bearing closely. We install oil seal in back bearing cover and tighten bolts after adding cushion between back bearing cover and end face of support.⑦Assemble wash plate and discharge ring. Before assembling discharged ring and pressing wash plate tightly, we should fill grease into screw hole.⑧Assemble adjustable nuts and adapter screw bearing box.⑨Magnetic centigrade scale is equipped with shaft so as to measure coaxality and perpendicularity between locating hole and end faces、shaft center of gyration. The tolerance is smaller than 0.25mm.⑩Assemble coupling or pulley.(3) Assembly of rear casing and rear liner plate①Assemble rear casing on the support.②Assemble sleeve within seal rubber ring on the shaft, then assemble packing gland and water-seal ring on sleeve.③Assemble stuffing box and seal ring in trough, and expeller seal ring and。
渣浆泵安全操作规程示范文本
渣浆泵安全操作规程示范文本In The Actual Work Production Management, In Order To Ensure The Smooth Progress Of The Process, And Consider The Relationship Between Each Link, The Specific Requirements Of EachLink To Achieve Risk Control And Planning某某管理中心XX年XX月渣浆泵安全操作规程示范文本使用指引：此操作规程资料应用在实际工作生产管理中为了保障过程顺利推进，同时考虑各个环节之间的关系，每个环节实现的具体要求而进行的风险控制与规划，并将危害降低到最小，文档经过下载可进行自定义修改，请根据实际需求进行调整与使用。
1开停机顺序及注意事项1.1开机顺序：关闭出口阀门，开启密封冷却水、轴承箱冷却水、进口阀门，启动电机，待电机与泵平稳运行后，打开出口阀门，使压力达到0.6-1.0MPa范围运行。
1.2停机顺序：关闭出口阀门，停电机，关闭进口阀。
关闭密封冷却水、轴承箱冷却水。
1.3注意事项：启动泵前必须将进口阀完全打开，出口阀完全关闭，泵运行平稳后将出口阀缓慢打开。
2 开机前的准备2.1 确认泵的各紧固件完整、紧固；2.2 确认轴承箱内的油位达到要求，正常油位是1/2-2/3处；2.3 盘动联轴器，确认转动灵活，无摩擦声；2.4 点动电机确认旋转方向正确；2.5 确认冷却水路畅通，在无冷却水的情况下，禁止开泵；2.6 确认安全防护装置完好。
3 运行中的检查3.1 检查泵的表面是否清洁，油漆是否完整；3.2 检查泵的压力是否超标，不得超过压力运行；3.3 检查各种阀门、管线是否畅通，有无堵、漏现象；3.4 检查轴承箱的油位是否达到要求；3.5 检查轴承的温度是否超标（温度<65℃），泵有无振动；3.6 检查轴封是否泄漏，一般不超过10滴/分；3.7基础、泵座是否坚固完整，地脚螺丝及其它联接螺丝是否有松动现象；3.8 运转是否平稳、有无杂音。
ZGB系列渣浆泵说明书
1.概述ZGB(P)系列渣浆泵是我厂针对除灰除渣工况特点，在多年渣浆泵设计制造经验基础上，广泛吸取国内外先进技术和研究成果，自行开发设计的新型产品。
该系列产品具有结构合理、效率高、寿命长、可靠性高、维修方便、运行费用低等显著优点，广泛用于电力、冶金、矿山、煤炭、建材、化工等工业部门输送含有磨蚀或腐蚀性的渣浆，特别适用于电厂灰渣输送。
泵型号意义：例如：多级串联（3-4）级（1、2级无标记）系列代号高扬程渣浆泵吐出口直径（mm）2.结构说明ZGB(P)系列渣浆泵结构相似，均为卧式、单级、单吸、悬臂双泵壳离心式，其结构特点分泵头部分、轴封部分、传动部分作分别说明。
2.1泵头部分ZGB(P)系列渣浆泵为双泵壳结构，即泵体、泵盖带有可更换的耐磨金属内衬（包括护套、护板等），如图1和图2所示。
泵体、泵盖根据工作压力采用灰铸铁或球墨铸铁制造。
该系列泵均为垂直中开式，吐出口方向可按450间隔八个角度旋转安装。
叶轮前后盖板设有付叶轮以减少泄漏及提高泵的使用寿命。
该系列进口均为水平方向，从传动端看泵为顺时针旋转。
起动及运转时，严禁电机反方向旋转。
否则，将使泵叶轮脱落造成事故。
2.2 轴封部分轴封有两种型式：(1) 付叶轮加填料组合式密封：该种密封型式是我厂采用可靠性设计研制的高性能密封，它使轴封的泄漏减少到了最小。
针对某些不允许稀释、不允许加轴封水的特殊工况（单级）也能正常工作，并达到无任何泄漏的效果。
付叶轮、减压盖、轴套均采用耐磨材料制造，维修量少、使用寿命长，使整机平均无故障工作时间MTBF大大提高。
(2) 机械密封：该形式的密封特别适用于多级串联渣浆泵的密封，完全无泄漏。
凡串联渣浆泵二级及二级以上，建议采用高压轴封水的机械密封，单级采用付叶轮加填料组合式密封。
2.3轴封水压对于单级（或串联一级）采用填料加付叶轮组合式密封，轴封水压力一般不低于0.2Mpa。
对于多级串联采用填料加付叶轮组合式密封，二级和二级以上轴封水压力一般为：n-1第n 级轴封水最低压力=∑ Hi + 0.7Hn, 其中n≥2i=1对采用机械密封，各级泵的轴封水压力一般要求比泵出口压力大0.1Mpa。
渣浆泵技术规格书
供货范围、技术规格、参数与要求一、货物需求一览表
二、工作环境
依实际洗选厂的工作环境填写。
如
1.使用环境：潮湿环境。
2.最高温度： +40℃。
3最低温度： -30℃。
4.年平均气温： 15℃。
5.环境相对湿度：≤90%（+25℃）。
6.地震烈度： 8级。
7.安装地点及用途：地面洗选厂主洗一楼。
8.海拔高度： 1150m 。
三、技术参数及要求
（一）技术参数
1.泵体
1.1 参考型号：150ZJG-I-B45。
1.2 额定流量：372m3/h。
1.3 扬程：60m。
1.4 额定转速：1480r/min。
△1.5 密封型式：机械密封。
1.6电机功率：132KW。
1.7电压等级：660V。
1.8保证效率：≥80%（符合国家二级能效指标）。
1.9入料粒度：＜50mm。
1.10渣浆泵出口方向要求：从泵入口方向看出口在右侧朝上。
(二）技术要求
*1.护板、叶轮、蜗壳、填料箱、入口、出口短节等过流部件采用耐磨材料，使用寿命1年以上。
2.质保期：1年，在质保期内因产品质量损坏，供方无偿保修或更换。
3.随机发货携带设备使用说明书、设备总图、各非标零部件图纸，标准件型号明细、印刷版4份，电子版1份，合格证、试验报告2份。
4.未尽事宜，双方协商解决。
(三）招标人提出的特别技术要求
*1.渣浆泵安装尺寸：中标厂家需到生产现场进行测量后，方可生产制造。
2.厂家提供售后技术指导，解决使用中遇到的技术性难题。
渣浆泵 规格型号：250ZGB
7476
减压盖A07
KmTBCr15Mo3
117
件
8128
减压盖A05
KmTBCr26
109
件
4763
对开填料压盖
HT200
5.6
件
133
填料环
ZG1Cr18Ni9
7.5
件
638
垫
A3.A3F
0.48
件
9
防尘盘
HT200
9.7
件
153
前轴承压盖
HT150
17
件
266
甩油盘
HT150
12.85
件
200
338
件
15011
护套A07
KmTBCr15Mo3
467
件
25501
护套A05
KmTBCr26
467
件
23183
后护板A07
KmTBCr15Mo3
210
件
10260
后护板A05
KmTBCr26
210
件
9327
轴
45
402.53
件
8201
短套
45
6.31
件
107
轴套
CS1
33
件
1696
轴套（陶瓷）
25
油圈
A3.A3F
9.13
件
105
调整螺母甲
45
18.06
件
333
调整孔盖
HT150
2.6
件
61
后轴承压盖
HT150
18.7
件
292
调整螺母乙
45
渣浆泵使用说明书
目录一、泵的用途和适用范围 (1)二、泵的型式、结构特征与型号 (1)三、泵的起吊、安装、调整与试运行 (2)四、常见故障及处理措施 (13)五、泵的维护保养与拆装 (15)六、易损件明细表 (18)特别提示１、必须保证泵轴的转向与泵壳上箭头指示方向一致。
电动机试转时必须与泵完全脱开，严禁电动机带动泵轴反向旋转，否则，将导致零件损坏。
２、采用填料密封的泵，开车前必须按要求填加盘根。
３、采用机械密封的泵，必须保证轴封水的供应。
严禁无水运行，否则机械密封将烧毁。
４、采用稀油润滑的泵，在开车前应按油标的油位线加油。
严禁无油开车，否则，轴承将烧毁。
５、安装使用前，请详细阅读此说明书。
一、泵的用途和适用范围ZJ系列渣浆泵是石家庄工业泵厂与中国煤科院唐山分院联合开发的新型高效节能抗磨蚀泵。
该系列泵在水力设计、结构设计以及所用耐磨材料上，综合应用了国内外同类产品的优点并加以创新，具有高效节能、振动小、噪声低、运行可靠、使用寿命长、维修方便等特点，泵的综合性能居国内领先水平，大部分泵的效率指标居国际先进水平。
可广泛用于电力、冶金、煤炭、建材等行业输送含有固体颗粒的浆体。
如火电厂水力除灰、冶金选矿厂矿浆输送、洗煤厂煤浆及重介输送等。
其允许输送的最大浆体重量浓度Cw为：灰（渣）浆和煤浆45%；矿浆和重介60%。
二、泵的型式、结构特征与型号ZJ系列渣浆泵的型式分两大类，一类是ZJ型，为卧式轴向吸入单级单吸离心式渣浆泵；另一类是ZJL型，为立式轴向吸入单级单吸离心式渣浆泵。
1.ZJ型渣浆泵的结构特征与型号(1)ZJ型渣浆泵的结构特征①泵头部分ZJ型渣浆泵的泵头部分包括泵壳、叶轮和轴封装置。
泵头与托架用螺栓联结。
根据需要，泵的出水口位置可按45°间隔旋转八个不同的角度安装使用。
ZJ型渣浆泵的泵壳为双层壳体结构。
外层为金属泵壳（前泵壳、后泵壳），其材料通常为HT200或QT500-7；内层壳体可用高铬合金铸铁制做（包括涡壳、前护板、后护板），或用橡胶制作（包括前涡壳、后涡壳）。
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
1.概述
ZGB(P)系列渣浆泵是我厂针对除灰除渣工况特点, 在多年渣浆泵设计制造经验基础上, 广泛吸取国内外先进技术和研究成果, 自行开发设计的新型产品。
该系列产品具有结构合理、效率高、寿命长、可靠性高、维修方便、运行费用低等显著优点, 广泛用于电力、冶金、矿山、煤炭、建材、化工等工业部门输送含有磨蚀或腐蚀性的渣浆, 特别适用于电厂灰渣输送。
泵型号意义:
例如:
100 Z G B (P)
多级串联( 3-4) 级( 1、2级无标记)
系列代号
高扬程
渣浆泵
吐出口直径( mm)
2.结构说明
ZGB(P)系列渣浆泵结构相似, 均为卧式、单级、单吸、悬臂双泵壳离心式, 其结构特点分泵头部分、轴封部分、传动部分作分别说明。
2.1泵头部分
ZGB(P)系列渣浆泵为双泵壳结构, 即泵体、泵盖带有可更换的耐磨金属内衬( 包括护套、护板等) , 如图1和图2所示。
泵体、泵盖根
据工作压力采用灰铸铁或球墨铸铁制造。
该系列泵均为垂直中开式, 吐出口方向可按450间隔八个角度旋转安装。
叶轮前后盖板设有付叶轮以减少泄漏及提高泵的使用寿命。
该系列进口均为水平方向, 从传动端看泵为顺时针旋转。
起动及运转时, 严禁电机反方向旋转。
否则, 将使泵叶轮脱落造成事故。
2.2 轴封部分
轴封有两种型式:
(1) 付叶轮加填料组合式密封: 该种密封型式是我厂采用可靠性设计研制的高性能密封, 它使轴封的泄漏减少到了最小。
针对某些不允许稀释、不允许加轴封水的特殊工况( 单级) 也能正常工作, 并达到无任何泄漏的效果。
付叶轮、减压盖、轴套均采用耐磨材料制造, 维修量少、使用寿命长, 使整机平均无故障工作时间MTBF大大提高。
(2) 机械密封: 该形式的密封特别适用于多级串联渣浆泵的密封, 完全无泄漏。
凡串联渣浆泵二级及二级以上, 建议采用高压轴封水的机械密封, 单级采用付叶轮加填料组合式密封。
2.3轴封水压
对于单级( 或串联一级) 采用填料加付叶轮组合式密封, 轴封水压力一般不低于0.2Mpa。
对于多级串联采用填料加付叶轮组合式密封, 二级和二级以上轴封水压力一般为:
n-1
第n 级轴封水最低压力=∑ Hi + 0.7Hn, 其中n≥2
i=1
对采用机械密封, 各级泵的轴封水压力一般要求比泵出口压力大0.1Mpa。
各种轴封型式的轴封水量见表1。
表1: 轴封水参数表
2.4传动部分
ZGB(P)系列渣浆泵均采用同一系列的传动部分——托架。
泵轴直径大, 刚性好, 悬臂短, 在恶劣的工况下, 不会弯曲和振动。
本系列产品的托架均采用稀油润滑, 轴承直接安装于水平中开的托架内, 拆检、调整方便、并设有水冷系统, 改进了轴承的工作条件, 使轴承运行在较低的温度下, 大大提高了轴承的寿命。
3.装配
3.1轴承组件装配
装配时预热轴承, 油温不允许超过120℃。
