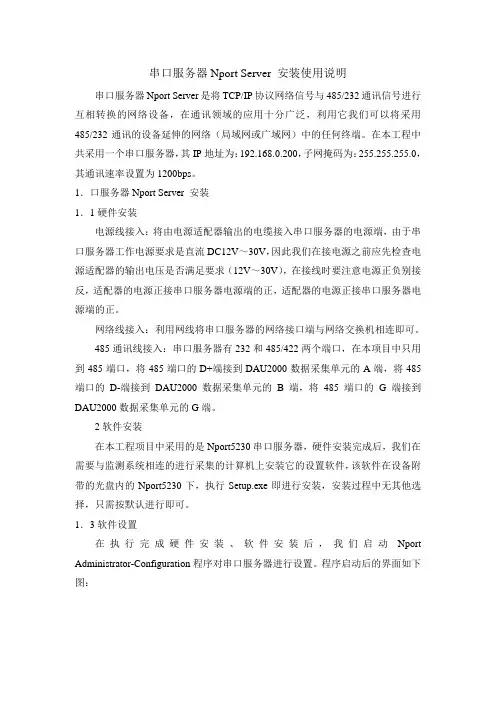

串口服务器安装使用说明
串口服务器Nport Server 安装使用说明串口服务器Nport Server是将TCP/IP协议网络信号与485/232通讯信号进行互相转换的网络设备，在通讯领域的应用十分广泛，利用它我们可以将采用485/232通讯的设备延伸的网络（局域网或广域网）中的任何终端。
在本工程中共采用一个串口服务器，其IP地址为：192.168.0.200，子网掩码为：255.255.255.0，其通讯速率设置为1200bps。
1．口服务器Nport Server 安装1．1硬件安装电源线接入：将由电源适配器输出的电缆接入串口服务器的电源端，由于串口服务器工作电源要求是直流DC12V～30V，因此我们在接电源之前应先检查电源适配器的输出电压是否满足要求（12V～30V），在接线时要注意电源正负别接反，适配器的电源正接串口服务器电源端的正，适配器的电源正接串口服务器电源端的正。
网络线接入：利用网线将串口服务器的网络接口端与网络交换机相连即可。
485通讯线接入：串口服务器有232和485/422两个端口，在本项目中只用到485端口，将485端口的D+端接到DAU2000数据采集单元的A端，将485端口的D-端接到DAU2000数据采集单元的B端，将485端口的G端接到DAU2000数据采集单元的G端。
2软件安装在本工程项目中采用的是Nport5230串口服务器，硬件安装完成后，我们在需要与监测系统相连的进行采集的计算机上安装它的设置软件，该软件在设备附带的光盘内的Nport5230下，执行Setup.exe即进行安装，安装过程中无其他选择，只需按默认进行即可。
1．3软件设置在执行完成硬件安装、软件安装后，我们启动Nport Administrator-Configuration程序对串口服务器进行设置。
程序启动后的界面如下图：单击Configuration开始进行设置，整个设置步骤如下：1．3．1 查找串口服务器在单击Configuration后，再在右边的表格内单击右键，出现如下图所示的弹出菜单，选择Broadcast Search项开始在网络上查找串口服务器。
MOXA NPort 5200系列串口设备联网服务器 说明书
> NPort® 5200系列标准TCP/IP接口和多样的操作模式为现存的软件提供Real COM/TTY驱动通过TCP/IP或COM/TTY端口远程控制串口设备NPort® 5200系列串口设备联网服务器提供了TCP Server、TCP Client和UDP Server Client模式，使用了统一标准的网由于NPort®提供Real COM/TTY驱动功能，软件设计者透过COM/TTY的串口可以立即与TCP/IP网络进行连接。
这个卓越设备通过指定NPort® 5200的IP地址和端口号，服务器可以直接透过Scoket程序对串口设备进行数据读取和控制。
在Windows/Linux下基于COM/TTY的程序可以通过Moxa提供络API (Winsock，BSO Sockets)来确保网络软件的兼容性。
的特征能保障您的软件投资并且享受串口设备联网带来的好处。
的COM/TTY驱动，通过网络直接对串口设备的资料进行读取。
COM驱动/网络Sockets模式远程主机(Windows或Linux)Ethernet192.168.10.2:4001NPort® 5230/5232最多32个串口2线RS-485本地主机(Windows或Linux)Internet2-242-25 e-mail ：china@ 免费技术热线：800-820-5036串口设备联网服务器 > NPort ® 5200系列2外观规格以太网端口数：1速率：10/100 Mbps ，自适应MDI/MDIX 接头：8针RJ45电磁隔离保护：内建1.5 KV 串口端口数：2串口标准：NPort ® 5210：RS-232NPort ®5230：1个RS-232，1个RS-422/485NPort ®5232/5232I ：RS-422/485端口类型：NPort ® 5210：RJ45 (8-pin)NPort ®5230/5232/5232I ：接线端子 (5针/口)串口保护：全信号15 KV ESD 保护2 KV 光电隔离 (NPort ® 5232I/5232I-T)RS-485数据流向控制：ADDC ® (数据流向自动控制)串口通讯参数数据位：5，6，7，8停止位：1，1.5，2校验位：None ，Even ，Odd ，Space ，Mark 流量控制：RTS/CTS (仅RS-232)，DTR/DSR (仅NPort 5210)，XON/XOFF 波特率：110 bps ~ 230.4 Kbps 串口信号RS-232:NPort ® 5210：TxD ，RxD ，RTS ，CTS ，DTR ，DSR ，DCD ，GNDNPort ® 5230：TxD ，RxD ，RTS ，CTS ，GNDRS-422：Tx+，Tx-，Rx+，Rx-，GND RS-485-4w ：Tx+，Tx-，Rx+，Rx-，GND RS-485-2w ：Data+，Data-，GND 软件特点网络协议：ICMP ，IP ，TCP ，UDP ，DHCP ，BOOTP ，Telnet ，DNS ，SNMP V1/V2c ，HTTP ，SMTP ，SNTP配置方式：Web Console ，Serial Console (NPort ® 5210/5230 only)，Telnet Console ，Windows UtilityWindows Real COM 驱动：Windows 95/98/ME/NT/2000，Windows XP/2003/Vista/2008/7 x86/x64，Embedded CE 5.0/6.0，XP EmbeddedFixed TTY驱动：SCO Unix ，SCO OpenServer ，UnixWare 7，UnixWare 2.1，SVR 4.2，QNX 4.25，QNX 6，Solaris 10，FreeBSD ，AIX 5.x ，HP-UX 11iLinux Real TTY 驱动：Linux kernel 2.4.x ，2.6.x 机械特性外壳：金属，IP30防护等级重量：NPort® 5210：340 gNPort ®5230/5232：360 g NPort ®5232I ：380 g 尺寸：NPort ® 5210/5230/5232:无挂耳：67 x 100.4 x 22 mm (2.64 x 3.95 x 0.87 in)含挂耳：90 x 100.4 x 22 mm (3.54 x 3.95 x 0.87 in)NPort ®5232I:无挂耳：67 x 100.4 x 35 mm (2.64 x 3.95 x 1.37 in)含挂耳：90 x 100.4 x 35 mm (3.54 x 3.95 x 1.37 in)工作环境工作温度：标准型号：0 ~ 55 ˚C (32 ~ 131 ˚F)宽温型号：-40 ~ 75 ˚C (-40 ~ 167 ˚F)工作湿度：5 ~ 95% RH 存储温度：-40 ~ 85 ˚C (-40 ~ 185 ˚F)电源需求输入电压：12 ~ 48 VDC 电源功耗：NPort ® 5210：325 mA @ 12 V ，190 mA @ 24 V NPort ®5230：325 mA @ 12 V ，190 mA @ 24 VNPort ®5232：280 mA @ 12 V ，150 mA @ 24 VNPort ® 5230NPort ® 5210NPort ® 5232电源输入接线端子12 ~ 48 VDC以太网RJ45 10/100 Mbps重启按钮导轨安装工具(可选)RS-422/485RS-2328针RJ45，RS-232RS-422/485电源输入接线端子12 ~ 48 VDC电源输入接线端子 12 ~ 48 VDC以太网RJ45 10/100 Mbps重启按钮重置按钮以太网RJ45 10/100 MbpsDK-35A 导轨安装套件可选附件2-27 e-mail ：china@ 免费技术热线：800-820-5036串口设备联网服务器 > NPort ® 5200系列2订购信息包装清单•NPort ® 5200系列串口设备联网服务器• 电源插座转3-pin 电源转接头• 软件光盘及文档• 快速安装指南 (打印版)•保修卡PIN RS-2321DSR (in)2RTS (out)3GND 4TxD (out)5RxD (in)6DCD (in)7CTS (in)8DTR (out)18针脚定义NPort ® 5210/5210-T (RS-232)8针RJ45接头NPort ® 5230/5230-TNPort ® 5232/5232I/5232-T/5232I-T (RS-232/422/485，端子连接器)(RS-422/485，端子连接器)可选型号NPort ®5210：2口RS-232串口设备联网服务器，0 ~ 55 ˚C 工作温度NPort ®5230：2口设备联网服务器，带1个RS-232口，1个RS-422/485口，0 ~ 55 ˚C 工作温度NPort ® 5232：2口RS-422/485串口设备联网服务器，0 ~ 55 ˚C 工作温度NPort ®5232I ：2口RS-422/485串口设备联网服务器，带2 KV 光电隔离，0 ~ 55 ˚C 工作温度NPort ® 5210-T ：2口RS-232串口设备联网服务器，-40 ~ 75 ˚C 工作温度NPort ®5230-T ：2口串口设备联网服务器，1个RS-232口，1个RS-422/485口，-40 ~ 75 ˚C 工作温度NPort ® 5232-T ：2口RS-422/485串口设备联网服务器，-40 ~ 75 ˚C 工作温度NPort ®5232I-T ：2口RS-422/485串口设备联网服务器，带2 KV 光电隔离，-40 ~ 75 ˚C 工作温度可选配件(须单独购买)DK-35A ：可选配件DIN-Rail 电源：详情见附件接线端子：详情见附件R xC T R T G N G N R x R x T x + /D a t a T x T x - / D a t a -R x G N R x T x + / D a t a T x - / D a t a -R x G N R x T x + / D a t a T x - / D a t a -。
NPort使用说明文档
NPort使用说明文档
串口转网口使用说明
1.运行Moxa安装盘，在文件夹I:\Software\Windows下，运行
Npadm_Setup_Ver1.15_Build_10112214.exe，安装NPort软件。
如图一所示
图一
2.安装成功后，开始菜单-右键用管理员身份打开NPort，如图二所示
图二
3.右键Configuration ,弹出框如图三所示
图三
4.选中，弹出框如图四所示
图四
5.选中一个NPort5110，点击stop 按钮，则显示如图五
6.图五
7.在Configuration 下选中一个设备，右击选中，如图六所示
图六
8.修改串口转网口设备的IP地址，保存后可修改设备的IP地址，如图七所示
图七
9.选择主界面的，出现如八图所示
图八
10.在COM Mapping 界面里，右击出现如图八所示界面，选中Add Taget按钮，
出现如图九所示界面
图九
11.点击确定后，再点击主界面的Apply 按钮。
会自动生成一个com 。
至此，串口转网口配置成功。
一下内容主要是串口转网口的设备在实际场所的运用
举例：PB840
1.以上步骤生成一个串口名为com1
2.创建一个PB840的插件
3.在PB840设置界面中填写入对应的配置内容，根据第一部分的内容配置出com1，则在PB840相应的com配置里的com名写入com1，其他内容默认。
如下图所示：
常见的错误：
1，COM+1名称怎么修改
直接在COM+1位置上直接修改。
兆越串口服务器说明书
兆越串口服务器说明书准备工作我们用一条交叉网线把NPort5110和PC机的网口连接起来，并把NPort上电。
首先，打开控制面板，网络连接。
在本地连接上点右键，选择属性。
双击进入Internet协议(TCP/IP)，点击“使用下面的IP地址”写入IP地址和子网掩码，记住要和NPORT的IP地址在同一子网段内。
如NPORT默认IP为192.168.127.254,255.255.255.0；就需要把PC 机的IP地址设为192.168.127.XXX，255.255.255.0，最后一个数字不同即可。
网络和串口参数配置打开NPort Administrator(可以在光盘的对应位置找到这个软件，安装好)，点击Search，此时请确认网络防火墙已经关闭。
会搜索到我们的NPort5110，点击stop，停止搜索。
网络参数配置双击右边空白处的NPort设备，会出现以下界面，点击选择Network选项卡，点击Modify修改。
可以看到以下界面：我们可以在里面修改NPort的以下参数：IPAddress：IP地址。
Netmask：子网掩码。
Gateway：网关。
IP Configuration：可以配置为静态IP(Static)，或者为DHCP(动态IP)。
DNS Server1和2：DNS，域名解析服务器。
串口参数配置点击Serial选项卡，点击Modify修改，双击端口进去，可以看到以下界面：我们可以在里面修改以下参数：Baud Rate：波特率，NPort5000系列只能支持标准波特率，如9600，115200bps等。
Parity：校验None：无校验Even：偶校验。
Odd：奇校验。
Space：空。
Mark：标志。
Data Bits：数据位。
Stop Bits：停止位。
Flow Control：流量控制。
None：无流量控制。
XON/XOFF：软件流控。
RTS/CTS：硬件流控。
FIFO：64bit先进先出，为了降低CPU负载，提高设备性能。
MOXA NPort 6000系列安全终端服务器说明书
NPort 6400/6600Series4/8/16/32-port RS-232/422/485secure terminal serversFeatures and Benefits•LCD panel for easy IP address configuration (standard temp.models)•Secure operation modes for Real COM,TCP Server,TCP Client,PairConnection,Terminal,and Reverse Terminal•Nonstandard baudrates supported with high precision •Port buffers for storing serial data when the Ethernet is offline •Supports IPv6•Ethernet redundancy (STP/RSTP/Turbo Ring)with network module •Generic serial commands supported in Command-by-Command mode •Security features based on IEC 62443CertificationsIntroductionThe NPort®6000is a terminal server that uses the SSL and SSH protocols to transmit encrypted serial data over Ethernet.Up to 32serial devices of any type can be connected to the NPort®6000,using the same IP address.The Ethernet port can be configured for a normal or secure TCP/IP connection.The NPort®6000secure device servers are the right choice for applications that use large numbers of serial devices packed into a small space.Security breaches are intolerable and the NPort®6000Series ensures data transmission integrity with support for DES,3DES,and AES encryption algorithms.Serial devices of any type can be connected to the NPort®6000,and each serial port on the NPort®6000can be configured independently for RS-232,RS-422,or RS-485transmission.No Data Loss If Ethernet Connection FailsThe NPort®6000is a reliable device server that provides users with secure serial-to-Ethernet data transmission and a customer-oriented hardware design.If the Ethernet connection fails,the NPort®6000will queue all serial data in its internal 64KB port buffer.When the Ethernet connection is re-established,the NPort®6000will immediately release all data in the buffer in the order that it was ers can increase the port buffer size by installing an SD card.LCD Panel Makes Configuration EasyThe NPort®6600has a built-in LCD panel for configuration.The panel displays the server name,serial number,and IP address,and any of the device server’s configuration parameters,such as IP address,netmask,and gateway address,can be updated easily and quickly.Note:The LCD panel is only available with standard-temperature models.Adjustable Resistor Values for RS-485CommunicationThe NPort®6600provides adjustable termination,pull high,and pull low resistors for RS-485communication.In some criticalenvironments,termination resistors may be needed to prevent the reflection of serial signals,and the pull high and pull low resistors may need adjusting to maintain the integrity of the electrical signal.Since no set of resistor values works for every environment,the NPort®6600allows manual adjustment of the resistor values for each serial port using built-in DIP switches.SpecificationsMemorySD Slot Up to32GB(SD2.0compatible)Input/Output InterfaceAlarm Contact Channels Resistive load:1A@24VDCEthernet Interface10/100BaseT(X)Ports(RJ45connector)1Auto MDI/MDI-X connectionMagnetic Isolation Protection 1.5kV(built-in)Optical Fiber800Typical Distance4km5km40kmWavelength Typical(nm)13001310TX Range(nm)1260to13601280to1340 RX Range(nm)1100to16001100to1600Optical Power TX Range(dBm)-10to-200to-5 RX Range(dBm)-3to-32-3to-34 Link Budget(dB)1229 Dispersion Penalty(dB)31Note:When connecting a single-mode fiber transceiver,we recommend using anattenuator to prevent damage caused by excessive optical power.Note:Compute the“typical distance”of a specific fiber transceiver as follows:Linkbudget(dB)>dispersion penalty(dB)+total link loss(dB).Ethernet Software FeaturesConfiguration Options Web Console(HTTP/HTTPS),Serial Console,Telnet/SSH Console,Windows Utility Management ARP,BOOTP,DHCP Client,DNS,HTTP,IPv4/IPv6,SMTP,SNMPv1/v2c/v3,TCP/IP,Telnet,UDP,PPPOE,ICMPWindows Real COM Drivers Windows95/98/ME/NT/2000,Windows XP/2003/Vista/2008/7/8/8.1/10(x86/x64),Windows2008R2/2012/2012R2(x64),Windows Embedded CE5.0/6.0,Windows XPEmbeddedLinux Real TTY Drivers Kernel versions:2.4.x,2.6.x,3.x,4.x,and5.xFixed TTY Drivers SCO UNIX,SCO OpenServer,UnixWare7,QNX4.25,QNX6.x,Solaris10,FreeBSD,AIX5.x,HP-UX11i,Mac OS XAndroid API Android3.1.x and laterMIB MIB-IIUnicast Routing RIPV1/V2,Static RouteAuthentication Local Account Accessibility,RADIUS,TACACS+Serial InterfaceConnector NPort6600Series:8-pin RJ45NPort6450Series:DB9maleNo.of Ports NPort6450Series:4NPort6600-8Series:8NPort6600-16Series:16NPort6600-32Series:32Serial Standards NPort6610Series:RS-232NPort6450/6650Series:RS-232,RS-422,RS-485Secure Operation Modes Reverse SSH,Secure Pair Connection,Secure Real COM,Secure TCP Client,SecureTCP Server,SSHStandard Operation Modes Disabled,Ethernet Modem,Pair Connection,PPP,Printer,Real COM,Reverse Telnet,RFC2217,TCP Client,TCP Server,Terminal,UDPBaudrate50bps to921.6kbps(supports non-standard baudrates)Console Port NPort6600Series:RS-232(TxD,RxD,GND),8-pin RJ45(19200,n,8,1)Data Bits5,6,7,8Stop Bits1,1.5,2Parity None,Even,Odd,Space,MarkFlow Control RTS/CTS,DTR/DSR,XON/XOFFPull High/Low Resistor for RS-4851kilo-ohm,150kilo-ohmsRS-485Data Direction Control ADDC®(automatic data direction control)Terminator for RS-485NPort6600Series:120ohmsSerial SignalsRS-232TxD,RxD,RTS,CTS,DTR,DSR,DCD,GNDRS-422Tx+,Tx-,Rx+,Rx-,GNDRS-485-4w Tx+,Tx-,Rx+,Rx-,GNDRS-485-2w Data+,Data-,GNDPower ParametersInput Current NPort6450Series:730mA@12VDCNPort6600SeriesDC Models:293mA@48VDC,200mA@88VDCAC Models:140mA@100VAC(8ports),192mA@100VAC(16ports),285mA@100VAC(32ports)Input Voltage NPort6450Series:12to48VDCNPort6600SeriesAC Models:100to240VACDC Models:±48VDC(20to72VDC,-20to-72VDC),110VDC(88to300VDC) ReliabilityAutomatic Reboot Trigger Built-in WDTAlert Tools Built-in buzzer and RTC(real-time clock)Physical CharacteristicsHousing MetalDimensions(with ears)NPort6450Series:181x103x35mm(7.13x4.06x1.38in)NPort6600Series:480x195x44mm(18.9x7.68x1.73in) Dimensions(without ears)NPort6450Series:158x103x35mm(6.22x4.06x1.38in)NPort6600Series:440x195x44mm(17.32x7.68x1.73in) Weight NPort6450Series:1,020g(2.25lb)NPort6600-8Series:3,460g(7.63lb)NPort6600-16Series:3,580g(7.89lb)NPort6600-32Series:3,600g(7.94lb)Interactive Interface LCD panel display(non-T models only)Push buttons for configuration(non-T models only) Installation NPort6450Series:Desktop,DIN-rail mounting,Wall mountingNPort6600Series:Rack mounting(with optional kit) Environmental LimitsOperating Temperature Standard Models:0to55°C(32to131°F)Wide Temp.Models:-40to75°C(-40to167°F)High-Voltage Wide Temp.Models:-40to85°C(-40to185°F) Storage Temperature(package included)Standard/Wide Temp.Models:-40to75°C(-40to167°F)High-Voltage Wide Temp.Models:-40to85°C(-40to185°F) Ambient Relative Humidity5to95%(non-condensing)Standards and CertificationsEMC EN55032/24EMI CISPR32,FCC Part15B Class AEMS NPort6450Series:IEC61000-4-2ESD:Contact:4kV;Air:8kVIEC61000-4-3RS:80MHz to1GHz:3V/mIEC61000-4-4EFT:Power:1kV;Signal:0.5kVIEC61000-4-5Surge:Power:1kV;Signal:1kVIEC61000-4-6CS:150kHz to80MHz:3V/m;Signal:3V/mIEC61000-4-8PFMFIEC61000-4-11DIPsNPort6600Series(except-48V/-HV models):IEC61000-4-2ESD:Contact:4kV;Air:8kVIEC61000-4-3RS:80MHz to1GHz:3V/mIEC61000-4-4EFT:Power1kV;Signal0.5kVIEC61000-4-5Surge:Power:2kVIEC61000-4-6CS:150kHz to80MHz:3V/m;Signal:3V/mIEC61000-4-8PFMFIEC61000-4-11DIPsNPort6600-48V Series:IEC61000-4-2ESD:Contact:4kV;Air:8kVIEC61000-4-3RS:80MHz to1GHz:3V/mIEC61000-4-4EFT:Power:1kV;Signal:0.5kVIEC61000-4-5Surge:Power:1kVIEC61000-4-6CS:150kHz to80MHz:3V/m;Signal:3V/mIEC61000-4-8PFMFNPort6650-HV Series:IEC61000-4-2ESD:Contact:4kV;Air:8kVIEC61000-4-3RS:80MHz to1GHz:3V/mIEC61000-4-4EFT:Power:4kV;Signal:2kVIEC61000-4-5Surge:Power:2kVIEC61000-4-6CS:150kHz to80MHz:3V/m;Signal:3V/mIEC61000-4-8PFMFTraffic Control NEMA TS2Vibration IEC60068-2-6Freefall IEC60068-2-34DeclarationGreen Product RoHS,CRoHS,WEEEMTBFTime NPort6450Series:850,905hrsNPort6610-8Series:135,891hrsNPort6610-16Series:102,373hrsNPort6610-32Series:68,707hrsNPort6650-8Series:636,600hrsNPort6650-16Series:439,673hrsNPort6650-32Series:310,078hrsNPort6650-8-HV-T:501,171hrsNPort6650-16-HV-T:380,006hrsNPort6650-32-HV-T:290,914hrsStandards NPort6450Series:Telcordia(Bellcore)Standard TR/SRNPort6600Series:Telcordia(Bellcore)StandardWarrantyWarranty Period5yearsDetails See /warrantyPackage ContentsDevice1x NPort6400/6600Series terminal serverInstallation Kit2x rack-mounting ear(NPort6600Series)Cable1x DB9male to RJ458-pin(NPort6600Series)Power Supply1x power cable,suitable for your region(AC models except-T models)1x power adapter,suitable for your region(NPort6450) Documentation1x quick installation guide1x warranty cardDimensionsNPort6450NPort6600Ordering InformationModel Name No.of Serial Ports Serial Standards Serial Interface Operating Temp.Input Voltage NPort64504RS-232/422/485DB9male0to55°C12to48VDC NPort6450-T4RS-232/422/485DB9male-40to75°C12to48VDC NPort6610-88RS-2328-pin RJ450to55°C100-240VACNPort6610-8-48V8RS-2328-pin RJ450to55°C 48VDC;+20to+72 VDC,-20to-72VDCNPort6610-1616RS-2328-pin RJ450to55°C100-240VACNPort6610-16-48V16RS-2328-pin RJ450to55°C 48VDC;+20to+72 VDC,-20to-72VDCNPort6610-3232RS-2328-pin RJ450to55°C100-240VACNPort6610-32-48V32RS-2328-pin RJ450to55°C 48VDC;+20to+72 VDC,-20to-72VDCNPort6650-88RS-232/422/4858-pin RJ450to55°C100-240VAC NPort6650-8-T8RS-232/422/4858-pin RJ45-40to75°C100-240VACNPort6650-8-HV-T8RS-232/422/4858-pin RJ45-40to85°C 110VDC;88to300VDCNPort6650-8-48V8RS-232/422/4858-pin RJ450to55°C 48VDC;+20to+72 VDC,-20to-72VDCNPort6650-1616RS-232/422/4858-pin RJ450to55°C100-240VACNPort6650-16-48V16RS-232/422/4858-pin RJ450to55°C 48VDC;+20to+72 VDC,-20to-72VDCNPort6650-16-T16RS-232/422/4858-pin RJ45-40to75°C100-240VACNPort6650-16-HV-T16RS-232/422/4858-pin RJ45-40to85°C 110VDC;88to300VDCNPort6650-3232RS-232/422/4858-pin RJ450to55°C100-240VACNPort6650-32-48V32RS-232/422/4858-pin RJ450to55°C 48VDC;+20to+72 VDC,-20to-72VDCNPort6650-32-HV-T32RS-232/422/4858-pin RJ45-40to85°C 110VDC;88to300VDCAccessories(sold separately)CablesCBL-RJ45F25-1508-pin RJ45to DB25female serial cable,1.5mApplicable Models:NPort6650-8-48VNPort6650-8-HV-TNPort6650-32-48VNPort6650-32-HV-TNPort6650-16-HV-TNPort6650-16-48VCBL-RJ45F9-1508-pin RJ45to DB9female serial cable,1.5mApplicable Models:NPort6650-16NPort6650-8-48VNPort6610-32-48VNPort6650-16-48VNPort6650-16-TNPort6650-8NPort6650-8-HV-TNPort6610-16NPort6650-32-HV-TNPort6610-8NPort6650-32-48VNPort6650-16-HV-TNPort6610-32NPort6610-16-48VNPort6610-8-48VNPort6650-8-TNPort6650-32CBL-RJ45M25-1508-pin RJ45to DB25male serial cable,1.5mApplicable Models:NPort6650-8NPort6650-8-HV-TNPort6610-16NPort6650-8-TNPort6610-32-48VNPort6650-16-TNPort6650-8-48VNPort6650-16-HV-TNPort6650-16-48VNPort6650-16NPort6650-32-HV-TNPort6650-32NPort6610-8NPort6610-8-48VNPort6650-32-48VNPort6610-16-48VNPort6610-32CBL-RJ45M9-1508-pin RJ45to DB9male serial cable,1.5mApplicable Models:NPort6610-32-48VNPort6610-8-48VNPort6650-32NPort6650-8NPort6650-32-HV-TNPort6610-16NPort6610-8NPort6650-16-HV-TNPort6610-16-48VNPort6610-32NPort6650-32-48VNPort6650-8-TNPort6650-16-TNPort6650-8-HV-TNPort6650-16-48VCBL-RJ45SF25-1508-pin RJ45to DB25female serial cable with shielding,1.5mApplicable Models:NPort6610-16NPort6610-32-48VNPort6610-32NPort6650-32NPort6650-32-48VNPort6610-8NPort6650-16-TNPort6610-16-48VNPort6650-32-HV-TNPort6650-16NPort6650-8NPort6650-16-48VNPort6650-16-HV-TNPort6650-8-TNPort6610-8-48VNPort6650-8-48VNPort6650-8-HV-TCBL-RJ45SF9-1508-pin RJ45to DB25male serial cable with shielding,1.5mApplicable Models:NPort6610-32NPort6650-8NPort6650-32NPort6650-8-HV-TNPort6650-16-HV-TNPort6610-8NPort6650-16NPort6610-16NPort6650-16-48VNPort6650-8-TNPort6650-8-48VNPort6650-32-48VNPort6650-16-TNPort6610-32-48VNPort6610-8-48VNPort6610-16-48VNPort6650-32-HV-TCBL-RJ45SM25-1508-pin RJ45to DB9female serial cable with shielding,1.5mApplicable Models:NPort6650-8NPort6650-8-48VNPort6610-32-48VNPort6650-8-TNPort6650-32-HV-TNPort6650-32NPort6610-16NPort6650-16NPort6610-8-48VNPort6650-16-TNPort6610-8NPort6610-16-48VNPort6650-16-48VNPort6610-32NPort6650-8-HV-TNPort6650-32-48VNPort6650-16-HV-TCBL-RJ45SM9-1508-pin RJ45to DB9male serial cable with shielding,1.5mNPort6650-8-TNPort6610-32-48VNPort6610-16-48VNPort6650-16-48VNPort6610-8NPort6650-32-HV-TNPort6610-8-48VNPort6650-16-HV-TNPort6650-32-48VNPort6650-8-HV-TNPort6650-16-TNPort6610-32NPort6650-8-48VNPort6650-16NPort6650-8ConnectorsMini DB9F-to-TB DB9female to terminal block connectorApplicable Models:NPort6450NPort6450-TDIN-Rail Mounting KitsDK35A DIN-rail mounting kit,35mmApplicable Models:NPort6450NPort6450-TExpansion ModulesNM-TX01110/100BaseTX portNM-TX01-T110/100BaseTX port,-40to75°C operating temperatureNM-TX02210/100BaseTX portsNM-TX02-T210/100BaseTX ports,-40to75°C operating temperatureNM-FX01-M-SC1100BaseFX port,multi-mode,SC connectorNM-FX01-M-SC-T1100BaseFX port,multi-mode,SC connector,-40to75°C operating temperatureNM-FX01-S-SC1100BaseFX port,single-mode,SC connectorNM-FX01-S-SC-T1100BaseFX port,single-mode,SC connector,-40to75°C operating temperatureNM-FX02-M-SC2100BaseFX ports,multi-mode,SC connectorNM-FX02-M-SC-T2100BaseFX ports,multi-mode,SC connector,-40to75°C operating temperatureNM-FX02-S-SC2100BaseFX ports,single-mode,SC connectorNM-FX02-S-SC-T2100BaseFX ports,single-mode,SC connector,-40to75°C operating temperaturePower AdaptersPWR-12125-DT-S2Desktop power supply(requires power cord),12VDC,1.25A,100-240VAC,0to40°C operatingtemperatureApplicable Models:NPort6450NPort6450-TPWR-12150-AU-SA-T Locking barrel plug,12VDC,1.5A,100-240VAC,Australia(AU)plug,-40to75°C operatingtemperatureApplicable Models:NPort6450-TNPort6650-16-HV-TNPort6650-16-TNPort6650-32-HV-TNPort6650-8-HV-TPWR-12150-CN-SA-T Wide-temperature(-40to75°C)locking barrel plug,12VDC,1.5A,100to240VAC,China(CN)plugApplicable Models:NPort6450-TNPort6650-16-HV-TNPort6650-16-TNPort6650-32-HV-TNPort6650-8-HV-TNPort6650-8-TPWR-12150-EU-SA-T Locking barrel plug,12VDC,1.5A,100-240VAC,Continental Europe(EU)plug,-40to75°C operatingtemperatureApplicable Models:NPort6450-TNPort6650-16-HV-TNPort6650-16-TNPort6650-32-HV-TNPort6650-8-HV-TNPort6650-8-TPWR-12150-UK-SA-T Locking barrel plug,12VDC,1.5A,100-240VAC,United Kingdom(UK)plug,-40to75°C operatingtemperatureApplicable Models:NPort6450-TNPort6650-16-HV-TNPort6650-16-TNPort6650-32-HV-TNPort6650-8-HV-TNPort6650-8-TPWR-12150-USJP-SA-T Locking barrel plug,12VDC1.5A,100-240VAC,United States/Japan(US/JP)plug,-40to75°Coperating temperatureApplicable Models:NPort6450-TNPort6650-16-HV-TNPort6650-16-TNPort6650-32-HV-TNPort6650-8-HV-TNPort6650-8-TPower CordsPWC-C13AU-3B-183Power cord with Australian(AU)plug,1.83mApplicable Models:NPort6610-16-48VNPort6650-8-48VNPort6650-16-HV-TNPort6610-8-48VNPort6610-32NPort6650-8NPort6650-32NPort6610-32-48VNPort6610-8NPort6650-8-TNPort6610-16NPort6650-16-48VNPort6650-8-HV-TNPort6650-32-48VNPort6650-32-HV-TNPort6650-16NPort6650-16-TPWC-C13CN-3B-183Power cord with three-prong China(CN)plug,1.83mApplicable Models:NPort6650-32NPort6650-8-TNPort6650-8-48VNPort6650-16NPort6650-16-48VNPort6650-16-TNPort6610-32NPort6610-32-48VNPort6650-16-HV-TNPort6610-16-48VNPort6610-8-48VNPort6650-32-48VNPort6610-8NPort6650-32-HV-TPWC-C13EU-3B-183Power cord with Continental Europe(EU)plug,1.83mApplicable Models:NPort6650-8-48VNPort6650-8-HV-TNPort6650-32NPort6650-16NPort6650-16-TNPort6650-16-HV-TNPort6610-32NPort6650-16-48VNPort6610-16-48VNPort6610-8NPort6610-8-48VNPort6650-32-48VNPort6650-32-HV-TNPort6650-8NPort6610-16NPort6610-32-48VNPort6650-8-TPWC-C13JP-3B-183Power cord with Japan(JP)plug,7A/125V,1.83mApplicable Models:NPort6650-16-TNPort6650-8NPort6610-8NPort6650-8-HV-TNPort6650-32NPort6610-8-48VNPort6650-8-TNPort6650-16NPort6610-16-48VNPort6610-32-48VNPort6650-16-HV-TNPort6650-8-48VNPort6610-16NPort6650-16-48VNPort6610-32NPort6650-32-48VNPort6650-32-HV-TPWC-C13UK-3B-183Power cord with United Kingdom(UK)plug,1.83mApplicable Models:NPort6650-16-HV-TNPort6650-16NPort6610-32NPort6610-16NPort6610-8-48VNPort6650-16-TNPort6610-8NPort6610-32-48VNPort6650-8NPort6650-8-TNPort6650-16-48VNPort6650-32NPort6650-32-HV-TNPort6650-8-48VNPort6650-32-48VNPort6650-8-HV-TNPort6610-16-48VPWC-C13US-3B-183Power cord with United States(US)plug,1.83mApplicable Models:NPort6650-32NPort6610-8NPort6650-8-HV-TNPort6610-32NPort6610-8-48VNPort6610-16NPort6610-16-48VNPort6650-16-48VNPort6650-8-48VNPort6650-8-TNPort6610-32-48VNPort6650-32-48VNPort6650-32-HV-TNPort6650-16-HV-TNPort6650-16-TPWC-C7AU-2B-183Power cord with Australian(AU)plug,2.5A/250V,1.83mApplicable Models:NPort6450-TNPort6450PWC-C7EU-2B-183Power cord with Continental Europe(EU)plug,2.5A/250V,1.83mApplicable Models:NPort6450NPort6450-TPWC-C7JP-2B-183Power cord with Japan(JP)plug,7A/125V,1.83mApplicable Models:NPort6450-TNPort6450PWC-C7UK-2B-183Power cord with United Kingdom(UK)plug,2.5A/250V,1.83mApplicable Models:NPort6450-TNPort6450PWC-C7US-2B-183Power cord with United States(US)plug,10A/125V,1.83mApplicable Models:NPort6450NPort6450-TPower WiringCBL-PJ21NOPEN-BK-30Locking barrel plug to bare-wire cableApplicable Models:NPort6450Rack-Mounting KitsWK-44-01Rack-mounting kit,2L-shaped plates,8screws,44x57.5x1.6mmApplicable Models:NPort6610-8NPort6610-32NPort6610-32-48VNPort6610-16-48VNPort6610-16NPort6610-8-48VNPort6650-16-TNPort6650-16-48VNPort6650-16NPort6650-32-HV-TNPort6650-16-HV-TNPort6650-8-TNPort6650-32NPort6650-32-48VNPort6650-8-HV-TNPort6650-8NPort6650-8-48VWall-Mounting KitsWK-35-01Wall-mounting kit,2plates,6screwsApplicable Models:NPort6450-TNPort6450©Moxa Inc.All rights reserved.Updated Feb17,2020.This document and any portion thereof may not be reproduced or used in any manner whatsoever without the express written permission of Moxa Inc.Product specifications subject to change without notice.Visit our website for the most up-to-date product information.。
串口服务器参数
Moxa 串口服务器16口机架式型号：NPort 5630-16 报价：4800.00 8口机架式型号：NPort 5630-8 报价：4000.008口桌面型型号：NPort 5650-8-DT 报价：4200.00机架式型号设备参数如下：NPort 5630-16、NPort 5630-8以太网端口数量：1速率：10/100 Mbps，自适应MDI/MDIX 接头：8针RJ45电磁隔离保护：内建1.5 KV光纤接口（支持-M-SC和-S-SC）串口端口数量：8或16个串口类型：NPort 5630：RS-422/485接头：RJ45 (8针)串口保护：全信号15 KV ESD保护RS-485数据流向控制：ADDC® (数据流向自动控制功能)RS-485上拉/下拉电阻：1 KΩ，150 KΩ (NPort 5650-8/16)串口通讯参数数据位：5，6，7，8停止位：1，1.5，2校验位：None，Even，Odd，Space，Mark流量控制：DSR/DTR和RTS/CTS（仅RS-232），XON/XOFF波特率：50 bps ~ 921.6 Kbps串口信号RS-232：TxD，RxD，RTS，CTS，DTR，DSR，DCD，GND RS-422：Tx+，Tx-，Rx+，Rx-，GNDRS-485-4w：Tx+，Tx-，Rx+，Rx-，GNDRS-485-2w：Data+，Data-，GND软件网络协议：ICMP，IP，TCP，UDP，DHCP，BOOTP，Telnet，DNS，SNMP V1，HTTP，SMTP，SNTP，ARP，PPP，SLIP，RTelnet，RFC2217配置方式：Web Console，Telnet Console，Windows UtilityWindows Real COM驱动：Windows 95/98/ME/NT/2000，Windows XP/2003/Vista/2008/7 x86/x64，Embedded CE 5.0/6.0，XP EmbeddedFixed TTY驱动：SCO Unix，SCO OpenServer，UnixWare7，UnixWare 2.1，SVR 4.2，QNX 4.25，QNX 6，Solaris 10，FreeBSD，AIX 5.x，HP-UX 11iLinux Real TTY驱动：Linux kernel 2.4.x，2.6.x迷你屏幕和按钮LCD面板：提供液晶显示屏按钮：提供4个按钮，方便现场配置机械特性外壳：金属，IP30防护等级重量：NPort 5630-8：3380 gNPort 5630-16：3400 g尺寸：无挂耳：440 x 45 x 198 mm (17.32 x 1.77 x 7.80 in)有挂耳：480 x 45 x 198 mm (18.90 x 1.77 x 7.80 in)工作环境工作温度：标准型号：0 ~ 55 °C (32 ~ 131 °F)宽温型号：-40 ~ 75 °C (-40 ~ 167 °F)存储温度：-40 ~ 75 °C (-40 ~ 167 °F)工作湿度：5 ~ 95% (无凝露)电源要求输入电压：NPort 5610/5630/5650：100 ~ 240 VAC，47 ~ 63 hz功耗：NPort 5630-8/16：152 mA @ 100 VAC，98 mA @ 240 VAC安规认证Safety：UL 60950-1，EN 60950-1EMC：CE，FCCEMI：EN 55022 Class A，FCC Part 15 Subpart-B Class-A EMS：EN 55024Medical：EN 60601-1-2 Class B，EN 55011可靠性自动重启触发器：内建WDT（看门狗定时器）MTBF（平均故障间隔时间）：NPort 5630-8：118,405小时NPort 5630-16：91,483小时保修保修期：5年桌面型号设备参数如下：NPort 5650-8-DTLAN以太网：2 10/100 Mbps，RJ45保护：内嵌的1.5 KV电磁隔离NPort 5610-8-DT串口介面接口：RS-232接口数量：8接口类型：RJ45 (8-pin) 或DB9 (male)信号：TxD，RxD，RTS，CTS，DTR，DSR，DCD，GND NPort 5650-8-DT串口介面接口：RS-232/422/485接口数量：8接口类型：RJ45 (8-pin) 或DB9 (male)信号：RS-232：TxD，RxD，RTS，CTS，DTR，DSR，DCD，GND RS-422：Tx+，Tx-，Rx+，Rx-，GNDRS-485 (2线)：Data+，Data-，GNDRS-485 (4线)：Tx+，Tx-，Rx+，Rx-，GND信号保护：所有信号提供15 KV ESD保护信号保护：2 KV (NPort 5650I-8-DT)RS-485数据流向：ADDC™（专利保护的数据流向自动控制功能）电源线保护4 KV burst (EFT)，EN61000-4-42 KV surge，EN61000-4-5内嵌高级功能HMI：LCM显示，带4个按键内嵌的蜂鸣器内嵌实时时钟内嵌看门狗实时时钟串行通信参数校验位：None，Even，Odd，Space，Mark数据位：5，6，7，8停止位：1，1.5，2流向控制：RTS/CTS，XON/XOFF，DSR/DTR (仅RS-232)速率：50 bps ~ 921.6 Kbps软件特点协议：ICMP，IP，TCP，UDP，DHCP，BOOTP，Telnet，DNS，SNMP，HTTP，SMTP，SNTP，Rtelnet，ARP，RFC2217工具：NPort管理员应用于Windows 95/98/ME/NT/2000/XP/2003/Vista驱动支持：Windows 95/98/ME/NT/2000//XP/2003/2003x64/Vista/Vista x64 Real COM driver/Linux Real TTYdriver/SCO Unix/SCO OpenServer 5/OpenServer 6/UnixWare7/UnixWare 2.1/SVR4.2/QNX 4.25/QNX 6/Solaris 10/FreeBSD 5/FreeBSD 6配置：Web浏览器/串口telnet console口，或Windows工具电源需求电源输入：12 ~ 48 VDC电源功耗：NPort 5650-8-DT：580 mA for 12V，156 mA for 48V机械特性材料：SECC钢板(1mm)尺寸(W × H × D)：197 x 135.5 x 44 mm (无ears)229 x 135.5 x 46 mm (含ears)197 x 135.5 x 53 mm (with DIN-Rail kit on bottom panel)毛重：NPort 5650-8-DT：1.77 kg工作环境工作温度：0 ~ 55 °C (32 ~ 131 °F)，5 ~ 95% RH存储温度：-20 至70°C (-4 至158°F)，5 至95% RH通过认证EMC：CE: EN55022 Class A/EN55024FCC: FCC Part 15 Subpart B，Class A安全：UL: UL60950-1TÜV: EN60950-1保修期5 年国产串口服务器NC608-8M 8口桌面型参考价格：1500 NC608-8 8口机架型参考价格：2200 NC616-16 16口机架型参考价格：3200国产设备参数与Moxa类似。
Moxa NPort 6450系列安全串口到以太网设备服务器安装指南说明书
P/N: 1802064500019 *1802064500019*NPort 6450 Series Quick Installation GuideVersion 11.2, January 2021Technical Support Contact Information/support2021 Moxa Inc. All rights reserved.OverviewThe NPort 6450 secure serial device servers provide reliableserial-to-Ethernet connectivity for a wide range of serial devices. The NPort 6450 supports TCP Server, TCP Client, UDP, and Pair-Connection operation modes to ensure the compatibility of network software. In addition, the NPort 6450 also supports Secure TCP Server, Secure TCP Client, Secure Pair-Connection, and Secure Real COM modes for security critical applications such as banking, telecom, access control, and remote site management.Package ChecklistBefore installing the NPort 6450, please verify that the package contains the following items:•NPort 6450•Power adapter (does not apply to T models)•Two wall-mount ears•Documentation•Quick installation guide•Warranty cardOptional Accessories•DK-35A: 35 mm DIN-rail mounting kit•DIN-rail power supply (DR-75-48)•CBL-RJ45M9-150: 8-pin RJ45 to male DB9 cable•CBL-RJ45M25-150: 8-pin RJ45 to male DB25 cable•NM-TX01: Network module with one 10/100BaseTX Ethernet port (RJ45 connector; supports cascade redundancy and RSTP/STP) •NM-FX01-S-SC/NM-FX01-S-SC-T: Network module with one 100BaseFX single mode fiber port (SC connector; supports cascade redundancy and RSTP/STP)•NM-FX02-S-SC/NM-FX02-S-SC-T: Network module with two 100BaseFX single mode fiber ports (SC connectors; supports cascade redundancy and RSTP/STP)•NM-FX01-M-SC/NM-FX01-M-SC-T: Network module with one 100BaseFX multi-mode fiber port (SC connector; supports cascade redundancy and RSTP/STP)•NM-FX02-M-SC/NM-FX02-M-SC-T: Network module with two 100BaseFX multi-mode fiber ports (SC connectors; supports cascade redundancy and RSTP/STP)NOTE Please notify your sales representative if any of the above items are missing or damaged.NOTE This is a Class 1 laser/LED product. Do not share directly into the laser beam.NOTE The installation instructions indicate use in a RESTRICTED ACCESS LOCATION only.Hardware IntroductionNOTE The LCD panel is only available with standard temperature models.Reset Button—Press the Reset button continuously for 5 sec to load factory defaults. Use a pointed object, such as a straightened paper clip or toothpick, to press the reset button. This will cause the Ready LED to blink on and off. The factory defaults will be loaded once the Ready LED stops blinking (after about 5 seconds). At this point, you should release the reset button.LED IndicatorsName Color FunctionPWR Red Power is being supplied to the power input. Ready Red Steady on: NPort is booting up.Blinking: IP conflict, DHCP or BOOTP serverproblem, or relay output problem.Green Steady on: Power is on and the NPort 6450 isfunctioning normally.Blinking: NPort is responding to Locatefunction.Off Power is off, or power error condition exists. Link Orange 10 Mbps Ethernet connection.Green 100 Mbps Ethernet connection.Off Ethernet cable is disconnected, or has a short.Name Color FunctionP1-P4Orange Serial port is receiving data. Green Serial port is transmitting data. OffSerial port is idle.FXOrangeSteady on:Ethernet port is idle.Blinking: Fiber port is transmitting or receivingdata.AlarmRed The relay output (DOUT) is open (exception). Off The relay output (DOUT) is shorted (normal condition).ModuleGreen A network module has been detected. OffNo network module is present.Adjustable pull up/down resistor for RS-422/485 (150 K Ω or 1 K Ω)Dip switch Pin 1 and Pin 2 are used to set the pull up/down resistors. The default is 150 KΩ. Turn on dip switch Pin 1 and Pin 2 to set this value to 1 KΩ. Do not use the KΩ setting with RS-232 mode, since doing so will degrade the RS-232 signals and shorten the communication distance. Dip switch Pin 3 is used to set the terminator. Turn on dip switch Pin 3 to set this value to 120 ohm.Hardware Installation ProcedureSTEP 1: Connect the 12-48 VDC power adapter to the NPort 6450 and then plug the power adapter into a DC outlet.STEP 2: For first-time configuration, use a cross-over Ethernet cable to connect the NPort 6450 directly to your computer’s Ethernet cable. For connecting to a network, use a standard straight-through Ethernet cable to connect to a hub or switch.STEP 3: Connect the NPort 6450’s serial port(s) to serial device(s). NOTE The operating temperature of the power adapter in the box is 0 to 40˚C. If your application is out of this range, please use a power adapter supplied by UL Listed External Power Supply (The power output meets SELV and LPS and rated 12 - 48 VDC, minimum 0.73A). Moxa has power adapters with wide temperature range (-40 to 75˚C, -40 to 167˚F), the PWR -12150-(plug type)-SA-T series, for your reference.Placement OptionsThe NPort 6450 can be placed flat on a desktop or other horizontal surface. In addition, you may use the DIN-Rail or wall-mount options, as illustrated below.Wall-mountDIN RailSoftware Installation InformationFor the NPort’s configuration, the default IP address of the NPort is 192.168.127.254. You may log in with the account name admin and password moxa to change any settings to meet your network topology (e.g., IP address) or serial device (e.g., serial parameters). For software installation, download the relative utilities from Moxa's website:https:///support/support_home.aspx?isSearchShow=1 • Download the NPort Windows Driver Manager and install it as the driver to run with Real COM mode of the NPort Series.• Execute NPort Windows Driver Manager; then map the virtual COM ports on your Windows platform.•You may refer to the DB9 Male pin assignment section to loop back pin 2 and pin 3 for the RS-232 interface to carry out a self-test on the device.•Use HyperTerminal or a similar program (you may download Moxa's program, called PComm Lite) to test whether the device is good or not.Pin Assignments and Cable WiringRS-232/422/485 Pin Assignments (male DB9) PinRS-232 RS-422/ 4W RS-485 2W RS-485 1 DCD TxD-(A) – 2 RXD TxD+(B) –3 TXD RxD+(B) Data+(B)4 DTR RxD-(A) Data-(A)5 GND GND GND6 DSR – –7 RTS – –8 CTS – – 9–––Japan Regulatory Compliance (VCCI)The NPort 6000 series complies with the requirements of VCCI Class A。
莫克（Moxa）NPort 6000系列安全终端服务器说明书
NPort 6400/6600Series4/8/16/32-port RS-232/422/485secure terminal serversFeatures and Benefits•LCD panel for easy IP address configuration (standard temp.models)•Secure operation modes for Real COM,TCP Server,TCP Client,PairConnection,Terminal,and Reverse Terminal•Nonstandard baudrates supported with high precision •Port buffers for storing serial data when the Ethernet is offline •Supports IPv6•Ethernet redundancy (STP/RSTP/Turbo Ring)with network module •Generic serial commands supported in Command-by-Command mode •Security features based on IEC 62443CertificationsIntroductionThe NPort®6000is a terminal server that uses the SSL and SSH protocols to transmit encrypted serial data over Ethernet.Up to 32serial devices of any type can be connected to the NPort®6000,using the same IP address.The Ethernet port can be configured for a normal or secure TCP/IP connection.The NPort®6000secure device servers are the right choice for applications that use large numbers of serial devices packed into a small space.Security breaches are intolerable and the NPort®6000Series ensures data transmission integrity with support for DES,3DES,and AES encryption algorithms.Serial devices of any type can be connected to the NPort®6000,and each serial port on the NPort®6000can be configured independently for RS-232,RS-422,or RS-485transmission.No Data Loss if Ethernet Connection FailsThe NPort®6000is a reliable device server that provides users with secure serial-to-Ethernet data transmission and a customer-oriented hardware design.If the Ethernet connection fails,the NPort®6000will queue all serial data in its internal 64KB port buffer.When the Ethernet connection is re-established,the NPort®6000will immediately release all data in the buffer in the order that it was ers can increase the port buffer size by installing an SD card.LCD Panel Makes Configuration EasyThe NPort®6600has a built-in LCD panel for configuration.The panel displays the server name,serial number,and IP address,and any of the device server’s configuration parameters,such as IP address,netmask,and gateway address,can be updated easily and quickly.Note:The LCD panel is only available with standard-temperature models.Adjustable Resistor Values for RS-485CommunicationThe NPort®6600provides adjustable termination,pull high,and pull low resistors for RS-485communication.In some criticalenvironments,termination resistors may be needed to prevent the reflection of serial signals,and the pull high and pull low resistors may need adjusting to maintain the integrity of the electrical signal.Since no set of resistor values works for every environment,the NPort®6600allows manual adjustment of the resistor values for each serial port using built-in DIP switches.SpecificationsMemorySD Slot Up to32GB(SD2.0compatible)Input/Output InterfaceAlarm Contact Channels Resistive load:1A@24VDCEthernet Interface10/100BaseT(X)Ports(RJ45connector)1Auto MDI/MDI-X connectionMagnetic Isolation Protection 1.5kV(built-in)Optical Fiber800Typical Distance4km5km40kmWaveleng-thTypical(nm)13001310TX Range(nm)1260to13601280to1340 RX Range(nm)1100to16001100to1600Optical PowerTX Range(dBm)-10to-200to-5 RX Range(dBm)-3to-32-3to-34 Link Budget(dB)1229 Dispersion Penalty(dB)31Note:When connecting a single-mode fiber transceiver,we recommend using anattenuator to prevent damage caused by excessive optical power.Note:Compute the“typical distance”of a specific fiber transceiver as follows:Linkbudget(dB)>dispersion penalty(dB)+total link loss(dB).Ethernet Software FeaturesConfiguration Options Web Console(HTTP/HTTPS),Serial Console,Telnet/SSH Console,Windows Utility Management ARP,BOOTP,DHCP Client,DNS,HTTP,IPv4/IPv6,SMTP,SNMPv1/v2c/v3,TCP/IP,Telnet,UDP,PPPOE,ICMPWindows Real COM Drivers Windows95/98/ME/NT/2000,Windows XP/2003/Vista/2008/7/8/8.1/10(x86/x64),Windows2008R2/2012/2012R2(x64),Windows Embedded CE5.0/6.0,Windows XPEmbeddedFixed TTY Drivers SCO UNIX,SCO OpenServer,UnixWare7,QNX4.25,QNX6.x,Solaris10,FreeBSD,AIX5.x,HP-UX11i,Mac OS XLinux Real TTY Drivers Kernel version:2.4.x,2.6.x,3.x,4.xAndroid API Android3.1.x and laterMIB MIB-IIUnicast Routing RIPV1/V2,Static RouteSerial InterfaceConnector NPort6600Series:8-pin RJ45NPort6450Series:DB9maleNo.of Ports NPort6450Series:4NPort6600-8Series:8NPort6600-16Series:16NPort6600-32Series:32Serial Standards NPort6610Series:RS-232NPort6450/6650Series:RS-232,RS-422,RS-485Secure Operation Modes Reverse SSH,Secure Pair Connection,Secure Real COM,Secure TCP Client,SecureTCP Server,SSHStandard Operation Modes Disabled,Ethernet Modem,Pair Connection,PPP,Printer,Real COM,Reverse Telnet,RFC2217,TCP Client,TCP Server,Terminal,UDPBaudrate50bps to921.6kbps(supports non-standard baudrates)Console Port NPort6600Series:RS-232(TxD,RxD,GND),8-pin RJ45(19200,n,8,1)Data Bits5,6,7,8Stop Bits1,1.5,2Parity None,Even,Odd,Space,MarkFlow Control RTS/CTS,DTR/DSR,XON/XOFFPull High/Low Resistor for RS-4851kilo-ohm,150kilo-ohmsRS-485Data Direction Control ADDC®(automatic data direction control)Terminator for RS-485NPort6600Series:120ohmsSerial SignalsRS-232TxD,RxD,RTS,CTS,DTR,DSR,DCD,GNDRS-422Tx+,Tx-,Rx+,Rx-,GNDRS-485-4w Tx+,Tx-,Rx+,Rx-,GNDRS-485-2w Data+,Data-,GNDPower ParametersInput Current NPort6450Series:730mA@12VDCNPort6600SeriesDC Models:293mA@48VDC,200mA@88VDCAC Models:140mA@100VAC(8ports),192mA@100VAC(16ports),285mA@100VAC(32ports)Input Voltage NPort6450Series:12to48VDCNPort6600SeriesAC Models:100to240VACDC Models:±48VDC(20to72VDC,-20to-72VDC),110VDC(88to300VDC) ReliabilityAutomatic Reboot Trigger Built-in WDTAlert Tools Built-in buzzer and RTC(real-time clock)Physical CharacteristicsHousing MetalDimensions(with ears)NPort6450Series:181x103x35mm(7.13x4.06x1.38in)NPort6600Series:480x195x44mm(18.9x7.68x1.73in) Dimensions(without ears)NPort6450Series:158x103x35mm(6.22x4.06x1.38in)NPort6600Series:440x195x44mm(17.32x7.68x1.73in) Weight NPort6450Series:1,020g(2.25lb)NPort6600-8Series:3,460g(7.63lb)NPort6600-16Series:3,580g(7.89lb)NPort6600-32Series:3,600g(7.94lb)Interactive Interface LCD panel display(non-T models only)Push buttons for configuration(non-T models only) Installation NPort6450Series:Desktop,DIN-rail mounting,Wall mountingNPort6600Series:Rack mounting(with optional kit) Environmental LimitsOperating Temperature Standard Models:0to55°C(32to131°F)Wide Temp.Models:-40to75°C(-40to167°F)High-Voltage Wide Temp.Models:-40to85°C(-40to185°F) Storage Temperature(package included)Standard/Wide Temp.Models:-40to75°C(-40to167°F)High-Voltage Wide Temp.Models:-40to85°C(-40to185°F) Ambient Relative Humidity5to95%(non-condensing)Standards and CertificationsEMC EN55032/24EMI CISPR32,FCC Part15B Class AEMS NPort6450Series:IEC61000-4-2ESD:Contact:4kV;Air:8kVIEC61000-4-3RS:80MHz to1GHz:3V/mIEC61000-4-4EFT:Power:1kV;Signal:0.5kVIEC61000-4-5Surge:Power:1kV;Signal:1kVIEC61000-4-6CS:150kHz to80MHz:3V/m;Signal:3V/mIEC61000-4-8PFMFIEC61000-4-11DIPsNPort6600Series(except-48V/-HV models):IEC61000-4-2ESD:Contact:4kV;Air:8kVIEC61000-4-3RS:80MHz to1GHz:3V/mIEC61000-4-4EFT:Power1kV;Signal0.5kVIEC61000-4-5Surge:Power:2kVIEC61000-4-6CS:150kHz to80MHz:3V/m;Signal:3V/mIEC61000-4-8PFMFIEC61000-4-11DIPsNPort6600-48V Series:IEC61000-4-2ESD:Contact:4kV;Air:8kVIEC61000-4-3RS:80MHz to1GHz:3V/mIEC61000-4-4EFT:Power:1kV;Signal:0.5kVIEC61000-4-5Surge:Power:1kVIEC61000-4-6CS:150kHz to80MHz:3V/m;Signal:3V/mIEC61000-4-8PFMFNPort6650-HV Series:IEC61000-4-2ESD:Contact:4kV;Air:8kVIEC61000-4-3RS:80MHz to1GHz:3V/mIEC61000-4-4EFT:Power:4kV;Signal:2kVIEC61000-4-5Surge:Power:2kVIEC61000-4-6CS:150kHz to80MHz:3V/m;Signal:3V/mIEC61000-4-8PFMFTraffic Control NEMA TS2Vibration IEC60068-2-6Freefall IEC60068-2-34DeclarationGreen Product RoHS,CRoHS,WEEEMTBFTime NPort6450Series:850,905hrsNPort6610-8Series:135,891hrsNPort6610-16Series:102,373hrsNPort6610-32Series:68,707hrsNPort6650-8Series:636,600hrsNPort6650-16Series:439,673hrsNPort6650-32Series:310,078hrsNPort6650-8-HV-T:501,171hrsNPort6650-16-HV-T:380,006hrsNPort6650-32-HV-T:290,914hrsStandards NPort6450Series:Telcordia(Bellcore)Standard TR/SRNPort6600Series:Telcordia(Bellcore)StandardWarrantyWarranty Period5yearsDetails See /warrantyPackage ContentsDevice1x NPort6400/6600Series terminal serverInstallation Kit2x rack-mounting ear(NPort6600Series)Cable1x DB9male to RJ458-pin(NPort6600Series)Power Supply1x power cable,suitable for your region(AC models except-T models)1x power adapter,suitable for your region(NPort6450) Documentation1x quick installation guide1x warranty cardDimensionsNPort6450NPort6600Ordering InformationModel Name No.of Serial Ports Serial Standards Serial Interface Operating Temp.Input Voltage NPort64504RS-232/422/485DB9male0to55°C12to48VDC NPort6450-T4RS-232/422/485DB9male-40to75°C12to48VDC NPort6610-88RS-2328-pin RJ450to55°C100-240VACNPort6610-8-48V8RS-2328-pin RJ450to55°C 48VDC;+20to+72 VDC,-20to-72VDCNPort6610-1616RS-2328-pin RJ450to55°C100-240VACNPort6610-16-48V16RS-2328-pin RJ450to55°C 48VDC;+20to+72 VDC,-20to-72VDCNPort6610-3232RS-2328-pin RJ450to55°C100-240VACNPort6610-32-48V32RS-2328-pin RJ450to55°C 48VDC;+20to+72 VDC,-20to-72VDCNPort6650-88RS-232/422/4858-pin RJ450to55°C100-240VAC NPort6650-8-T8RS-232/422/4858-pin RJ45-40to75°C100-240VACNPort6650-8-HV-T8RS-232/422/4858-pin RJ45-40to85°C 110VDC;88to300VDCNPort6650-8-48V8RS-232/422/4858-pin RJ450to55°C 48VDC;+20to+72 VDC,-20to-72VDCNPort6650-1616RS-232/422/4858-pin RJ450to55°C100-240VACNPort6650-16-48V16RS-232/422/4858-pin RJ450to55°C 48VDC;+20to+72 VDC,-20to-72VDCNPort6650-16-T16RS-232/422/4858-pin RJ45-40to75°C100-240VACNPort6650-16-HV-T16RS-232/422/4858-pin RJ45-40to85°C 110VDC;88to300VDCNPort6650-3232RS-232/422/4858-pin RJ450to55°C100-240VACNPort6650-32-48V32RS-232/422/4858-pin RJ450to55°C 48VDC;+20to+72 VDC,-20to-72VDCNPort6650-32-HV-T32RS-232/422/4858-pin RJ45-40to85°C 110VDC;88to300VDCAccessories(sold separately)ConnectorsMini DB9F-to-TB DB9female to terminal block connectorApplicable Models:NPort6450NPort6450-TDIN-Rail Mounting KitsDK35A DIN-rail mounting kit,35mmApplicable Models:NPort6450NPort6450-TWall-Mounting KitsWK-35-01Wall-mounting kit,2plates,6screws,35x44x2.5mmApplicable Models:NPort6450NPort6450-TRack-Mounting KitsWK-44-01Wall-mounting kit,2L-shaped plates,6screws,44x35x2.5mmApplicable Models:NPort6610-8NPort6610-8-48VNPort6610-16NPort6610-16-48VNPort6610-32NPort6610-32-48VNPort6650-8NPort6650-8-TNPort6650-8-48VNPort6650-8-HV-TNPort6650-16NPort6650-16-TNPort6650-16-48VNPort6650-16-HV-TNPort6650-32NPort6650-32-48VNPort6650-32-HV-TCablesCBL-RJ45F9-150RJ45to DB9female serial cable,1.5mApplicable Models:NPort6610-8NPort6610-16NPort6610-32NPort6650-8NPort6650-8-TNPort6650-16NPort6650-16-TNPort6650-32NPort6610-8-48VNPort6610-16-48VNPort6610-32-48VNPort6650-16-48VNPort6650-32-48VNPort6650-8-HV-TNPort6650-16-HV-TNPort6650-32-HV-TCBL-RJ45M9-150RJ45to DB9male serial cable,1.5mApplicable Models:NPort6610-8NPort6610-16NPort6610-32NPort6650-8NPort6650-8-TNPort6650-16NPort6650-16-TNPort6650-32NPort6610-8-48VNPort6610-16-48VNPort6610-32-48VNPort6650-8-48VNPort6650-16-48VNPort6650-32-48VNPort6650-8-HV-TNPort6650-16-HV-TNPort6650-32-HV-TCBL-RJ45F25-150RJ45to DB25female serial cable,1.5mApplicable Models:NPort6610-8NPort6610-16NPort6610-32NPort6650-8NPort6650-8-TNPort6650-16NPort6650-16-TNPort6650-32NPort6610-8-48VNPort6610-16-48VNPort6610-32-48VNPort6650-8-48VNPort6650-16-48VNPort6650-32-48VNPort6650-8-HV-TNPort6650-16-HV-TNPort6650-32-HV-TCBL-RJ45M25-150RJ45to DB25male serial cable,1.5mApplicable Models:NPort6610-8NPort6610-16NPort6610-32NPort6650-8NPort6650-8-TNPort6650-16NPort6650-16-TNPort6650-32NPort6610-8-48VNPort6610-16-48VNPort6610-32-48VNPort6650-8-48VNPort6650-16-48VNPort6650-32-48VNPort6650-8-HV-TNPort6650-16-HV-TNPort6650-32-HV-TCBL-RJ45SF9-150RJ45to DB9female serial shielded cable,1.5mApplicable Models:NPort6610-8NPort6610-16NPort6610-32NPort6650-8NPort6650-16NPort6650-16-TNPort6650-32NPort6610-8-48VNPort6610-16-48VNPort6610-32-48VNPort6650-8-48VNPort6650-16-48VNPort6650-32-48VNPort6650-8-HV-TNPort6650-16-HV-TNPort6650-32-HV-TCBL-RJ45SM9-150RJ45to DB9male serial shielded cable,1.5mApplicable Models:NPort6610-8NPort6610-16NPort6610-32NPort6650-8NPort6650-8-TNPort6650-16NPort6650-16-TNPort6650-32NPort6610-8-48VNPort6610-16-48VNPort6610-32-48VNPort6650-8-48VNPort6650-16-48VNPort6650-32-48VNPort6650-8-HV-TNPort6650-16-HV-TNPort6650-32-HV-TCBL-RJ45SF25-150RJ45to DB25female serial shielded cable,1.5mApplicable Models:NPort6610-8NPort6610-16NPort6610-32NPort6650-8NPort6650-8-TNPort6650-16NPort6650-16-TNPort6650-32NPort6610-8-48VNPort6610-16-48VNPort6610-32-48VNPort6650-8-48VNPort6650-16-48VNPort6650-32-48VNPort6650-8-HV-TNPort6650-16-HV-TNPort6650-32-HV-TCBL-RJ45SM25-150RJ45to DB25male serial shielded cable,1.5mApplicable Models:NPort6610-8NPort6610-16NPort6610-32NPort6650-8NPort6650-8-TNPort6650-16NPort6650-16-TNPort6650-32NPort6610-8-48VNPort6610-16-48VNPort6610-32-48VNPort6650-8-48VNPort6650-16-48VNPort6650-32-48VNPort6650-8-HV-TNPort6650-16-HV-TNPort6650-32-HV-TPower SuppliesPWR-12125-DT-S2Desktop power supply(requires power cord),12VDC,1.25A,100-240VAC,0to40°C operatingtemperatureApplicable Models:NPort6450Power AdaptersPWR-12125-DT-S2Desktop power supply(requires power cord),12VDC,1.25A,100-240VAC,0to40°C operatingtemperatureApplicable Models:NPort6450-TPWR-12150-AU-SA-T Locking barrel plug,12VDC,1.5A,100-240VAC,Australia(AU)plug,-40to75°C operatingtemperatureApplicable Models:NPort6450-TPWR-12150-CN-SA-T Locking barrel plug,12VDC,1.5A,100-240VAC,China(CN)plug,-40to75°C operating temperatureApplicable Models:NPort6450-TPWR-12150-EU-SA-T Locking barrel plug,12VDC,1.5A,100-240VAC,Continental Europe(EU)plug,-40to75°C operatingtemperatureApplicable Models:NPort6450-TPWR-12150-UK-SA-T Locking barrel plug,12VDC,1.5A,100-240VAC,United Kingdom(UK)plug,-40to75°C operatingtemperatureApplicable Models:NPort6450-TPWR-12150-USJP-SA-T Locking barrel plug,12VDC1.5A,100-240VAC,United States/Japan(US/JP)plug,-40to75°Coperating temperatureApplicable Models:NPort6450-TPower CordsPWC-C7AU-2B-183Power cord with Australian(AU)plug,2.5A/250V,1.83mApplicable Models:NPort6450NPort6450-TPWC-C7JP-2B-183Power cord with Japan(JP)plug,7A/125V,1.83mApplicable Models:NPort6450NPort6450-TPWC-C7EU-2B-183Power cord with Continental Europe(EU)plug,2.5A/250V,1.83mApplicable Models:NPort6450NPort6450-TPWC-C7UK-2B-183Power cord with United Kingdom(UK)plug,2.5A/250V,1.83mApplicable Models:NPort6450NPort6450-TPWC-C7US-2B-183Power cord with United States(US)plug,10A/125V,1.83mApplicable Models:NPort6450NPort6450-TPWC-C13AU-3B-183Power cord with Australian(AU)plug,1.83mNPort6610-8NPort6610-8-48VNPort6610-16NPort6610-16-48VNPort6610-32NPort6610-32-48VNPort6650-8NPort6650-8-TNPort6650-8-48VNPort6650-8-HV-TNPort6650-16NPort6650-16-TNPort6650-16-48VNPort6650-16-HV-TNPort6650-32NPort6650-32-48VNPort6650-32-HV-TPWC-C13CN-3B-183Power cord with three-prong China(CN)plug,1.83mApplicable Models:NPort6610-8NPort6610-8-48VNPort6610-16NPort6610-16-48VNPort6610-32NPort6610-32-48VNPort6650-8NPort6650-8-TNPort6650-8-48VNPort6650-8-HV-TNPort6650-16NPort6650-16-TNPort6650-16-48VNPort6650-16-HV-TNPort6650-32NPort6650-32-48VNPort6650-32-HV-TPWC-C13EU-3B-183Power cord with Continental Europe(EU)plug,1.83mApplicable Models:NPort6610-8NPort6610-8-48VNPort6610-16NPort6610-16-48VNPort6610-32NPort6610-32-48VNPort6650-8NPort6650-8-TNPort6650-8-48VNPort6650-8-HV-TNPort6650-16NPort6650-16-TNPort6650-16-48VNPort6650-16-HV-TNPort6650-32NPort6650-32-48VNPort6650-32-HV-TPWC-C13JP-3B-183Power cord with Japan(JP)plug,7A/125V,1.83mApplicable Models:NPort6610-8NPort6610-8-48VNPort6610-16NPort6610-16-48VNPort6610-32NPort6610-32-48VNPort6650-8NPort6650-8-TNPort6650-8-48VNPort6650-8-HV-TNPort6650-16NPort6650-16-TNPort6650-16-48VNPort6650-16-HV-TNPort6650-32NPort6650-32-48VNPort6650-32-HV-TPWC-C13UK-3B-183Power cord with United Kingdom(UK)plug,1.83mApplicable Models:NPort6610-8NPort6610-8-48VNPort6610-16NPort6610-16-48VNPort6610-32NPort6610-32-48VNPort6650-8NPort6650-8-TNPort6650-8-48VNPort6650-8-HV-TNPort6650-16NPort6650-16-TNPort6650-16-48VNPort6650-16-HV-TNPort6650-32NPort6650-32-48VNPort6650-32-HV-TPWC-C13US-3B-183Power cord with United States(US)plug,1.83mApplicable Models:NPort6610-8NPort6610-8-48VNPort6610-16NPort6610-16-48VNPort6610-32NPort6610-32-48VNPort6650-8NPort6650-8-TNPort6650-8-48VNPort6650-8-HV-TNPort6650-16NPort6650-16-TNPort6650-16-48VNPort6650-16-HV-TNPort6650-32NPort6650-32-48VNPort6650-32-HV-TPower WiringCBL-PJ21NOPEN-BK-30Locking barrel plug to bare-wire cableApplicable Models:NPort6450Expansion ModulesNM-TX01110/100BaseTX portNM-TX01-T110/100BaseTX port,-40to75°C operating temperatureNM-TX02210/100BaseTX portsNM-TX02-T210/100BaseTX ports,-40to75°C operating temperatureNM-FX01-M-SC1100BaseFX port,multi-mode,SC connectorNM-FX01-M-SC-T1100BaseFX port,multi-mode,SC connector,-40to75°C operating temperature NM-FX01-S-SC1100BaseFX port,single-mode,SC connectorNM-FX01-S-SC-T1100BaseFX port,single-mode,SC connector,-40to75°C operating temperature NM-FX02-M-SC2100BaseFX ports,multi-mode,SC connectorNM-FX02-M-SC-T2100BaseFX ports,multi-mode,SC connector,-40to75°C operating temperature NM-FX02-S-SC2100BaseFX ports,single-mode,SC connectorNM-FX02-S-SC-T2100BaseFX ports,single-mode,SC connector,-40to75°C operating temperature©Moxa Inc.All rights reserved.Updated Jan18,2019.This document and any portion thereof may not be reproduced or used in any manner whatsoever without the express written permission of Moxa Inc.Product specifications subject to change without notice.Visit our website for the most up-to-date product information.。
串口服务器用户手册
深圳市天地华杰科技有限公司串口服务器用户手册RS-232/485/422 —TCP/IP深圳市天地华杰科技有限公司深圳市天地华杰科技有限公司目录1产品简介 (1)1.1产品特色 (1)1.2技术规格 (1)1.3外部接口 (2)1.4安装 (3)2使用指南 (4)2.1串口服务器配置 (4)2.2通讯测试 (7)2.2.1单机测试 (7)2.2.2运行测试 (10)串口服务器用户手册1产品简介1.1产品特色串口服务器是RS232/485/422串口到以太网TCP/IP协议的双向转换传输设备，变传统的串口通讯为网络通讯，实现串口设备的快速联网。
转换器采用透明传输的方式，用户不用知道复杂的TCP/IP协议，不用更改程序即可实现原有串口设备的网络连接，节省您宝贵的时间和已有投资。
其极低廉的价格能提升您产品的核心竞争力；简单灵活的配置和极高的可靠性能满足您任何苛刻的应用，是您理想的选择。
1.2技术规格●接口：10Base-T, RS232/485（DB9母头）●协议：TCP/UDP/IP/ICMP, Ethernet, ARP●串口：300bps – 115200bps●电源：DC 5V ± 10%●尺寸：92X64X24mm（高级铝合金屏蔽外壳）1串口服务器用户手册21.3外部接口串口服务器用户手册1.4安装串口服务器采用WINDOWS应用程序ezConfig通过网络配置参数，因此，客户计算机应安装网卡并配置好网络环境，如需连接多个串口服务器设备，则还需网络交换机或HUB。
1、如客户计算机已安装网卡并配置好网络环境，则省略本步骤。
如尚未安装网卡，则应首先安装网卡并配置IP 地址及子网掩码。
客户的机器如未与其它计算机联网，则该机器的IP地址可任意配置：一般采用保留三类IP地址，即192.168.X.Y（注：同一局域网网中X均相同，Y任意，但不能重复），子网掩码为255.255.255.0。
如该计算机已在局域网中，请遵循系统管理员的安排；2、客户方的网络环境配置完后，可通过交叉网线连接客户机网卡的接口及串口服务器上的RJ45接口，或两者都用直连网线接在网络交换机或HUB上；3、用RS232电缆将串口服务器上的串口同嵌入式设备上的串口或PC机的串口（用于测试串口服务器）连接起来；4、串口服务器接通电源后即开始工作，电源指示灯PWR 点亮，同时运行灯RUN有规律的闪烁，说明电源正确接通串口服务器工作正常。
JetBox 5630 与 JetWave 2311 的 OpenVPN 配置指南说明书
將頁面往下拉 點選 “Apply”
Static mode
• Client 儲存設定
到 “Save” 點選 “Save to Flash”
Static mode
• 確認VPN連線狀態
到 “VPN”=> “Status”, 可以檢查VPN的連線狀態
• 準備工作 • IP 配置範例 • Static mode • TLS-mode
Static mode
• 開啟Server的OpenVPN連線
回到Server的網頁, 到 ”VPN”=> ”OpenVPN” 頁面 找到剛才建立的連線, 按下 ”Start” 後, 按下 ”Save & Apply”
Static mode
• Client Network Mode調整
到 “System”=> “Basic Settings”, 將 ”Network Mode” 切換成 ”Router”
TLS-Mode
• 建立新的VPN連線
到 ”VPN”=> “OpenVPN” 輸入連線的名稱並按下 ”Add”
TLS-Mode
• 建立Key
TLS-Mode無法在Web interface建立Key, 要透過下指令的方式建立 用Console連結PC與JetBox 5630, 進入Command mode, 或是用CMD
Hale Waihona Puke TLS-Mode• Server route設定
按 “i” 後, 輸入: • ifconfig-push 10.8.0.3 10.8.0.1 • iroute 192.168.10.0 255.255.255.0
建完按ESC 輸入 ”:wq”
关于Nport 设置TCPservice模式说明书
4，设备库协议填TCP，串口类型填ip+冒号+端口如：192.168.1.248:4001，因客户端BUG，此项需要在数据库修改。如图：
5，最后，注意在loncomip配置LoaderBundle.xml，开启TCP就行。
和由于公司软件和nport虚拟串口模式常常失灵为了解决此问题特作一简单文档与大家共享之虚拟串口模式常常失灵为了解决此问题特作一简单文档与大家共享之bylisbs设置步骤以温湿度举例说明
由于
设置步骤，以温湿度举例说明：
1，登录Nport，如下图（可以通过网页以及Nport客户端）
2.从左边的树形找到Operating Setting，最上面一个常数，Operation mode选择TCP serverMode，其他ห้องสมุดไป่ตู้认即可。打开如图：
Nport5630串口服务器使用说明
Nport5630串口服务器使用说明Nport5630串口服务器是一款功能强大的设备，可以将串口设备连接到IP网络，实现远程管理和控制。
本文将详细介绍Nport5630串口服务器的使用方法和操作流程，以帮助用户更好地利用该设备。
1. 设备介绍Nport5630串口服务器是一种专门用于串口设备的远程管理和控制的设备。
它可以将串口设备转换为TCP/IP网络数据，实现远程控制和监控。
Nport5630具有多种通信接口，包括RS-232、RS-422和RS-485，可适应不同的串口设备。
2. 连接配置使用Nport5630之前，首先需要进行连接配置。
将串口设备通过串口线缆连接到Nport5630的串口接口上，同时将网络线缆连接到其以太网接口上。
确保电源供应正常，设备接口连接稳定。
3. IP设置接下来，需要对Nport5630进行IP设置。
打开终端程序，通过串口连接到Nport5630。
输入设备提供的默认IP地址和用户名密码进行登录。
进入管理界面后，选择网络设置，按照实际网络环境设置设备的IP地址、子网掩码和默认网关。
保存设置并重新启动设备，确保新的IP设置生效。
4. 端口配置配置Nport5630的串口参数，确保与连接的串口设备保持一致。
通过终端程序连接到Nport5630后，选择端口配置，设置相应的串口参数，包括串口类型、波特率、数据位、校验位和停止位等。
根据实际需求进行设置，并保存配置。
5. 远程管理完成连接配置和端口配置后，就可以通过网络远程管理和控制串口设备了。
在计算机上打开浏览器，输入Nport5630的IP地址，登录设备管理界面。
界面提供了多种功能选项，包括串口调试、远程命令、虚拟串口和数据转发等。
根据实际需求选择相应的功能，并进行相关设置和操作。
6. 串口调试Nport5630提供了串口调试功能，可以帮助用户实时监测和调试串口设备。
在设备管理界面中选择串口调试，并选择要调试的串口，打开调试窗口后，即可实时查看串口设备的输出信息。
nport串口服务器调试说明
现场调试NPORT5232
1．将电脑连入NPORT5232的网络，点击search,将会收到网络上的所有NPORT5232，根据MAC地址确定将要调试的设备。
2．双击要调试的设备。
Network是用来设置设备的IP地址，要修改必须勾选Modify ,才能操作。
Serial是用来修改485口的波特率等参数。
Operating Mode 是用来调试485口的工作模式：
TCP模式，用于以太网网络传输报文。
一般第一个485口设定4001端口，第二个485设定为4002端口。
REAL模式，将485映射到电脑，虚拟成电脑的COM口。
我们一般都在REAL模式下发送报文，以调试485总线设备（如扶梯，西门子PLC等）点击“COM Mapping”
再点击“Add”，添加我们需要映射的Nport5232，注意，我们映射的端口必须被改为REAL 模式才行。
然后点击“Apply”，选择没有占用的端口，即可（相当于电脑有了COM3，COM4等端口）。
如果端口映射不了，请关闭防火墙或杀毒软件，重新安装Nport软件。
经过如上设置，我们就可以用串口调试工具发送和接收报文了。
串口调试工具Commix 用法：
双击：Commix
设定好后点击“Open Port”再在报文发送框内填写报文。
Port:设定电脑将要通讯的COM口。
（可以是Nport5232映射的端口）
输入16进制的报文，点击，Send
次窗口会显示485总线上的发送和接收的信。
串口服务器配置手册
立体仓库系统硬件配置手册无锡中鼎物流设备有限公司2015年1月编制1.硬件介绍MOXA串口联网服务器NPORT5360特点- 以太网口支持100/10M自适应，串口支持RS-422，RS-485（2w/4w）- 低成本、信用卡大小- 支持Windows/Linux COM串口驱动程序模式- 提供包括TCP Server、TCP Client、UDP Server/Client和Ethernet Modem在内的不同socket操作模式- 无需PC、可通过网络连接两个串口设备的对等连接模式- 易于使用、可用于批量安装的Windows工具- 所有信号内置15 KV突波保护- 支持网络管理协议SNMP MIB-II- 可通过网络Web/Telnet进行配置2.串口服务器配置MOXA针对串口联网服务器开发了软件NPort Administrator，方便用户配置，下面我就介绍如何用Nport Administration 配置NPORT产品。
⑴安装软件Nport Administration如下图所示安装Nport Administration Suite⑵连接串口服务器安装Nport Administration Suite后连接立库系统内网，需要配置与立体库同一网段IP地址。
本立库系统串口服务器IP地址为192.3.15.252.注意：配置IP地址时请勿配置设备占用的IP地址，否则可能会导致设备无法正常运行。
打开软件，如图：图三点击Search，可以搜索到局域网中所有的NPORT设备，包括和主机IP不同网段的NPORT设备。
搜索到设备如下图：图四如图可以显示设备的型号，MAC地址，IP地址，以及设备的名称。
(默认IP：192.168.127.254)⑶配置串口服务器选中要配置的设备，点击右键——Configuer，或者是双击，进入设备配置界面，如图：图5如图五，Basic界面可以设置设备的名称，设备的时钟(默认读取主机时钟)，以及登陆设备的方式。
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
MOXA Nport 5630通信设备使用说明书文件级别：文件编号：
MOXA Nport 5630 设备
使用说明书
1．０版
编制：汤浩
校核：喻鹏、谭华
审定：
批准：
MOXA Nport 5630通信设备使用说明书长沙华能自控集团有限公司
一、简介
MOXA Nport 5600系列产品是一种和后台电脑用网络连接的串口服务器。
NPort 5600 系列
多个不同的后台电脑可以共同分享１个Nport 5600设备
MOXA Nport 5630通信设备使用说明书
二、Nport 5600通信线制作
Nport 5600 系列串口接线引脚
引脚号RS232 RS422 / 4线RS485 2线RS485
1 DSR
2 RTS
3 GND TXD+
4 TXD TXD-
5 RXD RXD- DATA-
6 DCD RXD+ DATA+
7 CTS GND GND
8 DTR
MOXA Nport 5630通信设备使用说明书
三、Nport 5600设置
面板和按钮说明
灯：
LED 灯-灯颜色-含义
LED灯颜色含义
准备灯红正在启动中，长期则是有错误
绿正常
1-8/16通信信号灯正在接收数据
MOXA Nport 5630通信设备使用说明书
按键:
先在NPORT 5600上把NPORT 5600的IP设置好，具体操作方法如
Menu(主选单) → NetWork Setting → IP Address →设置为192.168.X.X
→ NetMask →设置为255.255.255.0
四、后台电脑设置
在后台电脑中安装好Nport 5600的驱动程，安装完毕后在开始菜单中选择程序，然后再选择刚安装好的NPort Administration Suite→ NPort Administrator
打开后选择Broadcast Search （自动查找在网络内的Nport ）
MOXA Nport 5630通信设备使用说明书
配置Nport 5600
设置PORTx 端口的通信方式
MOXA Nport 5630通信设备使用说明书
Com Mapping (串口映射)
也就是把NPORT 的PORTx 映射为电脑中的COM
MOXA Nport 5630通信设备使用说明书。
