一．总述
1．风机简介： 风机总成含叶轮及传动系统。叶轮由锻铝合金叶片碳钢轮毂两部分组成。
传动系统包括电机架、驱动带轮、从动带轮、上下轴承座、主轴及传动带。风 机的构架或基础均应有足够的强度、刚度和稳定性，能吸收和隔离振动，防止 发生共振。 2． 风机铭牌说明：
盘动主轴，主轴应转动自如，力度均匀。
e) 安装加油管至轴承座，见图 7。油管为铜管。安装时应清除管口毛刺及管内
4
保定航技风机制造有限公司
BAODING HJ FAN MANUFACTURING CO., LTD.
航
技
空气调节器维修手册
空气调节器维修手册一、前言空气调节器（Air Conditioner）是一种常见的家用电器，用于调节室内空气温度和湿度，提供舒适的环境。
然而，由于长期使用或其他原因，空调可能会出现一些故障，需要及时维修。
本手册旨在为用户提供维修空调的详细指导，帮助您解决常见的问题。
二、安全须知在进行空调维修之前，请务必注意以下安全事项：1. 首先，确保断开电源并拔下电源插头。
2. 在进行任何维修工作之前，戴上绝缘手套和护目镜，确保个人安全。
3. 不要在未经许可的情况下打开空调主机或触摸内部零件，以免引发电击或其他危险。
三、故障排除1. 无法启动- 检查电源是否插好。
确认插头连接完好。
- 检查电源线是否断裂或损坏。
如有破损，请及时更换。
- 检查电源开关是否处于关闭状态。
尝试打开电源开关。
- 如仍无法启动，可能是供电问题，请联系专业维修人员进行检查修复。
2. 空调运行不正常- 检查空调显示屏是否正常。
若有故障码显示，请按照说明书的故障码表进行排查。
- 检查空调滤网是否堵塞。
定期清洗或更换滤网。
- 检查空调外部散热器是否受到阻碍。
确保周围无物体遮挡，保持良好的散热。
- 如问题仍未解决，请联系售后服务中心或专业维修人员。
3. 制冷效果差- 检查空调是否正常供电。
确保电压和电流符合要求。
- 检查空调温度设置是否合适。
调整温度设置为所需的舒适温度。
- 检查空调滤网是否清洁。
如果滤网堵塞，清洗或更换它。
- 检查空调室内和室外机组的换热器是否清洁。
如果有污垢，清洗它们。
- 如问题仍未解决，请联系专业维修人员进行检查修理。
4. 异常噪音- 检查空调固定螺丝是否松动。
如有松动，请紧固它们。
- 检查空调安装是否牢固。
如果有松动，请进行安装调整和固定。
- 检查空调室内和室外机组是否平稳。
如果不平稳，可以调整基座或垫片，以稳固机组。
- 如问题仍未解决，请联系专业维修人员进行检查修理。
四、维护保养定期维护保养空调可以延长其使用寿命和维持良好的性能。
空冷器使用维护说明书
置安装在风道中。空冷器气侧连接孔与风道连接孔
用螺栓联接坚固，同时加装发动机供应商提供的密
封材料。
空冷器进出水法兰与冷却水管用螺栓联接坚固，
同时加装发动机供货商提供的密封材料。
为避免空冷器在安装过程中变形和产生应力，
所有连接面都应该平行，公差越小越好。所有连接点
都要做到气密和水密。
运输吊耳是用来提吊和搬运空冷器的，在管组
空冷器传热元件有：椭圆管方片、圆管圆片及圆 管方片等几种结构形式。管与片的连接方式通常有： 钎焊式、整体轧制式和机械胀接式。
冷却管由胀管器将其两端紧紧地胀接到管板上。 侧板作为空冷器的一部分，与管板用螺栓连接 紧固。 端盖（即进出水端盖和回流水端盖），作为循环 水室，按设计的水流程数设置隔水筋。端盖上装有旋 塞用于空冷器的放气和排水。端盖与管板间装有密 封垫并用螺栓将其紧固。 端盖、管板和冷却管的材质是根据冷却水质和 设计水流速来选择的。 增压空冷器安装在涡轮增压器和柴油机进气总 管之间的风道中。其安装形式有两种： １、空冷器可直接装在风道中（固定式空冷器）， 这时把空冷器的侧板和管板直接用螺栓安装到风道 上，形成风道的一部分。 ２、空冷器先装进箱体，然后把箱体用螺栓安装 到风道上（可拆式空冷器）。用此法安装，在拆卸维 修空冷器时可以不拆卸风道。
８、 Cleaning Ge ner al Cleaning of the water side Mechanical cleaning Hydraulic cleaning Chemical cleaning Chemical cleaning -In situ Chemical cleaning -Cooler removed Cleaning of the air-side Hydraulic cleaning Chemical cleaning
空冷器操作维护规程

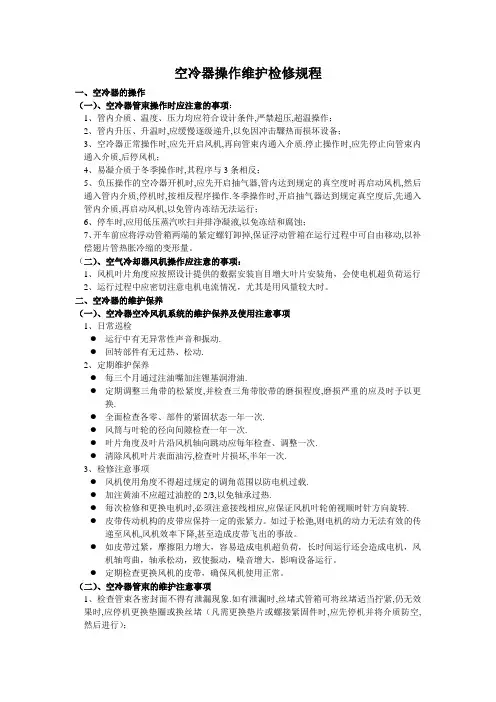

空冷器操作维护检修规程一、空冷器的操作（一）、空冷器管束操作时应注意的事项：1、管内介质、温度、压力均应符合设计条件,严禁超压,超温操作；2、管内升压、升温时,应缓慢逐级递升,以免因冲击驟热而损坏设备；3、空冷器正常操作时,应先开启风机,再向管束内通入介质.停止操作时,应先停止向管束内通入介质,后停风机；4、易凝介质于冬季操作时,其程序与3条相反；5、负压操作的空冷器开机时,应先开启抽气器,管内达到规定的真空度时再启动风机,然后通入管内介质,停机时,按相反程序操作.冬季操作时,开启抽气器达到规定真空度后,先通入管内介质,再启动风机,以免管内冻结无法运行；6、停车时,应用低压蒸汽吹扫并排净凝液,以免冻结和腐蚀；7、开车前应将浮动管箱两端的紧定螺钉卸掉,保证浮动管箱在运行过程中可自由移动,以补偿翅片管热胀冷缩的变形量。
（二）、空气冷却器风机操作应注意的事项：1、风机叶片角度应按照设计提供的数据安装盲目增大叶片安装角，会使电机超负荷运行2、运行过程中应密切注意电机电流情况，尤其是用风量较大时。
二、空冷器的维护保养（一）、空冷器空冷风机系统的维护保养及使用注意事项1、日常巡检●运行中有无异常性声音和振动.●回转部件有无过热、松动.2、定期维护保养●每三个月通过注油嘴加注锂基润滑油.●定期调整三角带的松紧度,并检查三角带胶带的磨损程度,磨损严重的应及时予以更换.●全面检查各零、部件的紧固状态一年一次.●风筒与叶轮的径向间隙检查一年一次.●叶片角度及叶片沿风机轴向跳动应每年检查、调整一次.●清除风机叶片表面油污,检查叶片损坏,半年一次.3、检修注意事项●风机使用角度不得超过规定的调角范围以防电机过载.●加注黄油不应超过油腔的2/3,以免轴承过热.●每次检修和更换电机时,必须注意接线相应,应保证风机叶轮俯视顺时针方向旋转.●皮带传动机构的皮带应保持一定的张紧力。
如过于松弛,则电机的动力无法有效的传递至风机,风机效率下降,甚至造成皮带飞出的事故。
P型系列空气冷却器(使用说明书)1
P 型系列空气冷却器使用说明书泰州市裕华制冷设备制造有限公司空气冷却器一、概况P型系列空气冷却器（又称冷风机）是一种使用于各种冷库的冷却降温设备，P型系列空气冷却器有PC、PCE和PE型三种型式分别使用于不同库温的冷库。
它具有结构紧凑、重量轻、不占有冷库实用面积等优点，与自然对流排管相比，它能使冷库内贮藏的食品迅速降温，大大提高了贮藏食品的保鲜度。
二、产品用途P型系列空气冷却器可与不同制冷量的压缩冷凝机组配套，用于不同库温的冷库中作为制冷设备。
其中PC型适用于库温为0℃左右的冷库，如保存鲜蛋或蔬菜的库。
PCE型适用于库温为-18℃左右的冷库，作为肉类、鱼类等冷冻食品的冷藏用。
PE型适用于库温为-25℃或低于-25℃的冷库作为鲜肉或鲜鱼制品及调理食品等冻结用。
三、产品特点1、壳体采用喷塑钢板、轧花铝板或不锈钢板，耐腐蚀，外形美观，可满足不同可户的需求。
2、盘管以错排方式布置，传热效率高，通过机械胀管将铝翅片套在铜管上连接牢靠。
3、该产品为厂内配线，所有接线均置于一个接线盒内，安装维修方便。
4、选用的电机和风叶，噪声低，运转平稳并可根据用户需要选用防爆型电机。
5、排水管中央最低处设有排水接口，排水可靠。
6、槽型吊架，安装方便。
7、U型管状不锈钢管及氧化镁填料的电加热管，置于盘管中，融霜效果良好，几种可选的融霜方式（电加热管、水、热气）。
8、出厂前全部经过保压充氮处理。
四、型号说明空气冷却器的传热面积（m2）空气冷却器的名义制冷量KW（kcal/h）融霜方式：对电融霜省略此相，W表示水冲霜适用制冷剂（对R22省略此项）冷却物冷藏库用C表示冻结物冷藏库用CE表示速冻库用E表示吊顶式用P表示五、冷风机安装前的检查1、在拆开外包装后应检查各连接部件有无松动，如有松动应重新紧固。
2、检查轴流风机的风叶安装在电机轴上是否牢固，风叶与防护罩是否碰伤。
3、如因运输而造成冷风机有损坏或变形时，应修复后才能吊装。
1大卡/小时=1.163W适用于库温：-2 ～ +5℃的冷库备注:根据用户需要可进行特殊加工1大卡/小时=1.163W适用于库温：+2 ～ -20℃的冷库备注:1、可根据用户要求加工成水冲霜； 2、根据用户需要可特殊加工。
空-水冷却系统产品售后维护维修说明(V1.0版).pdf
4
排污阀
反冲洗时排污
空冷器进水口
5
支管回水阀 空水冷却器回水开关及开度调整 空冷器出水口
6
压力表7
反冲过滤器
过滤水中的杂质
供水母管或支管 需定期反冲洗
8
母管回水阀
主管路回水关断及开度调整
回水母管
9 空-水冷却器
完成风路和水路的热交换
变频器室的墙体
2、风路系统 热风由功率柜柜顶通过上风道流向室外冷却器，经过空水冷却器降温冷却处理后，再回
三、维护和保养
1、维护内容 BLH－CK 系列空－水冷却系统采用完全机械结构设计，其热交换效率受现场环境和设备
运行时间长短的影响，如果能够经常维护和保养设备，将会延长设备的使用寿命。一般情况 下，设备的维护内容以及维护周期见下表。
序号
类别
维护内容
维护周期
备注
应急进排风以及风道情况（进排风口以及风道是否有漏风、
1 风路系统
半年
进排风口的螺栓是否锈死）
2
清洗反冲过滤器（详见以下保养措施）
1月
3
清洗空-水冷却器（详见以下保养措施）
1月
水路系统
4
管道阀门情况（详见以下保养措施）
1月
5
水质的情况（详见以下保养措施）
半月
风机运行情况（运行时百叶窗的出风量；出风流速，一般
6
半年
为 5m/s；三相间的电阻是否均衡）
7
现场电源电压（是否为 380VAC，50HZ 电源）
