RN2高压限流熔断器使用说明书
熔断器产品说明书
一、西安西熔电力科技有限公司1、3.6-40.5kv高压限流熔断器本产品适用于户内50Hz，额定电压3.6-40.5ｋV系统作为电压互感器的过载或短路保护之用，（通过国家高压电器质量监督检测中心试验，产品符合GB/T15166.2和IEC60282-1）。
（1）型号（2）基本参数熔断器的基本参数如表：（3）外型及安装尺寸熔断器的外型及安装尺寸如(图3)和表2所示；2、40.5KV高压限流熔断器40.5KV高压限流熔断器本产品适用于户内交流50Hz，额定电压40.5kV电力系统，作为高压电力变压器及其它电力设备过载或短路等保护元件，还可与其它保护电器（负荷开关，真空断路器等）配合使用。
（1）型号（2）基本参数熔断器的基本参数如表：（3）外型及安装尺寸熔断件的外型尺寸如（图3）熔断器的外型及安装尺寸如（图4）：（4）熔断器的选用用于变压器初级端熔断器的一般选用原则见表：3、RN系列高压交流熔断器RN系列高压交流熔断器本系列高压交流熔断器适用于户内交流50Hz，额定电压3kV-35kV电力系统，用于对电力线路、变压器、电压互感器及其它电器的过载及短路保护，亦可用以保护电力系统分出的支路，当线路短路电流达到最大值之前熔断器就将线路切断。
（1）型号熔断器的基本参数如表：表一注：*号为双拼管表二注：*号为双拼管（3）外型及安装尺寸RN1、RN3型户内高压熔断器外形尺寸如(图1)、(图2)和表3所示；图1图2 表三( )为RN,RN3-6外形尺寸RN2型户内高压熔断器外形尺寸如(图3)、(图4)及表4图3图4表四。
供电实验报告
一、实验目的熟悉高低压电器、高低压成套配电装置的结构、功能, 了解其技术特性。
二、实验主要仪器与设备各种高低压电器设备、高低压成套配电装置。
三、实验原理（一）高压熔断器熔断器是常用的一种简单的保护电器。
当通过它的电流超过规定值并经过一定的时间后熔体熔化, 从而切断电流, 对线路及设备进行短路保护或过负荷保护。
1. 户内高压熔断器①RN1和RN2型高压管式熔断器。
RNl 及RN2型熔断器结构如图1-1所示, 主要由熔管、触座、动作指示器、绝缘子、石英砂填料和底座组成。
图1-1 RNl 及RN2型熔断器结构图 短路电流通过时, 并联铜丝熔断产生电弧, 电弧在充满石英砂填料的熔管内燃烧, 灭弧过程中利用了粗弧分细、长弧切短、狭沟灭弧和冷却灭弧等灭弧方法。
②XRNT 、XRNP 型高压限流熔断器。
XRNT 、XRNP 型高压限流熔断器结构如图1-2所示。
（a ）外形图 （b ）剖面图图1-2 高压限流熔断器的结构图（b ）熔管剖面图（a ）外形图熔断器本体主要由瓷质熔管、丝状或片状熔体、高纯度石英砂、瓷芯柱、撞击器等组成。
熔断器依靠石英砂对电弧的吸热和游离气体向石英砂间隙扩散的作用进行灭弧, 同时可利用冶金效应形成串联电弧, 将长弧切短加速灭弧。
熔丝熔断时, 撞击器迅速弹出, 驱动连锁电器（常用负荷开关）的脱扣器而使开关跳闸或并发出熔断信号。
２、户外高压跌开式熔断器如图1-3所示为RW4-10（G）型跌落式熔断器结构。
熔断器熔管外层为酚醛纸管或环氧玻璃布管, 内套纤维质消弧管, 其灭弧原理为: 短路电流使熔体熔断, 形成电弧, 电弧灼烧消弧管内壁, 产气纵吹电弧而熄灭。
如图1-4所示为RW10-10F跌开式熔断器。
在一般跌开式熔断器的上静触头上加装了一个简单的灭弧室, 因而可以带负荷操作, 相当于负荷开关。
图1-3RW4-10(G) 型跌落式熔断器图1-4 RW10-10负荷型跌开式熔断器（二）高压隔离开关高压隔离开关是一种没有灭弧装置的开关电器, 其功能主要是隔离高压电源, 以保证对其他电气设备检修工作的安全。
电能中高压熔断器说明书
18Medium Voltage FusesMedium Voltage Fuses18 Medium Voltage FusesProduct Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V12-T18-2Product History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V12-T18-2Product History Time Line. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V12-T18-2Product Application and Naming. . . . . . . . . . . . . . . . . . . . . . . . . . . . . V12-T18-3Current-Limiting Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V12-T18-4Expulsion Fuses. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V12-T18-5Product Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V12-T18-6Further Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V12-T18-8Pricing Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .V12-T18-81818Medium Voltage FusesCurrent-Limiting and Expulsion FusesCurrent-Limiting andExpulsion FusesOriginally aWestinghouse ProductMedium Voltage FusesProduct DescriptionEaton medium voltagefuses offer such a range ofcharacteristics that almostany fuse application, withinthe practical range of suchinterrupting devices, maybe satisfied. This range ofcharacteristics is offeredin part by the production ofboth expulsion and current-limiting power fuses.Expulsion and current-limitingfuses provide such diversecharacteristics by employingdifferent areas of fusetechnology. These differencesin technology, along with thediverse characteristics, requirethat different questions beanswered when applyingexpulsion and current-limiting fuses.Product HistoryThe Eaton power fuse productline was introduced in the1930s by WestinghouseElectric Corporation. As powersystems grew in size, the needto sectionalize utility feedersand to protect equipmentbecame apparent. The initialfuse development effortsresulted in the creation ofnon-current-limiting, expulsiontype fuses. As the availablefault currents grew, the needfor a current-limiting fuse wasapparent and this resulted innew interruption techniques.While basic fuse technologyhas not changed greatlyover the years, gradualimprovements have beenmade to make the fusesmore current-limiting andeasier to manufacture andinstall. Because standardsfor fuses (ANSI C37) detailonly test methods and basicperformance requirements,many different varieties offuses (length, diameter, short-circuit interruption curves)have been introduced overthe years.Eaton presently manufacturesmedium voltage fuses inHaina, DR.Product History Time LineFuses in PerspectiveAdvantagesMedium Voltage Fuse ComparisonNotes1BAL superseded by CLE.2BAL-R superseded by CLS.3BA—Refills and holders only, new installations use RBA.4DBA—Refills only.5DBS—Superseded by DBU.VoltageTypeClassApplicationAmp RatingExpulsion Current-LimitingVented SealedElectromechanical StaticExpels gases/noise No gases/noiseInterrupts at natural current zero Limits fault currentGenerally higher voltage/current applications Generally higher interrupting ratingsDifferences in time/current characteristics Differences in time/current characteristics1818Medium Voltage FusesCurrent-Limiting and Expulsion FusesApplication GuideGuide to NamesBCLS—Bolt-in version of CLS fuse .BHLE—Bolt-in version of HLE fuse.CLE —Current-limiting E-rated.HLE/HCL —Current-limiting E-rated, interchangeable with General Electric and Gould Shawmut.CX/CXN —Current-limiting interchangeable with McGraw-Edison’s NX brand fuses, C-rated.CLT —Current-limiting transformer fuse.CLPT —Current-limiting E-rated for potential transformers.CLS —Current-limiting for motor starters, R-rated.RBA —Refillable boric acid expulsion fuse (indoor use).RDB —Refillable dropout boric acid expulsion fuse (outdoor use).DBU —Dropout boric acid fuse interchangeable with S&C’s SMU-20 refill.Guide to Ampere Ratings“E” DesignationFuse rated 100E or below will melt in 300 seconds at a current value between 2.0 and 2.4 times the E number.Fuse rated above 100E will melt in 600 seconds at a current value between 2.2 and 2.64 times the E number.If the current is higher than 2.4 or 2.64 times the E number, the user must consult the time-currentcurves for that particular fuse.“R” DesignationThe fuse will melt in 15 to 35 seconds when the current equals 100 times the R number.If the current is higher than 100 times the R number, the user must consult the time-current curves for that fuse.“C” DesignationThe fuse will melt in1000 seconds at a current value, between 1.7 and 2.4 times the C number.If the current is higher than 2.4 times the C number, the user must consult the time-current curves for that particular fuse.“A” DesignationFuses that do not comply with “E,” “R” or “C” designations.Expulsion fuses can also be E-rated, K-rated and T-rated, and are also covered in the ANSI standards. The K and T ratings refer, respectively, to relatively “fast” and “slow” melting expulsion fuses. Detailed time-current tables adequately define these ratings.Selection GuideRatingsFeeder Circuit Section-alizing Fused Switches Power Trans-formersSubstationService Trans-formers DIP Pole Underground DistributionTransformersPole-MountedTrans-formers Pad-Mounted Distribution Transformers Motor Starters Potential Trans-formers Sub-stationCapacitorBanksType Class UseBrand kV,Ampere,kACurrent limitingGeneral purposePower BHLE/CLE/HLE/HCL 2.4–15.5 kV 10E–1350A to 85 kA ■■■■■Dist.CX/CXN 4.3–15.5 kV 3.5C–300C 50 kA ■■CLT2.4–15.5 kV 4A–150A 25 kA ■Backup Power CLPT2.4–38 kV 0.25E–10E to 80 kA ■Power BCLS/CLS2.4–8.3 kV 2R–36R 50 kA ■ExpulsionBoric acidPower RBA4.8–34.5 kV 0.5E–720E ■■■■RDB 4.8–34.5 kV 0.5E–720E ■■■■■■DBU14.4–38 kV 5E–200E 15SE–200SE 3K–200K■■■■■■1818Medium Voltage FusesCurrent-Limiting FusesCurrent-Limiting FusesCLE and HLE Current-Limiting—E-RatedCLPT Current-Limiting E-Rated forPotential Transformer ProtectionCLS Current-Limiting for Motor StarterCX Current-Limiting—Interchangeablewith McGraw Edison’s NX TypeCLT Current-Limitingfor Transformer ProtectionProduct DescriptionCurrent-limiting fuses areconstructed with pure silverfuse elements, a high-puritysilica sand filler, a speciallydesigned core and a glassresin outer casing.A high fault current melts thesilver element almost instantlyand loses energy to thesurrounding sand. The sandmelts and forms fulgurite,a glass-like substance.The arc voltage rapidlyincreases to nearly threetimes the fuse voltage ratingand forces the current tozero. Low fault current meltsa solder drop on the silverfuse element that, in turn,melts the silver.The element burns back untilthere is a sufficient internalgap to interrupt the current.This is known as the M-effect.Eaton current-limiting fusesare offered in two basictypes: backup and generalpurpose. Backup fuseshave a published minimuminterrupting current andrequire a series device forbreaking the circuit forcurrents below this minimumlevel. General purpose fuseshave improved low currentinterruption capability and aredesigned to interrupt low faultcurrents that cause the fuse tomelt in one hour or less.General InformationApplicationsCurrent-limiting technologiescan be used to meet almostevery fuse application. Typicalapplications for utility,industrial, construction andOEM customers include:●Feeder circuitsectionalizing●Power transformers●Substation servicetransformers●Underground distributiontransformers●Pole-mountedtransformers●Pad-mounted distributiontransformers●Fused switches●DIP poles●Motor starters●Potential transformers●Substation capacitor banksAccessoriesA wide assortment ofmountings, live parts andend fittings are availableto facilitate power fuseinstallation.Mountings include a base,porcelain or glass polyesterinsulators and live parts. Theyhelp enable the fuse to besafely attached to the gear.Mountings can be eitherdisconnect or nondisconnect.Live Parts attach the fuseto the mountings and areconsidered part of themounting. All parts abovethe insulators are live parts.Live PartsEnd Fittings are metal partsthat attach to each end ofthe fuse at the ferrules.They are used only ondisconnect fuses or whenconverting a nondisconnectto a disconnect fuse.1818Medium Voltage FusesExpulsion FusesExpulsion FusesRBA—Refillable Boric AcidRDB—Refillable Dropout Boric AcidDBU—Dropout Boric Acid—Interchangeable with S&C’s SMU-20Product DescriptionEaton expulsion fuses use boric acid as theinterrupting medium. Under a fault condition, arc heat decomposes the boric acid, which produces gases and boric anhydride. The water vapor blast extinguishes the arc in a deionizing action and exits from the bottom of the fuse.Type RBA indoor expulsion fuses are fitted with a filter or condenser that moderates the discharge exhaust. The discharge filter limits the exhaust to a small and relatively inert amount of gas and lowers the noise level without affecting the fuse interrupting rating. Steam discharge, that can affect the interrupting, is fully restricted by the condenser.Each type RDB outdoor dropout fuse includes an ejector pin that is forced through the top of the fuse. The ejector pin releases a latch on the mounting and the fuseholder is kicked outward and swings into the dropout position, through 180° with a vertical mounting, or 90° with an underslug mounting.Refill units can be fieldinstalled into RBA and RDB expulsion fuses. Once the old unit has been removed, the separately purchased unit can be easily installed into the fuse holder.General InformationApplicationsExpulsion technologies can be used to meet a number of fuse applications. Typical applications for utility, industrial construction and OEM customers include:●Feeder circuit sectionalizing ●Fused switches ●Power transformers ●Substation service transformers ●DIP poles●Potential transformers●Substation capacitor banksAccessoriesThe following accessories are available for expulsion fuses:Mountings include a base, porcelain or glass polyester insulators and live parts. They help enable the fuse to be safely attached to the gear. Mountings can be either disconnect, nondisconnect or dropout. Fuses may be vertical or underhung.Live Parts attach the fuse to the mountings and are considered part of the mounting. All parts above the insulators are live parts.End Fittings must bemounted on DBU fuse units to enable them to be fitted into the mounting.Filters and Condensers are for indoor applications of RBA expulsion fuses. They confine the arc within the fuse and substantially reduce the noise and exhaust when the fuse interrupts.Mufflers are used with DBU fuses in indoor applications to virtually eliminate offensive noise and exhaust gases when the fuse interrupts.18Medium Voltage FusesCurrent-Limiting and Expulsion FusesProduct SelectionEasy to Use, Easy to Order! Eaton’s fuse catalog numbering system makesit easy to order the right fuse. The catalog numbers are easy to remember, unique to each fuse, andare broken down in three descriptive segments: fuse type, voltage rating and current rating.These catalog numberscan be entered directlyand easily:●No change in orderprocessing will occur if you use either a style numberor its correspondingcatalog number. Y ouwill get the same fuse●In the back of this orderingguide is a style numberto catalog number cross-reference chartCurrent-Limiting Fuse Examples●5CLE-30E5.5 max. kV, CLE fuse unit,30E amperes●15CXN-45C15.5 max. kV, CXN fuseunit, 45C amperes●5CLS-GDM-E5.5 max. kV, CLS fuseunit, glass polyesternondisconnect mounting ●CLE-DL-DCLE, disconnect liveparts, size D Catalog Numbering SystemCurrent-Limiting FusesCurrent-Limiting Fuse AccessoriesAmperes0.5–1350SizeABDClassERCXMaximum kV2 =(2.4, 2.5, 2.75)4 =(4.3, 4.8)5 =(5.08, 5.5)7=(7.2)8=(8.3)15 =(15.5)25 =(25.5)38 =(38.0)TypeCLEHLEBHLECLPTNCLPTCLSBCLSCLS70CLS75HCLSLCLSCXCXNCLTAHLEACLS15CLE–100E–(D)InsulatorG=Glass polyesterP=PorcelainH=High BILDiameter SizeA=1-5/8 inches (41.3 mm)0.5E–1.5E single barrelB=1-5/8 inches (41.3 mm)3E–10E single barrelC=2.00-inch (50.8 mm)single barrelD=3.00-inch (76.2 mm)single barrelE=3.00-inch (76.2 mm)double barrelF=4.00-inch (101.6 mm)double barrelG=5/8-inch (15.9 mm)ferrule (CX/CXN only)HardwareDM=Disconnect mountingNM=Nondisconnect mountingDL=Disconnect live partsNL=Nondisconnect live partsDF=Disconnect end fittingsTypeCLEHLECLPTNCLPTCLSHCLSLCLSCXCXNCLTMaximum kV2 =(2.4, 2.5, 2.75)4 =(4.3, 4.8)5 =(5.08, 5.5)7=(7.2)8=(8.3)15 =(15.5)25 =(25.5)38 =(38.0)15CLE–P NM–(C)1818 Medium Voltage FusesCurrent-Limiting and Expulsion FusesProduct Selection Expulsion Fuse Examples●8RBA2-10E8.3 max. kV, RBA-200 refill,10E amperes●DBU17-30K17.1 max. kV, DBU fuseunit, 30 amperes●15RBA8-INH15.5 max. kV,RBA-800, indicatingnondisconnect holder●RBA4-FLTRRBA-400 filter Catalog Numbering SystemExpulsion Fuse UnitsExpulsion Fuse AccessoriesNote1Maximum kV occurs after DBU or before BA, DBA, RBA, RBT or RDB.DBU17–100EAmperes0.53567810121520253040506580100125140150175200250300400SpeedEKSETypeRBADBUDBARBTBAMaximum kV 181517252738487292121145InsulatorG=GlasspolyesterP=PorcelainHP=High LIWLporcelainBolt-InB=1-5/8 inches (41.3 mm),3E–10E, single barrelHardwareUM=Underhung mountingDL=Disconnect live partsNL=Nondisconnectlive partsDH=Disconnect holderNH=Nondisconnect holderNM=NondisconnectmountingUL=Underhung live partsVL=Vertical live partsI=IndicatingFLTR=FilterCOND=CondenserMFLR=MufflerSHNT=Shunt and springassemblyTypeRBADBURDBBAMaximum kV 18151725273815RBA2–P NM–(B)181818Medium Voltage FusesCurrent-Limiting and Expulsion FusesFurther InformationPricing InformationPrice and Availability Digest (PAD)Vista/VISTALINE™ Discount Symbols Y1-F, Y1-FE, Y1-FHPublication NumberDescriptionCurrent-Limiting Fuses CA08100016EFuse Catalog, Volume 14, Tab 3Expulsion Fuses CA08100016EFuse Catalog, Volume 14, Tab 2General Information CA08100016EFuse Catalog, Volume 14。
熔断器使用说明书

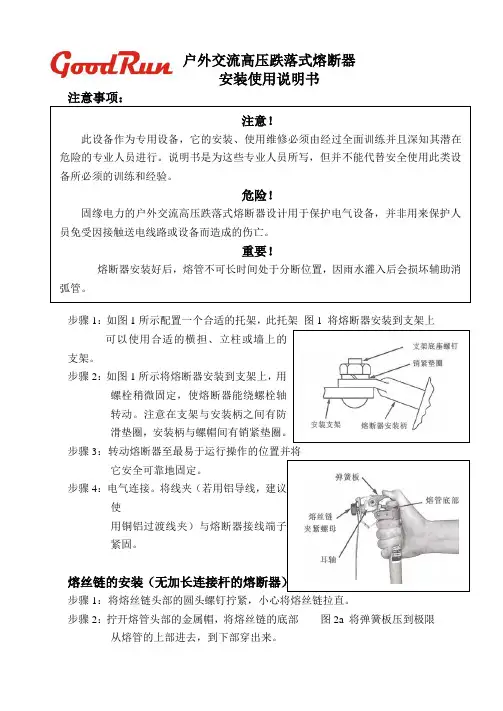

户外交流高压跌落式熔断器 安装使用说明书步骤1：如图1所示配置一个合适的托架，此托架 图1 将熔断器安装到支架上可以使用合适的横担、立柱或墙上的支架。
步骤2：如图1所示将熔断器安装到支架上，用螺栓稍微固定，使熔断器能绕螺栓轴转动。
注意在支架与安装柄之间有防步骤3：转动熔断器至最易于运行操作的位置并将它安全可靠地固定。
步骤4使紧固。
步骤1：将熔丝链头部的圆头螺钉拧紧，小心将熔丝链拉直。
步骤2：拧开熔管头部的金属帽，将熔丝链的底部 图2a 将弹簧板压到极限从熔管的上部进去，到下部穿出来。
步骤3: 紧。
松开耳轴上熔丝链夹紧螺母，见图2a 步骤4：将弹簧板压到极限力）见图2a 丝母上，见图2b ，将熔丝链拉紧，但不要太紧 图2b 将熔丝链绕螺母拉紧步骤5：剪断夹紧螺母外的熔丝链使露出的熔丝链长度约为10mm 。
熔丝链的安装（有加长连接杆的熔断器）有加长连接杆的熔丝链需要拆除熔丝链头部的可卸式圆头螺钉。
步骤1：拧掉熔丝链头部的圆头螺钉（有的熔丝链还有垫圈）。
步骤2：旋松熔管上部的金属帽，将加长连接杆从熔管中拿出。
步骤3：将熔丝链与加长连接杆连接起来并拧紧，拉直熔丝链，把熔丝链的尾部从熔管上部伸进，从下部拉出。
下面同上节步骤3~5。
安装并合上熔管只有专业人员才可以使用、检查和维修熔断器。
操作人员必须穿戴必要的与安全要求相一致的防护用品，如橡胶手套，安全帽、墨镜等。
图3 关合熔管步骤1：在如前所述安装好熔丝链后，轴的锁眼或将钩棒的尖头插进耳轴孔。
步骤2：如图3并将钩棒小心脱离。
步骤3：将钩棒的尖头插入熔管的拉环中，大约45度，然后朝着熔管端部方向猛力一推，打开熔管在没有使用负荷开断操作杆的情况下，不得打开运行中的熔管，因为这样会引起闪用负荷开断操作杆打开熔管后，可用钩棒将熔管提起脱离底座下部挂钩，见图3。
2010年3月8日上海固缘电力科技有限公司。
高压并联电容器外保护用熔断器使用说明书
熔丝的选配与更换
5
5 熔丝的选配与更换
5.1 熔丝的额定电流的选配
熔丝的额定电流应不低于被保护的并联电容器的额定电流的 1.43 倍，一般推荐在 1.43~1.55 倍的范围内选取。熔丝的选配可参照表 1。
5.2 熔丝更换
5.2.1 更换的熔丝必须符合 5.1 的规定要求。 5.2.2 更换熔丝前，电容器装置必须处于检修状态，且电容器经逐台短接放电后，方可 拆、卸熔断器与更换熔丝。 5.2.3 更换熔丝前应先检查熔断器动作原因是属于电容器内部故障正确动作，抑或自身 误动。切忌未查明原因，或者未更换故障电容器即行更换熔丝重新合闸。 5.2.4 更换熔丝前，须检查管体是否完好，熔管内外是否干净（可加适当清刷），如管 体已损坏则需同时更换。其它部件如有异常亦需更换。 5.2.5 更换熔丝后，重新按上述要求安装熔断器。
根据现行国标 GB50227《并联电容器装置设计规范》和电力行标 DL442《高压 并联电容器单台保护用熔断器订货技术条件》的规定要求，熔断器熔丝的额定电流按 1.43~1.55 倍电容器额定电流配置，熔断器在通过该电流时应不熔断，而在电容器内部 有 50%~75%串联元件段击穿短路时适时熔断。如电容器内部元件发生贯串性短路，熔 断器能在电容器外壳爆裂前开断，切除电容器组中故障电容器，避免事故扩大。
42
70
安装要求
4
4 安装要求
4.1 安 装 前 应 按 设 计 要 求 核 对 熔 断 器 的 型 号 和 熔 丝 的 额 定 电 流 正 确 无 误 ， 并 按 DL442—91 中第 4.1.3 条款的要求进行交接验收试验（包括外观及外部尺寸检查、 测 量 电 阻 值 ， 其 他 项 目 及 试 品 数 量 由 用 户 与 制 造 厂 商 定 ）。 4.2 熔断器的安装应按照附录 A 的安装示意图进行，熔管与水平夹角以 30º为宜。尾线 应拉紧，且不宜过长（尺寸参照附录 A）。 4.3 熔管口的气流喷射方向不得有任何障碍物，以防止熔断器动作时喷出气流，以及尾 线与电容器外壳或安装支架碰触使故障扩大。
西熔户内熔断器技术说明

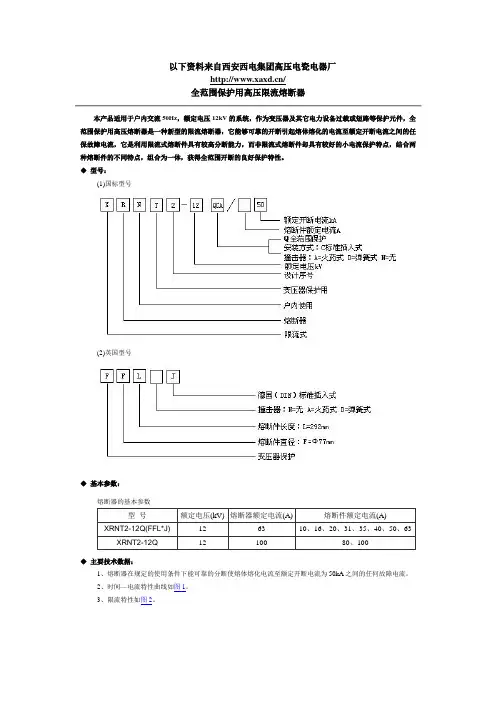

以下资料来自西安西电集团高压电瓷电器厂/全范围保护用高压限流熔断器本产品适用于户内交流50Hz，额定电压12kV的系统，作为变压器及其它电力设备过载或短路等保护元件，全范围保护用高压熔断器是一种新型的限流熔断器，它能够可靠的开断引起熔体熔化的电流至额定开断电流之间的任保故障电流，它是利用限流式熔断件具有较高分断能力，而非限流式熔断件却具有较好的小电流保护特点，结合两种熔断件的不同特点，组合为一体，获得全范围开断的良好保护特性。
◆型号：(1)国标型号(2)英国型号◆基本参数：熔断器的基本参数◆主要技术数据：1、熔断器在规定的使用条件下能可靠的分断使熔体熔化电流至额定开断电流为50kA之间的任何故障电流。
2、时间—电流特性曲线如图1。
3、限流特性如图2。
4、t特性如表：弧前t最小值(S)弧前t最大值(S)2.2× 4.7×3.4× 6.1×7.7× 1.1×1.3× 1.5×2.5× 2.5×3.8× 3.8×5.1× 5.4×6.8× 5.6×◆外型及安装尺寸：◇外型及安装尺寸图◆选用导则：用于保护12kV变压器的熔断件一般选用导则如表：变压器保护用高压限流熔断器——符合德国DIN标准外型尺寸的熔断器本产品适用于户内交流50Hz，额定电压12kV系统，并可与其它保护电器（如：负荷开关，真空接触器）配合使用，作为电力变压器及其它电力设备过载或短路等保护元件。
◆型号：(1)国标型号(2)英国型号◆基本参数：熔断器的基本参数注：(1) *号由是否安装撞击器确定(2) ()为英国型号◆主要技术数据：1、熔断器在规定的使用条件下，能可靠的分断最小开断电流为(2.5-3)倍熔断件额定电流Ie至额定开断电流为50kV之间的任何故障电流。
2、时间—电流特性曲线如图1，最小开断电流以上部分用虚线表示。
高压熔断器
