分配器说明书
负载分配器LSM672使用说明书
LSM672负载分配器使用说明书LSM672是安装在发电机控制柜内,和他其的设备在一起。
该单元安装环境要求通风冷却流畅,因为单元内部的三个负载电阻大概要消耗6.25W的电能用于发热。
警告电气连接可以参考电气连接图。
在某些特别的端子上,连接线的规格应该要满足该端子的最大电流情况。
端子7-12的最大电流可能达到5A,其他的端子电流也不少于50mA,而继电器触点端子的额定允许电流为10A。
端子N接入3相交流电的中性点,发电机是星型接法。
基本说明端子1-6是三相交流电电压输入,根据发电机的电压选择合适的三个连接端子。
选择可以参考连接图。
端子7-12连接的是来自5A电流互感器的三相电流信号。
在电流互感器额定容量许可的情况下,该电流信号可以进行串联连接,不过这可能增加工作板已经电流互感器线路的负担,同时还要注意端子8、10和12,它们都是连接电流互感器的同名端,一定要给电流互感器的同名端相匹配。
端子13、14是并联连接端子,所有同一并网系统的分配器都通过这两个端子并联起来。
它们连接时极限不能接反(所有分配器的13连在一块,14连在一块)。
如果并联线的长度超过1m,那么需要使用屏蔽线,并且把屏蔽线连接到端子23上。
继电器触点端子的连接必须要适用于低电流情况<1mA(干式触点)。
端子15是负载分配器的信号输出端,它连接发电机的速度控制单元,如果该控制线的长度超过1m,那么它也要使用屏蔽线,并且把屏蔽线连接到端子23上。
端子16是正功率复位端,使用一个常开的开关和发电机速度控制单元上的10VDC电源连接,当正功率继电器吸合后,通过点动连接开关,就可以把正功率继电器复位到正常的关闭状态。
通过端子16与电瓶的负极之间的不同连接方式,则可以通过端子16调节正功率监视器的范围。
例如在端子16与电源负极之间连接一个1MΩ的电阻,就可以把调节范围从100%是开启/40%时关闭调节成为85%开启/5%时关闭。
如果还有其他的特别调节需求,请和GAC的技术服务人员联系。
分配器 说明书
分配器用户手册目 录1、分配器-AV (1)1.1 AV-103分配器 (1)1.2 AV-108分配器 (1)2、分配器-DVI (2)2.1 DVI-1*2分配器 (2)2.2 DVI-1*4分配器 (3)3、分配器-V (4)3.1 Video-104分配器 (4)3.2 Video-1*16分配器 (4)4、分配器-VGA (5)4.1 VGA-0102分配器 (5)4.2 VGA-104分配器 (6)4.3 VGA-1*8分配器 (7)4.4 VGA0116分配器 (8)4.5 VGA-1*10/24分配器 (9)1 分配器-AV1.1 AV-103分配器AV-1*3分配器主要用以解决在多媒体投影工程中,将一路高分辨率音视频信号分配成三路高分辨率音视频信号。
AV-103后背板技术性能及指标:输入接口: 1路 BNC(VIDEO),1路RCA输出接口: OUTPUT1―3BNC; OUTPUT2―3 RCA阻 抗: 输入阻抗:75Ω输出阻抗:75Ω电 源: 220V /AC外形尺寸: 45×25×15mm(D×W×H)重 量: 0.3Kg配 件: 使用说明书1.2 AV-108分配器AV-1*8分配器主要用以解决在多媒体投影工程中,将一路高分辨率音视频信号分配成八路高分辨率音视频信号。
AV-108后背板技术性能及指标 :输入接口: 视频: 1路 BNC(VIDEO),音频:1路音频头(凤凰端子)输出接口: 视频:OUTPUT1―8BNC;音频:OUTPUT1―8 音频头(凤凰端子)阻 抗: 输入阻抗:75Ω输出阻抗: 75Ω电 源: 220V 50HZ的交流电源外形尺寸: 235×155×70mm(D×W×H)重 量: 1.3Kg配 件: 使用说明书2 分配器-DVI2.1 DVI-1*2分配器在许多多媒体应用系统中,往往需要把一个DVI信号源输送到中心机房进行处理,同时又需要在本地显示该信号。
递进式分配器产品说明书
--------工业润滑整体解决方案专家--------产品样本手册公共说明书杭州谱威精密机械有限公司递进式(PRG)油量分配器递进式(PRG)油量分配器是一种将润滑油量进行计量,并同时按一定顺序进行运行工作的润滑元件。
能将一定量的润滑油(脂)按规定顺序从出油口依次逐个注出并输送至润滑点,既能适用于末端压力在1-6Mpa的润滑油润滑,又能适用于末端压力在1-5Mpa的润滑脂润滑。
从结构上分有集成式和片式两大类,根据实际可选择不同的结构以及不同的组合,可实现周期或近似连续润滑。
它的指示杆可显示系统的工作状况,还可用作计数等功能。
BIJUR递进式(PRG)油量分配器特点:1.分配器具有计量润滑剂的作用;2.润滑剂输出量易于计算;3.设计结构紧凑和经济;4.有内置式出油单向阀;5.可带有可视的机械式或电器的微动开关循环指示器;6.阀体内的柱塞副经精密研磨;7.易于安装和维护。
集成式递进分配器集成递进式油量分配器基本工作原理,是利用液压递进式动作的。
所谓集成递进式,是指在一个阀体内各个工作柱塞副,在紧跟着前一工作柱塞副的循环动作之后,--------工业润滑整体解决方案专家--------产品样本手册公共说明书各自工作完成自己的柱塞行程,把定量的润滑剂输送到润滑点。
只要有压力的润滑剂供给分配器,工作柱塞副就会以递进式的方式连续运行,并以恒定的排量注油。
然而,一旦供给的压力润滑剂流动停止了,那么分配器的工作柱塞也就停止运动。
当具有压力的润滑剂重新开始流动时,分配器内工作柱塞又在同一点再开始它的注油循环动作。
BIJUR公司的集成递进式油量分配器分为集成U型递进式油量分配器、集成MU 和M型递进式油量分配器。
集成U型递进式分配器集成U型递进式油量分配器,是一种设计先进、结构合理的油量分配器。
本分配器系列可以用于中压和宽温度变化的工况,它能够与手动、电动、气动泵等组成单线润滑系统,是用于各种小型机床和塑料机械设备,或大型单线润滑系统的子分配器,以及相似应用场合的理想产品。
4路RS485分配器

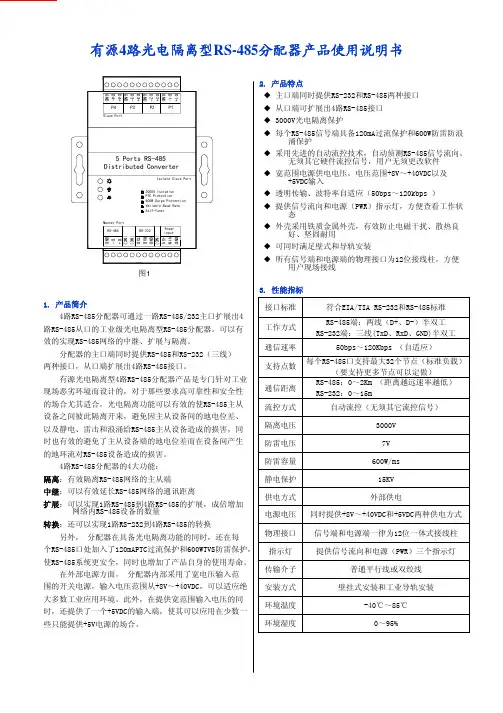

有源4路光电隔离型RS-485分配器产品使用说明书1. 产品简介4路RS-485分配器可通过一路RS-485/232主口扩展出4路RS-485从口的工业级光电隔离型RS-485分配器。
可以有效的实现RS-485网络的中继、扩展与隔离。
分配器的主口端同时提供RS-485和RS-232(三线)两种接口,从口端扩展出4路RS-485接口。
有源光电隔离型4路RS-485分配器产品是专门针对工业现场恶劣环境而设计的,对于那些要求高可靠性和安全性的场合尤其适合。
光电隔离功能可以有效的使RS-485主从设备之间彼此隔离开来,避免因主从设备间的地电位差、以及静电、雷击和浪涌给RS-485主从设备造成的损害,同时也有效的避免了主从设备端的地电位差而在设备间产生的地环流对RS-485设备造成的损害。
4路RS-485分配器的4大功能:隔离:有效隔离RS-485网络的主从端中继:可以有效延长RS-485网络的通讯距离扩展:可以实现1路RS-485到4路RS-485的扩展,成倍增加网络内RS-485设备的数量转换:还可以实现1路RS-232到4路RS-485的转换另外,分配器在具备光电隔离功能的同时,还在每个RS-485口处加入了120mAPTC过流保护和600WTVS防雷保护,使RS-485系统更安全,同时也增加了产品自身的使用寿命。
在外部电源方面,分配器内部采用了宽电压输入范围的开关电源,输入电压范围从+8V~+40VDC,可以适应绝大多数工业应用环境。
此外,在提供宽范围输入电压的同时,还提供了一个+5VDC的输入端,使其可以应用在少数一些只能提供+5V电源的场合。
2. 产品特点◆主口端同时提供RS-232和RS-485两种接口◆从口端可扩展出4路RS-485接口◆3000V光电隔离保护◆每个RS-485信号端具备120mA过流保护和600W防雷防浪涌保护◆采用先进的自动流控技术,自动侦测RS-485信号流向,无须其它硬件流控信号,用户无须更改软件◆宽范围电源供电电压,电压范围+8V~+40VDC以及+5VDC输入◆透明传输、波特率自适应(50bps~120kbps )◆提供信号流向和电源(PWR)指示灯,方便查看工作状态◆外壳采用铁质金属外壳,有效防止电磁干扰、散热良好、坚固耐用◆可同时满足壁式和导轨安装◆所有信号端和电源端的物理接口为12位接线柱,方便用户现场接线3. 性能指标接口标准符合EIA/TIA RS-232和RS-485标准工作方式RS-485端:两线(D+、D-)半双工RS-232端:三线(TxD、RxD、GND)半双工支持点数每个RS-485口支持最大32个节点(标准负载)(要支持更多节点可以定做)流控方式自动流控(无须其它流控信号)隔离电压3000V 供电方式外部供电指示灯提供信号流向和电源(PWR)三个指示灯安装方式壁挂式安装和工业导轨安装电源电压同时提供+8V~+40VDC和+5VDC两种供电方式物理接口信号端和电源端一律为12位一体式接线柱静电保护15KV 传输介子普通平行线或双绞线环境温度-40℃~85℃环境湿度0~95%通信速率50bps~120Kbps (自适应)通信距离RS-485:0~2Km (距离越远速率越低)RS-232:0~15m防雷电压7V 防雷容量600W/ms 图1Variable Baud Rate TXD GND VIN +5V (NC)(NC)Power InputSelf-Tuner5 Ports RS-485600W Surge Protection PTC ProtectionD1+D1-Isolate Slave Port Distributed ConverterGND D2+GND D3-D3+D2-D4-GND GND D4+P1(NC)GND RXD D+D-GNDP2P3P4RS-485RS-232Master Port Slave Port3000V IsolationRS-232RS-485opto-couperopto-couperAuto-Flow Controlsignal-synRS-485RS-485RS-485RS-485Auto-Flow Controlsignal-synDC-DC IsolaterPower InputP1P2P3P4Slave PortMaster Port5. 接口与信号4. 系统结构框图说明:分配器的外部电源直接给主口端供电,从口端通过DC-DC 隔离电源供电。
系列信号分配器产品规格书说明书
系列信号分配器产品规格书1. 产品概述系列信号分配器(一入二出、一入三出、一入四出)是在自动化控制系统中对工业信号变送、转换、隔离、传输、运算的仪表,可以与各种工业传感器、现场仪表配合,取回参数信号,隔离变送传输,满足用户本地监视远程数据的需求。
仪表广泛应用于机械、电气、电信、电力、石油、化工、钢铁、污水处理、楼宇建筑等领域的数据采集、信号传输转换、PLC 、DCS 等工业测控系统,用来完善和补充系统模拟I/O 插件功能,提高自动化控制系统的抗干扰能力,保证系统的稳定性和可靠性。
2. 产品特点◆ 输入、输出、电源三方完全隔离,抗干扰能力强 ◆ 精度高,线性度高,长期运行稳定性高 ◆ 模块化设计,体积小,功耗低,适合密集安装 ◆底座与主机可以分离插拔,安装、拆卸、维护方便简单3. 技术规格参数工作电源:DC24V ±10%(反向保护)AC220V功 耗:≤1.8W(1入2出)≤2.0W(1入3出) ≤2.5W(1入4出)输入信号:直流电流或直流电压输入阻抗:电压输入≥500K Ω,电流输入≤200Ω 输出信号:直流电流或直流电压 输出负载:电压输出≥10K Ω电流输出0~350Ω精 度:±0.2%F.S温度漂移:≤±100PPM/℃绝缘强度:输入/输出,≥2000VAC(1min )输入/电源,≥2000VAC(1min )输出/电源,≥1000VAC(1min ) 绝缘电阻:输入/输出/电源之间≥100M Ω/500VDC 工作温度:0~50℃ 存储温度:-40~85℃相对湿度:10~90%RH (无凝露) 大气压力:86~106kPa 安装方式:DIN35mm 导轨 外形尺寸:122mm×18mm×96mm4. 选型代码表THTHTHH5. 外形尺寸及拆装图外形尺寸图(122mm×18mm×96mm ) 拆装图6. 典型接线图注:本手册给出的为典型接线图,实际接线图以所购仪表随机标签接线图为准。
普联 PT-SP-HD14-4K 1x4 HDMI分配器说明书
User Manual1x4 HDMI Distribution Amplifier with 4K2K & HDCP Support Model PT-SP-HD14-4KDesigned in Germany© 2016 PureLink GmbH All rights reserved.Table of Contents1. Safety and Notice (2)2. Introduction (3)3. Features (3)4. Package Contents (3)5. Specification (4)6. Connection Diagram (5)7. Panel Description (6)8. Installation (7)9. Notice (7)10. Warranty (8)1. Safety and NoticePlease read all of these instructions carefully before you use the device. Save this manual for future reference. The PT-SP-HD14-4K 1x4 HDMI Distribution Amplifier with 4K2K & HDCP Support has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipments, the PT-SP-HD14-4K should be used with care. Please read and follow the safety instructions to pro-tect yourself from possible injury and to minimize the risk of damage to the unit.• Follow all instructions and warnings marked on this unit.• Do not attempt to service this unit yourself, except where explained in this manual.• Provide proper ventilation and air circulation and do not use near water.• Keep objects that might damage the device and assure that the placement of this unit is on a stable surface.• Use only the power adapter and power cords and connection cables designed for this unit.• Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before cleaning.2. IntroductionThe PT-SP-HD14-4K 1x4 HDMI Distribution Amplifier with 4K2K & HDCP Support provides the most cost effective and advanced HDMI splitter solution on the market, by which the high definition video and high quality audio can be transmitted to 4 different locations without losing quality. PT-SP-HD14-4K supports all 3D formats and the true 4K2K video!With built-in Mini-USB firmware update mechanism, the compatibility among countless HDMI sources and recei-vers can be further guaranteed. With the upmost 36 bit deep color video and high definition audio support, PT-SP-HD14-4K is suitable for high quality HDMI broadcasting, digital signage and education applications!3. Features• Supports HDMI Deep Color & 3D / DVI 1.0 compliant• HDCP 1.3 compliant• Wide frequency range: 25MHz~340MHz• Video bandwidth: 10.2Gbps• Resolution up to 4K2K @30• Supports default EDID and has ability to learn the EDID of displays• Supports xvYCC, x.v.Color & Deep Color• Mini-USB firmware update for expanding compatibility• Supports Dolby Digital, DTS-HD and Dolby TrueHD audio• Easy installation4. Package Contents• 1x PT-SP-HD14-4K• 1x DC 5V2A wall wart• 1x User Manual5. Specifications6. Connection Diagram7. Panel DescriptionFront PanelRear Panel1. Power LED: Lights on when device is ready2. Signal LED:Signal LED indicator3. HDMI IN: Connect to a HDMI input source4. HDMI OUT1-4: HDMI outputs to HDMI displays[HDMI OUT1: EDID Learn Default]5. Mini-USB: For technical support only [f irmware update]6. MODE:0 - F/W update mode1 - EDID Full-HD(1080p@60) - 24bit 2D video & 7.1ch audio2 - EDID Full-HD(1080p@60) - 24bit 2D video & 2ch audio3 - EDID Ultra-HD(4K2K@30) - 24bit 2D video & 7.1ch audio4 - EDID Ultra-HD(4K2K@30) - 24bit 2D video & 2ch audio5 - EDID HD(1080p@30)(1080i@60)(720p@60) - 24bit 2D video & 2ch audio6 - Auto EDID analysis learning mode7 - EDID learning mode[Please use HDMI OUT 1port for learning EDID from display]7. +5V DC: Connect to the +5V DC 2A power supply unit43215671. Automatic EDID learning will detect all the connected HDMI equipped monitors and analyze all the content of EDID. The EDID with minimal resolution support will be the reference EDID for incoming HDMI source players.8. InstallationBroadcasts HDMI signal to 4 DVI displays!1. Switch off all devices, including monitors.2. Connect to the displays.3. Connect an HDMI source (such as a Blu-ray Disc player) to the HDMI In.4. Plug in 5V DC power supply.5. Power on the HDMI monitors.6. Power on the HDMI source.9. Notice1. While connecting a new monitor to the splitter under mode6(auto EDID) & mode7(EDID learning), experien-cing a short period of time without display might be expected. The splitter will do Automatic EDID learning which analyzes the newly connected monitor to see if the EDID for the HDMI input is necessary to update!.] 2. For firmware update through Mini-USB, users MUST turn the power off, set the dip switch to “ON”, and thenconnect an Mini-USB cable between PC and device. Open the firmware update software, [1] set the correct com port and baud rate (57600 is recommended), [2] click the “File” button to direct to the firmware HEX or BIN file, power on the device and press “Program MCU” symbol to firmware update. Once update process is done, please power off the device and set the dip switch back to “1”.10. Limited WarrantyThe SELLER warrants the PT-SP-HD14-4K 1x4 HDMI Distribution Amplifier with 4K2K & HDCP Support to be free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an autho-rized dealer. Should this product fail to be in good working order within 1 year warranty period, The SELLER, at its option, repair or replace the unit, provided that the unit has not been subjected to accident, disaster, abuse or any unauthorized modifications including static discharge and power surge. This warranty is offered by the SELLER for its BUYER with direct transaction only. This warranty is void if the warranty seal on the metal housing is broken. Unit that fails under conditions other than those covered will be repaired at the current price of parts and labor in effect at the time of repair. Such repairs are warranted for 90 days from the day of reshipment to the BUYER. If the unit is delivered by mail, customers agree to insure the unit or assume the risk of loss or damage in transit. Under no circumstances will a unit be accepted without a return authorization number.The warranty is in lieu of all other warranties expressed or implied, including without limitations, any other im-plied warranty or fitness or merchantability for any particular purpose, all of which are expressly disclaimed. Proof of sale may be required in order to claim warranty. Customers outside Taiwan are responsible for shipping charges to and from the SELLER. Cables and power adapters are limited to a 30 day warranty and must be free from any markings, scratches, and neatly coiled.The content of this manual has been carefully checked and is believed to be accurate. However, The SELLER assu-mes no responsibility for any inaccuracies that may be contained in this manual. The SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages.Also, the technical information contained herein regarding the PT-SP-HD14-4K features and specifications is subject to change without further notice.Asking for AssistanceTechnical Support:Phone: +49 5971 800299 - 0Fax: +49 5971 800299 - 99Technical Support Hours:8:30 AM to 5:00 PM Monday thru Thursday8:30 AM to 4:00 PM FridayWrite To:PureLink GmbHVon-Liebig-Straße 10D - 48432 Rheinewww.purelink.de。
洗碗机分配器使用说明书
洗碗机分配器使用说明书一、简价洗碗机分配器,适用于国外销售的任何品牌洗碗机。
是一种准确方便经济实用的洗碗机清洁剂、催干剂分配器,有门式、通道式专用型,有探头和时间速度双模式控制方法,有CPU控制的探头、非探头(时间、速度)双模式控制,适用于任何类型洗碗机上使用。
二、安装1、分配器安装在洗碗机的进口上方墙体,打两个φ6塑胶膨胀管螺丝固定分配器,须将密封垫片安在墙头,防蒸发进入箱体内。
2、管路安装1)将φ6塑管截成适当长度,插入泵管两端用扎带扎紧,注意不要将吸入口、出口搞反。
泵的转向应是顺时针方向,吸入口的塑管末端装上过滤底阀,长度能放入清洁剂和催干剂的桶内,出口与清洁剂下药口和单向阀连接。
2)清苦剂进口,在洗碗机洗涤槽水平面上方,打一个φ10.2-10.5孔或7/8”标准孔装上进药口装置.3)催干剂进口须单向阀,一般洗碗机上有预留口。
3、探头安装必须安装在洗涤槽的水平面下10CM左右的地方,最好的位置应离水泵吸口较近,离进水口较远,切忌安装在加热管附近,否则容易熔化,选择好位置后打一个22(7/8英寸)的孔,用0.75-1平方米多股软线,连接至分配器的探头信号连接柱上.4、电路安装1)分配器工作电压(常电源)220V、110V,如有24V电压则不必接变压器电源,电源单独设置电源开关(以备清洗洗碗机用)。
2)连接主电源前检查洗碗机输出端电压再进行连接,以免烧坏变压器及电路板,确实后再连接。
3)一般洗碗机都在电控箱内,留有洗涤剂催干剂的电源信号接口,比较方便的就可接在分配器的触发信号连接柱上,电压范围在14V-230V都可以。
4)若洗碗机没有预留洗涤干剂的电源信号,可以将触发电源信号连接在主洗接触器和过水接触器的电源上。
5)分配器选择在时间速度控制模式时,则将首次加药的电源信号,连接进水电磁阀的电源上。
6)远程预警,可用连接线将分配器内ALARM 连接柱连接外部报警器(3V-24V)。
5、设置与调试1)具体见电路板图示和屏幕显示及设置。
MW-1000洗衣房分配器操作手册说明书
用户手册MW-1000 洗衣房分配器(本页留白)1.OO 概览页数1.01 包装清单4 1.02 操作4 1.03 型号及参数4 1.04 规格概览52.OO 安装2.01 现场勘测及安装要求6 2.02 主机安装6 2.03 水源和气源连接7 2.04 吸料管连接7 2.05 出料管连接8 2.06 编程8 2.07 电源连接93.OO 维护3.01 预先准备11 3.02 PC板的维护11 3.03 气动隔膜泵维护12 3.04 电磁阀的维护124.OO 检修4.01 检修135.OO 更换部件5.01 爆炸图14 5.02 配件料号146.OO 质保6.01 有限质保151.O1 包装含有1) MW-1000 分配器4) 钥匙 (在安装配件包里)2) 操作说明书 (P/N HYD10099156)5) 信号盒组件 (P/N HYD10-03609-00)*3) 安装配件包6) TE 控制器组件 (P/N HYD01-08900-11)**数量由订购的分配器型号决定安全防范警告! 请仔细阅读本警告并遵守当地规章制度感谢购买我们的产品请正规操作以免工伤和其他伤害:当分配器清洁剂、更换料桶、清洁设备时,请穿防护衣,戴安全眼镜阅读并遵守清洁剂厂商提供的SDS安全条例按照清洁剂供应商提供的指示稀释或分配清洁剂 灌装清洁剂时不要对准自己和他人 时常检查设备以确保设备保持清洁,得以正常维护 安排合格的技术员安装操作设备,尤其要有电工上岗证当安装、维护分配器时;当分配器的控制箱被打开的时,务必确保电源已关闭 切勿混合不相容的清洁剂以免引起爆炸穿戴一直切勿1.O2 操作MW-1000 分配器是一款设计紧凑,经济实惠的产品。
最多可配合8台水洗机,最多分配8种清洁剂。
适用于各类洗衣工厂和酒店洗衣房。
通过海卓经典的信号盒和TE控制器与洗衣机连接。
注意! MW-1000 分配器旨在减少安装时间、安装配件和维护时间。
Juice Goose JG 8 Series 电源分配器说明书
JUICE GOOSE7320 Ashcroft, Suite 104Houston, Texas 77081p: 713-772-1404f: 713-772-7360 OWNERS MANUAL06-04SAFETY PRECAUTIONSThe JG 8 Series products (JG8) are designed to operate with 120VAC, 60 Hz. Operation with 220 or 240 volts will cause damage and possibly cause personal injury.CAUTIONS1. The JG8 must be grounded. Defeating the unit’s grounding capability could create a hazard.2. There are no user serviceable parts inside. Do not attempt service yourself. Contact Juice Goose as directed in this manual if service is required.3. Do not expose the JG8 to moisture. Avoid severe physical impacts to the unit. DISCLAIMERJuice Goose shall under no circumstances be held responsible for any loss, damage or in-jury resulting from the use of the JG8 in a manner inconsistent with any of the procedures outlined in this document. The user is responsible for determining whether this product is appropriate for the intended application.Juice Goose is not responsible for any indirect, secondary or ancillary loss or damage, in-cluding personal injury, loss of or damage to property or loss of income resulting from the operation or failure of this unit.FRONT PANELLighted Power On/Off Switch – This switch controls power to all 8 outlets on the back of the chassis.Light Tubes (JG8.0L and JG8.0LM) - The JG 8.0L and 8.0LM feature two pull out dimmable lights that can be rotated to control the intensity and direction of the two light beams. Af-ter use, the lights slide inside the chassis to store conveniently away. These devices use 7 watt "night light" style bulbs which install from the front of each light tube assembly. To replace bulbs, unscrew front tube cap and rotate bulb counter clockwise.Voltage Meter (JG8.0LM) - The JG8.0-LM includes a 20 segment Voltage Meter that indi-cates levels of incoming AC voltage. This color coded meter displays safe (green), mar-ginal (yellow) and dangerous (red) levels of incoming voltage. This meter can help diag-nose problems that result from common AC power sags and swells.REAR PANELAC Outlets – These 8 outlets (NEMA 5-15R) are rated for current loads up to 15 amps at 120 volts.Power Cord – The power cord has a third pin safety ground connector. Do not defeat this feature. Doing so could subject user to a hazardous condition.INTERNAL PROTECTION COMPONENTSThe JG8 Series products have a Basic Level of AC power protection consisting of fast acting metal oxide varistors between hot, neutral and ground. The JGJr also features a line capacitor between hot and neutral to reduce high frequency line noise and AC line surges.TROUBLE SHOOTINGThe JG8 is well designed and constructed. Every JG8 is submitted to a full functional test be-fore being shipped by Juice Goose. It requires neither maintenance nor adjustment. It is un-likely to malfunction. However, there are potential events to note:The JG8 will not come on or turns itself off.a. Check the status of the power supplied to the unit. Use a voltage meter and/or polarity tester to examine the status of incoming power.b. Check that the circuit breaker is not tripped and that the current load on the unit does not exceed its rated 15 amp capacity. If the breaker is tripped, remove sufficient current load to reduce the total to no more than 15 amps, wait approximately 30 seconds after the trip-ping. Turn the power switch/circuit breaker back on.One or both lights will not come on (JG8.0L and JG8.0LM). – Unplug power to the JG8. Un-screw the cap on the end of the tube(s). Remove the bulb(s) in question. Take care. If the bulb is broken use a cloth or needle nose pliers to remove the component. The replacement bulb is a 7 watt, candelabra base (e.g. night light bulb).If an observed problem can not be remedied, particularly if the problem seems severe or dan-gerous, discontinue use of the JG8 and contact Juice Goose directly.REPAIRShould your product need service contact Juice Goose for assistance and authorization to return the unit. PLEASE NOTE: a return authorization number is required in order for the service personnel to correctly and promptly identify, repair and return your unit.You may obtain a Return Authorization Number by calling: 713-772-1404 or sending email to *******************.OTHER HIGH QUALITY PRODUCTS FROMJG SERIES – Rack mountable power distribution in a 19” configuration. Five models to choose from. Feature options include rack lighting and voltage meter. The JG11-20A has a 20 amp capacity, 2 unswitched outlets and a 15 foot power cord. All units contain a basic level of power conditioning.RP SERIES – Professional grade rack mountable power distribution. The 19” rack mount-able Tour Class (TM) chassis is a uni-body construction of extra sturdiness. The RP100 has 11 outlets across the back. The RP200 includes two slide out rack lights and a voltage meter. The RP200-L includes a connector for a work light on the back of the chassis. All RP Series models include enhanced components for EMI filtration in addition to voltage spike protec-tion across hot, neutral and ground leads.PD SERIES – Custom configured power strips with up to 12 circuits per unit. The PD1A, PD1B and PD3 offer various options regarding size, number and arrangement of circuits, length and location of wire harness and mounting configuration. Select exact configuration with a features menu.CQ SERIES – Power sequencing and remote control products. No master controller is required. Very flexible, economical and easy to install. Models include rack mount, four cir-cuit and 30 amp designs. Optional remote controls include key or rotary switch and secure 12 position keypad.RX SERIES – High voltage surge protection and high frequency line filtration, perform-ance near that of an isolation transformer, but at a fraction of the cost and size. Great normal mode and common mode line noise elimination. Individual products include the RX15-PWG, RX15-DPC, RX10-SCS and RP100-RX.FE SERIES – The highest quality power conditioning available, isolation + regulation transformers provide safe and stable power with a long service life. Models are available for plug-in and hard wired applications in a wide range of sizes and voltages. FE Series trans-formers maintain a constant output voltage when incoming voltage swings +10% or – 20%. UPS MODELS – When protection against power outage is needed, Juice Goose is a valuable resource. Juice Goose has manufactured and supplied power conditioning and dis-tribution products since 1983 and provides consulting and distribution service for our cus-tomers needing a UPS from APC, Liebert or PowerWare. Call Juice Goose to discuss the best technology, size and configuration for a particular application.。
广松楼宇对讲楼层分配器说明书
广松楼宇对讲楼层分配器说明书摘要:一、广松楼宇对讲楼层分配器简介1.产品背景2.产品功能3.产品特点二、楼层分配器的安装与调试1.安装前的准备工作2.安装步骤3.调试与设置三、楼层分配器的使用方法1.按键功能2.通话操作3.其他注意事项四、楼层分配器的维护与保养1.日常维护2.故障排除3.软件升级五、产品规格与配件1.产品规格2.配件清单3.技术参数正文:广松楼宇对讲楼层分配器是一款专为楼宇对讲系统设计的高品质设备。
本说明书将为您介绍产品的基本信息、安装与调试方法、使用方法、维护与保养以及产品规格与配件。
一、广松楼宇对讲楼层分配器简介广松楼宇对讲楼层分配器为楼宇对讲系统中的核心部件,负责将来自楼下的呼叫信号分配给各个楼层,并将各楼层的通话请求转发给相应的楼下单元。
产品具有高性能、稳定可靠、安装简便等特点,可广泛应用于各类住宅、商业及办公场所。
1.产品背景:随着现代楼宇的不断升级,楼宇对讲系统的需求越来越高。
广松楼宇对讲楼层分配器应运而生,为用户提供便捷、高效的通话体验。
2.产品功能:楼层分配器主要负责对来自楼下的呼叫信号进行分配,并将各楼层的通话请求转发给相应的楼下单元。
3.产品特点:高性能、稳定可靠、安装简便。
二、楼层分配器的安装与调试在安装与调试楼层分配器之前,请确保已准备好相关工具和材料,并确保楼宇对讲系统中的其他设备已正确安装。
1.安装前的准备工作:检查设备包装是否完好,确保楼层分配器、连接线、接线端子等配件齐全。
2.安装步骤:a) 确定楼层分配器的安装位置,通常位于楼道或电梯间。
b) 用电钻在墙壁上打孔,并安装膨胀螺丝。
c) 将楼层分配器挂在膨胀螺丝上,并确保固定牢固。
d) 连接楼层分配器与楼下单元之间的信号线,注意接线端的正确连接。
e) 接通电源,并检查楼层分配器是否正常工作。
3.调试与设置:a) 进入楼层分配器的设置界面,通常通过按住特定按键实现。
b) 根据实际需求设置楼层数量、每层的通话键及呼叫键功能等参数。
洛ctite 气动分配器说明书
EQUIPMENTOperating Instruction Manual983437, 983439,985249 Loctite® Pneumatic Dispensers for 2-component adhesivesContents:1. Safety instructions 2-4Symbols used in the Operating Instruction ManualExplanation of the safety conceptIntended use2. Parts list for pneumatic dispenser 43. Preparing the dispenser for use 4-5Package contentsPreparation for useOperating principlePreparing the dispenser4. Operation of the dispenser 5-6Insert cartridgeConnect the dispenser to the compressed air supplyDispensing the adhesiveRemoving the cartridge5. Troubleshooting 66. Maintenance and Repair 7Ordering Spare Parts7. Technical data 78. Standards applied 79. Warranty 8Always keep this instruction manual easily accessible to users of the dispenser.1. Safety instructionsRead through this dispenser Operating Instruction Manual carefully. For safe andreliable operation, it is essential for users to understand and follow all the safetyinstructions provided in the Manual.Symbols used in the Manual and on the dispenserINFORMATIONImportant information on installation, operation or maintenance.DANGER / CAUTIONRisks or hazardous applications that can result in severe / fatal injuries or considerable material damage.WEAR GLOVESFailure to do so can result in serious personal injuryWEAR SAFETY GOGGLESFailure to do so can result in serious personalinjuryCEThe pneumatic dispenser is marked with the CEsymbol in compliance with the applicableEuropean directives.Do not use the dispenser until you have read and understood the operating procedure and the instructions contained in this Operating Instruction Manual. The dispenser operates under high pressure. Failure to follow these instructions can lead to inadvertent discharge of pressure or breakage of the dispenser at high pressure and may result in serious personal injury to the user or bystanders and/or property damage.The following instructions must be read and strictly observed:•The user of the dispenser and any persons standing in the vicinity must wear safety goggles and gloves at all times during operation of the dispenser.•The user should never point the barrel end of the dispenser at himself or in the direction of bystanders [animals] or objects during operation.•Never open the pneumatic drive or attempt to remove.•Handle the dispenser properly. Store in a cool dry place. Transport it carefully, with minimal vibration. Do not drop it to the ground or slam it on a bench or other workspace. •Safety devices must not be removed, worked around, bypassed or deactivated during operation.•Always comply with the warnings and notices on the device. Never, under any circumstances, remove these warnings and notices. Replace them immediately if theybecome detached or illegible.•Do not remove, tamper or manipulate pressure limiting valve and and strictly respect pressure limits.•Check the dispenser for visible damage and defects before each use. The dispenser must only be used if it is in good working order. If you have any doubt about the condition of the dispenser, or if there are any signs of breakage or other damage, immediately stop using the device and send it for inspection and repair by a site authorized by the manufacturer. •Keep the dispenser clean at all times. Failure to do so may result in malfunction of dispenser or bodily injury.•Do not attempt to modify or repair the dispenser. Maintenance and repairs must be carried out exclusively by qualified specialists. No such work may be carried out while thedispenser is connected to the compressed air supply.•Always follow safe workplace practices, such as making sure the air hoses are carefully routed so that neither you nor any other person can become entangled in the hoses or trip over them.•Be cautious connecting and disconnecting air pressure hose.•Always keep this instruction manual easily accessible to users of the dispenser.•Use only authentic Loctite® spare parts. Malfunctions or accidents may result if spare parts of other manufacturers are used, and any warranty claims against the manufacturer will be considered void.•Replace missing or damaged hazard warning labels / stickers.Modifications or changes to the dispenser by persons not authorized by the manufacturer and any failure to comply with the safety instructions given in the Operating Instruction Manual are dangerous and can lead to accidents with severe injuries and / or property damage.Intended use of the dispenserThe dispenser has been developed for mixing and applying 2-component adhesives of various different formulas. Any other or additional applications shall be considered as nonconforming, i.e. not conforming to the intended use. The intended use also includes compliance with the instructions in this Operating Instruction Manual as a basic requirement.2. Parts list for pneumatic dispenser:1. Cartridge guide2. Type designation and serial number3. Plunger4. Dispense volume indicator5. Pneumatic drive unit6. Piston rods7. Cartridge ejector button 8. Cartridge sleeve 9. Trigger10. Pressure limiting valve11. Compressed air supply fitting•983723 (packaged separately)12. Handle13. Red button (retract piston rod)3. Preparing the dispenser for use:Package contents•Dispenser• Cartridge sleeve• Mixer(sold separately)• Operating InstructionManualPreparation for useUsers must read and understand the Operating Instruction Manual before first useof the dispenser.Operating principleThe air pressure is reduced by the pressure reductionvalve (10). The piston rods (6) are pushed out of thehousing by the pneumatic piston of the drive unit (5),thereby forcing the component compounds A and Bthrough the mixer.The dispenser operates under high pressure. Failure to follow the instructions inthis Manual can lead to inadvertent release of pressure or breakage of thedispenser at high pressure and may result in serious personal injury to the useror bystanders and/or property damage.Preparing the dispenser•Remove the protective cap (11) from the pressure reduction valve (10).•Install the ¼" BSP adapter (external thread) on the inlet side of the pressure reduction valve, which will allow standard ¼” male connection to be madequick-release coupling.•The use of properly rated pneumatic hose and a quick-release coupling is also recommended.Caution: DANGER OF CRUSHING.Never place your hands or fingers between the plunger and the cartridge.The input pressure of the compressed air must not exceed max. 8 bar (max. 120psi). Requirements for the compressed air supply (see Technical Data).Strictly follow the manufacturer’s safety instructions for the 2-componentadhesive.4. Operation of the dispenserInsert cartridgeNever insert the cartridge while the dispenser is connected to thecompressed air supply.•Push the cartridge into the cartridge sleeve asshown in the drawing and press it down until it clicksinto position. To remove the cartridge stopper,unscrew the cap nut of the cartridge.•Fasten the mixer using the cap nut on the cartridgeoutlet thread.If the cartridge is not in the correct position, the trigger (9) cannot be pressed.•Connect the dispenser to the compressed air supplyDispensing the adhesivePress the trigger (9). Dispensing is started, and the red dispense volume indicator (4) moves forward. When the trigger (9) is released, dispensing stops.The dispense volume can be controlled by means of the pressure reducing valve (10).a) Pull the pressure reduction valve.b) Adjust the dispense volume by turning the adjuster in the + or –direction.c) Press the pressure reduction valve to confirm the set value.Do not remove, tamper or manipulate pressure limiting valve and strictly respect pressure limits.Removing the cartridgeRelease the trigger (9) and press the red button (13) until the feed plungers have retracted to the back end-stop. Using the release button (7), push the cartridge out of the cartridge retainer and pull it upwards out of the unit. Dispose of the cartridge and mixer in conformity with the m anufacturer’sspecifications.5. Troubleshooting:ProblemPotential Cause RemedyPlunger discs cannot enter the cartridgeCartridge not fully inserted in cartridge bedCheck that there is no foreign matter in the cartridge bed. Push the cartridge fully down into the cartridge bed. Mind your fingers.The cartridge cannot be removed from the dispenser .The plunger discs are still in position inside the cartridge . Press the red button to fully retract the plunger discs to theback end-stop.6 . Maintenance and repair:NoticesAll maintenance and repairs must only be carried out by sites authorized by themanufacturer and exclusively by qualified and suitably trained personnel.Always disconnect the compressed air supply from the dispenser duringmaintenance and repairs.Never open the pneumatic drive unit. If the pneumatic drive unit is or appears tobe in need of maintenance or repair, contact a Henkel authorized Service CenterKeep the dispenser clean at all times. Failure to do so may result inmalfunction of dispenser or bodily injury.Do not use aggressive cleaning products to clean the surface of the device.Information for ordering spare parts:Whenorderingspareparts,**************************************************information:•Dispenser Item numberFor 983437 Dispenser1:1/2:1 Cartridge tray- 983726For 983439 Dispenser1:1/2:1 Cartridge tray- 9837274:1 Conversion Kit - 984210For 985249 Dispenser10:1 Conversion Kit- 985287For all 3 units: ¼” BSP male to NPT female air line fitting - 9837237. Technical data:Operating pressure: max. 6 bar (max. 87 psi)Compressed air supply: max. 8 bar (max. 120 psi)Air requirements: ISO 8573-1.2.4.2Pressure adjustment: Variable 0- 6 bar (87 psi)Sound level: 83 dBAkg1.6Weight: 983437kg2.2983439/9852498. Standards applied:2006/42/EG:Machinery Directive97/23/EC:Pressure Equipment DirectiveISO 8573-1:Compressed air quality classes9 WARRANTYHenkel expressly warrants that all products referred to in this Instruction Manual for Loctite®Pneumatic Dual Cartridge Dispensers (hereafter called “Products”) shall be free from defects in materialsand workmanship. Liability for Henkel shall be limited, as its option, to replacing those Products which areshown to be defective in either materials or workmanship or to credit the purchaser the amount of thepurchase price thereof (plus freight and insurance charges paid therefore by the user). The purchaser’s soleand exclusive remedy for breach of warranty shall be such replacement or credit.A claim of defect in materials or workmanship in any Products shall be allowed only when it is submittedin writing within one month after discovery of the defect or after the time the defect should reasonably havebeen discovered and in any event, within (12) months after the delivery of the Products to the purchaser.No such claim shall be allowed in respect of products which have been neglected or improperly stored, transported, handled, installed, connected, operated, used or maintained. In the event of unauthorized modification of the Products including, where products, parts or attachments for use in connection with the Products areavailable from Henkel, the use of products, parts or attachments which are not manufactured by Henkel, noclaim shall be allowed.No Products shall be returned to Henkel for any reason without prior written approval from Henkel.Products shall be returned freight prepaid, in accordance with instructions from Henkel.NO WARRANTY IS EXTENDED TO ANY EQUIPM ENT WHICH HAS BEEN ALTERED, MISUSED, NEGLECTED, OR DAMAGED BY ACCIDENT.EXCEPT FOR THE EXPRESS WARRANTY CONTAINED IN THIS SECTION, HENKEL MAKES NO WARRANTY OF ANY KIND WHATSOEVER, EXPRESS OR IMPLIED, WITH RESPECT TO THE PRODUCTS.ALL WARRANTIES OF MERCHANTABILITY, FITN ESS FOR A PARTICULAR PURPOSE, ANDOTHER WARRANTIES OF WHATEVER KIND (INCLUDING AGAINST PATENT ORTRADEMARK INFRINGEMENT) ARE HEREBY DISCLAIMED BY HENKEL AND WAIVED BYTHE PURCHASER.THIS SECTION SETS FORTH EXCLUSIVELY ALL OF LIABILITY FOR HENKEL TO THEPURCHASER IN CONTRACT, IN TORT OR OTHERWISE IN THE EVENT OF DEFECTIVEPRODUCTS.WITHOUT LIMITATION OF THE FOREGOING, TO THE FULLEST EXTENT POSSIBLE UNDER APPLICABLE LAWS, HENKEL EXPRESSLY DISCLAIMS ANY LIABILITY WHATSOEVER FORANY DAMAGES INCURRED DIRECTLY OR INDIRECTLY IN CONNECTION WITH THE SALEOR USE OF, OR OTHERWISE IN CONNECTION WITH, THE PRODUCTS, INCLUDING, WITHOUT LIMITATION, LOSS OF PROFITS AND SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES, WHETHER CAUSED BY NEGLIGENCE FROM HENKEL OR OTHERWISE.Henkel Corporation One Henkel Way Henkel Canada Corporation2225 Meadowpine BoulevardHenkel Capital, S.A. de C.V.Boulevard Magnocentro No. 8 Piso 252760 Huixquilucan, Estado de MexicoRocky Hill, CT 06067-3910 Mississauga, Ontario L5N 7P2® and ™ designate trademarks of Henkel Corporation or its affiliates. ® = registered in the U.S. and elsewhere. © Henkel Corporation, 2009. All rights reserved.Manual # 8902022, Date 07/2009。
分配器运行说明书
分配器运行图解说明书(14位为例)编制:申富国审核:步骤1:(1) 分配器内部柱塞全部推至右侧,油脂从进油口进入通过主油道与(1)油道连通,受泵压油脂通过a油道进入油腔推动柱塞A向左移动(2) 柱塞移动受压油脂通过b油道与(2)油道连通,油脂通过G柱塞右中部空段从r油道流入出油孔,从13出油口排出。
步骤2:(1) 步骤1已将柱塞A推向左侧。
油脂通过主油道,A柱塞右中部空段及斜油道(3)进入油腔推动柱塞B向左移动(2) 柱塞移动受压油脂通过斜油道(4),A柱塞左中部空段从d油道流入出油孔,从2出油口排出。
步骤3:(1) 步骤2已将柱塞B推向左侧。
油脂通过主油道,B柱塞右中部空段及斜油道(5)进入油腔推动C柱塞向左移动(2) 柱塞移动受压油脂通过斜油道(6),B柱塞左中部空段从f油道流入出油孔,从4出油口排出。
步骤4:(1) 步骤3已将柱塞C推向左侧。
油脂通过主油道,C柱塞右中部空段及斜油道(7)进入油腔推动D柱塞向左移动(2) 柱塞移动受压油脂通过斜油道(8),C柱塞左中部空段从h油道流入出油孔,从6出油口排出。
步骤5:(1) 步骤4已将柱塞D推向左侧。
油脂通过主油道,D柱塞右中部空段及斜油道(9)进入油腔推动E柱塞向左移动(2) 柱塞移动受压油脂通过斜油道(10),D柱塞左中部空段从m油道流入出油孔,从8出油口排出。
步骤6:(1) 步骤5已将柱塞E推向左侧。
油脂通过主油道,E柱塞右中部空段及斜油道(11)进入油腔推动F柱塞向左移动(2) 柱塞移动受压油脂通过斜油道(12),E柱塞左中部空段从o油道流入出油孔,从10出油口排出。
步骤7:(1) 步骤6已将柱塞F推向左侧。
油脂通过主油道,F柱塞右中部空段及斜油道(13)进入油腔推动G柱塞向左移动(2) 柱塞移动受压油脂通过斜油道(14),F柱塞左中部空段从q油道流入出油孔,从12出油口排出。
(3) 到此完成分配器递进循环半个循环周期步骤8:(1) 步骤7结束已将分配器内部柱塞全部推至左侧,油脂从进油口进入通过主油道与(2)油道连通,受泵压油脂通过b油道进入油腔推动柱塞A向右移动(2) 柱塞移动受压油脂通过a油道与(1)油道连通,油脂通过G柱塞左中部空段从s油道流入出油孔,从14出油口排出。
T32MZ 多道模拟通道分配器说明书
F/S mode/HOLD mode setting
The operation mode of each servo when the receiver FDQQRWUHFHLYHVLJQDOVQRUPDOO\FDQEHVHW
F/S mode: Servo moves to a preset position. HOLD mode: Servo remains in its present position.
Servo speed setting
7KHGHOD\RIHDFKVHUYRFDQEHVHW7KHGHOD\FDQEHVHW ZLWKLQWKH QRGHOD\ WR PD[LPXPGHOD\ UDQJH
1 Set the rotary switch to the "FS/SPEED" position.
+HUHLVDQH[DPSOHRIXVLQJFKDQQHOVZLWK70=DQG56%
7KLV GRFXPHQW LV DQ H[DPSOH RI KRZ WR XVH LW $LUSODQH DLOHURQ ÀDS SOXV DGGLWLRQDO channels). Please be aware that the connection and setting method differ depending on the usage conditions of the customer.
1 second, the PCM-G3, PCM1024, and PPM mode is alternately selected. When the LED is off, the MPDX-1 is in the PCM-G3 mode, when the LED blinks slowly, the MPDX-1 is in the PCM1024 mode, and when the LED lights steadily, the MPDX-1 is in the PPM mode.
GEA WFI 水分配器说明书
PHARMA AND BIOPHARMARequirements profile for WFI pumpsREQUIREMENTS PROFILE FORWFI PUMPSWhen it comes to pumping sensitive media with low, medium or high viscosity GEA positive displacement pumps are the right choice for hygienic processes in the food, beverage or pharma industry. Why?1. The mediaWater is not only the stuff that all life on our planet has developed from. Water also covers 3/4 of our earth’s surface and is the most important element for man, animals and nature. The water that occurs in nature is more or less strongly contaminated with germs, depending on it source. Our potable water must be prepared as well to be used as a basis for pharmaceutical solutions, buffers, detergents, sol-vents in biotechnology and medical technology – e.g. for dialysis, parenteral medicines and infusion solutions. This highly pure water according to DAB 10 (aqua ad injectabilia) or water for injection (WFI) is produced of potable water or purified water. It must be free of pyrogens and sterile with a germ threshold of < 10 KBE/ml. Based on conventional distillation, there are several process steps today that will eventually lead to a quality correspond-ing to highly pure water. Selection of the materials, line routing and control technology, sterilization and CIP capacity of the components used – such as pipes, fittings and pumps – and the construction features of the plant components are very import-ant for ensuring a pharmaceutical facility’s quality.2. The requirements profilePumps for use in highly-pure water facilities (WFI), plant in the pharmaceutical industry, biotechnolo-gy and sterile process technology are subject to different laws and higher safety standards around the world. In spite of being simple to operate, they must offer the highest biological safety and must not have any negative influence on sensitive prod-ucts due to unfavorable hydraulics. In the European area, the “DIN EN 12462 biotechnology” specified performance criteria for pumps, the first specific definitions for cleaning and sterilization capacity, leakage tightness, materials and their surfaces, as well as constructional details regarding the CIP/SIP capacity of pumps. Specifically, the surface roughness of the special steel used in pumps is dealt with here and the electrochemical final treat-ment is emphasized as an optimal prerequisite for a smooth and low-particle surface. Design details such as the length-to-width ratio of gaps, are de-fined at < 1.5 and the ratio of length to diameter for dead spaces is indicated at < 2. This standard draft also names the test to be applied to certi-fy the cleanability of plant components for sterile processes. These are largely in compliance with the test method created by EHEDG. Further proof that the basic rules of hygiene-compatible design have been observed and cleanability of the com-ponents has been achieved was developed by the specialist department “Sterile process engineering in VDMA” together with the Chair of Apparatus and Plant Design at the TU Munich/Freising Weihen-stephan.3. The hygienic designMain criteria for cleanability of pumps include the cleaning-compatible construction, gap-free design of all inner parts and avoidance of dead spaces un-der observation of the ratio of length to diameter, which should be between 1 and 2. This applies, among others, to the sealing space of the slide ring packing and the arrangement, application and siz-ing of the residual emptying by diaphragm valve. The surface topography of the materials used is also integrated into the criteria for cleanability in terms of the physical properties and possible habitats for germs. The stainless steel centrifu-gal pumps of the GEA Hilge HYGIA and GEA Hilge CONTRA series meet these requirements in full in terms of cleanability (cleaning-in-place), steril-izability (SIP) and design. This also applies to the materials used and their surface properties, which2Pharma & Biopharmabecome the European standard for the area of pharmaceutics and biotechnology according to DIN EN 12462. The CIP-capable and sterilizable shaft seals are freely placed in the product space and have an o-ring seal against the housing cov-er and the impeller arranged according to hygienic design. This sterile sealing construction is avail-able in single-acting and double-acting tandem arrangement, flushed pressure-free. GEA has de-veloped a special solution for particularly sensitive applications: A double-acting slide ring packing in tandem design that can be operated with an over-laid pressure. This gasket particularly innovatively combines the benefits of “real” back-to-back slide ring packing with the requirements that sterile ap-plications pose in particular to slide ring packing: Cleanability, sterilizability and no dead spaces. The housing gasket is inserted gap-free accord-ing to the criteria of sterile technology. All gasket parts and the materials used are FDA-compliant. The stainless steel pumps of the GEA Hilge HYGIA series in the power range of up to 110 m3/h and delivery heads of up to 70 mFls as well as the GEA Hilge CONTRA series in the power range of up to 40 m3/h and delivery heads of up to 160 mFls were also tested for their cleaning capacity and accept-ed according to the provisions of the European Hy-gienic Equipment Design Group (EHEDG).This examination was conducted by the interna-tionally renowned research center Weihenstephan of TU Munich. The test result not only confirmed that the pumps can be cleaned without residue by cleaning-in-place, but that, in contrast to the reference tube, no residual contamination could be documented anymore either. This perfectly en-sures safety of a sterile process control. 4. The GEA Hilge CONTRA seriesIn addition to the GEA Hilge HYGIA series, the in-novative single- and multiple-stage pump series GEA Hilge CONTRA has been developed based on the criteria for Qualified Hygienic Design (QHD). This new pump series is executed according to the corporate philosophy using high-quality Cr-Ni-Mo materials of low-carbon quality 1.4404 or 1.4435 (316L) only. In addition to deep-drawn material for the deflector stages, the impellers, pressure pieces and suction covers use forged materials of the same quality. The impellers and guide vanes of the deflector stages are designed openly. The housings and impellers in the multi-stage pumps are sealed, among others, by an o-ring seal in ac-cordance with the criteria of Hygienic Design, gap-free with defined application pressure and with a metal stop. This ensures absolute cleaning capac-ity and sterilization in CIP/SIP processes and, as a result, safety for the user and operator of a system with sterile process control.In accordance with the high quality standard, the forged impellers have milled contours for optimal efficiency as well as very good NPSH values and smooth running. The entire construction, including the inner sterile mechanical seal (the pump is also available with a double-acting gasket arrange-ment), exclusively conforms to the criteria of Qual-ified Hygienic Design (GMP, FDA) and is also certi-fied to these criteria. Due to this fact and because of use of perfectly pore- and cavity-free materials of Cr-Ni-Mo steel (316L), the pump is outstanding-ly suitable for use in the pharmaceutical industry, medical technology and in process facilities of bio-technology. Special fields of applications result in the area of highly pure water transport (WFI) and in facilities for production of parenteral medicinesand infusion solutions.LeftFigure 1GEA Hilge HYGIAcasing with DrainvalveRightFigure 2Section of GEA HilgeCONTRA (5-stage)3The designs In addition to the classical block design and the pump design on a base plate with load carrier, integration of the GEA Hilge CONTRA series with the Adapta block is of great interest. This Adapta-block connects the pump to any IEC standard motor or Nema motor for the US market without use of a stub shaft, but with an elastic, short serial coupling. This ensures simple maintenance and permits removal of the motor without disas-sembly of the pump. Subsequent costs are minimized and the wet part of the pump can be left in the system (validation). Another criterion in the area of aseptic processes is the ability of completely draining the pumps. This draining capacity is largely achieved with a diaphragm valve at the bottom-most location of the housing.Since this option is not a perfect technical solution in mul-tiple-Since this option is not a perfect technical solution in multiple- stage pumps, the GEA Hilge CONTRA is offered in a vertical in perfect condition for this application. The vertical installation guarantees for absolute residual emptying via the suction socket. To ensure residue-free discharge of the liq-uid from the pump, all product-contacting components have been applied with the corresponding radii and inclinations, in-cluding the eccentric pressure piece. The vertical installation additionally saves space within a system, with the Adapta de-sign offering the additional benefit of leaving the entire pump in the system when dismantling or assembling the motor. This is a benefit not only for aseptic processes, in which, howev-er, additional sterilization cycles and validations that may be-come necessary if the pump is opened or dismantled can be dispensed with.The materials In addition to the requirements profile of the design according to hygienic criteria, the selection of materials is particularly decisive for quality and safety in process control in the area of the pharmaceutical industry. Thus, the sterile pumps of the GEA Hilge HYGIA and GEA Hilge CONTRA series use only stainless Cr-Ni-Mo special steels in the low carbon rolled steel quality 316L. The product-contacting surfaces are mechani-cally ground, polished and electrochemically finished accord-ing to the surface standard of the defined sterile class. In par-ticular, the process of electro-polishing is decisive for sterile technology, since a surface that has only been mechanically polished with its sharp peaks and valleys is predestined for hiding contaminants. In addition to this, the sharp peaks neg-atively influence the passive layer built up on the special steel that is responsible for the corrosion resistance. It may even be interrupted, which may impair the material resilience against the highly pure water. Electro-polishing levels out such peaks and removes them until a much smoother, more corrosion re-sistant and low-particle surface results.Figure 4GEA Hilge CONTRA series in the vertical Adapta design4Pharma & BiopharmaThe sterile pumps of the GEA Hilge HYGIA and GEA Hilge CONTRA series are available in the following surface/sterile standards and materials, with the surface roughness being defined in accordance with ISO 468 and DIN EN 12462 for biotechnology.Figure 5 Milled impeller,Rₐ ≤ 0.4 µm Surface roughness RₐMaterial Impeller, weldseams≤ 0.8 µm 1.4404/1.4435Impeller casted≤ 0.8 µm 1.4404/1.4435Weldseams ground, impeller milled≤ 0.8 µm 1.4435 Fe < 1 %Weldseams ground, impeller milled≤ 0.4 µm 1.4435 Fe < 1 %Weldseams ground, impeller milled5Ferrite content/“rouge”Corrosion-resistance of the smooth material sur-face and influence of the ferrite content play a de-cisive role due to the high aggressiveness of the highly pure water used in pharmaceutical produc-tion. Systems with highly pure water show color-ations that range from green to yellow and red and are defined as iron oxide (rust) in analysis. These discolorations and partial deposits are summarized under the term “rouge”. Some examinations clear-ly indicate the possible influence of the ∂-ferrite share, which leads to a lower expected corrosion resistance above a 1 % ferrite content in any case. Although Cr-Ni-Mo-steel materials according to the Schaeffler diagram are clearly in the austenitic area, in particular Cr-Ni-Mo cast steel has ferritic sections due to fine phases with high iron and low chrome contents. The occurrence of this ∂-ferrite share is due to the process by which the special steel melt freezes, in which ferritic contents oc-cur in addition to the primary austenitic textures. This ferritic content then leads to the development of rust in highly pure water such as WFI that only contains dissolved CO₂ – with all other analysis values below the evidence threshold. The colloi-dal …rust“ (ferritic oxide) may reduce the quality of highly pure water until it drops below the USI quality standards and is rendered useless for phar-maceutics and biotechnology. This “rouge” phe-nomenon can cover entire sections of tanks, pump and plant components that have a ferrite share in excess of 5 % according to the current scientific insights (among others in the USA) rather than complying with the quality of “low carbon” rolled steel of 316L with defined ferrite contents in WFI systems. There are some welding and processing procedures to supply e.g. pumps in materials suchas 1.4435 with a ferrite content of 1 % and to also Figure 6GEA Hilge HYGIA with drain6Pharma & Biopharmakeep the standardized material AISI 316L (1.4404) at a ferrite content far below 5 % after processing and the corresponding pre-selection. Of course, processing of the materials and aftertreatment as well as final cleaning (passivation) of the system before commissioning are important for the occur-rence of “rouge” in addition to selection of the right material. The fight against “rouge” by permanent passivation of entire plant components (a common process today in many companies of the pharma-ceutical industry) is effective as well, but consti-tutes a very expensive solution. Only the conse-quences of partially unsuitable plant and materials design are targeted here, rather than removing the causes described. It seems urgently advisable to start on a different approach here.The gasketsAll static and dynamic gaskets have been chosen according to the requirements of their hygienic fit-ting and design, as well as in light of resilience, CIP and SIP capacities, and to meet the requirements profile of FDA conformity:• S tatic gaskets: EPDM with FDA conformity. Options: FKM, FEPM and FFKM also with FDA conformity• D ynamic gasket: Single-acting certified sterile slide ring packing Option: Double-acting gas-ket arrangement with internal or external flush-ing or blocking water supply Material pairs: Silicon carbide/silicon carbide, FDA compliant Cr-Ni-Mo steelThe connectionsThe pumps are designed in such a way that all com-mercially available sterile connections according to DIN, ASME or ISO and customer-specific versions can be integrated. The following connections are intended by default:• S terile thread according to DIN 11864-1• Sterile flanges according to DIN 11864-2• C lamp connection according to DIN (e.g. DIN 11864-3), ASME or ISO• Tri ClampDocumentationDocumentation is an important part for validation and FDA approval of a pharmaceutical system. GEA supplies the following option for the sterile pumps of the GEA Hilge HYGIA and GEA Hilge CONTRA series as a certified operation purs. to DIN ISO 9001 for the specified standards:• T est report/acceptance minutes according to DIN EN 10204, 2.2• M aterial certificate according to DIN EN 10204, 3.1• F DA declaration of conformity for the gasket materials and other materials used • Measuring record surface roughness• Measuring record ferrite content• EHEDG test certificate• 3-A certificate• F urther inspections and certificates are avail-able on request.The pump as an integral control component in the WFI system process:The VE or WFI water system poses different re-quirements to the pump due to process-related situations. The pump design must consider the maximum acceptance quantities plus minimum flow in the reverse run. The resulting conveying quantity forms the basis for calculation of the pow-er demand of the pump. The conventional centrif-ugal pump works over-dimensioned across long distances. This is the case particularly for cases like “request of partial volumes” or “only recircula-tion”, e.g. during weekend operation. This hydrau-lic partial load operation will emit a larger share of the available energy to the product as heat. This energy form is removed again in part via the cool-ers – but this solution is process-technically par-adox and not economically sensible. It is much more elegant to avoid unnecessary heat input. Us-ing frequency converters between the pump and the supply grid adjusts the speed and therefore the performance of the pump smoothly. Pressure or quantity-dependent control circuits supply any demand with the corresponding pump output. Re-quests in WFI loops with few demand differences may partially be solved via fixed frequencies (with-out actual value sensor). The speeds from this are determined empirically, saved in the converter’s memory and then selected digitally. Use of fre-quency converters permits free definition of the delivery head H and the displacement volume Q of a pump. Running over the common grid frequen-cy clearly improves efficiency of the pump at small volume demands. The cost benefit by use of small-er pumps exceeds the extra costs of a frequen-cy converter. Recent developments in the power electronics sector make it possible to merge the components frequency converter and electric mo-tor. Without any change to the procurement costs for frequency converters, integrated versions are preferable due to the lower connection effort and space requirement (no control cabinet needed). The relocation of intelligence from the control cabinet into the field is described in the chapter on “decentralized peripherals”. Field bus systems connect individual subscribers and permit access to functions and data from one control level. The pump with integrated frequency converter is pre-pared for decentralized use and becomes a trans-parent actuator in the WFI loop. It determines a comfortable and economically efficient process.7。
TFPX旋转分配器说明书
一、适用范围及性能特点1、适用范围TFPX系列旋转分配器是一种输送设备,通常将物料按需要分配至不同的去路、贮仓,适用于饲料加工厂、粮食加工厂或立筒库工作塔等场所。
2、性能特点TFPX系列旋转分配器结构紧凑,操作简单,安装方便,导向接料弯管转动缓慢,借助行程开关和定位槽的作用使其准确定位,且密封性能好。
二、外形和主要技术参数1、外形TFPX系列旋转分配器的外形见图一。
2、主要技术参数见表1表1三、结构特征与工作原理1、主要结构(见图一)(1)机上体:由机上壳、操作门、弯管调心装置和吊钩等部分组成。
(2)导向接料弯管:上面装有弹簧压紧装置、清料刷、密封圈和滚动轴承。
(3)机下体:由机下壳、自封轴承、传动轴、转刷、内外导轨、出料接管及一个排灰接管等组成;导轨上有定位槽。
(4)调节箱:它由箱体、接线盒、三个操作门、行程开关和触杆等组成。
(5)减速电机:双级摆线针轮减速机。
2、工作原理(见图二)本机由减速电机传动轴带动导向接料弯管沿导轨运行。
根据需要起动电机;运行到位后,触杆作用行程开关,立即切断电源,导向接料弯管立即停止在固定的位置上,同时弯管和机下壳压紧密封。
四、安装与调试1、设备安装前应进行全面检查,转动必须灵活。
2、设备吊装或支撑后,应基本保持水平,安装地脚尺寸见图一,如吊装后可以将机架拆掉。
3、连接各管道时不应影响原来的安装位置,连接的输送管道应设置观察口。
4、本机的出料口若不完全利用则应用铁板封口,排灰口应接出管道、密封,定期打开上检修口清灰。
5、安装后必须试运转,检查导向接料弯管、定位槽、行程开关和触杆的运动位置是否协调,并作必要的调整。
五、使用与操作1、使用前必须空运转,使弯管的停止位置和转换开关位置及工艺流程线路中的讯号一致,并编上相同的号码。
2、当需要改变出口时,必须先停止进料,然后起动按钮,待导向弯管旋转至预定出料口、停稳后再进料。
3、当弯管运转不平稳时,可打开机上体的顶盖,调节弯管的转动中心,直至运转平稳。
SK-9X01M模拟信号分配器使用说明书
SK-9X01M 模拟信号分配器使用说明书1.主要用途及适用范围SK-9X01M 模拟量信号分配器主要是为了解决顶驱式钻机扭矩和转速信号的采集而设计的,通常顶驱式钻机的扭矩和转速信号已经以电流(4-20mA )的形式输出,但当钻井仪表和录井仪都要采集该信号时,需把一路信号分为两路相同的信号供不同的仪器使用,或要将一个传感器的信号分成两路输出时需使用本产品。
本产品输入信号为4-20mA 电流或0-5VDC 电压;输出信号为两路4-20mA 电流或一路4-20MA 电流另一路0-5VDC 电压。
本产品可向外提供24VDC 电源供传感器使用,该产品的输入和输出是完全隔离的,可以与SK 系列CAN 总线型仪器和防爆型综合录井仪配套使用。
2.主要规格及技术参数工作电压:24VDC ±10%最大功耗:60mA (由本机供电20mA ,输出20mA 时) 输入信号:4~20mA (或0-5V )输出信号:4~20mA 两路(或一路4~20mA ;一路0~5V ) 工作温度: -40~+70℃ 输出电源:24VDC ;28mA输入阻抗:电压型 ≥100K ;电流型 200Ω 输出负载电阻:电压型 ≥10K ;电流型 0~250Ω 输入输出隔离电压:1000V peak 精度:0.2%FS 防护等级:IP65 防爆标志: Ex d ⅡBT4 防爆合格证号: GYB3.产品的工作原理与主要结构功能框图:B 4-20mA (或GND ) +24V B (或0-5V)+24V A A 4-20mA GND A输入4-20MA 电流信号通过采样电阻转换成电压,两个独立的隔离放大器对输入信号进行隔离放大,如果输入是0-5V 的电压信号则直接进入隔离放大,隔离后的信号再经过两个独立的电压电流转换芯片分别向两个采集系统提供同样的(4-20MA )信号。
如果有时希望有一路输出是0-5V 的电压信号,可以通过内部的跳线不经过电压电流转换,直接将隔离后的一路电压信号输出。
雅恩斯海德拉伊克多室分量分配器系列说明书
Jahns-Regulatoren GmbHH Y D R A U L I Kedition 12.02 September 2015Multi-chamber volumetric-divider MZBD 63069 Offenbach Sprendlinger Landstraße 150 Telephon +49 (0)69 848477-0D 63009 Offenbach Postbox 10 09 52 Telefax +49 (0)69 84847725 http://*********************************************ContentsConstruction type, method of operation, synchronus operation (3)Application, dimensions (3)Design, piston rod on both sides, DMS (4)Position measuring systems, hydraulic fl uid, mounting postition (4)Speed, Operating noise, connections, pressure drop (4)B29 manifold, storage, installation (5)Commissioning, maintenance (5)Multi-chamber volumetric-divider MZB-050.................................................6, 7Multi-chamber volumetric-divider MZB-080.................................................8, 9Multi-chamber volumetric-divider MZB-140.............................................10, 11Multi-chamber volumetric-divider MZB-180.............................................12, 13Multi-chamber volumetric-divider MZB-220.............................................14, 15Multi-chamber volumetric-divider MZB-280.............................................16, 17Manifold B29-140 NG6 and NG10...........................................................18, 19Manifold B29, hydraulic diagram..............................................................20, 21© Jahns Regulatoren GmbH 2004, 2007, 2012, 2013, 2015Reprinting, even partially, not permitted.No responsibility for possible errors in catalogues or other printed material is accepted.Former catalogues lost their validity.Catalogues are subject to be changed.Page 2H Y D R A U L I K www.jah ns-h ydraulik.dePage 3H Y D R A U L I Kwww.jah ns-h ydraulik.deGeneral pointsIn addition to its range of piston fl ow divider valves, gear oil fl ow dividers and radial piston oil fl ow dividers, Jahns has supplied for many years volumetric dividers for high precision fl ow division, namely the linear stro-ke volumetric dividers of the type MLH and the MZB multi-chamber volumetric dividers which are presen-ted in the following. The synchronisation accuracy of volumetric dividers is signifi cantly higher than that of oil fl ow divider solutions.Construction typeMZB m ulti-chamber v olumetric d ividers d iffer f rom M LH linear stroke volumetric dividers only in terms of their construction. In principle a multi-chamber volumetric divider consists of a line of cylinders, whose pistons are attached sequentially to one continuous piston rod. T he number o f c hambers e quates t o t he n umber o f c ylinders they are required to operate. Each of these operating cylinders that are driven by the MZB must be of equal dimensions. Preference is given to double acting orsynchronous cylinders. Single acting cylinders may be possible d epending o n t he p articular c onstruction t ype. Telescopic cylinders are not suitable. The volume of oil per chamber is specifi ed as being approximately 10% higher than the volume of the operating cylinder.Method of operationAll the MZB’s inputs are channelled through one line.One MZB output is connected to each operating cylin-der. When the volumetric divider is driven the volume of oil is forced simultaneously into all operating cylin-ders. The volume of oil only travels between the MZB and the operating cylinders. It is possible to change the oil when required using the B29 manifold as later described.Synchronous operationThe aim is perfect synchronisation and this is achievedto a ll i ntents a nd p urposes w hen t he o perating c ylinders are subject to the same load. This is preconditioned on the absence of air bubbles in the oil fl owing between the MZB and the operating cylinders.Inaccuracies only result from differences in the toleran-ces of the cylinder components and the possibility of the cylinder seals used containing seepage oil. Due to these potential sources of error it is not possible to claim 100% synchronous operation, yet the variance from the optimum value is hardly detectable in practice. However, consideration must be given to one error that is caused by compression of the oil when the operating cylinders are subject to quite different loads. A pressure variance of 10 bar between two operating cylinders results in a difference in travel of approx. 0.07%. If the pressure is equal in the operating cylinders, the compression that occurs in the oil columns has no effect on the synchronous operation. It is only when unequal loads cause different pressures in the indivi-dual operating cylinders that a compression related synchronisation error occurs.This error also remains the same during the stroke, since the fi xed volume does not change. If, for example, the load distribution becomes more uniform during the stroke, this error is reduced accordingly.ApplicationMulti-chamber volumetric dividers are used primarily for:• Precise stroke mechanisms with small oil fl ows • Stroke mechanisms with the least oscillation and vi-bration possible (e.g. theatre stages, cylinder raising in the print industry and in heavy machinery).• Tipping equipmentDimensionsMulti-chamber volumetric dividers can be manufactu-red with up to 12 chambers. For the standard versions the potential volume per chamber is between 150 cm 3 and 65.000 cm 3.The current limitation in terms of length is 6000 mm and a total weight of 2000 kg.DesignThe multi-chamber volumetric dividers are designed so that the number of chambers equates to the number of operating cylinders. They are confi gured according to the maximum oil velocity between the multi-chamber volumetric divider and the operating cylinders.The distance the multi-chamber volumetric divider needs to travel and consequently the volume of oil per chamber is based on the volume of oil required by the operating cylinders. The specifi cation is that the volume of oil in the multi-chamber volumetric divider is 10 to 15% higher than this so as to ensure that the operating cylinders are always able to travel to their end limit p osition a nd a c ompensatory ‘reset’ i s n ot n ecessary after each stroke. It is important to note the minimum travel for each particular version.It is not a disadvantage to have a larger chamber vo-lume than that which is necessary for the operating cylinders.Piston rod on both sidesIf requested multi-chamber volumetric dividers can be supplied w ith p iston r ods e xtending f rom b oth s ides (e.g. to be used to activate direction control valves). DMSMulti-chamber volumetric dividers can be supplied op-tionally with adjustable proximity sensors in a special protective casing. They come as standard with 2 switch points for minimum and maximum travel. Additional switch points can be supplied. The minimum distance between switch points is 38 mm. It is also possible to supply a v ersion w here o ne s witch p oint c an b e s witched by two proximity sensors independently of each other. In this version a smaller distance between the switch points is possible than is the case for the standard ver-sion. The proximity sensors are supplied with an open or close function.Position measuring systemsMulti-chamber volumetric dividers can be supplied on request with various position measuring systems. Hydraulic fl uidsAs a rule HL and HLP hydraulic oils are used for which NBR (Nitrile Butadiene Rubber) seals are fitted. For other hydraulic fluids (HFC, H FD o r b io-degradable fl uids) o ther sealing materials (such as FKM) may be necessary. W hen making an enquiry it is necessary to state the hydraulic fl uid that will be used.Mounting positionThe preferred mounting position is horizontal.SpeedWith the use of low friction cylinder seals it is possible to operate the MZB extremely slowly. Stick/slip free movement is possible even with very small oil fl ows. The maximum oil fl ows are given in the tables for the respective versions.Operating noiseAs is usual cylinders produce hardly any noise when in operation. Due to the absence of vibration or oscillation the multi-chamber volumetric divider can be employed successfully precisely in applications where such side effects are unacceptable (e.g. hospitals, theatre stages, etc.)ConnectionsSince the applications generally use minimal oil fl ows, it was possible to design the connections to be relatively small. Larger threaded or SAE connections can be sup-plied on request. However this version does affect the width of the intermediate fl ange and therefore also the overall length.Pressure dropPressure drops only occur when seals are impinged on both sides. At 5-7 bar, depending on respective size, these are signifi cantly lower than is the case with radial piston oil fl ow dividers and gear oil fl ow dividers.Page 4H Y D R A U L I K www.jah ns-h ydraulik.deB29 ManifoldFor multi-chamber volumetric dividers it is important to use a manifold that enables the following functions:• the equipment to be fi lled when commissioning • pressures between multi-chamber volumetric divi-der and the operating cylinders to be assured • any loss of oil to be compensated ‘reset‘• the oil to be changedThe B29 manifold consists of an input manifold and one segment for each chamber of the multi-chamber volumetric divider. The input manifold is fi tted with a pressure reducing valve and a 4/2 directional control valve.Each segment is equipped with a pressure limit valve for a maximum of 140 litres/min., a non-return valve, electrically switchable 2/2 directional control valve as well as a G1/4” test port.The pressure limit valves in the B29 manifold are responsible for assuring the pressures between the multi-chamber volumetric divider and the operating cylinders.They do not enable a end limit position compensation as it is the case for radial piston flow dividers (MTO, HTO, MT-GM, MTL and STL).The input manifold can be supplied with NG-6 or with NG 10 valves. The larger valves make it possible to fi ll or replace the oil between the multi-chamber volumetric divider and the operating cylinders more quickly.The user connects the manifold to the multi-chamber volumetric divider externally using a pipe connection. The B29 manifold is a further advance on the previous versions B26, B27 and B28.When using proprietary manifolds it is essential to ensure that the pressures between the multi-chamber volumetric divider and the operating cylinders meet the maximum pressure values of the multi-chamber volumetric divider at the given volumetric fl ow rate. StorageDry, dust and frost free storage must be ensured. It is also necessary to avoid any ingress of contamination. To prevent corrosion during longer term storage it is recommended that the volumetric divider is fi lled with oil. Exposed parts (e.g. piston rod) must be greased.InstallationWhen installing the multi-chamber volumetric divider maximum cleanliness must be ensured. The end caps in the connections should only be removed immedia-tely before fi tting the threaded fi ttings. Pipes must be free of dirt and swarf. When the connecting pipes have been welded it is essential that any scaling is comple-tely removed before installation. Where possible the pipes should be dipped. The cylinder connections are designed for all readily available screw fi ttings with a cutting edge.In addition it is essential that the volumetric divider installation is stress-free and also that unacceptable la-teral forces do not occur when it operates. These could result in the guide and sealing components suffering premature wear which may lead to failure of the volu-metric divider.CommissioningBefore connecting the multi-chamber volumetric di-vider it is necessary to fl ush through the pipe system. Information (with wiring diagram) on how to fi ll and evacuate air from the multi-chamber volumetric divi-der in conjunction with the manifolds is provided from page 18 onwards.MaintenanceThe simple design of the multi-chamber volumetric divider ensures very reliable operation combined with minimum maintenance that is limited mainly to a pe-riodic control of any potential leakage losses.It is essential to check that the oil is clean with respect to the p ressure l imit a nd n on-return v alves. S warf m ay o ften be present in the system particularly when at the time it is fi rst started. Having successfully fi lled the system, it should operate synchronously. If it does not, it will be necessary to check the above valves for particulate.Page 5H Y D R A U L I K www.jah ns-h ydraulik.dePage 6H Y D R A U L I Kwww.jah ns-h ydraulik.deMZB050080140180220280Stroke min mm 100130150200250300Stroke maxmm 120012001200120012001200Chamber volume min*cm 3158,3489,6 2.070,4 4.523,88.246,516.563,9Chamber volume max*cm 3 1.900,0 4.523,916.564,027.143,339.584,066.255,6Piston Ømm 5080140180220280Piston rod Ømm 224045608090Area cm²15,8337,69138,03226,19329,86552,13Oil fl ow max l/min306090150220300*per chambermax. operating pressure 250 bar, higher pressure on requestDrawing for 2-12 fold MZB on request, also DXF or Step.Order-codeExample: MZB-6-050-0250-V-DMSSR with protective casing for extended piston rod DMS proximity sensors, 2 adjustable switch points V FKM seals 0250 Stroke in mm 050 Nominal dimensions6 Number of chambers, maximum of 12Page 7H Y D R A U L I Kwww.jah ns-h ydraulik.dePage 8H Y D R A U L I Kwww.jah ns-h ydraulik.deOrder-codeExample: MZB-6-080-0250-V-DMSSR with protective casing for extended piston rod DMS proximity sensors, 2 adjustable switch points V FKM seals 0250 Stroke in mm 080 Nominal dimensions6 Number of chambers, maximum of 12Drawing for 2-12 fold MZB on request, also DXF or Step.MZB050080140180220280Stroke min mm 100130150200250300Stroke maxmm 120012001200120012001200Chamber volume min*cm 3158,3489,6 2.070,4 4.523,88.246,516.563,9Chamber volume max*cm 3 1.900,0 4.523,916.564,027.143,339.584,066.255,6Piston Ømm 5080140180220280Piston rod Ømm 224045608090Area cm²15,8337,69138,03226,19329,86552,13Oil fl ow max l/min306090150220300*per chambermax. operating pressure 250 bar, higher pressure on requestPage 9H Y D R A U L I Kwww.jah ns-h ydraulik.dePage 10H Y D R A U L I Kwww.jah ns-h ydraulik.deOrder-codeExample: MZB-6-140-0250-V-DMSSR with protective casing for extended piston rod DMS proximity sensors, 2 adjustable switch points V FKM seals 0250 Stroke in mm 140 Nominal dimensions6 Number of chambers, maximum of 12Drawing for 2-12 fold MZB on request, also DXF or Step.MZB050080140180220280Stroke min mm 100130150200250300Stroke maxmm 120012001200120012001200Chamber volume min*cm 3158,3489,6 2.070,4 4.523,88.246,516.563,9Chamber volume max*cm 3 1.900,0 4.523,916.564,027.143,339.584,066.255,6Piston Ømm 5080140180220280Piston rod Ømm 224045608090Area cm²15,8337,69138,03226,19329,86552,13Oil fl ow max l/min306090150220300*per chambermax. operating pressure 250 bar, higher pressure on requestMZB050080140180220280 Stroke min mm100130150200250300 Stroke max mm120012001200120012001200 Chamber volume min*cm3158,3489,6 2.070,4 4.523,88.246,516.563,9 Chamber volume max*cm3 1.900,0 4.523,916.564,027.143,339.584,066.255,6 Piston Ømm5080140180220280 Piston rod Ømm224045608090 Area cm²15,8337,69138,03226,19329,86552,13 Oil fl ow max l/min306090150220300 *per chamber max. operating pressure 250 bar, higher pressure on requestDrawing for 2-12 fold MZB on request, also DXF or Step.Order-codeExample: MZB-6-180-0250-V-DMSSR with protective casing for extended piston rodDMS proximity sensors, 2 adjustable switch points V FKM seals0250 Stroke in mm180 Nominal dimensions6 Number of chambers, maximum of 12MZB050080140180220280 Stroke min mm100130150200250300 Stroke max mm120012001200120012001200 Chamber volume min*cm3158,3489,6 2.070,4 4.523,88.246,516.563,9 Chamber volume max*cm3 1.900,0 4.523,916.564,027.143,339.584,066.255,6 Piston Ømm5080140180220280 Piston rod Ømm224045608090 Area cm²15,8337,69138,03226,19329,86552,13 Oil fl ow max l/min306090150220300 *per chamber max. operating pressure 250 bar, higher pressure on requestDrawing for 2-12 fold MZB on request, also DXF or Step.Order-codeExample: MZB-6-220-0250-V-DMSSR with protective casing for extended piston rodDMS proximity sensors, 2 adjustable switch points V FKM seals0250 Stroke in mm220 Nominal dimensions6 Number of chambers, maximum of 12MZB050080140180220280 Stroke min mm100130150200250300 Stroke max mm120012001200120012001200 Chamber volume min*cm3158,3489,6 2.070,4 4.523,88.246,516.563,9 Chamber volume max*cm3 1.900,0 4.523,916.564,027.143,339.584,066.255,6 Piston Ømm5080140180220280 Piston rod Ømm224045608090 Area cm²15,8337,69138,03226,19329,86552,13 Oil fl ow max l/min306090150220300 *per chamber max. operating pressure 250 bar, higher pressure on requestDrawing for 2-12 fold MZB on request, also DXF or Step.Order-codeExample: MZB-6-280-0500-V-DMSSR with protective casing for extended piston rodDMS proximity sensors, 2 adjustable switch points V FKM seals0500 Stroke in mm280 Nominal dimensions6 Number of chambers, maximum of 12Order-codeExample: B29-4-140-NG6-VV FKM sealsNG 6 Valve size140 Nominal dimension4Number of chambers, maximum of 12B29 TypeCircuit according DIN ISO 1219B29-4-140-NG6P T F Z M P G1/2" Pressure connection T G1" Tank connectionF G1/2" Filling connections, multi-chamber volumetric divider Z G3/4" Connections, operating cylinders M G1/4" Measurement connectionsMulti-chamber volumetric-divider with manifold B29Filling and evacuating air from the empty pipes between the multi-chamber volumetric divider and the operating cylinders.1. Drive the operating cylinder to the lower end limitposition using the 4/3 directional control valve 1 (Y11 switched) Leave the operating cylinders 10 under pressure and evacuate the air on the piston side by means of the bleed screw or by opening the threaded fi tting.2.Switch the 4/3 directional control valve 1 to off po-sition (valve in middle position).3.Set the pressure reducing valve 4 on manifold B29to the lowest pressure.4.Switch t he 4/2 d irectional c ontrol v alve 5o n m anifoldB29 and at the pressure reducing valve 4 increase the pressure only to the point at which the opera-ting cylinders 10 are about to move and then set it to a just under this value. However the pressure must be so high that the multi-chamber volumetric divider can be driven reliably to its end limit position.If this is not the case, a pilot operated check valve must be fi tted in the 'B' connection of valve 1. This setting also applies to the so-called ‘reset’ i.e. fi lling the oil between multi-chamber volumetric divider and operating cylinders.5. This fi lls the connecting pipes between the multi-chamber volumetric divider and the operating cy-linders 10 and the multi-chamber volumetric divider3 should then move to the end limit position.6. Evacuate air through the test ports MA on themulti-chamber volumetric divider 3 and/or the connections to the operating cylinders 10 on the piston side.7. Drive the operating cylinders 10 using the 4/3directional control valve 1 (Y12 switched) and the multi-chamber volumetric divider to the end limit position and evacuate air from the connecting pipes via the test ports ME.8.Drive the operating cylinders several times to bothend limit positions by switching the 4/3 directional control valve 1.9.As described under point 4 and 6 refill the pipes bet-ween the multi-chamber volumetric divider 3 and the operating cylinders 10 via the 4/2 directional control valve 5 on manifold B29 and evacuate air until the operating cylinders move in the required synchronisation.Pressure limit valvesThe pressure limit valves 7 can be set to the maximum operating pressure of the operating cylinders 10 plus around 20 bar, however no higher than the maximum operating pressure of the multi-chamber volumetric di-vider installed (standard operating pressure 250 bar).‘Resetting’ t h e o il v olume b etween m ulti-cham-ber volumetric divider and the operating cylinders. 1.The 4/3 directional control valve 1 is in the middleposition. The operating cylinders 10 are in the lower end limit position. T he multi-chamber volumetric di-vider 3 is not yet in its end limit position.2.By switching the 4/2 directional control valve 5 theconnecting pipes between the multi-chamber vo-lumetric divider and the operating cylinders 10 are filled and multi-chamber volumetric divider is driven to its end limit position.Ch anging th e oil between the multi-chamber volumetric divider and the operating cylinders. Since the oil is only moved between the multi-chamber volu-metric divider and the operating cylinders it is necessary to change the oil on a regular basis depending on the switching frequency, operating pressure and ambient temperature. The oil temperature in these connecting pipes can be taken as a gauge. It should not be greater than 80°C. To facilitate a quick oil change the F connec-tions must be connected as close to the multi-chamber volumetric divider 3 as possible and the Z connections as close as possible to the operating cylinders.1.The 4/3 directional control valve 1 is in the middleposition. The operating cylinders 10 are in the lower end limit position2.Open the 2/2 directional control valves 8.3.By switching the 4/2 directional control valve 5 the oilin the connecting pipes between the multi-chamber volumetric divider and the operating cylinders 10 is replaced in part.4.Close the 2/2 directional control valves 8.5.The connecting pipes between the multi-chambervolumetric divider 3 and the operating cylinders10 are fi lled through 4/2 directional control valve 5that is still open and the multi-chamber volumetric divider should then move to its end position.Hydraulic diagram321456.16.36.26.48.4 7.47.37.27.18.38.28.1B29/4MZB10101010P TPage 21H Y D R A U L I K www.jah ns-h ydraulik.deComponents for hydraulics and process technologyJahns-Regulatoren GmbH home addressPostbox 10 09 52 Sprendlinger Landstraße 150 http://www.jahns-hydraulik.de D 63009 Offenbach D 63069 Offenbach*********************** telephon +49/(0)69/84 84 77-0 telefax +49/(0)69/84 84 77 25。
三浪集团 分配器说明书
分配器使用说明书型号T8616 T8617 T8618 T8619油脂流量定数□05Z □1Z □2Zn本分配器为阻尼式油脂分配器n可多个分配器任意串联、并联组合使用,安装自由方便,可任意方位安装不影响分配器排油。
适用于润滑点群多,主管路总长度在8m以上,分油管单个长度在1m以上,给油脂剂量要求不高的各种机械设备。
n严格清洗油管和管件后连接本分配器。
n配套公称压力为4.0Mpa的油脂润滑泵。
n使用介质:NLG0,00,000锂基脂,必须是清洁的润滑油,绝不可使用回收的脏油。
n首次使用时,系统加压后,检查润滑点,直至每个润滑点都有油排出。
n加压到额定值时,所有连接处不得渗漏。
n安装后请确保本分配器不被磕碰。
n非专业人员请勿打开本分配器。
分配器使用说明书宁波市三浪润滑元件有限公司电话:*************传真:*************技术咨询电话:*************分配器装箱单序号名称数量备注1 分配器见合格证2 说明书 1 含合格证4 1分配器使用说明书型号T8616 T8617 T8618 T8619T8622 T8623 T8624T8626 T8627 T8628稀油排量规格□A □B □C □D □E型号 ZLFG2 ZLFG3 ZLFG5稀油排量规格□1 □2 □3 □4 □5 □6n本分配器为定量稀油分配器。
n可多个分配器任意串联、并联组合使用,安装自由方便,可任意方位安装不影响分配器排油。
适用于润滑点群多,主管路总长度在10m以内,分油管单个长度在1m以内,给油剂量要求准确、稀油间歇润滑的各种机械设备。
n严格清洗油管和管件后连接本分配器。
n配套公称压力为2.0MPa或4.0Mpa的稀油润滑泵,润滑泵必须间歇工作和具有卸荷功能。
n使用润滑油粘度:30cSt~2500cSt,必须是清洁的润滑油,绝不可使用回收的脏油。
n首次使用时,系统加压后,打开最末端管路放气直至有油溢出再堵上;然后需重复起动润滑泵数十秒,休止10秒以上,直至每个润滑点都有油排出。
PX128B专业电源时序分配器用户手册说明书
PX128//PX136PX128B 专业电源时序分配器PROFESSIONAL SEQUENCE POWERUser 's M anual 用户使用手册注意事项承蒙惠顾本公司产品,甚表感谢。
务请通读本使用说明书,以便使您掌握如 何正确地使用此设备。
当您读完本说明书后, 请把它妥善保存好, 以备今后查用。
机内有高压,请不要打开机壳,维修请向专业人员咨询;请不要将本机置于雨中和潮湿的地方;设备必须在通风良好的地方工作;请注意当地供电电压与本机是否相符;长时间不使用本设备时请将电源插头拔下;请按本说明书为本机配接负载,不要让本设备长时间过载运行。
此机与电源插座连接前,请先确定当地电网电压和本机动背板后的电压指示相同(A C 220/50H z)。
连接本机到电源插座时,确认插座未损坏,电源线无破损 。
关机后请将电源插头拔出。
2介绍操作方法级联使用8附加说明安全使用事项101112保养技术规格目录3特点4567前面板各部分名称及其功能后背板各部分名称及其功能产品型号丝印对照表常见故障与排除方法94电源线连接方法介绍本章解说功放的特点开始使用本机以前,请先详细读本说明书,并保存本说明书以备将来参考之用。
特点4本机是一种专业的电源时序分配器,它可将输入的主电源分配成八路电源输出,并可以按时间顺序依次接通和关闭各路电源,从而有效降低对系统的冲击,特别适合于大型音响工程使用。
一路主电源输入,六路或八路受控电源输出。
内部微处理器控制,可顺序开机,逆序关机,并可多台级联使用,操作方便。
数码管电源电压指示,各通道通断都有L E D指示,一目了然。
设B Y P A S S开关及各通道都设独立控制开关,使用灵活。
外形小巧坚固。
电源线连接方法红色护套线 火线(L)黄色护套线 零线(N)绿色护套线 地线(G)CAUTIONRISK OF ELECTRIC SHOCKDO NOT OPEN220-240V50-60Hz5前面板3、级联指示灯当多台电源时序器级联使用时,该指示灯点亮4、主电源电压显示屏显示主电源电压7、C H 1 一键通开关按下该键可单独切断该通道的电源8、C H 2 一键通开关按下该键可单独切断该通道的电源9、C H 3 一键通开关按下该键可单独切断该通道的电源10、C H 4 一键通开关按下该键可单独切断该通道的电源11、C H 5 一键通开关按下该键可单独切断该通道的电源12、C H 6 一键通开关按下该键可单独切断该通道的电源13、C H 7 一键通开关按下该键可单独切断该通道的电源14、C H 8 一键通开关按下该键可单独切断该通道的电源POWERLINKBYPASS ALL OFFCH 1CH 2CH 3CH 4CH 5CH 6CH 7CH 8PROFESSIONAL SEQUENCE POWERP X 128ONE TOUCH ONMAIN VOLTAGE 15、时序旁路开关按下此开关,本机失去时序开机和关机的功能,同时接通所有电源通道16、总关断开关当按下此开关时,同时切断所有通道6、总关断开关指示灯按下总关断开关,切断所有通道,该指示灯点亮5、时序旁路开关指示灯按下时序旁路开关时,B Y P A S S功能启动,该指示灯点亮※ 以P X 128为例(P X 128B A C P O W E R 电源指示灯是指时序器与电网交流电源接通时,该指示灯点亮)1、时序开关指示灯当接通时序开关时,该指示灯点亮2、时序开关按下开关,按时间顺序依次接通各电源通道6后背板※ 以P X 128为例(P X 136同P X 128,只是没有通道7和通道8):请注意当地电网电压是否与本机一致1、主电源线级联时,输出信号由此输出2、级联输出信号插座级联时,输出信号由此输入3、级联输入信号插座4、C H 1-C H 8 电源分配通道插座INPUT OUTPUTLINK CONTROL220-240V50-60Hz REMOTEE N L E E E E E E ECH 8N L CH 7N L CH 6N L CH 5N L CH 4N L CH 3N L CH 2N LCH 15、远程线控端子短路该端子可实现远程 控制时序器的时序开关产品型号丝印对照表对照表不同型号丝印介绍BYPASS ALL OFFCH 1CH 2CH 3CH 4CH 5CH 6CH 7CH 8PROFESSIONAL SEQUENCE POWERP X 128BONE TOUCH ONPOWERLINKAC POWERPOWERLINKBYPASS ALL OFFCH 1CH 2CH 3CH 4CH 5CH 6CH 7CH 8PROFESSIONAL SEQUENCE POWERP X 128ONE TOUCH ONPOWERLINKBYPASS ALL OFFCH 1CH 2CH 3CH 4CH 5CH 6PROFESSIONAL SEQUENCE POWERP X 136ONE TOUCH ONMAIN VOLTAGE INPUT OUTPUTLINK CONTROL220-240V50-60Hz REMOTEEN L EEEEEEECH 8N L CH 7N L CH 6N L CH 5N L CH 4N L CH 3N L CH 2N LCH 1PX218B前面板丝印PX218前面板丝印PX136前面板丝印PX218B后背板丝印PX218后背板丝印PX136后背板丝印ENLCH 6ENLCH 5ENLCH 4ENLCH 3ENLCH 2ENLCH 1CAUTIONRISK OF ELECTRIC SHOCKDO NOT OPEN220-240V50-60Hz INPUTOUTPUTLINK CONTROL7I N P U TO U T P U TL I N K C O N T R O LR E M O T EC H 1C H 2C H 4C H 3C H 5C H 6C H 7C H 8220-240V50-60Hz级联使用操作方法本章解说本机的开机和关机的步骤1多台级联使用时的连接图> EN L CH 8INPUT OUTPUT LINK CONTROLEN L CH 8INPUT OUTPUT LINK CONTROLEN LCH 8INPUT OUTPUTLINK CONTROL第一台(主机)第二台(从机)第三台(从机)2> 注意:多台级联时请先将所有电源时序器的时序开关关闭,联好线后,就可用第一台机的开关控制所有电源时序器了.3> 远程线控端子的使用时的连接图INPUT OUTPUTLINK CONTROLREMOTEEN LCH 1远程开关8常见故障与排除方法常见故障与排除方法故障现象序号排除方法检查机器电源插头与电源插座是否接触良好电源插座是否有适合的交流电压112221电源指示灯不亮不能级联使用检查级联线是否连接正确,接触良好其它故障请对照说明书检查机器设置与连线是否正确请向当地特约维修点专业人员咨询或登陆本公司网站查询按上述方法操作仍无法工作,请向当地特约维修点专业人员咨询。
- 1、下载文档前请自行甄别文档内容的完整性,平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益,请联系客服反馈,我们会尽快为您处理(人工客服工作时间:9:00-18:30)。
洗碗机
双液体电脑分配器
安装使用说明书
A600201-1C
A600201-2C
上海昌剑酒店设备用品有限公司
SHANGHAI CHANG JIAN HOTEL EQUIPMENT CO., LTD.
洗碗机分配器使用说明书
一、简介
昌剑公司最新研制开发的洗碗机分配器,适用于国内外销售的任何品牌洗碗机。
是一
种准确方便经济实用的洗碗机清洁剂、催干剂分配器,有门式、通道式专用型,有探
头和时间速度双模式控制方法,有CPU控制的探头、非探头(时间、速度)双模式控
制,有遥控型、非遥控型。
适用于任何类型洗碗机上使用。
二、安装
1. 分配器安装
在洗碗机的进口上方墙体,打两个 6 墙洞,用塑料膨胀管螺丝固定分配器,须将
密封垫片安在墙体上,防蒸汽进入箱体内。
2. 管路安装
1)将 6塑管截成适当长度,插入泵管两端用扎带扎紧,注意不要将吸入口、出口
搞反。
泵的转向应是顺时针方向,吸入口的塑管末端装上吸液管,长度能放入
清洁剂和催干剂的桶内,出口与清洁剂下药口和单向阀连接。
2)清洁剂进口,在洗碗机洗涤槽水平面上方,打一个 22或7/8"标准孔装上进药
口装置。
3)催干剂进口须装单向阀,一般洗碗机上有预留口。
3. 探头安装
必须安装在洗涤槽的水平面下 10cm左右的地方,最好的位置应离水泵吸口较近,离进水口较远,切忌安装在加热管附近,否则容易熔化,选择好位置后打一个 22
mm或7/8英寸的孔,用0.75-1平方米多股软线,连接至分配器的探头信号连接柱上。
4. 电路安装
1)分配器工作电压(常电源)220V、110V,如有 24V 电压则不必接变压器电源,
电源单独设置电源开关(以备清洗洗碗机用)。
2)连接主电源前检查洗碗机输出端电压后再进行连接,以免烧坏变压器及电路板,
确定后再连接。
3)一般洗碗机都在电控箱内,留有洗涤剂催干剂的电源信号接口,比较方便的就可
接在分配器的触发信号连接柱上,电压范围在14V-230V都可以。
4)若洗碗机没有预留洗涤剂催干剂的电源信号,可以将触发电源信号连接在主洗接
触器和过水接触器的电源上。
5)分配器选择在时间速度控制模式时,则将首次加药的电源信号,连接进水电磁阀
的电源上。
6)远程预警,可用连接线将分配器内 ALARM 连接柱连接外部报警器(3V-24V)。
5. 设置与调试
1)具体见电路板图示和屏幕显示及设置。
2)此机有清洁剂泵、催干剂泵手动按钮,在显示面板上,可在初次使用时将清洁剂、
催干剂直接打入泵体内,可测试泵是否能正常运转。
3)在不用探头模式下,具有首次加药功能,只需将进水电磁阀的电源信号接入DET.
SIG 接线柱,再设置 C2、C3,可进行首次加入清洁剂的运行功能。
4)在不用探头的模式下,补充加药量的控制,将信号电源接至 RINSE.SIG 接线柱。
此时可调节C4、C5。
可以用延时功能和定时功能循环加药,在通道式洗碗机内特 别适用。
再可调节D2、D3,与电源信号同步运行(将延时调到 0、定时调到1)。
用速度调节加催干剂的量(通道式),也可以定时加催干剂的量(门式)。
5)在探头模式下,将A1设置为最高转速,数字越大转速越快,最高为99, A2为浓度
设置,数字越大浓度越高,应运用化学滴定法来设置您所需要的清洁剂浓度范围, A3为报警延时时间,最长时间为188秒(即设定数字X2),如在所设定的时间内, 未将加药浓度达到所设定的范围内,报警器会蜂鸣,而且洗涤剂泵会停止工作,
此时应关闭电源,查找原因后再启动。
6)在探头模式下,催干剂泵的设置可以用速度调节加药量(将B2调节至0、B3调
至1),也可用延时时间,定时时间来调节加药量(一般在门式上)。
6. 故障处理
1)报警器启动,面板显示E1。
处理方式
a)设定报警时间太短,没有足够的时间加入清洁剂达到必须的浓度,重新设定报
警时间。
b)检查清洁剂料桶是否已用完,更换空桶。
c)检查清洁剂泵管吸入部分是否在桶内液体水平面下。
d)检查探头部分是否清洁,连接线是否完好。
e)检查蠕动泵管是否已使用到一定时间,需要换。
连接塑料管是否有泄漏。
2)报警器启动,面板显示E2。
探头故障,有短路现象,检查探头是否有金属物卡住,连接线是否有导通现象。
3)清洁剂泵催干剂泵不运转。
a)在常用电源的情况下,手按面板上的手动按钮可区分是蠕动泵不工作,还是控
制部分不工作。
b)控制部分不工作,可检查设置是否正确,触发信号电源是否到位,与洗碗机连
接部分是否正确,保险丝是否完好。
c)蠕动泵不工作,检查马达在运转,而变速箱输出轴不运转,变速箱坏,检查有
直流电压而马达不转,则马达坏或有异物卡住。
4)外接电源正常,而面板上无显示
a)电源开关是否打开。
b)检查保险丝是否完好。
c)检查各连接柱,连接是否完好,有否松动脱落现象。
d)检查变压器工作状况,初级电压和次级电压是否正确。
1.管路图示:
2.电路板图示:A600201 分配器:
891011 12
PROBE
1. 外接警报器ALARM
2. 探头 PROBE
3. 催干剂泵 RINSE OUT
4. 清洁剂泵 DET OUT
5. 主电源 24V AC
6. 清洁剂泵 14-240V AC
信号电源 DET SIG 7. 催干剂泵14-240V AC 信号电源
8. 拔动开关
9. 报警器
10. 音量调节电位器
11. 触摸开关
12. 显示屏
(补充加药)
A600201 分配器
启动程序:
1) 按住SET键,至PA出现,松手会显示数字50或500。
2) 按上升键或下降键至密码数字(新机显示50为52密码,显示500为522密码)。
3) 再按一下SET键,会出现AI或CI(A1是探头模式;C1是时间控制模式)。
4) 即可设定各项程序数据,完成后进入正常工作状态。
密码设置:
1) 关电源开关,手按住SET键,开电源开关。
2) 屏幕显示EE一声长音,手松开SET键,会显示50或500。
3) 数字调到原来密码,按SET键。
4) 显示50或500,然后将数字调到您所设定的号码,再按SET键一声长音,数字显示消
失关闭电源即完成。
屏幕显示及设置
一、用探头Array二、不用探头
三、其他显示
注:A1,C1清洁剂泵转速一般不用调速,特殊情况请与公司联系。
