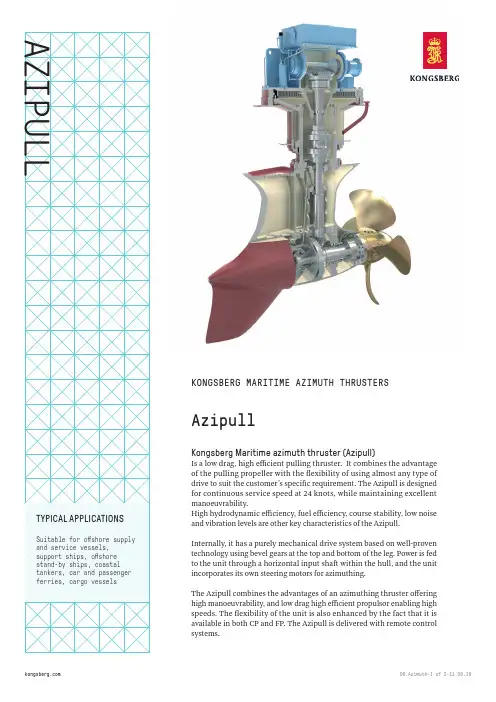

柯斯堡海洋工程螺旋桨推进器说明书
KONGSBERG MARITIME AZIMUTH THRUSTERSAzipullKongsberg Maritime azimuth thruster (Azipull)Is a low drag, high efficient pulling thruster. It combines the advantageof the pulling propeller with the flexibility of using almost any type ofdrive to suit the customer’s specific requirement. The Azipull is designedfor continuous service speed at 24 knots, while maintaining excellentmanoeuvrability.High hydrodynamic efficiency, fuel efficiency, course stability, low noiseand vibration levels are other key characteristics of the Azipull.Internally, it has a purely mechanical drive system based on well-proventechnology using bevel gears at the top and bottom of the leg. Power is fedto the unit through a horizontal input shaft within the hull, and the unitincorporates its own steering motors for azimuthing.The Azipull combines the advantages of an azimuthing thruster offeringhigh manoeuvrability, and low drag high efficient propulsor enabling highspeeds. The flexibility of the unit is also enhanced by the fact that it isavailable in both CP and FP. The Azipull is delivered with remote controlsystems.06.Azimuth-1 of 2-11.06.19The main characteristics are:• Low drag, high efficiency pulling azimuth thruster • High hydrodynamic and total efficiency • Low noise and vibration levels • Course stability • Continuous service speed of 24 knots while maintaining good manoeuvrability • Can be linked to any kind of prime mover, accepting diesel or gas turbine with mechanical or electrical drive • Flexible with respect to vessel application, enhanced by availability in CP and FP versions Within the hull of the vessel is the upper gear housing, steering gear and auxiliaries, and these are from the standardised Kongsberg Maritime azimuth thruster range to maximise commonality of spare parts and minimise technical risk.The flow of water to a pullingpropeller is only determined by the hull, and it is possible to obtain a more homogeneousinflow to the propeller in this type of thruster. More uniform inflow is decisive for reducingunsteady cavitation, and thereby cutting down propeller inducednoise and vibration and reducingoscillations in shaft torque.The mechanical elements areenclosed in a hydrodynamicallyoptimised leg with a wide chordto provide rudder effect andimprove the vessel´s coursestability. The leg incorporatesa skeg extending below the gearhousing.The streamlined leg and skegrecover swirl energy from theslipstream of the pullingpropeller, raising the overallpropulsive efficiency becausethis otherwise wasted energy isconverted to a forward force onthe thruster leg.TECHNICAL DATA AZP 85CATAMARAN AZP 85STANDARD AZP 100STANDARD AZP 120STANDARD AZP 150STANDARD Prop diameter (mm)1900-2 3001900-2 3002300-2 8002800-3 3003300-4200Power (max cont. rating)17001700250035005000Nominal input speed (RPM)720-1 800720-1 800720-1 800720-1 200600-1000Dry weight (kg)1400020000260004400085000Switchboard: +47 815 73 700Global support 24/7: +47 33 03 24 07E-mailsales:*********************.comE-mailsupport:************************Kongsberg Maritime P.O.Box 483, NO-3601Kongsberg, Norway 06.Azimuth-2 of 2-11.06.19Power is (max cont. rating) if depending on final propeller speed.All models of Azipull can be supplied with CP or FP propeller (FP propeller can be supplied as monoblock or built on blades).All data is subject to change without prior notice.。
SP1300型侧推安装说明书
SP1300型侧推调距桨
安装说明书
（4）船厂在进行圆筒延长部份和连接板的装焊时，应注意装配的正确性。
侧推安装说明书
SP1300
共6页
第4页
并采取必要的防止变形措施。在焊接时，要特别注意保护桨叶和不锈钢层免遭电火花损伤。焊接应按规范间隙交叉进行，并需极其小心在焊接过程中应经常测量桨叶与圆筒之间的间隙。
直径为1300mm的螺旋桨，其间隙不得小于5mm.
3.5下水前,液压系统必须充油,并达到重力油箱规定的油位,以使螺旋桨里保持一定的静压力,同时,检查螺旋桨装置是否漏油,充油过程中必须把螺旋桨装置的气放尽,立式安装的驱动电机,在驱动轴组件上有一螺塞供放气,而水平安装的驱动电机。则通过齿轮箱外的螺塞放气。
螺旋桨尺寸mm充油容积（升）
1300 350
3.6液压泵的电动机可在机舱或驾驶室进行遥控。
侧推安装说明书
SP1300
共6页
第5页
内壁应充油,两端应用塞子塞好,以防污染.
管路在船上的安装应使其与船体构架保持不小于5mm的间隙,并应设置吊架.
管路应经1.5倍最大工作压力强度试验和1.25倍最大工作压力的紧密性试验.
3.3液压系统灌油前,管子和油箱必须全部彻底清洗干净,并提交船检.
3.4液压系统用油,必须符合我们提供资料的11867上的要求.
向螺旋桨装置供油的液压柜它由油箱、电动泵、阀、滤器及包括电动泵启动保护装置等电气部件组成，我们所提供的液压装置为一个基体，带有安装附件和内部连接管路及电路。
舰船常用推进器简介
舰船常用推进器简介普通螺旋桨推进器：结构简单，在低速下效率一般还是较高。
普通螺旋桨推进的能量损失：（1）产生轴向诱导速度的损失。
在螺旋桨作为推进器来工作时，这种损失是不能完全避免的，但可用适当措施使这种损失尽可能减小。
一般，这种损失值将随螺旋桨载荷系数的增大而增大。
（2）产生周向诱导速度的损失，或称为水流扭转损失，其损失值也将随螺旋桨载荷系数增大而增大。
（3）运转时桨叶与水的粘性摩擦作用而产生的损失，或称为剖面阻力损失。
螺旋桨的诱导损失和剖面阻力损失这两项约共耗螺旋桨35%~60%的功率，也就是说，螺旋桨一般从主机取得的功率中用于退出按的功率大约仅占40%~65%。
（4）螺旋桨与航体相互作用，即螺旋桨的附体阻力损失。
减小能量损失的措施：（1）为减小诱导损失，可采用直径更大的螺旋桨，但会增加剖面阻力损失。
（2）为了减小水流扭转损失，可采用特殊的导流设备，例如：反应舵，舵推力鳍以及流线型舵等，减小尾流旋转，回收尾流能量，达到提高推进效率的目的。
（3）为了减小剖面阻力损失，必须注意桨叶剖面形状的选择，在理论设计中，合理选取桨叶宽度，叶厚比及剖面形状，可使剖面阻力损失达到最小（4）螺旋桨与船体及附体的合理配合，不仅能减小推力减额分数和更有效的利用伴流能量，并且也能改进螺旋桨本身的效率。
导管螺旋桨导管螺旋桨也称套筒螺旋桨，它是在螺旋桨的外围加上啊一个环形的套筒构成的。
分为加速型导管（收缩管）和减速型导管（扩张管）。
优点：（1）对于螺旋桨载荷较大的船舶，可获得较高的效率。
（2）在海上航行时，导管桨受外界海况变化影响较小，导管螺旋桨比飞导管螺旋桨的效率降低要少。
（3）导管对螺旋桨有保护作用。
（4）导管能使航向稳定性得到显著改善。
（5）当采用“转动导管”时，导管可代替舵，主要用于小船。
缺点（1）倒车时操纵性差。
（2）在浅水区域航行时，易将碎石、杂物吸入导管；在冰区航行时，易遭破坏。
（3）导管内压力降低，易发生空泡现象，引起导管桨剥蚀。
螺旋桨推进器说明书
螺旋桨推进器使用说明书一、概述QY-LT系列螺旋桨推进器是制浆造纸工业中浆料循环搅拌最为理想的设备之一，它适用于浆料浓度在5%以下，15~100m3方形浆池，具有占地面积小，混合时间快，搅拌效果好、维修方便等优点，与旧式的搅拌设备相比，具有浆池建造简单，施工方便，装浆量多，单位循环率高等优点。
QY-LT系列推进器由叶轮，锥型支架、主轴、联接框架、轴承，等组成，采用三角带传动，尾端采用一个调心滚动轴承，前端采用聚四氟乙烯塑料轴承，注入压力水润滑。
本设备设计合理，维修方便，搅拌效率比老式搅拌提高20-30%以上。
四、设备的安装：1、设备开箱吊装时不可捆吊主轴，以免损坏。
2、设备可分部安装。
首先卸下叶轮，再拆下联结框架，轴承支架，使锥型架与框架分离（能保证不影响灌注混凝土质量，也可不拆卸）。
3、将连接框架加强津上的调整螺钉紧预留孔壁，校准中心至池最低的高度，并保证端面垂直度，然后浇灌混凝土与框架，结合面不渗漏为准。
4、固定电机，使电机轴线与推进器轴线平行，两三角带轮槽对正。
五、操作与维护1、调整三角带松紧合适，检查安装质量；2、接通润滑冷却水，点起动机看转向是否与要求一致；3、试运转24小时，检查运转是否正常，轴承是否过热等，发现问题及时处理；4、正式工作时一定不要断冷却水，润滑清水（水压必须超过轴承水平位置所受到的池内液压）；5、盘根松紧适度，并注意定期填加或更换，以保证良好的密封；6、滚动轴承座位填充1/2以上润滑脂，可采用ZFG复合钙润滑脂；7、每半年加注润滑脂一次，每一年清洗轴承一次，并更换新的润滑脂；1、凡购买本公司产品，公司派技术人员指导安装调试，并承接工艺流程的设计及设备安装。
2、本公司重合同守信誉、质量第一，对所售产品一年内实行免费维修。
终身提供售后服务。
Edwards nEXT 高效的螺旋桨泵说明书
Giving you a clear edgenEXT TURBOMOLECULARPUMPSEDWARDSTHE PARTNER OF CHOICEEdwards is a world leader in the design, technology and manufacture of vacuum pumps with over95 years’ history and more than 75 years’ manufacturing experience.Edwards believes in delivering results that bring value to our customers by using our breadth of industry experience to identify and apply solutions to your problems. Using the most innovative and up-to-date modelling techniques, we can optimise the pumping configuration for customers to provide a system design giving the maximum performance in the most reliable and cost-effective way.Edwards nEXT is the ultimate experience in turbomolecular pumpsnEXT turbomolecular pumps are built on decades of experience and are based on our tried and trusted EXT and STP ranges. nEXT pumps offer superior performance, reliability and end user serviceablity, setting the benchmark for scientific turbomolecular pumps.PERFORMANCE YOU CAN RELY ONApplicationsYou can be assured Edwards has the application expertise and vacuum solution to meet your needs.Mass spectrometry• GCMS, LCMS, ICPMS, MALDI, inorganic MS, RGA, surface science, leak detectors Electron microscopy• TEM, SEM, EPMA, sample prep benches Research and development• Chamber evacuation, coating systems, turbomolecular pump systemsHigh energy physics• Beam Lines, accelerators, mobile pump carts, turbomolecular pump backing, laser evacuation, medical systemsIndustrial• Glove boxes, coating systems, XRD/XRF systems, lamp evacuationBespoke options available for OEMs Customised solutions Huge install base of turbo pumps Proven reliability for peace of mind Intelligent controls Flexibility of operationEnd user serviceableExtended lifetime and low cost of ownershipExceptional pumping speeds and compression ratios Superior PerformancenEXT turbomolecular pumps sectional viewThe compact design allows for close pitch positioning in multiple pump installations. Backwards compatible with existing EXT and DX ranges offering superior performance in a smaller space envelope. Compatible with Edwards TIC Controllers.123458910111276Regenerative stage ‘Boost’ port option forreduced pump numbers in differentially pumped systems for maximum system rationalisation 5Permanent magnet upper bearing for ahydrocarbon free vacuum, reduced vibration and minimum wear6Sensorless drive for high efficiency andcompactness with reduced stray magnetic fields2Patented bearing suspension system minimises noise and vibration transmitted to vacuum system3Advanced simulation tool derived rotordesign to give better speed and compression performance7Manual vent port with automatic valveaccessories for rapid venting and quick cycle times8Multiple drag stages for higher compression ratios and greater backing pressure tolerance1Purge port for safe operation of pump with specialised gases9Manual as well as serial setting of standby speed for flexible system tuning10Simple parallel operation or more sophisticated serial control in both RS232 and RS485 protocols11Automatic wide operating voltage range from 24V to 48V dc for versatility in system integration12User replaceable oil cartridge for a speedy interim service4Advanced technologynEXT has been designed to combine all the latest technological advances in turbo pumps with some new thinking in design for manufacture, delivering a truly class leading product to market. nEXT is available in three sizesThe pump name refers to the true peak pumping speed for nitrogen gas.The nEXT platform brings a high level of modularity to offer maximum flexibility for customer application and requirements. Each pump is available in two different internal configurations to offer differing performance.Duplex “D” variants with both turbomolecular and drag stages for improved tolerance to higher backing line pressures. Triplex “T” variants feature turbo, drag and Edwards unique fluid dynamic stages for the ultimate in compression ratio and boost technology for maximum vacuum system rationalisation.nEXT240 DN100 ISO-K or DN100 ISO CFnEXT300DN100 ISO-K orDN100 ISO CFnEXT400DN160 ISO-K orDN160 ISO CF• nEXT240DN100 ISO-K or DN100 ISO CF • nEXT300DN100 ISO-K orDN100 ISO CF• nEXT400DN160 ISO-K orDN160 ISO CFBoost technologyThe “T” variants of nEXT employ a unique viscouspumping stage which can be used to ‘boost’ theperformance of the backing pump. This offers amuch simplified vacuum solution with greatlyimproved pumping speeds and system powerreduction. The example in the image to the rightshows how the boost ports can be used to replacea primary pump on a differentially pumped system.To take maximum advantage of boosttechnology, please contact Edwards.ServiceNew technologies employed in nEXT have enabled the pumps to be servicedby the end user in the field. An interim oil lubrication change can beperformed in situ, where access allows, typically in less than 5 minutes withthe minimum of specialist tooling. This simple intervention will greatly extendthe lifetime of the pump in the field.nEXT turbomolecular pumps will advise the user when a service is due andwhat level of intervention is required. The user is alerted to a service requestby a simple flashing LED sequence on the pumps and by serial commsnotification.Flexibility is again key as these simple services can be performed either by theend user, on site by an Edwards Field Service Technician, or the pump can bereturned to an Edwards service hub.Using remote diagnostics, a user can interrogate the pump to determine howlong it is to the next service so that a proactive approach to preventativemaintenance can be planned.Technical data* a smaller backing pump may be used depending on application.Performance CurvesDimensionsControllers and accessoriesThe TIC (Turbo and Instrument Controller) automatically recognises and supports one turbo-molecular pump from the nEXT range, plus three Edwards active gauges. Cooling and vent valve support is provided directly from the controller. Backing pump power is provided for a compact 24V diaphragm pump (on 200W versions only), or where greater pumping speeds are required, mains backing pumps (up to RV12) may be controlled via an optional relay box.nXDS and large XDS pumps can be controlled directly via the backing pump connector on a TIC 200. The relay box can also be used to control a mains heater band and backing line isolation valve. Time delays and normal speed signals may be used to control events such as turbo start and there is a comprehensive selection of protection and safety interlock features. The TIC turbo controller may be either rack or bench mounted and provides a useful hub for the flexible operation of a widerange of vacuum system configurations.The TAG (Turbo and Active Gauge) controller is a small, compact, low cost pumping system controller, which is suitable for a wide range of vacuum applications. It is a 24V controller that is compatible with all Edwards DX and nEXT turbomolecular pumps. It contains no power source and therefore you either need to supply your own power or buy the optional power supply. In addition to a turbomolecular pump it can control a backing pump, a vent valve, an air cooler and an Edwards active gauge. The TAG Controller is controlled by an easy to use interface. A large clear LED display shows the pump speed or vacuum pressure. The compact size of the controller is ideal for use on bench-tops or suitable mobile platforms.Selection of common accessories - for full list, please contact Edwards or visit our website.Ordering informationDN100 ISO-CF B81200201B81200200nEXT300D DN100 ISO-K B82200101B82200100DN100 ISO-CF B82200201B82200200nEXT400DDN160 ISO-K B83200301B83200300DN160 ISO-CFB83200401B83200400Note that all nEXT turbomolecular pumps are supplied with a coarse inlet screen. Fine grade screens are available upon request. Interstage and/or T variants both with selectable port positions available upon request.Selection of common part numbers.Whilst we make every effort to ensure that we accurately describe our products and services,we give no warranty as to the accuracy or completeness of any information provided in this brochure.Edwards Ltd, registered in England and Wales No. 6124750, registered office: Manor Royal, Crawley, West Sussex RH10 9LW, UKPublication Number: B80000895 issue C © Edwards Limited 2015. All rights reserved.Edwards and the Edwards logo are trade marks of Edwards Limited.EDWARDSGLOBAL CONTACTSEUROPEUK Crawley +44 1293 528844UK (localrate************Belgium Brussels +32 2 300 0730France Paris +33 1 4121 1256Germany Munich 0800 000 1456Italy Milan +39 02 48 4471USANiagara (toll free) +1 800 848 9800BRAZILSao Paulo +55 11 3952 5000ISRAELQiryat-Gat +972 8 681 0633ASIA PACIFICChina (toll free) +86 400 111 9618India Pune +91 20 4075 2222Japan Yachiyo +81 47 458 8831Korea Bundang +82 31 716 7070Singapore +65 6546 8408Taiwan R.O.C. Jhunan Town +886 3758 1000。
PHD SCV02 螺纹推进器说明书
SCV02Ideal for vertical ornon-rotating applications Design 3/7:• Reduced weight • Increased capacitySCVPNEUMATIC THRUSTER SLIDENEWDESIGN!Now with:• Reduced weight • Increased capacityPHD’s Series CV Cylinder powers this unit for extra long life with a wide range of control and switch optionsanodized aluminum alloy body is supplied with counterbored holes for easy mounting of tooling and fixturingsteel-backed composite bearings with oil wick for improved performance and load capacitiesprecision ground hardened guide shafts provide smooth, precise linear motionanodized aluminum tool plate has modular mounting patterns to allow the attachment of other sizes of SeriesSCV Slides for 2-axis movementcorrosion-resistant zinc-plated fastenersoptional stroke adjustment collars with shock pads are available onboth extend and retractRodlok can be added to securely at any point of travel desired drift due to system leakage, air line rupture, or electric powerloss is unacceptableNEW!3SCV02/scv • (800) 624-8511SAxxxNEW!4SCV02/scv • (800) 624-8511TOTAL TRAVEL TOLERANCESTolerance on nominal travel length is shown in the following table:Sizing & Application AssistanceUse PHDʼs free online Product Sizing Application or view the Product Sizing Catalog at: /apps/sizingENGINEERING DATA:SERIES SCV SLIDESBASE WEIGHT TYPICAL DYNAMIC LOAD NOTES:1) T = Travel length inches [mm]2) Thrust capacity, allowable mass, and dynamic moment capacity must be considered when selecting a slide.3) For additional speed information, consult PHD’s Series CV Cylinder pages of the Main Catalog.NOTE: *Travel tolerance values measured at 60 ±4 psi due to impact seal design.NEW!NEW!5SCV02/scv • (800) 624-8511Ø RR FORNOTES:1) FOR OPTION DIMENSIONS AND DETAILS, SEE OPTIONS PAGES.2) A LL DIMENSIONS ARE CENTERED ON CENTERLINE OF UNIT UNLESS OTHERWISE SPECIFIED.3) U NIT TRAVEL = STROKE + TOOL PLATE EXTENSION. THE TOTAL UNIT TRAVEL SHOULD NOT EXCEED THE MAXIMUM RECOMMENDED TRAVEL.4) P ORTS MAY APPEAR ON EITHER SIDE OF THE SLIDE CENTERLINE BASED ON OPTION COMBINATIONS.5) A LL UNITS, EXCEPT PORT WTH PORT CONTROL ON SAME SIDE, COMPLY WITH DIN 3852 PART 2 PORT SPECIFICATIONS FOR SHORT STUD AND LARGE SEALING SURFACE.TOOL PLATE EXTENSION6SCV02/scv • (800) 624-8511Two travel adjustment stop collars with polyurethane shock pads are used for adjustment of slide extension. The travel adjustment stop collars allow precise adjustment while the shock pads eliminate metal to metal contact, thereby reducing noise levels.(SHOWN WITH ZERO TRAVEL)This option provides a stainless steel piston rod with hard chromeplating in place of the standard hard chrome plated steel material. Guide shafts are hard chrome plated stainless steel. An appropriate corrosion resistant treatment is applied to ferrous parts.Two travel adjustment stop collars with polyurethane shock pads are used for adjustment of slide retraction. The travel adjustment stop collars allow precise adjustment while the shock pads eliminate metal to metal contact, thereby reducing noise levels.All dimensions are reference only unless specifically toleranced.TRAVEL ADJUSTMENT AND SHOCK PADS ON EXTENSIONCORROSION RESISTANTTRAVEL ADJUSTMENT AND SHOCK PADS ON RETRACTIONThis option provides NPT ports on metric (SCV7x) units instead of the standard BSPP ports. The NPT ports are located in the same location as the BSPP ports.NPT PORTS(On Metric units)L9This option provides G (BSPP) ports on imperial (SCV3x) units instead of the standard NPT ports. The G (BSPP) ports are located in the same location as the NPT ports.BSPP PORTS(On Imperial units)L7Z1NOTE: * W hen port controls are specified on the sameface as ports, the metric port is M5 and theimperial port is a 10-32 port.NOTE:-AE and -AR options may decrease effective cushion length depending on position of stop collars.7SCV02/scv • (800) 624-8511CUSHION CONTROLS TO THIS LOCATIONPHD cushions are designed for smooth deceleration at the ends of cylinder stroke. When the cushion is activated, the remaining volume in the cylinder must exhaust past an adjustable needle valve which controls the amount of deceleration. The effective cushion length for each bore size is shown in the table below. To specify alternative cushion control locations on the head or cap, see the option code below right.All dimensions are reference only unless specifically toleranced.CUSHION CONTROL IN BOTH DIRECTIONS(Standard location 1 & 5)CUSHION CONTROL ON EXTEND ONLY(Standard location 1)CUSHION CONTROL ON RETRACT ONLY(Standard location 5)NOTE: -AE and -AR options may decrease effective cushion length depending on position of stop collars.CUSHION CONTROL OPTIONS8SCV02/scv • (800) 624-8511OPERATING PRESSUREThe operating pressure for the locking device is different than the operating pressure for the slide to which it is attached. The locking device of the Rodlok is designed with an operating pressure range of 60 psi minimum to 150 psi maximum [4 to 10 bar]. The Series SCV Slide with a Rodlok attached has an operating pressure range of 45 psi minimum to 150 psi maximum [3 to 10 bar].The Rodlok locking device and adaptor can be purchased separately as kits. See chart above. The locking device and adaptor are not available with a corrosion-resistant (-Z1 option) finish.All dimensions are reference only unless specifically toleranced.PHD’s Rodlok is ideal for locking the tool plate while in a static/stationary position. When the pressure is removed from the port of the Rodlok, the mechanism will grip the piston rod of the cylinder and prevent it from moving. The loads are held indefinitely without power. Rodlok performance is application and environment sensitive (cleanliness of rod or Rodlok will also affect performance).THE RODLOK IS NOT DESIGNED TO BE USED AS A PERSONAL SAFETY DEVICE.RODLOK SLIDE & RODLOKNOTE: *Locking force indicated above isthe actual locking force with a dry, clean rod and does not include any safety factor.NOTE: Total weight includes rod adder for -H67/-H47 cylinder.NOTES:1) *Kits ship with cylinder mounting hardware 2) P art numbers listed above are intended for replacement purposes only and are to be used specifically on slides with the -H47 option.3) Imperial port adaptor converts port from G 1/8 to 1/8 NPT.4) W hen ordering a replacement cylinder (-H4), Rodlok must be ordered separately.RODLOK KITS9SCV02/scv • (800) 624-8511PHD’s Port Control ® is a built-in flow control for regulating the speed of the slide through its entire stroke. The Port Control operates on the “meter-out” principle and features an adjustable needle in a cartridge with a check seal. The self-locking needle has micrometer threads and is adjustable under pressure. The needle determines the orifice size which controls the exhaust flow rate of the actuator. The check seal expands while air is exhausting from the actuator, forcing the air to exhaust past the adjustable needle. The check seal collapses to allow a free flow of incoming air. The PHD Port Control saves space and eliminates the cost of fittings and installation for external flow control valves. Refer to option code to specify port control locations.All dimensions are reference only unless specifically toleranced.PORT CONTROLS ® ON BOTH ENDS(Standard location 1 & 5)PORT CONTROLS ® ON EXTEND ONLY(Standard location 1)PORT CONTROLS ® ON RETRACT ONLY(Standard location 5)NOTE: * D imensions shown are for units with port and port control in the same location. For units with other port and port control combinations, standard portlocation dimensions apply. Ports may be located on either side of the slide centerline depending on port control and cushion option combinations.PORT CONTROL OPTIONSSIDE VIEW10SCV02/scv • (800) 624-8511All dimensions are reference only unless specifically toleranced.This option offers alternate port locations that can be specified,providing increased flexibility and customer convenience. See option code below to specify port locations.ALTERNATE PORT LOCATIONThis option equips the cylinder with a magnetic band on the piston for use with PHD Reed and Solid State Switches listed below. These switches mount easily to the cylinder using “T” slots in the body. See the Switches section in the Main Catalog for complete switch information.Switches are included, but not installed with this option. The -M option must be included when specifying this option. See option code to specify the switches to be included.NOTE: Cordsets for Quick Connect are ordered separately. See chart on page 3 for ordering information.MAGNET FOR PHD REED AND SOLID STATE SWITCHESSWITCH INCLUDEDNOTE: *Dimension is below the indicated surface.Connector DetailPORT LOCATION OPTIONSSWITCH INCLUDED OPTIONS11SCV02/scv • (800) 624-8511PARTS LIST & REPAIR KITS:SERIES SCV SLIDES12SCV026/18 10480This is another variation where a second bearing housing is combined with a tool plate extension. This also provides a more rigid bearing base for higher load carrying capability.This Series SCV Slide is fitted with travel adjustment on extend and metal sensing proximity switches in both directions of travel. These switches can easily be adapted to the SCV Slide in place ofPHD’s Series 6250 Switches.This Series SCV Slide has extended guide shafts and a second bearing housing attached to the cylinder cap. This configurationprovides a higher load carrying capability while reducing wear.Shown is a version that produces a base type slide. The cylinder, bearing housings, and base plate move and the two tool plates remain fixed.The following are examples of Series SCV Slide variations which can be easily configured. Contact PHD for additional information on these or other configurations.。
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
螺旋桨推进器使用说明书
一、概述
QY-LT系列螺旋桨推进器是制浆造纸工业中浆料循环搅拌最为理想的设备之一，它适用于浆料浓度在5%以下，15~100m3方形浆池，具有占地面积小，混合时间快，搅拌效果好、维修方便等优点，与旧式的搅拌设备相比，具有浆池建造简单，施工方便，装浆量多，单位循环率高等优点。
QY-LT系列推进器由叶轮，锥型支架、主轴、联接框架、轴承，等组成，采用三角带传动，尾端采用一个调心滚动轴承，前端采用聚四氟乙烯塑料轴承，注入压力水润滑。
本设备设计合理，维修方便，搅拌效率比老式搅拌提高20-30%以上。
四、设备的安装：
1、设备开箱吊装时不可捆吊主轴，以免损坏。
2、设备可分部安装。
首先卸下叶轮，再拆下联结框架，轴承支架，使锥型架与框架分离（能保证不影响灌注混凝土质量，也可不拆卸）。
3、将连接框架加强津上的调整螺钉紧预留孔壁，校准中心至池最低的高度，并保证端面垂直度，然后浇灌混凝土与框架，结合面不渗漏为准。
4、固定电机，使电机轴线与推进器轴线平行，两三角带轮槽对正。
五、操作与维护
1、调整三角带松紧合适，检查安装质量；
2、接通润滑冷却水，点起动机看转向是否与要求一致；
3、试运转24小时，检查运转是否正常，轴承是否过热等，发现问题及时处理；
4、正式工作时一定不要断冷却水，润滑清水（水压必须超过轴承水平位置所受到的池内液压）；
5、盘根松紧适度，并注意定期填加或更换，以保证良好的密封；
6、滚动轴承座位填充1/2以上润滑脂，可采用ZFG复合钙润滑脂；
7、每半年加注润滑脂一次，每一年清洗轴承一次，并更换新的润滑脂；
1、凡购买本公司产品，公司派技术人员指导安装调试，并承接工艺流程的设计及设备安装。
2、本公司重合同守信誉、质量第一，对所售产品一年内实行免费维修。
终身提供售后服务。
