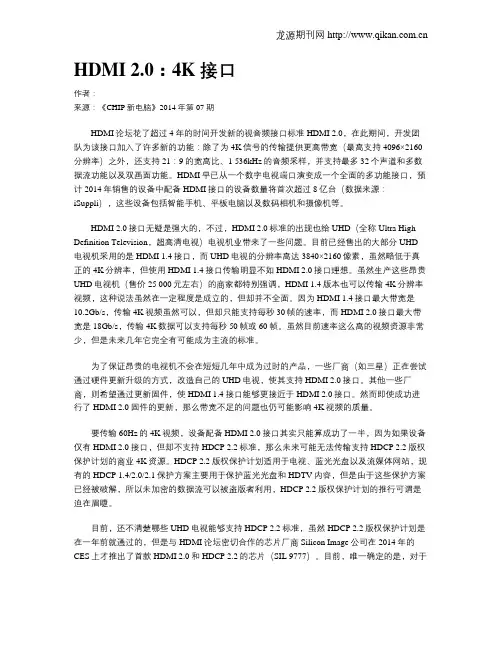

HDMI 2.0:4K接口作者:来源:《CHIP新电脑》2014年第07期HDMI论坛花了超过4年的时间开发新的视音频接口标准HDMI 2.0,在此期间,开发团队为该接口加入了许多新的功能:除了为4K信号的传输提供更高带宽(最高支持4096×2160分辨率)之外,还支持21:9的宽高比、1 536kHz的音频采样,并支持最多32个声道和多数据流功能以及双画面功能。

HDMI早已从一个数字电视端口演变成一个全面的多功能接口,预计2014年销售的设备中配备HDMI接口的设备数量将首次超过8亿台(数据来源:iSuppli),这些设备包括智能手机、平板电脑以及数码相机和摄像机等。

HDMI 2.0接口无疑是强大的,不过,HDMI 2.0标准的出现也给UHD(全称Ultra High Definition Television,超高清电视)电视机业带来了一些问题。

目前已经售出的大部分UHD 电视机采用的是HDMI 1.4接口,而UHD电视的分辨率高达3840×2160像素,虽然略低于真正的4K分辨率,但使用HDMI 1.4接口传输明显不如HDMI 2.0接口理想。

虽然生产这些昂贵UHD电视机(售价25 000元左右)的商家都特别强调,HDMI 1.4版本也可以传输4K分辨率视频,这种说法虽然在一定程度是成立的,但却并不全面。

因为HDMI 1.4接口最大带宽是10.2Gb/s,传输4K视频虽然可以,但却只能支持每秒30帧的速率,而HDMI 2.0接口最大带宽是18Gb/s,传输4K数据可以支持每秒50帧或60帧。

虽然目前速率这么高的视频资源非常少,但是未来几年它完全有可能成为主流的标准。

为了保证昂贵的电视机不会在短短几年中成为过时的产品,一些厂商(如三星)正在尝试通过硬件更新升级的方式,改造自己的UHD电视,使其支持HDMI 2.0接口。

其他一些厂商,则希望通过更新固件,使HDMI 1.4接口能够更接近于HDMI 2.0接口。

玩4K必备知识:HDMI1.4、2.0、2.0a、2.0b接口参数对比

玩4K必备知识:HDMI1.4、2.0、2.0a、2.0b接口参数对比

前言:玩4K的同学都知道,HDMI接口是视频传输最常用的接口,但是这个接口却有好几个版本HDMI1.4、HDMI2.0、HDMI2.0a、HDMI2.0b等等,每个都有一些差异。

下面就来知识大普及。

截止目前最全的资料了。

HDMI接口又叫高清晰度多媒体接口(英文:High Definition Multimedia Interface,HDMI),这是一种数字化视频/音频接口技术,是适合影像传输的专用型数字化接口,其可同时传送音频和影像信号,且无需在信号传送前进行数/模或者模/数转换。

简单来说,HDMI接口就是一种用来传输影像和声音信号的接口,内容制造设备通过HDMI就可以将影像和声音以极高的效率传输到观影设备上。

这类接口在智能电视、机顶盒、投影仪等设备中比较常见,其接口呈倒梯形,较偏平。

如下图:HDMI的进化史其实最早出现在传输领域的技术是DVI而非DHMI,DVI接口的出现在当时也被广泛用于输出领域,但是随着伴随着数字高清影音技术的发展,DVI接口也开始逐渐暴露出种种问题,甚至在一定程度上成为数字影像技术进步的瓶颈。

因此,无论是IT厂商,平板电视制造商,还是好莱坞的众多出版商,都迫切需要一种更好的能满足未来高清视频行业发展的接口技术,也正是基于这些原因,才促使了HDMI标准的诞生。

HDMI 1.0最早的HDMI 1.0版本于2002年12月推出,它的最大特点就是整合了音频流的数字接口,与当时PC界面中很流行的DVI接口相比,它更先进,更方便。

HDMI 1.0版本支持从DVD到蓝光格式的视频流,而且具备CEC(consumer electronics control)功能,也就是在应用中,可以在所有连接设备间形成一种共通的联络,对设备组具备更方便的控制。

HDMI 1.12004年5月,HDMI 1.1版本面试。

新增对DVD音频的支持。

HDMI 1.2HDMI1.2版本于2005年8月推出,很大程度上解决了HDMI 1.1支持的分辨率较低、同电脑设备兼容性较差等问题。

效果超越电影院:用开博尔Q9次世代打造私人影院

效果超越电影院:用开博尔Q9次世代打造私人影院

标题一:效果超越电影院:用开博尔Q9次世代打造私人影院
标题二:4K蓝光机开博尔Q9次世代:专属您的私人影院标题三:超越电影院的震撼效果:开博尔4K蓝光“私人影院”
每一个电影爱好者都曾体会过:好不容易熬到周末,想与朋友、或亲人、或爱人去看场电影,但是买票时常常只剩下一些角落的座位,观影体验较差。

而且场面恢弘的IMAX 3D大片价格往往居高不下,以剧情取胜的小制作片去影院观看又没什么必要。

那么,为什么不把电影院搬到家里呢?
近日,开博尔(KAIBOER)宣布即将推出家庭影院级的4K蓝光播放器Q9次世代。

据悉,这款Q9次世代可支持播放4K蓝光原盘文件、蓝光3D视频,配备同轴输出、光纤输出、HDMI2.0接口等,可连接功放、显示设备,轻松打造私人影院,看4K电影、看3D大片、听无损音乐,在家即可享受超越电影院的震撼观影体验。

目前,开博尔官方暂未公布这款4K蓝光播放器Q9次世代的具体参数配置和售价,想要打造私人影院的电影爱好者们可以等待这款产品发售时,前往开博尔官方网站()或开博尔旗舰店(https://)
进行了解。

V2.0.1 用户手册 4K2K4x4和8x8HDMIMatrixSwitcher说明书

V2.0.1 用户手册 4K2K4x4和8x8HDMIMatrixSwitcher说明书

Fixed 4K2K4x4and8x8HDMI Matrix Switcher with VW,seamless switch and EDIDVersion:V2.0.1Safety ReminderTo protect the device and operating personnel from electrostatic discharge,you need to check and ensure that the device is grounding well before the device is powered on.Please observe the following when you install,use, maintain this equipment.Make sure the device ground connection.Important Safety InstructionsWarnings of FCCThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part15of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates uses and can radiate radio frequency energy and,if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.However,there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on,the user is encouraged to try to correct the interference by one or more of the following measures:--Reorient or relocate the receiving antenna.--Increase the separation between the equipment and decoder.--Connect the equipment into an outlet on a circuit different from that to which the decoder is connected.--Consult the dealer or an experienced radio/TV technician for help.Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.ContentsWarnings of FCC (1)1.Product Introduction (3)2.Features (3)3.Specification (3)4.Connection Diagram (4)5.Packing (4)6.Panel description (5)7.Matrix Switcher control (6)Remote Control (6)WEB GUI Browser control (6)The3rd Party Control command (11)1.Product IntroductionThis is a new fixed HDMI matrix switcher series with the seamless switch,Video Wall function, EDID management,audio breakouts and the resolution can up to4K30Hz with scaling funtion and all ports are HDCP compliant.With the friendly user control methods:IR remote control, 2-Press push buttons with background blue light,WEB GUI/TCPIP/RS232/IR remote control, supports the WEB smart EDID management,this matrix switcher can work with the Blu-Ray Players,Set-Top boxes,Home Theater,and game consoles etc HDMI input sources to route to the HDMI displays,it has been widely used in different audio visual applications.2.FeaturesThe resolution can up to4K@30Hz inputs and outputs with scalingSupports seamless switching,no black/blue screen during the sources switchSupports the video wall function and bezel correctionsSupports the3.5mm audio embedded and de-embeddedSupports smart EDID managementSupports RS-232and TCP/IP Control(WEB GUI,APP),IR remote controlSupports the push buttons control with blue lightsSupports to rename the inputs and outputsSupports up to20scenes3.SpecificationVideoResolutionInputs UHD(3840x2160)/30Hz and underOutputs4K@30\1080P\720P\1366*768@60 HDMI protocol HDMI1.4HDCP protocol HDCP1.4Color depth8/10/12bitColor space YCbCr,RGBEDID Built-in and output ports learning/copy HDMI output4inputs or8inputsHDMI output4outputs or8outputsAudio Audio format PCM2.1Ch,Dolby Digital,Dolby True-HD,DTS-HD(Only supports2.1)4.ConnectionDiagram5.PackingAudio sampling 32kHz,44.1kHz,48kHz,88.2kHz,96kHz,176.4kHz,192kHz Audio baud rateUp to 16~24-bit ControlRS232DB9female connector IR IR receiverLAN RJ45for the TCP/IP control OtherPower Power adapter 24V/3A Consumption20WSize440*215*44mm Weight 3kg Working temp 0℃~50℃Storage temp -20℃~60℃Working Humdity20%-90% Qty Unit 1Matrix switcher1Pcs.2DC 24V3A power adapter 1Pcs 3Remote Control1Pcs 4IR remote extension cable1Pcs6.Panel descriptionFront panelA:LCD screen for the switching,EDID,IP etc information display.B:Power indicatorC:IR for the IR remote controlD:Inputs and outputs buttonsE:Control buttonsBack panelA:HDMI input portsB:3.5mm audio embedded portsC:HDMI output portsD:3.5mm audio de-embedded portsE:IR extension port for the IR remote controlF:RS232ports for the3rd party controlG:RJ45port for the WEB GUI/TCP/IP controlH:Power supply port I:Grounding7.Matrix Switcher controlThis Matrix switcher can support IR remote,WEB GUI browser,TCP/IP/RS232control,or the front push-buttons control.Remote ControlStandby:for the matrix to standby or back to working status Input:1~8/1~4HDMI input buttons Clear:Clear all the selected channels Enter:Press to confirm the operations All:to select all the output channelsEDID:EDID →F1/F2(select the built in EDID or copy/learn from the outputs)EDID→press Enter to confirm the EDID →Then will need to select the Input channel→then press Enter to confirmOutput:1~8/1~4HDMI output buttons F1/F2:to work with the EDID buttonWEB GUI browser ControlUsers also can use the WEB browser to control the matrix switcher,users can have the matrix switcher connected with the PC with the LAN cable directly or have the matrix switcher connected the same network switch.The default IP address of the matrix switcher is 192.168.10.205.After opening the browser,users can type the matrix switcher IP address and press enter:The default user name is admin and the password isadmin.After login,it will turn to “Video Matrix”interface,users can do the sources switching,scenes8x84x4recall and save.On the input and output buttons,users also can view the active ports by the button color,3 steps for the switchingInput button rename:right click on the input button,it will pop-up the window for users to change the names,and option for the Display OSD function.For the output buttons and scenes renaming will the same way to use the right click on the button,it will also pop-up the window:Scenes Save and Recall:It will take2steps to Save or Recall the scenes,select the scene number first,and then click“Save”or“Recall”button:Video Wall:users can setup the VW wall,adjust the bezel,VW resolution,or save/recall the VW scenes:Step1:Configure the VW size by entering the columns&rows number,and then hit the Apply button:Step2:Drag the outputs from the right side to this VW boxes accordingly,will need to use the right click to confirm the output after dragged to the VW box,the box edge will in yellow color(Without the right click to confirm,it will be white edge)Step3:After confirmed the outputs in the VW box(all edge in yellow),then drag the input to this VW to finish the switchingVideo Wall box edge in yellow color means that outputs to this VW are all confirmed(use the mouse right click to confirm after drag the outputs)EDID Management:Output Settings:Audio Settings:users can select audio either from the3.5mm or from the HDMI Disable means:disable the HDMI sound,but use the3.5mm embedded audio Enable means to use the HDMI soundFor the Audio out:ON means to turn on the HDMI sound,but use the3.5mm de-embedded still have the sound OFF means to turn off the HDMI sound,but use the3.5mm de-embedded still have the soundDevice is for users to set up the IP address,RS232,or lock the front panel push-button, language or factory default settings:User tap is user the users to change the password,model number and the WEB GUI logo:Upgrade page will need to enter the IP/upload in thebrowser:TCP/IP/RS232control details and commands:The default IP IS 192.168.10.205,Port number:4001The default RS232baud rate is 115200,8,1,noneFunctionCommand FormatFunction RemarkVideo SwitchAT+HTO2A=MX88,IN$e.g.AT+HTO2A=MX88,1$One switch to all output channel+RSPHTO2A=MX88,IN$AT+HTO2M=MX88,IN,O1,O2…ON$e.g.AT+HTO2M=MX88,1,5,6,7,8$One switch to many output Channel+RSPHTO2M=MX88,IN,O1,O2…ON$Output SetupAT+HTSETAUTORES=MX88,Mode,On$Mode1:Auto0:ManualOn:output channel number(1-8)Set output resolution mode+RSPSETAUTORES=MX88,Mode$AT+HTSETOUTRES=MX88,Res,O1,O2,On,...$On:output channel number(1-8)Set output resolution+RSPHTSETOUTRES=MX88,Res$AT+HTTVBLACK=MX88,mod,O1,O2,...On$On:output channel number(1-8)mod:set TV black(0--1)0:no black1:blackSet TV blackAT+HTTVSET=MX88,On,mod$On:output channel number(1-8)mod:set TV mute or unmute(1--2)1:mute2:unmuteset TV MUTEAT+HTOUTMOD=MX88,Mode,On$Mode1:HDMI2:DVIOn:output channel number(1-8)Set output mode(DVI or HDMI)+RSPHTOUTMOD=MX88,Mode$EDID Setup AT+HTEDIDH=MX88,In,On$In:input chnnel number(1-8)On:output channel number(1-8)Switch corresponding output's EDID toinput+RSPHTEDIDH=MX88,In,On$AT+HTEDIDINT=MX88,INTn,In$In:input chnnel number(1-8)INTn:one certain internal EDID number.(2-5)Switch one Internal EDID to certaininput's EDID+RSPHTEDIDINT=MX88,In,INTn$AT+HTEDIDINFOSET=MX88,CHn,ResID,ColorSpace,ColorDepth,AudioCh$CHn:the input Card's channel number;ResIDn:Resolution ID,ReslDn(1--3);1:720P@60,2:1080P@60,3:4k@30ColorSpaceN:color space id,ColorSpaceN(1--2);1:RGB,2:YUVColorDepthN:color depthid;ColorDepthN(1--4);1:8bit,2:10bit,3:12bit,4:16bitAudioChN:Audio ID,AudioChN(1--3);1:2Ch,2:6Ch,3:8ChSet one input card's certain channel'sedid information+RSPHTEDIDINFOSET=MX88,CHn$AT+HTEDIDUPLOAD=MX88,In$In,(1--8);When received this command,delay100ms,send the EDIDdata.Upload EDID from WebPage+RSPHTEDIDUPLOAD=MX88,In$Scene Setup AT+HTSCESA=MX88,N$scene save+RSPHTSCESA=MX88,N$ AT+HTSCERC=MX88,N$scene recall+RSPHTSCERC=MX88,N$System Setup AT+HTFACT=MX88$When No Cn parameter,factory set main control board and GUImodel.Factory setup+RSPHTFACT=MX88$No Cn parameter,if using to factory set main control boardand GUI modelAT+HTUILOCK=MX88,Val$Val:1,locked;2,Unlocked;GUI Lock+RSPHTUILOCK=MX88,Val$AT+HTUARTCFG=MX88,Baud,Databits,Stopbits,Parity$Baud:0,9600;1,19200;2,38400;3,57600;3,115200;Databits:0,8bits;1,9bits;Stopbits:0,1stopbit;1,2stopbits;Parity:0,none;1,ODD;2,even;UART configureAudio Setup AT+HTAUDSET=MX88,On,Mode$Mode:Enable(1)/Disable(2)On:output channel number(1-8)Set input card's Audio AT+HTAUDSET=MX88,Val$Video wall AT+HTVIDJNTSA=MX88,N$N=1~5scene save+RSPHTVIDJNTSA=MX88,N$ AT+HTVDWALLRC=MX88,N$N=1~5scene recallVideo BorderAT+HTBEZEL=MX16,N1,N2,N3$N=width,height,outVideo Border+RSPHTBEZEL=MX16,N1,N2,N3$//width,height,out。

hdmi2

hdmi2

hdmi2.0显卡HDMI(High-Definition Multimedia Interface)是一种数字音视频传输接口标准,被广泛应用于消费电子产品和计算机设备中。

HDMI 2.0是HDMI的最新版本,它在传输速率、分辨率和颜色深度等方面进行了升级和改进。

现今的显卡已经相继开始支持HDMI 2.0接口,为用户提供更高质量的音视频传输体验。

首先,HDMI 2.0接口具有更高的传输速率。

相比于HDMI 1.4的传输速率10.2 Gbps,HDMI 2.0的传输速率可达到18 Gbps。

这一提升意味着更高质量的音视频传输,特别是支持更高的分辨率和刷新率。

用户可以通过HDMI 2.0接口连接4K分辨率的显示器或电视,同时享受到流畅的影像和无损的音效。

其次,HDMI 2.0接口支持更高的分辨率和刷新率。

HDMI 2.0可以传输最高达3840x2160像素(也称为4K分辨率)的图像,比HDMI 1.4的1080p分辨率明显提升。

此外,HDMI 2.0还支持高达60Hz的刷新率,可以呈现更加流畅的画面,特别适用于玩游戏、观看高动态范围(HDR)视频和其他高要求的应用。

第三,HDMI 2.0接口支持更深的颜色深度。

HDMI 2.0可以传输最高达16-bit的颜色深度,相当于支持65536种不同的颜色。

这使得影像更加细腻且真实,色彩更加饱满。

对于专业用户、设计师和影音发烧友来说,HDMI 2.0的颜色深度提升是一个重要的升级,能够更精确地表现出色彩差异。

最后,HDMI 2.0接口还支持其他一些功能,例如互动模式和更好的音频输出。

互动模式可以实现延迟最小化,提供快速响应的游戏体验,而更好的音频输出则能够提供更高质量的声音效果,使得用户在观看影片或玩游戏时能够获得更加沉浸式的体验。

总结起来,HDMI 2.0显卡通过升级和改进,提供了更高的传输速率、更高的分辨率和刷新率、更深的颜色深度以及其他一些功能的支持。

这使得用户能够享受到更高质量的音视频传输体验,无论是观看高清电影、玩游戏还是进行其他多媒体应用都能够得到更好的效果。

Kramer VS-211UHD 4K60 4 2 0 HDMI自动切换器说明书

Kramer VS-211UHD 4K60 4 2 0 HDMI自动切换器说明书

34.50cm x 16.50cm x 5.20cm (13.58" x 6.50" x 2.05" ) W, D, H
SHIPPING WEIGHT: 0.6kg (1.2lbs) approx
TECHNICAL SPECIFICATIONS
PRODUCT DIMENSION:
18.75cm x 11.50cm x 2.54cm (7.38" x 4.53" x 1.00" ) W, D, H
PRODUCT WEIGHT: 0.4kg (0.9lbs) approx
SHIPPING DIMENSION:
VS-211UHD
2x1 4K60 4:2:0 HDMI UHD (4:2:0)

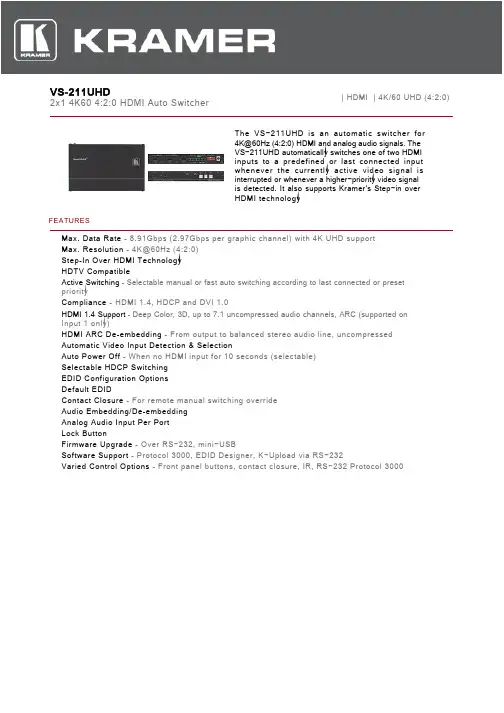

The VS−211UHD is an automatic switcher for 4K@60Hz (4:2:0) HDMI and analog audio signals. The VS−211UHD automatically switches one of two HDMI inputs to a predefined or last connected input whenever the currently active video signal is interrupted or whenever a higher−priority video signal is detected. It also supports Kramer’s Step−in over HDMI technology
