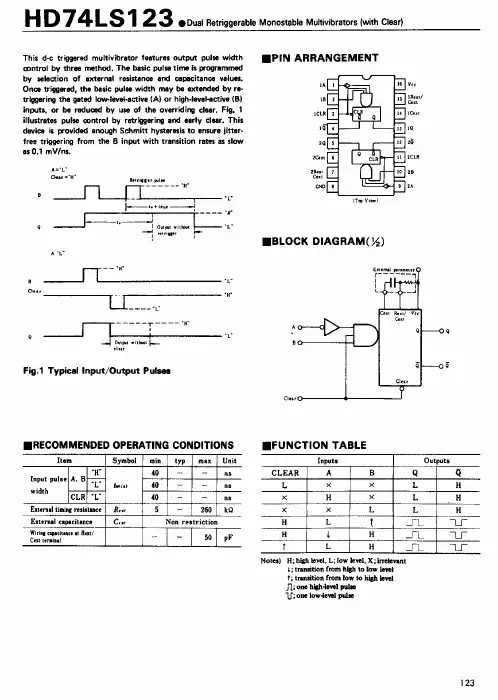

HD74LS123P中文资料

HD74LS123P中文资料

Hitachi CodeJEDECEIAJWeight (reference value)DP-16 Conforms Conforms 1.07 gHitachi Code JEDEC EIAJWeight (reference value)FP-16DA —Conforms 0.24 g*Dimension including the plating thicknessBase material dimension° – 8°Hitachi CodeJEDECEIAJWeight (reference value)FP-16DNConformsConforms0.15 gUnit: mm*Dimension including the plating thickness Base material dimension° – 8°元器件交易网Cautions1.Hitachi neither warrants nor grants licenses of any rights of Hitachi’s or any third party’s patent,copyright, trademark, or other intellectual property rights for information contained in this document.Hitachi bears no responsibility for problems that may arise with third party’s rights, includingintellectual property rights, in connection with use of the information contained in this document.2.Products and product specifications may be subject to change without notice. Confirm that you have received the latest product standards or specifications before final design, purchase or use.3.Hitachi makes every attempt to ensure that its products are of high quality and reliability. However,contact Hitachi’s sales office before using the product in an application that demands especially high quality and reliability or where its failure or malfunction may directly threaten human life or cause risk of bodily injury, such as aerospace, aeronautics, nuclear power, combustion control, transportation,traffic, safety equipment or medical equipment for life support.4.Design your application so that the product is used within the ranges guaranteed by Hitachi particularly for maximum rating, operating supply voltage range, heat radiation characteristics, installationconditions and other characteristics. Hitachi bears no responsibility for failure or damage when used beyond the guaranteed ranges. Even within the guaranteed ranges, consider normally foreseeable failure rates or failure modes in semiconductor devices and employ systemic measures such as fail-safes, so that the equipment incorporating Hitachi product does not cause bodily injury, fire or other consequential damage due to operation of the Hitachi product.5.This product is not designed to be radiation resistant.6.No one is permitted to reproduce or duplicate, in any form, the whole or part of this document without written approval from Hitachi.7.Contact Hitachi’s sales office for any questions regarding this document or Hitachi semiconductor products.Hitachi, Ltd.Semiconductor & Integrated Circuits.Nippon Bldg., 2-6-2, Ohte-machi, Chiyoda-ku, Tokyo 100-0004, Japan Tel: Tokyo (03) 3270-2111 Fax: (03) 3270-5109Copyright ' Hitachi, Ltd., 1999. All rights reserved. Printed in Japan.Hitachi Asia Pte. Ltd.16 Collyer Quay #20-00Hitachi TowerSingapore 049318Tel: 535-2100Fax: 535-1533URLNorthAmerica : http:/Europe : /hel/ecg Asia (Singapore): .sg/grp3/sicd/index.htm Asia (Taiwan): /E/Product/SICD_Frame.htm Asia (HongKong): /eng/bo/grp3/index.htm Japan : http://www.hitachi.co.jp/Sicd/indx.htmHitachi Asia Ltd.Taipei Branch Office3F, Hung Kuo Building. No.167, Tun-Hwa North Road, Taipei (105)Tel: <886> (2) 2718-3666Fax: <886> (2) 2718-8180Hitachi Asia (Hong Kong) Ltd.Group III (Electronic Components)7/F., North Tower, World Finance Centre,Harbour City, Canton Road, Tsim Sha Tsui,Kowloon, Hong Kong Tel: <852> (2) 735 9218Fax: <852> (2) 730 0281 Telex: 40815 HITEC HXHitachi Europe Ltd.Electronic Components Group.Whitebrook ParkLower Cookham Road MaidenheadBerkshire SL6 8YA, United Kingdom Tel: <44> (1628) 585000Fax: <44> (1628) 778322Hitachi Europe GmbHElectronic components Group Dornacher Stra§e 3D-85622 Feldkirchen, Munich GermanyTel: <49> (89) 9 9180-0Fax: <49> (89) 9 29 30 00Hitachi Semiconductor (America) Inc.179 East Tasman Drive,San Jose,CA 95134 Tel: <1> (408) 433-1990Fax: <1>(408) 433-0223For further information write to:。

DM74LS123SJ资料

DM74LS123SJ资料

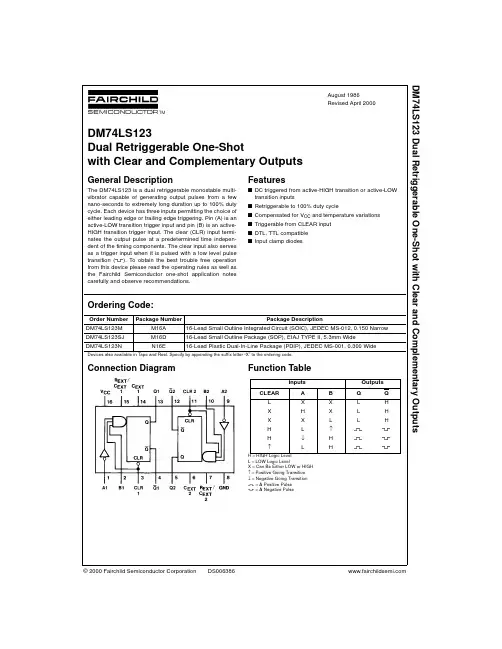

© 2000 Fairchild Semiconductor Corporation DS006386August 1986Revised April 2000DM74LS123 Dual Retriggerable One-Shot with Clear and Complementary OutputsDM74LS123Dual Retriggerable One-Shotwith Clear and Complementary OutputsGeneral DescriptionThe DM74LS123 is a dual retriggerable monostable multi-vibrator capable of generating output pulses from a few nano-seconds to extremely long duration up to 100% duty cycle. Each device has three inputs permitting the choice of either leading edge or trailing edge triggering. Pin (A) is an active-LOW transition trigger input and pin (B) is an active-HIGH transition trigger input. The clear (CLR) input termi-nates the output pulse at a predetermined time indepen-dent of the timing components. The clear input also serves as a trigger input when it is pulsed with a low level pulse transition ( ). To obtain the best trouble free operation from this device please read the operating rules as well as the Fairchild Semiconductor one-shot application notes carefully and observe recommendations.Featuress DC triggered from active-HIGH transition or active-LOW transition inputs s Retriggerable to 100% duty cycles Compensated for V CC and temperature variations s Triggerable from CLEAR input s DTL, TTL compatible s Input clamp diodesOrdering Code:Devices also available in T ape and Reel. Specify by appending the suffix letter “X” to the ordering code.Connection Diagram Function TableH = HIGH Logic Level L = LOW Logic LevelX = Can Be Either LOW or HIGH ↑ = Positive Going Transition ↓ = Negative Going Transition = A Positive Pulse = A Negative PulseOrder Number Package NumberPackage DescriptionDM74LS123M M16A 16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150 Narrow DM74LS123SJ M16D 16-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide DM74LS123NN16E16-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 WideInputsOutputsCLEAR A B Q Q L X X L H X H X L H X X L LHH L ↑ H ↓H ↑LH 2D M 74L S 123Functional DescriptionThe basic output pulse width is determined by selection of an external resistor (R X ) and capacitor (C X ). Once trig-gered, the basic pulse width may be extended by retrigger-ing the gated active-LOW transition or active-HIGH transition inputs or be reduced by use of the active-LOW orCLEAR input. Retriggering to 100% duty cycle is possible by application of an input pulse train whose cycle time is shorter than the output cycle time such that a continuous “HIGH ” logic state is maintained at the “Q ” output.Operating Rules1.An external resistor (R X ) and an external capacitor (C X )are required for proper operation. The value of C X may vary from 0 to any necessary value. For small time con-stants high-grade mica, glass, polypropylene, polycar-bonate, or polystyrene material capacitors may be used. For large time constants use tantalum or special aluminum capacitors. If the timing capacitors have leakages approaching 100 nA or if stray capacitance from either terminal to ground is greater than 50 pF the timing equations may not represent the pulse width the device generates.2.When an electrolytic capacitor is used for C X a switch-ing diode is often required for standard TTL one-shots to prevent high inverse leakage current. This switching diode is not needed for the DM74LS123 one-shot and should not be used. In general the use of the switching diode is not recommended with retriggerable operation.Furthermore, if a polarized timing capacitor is used on the DM74LS123 the negative terminal of the capacitor should be connected to the “C EXT ” pin of the device (Figure 1).FIGURE 1.3.For C X >> 1000 pF the output pulse width (t W ) isdefined as follows:t W = KR X C X where [R X is in k Ω][C X is in pF][t W is in ns]K ≈ 0.374.The multiplicative factor K is plotted as a function of C Xbelow for design considerations:FIGURE 2.5.For C X < 1000 pF see Figure 3 for t W vs. C X familycurves with R X as a parameter:FIGURE 3.6.To obtain variable pulse widths by remote trimming, thefollowing circuit is recommended:FIGURE 4.“R remote ” should be as close to the device pin as possible.7.The retriggerable pulse width is calculated as shownbelow:T = t W + t PLH = K × R X × C X + t PLHThe retriggered pulse width is equal to the pulse width plus a delay time period (Figure 5).FIGURE 5.DM74LS123Operating Rules (Continued)8.Output pulse width variation versus V CC and tempera-tures: Figure 6 depicts the relationship between pulse width variation versus V CC , and Figure 7 depicts pulse width variation versus temperatures.FIGURE 6.FIGURE 7.9.Under any operating condition C X and R X must be keptas close to the one-shot device pins as possible to min-imize stray capacitance, to reduce noise pick-up, and to reduce I-R and Ldi/dt voltage developed along their connecting paths. If the lead length from C X to pins (6)and (7) or pins (14) and (15) is greater than 3 cm, for example, the output pulse width might be quite different from values predicted from the appropriate equations.A non-inductive and low capacitive path is necessary to ensure complete discharge of C X in each cycle of its operation so that the output pulse width will be accu-rate.10.The C EXT pins of this device are internally connected tothe internal ground. For optimum system performance they should be hard wired to the system ’s return ground plane.11.V CC and ground wiring should conform to good high-frequency standards and practices so that switching transients on the V CC and ground return leads do not cause interaction between one-shots. A 0.01 µF to 0.10µF bypass capacitor (disk ceramic or monolithic type)from V CC to ground is necessary on each device. Fur-thermore, the bypass capacitor should be located as close to the V CC -pin as space permits.Note: For further detailed device characteristics and output per-formance please refer to the Fairchild Semiconductor one-shot application note AN-372. 4D M 74L S 123Absolute Maximum Ratings (Note 1)Note 1: The “Absolute Maximum Ratings ” are those values beyond which the safety of the device cannot be guaranteed. The device should not be operated at these limits. The parametric values defined in the Electrical Characteristics tables are not guaranteed at the absolute maximum ratings.The “Recommended Operating Conditions ” table will define the conditions for actual device operation.Recommended Operating ConditionsNote 2: T A = 25°C and V CC = 5V.Electrical Characteristicsover recommended operating free air temperature range (unless otherwise noted)Note 3: All typicals are at V CC = 5V, T A = 25°C.Note 4: Not more than one output should be shorted at a time, and the duration should not exceed one second.Note 5: Quiescent I CC is measured (after clearing) with 2.4V applied to all clear and A inputs, B inputs grounded, all outputs OPEN, C EXT = 0.02 µF , and R EXT = 25 k Ω.Note 6: I CC is measured in the triggered state with 2.4V applied to all clear and B inputs, A inputs grounded, all outputs OPEN, C EXT = 0.02 µF, and R EXT = 25 k Ω.Note 7: With all outputs OPEN and 4.5V applied to all data and clear inputs, I CC is measured after a momentary ground, then 4.5V is applied to the clock.Supply Voltage 7V Input Voltage7VOperating Free Air Temperature Range 0°C to +70°C Storage Temperature−65°C to +150°CSymbol ParameterMin Nom Max Units V CC Supply Voltage4.7555.25V V IH HIGH Level Input Voltage 2V V IL LOW Level Input Voltage 0.8V I OH HIGH Level Output Current −0.4mA I OL LOW Level Output Current 8mAt WPulse Width A or B HIGH 40(Note 2)A orB LOW 40nsClear LOW40R EXT External Timing Resistor 5260k ΩC EXT External Timing CapacitanceNo RestrictionµF C WIRE Wiring Capacitance at R EXT /C EXT Terminal 50pF T AFree Air Operating Temperature70°C Symbol ParameterConditionsMinTyp Max Units (Note 3)V I Input Clamp Voltage V CC = Min, I I = −18 mA −1.5V V OH HIGH Level V CC = Min, I OH = Max 2.73.4VOutput Voltage V IL = Max, V IH = Min V OLLOW Level V CC = Min, I OL = Max 0.350.5Output VoltageV IL = Max, V IH = Min VI OL = 4 mA, V CC = Min 0.250.4I I Input Current @ Max Input Voltage V CC = Max, V I = 7V 0.1mA I IH HIGH Level Input Current V CC = Max, V I = 2.7V 20µA I IL LOW Level Input Current V CC = Max, V I = 0.4V −0.4mA I OS Short Circuit Output Current V CC = Max (Note 4)−20−100mA I CCSupply CurrentV CC = Max (Note 5)(Note 6)(Note 7)1220mADM74LS123Switching Characteristicsat V CC = 5V and T A = 25°CSymbolParametersR L = 2 k ΩUnitsFrom (Input)C L = 15pFC L = 15pFTo (Output)C EXT = 0 pF, R EXT = 5 k ΩC EXT = 1000 pF, R EXT = 10 k ΩMinMax MinMaxt PLH Propagation Delay Time A to Q 33ns LOW-to-HIGH Level Output t PLH Propagation Delay Time B to Q44ns LOW-to-HIGH Level Output t PHL Propagation Delay Time A to Q 45nsHIGH-to-LOW Level Output t PHL Propagation Delay Time B to Q 56nsHIGH-to-LOW Level Output t PLH Propagation Delay Time Clear to Q 45ns LOW-to-HIGH Level Output t PHL Propagation Delay Time Clear to Q 27ns HIGH-to-LOW Level Output t WQ(Min)Minimum Width of Pulse A or B to Q 200ns at Output Q t W(out)Output Pulse WidthA orB to Q45µs 6D M 74L S 123Physical Dimensionsinches (millimeters) unless otherwise noted16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150 NarrowPackage Number M16A DM74LS123Physical Dimensions inches (millimeters) unless otherwise noted (Continued)16-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm WidePackage Number M16D8D M 74L S 123 D u a l R e t r i g g e r a b l e O n e -S h o t w i t h C l e a r a n d C o m p l e m e n t a r y O u t p u t sPhysical Dimensions inches (millimeters) unless otherwise noted (Continued)16-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 WidePackage Number N16EFairchild does not assume any responsibility for use of any circuitry described, no circuit patent licenses are implied and Fairchild reserves the right at any time without notice to change said circuitry and specifications.LIFE SUPPORT POLICYFAIRCHILD ’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF FAIRCHILD SEMICONDUCTOR CORPORATION. As used herein:1.Life support devices or systems are devices or systems which, (a) are intended for surgical implant into the body, or (b) support or sustain life, and (c) whose failure to perform when properly used in accordance with instructions for use provided in the labeling, can be rea-sonably expected to result in a significant injury to the user. 2. A critical component in any component of a life support device or system whose failure to perform can be rea-sonably expected to cause the failure of the life support device or system, or to affect its safety or effectiveness.。

74LS系列大全

74LS系列大全

首页电子资料技术应用电子元器件电阻器电容器电感器电位器变压器继电器二极管三极管场效应管晶闸管集成电路开关器件发光二极管接插件电声器件电子管晶振温敏元件光敏元器件湿敏元器件压敏电阻传感器数码管保险丝可控硅电子镇流器PCB热敏电阻电池接口定义芯片引脚图元件代换光耦电子电路图技术论坛您的位置：电子发烧友网 > 电子元器件 > 接口定义 >74系列芯片引脚图资料大全2009年05月03日 23:31 本站整理作者：佚名关键字：74LS(56)74hc(83)74系列芯片引脚图资料大全反相器驱动器LS04 LS05 LS06 LS07 LS125 LS240 LS244 LS245与门与非门LS00 LS08 LS10 LS11 LS20 LS21 LS27 LS30 LS38 或门或非门与或非门 LS02 LS32 LS51 LS64 LS65异或门比较器LS86译码器LS138 LS139寄存器LS74 LS175 LS373反相器:Vcc 6A 6Y 5A 5Y 4A 4Y 六非门 74LS04┌┴—┴—┴—┴—┴—┴—┴┐ 六非门(OC门) 74LS05_ │14 13 12 11 10 9 8│ 六非门(OC高压输出) 74LS06Y = A ）││ 1 2 3 4 5 6 7│1A 1Y 2A 2Y 3A 3Y GND驱动器:Vcc 6A 6Y 5A 5Y 4A 4Y┌┴—┴—┴—┴—┴—┴—┴┐│14 13 12 11 10 9 8│Y = A ）│ 六驱动器(OC高压输出) 74LS07│ 1 2 3 4 5 6 7│└┬—┬—┬—┬—┬—┬—┬┘1A 1Y 2A 2Y 3A 3Y GNDVcc -4C 4A 4Y -3C 3A 3Y┌┴—┴—┴—┴—┴—┴—┴┐_ │14 13 12 11 10 9 8│Y =A+C ）│ 四总线三态门 74LS125│ 1 2 3 4 5 6 7│└┬—┬—┬—┬—┬—┬—┬┘-1C 1A 1Y -2C 2A 2Y GNDVcc -G B1 B2 B3 B4 B8 B6 B7 B8┌┴—┴—┴—┴—┴—┴—┴—┴—┴—┴┐ 8位总线驱动器 74LS245 │20 19 18 17 16 15 14 13 12 11│）│ DIR=1 A=>B│ 1 2 3 4 5 6 7 8 9 10│ DIR=0 B=>A└┬—┬—┬—┬—┬—┬—┬—┬—┬—┬┘DIR A1 A2 A3 A4 A5 A6 A7 A8 GND页首非门,驱动器与门,与非门或门,或非门异或门,比较器译码器寄存器正逻辑与门,与非门:Vcc 4B 4A 4Y 3B 3A 3Y┌┴—┴—┴—┴—┴—┴—┴┐│14 13 12 11 10 9 8│Y = AB ）│ 2输入四正与门 74LS08│ 1 2 3 4 5 6 7│└┬—┬—┬—┬—┬—┬—┬┘1A 1B 1Y 2A 2B 2Y GNDVcc 4B 4A 4Y 3B 3A 3Y__ │14 13 12 11 10 9 8│Y = AB ）│ 2输入四正与非门 74LS00│ 1 2 3 4 5 6 7│└┬—┬—┬—┬—┬—┬—┬┘1A 1B 1Y 2A 2B 2Y GNDVcc 1C 1Y 3C 3B 3A 3Y┌┴—┴—┴—┴—┴—┴—┴┐___ │14 13 12 11 10 9 8│Y = ABC ）│ 3输入三正与非门 74LS10│ 1 2 3 4 5 6 7│└┬—┬—┬—┬—┬—┬—┬┘1A 1B 2A 2B 2C 2Y GNDVcc H G Y┌┴—┴—┴—┴—┴—┴—┴┐│14 13 12 11 10 9 8│）│ 8输入与非门 74LS30│ 1 2 3 4 5 6 7│ ________└┬—┬—┬—┬—┬—┬—┬┘ Y = ABCDEFGHA B C D E F GND页首非门,驱动器与门,与非门或门,或非门异或门,比较器译码器寄存器正逻辑或门,或非门:Vcc 4B 4A 4Y 3B 3A 3Y┌┴—┴—┴—┴—┴—┴—┴┐ 2输入四或门 74LS32│14 13 12 11 10 9 8│）│ Y = A+B│ 1 2 3 4 5 6 7│└┬—┬—┬—┬—┬—┬—┬┘1A 1B 1Y 2A 2B 2Y GNDVcc 4Y 4B 4A 3Y 3B 3A┌┴—┴—┴—┴—┴—┴—┴┐ 2输入四或非门 74LS02│14 13 12 11 10 9 8│ ___）│ Y = A+B│ 1 2 3 4 5 6 7│└┬—┬—┬—┬—┬—┬—┬┘1Y 1A 1B 2Y 2A 2B GNDVcc 2Y 2B 2A 2D 2E 1F┌┴—┴—┴—┴—┴—┴—┴┐ 双与或非门 74S51│14 13 12 11 10 9 8│ _____）│ 2Y = AB+DE│ 1 2 3 4 5 6 7│ _______└┬—┬—┬—┬—┬—┬—┬┘ 1Y = ABC+DEF1Y 1A 1B 1C 1D 1E GNDVcc D C B K J Y┌┴—┴—┴—┴—┴—┴—┴┐ 4-2-3-2与或非门 74S64 74S65(OC门) │14 13 12 11 10 9 8│ ______________）│ Y = ABCD+EF+GHI+JK│ 1 2 3 4 5 6 7│└┬—┬—┬—┬—┬—┬—┬┘A E F G H I GND页首非门,驱动器与门,与非门或门,或非门异或门,比较器译码器寄存器2输入四异或门 74LS86Vcc 4B 4A 4Y 3Y 3B 3A┌┴—┴—┴—┴—┴—┴—┴┐│14 13 12 11 10 9 8│）│ _ _│ 1 2 3 4 5 6 7│ Y=AB+AB└┬—┬—┬—┬—┬—┬—┬┘1A 1B 1Y 2Y 2A 2B GND8*2输入比较器 74LS688_Vcc Y B8 A8 B7 A7 B6 A6 B5 A5┌┴—┴—┴—┴—┴—┴—┴—┴—┴—┴┐ 8*2输入比较器 74LS688 │20 19 18 17 16 15 14 13 12 11│）││ 1 2 3 4 5 6 7 8 9 10│└┬—┬—┬—┬—┬—┬—┬—┬—┬—┬┘CE A1 B1 A2 B2 A3 B3 A4 B4 GND_Y=A1⊙B1+A2⊙B2+A3⊙B3+A4⊙B4+A5⊙B5+A6⊙B6+A7⊙B7+A8⊙B8页首非门,驱动器与门,与非门或门,或非门异或门,比较器译码器寄存器3-8译码器 74LS138Vcc -Y0 -Y1 -Y2 -Y3 -Y4 -Y5 -Y6 __ _ _ _ __ _ _ __ _ _ __ _┌┴—┴—┴—┴—┴—┴—┴—┴┐ Y0=A B C Y1=A B B Y2=A B C Y3=A B C │16 15 14 13 12 11 10 9 │）│ __ _ _ __ _ __ _ __│ 1 2 3 4 5 6 7 8│ Y4=A B C Y5=A B C Y6=A B C Y7=A B C└┬—┬—┬—┬—┬—┬—┬—┬┘A B C -CS0 -CS1 CS2 -Y7 GND双2-4译码器 74LS139Vcc -2G 2A 2B -Y0 -Y1 -Y2 -Y3 __ __ __ __ __ __ __ __┌┴—┴—┴—┴—┴—┴—┴—┴┐ Y0=2A 2B Y1=2A 2B Y2=2A 2B Y3=2A 2B │16 15 14 13 12 11 10 9 │）│ __ __ __ __ __ __ __ __│ 1 2 3 4 5 6 7 8│ Y0=1A 1B Y1=1A 1B Y2=1A 1B Y3=1A 1B└┬—┬—┬—┬—┬—┬—┬—┬┘-1G 1A 1B -Y0 -Y1 -Y2 -Y3 GND8*2输入比较器 74LS688_Vcc Y B8 A8 B7 A7 B6 A6 B5 A5┌┴—┴—┴—┴—┴—┴—┴—┴—┴—┴┐ 8*2输入比较器 74LS688│20 19 18 17 16 15 14 13 12 11│）││ 1 2 3 4 5 6 7 8 9 10│└┬—┬—┬—┬—┬—┬—┬—┬—┬—┬┘CE A1 B1 A2 B2 A3 B3 A4 B4 GND_Y=A1⊙B1+A2⊙B2+A3⊙B3+A4⊙B4+A5⊙B5+A6⊙B6+A7⊙B7+A8⊙B8寄存器:Vcc 2CR 2D 2Ck 2St 2Q -2Q┌┴—┴—┴—┴—┴—┴—┴┐ 双D触发器74LS74│14 13 12 11 10 9 8 │）││ 1 2 3 4 5 6 7│└┬—┬—┬—┬—┬—┬—┬┘1Cr 1D 1Ck 1St 1Q -1Q GNDVcc 8Q 8D 7D 7Q 6Q 6D 5D 5Q ALE┌┴—┴—┴—┴—┴—┴—┴—┴—┴—┴┐ 8位锁存器 74LS373 │20 19 18 17 16 15 14 13 12 11│）││ 1 2 3 4 5 6 7 8 9 10│└┬—┬—┬—┬—┬—┬—┬—┬—┬—┬┘-OE 1Q 1D 2D 2Q 3Q 3D 4D 4Q GND等.下面介绍一下常用的74芯片，以便大家在电路中遇到了查询---------------------------------------------------- 型号内容----------------------------------------------------74ls00 2输入四与非门74ls01 2输入四与非门 (oc)74ls02 2输入四或非门74ls03 2输入四与非门 (oc)74ls04 六倒相器74ls05 六倒相器(oc)74ls06 六高压输出反相缓冲器/驱动器(oc,30v) 74ls07 六高压输出缓冲器/驱动器(oc,30v)74ls08 2输入四与门74ls09 2输入四与门(oc)74ls10 3输入三与非门74ls11 3输入三与门74ls12 3输入三与非门 (oc)74ls13 4输入双与非门 (斯密特触发)74ls14 六倒相器(斯密特触发)74ls15 3输入三与门 (oc)74ls16 六高压输出反相缓冲器/驱动器(oc,15v) 74ls17 六高压输出缓冲器/驱动器(oc,15v)74ls18 4输入双与非门 (斯密特触发)74ls19 六倒相器(斯密特触发)74ls20 4输入双与非门74ls21 4输入双与门74ls22 4输入双与非门(oc)74ls23 双可扩展的输入或非门74ls24 2输入四与非门(斯密特触发)74ls25 4输入双或非门(有选通)74ls26 2输入四高电平接口与非缓冲器(oc,15v) 74ls27 3输入三或非门74ls28 2输入四或非缓冲器74ls30 8输入与非门74ls31 延迟电路74ls32 2输入四或门74ls33 2输入四或非缓冲器(集电极开路输出) 74ls34 六缓冲器74ls35 六缓冲器(oc)74ls36 2输入四或非门(有选通)74ls37 2输入四与非缓冲器74ls38 2输入四或非缓冲器(集电极开路输出) 74ls39 2输入四或非缓冲器(集电极开路输出) 74ls40 4输入双与非缓冲器74ls41 bcd-十进制计数器74ls42 4线-10线译码器(bcd输入)74ls43 4线-10线译码器(余3码输入)74ls44 4线-10线译码器(余3葛莱码输入)74ls45 bcd-十进制译码器/驱动器74ls46 bcd-七段译码器/驱动器74ls47 bcd-七段译码器/驱动器74ls48 bcd-七段译码器/驱动器74ls49 bcd-七段译码器/驱动器(oc)74ls50 双二路2-2输入与或非门(一门可扩展)74ls51 双二路2-2输入与或非门74ls51 二路3-3输入,二路2-2输入与或非门74ls52 四路2-3-2-2输入与或门(可扩展)74ls53 四路2-2-2-2输入与或非门(可扩展)74ls53 四路2-2-3-2输入与或非门(可扩展)74ls54 四路2-2-2-2输入与或非门74ls54 四路2-3-3-2输入与或非门74ls54 四路2-2-3-2输入与或非门74ls55 二路4-4输入与或非门(可扩展)74ls60 双四输入与扩展74ls61 三3输入与扩展74ls62 四路2-3-3-2输入与或扩展器74ls63 六电流读出接口门74ls64 四路4-2-3-2输入与或非门74ls65 四路4-2-3-2输入与或非门(oc)74ls70 与门输入上升沿jk触发器74ls71 与输入r-s主从触发器74ls72 与门输入主从jk触发器74ls73 双j-k触发器(带清除端)74ls74 正沿触发双d型触发器(带预置端和清除端)74ls75 4位双稳锁存器74ls76 双j-k触发器(带预置端和清除端)74ls77 4位双稳态锁存器74ls78 双j-k触发器(带预置端,公共清除端和公共时钟端) 74ls80 门控全加器74ls81 16位随机存取存储器74ls82 2位二进制全加器(快速进位)74ls83 4位二进制全加器(快速进位)74ls84 16位随机存取存储器74ls85 4位数字比较器74ls86 2输入四异或门74ls87 四位二进制原码/反码/oi单元74ls89 64位读/写存储器74ls90 十进制计数器74ls91 八位移位寄存器74ls92 12分频计数器(2分频和6分频)74ls93 4位二进制计数器74ls94 4位移位寄存器(异步)74ls95 4位移位寄存器(并行io)74ls96 5位移位寄存器74ls97 六位同步二进制比率乘法器74ls100 八位双稳锁存器74ls103 负沿触发双j-k主从触发器(带清除端)74ls106 负沿触发双j-k主从触发器(带预置,清除,时钟) 74ls107 双j-k主从触发器(带清除端)74ls108 双j-k主从触发器(带预置,清除,时钟)74ls109 双j-k触发器(带置位,清除,正触发)74ls110 与门输入j-k主从触发器(带锁定)74ls111 双j-k主从触发器(带数据锁定)74ls112 负沿触发双j-k触发器(带预置端和清除端)74ls113 负沿触发双j-k触发器(带预置端)74ls114 双j-k触发器(带预置端,共清除端和时钟端)74ls116 双四位锁存器74ls120 双脉冲同步器/驱动器74ls121 单稳态触发器(施密特触发)74ls122 可再触发单稳态多谐振荡器(带清除端)74ls123 可再触发双单稳多谐振荡器74ls125 四总线缓冲门(三态输出)74ls126 四总线缓冲门(三态输出)74ls128 2输入四或非线驱动器74ls131 3-8译码器74ls132 2输入四与非门(斯密特触发)74ls133 13输入端与非门74ls134 12输入端与门(三态输出)74ls135 四异或/异或非门74ls136 2输入四异或门(oc)74ls137 八选1锁存译码器/多路转换器74ls138 3-8线译码器/多路转换器74ls139 双2-4线译码器/多路转换器74ls140 双4输入与非线驱动器74ls141 bcd-十进制译码器/驱动器74ls142 计数器/锁存器/译码器/驱动器74ls145 4-10译码器/驱动器74ls147 10线-4线优先编码器74ls148 8线-3线八进制优先编码器74ls150 16选1数据选择器(反补输出)74ls151 8选1数据选择器(互补输出)74ls152 8选1数据选择器多路开关74ls153 双4选1数据选择器/多路选择器74ls154 4线-16线译码器74ls155 双2-4译码器/分配器(图腾柱输出)74ls156 双2-4译码器/分配器(集电极开路输出)74ls157 四2选1数据选择器/多路选择器74ls158 四2选1数据选择器(反相输出)74ls160 可预置bcd计数器(异步清除)74ls161 可预置四位二进制计数器(并清除异步)74ls162 可预置bcd计数器(异步清除)74ls163 可预置四位二进制计数器(并清除异步)74ls164 8位并行输出串行移位寄存器74ls165 并行输入8位移位寄存器(补码输出)74ls166 8位移位寄存器74ls167 同步十进制比率乘法器74ls168 4位加/减同步计数器(十进制)74ls169 同步二进制可逆计数器74ls170 4*4寄存器堆74ls171 四d触发器(带清除端)74ls172 16位寄存器堆74ls173 4位d型寄存器(带清除端)74ls174 六d触发器74ls175 四d触发器74ls176 十进制可预置计数器74ls177 2-8-16进制可预置计数器74ls178 四位通用移位寄存器74ls179 四位通用移位寄存器74ls180 九位奇偶产生/校验器74ls181 算术逻辑单元/功能发生器74ls182 先行进位发生器74ls183 双保留进位全加器74ls184 bcd-二进制转换器74ls185 二进制-bcd转换器74ls190 同步可逆计数器(bcd,二进制)74ls191 同步可逆计数器(bcd,二进制)74ls192 同步可逆计数器(bcd,二进制)74ls193 同步可逆计数器(bcd,二进制)74ls194 四位双向通用移位寄存器74ls195 四位通用移位寄存器74ls196 可预置计数器/锁存器74ls197 可预置计数器/锁存器(二进制)74ls198 八位双向移位寄存器74ls199 八位移位寄存器74ls210 2-5-10进制计数器74ls213 2-n-10可变进制计数器74ls221 双单稳触发器74ls230 八3态总线驱动器74ls231 八3态总线反向驱动器74ls240 八缓冲器/线驱动器/线接收器(反码三态输出)74ls241 八缓冲器/线驱动器/线接收器(原码三态输出)74ls242 八缓冲器/线驱动器/线接收器74ls243 4同相三态总线收发器74ls244 八缓冲器/线驱动器/线接收器74ls245 八双向总线收发器74ls246 4线-七段译码/驱动器(30v)74ls247 4线-七段译码/驱动器(15v)74ls248 4线-七段译码/驱动器74ls249 4线-七段译码/驱动器74ls251 8选1数据选择器(三态输出)74ls253 双四选1数据选择器(三态输出)74ls256 双四位可寻址锁存器74ls257 四2选1数据选择器(三态输出)74ls258 四2选1数据选择器(反码三态输出)74ls259 8为可寻址锁存器74ls260 双5输入或非门74ls261 4*2并行二进制乘法器74ls265 四互补输出元件74ls266 2输入四异或非门(oc)74ls270 2048位rom (512位四字节,oc)74ls271 2048位rom (256位八字节,oc)74ls273 八d触发器74ls274 4*4并行二进制乘法器74ls275 七位片式华莱士树乘法器74ls276 四jk触发器74ls278 四位可级联优先寄存器74ls279 四s-r锁存器74ls280 9位奇数/偶数奇偶发生器/较验器74ls28174ls283 4位二进制全加器74ls290 十进制计数器74ls291 32位可编程模74ls293 4位二进制计数器74ls294 16位可编程模74ls295 四位双向通用移位寄存器74ls298 四-2输入多路转换器(带选通)74ls299 八位通用移位寄存器(三态输出)74ls348 8-3线优先编码器(三态输出)74ls352 双四选1数据选择器/多路转换器74ls353 双4-1线数据选择器(三态输出)74ls354 8输入端多路转换器/数据选择器/寄存器,三态补码输出74ls355 8输入端多路转换器/数据选择器/寄存器,三态补码输出74ls356 8输入端多路转换器/数据选择器/寄存器,三态补码输出74ls357 8输入端多路转换器/数据选择器/寄存器,三态补码输出74ls365 6总线驱动器74ls366 六反向三态缓冲器/线驱动器74ls367 六同向三态缓冲器/线驱动器74ls368 六反向三态缓冲器/线驱动器74ls373 八d锁存器74ls374 八d触发器(三态同相)74ls375 4位双稳态锁存器74ls377 带使能的八d触发器74ls378 六d触发器74ls379 四d触发器74ls381 算术逻辑单元/函数发生器74ls382 算术逻辑单元/函数发生器74ls384 8位*1位补码乘法器74ls385 四串行加法器/乘法器74ls386 2输入四异或门74ls390 双十进制计数器74ls391 双四位二进制计数器74ls395 4位通用移位寄存器74ls396 八位存储寄存器74ls398 四2输入端多路开关(双路输出) 74ls399 四-2输入多路转换器(带选通)74ls422 单稳态触发器74ls423 双单稳态触发器74ls440 四3方向总线收发器,集电极开路74ls441 四3方向总线收发器,集电极开路74ls442 四3方向总线收发器,三态输出74ls443 四3方向总线收发器,三态输出74ls444 四3方向总线收发器,三态输出74ls445 bcd-十进制译码器/驱动器,三态输出74ls446 有方向控制的双总线收发器74ls448 四3方向总线收发器,三态输出74ls449 有方向控制的双总线收发器74ls465 八三态线缓冲器74ls466 八三态线反向缓冲器74ls467 八三态线缓冲器74ls468 八三态线反向缓冲器74ls490 双十进制计数器74ls540 八位三态总线缓冲器(反向)74ls541 八位三态总线缓冲器74ls589 有输入锁存的并入串出移位寄存器74ls590 带输出寄存器的8位二进制计数器74ls591 带输出寄存器的8位二进制计数器74ls592 带输出寄存器的8位二进制计数器74ls593 带输出寄存器的8位二进制计数器74ls594 带输出锁存的8位串入并出移位寄存器74ls595 8位输出锁存移位寄存器74ls596 带输出锁存的8位串入并出移位寄存器74ls597 8位输出锁存移位寄存器74ls598 带输入锁存的并入串出移位寄存器74ls599 带输出锁存的8位串入并出移位寄存器74ls604 双8位锁存器74ls605 双8位锁存器74ls606 双8位锁存器74ls607 双8位锁存器74ls620 8位三态总线发送接收器(反相)74ls621 8位总线收发器74ls622 8位总线收发器74ls623 8位总线收发器74ls640 反相总线收发器(三态输出)74ls641 同相8总线收发器,集电极开路74ls642 同相8总线收发器,集电极开路74ls643 8位三态总线发送接收器74ls644 真值反相8总线收发器,集电极开路74ls645 三态同相8总线收发器74ls646 八位总线收发器,寄存器74ls647 八位总线收发器,寄存器74ls648 八位总线收发器,寄存器74ls649 八位总线收发器,寄存器74ls651 三态反相8总线收发器74ls652 三态反相8总线收发器74ls653 反相8总线收发器,集电极开路74ls654 同相8总线收发器,集电极开路74ls668 4位同步加/减十进制计数器74ls669 带先行进位的4位同步二进制可逆计数器74ls670 4*4寄存器堆(三态)74ls671 带输出寄存的四位并入并出移位寄存器74ls672 带输出寄存的四位并入并出移位寄存器74ls673 16位并行输出存储器,16位串入串出移位寄存器74ls674 16位并行输入串行输出移位寄存器74ls681 4位并行二进制累加器74ls682 8位数值比较器(图腾柱输出)74ls683 8位数值比较器(集电极开路)74ls684 8位数值比较器(图腾柱输出)74ls685 8位数值比较器(集电极开路)74ls686 8位数值比较器(图腾柱输出)74ls687 8位数值比较器(集电极开路)74ls688 8位数字比较器(oc输出)74ls689 8位数字比较器74ls690 同步十进制计数器/寄存器(带数选,三态输出,直接清除)74ls691 计数器/寄存器(带多转换,三态输出)74ls692 同步十进制计数器(带预置输入,同步清除)74ls693 计数器/寄存器(带多转换,三态输出)74ls696 同步加/减十进制计数器/寄存器(带数选,三态输出,直接清除) 74ls697 计数器/寄存器(带多转换,三态输出)74ls698 计数器/寄存器(带多转换,三态输出)74ls699 计数器/寄存器(带多转换,三态输出)74ls716 可编程模n十进制计数器74ls718 可编程模n十进制计数器相关阅读：•[单片机] 74HC595驱动LED的电路设计方案 2012-10-14•[RF/无线] 一种基于VXI总线的射频开关模块设计 2012-09-19•[光电驱动电路] 74HC595芯片驱动LED的电路设计 2012-08-08 •[555集成电路大全] 普通电灯泡产生烛光的简单电路 2012-03-29 •[遥控电路图] 74LS74构成的遥控电路 2011-11-28•[照明灯电路图] SN74LS74构成的红外遥控开关灯电路 2011-11-28 •[模拟技术] 74HC240制作寻光机器人 2011-11-26•[单片机] 74HC595驱动led单色点阵屏程序 2011-07-24( 发表人：S&W)相关下载•74LS175键盘电路0•74hc573中文资料pdf51•LED显示屏常用芯片简介(74HC138_74HC245_74HC595_4953_T70•74LS42译码器英文资料6•74HC系列通用逻辑电路功能表24•74HC245中文资料101•74HC4851资料7•用74LS148扩展中断4阅读排行78040 la7840各引脚功能及电压资料 01-162.VGA线接法详细介绍 12-213.三极管s8050管脚图及参数 01-234.lm324引脚图管脚图 lm324应用电路 12-085.电脑串口引脚定义图 01-246.RS485接口定义图 04-04b接口接线图 05-038.mini usb 接口定义 5针usb接口定义图 04-279.15针VGA接口定义图 11-2710.自制vga转s端子接线图 01-21热门词LED FPGA DSP DIY CMOS3G电路图IC CPLD开关电源。

74系列中文资料(超级全)

74系列中文资料(超级全)

┌┴─┴─┴─┴─┴─┴─┴┐ 双 D 触发器 74LS74
│14 13 12 11 10 9 8 │
）
│
│ 1 2 3 4 5 6 7│
└┬─┬─┬─┬─┬─┬─┬┘
1Cr 1D 1Ck 1St 1Q -1Q GND
Vcc 8Q 8D 7D 7Q 6Q 6D 5D 5Q ALE
┌┴─┴─┴─┴─┴─┴─┴─┴─┴─┴┐ 8 位锁存器 74LS373
Vcc -G B1 B2 B3 B4 B8 B6 B7 B8
┌┴─┴─┴─┴─┴─┴─┴─┴─┴─┴┐ 8 位总线驱动器 74LS245
│20 19 18 17 16 15 14 13 12 11│
）
│ DIR=1 A=>B
│ 1 2 3 4 5 6 7 8 9 10│ DIR=0 B=>A
└┬─┬─┬─┬─┬─┬─┬─┬─┬─┬┘
___
）
│ Y = A+B
│ 1 2 3 4 5 6 7│
└┬─┬─┬─┬─┬─┬─┬┘
1Y 1A 1B 2Y 2A 2B GND
Vcc 2Y 2B 2A 2D 2E 1F
┌┴─┴─┴─┴─┴─┴─┴┐ 双与或非门 74S51
│14 13 12 11 10 9 8│
_____
）
│ 2Y = AB+DE
DIR A1 A2 A3 A4 A5 A6 A7 A8 GND
正逻辑与门,与非门:
Vcc 4B 4A 4Y 3B 3A 3Y
┌┴─┴─┴─┴─┴─┴─┴┐
│14 13 12 11 10 9 8│
Y = AB ）
│ 2 输入四正与门 74LS08
│ 1 2 3 4 5 6 7│

常用74系列标准数字电路的中文名称资料

常用74系列标准数字电路的中文名称资料

常用74系列标准数字电路的中文名称资料2010-11-30 00:047400 TTL 2输入端四与非门7401 TTL 集电极开路2输入端四与非门7402 TTL 2输入端四或非门7403 TTL 集电极开路2输入端四与非门7404 TTL 六反相器7405 TTL 集电极开路六反相器7406 TTL 集电极开路六反相高压驱动器7407 TTL 集电极开路六正相高压驱动器7408 TTL 2输入端四与门7409 TTL 集电极开路2输入端四与门7410 TTL 3输入端3与非门74107 TTL 带清除主从双J-K触发器74109 TTL 带预置清除正触发双J-K触发器7411 TTL 3输入端3与门74112 TTL 带预置清除负触发双J-K触发器7412 TTL 开路输出3输入端三与非门74121 TTL 单稳态多谐振荡器74122 TTL 可再触发单稳态多谐振荡器74123 TTL 双可再触发单稳态多谐振荡器74125 TTL 三态输出高有效四总线缓冲门74126 TTL 三态输出低有效四总线缓冲门7413 TTL 4输入端双与非施密特触发器74132 TTL 2输入端四与非施密特触发器74133 TTL 13输入端与非门74136 TTL 四异或门74138 TTL 3-8线译码器/复工器74139 TTL 双2-4线译码器/复工器7414 TTL 六反相施密特触发器74145 TTL BCD—十进制译码/驱动器7415 TTL 开路输出3输入端三与门74150 TTL 16选1数据选择/多路开关74151 TTL 8选1数据选择器74153 TTL 双4选1数据选择器74154 TTL 4线—16线译码器74155 TTL 图腾柱输出译码器/分配器74156 TTL 开路输出译码器/分配器74157 TTL 同相输出四2选1数据选择器74158 TTL 反相输出四2选1数据选择器7416 TTL 开路输出六反相缓冲/驱动器74160 TTL 可预置BCD异步清除计数器74161 TTL 可予制四位二进制异步清除计数器74162 TTL 可预置BCD同步清除计数器74163 TTL 可予制四位二进制同步清除计数器74164 TTL 八位串行入/并行输出移位寄存器74165 TTL 八位并行入/串行输出移位寄存器74166 TTL 八位并入/串出移位寄存器74169 TTL 二进制四位加/减同步计数器7417 TTL 开路输出六同相缓冲/驱动器74170 TTL 开路输出4×4寄存器堆74173 TTL 三态输出四位D型寄存器74174 TTL 带公共时钟和复位六D触发器74175 TTL 带公共时钟和复位四D触发器74180 TTL 9位奇数/偶数发生器/校验器74181 TTL 算术逻辑单元/函数发生器74185 TTL 二进制—BCD代码转换器74190 TTL BCD同步加/减计数器74191 TTL 二进制同步可逆计数器74192 TTL 可预置BCD双时钟可逆计数器74193 TTL 可预置四位二进制双时钟可逆计数器74194 TTL 四位双向通用移位寄存器74195 TTL 四位并行通道移位寄存器74196 TTL 十进制/二-十进制可预置计数锁存器74197 TTL 二进制可预置锁存器/计数器7420 TTL 4输入端双与非门7421 TTL 4输入端双与门7422 TTL 开路输出4输入端双与非门74221 TTL 双/单稳态多谐振荡器74240 TTL 八反相三态缓冲器/线驱动器74241 TTL 八同相三态缓冲器/线驱动器74243 TTL 四同相三态总线收发器74244 TTL 八同相三态缓冲器/线驱动器74245 TTL 八同相三态总线收发器74247 TTL BCD—7段15V输出译码/驱动器74248 TTL BCD—7段译码/升压输出驱动器74249 TTL BCD—7段译码/开路输出驱动器74251 TTL 三态输出8选1数据选择器/复工器74253 TTL 三态输出双4选1数据选择器/复工器74256 TTL 双四位可寻址锁存器74257 TTL 三态原码四2选1数据选择器/复工器74258 TTL 三态反码四2选1数据选择器/复工器74259 TTL 八位可寻址锁存器/3-8线译码器7426 TTL 2输入端高压接口四与非门74260 TTL 5输入端双或非门74266 TTL 2输入端四异或非门7427 TTL 3输入端三或非门74273 TTL 带公共时钟复位八D触发器74279 TTL 四图腾柱输出S-R锁存器7428 TTL 2输入端四或非门缓冲器74283 TTL 4位二进制全加器74290 TTL 二/五分频十进制计数器74293 TTL 二/八分频四位二进制计数器74295 TTL 四位双向通用移位寄存器74298 TTL 四2输入多路带存贮开关74299 TTL 三态输出八位通用移位寄存器7430 TTL 8输入端与非门7432 TTL 2输入端四或门74322 TTL 带符号扩展端八位移位寄存器74323 TTL 三态输出八位双向移位/存贮寄存器7433 TTL 开路输出2输入端四或非缓冲器74347 TTL BCD—7段译码器/驱动器74352 TTL 双4选1数据选择器/复工器74353 TTL 三态输出双4选1数据选择器/复工器74365 TTL 门使能输入三态输出六同相线驱动器74365 TTL 门使能输入三态输出六同相线驱动器74366 TTL 门使能输入三态输出六反相线驱动器74367 TTL 4/2线使能输入三态六同相线驱动器74368 TTL 4/2线使能输入三态六反相线驱动器7437 TTL 开路输出2输入端四与非缓冲器74373 TTL 三态同相八D锁存器74374 TTL 三态反相八D锁存器74375 TTL 4位双稳态锁存器74377 TTL 单边输出公共使能八D锁存器74378 TTL 单边输出公共使能六D锁存器74379 TTL 双边输出公共使能四D锁存器7438 TTL 开路输出2输入端四与非缓冲器74380 TTL 多功能八进制寄存器7439 TTL 开路输出2输入端四与非缓冲器74390 TTL 双十进制计数器74393 TTL 双四位二进制计数器7440 TTL 4输入端双与非缓冲器7442 TTL BCD—十进制代码转换器74352 TTL 双4选1数据选择器/复工器74353 TTL 三态输出双4选1数据选择器/复工器74365 TTL 门使能输入三态输出六同相线驱动器74366 TTL 门使能输入三态输出六反相线驱动器74367 TTL 4/2线使能输入三态六同相线驱动器74368 TTL 4/2线使能输入三态六反相线驱动器7437 TTL 开路输出2输入端四与非缓冲器74373 TTL 三态同相八D锁存器74374 TTL 三态反相八D锁存器74375 TTL 4位双稳态锁存器74377 TTL 单边输出公共使能八D锁存器74378 TTL 单边输出公共使能六D锁存器74379 TTL 双边输出公共使能四D锁存器7438 TTL 开路输出2输入端四与非缓冲器74380 TTL 多功能八进制寄存器7439 TTL 开路输出2输入端四与非缓冲器74390 TTL 双十进制计数器74393 TTL 双四位二进制计数器7440 TTL 4输入端双与非缓冲器7442 TTL BCD—十进制代码转换器74447 TTL BCD—7段译码器/驱动器7445 TTL BCD—十进制代码转换/驱动器74450 TTL 16:1多路转接复用器多工器74451 TTL 双8:1多路转接复用器多工器74453 TTL 四4:1多路转接复用器多工器7446 TTL BCD—7段低有效译码/驱动器74460 TTL 十位比较器74461 TTL 八进制计数器74465 TTL 三态同相2与使能端八总线缓冲器74466 TTL 三态反相2与使能八总线缓冲器74467 TTL 三态同相2使能端八总线缓冲器74468 TTL 三态反相2使能端八总线缓冲器74469 TTL 八位双向计数器7447 TTL BCD—7段高有效译码/驱动器7448 TTL BCD—7段译码器/内部上拉输出驱动74490 TTL 双十进制计数器74491 TTL 十位计数器74498 TTL 八进制移位寄存器7450 TTL 2-3/2-2输入端双与或非门74502 TTL 八位逐次逼近寄存器74503 TTL 八位逐次逼近寄存器7451 TTL 2-3/2-2输入端双与或非门74533 TTL 三态反相八D锁存器74534 TTL 三态反相八D锁存器7454 TTL 四路输入与或非门74540 TTL 八位三态反相输出总线缓冲器7455 TTL 4输入端二路输入与或非门74563 TTL 八位三态反相输出触发器74564 TTL 八位三态反相输出D触发器74573 TTL 八位三态输出触发器74574 TTL 八位三态输出D触发器74645 TTL 三态输出八同相总线传送接收器74670 TTL 三态输出4×4寄存器堆7473 TTL 带清除负触发双J-K触发器7474 TTL 带置位复位正触发双D触发器7476 TTL 带预置清除双J-K触发器7483 TTL 四位二进制快速进位全加器7485 TTL 四位数字比较器7486 TTL 2输入端四异或门7490 TTL 可二/五分频十进制计数器7493 TTL 可二/八分频二进制计数器7495 TTL 四位并行输入\输出移位寄存器7497 TTL 6位同步二进制乘法器SN74LSOO四2输入与非门SN74LSO2四2输入或非门SN74LS04六反相器SN74LS06六反相缓冲器/驱动器SN74LS08四2输入与非门SN74LS10三3输入与非门SN74LS12三3输入与非门SN74LS14六反相器.斯密特触发SN74LS16六反相缓冲器/驱动器SN74LS20双4输入与门SN74LS22双4输入与门SN74LS26四2输入与非门SN74LS28四输入端或非缓冲器SN74LS32四2输入或门SN74LS37四输入端与非缓冲器SN74LS40四输入端与非缓冲器SN74LS47BCD－七段译码驱动器SN74LS49BCD－七段译码驱动器SN74LS54四输入与或非门SN74LS63六电流读出接口门SN74LS74双D触发器SN74LS76双J－K触发器SN74LS83双J－K触发器SN74LS86四2输入异或门SN74LS904位十进制波动计数器SN74LS9212分频计数器SN74LS965位移位寄存器SN74LS109正沿触发双J－K触发器SN74LS113双J－K负沿触发器SN74LS121单稳态多谐振荡器SN74LS123双稳态多谐振荡器SN74LS125三态缓冲器SN74LS1313－8线译码器SN74LS137地址锁存3－8线译码器SN74LS139双2－4线译码－转换器SN74LS14710－4线优先编码器SN74LS153双4选1数据选择器SN74LS155双2－4线多路分配器SN74LS157四2选1数据选择器SN74LS160同步BDC十进制计数器SN74LS162同步BDC十进制计数器SN74LS1648位串入并出移位寄存SN74LS1668位移位寄存器SN74LS1694位可逆同步计数器SN74LS17216位多通道寄存器堆SN74LS1746D型触发器SN74LS176可预置十进制计数器SN74LS182超前进位发生器SN74LS18964位随机存储器SN74LS191二进制同步可逆计数器SN74LS193二进制可逆计数器SN74LS195并行存取移位寄存器SN74LS197可预置二进制计数器SN74LS2383－8线译码/多路转换器SN74LS241八缓冲/驱动/接收器SN74LS243四总线收发器SN74LS245八总线收发器SN74LS248BCD－七段译码驱动器SN74LS251三态8－1数据选择器SN74LS256双四位选址锁存器SN74LS258四2选1数据选择器SN74LS260双5输入或非门SN74LS266四2输入异或非门SN74LS275七位树型乘法器SN74LS279四R－S触发器SN74LS2834位二进制全加器SN74LS2934位二进制计数器SN74LS365六缓冲器带公用启动器SN74LS367六总线三态输出缓冲器SN74LS3738D锁存器SN74LS3754位双稳锁存器SN74LS386四2输入异或门SN74LS393双4位二进制计数器SN74LS5748位D型触发器SN74LS6848位数字比较器SN74LSO1四2输入与非门SN74LS05六反相器SN74LS07六缓冲器/驱动器SN74LS09四2输入与非门SN74LS11三3输入与非门SN74LS13三3输入与非门SN74LS15三3输入与非门SN74LS17六反相缓冲器/驱动器SN74LS21双4输入与门SN74LS25双4输入与门SN74LS27三3输入与非门SN74LS30八输入端与非门SN74LS33四2输入或门SN74LS38双2输入与非缓冲器SN74LS42BCD－十进制译码器SN74LS48BCD－七段译码驱动器SN74LS51三3输入双与或非门SN74LS55四4输入与或非门SN74LS73双J－K触发器SN74LS754位双稳锁存器SN74LS78双J－K触发器SN74LS854位幅度比较器SN74LS884位全加器SN74LS918位移位寄存器SN74LS93二进制计数器SN74LS954位并入并出寄存器SN74LS107双J－K触发器SN74LS112双J－K负沿触发器SN74LS114双J－K负沿触发器SN74LS122单稳态多谐振荡器SN74LS124双压控振荡器SN74LS126四3态总线缓冲器SN74LS132二输入与非触发器SN74LS136四异或门SN74LS1383－8线译码/转换器SN74LS145BCD十进制译码/驱动器SN74LS1488－3线优先编码器SN74LS1518选1数据选择器SN74LS1544－16线多路分配器SN74LS156双2－4线多路分配器SN74LS158四2选1数据选择器SN74LS1614位二进制计数器SN74LS1634位二进制计数器SN74LS1658位移位寄存器SN74LS1684位可逆同步计数器SN74LS1704x4位寄存器堆SN74LS1734D型寄存器SN74LS1754D烯触发器SN74LS181运算器/函数发生器SN74LS183双进位保存全价器SN74LS190同步BCD十进制计数器SN74LS192BCD－同步可逆计数器SN74LS194双向通用移位寄存器SN74LS196可预置十进制计数器SN74LS221双单稳态多谐振荡器SN74LS240八缓冲/驱动/接收器SN74LS242四总线收发器SN74LS244八缓冲/驱动/接收器SN74LS247BCD－七段译码驱动器SN74LS249BCD－七段译码驱动SN74LS253双三态4－1数据选择器SN74LS257四3态2－1数据选择器SN74LS2598位可寻址锁存器SN74LS2612x4位二进制乘发器SN74LS273八进制D型触发器SN74LS276四J－K触发器SN74LS2809位奇偶数发生校检器SN74LS290十进制计数器SN74LS2954位双向通用移位寄存器SN74LS366六缓冲器带公用启动器SN74LS368六总线三态输出反相器SN74LS3748D触发器SN74LS3778位单输出D型触发器SN74LS390双十进制计数器SN74LS5738位三态输出D型锁存器SN74LS6708位数字比较器SN74HC00 四2输入与非门SN74HC02 四2输入或非门SN74HC03 四2输入或非门SN74HC04 六反相器SN74HC05 六反相器SN74HC08 四2输入与门SN74HC10 三3输入与非门SN74HC11 三3输入与门SN74HC14 六反相器/斯密特触发SN74HC20 双四输入与门SN74HC21 双四输入与非门SN74HC27 三3输入与非门SN74HC30 八输入端与非门SN74HC32 四2输入或门SN74HC42 BCD十进制译码器SN74HC73 双J－K触的器SN74HC74 双D型触发器SN74HC76 双J－K触的器SN74HC86 四2输入异或门SN74HC107 双J－K触发器SN74HC113 双J－K负沿触发器SN74HC123 双稳态多谐振荡器SN74HC125 三态缓冲器SN74HC126 四三态总线缓冲器SN74HC132 二输入与非缓冲器SN74HC137 二输入与非缓冲器SN74HC138 3－8线译码/解调器SN74HC139 双2－4线译码/解调器SN74HC148 8选1数据选择器SN74HC151 双4选1数据选择器SN74HC154 4－16线多路分配器SN74HC157 四2选1数据选择器SN74HC161 4位二进制计数器SN74HC163 4位二进制计数器SN74HC164 8位串入并出移位寄存器SN74HC165 8位移位寄存器SN74HC173 4D型触发器SN74HC174 6D触发器SN74HC175 4D型触发器SN74HC191 二进制同步可逆计数器SN74HC221 双单稳态多谐振荡器SN74HC238 3－8线译码器SN74HC240 八缓冲器SN74HC244 八总线3态输出缓冲器SN74HC245 八总线收发器SN74HC251 三态8－1数据选择器SN74HC259 8位可寻址锁存器SN74HC266 四2输入异或非门SN74HC273 8D型触发器SN74HC367 六缓冲器/总线驱动器SN74HC368 六缓冲器/总线驱动器SN74HC373 8D锁存器SN74HC374 8D触发器SN74HC393 双4位二进制计数器SN74HC541 8位三态输出缓冲器SN74HC573 8位三态输出D型锁存器SN74HC574 8D型触发器SN74HC595 8位移位寄存器/锁存器SN74HC4028 7级二进制串行加数器SN74HC4046 锁相环SN74HC4050 六同相缓冲器SN74HC4051 8选1模拟开关SN74HC4053 三2选1模拟开关SN74HC4060 14位计数/分频/振荡器SN74HC4066 四双相模拟开关SN74HC4078 3输入端三或门SN74HC4511 7段锁存/译码驱动器SN74HC4520 双二进制加法计数器74F00 高速四2输入与非门74F02 高速四2输入或非门74F04 高速六反相器74F08 高速四2输入与门74F10 高速三3输入与门74F14 高速六反相斯密特触发74F32 高速四2输入或门74F38 高速四2输入或门74F74 高速双D型触发器74F86 高速四2输入异或门74F139 高速双2－4线译码/驱动器74F151 高速双2－4线译码/驱动器74F153 高速双4选1数据选择器74F157 高速双4选1数据选择器74F161 高速6D型触发器74F174 高速6D型触发器74F175 高速4D型触发器74F244 高速八总线3态缓冲器74F245 高速八总线收发器74F373 高速8D锁存器SN74HCT04 六反相器SN7404 六反相器 SN74HC00 四2输入与非门SN7406 六反相缓冲器/驱动器 SN74HC02 四2输入或非门SN7407 六缓冲器/驱动器 SN74HC03 四2输入或非门SN7414 六缓冲器/驱动器 SN74HC04 六反相器SN7416 六反相缓冲器/驱动器 SN74HC05 六反相器SN7440 六反相缓冲器/驱动器 SN74HC08 四2输入与门SN7497 六反相缓冲器/驱动器 SN74HC10 三3输入与非门74F00 高速四2输入与非门 SN74HC14 六反相器/斯密特触发74F02 高速四2输入或非门 SN74HC20 双四输入与门74F04 高速六反相器 SN74HC21 双四输入与非门74F08 高速四2输入与门 SN74HC27 三3输入与非门74F10 高速三3输入与门 SN74HC30 八输入端与非门74F14 高速六反相斯密特触发 SN74HC32 四2输入或门74F32 高速四2输入或门 SN74HC42 BCD十进制译码器74F38 高速四2输入或门 SN74HC73 双J－K触的器74F74 高速双D型触发器 SN74HC74 双D型触发器74F86 高速四2输入异或门 SN74HC76 双J－K触的器74F139 高速双2－4线译码/驱动器 SN74HC86 四2输入异或门74F151 高速双2－4线译码/驱动器 SN74HC107 双J－K触发器74F153 高速双4选1数据选择器 SN74HC113 双J－K负沿触发器74F157 高速双4选1数据选择器 SN74HC123 双稳态多谐振荡器74F161 高速6D型触发器 SN74HC125 三态缓冲器74F174 高速6D型触发器 SN74HC126 四三态总线缓冲器74F175 高速4D型触发器 SN74HC132 二输入与非缓冲器74F244 高速八总线3态缓冲器 SN74HC137 二输入与非缓冲器74F245 高速八总线收发器 SN74HC138 3－8线译码/解调器74F373 高速8D锁存器 SN74HC139 双2－4线译码/SN74HCT04 六反相器 SN74HC151 双4选1数据选择器CD4001 4二输入或非门 SN74HC157 四2选1数据选择器CD4002 双4输入或非门 SN74HC161 4位二进制计数器CD4006 18位静态移位寄存器 SN74HC163 4位二进制计数器CD4007 双互补对加反相器 SN74HC164 8位串入并出移位寄存器CD4009 六缓冲器/转换－倒相 SN74HC165 8位移位寄存器CD4010 六缓冲器/转换－正相 SN74HC173 4D型触发器CD4011 四2输入与非门 SN74HC174 6D触发器CD4012 双4输入与非门 SN74HC175 4D型触发器CD4013 置/复位双D型触发器 SN74HC191 二进制同步可逆计数器CD4014 8位静态同步移位寄存 SN74HC221 双单稳态多谐振荡器CD4015 双4位静态移位寄存器 SN74HC238 3－8线译码器CD4016 四双向模拟数字开关 SN74HC240 八缓冲器CD4017 10译码输出十进制计数器 SN74HC244 八总线3态输出缓冲器CD4018 可预置1/N计数器 SN74HC245 八总线收发器CD4019 四与或选择门 SN74HC251 三态8－1数据选择器CD4020 14位二进制计数器 SN74HC259 8位可寻址锁存器CD4021 8位静态移位寄存器 SN74HC266 四2输入异或非门CD4022 8译码输出8进制计数器 SN74HC273 8D型触发器CD4023 三3输入与非门 SN74HC367 六缓冲器/总线CD4024 7位二进制脉冲计数器 SN74HC368 六缓冲器/总线驱动器CD4025 三3输入与非门 SN74HC373 8D锁存器CD4026 十进制/7段译码/驱动 SN74HC374 8D触发器CD4027 置位/复位主从触发器 SN74HC393 双4位二进制计数器CD4028 BCD十进制译码器 SN74HC541 8位三态输出缓冲器CD4029 4位可预置可逆计数器 SN74HC573 8位三态输出D型锁存器CD4030 四异或门 SN74HC574 8D型触发器CD4031 64位静态移位寄存器 SN74HC595 8位移位寄存器/锁存器CD4032 三串行加法器 SN74HC4028 7级二进制串行加数器CD4033 十进制计数器/7段显示 SN74HC4046 锁相环CD4034 8位静态移位寄存器 SN74HC4050 六同相缓冲器CD4035 4位并入/并出移位寄存器 SN74HC4051 8选1模拟开关CD4038 3位串行加法器 SN74HC4053 三2选1模拟开关CD4040 12位二进制计数器 SN74HC4060 14位计数/分频/振荡器CD4041 四原码/补码缓冲器 SN74HC4066 四双相模拟开关CD4042 四时钟D型锁存器 SN74HC4078 3输入端三或门CD4043 四或非R/S锁存器 SN74HC4511 7段锁存/译码驱动器CD4044 四与非R/S锁存器 SN74HC4520 双二进制加法计数器。

74系列常见数字逻辑器件中文注解

74系列常见数字逻辑器件中文注解

1. 74LS00 TTL 2输入端四与非门2. 74LS01 TTL 集电极开路2输入端四与非门3. 74LS02 TTL 2输入端四或非门4. 74LS03 TTL 集电极开路2输入端四与非门5. 74LS04 TTL 六反相器6. 74LS05 TTL 集电极开路六反相器7. 74LS06 TTL 集电极开路六反相高压驱动器8. 74LS07 TTL 集电极开路六正相高压驱动器9. 74LS08 TTL 2输入端四与门10. 74LS09 TTL 集电极开路2输入端四与门11. 74LS10 TTL 3输入端3与非门12. 74LS107 TTL 带清除主从双J-K触发器13. 74LS109 TTL 带预置清除正触发双J-K触发器14. 74LS11 TTL 3输入端3与门15. 74LS112 TTL 带预置清除负触发双J-K触发器16. 74LS12 TTL 开路输出3输入端三与非门17. 74LS121 TTL 单稳态多谐振荡器18. 74LS122 TTL 可再触发单稳态多谐振荡器19. 74LS123 TTL 双可再触发单稳态多谐振荡器20. 74LS125 TTL 三态输出高有效四总线缓冲门21. 74LS126 TTL 三态输出低有效四总线缓冲门22. 74LS13 TTL 4输入端双与非施密特触发器23. 74LS132 TTL 2输入端四与非施密特触发器24. 74LS133 TTL 13输入端与非门25. 74LS136 TTL 四异或门26. 74LS138 TTL 3-8线译码器/复工器27. 74LS139 TTL 双2-4线译码器/复工器28. 74LS14 TTL 六反相施密特触发器29. 74LS145 TTL BCD—十进制译码/驱动器30. 74LS15 TTL 开路输出3输入端三与门31. 74LS150 TTL 16选1数据选择/多路开关32. 74LS151 TTL 8选1数据选择器33. 74LS153 TTL 双4选1数据选择器34. 74LS154 TTL 4线—16线译码器35. 74LS155 TTL 图腾柱输出译码器/分配器36. 74LS156 TTL 开路输出译码器/分配器37. 74LS157 TTL 同相输出四2选1数据选择器38. 74LS158 TTL 反相输出四2选1数据选择器39. 74LS16 TTL 开路输出六反相缓冲/驱动器40. 74LS160 TTL 可预置BCD异步清除计数器41. 74LS161 TTL 可予制四位二进制异步清除计数器42. 74LS162 TTL 可预置BCD同步清除计数器43. 74LS163 TTL 可予制四位二进制同步清除计数器44. 74LS164 TTL 八位串行入/并行输出移位寄存器45. 74LS165 TTL 八位并行入/串行输出移位寄存器46. 74LS166 TTL 八位并入/串出移位寄存器47. 74LS169 TTL 二进制四位加/减同步计数器48. 74LS17 TTL 开路输出六同相缓冲/驱动器49. 74LS170 TTL 开路输出4×4寄存器堆50. 74LS173 TTL 三态输出四位D型寄存器51. 74LS174 TTL 带公共时钟和复位六D触发器52. 74LS175 TTL 带公共时钟和复位四D触发器53. 74LS180 TTL 9位奇数/偶数发生器/校验器54. 74LS181 TTL 算术逻辑单元/函数发生器55. 74LS185 TTL 二进制—BCD代码转换器56. 74LS190 TTL BCD同步加/减计数器57. 74LS191 TTL 二进制同步可逆计数器58. 74LS192 TTL 可预置BCD双时钟可逆计数器59. 74LS193 TTL 可预置四位二进制双时钟可逆计数器60. 74LS194 TTL 四位双向通用移位寄存器61. 74LS195 TTL 四位并行通道移位寄存器62. 74LS196 TTL 十进制/二-十进制可预置计数锁存器63. 74LS197 TTL 二进制可预置锁存器/计数器64. 74LS20 TTL 4输入端双与非门65. 74LS21 TTL 4输入端双与门66. 74LS22 TTL 开路输出4输入端双与非门67. 74LS221 TTL 双/单稳态多谐振荡器68. 74LS240 TTL 八反相三态缓冲器/线驱动器69. 74LS241 TTL 八同相三态缓冲器/线驱动器70. 74LS243 TTL 四同相三态总线收发器71. 74LS244 TTL 八同相三态缓冲器/线驱动器72. 74LS245 TTL 八同相三态总线收发器73. 74LS247 TTL BCD—7段15V输出译码/驱动器74. 74LS248 TTL BCD—7段译码/升压输出驱动器75. 74LS249 TTL BCD—7段译码/开路输出驱动器76. 74LS251 TTL 三态输出8选1数据选择器/复工器77. 74LS253 TTL 三态输出双4选1数据选择器/复工器78. 74LS256 TTL 双四位可寻址锁存器79. 74LS257 TTL 三态原码四2选1数据选择器/复工器80. 74LS258 TTL 三态反码四2选1数据选择器/复工器81. 74LS259 TTL 八位可寻址锁存器/3-8线译码器82. 74LS26 TTL 2输入端高压接口四与非门83. 74LS260 TTL 5输入端双或非门84. 74LS266 TTL 2输入端四异或非门85. 74LS27 TTL 3输入端三或非门86. 74LS273 TTL 带公共时钟复位八D触发器87. 74LS279 TTL 四图腾柱输出S-R锁存器88. 74LS28 TTL 2输入端四或非门缓冲器89. 74LS283 TTL 4位二进制全加器90. 74LS290 TTL 二/五分频十进制计数器91. 74LS293 TTL 二/八分频四位二进制计数器92. 74LS295 TTL 四位双向通用移位寄存器93. 74LS298 TTL 四2输入多路带存贮开关94. 74LS299 TTL 三态输出八位通用移位寄存器95. 74LS30 TTL 8输入端与非门96. 74LS32 TTL 2输入端四或门97. 74LS322 TTL 带符号扩展端八位移位寄存器98. 74LS323 TTL 三态输出八位双向移位/存贮寄存器99. 74LS33 TTL 开路输出2输入端四或非缓冲器100. 74LS347 TTL BCD—7段译码器/驱动器101. 74LS352 TTL 双4选1数据选择器/复工器102. 74LS353 TTL 三态输出双4选1数据选择器/复工器103. 74LS365 TTL 门使能输入三态输出六同相线驱动器104. 74LS365 TTL 门使能输入三态输出六同相线驱动器105. 74LS366 TTL 门使能输入三态输出六反相线驱动器106. 74LS367 TTL 4/2线使能输入三态六同相线驱动器107. 74LS368 TTL 4/2线使能输入三态六反相线驱动器108. 74LS37 TTL 开路输出2输入端四与非缓冲器109. 74LS373 TTL 三态同相八D锁存器110. 74LS374 TTL 三态反相八D锁存器111. 74LS375 TTL 4位双稳态锁存器112. 74LS377 TTL 单边输出公共使能八D锁存器113. 74LS378 TTL 单边输出公共使能六D锁存器114. 74LS379 TTL 双边输出公共使能四D锁存器115. 74LS38 TTL 开路输出2输入端四与非缓冲器116. 74LS380 TTL 多功能八进制寄存器117. 74LS39 TTL 开路输出2输入端四与非缓冲器118. 74LS390 TTL 双十进制计数器119. 74LS393 TTL 双四位二进制计数器120. 74LS40 TTL 4输入端双与非缓冲器121. 74LS42 TTL BCD—十进制代码转换器122. 74LS352 TTL 双4选1数据选择器/复工器123. 74LS353 TTL 三态输出双4选1数据选择器/复工器124. 74LS365 TTL 门使能输入三态输出六同相线驱动器125. 74LS366 TTL 门使能输入三态输出六反相线驱动器126. 74LS367 TTL 4/2线使能输入三态六同相线驱动器127. 74LS368 TTL 4/2线使能输入三态六反相线驱动器128. 74LS37 TTL 开路输出2输入端四与非缓冲器129. 74LS373 TTL 三态同相八D锁存器130. 74LS374 TTL 三态反相八D锁存器131. 74LS375 TTL 4位双稳态锁存器132. 74LS377 TTL 单边输出公共使能八D锁存器133. 74LS378 TTL 单边输出公共使能六D锁存器134. 74LS379 TTL 双边输出公共使能四D锁存器135. 74LS38 TTL 开路输出2输入端四与非缓冲器136. 74LS380 TTL 多功能八进制寄存器137. 74LS39 TTL 开路输出2输入端四与非缓冲器138. 74LS390 TTL 双十进制计数器139. 74LS393 TTL 双四位二进制计数器140. 74LS40 TTL 4输入端双与非缓冲器141. 74LS42 TTL BCD—十进制代码转换器142. 74LS447 TTL BCD—7段译码器/驱动器143. 74LS45 TTL BCD—十进制代码转换/驱动器144. 74LS450 TTL 16:1多路转接复用器多工器145. 74LS451 TTL 双8:1多路转接复用器多工器146. 74LS453 TTL 四4:1多路转接复用器多工器147. 74LS46 TTL BCD—7段低有效译码/驱动器148. 74LS460 TTL 十位比较器149. 74LS461 TTL 八进制计数器150. 74LS465 TTL 三态同相2与使能端八总线缓冲器151. 74LS466 TTL 三态反相2与使能八总线缓冲器152. 74LS467 TTL 三态同相2使能端八总线缓冲器153. 74LS468 TTL 三态反相2使能端八总线缓冲器154. 74LS469 TTL 八位双向计数器155. 74LS47 TTL BCD—7段高有效译码/驱动器156. 74LS48 TTL BCD—7段译码器/内部上拉输出驱动157. 74LS490 TTL 双十进制计数器158. 74LS491 TTL 十位计数器159. 74LS498 TTL 八进制移位寄存器160. 74LS50 TTL 2-3/2-2输入端双与或非门161. 74LS502 TTL 八位逐次逼近寄存器162. 74LS503 TTL 八位逐次逼近寄存器163. 74LS51 TTL 2-3/2-2输入端双与或非门164. 74LS533 TTL 三态反相八D锁存器165. 74LS534 TTL 三态反相八D锁存器166. 74LS54 TTL 四路输入与或非门167. 74LS540 TTL 八位三态反相输出总线缓冲器168. 74LS55 TTL 4输入端二路输入与或非门169. 74LS563 TTL 八位三态反相输出触发器170. 74LS564 TTL 八位三态反相输出D触发器171. 74LS573 TTL 八位三态输出触发器172. 74LS574 TTL 八位三态输出D触发器173. 74LS645 TTL 三态输出八同相总线传送接收器174. 74LS670 TTL 三态输出4×4寄存器堆175. 74LS73 TTL 带清除负触发双J-K触发器176. 74LS74 TTL 带置位复位正触发双D触发器177. 74LS76 TTL 带预置清除双J-K触发器178. 74LS83 TTL 四位二进制快速进位全加器179. 74LS85 TTL 四位数字比较器180. 74LS86 TTL 2输入端四异或门181. 74LS90 TTL 可二/五分频十进制计数器182. 74LS93 TTL 可二/八分频二进制计数器183. 74LS95 TTL 四位并行输入\\输出移位寄存器184. 74LS97 TTL 6位同步二进制乘法器。

74ls系列芯片功能和参数详细介绍

74ls系列芯片功能和参数详细介绍

74ls系列芯⽚功能和参数详细介绍74、74HC、74LS系列芯⽚资料系列电平典型传输延迟ns 最⼤驱动电流(-Ioh/Lol)mAAHC CMOS 8.5 -8/8AHCT COMS/TTL 8.5 -8/8HC COMS 25 -8/8HCT COMS/TTL 25 -8/8ACT COMS/TTL 10 -24/24F TTL 6.5 -15/64ALS TTL 10 -15/64LS TTL 18 -15/24注：同型号的74系列、74HC系列、74LS系列芯⽚，逻辑功能上是⼀样的。

74LSxx的使⽤说明如果找不到的话，可参阅74xx 或74HCxx的使⽤说明。

有些资料⾥包含了⼏种芯⽚，如74HC161资料⾥包含了74HC160、74HC161、74HC162、74HC163四种芯⽚的资料。

找不到某种芯⽚的资料时，可试着查看⼀下临近型号的芯⽚资料。

7400 QUAD 2-INPUT NAND GATES 与⾮门7401 QUAD 2-INPUT NAND GATES OC 与⾮门7402 QUAD 2-INPUT NOR GATES 或⾮门7403 QUAD 2-INPUT NAND GATES 与⾮门7404 HEX INVERTING GATES 反向器7406 HEX INVERTING GATES HV ⾼输出反向器7408 QUAD 2-INPUT AND GATE 与门7409 QUAD 2-INPUT AND GATES OC 与门7410 TRIPLE 3-INPUT NAND GATES 与⾮门7411 TRIPLE 3-INPUT AND GATES 与门74121 ONE-SHOT WITH CLEAR 单稳态74132 SCHMITT TRIGGER NAND GATES 触发器与⾮门7414 SCHMITT TRIGGER INVERTERS 触发器反向器74153 4-LINE TO 1 LINE SELECTOR 四选⼀74155 2-LINE TO 4-LINE DECODER 译码器74180 PARITY GENERATOR/CHECKER 奇偶发⽣检验74191 4-BIT BINARY COUNTER UP/DOWN 计数器7420 DUAL 4-INPUT NAND GATES 双四输⼊与⾮门7426 QUAD 2-INPUT NAND GATES 与⾮门7427 TRIPLE 3-INPUT NOR GATES 三输⼊或⾮门7430 8-INPUT NAND GATES ⼋输⼊端与⾮门7432 QUAD 2-INPUT OR GATES ⼆输⼊或门7438 2-INPUT NAND GATE BUFFER 与⾮门缓冲器7445 BCD-DECIMAL DECODER/DRIVER BCD译码驱动器7474 D-TYPE FLIP-FLOP D型触发器7475 QUAD LATCHES 双锁存器7476 J-K FLIP-FLOP J-K触发器7485 4-BIT MAGNITUDE COMPARATOR 四位⽐较器7486 2-INPUT EXCLUSIVE OR GATES 双端异或门74HC00 QUAD 2-INPUT NAND GATES 双输⼊与⾮门74HC02 QUAD 2-INPUT NOR GATES 双输⼊或⾮门74HC03 2-INPUT OPEN-DRAIN NAND GATES 与⾮门74HC04 HEX INVERTERS 六路反向器74HC05 HEX INVERTERS OPEN DRAIN 六路反向器74HC08 2-INPUT AND GATES 双输⼊与门74HC107 J-K FLIP-FLOP WITH CLEAR J-K触发器74HC109A J-K FLIP-FLOP W/PRESET J-K触发器74HC11 TRIPLE 3-INPUT AND GATES 三输⼊与门74HC112 DUAL J-K FLIP-FLOP 双J-K触发器74HC113 DUAL J-K FLIP-FLOP PRESET 双JK触发器74HC123A RETRIGGERABLE MONOSTAB 可重触发单稳74HC125 TRI-STATE QUAD BUFFERS 四个三态门74HC126 TRI-STATE QUAD BUFFERS 六三态门74HC132 2-INPUT TRIGGER NAND 施密特触发与⾮门74HC133 13-INPUT NANDGATES ⼗三输⼊与⾮门74HC137 3-TO-8 DECODERS W/LATCHES 3-8线译码器74HC138 3-8 LINE DECODER 3线⾄8线译码器74HC139 2-4 LINE DECODER 2线⾄4线译码器74HC14 TRIGGERED HEX INVERTER 六触发反向器74HC147 10-4 LINE PRIORITY ENCODER 10-4编码器74HC148 8-3 LINE PRIORITY ENCODER 8-3编码器74HC149 8-8 LINE PRIORITY ENCODER 8-8编码器74HC151 8-CHANNEL DIGITAL MUX 8通道多路器74HC153 DUAL 4-INPUT MUX 双四输⼊多路器74HC154 4-16 LINE DECODER 4线⾄16线译码器74HC155 2-4 LINE DECODER 2线⾄4线译码器74HC157 QUAD 2-INPUT MUX 四个双端多路器74HC161 BINARY COUNTER ⼆进制计数器74HC163 DECADE COUNTERS ⼗进制计数器74HC164 SERIAL-PARALLEL SHIFT REG 串⼊并出74HC165 PARALLEL-SERIAL SHIFT REG 并⼊串出74HC166 SERIAL-PARALLEL SHIFT REG 串⼊并出74HC173 TRI-STATE D FLIP-FLOP 三态D触发器74HC174 HEX D FLIP-FLOP W/CLEAR 六D触发器74HC175 HEX D FLIP-FLOP W/CLEAR 六D触发器74HC181 ARITHMETIC LOGIC UNIT 算术逻辑单元74HC182 LOOK AHEAD CARRYGENERATR 进位发⽣器74HC190 BINARY UP/DN COUNTER ⼆进制加减计数器74HC191 DECADE UP/DN COUNTER ⼗进制加减计数器74HC192 DECADE UP/DN COUNTER ⼗进制加减计数器74HC193 BINARY UP/DN COUNTER ⼆进制加减计数器74HC194 4BIT BI-DIR SHIFT 4位双向移位寄存器74HC195 4BIT PARALLEL SHIFT 4位并⾏移位寄存器74HC20 QUAD 4-INPUT NAND GATE 四个四⼊与⾮门74HC221A NON-RETRIG MONOSTAB 不可重触发单稳74HC237 3-8 LINE DECODER 地址锁3线⾄8线译码器74HC242/243 TRI-STAT TRANSCEIVER 三态收发器74HC244 OCTAL 3-STATE BUFFER ⼋个三态缓冲门74HC245 OCTAL 3-STATE TRANSCEIVER 三态收发器74HC251 8-CH 3-STATE MUX 8路3态多路器74HC253 DUAL 4-CH 3-STATE MUX 4路3态多路器74HC257 QUAD 2-CH 3-STATE MUX 4路3态多路器74HC258 2-CH 3-STATE MUX 2路3态多路器74HC259 3-8 LINE DECODER 8位地址锁存译码器74HC266A 2-INPUT EXCLUSIVE NOR GATE 异或⾮74HC27 TRIPLE 3-INPUT NOR GATE三个3输⼊或⾮门74HC273 OCTAL D FLIP-FLOP CLEAR 8路D触发器74HC280 9BIT ODD/EVEN GENERATOR 奇偶发⽣器74HC283 4BIT BINARY ADDER CARRY 四位加法器74HC299 3-STATE UNIVERSAL SHIFT 三态移位寄存74HC30 8-INPUT NAND GATE 8输⼊端与⾮门74HC32 QUAD 2-INPUT OR GATE 四个双端或门74HC34 NON-INVERTER ⾮反向器74HC354 8-CH 3-STATE MUX 8路3态多路器74HC356 8-CH 3-STATE MUX 8路3态多路器74HC365 HEX 3-STATE BUFFER 六个三态缓冲门74HC366 3-STATE BUFFER INVERTER 缓冲反向器74HC367 3-STATE BUFFER INVERTER 缓冲反向器74HC368 3-STATE BUFFER INVERTER 缓冲反向器74HC373 3-STATE OCTAL D LATCHES 三态D型锁存器74HC374 3-STATE OCTAL D FLIPFLOP 三态D触发器74HC393 4-BIT BINARY COUNTER 4位⼆进制计数器74HC4016 QUAD ANALOG SWITCH 四路模拟量开关74HC4020 14-Stage Binary Counter 14输出计数器74HC4017 Decade Counter/Divider with 10 Decoded Outputs ⼗进制计数器带10个译码输出端74HC4040 12 Stage Binary Counter 12出计数器74HC4046 PHASE LOCK LOOP 相位监测输出器74HC4049 LEVEL DOWN CONVERTER 电平变低器74HC4050 LEVEL DOWN CONVERTER 电平变低器74HC4051 8-CH ANALOG MUX 8通道多路器74HC4052 4-CH ANALOG MUX 4通道多路器74HC4053 2-CH ANALOG MUX 2通道多路器74HC4060 14-STAGE BINARY COUNTER 14阶BIN计数74HC4066 QUAD ANALOG MUX 四通道多路器74HC4075 TRIPLE 3-INPUT OR GATE 3输⼊或门74HC42 BCD TO DECIMAL BCD转⼗进制译码器74HC423A RETRIGGERABLE MONOSTAB 可重触发单稳74HC4511 BCD-7 SEG DRIVER/DECODER 7段译码器74HC4514 4-16 LINE DECODER 4⾄16线译码器74HC4538A RETRIGGERAB MONOSTAB 可重触发单稳74HC4543 LCD BCD-7 SEG LCD⽤的BCD-7段译码驱动74HC51 AND OR GATE INVERTER 与或⾮门74HC521 8BIT MAGNITUDE COMPARATOR 判决定路74HC533 3-STATE D LATCH 三态D锁存器74HC534 3-STATE D FLIP-FLOP 三态D型触发器74HC540 3-STATE BUFFER 三态缓冲器74HC541 3-STATE BUFFER INVERTER三态缓冲反向器74HC58 DUAL AND OR GATE 与或门74HC589 3STATE 8BIT SHIFT 8位移位寄存三态输出74HC594 8BIT SHIFT REG 8位移位寄存器74HC595 8BIT SHIFT REG 8位移位寄存器出锁存74HC597 8BIT SHIFT REG 8位移位寄存器⼊锁存74HC620 3-STATE TRANSCEIVER 反向3态收发器74HC623 3-STATE TRANSCEIVER ⼋路三态收发器74HC640 3-STATE TRANSCEIVER 反向3态收发器74HC643 3-STATE TRANSCEIVER ⼋路三态收发器74HC646 NON-INVERT BUS TRANSCEIVER 总线收发器74HC648 INVERT BUS TRANCIVER 反向总线收发器74HC688 8BIT MAGNITUDE COMPARATOR 8位判决电路74HC7266 2-INPUT EXCLUSIVE NOR GATE 异或⾮门74HC73 DUAL J-K FLIP-FLOP W/CLEAR 双JK触发器74HC74A PRESET/CLEAR D FLIP-FLOP 双D触发器74HC75 4BIT BISTABLE LATCH 4位双稳锁存器74HC76 PRESET/CLEAR JK FLIP-FLOP 双JK触发器74HC85 4BIT MAGNITUDE COMPARATOR 4位判决电路74HC86 2INPUT EXCLUSIVE OR GATE 2输⼊异或门74HC942 BAUD MODEM 300BPS低速调制解调器74HC943 300 BAUD MODEM 300BPS低速调制解调器74LS00 QUAD 2-INPUT NAND GATES 与⾮门74LS02 QUAD 2-INPUT NOR GATES 或⾮门74LS03 QUAD 2-INPUT NAND GATES 与⾮门74LS04 HEX INVERTING GATES 反向器74LS05 HEX INVERTERS OPEN DRAIN 六路反向器74LS08 QUAD 2-INPUT AND GATE 与门74LS09 QUAD 2-INPUT AND GATES OC 与门74LS10 TRIPLE 3-INPUT NAND GATES 与⾮门74LS109 QUAD 2-INPUT AND GATES OC 与门74LS11 TRIPLE 3-INPUT AND GATES 与门74LS112 DUAL J-K FLIP-FLOP 双J-K触发器74LS113 DUAL J-K FLIP-FLOP PRESET 双JK触发器74LS114 NEGATIVE J-K FLIP-FLOP 负沿J-K触发器74LS122 Retriggerable Monostab 可重触发单稳74LS123 Retriggerable Monostable 可重触发单稳74LS125 TRI-STATE QUAD BUFFERS 四个三态门74LS13 QUAL 4-in NAND TRIGGER 4输⼊与⾮触发器74LS160 BCD DECADE 4BIT BIN COUNTERS 计数器74LS136 QUADRUPLE 2-INPUT XOR GATE 异或门74LS138 3-8 LINE DECODER 3线⾄8线译码器74LS139 2-4 LINE DECODER 2线⾄4线译码器74LS14 TRIGGERED HEX INVERTER 六触发反向器74HC147 10-4 LINE PRIORITY ENCODER 10-4编码器74HC148 8-3 LINE PRIORITY ENCODER 8-3编码器74HC149 8-8 LINE PRIORITY ENCODER 8-8编码器74LS151 8-CHANNEL DIGITAL MUX 8通道多路器74LS153 DUAL 4-INPUT MUX 双四输⼊多路器74LS155 2-4 LINE DECODER 2线⾄4线译码器74LS156 2-4 LINE DECODER/DEMUX 2-4译码器74LS157 QUAD 2-INPUT MUX 四个双端多路器74LS158 2-1 LINE MUX 2-1线多路器74LS160A BINARY COUNTER ⼆进制计数器74LS161A BINARY COUNTER ⼆进制计数器74LS162A BINARY COUNTER ⼆进制计数器74LS163A DECADE COUNTERS ⼗进制计数器74LS164 SERIAL-PARALLEL SHIFT REG 串⼊并出74LS168 BI-DIRECT BCD TO DECADE 双向计数器74LS1694BIT UP/DN BIN COUNTER 四位加减计数器74LS173 TRI-STATE D FLIP-FLOP 三态D触发器74LS174 HEX D FLIP-FLOP W/CLEAR 六D触发器74LS175 HEX D FLIP-FLOP W/CLEAR 六D触发器74LS190 BINARY UP/DN COUNTER ⼆进制加减计数器74LS191 DECADE UP/DN COUNTER ⼗进制加减计数器74LS192 DECADE UP/DN COUNTER ⼗进制加减计数器74LS193BINARY UP/DN COUNTER ⼆进制加减计数器74LS194A 4BIT BI-DIR SHIFT 4位双向移位寄存器74LS195A 4BIT PARALLEL SHIFT4位并⾏移位寄存器74LS20 QUAD 4-INPUT NAND GATE 四个四⼊与⾮门74LS21 4-INPUT AND GATE 四输⼊端与门74LS240 OCTAL 3-STATE BUFFER ⼋个三态缓冲门74LS244 OCTAL 3-STATE BUFFER ⼋个三态缓冲门74LS245 OCTAL 3-STATE TRANSCEIVER 三态收发器74LS253 DUAL 4-CH 3-STATE MUX 4路3态多路器74LS256 4BIT ADDRESS LATCH 四位可锁存锁存器74LS257 QUAD 2-CH 3-STATE MUX 4路3态多路器74LS258 2-CH 3-STATE MUX 2路3态多路器74LS27 TRIPLE 3-INPUT NOR GATES 三输⼊或⾮门74LS279 QUAD R-S LATCHES 四个RS⾮锁存器74LS28 QUAD 2-INPUT NOR BUFFER 四双端或⾮缓冲74LS283 4BIT BINARY ADDER CARRY 四位加法器74LS30 8-INPUT NAND GATES ⼋输⼊端与⾮门74LS32 QUAD 2-INPUT OR GATES ⼆输⼊或门74LS352 4-1 LINE SELECTOR/MUX 4-1线选择多路器74LS365 HEX 3-STATE BUFFER 六个三态缓冲门74LS367 3-STATE BUFFER INVERTER 缓冲反向器74LS368A 3-STATE BUFFER INVERTER 缓冲反向器74LS373 OCT LATCH W/3-STATE OUT三态输出锁存器74LS76 Dual JK Flip-Flop w/set 2个JK触发器74LS379 QUAD PARALLEL REG 四个并⾏寄存器74LS38 2-INPUT NAND GATE BUFFER 与⾮门缓冲器74LS390 DUAL DECADE COUNTER 2个10进制计数器74LS393 DUAL BINARY COUNTER 2个2进制计数器74LS42 BCD TO DECIMAL BCD转⼗进制译码器74LS48 BCD-7 SEG BCD-7段译码器74LS49 BCD-7 SEG BCD-7段译码器74LS51 AND OR GATE INVERTER 与或⾮门74LS540 OCT Buffer/Line Driver 8路缓冲驱动器74LS541 OCT Buffer/LineDriver 8路缓冲驱动器74LS74 D-TYPE FLIP-FLOP D型触发器74LS682 8BIT MAGNITUDE COMPARATOR 8路⽐较器74LS684 8BIT MAGNITUDE COMPARATOR 8路⽐较器74LS75 QUAD LATCHES 双锁存器74LS83A 4BIT BINARY ADDER CARRY 四位加法器74LS85 4BIT MAGNITUDE COMPARAT 4位判决电路74LS86 2INPUT EXCLUSIVE OR GATE 2输⼊异或门74LS90 DECADE/BINARY COUNTER ⼗/⼆进制计数器74LS95B4BIT RIGHT/LEFT SHIFT 4位左右移位寄存74LS688 8BIT MAGNITUDE COMPARAT 8位判决电路74LS136 2-INPUT XOR GATE 2输⼊异或门74LS651 BUS TRANSCEIVERS 总线收发器74LS653 BUS TRANSCEIVERS 总线收发器74LS670 3-STATE 4-BY-4 REG 3态4-4寄存器74LS73A DUAL J-K FLIP-FLOP W/CLEAR 双JK触发器。

74LS系列名称解释

74LS系列名称解释

74LS365 74LS366 74LS367 74LS368 74LS373 74LS374 74LS375 74LS377 74LS378 74LS379 74LS381 74LS382 74LS384 74LS385 74LS386 74LS390 74LS391 74LS395 74LS396 74LS398 74LS399 74LS422 74LS423 74LS440 74LS441 74LS442 74LS443 74LS444 74LS445 74LS446 74LS448 74LS449 74LS465
74LS181 74LS182 74LS183 74LS184 74LS185 74LS190 74LS191 74LS192 74LS193 74LS194 74LS195 74LS196 74LS197 74LS198 74LS199 74LS210 74LS213 74LS221 74LS230 74LS231 74LS240 74LS241 74LS242 74LS243 74LS244 74LS245 74LS246 74LS247 74LS248 74LS249 74LS251 74LS253 74LS256 74LS257
74LS系
型号 74LS00 74LS01 74LS02 74LS03 74LS04 74LS05 74LS06 74LS07 74LS08 74LS09 74LS10 74LS11 74LS12 74LS13 74LS14 74LS15 74LS16 74LS17 74LS18 74LS19 74LS20 74LS21 74LS22 74LS23 内容 2输入四与非门 2输入四与非门(oc) 2输入四或非门 2输入四与非门(oc) 六倒相器 六倒相器(oc) 六高压输出反相缓冲器/驱动器 (oc,30v) 六高压输出缓冲器/驱动器(oc,30v) 2输入四与门 2输入四与门(oc) 3输入三与非门 3输入三与门 3输入三与非门(oc) 4输入双与非门(斯密特触发) 六倒相器(斯密特触发) 型号 74LS111 74LS112 74LS113 74LS114 74LS116 74LS120 74LS121 74LS122 74LS123 74LS125 74LS126 74LS128 74LS131 74LS132 74LS133

74ls系列中文资料功能介绍

74ls系列中文资料功能介绍

74ls系列中文资料功能介绍（注：红色为实验室已有器件）型号功能----------------------------------------------------74ls00 2输入四与非门74ls01 2输入四与非门(oc)74ls02 2输入四或非门74ls03 2输入四与非门(oc)74ls04 六倒相器74ls05 六倒相器(oc)74ls06 六高压输出反相缓冲器/驱动器(oc,30v) 74ls07 六高压输出缓冲器/驱动器(oc,30v)74ls08 2输入四与门74ls09 2输入四与门(oc)74ls10 3输入三与非门74ls11 3输入三与门74ls12 3输入三与非门(oc)74ls13 4输入双与非门(斯密特触发)74ls14 六倒相器(斯密特触发)74ls15 3输入三与门(oc)74ls16 六高压输出反相缓冲器/驱动器(oc,15v) 74ls17 六高压输出缓冲器/驱动器(oc,15v)74ls18 4输入双与非门(斯密特触发)74ls19 六倒相器(斯密特触发)74ls20 4输入双与非门74ls21 4输入双与门74ls22 4输入双与非门(oc)74ls23 双可扩展的输入或非门74ls24 2输入四与非门(斯密特触发)74ls25 4输入双或非门(有选通)74ls26 2输入四高电平接口与非缓冲器(oc,15v) 74ls27 3输入三或非门74ls28 2输入四或非缓冲器74ls30 8输入与非门74ls31 延迟电路74ls32 2输入四或门74ls33 2输入四或非缓冲器(集电极开路输出)74ls34 六缓冲器74ls35 六缓冲器(oc)74ls36 2输入四或非门(有选通)74ls37 2输入四与非缓冲器74ls38 2输入四或非缓冲器(集电极开路输出)74ls39 2输入四或非缓冲器(集电极开路输出)74ls40 4输入双与非缓冲器74ls41 bcd-十进制计数器74ls42 4线-10线译码器(bcd输入)74ls43 4线-10线译码器(余3码输入)74ls44 4线-10线译码器(余3葛莱码输入)74ls45 bcd-十进制译码器/驱动器74ls46 bcd-七段译码器/驱动器74ls47 bcd-七段译码器/驱动器74ls48 bcd-七段译码器/驱动器74ls49 bcd-七段译码器/驱动器(oc)74ls50 双二路2-2输入与或非门(一门可扩展)74ls51 双二路2-2输入与或非门74ls51 二路3-3输入,二路2-2输入与或非门74ls52 四路2-3-2-2输入与或门(可扩展)74ls53 四路2-2-2-2输入与或非门(可扩展)74ls53 四路2-2-3-2输入与或非门(可扩展)74ls54 四路2-2-2-2输入与或非门74ls54 四路2-3-3-2输入与或非门74ls54 四路2-2-3-2输入与或非门74ls55 二路4-4输入与或非门(可扩展)74ls60 双四输入与扩展74ls61 三3输入与扩展74ls62 四路2-3-3-2输入与或扩展器74ls63 六电流读出接口门74ls64 四路4-2-3-2输入与或非门74ls65 四路4-2-3-2输入与或非门(oc)74ls70 与门输入上升沿jk触发器74ls71 与输入r-s主从触发器74ls72 与门输入主从jk触发器74ls73 双j-k触发器(带清除端)74ls74 正沿触发双d型触发器(带预置端和清除端)74ls75 4位双稳锁存器74ls76 双j-k触发器(带预置端和清除端)74ls77 4位双稳态锁存器74ls78 双j-k触发器(带预置端,公共清除端和公共时钟端) 74ls80 门控全加器74ls81 16位随机存取存储器74ls82 2位二进制全加器(快速进位)74ls83 4位二进制全加器(快速进位)74ls84 16位随机存取存储器74ls85 4位数字比较器74ls86 2输入四异或门74ls87 四位二进制原码/反码/oi单元74ls89 64位读/写存储器74ls90 十进制计数器74ls91 八位移位寄存器74ls92 12分频计数器(2分频和6分频)74ls93 4位二进制计数器74ls94 4位移位寄存器(异步)74ls95 4位移位寄存器(并行io)74ls96 5位移位寄存器74ls97 六位同步二进制比率乘法器74ls100 八位双稳锁存器74ls103 负沿触发双j-k主从触发器(带清除端)74ls106 负沿触发双j-k主从触发器(带预置,清除,时钟) 74ls107 双j-k主从触发器(带清除端)74ls108 双j-k主从触发器(带预置,清除,时钟)74ls109 双j-k触发器(带置位,清除,正触发)74ls110 与门输入j-k主从触发器(带锁定)74ls111 双j-k主从触发器(带数据锁定)74ls112 负沿触发双j-k触发器(带预置端和清除端)74ls113 负沿触发双j-k触发器(带预置端)74ls114 双j-k触发器(带预置端,共清除端和时钟端)74ls116 双四位锁存器74ls120 双脉冲同步器/驱动器74ls121 单稳态触发器(施密特触发)74ls122 可再触发单稳态多谐振荡器(带清除端)74ls123 可再触发双单稳多谐振荡器74ls125 四总线缓冲门(三态输出)74ls126 四总线缓冲门(三态输出)74ls128 2输入四或非线驱动器74ls131 3-8译码器74ls132 2输入四与非门(斯密特触发)74ls133 13输入端与非门74ls134 12输入端与门(三态输出)74ls135 四异或/异或非门74ls136 2输入四异或门(oc)74ls137 八选1锁存译码器/多路转换器74ls138 3-8线译码器/多路转换器74ls139 双2-4线译码器/多路转换器74ls140 双4输入与非线驱动器74ls141 bcd-十进制译码器/驱动器74ls142 计数器/锁存器/译码器/驱动器74ls145 4-10译码器/驱动器74ls147 10线-4线优先编码器74ls148 8线-3线八进制优先编码器74ls150 16选1数据选择器(反补输出)74ls151 8选1数据选择器(互补输出)74ls152 8选1数据选择器多路开关74ls153 双4选1数据选择器/多路选择器74ls154 4线-16线译码器74ls155 双2-4译码器/分配器(图腾柱输出)74ls156 双2-4译码器/分配器(集电极开路输出) 74ls157 四2选1数据选择器/多路选择器74ls158 四2选1数据选择器(反相输出)74ls160 可预置bcd计数器(异步清除)74ls161 可预置四位二进制计数器(并清除异步) 74ls162 可预置bcd计数器(异步清除)74ls163 可预置四位二进制计数器(并清除异步) 74ls164 8位并行输出串行移位寄存器74ls165 并行输入8位移位寄存器(补码输出) 74ls166 8位移位寄存器74ls167 同步十进制比率乘法器74ls168 4位加/减同步计数器(十进制)74ls169 同步二进制可逆计数器74ls170 4*4寄存器堆74ls171 四d触发器(带清除端)74ls172 16位寄存器堆74ls173 4位d型寄存器(带清除端)74ls174 六d触发器74ls175 四d触发器74ls176 十进制可预置计数器74ls177 2-8-16进制可预置计数器74ls178 四位通用移位寄存器74ls179 四位通用移位寄存器74ls180 九位奇偶产生/校验器74ls181 算术逻辑单元/功能发生器74ls182 先行进位发生器74ls183 双保留进位全加器74ls184 bcd-二进制转换器74ls185 二进制-bcd转换器74ls190 同步可逆计数器(bcd,二进制)74ls191 同步可逆计数器(bcd,二进制)74ls192 同步可逆计数器(bcd,二进制)74ls193 同步可逆计数器(bcd,二进制)74ls194 四位双向通用移位寄存器74ls195 四位通用移位寄存器74ls196 可预置计数器/锁存器74ls197 可预置计数器/锁存器(二进制)74ls198 八位双向移位寄存器74ls199 八位移位寄存器74ls210 2-5-10进制计数器74ls213 2-n-10可变进制计数器74ls221 双单稳触发器74ls230 八3态总线驱动器74ls231 八3态总线反向驱动器74ls240 八缓冲器/线驱动器/线接收器(反码三态输出) 74ls241 八缓冲器/线驱动器/线接收器(原码三态输出) 74ls242 八缓冲器/线驱动器/线接收器74ls243 4同相三态总线收发器74ls244 八缓冲器/线驱动器/线接收器74ls245 八双向总线收发器74ls246 4线-七段译码/驱动器(30v)74ls247 4线-七段译码/驱动器(15v)74ls248 4线-七段译码/驱动器74ls249 4线-七段译码/驱动器74ls251 8选1数据选择器(三态输出)74ls253 双四选1数据选择器(三态输出)74ls256 双四位可寻址锁存器74ls257 四2选1数据选择器(三态输出)74ls258 四2选1数据选择器(反码三态输出)74ls259 8为可寻址锁存器74ls260 双5输入或非门74ls261 4*2并行二进制乘法器74ls265 四互补输出元件74ls266 2输入四异或非门(oc)74ls270 2048位rom (512位四字节,oc)74ls271 2048位rom (256位八字节,oc)74ls273 八d触发器74ls274 4*4并行二进制乘法器74ls275 七位片式华莱士树乘法器74ls276 四jk触发器74ls278 四位可级联优先寄存器74ls279 四s-r锁存器74ls280 9位奇数/偶数奇偶发生器/较验器74ls28174ls283 4位二进制全加器74ls290 十进制计数器74ls291 32位可编程模74ls293 4位二进制计数器74ls294 16位可编程模74ls295 四位双向通用移位寄存器74ls298 四-2输入多路转换器(带选通)74ls299 八位通用移位寄存器(三态输出)74ls348 8-3线优先编码器(三态输出)74ls352 双四选1数据选择器/多路转换器74ls353 双4-1线数据选择器(三态输出)74ls354 8输入端多路转换器/数据选择器/寄存器,三态补码输出74ls355 8输入端多路转换器/数据选择器/寄存器,三态补码输出74ls356 8输入端多路转换器/数据选择器/寄存器,三态补码输出74ls357 8输入端多路转换器/数据选择器/寄存器,三态补码输出74ls365 6总线驱动器74ls366 六反向三态缓冲器/线驱动器74ls367 六同向三态缓冲器/线驱动器74ls368 六反向三态缓冲器/线驱动器74ls373 八d锁存器74ls374 八d触发器(三态同相)74ls375 4位双稳态锁存器74ls377 带使能的八d触发器74ls378 六d触发器74ls379 四d触发器74ls381 算术逻辑单元/函数发生器74ls382 算术逻辑单元/函数发生器74ls384 8位*1位补码乘法器74ls385 四串行加法器/乘法器74ls386 2输入四异或门74ls390 双十进制计数器74ls391 双四位二进制计数器74ls395 4位通用移位寄存器74ls396 八位存储寄存器74ls398 四2输入端多路开关(双路输出)74ls399 四-2输入多路转换器(带选通)74ls422 单稳态触发器74ls423 双单稳态触发器74ls440 四3方向总线收发器,集电极开路74ls441 四3方向总线收发器,集电极开路74ls442 四3方向总线收发器,三态输出74ls443 四3方向总线收发器,三态输出74ls444 四3方向总线收发器,三态输出74ls445 bcd-十进制译码器/驱动器,三态输出74ls446 有方向控制的双总线收发器74ls448 四3方向总线收发器,三态输出74ls449 有方向控制的双总线收发器74ls465 八三态线缓冲器74ls466 八三态线反向缓冲器74ls467 八三态线缓冲器74ls468 八三态线反向缓冲器74ls490 双十进制计数器74ls540 八位三态总线缓冲器(反向)74ls541 八位三态总线缓冲器74ls589 有输入锁存的并入串出移位寄存器74ls590 带输出寄存器的8位二进制计数器74ls591 带输出寄存器的8位二进制计数器74ls592 带输出寄存器的8位二进制计数器74ls593 带输出寄存器的8位二进制计数器74ls594 带输出锁存的8位串入并出移位寄存器74ls595 8位输出锁存移位寄存器74ls596 带输出锁存的8位串入并出移位寄存器74ls597 8位输出锁存移位寄存器74ls598 带输入锁存的并入串出移位寄存器74ls599 带输出锁存的8位串入并出移位寄存器74ls604 双8位锁存器74ls605 双8位锁存器74ls606 双8位锁存器74ls607 双8位锁存器74ls620 8位三态总线发送接收器(反相)74ls621 8位总线收发器74ls622 8位总线收发器74ls623 8位总线收发器74ls640 反相总线收发器(三态输出)74ls641 同相8总线收发器,集电极开路74ls642 同相8总线收发器,集电极开路74ls643 8位三态总线发送接收器74ls644 真值反相8总线收发器,集电极开路74ls645 三态同相8总线收发器74ls646 八位总线收发器,寄存器74ls647 八位总线收发器,寄存器74ls648 八位总线收发器,寄存器74ls649 八位总线收发器,寄存器74ls651 三态反相8总线收发器74ls652 三态反相8总线收发器74ls653 反相8总线收发器,集电极开路74ls654 同相8总线收发器,集电极开路74ls668 4位同步加/减十进制计数器74ls669 带先行进位的4位同步二进制可逆计数器74ls670 4*4寄存器堆(三态)74ls671 带输出寄存的四位并入并出移位寄存器74ls672 带输出寄存的四位并入并出移位寄存器74ls673 16位并行输出存储器,16位串入串出移位寄存器74ls674 16位并行输入串行输出移位寄存器74ls681 4位并行二进制累加器74ls682 8位数值比较器(图腾柱输出)74ls683 8位数值比较器(集电极开路)74ls684 8位数值比较器(图腾柱输出)74ls685 8位数值比较器(集电极开路)74ls686 8位数值比较器(图腾柱输出)74ls687 8位数值比较器(集电极开路)74ls688 8位数字比较器(oc输出)74ls689 8位数字比较器74ls690 同步十进制计数器/寄存器(带数选,三态输出,直接清除)74ls691 计数器/寄存器(带多转换,三态输出)74ls692 同步十进制计数器(带预置输入,同步清除)74ls693 计数器/寄存器(带多转换,三态输出)74ls696 同步加/减十进制计数器/寄存器(带数选,三态输出,直接清除) 74ls697 计数器/寄存器(带多转换,三态输出)74ls698 计数器/寄存器(带多转换,三态输出)74ls699 计数器/寄存器(带多转换,三态输出)74ls716 可编程模n十进制计数器74ls718 可编程模n十进制计数器。

SN74123中文资料

SN74123中文资料

PRODUCTION DATA information is current as of publication date.Products conform to specifications per the terms of Texas Instrumentsstandard warranty. Production processing does not necessarily includetesting of all parameters.1POST OFFICE BOX 655303 • DALLAS, TEXAS 752652POST OFFICE BOX 655303 • DALLAS, TEXAS 752653 POST OFFICE BOX 655303 • DALLAS, TEXAS 752654POST OFFICE BOX 655303 • DALLAS, TEXAS 752655 POST OFFICE BOX 655303 • DALLAS, TEXAS 752656POST OFFICE BOX 655303 • DALLAS, TEXAS 752657 POST OFFICE BOX 655303 • DALLAS, TEXAS 752658POST OFFICE BOX 655303 • DALLAS, TEXAS 752659 POST OFFICE BOX 655303 • DALLAS, TEXAS 75265PACKAGING INFORMATIONOrderable Device Status (1)Package Type Package DrawingPins Package Qty Eco Plan (2)Lead/Ball FinishMSL Peak Temp (3)5962-7603901VEA ACTIVE CDIP J 161None Call TI Level-NC-NC-NC 5962-7603901VFAACTIVE CFP W 161None Call TI Level-NC-NC-NC 7603901EA ACTIVE CDIP J 161None Call TI Level-NC-NC-NC 7603901FA ACTIVE CFP W 161None Call TI Level-NC-NC-NC JM38510/01203BEA ACTIVE CDIP J 161None Call TI Level-NC-NC-NC JM38510/31401B2A ACTIVE LCCC FK 201None Call TI Level-NC-NC-NC JM38510/31401BEA ACTIVE CDIP J 161None Call TI Level-NC-NC-NC JM38510/31401BFAACTIVE CFP W 161None Call TI Level-NC-NC-NC SN54122J OBSOLETE CDIP J 14None Call TI Call TISN54123J ACTIVE CDIP J 161None Call TI Level-NC-NC-NC SN54LS123J ACTIVE CDIP J 161None Call TI Level-NC-NC-NC SN74122N OBSOLETE PDIP N 14None Call TI Call TISN74123N ACTIVE PDIP N 1625Pb-Free (RoHS)CU NIPDAU Level-NC-NC-NC SN74123N3OBSOLETE PDIP N 16None Call TI Call TISN74LS122D ACTIVE SOIC D 1450Pb-Free (RoHS)CU NIPDAU Level-2-260C-1YEAR/Level-1-235C-UNLIM SN74LS122DR ACTIVE SOIC D 142500Pb-Free (RoHS)CU NIPDAU Level-2-260C-1YEAR/Level-1-235C-UNLIM SN74LS122N ACTIVE PDIP N 1425Pb-Free (RoHS)CU NIPDAU Level-NC-NC-NC SN74LS122N3OBSOLETE PDIP N 14None Call TI Call TISN74LS122NSR ACTIVE SO NS 142000Pb-Free (RoHS)CU NIPDAU Level-2-260C-1YEAR/Level-1-235C-UNLIM SN74LS123D ACTIVE SOIC D 1640Pb-Free (RoHS)CU NIPDAU Level-2-260C-1YEAR/Level-1-235C-UNLIM SN74LS123DR ACTIVE SOIC D 162500Pb-Free (RoHS)CU NIPDAU Level-2-260C-1YEAR/Level-1-235C-UNLIM SN74LS123J OBSOLETE CDIP J 16None Call TI Call TISN74LS123N ACTIVE PDIP N 1625Pb-Free (RoHS)CU NIPDAU Level-NC-NC-NC SN74LS123N3OBSOLETE PDIP N 16None Call TI Call TISN74LS123NSR ACTIVE SO NS 162000Pb-Free (RoHS)CU NIPDAU Level-2-260C-1YEAR/Level-1-235C-UNLIM SNJ54122J OBSOLETE CDIP J 14None Call TI Call TISNJ54123J ACTIVE CDIP J 161None Call TI Level-NC-NC-NC SNJ54123W ACTIVE CFP W 161None Call TI Level-NC-NC-NC SNJ54LS123FK ACTIVE LCCC FK 201None Call TI Level-NC-NC-NC SNJ54LS123J ACTIVE CDIP J 161None Call TI Level-NC-NC-NC SNJ54LS123WACTIVECFPW161NoneCall TILevel-NC-NC-NC(1)The marketing status values are defined as follows:ACTIVE:Product device recommended for new designs.LIFEBUY:TI has announced that the device will be discontinued,and a lifetime-buy period is in effect.NRND:Not recommended for new designs.Device is in production to support existing customers,but TI does not recommend using this part in a new design.PREVIEW:Device has been announced but is not in production.Samples may or may not be available.PACKAGE OPTION ADDENDUM28-Feb-2005Addendum-Page 1元器件交易网OBSOLETE:TI has discontinued the production of the device.(2)Eco Plan -May not be currently available -please check /productcontent for the latest availability information and additional product content details.None:Not yet available Lead (Pb-Free).Pb-Free (RoHS):TI's terms "Lead-Free"or "Pb-Free"mean semiconductor products that are compatible with the current RoHS requirements for all 6substances,including the requirement that lead not exceed 0.1%by weight in homogeneous materials.Where designed to be soldered at high temperatures,TI Pb-Free products are suitable for use in specified lead-free processes.Green (RoHS &no Sb/Br):TI defines "Green"to mean "Pb-Free"and in addition,uses package materials that do not contain halogens,including bromine (Br)or antimony (Sb)above 0.1%of total product weight.(3)MSL,Peak Temp.--The Moisture Sensitivity Level rating according to the JEDECindustry standard classifications,and peak solder temperature.Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is provided.TI bases its knowledge and belief on information provided by third parties,and makes no representation or warranty as to the accuracy of such information.Efforts are underway to better integrate information from third parties.TI has taken and continues to take reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on incoming materials and chemicals.TI and TI suppliers consider certain information to be proprietary,and thus CAS numbers and other limited information may not be available for release.In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s)at issue in this document sold by TI to Customer on an annualbasis.PACKAGE OPTION ADDENDUM 28-Feb-2005Addendum-Page 2IMPORTANT NOTICETexas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time and to discontinue any product or service without notice. Customers should obtain the latest relevant information before placing orders and should verify that such information is current and complete. All products are sold subject to TI’s terms and conditions of sale supplied at the time of order acknowledgment.TI warrants performance of its hardware products to the specifications applicable at the time of sale in accordance with TI’s standard warranty. T esting and other quality control techniques are used to the extent TI deems necessary to support this warranty. Except where mandated by government requirements, testing of all parameters of each product is not necessarily performed.TI assumes no liability for applications assistance or customer product design. Customers are responsible for their products and applications using TI components. T o minimize the risks associated with customer products and applications, customers should provide adequate design and operating safeguards.TI does not warrant or represent that any license, either express or implied, is granted under any TI patent right, copyright, mask work right, or other TI intellectual property right relating to any combination, machine, or process in which TI products or services are used. Information published by TI regarding third-party products or services does not constitute a license from TI to use such products or services or a warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual property of the third party, or a license from TI under the patents or other intellectual property of TI.Reproduction of information in TI data books or data sheets is permissible only if reproduction is without alteration and is accompanied by all associated warranties, conditions, limitations, and notices. Reproduction of this information with alteration is an unfair and deceptive business practice. TI is not responsible or liable for such altered documentation.Resale of TI products or services with statements different from or beyond the parameters stated by TI for that product or service voids all express and any implied warranties for the associated TI product or service and is an unfair and deceptive business practice. TI is not responsible or liable for any such statements. Following are URLs where you can obtain information on other Texas Instruments products and application solutions:Products ApplicationsAmplifiers Audio /audioData Converters Automotive /automotiveDSP Broadband /broadbandInterface Digital Control /digitalcontrolLogic Military /militaryPower Mgmt Optical Networking /opticalnetwork Microcontrollers Security /securityTelephony /telephonyVideo & Imaging /videoWireless /wirelessMailing Address:Texas InstrumentsPost Office Box 655303 Dallas, Texas 75265Copyright 2005, Texas Instruments Incorporated。

proteus常用元件中英文对照表元件名称中文名说明

proteus常用元件中英文对照表元件名称中文名说明

proteus常用元件中英文对照表元件名称中文名说明元件名称中文名说明7407 驱动门1N914 二极管74Ls00 与非门74LS04 非门74LS08 与门74LS390 TTL 双十进制计数器7SEG 4针BCD-LED 输出从0-9 对应于4根线的BCD码7SEG 3-8译码器电路BCD-7SEG[size=+0]转换电路ALTERNATOR 交流发电机AMMETER-MILLI mA安培计AND 与门BA TTERY 电池/电池组BUS 总线CAP 电容CAPACITOR 电容器CLOCK 时钟信号源CRYSTAL 晶振D-FLIPFLOP D触发器FUSE 保险丝GROUND 地LAMP 灯LED-RED 红色发光二极管LM016L 2行16列液晶可显示2行16列英文字符，有8位数据总线D0-D7，RS，R/W，EN三个控制端口（共14线），工作电压为5V。

没背光，和常用的1602B功能和引脚一样（除了调背光的二个线脚）矚慫润厲钐瘗睞枥庑赖賃軔朧。

LOGIC ANAL YSER 逻辑分析器LOGICPROBE 逻辑探针LOGICPROBE[BIG] 逻辑探针用来显示连接位置的逻辑状态LOGICSTATE 逻辑状态用鼠标点击,可改变该方框连接位置的逻辑状态LOGICTOGGLE 逻辑触发MASTERSWITCH 按钮手动闭合,立即自动打开MOTOR 马达OR 或门POT-LIN 三引线可变电阻器POWER 电源RES 电阻RESISTOR 电阻器SWITCH 按钮手动按一下一个状态SWITCH-SPDT 二选通一按钮VOLTMETER 伏特计VOLTMETER-MILLI mV伏特计VTERM 串行口终端Electromechanical 电机Inductors 变压器Laplace Primitives 拉普拉斯变换Memory IcsMicroprocessor IcsMiscellaneous 各种器件AERIAL-天线；ATAHDD；ATMEGA64；BATTERY；CELL；CRYSTAL-晶振；FUSE；METER-仪表；聞創沟燴鐺險爱氇谴净祸測樅。

SN74LS123中文资料

SN74LS123中文资料

RETRIGGERABLE MONOSTABLE MULTIVIBRATORSThese dc triggered multivibrators feature pulse width control by three meth-ods. The basic pulse width is programmed by selection of external resistance and capacitance values. The LS122 has an internal timing resistor that allows the circuits to be used with only an external capacitor. Once triggered, the ba-sic pulse width may be extended by retriggering the gated low-level-active (A)or high-level-active (B) inputs, or be reduced by use of the overriding clear.•Overriding Clear Terminates Output Pulse•Compensated for V CC and T emperature Variations•DC Triggered from Active-High or Active-Low Gated Logic Inputs •Retriggerable for Very Long Output Pulses, up to 100% Duty Cycle •Internal Timing Resistors on LS122SN54/74LS122 (TOP VIEW)(SEE NOTES 1 THRU 4)SN54/74LS123 (TOP VIEW)(SEE NOTES 1 THRU 4)NOTES:1.An external timing capacitor may be connected between C ext and R ext /C ext (positive).2.To use the internal timing resistor of the LS122, connect R int to V CC .3.For improved pulse width accuracy connect an external resistor between R ext /C ext and V CC with R int open-circuited.4.To obtain variable pulse widths, connect an external variable resistance between R int /C ext and V CC .R ext/CR ext/C ext 11ĂRext/2CLRC extNC Ċ NO INTERNAL CONNECTION.。

74123中文资料

74123中文资料

54 74 54 74
2.4 2.4 0.4 0.4 1 40 80 -1.6
2.5 V 2.7 0.4 0.5 0.1 20 20 -0.4 mA -3.2 -0.4 -20 -100 20 mA mA mA μA V
VOL 输出低电平电压 II 最大输入电压时输入电流 IIH 输入高 电平电流 VIH 输 入 低电平电 流 CLR IOS 输出短路电流 Icc 电源电流 A,B CLR A,B
54123/74123
双可重触发单稳态触发器（有清除端） 简要说明： 123 为两个可以重触发的单稳态触发器，共有 54/74123 和 54/74LS123 两种线路结 构型式，其主要电特性的典型值如下： 型号 CT54123/CT74123 CT54LS123/CT74LS123 输出脉冲宽度 45ns->∞ 116ns->∞ PD 230mW 60mW
【4】 ：tPLH－输出由低到高电平传输延迟时间 tPHL－输出由高到低电平传输延迟时间 tWQ－Q 端输出脉冲宽度
推荐工作条件：
CT54123/CT74123 最小 54 电源电压 Vcc 74 输入高电平电压 VIH 输入低电平电压 VIL 输出高电平电流 IOH 输出低电平电流 IOL 脉冲宽度 tW 54 外接定时电阻 Rext 74 外接定时电容 Cext Rext/Cext 端布线电容 5 不限 50 50 5 不限 50 pF 260 54 74 40 5 25 54 74 4．75 2 0．8 0．8 -800 16 16 40 5 180 kΩ 5 5．25 4．75 2 0．7 V 0．8 -400 4 mA 8 ns μA 5 5．25 V 4．5 额定 5 最大 5．5 CT54LS123/CT74LS123 单位 最小 4．5 额定 5 最大 5．5 V
  1. 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
  2. 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
  3. 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。

5
50
5
260
不限
不限
50
50
单位
V V V μA mA ns kΩ
pF
静态特性（TA 为工作环境温度范围）
参数
测试条件【1】
VIK 输入钳位电压
Vcc 最小
IIK=－12mA IIK=－18mA
`123
`LS123
单位
最小 最大 最小 最大
-1.5 V
-1.5
电子发烧友 ｈｔｔｐ：／／ｗｗｗ．ｅｌｅｃｆａｎｓ．ｃｏｍ
54 74
54 74
54 74
54 74
CT54123/CT74123
CT54LS123/CT74LS123
最小 额定 最大 最小 额定 最大
4．5 5 5．5 4．5 5 5．5
4．75 5 5．25 4．75 5 5．25
2
2
0．8
0．7
0．8
0．8
-800
-400
16
4
16
8
40
40
5
25
5
180
动态特性（TA＝25℃）
参数【4】
测试条件
tPLH
A－>Q
tPHL
A－>/Q
tPLH
B－>Q
Vccபைடு நூலகம்5V
tPHL
B－>/Q CL=15pF
tPLH CLR－>Q RL=400Ω
tPHL CLR－>/Q (‘LS123 为 2KΩ)
Cext=0 Rext=5kΩ
tWQ A,B－>Q
Cext=1000pF
电子发烧友 ｈｔｔｐ：／／ｗｗｗ．ｅｌｅｃｆａｎｓ．ｃｏｍ
Vcc=最小，VIH=2V，VIL=最大，
54 2.4
2.5
VOH 输出高电平电压
V
IOH=最大【2】
74 2.4
2.7
VCC=最小,VIH=2V,VIL=最大,IOL=最大 54
0.4
VOL 输出低电平电压
【2】
74
0.4
II 最大输入电压时输入电流
116ns->∞
60mW
123 的输出脉冲宽度tWQ可由三种方法控制。一是通过选择外定时元件 CEXT和RT值来确定脉冲宽度，二是通过正触发输入端（A）或负触发输入 端（B）的重触发延长tWQ，三是通过清除端（CLR）的清除使tWQ缩小。 管脚图：
引出端符号： CEXT1、CEXT2 Q1、Q2 /Q1、/Q2 /CLR1、/CLR2 A1、A2 B1、B2
Vcc=最大
VI=5.5V（‘LS123 为 7V）
1
IIH 输入高
A,B
40
Vcc=最大
VIH=2.4V（‘LS123 为 2.7V）
电平电流
CLR
80
VIH 输 入
A,B
-1.6
低电平电
Vcc=最大
VIL=0.4V
流
CLR
-3.2
0.4 V
0.5
0.1 mA
20 μA
20
-0.4 mA
-0.4
IOS 输出短路电流
若在/Q 测 VOH、Q 测 VOL、/Q 测 IOS 时：‘123 的 Cext 开路 【3】：测‘123 时：Cext=0.02μF,Rext=25kΩ。静态：所有 A 和 CLR 接 2.4V,所有 B 接地。
触发态：所有 B 和 CLR 接 2.4V,所有 B 接地。 测‘LS123 时：所有 A、B、CLR 接 4.5V，时钟瞬时接地后接 4.5V。
54123/74123
双可重触发单稳态触发器（有清除端） 简要说明：
123 为两个可以重触发的单稳态触发器，共有 54/74123 和 54/74LS123 两种线路结 构型式，其主要电特性的典型值如下：
型号
输出脉冲宽度
PD
CT54123/CT74123
45ns->∞
230mW
CT54LS123/CT74LS123
逻辑图（1/2）
电子发烧友 ｈｔｔｐ：／／ｗｗｗ．ｅｌｅｃｆａｎｓ．ｃｏｍ
电子发烧友 ｈｔｔｐ：／／ｗｗｗ．ｅｌｅｃｆａｎｓ．ｃｏｍ
推荐工作条件：
电源电压 Vcc
输入高电平电压 VIH 输入低电平电压 VIL 输出高电平电流 IOH 输出低电平电流 IOL
脉冲宽度 tW 外接定时电阻 Rext 外接定时电容 Cext Rext/Cext 端布线电容
Vcc 之间接外接电阻。 3.为了得到可变脉冲宽度，可在 Rext/Cext 和 Vcc 之间接
接可变电阻。 H－高电平 L－低电平 X－任意 ↑－低到高电平跳变 ↓－高到低电平跳变 －一个高电平脉冲 －一个低电平脉冲
极限值 电源电压------------------------------------------------7V 输入电压 54/74123-----------------------------------------5.5V 54/74LS123--------------------------------------7V 工作环境温度 54×××------------------------------ －55～125℃ 74×××------------------------------------0～70℃ 贮存温度-------------------------------------- －65～150℃
Rext=10kΩ
【4】：tPLH－输出由低到高电平传输延迟时间
tPHL－输出由高到低电平传输延迟时间
tWQ－Q 端输出脉冲宽度
‘123 最小 最大
33 40 28 36 40 27 65
‘LS123 最小 最大
33 45 44 56 45 27 200
单位 ns ns ns ns
2.76 3.37 4
5 μs
电子发烧友 ｈｔｔｐ：／／ｗｗｗ．ｅｌｅｃｆａｎｓ．ｃｏｍ
功能表：
外接电容端 正脉冲输出端 负脉冲输出端 直接清除端（低电平有效） 负触发输入端 正触发输入端
电子发烧友 ｈｔｔｐ：／／ｗｗｗ．ｅｌｅｃｆａｎｓ．ｃｏｍ
电子发烧友 ｈｔｔｐ：／／ｗｗｗ．ｅｌｅｃｆａｎｓ．ｃｏｍ
说明：1.外接电容接在 Cext（正）和 Rext/Cext（正）之间 2.为了改善脉冲宽度的精度和重复性，可在 Rext/Cext 和
Vcc=最大【2】
-10 -40 -20 -100 mA
Icc 电源电流
Vcc=最大时钟【3】
静态 66
触发
20 mA
【1】：测试条件中的“最大”和“最小”用推荐工作条件中的相应值。 【2】：若在Q测VOH，/Q测VOL，Q测IOS时：‘123 的Cext接地；LS123 的Rext/Cext接地，B和CLR接VIH，A接 2V到 0V的脉冲电压。
