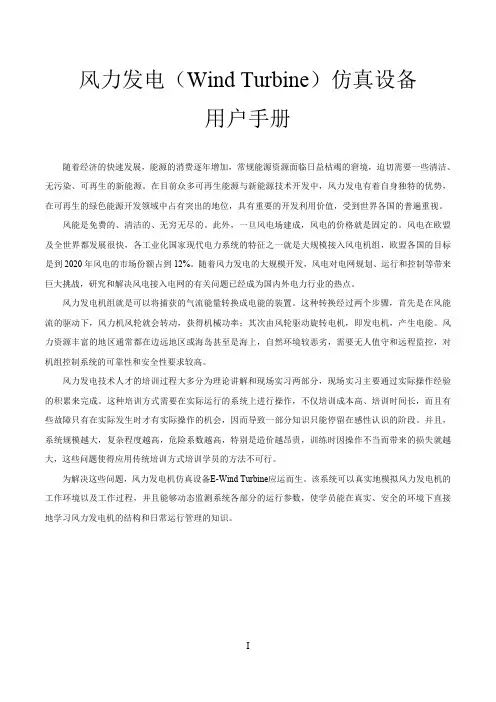

EWT用户手册
风力发电（Wind Turbine）仿真设备用户手册随着经济的快速发展，能源的消费逐年增加，常规能源资源面临日益枯竭的窘境，迫切需要一些清洁、无污染、可再生的新能源。
在目前众多可再生能源与新能源技术开发中，风力发电有着自身独特的优势，在可再生的绿色能源开发领域中占有突出的地位，具有重要的开发利用价值，受到世界各国的普遍重视。
风能是免费的、清洁的、无穷无尽的。
此外，一旦风电场建成，风电的价格就是固定的。
风电在欧盟及全世界都发展很快，各工业化国家现代电力系统的特征之一就是大规模接入风电机组，欧盟各国的目标是到2020年风电的市场份额占到12%。
随着风力发电的大规模开发，风电对电网规划、运行和控制等带来巨大挑战，研究和解决风电接入电网的有关问题已经成为国内外电力行业的热点。
风力发电机组就是可以将捕获的气流能量转换成电能的装置。
这种转换经过两个步骤，首先是在风能流的驱动下，风力机风轮就会转动，获得机械功率；其次由风轮驱动旋转电机，即发电机，产生电能。
风力资源丰富的地区通常都在边远地区或海岛甚至是海上，自然环境较恶劣，需要无人值守和远程监控，对机组控制系统的可靠性和安全性要求较高。
风力发电技术人才的培训过程大多分为理论讲解和现场实习两部分，现场实习主要通过实际操作经验的积累来完成。
这种培训方式需要在实际运行的系统上进行操作，不仅培训成本高、培训时间长，而且有些故障只有在实际发生时才有实际操作的机会，因而导致一部分知识只能停留在感性认识的阶段。
并且，系统规模越大，复杂程度越高，危险系数越高，特别是造价越昂贵，训练时因操作不当而带来的损失就越大，这些问题使得应用传统培训方式培训学员的方法不可行。
为解决这些问题，风力发电机仿真设备E-Wind Turbine应运而生。
该系统可以真实地模拟风力发电机的工作环境以及工作过程，并且能够动态监测系统各部分的运行参数，使学员能在真实、安全的环境下直接地学习风力发电机的结构和日常运行管理的知识。
xiaoe WiFi WT8266-S2 产品说明书
WT8266-S2 WiFi ModuleExtreme / Open / Small / EasySpecificationVersion 1.12016/7/13Disclaimer and Copyright NoticeInformation in this document, including URL references, is subject to change without notice.THIS DOCUMENT IS PROVIDED AS IS WITH NO WARRANTIES WHATSOEVER, INCLUDING ANYWARRANTY OF MERCHANTABILITY, NON-INFRINGEMENT, FITNESS FOR ANY PARTICULARPURPOSE, OR ANY WARRANTY OTHERWISE ARISING OUT OF ANY PROPOSAL, SPECIFICATIONOR SAMPLE. All liability, including liability for infringement of any proprietary rights, relating to useof information in this document is disclaimed. No licenses express or implied, by estoppel orotherwise, to any intellectual property rights are granted herein.The WiFi Alliance Member Logo is a trademark of the WiFi Alliance.All trade names, trademarks and registered trademarks mentioned in this document are property oftheir respective owners, and are hereby acknowledged.NoteAs the product upgrade or other reasons, this manual may change. Shenzhen Wireless-Tag Technology Co., Ltd has right to modify the contents of this manual without any notice or warning. This manual is only as a guide,Wireless-Tag Technology Co., Ltd Spareno effort to provide accurate information in this manual, but the Wireless-Tag can't guarantee manual there is no problem , all statements in this manual, information and suggestions do not constitute any guarantee of express or implication.Contents1.Overview ....................................................................................................................................................... - 5 -2. Main Features .............................................................................................................................................. - 5 -3. Hardware Specifications .............................................................................................................................. - 6 -3.1 System Diagram ..................................................................................................................................... - 6 -3.2Pin Description ....................................................................................................................................... - 6 -3.3Electrical Characteristic .......................................................................................................................... - 9 -3.3.1Maximum Ratings ............................................................................................................................ - 9 -3.3.2Recommended Operating Environment ......................................................................................... - 9 -3.3.3Digital Port Characteristics .............................................................................................................. - 9 -3.4Power Consumption ............................................................................................................................... - 9 -3.4.1Operating Power Consumption ....................................................................................................... - 9 -3.4.2Standby Power Consumption ........................................................................................................ - 10 -3.5RF Characteristics ................................................................................................................................. - 10 -3.5.1RF Configuration and General Specifications of Wireless LAN ...................................................... - 10 -3.5.2 RF Tx Characteristics ..................................................................................................................... - 11 -3.5.3RF Rx Characteristics ..................................................................................................................... - 11 -4. Mechanical Dimensions ............................................................................................................................. - 11 -4.1Module Size .......................................................................................................................................... - 11 -4.2 Schematics ........................................................................................................................................... - 13 -5. Product Trial .............................................................................................................................................. - 14 -1.OverviewWT8266-S2 Wi-Fi module is a low consumption, high performance Wi-Fi network control module designed by Wireless-Tag. It can meet the IoT application requirements in smart power grids, building automation, security and protection, smart home, remote health care etc.The module's core processor ESP8266 integrates an enhanced version of Tensilica's L106 Diamond series 32-bit processor with smaller package size and 16 bit compact mode, main frequency support 80 MHz and 160 MHz, support RTOS, integrated Wi-Fi MAC / BB / RF / PA / LNA, on-board ceramic antenna and ipex connector.The module supports standard IEEE802.11 b / g / n protocol, a complete TCP / IP protocol stack. It can be used to host the application or to offload Wi-Fi networking functions from another application processor.2. Main Features∙Operating Voltage: 3.3V∙Operating Temperature：-40 - 85°C∙CPU Tensilica L106o RAM 50KB（Available）o Flash 16Mbit∙Systemo802.11 b/g/no IntegratedTensilica L106 ultra-low power 32-bitmicro MCU, with 16-bit RSIC. The CPU clock speed is 80MHz. It can also reach a maximum value of 160MHz.o WIFI 2.4 GHz，supportWPA/WPA2o Ultra-Small 18.6mm*15.0mmo Integrated10 bit high precision ADCo Integrated TCP/IP Stacko IntegratedTR switch, balun,LNA, Power amplifier and matching networko Integrated PLL, Regulator and power source management components, +20 dBm output power in 802.11b modeo Supports antenna diversityo Deep sleep current < 20uA, Power down leakage current < 5uAo Rich interface on processor: SDIO 2.0, (H) SPI, UART, I2C, I2S, IRDA, PWM, GPIOo STBC, 1x1 MIMO, 2x1 MIMO, A-MPDU & A-MSDU aggregation & 0.4s guard intervalo Wake up ,build the connection and transmit packets in < 2mso Standby power consumption<1.0mW (DTIM3)o Support AT remote upgrades and cloud OTA upgradeo Support STA/AP/STA+AP operation modesoFCC/CE/RoHs3. Hardware Specifications3.1 System DiagramESP8266ESP826616MbitSPI FLASH16MbitSPI FLASH 26MHzXTAL26MHz XTAL VDD_MCU VDD_MCU VDD33VDD33WT8266-S22 Χ UART 2 Χ UART 1 Χ I2S 1 Χ I2S 1 Χ ADC 1 Χ ADC 1 Χ SPI 1 Χ SPI GPIOGPIO 1 Χ I2C 1 Χ I2C 1 Χ IR 1 Χ IRFigure-1System Diagram3.2Pin DescriptionFigure-2 Physical Map (Top View)Figure-3 WT8266-S2 Pinout (Top View) Table 1 Pin Definition and DescriptionNote：Table-2 Pin ModeTable-3 Interface Description3.3Electrical Characteristic 3.3.1Maximum RatingsTable- 4. Maximum Ratings3.3.2Recommended Operating EnvironmentTable -5 Recommended Operating Environment3.3.3Digital Port CharacteristicsTable -6 Digital Port Characteristics3.4Power Consumption3.4.1Operating Power ConsumptionTable -7 Operating Power ConsumptionNote: RX mode data packet length is 1024 bytes; 3.4.2Standby Power ConsumptionThe following current consumption is based on 3.3V supply and 25°C ambient with internalregulators.Values are measured at antenna port without SAW filter. All thetransmissionmeasurements valuesare based on 90% duty cycle, continuous transmission mode.Table -8 Standby Power Consumption①: Modem-Sleep requires the CPU to be working, as in PWM or I2S applications. According to802.11 standards (like U-APSD), it saves power to shut down the Wi-Fi Modem circuit whilemaintaining a Wi-Ficonnection with no data transmission. E.g. in DTIM3, to maintain a sleep 300mswake 3ms cycle to receive AP’s Beacon packages, the current is about 15mA.②: During Light-Sleep, the CPU may be suspended in applications like Wi-Fi switch. Withoutdatatransmission, the Wi-Fi Modem circuit can be turned off and CPU suspended to save poweraccording to the 802.11 standard (U-APSD). E.g. in DTIM3, to maintain a sleep 300ms-wake 3mscycle to re ceive AP’s Beacon packages, the current is about 0.9mA.③: Deep-Sleep does not require Wi-Fi connection to be maintained. For application with long timelags between data transmission, e.g. a temperature sensor that checks the temperature every 100s,sleep 300s and waking up to connect to the AP (taking about 0.3~1s), the overall average current isless than 1mA. 3.5RF Characteristics3.5.1RF Configuration and General Specifications of Wireless LANTable-9 RF Configuration and General Specifications of Wireless LAN3.5.2 RF Tx CharacteristicsTable-10 Emission Characteristics3.5.3RF Rx CharacteristicsTable-11RF Receiving Characteristics4. Mechanical Dimensions4.1Module SizeFigure -4 Module Size (Front View)Figure -5 Module Size (Side View)Figure -6 Module Size - shieldingcase (Side View)4.2 SchematicsFigure -7 WT8266-S2 Schematics5. Product Trial∙∙ Forum ：∙ Technical Support ：**************************-Linkedin: /company/9452027?trk=cws-btn-overview-0-0。
海南威特WT2000E技说明书
WT-2000-E变电站综合自动化系统说明书海南威特电气集团有限公司感谢您使用海南威特电气集团有限公司的WT-2000-E变电站综合自动化系统。
本系列产品适用于110kV及以下电压等级的变电站或者开闭所，实现其“四遥”一体化功能，达到变电站或者开闭所的智能化远程操作，可做到无人值守。
本系列产品包括：a)WT-2021-E 主变差动保护测控装置b)WT-2022-E 主变本体保护测控装置c)WT-2023-E 主变高压侧后备保护测控装置d)WT-2024-E 主变中、低压侧后备保护测控装置e)WT-2041-E 主变公用测控装置f)WT-2031-E 线路保护测控装置g)WT-2032-E 电容器保护测控装置h)WT-2033-E 分段保护测控装置i)WT-2025-E 接地变保护测控装置j)WT-2013-E 线路测控装置k)WT-2042-E 站用变测控装置l)WT-2043-E 备用电源自投装置m)WT-2045-E PT 切换装置n)WT-2046-E 频率电压紧急控制装置o)WT-2024D-E 逆功率保护测控装置p)WT-201 通信服务器q)WT-2000-E 变电站综合自动化系统软件☆变电站，开闭所保护自动化解决方案☆高性能32位微处理器功能强大的超稳定硬件平台☆14位高精度AD转换☆先进的嵌入式实时多任务操作系统☆间隔层和监控层全部通过以太网互联，通信快速可靠☆实现电能表功能☆全封闭，抗震动，低功耗，内置操作回路，适合上开关柜☆自适应直流操作回路，对开关柜无要求☆全汉化液晶显示☆最高标准的四级电磁兼容性能，不需外接任何抗干扰模件☆装置具有强大的录波功能,故障过程可再现第一章WT-2000-E综合自动化系统概述1.适用范围WT-2000-E变电站综合自动化系统是我公司根据电力系统自动化及用户变电站的要求，总结国内外变电站微机控制及保护的研究和生产的先进经验，采用当今先进的计算机技术、现代电子技术、通信技术和信息处理技术等实现对变电站二次设备(包括继电保护、控制、测量、信号、故障录波、自动装置及远动装置等)的功能进行重新组合、优化设计，对变电站全部设备的运行情况执行监视、测量、控制和协调的一种综合性的自动化系统。
深圳市极致汇仪科技有限公司 WT-328 无线网络测试仪器使用指南说明书
WT-328无线网络测试仪器Wireless Tester快速入门Quick Start深圳市极致汇仪科技有限公司Shenzhen iT est T echnology Co., Ltd.文档编号：ITEST-WT-YX-22声明Copyright © 2013，深圳市极致汇仪科技有限公司版权所有，保留所有权利。
未经深圳市极致汇仪科技有限公司书面许可，任何单位和个人不得擅自摘抄、复制本手册的部分或全部内容，并不得以任何形式传播。
本手册仅作为使用指导，本手册中的所有陈述、信息和建议不构成任何明示或暗示的担保。
即使该产品已被告知可能的损害性，深圳市极致汇仪科技有限公司在任何情况下均不对因使用本产品而产生的附带或间接损害或相关费用负责。
如果您发现此文档有错误，或需要获取技术支持服务，请通过以下联系方式通知深圳市极致汇仪科技有限公司。
深圳市极致汇仪科技有限公司不保证此文件是无错误的。
深圳市极致汇仪科技有限公司保留对本文档中的规格和其他信息进行更改的权利，无需事先通知。
为深圳市极致汇仪科技有限公司的商标。
对于本手册中出现的其它商标，由各自的所有人拥有。
技术支持深圳总部地址：深圳市宝安区新安街道兴东社区67区留芳路6号庭威产业园1栋5C电话：+86-755-2153 5646传真：+86-755-2640 5551销售部E-mail：****************技术支持E-mail：****************公司网址：台湾办事处地址：新北市土城区中央路三段87号7楼电话：+886-2-2269 2007传真：+886-2-2269 2036E-mail：*****************目录.1.安全指导 (1).1.1.保证良好的接地措施 (1).1.2.注意避免输入超过允许范围的信号 (1).1.3.注意直流防护 (1).1.4.注意静电防护 (1).1.5.注意震动防护 (1).1.6.保护射频输入输出端口 (1).1.7.正确保养射频电缆和转换头 (2).1.8.适当的通风以及清洁 (2).1.9.运输时使用适当的包装 (2).2.概述 (1).2.1.目的 (1).2.2.范围 (1).2.3.缩略语 (1).3.WT-328测试仪器 (2).3.1.产品功能特性 (2).3.2.产品外观 (3).3.2.1.前面板概述 (3).3.2.2.后面板概述 (4).3.3.使用指南 (4).3.3.1.检查产品包装和装箱清单 (4).3.3.2.硬件连接 (5).3.3.3.仪器预热 (5).3.4.配套软件 (5).4.WLAN Meter简介 (7).4.1.电脑配置 (7).4.2.软件安装 (7).4.3.初始化配置 (7).4.4.GUI介绍 (9).4.4.1.主界面 (9).4.4.2.VSA面板 (10).4.4.3.VSG面板 (11).4.5.结果视图操作 (11).4.5.1.缩放图像 (11).4.5.2.拖动图像 (12).4.5.3.保存图像 (12).4.5.4.右键菜单 (12).4.6.菜单栏介绍 (13).4.6.1.文件 (13).4.6.2.设备设置 (13).4.6.3.系统工具 (17).4.6.4.帮助 (20).5.测试场景 (22).5.1.连接仪器 (22).5.2.环回测试 (22).5.2.1.测试环境搭建 (22).5.2.2.环回验证 (23).5.2.3.环回自动校线 (23).5.3.SISO测试 (24).5.3.1.生产测试 (24).5.3.2.研发测试 (25).5.4.MIMO测试 (26).5.4.1.单机MIMO测试 (26).5.4.2.多机MIMO测试 (27).5.4.3.MIMO连接 (29).6.Administration Tool简介 (30).6.1.GUI介绍 (30).6.2.查找目标仪器 (31).6.3.修改仪器IP (31).6.4.仪器升级 (32).6.4.1.升级固件 (32).6.4.2.升级License (33).6.5.仪器子网口配置 (35)图目录图3-1 WT-328前面板图 (3)图3-2 WT-328后面板图 (4)图3-3 WT-328安装示意图 (5)图4-1 WLAN Meter初始化配置界面 (7)图4-2 WLAN Meter界面 (9)图4-3 WLAN Meter VSA面板 (10)图4-4 WLAN Meter VSG面板 (11)图4-5 结果视图右键菜单 (12)图4-6 WLAN Meter运行模式设置界面 (14)图4-7 WLAN Meter高级设置界面 (14)图4-8 WLAN Meter高级设置界面 (14)图4-9 WLAN Meter端口设置界面 (15)图4-10 WLAN Meter MIMO设置界面 (16)图4-11 WLAN Meter 4*4 MIMO设置界面 (16)图4-12 WLAN Meter线衰修正界面 (17)图4-13 线衰修正-单值模式设置项 (17)图4-14 线衰修正-列表模式控制栏 (18)图4-15 线衰自定义界面 (18)图4-16 增加或删除自定义频点 (19)图4-17 WLAN Meter文件管理界面 (19)图4-18 WLAN Meter软件选项界面 (20)图4-19 WLAN Meter软件信息界面 (20)图4-20 WLAN Meter设备信息界面 (21)图5-1 WLAN Meter仪器控制栏 (22)图5-2 仪器环回测试组网示意图 (22)图5-3 线衰自动校准操作界面 (23)图5-4 WT-328并行测试组网示意图 (25)图5-5 WT-328研发SISO测试组网示意图 (26)图5-6 单机MIMO 2X2测试组网示意图 (27)图5-7 多机MIMO后面板连接示意图 (28)图5-8 多机MIMO 4X4测试组网示意图 (28)图6-1 Administration Tool界面 (30)图6-2 查找目标仪器 (31)图6-3 进入仪器信息界面操作图 (32)图6-4 仪器信息界面 (32)图6-5 进入固件升级界面操作图 (33)图6-6 固件升级界面 (33)图6-7 进入License升级界面操作图 (34)图6-8 License升级界面 (34)图6-9 进入仪器子网口配置界面操作图 (35)图6-10 仪器子网口配置界面 (35).1. 安全指导.1.1. 保证良好的接地措施⏹请务必使用随机提供的带有地线的三芯电源线插头插入接地良好的电源插座；⏹在使用其他供电电缆或者通用接线板特别要注意保证地线系统的完好；⏹仪器接地端子需要良好接地。
4. 一汽-大众售后ElsaWeb系统指导手册
3.1.车身维修 ...................................................................................................................................... 16 3.1.1 前提操作............................................................................................................................... 16 3.1.2 查询车身维修分组信息.......................................................................................................18 3.1.3 车身维修一览.......................................................................................................................19 3.1.4 名称或标识搜索...................................................................................................................20
E-WT使用指南
风力发电（Wind Turbine）仿真设备使用指南一、启动软件双击WTSim.exe文件，启动E-Wind Turbine软件。
二、软件主界面软件的主界面分为以下几个部分：风机三维显示画面、工具栏、俯视图窗口和侧视图窗口。
1. 风机三维显示画面风机三维显示画面通过虚拟现实手段显示风机运行状态、背景及关键参数的实时数据。
运行时双击风机塔架，将进入风机浏览模式。
点击键盘A、D、W、S、R、F键，可从空间各个角度观察风机状态。
A键：左侧视角D键：右侧视角W键：俯视视角S键：仰视视角R键：放大视图F键：缩小视图双击风机轮毂，可使桨叶消失，观察轮毂内部；再次双击风机轮毂，桨叶将重新出现。
双击风机机舱，可打开机舱外壳，观察机舱内部结构：发电机、传动系统及齿轮箱、偏航系统、冷却系统等；再次双击风机机舱，机舱外壳将重新出现。
双击传动系统及齿轮箱外壳，可打开传动系统及齿轮箱，观察其内部结构；再次双击传动系统及齿轮箱，外壳将重新出现。
2. 工具栏工具栏上的按钮说明如下：#新建按钮：新建实验工程，选择风电机组类型。
#打开按钮：打开已存在的实验工程。
#保存按钮：保存正在运行的实验工程，同时保存当前的工况。
#运行按钮：启动当前的实验工程，或从暂停重新恢复运行。
#暂停按钮：停止当前的实验工程。
#复位按钮：实验工程恢复冷态。
#内控按钮：使用内部控制程序对风电机组进行自动控制。
#外控按钮：接收外部控制器控制信号，对风电机组进行控制。
#风模型配置按钮：打开风模型配置对话框，进行风速和风向的设置。
#故障设定按钮：打开故障模式设置列表，进行故障设定。
#ProfiBusDP通讯配置按钮：打开ProfiBusDP通讯配置对话框。
#ProfiBusDP通讯数据显示按钮：打开ProfiBusDP通讯时的实时数据显示对话框。
#评分系统配置按钮：打开评分系统配置对话框。
#退出按钮：退出E-Wind Turbine软件。
新建或打开一个实验工程后，首先进行风模型配置，选择风速和风向；然后选择是内部程序控制还是外部控制器控制，如果是外部控制器控制，确认ProfiBusDP通讯配置正确；最后点击运行按钮，启动风电机组并对其进行控制。
ETW远程时控开关说明书
ETW远程时控开关说明书一、ETW综合介绍ETW是采用嵌入式处理核心芯片，集成本地控制、采集、遥控的新型时控设备。
它具有多种控制模式，并能够单机独立运行，也支持远程监控工作。
其输出总共具有5回路，可跟用户需求自由选择配置使用，输出带载电流在10A（阻性）、5A（感性）以内。
ETW支持GPRS、RS485等通讯方式，能以灵活的方式进行数据通讯。
该控制适用于路灯控制系统、景观控制、光彩调光照明等场合。
二、技术参数说明1、额定电压220VAC2、电压范围160-380VAC3、空载功率<4W3、5路控制输出，输出口阻性负载电流10A以内，感性负载电流5A以内。
4、56*75cm超大专用液晶显示屏。
5、7个独立式功能按键。
（确认、返回、开机、自动/手动、三个方向键）6、内置GPRS/CDMA模块。
（选配）7、两个通讯口。
（支持RS485，GPRS）。
8、预留JTAG接口，支持程序在线调试、程序改版升级。
三、ETW功能说明ETW主要具有“本地控制”、“远程监控”等功能。
1、本地控制。
ETW主要具有如下几种控制模式。
（1）手动控制：在将设备的工作模式设置为“手动控制”的情况下，可以在手动控制页面下，打开或关闭任意一个回路，以方便调试设备或验收观察。
（2）自动控制：自动控制又分为“定时控制”、“节假日控制”、“经纬度控制”、“光照度控制”四种工作模式。
（3）时控控制：时控模式下是采用微电脑时空器进行独立控制，增加系统可靠性。
2、远程监控远程监控主要用于路灯等大型光源系统中，在监控中心的电脑上，安装ETW100软件，连接网络即可在监控室查看现场站点的各项技术参数，不仅可以查看现场工作时数据，还可查看和远程更改站点设备的参数设置。
四、ETW菜单页面说明ETW控制器菜单主要分为六大部分：“系统时间设置”、“经纬度设置”、“时控设置”、“光控设置”、“节假日设置”和“本机地址设置”。
“系统时间设置”主要进行系统时间的设置，包括“时、分、秒、星期、年、月、日”；“经纬度设置”是用来设置本地经纬度的，其中包括“经度设置、纬度设置、日出/日落修正值设置、当前经纬度开关灯时间查询”；“时控设置”是用来设置时间控制的开关灯时间，精确到分。
WT E功率分析仪操作规程
**规程*********** WT1806E高精度功率分析仪操作规程20**年**月**日发布20**年**月**日实施***************WT1806E高精度功率分析仪操作规程1 目的为了指导检验人员或其他使用人员WT1806E高精度功率分析仪的正确使用和保养方法，确保其量值准确、可靠、稳定和延长其使用寿命，特制定本规程。
2 范围本规程适用于中心配备的WT1806E高精度功率分析仪。
3 引用文件《WT1800高精度功率分析仪入门指南》、《WT1806E高精度功率分析仪操作手册》。
4 概述用途横河WT1806E数字功率分析仪集六个模块的输入于一体，一台仪器可同时测量两组三相系统，广泛应用于变频器、电机驱动器、照明系统、不间断电源、飞机电力系统、变压器测试和其它功率转换设备。
主要技术指标WT1806E功率分析仪主要技术参数1. 电压、电流、功率精度：读数%+量程%；2. 电压/电流带宽：DC,至5MHz；3. 采样率：2MS/s(16位)；4. 电压量程：3/6/10/15/30/60/100/150/300/600/1000[V]；5. 电流量程：1/2/5/10/20/50[A];50mV/100 mV /200 mV /500 mV /1V/2V/5V/10V；6. 可同时测量电压、电流、有功功率、无功功率、视在功率、功率因数、相位角、频率、电压峰值、电流峰值、峰值因数、积分（Wh，Ah，Varh，Vah）等。
7. 有电机分析功能、6路外部传感器输入、双路谐波分析功能、1ms高速数据捕获、20秒钟原始波形捕捉、星转三角计算、12路频率测试等功能，内置热敏打印机。
电流传感器CPCO1000技术参数和功能1. 开环，内径77mm；2. 电流范围：1000A，精度：%量程；3. 带宽：DC 40KHz；4. 供电电压12V至30V；5. 输出电压：4V对应满量程1000A。
电流传感器CPCO4000技术参数和功能1. 开环，内径77mm；2. 电流范围：4000A，精度：%量程；3. 带宽：DC 40KHz；4. 供电电压12V至30V；5. 输出电压：4V对应满量程4000A。
新瑞纳尔澳洲E-Tech全新混合SUV说明书
a newhybrid vision of the SUVAll new Renault Austral E-Techfull hybrid is changing the rulesof the game: esprit Alpine versions,4Control advanced system(2)with 4-wheel steering, 774 cm2 openR screens, 210 cm2 head-up displayand Google built-in services.An innovative and immersive experience awaits you on board all new Renault Austral E-Tech full hybrid.200hp E-Tech full hybrid engine up to 30advanced driver-assistancesystems(2)984 cm2 ofopenR screensand head-updisplay4Control advanced technology(2)555L ofbootcapacity(1)esprit Alpinein worlddebut(1) according to VDA protocol.(2) s tandard on iconic esprit Alpine version.2interactive menu301. design02. driving pleasure 03. driving experience 04. multimedia 05. interior06.a dvanced driver-assistance systems 07. customisation* depending on version.athletic designWide shoulders and a muscular bonnet for an intensely proportioned design. The glossy black* roof and contrasting side protection elements* reinforce the unique silhouette.Arising from the historic collaboration between Renault and Alpine designteams, esprit Alpine asserts its dynamic character: 20" daytona black diamond-cut wheels, exclusive matte shadow grey colour, matte grey F1 blade at the front, glossy black roof, flush roof bars and distinctive badges.There is also an Alpine touch in the passenger compartment:the Alcantara® fabric upholstery is enhanced with blue top-stitching, the headrests feature exclusiveembroidered motifs, and the aluminium pedals energise the cockpit.As a final touch, the steering wheel sports red, white and blue stitching.01. design420" daytona blackdiamond-cut alloy wheelsesprit Alpine badgebuild yours →menu ↑E-Tech full hybrid 200hptechnology400V battery + 2 electric engines+ 1 internal combustion enginereduced fuel consumption (1) (2)up to 40%fuel consumption (1)from 60.1mpg CO 2 emissions (1)from 105 g/kmenergy recovery via deceleration and braking yes management of energy recovery levelyes electric assistance to the internal combustion engineyesthe best ofhybrid technologyE-Techfull hybridup to70mphin electric mode (1)E-Tech200 hpup to60.1mpgfuel consumption (2)from105 g/kmCO 2 emissions (2)(1) for an E-Tech full hybrid engine compared to a mild hybrid auto engine, according to WLTP City protocol / UTAC & IDIADA source / September 2022.(2) v alues type-approved according to version / in accordance with WLTP protocol / UTAC source / July 2022.build yours →fuel savings of up to 40%(3) with the E-Tech full hybrid engine The battery recharges during deceleration and braking: no need to plug in to recharge.Discover our 100% hybrid range with the E-tech full hybrid engine: one of the most efficient in its category.5menu ↑4Control advanced*The new 4Control advanced* system with 4-wheel steering makes driving more accurate and safe.* standard on iconic esprit Alpine version.The turning circle of 10.1 mis comparable with that of a city car.up to 30mph, the rear wheels turn in the opposite direction to the front wheels to reduce the turning circleabove 30mph, the rear wheels turn in the same direction as the front wheels to improve road handling and safetybuild yours →6menu ↑on-board technologyTo optimise driving experience, the controls are oriented towards the driver and the most important information is directly in front of the driver.Don't take your eyes off the road: thenew 210 cm 2head-up display projects essential information on to the windscreen.Engine response and sound,steering firmness, ambient lighting and driver screen configuration. With multi-sense, customise yourvehicle with 4 driving modes available for a unique driving experience.find your speed, driver-assistance systems and navigation on the head-up displaysport mode:intense driving pleasure eco mode:optimised fuel consumptionperso mode:a fully customisable driving experiencecomfort mode:combines safety and driving comfort7Harman Kardon*high-fidelity soundEnjoy an immersive sound experience with the new and exclusive Harman Kardon* system with a powerful 485 watt amplifier that delivers through 12 speakers positioned around the passenger compartment.2 tweeters on the sides of the instrument panel, 2 woofers in the front door panels and 2 in the rear door panels, 2 surround speakers, 1 front central unit, 2 tweeters and 1 subwoofer in the boot* standard on iconic esprit Alpine version.build yours →8menu ↑04. multimediaopenR link multimedia system with Google built-inThe openR link multimedia systemand its 774 cm 2of digital display offer intuitive technology that incorporates the best of My Renault and Googleconnected services (1).Amazon Music, Sybel, Vivaldi... Up to 35applications (2)with exclusive content areavailable via Google Play (3).9Take control of your music andentertainment experience on board with Amazon Music , included in your Amazon Prime subscription.Sybel is a unique platform to find your favourite podcasts, and discover exclusive original creations, audio books, new documentaries, and more.Vivaldi browser is an efficient, fast and privacy-friendly Web browser. Allowing you to watch video content on-board when stationary.Talk to Google to plan a journey, change driving mode, or set the temperature. The voice assistant(1) is there for you with a simple "Hey Google" command.Blocked road, new one-way street, temporary deviation...The Google Maps navigation system(1) ensures precise driving even in the event of network loss.build yours →10(1) M y Renault, Google Maps and Google Assistant connected services are provided free of charge for 5 years from the date of delivery of your vehicle.(2) d epending on country.(3) use the applications downloaded from Google Play in your vehicle thanks to the 3 GB data package provided free of charge by Renault (valid for 6 months).menu ↑05. interiorcomfortable:modular layoutA generous amount of legroom providing ultimate comfort.The rear bench slides up to 16cm, giving a larger boot when you need it.Enjoy a boot volume of up to 555L(2)or 1,525L(2) by folding downthe rear seats.An ergonomic and sliding hand-rest enables you to operate the large 12" openR screen comfortably.(1) standard on iconic esprit Alpine version.(2) according to VDA protocol.build yours →11benefit from an electric power boot opening for ultimate ease(1)wireless smartphone charger(1)menu ↑up to 30 advanced driver-assistance systemsAll new Renault Austral E-Tech full hybrid offers up to 30 advanced and innovative driver-assistance systems.06. advanced driver-assistance systemsbuild yours →adaptive cruise controlIt maintains a safe distance betweenyou and the vehicle in front by activatingthe brakes when the distance is tooshort and the accelerator when theroad is clear again.Matrix Vision LED headlightsThe system automatically adjusts thelight beam shape to the traffic andweather conditions to avoid glareand optimise night vision.emergency braking when reversingThis system detects obstacles at therear and stops the vehicle automaticallyin the event of danger.lane keeping assistThis corrects the angle of the steeringwheel, returning the vehicle to its laneunless you have indicated.360° view 3D camera4 cameras, whose images recreatethe vehicle's direct environment 360°around it, allow you to perform yourmanoeuvres effortlessly.driver attention alertThis system warns the drive if fatigueis detected via an audible alert and amessage on the dashboard, detectionis based on analysis of the driversreactions.driving• active driver assist• hill start assist• 9.3" head-up display (210 cm2)• safe stopping distance warning• speed limiter• cruise control• adaptive cruise controlparking• rear parking sensors• front parking sensors• side parking sensors• 360° view 3D camera• rear view camerasafety• lane change warning• lane departure warning• lane keeping assist• blind spot warning• emergency brake assist withintersection function• automatic emergency brakingwhen reversing• city/suburban automatic emergencybraking with pedestrian/cyclistdetection• rear cross parking prevention• lane departure prevention in the eventof overtaking• road sign recognition• road sign recognitionand speeding alert(1)• driver fatigue detection alertlighting• LED Matrix Vision headlights• automatic main-beam/dippedheadlights activation• adaptive vision LED headlights(with integrated fog light function) (1) included for 5 years12menu ↑coloursarctic white (1)iron blue (1)flame red (1)diamond black (1)shadow grey (1)(1) metallic paintmatte shadow greywith diamond black roofbuild yours →13menu ↑interior trimstechno• 19" komah black diamond-cut alloy wheels• adaptive matrix LED vision• Google built-in• 9.3" head-up displaydownload the trims andequipment PDF (6 MB)techno esprit Alpine• 20" daytona black diamond-cut alloy wheels• heated & electric front driver & passenger seats• electric power boot opening• esprit Alpine styling• heated steering wheeliconic esprit Alpine• 3600 around view camera• panoramic sunroof• 4Control advanced: 4-wheel steering• Harman Kardon audio systemGoogle, Google Assistant, Google Play and Google Maps are trademarks of Google LLC.14upholsterywheel rimsleatherette & grey gradient fabric upholstery (1)esprit Alpine carbon fabric & Alcantara upholstery with bluestitching(2)19" komah blackdiamond-cut alloy wheels (1)20" daytona blackdiamond-cut alloy wheels (2)(1) standard on techno.(2) standard on techno esprit Alpine & iconic esprit Alpine.(1) standard on techno.(2) standard on techno esprit Alpine & iconic esprit Alpine.build yours →15menu ↑accessory packs16magnetic smartphone holder carbon-effect gun metal grey light grey gold accentrear tray table & fixingcarbon-effect gun metal grey light greyilluminated door sillsseparation grid roof bars roof bars removable towbar 13 pin side steps boot sill, boot matmodular boot liner480L roof box2 x bike carriers for roofKENWOOD front dash cam KENWOOD rear camAll accessories purchased prior to vehicle registration come with a 3 year manufacturers warranty.Accessories are fitted post production and may have an impact on WLTP fuel (actual) consumption and CO 2 figurescustomisation for:front & rear skid, air intakes, upper grille line & mirror shells customisation for:upper grille line, mirror shells & rear skid espirit alpine version available: boot sill and boot mat colour packs (techno)colour packs (espirit alpine)protection pack (techno)tow barsside step packpet packtouring packstorage packcycle packdash cam packdownload the accessories brochure PDF (6MB)storage pack + available with 2 rear tray tables & fixingspremium delivery packspremium delivery pack premium textile floor mats safety kitpremium delivery pack+premium textile floor mats safety kitrubber boot linerpremium textile floor matssafety kit rubber boot linermenu ↑enginedownload the engine PDF (6MB)17E-Tech full hybrid 200 hpmaximum speed (mph)1080-62mph (seconds)8.4dimensions & volumesbuild yours →dimensions in (mm).9259171,6641,8252,0831,5892,1001802,6674,51018boot volume (L)E-Tech full hybridwith rear bench seat that can slide back 16 cm up to 555max. with rear bench seat folded down1525menu ↑Renault services3 years warrantyYour Renault car is covered by a warranty package for up to 3 years from date of first registration with unlimited mileage during the first24 months, then limited to a total of 60,000 miles or 3 years, whichever comes first. For further details go to /warranty.htmlEasyLife service planRenault’s EasyLife Service Plan is the ultimate package to provide care-free servicing for your Renault. For more information go to www.renault. /general-maintenance/service-plans.html 3 years roadside assistanceShould you need it, we’ll provide emergency roadside repairs or tow you to the nearest Renault Dealer. For further details visit www.renault. /assistance.htmlRenault car insuranceA car as well designed as your Renault deserves an insurance policy to match. Renault Insurance has been specifically created to provide superb protection for you and your car. Visit /insurance.htmlcustomer relationsRenault knows the value of communicating with its customers and we have established effective ways to keep in touch with you. If after speaking to your local Renault dealership you are not completely satisfied, please contact the Renault UK Customer Service Team on 0344 335 0000† (Mon-Fri 8am to 6pm. Closed Saturday, Sunday and on Bank Holidays. Live Chat Mon-Fri 8am to 6pm). You can also visit or write to us at: Renault UK Ltd, The Rivers Office Park, Denham Way, Maple Cross, Rickmansworth, Hertfordshire,WD3 9YS.† Calls to 03 numbers are free if used as part of your inclusive mobile minutes and are charged at local rates from landlines.Renault careserviceReplace what is necessary,at the right time. Thanks to its connected and predictive maintenance features, it is easy to service yourall new Renault Austral E-Techfull hybrid. And thanks to theMy Renault application, quotes,online appointments and even service history are at your fingertips.find out more about Renault care service19ebuild yours →Every precaution has been taken to ensure that the contents of this brochure were accurate and up to date at the time of release. This document has been created using pre-production and prototype models. In line with its policy of continuous product improvement, Renault reserves the right to modify the specifications, vehicles and accessories described and featured at any time. Any such modifications are communicated to Renault dealers as quickly as possible. Depending on the country of sale, versions may differ and some equipment may be unavailable (standard, optional or accessories). Please contact your nearest dealer for the latest information. Due to the limitations of the medium, the colours featured in this document may differ slightly from those of the actual paintwork or interior trim. All rights reserved. Reproduction in any format and by any means of all or part of this brochure is prohibited without prior written authorisation from Renault.Publicis – photo credits: C. Violet, F. Schlosser, S. Staub, © Renault Marketing 3D-Commerce, Pagécran – November 2023.20Renault recommends menu ↑。
横河电力设备WT310E WT310EH WT332E WT333E数字功率计操作手册
单位
k: 表示1000。 K: 表示1024。
例: 100kHz(频率) 例: 720KB(文件大小)
提示
在本手册中，提示与注意分别使用以下符号。
不当处理或操作可能导致操作人员受伤或损坏仪器。 此标记出现在仪器需要按指 定方法正确操作或使用的危险地方。同样的标记也将出现在手册中的相应位置， 并介绍其操作方法。在本手册中，此标记与“警告”或“注意”一起出现。
警告
提醒操作人员注意可能导致严重伤害或致命的行为或条件，并注明了防止此类事 故发生的注意事项。
注意
提醒操作人员注意可能导致轻度伤害或损坏仪器/数据的行为或条件，注明了防止 此类事故发生的注意事项。
提示
提醒操作人员注意正确操作仪器的重要信息。
7段LED中的字符
由于本仪器采用了7段LED显示屏，数字、字母和四则运算符号将用特殊字符显示。在以下显示的字符
WT310E/WT310EH/WT332E/WT333E
数字功率计
操作手册
IM WT310E-01CN
第2版
感谢您购买WT310E、WT310EH、WT332E或WT333E数字功率计。本仪器是可以测量电压、电流和功 率等参数的功率测量仪器。 本操作手册主要介绍本仪器的功能和操作方法。为正确使用本仪器，请在使用之前仔细阅读本手册。 请妥善保管本手册，以便出现问题时能及时查阅。
IM WT310E-01CN
iii
输入数值
输入数值
设置闪烁的数位。 用▲或▼选择输入数值。
移动设置位
按SHIFT+▼(►)，向右移动设置位。 设置位在最右边时，如果按SHIFT+▼(►)，设置位将移到可设置范围的最左边。
移动小数点
按SHIFT+▲(.)，向右移动小数点。 小数点在最右边时，如果按SHIFT+▲(.)，小数点将移到可设置范围的最左边。
横河WT300E系列数字功率计说明书
Bulletin WT300E-01CNWT300E 系列数字功率计The world'sbest seller5专业30性能空间30多年紧凑型功率计的专业经验与可靠性保证2534/25351992WT110/WT130********2012201519151979YOKOGAWA 成立第一台紧凑型数字功率计诞生2509WT210/WT230WT300系列最新款紧凑型数字功率计WT300E 系列WT300E 系列产品4WT300E 系列特点与优势WTViewerFreePlus 软件显示画面性能卓越、可靠性高同时测量所有参数WT300E 系列不但可以测量所有交直流参数，也可以在没有改变测量模式的情况下同时执行谐波测量和积分测量。
WTViewerFreePlus 软件可用于监视和保存所有这些参数数据，最多可达200个。
便捷的测量功能• 最大值保持功能可以保持RMS/PEAK 电压&电流、有功功率、无功功率和视在功率的最大值。
• 线路滤波器和频率滤波器功能这些滤波器功能将为基波测量过滤掉不需要的噪声和谐波成分。
积分测量时的自动量程功能通常，当功率计在积分模式下测量功耗和待机功率时，需要将测量量程固定。
但是，如果输入电压或电流超过被选量程的最大值，测量结果将出错，并且需要以最高量程执行重复测试。
WT300E 系列可以在积分模式下快速地自动切换量程，这不但可省去上述重复测试的麻烦，还可保证积分的连续性和准确度。
该功能不但可以测量正负瓦时，还可以测量安时以及DC 电流。
峰值因数“6A ”模式在CF=6A 的情况下，电压和电流的最大额定输入变为量程的260%，最大可显示到280%。
需要进行高分辨率测量时，通过该模式可以避免频繁的电流量程变动。
指定量程间的自动量程功能自动量程功能可用于在指定量程间自动选择/切换量程。
特点与优势快速显示和数据更新率WT300E 系列拥有快速显示和最大100ms 的数据更新率，可为用户缩短测试过程的工时。
Weller WT 系列产品说明书
WT Soldering and Rework High flexibility for versatile applicationsTable of Contents 3WT Stations introduction 2–3 WT 1 / WT 1H / WT 2M Soldering stations 4–5 WTP 90 Soldering pencil, WSR safety rest 6 WT 2M Soldering station and microtools 7 WTHA 1 Hot air station 8–9 WT T ool selection and compatibility matrix 10–11Overview WT Stations and sets 12–13 Soldering tool sets 14–15 Accessories 16–17 Building your Weller workbench 18 Technical data 19 Locations / Contact information 20An unstoppable lineup...the WT.The best defense. Weller’s new WT Line is an unbeatable contingent of compact, stackablesoldering stations that are 90 and 150 Watts and feature 1- or 2-channels.A 900 W hot air station is also included. T hey are backwards compatible with a phalanx of ironsand accessories, giving you a lineup that can face down most hand soldering challenges.A cleaner, more organized workbench. The space-saving power units have interlocking,reversible safety rests that offer convenient and safe tip storage.WT 1WT 2MWSR WT 1HWTHA 1The can-do WT soldering stations.These next generation, small but mighty soldering stations aim to please. They are compact enough to fitin your hand and be stacked on top of each other, but versatile and powerful enough to tackle all kinds ofsoldering jobs from heavy high mass applications to delicate microsoldering (the WT 2M only). The highperformance WTs are available in a one-channel 90 W station, and also with 150 W powering one- andtwo-channel stations. Only the 2-channel WT 2M supports Weller’s line of microtools.HIGH FLEXIBILITY FORVERSATILEAPPLICATIONSWT LINE2-in-1 WSRSafety RestThe soldering iron holdercan flip between wet anddry cleaning receptaclesHigh performance soldering pencil with easy tip changeSimilar to a cartridge system, with the WTP 90 you can easily switch out the heatingelement while the iron is hot, or simply change only the tip.Space-saving,stackable unitsThe WT solderingstations can be stackedon the WTHA 1 hotair station, or on eachother, saving preciousHigh performanceWT soldering stations>>Up to 150 Watts power>>User friendly, stackable units>>Best in class – attractive price/performance ratio>>Maximum versatility: backwardscompatible with existing soldering tools>>Comprehensive range of accessories>>Featuring the high performanceWTP 90 soldering pencil. Innovativeand cost-effective with a tip thatperforms like a cartridge tipBackwards compatibility›All soldering irons of the WSD and WDsoldering stations can be connected›Microsoldering tools can be connectedto the WT 2MESD safeCan be trusted forprofessional useWT 1›1-channel, 90 W stationWT 1H›1-channel, 150 W station›Powers irons up to 150 WWT 2M›2-channel, 150 W station› 2 irons can be used simultaneously›Can connect with micro-pencilWMRP or WMRP-MS andmicro-tweezers WMRT orWMRT-MS with active(cartridge) tipsMultifunctional LCD screen›Detailed overview of all functions›Adjustable background illumination›Power bar graph showspower output from the station tothe soldering iron tipMenu buttonsprovide intuitivenavigation›Temperature controls›Password protection›Standby and autosetback modesFront-mountedpower switchConvenienton/off control~1000possible iron/tipcombinationsper WT station>>High-performance, 90 W Hybrid soldering pencil >>Combination between Micropencil for highestperformance with best heat transfer and passive tip pencils with very good heat transfer whilecontrolling costs.>>Quick tip change system similar to active cartridge system>>Automatic standby mode operates from a sensor in the handle which detects when the device is in useThe soldering iron holder is reversable, allowing the user to choose between wet and dry tip cleaning.With the removal of the blue side plates, two or more safety Powering 2 tools at once, the multifunctional WT 2M.WT Line High performance WTP 90 Hybrid soldering pencilQuick Tip Change>>Passive tip system allows quickexchange of heating elementswhen iron is hot>>Can easily switch out tips with knurled nut >>Tip replacement independentof the heating element convenient change of entire tip when iron is hot>No extra tools required to facilitate the end user’s day to day work.>100% toolless – change by handCompatible with microtools, and more!Packing 150 W of power, the multifunctional 2-channel WT 2M soldering station is backwards compatible with Weller’s microsoldering cartridge tip tools, plus many existing passive tip tools providing high performance, easy handling, and long tip life.Passive tip tools>>Supporting a wide range of tools using standard passive tips (combined tool power up to 200W)>>Best in class portfolio to get the right tool for your application>>Providing high performance while controlling the costs Microsoldering pencil>>Extremely short heat-up time (2 to 6 seconds)>>Optimum heat transfer >>Minimized recovery time >>Quick, easy tip change>>Providing highest performanceMicrosoldering and desoldering tweezers>>Feature twin parallel adjustable tiplets which allow the soldering and desoldering of very small SMD components >>When connected to the power unit, the tool is recognizedMore than just a lot of hot air, the WT HA 1 hot air stationMulti-function LCD ScreenUnique LC display with a detailed overview of all functions. Adjustable background illumination. Power bar graph allows visual monitoring of the output power from the station to the hot air pencil.Up to 5 pre-sets are available to define volume, temperature and time settings. With the profile mode activated, the pre-sets can be run in a selected sequential order.90 cm long, flexible, heat-resistant silicone hose.Tandem control with a dual sensor system for twice the performance.900 Watts, with up to 100 l / min expanded hot air.Provides the ultimate user friendly access to and navigation of the menu structure.The WT 1 / WT 1H soldering stations can be stacked on the WTHA 1 hot air station saving space on the workbench.Activation finger switch located on the ergonomic hand grip.ADVANTAGES AT A GLANCEThe WTHA 1 is a compact 900 W, easy-operating hot air station with a smart temperature profile mode adjustable for diverse rework applications, assuring fast, safe performance.Product picture similarWT Stations, Irons and SetsWT 1014 Set1-Channel>Power>Unit,>90>W>(95>W)>with>WSP>80ROB>soldering>iron>>(80W>/>24V),>soldering>tip>LT>B>and>WSR>201>safety>restWT 1010H Set1-Channel>Power>Unit,>150>W>(200>W)>with>WP>120>soldering>iron>(120>W>/>24>V),>soldering>tip>XT>B>and>WSR>201>safety>restWT 1011H Set1-Channel>Power>Unit,>150>W>(200>W)>with>WP>200>soldering>iron>(200>W>/>24>V),>soldering>tip>XT>B>and>WSR>202>safety>restWT 2010M2-Channel>Power>Unit,>150>W>(200>W)>with>WTP>90>hybrid>iron>and>safety>restWT 2020M2-Channel>Power>Unit,>150>W>(200>W)>with>WMRP>mircro>soldering>iron>and>WMRT>micro>desoldering>tweezers>and>safety>restsWT 1 Soldering Station1-Channel>Power>Unit,>90>W>(95>W)WT 1H Soldering Station1-Channel>Power>Unit,>150>W>(200>W)WT 2M Soldering Station2-Channel>Power>Unit,>150>W>(200>W)WTHA 1 Hot Air StationHot>Air>Station,>900>W>with>integrated>hot>air>ironWT 1010 Set1-Channel>Power>Unit,>90>W>(95>W)>with>WTP>90>hybrid>soldering>iron>(90>W>/>24>V),>soldering>tip>XNT>A>and>WSR>200>safety>restWT 1012 Set1-Channel>Power>Unit,>90>W>(95>W)>with>WSP>80>soldering>iron,>soldering>tip>LT>B>and>WSR>201>safety>restWT 1013 SetWT>1>power>unit>with>WP>80>soldering>iron>(80W>/>24V),>soldering>tip>LT>B>and>WSR>201>safety>restWT Soldering T ool SetsWMRP microsoldering pencil with RT 3 tip and WDH 50 safety rest >Fine>slim>soldering>iron.>Ideal>for>microscope>work.High>performance>by>integrated>active>soldering>tip 40>W>>|>>12>V>>>Tip>family>RTWMRT microdesoldering tweezers with RTW 2 tip and safety rest WMRTHSlim>tweezers.>Ideal>for>soldering>and>desoldering>of>>very>small>SMD>components.>Tip>family>RTW 80>W>(2>x>40>W)>>|>>12>V>>Tip>family>RTWWMRP-MS microsoldering pencil with RT3 MS tip and WDH 50 safety rest >Fine>slim>soldering>iron.>Ideal>for>microscope>work.High>performance>by>integrated>active>soldering>tip40>W>>|>>12>V>>|>>Tip>family>RT-MS>according>to>MIL-STD-2000WMRT-MS microdesoldering tweezers with RTW2 MS tip and safety rest WMRTHSlim>tweezers.>Ideal>for>soldering>and>desoldering>of>>very>small>SMD>components.80>W>(2>x>40>W)>>|>>12>V>>>>Tip>family>RTW-MS>according>to>MIL-STD-2000WTP 90 soldering iron set with XNT tip and WSR 200 safety restThe>high-tech>iron>for>universal>use>with>power>response>tips.>90>W>>|>>24V>>|>>Max.>temperature >450>°C>/>850>°F>>|>>Tip>family>XNT>WP 65 soldering iron set with XNT A tip and WDH 10 safety restSmall,>fast>soldering>iron.>Suitable>for>fine>soldering>jobs>with>>a>high>heat>demand.>65>W>>|>>24>V>>|>>Max.>temperature>450>°C>/>850>°F>>>|>>Tip>family>XNTWP 80 soldering iron set with LT B tip and WDH 10 safety restSoldering>iron>for>all>standard>applications>with>short>tip-to-grip>design.>Comfortable>safety>rest>with>4-step>varying>inclination.80>W>|>24v>|>Max.>temperature>450>°C>/>850>°F>>|>>Tip>family>LT>>>WSP 80 soldering iron set with LT B tip and KH 18 safety restFor>all>standard>soldering>applications.80>W>|>24>V>|>Max.>temperature>450>°C>/>850>°F Tip>family>LTWP 120 soldering iron set with XT B tip and WDH 10 safety restVersatile>120>W>iron>for>demanding>applications.>Can>use>on>small>and>large>components>within>applications>with>a>higher>heat>demand.>120>W>|>24>V>|>Max.>temperature>450>°C>/>850>°F Tip>family>XTWSP 150 soldering iron set with LHT F tip and WDH 30 safety restFor>jobs>with>extremely>high>heat>requirements>>and>large>heat>sinks.150>W>|>24>V>|>Max.>temperature>450>°C>/>850>°F Tip>family>LHTWP 200 soldering iron set with XHT D tip and WDH 31 safety restHeavy>power>soldering>iron.>Ideal>for>those>applications>with>the>highest>heat>demands>e.g,>LED>backpanels>or>HF>shieldings.>>200>W>|>24>V>|>Max.>temperature>450>°C>/>850>°F>Tip>family>XHTWTA 50 desoldering tweezers set with WTA 1 tip and AK 51 safety restFor>safe>desoldering>jobs.>2>x>25>W>|>24>V>|>Max.>temperature>450>°C>/>850>°FFE 75 integrated fume extraction iron set with LT B tip and safety restFume>extraction>soldering>pencil.>Two-in-one>soldering>>and>tip>extraction.>Includes>a>5>mm>brush.75>W>|>24>V>|>Max.>temperature>450>°C>/>850>°F Tip>family>LTWT AccessoriesWT peripheral heating platesWHP 80Heating>plate>with>heating>surface>80>x>50>mm,>>temperature>range>50>°C>–>200>°CWT compatible soldering bathWT and WX Hub connectors for Zero Smog ® unitsPeripheral Solder Bath WSB 80Solder>bath,>80>W,>Inside>diameter>20>mm,>depth>25>mm,>>temperature>range>50>°C>–>450>°C,>for>lead-free>solderWSB 150Solder>Bath,>150>W,>50>°C>–>550>°C,>for>lead-free>solderWT HubTo>connect>the>Zero>Smog ®>TL>unitWX HubTo>connect>the>Zero>Smog ®>4V,>6V>and>20T>unitsWT compatible fume extraction unitsZero Smog ® TLPortable>fume>extraction>unit,>easy>to>install>and>operate.>Small,>economical>central>system>for>2>workplaces.Zero Smog ® 4VMobile>fume>extraction>unit>for>large>areas,>with>built-in>turbine>>and>pressure>regulator>for>constant>volume>flow.Up>to>4>work>places.Zero Smog ® 6VMobile>fume>extraction>for>large>areas,>with>a>built-in>turbine.Up>to>6>work>places.Zero Smog ® 20TMobile>tip>extraction>unit.>Up>to>20>Weller>fume>extraction>soldering>irons>can>be>connected>directly>to>the>fume>extraction>unit.WFE PThe>WFEP>is>a>line>voltage>tip>extraction>unit>designed>to>run>>with>one>or>two>FE>(Fume>Extraction)>soldering>irons.>Choose your soldering tool, then your soldering station, based on our recommendations.When you find the correct tool for your application, it is easy to select the appropriate station.Choose your component size and solder tip.Choose from micro-solder joints between 0.2 mm up to extra large solder joints for high mass soldering.Choose the energy level you will need to solder your board.Choose the energy requirements between medium and high.Try our interactive tool selector on weller.deHow do I begin to build my Weller workbench?The user-friendly WT LineSelect the WSW-cored solder wire which offers revolutionary wetting properties at lowerThey were made for each other. Weller’s compact, user-friendly suite of WT Line soldering and rework products all fit together nicely to give you the space you crave on your workbench.Stackable, smart power units. Interlocking, reversible safety rests. Convenient and safe tip storage. A sleek 90 Watts pencil. Microsoldering capacity. Backwards compatibility affording you over 1,000 tip / tool combinations.Choose from a wide range of Weller tools to complete your workbenchSolder WireFume ExtractionPrecision ToolsDo you already know our hand-crafted Weller Erem precision tools made in Switzerland?Also have a look at screwdrivers The correct Zero Smog ® fume extraction unit protects your health and the health of yourGERMANYWeller Tools GmbHCarl-Benz-Straße 2 74354 BesigheimTel: +49 (0) 7143 580-0 Fax: +49 (0) 7143 580-108CHINAApex Tool Group2nd Floor, Area C, 177 Bibo Road,Pudong, Shanghai, 201203Tel: +86 (21) 60880288Fax: +86 (21) 60880298USAApex Tool Group,670 Industrial DriveLexington SC, 29072Tel: +1 (800) 688-8949Fax: +1 (800) 234-0472® Erem® and Weller® Xcelite®precision tools。
e-switch 1 Series选项说明书
E - Ring Illumination
2 - Solder Lug W - Wire Leads 500mm long
E - Ring Illumination P - Power Symbol/ Ring Illumination
2 - Solder Lug W - Wire Leads 500mm long
TUBING 4 PLACES 4 PLACES
20AWG WIRE, 20AWG WICROEL,OR RED
COLOR RED(LED +) (LED +)
20AWG WIRE 20AWG WCIORLEOR BLACK COLO(RSWBILTACCHK TERMINAL 1) (SWITCH T2E0RAMWINGAWL I1R)E 20AWG WCOIRLEOR GREEN COLOR GREE(NLED -) (LED -)
PVA6 • 16mm diameter panel cutout • Solder lug or wire leads (500 mm long) termination • Ring or power symbol / ring illumination options • Multiple actuator options • IP67 rated, Off-(On), SPST • Multiple LED colors available
H - High Flat
PVA6
F - Flat
PVA6L
R - Rounded
NOTES: *( ) denotes function is momentary
E - Ring Illumination P - Power Symbol/ Ring Illumination
萤石 智能宠物-宠物饮水机 CS-PB-WT401 使用说明书
智 享 养 宠 生 活We embrace a scientific way of pet raising.宠物饮水机使用说明书P E T F O U N T A I N M A N U A L*产品图片与实物略有不同时,请以实物为准请知悉阅读操作说明本产品经萤石公司认证，符合萤石互联产品技术规范和要求，可放心安全使用。
产品简介滤芯托盘饮水盘滤芯按键指示灯出水管主机产品展开图产品俯视图静音水泵清洗时盖回，避免弄湿接口防水软胶塞插入电源线，电源保护接口配件清单饮水盘×1出水管×1滤芯托盘×1主机×1滤芯×1适配器×13. 将所有组件依次组装（从上到下为饮水盘，滤芯托盘与滤芯，主机）。
4. 将适配器接口插入防水软胶塞中的电源接口，安装完成，开始使用。
2. 将滤芯从滤芯托盘底部卡扣处插入。
1. 将出水管用橡胶套连接由上至下插入经营水泵上端接口。
安装说明1. 将组装好的饮水盘、滤芯托盘和滤芯取出。
2. 往主机中倒入适量的宠物饮水（请不要超出最高水位线）。
3. 注入宠物饮水之后，重新组装饮水器。
4. 将电源适配器插入插座，产品通电即可使用。
使用说明A P P功能说明本产品已接入萤石云视频APP，使用手机扫描左侧二维码，下载并安装“萤石云视频”APP（或通过应用商城搜索“萤石云视频”）。
下载完成后打开APP完成注册登录，根据APP内的指引进行产品的配置和操作。
完成注册并登录后，添加设备的具体操作步骤如下：1.点击操作界面右上角“+”号入口。
2.点击操作界面“添加设备”选项。
3.点击操作界面右上角品类入口。
连接界面。
6.根据界面提示进行操作，确认产品指示灯快速闪烁后，勾选并点击下一步，完成产品连接后即可使用APP对产品进行操作。
指示灯与按键说明指示灯1. 常亮白光：正常出水，产品正常工作。
2. 常亮红光：缺水状态，水泵停止工作，需要添加宠物饮水;加水高出水泵低水位后，水泵自动重启。
Dell E-Port 用户指南说明书
CAUTION: Before you set up and use your E-Port, see the support documentation that shipped with your computer or go to d d e l l.c o m/r e g u l a t o r y_c o m p l i a n c e for regulatory and safety information.N O T E:Before you initially connect your laptop to the E-Port, the operating system must complete its setup process. For further information see the Dell™ E-Port User’s Guide ons u p p o r t.d e l l.c o m/s u p p o r t/s y s t e m s i n f o/d o c u m e n t a t i o n.a s p x.PRECAUTION: Avant deconfigurer et d'utiliser E-Port,consultez la documentation desupport technique fournie avecvotre ordinateur ou rendez-vous surd e l l.c o m/r e g u l a t o r y_c o m p l i a n c e etlisez les informations relatives à lasécurité et à la réglementation.R E M A R Q U E:Avant de connectervotre ordinateur portable à E-Port,le système d'exploitation doit avoirterminé son processus deconfiguration. Pour plusd'informations, reportez-vous auguide de l'utilisateur E-Port Dell™àl'adresse s s u p p o r t.d e l l.c o m/s u p p o r t/s y s t e m s i n f o/d o c u m e n t a t i o n.a s p x.VORSICHT: Bevor Sie denE-Port einrichten und verwenden,lesen Sie sich die Dokumentationdurch, die Sie zusammen mit IhremComputer erhalten haben. Siefinden diese auch aufd e l l.c o m/r e g u l a t o r y_c o m p l i a n c e.A N M E R K U N G:Bevor Sie IhrenLaptop erstmals mit dem E-Portverbinden, muss der Setup-Vorgangfür das Betriebssystemabgeschlossen sein. WeitereInformationen finden Sie imBenutzerhandbuch für den Dell™E-Port aufs u p p o r t.d e l l.c o m/s u p p o r t/s y s t e m s i n f o/d o c u m e n t a t i o n.a s p x.ATTENZIONE: Prima diimpostare e utilizzare E-Port,consultare la documentazione disupporto in dotazione con ilcomputer o visitare il sitod e l l.c o m/r e g u l a t o r y_c o m p l i a n c eper le informazioni sulleregolamentazioni e la sicurezza.N O T A:Prima di collegare per laprima volta il computer portatile aE-Port, è necessario che il sistemaesegua il relativo processo diimpostazione. Per ulterioriinformazioni, consultare la Guidadell'utente di Dell™ E-Portdisponibile sul sitos u p p o r t.d e l l.c o m/s u p p o r t/s y s t e m s i n f o/d o c u m e n t a t i o n.a s p x.PRECAUCIÓN: Antes deinstalar y usar E-Port, consulte ladocumentación de soporte incluidacon el equipo o visited e l l.c o m/r e g u l a t o r y_c o m p l i a n c epara obtener información sobrenormativas y seguridad.N O T A:Antes de conectar porprimera vez el portátil a E-Port, elsistema operativo deberácompletar su proceso deinstalación. Para obtener másinformación, consulte la Dell™ E-Port User's Guide(Guía del usuariode E-Port) de Dell™ ens u p p o r t.d e l l.c o m/s u p p o r t/s y s t e m s i n f o/d o c u m e n t a t i o n.a s p x.CUIDADO: Antes deconfigurar e utilizar o E-Port,consulte a documentação desuporte fornecida com ocomputador ou aceda ad e l l.c o m/r e g u l a t o r y_c o m p l i a n c epara obter informaçõesregulamentares e de segurança.N O T A:Antes de ligar pela primeiravez o seu computador portátil ao E-Port, o processo de configuraçãodo sistema operativo deverá tersido concluído. Para obter maisinformações, consulte o Guia doutilizador do Dell™ E-Port ems u p p o r t.d e l l.c o m/s u p p o r t/s y s t e m s i n f o/d o c u m e n t a t i o n.a s p x.w w w.d e l l.c o m | s u p p o r t.d e l l.c o mPrinted in Ireland.Dell™ E-Port Quick Setup GuideG u i d e d 'i n sta l l a t i o n ra p i d eE x p ress-S e t u pG u i d a a l l 'i n sta l l a z i o n e ra p i d aG u ía d e i n sta l a c i ón r áp i d aG u i a d e co nf i g u ra ção r áp i d a d o Information in this document is subject to change without notice.© 2008 Dell Inc. All rights reserved.Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.Dell , and the DELL logo, are trademarks of Dell Inc.Dell disclaims proprietary interest in the marks and names of others.November 2008Les informations contenues dans ce document peuvent être modifiées sans notification préalable.© 2008 Dell Inc. Tous droits réservés.La reproduction de ce matériel de quelle manière que ce soit est strictement interdite sans autorisation écrite de Dell Inc.Dell et le logo DELL sont des marques déposées de Dell Inc.Dell rejette tout intérêt de propriété dans les marques et noms autres que les siens.Novembre 2008Die in diesem Dokument enthaltenen Informationen können ohne vorherige Ankündigung geändert werden.© 2008 Dell Inc. Alle Rechte vorbehalten.Die Vervielfältigung dieser Materialien ist ohne die schriftliche Zustimmung von Dell Inc. strengstens untersagt.Dell und das DELL -Logo sind Marken von Dell Inc. Dell erhebt keinen Anspruch auf Marken und Namen Dritter.November 2008Le informazioni contenute nel presente documento sono soggette a modifiche senza preavviso.© 2008 Dell Inc. Tutti i diritti riservati.È severamente vietata qualsiasi riproduzione di questo materiale senza l'autorizzazione scritta di Dell Inc.Dell e il logo DELL sono marchi di Dell Inc. Dell declina ogni resposnabilità di interesse proprietario nei confronti di marchi e nomi di terzi.Novembre 2008La información contenida en este documento puede modificarse sin previo aviso.© 2008 Dell Inc. Todos los derechos reservados.La reproducción por cualquier medio de este documento sin el consentimiento por escrito de Dell Inc. estáterminantemente prohibida.Dell y el logotipo de DELL son marcas registradas de Dell Inc. Dell renuncia a cualquier interés sobre la propiedad de marcas y nombres comerciales que no sean los suyos..Noviembre de 2008As informações contidas neste documento estão sujeitas a alteração sem aviso prévio.© 2008 Dell Inc. Todos os direitos reservados.Éestritamente proibida qualquer reprodução destes materiais sem autorização por escrito da Dell Inc.Dell e o logótipo DELL são marcas comerciais da Dell Inc. A Dell renuncia quaisquer lucros de propriedade relativamente a nomes de terceiros..Novembro de 2008P r i nt。
奥迪e-tron车辆使用详细手册
一览 ________________________________________________________________________________________________________________________________ 8 车底结构 ___________________________________________________________________________________________________________________________10 车身装配 ___________________________________________________________________________________________________________________________12
底盘
一览________________________________________________________________________________________________________________________________52 车桥 _______________________________________________________________________________________________________________________________53 自适应空气悬架 (aas) ________________________________________________________________________________________________________________54 转向系统____________________________________________________________________________________________________________________________56 制动装置____________________________________________________________________________________________________________________________58 制动调节系统 MK C1 ________________________________________________________________________________________________________________59 车轮、轮胎和轮胎压力监控系统 _________________________________________________________________________________________________________________________________________________________________________________________________________________34 换挡操纵机构________________________________________________________________________________________________________________________36 电控驻车锁 _________________________________________________________________________________________________________________________40 驻车锁机械机构______________________________________________________________________________________________________________________42 单速齿轮箱 – 0MA ___________________________________________________________________________________________________________________44 行星齿轮式轻结构差速器______________________________________________________________________________________________________________46 单速齿轮箱 – 0MB ___________________________________________________________________________________________________________________48 维修保养说明 ________________________________________________________________________________________________________________________50
ECAT -2610 -DW 快速入门指南说明书
ECAT-2610-DW Quick Startv1.0, May 2019What’s in the box?Related InformationThe package includes the following items: ECAT-2610-DW Module x 1 Quick Start x1 (This Document) CA-0915 Cable x1 For detailed information about the how to configure and operation PM-3000 Series Power Meter, refer to Chapter 3. “Getting Started ” in the User Manual. Note that ECAT-2610-DW only supports PM-3033, PM-3133, PM-3114 and PM-3112 Series Smart Power Meter. Here, the PM-3133 is used as an example. •Documentation & Software: •PM-3033/3133/3114/3112 Series Product Page (optional):https:///root/product/solutions/intelligence_power_meter/intelligence_power_meter.html1Connecting the Power and Host PCSwitch on module and connect it to an EtherCAT networkTop PanelNOTE: Attaching an ESC directly to an office network will result in network flooding, since the ESC will reflect any frame – especiallybroadcast frames – back into the network (broadcast storm).Verify that LEDs indicatorFront PanelIN1)Connect the Hostdevice to the IN port on ECAT-2610DW module. 2) Connect the PWR+ pin to positive terminal on a +12 - +48 V DC power supply, and connect the GND- pin to the negative terminal.Red, OKGreen, OKIN2 Connecting the Power Meter Prepare for device☑ PM-3133 Series (optional) Power MeterConnect the PM-3133 Power Meter to the ECAT-2610-DW1) Setting PM-3133’s Modbus RTU address, Baud Rate and Wiring Mode to match the command file of ECAT-2610-DW, as follows:❶ Set the Modbus address is 4 via DIPSwitch 1 to 6, i.e. ON, ON, OFF, OFF,OFF, OFF.❷ Set the Baud Rate is 115200 via DIPSwitch 7 to 8, i.e. ON, ON.❸ Set the Wiring Mode is 3P3W-3CTvia DIP Switch 9 to 10, i.e. OFF, ON.2) Check the current input terminal and connect the CT ’s then close the CT chip.3) Connect the PM-3133 using a RS-485 wiring to the COM2 on ECAT-2610-DW.4) Supply power to the PM-3133 (+12 ~ +48 V DC Power used).NOTE: For detailed information regarding hardwareconfiguration, CT ’s installation, power supply and wiring, etc.for the PM-3133 series, refer to Quick Start or User Manual(/pub/cd/powermeter/pm-3133/quickstartguide/ /pub/cd/powermeter/pm-3133/user'smanual/)RS-485 wiring DC Power Supply +12 ~ +48 V DC ② ③ ④3Search ModulesESI fileThe latest ESI file (ICPDAS ECAT-2610DW.xml ) can be downloaded from ICP DAS website at/pub/cd/fieldbus_cd/ethercat/slave/ecat-2000/software/Install the ESI fileCopy the “ICPDAS ECAT -2610DW .xml” file to the Master ToolsRun the EtherCAT Master software (Beckhoff TwinCAT 2.X)The EtherCAT system must be in a safe, de-energized state before the ECAT-2610-DW is connected to the EtherCAT network!Switch on the operating power supply, launch the TwinCAT System Manager (Config mode), and scan in the devices, as below.I/O Devices → Right click → Scan Devices …Click “OK ”buttonClick “OK ” to activate the free run mode for TwinCAT system managerChoose the correct network device which is connected to ECAT-2610-DW, and click “OK ” buttonClick “OK ” to start scanningIn the left-hand window, PM-3133 Power Meter(x3) is now shown in theTwinCAT System Manager that means the PM-3133 Power Meter (3 pcs) is connected on EtherCAT.4 Check Status1) In the left-hand pane of the TwinCAT System Manager, click the entry for the EtherCAT device you wish to configure. Click the “PM Inputs Channel 1” entry in the right-hand pane to retrieve the current configuration settings.2) In the right-hand window, check the “2610SYS”item is“0xA0000000”means the normal running of the ECAT-2610-DW module.。
EXA、EPA “WT” 系列产品说明书
Specifications subject to change without notice.484 71 3500 02 Jan 2009A−COILS FOR REPLACEMENT SERVICEExact Replacements For Older Generation A−CoilsR−22 SYSTEMS(R−410A TXV Kit Available For EPA ONLY)12 THRU 5 TONS FEATURESS Tin coated copper main tubing for additional corrosionprotectionS Lanced aluminum finS Three primary condensate drain connections S Field selectable secondary drain location S Polymer thermoset drain pan S Sweat connections S Dry air holding chargeS Upflow/Downflow applicationsS EPA Coils feature R−22 Orifice Pin refrigerant metering S EXA Coils have R−22 Thermostatic Expansion Valves S Thermostatic Expansion Valve Kit available for Orifice Pin CoilsS Designed for use with older generation fan coils: EF , FCP , FCXWARRANTYS5 year parts limited warrantyUncased “WT”A−CoilSame A−Coil Used InCased CoilMultipoise Cased CoilFan CoilElectric FurnaceEPA EPD EPM FCP EF EXAEXDEXMFCXFCVEFEPA R−22 TXV Conversion KitsEPA R−410A TXV Conversion Kits 18, 24, 30, 36AMF153TKB18, 24, 30EBAC01TXVX 36, 42EBAC02TXVX 42, 48, 60AMF355TKB48EBAC03TXVX 60EBAC04TXVXRated in accordance with ARI Standard 210 and/or 240. Certification applies only when used withproper components as listed with ARI.EXA, EPA “WT” SeriesPRODUCT SPECIFICATIONS EXA, EPA “WT” Series Coils2484 71 3500 02Specifications subject to change without notice.PERFORMANCE DATA (CFM VS DRY/WET STATIC @ INCHES WATER COLUMN)40050060070080090010001100120013001400 Model No.Dry Wet Dry Wet Dry Wet Dry Wet Dry Wet Dry Wet Dry Wet Dry Wet Dry Wet Dry Wet Dry Wet EPA18B.06.08.09.12.13.16.18.20.23.26EPA24B,F.11.12.14.15.18.19.23.23.27.29EXA24B,F.13.16.17.20.22.26.28.33.34.40EPA30B.18.22.22.27.28.33.33.39.39.46EPA30F.13.17.16.20.19.24.22.28.26.33EPA36B.18.20.22.24.27.30.32.37.37.44.43.50.50.59 EPA36F,J.19.21.21.24.25.28.29.33.33.37 EXA36B.22.24.27.30.32.37.37.44.43.50EXA36F.18.21.21.26.25.30.29.36.34.41EXA36J.14.20.16.23.18.26.21.30.21.33 EPA42F.21.27.25.32.29.37.33.43.33.49 EPA42J.18.23.21.27.24.31.26.35EXA42F.20.24.23.28.27.33.32.37.36.42 EXA42J.19.23.22.27.26.31.30.35.34.40PERFORMANCE DATA (CFM VS DRY/WET STATIC @ INCHES WATER COLUMN)10001100120013001400150016001700180019002000 Model No.Dry Wet Dry Wet Dry Wet Dry Wet Dry Wet Dry Wet Dry Wet Dry Wet Dry Wet Dry Wet Dry Wet EPA48F.20.25.23.29.27.35.32.40.36.46.41.52.47.58EPA48J.21.25.24.28.28.33.31.37.35.42.38.46EPA48L.18.23.20.27.23.30.26.34.29.40.32.43EPA48N.17.23.20.27.23.30.26.34.28.40.32.42EXA48J.19.25.24.29.26.34.31.37.33.40EXA48L.18.24.23.27.24.31.29.34.30.37EXA48N.17.22.20.25.22.28.25.31.27.34EPA60J.16.19.18.21.21.26.28.29.26.34.30.38.34.43 EPA60L.20.24.23.28.25.31.28.35.31.38.35.43 EPA60N.20.24.23.28.25.31.28.35.31.38.35.43 EXA60L.18.23.21.26.24.30.27.34.31.38.35.43.39.48 EXA60N.18.22.21.25.24.29.27.34.30.38.34.42.37.47484 71 3500 02 3Specifications subject to change without notice.COIL MODEL NUMBER IDENTIFICATION GUIDEE P A36B15WT E = EvaporatorE = Entry Level Orifice PinP = Orifice PinX = TXV TYPEA = Uncased APPLICATION18 = 18,000 BTUH = 12 tons24 = 24,000 BTUH = 2 tons30 = 30,000 BTUH = 22 tons36 = 36,000 BTUH = 3 tons42 = 42,000 BTUH = 32 tons48 = 48,000 BTUH = 4 tons60 = 60,000 BTUH = 5 tons NOMINAL CAPACITYB15 = 14w” Drain Pan (For 152” Cabinet)F19 = 188” Drain Pan (For 152” Cabinet)J22 = 21d” Drain Pan (For 152” Cabinet)L24 = 232” Drain Pan (For 152” Cabinet)N26 = 252” Drain Pan (For 152” Cabinet) WIDTHWT = Replacement Service, Tin Coated Main Tubes REVISION CODEInternational Comfort Products, LLCLewisburg, T ennessee 37091 USA4484 71 3500 02Specifications subject to change without notice.。
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
风力发电（Wind Turbine）仿真设备使用指南一、启动软件
双击WTSim.exe文件，启动E-Wind Turbine软件。
二、软件主界面
软件的主界面分为以下几个部分：风机三维显示画面、工具栏、俯视图窗口和侧视图窗口。
1. 风机三维显示画面
风机三维显示画面通过虚拟现实手段显示风机运行状态、背景及关键参数的实时数据。
运行时双击风机塔架，将进入风机浏览模式。
点击键盘A、D、W、S、R、F键，可从空间各个角度观察风机状态。
A键：左侧视角D键：右侧视角
W键：俯视视角S键：仰视视角
R键：放大视图F键：缩小视图
双击风机轮毂，可使桨叶消失，观察轮毂内部；再次双击风机轮毂，桨叶将重新出现。
双击风机机舱，可打开机舱外壳，观察机舱内部结构：发电机、传动系统及齿轮箱、偏航系统、冷却系统等；再次双击风机机舱，机舱外壳将重新出现。
双击传动系统及齿轮箱外壳，可打开传动系统及齿轮箱，观察其内部结构；再次双击传动系统及齿轮箱，外壳将重新出现。
2. 工具栏
工具栏上的按钮说明如下：
#新建按钮：新建实验工程，选择风电机组类型。
#打开按钮：打开已存在的实验工程。
#保存按钮：保存正在运行的实验工程，同时保存当前的工况。
#运行按钮：启动当前的实验工程，或从暂停重新恢复运行。
#暂停按钮：停止当前的实验工程。
#复位按钮：实验工程恢复冷态。
#内控按钮：使用内部控制程序对风电机组进行自动控制。
#外控按钮：接收外部控制器控制信号，对风电机组进行控制。
#风模型配置按钮：打开风模型配置对话框，进行风速和风向的设置。
#故障设定按钮：打开故障模式设置列表，进行故障设定。
#ProfiBusDP通讯配置按钮：打开ProfiBusDP通讯配置对话框。
#ProfiBusDP通讯数据显示按钮：打开ProfiBusDP通讯时的实时数据显示对话框。
#评分系统配置按钮：打开评分系统配置对话框。
#退出按钮：退出E-Wind Turbine软件。
新建或打开一个实验工程后，首先进行风模型配置，选择风速和风向；然后选择是内部程序控
制还是外部控制器控制，如果是外部控制器控制，确认ProfiBusDP通讯配置正确；最后点击运行按
钮，启动风电机组并对其进行控制。
风电机组运行时，不能进行新建、打开、复位、内控/外控切换以及ProfiBusDP通讯配置
操作；可以保存、暂停、配置风模型、设定故障、显示ProfiBusDP通讯数据以及退出。
风电机组暂停时，除不能进行新建、打开操作外，其余操作都可进行。
风电机组复位后，可以进行新建、打开操作，以及任何其他操作。
3. 俯视图窗口
以俯视的视角显示风机机舱的方向以及风向。
灰色圆盘表示方向，N代表正北方向，S代表正南方向，W代表正西方向，E代表正东方向。
红色圆点表示实际风向。
4. 侧视图窗口
以侧视的视角实时显示桨叶的旋转方向。
窗口左右两侧均有彩色渐变条，动态显示实时风速和实时功率。
风速的显示范围是0~20m/s；功率的显示范围是0~500KW。
二、风力发电机组类型
点击工具栏中的新建按钮时，将打开风力发电机组类型选择对话框。
只有在新建风力发电机组后才能运行。
当前版本的E-Wind Turbine软件中提供四种类型的风力发电机组：恒速定桨距风力发电机组、恒速变桨距风力发电机组、恒速变滑差变桨距风力发电机组和恒速定桨距风力发电机组。
只有在新建工程或打开已保存的工程时，可以改变或选择风机类型。
三、风模型
点击工具栏中的按钮或主界面上方天空，将打开风模型配置对话框，可对风速和风向进行快速设置或自定义设置。
在【标准】选项卡中，可快速设置风速和风向。
在【自定义】选项卡中，可以自定义风速和风向。
1. 风速的设置
在基本风中设置风速的基本值。
在随机风中设置风速随机变化时的最大变化幅值。
斜坡分量用于设置逐渐增大/减小的风速，其中幅值选项为风速的最终值，持续时间是风速从基本值变化到最终值的时间。
阵风用于设置短时间出现的风，其中幅值选项为阵风的风速，持续时间为阵风存在的时间。
作用在风机上的风速是基本风、随机风、斜坡分量和阵风等风速的叠加值。
2. 风向的设置
主风向设置风的基本方向，范围是-180°~180°；波动幅度设置风在主风向基础上的摆动幅度，范围是-5°~+5°。
正北方向为0°风向。
风向角在-180°~180°之间取值时，风向角度数的正向增加，代表风向从正北方向顺时针变化，即90°为正东方向、180°为正南方向；风向角度数的反向增加，代表风向从正北方向逆时针变化，即-90°为正西方向、-180°为正南方向。
四、ProfiBusDP通讯
E-Wind Turbine采用ProfiBusDP通讯方式与外部设备（如PLC）进行数据交换。
（一）ProfiBusDP通讯配置
点击工具栏中的按钮，将打开ProfiBusDP通讯配置对话框。
当前版本的E-Wind Turbine使用两种ProfiBusDP通讯模块：泓格I7550模块或泗博PM125模块。
注意：泓格I7550模块的波特率为9600。
其他参数保持默认值即可。
泗博PM125模块的波特率为19200。
其他参数保持默认值即可。
（二）ProfiBusDP通讯数据实时显示
点击工具栏中的按钮，将打开ProfiBusDP通讯时的实时数据显示对话框。
E-Wind Turbine运行时，在实时数据显示对话框中可以看到实时运行的数据。
点击“Data to PLC”按钮显示由E-Wind Turbine发送至外部控制器PLC的参数数据；点击“Data from PLC”按钮显示E-Wind Turbine由外部控制器PLC接收的控制数据。
硬件通讯状态指示灯指示当前通讯状态，绿色为通讯正常，红色为通讯故障。
系统运行状态指示灯指示当前运行状态，绿色为正在运行，红色为停止运行。
E-Wind Turbine在与外部控制器通讯时有两种运行模式：正常工作和测试模式。
正常工作时，E-Wind Turbine实时运行，与外部控制器进行数据交换；测试模式时，E-Wind Turbine不运行，系统产生测试数据与外部控制器进行数据交换，用于通讯连接测试。
五、故障设定
点击工具栏中的按钮，将打开故障列表对话框，可为发电机组设置故障。
故障设定后，在浏览模式下，可观察到故障现象。
如下图所示，为风轮非正常制动的故障现象，制动时有电火花产生。
双击故障位置，会弹出故障维修菜单，选择正确的维修策略，即可排除故障。
如下图所示，为风轮非正常制动的故障维修菜单。
