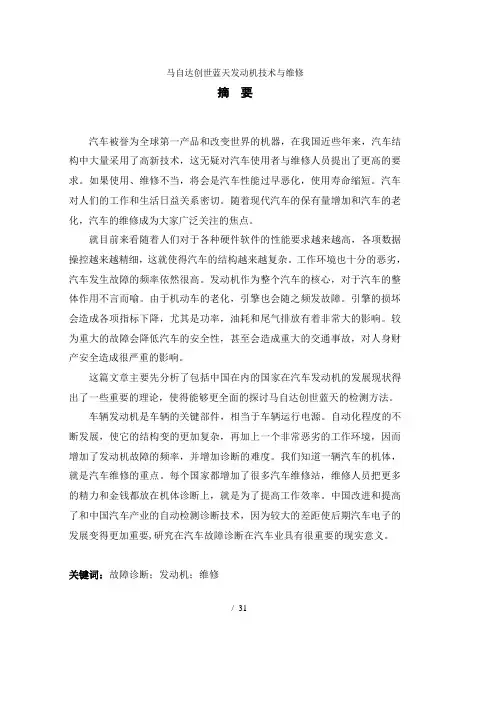

摘要汽车被誉为全球第一产品和改变世界的机器，在我国近些年来，汽车结构中大量采用了高新技术，这无疑对汽车使用者与维修人员提出了更高的要求。
如果使用、维修不当，将会是汽车性能过早恶化，使用寿命缩短。
汽车对人们的工作和生活日益关系密切。
随着现代汽车的保有量增加和汽车的老化，汽车的维修成为大家广泛关注的焦点。
就目前来看随着人们对于各种硬件软件的性能要求越来越高，各项数据操控越来越精细，这就使得汽车的结构越来越复杂。
工作环境也十分的恶劣，汽车发生故障的频率依然很高。
发动机作为整个汽车的核心，对于汽车的整体作用不言而喻。
由于机动车的老化，引擎也会随之频发故障。
引擎的损坏会造成各项指标下降，尤其是功率，油耗和尾气排放有着非常大的影响。
较为重大的故障会降低汽车的安全性，甚至会造成重大的交通事故，对人身财产安全造成很严重的影响。
这篇文章主要先分析了包括中国在内的国家在汽车发动机的发展现状得出了一些重要的理论，使得能够更全面的探讨马自达创世蓝天的检测方法。
车辆发动机是车辆的关键部件，相当于车辆运行电源。
自动化程度的不断发展，使它的结构变的更加复杂，再加上一个非常恶劣的工作环境，因而增加了发动机故障的频率，并增加诊断的难度。
我们知道一辆汽车的机体，就是汽车维修的重点。
每个国家都增加了很多汽车维修站，维修人员把更多的精力和金钱都放在机体诊断上，就是为了提高工作效率。
中国改进和提高了和中国汽车产业的自动检测诊断技术，因为较大的差距使后期汽车电子的发展变得更加重要,研究在汽车故障诊断在汽车业具有很重要的现实意义。
关键词：故障诊断；发动机；维修/ 31Mazda blue sky engine technology creation andmaintenanceAbstractAutomobile is known as the world's first product and change the world of machinery, in our country in recent years, a large number of automobile structure using high and new technology, which no doubt to the car users and maintenance personnel put forward higher requirements. If the use and maintenance of improper, it will be premature deterioration of the performance of the car, the service life is shortened. Cars are becoming more and more closely related to people's work and life.With the aging of the population increase, and Hyundai cars, car maintenance becomes the focus of attention.This article mainly analyzes the first countries, including China, in the automotive engine development status of some important theory, can make a more comprehensive discussion Mazda creation detection method of the blue sky. Vehicle engine is the key to the vehicle parts, equivalent to a vehicle power supply. The continuous development of the degree of automation, make the structure more complicated, plus a very poor working environment, thus increased the frequency of the engine failure, and increase the difficulty of the diagnosis. We know that a car body, is the focus of vehicle maintenance and repair. Every country has increased a lot car repair, maintenance personnel put more energy and money in the body on the diagnosis, in order to improve the work efficiency. China to improve and raise the diagnosis technology and the automatic detection of the auto industry of China, because of the large gap between late makes the development of automotive electronics is becoming more important, the research on automobile fault diagnosis in the auto industry has very important practical significance.I / 31Key words：Fault diagnosis; engine; maintenanceII / 31目录摘要 (I)Abstract (II)1 绪论 01.1 研究背景 (1)1.2 研究目的及意义 (1)1.3 研究内容及方法 (1)1.4 国内外研究现状 (2)1.4.1 国外汽车发动机诊断技术发展概况 (2)1.4.2 我国汽车发动机诊断技术发展 (3)2 保养及维修前技术准备 (3)2.1 发动机的维修检查 (3)2.2 发动机主要零部件的检修 (4)2.2.1 曲轴的检修 (4)2.2.2 凸轮轴的检修 (5)2.2.3 活塞裂纹的检修 (5)2.2.4 气缸的检修 (5)2.3 本章小结 (6)3 发动机故障诊断基本理论 (6)3.1 发动机故障诊断分类 (6)3.2 发动机故障分析与检测方法 (7)3.2.1 使用仪器的方法 (7)3.2.2 基于信号分析处理的故障分析与检修 (7)3.3.3 基于解析模型的故障分析与检测 (8)3.2.4 基于人工智能的故障分析与检测 (8)3.3 本章小结 (9)III / 314 马自达创世蓝天型发动机故障及案例分析 (9)4.1 马自达发动机整体分析 (9)4.2 马自达发动机常见问题及维修 (11)4.2.1 马自达发动机常见问题 (11)4.2.2 马自达发动机常见问题的维修 (12)4.3 马自达发动机各电控系统的检修 (13)4.3.1 发动机燃油供给系统的检修 (13)4.3.2 马自达发动机点火系统的检修 (16)4.3.3 马自达发动机进排气系统的检修 (17)4.4 马自达创世蓝天发动机常见故障案例分析 (18)4.4.1 不能启动或启动困难检修案例 (18)4.4.2 易熄火故障的检修案例 (20)4.4.3 动力不足故障的检修案例 (22)4.5 本章小结 (24)结论 (25)致谢 (26)参考文献 (27)IV / 31“马自达创世蓝天”发动机技术与维修****1 绪论1.1 研究背景中国是世界上最大的汽车生产大国之一，到目前为止，我国汽车领域得到了前所未有的发展，到现在为止，我们国家的汽车数量比很多国家都要多。
马自达创驰蓝天X发动机SPCCI技术与M-HYBRID轻混动力系统解析(五)
◆文/江苏 高惠民马自达创驰蓝天X发动机SPCCI技术与M-HYBRID 轻混动力系统解析(五)(接2021年第9期)可变气门正时实现压燃点火和火花点火模式无缝切换。
SI燃烧模式下需要较低压缩比。
改变进气凸轮正时改变有效压缩比。
进气和排气凸轮轴都用电动可变气门正时执行器驱动。
如图60所示。
图61是SKYACTIV-X发动机配气机构气门正时与升程展示图，进气门21的开阀时期TIVO及闭阀时期TIVC和排气门22的开阀时期T1EVO及闭阀时期T1EVC，图中实线表示进气门21的气门升程曲线121，虚线表示排气门22的气门升程曲线221。
用曲轴转角设定气门重叠期。
在关于进气门21的开阀时期TIVO和排气门22的闭阀时期T1EVC的所述的例中，随着负荷提高，正重叠期将变长。
并且，根据着火方式改变，由压缩点火(CI)向火花点火(SI)切换，进气门闭阀TIVC期将延迟，调整有效压缩比，控制发动机爆燃。
图60 电动可变气门正时执行器驱动影像图五、SKYACTIV-X发动机控制系统与控制策略1.控制系统组成SKYACTIV-X发动机控制系统组成框图如图62所示。
发动机ECU(Engine Control Unit：发动机控制单元)10。
ECU10是以微型计算机为基础的控制器，具备：执行程序的中央运算处理装置(Central Processing Unit：CPU)101、RAM (Random Access Memory)、ROM(Read Only图61 KYACTIV-X发动机配气机构气门正时与升程展示图图62 SKYACTIV-X发动机控制系统组成框图栏目编辑：刘玺 *****************New Car Tech发动机ECU10基于这些传感器检测信号判断发动机运转状态，计算各设备的控制量。
ECU10将与计算出的控制量相关的控制信号输出至喷油器6、火花塞25、进气电动S-VT23、排气电动S-VT24、燃料供给系统61、节流阀43、EGR阀54、增压器44的电磁离合器45、空气旁通阀48、以及涡流控制阀56。
【机械要点】马自达创驰蓝天发动机升级为第二代 采用均质充气压缩点火HCCI技术(附图)

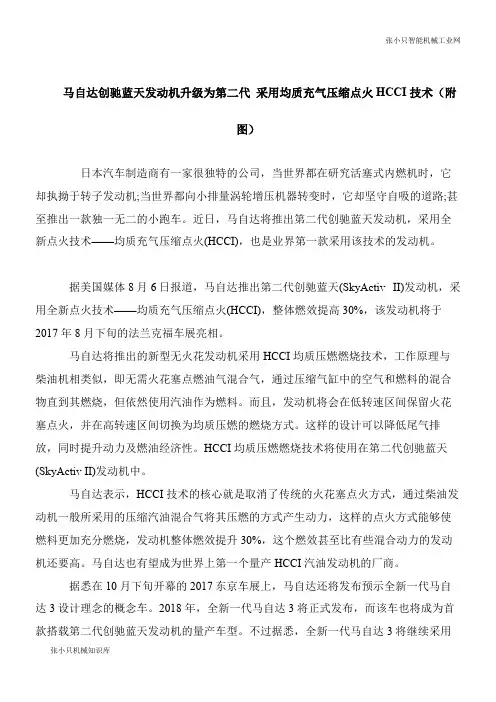

张小只智能机械工业网马自达创驰蓝天发动机升级为第二代采用均质充气压缩点火HCCI技术（附图） 日本汽车制造商有一家很独特的公司，当世界都在研究活塞式内燃机时，它却执拗于转子发动机;当世界都向小排量涡轮增压机器转变时，它却坚守自吸的道路;甚至推出一款独一无二的小跑车。
近日，马自达将推出第二代创驰蓝天发动机，采用全新点火技术——均质充气压缩点火(HCCI)，也是业界第一款采用该技术的发动机。
据美国媒体8月6日报道，马自达推出第二代创驰蓝天(SkyActiv II)发动机，采用全新点火技术——均质充气压缩点火(HCCI)，整体燃效提高30%，该发动机将于2017年8月下旬的法兰克福车展亮相。
马自达将推出的新型无火花发动机采用HCCI均质压燃燃烧技术，工作原理与柴油机相类似，即无需火花塞点燃油气混合气，通过压缩气缸中的空气和燃料的混合物直到其燃烧，但依然使用汽油作为燃料。
而且，发动机将会在低转速区间保留火花塞点火，并在高转速区间切换为均质压燃的燃烧方式。
这样的设计可以降低尾气排放，同时提升动力及燃油经济性。
HCCI均质压燃燃烧技术将使用在第二代创驰蓝天(SkyActiv II)发动机中。
马自达表示，HCCI技术的核心就是取消了传统的火花塞点火方式，通过柴油发动机一般所采用的压缩汽油混合气将其压燃的方式产生动力，这样的点火方式能够使燃料更加充分燃烧，发动机整体燃效提升30%，这个燃效甚至比有些混合动力的发动机还要高。
马自达也有望成为世界上第一个量产HCCI汽油发动机的厂商。
据悉在10月下旬开幕的2017东京车展上，马自达还将发布预示全新一代马自达3设计理念的概念车。
2018年，全新一代马自达3将正式发布，而该车也将成为首款搭载第二代创驰蓝天发动机的量产车型。
不过据悉，全新一代马自达3将继续采用张小只机械知识库。
长安马自达CX—5运动型多功能车技术亮点解读
长安马自达CX—5运动型多功能车技术亮点解读作者：陈春溶来源：《汽车与驾驶维修》2013年第10期2013年8月18日，首次将创驰蓝天技术（SKYACTlV）实现国产化的长安马自达CX-5运动型多功能车正式上市。
创驰蓝天技术是以马自达技术开发的长期远景计划“Zoom-Zoom”可持续宣言为基石，将“驾乘乐趣”与“出色的环保、安全性能”相结合，是将发动机、变速器、车身和底盘等进行全面更新的全新一代技术。
在动力总成方面，CX-55运动型多功能车搭载了SKYACTIV-G2.0 L和2.5 L 2款创驰蓝天发动机，而与之匹配的则是创驰蓝天SKYACTIV-MT 6挡手动变速器和SKYACTIV-DRlVE 6挡自动变速器。
在车辆配置方面，CX-5运动型多功能车依据消费者的不同需求，装配了i-EL00P智能制动能量回收系统、i-stop智能怠速停止系统和适时四驱系统等丰富配置。
为了方便广大读者对CX-5运动型多功能车的了解，在此对其部分技术亮点进行简要介绍。
1.发动机CX-5运动型多功能车所搭载的SKYACTIV-G 2.0 L创驰蓝天发动机一经推出就获得了“沃德十佳发动机”这样的世界级奖项，可见其实力不容小觑，该款发动机的最大输出功率达到了114 kw，最大输出扭矩则可以达到200 N·m。
而SKYACTIV-G 2.5 L创驰蓝天发动机则是首次在国内亮相，该款发动机的最大输出功率达到了1 44 kW，最大输出扭矩则可以达到252 N·m。
这2款创驰蓝天发动机均为13：1高压缩比发动机，并采用了DualS-VT双可变气门正时控制系统、燃料精细混合多点式6孔高压缸内直喷技术以及全新的“4-2-”发动机排气系统等多项先进技术。
（1）DuaI S-VT双可变气门正时控制系统（图1）该系统的采用使得CX-5运动型多功能车的发动机在燃油效率和输出扭矩方面都得到了很大的提升（图2）。
该系统不受机油流动性随温度变化的影响：由于执行机构不需要配备液压室，使得可变角度更大：而电动装置比液压装置的响应性更好；由动力系统控制单元直接控制，还提高了其可靠性（图3）。
马自达cx5排放标准

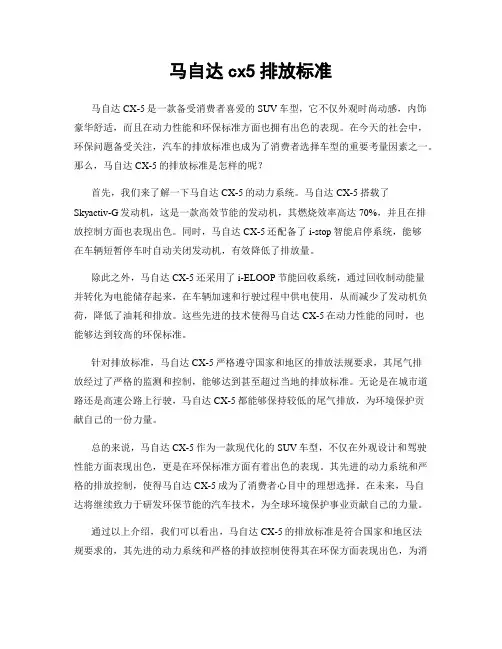

马自达cx5排放标准马自达CX-5是一款备受消费者喜爱的SUV车型，它不仅外观时尚动感，内饰豪华舒适，而且在动力性能和环保标准方面也拥有出色的表现。
