普乐特控制器设置说明

关于我公司变频控制器升级说明：
为了方便客户使用我公司变频控制器，适应不同品牌变频器通信，读取变频器运行参数的需求，我公司新升级了变频控制器软件版本，介绍如下：
1、此版本软件能适应所有支持MODBUS RTU 协议的变频器。

（变频器需要能直接读取输出电流、输出电压、输出频率、输出功率）
2、控制器内部已集成了38种型号的变频器通信协议，当用户所需的变频器不在这些型号范围内时，可自行设置通信参数。

设置步骤如下：
● 进入厂家参数移动下移键滚动条选到变频器型号：设置菜单，设置变频器型号为：SELF-DEF 。

● 返回主界面，按下移键，移动滚动条到厂家参数 ,按右移键，输入的密码 2688
在此界面分别设置变频器的输出电压、输出电流、输出频率、输出功率的MODBUS 地址，设置好后，按下移键，切换到数据处理界面：如下图所示
客户需要与森兰ＳＢ７０变频器通信，
ＳＢ７０通信协议没有内置到变频器型号中，经查变频器通信手册。

输出电流地址为：1202H ，小数位０.01A
输出电压地址为：1204H ，小数位０.1V
输出频率地址为：1200H ，小数位０.01HZ
输出功率地址为：1208H ，小数位０.1KW
用户与ＳＢ７０通信进，设置如下：
厂家参数：
返回主界面，按下移键，移动滚动条到厂家参数,按右移键，输入的密码2688，。

普乐特空压机控制器MAMVF

限值,设为自动运行时,当空压机处于卸载运行状态时，检测到压力低于此处设置值时,自动控制空压机加载运行,如果空压机处于空久停机，检测到压力低于此处设置值，控制器控制空压机启动。
压力上限
**.**MPa
开机后,当压力大于此处设置值时,控制器控制空压机卸载运行.
风机启温度
0080℃
转速（50Hz）
****RPM
设置电机50HZ时对应转速，用于电机变频工作时，计算电机的实际转速。
启停延时预置
风机启动时间
0006秒
控制器保护电机时要求此时间能躲过电机启动冲击电流
加载延时时间
0002秒
空压机启动后，延时此处设置时间后，加载运行。
空载延时时间
0020分
空压机允许的最长连续空载运行时间，超过此时间后自动停车。
在如上所示界面中，按移位键,压力下限的第一个数据位开始闪烁,用户可以按递增键或递减键，修改当前的闪烁位数据等于目标值后,按移位键,移动闪烁光标到下一个数据位,继续按上述方法修改数据等于目标值,修改完所有数据位后,按确认键,保存用户设定数据.
4、用户参数表及功能
一级菜单
二级菜单
设定初值
功能作用
压力、变频参数
润滑油累计使用时间，更换润滑油后，在此处清零。
润滑脂
0000小时
润滑脂累计使用时间，更换润滑脂后，在此处清零。
最大使用时间预置
油滤器
****小时
油滤器累计使用时间超过此处设置值后，预警提示；设为“0000”时，油滤器使用时间预警不起作用
油分器
****小时
油分器累计使用时间超过此处设置值后，预警提示；设为“0000”时，油分器使用时间预警不起作用。
操作方式预置

18-45KW普乐特控制器说明书

电脑控制器使用说明电脑控制器主要功能有监视压缩机运行状态，控制压缩机，保护压缩机，监控保养零件等。

电脑控制器是空压机的控制核心，对机组正常运行起关键作用，故请用户使用前详细阅读本控制器使用说明。

一、基本操作1、按键说明图1ON——起动键：按此键可起动电机运行OFF——停机键：按此键可停止电机运行M——设定键：修改完数据后，按此键确认数据存储输入❽——上移键：数据修改时，按此键上翻修改该数位；在菜单选择时作为选择键。

❾——下移键：数据修改时，按此键下翻修改该数位；在菜单选择时作为选择键。

❼——移位键/确认键：修改数据时，此键作为移位键；在菜单选择时作为确定键。

RT——返回键/复位键：在菜单操作时作为返回键返回上一级菜单；故障停机时，按此键复位。

2、状态显示与操作机组通电后显示如下界面：5秒后显示以下主界面：按“❾”进入以下菜单选择界面：a、运行参数查看按“❾”或“❽”移动黑色滚动条到“运行参数”菜单后，按确认键“❼”后弹出下一级菜单：再按“❼”弹出如为最后一级菜单，界面不会出现黑色滚动条，按返回键“RT”返回上级菜单或主界面。

如在某一界面停止操作，数秒钟后自动返回主界面。

用“❾”、“❽”移动键、确认键“❼”和返回键“RT”根据上述方法可完全观察到运行时间、本次运行时间、维护参数、历史故障、出厂日期、现场故障等运行参数并返回到上级菜单。

b、日历时间按“❾”或“❽”移动黑色滚动条到“日历”菜单后，按确认键“❼”后弹出在停机状态下可对日期、时间进行调整，操作方法为：按“❾”或“❽”移动黑色滚动条到需修改的参数项后按确定键“❼”后出现闪烁位，此时“❾”和“❽”键变为上翻和下翻键修改当前位，“❼”变为移位键移动修改位。

修改完毕后按“M”确认并保存，“❾”或“❽”变回移动黑色滚动条，“❼”变回返回键。

c、用户参数1）、参数修改方法══在运行状态和停机延时过程中不能修改用户参数和厂家参数══用前述运行参数查看的方法可查看和修改用户参数，如修改压力上限，操作方法如下：按“❾”或“❽”移动黑色滚动条到“用户参数”项后按确定键“❼”弹出再按确定键 “❼”弹出如不继续按确定键 “❼”即可查看用户参数。

Eaton Moeller系列Rapid Link速控器参数说明说明书

Eaton 198780Eaton Moeller® series Rapid Link - Speed controllers, 4.3 A, 1.5 kW, Sensor input 4, AS-Interface®, S-7.4 for 31 modules, HAN Q4/2, with manual override switchGeneral specificationsEaton Moeller® series Rapid Link Speed controller1987804015081968381157 mm 270 mm 220 mm 3.58 kg IEC/EN 61800-5-1 UL approval RoHS UL 61800-5-1 CEProduct NameCatalog NumberEANProduct Length/Depth Product Height Product Width Product Weight Certifications Catalog Notes 3 fixed speeds and 1 potentiometer speedcan be switched over from U/f to (vector) speed control Connection of supply voltage via adapter cable on round or flexible busbar junction Diagnostics and reset on device and via AS-InterfaceParameterization: FieldbusDiagnostics and reset on device and via AS-Interface Parameterization: drivesConnectParameterization: drivesConnect mobile (App) Parameterization: KeypadThermo-click with safe isolationControl unitInternal DC linkKey switch position HANDPC connectionSelector switch (Positions: REV - OFF - FWD)PTC thermistor monitoringTwo sensor inputs through M12 sockets (max. 150 mA) for quick stop and interlocked manual operationIGBT inverterManual override switchKey switch position AUTOKey switch position OFF/RESET3 fixed speeds1 potentiometer speed NEMA 12IP651st and 2nd environments (according to EN 61800-3)IIISpeed controllerASIAS-Interface profile cable: S-7.4 for 31 modulesC2, C3: depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary.C1: for conducted emissions only2000 VCenter-point earthed star network (TN-S network)AC voltagePhase-earthed AC supply systems are not permitted.Vertical15 g, Mechanical, According to IEC/EN 60068-2-27, 11 ms, Half-sinusoidal shock 11 ms, 1000 shocks per shaftResistance: According to IEC/EN 60068-2-6Resistance: 57 Hz, Amplitude transition frequency on accelerationResistance: 10 - 150 Hz, Oscillation frequencyResistance: 6 Hz, Amplitude 0.15 mm Max. 2000 mAbove 1000 m with 1 % performance reduction per 100 m -10 °C40 °C-40 °C70 °CFeatures Fitted with:Functions Degree of protectionElectromagnetic compatibility Overvoltage categoryProduct categoryProtocolRadio interference classRated impulse withstand voltage (Uimp) System configuration typeMounting position Shock resistance Vibration AltitudeAmbient operating temperature - min Ambient operating temperature - max Ambient storage temperature - min Ambient storage temperature - max< 95 %, no condensation In accordance with IEC/EN 501780.4 - 4.3 A, motor, main circuit Adjustable, motor, main circuit < 10 ms, Off-delay < 10 ms, On-delay 98 % (η)4.1 A3.5 mA120 %Maximum of one time every 60 seconds 380 V480 V380 - 480 V (-10 %/+10 %, at 50/60 Hz)Synchronous reluctance motors U/f controlSensorless vector control (SLV) BLDC motors PM and LSPM motors 0 Hz500 HzAt 40 °CFor 60 s every 600 s6.5 AClimatic proofingCurrent limitationDelay timeEfficiency Input current ILN at 150% overload Leakage current at ground IPE - max Mains current distortion Mains switch-on frequencyMains voltage - min Mains voltage - max Mains voltage toleranceOperating modeOutput frequency - min Output frequency - max Overload current Overload current IL at 150% overload45 Hz66 Hz4.3 A at 150% overload (at an operating frequency of 8 kHz and an ambient air temperature of +40 °C)1.5 kW400 V AC, 3-phase480 V AC, 3-phase0.1 Hz (Frequency resolution, setpoint value)200 %, IH, max. starting current (High Overload), For 2 seconds every 20 seconds, Power section50/60 Hz8 kHz, 4 - 32 kHz adjustable, fPWM, Power section, Main circuitCenter-point earthed star network (TN-S network)AC voltagePhase-earthed AC supply systems are not permitted.2 HP≤ 0.6 A (max. 6 A for 120 ms), Actuator for external motor brakeAdjustable to 100 % (I/Ie), DC - Main circuit10 kAType 1 coordination via the power bus' feeder unit, Main circuit 24 V DC (-15 %/+20 %, external via AS-Interface® plug)AS-InterfacePlug type: HAN Q4/2Number of slave addresses: 31 (AS-Interface®) Specification: S-7.4 (AS-Interface®)Max. total power consumption from AS-Interface® power supply unit (30 V): 190 mARated frequency - minRated frequency - maxRated operational current (Ie)Rated operational power at 380/400 V, 50 Hz, 3-phase Rated operational voltageResolutionStarting current - maxSupply frequencySwitching frequencySystem configuration type Assigned motor power at 460/480 V, 60 Hz, 3-phase Braking currentBraking torqueRated conditional short-circuit current (Iq)Short-circuit protection (external output circuits) Rated control voltage (Uc)Communication interfaceConnectionInterfacesCable length10.2.2 Corrosion resistanceC2 ≤ 5 m, maximum motor cable length C3 ≤ 25 m, maximum motor cable length C1 ≤ 1 m, maximum motor cable length Meets the product standard's requirements.Meets the product standard's requirements.Meets the product standard's requirements.Meets the product standard's requirements.Meets the product standard's requirements.Does not apply, since the entire switchgear needs to be evaluated.Does not apply, since the entire switchgear needs to be evaluated.Meets the product standard's requirements.Does not apply, since the entire switchgear needs to be evaluated.Meets the product standard's requirements.Does not apply, since the entire switchgear needs to be evaluated.Does not apply, since the entire switchgear needs to be evaluated.Is the panel builder's responsibility.Is the panel builder's responsibility.Is the panel builder's responsibility.Is the panel builder's responsibility.10.2.3.1 Verification of thermal stability of enclosures10.2.3.2 Verification of resistance of insulating materials to normal heat10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects10.2.4 Resistance to ultra-violet (UV) radiation10.2.5 Lifting10.2.6 Mechanical impact10.2.7 Inscriptions10.3 Degree of protection of assemblies10.4 Clearances and creepage distances10.5 Protection against electric shock10.6 Incorporation of switching devices and components10.7 Internal electrical circuits and connections10.8 Connections for external conductors10.9.2 Power-frequency electric strength10.9.3 Impulse withstand voltage10.9.4 Testing of enclosures made of insulating materialIs the panel builder's responsibility.The panel builder is responsible for the temperature risecalculation. Eaton will provide heat dissipation data for the devices.Is the panel builder's responsibility. The specifications for the switchgear must be observed.Is the panel builder's responsibility. The specifications for the switchgear must be observed.The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.Electromagnetic compatibility (EMC)Generation change RAMO4 to RAMO5Generation change from RA-SP to RASP 4.0Generation change from RA-MO to RAMO 4.0Generation Change RASP4 to RASP5Connecting drives to generator suppliesConfiguration to Rockwell PLC for Rapid LinkGeneration Change RA-SP to RASP5Rapid Link 5 - brochureDA-SW-drivesConnect USB Driver DX-COM-PCKITDA-SW-USB Driver DX-COM-STICK3-KITDA-SW-USB Driver PC Cable DX-CBL-PC-1M5DA-SW-drivesConnect - InstallationshilfeDA-SW-Driver DX-CBL-PC-3M0DA-SW-drivesConnectDA-SW-drivesConnect - installation helpMaterial handling applications - airports, warehouses and intra-logisticsProduct Range Catalog Drives EngineeringProduct Range Catalog Drives Engineering-ENDA-DC-00004514.pdfDA-DC-00003964.pdfDA-DC-00004508.pdfDA-DC-00004184.pdfeaton-bus-adapter-rapidlink-speed-controller-dimensions-003.eps eaton-bus-adapter-rapidlink-speed-controller-dimensions-004.eps eaton-bus-adapter-rapidlink-speed-controller-dimensions-002.eps eaton-bus-adapter-rapidlink-speed-controller-dimensions-005.epsETN.RASP5-4400A31-412R000S1.edzIL034085ZU10.10 Temperature rise10.11 Short-circuit rating10.12 Electromagnetic compatibility10.13 Mechanical functionApplication notesBrochuresCataloguesCertification reportsDrawingseCAD modelInstallation instructionsEaton Corporation plc Eaton House30 Pembroke Road Dublin 4, Ireland © 2023 Eaton. All rights reserved. Eaton is a registered trademark.All other trademarks areproperty of their respectiveowners./socialmediaRapid Link 5MN034004EN MZ040046_EN MN040003_EN ramo5_v24.dwg rasp5_v24.stpInstallation videos Manuals and user guides mCAD model。

普乐特空压机控制器MAMVF

变频Ⅲ型螺杆空压机微电脑控制器MAM680VF-Ⅲ用户手册深圳市普乐特电子有限公司地址：深圳市福田区商报路天健工业区25栋西六楼电话：（0755）2822 邮编：518034传真：（0755）：●LCD中英文显示.●对空压机进行防逆转保护.●远程/本地控制选择.●对温度进行检测与控制保护.●变频－变频联动、变频－工频联动运行选择。

●支持变频器减速停机、自由停机选择。

●二路RS-485通讯接口。

一路读取变频器数据，一路联控或与外部通信。

●集成PID运算与控制于一体，根据供气压力，控制变频器运行频率，实现恒压供气。

●高度集成，高可靠性，高性价比.目录一、基本操作...............................................................................1、按键说明...........................................................................2、指示灯说明.........................................................................3、状态显示与操作.....................................................................4、运行参数、菜单.....................................................................3、用户参数查看及修改.................................................................4、用户参数表及功能...................................................................4、厂家参数...........................................................................7、调整参数...........................................................................8、操作权限及密码管理.................................................................二、控制器功能及技术参数...................................................................三、型号规格...............................................................................四、安装...................................................................................1、机械安装.......................................................... 错误!未定义书签。

普乐特控制器设置说明

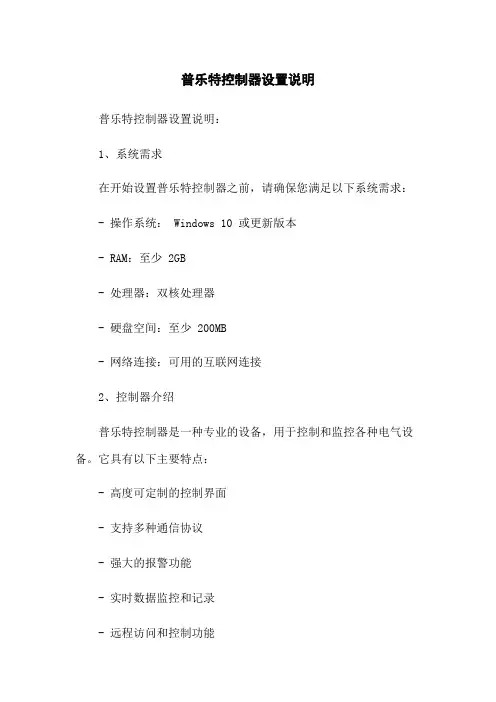

普乐特控制器设置说明普乐特控制器设置说明：1、系统需求在开始设置普乐特控制器之前，请确保您满足以下系统需求：- 操作系统： Windows 10 或更新版本- RAM：至少 2GB- 处理器：双核处理器- 硬盘空间：至少 200MB- 网络连接：可用的互联网连接2、控制器介绍普乐特控制器是一种专业的设备，用于控制和监控各种电气设备。
