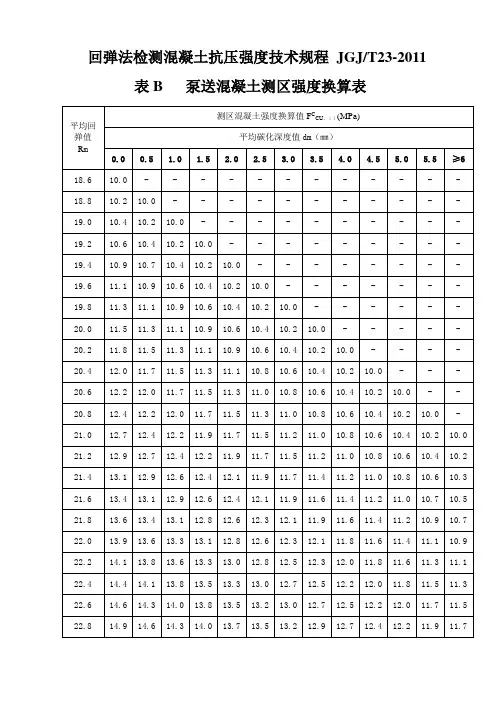

泵送混凝土测区强度换算表

测区混凝土强度换算值(MPa )

平均回弹

平均碳化深度值dm (mm )

值RM

0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0

18.6 10.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0

18.8 10.2 10.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0

19.0 10.4 10.2 10.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0

19.2 10.6 10.4 10.2 10.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0

19.4 10.9 10.7 10.4 10.2 10.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0

19.6 11.1 10.9 10.6 10.4 10.2 10.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0

19.8 11.3 11.1 10.9 10.6 10.4 10.2 10.0 0.0 0.0 0.0 0.0 0.0 0.0

20.0 11.5 11.3 11.1 10.9 10.6 10.4 10.2 10.0 0.0 0.0 0.0 0.0 0.0

20.2 11.8 11.5 11.3 11.1 10.9 10.6 10.4 10.2 10.0 0.0 0.0 0.0 0.0

20.4 12.0 11.7 11.5 11.3 11.1 10.8 10.6 10.4 10.2 10.0 0.0 0.0 0.0

20.6 12.2 12.0 11.7 11.5 11.3 11.0 10.8 10.6 10.4 10.2 10.0 0.0 0.0

20.8 12.4 12.2 12.0 11.7 11.5 11.3 11.0 10.8 10.6 10.4 10.2 10.0 0.0

21.0 12.7 12.4 12.2 11.9 11.7 11.5 11.2 11.0 10.8 10.6 10.4 10.2 10.0

21.2 12.9 12.7 12.4 12.2 11.9 11.7 11.5 11.2 11.0 10.8 10.6 10.4 10.2

21.4 13.1 12.9 12.6 12.4 12.1 11.9 11.7 11.4 11.2 11.0 10.8 10.6 10.3

21.6 13.4 13.1 12.9 12.6 12.4 12.1 11.9 11.6 11.4 11.2 11.0 10.7 10.5

22.2 14.1 13.8 13.6 13.3 13.0 12.8 12.5 12.3 12.0 11.8 11.6 11.3 11.1

22.4 14.4 14.1 13.8 13.5 13.3 13.0 12.7 12.5 12.2 12.0 11.8 11.5 11.3

22.6 14.6 14.3 14.0 13.8 13.5 13.2 13.0 12.7 12.5 12.2 12.0 11.7 11.5

22.8 14.9 14.6 14.3 14.0 13.7 13.5 13.2 12.9 12.7 12.4 12.2 11.9 11.7

23.0 15.1 14.8 14.5 14.2 14.0 13.7 13.4 13.1 12.9 12.6 12.4 12.1 11.9

23.2 15.4 15.1 14.8 14.5 14.2 13.9 13.6 13.4 13.1 12.8 12.6 12.3 12.1

23.4 15.6 15.3 15.0 14.7 14.4 14.1 13.9 13.6 13.3 13.1 12.8 12.6 12.3

23.6 15.9 15.6 15.3 15.0 14.7 14.4 14.1 13.8 13.5 13.3 13.0 12.8 12.5

23.8 16.2 15.8 15.5 15.2 14.9 14.6 14.3 14.1 13.8 13.5 13.2 13.0 12.7

24.0 16.4 16.1 15.8 15.5 15.2 14.9 14.6 14.3 14.0 13.7 13.5 13.2 12.9

24.2 16.7 16.4 16.0 15.7 15.4 15.1 14.8 14.5 14.2 13.9 13.7 13.4 13.1

24.4 17.0 16.6 16.3 16.0 15.7 15.3 15.0 14.7 14.5 14.2 13.9 13.6 13.3

泵送混凝土测区强度换算表

测区混凝土强度换算值(MPa )

平均回弹

平均碳化深度值dm (mm )

值RM

0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0

24.6 17.2 16.9 16.5 16.2 15.9 15.6 15.3 15.0 14.7 14.4 14.1 13.8 13.6

24.8 17.5 17.1 16.8 16.5 16.2 15.8 15.5 15.2 14.9 14.6 14.3 14.1 13.8

25 17.8 17.4 17.1 16.7 16.4 16.1 15.8 15.5 15.2 14.9 14.6 14.3 14.0

25.2 18.0 17.7 17.3 17.0 16.7 16.3 16.0 15.7 15.4 15.1 14.8 14.5 14.2

25.4 18.3 18.0 17.6 17.3 16.9 16.6 16.3 15.9 15.6 15.3 15.0 14.7 14.4
