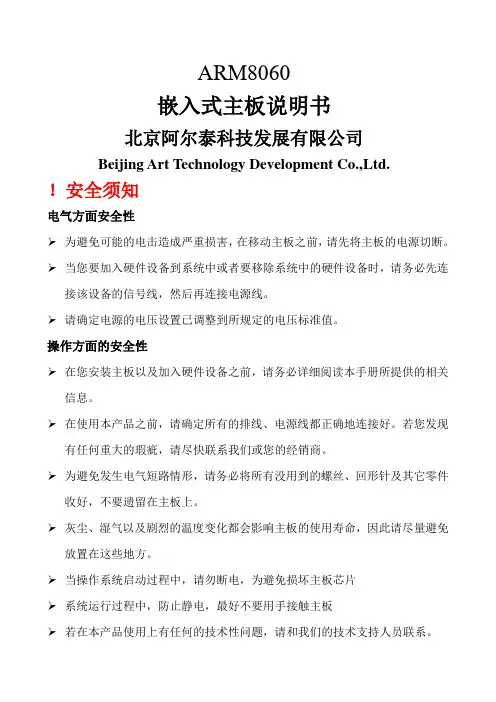

嵌入式主板说明书
ARM8060嵌入式主板说明书北京阿尔泰科技发展有限公司Beijing Art Technology Development Co.,Ltd.！安全须知电气方面安全性➢为避免可能的电击造成严重损害，在移动主板之前，请先将主板的电源切断。
➢当您要加入硬件设备到系统中或者要移除系统中的硬件设备时，请务必先连接该设备的信号线，然后再连接电源线。
➢请确定电源的电压设置已调整到所规定的电压标准值。
操作方面的安全性➢在您安装主板以及加入硬件设备之前，请务必详细阅读本手册所提供的相关信息。
➢在使用本产品之前，请确定所有的排线、电源线都正确地连接好。
若您发现有任何重大的瑕疵，请尽快联系我们或您的经销商。
➢为避免发生电气短路情形，请务必将所有没用到的螺丝、回形针及其它零件收好，不要遗留在主板上。
➢灰尘、湿气以及剧烈的温度变化都会影响主板的使用寿命，因此请尽量避免放置在这些地方。
➢当操作系统启动过程中，请勿断电，为避免损坏主板芯片➢系统运行过程中，防止静电，最好不要用手接触主板➢若在本产品使用上有任何的技术性问题，请和我们的技术支持人员联系。
目录目录11．产品简介11.1产品概述11.2 产品特点错误!未定义书签。
2产品特性72.1跳线说明72.2 外围设备接口连接82.3 软件特性错误!未定义书签。
3．电气参数及机械特性14附录A 订购信息15附录B 应用程序开发环境151．产品简介1.1产品概述ARM8060是北京阿尔泰科技发展有限公司基于Atmel公司ARM926EJ-S内核的AT91SAM9261处理器，结合PC104总线规范设计的一款具有极高性价比、结构和尺寸极其紧凑并且功耗极低的工业级嵌入式主板，其上运行嵌入式Linux 或WinCE操作系统，可以处理多种计算任务。
主板采用超低功耗嵌入式处理器，无风扇设计，超宽工作温度-20°C ~+70°C，低温工作性能优良，高温工作彻底解决了由于风扇可靠性而引起的故障。
瑞丰电子有限公司 OUB191TS-CE 产品规格书说明书
书签核后方有效，对于作为技术参考以及送样时提供的规格书，瑞丰保留进一步修改而不需通知客户的权力。
information on the applications如产品需要用在有特殊质量要求及可靠性要求的地LEDs without having consentinform Refond in writinganalysis.在取得瑞丰的同意前，客户不应该对产品进行拆解分析，如发现失效产品，请直Features 特征Extremelywide viewing angle.发光角度大Suitable for all SMT assembly and solder process.适用于所有的SMT 组装和焊接工艺 Moisture sensitivity level:Level 3.防潮等级Level 3 Package:4000pcs/reel.包装每卷4000pcs RoHS compliant.满足RoHS 要求Description 描述The Colour LED which was fabricated using a orange chip该产品为橙色光LED ，是由橙色光芯片封装形成Applications 应用Optical indicator.光学指示Switch and Symbol,Display.开关和标识、显示器等 General use.其他应用RF-OUB191TS-CEPackage Dimension外观尺寸NOTES:1.All dimensions units are millimeters.(所有尺寸标注单位为毫米)2.All dimensions tolerances are 0.2mm unless otherwise noted.(除特别标注外，所有尺寸公差为±0.2毫米)Electrical/Optical Characteristics at Ts=25°C电性与光学特性Absolute Maximum Ratings at Ts=25°C绝对最大值Typical optical characteristics curves 典型光学特性曲线R e l a t i v e I n t e n s i t yR e l a t i v e I n t e n s i t yPackaging Specifications⏹Carrier Tape Dimensions载带尺寸⏹Note:Thetolerances unless mentioned±0.1mm.Unit:mm注：未注公差为±0.1毫米，尺寸单位：毫米。
h11ssl-i主板说明书
h11ssl-i主板说明书
详细参数
主板芯片
集成芯片显卡
主芯片组AMD EPYC TM7001/7002
芯片厂商AMD
CPU规格
适用平台AMD乎台
CPU种类AMD
CPU描述单个AMD EPYCTM7001/7002系列处理器（需要主板版本2.x) 总线烦率8通道内存总线
内存规格
内存类型DDR4
内存描述8个DIMM插槽，支持高达1TB的已注册ECC DDR4 2666MHz SDRAM支持高达2TB的已注册ECC D
DR4 3200MHz SDRAM(需要板修订版2.x)
扩展插槽
显卡插槽1个VGA端口
I/o接口
USB接口5个USB 3.0端口(2个背面+2个通过接头连接+1个A型) 4个USB 2.0端口(2个后部+2个通过接头连接) 外接端口1个COM端口(背面)
2 SATA DOM电源连接器1个TPM 2.0接头板型
主板板型ATX
外形尺寸12英寸x9.6英寸(30.5厘米x 24.4厘米) 其它参数
电源插口 2 SATA DOM电源连接器。

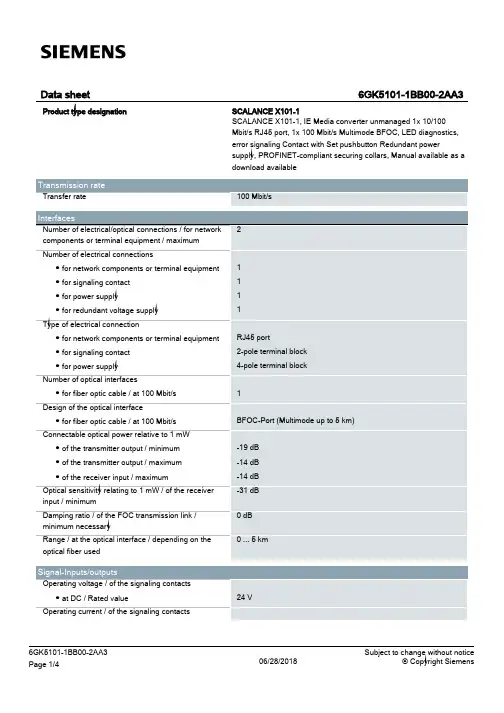

SCALANCE X101-1 商品说明书
24 V
6GK5101-1BB00-2AA3 Page 1/4
06/28/2018
Subject to change without notice © Copyright Siemens
● at DC / maximum
Supply voltage, current consumption, power loss Supply voltage ● external ● external Type of voltage / of the supply voltage Product component / fusing at power supply input Fuse protection type / at input for supply voltage Consumed current ● maximum Power loss [W] ● at DC / at 24 V
Compact 40 mm 125 mm 124 mm 0.55 kg
Yes Yes Yes
No No
FM3611: Class 1, Divison 2, Group A, B, C, D / T.., Class 1, Zone 2, Group IIC, T.. EN 600079-15 II 3 G EEx nA II T.. KEMA 06 ATEX 0021 X
Yes
Yes Yes Yes Yes Yes No 134 y
/snst
/simatic-net https:// /industry/infocenter /bilddb /cax https://
Security information
UL 60950-1, CSA C22.2 No. 60950-1 UL 1604 and UL 2279-15 (Hazardous Location), Class 1 / Division 2 / Group A, B, C, D / T.., Class 1 / Zone 2 / Group IIC / T.. EN 61000-6-3 EN 61000-6-4:2001 EN 61000-6-2:2001, EN 61000-6-4:2001 Yes Yes Yes
C.H110M-E全固态版V21 C.H110M-HD全固态版V21 主板使用手册
C.H110M-E全固态版V21 C.H110M-HD全固态版V21 C.B150M-HD全固态版V21C.H110M-E全固态版V21/C.H110M-HD全固态版V21/C.B150M-HD全固态版V21 目录第一章 简介 (1)1-1主板特色 (1)1-2主板规格 (1)1-3主板布局图 (3)第二章 硬件安装 (4)2-1基本硬件安装 (4)2-2跳线设置 (7)2-3连接器和引脚连接头 (8)2-4背板接口介绍 (13)第三章 驱动程序安装说明 (14)第四章 BIOS设置 (15)4-1进入BIOS主界面 (15)4-2 BIOS主界面 (17)4-3系统信息（Main） (18)4-4高级BIOS设置（Advanced） (19)4-5 芯片组设置（Chipset） (23)4-6安全设置（Security） (24)4-7启动设置（Boot） (26)4-8超频设置（C.Oclock） (28)4-9退出设置（Save & Exit） (30)根据中华人民共和国信息产业部发布的《电子信息产品污染控制管理办法》所展开的 SJ/T11364-2006 标准要求, 本产品污染控制标识以及有毒有害物质或元素标识说明如下：产品有毒有害物质或元素标识：产品中有毒有害物质或元素的名称及含量部件名称有毒有害物质或元素铅(Pb) 汞(Hg) 镉(Cd) 六价铬(Cr(VI)) 多溴联苯(PBB)多溴二苯醚(PBDE)PCB板 × ○ ○ ○ ○ ○结构件 ○ ○ ○ ○ ○ ○芯片 ○ ○ ○ ○ ○ ○连接器 ○ ○ ○ ○ ○ ○被动电子元器件○ ○ ○ ○ ○ ○焊接金属 ○ ○ ○ ○ ○ ○线材 × ○ ○ ○ ○ ○助焊剂,散热膏,标签以及其他耗材○ ○ ○ ○ ○ ○○：表示该有毒有害物质在该部件所有均质材料中的含量均在SJ/T11363-2006标准规定的限量要求以下。
Omron G3VM-61H1 MOS FET Relays 产品说明书
1MOS FET Relays Designed for Switching Minute Signals and Analog Signals.•Continuous load current of 400 mA.■Application Examples■Terminal Arrangement/Internal Connections■List of Models*The AC peak and DC value are given for the load voltage.RoHS compliantNote: The actual product is marked differently from theimage shown here.•Semiconductor test equipment •Test & Measurement equipment •Communication equipment •Data loggersOMRON logo Pin 1 markModel nameLOT.No.932Note:The actual product is marked differently from the image shown here.Package typeContact form TerminalsLoad voltage (peak value) *Model Minimum package quantity Number per tube Number per tape and reelSOP61a(SPST-NO)Surface-mounting Terminals60 VG3VM-61H175-G3VM-61H1 (TR)-2,5002G3VM-61H1MOS FET Relays■Recommended Operating ConditionsUse the G3VM under the following conditions so that the Relay will operate properly.■Engineering Data■Safety Precautions•Refer to "Common Precautions" for all G3VM models.ItemSymbol MinimumTypical MaximumUnitLoad voltage (AC peak/DC)V DD - - 48V Operating LED forward current I F 57.525mA Continuous load current (AC peak/DC)I O -- 400mA Ambient operating temperatureTa−20-65°CLED forward current vs. AmbienttemperatureContinuous load current vs. Ambient temperatureLED forward current vs. LED forward voltageContinuous load current vs. On-state voltageOn-state resistance vs. Ambient temperatureTrigger LED forward current vs. Ambient temperatureTurn ON, Turn OFF time vs. LED forward currentTurn ON, Turn OFF time vs. Ambient temperatureCurrent leakage vs. Ambient temperatureI F - T aAmbient temperature Ta (°C)-20120100 80 60 40 020060204080100LE D f o r w a r d c u r r e n t IF (m A )I O - TaAmbient temperature Ta (°C)-20120100 80 60 40 020012001000800600400200Co n t i n u o u s l o a d c u r r e n t I O (m A )I F - V FLED forward voltage V F (V)1.40.60.81 1.2 1.6 1.81003010310.30.1L E D f o rw a r d c u r r e n t I F (m A )I O - V ONOn-state voltage V ON (V)-0.6-0.40.2-0.20.40.6-600-400-200200400600C o n t i n u ou s l o a d c u r r e n t I O (m A )R ON - TaAmbient temperature Ta (°C)-20100 80 60 40 020301245O n-s t a t e r e s i s t a n c e R O N (Ω)I FT - TaAmbient temperature Ta (°C)-2010080 60 40 02031245T r i g g e r L E D f o rw a r d c u r r e n t I F T (m A )t ON , t OFF - I FLED forward current I F (mA)1053110030050303050 100 300500 1000 30005000 T u r n O N , T u r n O FF t i m e t O N , t O F F (µs )t ON , t OFF - TaAmbient temperature Ta (°C)-2010080 60 40 020103000100030010030T u r nO N , T u r n O F F t i m e t O N , t O F F (µs )I LEAK - TaAmbient temperature Ta (°C)-2010080 60 40 0200.13010310.3C u r r e n t l e a k a g e I L E A K (n A )■Dimensions(Unit: mm)Note:Actual Mounting PadDimensions(Recommended Value, TOP VIEW)Note: The actual product is marked differently from the image shown here.Surface-mounting TerminalsWeight: 0.13 g• Application examples provided in this document are for reference only. In actual applications, confirm equipment functions and safety before using the product.• Consult your OMRON representative before using the product under conditions which are not described in the manual or applying the product to nuclear control systems, railroad systems, aviation systems, vehicles, combustion systems, medical equipment, amusement machines, safety equipment, and other systems or equipment that may have a serious influence on lives and property if used improperly. Make sure that the ratings and performance characteristics of the product provide a margin of safety for the system or equipment, and be sure to provide the system or equipment with double safety mechanisms.Cat. No. K156-E1-010412(0412)(O)Note: Do not use this document to operate the Unit.OMRON CorporationELECTRONIC AND MECHANICAL COMPONENTS COMPANYContact: /ecb。
超同步45P5GH1B说明书
GH DRIVERCTB资料编号：Z L-14-808-I B C NB E I J I N GC T B S E R V O C O.,L T D.GH DRIVER使用说明书交流伺服驱动器型号：BKSC-□□□□GHX400V级 1.5~315KW (2.5~460KVA)请将此使用说明书，交给最终用户，并妥善保存CTB TECHNOLOGY北京超同步伺服股份有限公司序 言感谢您惠购北京超同步伺服股份有限公司生产的GH系列交流伺服驱动器。
GH系列交流伺服驱动器是北京超同步伺服股份有限公司研制、开发生产的高品质、多功能、低噪音的交流伺服驱动器。
G H系列交流伺服驱动器是交流感应电机（I M）及交流永磁同步电机（PM）的交流伺服驱动器，可对各种交流伺服电机的位置、转速、加速度和输出转矩方便地进行控制，G H系列交流伺服驱动器采用双32位C P U，配置丰富的控制功能模块，可以实现各种机床的控制功能。
标配的控制接口可以和国内外各种数控系统方便地连接，使数控系统的功能得以充分地发挥。
配置G H系列交流伺服驱动器的机床，其力矩特性、加减速特性、精度特性以及效率特性都将表现非凡，并可以轻松地实现准停、C轴、刚性攻丝、电子换挡、多轴同步等功能。
G H系列交流伺服驱动器，可广泛应用于数控铣床、立式加工中心、卧式加工中心、数控镗床、数控车床、立车、重型卧车、龙门机床等产品的驱动，是各种机床动力轴的首选驱动产品。
在使用G H系列交流伺服驱动器之前，请您仔细阅读该手册，以保证正确使用。
错误使用可能造成驱动器运行不正常、发生故障或降低使用寿命，乃至发生人身伤害事故。
因此使用前应反复阅读本说明书，严格按说明使用。
本手册为随机发送的附件，务必请您使用后妥善保管，以备日后对驱动器进行检修和维护时使用。
01本说明书中与安全有关的内容，使用了下述符号，标注了安全符号的语句，所叙述的都是重要内容，请一定要遵守。
如果未按安全内容要求，使用该产品可能会造成产品使用不正常，甚至损坏产品，严重的可能会引起危险、造成人身伤亡。
PCSC产品说明书
Commitment to ExcellenceAll PCSC products allow full forward and backward compatibility. Intermixing is also capable with the Ultimate ™Series, IQ ™Series and SIM ™Series controllers. In addition, all products are backed by our commitment for complete customer satisfaction.DOOR ACCESS CONTROLLERE aseScrew-Down WiringIntegrated Poly-Switch with Eliminates Wiring of Communication LEDs and RS-232Real-Time Display Communication Optional The controllers are PCSC’s benchmark for access control, input and output System configuration begins with either a two door controller (IQ 200) or a four door controller (IQ 400). Each controller can be expanded in 4 reader increments, up to 10 or 12 readers. Modular upgrades with add-on readers, inputs and outputs are engineered into the IQ Series design enabling you to dynamically configure a custom security s ystem with standard o ff t he shelf c omponents.Each system configuration provides 100% Distributed Intelligence (DI). PCSC’s DI guarantees complete integrity of the security features even during a loss of communication to the host. All pertinent data necessary to make card access decisions and input/output decisions are stored in the controller and saved in the battery backed up memory for over one year. Additional features provide user applications for simple to high security environments. Basic card authorization is based on reader, time of day, day of week and holiday control. User activation can enable secondary or affiliation group authentication logics. Increased security features include Escort Required, T wo Person Minimum Occupancy, Supervisory Control and 5 State Supervised Alarm Monitoring.The PCSC “Upgrade Bus” was the first modular architecture allowing an upgrade to higher capacity CPUs in the PCSC controller family. The “Plug and Play” methodology provides an easy, cost effective upgrade path for r eplacing an aging TIP , MTIP or a MicroLPM series c ontroller.IQ400 PicturedFeatures¢16-Bit High-Integration Embedded Intel® Processor (80C188EB-20)¢Legacy Upgrade Capable ¢100% Distributed Intelligence ¢Open Architecture ¢Handicapped Access¢Automatic Card Deactivation by Date ¢Card Action¢User Specified Supervised or Digital Sense Input Definition¢High Security 5 State Alarm Supervision ¢User Programmable Input/Output Logic ¢Supervisory Access Authorization Logic¢Two Person Minimum Occupancy Rule (TPMOR)¢3 Tier Anti-Passback ¢Supervised Readers¢Electronic Firmware Updates (Flash Memory)¢Real-time Diagnostics ¢AC Power Fail Indication ¢DC Power Low Indication¢UL 294, 1076, AUSTEL and CE ListedCapacities¢2, 4, 6, 8, 10 or 12 Reader Configurations*¢8,000 to 20,000 or 50,000 Cardholders*¢4,000 to 10,000 History Transactions*¢16 site codes¢4 Authorization Groups per Cardholder¢4 MB Max C apacity S RAMfor Cardholders ¢64 Time Periods w ith 7 S egments Per Period ¢366 Holidays (Leap Year)¢1Yr. Battery Backed Clock Calendar and Memory ¢Optional Universal Power Supply (90-250 VAC)*Note: Certain capacities and configurations a re dependent on IQ 200 or IQ 400.¢Proximity ¢Smart Card¢Magnetic Stripe ¢Keypad ¢BiometricReader Technologies Supported¢RS485 or RS 232¢Leased Line¢Wireless ¢Fiber Optics¢10/100 T CP/IP E thernet (optional)¢DHCP (IQ400 only)Communications SupportedIQ Series -200&400Multi-Configurable Two—Twelve Door Access ControllerI Q -1215Optional Upgrades IQ200IQ400Cardholder Capacity up to:20K or 24K 20K/50K/100K*Universal Power Supply w /C harger P3 or P6P624 VDC Input (12 VDC Standard)2424Enclosure M or L L Rear Panel RRSpecificationsRelay Rating: Form C 2.0 Amps @24 VDC Environmental: 32°-115° F (0°-46° C) Humidity: 0 - 90% Non-Condensing Enclosure Dimensions16 AWG CRS enclosure with Tamper, Lock, and Key Medium: 18"h x 11.5"w x 6"d (45.7 cm x 29.2 cm x 15.2cm)Large: 21.6"h x 16.1"w x 5.7"d (55.4 cm x 40.9 cm x 14.5 cm)Cabling Requirements Host-to-Controller :Cat 5/6Maximum T otal Distance 328 ft. (100 m)Host-to-Controller :4 conductorsMaximum T otal Distance 4,000 ft. (1,219 m)Controller-to-Controller :4 Conductors Maximum T otal Distance 4,000 ft. (1,219 m)Controller-to-Door:Reader :6 ConductorsMaximum 500 ft. (152 m) or 2,000 ft. (609 m)Door Strike :2 Conductors Maximum 2,000 ft. (609 m)Door Status :2 Conductors Maximum 2,000 ft. (609 m)REX :2 ConductorsMaximum 2,000 ft. (609 m)Controller-to-Input-Point :2 Conductors Maximum 2,000 ft. (609 m)Model IQ20YES 22222541N/A 260mA IQ200YES 22222541YES 260mA IQ600YES 66666581YES 710mA IQ400YES 44444561YES 340mA IQ800YES 888885101YES 690mA IQ1000YES 10101010105121YES 870mA IQ1200YES 12121212125141NO 950mAR e a d e r P o r t sD o o r L o c k R e l a yS u p e r v i s e d R e q u e s t T o E x i tD o o r S t a t u s S u p e r v i s e d I n p u tV o l t a g e O u t p u t sE n c l o s u r e T a m p e rS u p e r v i s e d R e a d e r sA d d i t i o n a l S u p e r v i s e d I n p u t sU p g r a d e C a p a b l eM a x P o w e r A m p s @12V D CO p t i o n a l T C P /I P C o m m . (L A N)*Note: IQ20 n ot u pgradeable, color difference indicates u pgrade p ath from either IQ 200 or IQ 400.Model#Model#Upgrade Modules:PCSC Add-on boards incorporate the PCSC Upgrade BUS, a ribbon cable connector,enabling TTL level communications from IQ series controllers and modular add-on configurations. The BUS enables IQ series controllers the ability to increase capacity and functionality depending on the specific Add-on adapter . It also enables your investment to be utilized with not yet developed controllers the ability to adapt to new technologies.IQ Series Configurations:System configuration begins with either a two door controller (IQ 200) or a four door controller (IQ 400). Each controller can be expanded in 4 reader increments, up to 10or 12 readers.Model 8U 88888-YES 6104U 44444-YES 430ALM -----16YES 90OUT -16---16YES 510SAM-----8YES170R e a d e r P o r t sR e l a y O u t p u tR E XI n p u t sD o o r S t a t u sP o w e r C o n s u m p t i o n V o l t a g e O u t p u tU p g r a d e C a p a b l eWORLD HEADQUARTERS USA 3830 DEL AMO BLVD ., TORRANCE, CA 90503 PH 310.303.3600 *Option X = 20,000 / Option Y = 50,000 or 100,000。
艾奇安防产品说明书
Privacy Mask Text Overlay Image Orientation
• Audio
Compression Audio-In Audio-Out
• Network
Protocol &larm
Simultaneous dual streams based on two configurations 28 Kbps - 6 Mbps (per stream) Constant, Variable
Basic WDR (74 dB); White balance: automatic, hold, and manual; Brightness; Contrast; Sharpness (auto); Auto gain control; Digital noise reduction; Flickerless
Hemispheric
Dome
Bullet
Box
PRODUCT SPECIFICATION
E81A
• Device
Device Type Image Sensor Sensor Size Day / Night Superior Low Light Sensitivity Minimum Illumination Color to B/W Switch Mechanical IR Cut Filter IR Sensitivity Range IR LED IR Working Distance Electronic Shutter
PHOTO INDICATION
3 4
1 2
1 Reset Button 2 Memory Card Slot 3 Reset Button
PHD Inc. 开关和传感器产品说明书
7-23S W I T C H E SORDERING DATA:MODEL JC1 SWITCHESTO ORDER SPECIFY:7-24S W I T C H E STeachable JC1ST• T eachable switches feature two easy-to-program outputs. See Programming Guide on page 7-28. Output settings are retained after power interruption.•S ince each switch provides two outputs, an actuator with only two slots may have up to four outputs by using two switches.•Offered in 12-30 VDC current sourcing (PNP) version only •Available in cabled (2 meter) or quick connect versions.(PNP) versions for simple interfacing to system controllers.•Offered in radial or axial magnetic field sensing for product compatibility.•Available in cabled (5 meter) or quick connect versions.Reed JC1AD and JC1RD•Available in 4.5-30 VDC current sinking or sourcing or65-120 VAC models for simple interfacing to sequencers and programmable controllers.•Can be used to directly drive some types of relays or valve solenoids within the switch specifications stated.•JC1RD is available in 5 meter cabled or quick connect.•JC1AD is available in quick connect only.7-25S W I T C H E SDIMENSIONS: SERIES JC1HD & JC1SD SOLID STATE SWITCHESJC1xDx-5JC1xDx-K (Quick Connect)[3.8][3.8]All dimensions are reference only unless specifically toleranced.ENGINEERING DATA:SERIES JC1HD & JC1SD SOLID STATE SWITCHESSOLID STATE WIRING SCHEMATICSJC1xDN-5 CABLED MODEL - NPN (SINK)JC1xDP-5 CABLED MODEL - PNP (SOURCE)JC1xDN-K QUICK CONNECT MODEL - NPN (SINK)JC1xDP-K QUICK CONNECT MODEL - PNP (SOURCE)+bn bkbu+143PIN 4bk PIN 3buPIN 1bnPIN 4bk PIN 3buPIN 1bnL +Q Mbn bkbuL +Q M143ENGINEERING DATA: SERIES JC1AD & JC1RD REED SWITCHESDIMENSIONS:SERIES JC1AD & JC1RD REED SWITCHESJC1RDU-5JC1RDU-K (Quick Connect)[3.9][3.9]JC1ADU-K (Quick Connect)[3.9]All dimensions are reference only unless specifically toleranced.CABLED MODEL - NPN (SINK)CABLED MODEL - PNP (SOURCE)QUICK CONNECT MODEL - NPN (SINK)QUICK CONNECT MODEL - PNP (SOURCE)REED WIRING SCHEMATICSAC REED WIRING SCHEMATICS+bu bk bn+341PIN 4bk PIN 3buPIN 1bnPIN 3buPIN 4bkPIN 1bn PIN 4bk PIN 3buPIN 1bnL +Q Mbn bk buL +Q M143+/M +bn bk bu1JC1ADU-KJC1RDU-5JC1RDU-K7-27S W I T C H E SSERIES JC1ST TWO POSITION TEACHABLE MAGNETIC SWITCHThis switch provides the ability to identify two separately programmable positions with a single switch. Programmable capability means no “fine-tuning.” With switch properly aligned, just place actuator in desired positions and program. Solid-state sensing technology provides a highly reliable switch. Elliptical housing allows for easy “drop-in” installation from the side, and does not have to be inserted from the end of the slot. LED indicators on module for positioning and programming. Available with 2 meter cable or 8 mm threaded Quick Connect.DIMENSIONS: SERIES JC1ST TEACHABLE SWITCHESAll dimensions are reference only unless specifically toleranced.ENGINEERING DATA: SERIES JC1ST TEACHABLE SWITCHES+bn bk buwh TEACHABLE WIRING SCHEMATICSJC1STP-2 CABLED MODELJC1STP-K QUICK CONNECT MODEL+PIN 4bkPIN 3buPIN 2whPIN 1bnPROGRAMMING GUIDE:SERIES JC1 TEACHABLE SWITCHES 13Verify proper operation at each positionRotate logo upSETUP:1Insert sensor into the C-slot in the middle from above and tighten it using the hex key.2Connect the sensor to operating voltage (see specifications).u Teach-in of the switching points:Set the position for the 1st switching pointu Press the teach button for 3 seconds; LED 1 blinksu Release teach button; 1st switching point is stored.LED 2 blinks (2nd switching point).u Set the position for the 2nd switching pointu Press the teach button for a short time; 2nd switching point is stored.3C heck the first and second switching points:Move to the position for the first switching point. LED of the first switching point lights. If it does not light, check the application conditions and realign. Move to the position for the second switching point; LED of the first switching point turns off, and the LED of the second switching point lights. If the first LED does not turn off or the second LED does not light, check the application conditions and realign. MAINTENANCE:PHD magnetic cylinder sensors don’t require maintenance. We recommend that you inspect the cable and plug in connections at regular intervals.。
海康威视产品前端产品手册(一)解析
海康威视前端产品手册V3.0 (10.07)致用户书首先，感谢关注和关心海康威视的业界同仁，特别感谢支持和鼓励海康威视的众多合作伙伴及最终用户。
经过几年的快速发展海康威视在研发团队建设、生产管理和资金积累方面，有了长足的进步，可以在研发方面进行更大的投入。
在保证压缩板卡、嵌入式硬盘录像机、视频服务器持续升级换代的情况下，能够同时进行多个系列前端视频监控产品的开发，生产和销售。
海康威视非常关注客户需求和行业发展趋势，持续增加研发投入，在生产管理和品质保障方面持续改进，秉承板卡/DVR的高端品质，坚持“可靠性优先”的原则，并提供产品定制服务，全力打造一流前端视频监控产品。
为了方便用户了解和使用海康威视的前端视频监控产品，我们编写此本《前端产品手册》，随着产品的更新，我们将对其进行相应的更新。
注：“高速智能球”和“中速智能球”以下简称“快球”，“网络高速智能球”和“网络中速智能球” 以下简称“网络快球”公司简介海康威视是中国领先的数码监控产品供应商，致力于不断提升视频编解码技术和视频处理技术，提供满足市场需求的、可靠的高性能视音频数码产品。
公司在中国大陆23个城市设立了分公司，在香港和美国达拉斯设立了全资子公司，营销服务网络遍布全球，为客户提供快捷、优质的服务。
海康威视拥有业内领先的技术和可持续发展的能力，创造了众多的行业第一，始终引领行业发展方向。
公司坚持“客户满意度”为向导，提供定制化的产品和服务，支持增值开发，为合作伙伴创造长期价值。
海康威视一直奉行“可靠性优先”的原则，推出了视音频压缩板卡、网络硬盘录像机、视频服务器、摄像机、球形摄像机、网络存储等系列产品。
产品拥有自主知识产权，应用于全球100多个国家和地区，板卡和网络硬盘录像机国内市场占有率连年稳居第一位。
作为安防应用的首选品牌，服务于众多高端应用场合，如德国世界杯、国家体育场“鸟巢”及50%以上的北京奥运场馆和奥运村、青藏铁路全线、电信全球眼、网通宽视界等。
MWH-C系列安装使用说明书(M08019380067)
警告：可能造成死亡或重大伤害事故的错误操作。 注意：应遵守的注意事项，以防止损坏机组和意外伤害事故。 表示必须遵守的重要说明。 表示切勿尝试的动作。 安装及使用注意事项 为使设备发挥最佳的性能，请务必按照以下内容操作，若不符合规范，开机前请务必采取切实可行的施 解决。
2014shenzhenmcquay技术参数技术参数技术参数技术参数31规格参数规格参数规格参数规格参数mwh008cmwh008crmwh010cmwh010crmwh013cmwh013crmwh015cmwh015crmwh020cmwh020cr额定制冷量2450245029302930365034304350440057105710额定制热量6600风量4205306608001050噪声dba33333636383842424545重量kg53555557565858608890mm8751236mm521652外形尺寸mm373428220v50hz制冷6106107657759009401080110015401510额定输入功率制热1620制冷300305365350482482557598813813整机电流制热全封闭旋转式压缩机数量套管式水流量054052064062077076094092126127冷凝器水压降kpa2020202020207070120120进出水管尺寸r34冷凝水管尺寸mm20节流方式毛细管风机型式低噪声双进风离心式种类r22制冷剂kg050050040050060075060060080080mwh025cmwh025crmwh028cmwh028crmwh030cmwh030crmwh040cmwh040cr额定制冷量6750680080008000880088001189011890额定制热量13500风量1250165017002100噪声dba4646474747474545重量kg9395109112111114132135mm123612181278mm652744793外形尺寸mm428365434220v50hz制冷17701830207021202390241030503000额定输入功率制热3030制冷967967103110811188120015211510整机电流制热全封闭旋转式压缩机数量套管式水流量144141180182200200264263冷凝器水压降kpa130130100100110110230230进出水管尺寸r34冷凝水管尺寸mm20节流方式毛细管风机型式低噪声双进风离心式种类r22制冷剂kg075095055x2070x2065x2065x2070x2085x22014shenzhenmcquaymwh050cmwh050
英嘉通半导体产品规格书
英嘉通半导体产品规格书1.产品介绍：英嘉通半导体产品是一种高性能半导体器件，广泛应用于电子设备和通信系统中。
它具有可靠性高、速度快、功耗低等优点，能够满足不同领域的需求。
2.产品参数：(1)输出功率：根据客户需求可调整，范围为1W到10W之间。
(2)工作频率：频率范围为1GHz到10GHz之间。
(3)输入电压：标准电压为5V，也可根据客户需求进行调整。
(4)工作温度：-40℃到85℃。
(5)尺寸：产品尺寸为10mm×10mm×1mm，可根据客户需求进行定制。
3.性能特点：(1)高可靠性：采用先进的生产工艺和精选的材料，确保产品的稳定性和可靠性，减少故障发生的可能性。
(2)高速度：产品具有快速的响应速度和传输速度，能够满足高频率和大数据量的需求。
(3)低功耗：产品采用节能设计，能够实现低功耗运行，提高产品的使用寿命和可持续性。
(4)宽工作温度范围：产品能够在极端温度条件下正常运行，适应各种环境要求。
(5)小尺寸：产品体积小巧，适合紧凑的电子设备和通信系统中的集成应用。
4.适用领域：(1)通信系统：英嘉通半导体产品可广泛应用于无线通信系统、卫星通信系统、光纤通信系统等，能够提供稳定、高速的信号传输。
(2)电子设备：产品可应用于智能手机、平板电脑、笔记本电脑等电子设备中，提供高效、低功耗的电源管理和信号放大功能。
(3)工业控制：英嘉通半导体产品适用于工业自动化控制系统，能够提供高精度、高稳定性的信号放大和控制功能。
(4)医疗设备：产品可用于医疗成像设备、生命监护设备等，提供准确、可靠的信号处理和数据传输功能。
5.注意事项：(1)请在规定的工作电压范围内使用产品，以免损坏设备或危及人身安全。
(2)请避免长时间暴露在极端温度环境下，以免影响产品的性能和寿命。
(3)请按照规定的电气连接方式正确接线，以免引起电路短路或反向连接等故障。
(4)如遇到故障或异常情况，请及时停止使用并联系售后服务部门进行维修和处理。
TDK C111N 电感产品说明书
Dimensions: [mm]Scale - 3:174491501117449150111BCC Dmin.min.12,8020,20GENERAL TOLERANCEDIN ISO 2768-1mWE-AC HC High current air coil7449150111T e m p e r a t u r eT pT L7449150111Cautions and Warnings:The following conditions apply to all goods within the product series of WE-ACHCofWürth Elektronik eiSos GmbH & Co. KG:General:•This electronic component is designed and manufactured for use in general electronic equipment.•Würth Elektronik must be asked for written approval (following the PPAP procedure) before incorporating the components into any equipment in fields such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc. where higher safety and reliability are especially required and/or if there is the possibility of direct damage or human injury.•Electronic components that will be used in safety-critical or high-reliability applications, should be pre-evaluated by the customer.•The component is designed and manufactured to be were used within the datasheet specified values. If the usage and operation conditions specified in the datasheet are not met, the wire insulation may be damaged or dissolved.•Do not drop or impact the components, as the core may flake apart.•Würth Elektronik products are qualified according to international standards, which are listed in each product reliability report. Würth Elektronik does not warrant any customer qualified product characteristics beyond Würth Elektroniks’ specifications, for its validity and sustainability over time.•The responsibility for the applicability of the customer specific products and use in a particular customer design is always within the authority of the customer. All technical specifications for standard products also apply to customer specific products.Product specific:Soldering:•The solder profile must comply with the Würth Elektronik technical soldering specification. All other profiles will void the warranty.•All other soldering methods are at the customers’ own risk.•Strong forces which may affect the coplanarity of the components’ electrical connection with the PCB (i.e. pins), can damage the part, resulting in avoid of the warranty.•Please notice that the recommended thickness of the soldering paste is 200 μm (max. coplanarity of the product is 150 μm). Cleaning and Washing:•Washing agents used during the production to clean the customer application might damage or change the characteristics of the wire insulation, marking or plating. Washing agents may have a negative effect on the long-term functionality of the product.•Using a brush during the cleaning process may break the wire due to its small diameter. Therefore, we do not recommend using a brush during the PCB cleaning process.Potting:•If the product is potted in the customer application, the potting material might shrink or expand during and after hardening. Shrinking could lead to an incomplete seal, allowing contaminants into the core. Expansion could damage the core or wire contacts. We recommend a manual inspection after potting to avoid these effects.Storage Conditions:• A storage of Würth Elektronik products for longer than 12 months is not recommended. Within other effects, the terminals may suffer degradation, resulting in bad solderability. Therefore, all products shall be used within the period of 12 months based on the day of shipment.•Do not expose the components to direct sunlight.•The storage conditions in the original packaging are defined according to DIN EN 61760-2.Handling:•Violation of the technical product specifications such as exceeding the nominal rated current will void the warranty.•Applying currents with audio-frequency signals may result in audible noise due to the magnetostrictive material properties.These cautions and warnings comply with the state of the scientific and technical knowledge and are believed to be accurate and reliable.However, no responsibility is assumed for inaccuracies or incompleteness.Würth Elektronik eiSos GmbH & Co. KGEMC & Inductive SolutionsMax-Eyth-Str. 174638 WaldenburgGermanyCHECKED REVISION DATE (YYYY-MM-DD)GENERAL TOLERANCE PROJECTIONMETHODJoMa001.0012019-05-20DIN ISO 2768-1mDESCRIPTIONWE-AC HC High current air coilORDER CODE7449150111SIZE/TYPE BUSINESS UNIT STATUS PAGEImportant NotesThe following conditions apply to all goods within the product range of Würth Elektronik eiSos GmbH & Co. KG:1. General Customer ResponsibilitySome goods within the product range of Würth Elektronik eiSos GmbH & Co. KG contain statements regarding general suitability for certain application areas. These statements about suitability are based on our knowledge and experience of typical requirements concerning the areas, serve as general guidance and cannot be estimated as binding statements about the suitability for a customer application. The responsibility for the applicability and use in a particular customer design is always solely within the authority of the customer. Due to this fact it is up to the customer to evaluate, where appropriate to investigate and decide whether the device with the specific product characteristics described in the product specification is valid and suitable for the respective customer application or not.2. Customer Responsibility related to Specific, in particular Safety-Relevant ApplicationsIt has to be clearly pointed out that the possibility of a malfunction of electronic components or failure before the end of the usual lifetime cannot be completely eliminated in the current state of the art, even if the products are operated within the range of the specifications.In certain customer applications requiring a very high level of safety and especially in customer applications in which the malfunction or failure of an electronic component could endanger human life or health it must be ensured by most advanced technological aid of suitable design of the customer application that no injury or damage is caused to third parties in the event of malfunction or failure of an electronic component. Therefore, customer is cautioned to verify that data sheets are current before placing orders. The current data sheets can be downloaded at .3. Best Care and AttentionAny product-specific notes, cautions and warnings must be strictly observed. Any disregard will result in the loss of warranty.4. Customer Support for Product SpecificationsSome products within the product range may contain substances which are subject to restrictions in certain jurisdictions in order to serve specific technical requirements. Necessary information is available on request. In this case the field sales engineer or the internal sales person in charge should be contacted who will be happy to support in this matter.5. Product R&DDue to constant product improvement product specifications may change from time to time. As a standard reporting procedure of the Product Change Notification (PCN) according to the JEDEC-Standard inform about minor and major changes. In case of further queries regarding the PCN, the field sales engineer or the internal sales person in charge should be contacted. The basic responsibility of the customer as per Section 1 and 2 remains unaffected.6. Product Life CycleDue to technical progress and economical evaluation we also reserve the right to discontinue production and delivery of products. As a standard reporting procedure of the Product Termination Notification (PTN) according to the JEDEC-Standard we will inform at an early stage about inevitable product discontinuance. According to this we cannot guarantee that all products within our product range will always be available. Therefore it needs to be verified with the field sales engineer or the internal sales person in charge about the current product availability expectancy before or when the product for application design-in disposal is considered. The approach named above does not apply in the case of individual agreements deviating from the foregoing for customer-specific products.7. Property RightsAll the rights for contractual products produced by Würth Elektronik eiSos GmbH & Co. KG on the basis of ideas, development contracts as well as models or templates that are subject to copyright, patent or commercial protection supplied to the customer will remain with Würth Elektronik eiSos GmbH & Co. KG. Würth Elektronik eiSos GmbH & Co. KG does not warrant or represent that any license, either expressed or implied, is granted under any patent right, copyright, mask work right, or other intellectual property right relating to any combination, application, or process in which Würth Elektronik eiSos GmbH & Co. KG components or services are used.8. General Terms and ConditionsUnless otherwise agreed in individual contracts, all orders are subject to the current version of the “General Terms and Conditions of Würth Elektronik eiSos Group”, last version available at .Würth Elektronik eiSos GmbH & Co. KGEMC & Inductive SolutionsMax-Eyth-Str. 174638 WaldenburgGermanyCHECKED REVISION DATE (YYYY-MM-DD)GENERAL TOLERANCE PROJECTIONMETHODJoMa001.0012019-05-20DIN ISO 2768-1mDESCRIPTIONWE-AC HC High current air coilORDER CODE7449150111SIZE/TYPE BUSINESS UNIT STATUS PAGE。
H1C产品硬件规格书说明
H1C产品硬件规格书说明V1.02016-04目录1H1C ............................................................................................................错误!未定义书签。
1.1功能介绍....................................................................................错误!未定义书签。
1.2接口说明....................................................................................错误!未定义书签。
1.3连接示意....................................................................................错误!未定义书签。
1.4发送卡指示灯及按钮说明........................................................错误!未定义书签。
1.5控制卡尺寸、过孔（与接收卡相同）....................................错误!未定义书签。
2连接显示屏................................................................................................错误!未定义书签。
3测试节目....................................................................................................错误!未定义书签。
et1011c2 规格书
et1011c2 规格书摘要：一、et1011c2 规格书概述1.产品简介2.规格参数3.功能特点二、et1011c2 规格书详细内容1.产品型号与名称2.技术参数a.输入电压b.输出电压c.电流容量d.工作效率e.工作温度f.储存温度g.湿度3.产品尺寸与重量4.功能特性a.过压保护b.短路保护c.自动恢复功能d.节能设计e.稳定性5.应用领域正文：一、et1011c2 规格书概述et1011c2 是一款广泛应用于各种电子设备的电源适配器。
本规格书详细介绍了该产品的各项性能参数与功能特点，为用户选购和使用提供参考依据。
二、et1011c2 规格书详细内容1.产品型号与名称本产品型号为et1011c2，是一款高效稳定的电源适配器。
2.技术参数et1011c2 电源适配器具备以下技术参数：a.输入电压：根据不同版本分为100-240V~50/60Hz 或220-240V~50/60Hzb.输出电压：稳定输出12Vc.电流容量：最大输出电流为1Ad.工作效率：高达85%e.工作温度：-40℃至+70℃f.储存温度：-20℃至+85℃g.湿度：5% 至95% 相对湿度，无冷凝3.产品尺寸与重量et1011c2 电源适配器尺寸为：长100mm x 宽50mm x 高30mm，重量约为150 克。
4.功能特性et1011c2 电源适配器具备以下功能特性：a.过压保护：当输入电压超过10% 时，电源适配器将自动断开输出，确保设备安全b.短路保护：当输出端短路时，电源适配器将立即切断输出电流，防止设备损坏c.自动恢复功能：短路或过压故障排除后，电源适配器将自动恢复工作d.节能设计：采用高效率的电路设计，降低能耗，实现节能e.稳定性：采用先进的稳压技术，保证输出电压稳定可靠5.应用领域et1011c2 电源适配器广泛应用于家用电器、办公设备、通讯器材、数码产品等各种电子设备，满足不同领域和场景的需求。
综上所述，et1011c2 电源适配器凭借其稳定的性能、高效的节能设计和广泛的应用领域，成为市场上备受青睐的产品。
Dell PowerEdge RAID Controller (PERC) H310、H710、H710P 和 H810用户指南
Dell PowerEdge RAID Controller (PERC) H310、H710、H710P 和 H810用户指南管制型号： UCSA-801, UCSB-800, UCSM-800, UCPA-801, UCPB-800,UCPM-800, and UCPE-800注、小心和警告注: “注”表示可以帮助您更好地使用计算机的重要信息。
小心: “小心”表示可能会损坏硬件或导致数据丢失，并说明如何避免此类问题。
警告: “警告”表示可能会造成财产损失、人身伤害甚至死亡。
© 2013 Dell Inc. 保留所有权利。
本文中使用的商标： Dell™、Dell 徽标、Dell Boomi™、Dell Precision™、 OptiPlex™、Latitude™、PowerEdge™、PowerVault™、PowerConnect™、OpenManage™、EqualLogic™、Compellent™、KACE™、FlexAddress™、Force10™、Venue™和 Vostro™是 Dell Inc. 的商标。
Intel®、Pentium®、Xeon®、Core®和 Celeron®是 Intel Corporation 在美国和其他国家或地区的注册商标。
AMD®和 AMD Opteron™、AMD Phenom™以及 AMD Sempron™是 Advanced Micro Devices, Inc.的注册商标或商标。
Microsoft®、Windows®、Windows Server®、Internet Explorer®、MS-DOS®、Windows Vista®和 Active Directory®是 Microsoft Corporation 在美国和/或其他国家或地区的商标或注册商标。
Richtek RT9169 H 1 产品说明书
Pin Configurations100mA, 4μA Quiescent Current CMOS LDO RegulatorMarking InformationFor marking information, contact our sales representative directly or through a Richtek distributor located in your area.Ordering InformationGeneral DescriptionThe RT9169/H se ries are 100mA ultra-low quiescent current CMOS low dropout (LDO) regulator designed for battery-powered equipments. The output voltages range from 1.2V to 5V with 0.1V per step.The other features include 4μA ultra-low quiescent, low dropout voltage, high output accuracy, current limiting protection, and high ripple rejection ratio.Featuresz Ultra-Low Quiescent Current: 4μA z Low Dropout: 450mV at 100mAz Wide Operating Voltage Ranges: 2V to 6V z Current Limiting Protectionz Only 1μF Output Capacitor Required for Stability z High Power Supply Rejection RatiozRoHS Compliant and 100% Lead (Pb)-FreeApplicationsz Battery-Powered Equipment z Palmtops, Notebook Computers z Hand-held Instruments zPCMCIA CardsTO-92 (L-Type)TO-92 (T-Type)SOT-23-3(TOP VIEW)SOT-23-3 (L-Type)Note :1. RT9169H package type is available in SOT-23-5 only.2. Richtek products are :` RoHS compliant and compatible with the current require-ments of IPC/JEDEC J-STD-020.` Suitable for use in SnPb or Pb-free soldering processes.VINGNDVOUT VOUTVIN GND SOT-23-5SOT-89GNDVIN (TAB)VOUTAbsolute Maximum Ratings (Note 1)z Input Voltage ----------------------------------------------------------------------------------------------------------7VzPower Dissipation, P D @ T A = 25°CSOT-23-3---------------------------------------------------------------------------------------------------------------0.4W SOT-23-5---------------------------------------------------------------------------------------------------------------0.4W SOT-89-----------------------------------------------------------------------------------------------------------------0.571W TO-92-------------------------------------------------------------------------------------------------------------------0.625W z Junction T emperature -----------------------------------------------------------------------------------------------150°C z Lead Temperature (Soldering, 10 sec.)-------------------------------------------------------------------------260°Cz Storage T emperature Range ---------------------------------------------------------------------------------------−65°C to 150°C zPackage Thermal Resistance (Note 2)SOT-23-3, θJA ---------------------------------------------------------------------------------------------------------250°C/W SOT-23-5, θJA ---------------------------------------------------------------------------------------------------------250°C/W SOT-89, θJA -----------------------------------------------------------------------------------------------------------175°C/W TO-92, θJA -------------------------------------------------------------------------------------------------------------160°C/W zESD Susceptibility (Note 3)HBM (Human Body Mode)-----------------------------------------------------------------------------------------2kV MM (Machine Mode)------------------------------------------------------------------------------------------------200VFunction Block DiagramTypical Application CircuitV INV OUTV OUTVINVOUTEN/ENRecommended Operating Conditions (Note 4)z Junction T emperature Range --------------------------------------------------------------------------------------−40°C to 125°C zAmbient T emperature Range --------------------------------------------------------------------------------------−40°C to 85°CFunctional Pin DescriptionElectrical Characteristics(V IN= 5.5V, C IN = 1μF, C OUT = 1μF, T A = 25°C, unless otherwise specified)Application InformationA 1μF (or larger) capacitor is recommended between V OUT and GND for stability. The part may oscillate without thecapacitor. Any type of capacitor can be used, but not Aluminum electrolytes when operating below –25°C. The capacitance may be increased without limit.A 1μF capacitor (or larger) should be placed between V IN to GND.Note 1. Stresses listed as the above "Absolute Maximum Ratings" may cause permanent damage to the device. These are forstress ratings. Functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may remain possibility to affect device reliability.Note 2. θJA is measured in the natural convection at T A = 25°C on a low effective thermal conductivity test board ofJEDEC 51-3 thermal measurement standard.Note 3. Devices are ESD sensitive. Handling precaution is highly recommended.Note 4. The device is not guaranteed to function outside its operating conditions.Typical Operating CharacteristicsQuiescient Current vs. Temperature012345-30306090120Temperature Q u i e s c e n t C u r r e n t ( A)(°C)μDropout Voltage (V IN -V OUT )00.10.20.30.40.50.60.70.820406080100I LOAD (mA)D r o p o u t V o l t a g e (V )Short Circuit Current010020030040050012345Input/Output Differential (V)S h o r t C i r c u i t C u r r e n t (m A )Temperature Stability1.72.12.52.93.33.7-50-25255075100125Temperature O u t p u t V o l t a g e(V )(°C)PSRR-70-60-50-40-30-20-10P S R R (d B )PSRR-70-60-50-40-30-20-100Frequency (Hz)P S R R (d B )10 100 1k 10k 100k 1MI n p u t V o l t a g e O u t p u t V o l t a g e Time (1ms/Div)T A = 25°CC OUT = 1uF Electrolytic≈Line Transient ResponseI np u t V o l t a g e D e v i a t i o n (V )O u t p u t V o l t a g e Time (1ms/Div)V OUT = 3.3V I OUT = 50mA T A = 25°CC OUT = 1uF ElectrolyticLoad Transient ResponseL o a d C u r r e n t (m A )O u t p u t V o l t a g e D e v i a t i o n (m V )100501−50100500−50Time (500us/Div)V IN = 5V V OUT = 3.3VT A = 25°C C IN = 1uF Ceramic C OUT= 1uF Ceramic≈L o a d O u t p u t V o l t a g e Time (500us/Div)C IN = 1uF Ceramic C OUT = 1uF Ceramic≈Load Transient ResponseL o a d O u t p u t V o l t a g e D e v i a t i o n (m V )200−20Time (500us/Div)V IN = 5V V OUT = 1.8VT A = 25°C C IN = 1uF Ceramic C OUT = 1uF Ceramic≈Load Transient ResponseL o a d O u t p u t V o l t a g e D e v i a t i o n (m V )500−50Time (500us/Div)V IN = 5V V OUT = 1.8VT A = 25°C C IN = 1uF Ceramic C OUT = 1uF Ceramic≈A1HLSOT-23-3 Surface Mount PackageOutline DimensionA1HLSOT-23-5 Surface Mount PackageH A3-Lead SOT-89 Surface Mount PackageInformation that is provided by Richtek Technology Corporation is believed to be accurate and reliable. Richtek reserves the right to make any change in circuit design, specification or other related things if necessary without notice at any time. No third party intellectual property infringement of the applications should be guaranteed by users when integrating Richtek products into any application. No legal responsibility for any said applications is assumed by Richtek.Richtek Technology CorporationHeadquarter5F, No. 20, Taiyuen Street, Chupei City Hsinchu, Taiwan, R.O.C.Tel: (8863)5526789 Fax: (8863)5526611Richtek Technology CorporationTaipei Office (Marketing)5F, No. 95, Minchiuan Road, Hsintien City Taipei County, Taiwan, R.O.C.Tel: (8862)86672399 Fax: (8862)86672377Email:*********************A13-Lead TO-92 Plastic Package。
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
H1C产品
硬件规格书说明
V1.0
2016-04
目录
1H1C ............................................................................................................错误!未定义书签。
1.1功能介绍....................................................................................错误!未定义书签。
1.2接口说明....................................................................................错误!未定义书签。
1.3连接示意....................................................................................错误!未定义书签。
1.4发送卡指示灯及按钮说明........................................................错误!未定义书签。
1.5控制卡尺寸、过孔（与接收卡相同）....................................错误!未定义书签。
2连接显示屏................................................................................................错误!未定义书签。
3测试节目....................................................................................................错误!未定义书签。
4恢复出厂设置............................................................................................错误!未定义书签。
5电气参数....................................................................................................错误!未定义书签。
1H1C
1.1功能介绍
图1.1.1 H1C控制卡
H1C控制卡专为户外小型全彩显示屏设计，适用于公交车后窗、出租车顶屏、门头招牌屏等。
具有如下特点：
1、板卡集成3G模块（可选配4G模块），支持windows、安卓和苹果系统控
制端远程管理。
（3G、4G模块各分2个版本，需要根据客户的需求选择）
2、支持通讯类型：百兆网口、U盘、3G
3、板卡集成4个HUB75B接口，无需HUB转接板即可直接连接市面上大多
数LED显示屏
4、最大带载6.5536万点，单卡最高可带256点（32扫模组）
5、灰度等级：最高65536级
6、板载4G大容量内存，支持存储4小时以上视频节目
7、支持USB声卡输出音频接口，建议外接有源功放设备，效果更佳
8、支持启动渐亮功能，保护电源不受过大启动冲击
9、宽电压输入，板卡支持4~6.5V电压输入，保证电压不稳定的情况卡控制
卡正常工作。
10、选配模块：温湿度传感器、亮度传感器、外接GPS模块
11、GPS定位，能够在地图上显示及查看当前车辆位置及状态信息
12、GPS校准时钟，多终端同步播放显示内容
13、支持广告定位投放，用户可以按区域指定播放广告
1.2接口说明
5V电源HUB75E接口
百兆网口
USB接口
GPS接口
3G天线接口
温湿度传感器接口亮度传感器接口3G用SIM卡插座
图1.1.1 控制卡H1C接口说明
具体接口说明见表1.1.1：
表1.1.1控制卡H1C接口说明
接口数量说明
5V电源 1 外接5V直流电源，正常使用供电范围4~6.8V 百兆网口 1 用于连接用户计算机、路由器、交换机等
USB接口 1 用于连接U盘、USB声卡等，可使用USB_HUB GPS接口 1 用于连接GPS模块
HUB75E接口 4 用户连接LED接口板，最大支持32扫
3G天线接口 1 用于连接3G用天线
3G用SIM卡插座 1 用于连接上网手机SIM卡，3G模块用
温湿度传感器接口 1 用于连接温湿度传感器模块
亮度传感器接口 1 用于连接亮度传感器模块
1.3 连接示意
（1）、可以使用网线直接连接或者通过交换机/路由器连接控制卡和电脑。
（2）、可以直接使用3G 通信连接控制卡。
（3）、可以直接使用U 盘更改播放节目和配置参数等。
图1.1.2控制卡连接示意图（1）
图1.1.2控制卡连接示意图（2）
网线
网线
网线
互联网
服务器
H1C 控制卡H1C 控制卡3G
3G
图1.1.2控制卡连接示意图（3）
1.4 发送卡指示灯及按钮说明
图1.4.1 发送卡指示灯
具体说明见下表：
表1.4.1 发送卡指示灯说明 名称 标号
说明
POWER D6 电源指示灯：常亮表示电源已接通 RUN D4 运行指示灯：闪烁表示运行正常
ALARM
D5
控制卡正常工作时，表示服务器连接指示灯：亮表示控制卡已连接上服务器
控制卡上电过程中，表示恢复状态指示灯：详见恢复出厂设置
NET D8
百兆网指示灯：
灭：表示网线没有连接
闪烁：表示百兆网有数据传输
H1C 控制卡H1C 控制卡发节目到U 盘插到USB 口，更新节目
插到USB 口，更新节目
图1.4.2 发送卡按钮具体说明见下表：
1.5 控制卡尺寸、过孔（与接收卡相同）
（1）、公制尺寸：单位mm
（2）、英制尺寸：单位mil
60.325mm
81.28mm 135.255mm 10.16 10.795
Z1
Z3
Z4
4x16P HUB75B
144.018mm
91.44mm Z2
4.38mm
5.08mm 4 ᵩ 4.2x8mm
2375mil
3200mil 5325mil 400mil 425mil
Z1
Z3
Z4
4x16P HUB75B
5670mil
3600mil Z2
172.5mil
200mil 4 ᵩ 165.35 x 314.96mil
2 连接显示屏
直接使用板载HUB75B 接口，通过排线连接到显示屏模组上，如下图所示：
图2.1 显示屏连接示意图
3 测试节目
在按住TEST 按钮1秒左右可以进入测试状态。
即播放测试节目。
连续按动TEST 按钮可以在
不同的测试类型之间切换，直到退出测试状态。
测试节目说明见表3.1：
表3.1 测试节目说明 按钮次数 类型
测试项
1 红色色测试 用于测试显示屏红色通道是否正确
2 绿色色测试
用于测试显示屏红色通道是否正确 3 红色色测试 用于测试显示屏红色通道是否正确 4 横线测试 用于测试显示屏横线是否显示正常 5 竖线测试 用于测试显示屏竖线是否显示正常 6 斜线测试 用于测试显示屏斜线是否显示正常
7 表格测试 用于测试显示屏级模组配置、级联配置是否正确 8 显示系统信息 用于显示系统信息 9 停止测试节目
用于显示正常播放节目
4 恢复出厂设置
当控制卡出现软件、配置等问题，并且断电重启后还是无法解决的，或者其他无法判断的特殊情况下，可以选择恢复出厂设置操作。
1 。
2 。
3 。
4。
排线
恢复出厂设置有2种模式：
1、二级恢复：表示恢复到显示屏厂家出厂时的状态。
方法如下：
（1）、让控制卡处于正常工作时的状态，即“RUN”指示灯正常闪烁时
（2）、此时一直按住“TEST”按钮不放
（3）、观察控制卡“ALARM”指示灯。
该指示灯会出依次现如下状态：
A、ALARM指示灯—慢闪
B、ALARM指示灯—常亮
C、ALARM指示灯—快闪，此时表示一级恢复成功，可以松开“TEST”按钮，等
待控制卡重启
2、一级恢复：表示恢复到熙彩通出厂时的状态。
方法如下：
（1）、让控制卡重启。
可断电重启，或者按一下板卡上的“RST按钮”
（2）、控制卡重启后，一直按住“TEST”按钮不放
（3）、观察控制卡“ALARM”指示灯。
该指示灯会出依次现如下状态：
A、ALARM指示灯--常亮
B、ALARM指示灯—慢闪
C、ALARM指示灯—快闪，此时表示一级恢复成功，可以松开“TEST”按钮，等
待控制卡重启
5电气参数。
