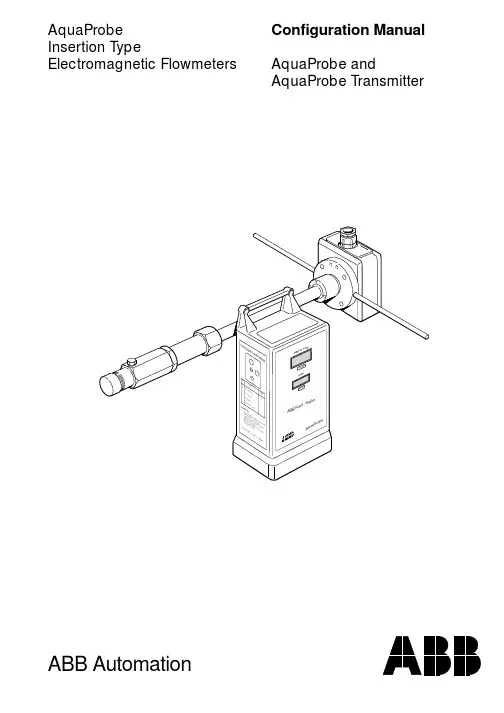

AquaProbeInsertion Type Electromagnetic Flowmeters Configuration Manual AquaProbe andAquaProbe TransmitterABB AutomationABB INSTRUMENTATIONAlthough Warning hazards are related to personal injury, and Caution hazards are associated with equipment or property damage,it must be understood that operation of damaged equipment could, under certain operational conditions, result in degraded process system performance leading to personal injury or death. Therefore, comply fully with all Warning and Caution rmation in this manual is intended only to assist our customers in the efficient operation of our equipment. Use of this manual for any other purpose is specifically prohibited and its contents are not to be reproduced in full or part without prior approval of Technical Communications Department, ABB Instrumentation.The CompanyABB Instrumentation is an established world force in the design and manufacture of instrumentation for industrial process control, flow measurement, gas and liquid analysis and environmental applications.As a part of ABB, a world leader in process automation technology, we offer customers application expertise, service and support worldwide.We are committed to teamwork, high quality manufacturing, advanced technology and unrivalled service and support.The quality, accuracy and performance of the Company’s products result from over 100 years experience, combined with a continuous program of innovative design and development to incorporate the latest technology.The NAMAS Calibration Laboratory No. 0255 is just one of the ten flow calibration plants operated by the Company, and is indicative of ABB Instrumentation’s dedication to quality and accuracy.BS EN ISO 9001St Neots, U.K. – Cert. No. Q5907Stonehouse, U.K. – Cert. No. FM 21106Stonehouse, U.K. – Cert. No. 0255EN 29001 (ISO 9001)Lenno, Italy – Cert. No. 9/90A Use of InstructionsHealth and SafetyTo ensure that our products are safe and without risk to health, the following points must be noted:1.The relevant sections of these instructions must be read carefully before proceeding.2.Warning labels on containers and packages must be observed.3.Installation, operation, maintenance and servicing must only be carried out by suitably trained personnel and in accordance with the information given.4.Normal safety precautions must be taken to avoid the possibility of an accident occurring when operating in conditions of high pressure and/or temperature.5.Chemicals must be stored away from heat, protected from temperature extremes and powders kept dry. Normal safe handling procedures must be used.6.When disposing of chemicals ensure that no two chemicals are mixed.Safety advice concerning the use of the equipment described in this manual or any relevant hazard data sheets (where applicable) may be obtained from the Company address on the back cover, together with servicing and spares information.CONTENTS Page1OPERATION1.1Intermittent Mode (2)1.2Continuous Mode (2)1.2.1Display (Continuous Mode Only) (2)1.3Totaliser (2)1.3.1Totaliser Reset (2)2PROGRAMMING2.1Programming the AquaProbe Transmitter (3)2.1.1Accessing and Using theMain Menu (3)2.2Vary Parameter Command (4)2.2.1Parameter Values (4)2.2.2Negative Parameter Values (4)2.2.3Changing Parameter Values (4)2.2.4Parameters (6)APPENDICESA1Psion Organiser Series 2 (7)A1.1Keyboard Designations (7)A2Psion Organiser Series 3 (7)A2.1Keyboard Designations (7)A3Husky Hunter Portable Computer (8)A3.1Keyboard Designations (8)A4Microscribe Series 300 (8)121.3TotaliserThe AquaProbe Transmitter is fitted with an 8 digit totaliser module. The totaliser is configured to count pulses in the forward direction only at a x1F rate, or at this rate divided by 10, 100 or 1000.Example – if x1F is in litres then the internal totaliser can be made to display cubic metres by selecting '÷ 1000' – see Fig.2.2 on page 5.1.3.1Totaliser ResetThe totaliser is reset by:a)Connecting Pin J of the output cable connector ('RESET' –white wire in cable MVBX 99147) to GND (Pins G, S or V).For full connection details see Section 4 in the AquaProbe Installation Manual.b)Applying the wand to the 'RESET' pad with Pins J and T ofthe output cable connector linked together (i.e. yellow and white wires of cable MVBX 99147) or by serial data lead assemblies MVBX 99117 or 99119.The totaliser is equipped with an overflow indicator. A small dot appears in the top left hand corner of the display when there is overflow from '99999999' to '00000000'.1OPERATIONThe AquaProbe Transmitter can be used in either a continuous or intermittent mode.1.1Intermittent ModeThe AquaProbe Transmitter measures the average flow rate over a period of approximately 5 seconds, at a regular user defined Intermittent Interval of 1 to 255 minutes. Between readings the transmitter is in a 'sleep' state resulting in minimal current usage. Battery life is proportional to the intermittent interval and can allow unattended operation from a small battery pack for in excess of one year. At the end of each measurement period the measurement is transmitted to any data terminal or data loggers connected to the AquaProbe Transmitter. The pulse output, reduced in frequency if required, is fed to an internal totaliser module.1.2Continuous ModeIf the wand is held over the 'ACTIVATE' pad for longer than 3seconds the AquaProbe Transmitter measures and displays flow continuously. Serial data is transmitted at approximately 1.2 second intervals and the frequency output is updated continuously. Once initiated continuous mode is maintained for a user defined Continuous Time of 2 to 255 minutes.Connection of 'A+' to ground or +12V (see AquaProbe Installation Manual) forces the AquaProbe Transmitter into continuous mode.1.2.1Display (Continuous Mode Only)The 4-digit liquid crystal display (l.c.d.) has automatic decimal point selection. The maximum number of figures displayed after the decimal point is automatically selected to give a resolution approximately equivalent to 0.001 m/s. Flow rate is indicated in chosen units (e.g. litres per second) to a maximum of ±9999 units.The display indicates the following overrange conditions:a)If the measuring range of the transmitter is exceeded(approximately 15 m/s), all displayed digits flash.b)If the flow rate exceeds the capacity of the display, a valueof ±9999 is shown continuously.32PROGRAMMING…Vary ParametersFlow Abort Save oror or or Testor 2.1.1Accessing and Using the Main MenuOn the data terminal, type a ‘V ’ and press enter and refer to Section 2.2 for full programming details.The Vary Parameter command allows changes to be made to the AquaProbe Transmitter internal data. To alter parameters 4 to 9 first enter the input security code for security level 1. To alter parameters 4 to 9 and 10 to 12 first enter the input security code for security level 2.On the data terminal, type an ‘F ’ and press enter. The AquaProbe returns to flow measurement, in continuous mode, using the parameter data entered in Vary Parameters until interrupted by a serial link.On the data terminal, type an ‘A ’ and press enter. The AquaProbe Transmitter returns to normal operation ignoring any alterations made to its parameters.On the data terminal, type an ‘S ’ and press enter. All data entered in Vary Parameters is saved and the AquaProbe Transmitter returns to normal operation. This is the only command which changes the AquaProbe Transmitter internal data.On the data terminal, type a ‘T ’ and press enter. The AquaProbe enters continuous mode until interrupted by a serial link. All flow settings and sensor calibration data are ignored and the display shows m/s only. This mode can be used in conjuction with the ABB Kent-Taylor VMD simulator to confirm correct operation.2.1Programming the AquaProbe TransmitterProgramming the AquaProbe transmitter allows various operating parameters to be changed. A security system consisting of two security codes is incorporated to restrict access to some parameters. If using a Psion Organiser, Husky Hunter Portable Computer or Microscribe Series 300 refer to APPENDICES for connection and/or keyboard operations.Table 2.1 Security Access to Parameters in the Vary Parameter MenuSecurity Level12Security Code to EnterSETUP TESTCALAccessible Parameters Parameters 1 to 8Factory set parameters 10, 11 and 12If required, remove page below above line to prevent unauthorised access to calibration details4…2PROGRAMMING2.2Vary Parameter Command 2.2.1Parameter ValuesParameter values are displayed as either floating point in the range ±1E –38 to ±1E+38, or integer in the range –128 to +255.Parameter values can be entered in either format but if an integer value is required then only the integer part of the entry is accepted.2.2.2Negative Parameter Valuesc)If a negative value is entered into parameter 7 (PU), thedisplayed flowrate is not affected but the forward/reverse pulse outputs are interchanged.2.2.3Changing Parameter Values – Fig. 2.1 and 2.2To change parameters 4 to 12 it is necessary to enter a security code – see Section 2.1.1 on previous page.Parameters 13 to 15 are not adjustable. Press 'Escape' to return to the main menu at any time.2PROGRAMMING…5c)Pulse Units – PU is the factor applied to the volume unitsto give the OUTPUT PULSE in the required units. It is the ratio between the volume flow rate units and the required pulse output units.Example 2– for a flow rate in m3 and a pulse output per m3the value of PU is 1.Example 3– for a flow rate in litres and a pulse output per m3 PU is 0.001.PU=Volume UnitsPulse Units1 litre1m31 litre1000 litres===0.001d)Time Mode – TM is the factor applied to the output pulseunits to give the INTERNAL TOTALISER in the required units. It is the ratio between the required totaliser units and the pulse output units and its value is expressed as a power of 10.Example 4– for a flow rate in m3 and a totaliser in m3 the value of TM should be 1. Since 1 is 100, TM = 0.Example 5– for a flow rate in litres and a pulse output in m3 the value of TM should be 1000. Since 1000 is 103, TM = 3.T M=Totaliser UnitsPulse Output Units1m31 litre1000 litres1 litre==Since 1000 = 103, TM = 32.2.4ParametersWhen programming the AquaProbe the following parametersare required:VU–Volume Units, e.g. litres, m3, gallons etc.TU–Time Units, e.g. per second, per minute etc.PU–Pulse Units (the value of pulse output),e.g. 1 pulse per m3.TM–Totaliser Mode (the value of internal totalisercount), e.g. 1 count per m3.a)Volume Units – VU is the parameter which defines theunits of measurement. It is calculated as the volume of a 1metre length of the pipeline in the required units. Table 2.2gives the values of VU for NOMINAL pipe sizes and isintended as a guide only. Calculate the actual value of VUfor a given pipe size using the formula:VU= x KWhere:D=internal diameter of pipeK=number of units in 1 m3,K=1000 if volume units are litresK=220.1 if units are Imperial GallonsK=264.17 if units are U.S. Gallonsn= a constant depending on the units of D,n=4,000,000 if D is in mmn=4 if D is in metresn=6200 if D is in inchesb)Time Units – TU is set to:1 for seconds60 for minutes3600 for hours86,400 for days.Example 1– for an 800mm pipeline and flow units of m3/hour,VU = 0.5026 and TU = 3600.…2PROGRAMMINGe z i Sep i Pl an imoN UVf oeu l aVmm)00,00,4=n(sehcn I)02,6=n(se r t i L)00,1=K()1=K(msno l l aG.pmI)1.022=K(sno l l aGSU)71.462=K(278.70514.134130.0799.6592.85248.99580.941940.0918.01569.21 0318.118386.07770.0065.514966.81 0457.51066.5217521.09376.72142.33 0596.918343.6913691.04152.346498.15 0626.320537.2827282.08932.266776.47 0805.13046.25625.06596.0115618.231 0173.930573.5874587.08719.2710374.72 02142.74049.031,1931.15959.842517.892 04121.550533.935,13935.15349.8334676.64 06199.26065.010,2610.24146.2449690.135 0247.8705.141,35141.31176.1965198.9283Table 2.2 Standard VU Parameter Values67A2Psion Organiser Series 3If using the Psion Organiser Series 3 the following must be carried out:a)Connect the Psion Organiser Communications LinkAdapter to the AquaProbe Transmitter using the Serial Interface Lead MVBX 99119.b)Refer to the Psion Series 3, 3 Link (RS232) handbook andinstall the Comms Application for use with the AquaProbe Transmitter. Access the 'Port' option on the 'Special' menu and set the following values.A1Psion Organiser Series 2If using a Psion Organiser Series 2 it is recommended that the mains adapter is used to power the organiser. The following must be carried out:a)Connect the Psion Organiser Communications LinkAdapter to the AquaProbe Transmitter using the Serial Interface Lead MVBX 99119.b)Access the Comms 'SETUP' mode and set the followingvalues.APPENDICESTransmission ParametersRate-4800Prtcl-none Pty-none CTS-n DTR-n Echo-n T/O-no Null-0 Press ENTER if acceptableReceiving ParametersRate-4800Prtcl-none Pty-none RTS-off DSR-n DCD-n T/O-no Serig-000 Press ENTER if acceptableMicroscribe 320 V 2.11 STATUSBaud Protocol TX Mode AutoLF Disp Audio4800Xon/off CHAR OFF40OFF Parity L.Echo EOF EOL Mode Sleep RESET OFF OFF CR NORM OFF BATTERY LEVEL100%XXXXXA3Husky Hunter Portable ComputerIf using a Husky Hunter Portable Computer the following must be carried out:a)Connect the Husky Hunter Portable Computer to theAquaProbe Transmitter using the Serial Data Lead MVBX 99117.b)Refer to the Husky Hunter Portable Computer handbookand enter the values shown below.A4Microscribe Series 300If using a Microscribe Series 300 the following must be carried out:a)Connect the Microscribe Series 300 to the AquaProbeTransmitter using the Serial Data Lead MVBX 99117.b)Refer to the Microscribe Series 300 handbook and enterthe values shown below.A3.1Keyboard Designations – Fig. A3.1…APPENDICES8PRODUCTS & CUSTOMER SUPPORTA Comprehensive Instrumentation RangeAnalytical Instrumentation•TransmittersOn-line pH, conductivity, and dissolved oxygen transmitters and associated sensing systems.•SensorspH, redox, selective ion, conductivity and dissolved oxygen.•Laboratory InstrumentationpH and dissolved oxygen meters and associated sensors.•Water AnalyzersFor water quality monitoring in environmental, power generation and general industrial applications including: pH, conductivity, ammonia, nitrate, phosphate, silica, sodium, chloride, fluoride, dissolved oxygen and hydrazine.•Gas AnalyzersZirconia, katharometers, hydrogen purity and purge-gas monitors, thermal conductivity.Controllers & Recorders•ControllersDigital display, electronic, pneumatic. Discrete single-loop and multi-loop controllers which can be linked to a common display station, process computer or personal computer.•RecordersCircular and strip-chart types (single and multi-point) for temperature, pressure, flow and many other process measurements.Electronic Transmitters•Smart & Analog TransmittersFor draft, differential, gauge and absolute pressure measurement. Also, liquid level and temperature.•I to P Converters and Field IndicatorsFlow Metering•Magnetic FlowmetersElectromagnetic, insertion type probes and watermeters.•Turbine Flowmeters•Wedge Flow Elements•Mass Flow MetersTransmitters, sensors, controllers and batch/display units.Level Control•Submersible, Capacitance & Conductivity.Pneumatic Instrumentation•Transmitters•Indicating Controllers•Recording Controllers Customer SupportABB Instrumentation provides a comprehensive after sales service via a Worldwide Service Organization. Contact one of the following offices for details on your nearest Service and Repair Centre.United KingdomABB Instrumentation LimitedTel: +44 (0)1480 475321Fax: +44 (0)1480 470787United States of AmericaABB Automation Inc.InstrumentationTel: +1 215-674-6000Fax: +1 215-674-7183ItalyABB Kent-Taylor SpATel: +39 (0) 344 58111Fax: +39 (0) 344 58278Client WarrantyPrior to installation, the equipment referred to in this manual must be stored in a clean, dry environment, in accordance with the Company's published specification. Periodic checks must be made on the equipment's condition.In the event of a failure under warranty, the following documentation must be provided as substantiation:1.A listing evidencing process operation and alarm logs at timeof failure.2.Copies of operating and maintenance records relating to thealleged faulty unit.The Company’s policy is one of contin u o u s prod u ct improvement and the right is reserved to modify the information contained herein without notice.© ABB 2000Printed in UK (10.00)ABB Instrumentation Ltd St. NeotsCambs.England, PE19 8EUTel: +44 (0) 1480 475321 Fax: +44 (0) 1480 217948ABB Instrumentation LtdAnalytical & Flow GroupStonehouse, Glos.England, GL10 3TATel: +44 (0) 1453 826661Fax: +44 (0) 1453 827856ABB Automation Inc.Instrumentation Division125 E. County Line RoadWarminster, PA 18974 USATel: +1 215-674-6000Fax: +1 215-674-7183IM/AP/AP–CMIssueAABB Instrumentation SpA22016 LennoComoItalyTel: +39 (0) 344 58111Fax: +39 (0) 344 58278。
ABB 测量与分析技术产品指南 - 流量计修复服务说明书
A ct i v eC l a s s i c L i mi t e dR e pl a c e me n t e l e c t r o ni c s Re tr o f i r e l e c t r on i c sR ep l a c e m e n t f l o w m e t e r O b s o l e t e —A B B M E A SU R EM ENT & A N A LY TI C S | PRO DUC T G U I DEFlowmeter retrofit servicesEMF, Coriolis and Vortex upgradesCost-effective upgrades thatimprove performance and reliability Measurement made easyProduct lifecycle and retrofits explainedAfter years of solid performance from yourflowmeter there comes a time when you need to consider its future.ABB uses a lifecycle model to manage products from cradle to cradle. Products no longer in production move into the classic phase and availability of spare parts and services is guaranteed. Products move into the limited phase and spare parts and services may not all be available.Retrofit electronics upgrades are a cost-effective way of extending product life and accessing modern technology without replacing the complete flow meter system.Service offeringFor general purpose applications, ABB offers a range of retrofit DIY kits allowing you to upgrade your key flow meters.Electromagnetic flow• COPA-XE (FXE4000) to ProcessMaster (FET300)• MAG-XE (FXE4000) to ProcessMaster (FET300) • COPA-XM (FXM2000) to ProcessMaster (FET500• MAG-XM (FXM2000) to ProcessMaster (FET500) Coriolis• CoriolisMaster (FCB300) to CoriolisMaster (FCB400) • CoriolisMaster (FCH300) to CoriolisMaster (FCH400)Swirl• TRIOWIRL (FS4000) to SwirlMaster (FSS430 / 450) Vortex• TRIOWIRL (FV4000) to VortexMaster (FSV430 / 450)ABB can also perform upgrades, refurbishments and calibration services in certified workshops. Alternatively arrange for a field technician to perform the upgrade on-site.—Lifecycle management to ensure process continuityFlow servicesBenefits of ABB retrofitsMaximize capital investments Extend product life time.Service availabilityKeep your flowmeter modern and guarantee access to all spare parts and services.Warranty extensionWork performed by ABB provides 6 months warranty for complete system and 12 months for kit of parts.Modernize processesAccess state of art technology.Figure 1 EMF Before and after upgradeP G /S R R 250–E N R e v . B 01.2018—We reserve the right to make technical changes or modify the contents of this document without prior notice. With regard to purchase orders, the agreed particulars shall prevail. ABB does not accept any responsibility whatsoever for potential errors or possible lack of information in this document.We reserve all rights in this document and in the subject matter and illustrations contained therein. Any reproduction,disclosure to third parties or utilization of its contents – in whole or in parts – isforbidden without prior written consent of ABB. ©ABB 2018All rights reserved—To find your local ABB contact, visit:/contactsFor more information visit:/measurement3KXS240011R2401—Scalable and flexible management of product and resources。
ABB流量计操作说明
ABB流量计操作说明XE电磁流量计设置步骤:(1)通电后,按”#”,进入总菜单,按”▼”或”▲”翻页翻到” prog.protectionon”按住”▲”3秒钟进入,然后按”▼”或”▲”选择,”off”,再按住”▲”3秒确认.(2)按”▼”或”▲”翻到”cede number ****”, 按住”▲”3秒,输入:4000,再翻到”prog prot code 0”,输入4000.(3)按”▼”或”▲”翻到”submenu primary”,按住”▲”3秒进入,确认管径,CZ、CS的值,如管径不对应传感器,按“#”返回上一层菜单后,按”▼”或”▲”翻到重新出现“submenu primary”,进入后出现“metersize ***mm **in”按住”▲”3秒进入,在右下角出现“***mm**in_”,再按”▼”或”▲”修改为相应的口径。
然后按“▲”3秒确认。
(4)修改口径后,再按”▼”或”▲”翻到“store data in extomal EEPROM”按住”▲”3秒进入,出现“YES?”就再按住”▲”3秒进行确认保存。
(5)修改单位、量程,翻页翻到”submenu unit”,按住”▲”3秒进入,选择所需单位,按“#”返回上一层菜单,然后翻到“RANGE **** m3/h”,按”▼”或”▲”选择所需的量程,然后按”▲”3秒确认。
按“#”返回上一层菜单,再按”▼”或”▲”翻到“store data in extomal EEPROM”按住”▲”3秒进入,出现“YES?”就再按住”▲”3秒进行确认保存。
(6)按”▼”或”▲”翻页到”submenu detectore pipe”,空管检测,按住”▲”3秒进入,出现“detextore pipe on/off”将其改为“ON”,然后按”▼”翻到“Adiust Detertorepipe”空管检测调整。
按住”▲”3秒进入, 然后按”▼”或”▲”修改其数值“Adiust2000:,改为2000左右,然后按”▲”3秒确认。
