工业冷水机CW-5000说明书

合集下载

工业冷水机操作指导书

文件制修订记录1.0目的/Aim:1.1为操作者提供使用说明,确保使用者及设备的安全。

2.0参考文件/Reference Instruction:2.1 相关设备的操作说明书3.0设备/材料/ Equipment/Material:3.1 工业冷水机机LT-5A4.0准备/要求/Prepare/Requirement:4.1确保输入电压为三相380V，功率4KW以上。

5.0安全/维护/Safety/Maintenance:5.1 日常维护5.2.1 设备故障时，请立即关闭设备电源，通知专职维修人员到现场检查。

5.2.2 未经培训且未经设备管理部门允许，请不要打开设备外壳触摸内部电路。

5.2.3 遇危险或紧急情况时，按下设备的压缩机按钮和水泵按钮，并把总电源开关关闭，将设备停止下来，故障排除后方可将重新开机。

5.2.4设备在冻水管装置中已安装旁通阀，当冻水流量减少时，可利用调节旁通阀达到舒缓水泵压力及防止蒸发器结冰目的。

5.2.5如设备停用一段时间，水泵泵叶可能被污积物凝固，再开机时必须先用螺丝刀拨动马达后盖风叶，以避免泵泵叶卡死而将马达烧毁。

6.0操作程序/Operation Process:6.1 开机操作程序6.1.1 首先打开冷却水阀门，检查设备水箱及冷凝器是否加满水。

6.1.2 合上电箱的总电源开关。

当把电源开关合上时，设备的电源指示灯将点亮，表示电已送到控制箱里。

6.1.3 检查设备周围有无影响设备的运行物件。

（如机顶不能放置任何物件，保证散热正常）6.1.4 将温度控制器设定于使用温度（勿低于5°C，冻水温度调得太低会降低设备的制冷效率，甚至使蒸发器铜管表面结冰而爆裂）。

6.1.5 打开水泵运行按钮。

6.1.6 打开压缩机按钮（注意压缩机运行是在打开水泵按钮3分钟才开始，以免压缩机过载）当冻水温度至温控表所设定之温度时，压缩机会自动停止，冻水温度升高时，压缩机会自动启动。

6.2 关机操作程序6.2.1 关闭压缩机按钮。

冷却机操作说明

冷却机操作说明一、概述冷却机作为一种重要的设备，在工业生产中起着关键作用。

本文将详细介绍冷却机的操作说明，帮助用户正确使用冷却机。

二、安全操作1. 操作人员应确保在了解冷却机操作规程之前不得开机操作。

2. 操作前，必须检查电源是否正常，并确保冷却机与电源接地连接良好。

3. 在操作过程中，应严格遵守相关安全操作规范，如佩戴安全帽、护目镜和防护手套等。

三、开机操作1. 首先，确认冷却机与水源连接正常，并检查冷却机水泵的状态。

2. 打开冷却机控制面板，按下开机按钮，启动冷却机。

3. 监控冷却机的运行状态，确保水泵正常工作并流量稳定。

四、设定参数1. 根据具体需求，设定冷却机的温度和时间参数。

2. 通过控制面板上的调节按钮，设置期望的温度值。

3. 确定设定参数后，按下确认按钮，使其生效。

五、运行监测1. 在冷却机运行过程中，及时观察温度显示器的数值，确保温度在设定范围内。

2. 如发现温度异常，应立即停止冷却机，并检查故障原因。

3. 定期检查冷却机的水质和水泵的工作状态，保证设备正常运行。

六、关机操作1. 关闭冷却机之前，应先关闭冷却水源，确保系统压力释放。

2. 按下冷却机控制面板上的关机按钮，使冷却机停止运行。

3. 断开冷却机与电源的连接，关闭电源总开关。

七、维护保养1. 定期清洁冷却机内部的过滤网，并清理水路系统中的沉积物。

2. 检查冷却机的防护罩和风扇，确保其正常运转。

3. 如发现冷却机存在故障或异常情况，应立即停机并联系维修人员进行维护。

八、注意事项1. 操作人员必须熟悉冷却机的操作手册，并按照说明进行操作。

2. 在操作冷却机时，避免将其他物品放置在其周围，确保设备通风良好。

3. 禁止未经授权的人员擅自操作冷却机，以免发生意外事故。

九、总结本文详细介绍了冷却机的操作说明，包括安全操作措施、开机与关机操作、设定参数、运行监测以及维护保养等内容。

希望通过本文的指导，用户能够正确、安全地操作冷却机，并确保其正常运行。

CW-5000 5200系列工业冷水机保养手册说明书

CW-5000/5200 Series Industrial Chiller maintenance manual目录Ⅰ、Chiller Alarm (red light on)--have water circulation ………………………………………P3-7 Ⅱ、Chiller Alarm (red light on)--not water circulation ………………………………………P7-8 Ⅲ、CW-5000 Series Temperature Controller T-503 alarm3.1．Alarm code E1: ultrahigh room temperature ……………………………………………P8-9 3.2．Alarm code E2: ultrahigh water temperature …………………………………………P9-12 3.3．Alarm code E3: ultralow room temperature ……………………………………………P12 3.4．Alarm code E4: room temperature sensor failure ………………………………………P12-13 3.5．Alarm code E5: Water temperature sensor failure ……………………………………P13-14Ⅳ、No power on the chiller …………………………………………………………………P14-15Ⅰ、Chiller Alarm (red light on)--have water circulationTurn off the chiller power, use the water pipe of about 1 meters length to connect the outlet with the inlet short (pictured), turn on the chiller, and continue to observe the condition of the chiller.Observation effect I: water cycle normal, stop alarm (green light on)Cause analysisThe external water pipeline connecting the chiller is blocked (such as pipe blockage, bending, etc.)Suggestion: Clean the external piping, replace the pipeline that has already had the bend or the serious blockageObservation Effect II: Water cycle Normal, continue to alarm (red light on)Cause analysis1、Flow switch problem2、Relay problemsDetection method1）Turn off the chiller power, open the chiller sheet metal, find out the flow switch position (the outlet)Baffle Flow Switch2）Cut off the bezel flow switch two red power wire, and short connection, boot to observe whether continue to alarm2.1）If the alarm stop（green light on），can determine the flow switch failure Recommendation: Replace the baffle flow switch2.2）If the chiller continues to alarm (red light on), please reconnect the flow switch power wire, and do the step 4) detectionHall Flow Switch3）Cut off the hall flow switch four wires, connect the red line with the red line, the black line is connected with the yellow line, boot to see if the alarm continues.3.1）If the alarm stop（green light on），can determine the flow switch failure Recommendation: Replace the hall flow switch3.2）If the chiller continues to alarm (red light on), please reconnect the flow switch power wire, and do the step 4) detection4）Measuring the relay coil Input voltage by measurement toolRemarks: Baffle Flow switch model relay coil AC220V; Hall flow switch model relay coil DC24V4.1）If the relay (such as picture) coil does not enter the normal operating voltage, can be judged flow switch connection relay circuit breakerSuggestion: Check whether the relay line is loose or brokenObservation Effect III: Water intermittent, continue to alarm (red lighton)Cause analysis1、Pipe blockage2、Switching power supply problem3、DC Pump problemDetection method1）Open the chiller sheet metal, observe the water internal piping statusRecommendation: Clean the internal piping, replace the pipe that has been bent or badly blocked.2）Use the measuring tool to detect the switching power supply (picture) Output voltage:CW-5000 Series switching power supply operating voltage is DC24V.2.1）If the switching power supply output is lower than DC18V, the low voltage is affecting the pump lift and flow, can determine the switching power supply or pump failure. Suggestion: Change the switching power supply first to determine whether the pump is faulty too.2.2）If the switching power supply has the output DC24V, may determine the water pumpfailure.Suggestion: disassemble the DC pump casing to observe whether the rotor is plugged or worn, if unable to recover, need to replace DC pumpⅡ、Chiller Alarm (red light on)--not water circulationCause analysis1、Low water level2、Switching power supply problem3、DC Pump problemDetection method1）Observe whether water tank is lower than pumpinletRecommendation: Add Pure water2）Use the measuring tool to detect the switching power supply (picture) Output voltage: CW-5000 Series switching power supply operating voltage is DC24V.2.1）If the switching power supply output is lower than DC18V, the low voltage is affecting the pump lift and flow, can determine the switching power supply or pump failure.Suggestion: Change the switching power supply first to determine whether the pump is faulty too.2.2）If the switching power supply has the output DC24V, may determine the water pump failure.Suggestion: disassemble the DC pump casing to observe whether the rotor is plugged or worn, if unable to recover, need to replace DC pumpⅢ、CW-5000 Series Temperature Controller T-503 alarm Temperature control alarm accompanied by code displayRemarks: In alarming state, the alarm sound could be suspended by pressing any button, but the alarm display remains until the alarm condition is eliminated.3.1、Alarm code E1: ultrahigh room temperaturePress ▼ button will show the room temperature,6 seconds later to display the restore defaults.Cause analysis1、More than 40 ℃ ambient temperature or machine placement is not ventilated Suggestion: The chiller is placed in the ventilated position, there must be at least 30cm from obstructions to the air inlet（The dust gauze）, and should leave at least 50cm between obstruction and the air outlet（The fan）.2、The serious blockage of dust gauzeSuggestion: It is Essential to unpick and wash the dust gauze.3、Serious dust deposition of aluminum fin inside the chillerPeriodically blow away the dust of the condenser3.2、Alarm code E2: ultrahigh water temperatureCause analysis1、External reasons1.1）More than 40 ℃ ambient temperature or machine placement is not ventilated1.2）The serious blockage of dust gauze1.3）Serious dust deposition of aluminum fin inside the chiller1.4）The heat is higher than the refrigerating capacity1.5）The chiller working voltage is lower than required (depending on the model: please refer to the manual technical parameters)2、Fan problem3、Temperature controller problem4、Compressor capacitor problem5、Compressor Protector problem6、Leakage Refrigerant7、Refrigerant solenoid valve problem8、Compressor problemDetection method1）Use the measuring tool to detect the fan input voltage is normal (depending on the model: please refer to the manual technical parameters): if there is voltage input, can determine the fan failure, if there is no voltage input, can determine the line contact bad or fan circuit.2）When the thermostat is in the refrigeration state2.1）Using measuring tools to measure the output terminals of the compressor after the temperature control of the normal operating voltage output: if there is no voltage output, can determine the temperature controller failure, if the voltage output, can be used for next detection;2.2）Using measuring tools to measure the temperature of the back of the solenoid valve output terminals：There is no normal operating voltage output: If the voltage output, can determine the temperature controller failure; If no voltage output, please do next detection3）In the refrigeration state, the compressor cannot start3.1）The use of measuring tools to detect the compressor electric start-up capacity (such as the figure) is below the normal value of 10%, such as less than 10%, can be judged the compressor capacitance capacity is lower than the normal capacity of the capacitor;3.2）Use the measurement tool to detect the compressor input voltage is normal (depending on the model: please refer to the manual technical parameters), such as the voltage below the compressor start-up voltage, the compressor does not run;3.3）Use the measuring tool to detect whether the compressor overload protector output terminal has voltage, such as output voltage output, can determine the compressor overload protector work protection or damage break3.4）Using the measuring tool (ammeter) to measure the compressor input line (white), such as the current is more than 3 times the rated current or above, can determine the internal rotor of the compressor does not rotate;4）In the refrigeration state, the compressor can run4.1）Observe the refrigeration piping (pictured) there is no oil or frosting, such as oil or frost phenomenon, can be j udged refrigerant leakage (such as inside the condenser or evaporator internal pipeline leakage refrigerant need to return to the plant maintenance)4.2）The use of measuring tools to detect the compressor electric start-up capacity (such as the figure) is below the normal value of 10%, such as less than 10%, can be judged the compressor capacitance capacity is lower than the normal capacity of the capacitor;5）Solenoid valve has been guided6）Compressor Rotor not working(The above two points need to return to the factory for further testing)3.3．Alarm code E3: ultralow room temperatureCause analysis1、Low ambient temperature (such as autumn and winter season) when the first boot appears E3 alarm is the normal status, can add a moderate amount of warm water to restore the temperature3.4Alarm code E4: room temperature sensor failureCause analysis1、Wiring Loose2、Sensor failureDetection method1）Find the terminal of the temperature sensor and the temperature transducer, exchange the two terminals.1.1）If the alarm stop can judge the terminal contact bad, reconnect the relative terminal1.2）If there is a E4 alarm, can determine the temperature controller malfunction; If there isa E5 alarm, can determine the room temperature sensor failure1.3）If E4, E5 at the same time alarm, recommended to replace room temperature sensor and temperature sensor and temperature controller3.5．Alarm code E5: Water temperature sensor failureCause analysis1、Wiring Loose2、Detection method3、Detection method1）Find the terminal of the temperature sensor and the temperature transducer, exchange the two terminals.1.1）If the alarm stop can judge the terminal contact bad, reconnect the relative terminal1.2）If there is a E5 alarm, can determine the temperature controller malfunction, such as the emergence of E4 alarm, can determine the temperature sensor failure;1.3）If E4, E5 at the same time alarm, recommended to replace room temperature sensor and temperature sensor and temperature controllerⅣ、 No power on the chillerCause analysis1、Fuse Fusing2、Power switch problemDetection method1）Open the safety tube and check if the fuse is fused (picture). If fuse, replace the standby insurance pipe2）Using universal meter and other measuring tools, detect the power switch on the two groups oflines have AC220V voltage (depending on the model), such as detection of the power switch only a group of lines have AC220V voltage, can be judged as power switch failure, need to replace the power switch。

冷水机、冷水机组操作说明书

深圳市凯德利冷机设备有限公司机组安装、操作及维护说明书二零壹肆年肆月版本：A1.00目录一、机组的适用范围 (1)二、规格 (1)三、安装说明 (1)四、操作说明 (1)1、使用操作…………………………………………………………………………………… .. 12、面板操作简介 (2)3、用户操作 (2)4、故障显示及排除 (2)五、故障排除 (3)六、保养 (4)七、注意事项 (4)八、电路图……………………………………………………………………（见附页）风冷式冷水机组操作手册一﹑机组适用范围在工业上广泛用于塑料﹑电子﹑化工﹑冶金﹑食品﹑制药﹑电镀﹑皮革﹑工艺和科研等﹔在商业上广泛用于酒店﹑宾馆﹑超级市场和影剧院等。

二﹑规格三﹑安装说明1﹑机器安装﹐要求平放﹐不可倾斜﹔2﹑机器两侧应有一米左右保养空间﹔3﹑冰水管管路务必接成回路﹐使冰水得以循环﹔4﹑冰水管路必须保温﹔5﹑接电源时请确定电源足以承担冷水机组最大负荷﹔6﹑机组电源﹐必须单独控制﹔7﹑必须接地线﹐以确保安全。

四﹑操作說明启动机组前﹐应检查冰水管路阀门是否打开（注﹕长期停机后﹐再次开机前﹐应打开电源24小时后再开启机组）﹔机组控制﹕1、使用操作(面板图)本公司使用微电脑控制器，显示屏为模块式屏幕，。

显示界面的设计充分运用人类工程学原理，使用操作简便直观，操作人员只需稍阅说明书就可上岗操作，其操作面板如图示。

1．1>按键指示灯*COMP1* 压缩机1控制指示灯,灯亮允许启动否则不允许启动,由*COMP1*按键控制.*COMP2* 压缩机2控制指示灯,灯亮允许启动否则不允许启动,由*COMP2*按键控制.*RESET* 有故障时的指示灯(闪烁显示),无故障时按下<RESET>可关闭.*PUMP* 机组运行指示灯,机组运行时此灯亮,否则灭.*0FF* 延时停机指示灯,延时停机时闪烁点亮.*SET* 参数设置指示灯,处于参数设置界面时此灯亮.1．2>面板指示灯*POWER* 电源指示灯,通电后灯亮.*RUN* 机组运行指示器,非待机状态亮.*ERROR* 故障指示灯,有故障时亮.*COMP1* 压缩机1运行指示灯.*COMP2* 压缩机2运行指示灯2、面板操作键简介2．1>面板中间为两个模块显示屏，PV屏显示实际温度，SV屏显示设定温度。

鸿森精科制冷机全部型号操作说明

感谢你选购鸿森精科品牌工业冷水机，请在使用前仔细阅读使用说明书，并妥善保管，请勿撕毁设备上的标签，以便我们为你提供更好的售后服务。

由于产品的不断改进，所述内容可能随时做出修改，如有疑问，请与经销商或本公司售后部咨询。

特别声明：如果因未详细阅读使用说明书，造成设备损坏发生故障则不在本公司保修范围内，本公司不承担任何责任！目录1使用注意事项12 安装与启动调试23 34 显示面板操作说明45 56 电气原理图67 78 89 售后服务及保修9使用注意事项①请委托经销商或专业人员安装安装人员须具备相关的专业知识，持有政府认可的特种职业证书（如电工证、制冷工证）。

用户自行安装时，若操作错误可能导致火灾、触电、受伤、漏水、漏电等危害！②采取合理措施防止制冷剂泄露而使人窒息当设备安装在室内时，要采取恰当的强制通风措施，防止制冷剂一旦泄露量超过界限浓度而造成人员窒息。

③确认设备是否正确接地按法律规定，必须进行可靠的接地工程。

若接地不完善，可能导致人员触电受伤！④为保护循环水泵，严禁无水运行请确保水箱注入了足够水后再开机，否则水泵极易损坏。

⑤设备出现异常情况时，应立即停止设备运行，切断电源异常情况下（如设备异响，报警，冒烟），如继续使用可能导致火灾、触电、设备损坏等危险。

⑥请勿用湿手操作开关可能会导致人员触电受伤。

⑦散热孔以及不锈钢蒸发器须定期清洗必须15-30天清理一次散热孔，清洗不锈钢蒸发器，让设备保证最佳制冷效果。

⑧请使用鸿森精科公司提供的厂家原装配件本机在正常使用条件下保修期为12月，延长保修期需双方共同商榷，如客户需改装或更换配件请联系生产厂家为你提供原装配件，以保证设备的稳定性。

安装与启动调试*电气部分应由专业人员安装，不按安全规则操作导致机器损坏或人员受伤，概不负责。

1、此冷水机适合安装在室内，环境温度不超过35度，不要放置在有腐蚀气体或过多灰尘的地方，四面需保持1米以上的间距。

如需放在室外，必须加盖档雨棚。

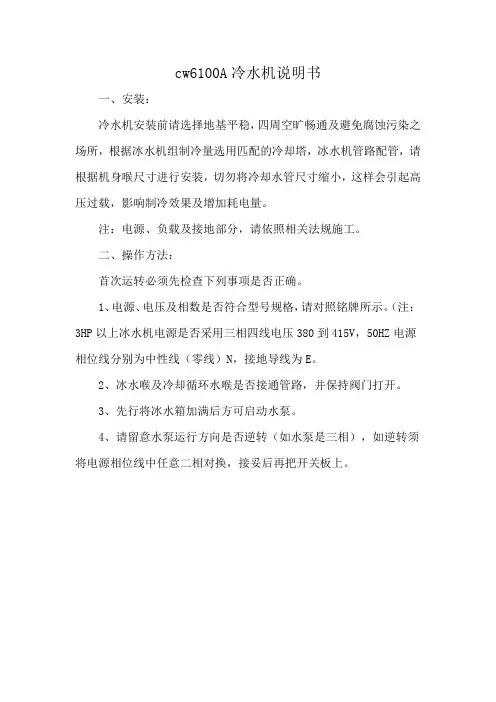

cw6100A冷水机说明书

cw6100A冷水机说明书
一、安装：
冷水机安装前请选择地基平稳，四周空旷畅通及避免腐蚀污染之场所，根据冰水机组制冷量选用匹配的冷却塔，冰水机管路配管，请根据机身喉尺寸进行安装，切勿将冷却水管尺寸缩小，这样会引起高压过载，影响制冷效果及增加耗电量。

注：电源、负载及接地部分，请依照相关法规施工。

二、操作方法：
首次运转必须先检查下列事项是否正确。

1、电源、电压及相数是否符合型号规格，请对照铭牌所示。

（注：3HP以上冰水机电源是否采用三相四线电压380到415V，50HZ电源相位线分别为中性线（零线）N，接地导线为E。

2、冰水喉及冷却循环水喉是否接通管路，并保持阀门打开。

3、先行将冰水箱加满后方可启动水泵。

4、请留意水泵运行方向是否逆转（如水泵是三相），如逆转须将电源相位线中任意二相对换，接妥后再把开关板上。

CW主机说明书中文

CW主机说明书中文预览说明:预览图片所展示的格式为文档的源格式展示,下载源文件没有水印,内容可编辑和复制CW系列电涡流测功机主机使用说明书豫制03000011号凯迈(洛阳) 机电有限公司(原洛阳南峰机电设备制造有限公司)目录1、引言 (4)1.1 概述 (4)1.2 电涡流测功机型号含义及技术参数 (5)2、电涡流测功机的主机结构和工作原理 (6)2.1电涡流测功机的工作原理 (6)2.2 电涡流测功机的功率计算 (6)2.3 电涡流测功机的主机结构 (6)2.4 电涡流测功机的报警装置 (7)3、电涡流测功机的主要技术指标 (8)4、电涡流测功机的布置和安装 (8)4.1 电涡流测功机的工作条件 (8)4.2 电涡流测功机的布置 (8)4.3 电涡流测功机的安装 (8)5、电涡流测功机测功机的冷却 (11)5.1.电涡流测功机的冷却原理 (11)5.2 电涡流测功机对冷却水水质的要求 (11)5.3 电涡流测功机冷却水水量的确定 (11)6、电涡流测功机的润滑 (12)6.1电涡流测功机的油润滑 (12)6.2电涡流测功机的脂润滑 (13)6.3电涡流测功机摆动轴承的润滑 (13)7、电涡流测功机的校准和调节 (14)7.1 电涡流测功机的静校 (14)7.2 电涡流测功机的灵敏度检查 (18)8、电涡流测功机的运输和维护 (18)8.1 电涡流测功机的贮存 (18)8.2 电涡流测功机的运输 (18)8.3 电涡流测功机的检查和维护 (19)9、电涡流测功机的配套 (19)10、电涡流测功机主机的常见故障和排除方法 (20)11、电涡流测功机新润滑系统的使用和维护 (21)12、电涡流测功机的图册部分 (22)图1(a)～(b)电涡流测功机的主机结构 (23)图2(a)～(o)电涡流测功机的机械特性曲线 (25)图3(a)～(m)电涡流测功机的外形尺寸 (40)图4(a)～(i)电涡流测功机的接线图 (53)图5 电涡流测功机进水温度、使用功率和水量之间的关系 (62)1、引言1．1 概述我公司根据德国策尔纳（Z?LLNER）公司专有技术生产的CW系列电涡流测功机，具有低惯性、高精度、高稳定性和结构简单、维修方便、自成系列并适用于操作控制自动化等优点。

冷水机组电脑操作说明书(中英文)_正文

1 General概述This unit is fitted with the SIEMENS PLC controller together with othermatching electric appliances like imported contactor、thermal relay、airswitch and air switch，ensuring safe running of unit. In order to realizedependable operation of unit ,PLC is fitted with reliable programcontrolled system having application function up to current advancedlevel among the same trade. This unit is characterized byself-operation ,safety and dependability.本机组电气控制系统采用德国SIEMENS公司提供的PLC控制器，其他电器配套有进口接触器、热继电器、空气开关和三相电源监测器，可确保机组安全运行。

为了使机组可靠运行，电脑配置了完善的程序系统，应用功能达到目前同行业先进水平。

本电脑通讯端口采用RS-485信号标准的9针D型连接器，并符合EN50170所定义的PROFIBUS工业现场总线标准，实现计算机联网监控。

本机组有节能，自动运行，安全可靠等特点。

This operation instruction is applicable for the operation of Jirong water chillersof LRSFZ type.本操作指南适用于LRSFZ型风冷冷（热）水机组的操作运行。

2 Preparation before start-up开机前准备Make the following checks carefully before start-up:机组启动之前必须认真检查以下几项内容：Examine the electrical system (de-energized):电气系统的检查（断电检查）：The internal parts of de-energized electrical system can be checked. thechecked items cover the tightness of bolts for wires、contactor etc,screwing-up of wiring for comp and reliable connection of plugged –incomponents and PLC module,(confirm if they come loose duringtransportation) to make sure contact well.在确定机组断电情况下，可对电控系统内部进行检查。

Parker Hyperchill 工业冷水冷却机系列说明说明书

|Parker Hyperchill water chillers celebrate a presence of over 30 years in the industrial chiller market. This experience has led to a range which not only offers all the advantages typically offered by a quality water chiller, but also adds significant benefits for the industrial user. As such Hyperchill combines advanced design solutions, such as ener-gy saving scroll compressors and a sophisticated micro-processor, with unique features to meet the specific needs of industrial users: these include Hyperchill’s extreme flexibility towards the varying working conditions typically found in industry. The standard models are augmented by a wide range of options and accessories, which together ensure Hyperchill is the perfect solution to each and every industrial application. Hyperchill maxi-mizes productivity and minimizes costs, as well as easing conformity to regulations on water quality. Hyperchill is the perfect solution to industrial chilled water needs.FOCUSED ONFLEXIBILE SOLUTIONSApplications• Food (beverage, confectionery, chocolate,processing, storage)• Plastics (injection, blow molding, extrusion,film extrusion, thermoforming)• Lasers (welding, profiling, cutting, optics, medical, marking, aesthetics)• Printing and Graphics (manufacture, printing,cardboard, labels, plastic film)• Chemical (petrochemical, paints, solvents, temperature control)• Medical (imaging and oncology)• Mechanical (welding, cutting, profiling,polishing, rolling, grinding)• Other (wood, ceramics, gold & silver, biogas,pharmaceutical, compressed air, textile)The use of cold water is very common in industry. The motives are obvious: cold water improves productivity, secures industrial processes, and reduces costs. There are several methods of creating cold water, but water chillers are increasingly becoming the preferred solution. This can be attributed to the fact that chillers always supply the exact water temperature requested, even with differing ambient conditions and differing load requests, thus ensuring optimum efficiency. Water has furthermore become a very precious, and costly, natural resource. Chillers, by operating in a closed circuit, continuously reutilize the same water, and thereby avoid unwanted water waste. In addition, a number of directives have recently emerged to safeguard the quality of the water being utilized (for health reasons) as well as to restrict the discharge of impure water (to protect the envi-ronment); closed circuit chiller operation greatly simplifies conformance to these regulations. The needs of industry are changing, and a water chiller increasingly satisfies these needs.• Increases productivity, reduces costs• Optimizes industrial applications• Adaptable to individual customer needs• Accepts wide range of water temperaturesand fluctuating water flowsEasy to UseHyperchill is an all-in-one solution, with all components packaged inside. Compact dimensions and a low weight make it simple to position; all models can be installed outdoors.Maintenance is facilitated by removable front and side panels, and a condenser section which is isolated from the rest of the chiller.Hyperchill can be used in pressurized closed circuits, facilitating Economical & Environmentally FriendlyHyperchill standardly uses environmentally friendly refrigerant R407C on all models. R407C is characterized by a very high efficiency, providing lower power consumption.Fitted scroll compressors offer energy savings of around 20%. Multiple compressors (from PCW210) ensure significant energy savings at partial loads.Fail-Safe OperationHyperchill operates continuously in all conditions and with all appli-cations. Multiple compressors and twin independent refrigeration circuits (from PCW210) with automatic rotation offer increased peace of mind, as do an extensive list of safety devices.The oversized condensers with cleanable pre-filters ensure that Hyperchill operates in extreme ambients.Features & BenefitsCleanable Condenser Pre-filterA condenser pre-filter (standard) improves chiller performance and reduces maintenance.Scroll CompressorsHyperchill features advanced scroll compressors. These offer significantly lower power consumption and a reduced refrigerant charge . The unique tech-nology offers extreme reliability and renders the compressor near indestructible . Scroll compressors are also very user friendly , as they are extremely quiet and ensure the chiller requires no pre-heating . Furthermore, scroll compressors feature 50% fewer moving parts and emit lower vibration levels, thus increasing the chiller’s longevity ./igfgIntegral PumpAs a standard feature, a pump is installed within the chiller itself. Twin pumps, or pumps with lower or higher available head pressures, are available on request. The water by-pass protects the pump in fluctuating load conditions.Options and AccessoriesCentrifugal FanDesigned for indoor installation, this version features fans which permit the condenser discharge air to be ducted.Remote Control KitsThree remote control kits are offered. The base version features remote on/off switching and gives an on/off and general alarm signal. The advanced version allows the user to perform all operations Advanced Remote ControlTechnical DataModel Chiller Unit PCW080PCW110PCW130PCW160PCW210PCW260PCW330PCW420PCW510PCW650 Cooling capacity BTU/hr79254103566122298150966206322243498311196406152491982616500 Fridge compress. absorb. power kW8.2011.0013.9017.7022.1028.2035.5044.0055.9073.70Water flow gpm162125314148628097121Parker Hannifin Corporation Industrial Gas Filtration and Generation Division 4087 Walden Avenue Lancaster, NY 14086phone 800 343 /igfg© 2018 Parker Hannifin Corporation. Product names are trademarks or registered trademarks of their respective companies BRO-PKR_PCW_022018-FOWorldwide Filtration Manufacturing LocationsNorth AmericaCompressed Air TreatmentIndustrial Gas Filtration and Generation DivisionLancaster, NY 716 686 6400/igfg Haverhill, MA 978 858 0505/igfgEngine FiltrationRacorModesto, CA 209 521 7860/racor Holly Springs, MS 662 252 2656/racorHydraulic FiltrationHydraulic & Fuel FiltrationMetamora, OH 419 644 4311/hydraulicfilter Laval, QC Canada 450 629 9594 VelconColorado Springs, CO 719 531 5855 Process Filtrationdomnick hunter Process Filtration SciLogOxnard, CA 805 604 3400/processfiltrationWater PurificationVillage Marine, Sea Recovery, Horizon Reverse OsmosisCarson, CA 310 637 3400/watermakersEuropeCompressed Air Treatmentdomnick hunter Filtration & SeparationGateshead, England +44 (0) 191 402 9000 /dhfnsParker Gas SeparationsEtten-Leur, Netherlands +31 76 508 5300/dhfnsHiross AirtekEssen, Germany +49 2054 9340/hzfd Padova, Italy+39 049 9712 111 /hzfdEngine Filtration & Water PurificationRacorDewsbury, England +44 (0) 1924 487 000 /rfdeRacor Research & DevelopmentStuttgart, Germany+49 (0)711 7071 290-10Hydraulic FiltrationHydraulic FilterArnhem, Holland +31 26 3760376 /hfde Urjala, Finland+358 20 753 2500Condition Monitoring Parker KittiwakeWest Sussex, England +44 (0) 1903 731 470 Process Filtrationdomnick hunter Process Filtration Parker Twin Filter BVBirtley, England+44 (0) 191 410 5121/processfiltrationAsia PacificAustraliaCastle Hill, Australia +61 2 9634 7777/australiaChinaShanghai, China +86 21 5031 2525 /chinaIndiaChennai, India +91 22 4391 0700 /indiaParker FowlerBangalore, India +91 80 2783 6794JapanTokyo, Japan +81 45 870 1522/japanKoreaHwaseon-City +82 31 359 0852/koreaSingaporeJurong Town, Singapore +65 6887 6300/singaporeThailandBangkok, Thailand +66 2186 7000/thailandLatin AmericaParker Comercio Ltda. Filtration DivisionSao Paulo, Brazil +55 12 4009 3500 /brPan American DivisionMiami, FL 305 470 8800/panamAfricaAeroport Kempton Park, South Africa +27 11 9610700/africaWARNING:The products described herein can expose you to chemicals known to theState of California to cause cancer or reproductive harm.For more information: 。

冷水机使用说明书(v2.0软件的1.0版定版08.26)

冷却液循环机（冷水机）使用说明书V2.0 苏州索乐机电设备有限公司前言祝贺你！您已经做出了一个非常正确明智的选择。

首先，公司所有员工感谢您给予我们的这份信任，这本手册阐述了循环冷水机的操作及其基本工作原理，能够使您更好的使用这台机器的所有功能，所以我们也建议您在使用机器前能够完整的阅读本手册。

同时，为了您能更安全的使用我们的产品，提出以下一些注意事项：1)在您安装或操作机器前，请确保阅读过我们的使用手册并能完全理解手册中的内容和手册中列出的一些注意事项，如果在阅读手册中遇到任何问题，请您联系我们.2)如果因非专业人员在安装、操作、或维修过程中造成机器的损坏，不在本公司的保修范围之内。

3)机器在搬运的过程中，应轻拿轻放，否则易造成机器内部零件的松动，导致故障。

4)请留心所有警示标签。

5)请勿移除警示标签。

6)在机器水箱没有冷却液的情况下，请勿开启机器。

7)在维修或移动机器之前，请务必切断电源线的电源。

8)仅限专业人员修理和维护。

由于产品的更新换代，手册的内容可能与您的最新产品有稍许差异，在您第一次使用时请咨询现场服务人员。

在你以后的使用中，如果发现问题，请及时与我公司联系，我们会竭诚为您服务。

另外，由于编写者水平有限，手册中难免有不足之处，欢迎指出。

苏州索乐机电设备有限公司目录第1 章系统简介 (1)第2 章安装说明 (2)第3 章使用说明 (4)3.1 启动前的准备 (4)3.2控制器面板 (5)3.3操作指南 (6)3.3.1 开机 (6)3.3.2 设定温度 (6)3.3.3 启停压缩机 (8)3.3.4 启停水泵 (8)3.3.5 PID整定 (8)3.3.6停机 (8)3.4 高级应用模式 (9)3.5常见报警 (10)3.6 硬件接口 (选配) (11)第4 章一般问题解决 (12)附录一参数库 (13)附录二报警信息 (18)第 1 章系统简介恒温冷却液循环机是以冷却液（常用冷却液为水，低温常用合成冷却液，如乙二醇的水溶液等，以下简称冷却液或简称“水”）为传热介质，将其它需要冷却的仪器或设备产生的热量传递出来，通过制冷系统将热量散发到设备外部，从而保证设备在正常的温度范围内工作。

华为网络冷却系统5000系列-C型产品说明（2019年第1版）说明书

NetCol5000-C(030, 032, 065) In-row Chilled Water Smart Cooling ProductProduct Description (2019)Issue 01Date 2020-02-14Copyright © Huawei Technologies Co., Ltd. 2018-2020. All rights reserved.No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd.Trademarks and Permissionsand other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.All other trademarks and trade names mentioned in this document are the property of their respective holders.NoticeThe purchased products, services and features are stipulated by the contract made between Huawei and the customer. All or part of the products, services and features described in this document may not be within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements, information, and recommendations in this document are provided "AS IS" without warranties, guarantees or representations of any kind, either express or implied.The information in this document is subject to change without notice. Every effort has been made in the preparation of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this document do not constitute a warranty of any kind, express or implied. Huawei Technologies Co., Ltd.Address: Huawei Industrial BaseBantian, LonggangShenzhen 518129People's Republic of ChinaWebsite: https://Email: ******************Issue 01 (2020-02-14) Copyright © Huawei Technologies Co., Ltd. iProduct DescriptionPurposeThis document describes the NetCol5000-C smart cooling product (NetCol5000-C for short)in terms of model description, positioning, features, components, typical applications,working conditions, and technical specifications. It helps readers understand how to use andmaintain the NetCol5000-C.Intended AudienceThis document is intended for:●Sales personnel●Technical support personnel●System engineersSymbol ConventionsThe symbols that may be found in this document are defined as follows.Change HistoryChanges between document issues are cumulative. The latest document issue contains all thechanges made in earlier issues.Issue 01 (2020-02-14)This issue is the first official release.Product Description (2019) ContentsContentsProduct Description (ii)1 Model Description (1)2 Positioning (3)3 Features (4)4 Component (6)4.1 Appearance and Components (6)4.2 Controller (9)5 Typical Application Scenarios (NetCol5000-C065) (12)6 Typical Application Scenarios(NetCol5000-C030/C032) (14)7 Application Conditions (16)8 Technical Specifications (NetCol5000-C065) (19)9 Technical Specifications (NetCol5000-C030/C032) (21)10 Performance Curves (23)11 Acronyms and Abbreviations (25)1 Model DescriptionThis document introduces the following products.●NetCol5000-C030H9HD0●NetCol5000-C030H90D0●NetCol5000-C030H9HE0●NetCol5000-C032H9HD0●NetCol5000-C065H9HD0●NetCol5000-C065H9HE0●NetCol5000-C065H90D0Figure 1-1 shows the naming rule for the NetCol5000-C series products.Figure 1-1Naming rule2 Positioning With the rapid development of data centers, power consumption of core equipment in a traditional equipment room has risen from 3-5 kW per cabinet to 10 kW per cabinet. This brings challenges of heat dissipation, energy saving, and environment protection to the current cooling system.Huawei has developed the in row cooling product for new-generation data centers. Huawei has developed the in row cooling product for new-generation data centers. The in row cooling product can be deployed with standard cabinets in use currently. The in row cooling product dissipates the heat generated by high-density equipment in a data center, reduces power consumption on cooling, and increases power usage efficiency (resulting in a lower PUE value).The in-row cooling product is a high-heat-flux cooling solution that applies to high-density data centers or overheated areas in common data centers. High-heat-flux cooling solutions are classified into water-based or non-water-based solutions depending on the cooling medium. The in row cooling product is a water-based solution.3 FeaturesThe NetCol5000-C features efficient refrigerating, optimal reliability, high compatibility,intelligent monitoring, quick installation and commissioning, and easy maintenance.Efficient Refrigerating●The highly efficient EC fan saves more than 30% of energy than a common fan.●Chilled water valves are used to control incremental PID parameters with preciseadjustment and accurate control.●Intelligent differential pressure control (optional): Saves energy compared with thecontrol mode of a normal fan.●Wet film humidifier (optional): Lowers water quality requirements and supports a longreplacement interval, and saves energy by over 95% compared with a traditionalelectrode humidifier.High Reliability●Teamwork control: Enables smart cooling products to work in turn to avoid competitiveoperating and supports dynamic cooling capacity allocation and backup of the maincontrol system.●Dual power supplies: When the active power supply fails, the standby power supplytakes over automatically. When the active power supply is recovered, the power supply isautomatically switched back to the active power supply.●Dual power supplies: When the active power supply fails, the standby power supplytakes over automatically. When the active power supply is recovered, the power supply isautomatically switched back to the active power supply.●Intelligent differential pressure control (optional): Solves the issue of hot spots due toinsufficient air volume to improve reliability.●Temperature and humidity sensor: A maximum of ten remote ambient temperature andhumidity sensors can be configured to monitor the temperature and humidity of datacenters, improving reliability.High Compatibility●Power supply: The NetCol5000-C can run in the working condition where the inputsystem is 220 V to 240 V, single-phase, and 50 Hz or 60 Hz. They can protect againstoverload and short circuits.●Control mode: The NetCol5000-C supports multiple control modes, including air supplycontrol, cold aisle control, return air control, hot aisle control, and pressure differentialcontrol. You can select control modes based on the characteristics of your data centers. Intelligent Monitoring●Users can monitor and configure the smart cooling product on a client.●The 7-inch thin film transistor (TFT) display panel with the true-color touchscreendisplays the equipment running mode and status and allows users to set equipmentparameters.Quick Installation and Commissioning●After the equipment is leveled and secured onsite, users need only to connect pipes andcables before starting the equipment.●Startup wizard: A startup wizard is provided to guide operators through thecommissioning process. The smart cooling product running data is collectedautomatically, which helps O&M personnel evaluate the status of the key components ofthe smart cooling product, and simplifies O&M.Easy Maintenance●Real-time display: The cooling capacity, air volume, power, and fan speed can bedisplayed in real time on the control panel, which helps O&M personnel grasp therunning status of smart cooling products.●Professional diagnosis system: Common alarms and faults can be located intelligently.The intelligent and highly efficient system lowers skill requirements, simplify O&M, andreduce O&M time.●Startup wizard: A startup wizard is provided to guide operators through thecommissioning process. The smart cooling product running data is collectedautomatically, which helps O&M personnel evaluate the status of the key components ofthe smart cooling product, shortens the startup commissioning duration, simplifies thestartup commissioning, and reduces the commissioning costs.●Automatic fault diagnosis: Automatically identifies the root cause when a fault occursand intelligently excludes irrelevant fault causes. This function helps O&M personnelperform quick maintenance, greatly simplifying O&M and reducing the troubleshootingtime.●Health management: Forecasts the life of key components and prompts for componentreplacement. The function allows operators to know the life span status of corecomponents so that they can formulate an O&M strategy in advance.4 Component 4.1 Appearance and ComponentsAppearanceFigure 4-1Appearance (NetCol5000-C065)Figure 4-2Component appearance (NetCol5000-C065)(1) Electric control box (2) PSU (3) Main controlboard (4) Differential pressure switch(5) Temperature and humidity sensor (6) Wet filmhumidifier(7) Chilled wateroutlet pipe(8) Water pan(9) Automatic drainpipe (10) Chilled watervalve actuator (11) Chilledwater inlet pipe(12) Heat exchangerFigure 4-3Appearance (NetCol5000-C030/C032)Figure 4-4 Component appearance (NetCol5000-C030/C032)(1) Electric control box (2) Main control board (3) Temperature and humidity sensor(4) Differential pressure switch(5) Chilled water outlet pipe(6) Chilled water inlet pipe(7) Chilled water valve actuator Fan (8) Automatic drainpipe (9) Wet film humidifier (10) Water pan (11) Fan(12) Heat exchangerComponentsThe NetCol5000-C consists of the chilled water valve, EC fan, heat exchanger, air filter, wet film humidifier (optional), and micro differential pressure sensor (optional).●Chilled water valveThe chilled water valve, also known as the chilled water proportional integral regulating valve, features incremental proportional-integral-derivative (PID) control with precise adjustment and accurate control.●Electronic Commutation (EC) fan− The axial fan comes from a high-end brand and provides high reliability and a long service life.− The highly efficient EC fan saves more than 30% of energy than a common fan. −You can view the power and speed status as well as obtain fault information in real time over the LCD, allowing you to view the status and locate a fault.●Heat exchangerThe I-type finned-tube exchanger with a high cooling efficiency adopts the synergy fieldprinciple and computational fluid dynamics (CFD) to optimize the flow path design,which greatly improves the heat exchange efficiency.●Air filterThe G4 air filter in standard configuration meets requirements for equipment roomcleanness. It can be cleaned at least twice.●Wet film humidifier (optional)−The wet film humidifier has low water quality requirements and high environmentadaptability. In most cases, tap water can be used without special water treatment.−The wet film humidifier has a simple structure and is easy to remove, clean, andmaintain.−The wet film humidifier quickly starts and generates huge humidification capacity.−The wet film humidifier consumes less than over 95% of energy compared with atraditional electrode humidifier.●Differential pressure sensor (optional)−It adjusts air volume based on the differential pressure to ensure precise air supply.No excessive adjustment helps save energy and reduce power consumption.−The air supply volume is also sufficient, which helps eliminate hotspots andimproves reliability.4.2 ControllerAppearanceThe 7-inch display panel with the true-color touchscreen provides user interfaces for query,setting, monitoring, and maintenance.The indicator on the panel displays operating status of the precision smart cooling product.Figure 4-5 shows the location of the indicator. Table 4-1 lists the relationship of the alarmstatus, indicator, and buzzer. If critical alarms, major alarms, and warning alarms aregenerated simultaneously, the indicator shows the status of the alarm with the highest severitylevel, and the buzzer shows the status of the alarm (not confirmed after the alarm generation)with the highest severity level.Figure 4-5LCD(1) Indicator (2) I2C/12V (reserved) (3) DP (display port) (4) SW (reserved)Table 4-1 Indicator and buzzer status descriptionFunctions● When only one smart cooling product is running, the controller provides logic control of components in the smart cooling product to adjust the indoor temperature and humidity. ● The 7-inch display panel with the true-color touchscreen allows you to set parameters for the smart cooling product and query its status.●The smart cooling product has the following three remote functions.− Telemetry: supply air temperature, return air temperature, supply air humidity, return air humidity, and working status of the smart cooling product−Teleindication: startup/shutdown states, overvoltage/undervoltage, return air overtemperature/undertemperature, return air overhumidity/underhumidity, filter normal/blocked, and fan normal/faulty−Teleadjust: smart cooling product startup/shutdown● A maximum of 32 smart cooling products can be connected in a teamwork group, whenmultiple smart cooling products work cooperatively, the controller optimally distributesthe heat load to reduce power consumption and provides backup to improve reliability.−When a smart cooling product in the group is faulty, the backup smart coolingproduct starts to operate automatically to improve the reliability of the smartcooling product system.−Each smart cooling product enters the active mode one by one periodically.−The number of operating smart cooling products varies depending on the thermalload in the equipment room to meet requirements promptly, eliminate hot spots, andsave energy.− A mechanism is adopted to prevent the smart cooling products in the sameequipment room operating in opposite status (such as cooling and heating, orhumidification and dehumidification), in order to save energy.●You can monitor, manage, and upgrade one or more smart cooling products using theremote management software provided by Huawei.●At least 1500 historical alarms can be stored.●Access logs can be traced back. At least 1000 historical login and setting records can bestored.●The controller can display 30 days' temperature and humidity in colored curves. O&Mpersonnel can view the smart cooling product operating status onsite.● A comprehensive power monitoring function is provided. Faults such as power openphase, overvoltage, undervoltage, high frequency, and low frequency are diagnosed andappropriate alarms are reported and recorded. Automatic protection, recovery, and restartare also provided.Features●The controller provides a touchscreen with a user-friendly interface.●The controller controls the indoor temperature precisely and responds quickly.●The controller is protected by a multi-level password protection mechanism, avoidingmisoperations.●Password verification is required upon the first startup to ensure the system security. Nopassword verification is required for subsequent startup if the first verification succeeds.●The controller provides multiple protection functions, such as chilled water valveexception feedback, abnormal power-off self-recovery, and water leakage detection,ensuring system reliability.●The controller displays the operating status and duration of the smart cooling productcomponents in real time.●The expert system automatically displays the information of the current fault, whichfacilitates the maintenance.●The controller provides abundant external ports such as RS485 ports, CAN ports, FEports, and USB ports that are protected by a security mechanism.●The smart cooling product supports communications protocols such as Modbus RTU,Modbus TCP, and SNMP, facilitating connection to the network management system.●The controller intelligently identifies abnormal parameter settings (incorrect commands)and rejects them automatically.●If the indoor temperature fluctuates beyond the normal range, an audible and visiblealarm signal is sent automatically.5 Typical Application Scenarios(NetCol5000-C065)The NetCol5000-C provides a high-heat-flux cooling solution that applies to high-density data centers or hot areas in common data centers. This section describes the application scenario for the NetCol5000-C.Figure 5-1NetCol5000 in the contained cold aisle(1) NetCol5000-CFigure 5-2NetCol5000 in the contained hot aisle(1) NetCol5000-C6 Typical ApplicationScenarios(NetCol5000-C030/C032)The NetCol5000-C provides a high-heat-flux cooling solution that applies to high-density data centers or hot areas in common data centers. It is used in class A environments in data centers. Figure 6-1 and Figure 6-2 show the specific application scenarios.Figure 6-1Positions of NetCol5000-Cs in a modular data center(1) Server (2) NetCol5000-CFigure 6-2Positions of NetCol5000-Cs in a container data center(1) Server (2) NetCol5000-C7 Application Conditions●If the water inlet temperature exceeds 10°C or the total load is less than 30% of thecooling capacity of a single smart cooling product, the humidity may be high. Thecustomer is advised to add a dehumidifier (engineering procurement).●Do not install the smart cooling product near a noise-sensitive place such as an office or aconference room.Pipe PortsThe following table describes the ports reserved on the device.Table 7-1Pipe PortsInstallation RequirementsTable 7-2Installation RequirementsOperating SpecificationsTable 7-3Operating specifications8 Technical Specifications(NetCol5000-C065) Table 8-1Technical specifications of NetCol5000-C0659 Technical Specifications(NetCol5000-C030/C032) Table 9-1Technical specifications of NetCol5000-C030/C03210 Performance CurvesFigure 10-1 and Figure 10-2 show the cooling capacity derating coefficient curve inproportion to the altitude when the NetCol5000-C works under rated power and air flow. Cooling Capacity Derating Coefficient Curve in Proportion to the AltitudeFigure 10-1Cooling capacity derating coefficient curve in proportion to the altitudeWhen the altitude is within 1000 m, the cooling capacity deviation is in the tolerance range and can beignored.Cooling Capacity Curve in Proportion to the Glycol Solution DensityThe cooling capacity is obtained by multiplying the glycol solution density by the ratedcooling capacity.Figure 10-2Cooling capacity curve in proportion to the glycol solution densityProduct Description (2019) 11 Acronyms and Abbreviations11 Acronyms and AbbreviationsCCAN controller area networkFFE fast EthernetNNTC negative temperature coefficientPPSU power supply unitPTC positive temperature coefficientPUE power usage effectivenessRRCCB residual current circuit breakerTTFT thin film transistorUUSB Universal Series Bus。

工业冷水机说明书

东莞市纳金机械有限公司工业冷水机使用说明书地址：东莞市横沥镇横沥村综合开发区1．首先开启电源开关；2. 开启冷却水塔和冷却水泵开关，此时注意冷却水出入口阀门必须打开（注：风冷式无冷却水塔，故无此操作）。

3.再开启冷冻机运行开关，此时冷冻水泵开始运行,请注意冷冻水出入口阀门必须打开，经延时开关延时后压缩机会自动运行，请查视及调节所需温度。

4.关机时，请依相反的顺序操作关机即可。

四、面板示意图及操作说明（1）开机：①打开冷水机电源；②按“RUN”启动键，开启冷水机，此时冷冻水泵启动。

③按“COMP1”压缩机1键、“COMP2”压缩机2键开启压缩机(如:只有一台压缩机时，按“COMP2”压缩机2键无效)。

延时后起动压缩机，左上角压缩机运行指示灯绿灯亮起。

同时冷却风机运转，（水冷式冷冻机的冷却水塔和冷却水泵在外部控制需预先起动。

）冷水机进入运行状态。

（2）关机：按<STOP>键停机机器:关闭所有压缩机✍延时（时间可设）✍关冷却泵(冷却风机) ✍延时（时间可设）✍关冷冻泵如长时间不使用时，请关闭冷水机电源并排掉水箱内或壳管式蒸发器内的冷冻介质。

注：能量调节：a) 只有1个压缩机：在升温过程中,当T>=Ts+ΔT 时启动压缩机；在降温过程中，当T<ΔT时停止压缩机b) 有两个压缩机：在升温过程中：当T>=Ts+ΔT/2 时启动1台压缩机；当T>=Ts+ΔT 时启动2台压缩机；在降温过程中：当T<Ts+ΔT/2 时启动1台压缩机；当T<ΔT/2 时压缩机全停。

二、修改参数操作说明（1）上电，系统开始10秒倒计时，面板上PV区显示版本，SV区显示倒计时间。

等倒计时间完毕之后主程序开始工作。

（2）主程序开始后PV区显示实际温度,SV显示设定温度,,此时,按<SET可以修改当前设定温度,若设定温度没有被锁定,利用<UP><DOWN>可以修改后按<SET>键退出,若设定温度被锁定,SV区显示”LOCK”,（3）若有故障,PV区显示”Err”,SV区显示故障代码,请按故障代码在表2查找相应的故障,按<RESET>键可以消音,排除故障后,按<RESET>键复位故障.（4）7<COMP1>和<COMP2>分别允许压机1,压机2开启的按键,压机若被允许开启,则相应按键上LED指示灯被点亮;若不允许开启,则相应的压机不会开启,按键上的LED灯也不亮,只有在机组运行的时候, <COMP1>和<COMP2>按键才有效,当<COMP1>和<COMP2>有效时,按下该键对应的LED灯亮,再按下LED灭.（5）8指示灯:POWER电源指示灯,RUN机组运行状态, COMP1压缩机1运行状态,COMP2压缩机2运行状态,Error表示有故障.三、故障代码说明．冷冻水泵不可在．操作开关请尽量．冷冻水温度达到设定温度时，压缩机会自动停止运行，此属正常现象；4．温度开关应避免设定在5℃以下，防止蒸发器结冰；5．为确保制冷效果，保持最佳状态，请定期清洗冷凝器、蒸发器及水过滤器。

【精品】解析工业冷水机操作说明

解析工业冷水机操作说明解析工业冷水机操作说明1.安装期间请检查机器是否受到损坏，选择合适的地方，以便于安装及日后维修。

2.安装机组的场地必须是地板、安装垫或基础、其水平度在6.4mm之内，并能承受机组的运行重量。

3.机组应放在室温为4.4-43.3℃的机房内，机组的四周和上方应有足够空间，以便进行日常的维护工作。

4.在机组的一端应留出清洗冷凝器管束的抽管空间，也可利用门洞或其它位置合适的洞口。

5.选择合适管径的水管，机组最大功率运行时的冷却系统及冷水系统，并正确连接。

6.对于普通的应用场合，通过蒸发器和冷凝器的水流速度允许在1.0-3.6m/s之间。

7.在任何负荷情况下，水流量应保持稳定。

8.所有冷冻水和冷却水管道的设计及安装应按常规方法进行，冷冻水泵要位于机组的进水管上，以保证机组内的正压和流量。

配管时应设置减振管以保证适当的弹性，还要防止当水泵停机时蒸发器的水被排掉。

9.管道应有独立于冷水机组的牢固支撑，避免应力施加在冷水机组的部件上。

吊架的设置要便于管道对中。

10.为了减少噪音和振动，最好在管道上安装隔振器。

11.为了经济有效地使用冷水机组，建议请水处理专家分析蒸发器和冷凝器的供水水质，不好的水质会造成积垢影响传热，或产生腐蚀沉淀、滋生有机物，影响机组的性能，增加运行和维护费用。

12.一般来说，正确的水处理和管束的定期清洗能保持其良好的性能，如果现有的水质条件不能用适当的方法加以改善，那么就需考虑允许管束有较大的污垢系数或指定专门的结构材料。

13.请在水管的入口加装过滤器，并定期清理。

14.试漏完毕后，所有接管口必须进行防锈处理。

15.为了方便日常的维护工作，用户可以采用下列一些(或全部的)措施：a)带旋塞的压力表和截止阀可以安装在冷却水和冷冻水的进出口管道上，尽量靠近冷水机组；b)设备上方可以架设吊轨和横梁以方便维修。

安装要求：1、冷冻机安装前请选择地基平稳，四周空旷，畅通及避免腐蚀、污染、日晒、雨淋，方便安装维修之场所；2、根据冷冻机制冷量选用匹配的冷却水塔。

5000型控制器使用手册

5000型控制器使用手册1Pentair目录z简介z5000型控制器的特点z技术参数表z软水器工作流程图（顺流）z软水器工作流程图（逆流）z控制器外型尺寸图z控制器结构图z控制器电器接线图z阀体结构图(软化型)z阀体结构图(过滤型)z软水器配件结构图z控制阀选用配制表z软水器的安装步骤z控制器的调试步骤z常见故障表z软水器安装图2Pentairz简介美国Pentair公司生产的FLECK系列控制阀是全球使用量最大的控制阀，其市场占有率达到70%以上，其系列多、规格广、功能全、品质优良、设计完美是其它任何厂牌的控制阀所无法相比的，可为工业、第三产业及住宅居室使用的各种水处理设备提供最合用的控指装置，是一款最受欢迎的系列控制阀。

FLECK系列控制阀具有数十年的生产经验，其产品不断研究改进，精益求精。

它所生产的各种控制阀芯，有着独特巧妙的设计，为水处理技术行业的各类型离子交换式设备以及各种水过滤介质提供一系列范围广的自动控制装置。

为了适应和满足用户的不同需求，美国Pentair公司所生产的FLECK系列控制阀可以根据用户需要，提供各种规格不同流量及时间的控制阀。

为了阀体的耐用可靠性FLECK系列控制阀，采用了比美国水处理协会更高的标准来严格要求产品。

它每个受压零件的设计，必需满足从0 —190Psi 的循环压力试验250,000次（水质协会要求从0—150Psi循环试验10,000次）再生运行的周期循环压力试验必须满足10,000次，即平均每天再生一次，它能连续使用27年之久。

FLECK系列软水器控制阀可大致分为四个系列，即小型民用单罐单活塞阀、工业单罐单活塞阀、工业单罐双活塞阀、工业双罐双活塞阀。

FLECK系列水处理自动控制装置拥有当今最先进的技术，它的第一流的技术服务，它为保证产品质量最优而作的努力，以及它为使产品精益求精而进行的研究开发，这一切使得它的产品成为水处理成套设备制造厂家的最优选择。

z FLECK 5000型控制器的特点FLECK 5000型控制器为FLECK系列控制阀中的SE简单电子式单罐纵式单活塞阀系列，其外形紧凑、体积小、重量轻、出水量大，在工作状态下当前时间和所剩再生时间或流量交替现实。

工业冷水机说明书

东莞市纳金机械有限公司工业冷水机使用说明书TEL:3FAX:6售后专线:地址:东莞市横沥镇横沥村综合开发区1.首先开启电源开关;2、开启冷却水塔与冷却水泵开关,此时注意冷却水出入口阀门必须打开(注:风冷式无冷却水塔,故无此操作)。

3、再开启冷冻机运行开关,此时冷冻水泵开始运行,请注意冷冻水出入口阀门必须打开,经延时开关延时后压缩机会自动运行,请查视及调节所需温度。

4、关机时,请依相反的顺序操作关机即可。

四、面板示意图及操作说明（1）开机:①打开冷水机电源;②按“RUN”启动键,开启冷水机,此时冷冻水泵启动。

③按“COMP1”压缩机1键、“COMP2”压缩机2键开启压缩机(如:只有一台压缩机时,按“COMP2”压缩机2键无效)。

延时后起动压缩机,左上角压缩机运行指示灯绿灯亮起。

同时冷却风机运转,(水冷式冷冻机的冷却水塔与冷却水泵在外部控制需预先起动。

)冷水机进入运行状态。

（2）关机:按<STOP>键停机机器:关闭所有压缩机→延时(时间可设)→关冷却泵(冷却风机) →延时(时间可设)→关冷冻泵如长时间不使用时,请关闭冷水机电源并排掉水箱内或壳管式蒸发器内的冷冻介质。

注:能量调节:a) 只有1个压缩机:在升温过程中,当T>=Ts+ΔT 时启动压缩机;在降温过程中,当T<ΔT时停止压缩机b) 有两个压缩机:在升温过程中:当T>=Ts+ΔT/2 时启动1台压缩机;当T>=Ts+ΔT 时启动2台压缩机;在降温过程中:当T<Ts+ΔT/2 时启动1台压缩机;当T<ΔT/2 时压缩机全停。

二、修改参数操作说明（1）上电,系统开始10秒倒计时,面板上PV区显示版本,SV区显示倒计时间。

等倒计时间完毕之后主程序开始工作。

（2）主程序开始后PV区显示实际温度,SV显示设定温度,,此时,按<SET可以修改当前设定温度,若设定温度没有被锁定,利用<UP><DOWN>可以修改后按<SET>键退出,若设定温度被锁定,SV区显示”LOCK”,（3）若有故障,PV区显示”Err”,SV区显示故障代码,请按故障代码在表2查找相应的故障,按<RESET>键可以消音,排除故障后,按<RESET>键复位故障、（4）7<COMP1>与<COMP2>分别允许压机1,压机2开启的按键,压机若被允许开启,则相应按键上LED指示灯被点亮;若不允许开启,则相应的压机不会开启,按键上的LED灯也不亮,只有在机组运行的时候, <COMP1>与<COMP2>按键才有效,当<COMP1>与<COMP2>有效时,按下该键对应的LED灯亮,再按下LED灭、（5）8指示灯:POWER电源指示灯,RUN机组运行状态, COMP1压缩机1运行状态,COMP2压缩机2运行状态,Error表示有故障、三、故障代码说明冷冻水泵不可在水箱;操作开关请尽量避免;冷冻水温度达到设定,压缩机会自动停止运行,此属正常现象;4.温度开关应避免设定在5℃以下,防止蒸发器结冰;5.为确保制冷效果,保持最佳状态,请定期清洗冷凝器、蒸发器及水过滤器。

工业用水冷却机使用说明书

一、产品性能及用途液体冷却机能有效地降低机械设备冷却水和切削液的温度，保证机械设备冷却系统的正常温度，并使冷却液的温度能控制在理想状态下，从而消除了机械设备中由于热带来的不良影响，并提高了机械设备的使用寿命和机械加工质量水平。

本产品分XLW型、XLW-P型、XLW-PT型XLW-C型四大系列，二十多个品种，可广泛用于CNC综合加工中心，各种高精度车床、磨床、铣床等机床设备和各种液压设备、专用设备，是机械加工工业必不可少的液体温度控制装置。

二、工作原理液体冷却机外围空气经过冷凝器，将冷凝器中来自压缩机的高温高压气态制冷剂冷却为高温高压的液态制冷剂，此液态制冷剂经毛细管降压、降温，成为易于蒸发的低温低压液态制冷剂，至蒸发器中蒸发吸热，将经过管外、来自机械设备的液体冷却，液体冷却机内液体泵或机械设备中的循环泵将冷却的液体送到工作设备，使设备降温。

此液态制冷剂经蒸发吸热成为气态，再回到压缩机，完成一次冷却循环。

经过不断的冷却循环使液体温度逐渐降低，并保持最佳状态，从而保证机械设备在高效率、高精度下运行。

三、结构特点工业用液体冷却机主要由制冷系统、空气循环系统、液体循环系统和XLW-P型电子控制系统等组成，其主要特点为：1、机组采用整体结构，结构紧凑，节省安装空间。

2、制冷系统为全封闭循环系统，采用条翅式散热片的热交换器，高效全封闭制冷压缩机，低噪音、大风量风机，高效板式换热器，XLW-□型液体循环泵（XLW-P）型制冷能力强、换热效率高、密封性能好，在使用期间无需填充制冷剂和润滑油。

3、为防止由于温度过低而使板式换热器出现故障，特增加了防冻保护器。

4、电子控制系统采用轻触摸按键式微电脑控制，具有压缩机工作控制、液体泵工作控制、压缩机延时启动、过载保护、电机逆相序保护、制冷系统高低压保护、防冷冻保护及故障报警、液体温度自动控制和调节、液体温度设定及实际液体温度数码显示等多种功能。

操作简单，功能齐全，性能稳定可靠。

激光切割机作业指导书

4.14设备处于自动工作运转中有一定的危险性，绝不可进入安全防护栏。任何操作过程都必须注意安全。无论任何时间进入机器运转范围内都可能导致严重的伤害。
4.15送料时一定要看着送料状态，以免坂料起拱撞上激光头，后果严重
4.16生产运行前要检查所有准备工作是否到位，保护气是否开启，气压是否达到。激光是否待命状态。送料，机器人，是否处于自动状态。
5.5抽风机保养：抽风机及抽风管拆下后清洁，抽风机盖子可拆卸清理内部积灰，内部积灰过多可能导致抽风机损坏，建议至少每个月清理一次。
5.6气磊保养：外部环境灰尘过多的，建议每个月清洁一次，拧开黑点后盖清洁。
4.10维修时要遵守高压安全规程。每运转1天或每周维护、每运转1000小时或每六个月维护时，要按照规定和程序进行。
4.11开机后应手动低速X、Y、Z轴方向开动机床，检查确认有无异常情况。
4.12对新的工件程序输入后，应先试运行，并检查其运行情况。
4.13工作时，注意观察机床运行情况，以免切割机走出有效行程范围或两台发生碰撞造成事故。
5.3机箱内部清洁：当外部环境灰尘较多大时，每隔一个月，请拔掉电源线后打开机箱侧边门和后面门，用气枪或吸尘器将里面的灰尘杂物清理干净。保持内部干净，同时检查是否漏水。切割台面剑形条可拆下用洗衣粉及刷子清洗。
5.4冷水机保养：使用纯净水，不可使用自来水，自来水杂质多，会进入激光管内部，照成管道堵塞，水揗环不通畅，严重影响激光管寿命或昭或照成激光管不出光，纯净水一个月左右更换一次，换水时先清洗冷水机的水箱。CW5000（5200）型号注意保持两边的侧栏网干净，此处为进风位，堵塞会影响冷水机功能，水温会异常报警，尤其是夏天。两边的侧栏网可拆下清洗晾干后装上，同时可用吹风枪吹干净冷水机内部灰尘。
3.2关机次序：
