19-217-R6C-P1Q2-3T 亿光0603红灯
19-217-GHC-YR1S2-3T

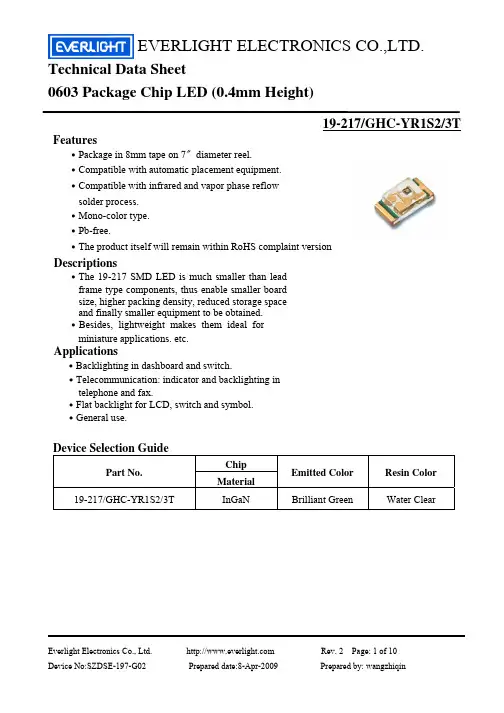

EVERLIGHT ELECTRONICS CO.,LTD.Technical Data Sheet 0603 Package Chip LED (0.4mm Height)19-217/GHC-YR1S2/3TFeatures․Package in 8mm tape on 7〞diameter reel. ․Compatible with automatic placement equipment. ․Compatible with infrared and vapor phase reflow solder process. ․Mono-color type. ․Pb-free. ․The product itself will remain within RoHS complaint versionDescriptions․The 19-217 SMD LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained. ․Besides, lightweight makes them ideal for miniature applications. etc.Applications․Backlighting in dashboard and switch. ․Telecommunication: indicator and backlighting in telephone and fax. ․Flat backlight for LCD, switch and symbol. ․General use.Device Selection GuidePart No. 19-217/GHC-YR1S2/3T Chip Material InGaN Emitted Color Brilliant Green Resin Color Water ClearEverlight Electronics Co., Ltd. Device No:SZDSE-197-G02 Prepared date:8-Apr-2009Rev. 2Page: 1 of 10Prepared by: wangzhiqinEVERLIGHT ELECTRONICS CO.,LTD.19-217/GHC-YR1S2/3TPackage Outline DimensionsNote: The tolerances unless mentioned is ±0.1mm ,Unit = mmEverlight Electronics Co., Ltd. Device No:SZDSE-197-G02 Prepared date:8-Apr-2009Rev. 2Page: 2 of 10Prepared by: wangzhiqinEVERLIGHT ELECTRONICS CO.,LTD.19-217/GHC-YR1S2/3TAbsolute Maximum Ratings (Ta=25℃)Parameter Reverse Voltage Forward Current Peak Forward Current (Duty 1/10 @1KHz) Power Dissipation Electrostatic Discharge(HBM) Operating Temperature Storage Temperature Soldering Temperature Symbol VR IF IFP Pd ESD Topr Tstg Tsol Rating 5 25 100 95 150 -40 ~ +85 -40 ~ +90 Unit V mA mA mW V ℃ ℃Reflow Soldering : 260 ℃ for 10 sec. Hand Soldering : 350 ℃ for 3 sec.Electro-Optical Characteristics (Ta=25℃)ParameterLuminous Intensity Viewing Angle Peak WavelengthDominant WavelengthSymbol Iv 2θ1/2 λp λd △λ VF IRMin. 112 --------520 ----2.7 -----Typ. ----120 525 ----35 3.3 -----Max. 285 --------535 ----3.7 50Unit mcd deg nm nm nm V μAConditionIF=5mASpectrum Radiation Bandwidth Forward VoltageReverse CurrentVR=5VNotes:1.Tolerance of Luminous Intensity ±11% 2.Tolerance of Dominant Wavelength ±1nmEverlight Electronics Co., Ltd. Device No:SZDSE-197-G02 Prepared date:8-Apr-2009Rev. 2Page: 3 of 10Prepared by: wangzhiqinEVERLIGHT ELECTRONICS CO.,LTD.19-217/GHC-YR1S2/3TBin Range Of Dom. WavelengthGroup Y Bin X Y Z Min 520.0 525.0 530.0 Max 525.0 530.0 535.0 nm IF=20mA Unit ConditionBin Range Of Luminous IntensityBin R1 R2 S1 S2 Min 112 140 180 225 Max 140 180 225 285 mcd IF=20mA Unit ConditionNotes:1.Tolerance of Luminous Intensity ±11% 2.Tolerance of Dominant Wavelength ±1nmEverlight Electronics Co., Ltd. Device No:SZDSE-197-G02 Prepared date:8-Apr-2009Rev. 2Page: 4 of 10Prepared by: wangzhiqinEVERLIGHT ELECTRONICS CO.,LTD.19-217/GHC-YR1S2/3TTypical Electro-Optical Characteristics CurvesTa=25°C Relative luminous intensity ( % ) I (mA) Ta=25°CWavelength λ(nm)Forward CurrentForward Voltage VF (V)Ta=25°C Relative luminous intensity ( % ) Relative luminous intensity ( %) Ambient Temperature Ta(°C )Forward Current I (mA)Radiation Diagram 0° Ta=25°C 20° 30°10°I (mA)Forward Current40° 1.0 0.9 0.8 0.7 0.5 0.3 0.1 0.2 0.4 0.6 50° 60° 70° 80° 90°Ambient Temperature Ta (°C )Everlight Electronics Co., Ltd. Device No:SZDSE-197-G02 Prepared date:8-Apr-2009Rev. 2Page: 5 of 10Prepared by: wangzhiqinEVERLIGHT ELECTRONICS CO.,LTD.19-217/GHC-YR1S2/3TLabel explanationCAT: Luminous Intensity Rank HUE: Dom. Wavelength Rank REF: Forward Voltage RankReel DimensionsNote: The tolerances unless mentioned is ±0.1mm ,Unit = mmEverlight Electronics Co., Ltd. Device No:SZDSE-197-G02 Prepared date:8-Apr-2009Rev. 2Page: 6 of 10Prepared by: wangzhiqinEVERLIGHT ELECTRONICS CO.,LTD.19-217/GHC-YR1S2/3TCarrier Tape Dimensions: Loaded quantity 3000 PCS per reelNote: The tolerances unless mentioned is ±0.1mm ,Unit = mmMoisture Resistant PackagingLabelAluminum moisture-proof bagDesiccantLabelEverlight Electronics Co., Ltd. Device No:SZDSE-197-G02 Prepared date:8-Apr-2009Rev. 2Page: 7 of 10Prepared by: wangzhiqinEVERLIGHT ELECTRONICS CO.,LTD.19-217/GHC-YR1S2/3TReliability Test Items And ConditionsThe reliability of products shall be satisfied with items listed below. Confidence level：90% LTPD：10%No. 1 2Items Reflow Soldering Temperature CycleTest Condition Temp. : 260℃±5℃ Min. 5sec. H : +100℃ 15min ∫ 5 min L : -40℃ 15min H : +100℃ 5min ∫ 10 sec L : -10℃ 5min Temp. : 100℃ Temp. : -40℃IF = 20 mATest Sample Hours/Cycles Size 6 Min. 300 Cycles 22 PCS. 22 PCS.Ac/Re 0/1 0/13 4 5 6 7Thermal Shock High Temperature Storage Low Temperature Storage DC Operating Life High Temperature / High Humidity300 Cycles 1000 Hrs. 1000 Hrs. 1000 Hrs. 1000 Hrs.22 PCS. 22 PCS. 22 PCS. 22 PCS. 22 PCS.0/1 0/1 0/1 0/1 0/185℃/ 85%RHEverlight Electronics Co., Ltd. Device No:SZDSE-197-G02 Prepared date:8-Apr-2009Rev. 2Page: 8 of 10Prepared by: wangzhiqinEVERLIGHT ELECTRONICS CO.,LTD.19-217/GHC-YR1S2/3TPrecautions For Use1. Over-current-proof Customer must apply resistors for protection, otherwise slight voltage shift will cause big current change ( Burn out will happen ). 2. Storage 2.1 Do not open moisture proof bag before the products are ready to use. 2.2 Before opening the package, the LEDs should be kept at 30℃ or less and 90%RH or less. 2.3 After opening the package: The LED's floor life is 1 year under 30℃ or less and 60% RH or less. If unused LEDs remain, it should be stored in moisture proof packages. 2.4 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the storage time, baking treatment should be performed using the following conditions. Baking treatment : 60±5℃ for 24 hours. 3. Soldering Condition 3.1 Pb-free solder temperature profile3.2 Reflow soldering should not be done more than two times. 3.3 When soldering, do not put stress on the LEDs during heating. 3.4 After soldering, do not warp the circuit board.Everlight Electronics Co., Ltd. Device No:SZDSE-197-G02 Prepared date:8-Apr-2009Rev. 2Page: 9 of 10Prepared by: wangzhiqinEVERLIGHT ELECTRONICS CO.,LTD.19-217/GHC-YR1S2/3T4.Soldering Iron Each terminal is to go to the tip of soldering iron temperature less than 350℃ for 3 seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder. 5.Repairing Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing.EVERLIGHT ELECTRONICS CO., LTD. Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Tucheng, Taipei 236, Taiwan, R.O.CTel: 886-2-2267-2000, 2267-9936 Fax: 886-2267-6244, 2267-6189, 2267-6306 Everlight Electronics Co., Ltd. Device No:SZDSE-197-G02 Prepared date:8-Apr-2009Rev. 2Page: 10 of 10Prepared by: wangzhiqin。
长虹空调故障代码大全
长虹空调故障代码大全诊断灯X灯闪O灯亮●灯灭1 2 3X ● ●室内温度传感器异常传感器开路，短路或接触不良● X ●室内盘管温度传感器异常传感器开路，短路或接触不良● ● X压机温度传感器异常传感器开路，短路或接触不良X ● X外盘温度传感器异常传感器开路，短路或接触不良● X X室外温度传感器异常传感器开路，短路或接触不良X X X CT电流异常HIC不良（未输出到U，V，W相）O ● ●串行通讯异常配线错，电源线接触不良，控制板坏● O ● HIC过负荷保护（电流，温度）HIC不良，号线接触不良压机锁住，磨损严重，外风机不转，系统堵塞O O ●室外用EEPROM故障OTP数据不良，接触不良● ● O电流斩峰瞬时停电，电压下降，HIC不良，压机磨损O ● O电流异常控制压机停止● O O压机排气温度异常控制缺R22<50﹪毛细管堵，传感器坏，制冷外风机停止O O O室内风扇电机运转异常电机坏，驱动电路异常O X X四通阀切换异常四通阀不切换O X O AC输入电压异常过欠电压保护动作室外机CN10插座用法：1 2 3 T-RUN:试运转（压缩机、外风机、四通阀接通）机型故障代码可能的故障原因G造型EO工作正常P1制冷过载P2制热过载F7温度传感器损坏或异常(检测各温度)P5系统异常KFR-60LW/DXS EO工作正常E1通讯错误P1制冷过载P2制热过载P5空清异常F1高压开关保护F2外风机热保护F3内风机热保护F7温度传感器损坏或异常(检测各温度)P5系统异常H1/H2/DF系列EO工作正常P1制冷过载P2制热过载F7温度传感器损坏或异常(检测各温度)P5系统异常KFR-120LW/MKFR-120LW/MASKFR-71LW/M F1室内机热敏电阻断路或受损F2室内机热敏电阻断路或受损F4室外机热敏电阻断路或受损F5室外机热敏电阻断路或受损F6室外机热敏电阻断路或受损F7室外机热敏电阻断路或受损F8室外机热敏电阻断路或受损H1压缩机电机过载H2压缩机电机堵转H3压缩机电流检测异常H6低压开关动作(KFR-71LW/M无)H7连接室内机和室外机线路或管道接错48LW系列60系列51系列E1通异常P1制冷过载P2制热过载P3系统异常保护P4自动模式下室内温度传感异常长虹（小清爽）KFR-25GW分体空调故障代码显示内容故障原因运行绿待机黄定时红5Hz闪上电存储电路错误定时（红）5Hz闪PG电机或相关电路异常运行（绿）1Hz闪室外管温传感器异常待机（黄）1Hz闪室内温度传感器异常定时（红）1Hz闪室内管温传感器异常长虹G造型空调故障代码E0工作正常P1制冷过载P2制热过载F7温度传感器损坏或异常（检测各温度）p5系统异常2灭灭闪灭热交传感器热交传感器插座虚焊或插接不良3灭灭闪闪蒸发器冻结蒸发器温度过低或风机不转4灭闪灭灭制热过负荷制热时温度过高,超过68度5灭闪灭闪通讯故障通讯失误时报此故障,通讯线是否可靠6灭闪闪灭瞬时停电瞬时有停电现象,可重新启动7灭闪闪闪过电流室内机电流过在保护外机故障代码表：1灭灭灭亮内环温传感器环温传感器插座接不良2灭灭亮灭热交传感器热交传感器插座插接不良3灭灭亮亮压机过热压机温度过高保护,冷媒不足4灭亮亮灭过电流电流异常,电压异常波动引起5亮灭灭灭电压异常电压过低和过高时报警6亮灭灭亮瞬间停电当供电波形中缺少交流波时7亮灭亮灭制冷过负荷外机气温处于过低和过高时报警8亮灭亮亮正在除霜除霜过程中9亮亮灭灭功率模块保护使用时产生过载过热短路保护,停机后启动10亮亮灭亮E PROM故障主板上有虚焊或插接不良11亮亮亮灭低温保护机型代码可能故障原因F1室内温度传感器异常F2室内盘管温度传感器异常F3室外环境温度传感器异常KFR-45LW/WDQ F4室外盘管温度传感器异常KFR-45LW/WBQ F5压缩机排气温度传感器异常KFR-50LW/WBQ P1压缩机排气温度传感器异常P2 CT电流异常P4 JPM故障保护P5四通阀切换异常E1室内主控板与控制面板之间通讯异常E2室内主控板与室外控制板之间通讯异常E1主控板与面板之间通讯错误E2主控板与室外板之间通讯错误F1高压开关保护F2室外风扇电机热保护器动作KF-75LW/WDS F3室内风扇电机热保护器动作KF-75W/W3S F4低压开关保护KFR-75LW/WDES F5逆相保护KFR-120LW/WDS F6缺相保护KF-120LW/WS H1压缩机过电流保护H2压缩机堵转保护H3检测不到压缩机电流P1制冷过载保护P2制热过载保护：工作正常E1：主控板与面板之间通错误E2：主控板与面板之间通错误P1：制冷过载P2：制热过载p5系统异常P4：温度传感器损坏（可通过查询传感器的值，来确认损坏的传感器）F1：高压开关保护F2：外风机热保护F3：内风机热保护F4：低压开关保护F5：逆相保护F6：缺相保护H1：压缩机过电流保护H2：压缩机堵转保护：工作正常E1：主控板与面板之间通错误E2：主控板与面板之间通错误P1：制冷过载P2：制热过载P3：系统异常P4：温度传感器损坏（可通过查询传感器的值，来确认损坏的传感器）F1：高压开关保护F2：外风机热保护F3：内风机热保护F4：低压开关保护F5：逆相保护F6：缺相保护H1：压缩机过电流保护H2：压缩机堵转保护H3：检测不到压缩机电流护）机型序号整机故障现象印制板故障现象故障位号"KFR-36GW/D（KFR-35GW/WDS与其基本相同）" 1不通电不通电D1-D4、D5、D6、D9短路，IC6短路，保险管开路2无风电机不转DC10变质3无风电机抖动，无+8.2V调节R284压缩机工作一会停机无压缩机CT电流CT1开路大清快EQ系列1不通电（通电指示灯不亮）不通电C1、C4、C19变质，T1、R4、R60开路，VDZ2、D3、VD4、VD6、VD3、VD2、VD16、VD17、VC1短路2无风遥控大电机不转VD1、VD15、D6、V3、R10失效3工作一会停机，指示灯闪工作一会电机停，指示灯闪V2变质4不工作不通电（无晶振电压）C10、C11变质"KFR-28GW/BP模块（KFR-28GW/BMF同）" 1室外压缩机不启动压机不动模块短路或参数失调及开路2外机不工作外机不通电E2失效，BT1、R2开路，Z1短路"KFR-28G/BP（KFR-28G/BMF同）室内主板" 1不停机通电室内电机就转C503、IC203失效2不通电不通电F504、RL401失效3室内机不工作电机不转DQ201失效KFR-28W/BMF 1室外机不工作不通电F101、F102、RT201开路，K505失效2室外压缩机不工作压缩机不启动D303、D301失效，R504、R509开路，D403、T202失效3外机不工作（无通讯）外机不动L102、C207、C205、D400、D402失效，D303失效KFR-28W/BP 1室外风扇不转风机不转C501变质，RL502、RL503、IC401失效2外机不通电不通电FUSE101、FUSE102、PTC501开路3室外压缩机不工作压缩机不动R504、R509、BT202、PC401失效4不工作（无通讯）无通讯PC400、PC402失效，R502开路5工作一会停机压缩机启动一会就停BT202、C207、C205失效KFR-60L/WDES 1不工作E1故障V104、V105变质或虚焊KFR-71L/WDS 1不通电不通电IC102、IC103失效，L102、D122开路2不工作不叫（E1故障）Q104、Q105变质3不工作（F1故障）F1故障高压开关坏，R205开路，D202、IC202失效4不工作（F2故障）F2故障外风机坏，R201开路，D201、IC201失效5不工作（F3故障）F3故障内风机坏，R209开路，D203、IC203失效"KFR-75L/WD3SKFR-120L/WD3S" 1不工作（E2故障）E2故障Q106、Q107、Q108、Q109、D115、D116、PC101失效2不工作（E1故障）E1故障Q103、Q104、D103失效3不工作（F3故障）F3故障R121、D107、PC102失效"KFR-75W/WD3SKFR-120W/WDS" 1外机不工作不通电ZNR201短路（引起烧保险）2不工作（F5故障）F5故障R240、R241开路，D222、D201、IC205、IC211失效3不工作（E2故障）E2故障Q203、Q205、Q204、D210、D226、Q211失效KFR-120L/MAS 1不工作外机动作，室内机不工作D41、D42开路2不工作（无内机通讯）E1故障Q7、Q8失效KFR-120W/MAS 1不工作（P5故障）P5故障R28、R31开路，D4、D5、PC5、PC6、Q7、Q8失效2不工作（E4故障）E4故障L1、Q10失效"KFR-71LW/MKFR-120LW/MAS（三洋）" 1不工作（P6故障，显示异常或无通）P6故障或无通讯或显示异常S1、S2、S3、S4、S5、S6等开关位置错误或氧化后接触不良KFR-50W/WBQ 1不工作（P4故障）P4故障VD311、VD310、VD309、VD312失效（其中一个或几个）2不通电不通电IC307、VD307短路，R321开路"KFR-51（71）L/DFS（FS系列相同）" 1不工作（不叫，传感无温度，不通电）不叫，无传感器温度，不通电D201失效2不工作（不叫）不叫V201短路3显示异常漏光VD201短路4不工作（E1故障）E1故障V202短路，D201失效"KFR-71L/WDAS（1、2条也适合于KFR-50L/WDCS）" 1不工作（传感器温度异常）传感器温度异常CN301失效2不通电不通电D101失效，L101开路，F101开路3不工作（F1故障）F1故障E301失效，R310开路4不工作（F2故障）F2故障E302失效，R311开路5不工作（F3故障）F3故障E303失效，R315开路，XS306处零线炸开KFR-28GW/BC3 1不制热（冷）且手动关机后运行灯闪无通讯D108、D109烧坏，VD501、D500、D501烧坏，R57开路，T01、D101模块失效KFR-25（28）（40）G/BQ 1不开机不通电R01、R02开路，IC01失效2不制热（冷）无通讯C501失效KFR-40（+25）W/BQ 1不制热（冷）且灯闪不通电Q200、DB01、IC101失效，F01开路2不制热（冷）且灯闪开机保护IC203、IC204、IC205、IC207、IC200、IC201失效3不制热（冷）且灯闪开机保护C302、C308、C312缺损/开路，Q302、Q303、Q304、Q305、Q306、Q307参数异常4制热（冷）效果不好电子膨胀阀切换异常IC11开路，IC14开路（副板）"KFR-36GW/BMFKFR-40GW/BM" 1运行灯闪且不开机运行灯闪E2PROM 插座氧化2运行灯闪，手动关机后1灯直亮运行灯闪PC10、PC11、IC14、T11失效，R42开路3运行灯闪，手动关机后2灯直亮运行灯闪D29、C52、C59、C60、C61模块失效，PC13~PC18失效KFR-32G/DL 1运行灯闪长鸣传感器电路异常2运行灯闪制热后运行灯闪CPU坏KFR-30GW/WDS 1整机工作异常（运行一会儿停机）运行一会儿停机D101失效（+5V对地短路）2整机不工作不启动R109开路（+24V、+12V、+5V正常）KFR-34GW/WCS 1遥控不开机不遥控C115参数失调2三灯闪且不开机三灯闪D107程序丢失3能遥控但不开机且手动不开机手动不开机S101失效KFR-32GW/A1 1不通电不通电D105失效〈+12V偏低，无+5V，D105发热〉2关机后压缩机不停压缩机一直转（D106第16脚一直处于低电平）D106失效"KFR-32G/DC2（适用于DC2、DC3系列）" 1不通电不通电变压器开路FS、DFS系列控制面板1不工作（不叫）不叫V101、V102、V103、D101失效2显示异常漏光D103失效，C105失效3不工作E1故障V101、V103、D101失效KFR-71L/WDAS、KFR-50L/WDCS、KFR-60L/DXS、DA 系列控制面板1不工作（不叫）不叫V201、V202、V203失效及D101失效2不通电不显示C101短路，G301、D101失效"KFR-75L/WD3SKFR-120L/WDS控制面板" 1按键全无作用按键失效K301开路或IC301失效，K301位置不正确2不工作（不叫）不叫Q303、Q306、IC301失效3不通电不通电IC301、IC302、X301、D311、C312失效KFR-71L/D控制面板1不工作（不叫）不叫Q302、Q303、Q304、Q305、IC301失效2无夜光无夜光Q307、RG301、R335、背光源、IC301失效"KFR-51L/D（KFR-48L基本相同）" 1不工作（不叫）不叫Q303、Q302、Q305、Q306、IC301失效2不通电不通电IC303、IC301、X301、IC302、C312、C318失效长虹：机型代码可能故障原因F1室内温度传感器异常F2室内盘管温度传感器异常F3室外环境温度传感器异常KFR-45LW/WDQ F4室外盘管温度传感器异常KFR-45LW/WBQ F5压缩机排气温度传感器异常KFR-50LW/WBQ P1压缩机排气温度传感器异常P2 CT电流异常P4 JPM故障保护P5四通阀切换异常E1室内主控板与控制面板之间通讯异常E2室内主控板与室外控制板之间通讯异常E1主控板与面板之间通讯错误E2主控板与室外板之间通讯错误F1高压开关保护F2室外风扇电机热保护器动作KF-75LW/WDS F3室内风扇电机热保护器动作KF-75W/W3S F4低压开关保护KFR-75LW/WDES F5逆相保护KFR-120LW/WDS F6缺相保护KF-120LW/WS H1压缩机过电流保护H2压缩机堵转保护H3检测不到压缩机电流P1制冷过载保护P2制热过载保护P3系统异常保护P4自动模式下室内温度传感器异常无显示制冷剂不足E1控制面板测到从室内机传来的异常息E2控制面板测到从室内机传来的异常息E3室内机测到从控制面板传来的异常息E4室内机测到从室外机传来的异常息E5室内机测到从室外机传来的异常息E6室外机测到从室内机传来的异常息E7室外机测到从室内机传来的异常息P1室内风扇电机热保护器动作P2室外风扇电机与压缩机热保护器动作KFR-120LW/M P3排气温度异常KFR-120LW/MAS P4高压开关动作KFR-71LW/M P5逆相保护(对KFR-71LW/M是主控板上开关位置设置错误)P6室内机与室外机的模式不兼?F1室内机热敏电阻断路或者受损F2室内机热敏电阻断路或者受损F4室外机热敏电阻断路或者受损F5室外机热敏电阻断路或者受损F6室外机热敏电阻断路或者受损F7室外机热敏电阻断路或者受损F8室外机热敏电阻断路或者受损H1压缩机电机过流H2压缩机电机堵转H3压缩机电流检测异常H6低压开关动作H7连接室内机和室外机线路或管道接错E1通讯异常48LW P1制冷过载60系列P2制热过载51系列P3系统异常保护P4自动模式下室内温度传感器异常KFR-7ILW/D E1通异常KFR-71LW/WD P1制冷过载KF-71LW P2制热过载P3系统异常保护P4自动模式室内温度传感器异常F1高压开关保护(序号线接错或断裂,控制板上光藕或R205损坏)F2室外风扇电机热保护(热保护器坏,控制板上光藕或R205损坏)F3室内风扇电机热保护(热保护器坏,控制板上光藕或R205损坏)KFR-50LWWDFB E1通异常KF-50LWWDF P1制冷过载KF-60LWWDF P2制热过载KF-71LWWDF F1高压开关保护KFR-51LWWDFB F2室外风扇电机热保护KFR-60LWWDFB F3室内风扇电机热保护F7温度传感器损坏或异常F8系统保护异常机型代码可能故障原因F1室内温度传感器异常F2室内盘管温度传感器异常F3室外环境温度传感器异常KFR-45LW/WDQ F4室外盘管温度传感器异常KFR-45LW/WBQ F5压缩机排气温度传感器异常KFR-50LW/WBQ P1压缩机排气温度传感器异常P2 CT电流异常P4 JPM故障保护P5四通阀切换异常E1室内主控板与控制面板之间通讯异常E2室内主控板与室外控制板之间通讯异常E1主控板与面板之间通讯错误E2主控板与室外板之间通讯错误F1高压开关保护F2室外风扇电机热保护器动作KF-75LW/WDS F3室内风扇电机热保护器动作KF-75W/W3S F4低压开关保护KFR-75LW/WDES F5逆相保护KFR-120LW/WDS F6缺相保护KF-120LW/WS H1压缩机过电流保护H2压缩机堵转保护H3检测不到压缩机电流P1制冷过载保护P2制热过载保护P3系统异常保护P4自动模式下室内温度传感器异常无显示制冷剂不足E1控制面板测到从室内机传来的异常息E2控制面板测到从室内机传来的异常息E3室内机测到从控制面板传来的异常息E4室内机测到从室外机传来的异常息E5室内机测到从室外机传来的异常息E6室外机测到从室内机传来的异常息E7室外机测到从室内机传来的异常息P1室内风扇电机热保护器动作P2室外风扇电机与压缩机热保护器动作KFR-120LW/M P3排气温度异常KFR-120LW/MAS P4高压开关动作KFR-71LW/M P5逆相保护(对KFR-71LW/M是主控板上开关位置设置错误)P6室内机与室外机的模式不兼?F1室内机热敏电阻断路或者受损F2室内机热敏电阻断路或者受损F4室外机热敏电阻断路或者受损F5室外机热敏电阻断路或者受损F6室外机热敏电阻断路或者受损F7室外机热敏电阻断路或者受损F8室外机热敏电阻断路或者受损H1压缩机电机过流H2压缩机电机堵转H3压缩机电流检测异常H6低压开关动作H7连接室内机和室外机线路或管道接错E1通讯异常48LW P1制冷过载60系列P2制热过载51系列P3系统异常保护P4自动模式下室内温度传感器异常KFR-7ILW/D E1通异常KFR-71LW/WD P1制冷过载KF-71LW P2制热过载P3系统异常保护P4自动模式室内温度传感器异常F1高压开关保护(序号线接错或断裂,控制板上光藕或R205损坏)F2室外风扇电机热保护(热保护器坏,控制板上光藕或R205损坏)F3室内风扇电机热保护(热保护器坏,控制板上光藕或R205损坏)KFR-50LWWDFB E1通异常KF-50LWWDF P1制冷过载KF-60LWWDF P2制热过载KF-71LWWDF F1高压开关保护KFR-51LWWDFB F2室外风扇电机热保护KFR-60LWWDFB F3室内风扇电机热保护F7温度传感器损坏或异常F8系统保护异常机型序号整机故障现象印制板故障现象故障位号"KFR-36GW/D（KFR-35GW/WDS与其基本相同）" 1不通电不通电D1-D4、D5、D6、D9短路，IC6短路，保险管开路2无风电机不转DC10变质3无风电机抖动，无+8.2V调节R284压缩机工作一会停机无压缩机CT电流CT1开路大清快EQ系列1不通电（通电指示灯不亮）不通电C1、C4、C19变质，T1、R4、R60开路，VDZ2、D3、VD4、VD6、VD3、VD2、VD16、VD17、VC1短路2无风遥控大电机不转VD1、VD15、D6、V3、R10失效3工作一会停机，指示灯闪工作一会电机停，指示灯闪V2变质4不工作不通电（无晶振电压）C10、C11变质"KFR-28GW/BP模块（KFR-28GW/BMF同）" 1室外压缩机不启动压机不动模块短路或参数失调及开路2外机不工作外机不通电E2失效，BT1、R2开路，Z1短路"KFR-28G/BP（KFR-28G/BMF同）室内主板" 1不停机通电室内电机就转C503、IC203失效2不通电不通电F504、RL401失效3室内机不工作电机不转DQ201失效KFR-28W/BMF 1室外机不工作不通电F101、F102、RT201开路，K505失效2室外压缩机不工作压缩机不启动D303、D301失效，R504、R509开路，D403、T202失效3外机不工作（无通讯）外机不动L102、C207、C205、D400、D402失效，D303失效KFR-28W/BP 1室外风扇不转风机不转C501变质，RL502、RL503、IC401失效2外机不通电不通电FUSE101、FUSE102、PTC501开路3室外压缩机不工作压缩机不动R504、R509、BT202、PC401失效4不工作（无通讯）无通讯PC400、PC402失效，R502开路5工作一会停机压缩机启动一会就停BT202、C207、C205失效KFR-60L/WDES 1不工作E1故障V104、V105变质或虚焊KFR-71L/WDS 1不通电不通电IC102、IC103失效，L102、D122开路2不工作不叫（E1故障）Q104、Q105变质3不工作（F1故障）F1故障高压开关坏，R205开路，D202、IC202失效4不工作（F2故障）F2故障外风机坏，R201开路，D201、IC201失效5不工作（F3故障）F3故障内风机坏，R209开路，D203、IC203失效"KFR-75L/WD3SKFR-120L/WD3S" 1不工作（E2故障）E2故障Q106、Q107、Q108、Q109、D115、D116、PC101失效2不工作（E1故障）E1故障Q103、Q104、D103失效3不工作（F3故障）F3故障R121、D107、PC102失效"KFR-75W/WD3SKFR-120W/WDS" 1外机不工作不通电ZNR201短路（引起烧保险）2不工作（F5故障）F5故障R240、R241开路，D222、D201、IC205、IC211失效3不工作（E2故障）E2故障Q203、Q205、Q204、D210、D226、Q211失效KFR-120L/MAS 1不工作外机动作，室内机不工作D41、D42开路2不工作（无内机通讯）E1故障Q7、Q8失效KFR-120W/MAS 1不工作（P5故障）P5故障R28、R31开路，D4、D5、PC5、PC6、Q7、Q8失效2不工作（E4故障）E4故障L1、Q10失效"KFR-71LW/MKFR-120LW/MAS（三洋）" 1不工作（P6故障，显示异常或无通）P6故障或无通讯或显示异常S1、S2、S3、S4、S5、S6等开关位置错误或氧化后接触不良KFR-50W/WBQ 1不工作（P4故障）P4故障VD311、VD310、VD309、VD312失效（其中一个或几个）2不通电不通电IC307、VD307短路，R321开路"KFR-51（71）L/DFS（FS系列相同）" 1不工作（不叫，传感无温度，不通电）不叫，无传感器温度，不通电D201失效2不工作（不叫）不叫V201短路3显示异常漏光VD201短路4不工作（E1故障）E1故障V202短路，D201失效"KFR-71L/WDAS（1、2条也适合于KFR-50L/WDCS）" 1不工作（传感器温度异常）传感器温度异常CN301失效2不通电不通电D101失效，L101开路，F101开路3不工作（F1故障）F1故障E301失效，R310开路4不工作（F2故障）F2故障E302失效，R311开路5不工作（F3故障）F3故障E303失效，R315开路，XS306处零线炸开KFR-28GW/BC3 1不制热（冷）且手动关机后运行灯闪无通讯D108、D109烧坏，VD501、D500、D501烧坏，R57开路，T01、D101模块失效KFR-25（28）（40）G/BQ 1不开机不通电R01、R02开路，IC01失效2不制热（冷）无通讯C501失效KFR-40（+25）W/BQ 1不制热（冷）且灯闪不通电Q200、DB01、IC101失效，F01开路2不制热（冷）且灯闪开机保护IC203、IC204、IC205、IC207、IC200、IC201失效3不制热（冷）且灯闪开机保护C302、C308、C312缺损/开路，Q302、Q303、Q304、Q305、Q306、Q307参数异常4制热（冷）效果不好电子膨胀阀切换异常IC11开路，IC14开路（副板）"KFR-36GW/BMFKFR-40GW/BM" 1运行灯闪且不开机运行灯闪E2PROM 插座氧化2运行灯闪，手动关机后1灯直亮运行灯闪PC10、PC11、IC14、T11失效，R42开路3运行灯闪，手动关机后2灯直亮运行灯闪D29、C52、C59、C60、C61模块失效，PC13~PC18失效KFR-32G/DL 1运行灯闪长鸣传感器电路异常2运行灯闪制热后运行灯闪CPU坏KFR-30GW/WDS 1整机工作异常（运行一会儿停机）运行一会儿停机D101失效（+5V对地短路）2整机不工作不启动R109开路（+24V、+12V、+5V正常）KFR-34GW/WCS 1遥控不开机不遥控C115参数失调2三灯闪且不开机三灯闪D107程序丢失3能遥控但不开机且手动不开机手动不开机S101失效KFR-32GW/A1 1不通电不通电D105失效〈+12V偏低，无+5V，D105发热〉2关机后压缩机不停压缩机一直转（D106第16脚一直处于低电平）D106失效"KFR-32G/DC2（适用于DC2、DC3系列）" 1不通电不通电变压器开路FS、DFS系列控制面板1不工作（不叫）不叫V101、V102、V103、D101失效2显示异常漏光D103失效，C105失效3不工作E1故障V101、V103、D101失效KFR-71L/WDAS、KFR-50L/WDCS、KFR-60L/DXS、DA 系列控制面板1不工作（不叫）不叫V201、V202、V203失效及D101失效2不通电不显示C101短路，G301、D101失效"KFR-75L/WD3SKFR-120L/WDS控制面板" 1按键全无作用按键失效K301开路或IC301失效，K301位置不正确2不工作（不叫）不叫Q303、Q306、IC301失效3不通电不通电IC301、IC302、X301、D311、C312失效KFR-71L/D控制面板1不工作（不叫）不叫Q302、Q303、Q304、Q305、IC301失效2无夜光无夜光Q307、RG301、R335、背光源、IC301失效"KFR-51L/D（KFR-48L基本相同）" 1不工作（不叫）不叫Q303、Q302、Q305、Q306、IC301失效2不通电不通电IC303、IC301、X301、IC302、C312、C318失效机型代码可能故障原因F1室内温度传感器异常F2室内盘管温度传感器异常F3室外环境温度传感器异常KFR-45LW/WDQ F4室外盘管温度传感器异常KFR-45LW/WBQ F5压缩机排气温度传感器异常KFR-50LW/WBQ P1压缩机排气温度传感器异常P2 CT电流异常P4 JPM故障保护P5四通阀切换异常E1室内主控板与控制面板之间通讯异常E2室内主控板与室外控制板之间通讯异常E1主控板与面板之间通讯错误E2主控板与室外板之间通讯错误F1高压开关保护F2室外风扇电机热保护器动作KF-75LW/WDS F3室内风扇电机热保护器动作KF-75W/W3S F4低压开关保护KFR-75LW/WDES F5逆相保护KFR-120LW/WDS F6缺相保护KF-120LW/WS H1压缩机过电流保护H2压缩机堵转保护H3检测不到压缩机电流P1制冷过载保护P2制热过载保护P3系统异常保护P4自动模式下室内温度传感器异常无显示制冷剂不足E1控制面板测到从室内机传来的异常息E2控制面板测到从室内机传来的异常息E3室内机测到从控制面板传来的异常息E4室内机测到从室外机传来的异常息E5室内机测到从室外机传来的异常息E6室外机测到从室内机传来的异常息E7室外机测到从室内机传来的异常息P1室内风扇电机热保护器动作P2室外风扇电机与压缩机热保护器动作KFR-120LW/M P3排气温度异常KFR-120LW/MAS P4高压开关动作KFR-71LW/M P5逆相保护(对KFR-71LW/M是主控板上开关位置设置错误)P6室内机与室外机的模式不兼?F1室内机热敏电阻断路或者受损F2室内机热敏电阻断路或者受损F4室外机热敏电阻断路或者受损F5室外机热敏电阻断路或者受损F6室外机热敏电阻断路或者受损F7室外机热敏电阻断路或者受损F8室外机热敏电阻断路或者受损H1压缩机电机过流H2压缩机电机堵转H3压缩机电流检测异常H6低压开关动作H7连接室内机和室外机线路或管道接错E1通讯异常48LW P1制冷过载60系列P2制热过载51系列P3系统异常保护P4自动模式下室内温度传感器异常KFR-7ILW/D E1通异常KFR-71LW/WD P1制冷过载KF-71LW P2制热过载P3系统异常保护P4自动模式室内温度传感器异常F1高压开关保护(序号线接错或断裂,控制板上光藕或R205损坏)F2室外风扇电机热保护(热保护器坏,控制板上光藕或R205损坏)F3室内风扇电机热保护(热保护器坏,控制板上光藕或R205损坏)KFR-50LWWDFB E1通异常KF-50LWWDF P1制冷过载KF-60LWWDF P2制热过载KF-71LWWDF F1高压开关保护KFR-51LWWDFB F2室外风扇电机热保护KFR-60LWWDFB F3室内风扇电机热保护F7温度传感器损坏或异常F8系统保护异常机型序号整机故障现象印制板故障现象故障位号"KFR-36GW/D（KFR-35GW/WDS与其基本相同）" 1不通电不通电D1-D4、D5、D6、D9短路，IC6短路，保险管开路2无风电机不转DC10变质3无风电机抖动，无+8.2V调节R284压缩机工作一会停机无压缩机CT电流CT1开路大清快EQ系列1不通电（通电指示灯不亮）不通电C1、C4、C19变质，T1、R4、R60开路，VDZ2、D3、VD4、VD6、VD3、VD2、VD16、VD17、VC1短路2无风遥控大电机不转VD1、VD15、D6、V3、R10失效3工作一会停机，指示灯闪工作一会电机停，指示灯闪V2变质4不工作不通电（无晶振电压）C10、C11变质"KFR-28GW/BP模块（KFR-28GW/BMF同）" 1室外压缩机不启动压机不动模块短路或参数失调及开路2外机不工作外机不通电E2失效，BT1、R2开路，Z1短路"KFR-28G/BP（KFR-28G/BMF同）室内主板" 1不停机通电室内电机就转C503、IC203失效2不通电不通电F504、RL401失效3室内机不工作电机不转DQ201失效KFR-28W/BMF 1室外机不工作不通电F101、F102、RT201开路，K505失效2室外压缩机不工作压缩机不启动D303、D301失效，R504、R509开路，D403、T202失效3外机不工作（无通讯）外机不动L102、C207、C205、D400、D402失效，D303失效KFR-28W/BP 1室外风扇不转风机不转C501变质，RL502、RL503、IC401失效2外机不通电不通电FUSE101、FUSE102、PTC501开路3室外压缩机不工作压缩机不动R504、R509、BT202、PC401失效4不工作（无通讯）无通讯PC400、PC402失效，R502开路5工作一会停机压缩机启动一会就停BT202、C207、C205失效KFR-60L/WDES 1不工作E1故障V104、V105变质或虚焊KFR-71L/WDS 1不通电不通电IC102、IC103失效，L102、D122开路2不工作不叫（E1故障）Q104、Q105变质3不工作（F1故障）F1故障高压开关坏，R205开路，D202、IC202失效4不工作（F2故障）F2故障外风机坏，R201开路，D201、IC201失效5不工作（F3故障）F3故障内风机坏，R209开路，D203、IC203失效"KFR-75L/WD3SKFR-120L/WD3S" 1不工作（E2故障）E2故障Q106、Q107、Q108、Q109、D115、D116、PC101失效2不工作（E1故障）E1故障Q103、Q104、D103失效3不工作（F3故障）F3故障R121、D107、PC102失效"KFR-75W/WD3SKFR-120W/WDS" 1外机不工作不通电ZNR201短路（引起烧保险）2不工作（F5故障）F5故障R240、R241开路，D222、D201、IC205、IC211失效3不工作（E2故障）E2故障Q203、Q205、Q204、D210、D226、Q211失效KFR-120L/MAS 1不工作外机动作，室内机不工作D41、D42开路2不工作（无内机通讯）E1故障Q7、Q8失效KFR-120W/MAS 1不工作（P5故障）P5故障R28、R31开路，D4、D5、PC5、PC6、Q7、Q8失效2不工作（E4故障）E4故障L1、Q10失效"KFR-71LW/MKFR-120LW/MAS（三洋）" 1不工作（P6故障，显示异常或无通）P6故障或无通讯或显示异常S1、S2、S3、S4、S5、S6等开关位置错误或氧化后接触不良KFR-50W/WBQ 1不工作（P4故障）P4故障VD311、VD310、VD309、VD312失效（其中一个或几个）2不通电不通电IC307、VD307短路，R321开路"KFR-51（71）L/DFS（FS系列相同）" 1不工作（不叫，传感无温度，不通电）不叫，无传感器温度，不通电D201失效。
连接器库存表
8970 1903 1837
2000 3048 3000 1469
FSL-3810060LW-A6SN2022CJY
10061122-171110ELF HM2P07PNF284GFLF HM2P09PDE121N9LF 10052286-12307LF HM2P80PMA3W1GF HM2P80PMA3W1GFLF 51703-10400000CCLF HM2P70PDN281N9 HM2P80PDS2T1N9 HM2P80PDS2T1N9 51742-10403200CCLF 51940-151 51940-379LF 51740-10703206CALF HM2R21PA5108N9 HM2R70PA5108N9LF HM2P70PME129GFLF
BYD CAPELLA CITIZEN COILCRAFT
CompuPack COTEX COXOC CREE CREE CREE CSR CVILUX
1819 329 13045 5020
750 2000 18800 4000 1800 133 9680 3000
CY8C2143424LTXI
CY8CTMA340-48LQI-09 13-1220154CP FF18N-4A-R11A-3H 17JE-23090-38(D114AC)-FA DT-126VP-03P WKA500-10P MTA2-WNC-Q-TR DTSM-24S DTSMW-66N-V-T/R
MJTP1236G
ALPS ALPS
APEM
7461 1
2870
54-0490-6-R
TGK8L2410
ቤተ መጻሕፍቲ ባይዱ
Astron
光端机告警
电源指示（POWER）：当系统电源开关打开后，此绿灯亮本端告警指示（LOA）：在本端出现任何一种告警时此红灯亮对端告警指示（RMA）：在对端有任何一种告警时此黄灯亮收无光告警指示（NOP）：在光探测器上无光信号输入时此红灯亮失步告警指示（LOF）：在发生帧失步时此红灯亮误码告警指示（1E-3）：在系统有10-3误码时此红灯亮误码告警指示（1E-6）：在系统有10-6误码时此黄灯亮1-4支路E1信号消失告警指示(E1 SIGNAL LOSS1-4)：在14支路任一E1信号消失时相应的红灯亮告警音屏蔽按键(ALM/MUT)：在此自锁按键被按下后，有告警指示时将不发出告警音。
在此按键放开时有告警灯指示告警的同时会发出告警音。
本对端告警指示转换按键(LOCAL/RMT)：在此自锁按键未被按下时，告警指示灯指示的为本端告警状态。
在此按键被按下后, 告警指示灯指示的为对端告警状态。
电源指示、本对端告警指示及告警音，不受此按键影响E1信号消失告警屏蔽按键（RLS/MASK）：在此自锁按键被按下时，已发生的支路消失告警状态将被屏蔽，无信号消失告警的工作支路不受影响，此后工作支路再发生信号消失时仍会发出告警指示。
在此按键被释放后，所有E1支路的告警状态都不被屏蔽问题1：光端机上显示对端光失步告警，这种情况会是什么原因引起的光衰耗的可能性比较大，一般有：板件、尾纤，衰减器、光缆老化，都有可能造成光衰耗一般是由误码或接收光功率电平（过高或过低）所引起的。
最大的可能是光缆线路衰耗大影响的分光器某一个输出口的光功率，和输入口总光功率之比，叫做“分光比”。
比如说，光发射机输给某分光器的光功率是10mW（或者说，这个分光器各输出口的光功率总和是10mW），分光器某一个输出口的光功率是2mW，那么这路分光比K就是：（某路）分光比K=某单路出口光功率/各路光功率的总和或者：分光比K=分光器某路的输出光功率/光发射机送入分光器的总光功率显然，上面这路的分光比K =2/10=0.2光路的损耗L，是（输入光功率/输出光功率）的分贝数，即：L=10lg（输入光功率/输出光功率） (单位：dB)显然，上面这路的分光损耗L=10lg(10/2)=6.99 dB如果把上面算式括号中被除数和除数调换一下位置，根据对数的性质，只要在10lg 前加一个负号就行了，就是：L= -10lg（输出光功率/输入光功率）由于“（输出光功率/输入光功率）=分光比K”，将它代入前面的算式，可以得到分光损耗的新算式：L= -10lg K这是最常用的算式，将前面的分光比0.2代入算式：L= -10 lg 0.2 =6.99 dB计算的结果和前一种算法相同。
通信设备板卡指示灯说明
发电厂通信设备巡视手册(第一版)目录目录I一、载波机11.1 西门子 POWERLINK11.2 许继ESB 90081.3 许继ESB 900E141.4 宏图高科ZDD-2000DⅡ错误!未定义书签。
二、通信电源错误!未定义书签。
2.1 艾默生PS48300/1800182.2 台山TKD4850错误!未定义书签。
2.3 中凌高科ZBD48300/30T错误!未定义书签。
2.4 中凌高科ZBD48400/50错误!未定义书签。
2.5 施威特克SWICHTEC错误!未定义书签。
2.6 泰坦TITANPOWER错误!未定义书签。
2.7 ##金电错误!未定义书签。
2.8 ##瓦特错误!未定义书签。
三、PCM 接入设备233.1 华为FA16错误!未定义书签。
3.2 SAGEM FMX12233.3 泰科363033四、光传输设备364.1 华为METRO1000错误!未定义书签。
4.2 华为METRO3000364.3 华为METRO5000错误!未定义书签。
4.4 华为OSN3500错误!未定义书签。
4.5 ECI XDM-1000错误!未定义书签。
4.6 泰科6345错误!未定义书签。
4.7 泰科6325错误!未定义书签。
4.8 泰科6320错误!未定义书签。
4.9 烽火FONSWEAVER780B错误!未定义书签。
4.10 ECI XDM-10040五、交换机错误!未定义书签。
5.1 网络交换机错误!未定义书签。
5.2 调度交换机CORAL FLEXI 5000错误!未定义书签。
一、载波机1.1西门子 powerlink1.1.1 设备外观1.1.2 设备功能与作用西门子 powerlink载波机主要由中心信号处理器模块(CSP)、保护信号处理模块(PU3)、电源模块(PSPLE-DC)、功放模块(PA40)等组成。
具有采直接数字合成(DDS)的一步频率转换方式、带宽使用灵活、业务分配自由、自动串音消除等特点。
LED 各个厂家对比型号
序类别颜色尺寸品牌品名1 0603按键灯白1.6*0.8* 0.4亿光GT-1972 0603按键灯蓝1.6*0.8* 0.4亿光19-217/BHC-AN1P2/3T3 0603按键灯蓝1.6*0.8* 0.4亿光19-217/BHC-ZL1M2RY/3T4 0603按键灯红1.6*0.8* 0.4亿光19-217/R6C-AL1M2VY/3T5 0603按键灯黄绿1.6*0.8* 0.4亿光19-217/G7C-AL1M2VY/3T6 0603按键灯黄1.6*0.8* 0.4亿光19-217/Y5C-AP1Q2/3T7 0603按键灯橙1.6*0.8* 0.4亿光19-217/S2C-AM2N2VY/3T8 0603按键灯白1.6*0.8*0.3亿光19-218UWD/S327/TR89 0603按键灯蓝1.6*0.8*0.3亿光19-218BHC/ZL1M2QY/TR810 0603侧灯白1.7*1.1*0.6亿光27-21/W1D-ANPHY/3C11 0603侧灯红1.7*1.1*0.6亿光27-21/R6C-AM2N2LY/3C12 0603侧灯红1.7*1.1*0.6亿光27-21/R6C-AN2Q1B-3D13 0603侧灯黄1.7*1.1*0.6亿光27-21/Y2C-CPQB/3C14 0603侧灯绿1.7*1.1*0.6亿光27-21/G6C-AL2N1B/3C15 0603侧灯蓝1.7*1.1*0.6亿光27-21/BHC-AN1P2/3C16 0603侧灯黄绿1.7*1.1*0.6亿光27-21SYGC/S530-E3/TR817 0603侧灯橙红1.7*1.1*0.6亿光27-21/S2C-FP1Q1L/3C18 0802侧灯白2.1*1.0*0.6亿光12-215/W1D-ANPHY/3C19 0802侧灯蓝2.1*1.0*0.6亿光12-215/BHC-2LMRY/3C20 0802侧灯橙2.1*1.0*0.6亿光12-215UYOC/S530-A2/TR821 0802侧灯黄2.1*1.0*0.6亿光12-215UYC-S530-A3-TR822 0802侧灯绿2.1*1.0*0.6亿光12-215/G6C-BP1Q2L/3C23 0802侧灯红2.1*1.0*0.6亿光12-215/SURC-S530-A2/TR824 0802侧灯黄绿2.1*1.0*0.6亿光12-215/SYGC-S530-E2/TR825 0802侧灯橙黄2.1*1.0*0.6亿光12-215UYOC/S530-XX/TR826 0402正灯红1.0*0.5*0.45亿光16-213SURC/S530-A5/TR27 0402正灯蓝1.0*0.5*0.45亿光16-213/BHC-AN1P2/3T28 0402正灯黄绿1.0*0.5*0.45亿光16-213/YGC/S530-E5/TR829 0402正灯翠绿1.0*0.5*0.45亿光16-213/GHC-YR1S1/3T30正发七彩七彩灯1.6*1.6*0.35亿光19-237-R6GHBHC-A01-2T31正发七彩七彩灯1.6*1.6*0.35亿光19-337-R6GHBHC-A01-2T32侧发七彩七彩灯3.0*1.0*1.5亿光12-23C-R6GHBHC-A01-2C33侧白灯白3.5*3.5*0.8亿光47-23UWD/TR834侧白灯白1.8*1.1*0.3亿光48-213/T7D-AQ1R2QY/3C35 3020正白灯侧白灯3.0*2.0*1.3亿光45-11UTC-XXX-TR836 020侧白灯白3.8*1.2*0.6亿光99-216UFC/XXXXXXX/TRB37 335侧白灯白4.0*1.4*0.8亿光99-215/B5-3/T-238 3528闪光灯白3.5*2.8*1.9亿光67-11-W1C-GP2R1B2Z-2T(1芯2脚)39 3228闪光灯白3.2*3.2*0.8亿光67-235-UTC-S734-TR840 3528闪光灯白3.5*2.8*1.8亿光67-23UWC-S400-X9-S612-1-TR8(3芯4脚)41 5050闪光灯白5.0*5.0*1.5亿光59-14UWD-TR8手机用大功率白2.0*1.6*0.9亿光EHP-C04/UT01-P011 0603按键灯白色1.6*0.8*0.4诠兴SP0603B-WW2 0603按键灯暖白1.6*0.8*0.4诠兴SP0603B-WH3 0603按键灯蓝1.6*0.8*0.4诠兴SP0603B-BN4 0603按键灯蓝1.6*0.8*0.4诠兴SP0603B-BH5 0603按键灯橘1.6*0.8*0.4诠兴SP0603B-ON6 0603按键灯黄绿1.6*0.8*0.4诠兴SP0603B-YG7 0603按键灯绿1.6*0.8*0.4诠兴SP0603B-GN8 0603按键灯黄1.6*0.8*0.4诠兴SP0603B-YN9 0603按键灯红1.6*0.8*0.4诠兴SP0603B-RN10正发七彩灯七彩灯3.2*2.8*1.9诠兴SL1411C-3C11侧发七彩灯七彩灯1.6*1.25*0.4诠兴SP372SA-3C12 1204 7彩燈3.2*1.0*1.5诠兴SP1204A-3C13正发白3.2*1.0*1.5诠兴SP1204B-WW14 3528闪光灯白3.5*2.8*1.9诠兴SL1411A-WW(1芯2脚)15 3528闪光灯白3.2*2.8*1.9诠兴SL1411C-WW(3芯4脚)16 3020正灯正向發光LED白3.0*2.0*1.0诠兴SL455SA-WW17 002侧发光側面發光LED白灯3.8*1.2*0.6诠兴SL002SA-WW18 008侧发光側面發光LED白灯4.0*1.4*0.8诠兴SL008SA-WW19 5050七彩灯5.5*5.0*1.6诠兴SL5050A-3C20 5050闪光灯白5.5*5.0*1.6诠兴SL5050A-WW21 5050闪光灯暖白5.5*5.0*1.6诠兴SL5050A-WR1按键灯蓝1.6*0.8* 0.4佰鸿BL-HB336G-TRB2按键灯白1.6*0.8* 0.4佰鸿BL-HZ336G-L8-TRB3按键灯红1.6*0.8* 0.4佰鸿BL-HUB36G-AV-TRB4按键灯橘红1.6*0.8* 0.4佰鸿BL-HJE36G-AV-TRB5按键灯黄/琥珀1.6*0.8* 0.4佰鸿BL-HKC36G-AV-TRB6按键灯黄绿1.6*0.8* 0.4佰鸿BL-HGE36G-AV-TRB7按键灯翠绿1.6*0.8* 0.4佰鸿BL-HG836G-AV-TRB8按键灯翠绿1.6*0.8* 0.6佰鸿BL-HGK36A-AV-TRB9 0802侧灯蓝2.1*1.0*0.6佰鸿BL-HB334E-TRB10 0802侧灯黄2.1*1.0*0.6佰鸿BL-HKC34E-AV-TRB11 0802侧灯橙2.1*1.0*0.6佰鸿BL-HJE34E--AV-TRB12 0802侧灯白2.1*1.0*0.6佰鸿BL-HZ334E-L11-TRB13 0802侧灯红2.1*1.0*0.6佰鸿BL-HUB34E-AV-TRB14侧发七彩灯七彩3.0*1.0*1.5佰鸿"BL-HJEGKB534S-TRBBL-HJEG8B534S-TRB "15正发七彩灯七彩1.8*1.8*0.35佰鸿BL-HJEGKBE36T-TRB16 3020闪光灯白3.0*2.0*1.3佰鸿BL-HZD-32Y-TRB17 335闪光灯白4.0*1.4*0.8佰鸿BZ-HZD39B-LWB-TRB18 020闪光灯白1.2*1.9*0.6佰鸿BZ-HZD39D-LWB-TRB19 3528闪光灯白3.5*2.8*1.9佰鸿BZ-HZD32X-LWB-TRB(1芯2脚)20 5050闪光灯白5.0*5.0*1.5佰鸿BL-HZD39F-TRB(8脚)21 5050闪光灯白5.0*5.0*1.5佰鸿BZ-H3ZD32L-A-LWB-TRB(6脚)1 0603按键灯1.6*0.8* 0.4AOT AOT-0603P-W310H2 0603按键灯蓝灯1.6*0.8* 0.4AOT AOT-0603BL31A-NO-N-33 0603按键灯琥珀/橙灯）1.6*0.8* 0.4AOT AOT-0603AM31A-NO-N-34 0603按键灯蓝灯1.6*0.8* 0.4AOT AOT-0603BS31A-NO-N-35 0603按键灯翠绿1.6*0.8* 0.4AOT AOT-0603GS31A-ZO-N-36 604按键灯翠绿1.6*0.8* 0.4AOT A0T-0603P-G01-Z-H07 0603按键灯红灯1.6*0.8* 0.4AOT AOT-0603RE31A-NO-N-38 0603按键灯黄灯1.6*0.8* 0.4AOT AOT-0603YL31A-NO-N-39 0603按键灯黄绿灯1.6*0.8* 0.4AOT AOT-0603YG31A-NO-N-310 0603按键灯白灯1.6*0.8* 0.4AOT AOT-0603W331A-NO-X-311 0603按键灯紫灯1.6*0.8* 0.4AOT AOT-0603VTD1A-N00-X-312 0603按键灯粉红色1.6*0.8* 0.4AOT AOT-0603PKD1A-N00-X-313 1615正发七彩灯七彩灯1.6*1.5*0.5 AOT AOT-1615-3D-RGB01-Z14 1204侧发七彩灯七彩灯3.2*1.0*1.5 AOT AOT-1204-3D-RGB03-H15 1204侧发七彩灯七彩灯3.0*1.0*1.5 AOT AOT-1204RGB73A-N1-N-3-M 16七彩灯1.6*1.5*0.5 AOT AOT-1615RGB43A-Z0-N-317 3228七彩灯七彩灯3.2*2.8*1.9 AOT AOT-3228RGB43C-Z018 3528闪光灯白3.5*2.8*1.85 AOT AOT-3228-HPW-0303B-H(3芯4脚)19 3228闪光灯白3.2*2.8*1.2 AOT AOT-3228MINI-0452BZ-H(超薄)20 3228紫灯紫外3.2*2.8*1.85 AOT AOT-3228UV21B-Z021 3020闪光灯侧发LED 3.0*2.0*1.3 AOT AOT-3020PW21B-ZO-L-122 3020闪光灯侧发LED 3.0*2.0*1.3 AOT AOT-3020BLW-0201-Z-2-Y23 3806侧白灯侧发LED 3.8*0.6*1.2 AOT AOT-3806PW21B-Z10-X-324 5050闪光灯白5.0*5.0*1.5 AOT AOT-5050HPW-0203BR-Z-H(6脚) 25背光LED 3.8*1.0*0.42 AOT AOT-AEKWU26 3.3*3.3*1.5 AOT AOT-3333HPW-0203BR-H1 0603按键灯白1.6*0.8* 0.4光宝LTW-C193TS5-5A2 0603按键灯蓝1.6*0.8* 0.4光宝LTST-C193TBKT－5A3 0603按键灯黄绿1.6*0.8* 0.4光宝LTST-C193KGKT-5A-3544 0603按键灯红1.6*0.8* 0.4光宝LTST-C193KRKT-5A-3545 0603按键灯翠绿1.6*0.8* 0.4光宝LTST-C193JGKT-5A-3546侧发七彩灯七彩3.0*1.0*2.0光宝LTST-S32F1KT-5A7正发七彩灯七彩2.1*1.6*0.4光宝LTST-C19GD2WT-G1 3.8*1.2*0.6宏齐HT-V106SW-AA12蓝色1.6x1.0x0.6宏齐HT-121BP3七彩3.2x1.5x1.0宏齐HT-311FCH4白色3.5*2.7*1.8宏齐HT-T368BPF5白色3.5*2.7*1.8宏齐HT-U169TW6白色3.2*2.7*0.8宏齐HT-V253BPK7白色1.6x1.5x0.55宏齐HT-261USD/UYG。
新港昆腾系列PLC各模块指示灯
红色
检测到错误，下载失败或正在复位。
Coll（冲突）
红色
如果常亮，则未连接电缆。如果闪烁，则说明发生以太网冲突。
Appl（应用）
琥珀色
存在崩溃日志条目时亮起。
绿色
闪烁指示正在进行以太网传输。
绿色
闪烁指示正在进行以太网接收。
10MB
绿色
模块连接到10MB网络时亮起。
绿色
模块连接到100MB网络时亮起。
绿色
以太网在全双工模式下运行时亮起。
绿色
存在总线通讯。
F
红色
检测到故障（模块外部）。
R
模块已通过加电诊断。
绿色
所指示的点或通道已接通。
1 - 8
红色
所指示的点或通道有故障。
（这包括断线和短路情况。）
离散量输入模块140-DAI-75300
开关泵，阀等信号输入
离散量输出模块140-DRA-84000
开关泵，阀等信号输出
模拟量输入模块140-ACI-03000
4-20Ma信号输入转换数字量
模拟量混合电流输出模块140-ACO-13000
数字量转换4-20Ma信号输出
模拟量RTD输入模块140-ARI-03010
温度传感数据
新港昆腾系列PLC各模块指示灯
140CRP 932 00远程I/O (RIO)主站模块（双通道）
140CRA 932 00远程 I/O (RIO)子站模块（双通道）
绿色
模块已通过加电诊断。
绿色
该模块正在 RIO 网络上进行通讯（有关 LED 错误代码，请参见下表）。
Fault（故障）
红色
无法与一个或多个 I/O 模块通讯。
0603贴片灯珠规格书,0603红灯,蓝灯,黄绿,绿规格书
Package Dimensions
Hale Waihona Puke Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is .1(0.004") unless otherwise noted. 3.Specifications are subject to change without notice.
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
SPEC NO: CJ568 APPROVED: Jun. Lu
REV NO: V.1 CHECKED:GEN.ZHANG
DATE: MAR/20/2006 DRAWN: Y.X.Y
PAGE: 1 OF 4
Hyper Red
300 250 200 150
Temoerature
S S
230°C Max 230°C
C Max
C/S Max C/S Max
100 50 25 0
C/S Max
0
50
100
Time
150
200
250
300
NOTES: 1. We recommend the reflow temperature 245°c(±5) The maximum soldering temperature shold be limited to 260°c 2. Don't cause stess too the epoxy resin while it is exposed to high temperature. 3. Numbe of reflow process shall be 2 time or less.
贴片LED-0603红光LED灯珠规格书
High Super Red Len's Color Water Clear
AlGaInP
--
--
Compatible with automatic placement equipment Compatible with reflow solder process Low power consumption and wide viewing angle This product doesn’t contain restriction Substance, comply ROHS standard.
(2)Criteria of judging the damage
Item
Forward voltage Reverse current
Luminous intensity
Symbol
VF IR IV
Test condition
IF=Test Current VR=5V
IF=Test Current
IR
--
--
10
uA
Dominant Wavelength
λd
620
--
635 nm
Spectral Line Half Width Δλ
--
20
--
nm
Viewing Angle
2θ1/2
--
120
-- Deg.
Mw mA
mA V ℃
亿光红外线接收头IRM-H638T-TR2
Technical Data SheetInfrared Remote-control Receiver ModuleIRM-H6XXT/TR2 Features‧High shielding against electric field disturbance.‧Circular lens to improve the receive characteristic.‧Line-up for various center carrier frequencies.‧Low voltage and low power consumption.‧High immunity against ambient light.‧Photodiode with integrated circuit.‧TTL and CMOS compatibility.‧Top-received SMD.‧Suitable burst length ≧10 pulses/burst.‧This product itself will remain within RoHS compliant version.‧Pb free.‧External dimensions 5(L)*7(W)*4(H)mm.DescriptionsThe device is a miniature SMD type infrared remotecontrol system receiver that has been developed anddesigned by utilizing the most updated IC technology. ThePIN diode and preamplifier are assembled on lead frame,the epoxy package is designed as an IR filter. Thedemodulated output signal can directly be decoded by amicroprocessor.Applications1. Light detecting portion of remote control․AV instruments such as Audio, TV, VCR, CD, MD, etc.․Home appliances such as Air-conditioner, Fan , etc.․The other equipments with wireless remote control.․CATV set top boxes․Multi-media EquipmentDevice Selection GuidePART MATERIAL COLORChip Silicon ---Package Epoxy BlackIRM-H6XXT/TR2 Absolute Maximum Ratings (Ta=25℃)Parameter Symbol Rating Unit NoticeSupply Voltage Vcc 0~6 V Operating Temperature Topr -25 ~ +85 ℃Storage Temperature Tstg -40 ~ +85 ℃Recommended Operating ConditionSupply Voltage Rating: Vcc 2.7V to 5.5VElectro-Optical Characteristics (Ta=25℃, and Vcc=3.0V)Parameter SymbolMIN.TYP.MAX.UnitCondition Supply Current Icc --- --- 1.2 mA No signal input Peak Wavelength λp--- 940 --- nmL08 --- ---Reception DistanceL45 5 --- ---mHalf Angle(Horizontal) Θh--- 45 --- deg At the ray axis*1Half Angle(Vertical) Θv--- 45 --- degHigh Level Pulse Width T H400 --- 800 μs Low Level Pulse Width T L400 --- 800 μs At the ray axis*2High Level Output Voltage V H 2.7 --- --- V Low Level Output Voltage V L--- 0.2 0.5 V Notes:*1：The ray receiving surface at a vertex and relation to the ray axis in the range of θ= 0° and θ=45°.*2：A range from 30cm to the arrival distance. Average value of 50 pulses.IRM-H6XXT/TR2 The Notice of Application:Transmission remote control signal consist of four parts: Encode Part, IR Transmitter Source, IRM device, Decode Part1. When IRM-H6XXT code select frequency, it need to well understand the center system ofencode part.2. Strong or weak light of IR Transmitter can affect distance of transmission.3. Minimum Burst Length T burst (number of pulses per burst) : 10 cycles4. It needs to ensure the translation range of decode part if it is applied to the pulse-width range. If the above items hardly assure of its application, it’ll cause NG(no good) message from the edge of signal.Note: This model might not work well with RCA code.Test Method：The specified electro-optical characteristics is satisfied under the followingConditions at the controllable distance.c Measurement placeA place that is nothing of extreme light reflected in the room.d External lightProject the light of ordinary white fluorescent lamps which are not highFrequency lamps and must be less then 10 Lux at the module surface.(Ee≦10Lux)e Standard transmitterIRM-H6XXT/TR2Application Circuit：RC Filter should be connected closely between Vcc pin and GND pin.IRM-H6XXT/TR2Fig.-8 Fig.-9 Relative Transmission Distance vs.Fig.-9 Arrival Distance vs. Ambient TemperatureCenter Carrier FrequencyReliability Test Item And ConditionThe reliability of products shall be satisfied with items listed below.Confidence level：90%LTPD：10%Reflow Terms: JEDEC Level 4 SpecificationDrying; Temp.:125℃ 24hrs Æ Moisture 30℃/ 60% RH 96hrs Æ Reflow Temp.: 260℃±5℃10sec, 3 timesNote:1. Not sooner than 15 minutes and not longer than 4 hours after removal from thetemperature/humidity chamber.2. The time between reflow shall be 5 minutes minimum and 60 minutes maximum.Recommended method of storageDry box storage is recommended as soon as the aluminum bag has been opened prevent moisture absorption. The following conditions should be observed, if dry boxes are not available:z Storage temperature 10℃ to 30℃z Storage humidity ≦60%RH max.After more than 72 hours under these conditions moisture content will be too high for Reflow soldering:In case of moisture absorption, the devices will recover to former condition by drying under the following condition:192 hours at 40℃+5℃/-0℃and 5%RH (dry air / nitrogen) or96 hours at 60℃+5℃and < 5%RH for all device containers or24 hours at 125℃+5℃not suitable for reel or tubes.ESD PrecautionProper storage and handing procedures should be followed to prevent ESD damage tothe devices especially when they are removed from the Anti-static bag. Electro-Static Sensitive Devices warning labels are on the packing.Recommended Solder Profile(1) Reflow soldering should not be done more than two times.(2) When soldering, do not put stress on the IRM-H6XXT/TR2 Series devices during heating.(3) After soldering, do not warp the circuit board.Soldering IronEach terminal is to go to the tip of soldering iron temperature less than 350℃ for 3 seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder.RepairingRepair should not be done after the Devices have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmedBar Code Label亿光一级代理商超毅电子EVERLIGHT ELECTRONICS CO.,LTD.IRM-H6XXT/TR2Label Form SpecificationCPN: Customer’s Production Number P/N : Production Number QTY: Packing Quantity CAT: None HUE: None REF: Reference LOT No: Lot Number MADE IN CHINA: Production PlacePbRoHSIRM-H6XXT/TR2Notes1. Above specification may be changed without notice. EVERLIGHT will reserve authority on material change for above specification. 2. When using this product, please observe the absolute maximum ratings and the instructions for using outlined in these specification sheets. EVERLIGHT assumes no responsibility for any damage resulting from use of the product which does not comply with the absolute maximum ratings and the instructions included in these specification sheets. 3. These specification sheets include materials protected under copyright of EVERLIGHT corporation. Please don’t reproduce or cause anyone to reproduce them without EVERLIGHT’s consent.EVERLIGHT ELECTRONICS CO., LTD. Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Tucheng, Taipei 236, Taiwan, R.O.CTel: 886-2-2267-2000, 2267-9936 Fax: 886-2267-6244, 2267-6189, 2267-6306 http:\\Everlight Electronics Co., Ltd. Device No：DMO-0000008http:\\ Prepared date：09 -26-2007Rev1Page: 11 of9Prepared by：IBU_NPID2。
亿光LED网规格书 19-217-R6C-P1Q2-3T_datasheet
Technical Data Sheet0603 Package Chip LED (0.4mm Height)19-217/R6C-P1Q2/3T Features․Package in 8mm tape on 7〞diameter reel.․Compatible with automatic placement equipment.․Compatible with infrared and vapor phase reflowsolder process.․Mono-color type.․Pb-free.․The product itself will remain within RoHS complaint Version.Descriptions․The 19-217 SMD LED is much smaller than leadframe type components, thus enable smallerboard size, higher packing density, reducedstorage space and finally smaller equipment to beobtained.․Besides, lightweight makes them ideal forminiature applications. etc.Applications․Backlighting in dashboard and switch.․Telecommunication: indicator and backlighting intelephone and fax.․Flat backlight for LCD, switch and symbol.․General use.Device Selection Guide19-217/R6C-P1Q2/3T Package Outline DimensionsNote: The tolerances unless mentioned is ±0.1mm ,Unit = mm19-217/R6C-P1Q2/3TNotes: Tolerance of Luminous Intensity ±11%19-217/R6C-P1Q2/3T Bin Range Of Luminous IntensityNotes: Tolerance of Luminous Intensity ±11%.19-217/R6C-P1Q2/3T Typical Electro-Optical Characteristics Curves19-217/R6C-P1Q2/3T Label explanation Array CAT:Luminous Intensity RankHUE: Dom. Wavelength RankREF:Forward Voltage RankReel DimensionsNote: The tolerances unless mentioned is ±0.1mm ,Unit = mm19-217/R6C-P1Q2/3T Carrier Tape Dimensions: Loaded quantity 3000 PCS per reelNote: The tolerances unless mentioned is ±0.1mm ,Unit = mm19-217/R6C-P1Q2/3T Reliability Test Items And ConditionsThe reliability of products shall be satisfied with items listed below.Confidence level：90%LTPD：10%19-217/R6C-P1Q2/3T Precautions For Use1. Over-current-proofCustomer must apply resistors for protection , otherwise slight voltage shift will cause bigcurrent change ( Burn out will happen ).2. Storage2.1 Do not open moisture proof bag before the products are ready to use.2.2 Before opening the package: The LEDs should be kept at 30℃or less and 90%RH or less.2.3 After opening the package: The LED's floor life is 1 year under 30℃or less and 60% RH or less.If unused LEDs remain, it should be stored in moisture proof packages.2.4 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded thestorage time, baking treatment should be performed using the following conditions.Baking treatment : 60±5℃for 24 hours.3. Soldering Condition3.1 Pb-free solder temperature profile3.2 Reflow soldering should not be done more than two times.3.3 When soldering, do not put stress on the LEDs during heating.3.4 After soldering, do not warp the circuit board.19-217/R6C-P1Q2/3T 4.Soldering IronEach terminal is to go to the tip of soldering iron temperature less than 350℃for 3 seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder.5.RepairingRepair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing.。
0603红光(JCH-0603-R)0603红灯0603贴片红灯0603贴片红光
ESD 静电防护 LED（特别是 InGaN 结构的蓝色、翠绿色、紫色、白色、粉红色 LED）是静电敏感元件, 静电或者 电流过载会破坏 LED 结构。LED 受到静电伤害或电流过载可能会导致性能异常，比如漏电流过大,VF 变低,或者无法点亮等等。所以请注意以下事项：
1. 接触 LED 时应佩戴防静电腕带或者防静电手套。 2. 所有的机器设备、工制具、工作桌、料架等等，应该做适当的接地保护（接地阻抗值 10Ω 以内）。 3. 储存或搬运 LED 应使用防静电料袋、防静电盒以及防静电周转箱，严禁使用普通塑料制品。 4. 建议在作业过程中，使用离子风扇来压制静电的产生。 5. 距离 LED 元件 1 英尺距离的环境范围内静电场电压小于 100V。
注: 1. 尺寸单位为毫米(mm)。 2. 尺寸公差是±0.1mm。
景创宏光电科技（深圳）有限公司
jingchuanghongOPTO-ELECTRONICS(SHENZHEN)CO, LTD.
产品规格书
Part No. : JCH-0603-R-04
版本
A.2
2.外形尺寸及建议焊盘尺寸
页码
2 of 11
①
Polarity
②
注: 1. 单位 : 毫米（mm）。 2. 公差 ：如无特别标注则为±0.1 mm。
3. 建议焊接温度曲线
景创宏光电科技（深圳）有限公司
jingchuanghongOPTO-ELECTRONICS(SHENZHEN)CO, LTD.
产品规格书
Part No. : JCH-0603-R-04
版本
A.2
发布日期
2015-5-28
页码
5 of 11
0603led灯珠的参数
0603led灯珠的参数
【原创实用版】
目录
1.0603led 灯珠的概述
2.0603led 灯珠的主要参数
3.0603led 灯珠参数对性能的影响
4.结论
正文
【1.0603led 灯珠的概述】
0603 LED 灯珠是一种常用的 LED（Light Emitting Diode，发光二极管）型号，它的尺寸为 0.6 毫米×0.3 毫米，因此得名 0603。
这种 LED 灯珠因其小巧的尺寸、低功耗、高亮度等特性，广泛应用于各种照明设备、显示屏、交通信号灯、车灯等领域。
【2.0603led 灯珠的主要参数】
0603 LED 灯珠的主要参数包括：
- 尺寸：0.6 毫米×0.3 毫米
- 颜色：红、橙、黄、绿、蓝、紫、白等
- 亮度：5000mcd 到 20000mcd 不等
- 视角：30 度到 120 度
- 工作电压：1.8V 到 3.4V
- 工作电流：20mA 到 1000mA
- 温度范围：-40 摄氏度到 +100 摄氏度
【3.0603led 灯珠参数对性能的影响】
0603 LED 灯珠的各项参数对其性能有重要影响。
例如，尺寸大小决定了 LED 的功耗和散热性能；颜色决定了 LED 的发光颜色；亮度决定了LED 的照明强度；视角决定了 LED 的发散角度；工作电压和工作电流决定了 LED 的功耗和稳定性；温度范围决定了 LED 的使用环境。
【4.结论】
总的来说，0603 LED 灯珠因其小巧的尺寸、丰富的颜色、高亮度、低功耗等特性，被广泛应用于各种照明设备和电子产品中。
TS-03型PDM中波发射机检修不慎造成的24V亮红灯故障
TS-03C型PDM中波发射机检修不慎造成的24V亮红灯故障故障机型：上海明珠TS-03C型PDM中波发射机故障现象：检修员在对发射机例行检修维护过程中，低压开关小盒插排在未插紧的情况下卡槽铜片不慎落下，此时控制监测器面板上24V亮红灯，380V灯不亮，门1门2联锁亮红灯，发射机有烧焦的味道。
从低压开关小盒原理图（如图 1.22）可以清晰看到，当低压开关置于“ON”时，原应弹开的常闭点K1-4因铜片掉下再次接通，导致220V（K-2.3）与24V （K-1）两条线路相碰并同时接地。
故障处理过程：首先更换24V的3A保险丝，并将220V电源至低压稳压小盒烧爆的线路换掉。
从故障现象入手，观察低压稳压小盒+24V显示正常，判断是控制监测器故障。
测得9XB2-24（23）+24V正常，证实推断。
甩开控制监测器，应急播出从“9XB2-24→1XB1-19去控制”开始逐步检查从+24V电源送至控制监测器各路，发现1XB1-19对应的进线插排板进线烧爆，重新短接一根替换。
其对应接点为B33，静态阻值为0。
从实物C/M板追踪该路得出行经路线，为“A40→A88→B41→C241→B33（B30）”。
参照正常状态下，得出A40（B30）对地静态阻值为13.80KΩ，上电后为13.61KΩ，而实测此A40（B30）为0，可判断必有负载损坏将阻值拉低所致。
为了能快速准确定位故障点，将A88与B41接点断开。
先查看B 板+24V线路图，如图1.23所示。
观察发现C241一脚脱焊，经测量C241击穿，更换C241，B30静态阻值仍未恢复正常。
继续查找，另一路为给B板集成电路供电，B板相关集成块为D222，D223（1412即ULN2002A），怀疑其损坏，用新的同类型器件替代，更换后B30恢复为13.73KΩ，B板故障排除。
将A-B 板接点处A88→B41重新联接，此时测得A40对地静态阻值为21.3KΩ，继续寻找A板故障点。
0603H贴片保险丝(慢断型)32V
Surface Mount Fuses(High Inrush Current Witstand) 32V 贴片保险丝（抗浪涌型）1.6*0.8mmProduct Number/产品型号Elecrical Characteristics电气特性AVERAGEI-T CHARACTERISTICS CURVE(FOR REFERENCE ONLY)平均I-T曲线图（仅供参考）Product Features/产品特性Materials/材质Body/本体：Cu/铜，Ag/银，Sn/锡Substrate/基板：alumian cerami/氧化铝陶瓷基板Electtode/电极：Cu/铜，Ni/镍，Sn/锡（termination with nickel andpure-tin solder plating/电极端面为镀镍及无铅锡）Operating temperature/工作温度-55℃~﹢125℃（consider de-rating/需考虑温度折减）Solderabiltey/可焊性T/熔锡温度=235℃±5℃，t/浸锡时间=2+0/-0.5sCover/覆盖率≥95%，△S=2.0mm±0.5mm，magnifier：20XResistance to Soldeing Heat/耐焊接热性T/熔锡温度=260℃±5℃，t/浸锡时间=10s±1s△S=2.0mm±0.5mmTesting Standard/测试标准Testing Standard: UL248-14Storage Conditions/储存条件Can be stored for 3 years under tight,seal condition at temperature of -55℃~85℃,relative humidity≤75℃.在温度-55℃~85℃，相对湿度≤75℃的密闭条件下可存放3年。
佰鸿0603红光LED发光二极管BL-HUB36G-AV-TRB
●DEVICE NUMBER：BL-HUB36G-AV-TRBturn signals.2.Backlighting : LCDs, Key pads advertising.3.Status indicators : Comsumer & industrialelectronics.4.General use.● Absolute Maximum Ratings(Ta=25℃)Parameter Symbol Rating UnitPower Dissipation Pd 52 mWForward Current I F 20 mA Peak Forward Current ＊1I FP 100 mA Reverse Volage V R 5 V Operating Temperature Topr -40℃~85℃-Storage Temperature Tstg -40℃~85℃-Soldering Temperature Tsol See Page6 -● Typical Electro-Optical Characteristics Curves R e l a t i v e l u m i n o u s i n t e n s i t y (@20m A )F o r w a r d c u r r e n t (m A )1020304050Fig.1 Relative intensity vs. wavelength R e l a t i v e r a d i a n t i n t e n s i t yFig.2 Forward current derating curveNOTE: 6000 pcs PER REEL●Package Method:(unit:mm)12 bag/boxTolerance for each Bin limit is ± 15%.Color Bin Limits (At 20mA)BIN CODE Min. (nm) Max. (nm)* 627 637Tolerance for each Bin limit is ± 1nm.V F Bin Limits (At 20mA) BIN CODE Min.(v) Max.(v)B 1.8 2.0C 2.0 2.2D 2.2 2.4E 2.4 2.6Tolerance for each Bin limit is ± 0.05V. ● BIN ：x x xV F B I N C O D EC o l o r B I N C OD EI n t e n s i t y B I N C O D E●Judgment criteria of failure for the reliabilityMeasuring items Symbol Measuring conditions Judgement criteria for failureForward voltage V F ( V) I F20mA InitialLevel*1.1U*2 Reverse current I R(uA) V R5V Over Luminous intensity Iv ( mcd ) I F20mA InitialLevel*0.7 Note: 1.U means the upper limit of specified characteristics.2. Measurment shall be taken between 2 hours and after the test pieces have been returnedto normal ambient conditions after completion of each test.seconds per solder-land is to be observed.2. Reflow SolderingPreheating : 140℃~160℃±5℃,within 2 minutes.3.Preheating : 120℃~150℃,within 120~180 sec.Operation heating : 245℃±5℃within 5 sec.260℃ (Max)Gradual Cooling (Avoid quenching).Time●Handling :Care must be taken not to cause to the epoxy resin portion of BRIGHT LEDs while it is exposed to high temperature.Care must be taken not rub the epoxy resin portion of BRIGHT LEDs with hard or sharp article such as the sand blast and the metal hook.instantaneous voltage at the turning ON and OFF of the circuit.When using the pulse drive care must be taken to keep the average current within the rated figures.Also, the circuit should be designed so as be subjected to reverse voltage when turning off the BRIGHT LEDs.●Storage:In order to avoid the absorption of moisture, it is recommended to solder BRIGHT LEDs as soon as possible after unpacking the sealed envelope.If the envelope is still packed, to store it in the environment as following:(1) Temperature : 5℃-30℃(41℉)Humidity : RH 60﹪Max.(2) After this bag is opened, devices that will be applied to infrared reflow, vapor-phase reflow, orequivalent soldering process must be:a. Completed within 168 hours.b. Stored at less than 30% RH.(3) Devices require baking before mounting, if:(2) a or (2) b is not met.(4) If baking is required, devices must be baked under below conditions:48 hours at 60℃±3℃.●Package and Label of Products:(1) Package: Products are packed in one bag of 6000 pcs (one taping reel) and a label is attachedon each bag.(2) Label:BRIGHT LED LOGOBPart No.QuantityBIN.Sealing Datexx xx xxYear Month DayLocation。
贴片发光二极管 0603红光 1608 SMD LED 灯珠中英文参数资料
2. 光电特性 Electrical / Optical characteristics
(1) 最大限度值 Absolute Maximum Ratings (TA=25±5ºC)
项目Item
正向电流Forward Current 正向峰值电流Pulse Forward Current 反向电压Reverse Voltage 功率消耗Power Dissipation 工作温度Operating Temperature 贮藏温度Storage Temperature
编制 Prepared by
洸子其确认
CONFIRMATION
审核 Checked by
核准 Approved by
市场部 Market Dept.
确认 Confirmed by
客户确认
CUSTOMER CONFIRMATION
审核
核准
Checked by
Approved by
确认 Confirmed by
15 分钟 15 分 循环 500 回合 50
0/50
G
钟
JEITA
3
高温储存
ED-4701 200 Ta=100℃
1000 小时
50
0/50
201
JEITA
4
低温储存
ED-4701 200 Ta=-40℃
1000 小时
50
0/50
202
5
常温寿命试验
Ta=25±5℃
1000 小时
50
0/50
IF=20mA
10
0/10
焊）
℃ 95%RH 96 次 10 秒
301
光信号闪红灯的处理方法
光信号闪红灯的处理方法
嘿，朋友们！咱今天就来聊聊光信号闪红灯这个事儿。
你说这光信号闪红灯啊，就好比是路上突然亮起了红灯，告诉你得停一停，好好瞅瞅是咋回事儿。
咱先说说这光信号为啥会闪红灯呢。
有可能是线路出了问题呀，就像家里的水管子有时候会漏水一样，这线路说不定哪儿就“开小差”了。
也可能是设备老化啦，就跟咱人老了腿脚不利索似的，它也会闹点小脾气。
还有啊，说不定是信号源那边出了啥岔子呢。
那遇到光信号闪红灯了咋办呢？别急呀！咱得像个侦探一样，一点点去排查。
先看看是不是所有的设备都连接好了，有没有松动的地方，这要是松了，那不就跟火车轨道接不上一样，肯定跑不起来呀。
然后呢，再检查检查线路，看看有没有被压到、折到的地方，这要是把它弄伤了，它能好好工作吗？
要是这些都没问题，那是不是设备该更新换代啦？你想想，你让一个老古董去干新活儿，它能吃得消吗？就好比让一个八十岁的老爷爷去跑马拉松，那不是难为人家嘛！
哎呀，这光信号闪红灯可真是让人头疼呢！但咱可不能被它吓倒呀。
咱得有耐心，慢慢去解决。
你说要是没有光信号，咱的网络、电视啥的不都得瘫痪啦？那咱的生活得多无聊呀。
就像咱走路，偶尔也会遇到绊脚石，那咱不能就趴在那儿不动了呀，得想办法跨过去或者把它挪开呀。
光信号闪红灯也是一样的道理，咱得勇敢面对，想办法搞定它。
你说这光信号闪红灯是不是就像生活中的小挫折呀？咱不能一遇到就打退堂鼓，得积极应对。
而且呀，等咱解决了这个问题，那不就跟打了一场胜仗一样开心嘛！所以呀，别害怕光信号闪红灯，咱有办法对付它！相信自己，一定能行！。
亿光360 19-21-B6C-AP2Q2M-3T_datasheet[1]
![亿光360 19-21-B6C-AP2Q2M-3T_datasheet[1]](https://img.taocdn.com/s3/m/fe511e7f8e9951e79b89272e.png)
-
+
Note: The tolerances unless mentioned is ±0.1mm, Unit = mm
Everlight Electronics Co., Ltd. Device No. :SZDSE-191-B09
Prepared date:04-Aug-2005
Prepared date:04-Aug-2005
Rev.1
Page: 7 of 10
Prepared by: bianchangyou
EVERLIGHT ELECTRONICS CO.,LTD.
19-21/B6C-AP2Q2M/3T
Reliability Test Items And Conditions
Rev.1
Page: 2 of 10
Prepared by: bianchangyou
ห้องสมุดไป่ตู้
EVERLIGHT ELECTRONICS CO.,LTD.
19-21/B6C-AP2Q2M/3T
Absolute Maximum Ratings (Ta=25℃)
Parameter Reverse Voltage Forward Current Operating Temperature Storage Temperature Electrostatic Discharge Power Dissipation Peak Forward Current (Duty 1/10 @1KHz) Soldering Temperature Symbol VR IF Topr Tstg ESD Pd IFP Rating 5 25 -40 ~ +85 -40 ~ +90 150 110 100 Unit V mA ℃ ℃ V mW mA
