(整理)3 3207-100兆天线用户手册.
100M光纤收发器使用说明之欧阳育创编

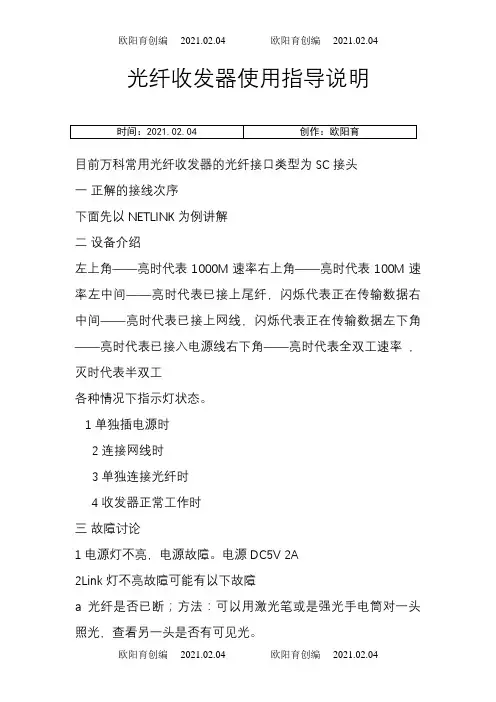

光纤收发器使用指导说明目前万科常用光纤收发器的光纤接口类型为SC接头一正解的接线次序下面先以NETLINK为例讲解二设备介绍左上角——亮时代表1000M速率右上角——亮时代表100M速率左中间——亮时代表已接上尾纤，闪烁代表正在传输数据右中间——亮时代表已接上网线，闪烁代表正在传输数据左下角——亮时代表已接入电源线右下角——亮时代表全双工速率，灭时代表半双工各种情况下指示灯状态。
1单独插电源时2连接网线时3单独连接光纤时4收发器正常工作时三故障讨论1电源灯不亮，电源故障。
电源DC5V 2A2Link灯不亮故障可能有以下故障a光纤是否已断；方法：可以用激光笔或是强光手电筒对一头照光，查看另一头是否有可见光。
b光纤线路损耗过大；用工程宝的测光功率计仪表检测。
光纤收发器或光模块在正常情况下的发光功率：单模20公里：－8DB—15DB之间；如果在光纤收发器的发光功率在－30DB――45DB之间，那么可以判断这个收发器有问题。
C 光纤插头是否插反d.跳线类型与设备接口匹配3网络丢包严重可能故障如下：a收发器的电端口与网络设备接口，或两端设备接口的双工模式不匹配。
b双绞线与RJ-45头有问题。
c光纤连接问题，跳线是否对准设备接口，尾纤与跳线及耦合器不匹配4时通时断现象a可能为光路衰减太大，此时用光功率计测量接收端的光功率，如果在接收灵敏范围附近1－2DB之内可基本判断为光路故障；b可能是交换故障，把交换机换成PCc 可能为收发器故障，把收发器两端接PC（不通过交换机），两端对PING没问题后，从一端向另一端传送一个较大文件（100M）以上，观察速度，如果速度慢（200M以下的文件传送15分钟以上），可基本判断为收发器故障。
5通信一段时间后死机，断电后恢复。
此情况一般是交换机引起，6收发器RJ45口与其他设备连接时，中间有交换机设备时使用平行双绞线；直接连设备后，使用交叉双绞线；7Txlink 灯不亮A双绞线接错 B 水晶头接触不良C设备没正常连接8Txlink灯不闪烁却常亮传输距离过长或是直接与PC连接时兼容问题9 指示灯正常但无法传输断电重启。
高功率多方向天线用户指南说明书
Rev 0505 High Gain Omni-Directional Antenna User Guidefor Models:WI-ANT-P6 Omni-Directional 6 dBd Pole remote antennaWI-ANT-P6-A-10 Omni 6 dBd remote antenna w/lightning arrestor & 10 ft cableWI-ANT-P6-A-25 Omni 6 dBd remote antenna w/lightning arrestor & 25 ft cableAccutech High Gain Omni-Directional Remote Antenna User Guide Rev 0505______________________________________________________________________________________________________________________________________A Division of Adaptive Instruments Corp.577 Main Street · Hudson, MA 01749 U.S.A.TE L:800-879-6576·978-568-0500FAX:978-568-9085Email:*******************************Rev Date Notes InitialsRelease TH1.0 1/17/2005TH0505 05/17/2005 Updated format, changedan installation picture.AccutechA Division of Adaptive Instruments Corp.577 Main Street · Hudson, MA 01749 USATEL: 800-879-6576 · 978-568-0500FAX: 978-568-9085Email: *******************************Web: Accutech High Gain Omni-Directional Remote Antenna User Guide Rev 0505Table of Contents1.ABOUT THE HIGH GAIN OMNI-DIRECTIONAL ANTENNA (1)2.INSTALLING THE HIGH GAIN ANTENNA WITH THE LIGHTNING ARRESTOR (2)2.1.Package Contents (2)2.2.Antenna & Lightning Arrestor Connection (3)3.INSTALLING THE HIGH GAIN ANTENNA (6)3.1.Package Contents (6)3.2.Antenna Connection (7)4.TECHNICAL SPECIFICATIONS (9)4.1.High Gain Omni-Directional Antenna (9)4.2.Mounting bracket dimensioned drawing (10)Accutech High Gain Omni-Directional Remote Antenna User Guide Rev 0505Accutech High Gain Omni-Directional Remote Antenna User Guide Rev 05051. About the High Gain Omni-DirectionalAntennaHigh gain and remote antennas can increase the transmission distanceof the Accutech Wireless Sensors. For even greater transmissiondistance, a high gain directional antenna (Yagi) may be purchased as anintegral part of a field unit.Warning! Any Base Radio with an omni-directional antenna is forordinary locations only.This manual will guide you through the steps to connect a High GainOmni-Directional Antenna with or without a lightning arrestor to a BaseRadio. If you are using a lightning arrestor, go to section 2. If you are notusing a lightning arrestor, go to section 3.The following model numbers are covered in this guide:Remote AntennasWI-ANT-P6 Omni-Directional 6 dBd Pole remote antennaWI-ANT-P6-A-10 Omni 6 dBd remote antenna w/lightning arrestor & 10 ft cableWI-ANT-P6-A-25 Omni 6 dBd remote antenna w/lightning arrestor & 25 ft cableEach of the above High Gain Remote Antenna models can be used withany of the following Base Radio model numbers:Base RadiosWI-BR-R10-4XN EMA 4X Base Radio w/10 ft cable and RS-485 output for rmt antenna WI-BR-R10-4X-MOD NEMA 4X Base Radio w/10 ft cable, RS-485 & Modbus, for rmt antenna WI-BR-R25-4X NEMA 4X Base Radio w/25 ft cable and RS-485 output for rmt antenna WI-BR-R25-4X-MOD NEMA 4X Base Radio w/25 ft cable, RS-485 & Modbus, for rmt antenna1Accutech High Gain Omni-Directional Remote Antenna User Guide 05052. Installing the High Gain Antenna with theLightning ArrestorThis section will show you how to install the high gain antenna with thelightning arrestor. If you are not using the lightning arrestor, go to Section3. For additional information about the Base Radio see the Base RadioUser Manual. Any of the Base Radio model numbers mentioned insection 1 may be used with the following remote antenna models:WI-ANT-P6-A-10 Omni 6 dBd remote antenna w/lightning arrestor & 10 ftcableWI-ANT-P6-A-25 Omni 6 dBd remote antenna w/lightning arrestor & 25 ftcable2.1. Package ContentsThe high gain Omni 6 dBd antenna with the lightning arrestor kit comescomplete with:[1] High gain antenna pole[2] 2 Mounting brackets for the high gain antenna[3] Lightning arrestor assembly consisting of lightning arrestor and 10’of 10 AWG ground wire[4] Coaxial cable assembly attached to the l ightning arrestor:10’ length for WI-ANT-P6-A-1025’ length for WI-ANT-P6-A-25[5] Waterproofing material for the antenna coaxial connectionT he following comes attached to the Base Radio:cableassembly:[6] Coaxial10’ length for WI-BR-R10-4X and WI-BR-R10-4X-MOD25’ length for WI-BR-R25-4X and WI-BR-R25-4X-MODAccutech High Gain Omni-Directional Remote Antenna User Guide Rev 0505 22.2. Antenna & Lightning Arrestor ConnectionAttention!For installation inordinary locations only!Antenna connected to Lightning Arrestor and Base Radio3Accutech High Gain Omni-Directional Remote Antenna User Guide 0505Warning! Always use caution when installing this antenna. You canbe seriously injured if this antenna comes near or in contact with apower line. Follow all local and national electrical coderequirements when installing the Base Radio with the high gainantenna.[1] Select the locations for the high gain antenna, the lightningarrestor and Base Radio.It is recommended that the lightning arrestor be mounted in closeproximity to the building egress. The lightning arrestor should bemounted indoors unless you have the weatherproof enclosure.The location for the high gain antenna should be selected basedon optimal positioning for RF communications with the field unitsand allow for sufficient length of coaxial cable to reach the buildingegress.The Base Radio should be installed in a location where there issufficient coaxial cable available to reach the building egress.Warning! Any Base Radio with an omni-directional antenna is forordinary locations only.[2] P osition the antenna sothat the gold sleeve clearsany obstructions. Thisincludes masts and towersections.[3] Mount the antenna usingthe 2 mounting brackets.One clamp must beplaced at the center of thegold sleeve, the other atany point below.[4] Connect the Base Radio coaxial cable to the lightning arrestor andtighten by hand.[5] Attach the ground wire to a suitable earth ground connection. Keepthis wire as short as possible. Make sure this connection conformsto electrical code requirements.[6] Connect the lightning arrestor coaxial cable to the antenna andhand-tighten.[7] Install a drip loop in the cable to insure proper drainage.Accutech High Gain Omni-Directional Remote Antenna User Guide Rev 0505 4[8] Wrap the antenna connection with the supplied waterproofingmaterial.Note Do not cover the drain holes on the bottom of the antenna asthey provide drainage for moisture.[9] Finished.5Accutech High Gain Omni-Directional Remote Antenna User Guide 05053. Installing the High Gain AntennaThis section will show you how to install the high gain antenna without alightning arrestor. If you are using a lightning arrestor, go to section 2.For additional information about the Base Radio see the Base RadioUser Manual.Warning! This configuration is for indoor use only. If you aremounting the antenna outdoors, a lightning arrestor must be used.Any of the Base Radio model numbers mentioned in section 1 may beused with the following remote antenna model:WI-ANT-P6 Omni-Directional 6 dBd Pole remote antenna3.1. Package ContentsThe high gain Omni 6 dBd antenna kit comes complete with:[1] High gain antenna pole[2] 2 Mounting brackets for the high gain antenna[3] Waterproofing material for the antenna coaxial connectionT he following comes attached to the Base Radio:assembly:[4] Coaxialcable10’ length for WI-BR-R10-4X and WI-BR-R10-4X-MOD25’ length for WI-BR-R25-4X and WI-BR-R25-4X-MODAccutech High Gain Omni-Directional Remote Antenna User Guide Rev 0505 63.2. Antenna ConnectionAttention!For installation inordinary locations only!Antenna connected to Base Radio7Accutech High Gain Omni-Directional Remote Antenna User Guide 0505Warning! Always use caution when installing this antenna. You canbe seriously injured if this antenna comes near or in contact with apower line. Follow all local and national electrical coderequirements when installing the Base Radio with the high gainantenna.[1] Select the locations for the high gain antenna and Base Radio.The location for the high gain antenna should be selected basedon optimal positioning for RF communications with the field units.Warning! Any Base Radio with an omni-directional antenna is forordinary locations only.[2] Position the antenna sothat the gold sleeve clearsany obstructions. Thisincludes masts and towersections.[3] Mount the antenna usingthe 2 mounting brackets.One clamp must beplaced at the center of thegold sleeve, the other atany point below.[4] Connect the Base Radio coaxial cable to the antenna and hand-tighten.[5] Install a drip loop in the cable to insure proper drainage.[6] Wrap the connection with the supplied waterproofing material.Note Do not cover the drain holes on the bottom of the antenna asthey provide drainage for moisture.[7] Finished.Accutech High Gain Omni-Directional Remote Antenna User Guide Rev 0505 84. Technical Specifications4.1. High Gain Omni-Directional AntennaBase Radio High Gain Omni-Directional AntennaLength65”Gain 6 dBd (less cable loss ≈ 0.04 dBd/ft)Weight 6 lbsPolarization VerticalMounting Heavy wall gold anodized 1 ¼” aluminum withbrackets included10’ or 25’Base Radio coaxialcable length9Accutech High Gain Omni-Directional Remote Antenna User Guide 05054.2. Mounting Bracket Dimensioned DrawingMounting bracket dimensioned drawingAccutech High Gain Omni-Directional Remote Antenna User Guide Rev 0505 10______________________________________________________________________________________________________________________________________ A Division of Adaptive Instruments Corp.577 Main Street · Hudson, MA 01749 U.S.A.TE L: 800-879-6576 · 978-568-0500FAX: 978-568-9085Email: ******************************* Accutech, a division of Adaptive Instruments Corp., is a leading edge,technology-driven developer, manufacturer and supplier of embeddedmicroprocessor-based electronics. Based in Hudson, Massachusetts,Accutech is the most successful leading independent producer ofwireless instrumentation on the market today.Accutech customers include large national companies in the oil andgas, chemicals, pharmaceutical, food and beverage, primary materialsprocessing, and energy industries. In addition to the wireless productline, Accutech also offers a traditional wired line of temperature,pressure and differential pressure instrumentation.In the process control field, where quality is taken for granted and newtechnology is announced daily, we have deliberately concentrated ourefforts on the development of instrumentation that makes businesssense. The result is a product range that is rugged, secure, andreliable and works in even the most hazardous environments. We givecompanies the tools to reduce costs, save time, enhance safety,improve environmental performance and cut waste.The next industrial revolution is right now. Let Accutech show you howto realize gains in operating efficiency.Visit us at: Or call us at +1 800 879-6576 Specifications subject to change without notice. Printed in USA. Copyright 2005 Adaptive Instruments, Corp.。
完全天线手册

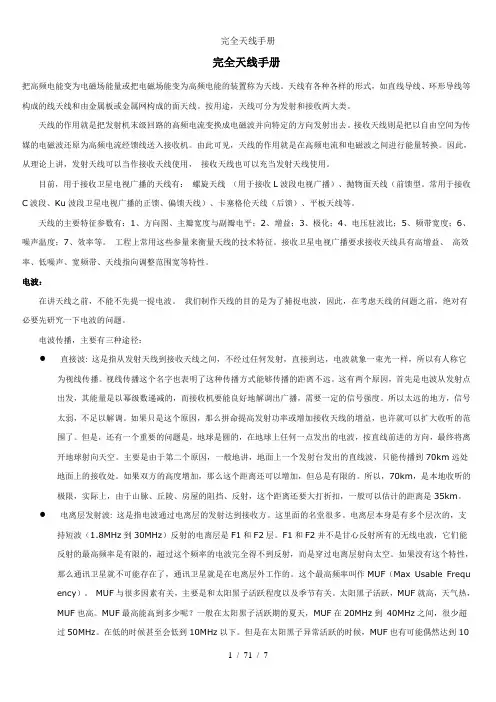

完全天线手册把高频电能变为电磁场能量或把电磁场能变为高频电能的装置称为天线。
