MMKP82双面金属化聚丙烯膜电容器规格书
薄膜电容规格书模板
美的制冷家用空调国内事业部电子元器件规格书供方名称：厦门法拉电子股份有限公司器件名称：薄膜电容型号规格：参见第六项表格物料编码：参见第六项表格厂家型号：MKP62-275VAC-104TSSKP15MKP62-275VAC-274TSSMP22.5MKP62-275VAC-105TSSMP22.5MKP62-275VAC-224KP15MKP62-275VAC-474MP22.5MKP62-275VAC-105MP22.5MKP62-275VAC-335KP27.5MKP62-275VAC-155MP22.5编制：审核：供方会签：日期：版本：V1.0注意事项：1、本规格书双方签字后正式生效，本规格书连封面合共6页；2、本规格书一式两份，版本由使用方与供方共同维护；任何对内容的改动必须经双方同意，并以书面文件的形式发布。
规格书更新纪录：一厂家品牌中英文：厦门法拉电子股份有限公司（鹭岛牌）Xiamen Faratronic Co.,Ltd.,（）二产地（国内的写工厂地址）：中国厦门市金桥路101号三厂家型号及型号含义：F15B3.7 ：F15表示电容器引线成型（弯脚）15mm，B3.7表示电容器引线成型（弯脚）15mm后，剪短引线长度为3.7mm。
3. 引线形状及间距图：Note: W±0.4 H±0.4 T±0.4五安全认证说明：●六 外观尺寸及关键参数对照表：P=7.5 or 10.0mm P ≥15.0mm and C R ≤1.0μF符号说明Marking Introduction ：七、内部结构图：九关键电性能参数及可靠性能：1、全系列产品全部符合ROHS要求2、短路充放电实验方法：给安规电容器两端施加220V AC，0.5S通/0.5S断，1000次。
技术要求：容量变化不超过±20%，损耗角正切值变化量≤0.0015，绝缘电阻仍符合规格书所规定的3、损耗角正切4、耐电压、绝缘电阻5、电性能特性图表（在这里粘贴温度特性、）6、其余测试项目参考美的企业标准《QMN-J52.056-2005安规电容.doc》要求十、厂家关键控制要点1、所有薄膜来料必须经过检验合格后入仓，分切后薄膜必须真空包装放置在温度小于25度，湿度小于60%的环境下贮存，并在进行规范管理。

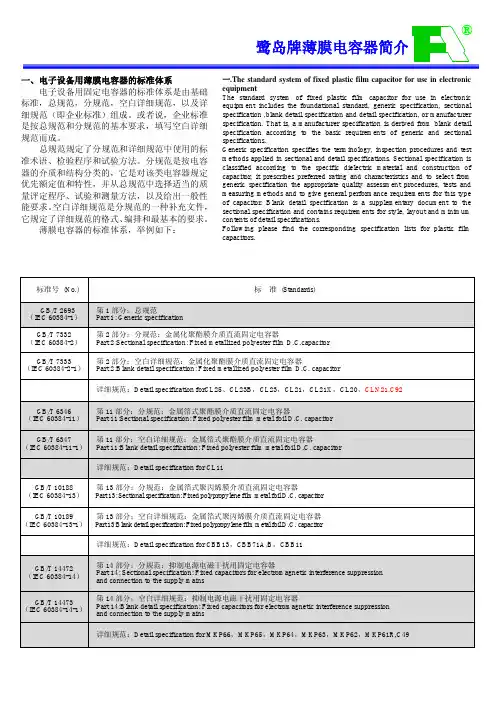

2010版产品目录前言-1
一、电子设备用薄膜电容器的标准体系电子设备用固定电容器的标准体系是由基础标准，总规范，分规范，空白详细规范，以及详细规范（即企业标准）组成。
或者说，企业标准是按总规范和分规范的基本要求，填写空白详细规范而成。
总规范规定了分规范和详细规范中使用的标准术语、检验程序和试验方法。
分规范是按电容器的介质和结构分类的，它是对该类电容器规定优先额定值和特性，并从总规范中选择适当的质量评定程序、试验和测量方法，以及给出一般性能要求。
空白详细规范是分规范的一种补充文件，它规定了详细规范的格式、编排和最基本的要求。
薄膜电容器的标准体系，举例如下：一.The standard system of fixed plastic film capacitor for use in electronic equipmentThe standard system of fixed plastic film capacitor for use in electronic equipment includes the foundational standard, generic specification, sectional specification ,blank detail specification and detail specification, or manufacturer specification. That is, a manufacturer specification is derived from blank detail specification according to the basic requirements of generic and sectional specifications.Generic specification specifies the terminology, inspection procedures and test methods applied in sectional and detail specifications. Sectional specification is classified according to the specific dielectric material and construction of capacitor, it prescribes preferred rating and characteristics and to select from generic specification the appropriate quality assessment procedures, tests and measuring methods and to give general performance requirements for this type of capacitor. Blank detail specification is a supplementary document to the sectional specification and contains requirements for style, layout and minimum contents of detail specifications.Following please find the corresponding specification lists for plastic film capacitors.标准号(No.) 标准(Standards)GB/T 2693 （IEC 60384-1）第1部分：总规范Part 1: Generic specificationGB/T 7332 （IEC 60384-2）第2部分：分规范：金属化聚酯膜介质直流固定电容器Part 2:Sectional specification: Fixed metallized polyester film D.C.capacitorGB/T 7333 （IEC 60384-2-1）第2部分：空白详细规范：金属化聚酯膜介质直流固定电容器Part 2:Blank detail specification: Fixed metallized polyester film D.C. capacitor详细规范：Detail specification forCL25、CL23B，CL23，CL21，CL21X，CL20，CLN21,C92GB/T 6346 （IEC 60384-11）第11部分：分规范：金属箔式聚酯膜介质直流固定电容器Part 11:Sectional specification: Fixed polyester film metal foil D.C. capacitorGB/T 6347 （IEC 60384-11-1）第11部分：空白详细规范：金属箔式聚酯膜介质直流固定电容器Part 11:Blank detail specification: Fixed polyester film metal foil D.C. capacitor 详细规范：Detail specification for CL11GB/T 10188 （IEC 60384-13）第13部分：分规范：金属箔式聚丙烯膜介质直流固定电容器Part 13: Sectional specification: Fixed polypropylene film metal foil D.C. capacitorGB/T 10189 （IEC 60384-13-1）第13部分：空白详细规范：金属箔式聚丙烯膜介质直流固定电容器Part 13:Blank detail specification: Fixed polypropylene film metal foil D.C. capacitor 详细规范：Detail specification for CBB13，CBB71A/B，CBB11GB/T 14472 （IEC 60384-14）第14部分：分规范：抑制电源电磁干扰用固定电容器Part 14: Sectional specification: Fixed capacitors for electromagnetic interference suppression and connection to the supply mainsGB/T 14473 （IEC 60384-14-1）第14部分：空白详细规范：抑制电源电磁干扰用固定电容器Part 14:Blank detail specification: Fixed capacitors for electromagnetic interference suppressionand connection to the supply mains详细规范：Detail specification for MKP66，MKP65，MKP64，MKP63，MKP62，MKP61R,C49GB/T 10190 （IEC 60384-16）第16部分：分规范：金属化聚丙烯膜介质直流固定电容器Part 16: Sectional specification: Fixed metallized polypropylene film D.C. capacitorGB/T 10191 （IEC 60384-16-1）第16部分：空白详细规范：金属化聚丙烯膜介质直流固定电容器Part 16:Blank detail specification: Fixed metallized polypropylene film D.C. capacitor 详细规范：Detail specification for CBB20,CBB72A/B,C34,MKP25,MMKP82GB/T 14579 （IEC 60384-17）第17部分：分规范：金属化聚丙烯膜介质交流和脉冲固定电容器Part 17: Sectional specification: Fixed metallized polypropylene film A.C. and pulse capacitorGB/T 14580 （IEC 60384-17-1）第17部分：空白详细规范：金属化聚丙烯膜介质交流和脉冲固定电容器Part 17:Blank detail specification: Fixed metallized polypropylene film A.C. and pulse capacitor 详细规范：Detail specification for MMKP84，CBB81，CBB21，MKP21，MKP23IEC 60384-20 第20部分：分规范：金属化聚苯硫醚膜介质表面安装直流固定电容器Part 20: Sectional specification: Fixed metallized polyhenylene sulfide film dieletric chip D.C.capacitorIEC 60384-20-1 第20部分：空白详细规范：金属化聚苯硫醚膜介质表面安装直流固定电容器Part 20: Sectional specification: Fixed metallized polyhenylene sulfide film dieletric chip D.C.capacitor详细规范：Detail specification for CBS52IEC 60384-23 第23部分：分规范：金属化聚萘乙酯膜介质表面安装直流固定电容器Part 23: Sectional specification: Fixed metallized Polyethylene Naphtalate Film dielectric surface mounted D.C. Capacitor详细规范：Detail specification for CLN51GB 18489 （IEC 61048）管形荧光灯和其他放电灯线路用电容器一般要求和安全要求Capacitor especially used for circuit of Tube-shape fluorescent and other lamps: General&safety requirementsGB/T 18504 （IEC 61049）管形荧光灯和其他放电灯线路用电容器性能要求Capacitor especially used for circuit of Tube-shape fluorescent and other lamps: Performances requirements 详细规范：Detail specification for CBB60L，CBB60H or CBB60MGB/T 3667.1 （IEC 60252-1）第1部分：交流电动机电容器Part 1: AC motor capacitor详细规范：Detail specification for CBB61，CBB65GB/T 17702 （IEC 61071）第1部分：电力电子电容器Part 1: Power electronic capacitor详细规范：Detail specification for CBB69,C3A,C3BGB/T 12747-1 (IEC 60831-1) 标称电压1KV及以下交流电力系统用自愈式并联电容器Shunt power capacitors of the self-healing type for a.c. systems having a rated valtage up to and including 1 000V 第1部分：总则Part 1: GeneralGB/T 12747-2 (IEC 60831-2) 标称电压1KV及以下交流电力系统用自愈式并联电容器Shunt power capacitors of the self-healing type for a.c. systems having a rated valtage up to and including 1 000V 第2部分：老化试验、自愈性试验和破坏试验Part 1: Ageing test, self-healing test and destruction test二、一些常用的标准术语Terminologies1.上限类别温度 电容器设计所确定的能连续工作的最高环境温度。
电容器用金属化薄膜
电容器用金属化薄膜1 范围本标准规定了电容器用金属化薄膜的术语、产品分类、技术要求、试验方法、检验规则、以及标志、包装、运输和贮存。
本标准适用于电容器用金属化聚丙烯薄膜和金属化聚酯薄膜。
2 规范性引用文件下列文件中的条款通过本标准的引用而成为本标准的条款。
凡是注日期的引用文件，其随后所有的修改单（不包括勘误的内容）或修订版均不适用于本标准,然而，鼓励根据本标准达成协议的各方研究是否可使用这些文件的最新版本。
凡是不注日期的引用文件,其最新版本适用于本标准.GB/T2828。
1－2003 计数检验程序第1部分：按接收质量限（AQL）检索的逐批检验计划GB/T13542。
2－××××电气绝缘用薄膜第2部分:试验方法3 术语3.1基膜base film电容器用的能在其表面蒸镀一层极薄金属层的塑料薄膜。
3.2金属化薄膜metallized film将高纯铝或锌在高真空状态下熔化、蒸发、沉淀到基膜上，在基膜表面形成一层极薄的金属层后的塑料薄膜。
3.3自愈作用self—healing金属化薄膜介质局部击穿后立即本能地恢复到击穿前的电性能现象。
3.4留边margin为实际制作电容器需要，将金属化薄膜一侧或两侧边缘或中间遮盖而形成不蒸镀金属的空白绝缘条(带)称为留边，其宽度称为留边量。
3.5方块电阻square resistance金属化薄膜上的金属层在单位正方形面积的电阻值称为方块电阻,用Ω/□表示，通常用方块电阻来表示金属镀层的厚度。
3.6金属化安全薄膜metallized safe film金属层图案含有保险丝安全结构的金属化薄膜。
按保险丝安全结构特点可分网格安全膜、T形安全膜和串接安全膜等。
4 分类4.1 产品类型MPPA（MPETA）——单面铝金属化聚丙烯(或聚酯）薄膜，见图1－图3。
图1 图2 图3 MPPAD(MPETAD)-—双面铝金属化聚丙烯（或聚酯)薄膜,见图4和图5。

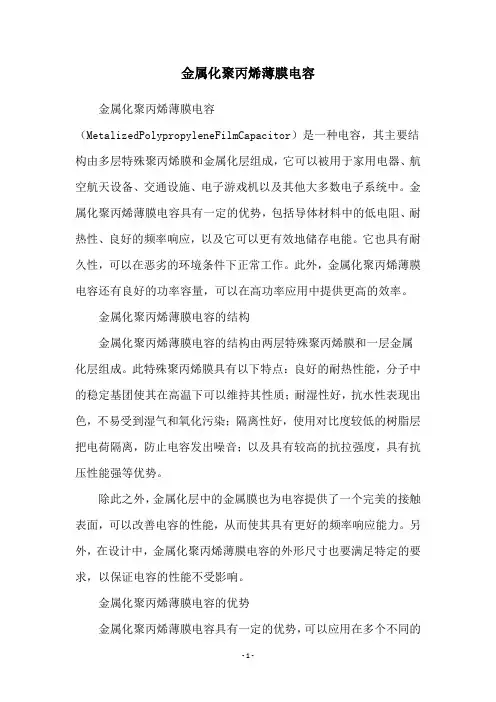

金属化聚丙烯薄膜电容
金属化聚丙烯薄膜电容金属化聚丙烯薄膜电容（MetalizedPolypropyleneFilmCapacitor）是一种电容，其主要结构由多层特殊聚丙烯膜和金属化层组成，它可以被用于家用电器、航空航天设备、交通设施、电子游戏机以及其他大多数电子系统中。
金属化聚丙烯薄膜电容具有一定的优势，包括导体材料中的低电阻、耐热性、良好的频率响应，以及它可以更有效地储存电能。
它也具有耐久性，可以在恶劣的环境条件下正常工作。
此外，金属化聚丙烯薄膜电容还有良好的功率容量，可以在高功率应用中提供更高的效率。
金属化聚丙烯薄膜电容的结构金属化聚丙烯薄膜电容的结构由两层特殊聚丙烯膜和一层金属化层组成。
此特殊聚丙烯膜具有以下特点：良好的耐热性能，分子中的稳定基团使其在高温下可以维持其性质；耐湿性好，抗水性表现出色，不易受到湿气和氧化污染；隔离性好，使用对比度较低的树脂层把电荷隔离，防止电容发出噪音；以及具有较高的抗拉强度，具有抗压性能强等优势。
除此之外，金属化层中的金属膜也为电容提供了一个完美的接触表面，可以改善电容的性能，从而使其具有更好的频率响应能力。
另外，在设计中，金属化聚丙烯薄膜电容的外形尺寸也要满足特定的要求，以保证电容的性能不受影响。
金属化聚丙烯薄膜电容的优势金属化聚丙烯薄膜电容具有一定的优势，可以应用在多个不同的领域，包括家用电器，航空航天设备，交通设施，电子游戏机以及其他大多数电子系统中。
首先，金属化聚丙烯膜具有低电阻，在电路中电阻的量越小，损失的功率越小，因此可以使电路的效率更高。
此外，金属化聚丙烯膜电容还具有耐热性，可以在恶劣的环境条件下维持一定的工作性能，以及良好的频率响应能力，可以在高频率应用中提供更高的效率，从而更好地满足电子系统技术的要求。
最后，金属化聚丙烯膜电容还具有良好的功率容量，可以在高功率应用中提供更高的效率，使其可以更有效地储存电能，从而更好地满足电子系统的要求。
金属化聚丙烯薄膜电容的应用金属化聚丙烯膜电容因其可靠的性能受到广泛的应用，可以用于家用电器，航空航天设备，交通设施，电子游戏机以及数据处理机等应用领域。
金属化聚丙烯膜薄膜电容
金属化聚丙烯膜薄膜电容是用来替换传统电容器、电感器和变压器等
电子元件的新型元件，由聚丙烯材料表面经过金属分子镀膜形成的导
电大分子双层物质而组成，具有体积小、重量轻、物理厚薄度及功律
表良好等特点，能够有效提升小型高效能元件。
金属化聚丙烯膜薄膜电容它额定电压一般为200Vdc，最高t可达到
400Vdc。
它的连接方式可采用焊接端子，也可采用内置弹簧端子，电
容尺寸可穿孔式安装，也可底座式安装，满足不同场合的安装要求。
其结构特殊，可以防止外部环境的腐蚀，可以有效延长电容的使用寿命。
它与传统电容器相比，金属化聚丙烯膜薄膜电容的放电波形非常精确
平坦，一般比常规电容器的放电波形要更加稳定，反应更快，使得对
元件的操控性更精准，既能保障元件的可靠性，又能提高元件的效率。
金属化聚丙烯膜薄膜电容，它的优势众多，紧凑、体积小、重量轻、
功律优越、抗冲击，堪用低压高功率行车、遥控电源及其他小型电子
装置等等，其凝聚能量可大幅提升小型高效能元件的工作效率。
而且，金属化聚丙烯膜薄膜电容在宽温度范围内使用时，具有极佳的
稳定性，表现出良好的抗变形性能和散热如果，能创造出更好的可靠性、低成本和高效。
可以说，金属化聚丙烯膜薄膜电容有着广泛的应用前景，能够有效解
决各种小型高效能电子元件的效率，从而大大提升高科技元件的应用
效率，为科技产业发展树立新标准。
Shiny Space 金属化聚丙烯薄膜电容器Type SX1 Class X1 X2 说明书
250/300
31.5
22.5
13
27.5
0.8
1.0 -1
250/300
25
23.5
14
22.5
0.8
1.0 -2
250/300
30
21
11.5
27.5
0.8
* 1.2
300/300
37
24
13.5
32.5
0.8
1.2 -1
300/300
31.5
22.5
13
27.5
0.8
* 1.5
300/300
37
(UF)
(VAC)
W
H
T
P
d
0.0047
250/300
18
13
10
11
5
5
15
10
0.8
0.6
0.0056
250/300
18
13
10
11
5
5
15
10
0.8
0.6
0.0068
250/300
18
13
10
11
5
5
15
10
0.8
0.6
0.0082
250/300
18
13
10
11
5
5
15
10
0.8
0.6
0.01
3
2
1
0
-1
-2 101 2
5 102 2 5 103 2 )UHT Hz
5 104 2
5 105
Dissipation Factor VS. Temperature at 10KHz
MMKP82是什么电容
MMKP82是什么电容
MMKP82属于大家相对比较陌生的一种电容器，毕竟它刚推出的时间不是太久，目前可以生产的厂家不多，今天小编就来给大家详细介绍一下MMKP82这种电容器，它到底是什么电容？有什么样的作用呢？
MMKP82电容的全称：MMKP82系列双面金属化聚丙烯膜电容器，这个和CBB81电容很类似，但MMKP82电容的性能更好一些，可以理解成是CBB81电容的升级版。
MMKP82电容
MMKP82电容的特点：
采用双面金属化卷绕结构，无感结构，高频特性好，耐压高，可以承受大电流
损耗小、内部温升小，负电容量温度系数，容量稳定性好，容量不易衰减
优异的阻燃性能和防潮性能
MMKP82电容的作用：
主要用于谐振电源中，特别是大功率电源中，MMKP82电容可以用于高压、高频及脉冲电路，如电动汽车充电桩、大功率LED驱动电源、矿机电源和超声波电路板等；电子镇流器和节能灯中；吸收和SCR整流电路。
MMKP82电容的参数：
MMKP82电容参数。
金属化聚丙烯薄膜电容
金属化聚丙烯薄膜电容金属化聚丙烯(metallizedpolypropylene,MPP)薄膜电容是由一层铝箔和多层聚丙烯薄膜以及用作极表面的金属材料组成的一种电容。
它是一种有机电容，具有体积小、重量轻、耐高温、性价比高等优点。
它被广泛应用于电子设备的电路中，可以用作电子产品的高频电路的电容，从而有效地抗干扰和减少电路中的长波纹。
MPP薄膜电容的结构MPP薄膜电容的结构由三层构成，即金属层、极片层和膜片层。
1.金属层:它由用金属粉末烘焙而成，用作极片层的表面，具有电导性和抗腐蚀性。
2.极片层:由多层聚丙烯薄膜组成，它具有优异的耐电压性。
3.膜片层:由中子辐照而成，具有优异的耐电压性和抗压强度。
MPP薄膜电容的特点1.小体积:金属层的厚度为毫米，比传统的涂层电容体积小很多，适合空间有限的电路。
2.轻重量:金属化聚丙烯薄膜电容由薄膜材料构成，相比瓷介质电容轻，便于安装和维护。
3.耐高温:MPP薄膜电容能承受温度较高的电路，具有较高的耐温能力，允许工作温度在-40℃至+105℃之间。
4.耐电压:MPP薄膜电容具有极高的电压耐受，允许最大耐压达到1600VAC。
5.耐电流:MPP薄膜电容具有较高的电流耐受性，允许最大电流达到3A，它可以有效地降低电流负载所带来的电磁干扰。
6.性价比高:MPP薄膜电容体积小，重量轻，耐电压高，且价格合理，是电子电路中的优选电容。
应用MPP膜电容被广泛应用于电子设备、电动机控制以及逆变器等各种电子设备中。
它可以有效地减少电路中的长波纹，并抗干扰，使电子设备能够正常运行。
此外，MPP薄膜电容还可用于电源电路、家用电器、自动化电路等。
结论金属化聚丙烯薄膜电容是一种由铝箔、聚丙烯薄膜和金属材料构成的有机电容，具有体积小、重量轻、耐高温、耐电压高、耐电流强以及性价比高的特点。
它被广泛应用于电子设备的电路中，可以有效地减少电路中的长波纹，并抗干扰，进而确保电子设备的正常运行。
由于上述优点，金属化聚丙烯薄膜电容成为电子电路设计中的重要元件，日益受到电子行业的青睐。
