Other considerations for an overhead line include: the number, size, and spacing of conductors per-phase bundle; the phase to phase spacing; the number, location, and conductor type for overhead neutrals concerning with lightning shielding; the level of insulation; ect. The design of a power line depends upon the following criteria: i) The amount of active power it has to transmit. ii) The distance over which the power must be carried. iii) The cost of the power line. iv) Esthetic considerations, urban congestion, ease of installation, and expected load growth.
Lecture 3
1. As the system expands and higher voltage levels become necessary for transmission, the older transmission lines are often relegated to subtransmission function. 随着系统的扩大和更高的电压等级为输电所必需， 随着系统的扩大和更高的电压等级为输电所必需，旧 的输电线路往往被移交给中压输电功能。 的输电线路往往被移交给中压输电功能。 New Words and Expressions backbone 中枢 integrated 综合的，完整的 综合的， voltage level 电压等级 step up 升压 step down 降压 subtransmission 中压输电，次输电 中压输电， subsystem 子系统 bulk 大量的 demarcation 划分 relegate to 委托给，移交给 委托给， overhead line 架空线 cable 电缆
电气工程及其自动化专业英语第三章课文翻译
Semiconductor switches are very important and crucial components in power electronic systems.these switches are meant to be the substitutions of the mechanical switches,but they are severely limited by the properties of the semiconductor materials and process of manufacturing. 在电力电子系统，中半导体开关是非常重要和关键部件。
半导体开关将要替换机械开关,但半导体材料的性质和生产过程严重限制了他们。
Switching losses开关损耗Power losses in the power eletronic converters are comprised of the Switching losses and parasitic losses. 电力电子转换器的功率损耗分为开关损耗和寄生损耗the parasitic losses account for the losses due to the winding resistances of the inductors and transformers,the dielectric losses of capacitors,the eddy and the hysteresis losses. 寄生损失的绕组电感器、变压器的阻力、介电损耗的电容器,涡流和磁滞损耗the switching losses are significant and can be managed. 这个开关损耗是非常重要的,可以被处理。
they can be further divided into three components:(a)the on-state losses,(b)the off-state losses and the losses in the transition states. 他们可以分为三个部分: 通态损耗，断态损耗和转换过程中产生的损耗。
电气工程及其自动化专业英语完整ppt课件
电能可以储存在被一绝缘介质隔开的两块金属板中，这样的装置被称为电容
器，它储存电能的能力就被称为电容。电容的测量单位是法拉。
精选PPT课件
9
2.1 Grammar Features
(2)广泛使用非谓语形式 (精炼)
非谓语动词在句子中可以起到名词，形容词或副词作用，动词的非谓语 形式分为动名词,分词,动词不定式。
8
高电压工程
5
9
Unit 4 Digital Circuit and Analog Circuit
10
数字电路和模拟电路
6
11
Unit 5 Electrical Machine
12
电机
13
论文写作：学习科技文献的写作格式及写作技巧
7
14
国际会议international conference ：以某个国际会议为例，学习参加国际会议
电能是在发电站或发电厂产生的
4) The meters are calibrated and the scale is designed to read the value of the desired unit. 这些仪表可以被校准并且设计了不同的量程 ，以便读出期望的数值。
5) Electrical energy can be stored in two metal plates separated by an insulation medium. Such a device is called a capacitor, and its ability to store electrical energy is termed capacitance. It is measured in ’Farads.
专业英语 电气工程P2U3教学课件
P (s)
s
n
s p 1 s p 2 ...
Returning to the characteristic equation of Eq. (2-3A-3) and solving for KZ(s)/P(s) yields Z(s) j ( 2 k 1 ) 180 K 1 1e k=0,1,2… P(s) Since -1 can be reprsented by a vector of unity magnitude and an angle that is an odd multiple of 180o. According to Eq.(2-3A-3) and Eq.(2-3A-4),we can find two criteria that make the characteristic function D(s) equal to zero , i.e, there are two criteria which can find system (close-loop) poles as K is increased from 0 to ∞.
P2U3A The Root Locus
第二部分第三单元课文A 根轨迹
plot v. 绘图 n. 曲线图 sketch v., n. （绘）草图，素描 facilitate v. 使容易，促进 coincide v. 一致 asymptote n. 渐进线 integer n. 整数 intersect v. 相交 real axis 实轴 symmetrical adj. 对称的 breakaway point 分离点 arrival point 汇合点 departure angle 出射角 arrival angle 入射角 thereof adv. 将它（们） imaginary axis 虚轴 passive adj. 被动的，无源的
电气工程专业英语实用教程
succeeding [sEk5si:diN] adj. 以后的，随后的 logic 0 逻辑0 logic 1 逻辑1 programmable controller 可编程控制器 BCD 二进制编码的十进制 thumbwheel switch 指轮开关 hexadecimal [heksE5desIm(E)l] adj. 十六进制的n. 十六进制 multiply [5mQltipli] v.乘,增加 remainder [ri5meindE] n. 余数adj. 剩余的 conversion of number 数字转换
Notes
[2] The hexadecimal system is used in PLCs because it allows the status of a large number of binary bits to be represented in a small space such as on a computer screen or programming device display. 本句是由because连接的因果句。在because从句中，主语 为it，谓语是allow…to…，此外还有一个词组such as举例 说明什么样的small space。结构清楚了，这句话虽然看 起来很长，实际上理解起来也不困难。
New Words And Phrases
Text
请老师朗读并讲解课文
Notes
[1] PLC is a computer. It stores information in the form of On or Off conditions (1 or 0), referred to as binary digits (bits). 本句涉及的是一个词组refer to sth as（称某物为……）。 完整的句子应该是： It stores information in the form of On of Off conditions(1or 0), which is referred to as binary digits (bits).本句省略了连词which，因此is也省略。
电气工程专业英语第3章
refer to A about B 参考A关于B的部分
consist of battery
由...组成 n. 电池 电压降 vt. 阐明, 说明(问题等)，启发, 启蒙 n. 否定, 负数adj. 否定的, 消极的, 负的, 阴
voltage drop illuminate negative
性的vt. 否定, 拒绝(接受) positive adj. 阳的adj. 肯定的, 积极的, 绝对的, 确实 的adj. [数]正的 schematic Ohm’s Law adj. 示意性的 欧姆定律
be referred to as 叫做，被认为是， The voltage across a resistor is referred to as a voltage drop. 电阻器两端之间的电压叫做电压降。 An item of data is referred to as an item. 一组材料将被视为 一个单位 refer to 涉及，指的是，称为 Power electronics refers to control and conversion of electrical power by power semiconductor devices电力电子 学是指利用电力半导体器件对电能进行控制和变换的学科 refer to A as B 把A称为B，把A当作B refer A to B 认为A是B引起的，把A归于B类，用B来表示A

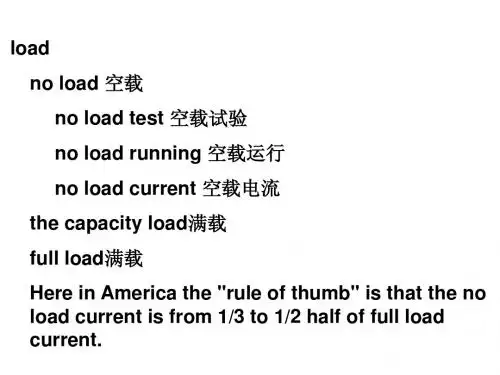

load
the dead [static] load恒载，静(荷)载，自重。
the live [moving, mobile] load活负载，动荷载。
the peak load最大负载，峰负载
the permissible load容许负载
电气工程及其自动化专业英语
time-invariant 时不变的
self-(or mutual-)induction 自（互）感
displacement current 位移电流 conductance 电导
voltage drop 电压降 volt-ampere characteristics 伏安特性
metal-filament lamp 金属丝灯泡
seen, increase of current from zero to
I≈I1 causes the terminal voltage of the source to decrease linearly
V12=V=E－VS=E－RSI
Fig.1.3
In other words, the voltage drop VS across the source resistance rises in proportion to the current. This goes on until
电气工程及其自动化专业英语第三章section_3-2
Section 2 The DC-DC Converters
Text New Words and Expressions Transition of part of speech Exercises End
Section 2 The DC-DC Converters
Section 2 The DC-DC Converters
If the duty ratio D is made a linear function of uC, a control voltage
D = ku C
U o = (kU S )u C
(3-6)
The output voltage is then a linear function of the control voltage. This is also the principle of switchmode linear amplifier. The gain of this amplifier is determined by the input dc source voltage. Neglecting the power losses in the circuit elements, we could use the equation of the balance of power
Section 2 The DC-DC Converters
US I S = Uo Io
− −
(3-7)
where IS is the average current from the DC source. Hence,
Io
−
=
电气专业英语
New Words And Phrases
starter [5stB:tE] n. 起动器,起动钮 actuator [5AktjueitE] n. 操作[执行]机构, 执行器 Hard-Wired Control 硬接线控制 reconnect [7ri:kE5nekt] v. 再接合 complex [5kCmpleks] adj. 复杂的, 合成的, 综合的 handle [5hAndl] vt. 触摸, 运用, 买卖, 处理, 操作vi. 搬运, 易于操纵 interface [5intE(:)7feis] n. 分界面，〈计〉界面，接口 relay [5ri:lei] n.继电器 extensive [iks5tensiv] adj. 广大的, 广阔的, 广泛的
New Words And Phrases
brick [brik] n. 砖, 砖块, 砖形物(如茶砖,冰砖等) I/O point 输入/输出点 depend on 依靠, 依赖 counting [5kauntiN] 计数器 timing [5taimiN] 计时器，定时器 data comparison 数据比较器 PG 编程器（编程设备） STEP 7 一种PLC编程语言 protocol [5prEutEkCl] n. 协议 baud rate [5bC:d reit] n.波特率
Text
请老师朗读并讲解课文
Notes
[1] A PLC monitors inputs, makes decisions based on its program, and controls outputs to automate a process or machine. 本句是个简单句。主语是PLC，谓语由monitor, make, control组成，分别描写三个行为，不定式短语to automate a process or machine做为目的状语。based on its program, 修饰 make decision，告诉我们结果是“根据程序”得到的。
电气工程专业英语实用教程第三版课程设计
电气工程专业英语实用教程第三版课程设计一、课程简介本课程旨在通过结合电气工程领域的实际场景，向学生传授电气工程领域英语的基础知识以及相关实用技能。
旨在提高学生在日常工作中运用英语进行交流的能力和应对电气工程领域中的实际问题能力，并着重培养学生的听、说、读、写各项能力。
二、课程目标•掌握电气工程领域常用的专业英语单词和词组；•熟悉电气工程领域的相关专业知识，如电路原理、电力系统、电气设备等；•培养学生在实际场景下运用英语的交流能力；•提高学生在处理电气工程领域实际问题时的英语能力。
三、课程内容第一章电气工程概述•电气工程概述•电气工程领域英语基础知识第二章电路原理•电路分析法•电路和元件模型•电流计算第三章电力系统•电力系统概述•发电机、变压器、配电系统等知识点第四章电气设备•电气设备分类•电机、电缆、开关等知识点第五章电气自动化控制•电气自动化控制原理、应用与实践•自动化控制技术术语四、教学方法课堂教学采用互动式授课法，实行学生中心、教师为主导的教学模式。
以讲解、演示、探究、图解、实验等多种形式展现教学内容。
自主学习除了上课时间，学生需自行进行阅读英文电气工程方面的著作。
建议学生结合本专业的实际情况，挖掘所选著作中的实用性内容。
课外实践通过组织课外实践活动，帮助学生将所学到的知识应用到实际工作中，提高专业技能和英语交流能力。
五、考核要求期中考核期中考核采用闭卷形式，主要考察学生对本专业英语基础知识和电气工程领域相关知识的掌握程度。
实践报告学生需参加课外实践活动，收集实践数据并撰写详细实践报告，报告需使用英文撰写。
期末考核期末考核分为书面和口语两个部分，书面考核测试学生的词汇和语法基础，口语考核则测试学生的英语交流能力。
六、参考教材•《电气工程专业英语实用教程第三版》•《电气工程及其自动化概论》•《电力系统概论》•《电机及其控制》七、总结电气工程专业英语实用教程是一门注重实践的英语课程。
通过课堂教学、自主学习和实践活动，学生可以充分掌握电气工程领域相关英语知识，提高英语交流能力和解决实际问题的能力。
电气工程专业英语(电力类)翻译
实用资料：电气工程专业课(电力类)翻译参考专业外语：Professional English电路（上）electrical circuit (I)电路（下）electrical circuit (II)金工实习machinery practice电机（上）electrical machinery (I)电工实验与测试electrical experiment & test电子综合实践integrated electronic practice信号与系统signal & system电子技术基础（模拟）fundamentals of electronic (analog)电磁场electromagnetic field电子技术实验electronic experiment(I)电子辅助设计EDA Electronic Design Automatic(I)发电厂动力工程基础Heat power engineering in generating plant企业管理enterprise management电气主系统electrical system principle电力系统稳态/暂态分析Steady-State/ Transient-State Analysis of Power System 电力系统继电保护Power System Relaying Protection电力系统潮流计算机分析：Computer Analysis of Power Flow数字电子技术Digital Electrical Technique微机原理microcomputer principle电子技术基础（数字）fundamentals of electronic (digital)自动控制automatic control theory电力系统分析electric power system analysis电子技术基础实验electronic experiment(II)电气主系统课程设计electrical system principle-course design电子辅助设计EDA Electronic Design Automatic(II)通信与计算机网络communication & computer networks电力系统继电保护electric power system relaying电力系统继电保护Power System Protective Relaying电力系统远动技术electric power system remote protocol生产实习productive practice Technology继电保护课程设计electric power system relaying-course design电力电子技术power electronics电力电子技术基础：Fundamentals of Electronics Power Technology电力电子课程设计Power electronics course design电力系统自动控制electric power system control & automation高电压技术High voltage engineering Technology变电站自动化substation automation电力经济electric power system economics电能质量控制electric power quality control配电网自动化distribution system automation电力系统新技术new techniques on electric power system控制电机electrical machine control调度自动化与能量管理energy management & automation灵活交流输电系统flexible AC transmission system计算机保护computer protection电力系统电磁兼容EMC in electric power system毕业实习graduation practice毕业设计graduation dissertation数字信号处理：Digital Signal Processing自动控制理论：Automatic Control Theory电气工程基础：Fundamentals of Electrical Engineering电磁场概论：Introduction to Electro-Magnetic Field计算机继电保护：Microcomputer-Based Relaying Protection电气设备的绝缘检测与故障诊断：Insulation Diagnostics and Troubl-Shooting for Electrical Installations电网规划：Power System Planning可编程控制器原理及应用：Principles of PLC (Programmable logic Controller) And Application电磁场数值计算：Numerical Computation of Electro-Magnetic Field电力系统继电保护：Relay Protection of Power System电力系统自动装置原理The Principle of Electric Power System Automatic Equipment电力通信系统及调度自动化：Power System Communication and Dispatching Automatic专业方向电气工程Electrical Engineering电机与电器Electric Machines and Electric Apparatus电力系统及其自动化Power System and its Automation高电压与绝缘技术High Voltage and Insulation Technology电力电子与电力传动Power Electronics and Power Drives电工理论与新技术Theory and New Technology of Electrical Engineering电子科学与技术Electronics Science and Technology。
电气工程及其自动化专业英语 Chapter 3 Power Electronic Technology
Section 1 Semiconductor Switches
over, the diode Vl begins to conduct and the voltage on the switch is clamped at Uo, and the current through the switch ramps linearly (again an assumption) down to zero. When the switch is closed, the current begins to build up linearly to IS while the diode V1 is still on. The voltage on the switch remains clamped at UO. After the switch current reaches IS, the diode turns off and the voltage on the switch begins to ramp down to zero.
Semiconductor switches are very important and crucial components in power electronic systems. These switches are meant to be the substitutions of the mechanical switches, but they are severely limited by the properties of the semiconductor materials and the process of manufacturing.
Section 1 Semiconductor Switches
电气工程专业英语实用教程3
Text
请老师朗读并讲解课文
Notes
[1] A simple electric circuit consists of a voltage source, some type of load, and a conductor to allow electrons to flow between the voltage source and the load. 本句中的谓语动词是consist of，意为“由……组成”。to allow electrons to flow between the voltage source and the load修饰的是conductor，表明是什么样的导线，而不是 整个句子。
Notes
[4] A German physicist, Kirchhoff , formulated a law which states the sum of the voltage drops across the resistances of a closed circuit equals the total voltage applied to the circuit. 看懂这个句子的关键是分析它的句子结构。这是一个多层从句 的句子。全句的主语是A German physicist，谓语是formulated， 宾语是a law， Kirchhoff是同位语。which引导的定语从句修饰a law。在该定语从句，which做主语，states是谓语动词，states 后又是一个宾语从句，省略了引导词that。在这个宾语从句中， 主语为the sum of voltage drops，谓语为equals，宾语为the total voltage。
Notes
[3] A series circuit is formed when any number of resistors are connected end-to-end so that there is only one path for current to flow[4]. 本句中的end to end不能凭字面理解为尾对尾，而是首 尾相连的意思。so that引导了一个结果状语从句。when 引导的从句作状语，指明串联电路形成的条件。
电气工程专业英语+unt3
robot n. 机器人；
Hydraulic 水力的,水压的；
Cylinder 圆柱；汽缸； Military adj. 军事的；
saw n. 锯；v. 往复移动； blade 刀片；剑
Blender 掺和器on text
3.1.1 Elementary Concepts of Electrical Machines Various types of electrical machines are widely employed in industries, power stations, domestic and com-mercial appliances, etc.
synonymous. 同步的 generator n. 发电机,发生器；
electro-mechanical 机电 rotate 旋转；使转动；
utilize 利用；使用 electromagnetic [物]电磁的
phenomena 现象 approximately 近似地；
Virtually adv. 实际上；实质上；
Note：①：are virtually overlooked as几乎被忽视； ② integral component of the entire electricity infrastructure
整个电力基础设施不可分割的组成部分
Note：③ alternative energy 替代能源
3.1 Introduction text
3.1 Introduction text
Motors and generators can be designed with or without iron to improve the path of the magnetic field (teeth to reduce the air gap is a common example) and with and without permanent magnets (PM), with different pole number etc., but still belong to different classes of machines.
