SWAN仪表-计算型PH表(1)

大面积树脂瓶——最大接触面，保证交换充分；
流速：6-8L/时——流速稳定、交换充分、运行经济；容积：1L——体积小，便于操作；树脂柱和电导率电极紧密连接——无漏气；预冲洗树脂——备用树脂可随时投入正常测量；更换便捷——节省人力。
SWAN树脂柱
Response Time Lag, SWAN Catcon bottle, Flowrate approx. 100 ml/min
0 0 50 100 150 200 250 300 350 400 450 Time, seconds
SWAN树脂预冲洗
预冲洗
常压排放
SWAN树脂预冲洗
SWAN设计：
经过离子交换和电导测定的出水用于第二瓶树脂的预冲洗，随时准备使用。
Rinse Down Times of Three Different Samples of Strongly Acidic Cation Exchange Resins
该仪表可以同时测量比导、阳导、计算pH值、计
算氨溶度、样水流量和温度，并具有流量报警、温度超标报警、树脂失效报警等功能。
计算型pH表适用于热力发电厂的蒸汽、给水和凝
结水
பைடு நூலகம்WAN计算型pH表的结构
型号：Monitor AMI Deltacon Power 构成：
两个电导率电极
一个流通池
250
150 sec Response time lag
200
Conductivity, Microsiemens/cm
150 Specific conductivity Cation conductivity 100 SWAN Analytical Instruments 15.08.06H. Maurer 50 Injection of 4 ml 0.01 M KCl

SWAN仪表计算型PH表1

250
150 sec Response time lag
200
Conductivity, Microsiemens/cm
150
100
50
0 0
Specific conductivity Cation conductivity
SWAN Analytical Instruments 15.08.06H. Maurer
关于阳离子交换树脂柱
SWAN 理念：
➢ 阳离子交换树脂影响阳导测量的准确性和可靠
性，因此它是阳导仪的重要组成部分。
树脂柱的设计——树脂自动除气
➢ 树脂自动除气功能
刚启机或是刚换过离子交换柱后，在树脂粒间会夹杂很多空气。要使仪表测值准确可靠，这些空气必须排除掉，基于这个原因，SWAN研发出了阳电导率表的自动除气功能。
SWAN计算型pH表的特点
✓ 同时测量比导、阳导、计算pH值和氨NH3浓度。 ✓ 长寿命钛电极，电池常数精确到小数点后5位数。 ✓ 电极一体化温度测量，响应快速，测量准确，超温报警。 ✓ 温度补偿精确。 ✓ 仪表一体化样水流量监测，流量超限报警。 ✓ 带有离子交换树脂柱，更换快捷简便并可给出树脂失效报警。 ✓ 自动树脂除气功能。 ✓ 备用树脂预冲洗，以便快速投入运行。 ✓ 无pH玻璃电极、无需pH测量校准，仪表免维护。
➢ 大面积树脂瓶——最大接触面，保证交换充分； ➢ 流速：6-8L/时——流速稳定、交换充分、运行经济； ➢ 容积：1L——体积小，便于操作； ➢ 树脂柱和电导率电极紧密连接——无漏气； ➢ 预冲洗树脂——备用树脂可随时投入正常测量； ➢ 更换便捷——节省人力。
SWAN树脂柱
Response Time Lag, SWAN Catcon bottle, Flowrate approx. 100 ml/min

swan在线化学仪表的故障分析和维护

防范措施：加强被测水样管道清理工作，并及时定期校验表计，及时添加碱化剂二异丙胺，做好校验记录，若长期不用或者停机后，应对电极做好保护工作，加强电极的日常管理，维护工作。
二SWAN溶解氧表
故障现象：测量数据偏大。
原因分析：
1，测量管路不严密：管路不严密会导致空气漏入，尤其常见的是传感器和电极流通池未接好，空气漏入。
4，（1）测量电极（钠玻璃电极）老化，应用蘸有四氯化碳或洒精的棉球擦净后，用清水冲洗干净，或者用纸巾擦去电极上的沉积物，然后把电极插入SWAN钠表专用活化液中活化2分钟，最后用无硅水彻底冲洗电极，一定要冲洗干净，注意不能让钠玻璃电极玻璃球干燥。（2）参比电极（甘汞、KCL电极）应充满饱和KCL填充液，并注意经常检查、及时添加，及时清理掉结晶的氯化钾。（3）校准时，应先用100ppb的钠校准液，然后再用10000ppb的钠校准液，避免污染，校准斜率在50－64之间，则表明校准成功，仪表自动储存数据，若校准不成功可以反复校准几次，如果还是不行，则可以认为是电极失效，更换电极。处理后的效果：表计测量准确稳定，反应灵敏。
4，校准问题：（1）测量电极是否到了使用年限，有可能老化。（2）参比电极是否老化。
（3）所需标准溶液的污染，存放标准溶液的塑料容器是否清洁、是否密封，或者在使用过程中标准液瓶是否发生了交叉污染等等。
故障可能产生的后果：会使测量数据不准，导致运行人员误判断，使水质化学监督失去作用，有可能导致水质进一步恶化。
2，流速问题：水样的流速不均匀也会导致数据偏大。
3，氧表电极电说明金电极受到污染，有可能失效，需要重新处理或者更换。
3，（1）一般采用提高被测溶液ｐＨ值的方法来屏蔽氢离子对钠电极的影响，即将被测溶液进行碱化，具体方法是加入二异丙胺，使被测水样的ｐＨ值≥10，即认为基本可以消除氢离子对钠电极的影响。（2）在被测量水样前加装小型混合离子过滤器，同时定期对电极进行活化处理，并对电极杯经常用中性洗涤剂进行清洗，若沉积物较多，更换反应管。

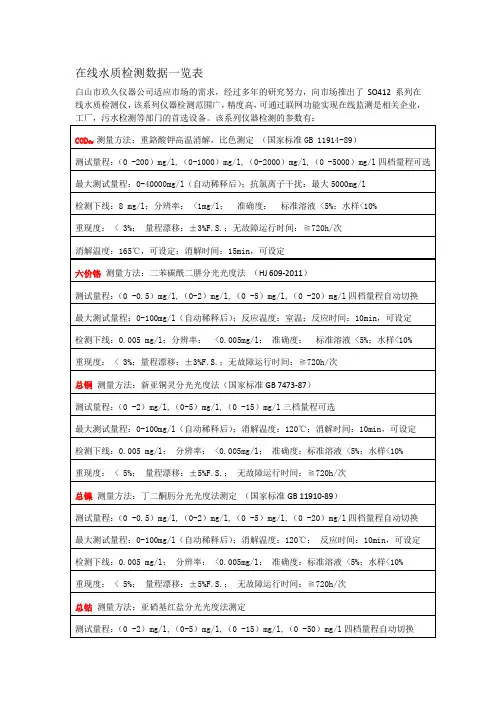

在线水质检测数据一览表

检测下线：0.002 mg/l；分辨率：<0.002mg/l；准确度：标准溶液<5%；水样<10%
重现度：< 5%；量程漂移：±5%F.S.；无故障运行时间：≧720h/次
总铁测量方法：邻菲啰啉分光光度法
测试量程：（0 -2）mg/l,（0 -10）mg/l,（0-50）mg/l三档量程可选
最大测试量程：0-100mg/l（自动稀释后）；消解温度：120℃；消解时间：5min，可设定
重现度：< 5%；量程漂移：±5%F.S.；无故障运行时间：≧720h/次
总钴测量方法：亚硝基红盐分光光度法测定
测试量程：（0 -2）mg/l,（0-5）mg/l,（0-15）mg/l,（0-50）mg/l四档量程自动切换
最大测试量程：0-100mg/l（自动稀释后）；消解温度：120℃；消解时间：10min，可设定
测试量程：（0 -0.5）mg/l,（0-2）mg/l,（0-5）mg/l,（0-20）mg/l四档量程自动切换
最大测试量程：0-100mg/l（自动稀释后）；消解温度：120℃；反应时间：10min，可设定
检测下线：0.005 mg/l；分辨率：<0.005mg/l；准确度：标准溶液<5%；水样<10%
检测下线：0.001 mg/l；分辨率：<0.0005mg/l；准确度：标准溶液<5%；水样<10%
重现度：< 5%；量程漂移：±5%F.S.；无故障运行时间：≧720h/次
总镉测量方法：二硫腙分光光度法测定
测试量程：（0 -0.2）mg/l,（0-1）mg/l量程自动切换
最大测试量程：0-20mg/l（自动稀释后）；消解温度：120℃；消解时间：10min，可设定

SWAN-便携式仪表

SWAN仪表
Swiss Water Analyzer ----- SWAN
SWAN仪表
便携式在线分析仪
