茂捷M5832-15.5V0.45A替换OB2532,SP5610参考资料解析
液晶背光驱动芯片解除保护的实用资料
液晶背光驱动芯片解除保护的实用资料芯片OZ9939GN去保护3脚接地。
芯片OZ9938CN 3或6脚对地短路芯片TL494去保护2到14脚接10K电阻。
或者1和16接地芯片mp1008es去保护，把4脚接地就可以mp1007es把3脚对地mp1009es把5脚对地芯片OZ964GN在①脚的2.2U的电容上并联一个4148二极管BIT3173保护是把15脚吸空芯片型号保护脚说明CTL5001 5 对地短路TL1451 15 对地短路TL5451 15 对地短路BA9741 15 对地短路BA9743 15 对地短路MB3775 15 对地短路AT1741 15 对地短路AT1380 2 对地短路KA7500 1和16 对地短路TL494 1和16 对地短路FA3629 15和16 将外接电容短路LFA3630 7和10 对地短路OZ960 OZ962 2 对地短路OZ965 4 对地短路OZ9RR 8 对地短路BIT3101 2和15 吸空引脚BIT3102 5 吸空引脚BIT3105 4 吸空引脚BIT3106 4和27 吸空引脚BIT3107 4 吸空引脚BIT3193 15 吸空引脚AAT1100 8 对地短路AAT1107 15 对地短路H3435苐18脚对地短路DF6109A苐13脚对地MP1008苐4对地INL837吸空9脚Fp5451苐15脚对地OZ9937第14脚对地SEM2006第2脚接地PM1048EM第1，6脚接地OZ9936第3，7脚接地OZ9966第15脚接地SAQ8818第8脚接地OZ9902CGN第8接地FAN7313第17接地DDA003A第13脚接地BD9882第19脚接地SEM2107第21脚接地OZ9928第27脚接地OB3328第3脚接地AP3041第1脚接地OZ5508GN第3脚接地LX6503第3脚接地OZ9972ASN第19脚接地BD9247F第11脚接地BD9893第10脚接地BD9893F第7脚对地OZ9926第15脚对地OB3350第7脚对地接2.2K电阻OZ9981GN电路把BD9766FV15脚接地。
茂捷M8832的可替换的型号BP2832,SD6702,CL1502,CS7210
概述M8832是一款高精度降压型LED恒流驱动芯片。
芯片工作在电感电流临界连续模式，适用于85Vac~265Vac全范围输入电压的非隔离降压型LED恒流电源。
M8832芯片内部集成500V功率开关，采用专利的驱动和电流检测方式，芯片的工作电流极低，无需辅助绕组检测和供电，只需要很少的外围元件，即可实现优异的恒流特性，极大的节约了系统成本和体积。
M8832芯片内带有高精度的电流采样电路，同时采用了专利的恒流控制技术，实现高精度的LED 恒流输出和优异的线电压调整率。
芯片工作在电感电流临界模式，输出电流不随电感量和LED工作电压的变化而变化，实现优异的负载调整率。
M8832具有多重保护功能，包括LED开路/短路保护，SEN电阻短路保护，欠压保护，芯片温度过热调节等。
M8832采用SOP-8封装。
典型应用特点⏹电感电流临界连续模式⏹内部集成500V功率管⏹无需辅助绕组检测和供电⏹芯片超低工作电流⏹宽输入电压⏹±3%LED输出电流精度⏹LED开路保护⏹LED短路保护⏹SEN电阻短路保护⏹芯片供电欠压保护⏹过热调节功能⏹采用SOP-8封装应用⏹LED蜡烛灯⏹LED球泡灯⏹其它LED照明图1M8832典型应用图M8832管脚封装管脚描述极限参数(注1)注1：最大极限值是指超出该工作范围，芯片有可能损坏。
推荐工作范围是指在该范围内，器件功能正常，但并不完全保证满足个别性能指标。
电气参数定义了器件在工作范围内并且在保证特定性能指标的测试条件下的直流和交流电参数规范。
对于未给定上下限值的参数，该规范不予保证其精度，但其典型值合理反映了器件性能。
注2：温度升高最大功耗一定会减小，这也是由T JMAX ,θJA ,和环境温度T A 所决定的。
最大允许功耗为P DMAX =(T JMAX -T A )/θJA 或是极限范围给出的数字中比较低的那个值。
注3：人体模型，100pF 电容通过1.5K Ω电阻放电。
昂宝与茂捷半导体产品替换表
的T5、T8灯管等中大 元器件少
功率LED电源
④可进模拟与PWM调
光
24W-32W,30W-42W,36W-48W,45W-56W
◆LED驱动 隔离驱动+PFC+内置MOS
芯片简要说明
产品方案特点
应用行业
常用案例
PSR+PFC,内置MOS
高PFC值，PSR系列，省光耦和431，节省 成本空间，安全性高。
GR8830，OB2269(管脚不容）,SD4872(脚 位不兼容)，SP5875(管脚不容），
SP5876(管脚不容），LD7575(管脚不 容），LD7576(管脚不容）
SSR+外置MOS管，各种保护功能
SSR电压电流精度高, M5576最大待机功 耗〔100mW〕 高效率:〔24V5A平均效率
待机功耗<100mW,抖频功能,65KHz,高性 能PWM控制器,欠压保护
1：高要求的手机充 电器
2: 适配器(笔记本适 配器、MID充电器、
显示器电源 3: LCD TV电源。
① 开关频率可调 ② 待机空耗低 ③ 比OB2273 /2263
性价比更高 ④ 容易过EMI ⑤相同变压器的情况 下可以做更大功率
PSR内置MOS有线补功能，各种 保护功能
PSR成本低，节省PCB板上空间，省掉光 耦和431,节省成本
① 输出电压精度
手机，移动电源， 高，OCP保护一致性
MID充电器，理发 好
②
剪，按摩器，适配器
待机空耗低
等
③ 比OB2538性价比
更高
OB2536,CR6236,RM3262 SP5618,SF5926,ME8302 HT2356,PN8326,LY2926
可被茂捷M5576替换的电源驱动芯片GR8830,SD4871,AP3105

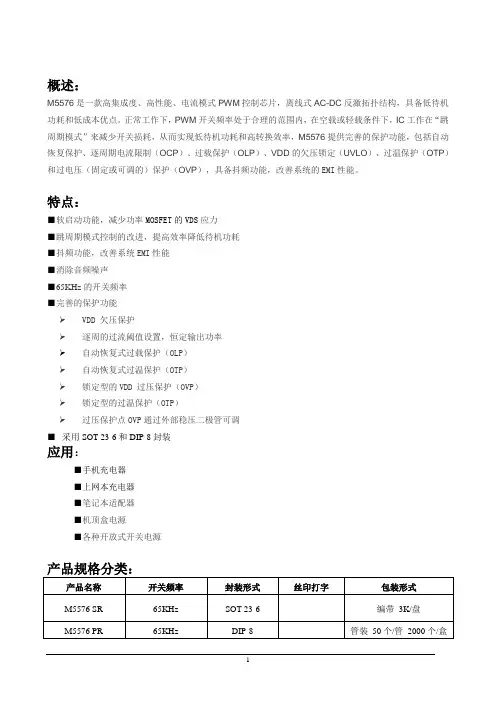

概述：M5576是一款高集成度、高性能、电流模式PWM控制芯片，离线式AC-DC反激拓扑结构，具备低待机功耗和低成本优点。
正常工作下，PWM开关频率处于合理的范围内，在空载或轻载条件下，IC工作在“跳周期模式”来减少开关损耗，从而实现低待机功耗和高转换效率，M5576提供完善的保护功能，包括自动恢复保护、逐周期电流限制（OCP）、过载保护（OLP）、VDD的欠压锁定（UVLO）、过温保护（OTP）和过电压（固定或可调的）保护（OVP），具备抖频功能，改善系统的EMI性能。
特点：■软启动功能，减少功率MOSFET的VDS应力■跳周期模式控制的改进，提高效率降低待机功耗■抖频功能，改善系统EMI性能■消除音频噪声■65KHz的开关频率■完善的保护功能VDD 欠压保护逐周的过流阈值设置，恒定输出功率自动恢复式过载保护（OLP）自动恢复式过温保护（OTP）锁定型的VDD 过压保护（OVP）锁定型的过温保护（OTP）过压保护点OVP通过外部稳压二极管可调■采用SOT-23-6和DIP-8封装应用：■手机充电器■上网本充电器■笔记本适配器■机顶盒电源■各种开放式开关电源典型应用：图1 M5576SR 应用图SOT-23-6图2 M5576PR 应用图DIP-8 管脚排列图：M5576PR M5576SR 图3 DIP-8(顶部视图) 图4 SOT-23-6(顶部视图)管脚描述：芯片使用时极限参数：注：如果器件工作条件超出上述各项极限值，可能对器件造成永久性损坏。
上述参数是工作条件的极限值，不建议器件工作在推荐条件以外的情况。
器件长时间工作在极限工作条件下，其可靠性及寿命可能受到影响。
芯片内部框图：图5 M5576内部框图电气参数(Ta=25o C)：应用信息M5576是一款高集成度、高性能、电流模式PWM控制芯片，离线式AC-DC反激拓扑结构，具备低待机功耗和低成本优点。
扩展模式大大降低了待机功耗，方案设计适应国际节能的要求。

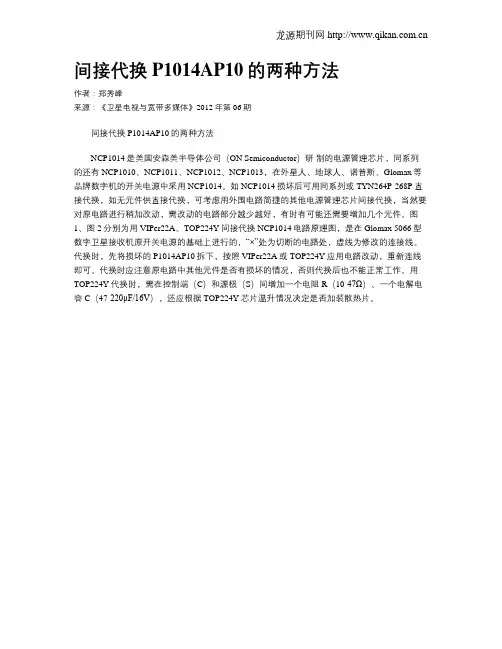

间接代换P1014AP10的两种方法
龙源期刊网
间接代换P1014AP10的两种方法
作者：郑秀峰
来源：《卫星电视与宽带多媒体》2012年第06期
间接代换P1014AP10的两种方法
NCP1014是美国安森美半导体公司（ON Semiconductor）研制的电源管理芯片，同系列
的还有NCP1010、NCP1011、NCP1012、NCP1013，在外星人、地球人、诺普斯、Glomax等品牌数字机的开关电源中采用NCP1014。
如NCP1014损坏后可用同系列或TYN264P-268P直接代换，如无元件供直接代换，可考虑用外围电路简捷的其他电源管理芯片间接代换，当然要对原电路进行稍加改动，需改动的电路部分越少越好，有时有可能还需要增加几个元件。
图1、图2分别为用VIPer22A、TOP224Y间接代换NCP1014电路原理图，是在Glomax 5066型数字卫星接收机原开关电源的基础上进行的，“×”处为切断的电路处，虚线为修改的连接线。
代换时，先将损坏的P1014AP10拆下，按照VIPer22A或TOP224Y应用电路改动，重新连线即可。
代换时应注意原电路中其他元件是否有损坏的情况，否则代换后也不能正常工作。
用TOP224Y代换时，需在控制端（C）和源极（S）间增加一个电阻R（10-47Ω）、一个电解电容C（47-220μF/16V），还应根据TOP224Y芯片温升情况决定是否加装散热片。
各类现场总线光纤中继器进口型号对照表
PROFIBUS DP/FMS 总线转光纤：SIEMENS(西门子) OLM系列 VS 易控达YFP系列Repeater(6ES7972-0AA01-0xA0) 两端口总线隔离中继器 YHP3 三端口总线隔离中继器 OBT(6GK1500-3AAxx) 二对单模光纤接口 YFP2-S-STOLM V31系列产品对照OLM P11(6GK1502-2CAxx) 一对塑料纤维光口 可用YFP1代替,需换成玻璃光纤 OLM P12(6GK1502-3CAxx) 二对塑料纤维光口 可用YFP2代替,需换成玻璃光纤 OLM G11(6GK1502-2CBxx) 一对多模光纤接口 YFP1-M-STOLM G12(6GK1502-3CBxx) 二对多模光纤接口 YFP2-M-STOLM G12-EEC(6GK1503-2CDxx) 二对多模光纤接口 YFP2-M-STOLM G11-1300(6GK1502-2CCxx) 一对单模光纤接口 YFP1-S-STOLM G12-1300(6GK1502-3CCxx) 二对单模光纤接口 YFP2-S-STOLM V40系列产品对照OLM P11(6GK1503-2CAxx) 一对塑料纤维光口 可用YFP1代替,需换成玻璃光纤 OLM P12(6GK1503-3CAxx) 二对塑料纤维光口 可用YFP2代替,需换成玻璃光纤 OLM G11(6GK1503-2CBxx) 一对多模光纤接口 YFP1-M-STOLM G12(6GK1503-3CBxx) 二对多模光纤接口 YFP2-M-STOLM G12-EEC(6GK1503-2CDxx) 二对多模光纤接口 YFP2-M-STOLM G11-1300(6GK1503-2CCxx) 一对单模光纤接口 YFP1-S-STOLM G12-1300(6GK1503-3CCxx) 二对单模光纤接口 YFP2-S-STPROFIBUS DP/FMS 总线转光纤：HIRSCHMANN (赫斯曼)的OZD系列 VS 易控达YFP系列OZD Profi 12M P11(943 728-221) 一对塑料纤维光口 可用YFP1代替,需换成玻璃光纤 OZD Profi 12M P12(943 728-321) 二对塑料纤维光口 可用YFP2代替,需换成玻璃光纤 OZD Profi 12M G11(943 727-221) 一对多模光纤接口 YFP1-M-STOZD Profi 12M G12(943 727-321) 二对多模光纤接口 YFP2-M-STOZD Profi 12M G12-EEC(943 730-321) 二对多模光纤接口 YFP2-M-STOZD Profi 12M G11-1300(943 729-221) 一对单模光纤接口 YFP1-S-STOZD Profi 12M G12-1300(943 729-321) 二对单模光纤接口 YFP2-S-STOZD Modbus PLUS G12(943 740-021) 二对多模光纤接口 YFB2-M-ST OZD Modbus PLUS G12-1300(943 821-021) 二对单模光纤接口 YFB2-S-ST OZD Genius G12(933 989-021) 二对多模光纤接 YFG2-M-ST OZD Genius G12-1300(934 233-021) 二对单模光纤接 YFG2-S-ST CONTROLNET总线转光纤:ROCKWELL(罗克韦尔)，AB的1786系列 VS 易控达YFN系列YFN产品型号 1786-产品组合 功 能 描 述YFN1-M-ST 1786-RPA :11786-RPFS:1单光口短距离光纤链路模块,不同的是光纤介质不同,YFN1使用多模光纤YFN1-M-ST 1786-RPA :11786-RPFM:1单光口中距离光纤链路模块,多模光纤,3KMYFN1-S-ST -- 单光口长距离光纤链路模块,单模光纤,20KMYFN2-M-ST -- 具有环环冗余功能的多模光纤链路模块双光口,有自愈保护功能AB的产品中具有环网功能的仅有单模产品YFN2-S-ST 1786-RPA :11786-RPFRL:1具有环环冗余功能的单模光纤链路模块双光口,有自愈保护功能AB的产品传10KM,YFN2传20KMYFN2-S-ST1786-RPA :11786-RPFRXL:1具有环环冗余功能的单模光纤链路模块双光口,有自愈保护功能,传20KMYHN31786-RPT或1786-RPTD两端口协议型隔离中继器YHN31786-RPA:11786-RPCD:1+n多端口协议型隔离中继器YFN1-M-ST +YHN31786-RPA:11786-RPFM:1+n可组成多端口星型结构的光纤链路模块MODBUS PLUS总线转光纤/S908 RIO总线转光纤：Schneider(施耐德)，Modicon(莫迪康)的490系列 VS 易控达YFB/YFS系列YFB/YFS产品型号 Modicon产品 功 能 描 述 YFB1-M-ST 490NRP25300单光口Modbus PLUS(MB+)光纤链路模块,多模光纤,传输3公里YFB1-S-ST --单光口长距离Modbus PLUS(MB+)光纤链路模块,单模光纤,20KMYFB2-M-ST490NRP25400NWFR85D200 具有环环冗余功能的多模光纤链路模块 双光口,有自愈保护功能YFB2-S-ST --具有环环冗余功能的单模光纤链路模块双光口,有自愈保护功能,20KMYFS1-M-ST --单光口S908 TIO总线光纤链路模块,多模光纤,传输3公里YFS1-S-ST --单光口长距离S908 Remote IO光纤链路模块,单模光纤,20KMYFS2-M-ST490NRP95400NWFR89D200 具有环环冗余功能的S908 Remote IO光纤链路模块 多模双光口,有自愈保护功能YFS2-S-ST --具有环环冗余功能的单模光纤链路模块双光口,有自愈保护功能,传20KMYHB3/YHS3NWRR85001(RR85 Repeater)两端口协议型隔离中继器PROFIBUS DP/FMS总线转光纤Phinex(菲尼克斯)的PSI系列 VS 易控达YFP系列YFP产品型号 Modicon产品 功 能 描 述 YFP2-M-ST PSI-MOS-PROFIBUS/FO 850 T 双光口冗余，多模光纤 YFP2-S-ST PSI-MOS-PROFIBUS/FO 1300 T 双光口冗余，单模光纤 YFP1-M-ST PSI-MOS-PROFIBUS/FO 850 E 单光口，多模光纤YFP1-S-ST PSI-MOS-PROFIBUS/FO 1300 E 单光口，单模光纤 YHP3PSI-MOS-DNET CAN/FO 850/BM:27 08 08 3PSI-MOS-DNET CAN/FO 850/EM:27 08 096电缆中继隔离器CC-LINK总线转光纤:Mitsubishi(三菱)的AJ65BT系列 VS 易控达YFK系列NS24产品型号Mitsubishi产品 功 能 描 述 及 备 注YFK1-M-ST AJ65SBT-RPS单光口CC-Link光纤链路模块,多模光纤,传输2公里YFK1-S-ST AJ65SBT-RPG单光口长距离CC-Link光纤链路模块,单模光纤,20KMYFK2-M-ST--具有环环冗余功能的多模光纤链路模块,有自愈保护功能YFK2-S-ST--具有环环冗余功能的单模光纤链路模块双光口,有自愈保护功能,20KMYHK3AJ65BT-RPT两端口协议型隔离中继器。
台湾茂达的产品封装及功能说明
深圳市沛城电子科技有限公司地址：中国广东省深圳市南山区科技园北区清华紫光信息港B座三楼联系人：曾小姐电话：86-755-82990713(直线)总机：86-755-82993060传真: 86-755-82992851E-mail: pcmy2011@MSN：yinhualy@公司网址：阿里旺铺：沛城电子是茂达（ANPEC）授权一级代理商，1、MOSFET(MOS管)APM9435为一颗P-MOSFET，VDS耐压为30V，VGS耐压为25V，提供最大的连续电流为6.2A，在VGS=10V 时，最大导通阻抗为60mΩ，采用无铅的SOP-8封装，主要作为电源的开关和PWM的功率器件的应用，常用在车载电子、LCD、便携DVD等电子产品上. 替代市面上如 CEM9435、AP9435 、AF9435 、GE9435、 GT9435 、TM9435、 MT9435、 SD9435。
APM2300CAC，SOT23封装， N沟道 20V/6A兼容，AO3400,SI2300，ME2314，GN2300，……APM2301CAC，SOT23封装， P沟道 20V/6A， 800MA VIN 2.5-5.5 BUCK PWM，兼容AO3401 ，SI2301，LT3406，RT8008，RT8009，APS1006，MP2104……APM2306，SOT23封装，兼容ME2306，GV2314……APM4412为一颗N-MOSFET，VDS耐压为30V，VGS耐压为20V，提供最大的连续电流为12A，在VGS=10V 时，最大导通阻抗为12mΩ，采用无铅的SOP-8封装，主要作为电源的开关和PWM的功率器件的应用，常用在车载电子、LCD、便携DVD,电子调速器等电子产品上。
APM4953为一颗P-MOSFET，VDS耐压为30V，VGS耐压为25V，提供最大的连续电流为6.2A，在VGS=10V 时，最大导通阻抗为60mΩ，采用无铅的SOP-8封装，主要作为电源的开关和PWM的功率器件的应用，常用在车载电子、LCD、便携DVD等电子产品上.兼容SI4953，AP4953，STM9435，MT9435……APM9926，封装SOP/TSSOP-8，兼容N9926A，应用LED显示屏APM4550：封装SOP8，应用：笔记本，场效应管APM3095：封装SOT252，其他MOSFET(MOS管)：APM4953KC SOP8 双P沟道 30V/5A兼容SI4953,AP4953,STM9435,MT9435……APM2305AC SOT23 沟道 16V/3.5A兼容 SI2305……APM3055LUC TO252 N沟 30V/20A兼容STD1703APM3023NUC TO252 N沟道 30V/30A兼容AOD408,AP40T03…APM3095PUC TO252 N沟道 30V/8AAP2014NUC TO252 N沟道 20V/40A兼容SOD434,AP9T18GAPM9410KC SOP8 N沟通道30V/8A，APM4435KC SOP8 P沟道 30V/8AAPM2506NUC TO252 N沟道 25V50A兼容 06N03,AO472,AP86T02, STD70N02,60N03…APM2509NUC TO252 N沟道 25V50A兼容09N03,AO452,AP72T02,STD90N02,70N03…APM7313KC SOP8 双N沟道 30V/6A兼容IRF7313,AO48002、PWM(DC-DC升/降压IC)：DC-DC升压IC：APW7077AAPW7077A是一颗升压PWM控制器，超低的启动电压（0.9V），工作电压为（0.9V～5.5V），内置软启动和固定的300K频率，APW7077A本身的驱动能力为150mA，SOT-25封装，和AP1624，NCP1450，XC6368兼容。
HA5832E 非隔离替代BP2832A
HA5832E 封装形式
SOP-8 package outline dimensions
-9-
其中：IP 为电感电流峰值；L 为电感值；VIN 为交流输入整流后的直流值；VLED 为 LED 负载的正向压降 当内部 MOS 管关闭后，电感电流将从峰值逐渐降低，直到降低为 0 时，内部 MOS 管 将再次开启，此间的电感关闭时间为：
TOFF
L IP ； VLED VLED (VIN VLED ) ； VIN I P F
由上可知，电感可计算为： L
其中 F 为系统工作频率，在设计系统时，首先确定 ILED，ILED 确定后 RISEN、IP 等也就相 应确定了，此时由上式可知，系统频率与输入电压成正比、与选择之电感 L 成反比：当输 入电压最低（或）电感取值较大时，系统频率较低，当输入电压最高（或）电感取值较小时， 系统频率较高，因此，在系统输入电压范围确定时，电感的取值直接影响到系统频率的范围 以及恒流特性。考虑到系统频率不可过低（例如进入音频范围） ，也不宜过高（导致功率管 损耗过大以及 EMI 影响） ，同时 HA5832E 设定了最小/大退磁时间以及最小/大励磁时间，因 此在设计时，建议系统频率设定在 50KHZ～120KHz 之间
范围 15.8～17.2 ≦135 12.8～14.2 ≦195 8.1～9.1 392～408 198 500 150
单位 V μ A V μ A V mV mV ns ns V Ω uA V us us us ℃
VGS=0V/ IDS=250uA VGS=15V/ IDS=0.5A VGS=0V/ VDS=500V
功能 设置开路保护电压， 外接电阻 空脚 工作电源 内部 MOSFET 的漏端 内部 MOSFET 的漏端 电流采样，外接电阻到地 电流采样，外接电阻到地
晶丰明源与茂捷半导体产品替换表
◆AC-DC PSR 原边反馈 外置MOS
芯片简要说明
产品方案特点
应用行业
常用案例
PSR+外置MOS，各种保护功能
PSR成本低，节省PCB板上空间，省掉光 耦和431,节省成本
① 输出电压精度
1：LED灯 30W以内 LED电源
2： MID充电器3.充 电器 适配器
高，OCP保护一致性
好
②
待机空耗低
M8911DR
SOP8 BP3315D，CL1313 CS8211S
PSR+PFC,外置MOS
PF>0.9,内置LED短路和开路保护，高效 率，隔离式
高PFC要求的PSR方 ① PF高 THD低
案，主要用在带PFC ② 启动电流低，效
的外置电源和灯管类 率高
的T5、T8灯管等中大 ③ 设计简单，外围
手机充电器,移动电 源充电器,游戏周边
产品充电器,
① 输出电压精度
高，OCP保护一致性
好
②
待机空耗低
③ 比OB2536性价比
更高
PSR成本低，节省PCB板上空间，省掉光 耦和431,节省成本
① 输出电压精度
手机充电器，相机充 电器，数码产品小功
率充电器
高，OCP保护一致性
好
②
待机空耗低
③ 比OB2535性价比
5V2A,5V/3A,5V4A,9V2A,9V3A 12V/1.5A,12V2A,12V3A、12V4A，18V1.5A， 18V2A等等小于 24V1.5A,24V2A等等小于48w 8-12*1W。。。28-36*1W，8-12*3W。。。12--
18*3W等等小于48W
40W
M5573NSR
5833中文资料
Designed to reduce logic supply current, chip size, and system cost, the UCN5833A/EP integrated circuits offer high-speed operation for thermal printers. These devices can also be used to drive multi-plexed LED displays or incandescent lamps within their 125 mA peak output current rating. The combination of bipolar and MOS technolo-gies gives BiMOS II smart power ICs an interface flexibility beyond the reach of standard buffers and power driver circuits.These 32-bit drivers have bipolar open-collector npn Darlington outputs, a CMOS data latch for each of the drivers, a 32-bit CMOS shift register, and CMOS control circuitry. The high-speed CMOS shift registers and latches allow operation with most microprocessor-based systems at data input rates above 3.3 MHz. Use of these drivers with TTL may require input pull-up resistors to ensure an input logic high.The UCN5833A is supplied in a 40-pin dual in-line plastic package with 0.600" (15.24 mm) row spacing. At an ambient temperature of +75°C, all outputs of the DlP-packaged device will sustain 50 mA continuously. For high-density applications, the UCN5833EP is available. This 44-lead plastic chip carrier (quad pack) is intended for surface-mounting on solder lands with 0.050" (1.27 mm) centers.CMOS serial data outputs permit cascading for applications requiring additional drive lines.FEATURESI To 3.3 MHz Data Input Rate I 30 V Minimum Output Breakdown I Darlington Current-Sink Outputs I Low-Power CMOS Logic and LatchesBiMOS II 32-BIT SERIAL-INPUT,LATCHED DRIVERAlways order by complete part number:Part Number Package UCN5833A 40-Pin DIP UCN5833EP44-Lead PLCCData Sheet 26185.16A*58335833BiMOS II 32-BIT SERIAL-INPUT,LATCHED DRIVER115 Northeast Cutoff, Box 15036Worcester, Massachusetts 01615-0036 (508) 853-5000SERIAL DATA IN POWER STROBE OUT OUT OUT OUTOUT OUT 123456OUT7OUT 8OUT 9OUTOUT OUTOUT OUTLOGIC SUPPLY OUT OUT Dwg. No. A-13,051TYPICAL OUTPUT DRIVERSUBOUT115 Northeast Cutoff, Box 15036Worcester, Massachusetts 01615-0036 (508) 853-5000Copyright © 1986, 1995, Allegro MicroSystems, Inc.5833BiMOS II 32-BIT SERIAL-INPUT,LATCHED DRIVERTRUTH TABLEL = Low Logic Level H = High Logic Level X = Irrelevant P = Present State R = Previous StateELECTRICAL CHARACTERISTICS at T A = +25°C, V DD = 5 V (unless otherwise noted).Limits CharacteristicSymbol Test Conditions Min.Max.Units Output Leakage Current I CEX V OUT = 30 V, T A = 70°C —10µA Collector-Emitter V CE(SAT)l OUT = 50 mA — 1.2V l OUT = 100 mA— 1.7V Input VoltageV IN(1) 3.5 5.3V V IN(0)-0.3+0.8V Input Currentl IN(1)V IN = 5.0 V — 1.0µA l IN(0)V IN = 0 V —-1.0µA Serial Output VoltageV OUT(1)I OUT = -200 µA 4.5—V V OUT(0)I OUT = 200 µA—0.3V Supply Currentl DD One output ON, l OUT = 100 mA — 1.0mA All outputs OFF—50µA Output Rise Time t r l OUT = 100 mA, 10% to 90%—500ns Output Fall Timet fl OUT = 100 mA, 90% to 10%—500nsNOTE: Positive (negative) current is defined as going into (coming out of) the specified device pin.Saturation Voltage5833BiMOS II 32-BIT SERIAL-INPUT,LATCHED DRIVER115 Northeast Cutoff, Box 15036Worcester, Massachusetts 01615-0036 (508) 853-5000TIMING CONDITIONS(V DD = 5.0 V, Logic Levels are V DD and Ground)A.Minimum Data Active Time Before Clock Pulse(Data Set-Up Time)..........................................................................75 ns B.Minimum Data Active Time After Clock Pulse(Data Hold Time).............................................................................75 ns C.Minimum Data Pulse Width ................................................................150 ns D.Minimum Clock Pulse Width...............................................................150 ns E.Minimum Time Between Clock Activation and Strobe.......................300 ns F.Minimum Strobe Pulse Width .............................................................100 ns G.Typical Time Between Strobe Activation andOutput Transition ...........................................................................500 nsDwg. No. A-12,276ASerial Data present at the input is transferred to the shift register on the logic “0” to logic “1” transition of the CLOCK input pulse. On succeeding CLOCK pulses, the registers shift data information towards the SERIAL DATA OUTPUT. The SERIAL DATA must appear at the input prior to the rising edge of the CLOCK input waveform.Information present at any register is transferred to its respective latch when the STROBE is high (serial-to-parallel conversion). The latches will continue to accept new data as long as the STROBE is held high. Applications where the latches are bypassed (STROBE tied high) will require that the OUTPUT ENABLE input be low during serial data entry.When the OUTPUT ENABLE input is low, all of the output buffers are disabled (OFF) without affecting the information stored in the latches or shift register. With the OUTPUT ENABLE input high, the outputs are controlled by the state of the latches.CLOCK DATA INSTROBE NOUTPUT ENABLEOUT5833BiMOS II 32-BIT SERIAL-INPUT,LATCHED DRIVERNOTES:1.Exact body and lead configuration at vendor’s option within limits shown.2.Lead spacing tolerance is non-cumulative.3.Lead thickness is measured at seating plane or below.UCN5833ADimensions in Inches (controlling dimensions)Dimensions in Millimeters (for reference only)123Dwg. MA-003-40 mm20421123Dwg. MA-003-40 in2045833BiMOS II 32-BIT SERIAL-INPUT,LATCHED DRIVER115 Northeast Cutoff, Box 15036Worcester, Massachusetts 01615-0036 (508) 853-5000UCN5833EPDimensions in Inches (controlling dimensions)Dimensions in Millimeters (for reference only)Dwg. MA-005-44A mm0.53340Dwg. MA-005-44A in0.021740NOTES:1.Exact body and lead configuration at vendor’s option within limits shown.2.Lead spacing tolerance is non-cumulative.5833BiMOS II 32-BITSERIAL-INPUT,LATCHED DRIVERThe products described here are manufactured under one or more U.S. patents or U.S. patents pending.Allegro MicroSystems, Inc. reserves the right to make, from time to time, such departures from the detail specifications as may be required to permit improvements in the performance, reliability, or manufacturability of its products. Before placing an order, the user is cautioned to verify that the information being relied upon is current.Allegro products are not authorized for use as critical components in life-support devices or systems without express written approval.The information included herein is believed to be accurate and reliable. However, Allegro MicroSystems, Inc. assumes no responsi-bility for its use; nor for any infringement of patents or other rights of third parties which may result from its use.5833BiMOS II 32-BIT SERIAL-INPUT,LATCHED DRIVER115 Northeast Cutoff, Box 15036Worcester, Massachusetts 01615-0036 (508) 853-5000POWERINTERFACE DRIVERSFunctionOutput Ratings*Part Number †SERIAL-INPUT LATCHED DRIVERS8-Bit (saturated drivers)-120 mA 50 V‡58958-Bit 350 mA 50 V 58218-Bit 350 mA 80 V 58228-Bit 350 mA 50 V‡58418-Bit350 mA 80 V‡58428-Bit (constant-current LED driver)75 mA 17 V 62758-Bit (DMOS drivers)250 mA 50 V 65958-Bit (DMOS drivers)350 mA 50 V‡6A5958-Bit (DMOS drivers)100 mA 50 V 6B59510-Bit (active pull-downs)-25 mA 60 V 5810-F and 6809/1012-Bit (active pull-downs)-25 mA 60 V 5811 and 681116-Bit (constant-current LED driver)75 mA 17 V 627620-Bit (active pull-downs)-25 mA 60 V 5812-F and 681232-Bit (active pull-downs)-25 mA 60 V 5818-F and 681832-Bit100 mA 30 V 583332-Bit (saturated drivers)100 mA 40 V 5832PARALLEL-INPUT LATCHED DRIVERS4-Bit350 mA 50 V‡58008-Bit -25 mA 60 V 58158-Bit350 mA 50 V‡58018-Bit (DMOS drivers)100 mA 50 V 6B2738-Bit (DMOS drivers)250 mA 50 V 6273SPECIAL-PURPOSE DEVICESUnipolar Stepper Motor Translator/Driver 1.25 A 50 V‡5804Addressable 8-Bit Decoder/DMOS Driver 250 mA 50 V 6259Addressable 8-Bit Decoder/DMOS Driver 350 mA 50 V‡6A259Addressable 8-Bit Decoder/DMOS Driver 100 mA 50 V 6B259Addressable 28-Line Decoder/Driver 450 mA30 V6817*Current is maximum specified test condition, voltage is maximum rating. See specification for sustaining voltage limits.Negative current is defined as coming out of (sourcing) the output.†Complete part number includes additional characters to indicate operating temperature range and package style.‡Internal transient-suppression diodes included for inductive-load protection.。
OB2535
OB2535- MOJAY(茂捷)M5835替代书
OB2535可以被MOJAY(茂捷)M5835替代，
M5835是应用于低功率AC/DC 电池充电器、电源适配器、LED的高性能离线式PWM 功率开关，全电压输入范围内恒压恒流精度均能保持在±5%以内。
芯片采用原边反馈技术，使系统应用中可以节省TL431 和光耦以降低成本。
特点:
全电压范围CV 精度保持在±5%以内
原边反馈技术可使系统节省TL431 与光耦
可编程的CV、CC
内置原边绕组电感补偿
可编程的输出线压降补偿
内置软启动功能
内置前沿消隐电路（LEB）
频率抖动
逐周期过流保护
欠压保护（UVLO）
VDD OVP 保护功能及VDD 电压钳位功能
封装: SOP8/DIP8，符合RoHS 标准
产品应用:
CC/CV 电池充电器
手机/无绳电话充电器
数码相机充电器
PDA 充电器
小功率电源适配器
电脑/电视辅助电源
线性电源替代。
BP2328A高PF替换方案茂捷M8918
M8918 T8灯管高PF 非隔离替换BP2328A、SD6904S、CS9220DM8918 是一款带有源功率因数校正的高精度降压型 LED 恒流控制芯片，适用于85Vac-265Vac 全范围输入电压的非隔离降压式 LED 恒流电源。
M8918 集成有源功率因数校正电路，可以实现很高的功率因数和很低的总谐波失真。
由于工作在电感电流临界连续模式，功率MOS 管处于零电流开通状态，开关损耗得以减小，同时电感的利用率也较高。
M8918 内部集成600V 功率MOSFET,只需要很少的外围器件，即可实现优异的恒流特性. M8918 采用专利的浮地构架，对电感电流进行全周期采样，可实现高精度输出恒流控制，并达到优异的线电压调整率和负载调整率。
M8918 具有多重保护功能以加强系统可靠性，包括 LED 开路保护、LED 短路保护、芯片供电欠压保护、电流采样电阻开路保护和逐周期限流等。
所有的保护状态都具有自动重启功能。
另外，M8918 具有过热调节功能，在驱动电源过热时减小输出电流，以提高系统的可靠性。
特点有源功率因数校正，高PF 值，低THD内置 600V 功率MOSFET高达 95%的系统效率±3% LED 输出电流精度优异的线电压调整率和负载调整率电感电流临界连续模式超低(33uA) 启动电流超低(300uA) 工作电流LED 短路/开路保护电流采样电阻开路保护逐周期电流限流芯片供电欠压保护自动重启功能过热调节功能采用 SOP-8/DIP-8 封装pin脚的顺序同BP2328。
与BP2328相比优势，a.可快速启动，b.vdd电容可取小。
与SD690X相比优势，a.正电压检测b.具有温度调节功能 c.优化快速启动 d.vdd电容可以取小，避免关机回闪问题（目前市面产品大部分都有类似问题）与MT7830相比优势，温度调节功能优化快速启动vdd电容可以取小，避免关机回闪问题。
与SM7330B相比，最大优势精度M8918是3%，它是5%。
多种电源管理芯片代换
1200AP40 1200AP60、1203P60200D6、203D6 DAP8A 可互代203D6/1203P6 DAP8A2S0680 2S08803S0680 3S08805S0765 DP104、DP7048S0765C DP704加24V的稳压二极管ACT4060 ZA3020LV/MP1410/MP9141ACT4065 ZA3020/MP1580ACT4070 ZA3030/MP1583/MP1591MP1593/MP1430 ACT6311 LT1937ACT6906 LTC3406/AT1366/MP2104AMC2576 LM2576AMC2596 LM2596AMC3100 LTC3406/AT1366/MP2104AMC34063A AMC34063AMC7660 AJC1564AP8012 VIPer12AAP8022 VIPer22ADAP02 可用SG5841 /SG6841代换DAP02ALSZ SG6841DAP02ALSZ SG6841DAP7A、DP8A 203D6、1203P6DH321、DL321 Q100、DM0265RDM0465R DM/CM0565RDM0465R/DM0565R 用cm0565r代换（取掉4脚的稳压二极管）DP104 5S0765DP704 5S0765DP706 5S0765DP804 DP904FAN7601 LAF0001LD7552 可用SG6841代（改4脚电阻）LD7575PS 203D6改1脚100K电阻为24KOB2268CP OB2269CPOB2268CP SG6841改4脚100K电阻为20-47KOCP1451 TL1451/BA9741/SP9741/AP200OCP2150 LTC3406/AT1366/MP2104OCP2160 LTC3407OCP2576 LM2576OCP3601 MB3800OCP5001 TL5001OMC2596 LM2596/AP1501PT1301 RJ9266PT4101 AJC1648/MP3202PT4102 LT1937/AJC1896/AP1522/RJ9271/MP1540SG5841SZ SG6841DZ/SG6841DSM9621 RJ9621/AJC1642SP1937 LT1937/AJC1896/AP1522/RJ9271/MP1540STR-G5643D STR-G5653D、STR-G8653DTEA1507 TEA1533TEA1530 TEA1532对应引脚功能接入THX202H TFC719THX203H TFC718STOP246Y TOP247YVA7910 MAX1674/75 L6920 AJC1610VIPer12A VIPer22A[audio01]ICE2A165(1A/650V.31W);ICE2A265(2A/650V.52W);ICE2B0565(0.5A/650V.23W):ICE2B165(1A/650V.31W);ICE2B265(2A/650V.52W);ICE2A180(1A/800V.29W);ICE2A280(2A/800.50W).KA5H0365R, KA5M0365R, KA5L0365R, KA5M0365RN# u) t! u1 W1 B) R, PKA5L0365RN, KA5H0380R, KA5M0380R, KA5L0380R1、KA5Q1265RF/RT（大小两种体积）、KA5Q0765、FSCQ1265RT、KACQ1265RF、FSCQ0765RT、FSCQ1565Q这是一类的，这些型号的引脚功能全都一样，只是输出功率不一样。
茂捷M5573兼容绿达GR8837
描述♔ M5573是一款优化的高性能高集成的用于反激式变换器的电流模式PWM控制芯片，具备低待机功耗和低成本的优点。
♔正常工作下，PWM开关频率通过外部电阻可调。
在空载或轻载条件下，IC就会工作在“跳周期模式”来减少开关损耗，从而实现低待机功耗和高转换效率的实现。
♔ M5573提供全面的保护，包括自动恢复保护，逐周期电流限制（OCP），过载保护（OLP）、带迟滞功能的VDD欠压保护，和过电压（固定或可调的）保护（OVP）。
♔ M5573频率抖动能实现优良的EMI性能。
♔ M5573在工作中消除了低于20kHz音频噪声的消除。
♔ M5573采用SOT-23-6封装。
典型应用图典型应用图特征☛软启动功能，减少应力功率MOSFETVDS☛降低EMI频率抖动功能☛跳周期模式控制的改进，提高效率降低待机功耗☛最小功率的备用电源设计☛消除音频噪声☛开关频率通过外部电阻可调☛综合保护性能1.带迟滞功能的VDD欠压保护2.逐周的过流阈值设置，在全电压范围内恒定输出功率3.过载保护（OLP）与自动恢复4.自动恢复的VDD过压保护（OVP）应用领域☛适用于AC/DC反激式变换器☛手机充电器,上网本充电器☛笔记本适配器☛机顶盒电源☛各种开放式开关电源引脚功能描述绝对值范围芯片框图应用信息M5573是一款优化的高性能高集成的用于反激式变换器的电流模式PWM控制芯片，具备低待机功耗和低成本的优点，扩展模式大大降低了待机功耗，方案设计适应国际节能的要求。
●启动电流和启动控制M5573启动电流非常低，便于获取高于VDD的UVLO值并迅速启动。
因此，高阻值启动电阻可减少功率损耗，并能在应用中稳定可靠的启动。
●工作电流M5573工作电流低至1.4mA。
跳周期模式与工作电流一起扩展能实现较高效率。
●软启动M5573在通电时触发一个4ms的软启动来降低启动时的应力。
当VDD达到VDD_O，SE尖峰电压由0.15V逐渐升高增至最大。
每次重启后都会重新软启动。
茂捷M5832兼容替换OB2532
描述M5832应用于小功率AC/DC充电器和电源适配器的高性能离线式脉宽调制控制器。
该芯片是一款基于原边检测和调整的控制器，因此在应用时无需TL431和光耦。
芯片内置了恒流/恒压两种控制方式，其典型的控制曲线如图1所示。
在恒流控制时，恒流值和输出功率可以通过SEN 引脚的限流电阻RS设定。
在恒压控制时，芯片在INV脚采样辅助绕组的电压，进而调整输出。
在恒压控制时还采用了多种模式的控制方式，这样既保证了芯片的高性能和高精度，又保证了高效率。
此外，通过内置的线损补偿电路保证了较高的输出电压精度。
典型应用图特征⇒恒压和恒流精度可达5%⇒原边控制模式，无需TL431和光耦⇒非连续模式下的反激拓扑⇒准谐振开关模式，减小开关损耗⇒具有软启动功能典型应用图极限参数脚位示意图限值，不建议器件工作在推荐条件以外的情况。
器件长时间工作在极限工作条件下，其可靠性及寿命可能受到影响。
芯片框图应用信息描述M5832是一款低成本、高性价比的脉宽调制控制器，适用于离线式小功率AC/DC电池充电器和电源适配器。
它采用原边控制方式，因此不需要TL431和光耦。
M5832应用于工作在非连续模式下的反激式系统中，内置的次图2级恒压采样电路能够提供高精度恒流/恒压控制，很好地满足大多数电源适配器和充电器的要求。
启动M5832供电电源端是VDD 。
启动电阻提供了从高压端到VDD 旁路电容的直流通路，为芯片提供启动电流。
M5832的启动电流小于20uA ，因此VDD 能够很快被充到UVLO （off ）以上，从而使芯片快速启动并开始工作。
采用较大的启动电阻可以减小整机的待机功耗。
一旦VDD 超过UVLO （off ），芯片就进入软启动状态，使M5832的峰值电流电压逐渐从0V 增加到0.9V ，用以减轻在启动时对电路元件的冲击。
VDD 的旁路电容一直为芯片提供供电直到输出电压足够高以至于能够支撑VDD 通过辅助绕组供电为止。
恒流工作M5832的恒压/恒流特征曲线如图1所示。
茂捷半导体方案解决资料
OB2535可以被M5835替换吗？可以的，M5835是一种高性能离线式PWM控制器，主要用于中小功率AC/DC充电器和适配器中。
它工作于原边采样和调节，可省除极间光耦和TL431，其恒压和恒流控制特性说明如下图。
最大输出功率可达15W。
在恒流控制时，其电流和输出功率的设定可由SEN脚上的电流取样电阻Rs来调节；在恒压控制时，利用混合工作模式可以获得高效率和高性能。
另外，利用内部的导线压降补偿功能可以得到良好的负载调整特性。
在恒流模式重负载工作条件下，器件工作在PFM模式,中负载和轻负载，器件可工作在PWM模式和降频模式。
HT2358被M5838替换的优势是什么？M5838是一种高性能离线式PWM控制器，主要用于中小功率AC/DC充电器和适配器中。
M5573控制芯片全电压输入范围内恒压恒流精度均能保持在±5%以内。
M5573控制芯片采用原边反馈技术，使系统应用中可以节省TL431和光耦以降低成本。
特征全电压范围内，恒压调节精度误差<5%，恒流调节精度误差<5%原边采样和调节，无需光耦和TL431可编程CV和CC调节可设定恒流和输出功率内置原边反馈恒流控制内置自适应峰值电流调节内置原边变压器电感补偿可外部调整的输出线压降补偿开机软启动内置MOS开关管内置前沿消隐电路（LEB）可逐周期电流限制带有回差的欠压锁定（UVLO）VDD过压保护（OVP）VDD箝位功能PN8326可替换MOJAYM5836吗？性能、优点是怎样的？可以的，M5836是一种高性能离线式PWM控制器，主要用于中小功率AC/DC充电器和适配器中，芯片最大输出功率可达15W。
M5836具有电源软启动控制和多种带自动恢复的有效保护，它包含逐周期电流限制、VDD过压保护、VDD箝位和欠压保护等。
另外，M5836还有优良的EMI性能和频率抖动控制特性，使用M5836可获得高精确的恒压恒流特性。
MOJAY(茂捷)M5836优势/特点：1.全电压范围CV精度保持在±5%以内2.原边反馈技术可使系统节省TL431与光耦3.可编程的CV/CC4.内置原边绕组电感补偿5.可编程的输出线降压补偿6.内置软启动功能7.内置前沿消隐电路(LEB)8.频率抖动9.逐周期过流保护10.VDDOVP保护功能及VDD电压嵌位功能11.封装方式：SOP-8/DIP-8SY5814非隔离LED驱动替换型号M8914是怎样的？M8914可以替换SY5814，M8914是一款应用于LED照明的单级有源功率因数校正的降压型AC-DC恒流控制器，能够实现高功率因数和精准的输出电流。
