毕业设计（论文）外文文献翻译文献、资料中文题目：步进电机的知识文献、资料英文题目：Knowledge of the stepper motor文献、资料来源：文献、资料发表（出版）日期：院（部）：专业：班级：姓名：学号：指导教师：翻译日期： 2017.02.14外文文献：Knowledge of the stepper motorWhat is a stepper motor：Stepper motor is a kind of electrical pulses into angular displacement of the implementing agency. Popular little lesson: When the driver receives a step pulse signal, it will drive a stepper motor to set the direction of rotation at a fixed angle (and the step angle). You can control the number of pulses to control the angular displacement, so as to achieve accurate positioning purposes; the same time you can control the pulse frequency to control the motor rotation speed and acceleration, to achieve speed control purposes.What kinds of stepper motor sub-：In three stepper motors: permanent magnet (PM), reactive (VR) and hybrid (HB) permanent magnet stepper usually two-phase, torque, and smaller, step angle of 7.5 degrees or the general 15 degrees; reaction step is generally three-phase, can achieve high torque output, step angle of 1.5 degrees is generally, but the noise and vibration are large. 80 countries in Europe and America have been eliminated; hybrid stepper is a mix of permanent magnet and reactive advantages. It consists of two phases and the five-phase: two-phase step angle of 1.8 degrees while the general five-phase step angle of 0.72 degrees generally. The most widely used Stepper Motor.What is to keep the torque (HOLDING TORQUE)How much precision stepper motor? Whether the cumulative：The general accuracy of the stepper motor step angle of 3-5%, and not cumulative.Stepper motor to allow the minimum amount of surface temperatureStepper motor to allow the minimum amount of surface temperature：Stepper motor causes the motor temperature is too high the first magnetic demagnetization, resulting in loss of torque down even further, so the motor surface temperature should be the maximum allowed depending on the motor demagnetization of magnetic material points; Generally speaking, the magnetic demagnetization points are above 130 degrees Celsius, and some even as high as 200 degrees Celsius, so the stepper motor surface temperature of 80-90 degrees Celsius is normal.How to determine the stepper motor driver DC power supply：A. Determination of the voltageHybrid stepping motor driver power supply voltage is generally a wide range (such as the IM483 supply voltage of 12 ~ 48VDC), the supply voltage is usually based on the work of the motor speed and response to the request to choose. If the motor operating speed higher or faster response to the request, then the voltage value is high, but note that the ripple voltage can not exceed the maximum input voltage of the drive, or it may damage the drive.B. Determination of CurrentPower supply current is generally based on the output phase current drive I to determine. If a linear power supply, power supply current is generally preferable 1.1 to 1.3 times the I; if we adopt the switching power supply, power supply current is generally preferable to I, 1.5 to 2.0 times.The main characteristics of stepping motor：A stepper motor drive can be added operate pulse drive signal must be no pulse when the stepper motor at rest, such asIf adding the appropriate pulse signal, it will to a certain angle (called the step angle) rotation. Rotation speed and pulse frequency is proportional to.2 Dragon step angle stepper motor version is 7.5 degrees, 360 degrees around, takes 48 pulses to complete.3 stepper motor has instant start and rapid cessation of superior characteristics.Change the pulse of the order of 4, you can easily change the direction of rotation. Therefore, the current printers, plotters, robotics, and so devices are the core of the stepper motor as the driving force.Stepper motor control exampleWe use four-phase unipolar stepper motor as an example. The structure shown in Figure 1: Four four-phase winding leads (as opposed to phase A1 A2 B1 phase phase B2) and two public lines (to the power of positive). The windings of one phase to the power of the ground. So that the windings will be inspired. We use four-phase eight-beat control, ie, 1 phase 2 phase alternating turn, would enhance resolution. 0.9 ° per step can be transferred to control the motor excitation is transferred in order as follows:If the requirements of motor reversal, the transmission excitation signal can be reversed. 2 control schemeControl system block diagram is as followsThe program uses AT89S51 as the main control device. It is compatible with the AT89C51, but also increased the SPI interface and the watchdog module, which not only makes the debugging process becomes easy and also more stable. The microcontroller in the program mainly for field signal acquisition and operation of the stepper motor to calculate the direction and speed information. Then sent to the CPLD.CPLD with EPM7128SLC84-15, EPM7128 programmable logic device of large-scale, for the ALTERA company's MAX7000 family. High impedance, electrically erasable and other characteristics, can be used for the 2500 unit, the working voltage of +5 V. CPLD receives information sent from the microcontroller after converted to the corresponding control signal output to the stepper motor drive. Put the control signal drives the motor windings after the input, to achieve effective control of the motor. 2.1 The hardware structure of the motor drive Motor drive using the following circuit:R1-R8 in which the resistance value of 320Ω. R9-R12 resistance value 2.2KΩ. Q1-Q4 as Darlington D401A, Q5-Q8 for the S8550. J1, J2 and the stepper motor connected to the six-lead。

步进电机及单片机英文文献及翻译

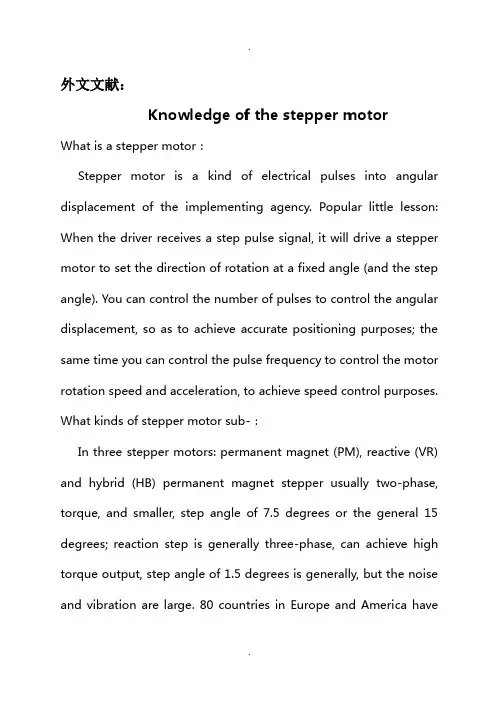

外文文献：Knowledge of the stepper motorWhat is a stepper motor：Stepper motor is a kind of electrical pulses into angular displacement of the implementing agency. Popular little lesson: When the driver receives a step pulse signal, it will drive a stepper motor to set the direction of rotation at a fixed angle (and the step angle). You can control the number of pulses to control the angular displacement, so as to achieve accurate positioning purposes; the same time you can control the pulse frequency to control the motor rotation speed and acceleration, to achieve speed control purposes.What kinds of stepper motor sub-：In three stepper motors: permanent magnet (PM), reactive (VR) and hybrid (HB) permanent magnet stepper usually two-phase, torque, and smaller, step angle of 7.5 degrees or the general 15 degrees; reaction step is generally three-phase, can achieve high torque output, step angle of 1.5 degrees is generally, but the noise and vibration are large. 80 countries in Europe and America have been eliminated; hybrid stepper is a mix of permanent magnet and reactive advantages. It consists of two phases and the five-phase: two-phase step angle of 1.8 degrees while the general five-phase step angle of 0.72 degrees generally. The most widely used Stepper Motor.What is to keep the torque (HOLDING TORQUE)How much precision stepper motor? Whether the cumulative：The general accuracy of the stepper motor step angle of 3-5%, and not cumulative. Stepper motor to allow the minimum amount of surface temperatureStepper motor to allow the minimum amount of surface temperature：Stepper motor causes the motor temperature is too high the first magnetic demagnetization, resulting in loss of torque down even further, so the motor surface temperature should be the maximum allowed depending on the motor demagnetization of magnetic material points; Generally speaking, the magnetic demagnetizationpoints are above 130 degrees Celsius, and some even as high as 200 degrees Celsius, so the stepper motor surface temperature of 80-90 degrees Celsius is normal.How to determine the stepper motor driver DC power supply：A. Determination of the voltageHybrid stepping motor driver power supply voltage is generally a wide range (such as the IM483 supply voltage of 12 ~ 48VDC), the supply voltage is usually based on the work of the motor speed and response to the request to choose. If the motor operating speed higher or faster response to the request, then the voltage value is high, but note that the ripple voltage can not exceed the maximum input voltage of the drive, or it may damage the drive.B. Determination of CurrentPower supply current is generally based on the output phase current drive I to determine. If a linear power supply, power supply current is generally preferable 1.1 to 1.3 times the I; if we adopt the switching power supply, power supply current is generally preferable to I, 1.5 to 2.0 times.The main characteristics of stepping motor：A stepper motor drive can be added operate pulse drive signal must be no pulse when the stepper motor at rest, such asIf adding the appropriate pulse signal, it will to a certain angle (called the step angle) rotation. Rotation speed and pulse frequency is proportional to.2 Dragon step angle stepper motor version is 7.5 degrees, 360 degrees around, takes 48 pulses to complete.3 stepper motor has instant start and rapid cessation of superior characteristics.Change the pulse of the order of 4, you can easily change the direction of rotation. Therefore, the current printers, plotters, robotics, and so devices are the core of the stepper motor as the driving force.Stepper motor control exampleWe use four-phase unipolar stepper motor as an example. The structure shown in Figure 1:Four four-phase winding leads (as opposed to phase A1 A2 B1 phase phase B2) and two public lines (to the power of positive). The windings of one phase to the power of the ground. So that the windings will be inspired. We use four-phase eight-beat control, ie, 1 phase 2 phase alternating tur n, would enhance resolution. 0.9 ° per step can be transferred to control the motor excitation is transferred in order as follows:If the requirements of motor reversal, the transmission excitation signal can be reversed. 2 control schemeControl system block diagram is as followsThe program uses AT89S51 as the main control device. It is compatible with the AT89C51, but also increased the SPI interface and the watchdog module, which not only makes the debugging process becomes easy and also more stable. The microcontroller in the program mainly for field signal acquisition and operation of the stepper motor to calculate the direction and speed information. Then sent to the CPLD.CPLD with EPM7128SLC84-15, EPM7128 programmable logic device of large-scale, for the ALTERA company's MAX7000 family. High impedance, electrically erasable and other characteristics, can be used for the 2500 unit, the working voltage of +5 V. CPLD receives information sent from the microcontroller after converted to the corresponding control signal output to the stepper motor drive. Put the control signal drives the motor windings after the input, to achieve effective control of the motor. 2.1 The hardware structure of the motor driveMotor drive using the following circuit:R1-R8 in which the resistance value of 320Ω. R9-R12 resistance value 2.2KΩ. Q1-Q4 as Darlington D401A, Q5-Q8 for the S8550. J1, J2 and the stepper motor connected to the six-lead。

步进电机及单片机英文文献及翻译

外文文献：Knowledge of the stepper motorWhat is a stepper motor：Stepper motor is a kind of electrical pulses into angular displacement of the implementing agency. Popular little lesson: When the driver receives a step pulse signal, it will drive a stepper motor to set the direction of rotation at a fixed angle (and the step angle). You can control the number of pulses to control the angular displacement, so as to achieve accurate positioning purposes; the same time you can control the pulse frequency to control the motor rotation speed and acceleration, to achieve speed control purposes. What kinds of stepper motor sub-：In three stepper motors: permanent magnet (PM), reactive (VR) and hybrid (HB) permanent magnet stepper usually two-phase, torque, and smaller, step angle of 7.5 degrees or the general 15 degrees; reaction step is generally three-phase, can achieve high torque output, step angle of 1.5 degrees is generally, but the noise and vibration are large. 80 countries in Europe and America havebeen eliminated; hybrid stepper is a mix of permanent magnet and reactive advantages. It consists of two phases and the five-phase: two-phase step angle of 1.8 degrees while the general five-phase step angle of 0.72 degrees generally. The most widely used Stepper Motor.What is to keep the torque (HOLDING TORQUE)How much precision stepper motor? Whether the cumulative：The general accuracy of the stepper motor step angle of 3-5%, and not cumulative.Stepper motor to allow the minimum amount of surface temperatureStepper motor to allow the minimum amount of surface temperature：Stepper motor causes the motor temperature is too high the first magnetic demagnetization, resulting in loss of torque down even further, so the motor surface temperature should be the maximum allowed depending on the motor demagnetization of magnetic material points; Generally speaking, the magnetic demagnetizationpoints are above 130 degrees Celsius, and some even as high as 200 degrees Celsius, so the stepper motor surface temperature of 80-90 degrees Celsius is normal.How to determine the stepper motor driver DC power supply：A. Determination of the voltageHybrid stepping motor driver power supply voltage is generally a wide range (such as the IM483 supply voltage of 12 ~ 48VDC), the supply voltage is usually based on the work of the motor speed and response to the request to choose. If the motor operating speed higher or faster response to the request, then the voltage value is high, but note that the ripple voltage can not exceed the maximum input voltage of the drive, or it may damage the drive.B. Determination of CurrentPower supply current is generally based on the output phase current drive I to determine. If a linear power supply, power supply current is generally preferable 1.1 to 1.3 times the I; if we adopt the switching power supply, power supply current is generally preferable to I, 1.5 to 2.0 times.The main characteristics of stepping motor：A stepper motor drive can be added operate pulse drive signal must be no pulse when the stepper motor at rest, such asIf adding the appropriate pulse signal, it will to a certain angle (called the step angle) rotation. Rotation speed and pulse frequency is proportional to.2 Dragon step angle stepper motor version is 7.5 degrees, 360 degrees around, takes 48 pulses to complete.3 stepper motor has instant start and rapid cessation of superior characteristics.Change the pulse of the order of 4, you can easily change the direction of rotation.Therefore, the current printers, plotters, robotics, and so devices are the core of the stepper motor as the driving force.Stepper motor control exampleWe use four-phase unipolar stepper motor as an example. The structure shown in Figure 1:Four four-phase winding leads (as opposed to phase A1 A2 B1phase phase B2) and two public lines (to the power of positive). The windings of one phase to the power of the ground. So that the windings will be inspired. We use four-phase eight-beat control, ie, 1 phase 2 phase alter nating turn, would enhance resolution. 0.9 ° per step can be transferred to control the motor excitation is transferred in order as follows:If the requirements of motor reversal, the transmission excitation signal can be reversed. 2 control schemeControl system block diagram is as followsThe program uses AT89S51 as the main control device. It is compatible with the AT89C51, but also increased the SPI interface and the watchdog module, which not only makes the debugging process becomes easy and also more stable. The microcontroller in the program mainly for field signal acquisition and operation of the stepper motor to calculate the direction and speed information. Then sent to the CPLD.CPLD with EPM7128SLC84-15, EPM7128 programmable logic device of large-scale, for the ALTERA company's MAX7000 family. Highimpedance, electrically erasable and other characteristics, can be used for the 2500 unit, the working voltage of +5 V. CPLD receives information sent from the microcontroller after converted to the corresponding control signal output to the stepper motor drive. Put the control signal drives the motor windings after the input, to achieve effective control of the motor. 2.1 The hardware structure of the motor driveMotor drive using the following circuit:R1-R8 in which the resistance value of 320Ω. R9-R12 resistance value 2.2KΩ. Q1-Q4 as Darlington D401A, Q5-Q8 for the S8550. J1, J2 and the stepper motor connected to the six-lead。

单片机控制步进电机外文文献翻译

单片机控制步进电机外文原文Stepping motor application and control stepper motor is an electrical pulse will be converted into angular displacement of the implementing agencies. Put it in simple language-speaking: When the stepper drive pulse signal to a receiver, it drives stepper motor rotation direction by setting a fixed point of view (and the step angle). You can control the number of pulses to control the amount of angular displacement, so as to achieve the purpose of accurate positioning; At the same time, you can by controlling the pulse frequency to control the motor rotation speed and acceleration,so as to achieve the purpose of speed.Stepper motor directly from the AC-DC power supply,and must use special equipment - stepper motor drive. Stepper motor drive system performance, in addition to their own performance with the motor on the outside, but also to a large extent depend on the drive is good or bad. A typical stepper motor drive system is operated by the stepper motor controller, stepper motor drives and stepper motor body is composed of three parts. Stepper motor controller stepper pulse and direction signal, each made of a pulse, stepper motor-driven stepper motor drives a rotor rotating step angle, that is, step-by-step further. High or low speed stepper motor, or speed, or deceleration, start or stop pulses are entirely dependent on whether the level or frequency.Decide the direction of the signal controller stepper motor clockwise or counterclockwise rotation. Typically, the stepper motor drive circuit from the logic control, power driver circuit, protection circuit and power components.Stepper motor drive controller, once received from the direction of the signal and step pulse, the control circuit on a pre-determined way of the electrical power-phase stepper motor excitation windings of the conduction or cut-off signal. Control circuit output signal power is low,can not provide the necessary stepping motor output power, the need for power amplifier, which is stepper motor driven power drive part. Power stepper motor drive circuit to control the input current winding to form a space for rotating magnetic field excitation, the rotor-driven movement.Protection circuit in the event of shortcircuit, overload, overheating, such as failure to stop the rapid drive and motor. Motor is usually for the permanent magnet rotor, when the current flows throughthe stator windings, the stator windings produce a magnetic field vector.The magnetic field will lead to a rotor angle of rotation, making a pair of rotor and stator magnetic field direction of the magnetic field direction. When the stator rotating magnetic field vector from a different angle. Also as the rotor magnetic field to a point of view. An electrical pulse for each input, the motor rotation angle step. Its output and input of the angular displacement is proportional to the pulses, with pulse frequency proportional to speed. Power to change the order of winding,the electrical will be reversed. We can, therefore, control the pulse number, frequency and electrical power windings of each phase to control the order of rotation of stepper motor.Stepper motor types:Permanent magnet (PM). Magnetic generally two-phase stepper, torque and are smaller and generally stepping angle of 7.5 degrees or 15 degrees; put more wind for air-conditioning.Reactive(VR), the domestic general called BF, have a common three-phase reaction, step angle of 1.5 degrees; also have five-phase reaction. Noise, no torque has been set at a large number of out.Hybrid (HB), common two-phase hybrid, five-phase hybrid, three-phase hybrid, four-phase hybrid, two-phase can be common with the four-phase drive, five-phase three-phase must be used with their drives;Two-phase, four-phase hybrid step angle is 1.8 degrees more than a small size, great distance,and low noise;Five-phase hybrid stepping motor is generally 0.72, the motor step angle small, high resolution, but the complexity of drive circuits, wiring problems, such as the 5- phase system of 10 lines.Three-phase hybrid stepping motor step angle of 1.2 degrees, but according to the use of 1.8 degrees, the three-phase hybrid stepping motor has a two-phase mixed than the five-phase hybrid more pole will help electric folder symmetric angle, it can be more than two-phase, five-phase high accuracy, the error even smaller, run moresmoothly.Stepper motor to maintain torque: stepper motor power means no rotation, the stator locked rotor torque. It is a stepper motor, one of the most important parameters, usually in the low-speed stepper motor torque at the time of close to maintain the torque. As the stepper motor output torque increases with the speed of constant attenuation, the output power also increases with the speed of change,so as to maintain torque on the stepper motor to measure the parameters of one of the most important. For example, when people say that the stepper motor 2N.m, in the absence of special circumstances that means for maintaining the torque of the stepper motor 2N.m.Precision stepper motors:stepper motor step angle accuracy of 3-5%, not cumulative.Stepper motor to allow the minimum amount of surface temperature：Stepper motor causes the motor temperature is too high the first magnetic demagnetization, resulting in loss of torque down even further, so the motor surface temperature should be the maximum allowed depending on the motor demagnetization of magnetic material points; Generally speaking,the magnetic demagnetization points are above 130 degrees Celsius, and some even as high as 200 degrees Celsius, so the stepper motor surface temperature of 80-90 degrees Celsius is normal.Start frequency of no-load: the stepper motor in case of no-load to the normal start of the pulse frequency, if the pulse frequency is higher than the value of motor does not start, possible to lose steps or blocking.In the case of the load, start frequency should be lower. If you want to achieve high-speed rotation motor, pulse frequency should be to accelerate the process, that is, the lower frequency to start, and then rose to a certain acceleration of the desired frequency (motor speed from low rise to high-speed).Step angle:that is to send a pulse,the electrical angle corresponding to rotation.Torque positioning: positioning torque stepper motor does not refer to the case of electricity,locked rotor torque stator.Operating frequency:step-by-step stepper motor can run without losing thehighest frequency.Subdivision Drive: stepper motor drives the main aim is to weaken or eliminate low-frequency vibration of the stepper motor to improve the accuracy of the motor running. Reduce noise. If the step angle is 1.8 °(full step) the two-phase hybrid stepping motor, if the breakdown of the breakdown of the number of drives for the 8, then the operation of the electrical pulse for each resolution of 0.072 °, the precision of motor can reach or close to 0.225 °, also depends on the breakdown of the breakdown of the drive current control accuracy and other factors, the breakdown of the number of the more difficult the greater the precision of control.How to determine the stepper motor driver DC power supply：A.Determination of the voltage: Hybrid stepping motor driver power supply voltage is generally a wide range (such as the IM483 supply voltage of 12 ~ 48VDC), the supply voltage is usually based on the work of the motor speed and response to the request to choose.If the motor operating speed higher or faster response to the request, then the voltage value is high, but note that the ripple voltage can not exceed the maximum input voltage of the drive,or it may damage the drive.B.Determination of CurrentPower supply current is generally based on the output phase current drive I to determine. If a linear power supply, power supply current is generally preferable 1.1 to 1.3 times the I; if we adopt the switching power supply, power supply current is generally preferable to I,1.5to 2.0 times.The main characteristics of stepping motor：1. A stepper motor drive can be added operate pulse drive signal must be no pulse when the stepper motor at rest, such as If adding the appropriate pulse signal, it will to a certain angle (called the step angle) rotation. Rotation speed and pulse frequency is proportional to.2.permanent magnet step angle stepper motor version is 7.5 degrees, 360 degrees around, takes48 pulses to complete.3.stepper motor has instant start and rapid cessation of superior characteristics. Change the order of the pulse4．you can easily change the direction of rotation.Therefore, the current printers, plotters, robotics, and so devices are the core of the stepper motor as the driving force.Stepper motors have the following benefits: （1）Low cost （2）Ruggedness （3）Simplicity in construction （4）High reliability（5）No maintenance（6）Wide acceptance（7）No tweaking to stabilize （8）No feedback components are neededThey work in just about any environment Inherently more failsafe than servo motors. There isvirtually no conceivable failure within the stepper drive module that could cause the motor to run away. Stepper motors are simple to drive and control in an open-loop configuration. They only require four leads. They provide excellent torque at low speeds, up to 5 times the continuous torque of a brush motor of the same frame size or double the torque of the equivalent brushless motor. This often eliminates the need for a gearbox. A stepper-driven-system is inherently stiff, with known limits to the dynamic position error.Stepper Motor Disadvantages：Stepper motors have the following disadvantages:1.Resonance effects and relatively long settling times.1.Rough performance at low speed unless a microstep drive is used.2.Liability to undetected position loss as a result of operating open-loop .4.They consume current regardless of load conditions and therefore tend to run hot5.Losses at speed are relatively high and can cause excessive heating, and they are frequently noisy (especially at high speeds).1.They can exhibit lag-lead oscillation, which is difficult to damp.There is a limit to their available size, and positioning accuracy relies on the mechanics(e.g., ballscrew accuracy).Many of these drawbacks can be overcome by the use of a closed-loop control scheme.外文资料翻译译文步进电机应用和控制步进电机是将电脉冲转换成角位移的执行机构。

步进电机英文翻译

郑州航空工业管理学院英文翻译2014 届电气工程及其自动化专业班级姓名学号指导教师职称二О一四年 2 月22 日Stepper motorStepper motor is the electrical pulse signal into angular displacement or linear displacement of an open loop stepper motor control element pieces . In the case of non- overloading , motor speed , stopped position depends only on the number of pulse frequency and pulse signals , which are not affected by changes in load , when stepper drive receives a pulse signal , it will drive a stepper motor the rotational direction is set to a fixed angle , referred to as " step angle ", which is fixed to the rotational angle of the step by step operation . The number of pulses can be controlled by controlling the amount of angular displacement , so as to achieve accurate positioning ; while the pulse frequency can be controlled by controlling the motor rotation speed and acceleration to achieve speed control purposes .1. basic introductionStepper motor is an induction motor, it works by using an electronic circuit .The DC power into power -sharing , multi-phase timing control current, this current is powered stepper motor , stepper motor to work properly, the stepper motor drive is powered -sharing , multi-phase timing controller .Although the stepper motor has been widely used, but the stepper motor does not like an ordinary DC motors, AC motors for use in routine under . It must be by a two- ring pulse signal , power driver circuit composed of the control system can be used. So make good use of a stepper motor , but not easy, it involves a lot of expertise in mechanical ,electrical , electronics and computers.Stepper motors as actuators , is one of the key products of mechatronics , widely used in a variety of automated control systems. With the development of microelectronics and computer technology, the growing demand for stepper motor , has applications in various fields of national economy .Stepper motor is an electrical pulse into the angular displacement of the actuator. Plainly speaking : When the stepper drive receives a pulse signal , it will drive a stepper motor to set the direction of rotation of a fixed angle ( ie, step angle ) . The number of pulses can be controlled by controlling the amount of angular displacement , so as to achieve accurate positioning ; while the pulse frequency can be controlled by controlling the motor rotation speed and acceleration to achieve speed control purposes .2. major categoriesThere are three main types of stepper motors in the structure : Reaction (Variable Reluctance, VR), permanent magnet (Permanent Magnet, PM) and hybrid (Hybrid Stepping, HS).Reaction: the stator windings , the rotor soft magnetic material. Simple structure, low cost , small step angle up to 1.2 °, but poor dynamic performance , low efficiency, heat a large , difficult to guarantee reliability .Permanent magnet : permanent magnet stepper motors with permanent magnet rotor material, the number of poles of the rotor and the stator of the same number of poles . Which is characterized by good dynamicperformance, output torque, this motor but poor accuracy , a large step angle (typically 7.5 ° or 15 °).Hybrid : a combination of hybrid stepping motors and permanent magnet reactive advantage of its multi-phase windings on the stator , the rotor permanent magnet material , the rotor and the stator teeth are a number of small steps to improve the accuracy of the moment . It features an output torque, good dynamic performance, step angle is small, but the structure is complex, the cost is relatively high.Press the stator windings to points , a total of two-phase , three-phase and five equal series. Most popular is the two-phase hybrid stepping motor , accounting for more than 97 % market share , the reason is the high cost , coupled with good results after the breakdown of the drive. This kind of basic step angle of the motor 1.8 °/ step , half step back coupled with the drive to reduce the step angle of 0.9 °, coupled with sub-drive after its step angle can be broken up to 256 -fold (0.007 °/ micro step ) . Due to friction and manufacturing precision and other reasons , the actual control accuracy is slightly lower . Same stepper motors can be equipped with different segments of the drive to change the precision and effectiveness.3. selection methodStepper motor and drive selection methods :Determine how much torque is required : static torque stepper motor is to choose one of the main parameters. Load is large, requires the use of high torque motor. Indicators big moment , the motor appearance is also large.Determine motor speed : high speed requirements , should be selected phase current is larger , smaller inductor motors to increase power input. And select the drive when using higher supply voltages.Select motor installation specifications : as 57,86,110 , the main requirements for the moment .Determine the precision positioning requirements and vibration aspects of the case : to determine whether the required segments, the number of segments required .According to the motor current , supply voltage breakdown and select the drive .4. Basic PrinciplesWorksThe rotor is a permanent magnet motor typically , when a current flows through the stator windings , the stator winding generates a magnetic field vector . The rotating magnetic field to drive the rotor at an angle such that the magnetic field of the stator is consistent with a direction of the magnetic field of the rotor. When the stator magnetic field vector rotation angle. As the rotors turn a field angle . Each input an electrical pulse , the motor rotation angle forward. The number of pulses proportional to the angular displacement of the output and its input , the pulse frequency is proportional to the rotational speed . Change the order of the winding is energized , the motor will reverse. Therefore, the number of pulses can be used to control power-on sequence , frequency and motor windings to control each phase stepper motor rotation .Fever principleUsually see all kinds of motors , are all inside the core and windings . Windings resistance , power will produce loss , the loss is proportional to the square of the size of the resistance and current , and this is what we often say that the copper losses , if the current is not a standard DC or sine wave , but also produce harmonic losses ; core has hysteresis eddy current effect , in the alternating magnetic field will produce losses , its size and materials , current, frequency , voltage dependent , called iron loss. Copper and iron losses are manifested in the form of heat , thus affecting the efficiency of the motor . Stepper motors are generally pursue positioning accuracy and torque output , efficiency is relatively low, the current is generally relatively large, and the high harmonic components , the frequency of the alternating current with the speed of change, thus stepping motor widespread fever cases and situations than the general severe AC motor .5. major tectonicStepping motor is also called a stepper , which uses the principle of electromagnetic , mechanical energy is converted to electrical energy , People as early as the 1920s began to use this motor . As embedded systems ( such as printers, disk drives , toys, wipers, pager vibration , mechanical arm and video recorders , etc. ) of the increasingly popular use of the stepper motor also began surge. Whether in industrial, military , medical, automotive or entertainment industry , as long as a piece of the object needs to be moved from one location to another , the stepper motor will certainly come in handy. Stepper motors have many shapes and sizes, but regardless of how the shape and size , they can be classified into two categories : a variable reluctance stepper motors and permanent magnetstepper motors.A stepper motor is wound on the motor fixing part - the stator coils driven alveolar . Typically , a ring-shaped metal wire called a solenoid winding , and in the motor , the teeth around the winding wire is called the coil or phase .6. index termsStatic index terms1, number of phases : produce different on pole N, S magnetic excitation coil pairs. Common m said .2, Beats: cyclical changes in the magnetic field required to complete a number of pulses or conductive state with n, or refer to the motor turned a pitch angle required number of pulses to four-phase motor, for example , there are four ways with four -run shot that AB-BC-CD-DA-AB, four-phase eight-shot operation That way A-AB-B-BC-C-CD-D-DA-A. 3, step angle : corresponds to a pulse signal , the angular displacement of the rotor turn is repre sented by θ. θ = 360 degrees / ( number of rotor teeth * run shot ) to the conventional two , four-phase , the rotor teeth 50 teeth motor, for example . Four beats running step angle is θ = 360 degrees / ( 50 * 4 ) = 1.8 degrees ( commonly known as the full step ) , eight-shot operation step angle of θ = 360 degrees / ( 50 * 8 ) = 0.9 degrees ( commonly known as half-step ) .4, the detent torque : motor is not energized in the state itself locked rotor torque ( harmonics and mechanical error by the magnetic field caused by the tooth ) .5, static torque : motor at rated static electricity effect, the motor doesnot rotates when the motor shaft locking torque. This moment is a measure of the volume of the standard motor , regardless of the driving voltage and driving power supply. Although static torque is proportional to the electromagnetic excitation ampere-turns , and set the air gap between the rotor teeth related, but over the use of the air gap decreases , increasing the excitation ampere-turns to increase the static torque is not desirable, this will cause motor heating and mechanical noise.Dynamic Indicators term1,step angle accuracy: stepper motor turned every error between the actual value and the theoretical value of a step angle . Expressed as a percentage : error / step angle * 100 %. Different running different beats its value , when the four -run shot in the 5% ,eight shot should run less than 15 %.2, step : the number of steps the motor running operation does not mean that the theoretical number of steps . Called out of step .3, the offset angle: rotor stator teeth tooth axis shift axis angle , the motor is running there must be offset angle , angle error generated by the imbalance , driven by subdivision can not be solved .4, he maximum no-load starting frequency : motor in the form of a drive voltage and rated current, in the case without the load, the maximum frequency can directly start .5, the operating frequency of the maximum load : the motor in the form of a drive voltage and rated current, the maximum speed of the motor with no load frequency .6, running torque characteristics : Measured motor running undercertain test conditions the output torque versus frequency curve is called the running torque-frequency characteristic , which is the motor of many dynamic curve of the most important , but also the fundamental basis for the motor selection.Other features include inertia frequency characteristics, starting frequency characteristics. Once the motor is selected, the static torque of the motor is determined , and dynamic moment is not the case , the dynamic torque motor depends on the average current ( rather than static current ) motor is running , the average current , the greater the motor output torque that the motor frequency characteristics of the harder . For the average current, the drive voltage to maximize the use of small high-current inductor motor .7, the resonance point of the motor : stepper motor has a fixed resonance region , two , four-phase Induction resonance zone is generally between 180-250pps ( step angle of 1.8 degrees ) , or about 400pps ( step angle 0.9 degrees ) , the higher the motor drive voltage , motor current increases, the lighter the load , motor size smaller, the upward shift resonance region , and vice versa , so that the motor output torque is large , and the entire system without losing step noise reduction , general working point should shift more resonance region .8, motor reversing control : the timing of when the motor windings are energized for the forward , the timing is energized when AB-BC-CD-DA or () DA-CD-BC-AB or ( ) when inverted.7. features characteristicThe main features1, the general accuracy of the stepper motor step angle of 3-5 % , and does not accumulate.2, the appearance of the stepper motor maximum temperature allowed . First, make a stepper motor temperature magnetic motor demagnetization ,Resulting in the loss of torque down even further , so the maximum temperature of the motor should be allowed depending on the appearance of magnetic motor demagnetization points ; generally speaking, magnetic demagnetization points above 130 degrees Celsius , and some even as high as 200 degrees Celsius above , so the stepper motor surface temperature at 80-90 degrees Celsius completely normal .3, stepper motor torque will increase with the speed of decline .When the stepping motor rotates , the inductance of the motor windings of each phase will form a counter electromotive force ; the higher the frequency, the greater the back EMF . In its role, the motor with frequency ( or speed ) increases the phase current is reduced , resulting in decreased torque .4, the stepper motor can operate normally at low , but if more than a certain speed will not start , accompanied by howling.Stepper motor has a technical parameter : load starting frequency , ie stepper motor under no-load conditions to start the normal pulse frequency , if the pulse frequency is higher than this value, the motor does not start properly , you may lose steps or stall . Under a load , the starting frequency should be lower . If you want the motor to achieve high-speed rotation , the pulse frequency should speed up the process ,which starts at lower frequencies , and then rise to the hope that at a certain acceleration frequency ( motor speed rise from low speed ) . Stepper motor with its remarkable features in the era of digital manufacturing plays a significant purpose. Along with improving the different development of digital technology and the technology itself, stepper motor , stepper motors will be applied in more fields .Key FeaturesA stepping motor can be operated must be added before the drive , the drive signal is a pulse signal to be no pulse when the stepping motor is stationary, if the addition of a suitable pulse signal will at a certain angle ( called a step angle ) is rotated. Rotational speed and the pulse frequency is proportional to .2, phase stepper motor step angle of 7.5 degrees, 360 degrees around , you need to complete the 48 pulses .3, stepper motor with instant start and stop the rapid superior characteristics .4, change the order of the pulse , you can easily change the direction of rotation .Therefore , printers , plotters , robotics and other equipment to the stepper motor driven core .8. speed methodStepper motor pulse signal is converted to angular displacement or linear displacement .First, the overload is good. Its speed independent of load size , unlikeordinary motor when the load increase rate decline occurs when using the stepper motor speed and position , there are stringent requirements.The second is easy to control. Stepper motors are "steps" as a unit rotation , digital features more obvious .Third, the whole structure is simple . Traditional mechanical speed and position control structure is complicated , difficult to adjust after using stepper motors , which makes it simple and compact structure . Motor rotation speed is converted into a voltage , and passed as a feedback signal to the input terminal . Tacho is an auxiliary motor , the motor is installed at the end of the ordinary speed DC motor , the voltage generated by the motor speed feedback to the DC power supply, DC motor speed control to achieve the purpose .9. function module designThis module can be divided into the following three parts:· SCM system : control of stepper motors ;· Peripheral circuits : PIC microcontroller interface circuit and stepper motors ;· PIC procedure : Write SCM stepper electric power machine interface program to achieve output of the triangular wave signal.( 1 ) stepper motor and microcontroller interface .SCM is the excellent performance of the control processor, stepper motor control , interface components must have the following features.① voltage isolation .SCM work at 5V, while the stepper motor is working in dozens of V, or even higher. Once the voltage to the microcontroller series stepper motor , it will damage the microcontroller ; signals would interfere with chip stepper motor , the system may also lead to errors in the work , so the interface device must have isolation .② messaging functions.Interface components should be able to pass information to the microcontroller stepper motor control circuit generates control information needed work , corresponding to different ways of working, interface components should be able to produce a corresponding job control waveform.③ produce different frequencies required .To the stepping motor at different speeds to suit different purposes , interface components should produce different operating frequencies . ( 2 ) V oltage Isolation interface.Isolation voltage isolation interface dedicated to the low-pressure part of the microcontroller and the stepper motor drive circuit high-voltage part , to ensure that they work properly.V oltage pulse transformer isolation interface or optical isolator is basically the use of optical isolators. Microcontroller output signal can be sent directly to the TTL gate or base of the transistor , and then driven by the transistor optocoupler devices emitting diodes.Light -emitting diodes on the opto-coupler devices inside the photodiode , converted into electrical signals , go drive a stepper motor power amplifier circuit , current amplification interface is a stepper motoramplifier circuit preamplifier circuit . Its role is to optical isolator output signal current amplification in order to provide enough power amplifier circuit drive current .( 3 ) Work interface and frequency generator .MCU controlled stepper motor requires the input and output interfaces for controlling stepper motors using three I / 0 lines, this time, the microcontroller I / O port RA0, RAI, RA2 control three-phase stepping motor .10. advantages and defectsAdvantage1, the angle of rotation of the motor is proportional to the number of pulses ;2, when the motor is stopped with a maximum torque ( when winding excitation time ) ;3, the accuracy of each step in the three percent to five percent , but the error will not accumulate to the next step and thus a better position accuracy and repeatability movement ;4, excellent response from the stop and reverse ;5, since there is no brush , high reliability, and therefore the life of the motor depends only on bearing life ;6, only the response of the motor is determined by the digital input pulse , which can be open-loop control, which makes the structure of the motor can be relatively simple and cost control ;7, only the load can be connected directly to a very low speed synchronous rotation on the shaft of the motor ;8, since the speed is proportional to the pulse frequency , and thus a relatively wide speed range.Defect1, if not properly controlled prone resonance ;2, the high speed operation is difficult ;3, it is difficult to obtain a large torque ;4, there is no advantage, low energy efficiency in terms of volume and weight ;5, more than the load will destroy the synchronization , will be issued when the high speed vibration and noise .11. drive methodStepper motors can be connected directly to the power frequency AC or DC power source to work , but must use a dedicated stepper motor driver , which occurs by the pulse control unit , power drive unit , the protection unit and so on. Stepper motor drive unit with direct coupling , can also be interpreted as a stepper motor controller microprocessor power connector.12. drive requirements1, can provide rapid current rise and fall times ,Current waveform as close as possible to make a rectangle .With a cut-off period for the release of the current flow loop to reducethe back electromotive force at both ends of the windings and accelerate the current decay .2, has a high rhyme power and efficiency.Stepper motor driver , which is a pulse signal into the control system of the angular displacement of the stepper motor , or : a control signal for each pulse issued by the stepper motor drive of a step angle of rotation . That frequency is proportional to the speed of the stepper motor pulse signal. So to control the frequency pulse signal , the speed of the motor can be accurately ; controlled stepper pulse number , you can pinpoint the motor . There are a lot of stepper motor drive , power requirements should be based on the actual reasonable choice drive.13. Major ApplicationsSelect the stepper motorThere are step angle stepping motor ( related to the number of phases ) , static torque , and the current composition of the three elements .Once identified three elements , the stepper motor model has determined.1, step angle selectionStep motor angle accuracy depends on the load requirements , the minimum resolution of the load ( equivalent ) conversion to the motor shaft , the number of angles ( including gear ) for each equivalent motor should go. Step motor angle should be equal to or less than this angle. Step angle stepping motor on the market are generally 0.36 °/ 0.72 °( five-phase motors ) , 0.9 degrees / 1.8 degrees ( two , four-phase motor ) , 1.5 degrees / 3 degrees ( three-phase motors ) and so on.2, static moment of choiceDynamic torque stepper motor is difficult to determine all of a sudden , we tend to first determine the static torque of the motor. The choice is based on static torque load on the motor work, and the inertia of the load and the load can be divided into two kinds of friction load . Single inertia load and a single load is not present in friction . When direct start ( generally low ) when the two loads are to be considered , the main consideration inertial load during acceleration start, constant run into just consider friction loads. Under normal circumstances, the static torque should be 2-3 times the load of friction is good, static torque Once selected, the machine base and be able to determine the length of the motor down ( geometry ) .3, the current selectionLike static torque motors , due to the different current parameters , their operating characteristics vary greatly, can be based on torque-frequency characteristic curve , determine the motor current . Application note points1, the stepper motor used in low-speed situations --- rpm less than 1000 rpm , ( 0.9 degrees 6666PPS), preferably using 1000-3000PPS (0.9 degrees ) between , can make it work here through deceleration devices, At this high electrical efficiency, low noise ;2, the stepper motor is best not to use the state of the whole step , whole step when the state of vibration ;3, due to historical reasons, only a nominal voltage of 12V 12V motors , the voltage value other than the motor drive voltage V value, drive selectdriving voltage according to ( suggestions : 57BYG DC 24V-36V, 86BYG DC 50V, 110BYG using higher than the DC 80V), of course, in addition to 12 volts 12V constant voltage driver can also use other external power supply, but to consider the temperature rise ;4, the moment of inertia of the load should choose a large frame size motors ;5, when compared with the high-speed motor or high inertia loads , generally do not start working speed , and the use of up- speed gradually , without losing a step motor , two noise can be reduced while improving the positioning accuracy is stopped ;6, high-precision, through mechanical reduction should improve motor speed , or high number of sub-drive to solve, 5 -phase motor can also be used , but the prices of its entire system more expensive , less manufacturer , which is eliminated argument is the layman ;7, the vibration motor in the region should not , should be resolved by changing the voltage , current, or add some damping ;8, motor 600PPS (0.9 degrees ) following work should be low current , high inductance , low voltage to drive ;9, after the first election should follow the principle of the drive motor option .步进电机步进电机是将电脉冲信号转变为角位移或线位移的开环控制元步进电机件。

外文翻译--步进电机运动控制系统设计

密级分类号编号成绩本科生毕业设计 (论文)外文翻译原文标题Stepper Motor Motion Control System Design 译文标题步进电机运动控制系统设计作者所在系别机械工程系作者所在专业机械设计制造及其自动化作者所在班级作者姓名作者学号指导教师姓名指导教师职称完成时间2012 年 2 月的个数严格成正比，在时间上与输入脉冲同步，因此只要控制输入脉冲的数量、频率及电动机绕组通电的相序，便可获得所需的转角、转速及转动方向。

在没有脉冲输入时，在绕组电源的激励下气隙磁场能使转子保持原有位置处于定位状态。

因此非常适合于单片机控制。

步进电机还具有快速启动、精确步进和定位等特点，因而在数控机床，绘图仪，打印机以及光学仪器中得到广泛的应用。

步进电动机已成为除直流电动机和交流电动机以外的第三类电动机。

传统电动机作为机电能量转换装置，在人类的生产和生活进入电气化过程中起着关键的作用。

步进电机可以作为一种控制用的特种电机，利用其没有积累误差(精度为100%)的特点，广泛应用于各种开环控制。

现在比较常用的步进电机包括反应式步进电机（VR）、永磁式步进电机（PM）、混合式步进电机（HB）和单相式步进电机等。

一步进电机的工作原理步进电机是一种用电脉冲进行控制 ,将电脉冲信号转换成相位移的电机 ,其机械位移和转速分别与输入电机绕组的脉冲个数和脉冲频率成正比 ,每一个脉冲信号可使步进电机旋转一个固定的角度.脉冲的数量决定了旋转的总角度 ,脉冲的频率决定了电机运转的速度.当步进驱动器接收到一个脉冲信号，它就驱动步进电机按设定的方向转动一个固定的角度(称为“步距角”)，它的旋转是以固定的角度一步一步运行的。

可以通过控制脉冲个数来控制角位移量，从而达到准确定位的目的；同时可以通过控制脉冲频率来控制电机转动的速度和加速度，从而达到调速的目的。

二步进电机详细调速原理步进电机的调速一般是改变输入步进电机的脉冲的频率来实现步进电机的调速，因为步进电机每给一个脉冲就转动一个固定的角度，这样就可以通过控制步进电机的一个脉冲到下一个脉冲的时间间隔来改变脉冲的频率，延时的长短来具体控制步进角来改变电机的转速，从而实现步进电的调速。

单片机控制步进电机外文文献翻译

单片机控制步进电机外文文献翻译单片机控制步进电机外文原文Stepping motor application and controlstepper motor is an electrical pulse will be converted into angular displacement of the implementing agencies. Put it in simple language-speaking: When the stepper drive pulse signal to a receiver, it drives stepper motor rotation direction by setting a fixed point of view (and the step angle). You can control the number of pulses to control the amount of angular displacement, so as to achieve the purpose of accurate positioning; At the same time, you can by controlling the pulsefrequency to control the motor rotation speed and acceleration, so as to achieve the purpose of speed.Stepper motor directly from the AC-DC power supply, and must use special equipment - stepper motor drive. Stepper motor drive system performance, in addition to their own performance with the motor on the outside, but also to a large extent depend on the drive is good or bad.A typical stepper motor drive system is operated by the stepper motor controller, stepper motor drives and stepper motor body is composed of three parts. Stepper motor controller stepper pulse and direction signal, each made of a pulse, stepper motor-driven stepper motor drives a rotor rotating step angle, that is, step-by-step further. High or low speed stepper motor, or speed, or deceleration, start or stop pulses areentirely dependent on whether the level or frequency. Decide the direction of the signal controller stepper motor clockwise or counterclockwise rotation. Typically, the stepper motor drive circuit from the logic control, power driver circuit, protection circuit and power components. Stepper motor drive controller, once received from the direction of the signal and step pulse, the control circuit on a pre-determined way of the electrical power-phase stepper motor excitation windings of the conduction or cut-off signal. Control circuit output signal power is low, can not provide the necessary stepping motor output power, the need for power amplifier, which is stepper motor driven power drive part. Power stepper motor drive circuit to control the input current winding to form a space for rotating magnetic field excitation, the rotor-driven movement. Protection circuit in the event of short circuit, overload, overheating, such as failure to stop the rapid drive and motor.Motor is usually for the permanent magnet rotor, when the current flows through the stator windings, the stator windings produce a magnetic field vector. The magnetic field will lead to a rotor angle of rotation, making a pair of rotor and stator magnetic field direction of the magnetic field direction. When the stator rotating magnetic field vector from a different angle. Also as the rotor magnetic field to a point of view. An electrical pulse for each input, the motor rotation angle step. Its output and input of the angular displacement is proportional to the pulses, with pulse frequency proportional to speed.Power to change the order of winding, the electrical will be reversed. We can, therefore, control the pulse number, frequency and electrical power windings of each phase to control the order of rotation of stepper motor.Stepper motor types:Permanent magnet (PM). Magnetic generally two-phase stepper, torque and are smaller and generally stepping angle of 7.5 degrees or 15 degrees; put more wind for air-conditioning.Reactive (VR), the domestic general called BF, have a common three-phase reaction, step angle of 1.5 degrees; also have five-phase reaction. Noise, no torque has been set at a large number of out.Hybrid (HB), common two-phase hybrid, five-phase hybrid, three-phase hybrid, four-phase hybrid, two-phase can be common with the four-phase drive, five-phase three-phase must be used with their drives;Two-phase, four-phase hybrid step angle is 1.8 degrees more than a small size, great distance, and low noise;Five-phase hybrid stepping motor is generally 0.72, the motor step angle small, high resolution, but the complexity of drive circuits,wiring problems, such as the 5-phase system of 10 lines.Three-phase hybrid stepping motor step angle of 1.2 degrees, but according to the use of 1.8 degrees, the three-phase hybrid stepping motor has a two-phase mixed than the five-phase hybrid more pole will help electric folder symmetric angle, it can be more than two-phase,five-phase high accuracy, the error even smaller, run moresmoothly.Stepper motor to maintain torque: stepper motor power means no rotation, the stator locked rotor torque. It is a stepper motor, one of the most important parameters, usually in the low-speed stepper motor torque at the time of close to maintain the torque. As the stepper motor output torque increases with the speed of constant attenuation, the output power also increases with the speed of change, so as to maintain torque on the stepper motor to measure the parameters of one of the most important. For example, when people say that the stepper motor 2N.m, in the absence of special circumstances that means for maintaining the torque of the stepper motor 2N.m.Precision stepper motors: stepper motor step angle accuracy of 3-5%, not cumulative.Stepper motor to allow the minimum amount of surfacetemperature:Steppermotor causes the motor temperature is too high the first magnetic demagnetization, resulting in loss of torque down even further, so the motor surface temperature should be the maximum allowed depending on the motor demagnetization of magnetic material points; Generally speaking, the magnetic demagnetization points are above 130 degrees Celsius, and some even as high as 200 degrees Celsius, so the stepper motor surface temperature of 80-90 degrees Celsius is normal.Start frequency of no-load: the stepper motor in case of no-load to the normal start of the pulse frequency, if the pulse frequency ishigher than the value of motor does not start, possible to lose steps or blocking. In the case of the load, start frequency should be lower. If you want to achieve high-speed rotation motor, pulse frequency should be to accelerate the process, that is, the lower frequency to start, and then rose to a certain acceleration of the desired frequency (motor speed from low rise to high-speed).Step angle: that is to send a pulse, the electrical angle corresponding to rotation.Torque positioning: positioning torque stepper motor does not refer to the case of electricity, locked rotor torque stator.Operating frequency: step-by-step stepper motor can run without losing thehighest frequency.Subdivision Drive: stepper motor drives the main aim is to weaken or eliminate low-frequency vibration of the stepper motor to improve the accuracy of the motor running. Reduce noise. If the step angle is 1.8 ? (full step) the two-phase hybrid stepping motor, if the breakdown of the breakdown of the number of drives for the 8, then the operation of the electrical pulse for each resolution of 0.072 ?, the precision of motor can reach or close to 0.225 ?, also depends on the breakdown of the breakdown of the drive current control accuracy and other factors, the breakdown of the number of the more difficult the greater the precision of control.How to determine the stepper motor driver DC power supply:A. Determination of the voltage: Hybrid stepping motor driver power supplyvoltage is generally a wide range (such as the IM483 supply voltage of 12 ~ 48VDC), the supply voltage is usually based on the work of the motor speed and response to the request to choose. If the motor operating speed higher or faster response to the request, then the voltage value is high, but note that the ripple voltage can not exceed the maximum input voltage of the drive, or it may damage the drive.B. Determination of CurrentPower supply current is generally based on the output phase current drive I to determine. If a linear power supply, power supply current is generally preferable 1.1 to 1.3 times the I; if we adopt the switching power supply, power supply current is generally preferable to I, 1.5 to 2.0 times.The main characteristics of stepping motor:1. A stepper motor drive can be added operate pulse drive signal must be no pulse when the stepper motor at rest, such as If adding the appropriate pulse signal, it will to a certain angle (called the step angle) rotation. Rotation speed and pulse frequency is proportional to.2. permanent magnet step angle stepper motor version is 7.5 degrees, 360 degrees around, takes 48 pulses to complete.3. stepper motor has instant start and rapid cessation of superior characteristics. Change the order of the pulse4(you can easily change the direction of rotation.Therefore, the current printers, plotters, robotics, and so devices are the core of the stepper motor as the driving force.Stepper motors have the following benefits: (1)Low cost(2)Ruggedness (3)Simplicity in construction (4)High reliability (5)No maintenance (6)Wideacceptance(7)No tweaking to stabilize (8)No feedback components are neededThey work in just about any environment Inherently more failsafethan servo motors. There isvirtually no conceivable failure within the stepper drive module that could cause the motor to run away. Stepper motors are simple to drive and control in an open-loop configuration. They only require four leads. They provide excellent torque at low speeds, up to 5 times the continuous torque of a brush motor of the same frame size or double the torque of the equivalent brushless motor. This often eliminates the need for a gearbox. A stepper-driven-system is inherently stiff, with known limits to the dynamic position error.Stepper Motor Disadvantages:Stepper motors have the following disadvantages:1. Resonance effects and relatively long settling times .2.Rough performance at low speed unless a microstep drive is used .3.Liability to undetected position loss as a result of operating open-loop .4. They consume current regardless of load conditions and therefore tend to run hot5. Losses at speed are relatively high and can cause excessive heating, and they are frequently noisy (especially at high speeds).6.They can exhibit lag-lead oscillation, which is difficult to damp.There is a limit to their available size, and positioning accuracy relies on the mechanics (e.g., ballscrew accuracy).Many of these drawbacks can be overcome by the use of a closed-loop control scheme.外文资料翻译译文步进电机应用和控制步进电机是将电脉冲转换成角位移的执行机构。

基于单片机的步进电机控制系统设计外文资料翻译

毕业设计(论文)外文资料翻译学院：机械工程学院专业：机械设计制造及其自动化姓名：张XX学号：XXXXXXXXXX外文出处：《Computational Intelligence and (用外文写)Design》附件： 1.外文资料翻译译文；2.外文原文。

注：请将该封面与附件装订成册。

附件1：外文资料翻译译文基于微型计算机的步进电机控制系统设计孟天星余兰兰山东理工大学电子与电气工程学院山东省淄博市摘要本文详细地介绍了一种以AT89C51为核心的步进电机控制系统。

该系统设计包括硬件设计、软件设计和电路设计。

电路设计模块包括键盘输入模块、LED显示模块、发光二极管状态显示和报警模块。

按键可以输入设定步进电机的启停、转速、转向,改变转速、转向等的状态参数。

通过键盘输入的状态参数来控制步进电机的步进位置和步进速度进而驱动负载执行预订的工作。

运用显示电路来显示步进电机的输入数据和运行状态。

AT89C51单片机通过指令系统和编译程序来执行软件部分。

通过反馈检测模块，该系统可以很好地完成上述功能。

关键词：步进电机，AT89C51单片机，驱动器，速度控制1概述步进电机因为具有较高的精度而被广泛地应用于运动控制系统，例如机器人、打印机、软盘驱动机、绘图仪、机械式阀体等等。

过去传统的步进电机控制电路和驱动电路设计方法通常都极为复杂，由成本很高而且实用性很差的电器元件组成。

结合微型计算机技术和软件编程技术的设计方法成功地避免了设计大量复杂的电路，降低了使用元件的成本，使步进电机的应用更广泛更灵活。

本文步进电机控制系统是基于AT89C51单片机进行设计的，它具有电路简单、结构紧凑的特点，能进行加减速，转向和角度控制。

它仅仅需要修改控制程序就可以对各种不同型号的步进电机进行控制而不需要改变硬件电路，所以它具有很广泛的应用领域。

2设计方案该系统以AT89C51单片机为核心来控制步进电机。

电路设计包括键盘输入电路、LED显示电路、发光二极管显示电路和报警电路，系统原理框图如图1所示。

步进电机外文文献资料

文献出处：Firoozian R. Stepping Servo Motors [J] Servo Motors and Industrial Control Theory. Springer International Publishing, 2015，3（2）: 91-99.Stepping Servo MotorsRiazollah FiroozianA stepping motor is defined as a rotary device whose output shaft moves in discrete steps when excited from a switched DC supply. Stepping motors are very practical devices for converting digital pulse inputs into analogue shaft-output (or rotary) motion as required in modern electric or electronic equipment. Each shaft revolution can be expressed in terms of a number of discrete identical steps or increments. Each step can be triggered by a single pulse. Stepping motors can be made with a rotor made of permanent magnets or DC energized. In the latter case, brushes must be used to energize the rotor. The principal operation of both types are shown in Fig. 5.11 Principal OperationA stepping motor is defined as a rotary device whose output shaft moves in discrete steps when excited from a switched DC supply. Stepping motors are very practical devices for converting digital pulse inputs into analogue shaft-output (or rotary) motion as required in modern electric or electronic equipment. Each shaft revolution can be expressed in terms of a number of discrete identical steps or increments. Each step can be triggered by a single pulse. Stepping motors can be made with a rotor made of permanent magnets or DC energized. In the latter case, brushes must be used to energize the rotor. The principal operation of both types are shown in Fig. 5.1.Principal operation of a permanent magnet rotor stepping motorFigure 5 shows that when the phase A–A′ are energized, the rotor remains 0 at the position shown in the figure. When the phase A–A′ are de-energized and the phase B–B′ are energized, the rotor moves 90° (one step). The process may be repeated to move the rotor one more step of 90°. If the two phases are energized simultaneously, the rotor moves 45°. By proper sequence of energizing and de-energizing steps of 45 or 90° may be achieved.The rotor may be designed so that magnetic poles can be achieved from external power supply. This is shown in Fig. 5.2.Stepping motors with rotor energized externally must have brushes to supply power to arotating rotor. Brushes need to be checked periodically for proper operation. For this reason, in servo control system permanent magnet rotor is preferred .The stator of the stepping angles may be made with two, three, or four phases. This is shown in Fig. 5.3Figure 5.3 shows that by properly energizing and de-energizing the phases, step angle of 60°is achieved. The rotor can be just laminated steels or permanent magnet. If the rotor is made of permanent magnet, a larger output torque can be achieved.2 Stepping Motors with Small Step AngleIf the rotor and stator of stepping motors are made of laminated steels with many teeth, a very small angle can be achieved. A step angle of 1.8 or 0.9° stepping motors are readily available in the market. The permanent magnet is buried in the rotor. This is shown in Fig. 5.4A typical stepping motors with small step sizeBy properly energizing and de-energizing the stator windings, the rotor moves to the required position with the defined phase angle. In addition, if a gear box is attached to the stepping motor, a very high accurate position can be achieved. To move the stepping motor to the required position greater than the step angle, an electronics power unit is usually attached to the motor in which a single pulse represents one step movement of the rotor. This means that correct phases are energized and de-energized. The second input pulse represents another step movement. This requires change of phases energized and de-energized .A very simple diagram with uses of transistors to switch the power to the correct phases is shown in Fig. 5.5. It can be seen that at least four transistors are needed to perform the correct switching actions. An electronic device will send a current to the required transistors. This makes them connect to a voltage to the required phases as shown by A, B, C, and D.3 Torque–Displacement Characteristic of a Stepping MotorWhen the teeth of one energized phase of stator with the teeth of the rotor are aligned, the output torque is zero. It means that the rotor does not show any resistance to the applied output torque. When the rotor is deflected by a small amount, an attracting pulling force develops between the teeth of the rotor and stator which shows itself as a torque on the rotor . The behavior can be simulated by a sinusoidal output torque. This is shown in Fig. 5.6, when two phases are energized.Torque–displacement characteristic of generalized stepping motorThe relationship between the output torque and rotor displacement can be approximated as Tm:=nK1t⋅I⋅sin( θ )(5.1)In equation (5.1), n is number of phases energized, T m is the developed torque, K1t is motor torque constant , I is the current which may be written asI:=NRT⋅ϕ(5.2)where N RT, φ are numbers of rotor teeth and step angle. For a specific motor, n,K1t are constants and Eq. (5.1) may be written asTm:=K2t⋅I⋅sin( θ )(5.3)where K2t is constant and I is the current flowing in the stator windings and θ is the rotor position. Equation (5.3) is nonlinear and to study the dynamic behavior of stepping motors , it must be linearized asTm:=Kt⋅I−Kθ⋅θ(5.4)whereKt:=ddITm θ :=constantKt:=K2t⋅sin( θ )(5.5)K θ :=dd θTmI:=constantKθ:=K2t⋅I⋅cos( θ )(5.6)The second term in Eq. (5.4) is negative because as θ increases over one step of stepping motor, the torque reduces . When θ moves one step, the torque becomes zero. The torque constant (K t) and the step angle are given by manufacturers. Therefore, K θ can easily be evaluated .4 Dynamic Response Characteristic over One Step MovementIt is important first to study the dynamic response of stepping motors for single step movement. To do this the linearized Eq. (5.4) must be used. In addition several assumptions have to be made. For the simplest model, the inductance of the windings is ignored. The voltage equation simply becomesV:=RI(5.7)Eliminating the variable I from Eqs. (5.4) and (5.7) givesTm:=KtR⋅V−Kθ⋅θ(5.8)The equation of motion for the rotor assuming the total inertia of J and a viscous mechanical damping of C may be written asTm:=Js2 θ +Cs θ +TI(5.9)where T l is the external torque applied to the motor. Eliminating the variable T m from the two Eqs (5.8) and (5.9) and with some algebraic manipulations, the transfer function becomes θ:=KtRKθ⋅V−T1JKθ⋅s2+CKθs+θ(5.10)It can be seen that the governing transfer function in simplest form is a second order with two input variables of voltage and external torque. The coefficients of the characteristic equation gives the natural frequency and the damping ratio as1ω2n:=JKθωn:=KθJ−−−√(5.11)The natural frequency gives the speed of response and it can be seen that as the inertia increases the natural frequency reduces and as K θ increases the natural frequency increases. The damping ratio is2ξωn:=CKθξ:=C2⋅1Kθ⋅J−−−−−√(5.12)If the mechanical damping coefficient C is zero, the rotor will oscillate continuously. In practice, there is some mechanical friction that increases the damping ratio. It means that the rotor moves one step and will oscillate little and the teeth become aligned with the stator. Both K θ and J reduce the damping ratio .For a better mathematical model, the inductance of the stator windings must be taken into account. This only changes the voltage equation and the transfer function becomes third order which means that the motor might become unstable.（完整文献请到百度文库）5 Speed–Torque Characteristic Behavior of Stepping MotorsIn the previous section, the dynamic behavior of stepping motors was studied . In many applications the stepping motor is required to move several steps. In this case the motor is moved one step at a time. It is interesting to study that how fast the motor can be moved one step at a time. It obvious that when the motor is moved one step the next step must be applied when the rotor has reached at least 80 or 90 % of the previous step. This is shown for a typical stepping motor in Fig. 5.7. It shows the speed-torque characteristic of a typical stepping motor. The stepping rate depends on the applied torque and implicitly depends on the rotor inertia . At zero torque, maximum stepping rate defined by manufacturer can be used which means the motor can be moved by maximum speed and then decelerate so the rotor has moved to the required position.Typical speed-torque characteristic of stepping motorsThere are two curves on the diagram; one for pull-in torque and one for pull-out torque. It means that once the rotor has accelerated to the near maximum speed the switching rate can be increased further. This diagram must be provided by manufacturers .6 Stepping Motors for Position Control ApplicationsWhen stepping motors are used for position control applications, they can be operated in open loop. The danger is that the stepping motors may lose steps when they have to be moved several steps. In open loop, the switching rate must be sufficiently small so that correct positioning is achieved. To overcome this problem, they must be operated in closed loop. The output position is usually measured by a position encoder and the information about the output position is fed back to the controller. The required position is compared with output position and with respect to the error the switching rate is applied. In this mode, the loss of steps is avoided. This is shown in block diagram form in Fig. 5.8.Although the input and output positions are in digital form, they can be written in analogue form. The controller output may be written asV:K( θi−θ o)(5.13)V is the output voltage which determines the switching rates. K is the gain and θ i, θ oare the demand and actual output position. When the stepping motor is energized at a specific switching rate then the voltage equation assuming with inductance L may be written asV:=RI+LsI(5.14)It should be noted that for stepping motors there is no internal velocity feedback. This means that the damping ratio in stepping motors are less than that of DC servo motors. Therefore, the stability of stepping motors must carefully investigated. The torque equation similar to DC servo motors becomesTm:=Kt⋅I(5.15)The equation of motions for rotor and load are similar to that described for DC servo motors. The reader is encouraged to obtain a catalogue from stepping motor’s manufacturer and study the dynamic behavior of stepping motors in closed position control applications at various complexities. The effect of velocity feedback which is easily available must be studied. For more complex applications, the state variables feedback as described in DC servo motors should also be investigated.。

步进电机概述论文翻译英文版（5篇模版）

步进电机概述论文翻译英文版（5篇模版）第一篇：步进电机概述论文翻译英文版Knowledge of the stepper motor What is a stepper motor：The stepping motor as executing components, electromechanical integration is one of the key products, widely used in a variety of automatic control systems. With the development of microelectronics and computer technology, the stepper motor demand grow with each passing day, has been applied in various fields of the national economy.Stepping motor is a kind of electrical pulses into angular displacement of the implementing agencies. When stepping drive receives a pulse signal, it drives stepper motor rotate in the direction set by a fixed angle ( called the " step " ), it is the rotation at a fixed angle step by step operation. The number of pulses to control the amount of angular displacement through the control, so as to achieve the purpose of accurate positioning; also can control the pulse frequency to control motor rotation speed and acceleration, so as to achieve the purpose of speed. Special motor stepper motor control can be used as a, using its no accumulation of error ( accuracy of 100% ) characteristics, widely used in all kinds of open-loop control.Now more commonly used step motor comprises stepper motor ( VR ), permanent magnet stepper motor ( PM ), hybrid stepping motor ( HB ) and single-phase stepping motor.Permanent magnet stepper motor for general two-phase, torque and small volume, the step angle is 7.5 degree or 15 degree;Reaction stepping motor is generally three-phase, can achieve a high torque output, step angle is 1.5 degrees, but thenoise and vibration are great. The rotor magnetic circuit made of soft magnetic material reaction stepper motor, a multi-phase excitation winding stator, using magnetic torque changes.Hybrid stepping motor is mixed the advantages of permanent magnet type and reaction type. It is divided into two phase and five phase: two-phase stepper angle is 1.8 degree and five phase stepper angle is 0.72 degrees. Application of the stepping motor is the most widely, is also this subdivision driving of stepper motor selection scheme.Some of the basic parameters of step motor:The natural step motor:It says every hair a step pulse signal control system, motor rotation angle. Motor factory is a step angle values, such as type 86BYG250A motor is given a value of 0.9° /1.8 °( said a half step of work is 0.9 °, the whole step of work is 1.8 °), this step can be called ' motor fixed step ', it doesn't have to be the actual motor work when the real step angle, angle and drive the real steps.Stepper motor phase number:Is the number of coils inside the motor, commonly used in a two-phase, three-phase, four phase, five phase stepper motor. The number of motor phase is different, the step angle is also different, the general two-phase motor step angle is 0.9° /1.8 °, three-phase 0.75 ° /1.5 °, five phase of 0.36 ° /0.72 °. In the absence of subdivision drive, users mainly rely on different phases of the stepper motor to meet their own requirements of step angle. If you use a subdivision driver, is ' phase ' will become meaningless, users only need to change the fine fraction in the drive, you can change the step angle.Keep the torque ( HOLDINGTORQUE ):Is the stepper motor power but there is no rotation, thestator locked rotor torque. It is one of the most important parameters of step motor, usually stepper motor in the low-speed torque to keep the torque. Because of the larger output torque stepper motor with speed and continuous decay, increases the output power with the speed of change, so keep the torque becomes one of the most important parameters of step motor. For example, when people say 2N.m stepper motor, in the absence of exceptional circumstances described in that refers to keep the torque motor for the 2N.m step.DETENTTORQUE: DETENTTORQUE:Refers to the stepper motor is not energized condition, the stator locked rotor torque. DETENTTORQUE does not have a unified way of translation in China, easy to make people misunderstand; as the rotor reaction stepper motor is not permanent magnetic material, so it has no DETENTTORQUE.Some of the characteristic of step motor:The 1 stepper motor step angle accuracy for 3-5%, and no accumulation.2 stepper motor appearance allows the maximum temperature.Stepper motor temperature is too high will first make the motor magnetic material demagnetization, resulting in lower torque and loss, so the highest temperature of motor appearance allows should depend on the different motor demagnetization magnetic materials; generally speaking, demagnetization point magnetic material in 130 degrees Celsius above, some even as high as 200 degrees Celsius stepping motor, so the surface temperature at 80-90 degrees Celsius completely normal.3 stepper motor torque will decrease with the increase of rotational speed.When the stepper motor rotates, the electrical inductance of the winding will form a reverse electromotive force; the higher the frequency, the greater the reverse emf. Under the influence of it, the motor with frequency ( or speed ) increase and the phase current is reduced, resulting in lower torque.4 stepper motor speed can be normal operation, but if it is more than a certain speed will not start, and accompanied by howling.Stepper motor is a technical parameter: no-load start frequency, namely the stepper motor under no-load condition can pulse frequency start, if the pulse frequency is higher than the value, the motor can not start properly, may have lost step or stall. In under the condition of the load, start frequency should be less. If you want to enable the motor to rotate at high speed, pulse frequency should accelerate the process is started, the lower frequency, and then according to certain acceleration up to high frequency desired ( motor speed from low speed to high speed ).Characteristics of stepper motor with its significant, play an important purpose in the era of digital manufacturing. With the different development of digital technology and stepper motor itself technology improves, the stepper motor will be applied in more fields. How to determine the stepper motor driver DC power supply：A. Determination of the voltageHybrid stepping motor driver power supply voltage is generally a wide range (such as the IM483 supply voltage of 12 ~ 48VDC), the supply voltage is usually based on the work of the motor speed and response to the request to choose. If the motor operating speed higher or faster response to the request, thenthe voltage value is high, but note that the ripple voltage can not exceed the maximum input voltage of the drive, or it may damage the drive. B. Determination of Current Power supply current is generally based on the output phase current drive I to determine. If a linear power supply, power supply current is generally preferable 1.1 to 1.3 times the I; if we adopt the switching power supply, power supply current is generally preferable to I, 1.5 to 2.0 times. The main characteristics of stepping motor：A stepper motor drive can be added operate pulse drive signal must be no pulse when the stepper motor at rest, such as If adding the appropriate pulse signal, it will to a certain angle (called the step angle) rotation. Rotation speed and pulse frequency is proportional to.2 Dragon step angle stepper motor version is 7.5 degrees, 360 degrees around, takes 48 pulses to complete.3 stepper motor has instant start and rapid cessation of superior characteristics. Change the pulse of the order of 4, you can easily change the direction of rotation. Therefore, the current printers, plotters, robotics, and so devices are the core of the stepper motor as the driving force. Stepper motor control example We use four-phase unipolar stepper motor as an example. The structure shown in Figure 1:Four four-phase winding leads (as opposed to phase A1 A2 B1 phase phase B2) and two public lines (to the power of positive). The windings of one phase to the power of the ground. So that the windings will be inspired. We use four-phase eight-beat control, ie, 1 phase 2 phase alternating turn, would enhance resolution. 0.9 ° per step can be transferred to control the motor excitation is transferred in order as follows:If the requirements of motor reversal, the transmission excitation signal can be reversed. 2 control scheme Control system block diagram is as followsThe program uses AT89S51 as the main control device. It is compatible with the AT89C51, but also increased the SPI interface and the watchdog module, which not only makes the debugging process becomes easy and also more stable. The microcontroller in the program mainly for field signal acquisition and operation of the stepper motor to calculate the direction and speed information. Then sent to the CPLD. CPLD with EPM7128SLC84-15, EPM7128 programmable logic device of large-scale, for the ALTERA company's MAX7000 family. High impedance, electrically erasable and other characteristics, can be used for the 2500 unit, the working voltage of +5 V. CPLD receives information sent from the microcontroller after converted to the corresponding control signal output to the stepper motor drive. Put the control signal drives the motor windings after the input, to achieve effective control of the motor.2.1 The hardware structure of the motor drive Motor drive using the following circuit:R1-R8 in which the resistance value of 320Ω. R9-R12 resistance value 2.2KΩ. Q1-Q4 as Darlington D401A, Q5-Q8 for the S8550. J1, J2 and the stepper motor connected to the six-lead。

步进电机运动控制系统外文文献翻译中英文

步进电机运动控制系统外文文献翻译中英文外文文献翻译(含:英文原文及中文译文)文献出处:YH Lee. Stepper motor motion control system design [J]. Equipment Manufacturing Technology, 2015，2(6):31-41.英文原文Stepper motor motion control system designYH LeeAbstractStepper motors are open-loop control elements that convertelectrical pulse signals to angular or linear displacements. In the case of non-overload, the rotation speed and stop position of the motor depend only on the frequency and pulse number of the pulse signal, and is not affected by the load change, that is, a pulse signal is applied to the motor, and the motor rotates through a step angle. The existence of this linear relationship, coupled with the fact that the stepper motor has only periodic errors and no cumulative errors, is a feature. It is very simple to use a stepper motor to control the speed and position. Stepper motor speed control is generally to change the frequency of the input stepper motor pulse to achieve stepper motor speed control, because the stepper motor for each pulse to rotate afixed angle, so that you can control the stepper motor The time intervalfrom one pulse to the next pulse changes the frequency of the pulse. The length of the delay controls the step anglespecifically to change the rotation speed of the motor, thereby realizing the stepping motor speed control. In this design scheme, the internal timer of the AT89C51 microcontroller is used to change the frequency of the CP pulse to realize the control of the rotation speedof the stepper motor to realize the functions of the motor speed adjustment and forward and reverse rotation. The design takes into consideration that the CPU may be disturbed when executing instructions, causing the program to "run away" or enter the "endless loop". Therefore, the watchdog circuit is designed using a microprocessing system monitoring integrated chip manufactured by MAXIM. MAXI813. This article also gives the related hardware block diagram and software flow chart in detail, and has compiled the assembly language program.Keywords: stepper motor single chip microcomputer speed control systemIntroductionStepper motors were first developed by the British in 1920. The invention of the transistor in the late 1950s was also gradually applied to a stepping motor, which made it easier to control the digitization. After continuous improvement, today's stepper motors have been widely used in mechanical systems with high controllability such as high positioning accuracy, high decomposition performance, highresponsiveness, and reliability. In the production process, where automation, labor saving, andhigh efficiency are required, we can easily find traces of stepper motors, especially those that emphasize speed, position control, and flexible control applications that require precise command operation. The most. As an actuator, a stepper motor is one of the key products of electromechanical integration and is widely used in various automation control systems. With the development of microelectronics and computer technology, the demand for stepper motors is increasing day by day, and there are applications in various national economic fields. A stepper motor is an actuator that converts an electrical pulse signal into an angular or linear displacement. Stepper motors can be driven directly with digital signals and are very easy to use. The general motor is continuous rotation, while the stepper motor has two basic states of positioning and operation. When there is a pulse input, the stepping motor rotates step by step, and when it is given a pulse signal, it turns a certain angle. The angular displacement of the stepping motor is strictly proportional to the number of input pulses and is synchronized in time with the input pulse. Therefore, as long as the number of input pulses, the frequency, and the phase sequence of the motor windings are controlled, the desired rotation angle can be obtained. Speed and direction of rotation. When there is no pulse input, the air gap magnetic field can keep the rotor in the original position under theexcitation of the winding power supply. So it is very suitable forsingle chip microcomputer control. Stepper motors also have features such as fast start, precise stepping and positioning, and are thus widely used in CNC machine tools, plotters, printers, and optical instruments. Stepping motors have become the third category of motors except for DC motors and AC motors. Traditional electric motors, as electromechanical energy conversion devices, play a key role in human production and life into the electrification process. The stepper motor can be used as a special motor for control, and it is widely used in various open-loop control because it has no accumulated error (accuracy is 100%). Now more commonly used stepper motors include reactive stepper motors (VR), permanent magnet stepper motors (PM), hybrid stepper motors (HB), and single-phase stepper motors. Permanent-magnet type stepping motor is generally two-phase, small torque and volume, step angle is generally 7.5 degrees or 15 degrees; Reactive stepping motor is generally three-phase, can achieve large torque output, stepping The angle is generally 1.5 degrees, but the noise and vibration are large. The rotor of the reactive stepper motor is magnetically routed from a soft magnetic material, and the stator has a multi-phase excitation winding, which generates torque using a change in the magnetic permeability. Hybrid stepping motor refers to the advantage of mixing permanent magnet type and reactive type. It is divided into two phases and five phases: the two-phase step angle is generally 1.8 degrees andthe five-phase step angle is generally 0.72 degrees. This type of steppermotor is the most widely used and is also the stepper motor used in this subdivision drive scheme.1 stepper motor overview1. 1 stepper motor features:1) The accuracy of a typical stepper motor is 3-5% of the step angle and does not accumulate. 2) The allowable temperature of the stepper motor is high. Excessively high temperature of the stepping motor first demagnetizes the magnetic material of the motor, resulting in a drop in torque and even loss of synchronism. Therefore, the maximum temperature allowed for the appearance of the motor should depend on the demagnetization point of the magnetic material of different motors; generally, the demagnetization of the magnetic material. The points are all above 130 degrees Celsius, and some are even up to 200 degrees Celsius. Therefore, the external temperature of the stepper motor is completely normal at 80-90 degrees Celsius. 3) The torque of the stepper motor will decrease as the rotation speed increases. When the stepper motor rotates, the inductance of each phase winding of the motor will form a counter electromotive force; the higher the frequency, the greater the counter electromotive force. Under its effect, the motor's phase current decreases as the frequency (or speed) increases, causing the torque to drop. 4) The stepping motor can run normally at low speed,but it cannot start if it is higher than a certain speed, accompanied by howling. The stepper motorhas a technical parameter: No-load starting frequency, that is the pulse frequency that the stepping motor can start normally under no-load conditions. If the pulse frequency is higher than this value, the motor cannot start normally, and step loss or stall may occur. In the case of load, the starting frequency should be lower. If the motor is to be rotated at a high speed, the pulse frequency should have an acceleration process, that is, the starting frequency is low, and then it is increased to a desired high frequency (motor speed is raised from low speed to high speed) at a certain acceleration. TC \* MERGEFORMAT1. 2 working principle of stepping motorA stepper motor is a type of motor that is controlled by anelectrical pulse and converts the electrical pulse signal into a phase-shifted motor whose mechanical displacement and rotational speed are proportional to the number of pulses and the pulse frequency of the input motor winding. Each pulse signal can be stepped The feed motor rotates at a fixed angle. The number of pulses determines the total angle of rotation. The frequency of the pulse determines the speed of the motor. When the stepper receives a pulse signal, it drives the stepper motor to rotate in the set direction. At a fixed angle (called "step angle"), its rotation is performed step by step at a fixed angle. By controlling the number of pulses to control the angular displacement,so as to achieve the purpose of accurate positioning; At the same time, by controlling the pulse frequencyto control the speed and acceleration of the motor rotation, so asto achieve the purpose of speed control.2 Basic requirements for designStudy the characteristics, working principle, and specific speed regulation principle of stepper motor. TC \* MERGEFORMATBasic requirements The stepper motor uses a three-phase steppermotor with a power of 1W. When the speed is in the range of 0 to1000r/min, the maximum accuracy is 2%. To basically complete the graduation design, the stepper motor can perform precise speed control, positive and negative rotation, and it can not lose step when starting. Basically, there is no Oscillation, can complete the complete hardware circuit diagram, software design.3 Argumentation of the plan3.1 Determination of control methodsAlthough the stepper motor control is a relatively accurate, open-loop stepper motor control system has the advantages of low cost, simple, convenient control, etc., in the open-loop system of the stepper motor using the microcontroller, the frequency of the CP pulse of the control system or change The cycle is actually controlling the speed of the stepper motor. There are two ways the system can achieve stepper motor speed control. One is delay, the other is timing. The delay method is to call a delay subroutine after each commutation. After the delay isover, the commutation is executed again. In this way, CP pulses or commutation cycles with a certain frequency can be issued. The delay time of the delay subroutine and the time used by the commutation program are the cycles of the CP pulse. This method is simple, uses less resources, and is implemented by software. Different subroutines can be called to achieve different speeds. However, it takes a long time to process the CPU and cannot handle other tasks at runtime. Therefore, it is only suitable for a simpler control process. The timing method is to use the timer timing function in the microcontroller system to generate an arbitrary period of the timing signal, so that the period of the system output CP pulse can be conveniently controlled. When the timer is started, the timer counts up the system and its cycle starting from the loaded initial value. When the timer overflows, the timer generates an interrupt and the system transfers to execute the timer interrupt subroutine. The motor commutation subroutine is placed in the timer interrupt service routine. The timer interrupt is once and the motor is reversed once to achieve motor speed control. Since there is a certain time interval from the start of restarting the timer to the timer application interruption, the timing time is increased. In order to reduce this timing error and achieve accurate timing, it is necessary to make appropriate adjustments to the initial value of reloading counts. . The initial value of adjusted reloading mainly considers two factors and one is the time required to interrupt theresponse. The second is the time occupied by reloading the initial value instruction, including other instructions that interrupt the service program before reloading the initial value. After these two factors are combined, the correction amount of the reload count initial value takes 8 machine cycles, that is, the timing time is shortened by 8 machine cycles. When using the timer interrupt to control the motor shift, it is actually changing the size of the timer load value. In the control process, a discrete approach is used to approximate the ideal speed curve. In order to reduce the time for calculating the load value in each step, the load value required for the speed of each discrete point is fixed in the ROM of the system when the system is designed. The system uses the table look-up method to find the required load value in the system. Significantly reduce the time spent on CPU and improve the response speed of the system. Most stepper motor motion control systems are designed to run in an open-loop state, because the cost is low, and the position control inherent in the motion control technology can be provided without feedback. However, in some applications, more reliability, security, or product quality assurance is required. Therefore, closed-loop control is also an option. Here are some methods for achieving closed-loop control of stepper motors: 1) Step-by-step confirmation, This is the simplest displacement control, using a low-value optical encoder to calculate the amount of step movement. A simple loop compares the stepper motor with the commandverification and verifies that the stepper motor moves to the expected position; 2) Back-EMF, a sensorless detection method, uses a stepper motor's back EMF (eleCtromotiveCe, emf) signal , Measure and control speed. When the back-EMF voltage drops to the monitoring detection level, the closed-loop control is changed to the standard open-loop to complete the final displacement movement; 3) Full-servo control refers to the full-time use of feedback devices for stepper motors - encoders, decoding , or other feedback sensors to more accurately control the stepper motor displacement and torque. Other methods include a variety of different back-EMF control motor parameter measurements and software techniques that some manufacturers use. Here, the stepper drive monitors and measures the motor coils and uses voltage current information to increase the stepper motor control. Positive damping uses this information to block the speed of vibration, producing more usable torque output and reducing torque-induced mechanical vibration losses. No encoder installation monitoring uses information to detect the loss of synchronous speed. Conventional stepper motor control usually employs feedback devices and non-sensing methods, and is an effective method to implement a sports application with safety requirements, dangerous conditions or high accuracy requirements. Most stepper motor-based systems typically operate in an open-loop state, which provides a low-cost solution. In fact, stepper systems can improve the performanceof displacement control without feedback. However, when the stepper motor is running in open loop, there may be a simultaneous loss between the command pace and the actual step. Closed-loop control, which is part of traditional step control, can effectively provide higher reliability, safety, or product quality. In these stepper systems, the closed loop of the feedback device or indirect parametric sensing method can correct or control out-of-step, monitor motor stagnation, and ensure greater available torque output. Recently, closed-loop control (CLC) of stepper motors can also help implement smart distributed motion architectures. However, there is a risk of out-of-step operation in open-loop operation, which will result in positioning errors. However, compared to encoders used in servo systems, closed-loop stepper motors use encoders that are less costly. Therefore, closed-loop control is selected.3.2 Determination of Drive ModeThere are generally two methods for driving a stepping motor. One is directly driven by the CPU. This method is generally not suitable because the output current pulse of the CPU is extremely small and it cannot sufficiently rotate the stepping motor. One is indirect drivingby the CPU, which is to amplify the signal output from the CPU, and then directly drive or indirectly drive the stepper motor throughphotoelectric isolation. This method is relatively safe and reliable. The solid design should use a CPU to drive the stepper motor indirectly. Thetachogenerator of the encoder is also used as the speed measurement tool. Because the closed-loop control is selected, there must be feedback components. There are generally two types of feedback components. One is the coaxial tachometer generator, and the speed of the stepping motor is fed back. Back, and then through the display and stepper motor adjustment; Another is through the optical coaxial encoder to the stepper motor speed feedback back to the stepper motor to adjust; compared to the latter, the latter The design is relatively simple, inexpensive, safe and reliable, and less polluting. The latter is generally used for solids, and photoelectric crumblers are used as feedback components.3. 3 Selection of Drive CircuitThere are many kinds of driving motors for stepping motors, but the most common ones are single voltage driving, dual voltage driving, chopper driving, subdivision control driving and so on. Single-voltage driving is the simplest driving circuit in stepper motor control. It is essentially a single-phase inverter. Its greatest feature is its simple structure, because of its low work efficiency, especially its prominent features at high frequencies. Its external resistor R consumes a considerable amount of heat, which affects the stability of the circuit. This type of drive is generally used only in the drive circuit of a low-power stepper motor. Dual-voltage driving is generally driven by two power supply voltages. Since these two power supplies are one highvoltage and one low voltage, they are also called high and low voltage driving circuits. The disadvantage of the dual-voltage driving circuit is that the valley point appears in the current at the high-low voltage connection, which inevitably causes the torque to drop at the valley point. Not suitable for normal operation of the motor. For the chopper circuit drive, this disadvantage can be overcome and the efficiency of the stepper motor can also be improved. Therefore, it is a good driver circuit from the standpoint of improving efficiency. It can use a higher power supply voltage and does not require an external resistor to limit the rated current and reduce the time constant. However, due to the sawtooth fluctuations at the top of the waveform, large electromagnetic noise is generated. The subdivision drive is powered by a pulse voltage. For a voltage pulse, the rotor can rotate one step. Generally, according to the voltage pulse distribution method, each phase winding of the stepping motor will alternately switch, and the rotor of the stepping motor can be fixed. Rotate. The subdivided control circuit is generally divided into two types. One is to use a linear analog power amplifier to obtain a staircase current. This method is simple but inefficient. The other method is to use a single-chip microcomputer to obtain the step current by using the method of pulse width modulation. This method requires complex calculations to make the substepped step angles uniform. However, due to the fact that the design of the stepper motor requires a relatively wide range ofhigh-speed adjustments, the drive chip 8713 should be used to drive themotor and the speed of the stepper motor must be controlled by software.中文译文步进电机运动控制系统设计作者:YH Lee摘要步进电机是将电脉冲信号转变为角位移或线位移的开环控制元件。

步进电机运动控制系统外文文献翻译中英文

外文文献翻译(含：英文原文及中文译文)文献出处：YH Lee. Stepper motor motion control system design [J]. Equipment Manufacturing Technology, 2015，2（6）：31-41.英文原文Stepper motor motion control system designYH LeeAbstractStepper motors are open-loop control elements that convert electrical pulse signals to angular or linear displacements. In the case of non-overload, the rotation speed and stop position of the motor depend only on the frequency and pulse number of the pulse signal, and is not affected by the load change, that is, a pulse signal is applied to the motor, and the motor rotates through a step angle. The existence of this linear relationship, coupled with the fact that the stepper motor has only periodic errors and no cumulative errors, is a feature. It is very simple to use a stepper motor to control the speed and position. Stepper motor speed control is generally to change the frequency of the input stepper motor pulse to achieve stepper motor speed control, because the stepper motor for each pulse to rotate a fixed angle, so that you can control the stepper motor The time interval from one pulse to the next pulse changes the frequency of the pulse. The length of the delay controls the step anglespecifically to change the rotation speed of the motor, thereby realizing the stepping motor speed control. In this design scheme, the internal timer of the A T89C51 microcontroller is used to change the frequency of the CP pulse to realize the control of the rotation speed of the stepper motor to realize the functions of the motor speed adjustment and forward and reverse rotation. The design takes into consideration that the CPU may be disturbed when executing instructions, causing the program to "run away" or enter the "endless loop". Therefore, the watchdog circuit is designed using a microprocessing system monitoring integrated chip manufactured by MAXIM. MAXI813. This article also gives the related hardware block diagram and software flow chart in detail, and has compiled the assembly language program.Keywords: stepper motor single chip microcomputer speed control systemIntroductionStepper motors were first developed by the British in 1920. The invention of the transistor in the late 1950s was also gradually applied to a stepping motor, which made it easier to control the digitization. After continuous improvement, today's stepper motors have been widely used in mechanical systems with high controllability such as high positioning accuracy, high decomposition performance, high responsiveness, and reliability. In the production process, where automation, labor saving, andhigh efficiency are required, we can easily find traces of stepper motors, especially those that emphasize speed, position control, and flexible control applications that require precise command operation. The most. As an actuator, a stepper motor is one of the key products of electromechanical integration and is widely used in various automation control systems. With the development of microelectronics and computer technology, the demand for stepper motors is increasing day by day, and there are applications in various national economic fields. A stepper motor is an actuator that converts an electrical pulse signal into an angular or linear displacement. Stepper motors can be driven directly with digital signals and are very easy to use. The general motor is continuous rotation, while the stepper motor has two basic states of positioning and operation. When there is a pulse input, the stepping motor rotates step by step, and when it is given a pulse signal, it turns a certain angle. The angular displacement of the stepping motor is strictly proportional to the number of input pulses and is synchronized in time with the input pulse. Therefore, as long as the number of input pulses, the frequency, and the phase sequence of the motor windings are controlled, the desired rotation angle can be obtained. Speed and direction of rotation. When there is no pulse input, the air gap magnetic field can keep the rotor in the original position under the excitation of the winding power supply. So it is very suitable for single chip microcomputer control. Stepper motors also havefeatures such as fast start, precise stepping and positioning, and are thus widely used in CNC machine tools, plotters, printers, and optical instruments. Stepping motors have become the third category of motors except for DC motors and AC motors. Traditional electric motors, as electromechanical energy conversion devices, play a key role in human production and life into the electrification process. The stepper motor can be used as a special motor for control, and it is widely used in various open-loop control because it has no accumulated error (accuracy is 100%). Now more commonly used stepper motors include reactive stepper motors (VR), permanent magnet stepper motors (PM), hybrid stepper motors (HB), and single-phase stepper motors. Permanent-magnet type stepping motor is generally two-phase, small torque and volume, step angle is generally 7.5 degrees or 15 degrees; Reactive stepping motor is generally three-phase, can achieve large torque output, stepping The angle is generally 1.5 degrees, but the noise and vibration are large. The rotor of the reactive stepper motor is magnetically routed from a soft magnetic material, and the stator has a multi-phase excitation winding, which generates torque using a change in the magnetic permeability. Hybrid stepping motor refers to the advantage of mixing permanent magnet type and reactive type. It is divided into two phases and five phases: the two-phase step angle is generally 1.8 degrees and the five-phase step angle is generally 0.72 degrees. This type of steppermotor is the most widely used and is also the stepper motor used in this subdivision drive scheme.1 stepper motor overview1. 1 stepper motor features:1) The accuracy of a typical stepper motor is 3-5% of the step angle and does not accumulate. 2) The allowable temperature of the stepper motor is high. Excessively high temperature of the stepping motor first demagnetizes the magnetic material of the motor, resulting in a drop in torque and even loss of synchronism. Therefore, the maximum temperature allowed for the appearance of the motor should depend on the demagnetization point of the magnetic material of different motors; generally, the demagnetization of the magnetic material. The points are all above 130 degrees Celsius, and some are even up to 200 degrees Celsius. Therefore, the external temperature of the stepper motor is completely normal at 80-90 degrees Celsius. 3) The torque of the stepper motor will decrease as the rotation speed increases. When the stepper motor rotates, the inductance of each phase winding of the motor will form a counter electromotive force; the higher the frequency, the greater the counter electromotive force. Under its effect, the motor's phase current decreases as the frequency (or speed) increases, causing the torque to drop. 4) The stepping motor can run normally at low speed, but it cannot start if it is higher than a certain speed, accompanied by howling. The stepper motorhas a technical parameter: No-load starting frequency, that is the pulse frequency that the stepping motor can start normally under no-load conditions. If the pulse frequency is higher than this value, the motor cannot start normally, and step loss or stall may occur. In the case of load, the starting frequency should be lower. If the motor is to be rotated at a high speed, the pulse frequency should have an acceleration process, that is, the starting frequency is low, and then it is increased to a desired high frequency (motor speed is raised from low speed to high speed) at a certain acceleration. TC \* MERGEFORMA T1. 2 working principle of stepping motorA stepper motor is a type of motor that is controlled by an electrical pulse and converts the electrical pulse signal into a phase-shifted motor whose mechanical displacement and rotational speed are proportional to the number of pulses and the pulse frequency of the input motor winding. Each pulse signal can be stepped The feed motor rotates at a fixed angle. The number of pulses determines the total angle of rotation. The frequency of the pulse determines the speed of the motor. When the stepper receives a pulse signal, it drives the stepper motor to rotate in the set direction. At a fixed angle (called "step angle"), its rotation is performed step by step at a fixed angle. By controlling the number of pulses to control the angular displacement, so as to achieve the purpose of accurate positioning; At the same time, by controlling the pulse frequencyto control the speed and acceleration of the motor rotation, so as to achieve the purpose of speed control.2 Basic requirements for designStudy the characteristics, working principle, and specific speed regulation principle of stepper motor. TC \* MERGEFORMA T Basic requirements The stepper motor uses a three-phase stepper motor with a power of 1W. When the speed is in the range of 0 to 1000r/min, the maximum accuracy is 2%. To basically complete the graduation design, the stepper motor can perform precise speed control, positive and negative rotation, and it can not lose step when starting. Basically, there is no Oscillation, can complete the complete hardware circuit diagram, software design.3 Argumentation of the plan3.1 Determination of control methodsAlthough the stepper motor control is a relatively accurate, open-loop stepper motor control system has the advantages of low cost, simple, convenient control, etc., in the open-loop system of the stepper motor using the microcontroller, the frequency of the CP pulse of the control system or change The cycle is actually controlling the speed of the stepper motor. There are two ways the system can achieve stepper motor speed control. One is delay, the other is timing. The delay method is to call a delay subroutine after each commutation. After the delay isover, the commutation is executed again. In this way, CP pulses or commutation cycles with a certain frequency can be issued. The delay time of the delay subroutine and the time used by the commutation program are the cycles of the CP pulse. This method is simple, uses less resources, and is implemented by software. Different subroutines can be called to achieve different speeds. However, it takes a long time to process the CPU and cannot handle other tasks at runtime. Therefore, it is only suitable for a simpler control process. The timing method is to use the timer timing function in the microcontroller system to generate an arbitrary period of the timing signal, so that the period of the system output CP pulse can be conveniently controlled. When the timer is started, the timer counts up the system and its cycle starting from the loaded initial value. When the timer overflows, the timer generates an interrupt and the system transfers to execute the timer interrupt subroutine. The motor commutation subroutine is placed in the timer interrupt service routine. The timer interrupt is once and the motor is reversed once to achieve motor speed control. Since there is a certain time interval from the start of restarting the timer to the timer application interruption, the timing time is increased. In order to reduce this timing error and achieve accurate timing, it is necessary to make appropriate adjustments to the initial value of reloading counts. . The initial value of adjusted reloading mainly considers two factors and one is the time required to interrupt theresponse. The second is the time occupied by reloading the initial value instruction, including other instructions that interrupt the service program before reloading the initial value. After these two factors are combined, the correction amount of the reload count initial value takes 8 machine cycles, that is, the timing time is shortened by 8 machine cycles. When using the timer interrupt to control the motor shift, it is actually changing the size of the timer load value. In the control process, a discrete approach is used to approximate the ideal speed curve. In order to reduce the time for calculating the load value in each step, the load value required for the speed of each discrete point is fixed in the ROM of the system when the system is designed. The system uses the table look-up method to find the required load value in the system. Significantly reduce the time spent on CPU and improve the response speed of the system. Most stepper motor motion control systems are designed to run in an open-loop state, because the cost is low, and the position control inherent in the motion control technology can be provided without feedback. However, in some applications, more reliability, security, or product quality assurance is required. Therefore, closed-loop control is also an option. Here are some methods for achieving closed-loop control of stepper motors: 1) Step-by-step confirmation, This is the simplest displacement control, using a low-value optical encoder to calculate the amount of step movement. A simple loop compares the stepper motor with the commandverification and verifies that the stepper motor moves to the expected position; 2) Back-EMF, a sensorless detection method, uses a stepper motor's back EMF (eleCtromotiveCe, emf) signal , Measure and control speed. When the back-EMF voltage drops to the monitoring detection level, the closed-loop control is changed to the standard open-loop to complete the final displacement movement; 3) Full-servo control refers to the full-time use of feedback devices for stepper motors - encoders, decoding , or other feedback sensors to more accurately control the stepper motor displacement and torque. Other methods include a variety of different back-EMF control motor parameter measurements and software techniques that some manufacturers use. Here, the stepper drive monitors and measures the motor coils and uses voltage current information to increase the stepper motor control. Positive damping uses this information to block the speed of vibration, producing more usable torque output and reducing torque-induced mechanical vibration losses. No encoder installation monitoring uses information to detect the loss of synchronous speed. Conventional stepper motor control usually employs feedback devices and non-sensing methods, and is an effective method to implement a sports application with safety requirements, dangerous conditions or high accuracy requirements. Most stepper motor-based systems typically operate in an open-loop state, which provides a low-cost solution. In fact, stepper systems can improve the performanceof displacement control without feedback. However, when the stepper motor is running in open loop, there may be a simultaneous loss between the command pace and the actual step. Closed-loop control, which is part of traditional step control, can effectively provide higher reliability, safety, or product quality. In these stepper systems, the closed loop of the feedback device or indirect parametric sensing method can correct or control out-of-step, monitor motor stagnation, and ensure greater available torque output. Recently, closed-loop control (CLC) of stepper motors can also help implement smart distributed motion architectures. However, there is a risk of out-of-step operation in open-loop operation, which will result in positioning errors. However, compared to encoders used in servo systems, closed-loop stepper motors use encoders that are less costly. Therefore, closed-loop control is selected.3.2 Determination of Drive ModeThere are generally two methods for driving a stepping motor. One is directly driven by the CPU. This method is generally not suitable because the output current pulse of the CPU is extremely small and it cannot sufficiently rotate the stepping motor. One is indirect driving by the CPU, which is to amplify the signal output from the CPU, and then directly drive or indirectly drive the stepper motor through photoelectric isolation. This method is relatively safe and reliable. The solid design should use a CPU to drive the stepper motor indirectly. Thetachogenerator of the encoder is also used as the speed measurement tool. Because the closed-loop control is selected, there must be feedback components. There are generally two types of feedback components. One is the coaxial tachometer generator, and the speed of the stepping motor is fed back. Back, and then through the display and stepper motor adjustment; Another is through the optical coaxial encoder to the stepper motor speed feedback back to the stepper motor to adjust; compared to the latter, the latter The design is relatively simple, inexpensive, safe and reliable, and less polluting. The latter is generally used for solids, and photoelectric crumblers are used as feedback components.3. 3 Selection of Drive CircuitThere are many kinds of driving motors for stepping motors, but the most common ones are single voltage driving, dual voltage driving, chopper driving, subdivision control driving and so on. Single-voltage driving is the simplest driving circuit in stepper motor control. It is essentially a single-phase inverter. Its greatest feature is its simple structure, because of its low work efficiency, especially its prominent features at high frequencies. Its external resistor R consumes a considerable amount of heat, which affects the stability of the circuit. This type of drive is generally used only in the drive circuit of a low-power stepper motor. Dual-voltage driving is generally driven by two power supply voltages. Since these two power supplies are one highvoltage and one low voltage, they are also called high and low voltage driving circuits. The disadvantage of the dual-voltage driving circuit is that the valley point appears in the current at the high-low voltage connection, which inevitably causes the torque to drop at the valley point. Not suitable for normal operation of the motor. For the chopper circuit drive, this disadvantage can be overcome and the efficiency of the stepper motor can also be improved. Therefore, it is a good driver circuit from the standpoint of improving efficiency. It can use a higher power supply voltage and does not require an external resistor to limit the rated current and reduce the time constant. However, due to the sawtooth fluctuations at the top of the waveform, large electromagnetic noise is generated. The subdivision drive is powered by a pulse voltage. For a voltage pulse, the rotor can rotate one step. Generally, according to the voltage pulse distribution method, each phase winding of the stepping motor will alternately switch, and the rotor of the stepping motor can be fixed. Rotate. The subdivided control circuit is generally divided into two types. One is to use a linear analog power amplifier to obtain a staircase current. This method is simple but inefficient. The other method is to use a single-chip microcomputer to obtain the step current by using the method of pulse width modulation. This method requires complex calculations to make the substepped step angles uniform. However, due to the fact that the design of the stepper motor requires a relatively wide range ofhigh-speed adjustments, the drive chip 8713 should be used to drive the motor and the speed of the stepper motor must be controlled by software.中文译文步进电机运动控制系统设计作者：YH Lee摘要步进电机是将电脉冲信号转变为角位移或线位移的开环控制元件。
