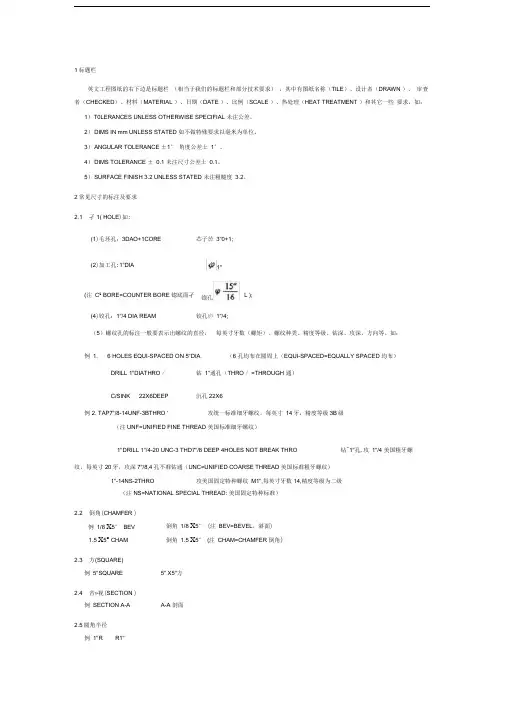

1标题栏英文工程图纸的右下边是标题栏 （相当于我们的标题栏和部分技术要求） ，其中有图纸名称（TILE ）、设计者（DRAWN ）、 审查者（CHECKED ）、材料（MATERIAL ）、日期（DATE ）、比例（SCALE ）、热处理（HEAT TREATMENT ）和其它一些 要求，如：1） T 0LERANCES UNLESS OTHERWISE SPECIFIAL 未注公差。
2） DIMS IN mm UNLESS STATED 如不做特殊要求以毫米为单位。
3） ANGULAR TOLERANCE ±1° 角度公差土 1°。
4） DIMS TOLERANCE ± 0.1 未注尺寸公差土 0.1。
5） SURFACE FINISH 3.2 UNLESS STATED 未注粗糙度 3.2。
2常见尺寸的标注及要求2.1 孑1( HOLE )如:(1)毛坯孔：3DAO+1CORE 芯子於 3"0+1;(2)加工孔:1"DIA(注 C z BORE=COUNTER BORE 锪底面孑L );(4)铰孔：1"/4 DIA REAM 铰孔庐 1"/4; （5）螺纹孔的标注一般要表示出螺纹的直径， 每英寸牙数（螺矩）、螺纹种类、精度等级、钻深、攻深，方向等。
如：例 1. 6 HOLES EQUI-SPACED ON 5"DIA（6 孔均布在圆周上（EQUI-SPACED=EQUALLY SPACED 均布） DRILL 1"DIATHRO / 钻 1"通孔（THRO / =THROUGH 通）C/SINK 22X6DEEP 沉孔22X6例2. TAP7"/8-14UNF-3BTHRO '攻统一标准细牙螺纹，每英寸 14牙，精度等级3B 级 （注UNF=UNIFIED FINE THREAD 美国标准细牙螺纹）1"DRILL 1"/4-20 UNC-3 THD7"/8 DEEP 4HOLES NOT BREAK THRO钻"1"孔,攻 1"/4 美国粗牙螺 纹，每英寸20牙，攻深7"/8,4孔不准钻通（UNC=UNIFIED COARSE THREAD 美国标准粗牙螺纹）1"-14NS-2THRO 攻美国固定特种螺纹 M1",每英寸牙数14,精度等级为二级（注NS=NATIONAL SPECIAL THREAD: 美国固定特种标准）2.2 倒角(CHAMFER )倒角 1/8 X 5° (注 BEV=BEVEL ，斜面) 倒角 1.5 X 5° (注 CHAM=CHAMFER 倒角)2.3 方(SQUARE)例 5"SQUARE5" X5"方 2.4 咅»视(SECTION )例 SECTION A-AA-A 剖面 2.5圆角半径例 1"R R1" 例 1/8 X 5° BEV1.5 X 5° CHAMRADIUS MUST BE SMOOTH AND BLEND INTO FACE圆弧必须光滑且 与平面相切2.6 加工余量例 DOTTED LINES INDICATED MAX FINISH 1"/8虚线表示最大加工余量 1"/82.7 零件标记例USE 5"/16 RAISED HAIRLINE LET-TERS MARKING ON ONE SIDE OF BODY缩写 abbreviation 美英加陆军规格 ABC-Army-STD 美英加海军规格 ABC-Navy-STD 消字膏 abrasive paste 方向突变 abrupt change in direction 横坐标 abscissa 绝对尺寸 absolute size 交流电动机控制器 AC motor controller 交流电 AC(a-c ， alernating current) 附件accessory 累积公差 accumulated tolerance 精度，准确度 accuracy 准确线 accurate line 透明绘图胶片 acetate 梯形 (爱克姆 ) Acme[screw] 对角视图 across corner view 对角 across corners 对边 across flats 对边视图 across flats view 横断木纹 across grain of wood 实际距离 actual distance 实际书法 actual drawing 实际配合 actual fit 实际内径 actual inside diameter 实际量度 actual measurement 图面尺寸 actual measurement on the drawing 实际分度区域，实际精确区域 actual minute area 实际零件 actual part 实际位置 actual position 实际尺寸 actual size 锐角 acute angle 齿冠 addeneum 齿冠图 addeneum circle 齿冠距离 addeneum distance 齿冠线 addeneum line 相加 adding 增列数据 additional data 增列资料 additional information 增列位置公差 additional position tolerance 增列公差 additional tolerance 胶带 adhesive tape 邻角 adjacent angle 邻近区域 adjacent area 邻接组件 adjacent component 邻棱 adjacent edge 邻线 adjacent line 邻接地图 adjacent map 邻接件 adjacent part 邻接件线 adjacent parts line 邻边 adjacent side 相邻视图 adjacent view 自由曲线规 adjustable curve 活动丁字尺 adjustable head T-square 调整点 adjustable point 自由曲线规 adjustable ruler 可调三角规 adjustable set wquare 广告面 advertising illustration 色透规，浓淡远近法 aerial perspective 航空照相 aerial photograph 航空图 aeronautical chart 航测图 aeronautical map 美学 aestetics 逆理 (木 ) against the grain 喷刷 air brush 飞机接线图 air craft wiring diagram 空线，电路 airline ， base line 备接线 ajoining line 铝 AL(aluminum)对齐尺寸线 aligned dimension lines 对齐制注尺寸法 aligned dimensioning 转正剖面 aligned section 对齐制 aligned system 转正的视图，对正的视图 aligned view 对准 alignment 列线图 alignment chart 列线图 alignment diagram 鳄齿连接器 alligator connector" 裕度ALLOW(allowance) " 容许蚗 ?" allowable bearing 容许僆 q allowable variation 裕度 allowance 纵剖木纹 along grain of wood 线的规格 alphabet of lines 字母顺序 alphabetice order 字母 alphabets 更改后尺寸 altered dimension 对错角 alternate angle 交变剖面线 alternatecrosshatching 螺纹正规符号书法 (美式 ) alternate light and heavy line method 变换法用突起高为 5"/16 的细实线字母在本体一侧打标记3 关于铸锻件的技术要求例 1.例 2. FORGINGMUST BE ANNEALED TO BE BELOW 20B3RINELL HARDNESS NORMALIZETO 163-207BHN MUST BE FREE OF SCALE & RUST件表面 不得有氧化皮和锈蚀例 3. FORGING TO BESHOT OR SAND BLASTED例 4. UNLESS OTHERWISE SPECIFIEDDRAFT ANGLES7°例 5. CAST TO BE FREE OF EXCESSIVE FLASH 例 6. DRAFT ANGLE °2 UNLESS OTHER-WISE SPECIFIED锻件 必须退火处理， 布氏硬度 <203 锻件正火处理，布氏硬度 163-207, 锻锻件需经 喷丸或喷砂处理 未注明锻造 拔模斜度 7° 铸件不得有过多的毛边 未注明铸造拔模斜度 2°alternate method 变换位置alternate position 变换位置线alternate position line 变换位置视图alternate position view 共轭弓形alternate segment 外错角alternate-exterior angle 内错角alternate-interior angle 交互排列alternately spaced 交流电alternating current 更改alternation 侧视图的变换位置alternative position for side view 高度altitude 铝aluminum 铝合金aluminum alloy 美国标准AMER STD(Am Std ，American Standard) 美国压力管规号码American code for pressure piping 美国书法(第三角法) American method 美国标准螺纹American National screw thread 美国国家标准协会American National Standard Institute(ANSI) 美国国家标准American National Standard(ANS) 美国制投影(第三角投影) American projection 美国标准螺纹配合等级American screwthread class 美国机械工程学会American Society of Mechanical Engineers(ASME) 美国标准学会American Standard Association 字格板Ames instrument 字格板Ames lettering instrument 布朗沙普线规Ametican Wire Gage ，Brown & Sharpe Gage 安倍计（电） ammeter 变量图表amount of change chart 面角量amount of divergence 放大电路amplifier circuit 分析analysis 分析图表analytical chart 分析线图analytical diagram 分析图analytical graph 锚，固定器anchor 固定螺栓anchor bolt 固定板anchor plate 固定螺椿anchor stud 角angle 极向角angle 角度规angle agage 中心角angle at the center 角的测量angle measure 弦角angle of chord 圆周角angle of circumference 倾角angle of dip 俯角angle of elevation 倾斜角angle of inclination 投射角angle of projection 倾角angle of slope 视角angle of vision 螺纹理论深度angular depth of thread 角尺寸angular dimension 角度定位法angular dimensioning 角度定位制angular dimensioning system 成角透视，斜透视angular perspective 角度关系angular relationship 角范围angular space 单斜面angular surface 角公差angular tolerance 角度转换angular transformation 折角管，角管angular tube 倾斜度angularity 不等角图anisometric drawing 退火annealing 注解annotation 环状公差域annular tolerance zone圆环annular torus 环状带annular zone 圆环annulus 阳极anode 美国标准正规符号（螺纹） ANSI regular symbol 美国标准简化符号（螺纹）南极圈antarctic circle 天线antenna 反时针方向anticlockwise 视图上的交点apparent intersection 核准APPD（approved）装饰性笔划appendge 附录appendix 附录表appendix table 承招图，核准图样approved plan 校核者，核准者approving authority 齿形近似书法approximate circlearc method 近似曲线approximate curve 八圆心近似椭圆approximate eightcentered ellipse 四圆心近似椭圆approximate fourcentered ellipse 近似长度approximate length 近似值approximation 护裙apron 阿拉伯数字Arabic numerals 假定标度arbitrarv scale 任意直线arbitrary line 假定原点arbitrary origin 心轴arbor 圆弧arc 弧心arc center 弧长arc length 弧线arc line 电弧熔接arc weding 拱arch 阿基米得曲线Archimedean curve 阿基米得蜗线Archimedean spirall 建筑师architect 建筑模板architect guide template 建筑图字体architect lettering 建筑学architectonics 建筑师用比例尺architect's scale 建筑布局architectural composition 建筑制图员architectural draftsman 建筑图architectural drawing 建筑草图architectural freehand drawing 建筑透视图architectural perspective 建筑计书architectural plan 建筑示意图architectural presentation drawing 建筑工architectural work 建筑学architecture 建筑制图architecture drawing 圆弧规arcograph 北极圆arctic circle 面积，区域area 面积条图area bar chart 面积图area chart 面积图area diagram 面积图area graph 算术分度图arithmetic graph 算术标度arithmetic scale 算术平均（数）arithmetical average 算术分度水平坐标arithmetical horizontal scale 算术内插法arithmetical interpolation 阿肯萨斯磨石Arkansas knife piece 臂arm 角之一边arm of angle 电枢armature 电枢槽armature slot （美国）陆海军用标准零件Army-Navy standard parts 排列ARR（arrange）布局，配置，装置arrangement 视图的排列arrangement of views 配置图arrangement plan 箭头边，箭头所指的一面（熔接） arrow side 加注箭头arrowed[head] 不用箭头注尺寸arrowless dimensioning 附箭头的线arrowline 特软橡皮artgum 美国标准的配合种类ASA fits 美国标准符号ASA svmbol 美国标准螺纹符号ASA thread symbol 美国标准学会ASA（American Standard Association）石棉asbesto 出头部分（字母）ascender 美国机械工程学会锅炉法规ASME boiler code 美国机械工程学会ASME （American Society of Mechanical Engineers）非球面aspheric surface汇集数据assemble all data 装妥零件assembled parts 组合，装配assembling 装配螺栓assembling bolt 装配程序图assembling process chart 组合，装配，总成(组合件) assembly 装配表assembly chart 组合图，装配图assembly drawing 组合剖面assembly drawing number 组合图，装配图assembly print 组合剖面assembly section 组合图，装配图assembly sheet 组合草图，装配草图assembly sketch 组合工作图assembly working drawing 假定原点assumed origin 组合，装配，总成(组合件) ASSY(assembly) 非对称形体asymmetrical feature 不对称asymmetry 渐近线asymptote 渐近曲线asymptotic curve 附件attachment 自动AUTO(automatic) 自动绘图机automated drafting 正图纸(晒图) autopositive paper 辅助AUX(auxiliary) 辅锥auxiliary cone 辅助割面auxiliary cutting plane 辅助割面auxiliary cutting surface 参考尺寸auxiliary dimension 前辅助视图，立面辅助视图auxiliary elevation 辅助图auxiliary figure 辅线auxiliary line 辅助俯视图auxiliary plan 辅助投影面auxiliary plane 辅助投影面auxiliary plane of projection 辅助位置auxiliary position 辅助投影auxiliary projection 辅助刻度auxiliary scale 辅助面auxiliary surface 辅助视图auxiliary view 复辅助视图auxiliary-adjacent auxiliary view 可用范围available space 平均曲率average curavature 平均偏差average deviation平均直径average diameter 避免区域avoid zone 美国线规AWG(Awg ，American Wire Gage ，Brown &Sharpe Gage) 轴角axial angle 轴线的平面axial plane 摆T ，轴向偏转axial runout 轴向剖面axial section 轴线axis 横坐标轴axis of abscissa 锥轴axis of cone 纵坐标轴axis of ordinate 旋转轴线axis of revolution 旋转轴线axis of rotation 对称轴axis of symmetry 视轴axis of vision 不等角模板axolipse template 立体正投影图axonometric drawing 立体正投影图axonometric projection 立体正投影草图axonometric sketching 组合，装配，总成(组合件) AY(assembly) 方位角，方位，地平经度azimuth 方位等距图表azimuthat equidistant chart 布朗沙普线规 B & S gage (Brown & Sharpe gage) 韦氏细螺纹 B S F thread(British Standard Fine thread) 巴氏合金BAB(bab ，Babbit) 背圆锥back cone 背圆锥角back cone angle 后视图back elevation 后视图back view 背后熔接back weld 电木backelite 字母间的空白background area 后倾角backward inclination 滚珠轴承ball bearing 件号圆圈balloon 加注件号圆圈ballooning 轻木balsa wood 条形图表bar chart 条形图表bar graph 滚筒磨光barrel finishing 巴斯键Barth key 底，底边，底面base 底角base angle 基圆base circle底面边视图base edge 底面base face 底边，基线，根线（螺纹），空线（电路），底线（字法） base line 锥底base of cone 基面base plane 基极（电），底座剖面base section 基面base surface 木线（电），基线baseline 基线注尺寸法base-line dimensioning 地下室平面图basement plan 基准角度法（圆锥度公差） basic angle method 基准角度公差制basic angle tolerancing system 基本计算尺寸basic calculate size 基础图表basic chart 理想余隙basic clearance 原色basic color 基本数据basic data 基本设计basic design 基准直径法basic diameter method 理想尺寸basic dimension 图学逻辑basic drawing logic 螺纹基本形式basic form of thread 基孔制basic hole system 基本数据basic information 基线注尺寸法basic line 螺纹基本基本大径basic major diameter 基轴制basic shaft system 基本尺寸，理想尺寸basic size 基准锥度法（锥度公差） basic taper method 螺纹基本形式basic thread form 基本公差basic tolerance 熔接基本符号basic weld symbol 海图bathymetric chart 歪图batter 滚球轴承BB（ball bearing）中心距离BC （between centers）孔位圆BC（bolt circle）灯塔，标志beacon 联珠熔接bead weld 梁规beam compass 方位，方向，轴承bearing 方位及坡度bearing and slope 方位角bearing angle 承板bearing plate承面bearing surface 插承接合bell-and-spigot joint 弯头bend 弯曲裕度bend allowance 折线，弯曲线，转向线bend line 曲板bend plate 弯曲半径bend radius 弯曲离隙bend relief 弯折图bending diagram 曲架bent 曲板bent plate 中心距离between center 斜角，切角，斜齿轮，斜轮bevel 斜角面bevel face 斜齿轮bevel gear 测角仪bevel protractor 测口熔接bevel weld 斜棱beveld edge 伯明翰规BG(Birmingham centers) 勃氏硬度Bhn(BH ，Brinell hardness) 双凸面biconvex 双向公差制bilateral system of limits 双向公差bilateral tolerance 双向公差制bilateral tolerance system 材料单bill of material 定位头binding head 鸟瞰图bird's eye perspective 鸟瞰图bird's eye view 鸟瞰图aerial view 伯明翰线号规Birmingham wire gage 平分bisect 平分线bisector 基线BL(base line) 黑墨水black indian ink 黑白图black-and white graph 黑白图black-and-white chart 黑白图black-and-white diagram黑白复印black-and-white reproduction 涂黑blackened -in 黑色发蓝blackening 黑体字blackface letter 黑线图black-line print 铅笔浓度，黑度blackness 鸭嘴笔叶片blade of pen 鸭嘴笔blade ruling pen 空白区域blank area 空白范围blank space 未贯穿的孔，盲孔blind hole 未贯穿的贯穿螺孔，盲螺孔blind tapped hole 方块图block chart 方块图block diagram 方块型block form 大楷字体block letter 布图block out 配置图block plan 附加表block supplementary 吸墨纸blotter 吸墨纸blotting paper 蓝图blue print 晒蓝图器blue print apparatus 晒图纸blue print paper 晒图blue printing 晒图机blue printing machine 发蓝blueing 蓝图分析blueprint analysis 识图，读图blueprint reading 钝角blunt angle 体对角线body diagonal 体炉管boiler tube 浓，黑，粗bold 圆点bold dot 粗线bold line 黑体数字bold type figure 黑体字boldface letter 螺栓bolt 孔位圆bolt circle 外螺纹bolt thread 圆心片bone center 加偿公差bonus tolerance 边框border line 大鸭嘴笔，边框，鸭嘴笔border pen 搪孔bore 镗孔搪孔boring 镗孔搪床boring mill 镗床凸面（圆柱形凸起） boss 墨水瓶座bottleholder 数字底线bottom edge of digit 字母底线bottom edge of letter底面bottom surface 三攻螺丝攻bottom tap 仰视图bottom view 三攻螺丝攻bottoming tap 边界，边框boundary 主要尺寸boundary dimensions 要项boundary element 边界线boundary line 边界面boundary surface 外缘线，边线bounding line 弹簧圆规，小圆规bow compass 弹簧分规，小分规bow divider 弹簧圆规或分规bow instrument。
工程图纸常用英语词汇
工程图纸常用英语词汇机械工程图中常用的英语词汇AAbbreviation 缩写Accuracy 精度、准确性Acme thread 梯形螺纹(29°)Addendum 齿顶高Addendum angle 齿顶角Addendum circle 齿顶圆Addendum of mating gear 啮合齿轮的齿顶高Adjacent-part lines 相邻零件线Aligned sections 旋转剖视Aligned view旋转视图Allowance 容差、加工余量Alloy 合金Alloy steel 合金钢Alphabet 字母Alteration 变更、更改Alternate-position views 位置改变的视图Alternator 交流发电机Induction alternator 感应(交流)发电机Motor alternator 电动(交流)发电机Single-phase alternator 单向(交流)发电机Synchronous alternator 同步(交流)发电机Three-phase alternator 三相(交流)发电机Amount 总量、总计Analyzable assembly 分析装配图Anchor bolt 地脚螺栓Angles 角Acute angle 锐角Blunt angle 钝角Right angle 直角Sliding angle 摩擦角Spiral angle 螺旋角Taper angle 锥角Angular 有角的Angular bearing 径向止推轴承Angular bevel gears 斜交伞齿轮Angular gear人字齿轮Angular section斜剖面Anneal 退火Approval 批准、许可Arc 弧、圆弧Arc thickness 弧长厚度(齿厚)Arc welding 弧焊Arrangement 布置、装置Arrangement of views 视图的布置Clamping arrangement 夹紧装置Cramping arrangement 紧固装置General arrangement 总体布置Arrow 箭头Arrowheads 箭头Assembly 装配图、组装图Assembly drawing 装配图Assembly drawing number 装配图图号Assembly for installation 安装图Assembly parts 组装配合零件Assembly sections 装配图剖视Assembly sketches 装配草图Auxiliary elevation 辅助立面图Auxiliary line辅助线Auxiliary section 辅助剖视Auxiliary surface 辅助面Auxiliary view 辅助视图Average 平均数Axial 轴的、轴向的Axial pitch 轴向节距Axial plane 轴向平面Axial thickness 轴向厚度Axis 轴线、中心线Axis of revolution 回转轴线Axis of rotation 旋转轴线Axis of symmetry 对称轴线Horizontal axis 水平轴Major axis 长轴Minor axis 短轴Vertical axis 垂直轴X axis X轴Y axis Y轴Axle 轴Axle bearing 轴向(止推)轴承Axle sleeve 轴向(止推)套筒Axonometric drawing 轴测图BBabbitt 巴氏合金Back cone 背锥Back cone radius 背锥半径Back elevation 后视图Backstop 托架、棘爪Ball bearing 球轴承Bar 杆Angle bar 角钢Channel bar 槽钢Flat bar 扁钢Round bar 圆棒、圆钢Base 基础、底座、基线、基面、基准Base circle 基圆Base circular thickness 基圆弧线齿厚Base cylinder 基圆柱Base helix angle 基圆上的螺旋角Base plane 基平面Base point 基点Key base 键座Basic circle 基准圆Basic hole system 基孔制Base shaft system 基轴制Basic size 基本尺寸、公称尺寸、标称直径Basis 基础、基准、基线Battery 电池、蓄电池Bearing 轴承、支撑、方位Bearing accuracy 定位精度Bearing box 轴承箱Bearing brass 铜轴衬Bearing bridge 轴承支架Bearing oil seal 轴承油封圈Bearing support 轴承架Bearing unit 轴承组合件Anti-friction bearing 减摩轴承Ball and socket bearing 球窝轴承Conical bearing 锥形轴承Journal bearing 径向轴承Needle bearing 滚针轴承Plain bearing 滑动轴承Roller bearing 滚柱轴承Self-aligning bearing 自位轴承Thrust bearing 止推轴承Belt 带、皮带Bench 工作台Work bench 工作台Bend 弯头、接头Elbow bend 肘形弯管Normal bend 正弯管(90°) Bender 弯曲机Bending 挠曲Bending strength 抗弯强度Bent axle 曲轴Bevel 倾斜的、斜角的、斜面Bevel gear 圆锥齿轮、伞齿轮Bevel pinion 小圆锥齿轮Bevel washer 斜垫圈Bevel wheel 伞齿轮、斜摩擦齿轮Bilateral tolerance 双向公差Bill of materials 送料单Block in、block out 画草图Blue paper 蓝晒纸Blueprint 蓝图、设计图Board 板、(管理)局、厅Bottom board 底板Moulding board 模板Body 机体、机身Boiler 锅炉Bolt 螺栓、插销Adjusting bolt 调整螺栓Assembling bolt 装配螺栓Binding bolt 连接螺栓Bright blot 光制螺栓Captive bolt 固定螺栓Double-screw bolt 双头螺栓Fitter bolt 装配螺栓Foundation bolt 地脚螺栓Hexagonal head bolt 六角头螺栓Hook bolt 钩形螺栓Screw bolt 全螺纹螺栓Snap bolt 圆头螺栓Tension bolt 拉紧螺栓Bolted joints 螺栓连接Book 书、册Hand book 手册Instruction book 说明书Bore face machine 镗孔端面加工机床Borer 镗床Jig borer 坐标镗床Table borer 台式镗床Boring 镗孔Boring machine 镗床Boring mill 镗床Bottom case 底座Bottom clearance 径向间隙Bottom view 底视图Bracket 托架、支柱Brake 制动器、闸Brass 黄铜、铜轴衬Braze 铜焊Brazing 铜焊Breadth 宽度、厚度Break line 断裂线Brinell figure (number) 布氏硬度Brinell hardness 布氏硬度Broacher 拉床、绞孔机Broaching 扩孔机、拉床、拉削Broken circle 虚线圆Broken out section 断裂剖面Broken view 局部视图Bronze 青铜Burnishing 抛光、磨光Burr 三角矬、毛刺、去毛刺Bush 衬套、轴瓦Bushing 轴衬、衬套、套管Butt joint 对接焊Butterfly nut 蝶形螺母Butterfly valve 蝶形阀Button 按钮Push button 控制按钮CCable 电缆Cage 盒、罩、箱Caliper 卡尺、卡钳Gauge caliper 卡规、量规Internal caliper 内卡钳Sliding (vernier) caliper 游标卡尺Cam 凸轮Cam design 凸轮设计Cam shaft 凸轮轴Actuating cam 主动凸轮Adjustable cam 可调凸轮Control cam 控制凸轮Cap 盖、帽、罩Cap screw 带帽螺钉Capital 大写字母Carburizing 渗碳Card 卡片Cartographer 制图员Cartography 制图学、制图法Case 箱、盒、容器、表面Case hardened 表面淬火、硬化Nitrogen case hardening 渗氮硬化Casing箱、盒、壳Oil pump casing 油泵(壳) Casting 铸造、铸件Defect casting 铸件缺陷Die casting 压铸Sand casting 砂型铸造Spun casting 离心铸造Steel casting 铸钢Cast-iron 铸铁Castle circular nut 六角圆螺母Castle nut 蝶形螺母Catalogue data 表列数据Cave 凹槽、内腔Centre 中心、圆心Centre distance 中心距Centre hole 中心孔Centre line 中心线Centre-section 中心剖面Centre to centre 中心距Centesimal 百分的、百分之一的Centimeter 厘米、公分Central hole 中心孔Central plane 中心平面Central projection 中心投影Chafe 摩擦、磨损Chain 链Drive chain 主动链Transmission chain 传动链Chamfer 倒角、倒棱、斜面Dimensioning of chamfer 倒角的尺寸注法Changes on drawing 图的更改Channel 沟槽Chapter 章Chart 图表、计算图Chart of symbols 符号图表Auxiliary chart 辅助图Dimensions chart 外廓尺寸图Graphical chart 图表Process chart 工艺程序图Progress chart 工艺程序表、工作进度表Charting 制图(表)、填图Check 校验、校核、制动装置Check drawings 校图Check nut 防松螺母Check ring 挡圈Check test校核试验Chief draftsman 主任制图员Chromium 铬Chromizing 镀铬处理Circle 圆、圆周Circle of reference 参考圆Addendum circle 齿顶圆Base circle 基圆Graduated circle 分度圆Imaginary circle 虚圆Outside circle 齿顶圆、外圆Pitch circle 节圆Rack circle 平面齿轮、扇形齿轮Root circle 根圆Top circle齿顶圆Circular cylinder 圆柱Circular pitch 弧线节距Circular thickness 弧线(齿)厚度Circumference 圆周长Clamp 夹紧、夹板Class 种类Class of fit 配合级别Classification 分类Claw 爪、钩、卡爪Clearance fit 间隙配合Clevice /clevis U形钩、U形夹Clevis bolt 套环(插销)螺栓Clevis pin U形夹销Clockwise 顺时针方向Clutch 离合器、联轴器Coat 外层、涂镀层Coat of metal 金属镀层First coat 底漆Coating 镀、覆盖Electrodeposited coating 电镀层Coaxial circle 共轴圆Cock 旋塞Coil 蛇形管、螺管、线圈Coil spring 盘簧Coincident line 重叠线Cold-rolled steel 冷轧钢Collet 夹头Collet chuck 弹簧夹头Color-harden 着色硬化、发蓝、煮黑Common difference 公差Company 公司Joint company 股份公司Limited company 有限公司Compass 圆规Compass of proportion 比例规Component 零件、构件Compression spring 压力弹簧Compressor 压缩机Computer 计算机Concave face 凹面Concentricity 同心度Cone 圆锥Cones development 锥面展开Cone pulley 锥形轮、塔轮Conical spring 锥形弹簧Connection 联接Bolt-on connection 螺栓联接Flange connection 法兰联接Rivet connection 铆钉联接Screw connection 螺钉联接Contact 接触、接合、啮合Contact angle 啮合角Angular contact ball bearing 向心止推球轴承Contour 外形、轮廓线Contracted drawing 缩图Contrast 对比、对照、比较Convention 惯例、常规、习惯Convention for materials 材料的习惯表示法Conventional break 习惯断裂画法Conventional diagram 习惯画法Conventional intersection 习惯交线(画法) Conventional practice 习惯画法Conventional sign 图例、习惯符号Convex 凸面Conveyer 输送机、传送机Cooler 冷冻机Coordinate axis 坐标轴Coordinate paper 方格纸、坐标纸Copper 铜Copy 抄本、样板Correction 校正、修正Cotter pin 开口销Split cotter 开口销Counterbore 埋头孔、锥口孔Counterclockwise 逆时针方向Countersink 埋头孔、沉孔Countersink drill 中心钻、钻Countersunk 钻埋头孔、钻锥口孔Countersunk bolt 埋头螺钉Countersunk head 埋头Countersunk hole 锥坑Coupling 联轴节Cover 盖、罩Cylinder cover 汽缸盖Dust cover 防尘罩Cowl 壳、套、盖Crane 起重机Crank 曲柄、曲轴Crankshaft 曲轴Crest 峰、尖、牙尖Cross head 十字头Cross section 横剖面、横断面Crown gear 冕状齿轮Cube 立方形体、正六面体Current 电流Curvature 曲率Curvature radius 曲率半径Curve 弯曲、曲线、曲线板Curve plotter 绘图仪Curve ruler 曲线板French curve 曲线板Moment curve 力矩曲线、力矩图Cutter 刀、刀具Cutting plane 截平面Cutting plane symbols 剖切(迹线)平面符号Cycloid 摆线Cycloidal gear 摆线齿轮Cylinder 圆柱体Cylinder base 汽缸座Pump cylinder 泵缸Cylindrical cam 圆柱凸轮Cylindrical fit 圆柱配合Cylindrical roller bearing 圆柱滚子轴承DDash 短划线、虚线、破折号Dash and dot line 点划线Broken dash 断裂线Data 数据、资料Engineering data工程数据Master data 主要数据Date 日期、年代Datum 基准(点、线、面)、资料Datum line 基准线Datum point 基准点Datum plane 基准面Decade 十进制、十进位Decelerator 减速器、制动器、缓动装置Decimal 小数的、十进位小数的Decimal fraction 十进制分数Decimal fraction system 十进小数制Decimal scale 十进位比例尺Decimeter 分米、公分Dedendum angle 齿根角Dedendum circle 齿根圆Definition 定义Deformation 变形、扭曲Degree 度、程度Degree of accuracy 精度Degree of freedom 自由度Degree of hardness 硬度Degree scale 刻度Circular degree 圆度Delineation 轮廓、草图Delineator 制图者Department 科、处、系、车间Draft department 设计科Engineering department 技术科Fitting department 装配车间Heat treatment department 热处理车间Mechanical department 机加工车间Processing department 工艺科Depth 深度、高度Depth dial gauge 深度千分表Depth of engagement 啮合深度Depth of thread 螺纹深度Depth of tooth 齿高Contact depth of tooth 啮合高度Working depth of tooth 齿工作高度Derivation 偏差Standard derivation 标准偏差Description 描述、作图、绘制Design 设计、计划Design activity 设计机关(组织) Design assembly 设计装配图Design drawing 设计图Design layout 设计草图、初步设计图Preliminary design 初步设计Standard design 标准设计Technical design 技术设计Designation 符号、标志Designation strip 铭牌Designer 设计员、制图者、设计师Desk 桌、控制台Drawing desk 绘图桌Detail 细目、细节、详图、零件Detail drawing 详图、零件工作图Detail paper底图纸、描图纸Detail specification 详细规格Detent 棘爪、扳手、制动器Developable surface 可展曲面Developed view 展开图Development inner port 内表面展开图Development of surface 表面展开图Deviation 偏差、偏移Angular deviation 角偏差Average deviation 平均偏差Standard deviation 标准偏差Tolerance deviation 允许偏差Device 装置、设备Diagram 示意图、图解Diagram drawing 图解图、结构图Arrangement diagram 布置图Assembly diagram 装配示意图Block diagram 方框图Schematic diagram 原理图、简图Diagrammatic drawing 草图、示意图Dial gauge 千分表Dial inside micrometer 内径千分表Diameter 直径Diameter of aperture 孔径Diameter of pitch circle 节圆直径Diameter pitch (齿轮)径节Diameter run-out径向跳动Major diameter 大直径、螺纹外径Minor diameter 小直径、螺纹内径Nominal diameter 公称直径Pitch diameter of screw thread 螺纹中径Thread diameter 螺纹外径(直径) Diametral pitch 齿轮径节Die 模具、扳牙Diesel 柴油机、内燃机Dimension 尺寸Dimension line 尺寸线Limiting dimension 极限尺寸Nominal dimension 公称尺寸Outer dimension 外形尺寸、轮廓尺寸Direction 方位、方向Clockwise direction 顺时针方向Disc = disk 圆盘、原板Disk cam 圆盘凸轮Dismount 拆卸Dismountable 可拆卸的Displacement 移位、变位Distance 距离、路程Distortion 变形、歪扭Distribution 分配、分布、配置Ditto machine 复印机Diversion 变更、转换Dividing head 分规Dot line 虚线Dotted line 虚线Double dots line 双点划线Double helical pinion 人字小齿轮Double helical spur gear 人字齿轮Double thread 双头螺柱Dowel thread 定位销、圆柱销Dozer 推土机Draft = draught (拔模)斜度、草图、制图Drafting 制图Drafting board制图板Drafting machine 制图机Drafting tape 制图带、胶带Draftsman 绘图员Drawer 制图员Drawing 绘图、图样Drawing board 绘图纸Drawing control 图样管理Drawing free-head 草图Drawing instrument 绘图仪器Drawing number 图号Drawing pencil 绘图铅笔Drawing pin 图钉Drawing size 图纸尺寸Drawing table 制图桌Drawing with compass 用圆规画图Blue print drawing 蓝图Free hand drawing 徒手图Full size drawing 原大图Skeleton drawing 草图、结构图Working drawing 施工图、制造图、工作图Drill 钻孔、穿孔、穿孔器Drive 传动、驱动Drive fit 打入配合Air drive 气动Belt drive 带传动Chain drive 链传动Friction drive 摩擦传动Gear drive 齿轮传动Hydromatic drive 液压传动Speed-reducer drive 减速器传动Variable-speed drive 变速传动Worm-wheel drive 蜗轮传动Driven gear 从动齿轮Driven shaft 从动轴Driving gear 主动齿轮Driving shaft 主动轴Drum cam 凸轮轴Ductile iron 球墨铸铁Duplicating tracing 复制描图Durometer (钢轨)硬度计Dusting cloth 抹灰布、撒粉布EEccentricity 偏心距Edge iron 角铁Edge round 外圆角Edge view 边视图Effective diameter 有效直径Effective face width 有效齿宽Efficiency 效率、性能Mechanical efficiency 机械效率Elastic deformation 弹性变形Elasticity 弹性Elbow 肘形弯管、弯头Electric current 电流Electric element 电池Elephant 绘图纸(28X23英寸) Elevation 正面图、立视图End 末端、头Ball end 秋端Butt end 平端、端面Tail end 尾端Top end 顶端Engagement 啮合Engineer 工程技术人员、工程师Engineer-in-chief 总工程师Equipment 设备Eraser 橡皮Erasing shield 擦图片Erection diagram 安装图、装配图Error 误差Accumulated error 累积误差Allowance error 容许误差Average error 平均误差Permissible error 容许误差Relative error 相对误差Exterior 外表面External 外部External diameter 外径External dimension 外形尺寸External fillet 外圆角External thread 外螺纹Extra fine(screw)特细牙螺纹Eyelet = eyelet-hole 小孔FFabrication 建造、制造Face 面、正面、表面、端面Face cam 平面凸轮Face gear 平面齿轮Face hardening 表面硬化Inner face 里面Outer face 外面Face off 倒角Factor of safety 安全系数Factory 工厂、制造厂Factory made 工厂制造的Fastener 接合件、紧固件Fastening 连接件、紧固件Fatigue 疲劳Faucet 旋塞、龙头、开关Feather 滑键、冒口Feather key 滑键Feature 特征、特性、性能Basic mechanical design feature 主要机械设计性能Mechanical feature 机械性能(特性)Feed-pump 供油泵、供水泵Feet 英尺Ferrous metal 黑色金属Field 工场、现场Figure 形状、图样、插图、数字File 锉刀、锉平Filler 填料、垫片Fillet (内)圆角、填角、嵌条Fillet radius 内圆角半径Filter 过滤器Fine thread series 细螺纹级(系列)Finish 完工、加工、磨光Finish all over 全部加工Finish marks 加工符号Machine finish 机器光制Fit 配合Clearance fit 间隙配合Free fit 自由配合Interference fit 静配合Light press fit 轻压配合Light running fit 轻传动配合Loose fit 松配合Normal-running fit 传动配合Running fit 动配合Shrink fit 冷缩配合Slide fit 滑动配合Transition fit 过渡配合Fix 安装、装配、调整、修理、固定Flange 法兰盘、凸缘Flank 边、侧面、齿侧、后面Flat 扁头、平面Flat key 平键Flat spring 板弹簧Flat surface 平面Flexible disk coupling 挠性盘形联轴节Flexible gear-type coupling 挠性齿轮联轴节Flywheel 飞轮Foot 英尺Foot screw 地脚螺钉Force 力Fore word 序、前言Forge 锻Forge steel 锻钢Former 样板、模型、量规Wooden former 木模Formula 公式Foundation 基础、基座Foundation bolt 地脚螺栓Foundry 铸件、铸工车间Fraction 分数、小数Front view 前视图、主视图Full diameter 大直径、主直径Full line 实线Full size 原大Full scale 原大Full section 全剖视Full section view 全剖视图Furbish 研磨、擦光Fuse 保险丝、熔断器GGage = gauge 量规Gallon 加仑Galvanize 镀锌、电镀Gasket 垫圈、密封垫Gasket material 填料Gasoline engine 汽油(内燃)机Gate 门、阀门Gear 齿轮Gear addendum angle 齿顶角Gear box(case) 齿轮箱Gear centre 齿轮中心Gear dedendum angle 齿根角(圆锥齿轮) Epicyclic gear 行星齿轮Herringbone gear 人字齿轮Ratchet gear 棘轮General drawing 总图Geometry 几何学Gland 压盖、填料盖、密封装置Glass 玻璃Glasscloth 砂布、玻璃布Glossary 词汇(表)Grade 等级、斜度Steel grade 钢号Graduated hardening 分级淬火Graduated scale 比例尺、分度尺Gram 克Graph 图(表、解、形)、曲线图Graph paper 方格纸Graphic图示、制图学Grease 滑脂Grind 磨削、抛光Grinding machine 磨床Grinding wheel 砂轮Groove cam 槽凸轮Groove pulley 槽轮、三角带轮Guide 手册、指南Guide bar 导杆Guide pin 定位销、导向销Guide screw 丝杠Guidebook 参考手册、指南、入门HHalf 二分之一、一部分Half bearing 轴瓦Half section 半剖视Half section view 半剖视图Hammer 锤子Handbook 手册、指南Hand-made 手工制造的Hand-operated 手控的Handle 手柄Hand wheel 手轮Hard casting 白口铁Hard drawn 冷拔Hard rolled 冷轧的Hard surfacing 表面硬化Harden 淬火、硬化Hardened and tempered 调质的Hardened-steel 淬火钢Hardening 硬化Hardness 硬度Hardometer 硬度计Hatch 剖面线H-beam 工字梁、H形梁Heat–treatment 热处理Heavy force fit 重压配合Height 高度Helical bevel gear 螺旋伞齿轮Helical gear 螺旋齿轮、圆柱斜齿轮Helical rack 斜齿齿条Helical spring 螺旋弹簧Hex nut 六角螺母Hexagon jam nut 六角锁紧螺母Hexagon socket head 内六角头Hidden line 虚线Hidden outline 看不见的轮廓线High-carbon steel 高碳钢High-duty 重型的、大型的、优产的High-speed steel 高速钢Hosting jack 千斤顶Hole 孔Horizontal datum plane 水平基准面Horizontal line 水平线Horizontal projection 水平投影Horizontal projection plane 水平投影面Horse-power 马力、功率Hose 软管Hose coupling 软管接头Hot-rolled steel 热轧钢Hot-work 热加工Hour 小时Housing 机座Housing of pump 泵体Bearing housing 轴承箱Gear housing 齿轮箱Hub 轮、中心、衬套Hydraulic(al) 液压的、液压传动装置Hydro-motor 液压马达Hypoid gear 准双曲面齿轮II-beam 工字钢Illustration 插图、实例Inaccuracy 不精确、不准确Incenter 内(切圆)心Inch 英寸Incline 斜度、斜面Index plate 分度盘Indicator 指示计、百分表Industrial 工业公司Industrial drawing 工业制图Industry 工业Inertia 惯性Ink 墨水、油墨Ink holder 钢笔杆China ink 墨汁Inscription 标题Inside diameter 内径Inspection 检修、检查Inspection machine 检修机器Inspector 检查员Installation 装置、设备、安装Installation diagram 安装图Institute 研究所、协会、学院、学会Instruction 说明、指示Instrument 仪器、仪表、工具Instrument drawing 仪器图Intensity 强度Interchangeability 互换性1 Interconnection 互相连接Interference fit 静配合Interior view 内部(的)视图Internal combustion engine 内燃机Internal fillet 内圆角Internal gear 内齿轮Introduction 引言、介绍、序言Invisible line 虚线Involute 渐(伸)开线Involute gear 渐开线齿轮Involute rack 渐开线齿条Involute spline 渐开线花键Involute teeth 渐开线齿形Iron 铁Ingot iron 低碳铁、工业纯铁Knobbled iron 熟铁Magnetic iron 磁铁Malleable iron 可锻铁、韧性铁Plate iron 铁板、钢板Quadrant iron 方钢Rod iron 圆铁、棒钢Round iron 圆铁、圆钢Rustless iron 不锈铁Section iron 型钢Structural iron 结构钢White iron 白口铁Wrought iron 熟铁、锻铁Isometric diagram 等轴测图Isometric drawing 等轴测图JJack-screw 螺旋千斤顶Job sheet 零件图纸Joint 结合、连接、焊接Bolt joint 螺栓连接Riveted joint 铆钉连接Welded joint 焊接Journal 轴径Journal bearing 径向轴承KKeeper 保持器(片)、架、定位件卡箍Keep-ring保持环Key diagram 键、按钮Key way(seat、seating、slot)键槽Key wrench 套筒扳手Gib-head taper key 钩头斜键Square key 方形键Tightening key 斜扁键Woodruff key 半圆键Key-bolt 键螺栓Kilogram(me)公斤、千克Kilogram-meter 公斤米、千克米Kilometer 公里、千米Kilovolt 千瓦Kilowatt 千伏Kit 一套工具Knee 弯头、升降台Knee bend 弯管Knob 捏手、按钮Knuckle thread 圆形螺纹Knurl 滚花、压花Knurled nut滚花螺母LL-bar = L-beam 角钢Laboratory 实验室、研究室Lamp 灯Alarm lamp 信号灯Daylight lamp 日光灯Incandescent lamp 白炽灯Indicating lamp 信号灯、指示灯Lantern 游环、套环Large compasses 大圆规Lathe 车床Lathe-hand 车工Lattin = Latten 金属薄板、黄铜片Law 规律、定律Lay 布置、安排、放置Layer 层Carburized layer 渗碳层Layout 计划、方案、草图Layout design 草图设计、方案设计Layout drawing 方案草图Lead angle 螺旋升角Lead line 指引线Leaf spring 板弹簧Left hand 左方向Left hand thread 左旋螺纹Legend 图例、图表符号、代号、说明书Length 长度、距离Length gauge 长度规Length of normal 法线长Length of side 边长Effective length 有效长度Lens 透镜、镜片Letter 字、字母Capital letter 大写字母Level surface 水平面Lift 升降机、电梯Light alloy 轻合金Light beam 光束Light series 轻系列Light-duty 轻型Lighting installation 照明装置Lightning switch 照明开关Liquid 液体Limit 极限尺寸Limit switch 限位开关Line 线Line of action (齿轮)压力线Line of contact (齿轮)接触线Line of shaft轴线Line of thickness 线型的粗度Line weight线的粗细程度Actual line实线Addendum line齿顶线Broken line断裂线Center line = central line中心线Continuous line实线Dash(ed) line虚线Diagonal line 对角线Imaginary line 假想线Generation line 母线Pitch line 节线Real line 实线Reference line 基准线、参考线Right line 直线Skeleton line 轮廓线Solid line 实线Straight line 直线Vertical line 垂直线Liner 衬套Bearing line 轴瓦Link 连接环、链节Line assembly 连杆装配图Chain link 链节L-iron 角铁List 注册、记录、名册、目录Load 符合Actual load 有效载荷、实际载荷Allowable load 容许载荷Full load 满载(荷)、全负载(荷) Local view 局部视图Localization 定位\固定Locating pin 定位销Location by angle 角度定位Location by dimension 定位尺寸Location pin 定位销Location tolerance 定位公差Lock 锁\阀Lock nut 防松螺母Lock screw 锁紧螺钉Lock washer 弹簧垫圈Valve lock 阀簧抵座销、气门制销Loco 机车、火车头Logarithm 对数Long break 长断裂线Long radius 长半径Longitudinal key 长方键Lower limit 下限Lubricant pump 润滑油泵Lubricating ring 润滑油环Lubrication 润滑Bath lubrication 油浴润滑Bearing lubrication 轴承润滑Ring lubrication 油环润滑Shot lubrication 油枪润滑Splash lubrication 飞溅润滑Lubricator 润滑器Lubro-pump 油泵Luminaire 光源MMachine 机器、切割Machine building (manufacturing) 机械制造Machine drawing 机械制图Machine finish 机械加工Machine maker 机械工厂(制造者) Machine part 机械零件Machine shop 机工车间Drawing machine 绘图机Tracing machine 描图机Machining allowance 加工余量Machinist 机械工人\机械师Magazine 杂志Magnetic-particle clutch 电磁离合器Magnitude 数量、长度、大小Major type of slotted nut 大型锁母Make 制造、构造Malleable cast iron 可锻铸铁Malleable casting 韧铸件Malleable steel 软钢、展性钢Manual 手册、说明书Manual control 手控Manufacture 加工、制造业Manucturing engineering 制造工艺(技术)Manucturing machine 生产机械Manucturing tolerance 制造公差Master check 校正、校对Master drawing 样图Master gauge 标准规、校准规Master gear 主齿轮、标准齿轮Master making 手工Master screw 标准螺纹Match 匹配、配合Mate 啮合部分Material 物质、材料Fibre material 纤维材料Insulating material 绝缘材料Plastic material 塑料Maximal valve 极大值Maximum 极点、极限、最大量Maximum admitted diameter of work 工件最大许可直径Mean axis 中间轴Measure 量度、大小、尺寸Measure of precision 精确度Measurement 测定、尺寸、大小Measuring device 量具Measuring tools 量具Mechanical bolt 螺钉Mechanical drawing 机械制图Mechanical enginee ring’s scale 机械工程比例尺Mechanical properties 机械性能Mechanical reduction gear 齿轮减速装置Mechanism 机械结构、机械装置Medium series 中系列Mating member 配合件Meshing gear 啮合齿轮Metal 金属Admiralty metal 含锡黄铜Bell metal 青铜合金、种铜、铜锡合金Brazing metal 铜锌合金Hard metal 硬质合金Heavy metal 重金属Light metal 轻金属Monel metal 铜镍合金Power(ed) metal 粉末合金Wear-resistant metal 耐磨金属White metal 白合金(铅锑锡合金)Yellow metal 黄金、黄色金属Metallized 镀金属的、喷涂金属的Meter 米、公尺Meter per second 米/秒Meter screw 公制螺纹Meter series 公制系列Meter taper 公制锥度Meter-kilogram米-公斤Meter-kilogram-second米公斤秒Method 方法、规律Method of approximation 近似法Method of orthogonal projection 正投影法Conventional method 惯例、习用方法Processing method 加工方法Metric 公制的Metric measure 公制计量Metric scale 公制尺、米尺Metric system 米制、公制Metric thread 公制螺纹Metric unit 公制单位Microfilm 显微胶片Microinch 微英寸Micrometer 微米、千分卡尺Middle gear 中间齿轮Midpoint 中点Mild steel 软钢、冷轧钢Mile 英里Mill 磨、铣Millimeter = millimeter 厘米、公厘Milling 铣削、研磨Million 百万、兆Miniature bearing 微型轴承Minimum 最小量Minus 负的Miter(mitre)gear 45°圆锥齿轮、等径圆锥齿轮Miter wheel 伞齿轮、圆锥齿轮Mixer 搅拌机ML = material list 材料单Model 模型、样板、仿造Model machine 样机Model number 型号、序数Module 模数、系数Modulo 模数、模量Molten iron 铁水Molten steel 钢水Moment 力矩、弯矩Moment of couple (力)偶矩Moment of force 力矩Bending moment 弯曲矩Rotative moment 转矩、转动力矩Motion 移动、运动Motor 电动机、马达Mould 模型、样板、曲线板Mo(u)lding 造型法Moulding box 砂箱Mounting 安装、装配、座、支架Mounting bolt 装配螺栓Mounting hole 安装孔Mounting plate 安装板Movement 运动、位移Axial movement 轴向运动Spiral movement 螺旋运动Muff 套筒、轴套Multi-roll bearing 滚针轴承Multi disk clutch 多片式摩擦离合器Multiple threads 多头螺纹NNail 钉Name of part 零件名称Name plate 铭牌Needle 针、指针Needle bearing 滚针轴承Neck 颈Nib 笔尖Nibbed bolt 尖头螺栓Nichrome 镍铬合金Nickel 镍Nickel-plate 镀镍Nitride 氮化、渗氮Nomenclature 名称、术语Nominal 标称的、额定的、公称的Nominal inside diameter 名义内径Nominal roll diameter 公称滚子直径Nominal size 名义尺寸Nomogram 诺模图、图算、图释Non-ferrous metal 有色金属Non-metal 非金属Non-rusting 不锈的Normal 正规的、标准的、法线的Normal chordal addendum 法向弦齿顶高Normal circular thickness 法向节距Normal cross section 法向弧线齿厚Normal direction 正剖面、横断面Normal module 法线方向Normality 正常状态、标准Nozzle 喷嘴、喷口Number 数、号(码)、缩写No. Number of stars (螺纹)头数Number of turns (螺纹)圈数Dash number 零件编号Decimal number 十进位数Hardness number 硬度数Pitch number 节数Numbering 编号Numeral 数字Nut 螺母Nut bolt 螺钉、带帽螺栓Nut wrench 螺帽扳手Milled nut 滚花螺母Nylon 尼龙OObject 物体Obligue view 斜视图Office 办公室、办事处Drawing office 绘图室Engineering office 技术科Offset section 阶梯视图Oil basin 油箱(池)Oil level indicator 油面指示器Oil pipe 油管Oiler 油杯、加油壶Oiling system 加油系统Oilstone 油石O-ring gasket O型密封圈Orthography 正投影图、正视图Orthographic projection 正投影Ounce 英两、盎司Outline 外形、轮廓、略图、剖面Outline assembly drawing 外形装配图Outline drawing 草图、外形图Outline section 轮廓剖视Outside diameter 外径Overall 全面的、全部的Overall dimension 全尺寸Overall length 全长PPacking 包装、填料、密封Packing felt 毡垫、毡封Packing gland 密封压盖Packing piece 垫片Packing ring 填料环Asbestos packing 石棉填料Cup packing 皮碗密封Pad 衬垫、衬套、垫圈Padding 衬垫、填料Paper 纸Blue printing paper 蓝晒纸Drafting paper 绘图纸Emery paper 砂纸Tracing paper 描图纸Part 零件、部件Part end view 部分端视图Part section 部分剖视图Basal part 底板Pattern 式样、模型Pawl 棘爪Pen 笔Drawing pen 绘图笔Ruling pen 直线笔、鸭嘴笔Pencil-work 铅笔图Percent = per cent 百分率Perimeter 周长、周边Phantom line 假想线Phantom section 假想剖面Philips screw 带十字凹槽头螺钉Piece 部件Pin 销Pinion 小齿轮Pinion shaft小齿轮轴Pipe 管Pipe threads 管螺纹Flexible pipe 软管Seamless pipe 无缝钢管Water pipe 水管Pipeline drawing 管系图Piston 活塞、柱塞Piston ring 活塞环Piston rod 活塞杆Pitch螺距、节距Pitch angle 节锥半角Pitch cone 节圆锥Pitch of teeth (轮)齿矩Pitch point 节点Nominal pitch 公称螺距Normal pitch 法向节矩Screw pitch 螺距Plane of projection 投影面Plane of reference 参考面、基准面Plane section 剖面Planet 行星齿轮Plant 工厂、车间Power plant 动力站Pumping plant 泵站Transforming plant 变电站Plastics 塑料Plate 片、板、钢板Cover plate 盖板Face plate 面板Steel plate 钢板Plated 电镀的Copper plated 镀铜Nickel plated 镀镍Platform 平台Operation platform 工作台Plating 电镀、镀Chrome plating 镀铬Nickel plating 镀镍Tin plating 镀锡Plot 设计、绘图Plough (plow) bolt 防松螺栓Plug 塞、栓Oil plug 油塞Spark plug 火花塞Plunger 活塞、柱塞、滑阀Plunger chip 冲头Plunger pump 柱塞泵Plus minus screw 调整螺丝Pocketbook 手册、袖珍本Point 点Reference point 基准点Yield point 屈服点Polish 光泽、研磨、磨光、抛光Polishing 磨光、擦亮Politure 抛光、光泽Position 位置、方位Positional tolerance 位置偏差Pound 磅Power 动力、功率Input power 输入功率Output power 输出功率Rated power 额定功率Precision measure 精确度量Preface 序、前言、导语Press 精压、冲压、挤压Hydraulic press 水压机Pressure 压力、压缩Pressure angle 压力角Principal axis 主轴Principle layout 总布置图Principle of operation 工作原理Print 印刷Blue print 蓝图Printer 复印机、晒图机Production 生产、制造Production dimension 制造尺寸Profile 剖面、侧面、侧面图Involute profile 渐开线齿形Project 计划、设计、投影Projection 投影3rd (third) angle projection 第三角投影Property 特性、特征、性能Proportion 比例、比率Pulley 滑轮、皮带轮Pump 泵Punch 冲床、穿孔Punching 冲压、穿孔Push fit 推入配合Pusher-dozer 推土机QQuadrangle 四边形、方形Quadrant designation 象限名称Quantity 量Quarter 四分之一Quenching 淬火Quill 活动套筒、衬套RRack 机架、台、齿条Rack-and-pinion 齿条齿轮传动Radial ball bearing 径向球轴承Radian 弧度Radius 半径Radius of corner 原角半径Pitch radius 节圆半径Rotation radius 旋转半径Range 范围、排列Ratchet 棘轮Rating 功率、参数、规格Ratio 比例、比率Ratio of gear 变速比、齿数比、传动比Reader 读者、校对人、审稿人Reading views 读图Ream 绞孔、扩孔Rear axle 后轴Rear view 后视图Recess 凹槽Record 记录Rectangle 矩形、长方形Reducer 减速器Reference 参考、基准Relative position 相对位置Relay 继电器Removed section 移出剖面Rendered drawing 提供图样Repair 修理、检修Resistance 阻力、电阻Resistor 电阻器Retainer 护圈、挡圈Retaining ring 弹性挡圈Reversal 反向Revision 校订、修改Revolution 旋转、循环、周期Revolution per minute 每分钟转数Revolved section 旋转剖面Rib 肋Rigging 装配、安装、调整Right end view 右侧视图Right section 正截面Right-hand 右旋Rigidity 刚度、刚性Rim 边、缘、环Collar rim 轮缘Ring 环、圈Rubber ring 橡皮环Sealing ring 密封环Spring ring 弹簧圈Rivet 铆钉Robot 机器人、自动机Rod 杆、棒料Pull rod 拉杆Screw rod 螺杆Roll roller-type overrunning clutch 滚子型超越离合器Rolling circle 滚圆、(齿轮的)基圆Room 房间Building room 装配间Tool room 工具室Work room 车间Root 齿根、牙底Root diameter 齿根直径Root of thread 螺纹牙底Cubic root 立方根Rope 绳、索Rough 粗糙面、毛坯、粗(未)加工(状态) Roughness 粗糙度Round nut 圆螺母Round section 圆形剖面Roundness 圆度、圆形Rubber 橡皮、磨光机Loaded rubber 填料橡胶Synthetic rubber 合成橡胶Rule 定则、法则、尺Run out偏心率、径向跳动Run-out line过渡线Run-out of thread 退刀槽、螺尾Rust 锈SSafe valve 安全阀Sample 样板、模型Sand-box 砂箱Sand cloth 砂布Sand paper 砂纸Saw 锯Scale 比例尺Schematic drawing (drawing) 示意图Screw 螺丝、螺旋Screw drive 螺旋传动Screw driver 改锥、螺丝刀Screw eye 螺孔Screw off 拧开Screw on 拧上Button head cap screw 圆头螺钉Endless screw 蜗杆Female screw 内螺纹、阴螺纹Flat head screw 平头螺钉Male screw 阳螺纹、外螺纹Screw-die 螺丝模Screw-down stop valve 螺旋阀Screw-thread 螺丝Scribing block 划针盘Seal 密封、焊接Disc seal 盘形密封Mechanical seal 机械密封Oil seal 油密封Sealing cement 密封油膏(粘结剂)。
工程图纸常用英语词汇
Angular bearing 径向止推轴承
Angular bevel gears 斜交伞齿轮
Angular gear人字齿轮
Angular section斜剖面
Anneal 退火
Approval 批准、许可
Arc 弧、圆弧
Arc thickness 弧长厚度(齿厚)
Capital 大写字母
Carburizing 渗碳
Card 卡片
Cartographer 制图员
Cartography 制图学、制图法
Case 箱、盒、容器、表面
Case hardened 表面淬火、硬化
Nitrogen case hardening 渗氮硬化
Casing箱、盒、壳
Axial pitch 轴向节距
Axial plane 轴向平面
Axial thickness 轴向厚度
Axis 轴线、中心线
Axis of revolution 回转轴线
Axis of rotation 旋转轴线
Axis of symmetry 对称轴线
Horizontal axis 水平轴
Babbitt 巴氏合金
Back cone 背锥
Back cone radius 背锥半径
Back elevation 后视图
Backstop 托架、棘爪
Ball bearing 球轴承
Bar 杆
Angle bar 角钢
Channel bar 槽钢
Flat bar 扁钢
Round bar 圆棒、圆钢
Dimensions chart 外廓尺寸图
工程常用英语
工程图常用英语offset section复合剖视compound section剖面图section, sectional view重合剖面coincide section, revolved section移出剖面removed section剖面线section line剖面符号symbols for section-lining习惯画法conventional drawing局部放大图drawing of partial enlargement零件图detail drawing, working drawing第三角投影third angle projection粗实线continuous thick line, full line, visible line 细实线continuous thin line虚线dot line, dashed line, hidden line点划线dash and dot line双点划线double dots line波浪线break line断裂线剖切平面迹线cutting plane line尺寸线dimension line尺寸界线extension tine尺寸dimension size箭头arrowhead基准datum基准线datum line基准面datum plane中心孔central hole中心距center distance轴shaft, axle孔hole斜孔inclination装配图assembly drawing性能尺寸characteristic dimension大小尺寸size dimension总体尺寸outer dimension配合尺寸fit dimension内圆角fillet外圆角round尖角sharp corner倒角chamfer轮缘flange of wheel缘、边、环rim轴肩shoulder凸台boss凹坑concave pit轴颈shaft neck轮毂hub轮辐spoke, spoke of wheel直纹滚花straight knurling网纹滚花hatching knurling键槽key-way退刀槽escape拔模斜度pattern draft填料盒gland box油槽oil groove油封oil seal标准件standard parts螺纹thread外螺纹external thread内螺纹internal thread大径major diameter小径minor diameter螺距pitch of thread牙型form of thread旋向direction of turning右旋螺纹right-hand thread左旋螺纹left-hand thread头数number of thread导程lead粗牙coarse thread细牙fin thread螺栓bolt螺钉screw螺柱stud螺母nut垫片washer公差tolerance公差带tolerance zone零线zero line标准公差standard tolerance公差等级tolerance grade基本偏差fundamental deviation 配合fit间隙配合clearance fit过盈interference过盈配合interference fit过渡配合transition fit基孔制hole-basic system of fits基轴制shaft-basic system of fits间隙clearance齿轮gear圆柱齿轮cylindrical gear正齿轮spur gear斜齿轮spiral gear轮齿gear tooth节圆pitch circle齿顶圆addendum circle, outside circle齿根圆root circle, addendum circle模数modulus齿数number of teeth齿高tooth height齿顶高height of addendum齿根高height of addendum齿厚circular thickness齿间tooth space齿宽tooth width压力角angle of pressure弹簧spring销pin圆柱销round pin圆锥销taper pin开口销cotter pin, split键key平键flat key半圆键half round key, woodruff key轴承bearing滚动轴承rolling bearing向心铀承radial bearing密封装置sealing equipment锁紧装置locking equipment粗糙度roughness缩短foreshortened轴向缩短率coefficient of axialdeformation ratio offore shortening for any axis 切割法cutting method, by cutting方箱法boxing method坐标法coordinate method方框法enclosing-square method四心近似法four-center approximate method基本尺寸basic size实际尺寸actual size极限尺寸limits size最大极限尺寸maximum limit of size最小极限尺寸minimum limit of size偏差deviation上偏差upper deviation下偏差lower deviation形状公差tolerance in form, form tolerance垂直度perpendicularity倾斜度angularity同轴度concentricity对称度symmetry位置度true position直线度straightness平面度flatness圆度roundness圆柱度cylindricity线轮廓度profile of any line面轮廓度profile of any plane位置公差tolerance in position, position tolerances 平行度parallelism跳动run-out圆跳动cycle run-out全跳动total run-out轴测投影axonometric projection轴测投影面plane of axonometric projection轴测图axonometric drawing正等轴测投影isometric projection正二测bimetric projection斜二测oblique bimetric projection轴测轴axonometric axis轴间角axis angle, angle between ales缩短foreshortened轴向缩短率coefficient of axialdeformation ratio of fore shortening for any axis 切割法cutting method, by cutting方箱法boxing method坐标法coordinate method方框法enclosing-square method四心近似法four-center approximate method内圆角fille表面，面积，外表，外形.Superficies公制的metric比例尺scale版本Revision铝合金Acieral膨胀力bursting forces螺旋角Pitch angle扭力矩torque脱模、拆模扭力Stripping torque质量重量mass克grams齿廓齿形flank profile表面处理Finished二次加工Secondary machining电镀Plating除氢baking包装Packing防松处理anti-slipping patch修理处理，小片patch成双,成对,成倍,[语]重叠,重复,(牙齿)双生,并生Gemination于此, 在这里herein所有的, 私人拥有的所有者, 所有权proprietary持有人, 所有人possessor展现, 显示, 揭示, 泄露，暴露reveal版本, 发布release规格：Spec赞成, 承认, 正式批准approval供货商管理工程师SQE附录, 附加物addenda美国机械工程师协会The American Society of Mechanical Engineers赞成, 满意,批准, 通过approve<美>发行, 发布issuance信任, 授权, 归于accredit分散, 地方分权, 排除集中decentralization告诫，劝谏：温和的，和善的，但诚挚的谴责admonitionMild, kind, yet earnest reproof.劝告，警告：劝人谨慎的建议或警告Cautionary advice or warning.剖面, 侧面, 外形, 轮廓profile待决定，待定TBD（To be determined）美国机动车工程师学会Society of Automotive Engineers螺栓Bolts1.六角头螺栓Hexagon head bolts2.六角头螺栓--全螺纹Hexagon head bolts? Full thread3.细牙Fine pitch thread4.方头螺栓Square head bolts螺柱Studs双头螺柱Double end studs等长双头螺柱Double end studs (clamping type)手工焊用焊接螺柱Weld studs for manual welding螺母Nuts六角螺母Hexagon nuts蝶形螺母Wing nuts环形螺母Lifting nuts1型六角螺母细牙Hexagon nuts, style 1--Fine pitch thread六角开槽螺母Hexagon slotted nuts全金属六角锁紧螺母Prevailing torque type all-metal hexagon nuts 圆螺母Round nuts螺钉Screws内六角圆柱头螺钉Hexagon Socket Head Cap Screw内六角沉头螺钉Hexagon Socket Countersunk Head Cap Screw内六角半圆头螺钉Hexagon Socket Button Head Cap Screw内六角紧定螺钉Hexagon Socket Set Screw螺钉Screws内六角花形圆柱头螺钉Hexagon lobular socket head cap screws开槽盘头螺钉Slotted pan head screws开槽锥端紧定螺钉Slotted set screws with cone point十字槽盘头螺钉Cross recessed pan head screws六角头自攻螺钉Hexagon head tapping screws垫圈Washers弹簧垫圈Single coil spring lock washers平垫圈Plain washers销Pins圆锥销Taper pins圆柱销Parallel pins内螺纹圆锥销Taper pins with internal thread接合销Dowel pinHead style。
工程图纸英语
工程图纸英语Material 材料Notes/Remark 注释ANSI 美国国家标准局ASTM美国材料试验协会finish 最后一道表面处理Anodize 阳极氧化Grain 纹理standard标准Range 范围UNLESS OTHERWISE SPECIFIED除非另有标明外，请参照备注Tolerances 公差punching direction 冲压方向Right Side 正面TH（thickness)料厚Hardness 硬度Burring side 批锋面Tooling/Die 冲压模JIS 日本工业标准Covex 米位.surface cleaning 金属表面清洁处理Degreasing 金属除油处理Solvent degreasing 乳化脱脂alkali degreasing 碱性脱脂electrolytic cleaning 电解清洁vapor degreasing 蒸汽脱脂ultrasonic cleaning 超声波清洁vibrating cleaning 震动清洁barrel cleaning 滚桶清洁brushing 刷光polishing 磨光buffing 抛光electro-polishing 电解抛光。
3. process term(工序术语）The bending processes 屈弯工序bending 屈弯curling 卷曲Twisting 扭曲flanging 翻外边The cutting processes 剪切工序piecing 冲孔blanking 冲裁notching 剪形lancing 切口trimming 切边fine blanking 精冲the forming processs 成型工序embossing 起伏起形（冲波位）rim curling 边口卷曲hole flanging 翻猪嘴孔成型bulging expanding 胀颈成形reducing necking 缩颈成形foring compression 锻压成形the multiple-slides forming operations 多滑块式成形the drawing process 压延工序cupping (blank&draw)冲裁及压延redrawings 再压延partial redrawing 局部压延reverse drawing 反压延ironing 挤延Scale 比例Decimal 小数的usage 用量length 长度section A-A 剖面图A-ADETAIL B 放大图BView 视图tension 张力，拉力torque 扭距力strength 力量dimension 尺寸first angle projection 第一视角法third angle projection 第三视角法REV.版本Edge 边corner 角top 顶部bottom角部MIN.最小screw 螺纹appearance 外观outline 轮廓，外形approx,大约datum 基准plane 平面measurement of parallelism 平行度测量verticality 垂直度lineal measure 直线度测量flatness 平面度roughness 粗糙度ECO/ECN 工程变更通知finish/treatment 表面处理anodizing of aluminum 铝的阳极处理。
机械图纸常见英文翻译 工程
机械图纸常见英文翻译工程1．标题栏英文工程图纸的右下边是标题栏（相当于我们的标题栏和局部技术要求），其中有图纸名称（TILE）、设计者（DRAWN）、审查者（CHECKED）、材料（MATERIAL）、日期（DATE）、比例（SCALE）、热处理（HEAT TREATMENT）和其它一些要求，如：1)TOLERANCES UNLESS OTHERWISE SPECIFIAL－未注公差，2)DIMS IN mm UNLESS STATED－如不做特殊要求以毫米为单位。
3)ANGULAR TOLERANCE±1°－角度公差±1°。
4)DIMS TOLERANCE±0.1－未注尺寸公差±0.1。
5)SURFACE FINISH 3.2 UNLESS STATED－未注粗糙度3.2。
2．技术要求1）ALL WELDS CONTINUOUS UNLESS OTHERWISE STATED－未注焊缝均为连续焊2）ALL WELDS 3mm FILLET UNLESS OTHERWISE STATE－未注焊角高3mm.3）ALL UNSPECIFIED RADI - R3－未注圆角R34）REMOVE ALL BURRS AND SHARP EDGES－棱角倒钝5）11 TOTAL COILS APROX.9 WORKING COILS APROX.RIGHT HAND WOUNDONLY,END COILS SQUARE TO TOUCH.－总圈数约11圈；工作圈数约9圈；右旋；弹簧的端部磨平以便于接触.(此为弹簧技术要求) 6）FORGING MUST BE ANNEALED TO BE BELOW 203 BRINELL HARDNESS 锻件必须退火处理，布氏硬度<2037）NORMALIZE TO 163-207BHNMUST BE FREE OF SCALE & RUST锻件正火处理，布氏硬度163-207,锻件外表不得有氧化皮和锈蚀8）.FORGING TO BE SHOT OR SAND BLASTED锻件需经喷丸或喷砂处理9）UNLESS OTHERWISE SPECIFIED DRAFT ANGLES 7°未注明锻造拔模斜度7°10）CAST TO BE FREE OF EXCESSIVE FLASH 铸件不得有过多的毛边11）DR AFT ANGLE 2° UNLESS OTHER-WISE SPECIFIED 未注明铸造拔模斜度2°3．代号1）CHANNEL－槽钢2）RSA 708－角钢 70X70X83）M30X1.5 pitch－M30X1.5的锥螺纹4）Tackweld－点焊5）OD 1/4" －outside dimension 1/4"的缩写，外径1/4"6）75 CRS－尺寸为75 材质为冷轧钢板7）410 OPENING REF－410 开口参考尺寸8）40 REF－尺寸为40,参考值9）2.5" BSP－2.5” 圆锥管螺纹10）2.5" BSPT HEXAGON－2.5” 六角圆锥管螺纹(即对丝)11）30x2.5 FLAT BAR－30X2.5 扁钢12）TYP 2 POSNS－2处13）SAE Extra fine－美国汽车工程师协会的超细牙螺纹，例：1/2-28 SAE Extra fine14）SAE Reg－美国汽车工程师协会的标准系列螺纹，例：1/2-20 SAE Reg15）SAE-LT－美国汽车工程师协会的圆锥外螺纹，例：1/2-28 SAE-LT4.标注1）孔（HOLE）如：（1）毛坯孔：3"DIAO+1CORE－芯子Φ3"0+1;（2）加工孔：1"DIA－Φ1";（3）铰孔：1"/4 DIA REAM－铰孔Φ1"/4;（4）螺纹孔的标注一般要表示出螺纹的直径，每英寸牙数（螺矩）、螺纹种类、精度等级、钻深、攻深，方向等，例1：6 HOLES EQUI-SPACED ON 5"DIA－6孔均布在 5圆周上（EQUI-SPACED=EQUALLY SPACED均布例2：DRILL 1"DIATHRO＇－钻1"通孔（THRO＇=THROUGH通）例3：C/SINKΦ22×6DEEP－沉孔Φ22×6例4.TAP7"/8-14UNF-3BTHRO＇－攻统一标准细牙螺纹，每英寸14牙，精度等级3B级（注UNF=UNIFIED FINE THREAD美国标准细牙螺纹）例5：1"DRILL 1"/4-20 UNC-3 THD7"/8 DEEP 4HOLES NOT BREAK THRO钻Φ1"孔，攻1"/4－美国粗牙螺纹，每英寸20牙，攻深7"/8,4孔不准钻通（UNC=UCIFIED COARSE THREAD 美国标准粗牙螺纹）例6：1"-14NS-2THRO－攻美国固定特种螺纹M1",每英寸牙数14,精度等级为二级（注NS=NATIONAL SPECIAL THREAD:美国固定特种标准）2）倒角（CHAMFER）例1：1/8×45°BEV－倒角1/8×45°（注BEV=BEVEI，斜面）例2：1.5×45°CHAM－倒角1.5×45°(注CHAM=CHAMFER倒角) 3）方(SQUARE)例1： 5"SQUARE－5"×5"方4）剖视（SECTION）例1：SECTION A-A－A-A剖面5）圆角半径例1：1"R－R1"例2：RADIUS MUST BE SMOOTH AND BLEND INTO FACE－圆弧必须光滑且与平面相切6）加工余量例1： DOTTED LINES INDICATED MAX FINISH 1"/8－虚线表示最大加工余量1"/87）零件标记例1：USE 5"/16 RAISED HAIRLINE LET-TERS MARKING ON ONE SIDE OF BODY－用突起高为5"/16的细实线字母在本体一侧打标记。
工程图常用英语
工程图常用英语(一)offset sectio n复合剖视co mpound sectio n剖面图sec tion, sectio nal view重合剖面co incid e sectio n, revolv ed sectio n移出剖面re moved sectio n剖面线sec tionline剖面符号sy mbols for sectio n-lining习惯画法co nvent ional drawin g局部放大图 d rawin g of partia l enlargement零件图det ail drawin g, workin g drawin g第三角投影t hirdangleprojec tion粗实线con tinuo us thickline, full line, visible line 细实线con tinuo us thin line虚线dotline, dashed line, hidden line点划线das h and dot line双点划线doubledots line波浪线bre ak line断裂线剖切平面迹线c utting planeline尺寸线dim ensio n line尺寸界线ex tension tine尺寸dimension size箭头arro whead基准datu m基准线datum line基准面datum plane中心孔cen tral hole中心距cen ter distan ce轴shaft, axle孔hole斜孔inclination装配图ass embly drawin g性能尺寸ch aract erist ic dimension大小尺寸si z e dimens ion总体尺寸ou ter dimension外形尺寸配合尺寸fit dimension内圆角fillet外圆角rou nd尖角shar p corner倒角cham fer轮缘flan ge of wheel缘、边、环rim轴肩shou lder凸台boss凹坑conc ave pit轴颈shaf t neck轮毂hub轮辐spok e, spokeof wheel直纹滚花st raigh t knurling s网纹滚花ha tchin g knurling键槽key-way退刀槽esc ape拔模斜度pa ttern draft填料盒gla nd box油槽oil groove油封oilseal标准件sta ndard parts螺纹thre ad外螺纹ext ernal thread内螺纹int ernal thread大径majo r diamet er小径minor diamet er螺距pitc h of thread牙型form of thread旋向dire ction of turnin g右旋螺纹ri g ht-hand thread左旋螺纹le ft-hand thread头数number of thread导程lead粗牙coarse thread细牙finthread螺栓bolt螺钉scre w螺柱stud螺母nut垫片wash er公差tole r ance公差带toleranc e zone零线zero line标准公差st andar d tolera nce公差等级to leran ce grade基本偏差fu ndame ntal deviat ion 配合fit间隙配合clearan ce fit过盈inte r fere nce过盈配合in terfe r ence fit过渡配合tr ansit ion fit基孔制hole-basicsystem of fits基轴制sha ft-basicsystem of fits间隙clea rance形状公差to leran ce in form, form tolera nce直线度str aight ness平面度fla tness圆度roundness圆柱度cylindricity线轮廓度pr ofile of any line面轮廓度pr ofile of any plane位置公差to leran ce in position, position tolera nces平行度parallelism齿轮gear圆柱齿轮cy lindr ical gear正齿轮spur gear斜齿轮spi r al gear轮齿gear tooth节圆pitc h circle齿顶圆add endum circle, outsid e circle齿根圆roo t circle, addend um circle模数modu lus齿数number of teeth齿高toot h height齿顶高height of addendum齿根高height of addendum齿厚circ ular thickn ess齿间toot h space齿宽toot h width压力角angle of pressu re弹簧spring销pin圆柱销rou nd pin复合剖视co mpound sectio n剖面图sec tion, sectio nal view重合剖面co incid e sectio n, revolv ed sectio n移出剖面re moved sectio n剖面线sec tionline剖面符号sy mbols for sectio n-lining习惯画法co nvent ional drawin g局部放大图 d rawin g of partia l enlargement零件图det ail drawin g, workin g drawin g第三角投影t hirdangleprojec tion粗实线con tinuo us thickline, full line, visible line细实线con tinuo us thin line虚线dotline, dashed line, hidden line 点划线das h and dot line双点划线doubledots line波浪线bre ak line断裂线剖切平面迹线c utting planeline尺寸线dim ensio n line尺寸界线ex tension tine尺寸dimension size箭头arro whead基准datu m基准线datum line基准面datum plane中心孔cen tral hole中心距cen ter distan ce轴shaft, axle孔hole斜孔inclination装配图ass embly drawin g性能尺寸ch aract erist ic dimension大小尺寸si z e dimens ion总体尺寸ou ter dimension外形尺寸配合尺寸fit dimension内圆角fillet外圆角rou nd尖角shar p corner倒角cham fer轮缘flan ge of wheel缘、边、环rim轴肩shou lder凸台boss凹坑conc ave pit轴颈shaf t neck轮毂hub轮辐spok e, spokeof wheel直纹滚花st raigh t knurling s网纹滚花ha tchin g knurling键槽key-way退刀槽esc ape拔模斜度pa ttern draft填料盒gla nd box油槽oil groove标准件sta ndard parts螺纹thre ad外螺纹ext ernal thread内螺纹int ernal thread大径majo r diamet er小径minor diamet er螺距pitc h of thread牙型form of thread旋向dire ction of turnin g右旋螺纹ri g ht-hand thread左旋螺纹le ft-hand thread头数number of thread导程lead粗牙coarse thread细牙finthread螺栓bolt螺钉scre w螺柱stud螺母nut垫片wash er公差tole r ance公差带toleranc e zone零线zero line标准公差st andar d tolera nce公差等级to leran ce grade基本偏差fu ndame ntal deviat ion配合fit间隙配合clearan ce fit过盈inte r fere nce过盈配合in terfe r ence fit过渡配合tr ansit ion fit基孔制hole-basicsystem of fits基轴制sha ft-basicsystem of fits间隙clea rance形状公差to leran ce in form, form tolera nce直线度str aight ness平面度fla tness圆度roundness圆柱度cylindricity线轮廓度pr ofile of any line面轮廓度pr ofile of any plane位置公差to leran ce in position, position tolera nces平行度parallelism圆柱齿轮cy lindr ical gear正齿轮spur gear斜齿轮spi r al gear轮齿gear tooth节圆pitc h circle齿顶圆add endum circle, outsid e circle 齿根圆roo t circle, addend um circle模数modu lus齿数number of teeth齿高toot h height齿顶高height of addendum齿根高height of addendum齿厚circ ular thickn ess齿间toot h space齿宽toot h width压力角angle of pressu re弹簧spring销pin圆柱销rou nd pin圆锥销tap er pin开口销cot ter pin, split键key平键flat key半圆键half roundkey, woodru ff key 轴承bearing滚动轴承ro lling bearin g向心铀承ra dial bearin g密封装置se aling equipm ent锁紧装置lo cking equipm ent粗糙度rou ghnes s基本尺寸ba sic size实际尺寸ac tualsize极限尺寸limitssize最大极限尺寸m axim um limitof size 最小极限尺寸m inim um limitof size 偏差deviation上偏差upper deviat ion下偏差low er deviation垂直度per pendicular ity倾斜度angulari t y同轴度con centr icity对称度symmetry位置度tru e position圆跳动cyc le run-out全跳动tot al run-out轴测投影ax onome tricprojec tion轴测投影面p l a neof axonom etric projec tion轴测图axo nomet ric drawin g正等轴测投影isome tricprojec tion正二测bim etric projec tion斜二测obliquebimetr ic projec tion轴测轴axo nomet ric axis轴间角axis angle, anglebetween ales缩短fore short ened轴向缩短率c oefficient of axialdeform ation ratiooffore shorte ningfor any axis切割法cut tingmethod, by cuttin g方箱法boxing method坐标法coo rdina te method方框法enc losin g-square method四心近似法f our-center approximate method。
工程制图常用英语
工程图常用英语offset section复合剖视compound section剖面图section, sectional view重合剖面coincide section, revolved section移出剖面removed section剖面线section line剖面符号symbols for section-lining习惯画法conventional drawing局部放大图drawing of partial enlargement零件图detail drawing, working drawing第三角投影third angle projection粗实线continuous thick line, full line, visible line 细实线continuous thin line虚线dot line, dashed line, hidden line点划线dash and dot line双点划线double dots line波浪线break line断裂线剖切平面迹线cutting plane line尺寸线dimension line尺寸界线extension tine尺寸dimension size箭头arrowhead基准datum基准线datum line基准面datum plane中心孔central hole中心距center distance轴shaft, axle孔hole斜孔inclination装配图assembly drawing性能尺寸characteristic dimension大小尺寸size dimension总体尺寸outer dimension配合尺寸fit dimension内圆角fillet外圆角round尖角sharp corner倒角chamfer轮缘flange of wheel缘、边、环rim轴肩shoulder凸台boss凹坑concave pit轴颈shaft neck轮毂hub轮辐spoke, spoke of wheel直纹滚花straight knurling网纹滚花hatching knurling键槽key-way退刀槽escape拔模斜度pattern draft填料盒gland box油槽oil groove油封oil seal标准件standard parts螺纹thread外螺纹external thread内螺纹internal thread大径major diameter小径minor diameter螺距pitch of thread牙型form of thread旋向direction of turning右旋螺纹right-hand thread左旋螺纹left-hand thread头数number of thread导程lead粗牙coarse thread细牙fin thread螺栓bolt螺钉screw螺柱stud螺母nut垫片washer公差tolerance公差带tolerance zone零线zero line标准公差standard tolerance公差等级tolerance grade基本偏差fundamental deviation 配合fit间隙配合clearance fit过盈interference过盈配合interference fit过渡配合transition fit基孔制hole-basic system of fits基轴制shaft-basic system of fits间隙clearance齿轮gear圆柱齿轮cylindrical gear正齿轮spur gear斜齿轮spiral gear轮齿gear tooth节圆pitch circle齿顶圆addendum circle, outside circle齿根圆root circle, addendum circle模数modulus齿数number of teeth齿高tooth height齿顶高height of addendum齿根高height of addendum齿厚circular thickness齿间tooth space齿宽tooth width压力角angle of pressure弹簧spring销pin圆柱销round pin圆锥销taper pin开口销cotter pin, split键key平键flat key半圆键half round key, woodruff key轴承bearing滚动轴承rolling bearing向心铀承radial bearing密封装置sealing equipment锁紧装置locking equipment粗糙度roughness基本尺寸basic size实际尺寸actual size极限尺寸limits size最大极限尺寸maximum limit of size最小极限尺寸minimum limit of size偏差deviation上偏差upper deviation下偏差lower deviation形状公差tolerance in form, form tolerance 垂直度perpendicularity倾斜度angularity同轴度concentricity对称度symmetry位置度true position直线度straightness平面度flatness圆度roundness圆柱度cylindricity线轮廓度profile of any line面轮廓度profile of any plane位置公差tolerance in position, position tolerances 平行度parallelism跳动run-out圆跳动cycle run-out全跳动total run-out轴测投影axonometric projection轴测投影面plane of axonometric projection轴测图axonometric drawing正等轴测投影isometric projection正二测bimetric projection斜二测oblique bimetric projection轴测轴axonometric axis轴间角axis angle, angle between ales缩短foreshortened轴向缩短率coefficient of axialdeformation ratio of fore shortening for any axis 切割法cutting method, by cutting方箱法boxing method坐标法coordinate method方框法enclosing-square method四心近似法four-center approximate method复合剖视compound section剖面图section, sectional view重合剖面coincide section, revolved section移出剖面removed section剖面线section line剖面符号symbols for section-lining习惯画法conventional drawing局部放大图drawing of partial enlargement零件图detail drawing, working drawing第三角投影third angle projection粗实线continuous thick line, full line, visible line 细实线continuous thin line虚线dot line, dashed line, hidden line点划线dash and dot line双点划线double dots line波浪线break line断裂线剖切平面迹线cutting plane line 尺寸线dimension line尺寸界线extension tine尺寸dimension size箭头arrowhead基准datum基准线datum line基准面datum plane中心孔central hole中心距center distance轴shaft, axle孔hole斜孔inclination装配图assembly drawing性能尺寸characteristic dimension大小尺寸size dimension总体尺寸outer dimension外形尺寸配合尺寸fit dimension内圆角fille。
工程图常用英语
粗糙度roughness
基本尺寸basic size
实际尺寸actual size
极限尺寸limits size
最大极限尺寸maximum limit of size
最小极限尺寸minimum limit of size
偏差deviation
直线度straightness
平面度flatness
圆度roundness
圆柱度cylindricity
线轮廓度profile of any line
面轮廓度profile of any plane
位置公差tolerance in position, position tolerances
习惯画法conventional drawing
局部放大图 drawing of partial enlargement
零件图detail drawing, working drawing
第三角投影third angle projection
粗实线continuous thick line, full line, visible line
螺距pitch of thread
牙型form of thread
旋向direction of turning
右旋螺纹right-hand thread
左旋螺纹left-hand thread
头数number of thread
导程lead
粗牙coarse thread
细牙fin thread
销pin
圆柱销round pin
圆锥销taper pin
机械工程图中常用的英语词汇
机械工程图中常用的英语词汇AAbbreviation 缩写Accuracy 精度、准确性Acme thread 梯形螺纹(29°)Addendum 齿顶高Addendum angle 齿顶角Addendum circle 齿顶圆Addendum of mating gear 啮合齿轮的齿顶高Adjacent-part lines 相邻零件线Aligned sections 旋转剖视Aligned view旋转视图Allowance 容差、加工余量Alloy 合金Alloy steel 合金钢Alphabet 字母Alteration 变更、更改Alternate-position views 位置改变的视图Alternator 交流发电机Induction alternator 感应(交流)发电机Motor alternator 电动(交流)发电机Single-phase alternator 单向(交流)发电机Synchronous alternator 同步(交流)发电机Three-phase alternator 三相(交流)发电机Amount 总量、总计Analyzable assembly 分析装配图Anchor bolt 地脚螺栓Angles 角Acute angle 锐角Blunt angle 钝角Right angle 直角Sliding angle 摩擦角Spiral angle 螺旋角Taper angle 锥角Angular 有角的Angular bearing 径向止推轴承Angular bevel gears 斜交伞齿轮Angular gear人字齿轮Angular section斜剖面Anneal 退火Approval 批准、许可Arc 弧、圆弧Arc thickness 弧长厚度(齿厚)Arc welding 弧焊Arrangement 布置、装置Arrangement of views 视图的布置Clamping arrangement 夹紧装置Cramping arrangement 紧固装置General arrangement 总体布置Arrow 箭头Arrowheads 箭头Assembly 装配图、组装图Assembly drawing 装配图Assembly drawing number 装配图图号Assembly for installation 安装图Assembly parts 组装配合零件Assembly sections 装配图剖视Assembly sketches 装配草图Auxiliary elevation 辅助立面图Auxiliary line辅助线Auxiliary section 辅助剖视Auxiliary surface 辅助面Auxiliary view 辅助视图Average 平均数Axial 轴的、轴向的Axial pitch 轴向节距Axial plane 轴向平面Axial thickness 轴向厚度Axis 轴线、中心线Axis of revolution 回转轴线Axis of rotation 旋转轴线Axis of symmetry 对称轴线Horizontal axis 水平轴Major axis 长轴Minor axis 短轴V ertical axis 垂直轴X axis X轴Y axis Y轴Axle 轴Axle bearing 轴向(止推)轴承Axle sleeve 轴向(止推)套筒Axonometric drawing 轴测图B Babbitt 巴氏合金Back cone 背锥Back cone radius 背锥半径Back elevation 后视图Backstop 托架、棘爪Ball bearing 球轴承Bar 杆Angle bar 角钢Channel bar 槽钢Flat bar 扁钢Round bar 圆棒、圆钢Base 基础、底座、基线、基面、基准Base circle 基圆Base circular thickness 基圆弧线齿厚Base cylinder 基圆柱Base helix angle 基圆上的螺旋角Base plane 基平面Base point 基点Key base 键座Basic circle 基准圆Basic hole system 基孔制Base shaft system 基轴制Basic size 基本尺寸、公称尺寸、标称直径Basis 基础、基准、基线Battery 电池、蓄电池Bearing 轴承、支撑、方位Bearing accuracy 定位精度Bearing box 轴承箱Bearing brass 铜轴衬Bearing bridge 轴承支架Bearing oil seal 轴承油封圈Bearing support 轴承架Bearing unit 轴承组合件Anti-friction bearing 减摩轴承Ball and socket bearing 球窝轴承Conical bearing 锥形轴承Journal bearing 径向轴承Needle bearing 滚针轴承Plain bearing 滑动轴承Roller bearing 滚柱轴承Self-aligning bearing 自位轴承Thrust bearing 止推轴承Belt 带、皮带Bench 工作台Work bench 工作台Bend 弯头、接头Elbow bend 肘形弯管Normal bend 正弯管(90°)Bender 弯曲机Bending 挠曲Bending strength 抗弯强度Bent axle 曲轴Bevel 倾斜的、斜角的、斜面Bevel gear 圆锥齿轮、伞齿轮Bevel pinion 小圆锥齿轮Bevel washer 斜垫圈Bevel wheel 伞齿轮、斜摩擦齿轮Bilateral tolerance 双向公差Bill of materials 送料单Block in、block out 画草图Blue paper 蓝晒纸Blueprint 蓝图、设计图Board 板、(管理)局、厅Bottom board 底板Moulding board 模板Body 机体、机身Boiler 锅炉Bolt 螺栓、插销Adjusting bolt 调整螺栓Assembling bolt 装配螺栓Binding bolt 连接螺栓Bright blot 光制螺栓Captive bolt 固定螺栓Double-screw bolt 双头螺栓Fitter bolt 装配螺栓Foundation bolt 地脚螺栓Hexagonal head bolt 六角头螺栓Hook bolt 钩形螺栓Screw bolt 全螺纹螺栓Snap bolt 圆头螺栓Tension bolt 拉紧螺栓Bolted joints 螺栓连接Book 书、册Hand book 手册Instruction book 说明书Bore face machine 镗孔端面加工机床Borer 镗床Jig borer 坐标镗床Table borer 台式镗床Boring 镗孔Boring machine 镗床Boring mill 镗床Bottom case 底座Bottom clearance 径向间隙Bottom view 底视图Bracket 托架、支柱Brake 制动器、闸Brass 黄铜、铜轴衬Braze 铜焊Brazing 铜焊Breadth 宽度、厚度Break line 断裂线Brinell figure (number) 布氏硬度Brinell hardness 布氏硬度Broacher 拉床、绞孔机Broaching 扩孔机、拉床、拉削Broken circle 虚线圆Broken out section 断裂剖面Broken view 局部视图Bronze 青铜Burnishing 抛光、磨光Burr 三角矬、毛刺、去毛刺Bush 衬套、轴瓦Bushing 轴衬、衬套、套管Butt joint 对接焊Butterfly nut 蝶形螺母Butterfly valve 蝶形阀Button 按钮Push button 控制按钮C Cable 电缆Cage 盒、罩、箱Caliper 卡尺、卡钳Gauge caliper 卡规、量规Internal caliper 内卡钳Sliding (vernier) caliper 游标卡尺Cam 凸轮Cam design 凸轮设计Cam shaft 凸轮轴Actuating cam 主动凸轮Adjustable cam 可调凸轮Control cam 控制凸轮Cap 盖、帽、罩Cap screw 带帽螺钉Capital 大写字母Carburizing 渗碳Card 卡片Cartographer 制图员Cartography 制图学、制图法Case 箱、盒、容器、表面Case hardened 表面淬火、硬化Nitrogen case hardening 渗氮硬化Casing箱、盒、壳Oil pump casing 油泵(壳)Casting 铸造、铸件Defect casting 铸件缺陷Die casting 压铸Sand casting 砂型铸造Spun casting 离心铸造Steel casting 铸钢Cast-iron 铸铁Castle circular nut 六角圆螺母Castle nut 蝶形螺母Catalogue data 表列数据Cave 凹槽、内腔Centre 中心、圆心Centre distance 中心距Centre hole 中心孔Centre line 中心线Centre-section 中心剖面Centre to centre 中心距Centesimal 百分的、百分之一的Centimeter 厘米、公分Central hole 中心孔Central plane 中心平面Central projection 中心投影Chafe 摩擦、磨损Chain 链Drive chain 主动链Transmission chain 传动链Chamfer 倒角、倒棱、斜面Dimensioning of chamfer 倒角的尺寸注法Changes on drawing 图的更改Channel 沟槽Chapter 章Chart 图表、计算图Chart of symbols 符号图表Auxiliary chart 辅助图Dimensions chart 外廓尺寸图Graphical chart 图表Process chart 工艺程序图Progress chart 工艺程序表、工作进度表Charting 制图(表)、填图Check 校验、校核、制动装置Check drawings 校图Check nut 防松螺母Check ring 挡圈Check test校核试验Chief draftsman 主任制图员Chromium 铬Chromizing 镀铬处理Circle 圆、圆周Circle of reference 参考圆Addendum circle 齿顶圆Base circle 基圆Graduated circle 分度圆Imaginary circle 虚圆Outside circle 齿顶圆、外圆Pitch circle 节圆Rack circle 平面齿轮、扇形齿轮Root circle 根圆Top circle齿顶圆Circular cylinder 圆柱Circular pitch 弧线节距Circular thickness 弧线(齿)厚度Circumference 圆周长Clamp 夹紧、夹板Class 种类Class of fit 配合级别Classification 分类Claw 爪、钩、卡爪Clearance fit 间隙配合Clevice /clevis U形钩、U形夹Clevis bolt 套环(插销)螺栓Clevis pin U形夹销Clockwise 顺时针方向Clutch 离合器、联轴器Coat 外层、涂镀层Coat of metal 金属镀层First coat 底漆Coating 镀、覆盖Electrodeposited coating 电镀层Coaxial circle 共轴圆Cock 旋塞Coil 蛇形管、螺管、线圈Coil spring 盘簧Coincident line 重叠线Cold-rolled steel 冷轧钢Collet 夹头Collet chuck 弹簧夹头Color-harden 着色硬化、发蓝、煮黑Common difference 公差Company 公司Joint company 股份公司Limited company 有限公司Compass 圆规Compass of proportion 比例规Component 零件、构件Compression spring 压力弹簧Compressor 压缩机Computer 计算机Concave face 凹面Concentricity 同心度Cone 圆锥Cones development 锥面展开Cone pulley 锥形轮、塔轮Conical spring 锥形弹簧Connection 联接Bolt-on connection 螺栓联接Flange connection 法兰联接Rivet connection 铆钉联接Screw connection 螺钉联接Contact 接触、接合、啮合Contact angle 啮合角Angular contact ball bearing 向心止推球轴承Contour 外形、轮廓线Contracted drawing 缩图Contrast 对比、对照、比较Convention 惯例、常规、习惯Convention for materials 材料的习惯表示法Conventional break 习惯断裂画法Conventional diagram 习惯画法Conventional intersection 习惯交线(画法) Conventional practice 习惯画法Conventional sign 图例、习惯符号Convex 凸面Conveyer 输送机、传送机Cooler 冷冻机Coordinate axis 坐标轴Coordinate paper 方格纸、坐标纸Copper 铜Copy 抄本、样板Correction 校正、修正Cotter pin 开口销Split cotter 开口销Counterbore 埋头孔、锥口孔Counterclockwise 逆时针方向Countersink 埋头孔、沉孔Countersink drill 中心钻、钻Countersunk 钻埋头孔、钻锥口孔Countersunk bolt 埋头螺钉Countersunk head 埋头Countersunk hole 锥坑Coupling 联轴节Cover 盖、罩Cylinder cover 汽缸盖Dust cover 防尘罩Cowl 壳、套、盖Crane 起重机Crank 曲柄、曲轴Crankshaft 曲轴Crest 峰、尖、牙尖Cross head 十字头Cross section 横剖面、横断面Crown gear 冕状齿轮Cube 立方形体、正六面体Current 电流Curvature 曲率Curvature radius 曲率半径Curve 弯曲、曲线、曲线板Curve plotter 绘图仪Curve ruler 曲线板French curve 曲线板Moment curve 力矩曲线、力矩图Cutter 刀、刀具Cutting plane 截平面Cutting plane symbols 剖切(迹线)平面符号Cycloid 摆线Cycloidal gear 摆线齿轮Cylinder 圆柱体Cylinder base 汽缸座Pump cylinder 泵缸Cylindrical cam 圆柱凸轮Cylindrical fit 圆柱配合Cylindrical roller bearing 圆柱滚子轴承D Dash 短划线、虚线、破折号Dash and dot line 点划线Broken dash 断裂线Data 数据、资料Engineering data工程数据Master data 主要数据Date 日期、年代Datum 基准(点、线、面)、资料Datum line 基准线Datum point 基准点Datum plane 基准面Decade 十进制、十进位Decelerator 减速器、制动器、缓动装置Decimal 小数的、十进位小数的Decimal fraction 十进制分数Decimal fraction system 十进小数制Decimal scale 十进位比例尺Decimeter 分米、公分Dedendum angle 齿根角Dedendum circle 齿根圆Definition 定义Deformation 变形、扭曲Degree 度、程度Degree of accuracy 精度Degree of freedom 自由度Degree of hardness 硬度Degree scale 刻度Circular degree 圆度Delineation 轮廓、草图Delineator 制图者Department 科、处、系、车间Draft department 设计科Engineering department 技术科Fitting department 装配车间Heat treatment department 热处理车间Mechanical department 机加工车间Processing department 工艺科Depth 深度、高度Depth dial gauge 深度千分表Depth of engagement 啮合深度Depth of thread 螺纹深度Depth of tooth 齿高Contact depth of tooth 啮合高度Working depth of tooth 齿工作高度Derivation 偏差Standard derivation 标准偏差Description 描述、作图、绘制Design 设计、计划Design activity 设计机关(组织) Design assembly 设计装配图Design drawing 设计图Design layout 设计草图、初步设计图Preliminary design 初步设计Standard design 标准设计Technical design 技术设计Designation 符号、标志Designation strip 铭牌Designer 设计员、制图者、设计师Desk 桌、控制台Drawing desk 绘图桌Detail 细目、细节、详图、零件Detail drawing 详图、零件工作图Detail paper底图纸、描图纸Detail specification 详细规格Detent 棘爪、扳手、制动器Developable surface 可展曲面Developed view 展开图Development inner port 内表面展开图Development of surface 表面展开图Deviation 偏差、偏移Angular deviation 角偏差Average deviation 平均偏差Standard deviation 标准偏差Tolerance deviation 允许偏差Device 装置、设备Diagram 示意图、图解Diagram drawing 图解图、结构图Arrangement diagram 布置图Assembly diagram 装配示意图Block diagram 方框图Schematic diagram 原理图、简图Diagrammatic drawing 草图、示意图Dial gauge 千分表Dial inside micrometer 内径千分表Diameter 直径Diameter of aperture 孔径Diameter of pitch circle 节圆直径Diameter pitch (齿轮)径节Diameter run-out径向跳动Major diameter 大直径、螺纹外径Minor diameter 小直径、螺纹内径Nominal diameter 公称直径Pitch diameter of screw thread 螺纹中径Thread diameter 螺纹外径(直径) Diametral pitch 齿轮径节Die 模具、扳牙Diesel 柴油机、内燃机Dimension 尺寸Dimension line 尺寸线Limiting dimension 极限尺寸Nominal dimension 公称尺寸Outer dimension 外形尺寸、轮廓尺寸Direction 方位、方向Clockwise direction 顺时针方向Disc = disk 圆盘、原板Disk cam 圆盘凸轮Dismount 拆卸Dismountable 可拆卸的Displacement 移位、变位Distance 距离、路程Distortion 变形、歪扭Distribution 分配、分布、配置Ditto machine 复印机Diversion 变更、转换Dividing head 分规Dot line 虚线Dotted line 虚线Double dots line 双点划线Double helical pinion 人字小齿轮Double helical spur gear 人字齿轮Double thread 双头螺柱Dowel thread 定位销、圆柱销Dozer 推土机Draft = draught (拔模)斜度、草图、制图Drafting 制图Drafting board 制图板Drafting machine 制图机Drafting tape 制图带、胶带Draftsman 绘图员Drawer 制图员Drawing 绘图、图样Drawing board 绘图纸Drawing control 图样管理Drawing free-head 草图Drawing instrument 绘图仪器Drawing number 图号Drawing pencil 绘图铅笔Drawing pin 图钉Drawing size 图纸尺寸Drawing table 制图桌Drawing with compass 用圆规画图Blue print drawing 蓝图Free hand drawing 徒手图Full size drawing 原大图Skeleton drawing 草图、结构图Working drawing 施工图、制造图、工作图Drill 钻孔、穿孔、穿孔器Drive 传动、驱动Drive fit 打入配合Air drive 气动Belt drive 带传动Chain drive 链传动Friction drive 摩擦传动Gear drive 齿轮传动Hydromatic drive 液压传动Speed-reducer drive 减速器传动V ariable-speed drive 变速传动Worm-wheel drive 蜗轮传动Driven gear 从动齿轮Driven shaft 从动轴Driving gear 主动齿轮Driving shaft 主动轴Drum cam 凸轮轴Ductile iron 球墨铸铁Duplicating tracing 复制描图Durometer (钢轨)硬度计Dusting cloth 抹灰布、撒粉布EEccentricity 偏心距Edge iron 角铁Edge round 外圆角Edge view 边视图Effective diameter 有效直径Effective face width 有效齿宽Efficiency 效率、性能Mechanical efficiency 机械效率Elastic deformation 弹性变形Elasticity 弹性Elbow 肘形弯管、弯头Electric current 电流Electric element 电池Elephant 绘图纸(28X23英寸) Elevation 正面图、立视图End 末端、头Ball end 秋端Butt end 平端、端面Tail end 尾端Top end 顶端Engagement 啮合Engineer 工程技术人员、工程师Engineer-in-chief 总工程师Equipment 设备Eraser 橡皮Erasing shield 擦图片Erection diagram 安装图、装配图Error 误差Accumulated error 累积误差Allowance error 容许误差Average error 平均误差Permissible error 容许误差Relative error 相对误差Exterior 外表面External 外部External diameter 外径External dimension 外形尺寸External fillet 外圆角External thread 外螺纹Extra fine(screw)特细牙螺纹Eyelet = eyelet-hole 小孔F Fabrication 建造、制造Face 面、正面、表面、端面Face cam 平面凸轮Face gear 平面齿轮Face hardening 表面硬化Inner face 里面Outer face 外面Face off 倒角Factor of safety 安全系数Factory 工厂、制造厂Factory made 工厂制造的Fastener 接合件、紧固件Fastening 连接件、紧固件Fatigue 疲劳Faucet 旋塞、龙头、开关Feather 滑键、冒口Feather key 滑键Feature 特征、特性、性能Basic mechanical design feature 主要机械设计性能Mechanical feature 机械性能(特性)Feed-pump 供油泵、供水泵Feet 英尺Ferrous metal 黑色金属Field 工场、现场Figure 形状、图样、插图、数字File 锉刀、锉平Filler 填料、垫片Fillet (内)圆角、填角、嵌条Fillet radius 内圆角半径Filter 过滤器Fine thread series 细螺纹级(系列)Finish 完工、加工、磨光Finish all over 全部加工Finish marks 加工符号Machine finish 机器光制Fit 配合Clearance fit 间隙配合Free fit 自由配合Interference fit 静配合Light press fit 轻压配合Light running fit 轻传动配合Loose fit 松配合Normal-running fit 传动配合Running fit 动配合Shrink fit 冷缩配合Slide fit 滑动配合Transition fit 过渡配合Fix 安装、装配、调整、修理、固定Flange 法兰盘、凸缘Flank 边、侧面、齿侧、后面Flat 扁头、平面Flat key 平键Flat spring 板弹簧Flat surface 平面Flexible disk coupling 挠性盘形联轴节Flexible gear-type coupling 挠性齿轮联轴节Flywheel 飞轮Foot 英尺Foot screw 地脚螺钉Force 力Fore word 序、前言Forge 锻Forge steel 锻钢Former 样板、模型、量规Wooden former 木模Formula 公式Foundation 基础、基座Foundation bolt 地脚螺栓Foundry 铸件、铸工车间Fraction 分数、小数Front view 前视图、主视图Full diameter 大直径、主直径Full line 实线Full size 原大Full scale 原大Full section 全剖视Full section view 全剖视图Furbish 研磨、擦光Fuse 保险丝、熔断器G Gage = gauge 量规Gallon 加仑Galvanize 镀锌、电镀Gasket 垫圈、密封垫Gasket material 填料Gasoline engine 汽油(内燃)机Gate 门、阀门Gear 齿轮Gear addendum angle 齿顶角Gear box(case) 齿轮箱Gear centre 齿轮中心Gear dedendum angle 齿根角(圆锥齿轮) Epicyclic gear 行星齿轮Herringbone gear 人字齿轮Ratchet gear 棘轮General drawing 总图Geometry 几何学Gland 压盖、填料盖、密封装置Glass 玻璃Glasscloth 砂布、玻璃布Glossary 词汇(表)Grade 等级、斜度Steel grade 钢号Graduated hardening 分级淬火Graduated scale 比例尺、分度尺Gram 克Graph 图(表、解、形)、曲线图Graph paper 方格纸Graphic图示、制图学Grease 滑脂Grind 磨削、抛光Grinding machine 磨床Grinding wheel 砂轮Groove cam 槽凸轮Groove pulley 槽轮、三角带轮Guide 手册、指南Guide bar 导杆Guide pin 定位销、导向销Guide screw 丝杠Guidebook 参考手册、指南、入门H Half 二分之一、一部分Half bearing 轴瓦Half section 半剖视Half section view 半剖视图Hammer 锤子Handbook 手册、指南Hand-made 手工制造的Hand-operated 手控的Handle 手柄Hand wheel 手轮Hard casting 白口铁Hard drawn 冷拔Hard rolled 冷轧的Hard surfacing 表面硬化Harden 淬火、硬化Hardened and tempered 调质的Hardened-steel 淬火钢Hardening 硬化Hardness 硬度Hardometer 硬度计Hatch 剖面线H-beam 工字梁、H形梁Heat–treatment 热处理Heavy force fit 重压配合Height 高度Helical bevel gear 螺旋伞齿轮Helical gear 螺旋齿轮、圆柱斜齿轮Helical rack 斜齿齿条Helical spring 螺旋弹簧Hex nut 六角螺母Hexagon jam nut 六角锁紧螺母Hexagon socket head 内六角头Hidden line 虚线Hidden outline 看不见的轮廓线High-carbon steel 高碳钢High-duty 重型的、大型的、优产的High-speed steel 高速钢Hosting jack 千斤顶Hole 孔Horizontal datum plane 水平基准面Horizontal line 水平线Horizontal projection 水平投影Horizontal projection plane 水平投影面Horse-power 马力、功率Hose 软管Hose coupling 软管接头Hot-rolled steel 热轧钢Hot-work 热加工Hour 小时Housing 机座Housing of pump 泵体Bearing housing 轴承箱Gear housing 齿轮箱Hub 轮、中心、衬套Hydraulic(al) 液压的、液压传动装置Hydro-motor 液压马达Hypoid gear 准双曲面齿轮I I-beam 工字钢Illustration 插图、实例Inaccuracy 不精确、不准确Incenter 内(切圆)心Inch 英寸Incline 斜度、斜面Index plate 分度盘Indicator 指示计、百分表Industrial 工业公司Industrial drawing 工业制图Industry 工业Inertia 惯性Ink 墨水、油墨Ink holder 钢笔杆China ink 墨汁Inscription 标题Inside diameter 内径Inspection 检修、检查Inspection machine 检修机器Inspector 检查员Installation 装置、设备、安装Installation diagram 安装图Institute 研究所、协会、学院、学会Instruction 说明、指示Instrument 仪器、仪表、工具Instrument drawing 仪器图Intensity 强度Interchangeability 互换性1 Interconnection 互相连接Interference fit 静配合Interior view 内部(的)视图Internal combustion engine 内燃机Internal fillet 内圆角Internal gear 内齿轮Introduction 引言、介绍、序言Invisible line 虚线Involute 渐(伸)开线Involute gear 渐开线齿轮Involute rack 渐开线齿条Involute spline 渐开线花键Involute teeth 渐开线齿形Iron 铁Ingot iron 低碳铁、工业纯铁Knobbled iron 熟铁Magnetic iron 磁铁Malleable iron 可锻铁、韧性铁Plate iron 铁板、钢板Quadrant iron 方钢Rod iron 圆铁、棒钢Round iron 圆铁、圆钢Rustless iron 不锈铁Section iron 型钢Structural iron 结构钢White iron 白口铁Wrought iron 熟铁、锻铁Isometric diagram 等轴测图Isometric drawing 等轴测图J Jack-screw 螺旋千斤顶Job sheet 零件图纸Joint 结合、连接、焊接Bolt joint 螺栓连接Riveted joint 铆钉连接Welded joint 焊接Journal 轴径Journal bearing 径向轴承K Keeper 保持器(片)、架、定位件卡箍Keep-ring 保持环Key diagram 键、按钮Key way(seat、seating、slot)键槽Key wrench 套筒扳手Gib-head taper key 钩头斜键Square key 方形键Tightening key 斜扁键Woodruff key 半圆键Key-bolt 键螺栓Kilogram(me)公斤、千克Kilogram-meter 公斤米、千克米Kilometer 公里、千米Kilovolt 千瓦Kilowatt 千伏Kit 一套工具Knee 弯头、升降台Knee bend 弯管Knob 捏手、按钮Knuckle thread 圆形螺纹Knurl 滚花、压花Knurled nut滚花螺母L L-bar = L-beam 角钢Laboratory 实验室、研究室Lamp 灯Alarm lamp 信号灯Daylight lamp 日光灯Incandescent lamp 白炽灯Indicating lamp 信号灯、指示灯Lantern 游环、套环Large compasses 大圆规Lathe 车床Lathe-hand 车工Lattin = Latten 金属薄板、黄铜片Law 规律、定律Lay 布置、安排、放置Layer 层Carburized layer 渗碳层Layout 计划、方案、草图Layout design 草图设计、方案设计Layout drawing 方案草图Lead angle 螺旋升角Lead line 指引线Leaf spring 板弹簧Left hand 左方向Left hand thread 左旋螺纹Legend 图例、图表符号、代号、说明书Length 长度、距离Length gauge 长度规Length of normal 法线长Length of side 边长Effective length 有效长度Lens 透镜、镜片Letter 字、字母Capital letter 大写字母Level surface 水平面Lift 升降机、电梯Light alloy 轻合金Light beam 光束Light series 轻系列Light-duty 轻型Lighting installation 照明装置Lightning switch 照明开关Liquid 液体Limit 极限尺寸Limit switch 限位开关Line 线Line of action (齿轮)压力线Line of contact (齿轮)接触线Line of shaft轴线Line of thickness 线型的粗度Line weight线的粗细程度Actual line实线Addendum line齿顶线Broken line断裂线Center line = central line中心线Continuous line实线Dash(ed) line虚线Diagonal line 对角线Imaginary line 假想线Generation line 母线Pitch line 节线Real line 实线Reference line 基准线、参考线Right line 直线Skeleton line 轮廓线Solid line 实线Straight line 直线V ertical line 垂直线Liner 衬套Bearing line 轴瓦Link 连接环、链节Line assembly 连杆装配图Chain link 链节L-iron 角铁List 注册、记录、名册、目录Load 符合Actual load 有效载荷、实际载荷Allowable load 容许载荷Full load 满载(荷)、全负载(荷)Local view 局部视图Localization 定位\固定Locating pin 定位销Location by angle 角度定位Location by dimension 定位尺寸Location pin 定位销Location tolerance 定位公差Lock 锁\阀Lock nut 防松螺母Lock screw 锁紧螺钉Lock washer 弹簧垫圈V alve lock 阀簧抵座销、气门制销Loco 机车、火车头Logarithm 对数Long break 长断裂线Long radius 长半径Longitudinal key 长方键Lower limit 下限Lubricant pump 润滑油泵Lubricating ring 润滑油环Lubrication 润滑Bath lubrication 油浴润滑Bearing lubrication 轴承润滑Ring lubrication 油环润滑Shot lubrication 油枪润滑Splash lubrication 飞溅润滑Lubricator 润滑器Lubro-pump 油泵Luminaire 光源M Machine 机器、切割Machine building (manufacturing) 机械制造Machine drawing 机械制图Machine finish 机械加工Machine maker 机械工厂(制造者) Machine part 机械零件Machine shop 机工车间Drawing machine 绘图机Tracing machine 描图机Machining allowance 加工余量Machinist 机械工人\机械师Magazine 杂志Magnetic-particle clutch 电磁离合器Magnitude 数量、长度、大小Major type of slotted nut 大型锁母Make 制造、构造Malleable cast iron 可锻铸铁Malleable casting 韧铸件Malleable steel 软钢、展性钢Manual 手册、说明书Manual control 手控Manufacture 加工、制造业Manucturing engineering 制造工艺(技术) Manucturing machine 生产机械Manucturing tolerance 制造公差Master check 校正、校对Master drawing 样图Master gauge 标准规、校准规Master gear 主齿轮、标准齿轮Master making 手工Master screw 标准螺纹Match 匹配、配合Mate 啮合部分Material 物质、材料Fibre material 纤维材料Insulating material 绝缘材料Plastic material 塑料Maximal valve 极大值Maximum 极点、极限、最大量Maximum admitted diameter of work 工件最大许可直径Mean axis 中间轴Measure 量度、大小、尺寸Measure of precision 精确度Measurement 测定、尺寸、大小Measuring device 量具Measuring tools 量具Mechanical bolt 螺钉Mechanical drawing 机械制图Mechanical engineering’s scale 机械工程比例尺Mechanical properties 机械性能Mechanical reduction gear 齿轮减速装置Mechanism 机械结构、机械装置Medium series 中系列Mating member 配合件Meshing gear 啮合齿轮Metal 金属Admiralty metal 含锡黄铜Bell metal 青铜合金、种铜、铜锡合金Brazing metal 铜锌合金Hard metal 硬质合金Heavy metal 重金属Light metal 轻金属Monel metal 铜镍合金Power(ed) metal 粉末合金Wear-resistant metal 耐磨金属White metal 白合金(铅锑锡合金)Y ellow metal 黄金、黄色金属Metallized 镀金属的、喷涂金属的Meter 米、公尺Meter per second 米/秒Meter screw 公制螺纹Meter series 公制系列Meter taper 公制锥度Meter-kilogram米-公斤Meter-kilogram-second米公斤秒Method 方法、规律Method of approximation 近似法Method of orthogonal projection 正投影法Conventional method 惯例、习用方法Processing method 加工方法Metric 公制的Metric measure 公制计量Metric scale 公制尺、米尺Metric system 米制、公制Metric thread 公制螺纹Metric unit 公制单位Microfilm 显微胶片Microinch 微英寸Micrometer 微米、千分卡尺Middle gear 中间齿轮Midpoint 中点Mild steel 软钢、冷轧钢Mile 英里Mill 磨、铣Millimeter = millimeter 厘米、公厘Milling 铣削、研磨Million 百万、兆Miniature bearing 微型轴承Minimum 最小量Minus 负的Miter(mitre)gear 45°圆锥齿轮、等径圆锥齿轮Miter wheel 伞齿轮、圆锥齿轮Mixer 搅拌机ML = material list 材料单Model 模型、样板、仿造Model machine 样机Model number 型号、序数Module 模数、系数Modulo 模数、模量Molten iron 铁水Molten steel 钢水Moment 力矩、弯矩Moment of couple (力)偶矩Moment of force 力矩Bending moment 弯曲矩Rotative moment 转矩、转动力矩Motion 移动、运动Motor 电动机、马达Mould 模型、样板、曲线板Mo(u)lding 造型法Moulding box 砂箱Mounting 安装、装配、座、支架Mounting bolt 装配螺栓Mounting hole 安装孔Mounting plate 安装板Movement 运动、位移Axial movement 轴向运动Spiral movement 螺旋运动Muff 套筒、轴套Multi-roll bearing 滚针轴承Multi disk clutch 多片式摩擦离合器Multiple threads 多头螺纹N Nail 钉Name of part 零件名称Name plate 铭牌Needle 针、指针Needle bearing 滚针轴承Neck 颈Nib 笔尖Nibbed bolt 尖头螺栓Nichrome 镍铬合金Nickel 镍Nickel-plate 镀镍Nitride 氮化、渗氮Nomenclature 名称、术语Nominal 标称的、额定的、公称的Nominal inside diameter 名义内径Nominal roll diameter 公称滚子直径Nominal size 名义尺寸Nomogram 诺模图、图算、图释Non-ferrous metal 有色金属Non-metal 非金属Non-rusting 不锈的Normal 正规的、标准的、法线的Normal chordal addendum 法向弦齿顶高Normal circular thickness 法向节距Normal cross section 法向弧线齿厚Normal direction 正剖面、横断面Normal module 法线方向Normality 正常状态、标准Nozzle 喷嘴、喷口Number 数、号(码)、缩写No. Number of stars (螺纹)头数Number of turns (螺纹)圈数Dash number 零件编号Decimal number 十进位数Hardness number 硬度数Pitch number 节数Numbering 编号Numeral 数字Nut 螺母Nut bolt 螺钉、带帽螺栓Nut wrench 螺帽扳手Milled nut 滚花螺母Nylon 尼龙O Object 物体Obligue view 斜视图Office 办公室、办事处Drawing office 绘图室Engineering office 技术科Offset section 阶梯视图Oil basin 油箱(池)Oil level indicator 油面指示器Oil pipe 油管Oiler 油杯、加油壶Oiling system 加油系统Oilstone 油石O-ring gasket O型密封圈Orthography 正投影图、正视图Orthographic projection 正投影Ounce 英两、盎司Outline 外形、轮廓、略图、剖面Outline assembly drawing 外形装配图Outline drawing 草图、外形图Outline section 轮廓剖视Outside diameter 外径Overall 全面的、全部的Overall dimension 全尺寸Overall length 全长P Packing 包装、填料、密封Packing felt 毡垫、毡封Packing gland 密封压盖Packing piece 垫片Packing ring 填料环Asbestos packing 石棉填料Cup packing 皮碗密封Pad 衬垫、衬套、垫圈Padding 衬垫、填料Paper 纸Blue printing paper 蓝晒纸Drafting paper 绘图纸Emery paper 砂纸Tracing paper 描图纸Part 零件、部件Part end view 部分端视图Part section 部分剖视图Basal part 底板Pattern 式样、模型Pawl 棘爪Pen 笔Drawing pen 绘图笔Ruling pen 直线笔、鸭嘴笔Pencil-work 铅笔图Percent = per cent 百分率Perimeter 周长、周边Phantom line 假想线Phantom section 假想剖面Philips screw 带十字凹槽头螺钉Piece 部件Pin 销Pinion 小齿轮Pinion shaft小齿轮轴Pipe 管Pipe threads 管螺纹Flexible pipe 软管Seamless pipe 无缝钢管Water pipe 水管Pipeline drawing 管系图Piston 活塞、柱塞Piston ring 活塞环Piston rod 活塞杆Pitch螺距、节距Pitch angle 节锥半角Pitch cone 节圆锥Pitch of teeth (轮)齿矩Pitch point 节点Nominal pitch 公称螺距Normal pitch 法向节矩Screw pitch 螺距Plane of projection 投影面Plane of reference 参考面、基准面Plane section 剖面Planet 行星齿轮Plant 工厂、车间Power plant 动力站Pumping plant 泵站Transforming plant 变电站Plastics 塑料Plate 片、板、钢板Cover plate 盖板Face plate 面板Steel plate 钢板Plated 电镀的Copper plated 镀铜Nickel plated 镀镍Platform 平台Operation platform 工作台Plating 电镀、镀Chrome plating 镀铬Nickel plating 镀镍Tin plating 镀锡Plot 设计、绘图Plough (plow) bolt 防松螺栓Plug 塞、栓Oil plug 油塞Spark plug 火花塞Plunger 活塞、柱塞、滑阀Plunger chip 冲头Plunger pump 柱塞泵Plus minus screw 调整螺丝Pocketbook 手册、袖珍本Point 点Reference point 基准点Yield point 屈服点Polish 光泽、研磨、磨光、抛光Polishing 磨光、擦亮Politure 抛光、光泽Position 位置、方位Positional tolerance 位置偏差Pound 磅Power 动力、功率Input power 输入功率Output power 输出功率Rated power 额定功率Precision measure 精确度量Preface 序、前言、导语Press 精压、冲压、挤压Hydraulic press 水压机Pressure 压力、压缩Pressure angle 压力角Principal axis 主轴Principle layout 总布置图Principle of operation 工作原理Print 印刷Blue print 蓝图Printer 复印机、晒图机Production 生产、制造Production dimension 制造尺寸Profile 剖面、侧面、侧面图Involute profile 渐开线齿形Project 计划、设计、投影Projection 投影3rd (third) angle projection 第三角投影Property 特性、特征、性能Proportion 比例、比率Pulley 滑轮、皮带轮Pump 泵Punch 冲床、穿孔Punching 冲压、穿孔Push fit 推入配合Pusher-dozer 推土机Q Quadrangle 四边形、方形Quadrant designation 象限名称Quantity 量Quarter 四分之一Quenching 淬火Quill 活动套筒、衬套R Rack 机架、台、齿条Rack-and-pinion 齿条齿轮传动Radial ball bearing 径向球轴承Radian 弧度Radius 半径Radius of corner 原角半径Pitch radius 节圆半径Rotation radius 旋转半径Range 范围、排列Ratchet 棘轮Rating 功率、参数、规格Ratio 比例、比率Ratio of gear 变速比、齿数比、传动比Reader 读者、校对人、审稿人Reading views 读图Ream 绞孔、扩孔Rear axle 后轴Rear view 后视图Recess 凹槽Record 记录Rectangle 矩形、长方形Reducer 减速器Reference 参考、基准Relative position 相对位置Relay 继电器Removed section 移出剖面Rendered drawing 提供图样Repair 修理、检修Resistance 阻力、电阻Resistor 电阻器Retainer 护圈、挡圈Retaining ring 弹性挡圈Reversal 反向Revision 校订、修改Revolution 旋转、循环、周期Revolution per minute 每分钟转数Revolved section 旋转剖面Rib 肋Rigging 装配、安装、调整Right end view 右侧视图Right section 正截面Right-hand 右旋Rigidity 刚度、刚性Rim 边、缘、环Collar rim 轮缘Ring 环、圈Rubber ring 橡皮环Sealing ring 密封环Spring ring 弹簧圈Rivet 铆钉Robot 机器人、自动机Rod 杆、棒料Pull rod 拉杆Screw rod 螺杆Roll roller-type overrunning clutch 滚子型超越离合器Rolling circle 滚圆、(齿轮的)基圆Room 房间Building room 装配间Tool room 工具室Work room 车间Root 齿根、牙底Root diameter 齿根直径Root of thread 螺纹牙底Cubic root 立方根Rope 绳、索Rough 粗糙面、毛坯、粗(未)加工(状态) Roughness 粗糙度Round nut 圆螺母Round section 圆形剖面Roundness 圆度、圆形Rubber 橡皮、磨光机Loaded rubber 填料橡胶。
工程图纸英语缩略表达与翻译
工程图纸英语缩略表达与翻译工程图纸是工程师、设计师和建筑师等用来准确表达和交流设计思想和概念的工具。
在工程图纸中，各种专业的缩略语和特定术语经常出现，这给非母语为英语的人士理解和解读图纸带来了一定困难。
因此，本文将介绍一些常见的工程图纸英语缩略语及其翻译，以帮助读者更好地理解和解读工程图纸。
BIM (Building Information Modeling)BIM是一种数字化工具，用于捕捉、管理和呈现建筑信息。
它可用于建筑设计、施工、运营和维护过程中的各种专业领域，包括结构、电气、管道、机械等。
CAD (Computer-Aided Design)CAD是一种计算机辅助设计软件，用于创建、修改和优化工程图纸。
它可帮助工程师、设计师和建筑师更准确、更快捷地完成设计工作。
CAM (Computer-Aided Manufacturing)CAM是一种计算机辅助制造技术，用于将CAD设计转化为实际的机械零件或工具。
它可大大提高制造效率和精度。
CEO (Chief Engineer's Office)CEO是工程部门的主管办公室，负责监督和管理整个工程项目的进度和质量。
CNC (Computer Numerical Control)CNC是一种数控技术，用于控制机床、机器人等自动化设备进行加工和制造。
EO (Engineering Office)EO是负责管理和协调所有工程活动的办公室，包括项目计划、预算、采购、施工等。
ID (In-Depth)翻译转换理论在环境科学英语翻译中的应用与评价——《环境科学与工程专业英语》随着全球环境问题的日益突出，环境科学领域日益受到广泛。
而在这个跨学科的领域中，英语作为国际通用语言，成为了环境科学交流与合作的重要工具。
本文将探讨在翻译转换理论指导下的环境科学英语翻译，并对《环境科学与工程专业英语》进行评述。
翻译转换理论主要涉及翻译过程中语言、文化和科学知识的转换。
机械图纸常见英文翻译
1．标题栏英文工程图纸的右下边是标题栏（相当于我们的标题栏和部分技术要求），其中有图纸名称（TILE）、设计者（DRAWN）、审查者（CHECKED）、材料（MATERIAL）、日期（DATE）、比例（SCALE）、热处理（HEAT TREATMENT）和其它一些要求，如：1)TOLERANCES UNLESS OTHERWISE SPECIFIAL－未注公差。
2)DIMS IN mm UNLESS STATED－如不做特殊要求以毫米为单位。
3)ANGULAR TOLERANCE±1°－角度公差±1°。
4)DIMS TOLERANCE±0.1－未注尺寸公差±0.1。
5)SURFACE FINISH 3.2 UNLESS STATED－未注粗糙度3.2。
2．技术要求1）ALL WELDS CONTINUOUS UNLESS OTHERWISE STATED－未注焊缝均为连续焊2）ALL WELDS 3mm FILLET UNLESS OTHERWISE STATE－未注焊角高3mm.3）ALL UNSPECIFIED RADI - R3－未注圆角R34）REMOVE ALL BURRS AND SHARP EDGES－棱角倒钝5）11 TOTAL COILS APROX.9 WORKING COILS APROX.RIGHT HAND WOUNDONLY,END COILS SQUARE TO TOUCH.－总圈数约11圈；工作圈数约9圈；右旋；弹簧的端部磨平以便于接触.(此为弹簧技术要求)6）FORGING MUST BE ANNEALED TO BE BELOW 203 BRINELL HARDNESS 锻件必须退火处理，布氏硬度<2037）NORMALIZE TO 163-207BHNMUST BE FREE OF SCALE & RUST锻件正火处理，布氏硬度163-207,锻件表面不得有氧化皮和锈蚀8）.FORGING TO BE SHOT OR SAND BLASTED锻件需经喷丸或喷砂处理9）UNLESS OTHERWISE SPECIFIED DRAFT ANGLES 7°未注明锻造拔模斜度7° 10）CAST TO BE FREE OF EXCESSIVE FLASH 铸件不得有过多的毛边11）DRAFT ANGLE 2° UNLESS OTHER-WISE SPECIFIED 未注明铸造拔模斜度2° 3．代号1）CHANNEL－槽钢2）RSA708－角钢 70X70X83）M30X1.5 pitch－M30X1.5的锥螺纹4）Tackweld－点焊5）OD 1/4" －outside dimension 1/4"的缩写，外径1/4"6）75 CRS－尺寸为75 材质为冷轧钢板7）410 OPENING REF－410 开口参考尺寸8）40 REF－尺寸为40,参考值9）2.5" BSP－2.5” 圆锥管螺纹10）2.5" BSPT HEXAGON－2.5” 六角圆锥管螺纹(即对丝)11）30x2.5 FLAT BAR－30X2.5 扁钢12）TYP 2 POSNS－2处13）SAE Extra fine－美国汽车工程师协会的超细牙螺纹，例：1/2-28 SAE Extra fine 14）SAE Reg－美国汽车工程师协会的标准系列螺纹，例：1/2-20 SAE Reg15）SAE-LT－美国汽车工程师协会的圆锥外螺纹，例：1/2-28 SAE-LT4.标注1）孔（HOLE）如：（1）毛坯孔：3"DIAO+1CORE－芯子Φ3"0+1;（2）加工孔：1"DIA－Φ1";（3）铰孔：1"/4 DIA REAM－铰孔Φ1"/4;（4）螺纹孔的标注一般要表示出螺纹的直径，每英寸牙数（螺矩）、螺纹种类、精度等级、钻深、攻深，方向等。
机械工程图中常用的英语词汇1
常用机件的表达Representation for Commonly Used Parts螺纹牙型 thread tooth profile三角形螺纹 triangular thread矩形螺纹 square thread梯形螺纹 trapezoidal (acme) thread 锯齿形螺纹 buttress thread外(阳)螺纹 external (male) thread内(阴)螺纹 internal (female) thread 倒角 chamfer球头 round heads平头 flat heads螺尾 thread runout退刀(越程)槽 undercut车外螺纹 external thread lathing 车内螺纹 internal thread lathing 套外螺纹 covering external thread 攻内螺纹 tapping钻孔 drilling铰孔 reaming通孔 through hole盲孔 blind hole螺纹盲孔 blind threaded hole 麻花钻 twist drill钻头角 point angle螺纹终止线 thread end line公称直径 nominal diameter螺纹大径 major diameter螺纹小径 minor diameter螺纹中径 pitch (effective) diameter牙底 root牙顶 crest螺距 pitch导程 lead旋向 revolving direction螺纹角 thread angle右旋螺纹 righthand-thread左旋螺纹 left hand-thread顺时针方向 clockwise逆时针方向 anti-clockwise线数 number of starts单线螺纹 single-start thread双线螺纹 double-start thread多线螺纹 multiple thread标准螺纹 standard screw非标准螺纹 nonstandard screw特殊螺纹 special thread粗牙普通螺纹 coarse pitch thread细牙普通螺纹 fine pitch thread螺纹规格 screw size普通(公制)螺纹 general (metric) thread管螺纹 pipe thread圆柱内管螺纹 parallel internal pipe thread圆锥内管螺纹 taper internal pipe thread圆柱外管螺纹 parallel external pipe thread圆锥外管螺纹 taper external pipe thread小螺纹 mini thread传动螺纹 transmission thread558非密封管螺纹 558 non-sealing pipe thread558密封管螺纹 558 sealing pipe thread608密封管螺纹 608 sealing pipe thread米制锥螺纹 metric taper thread自攻螺钉螺纹 self-drilling screw thread木螺钉螺纹 wooden nail thread气瓶专用螺纹 thread for gas tanke螺纹紧固件 screw fasteners螺纹旋合长度 length of thread engagement中旋合长度 thread engagement group-normal螺栓 bolt六角头螺栓 hexagon head bolt双头螺柱 stud有效长度 effective length。
