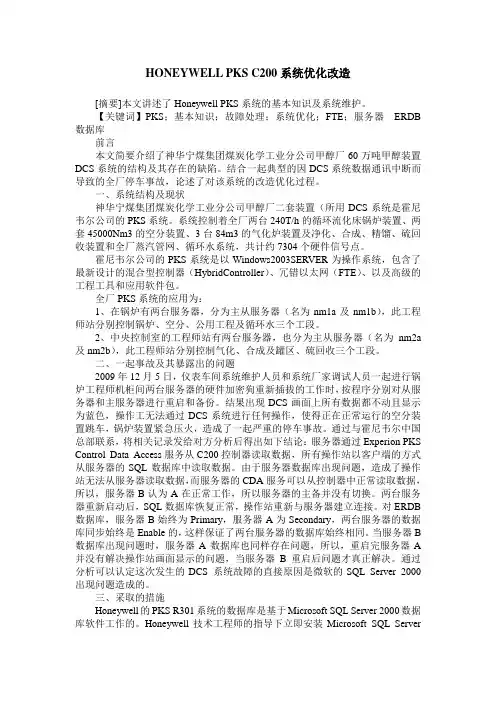

HONEYWELL PKS C200系统优化改造

HONEYWELL PKS C200系统优化改造[摘要]本文讲述了Honeywell PKS系统的基本知识及系统维护。

【关键词】PKS；基本知识；故障处理；系统优化；FTE；服务器ERDB 数据库前言本文简要介绍了神华宁煤集团煤炭化学工业分公司甲醇厂60万吨甲醇装置DCS系统的结构及其存在的缺陷。

结合一起典型的因DCS系统数据通讯中断而导致的全厂停车事故，论述了对该系统的改造优化过程。

一、系统结构及现状神华宁煤集团煤炭化学工业分公司甲醇厂二套装置（所用DCS系统是霍尼韦尔公司的PKS系统。

系统控制着全厂两台240T/h的循环流化床锅炉装置、两套45000Nm3的空分装置、3台84m3的气化炉装置及净化、合成、精馏、硫回收装置和全厂蒸汽管网、循环水系统，共计约7304个硬件信号点。

霍尼韦尔公司的PKS系统是以Windows2003SERVER为操作系统，包含了最新设计的混合型控制器（HybridController）、冗错以太网（FTE）、以及高级的工程工具和应用软件包。

全厂PKS系统的应用为：1、在锅炉有两台服务器，分为主从服务器（名为nm1a及nm1b），此工程师站分别控制锅炉、空分、公用工程及循环水三个工段。

2、中央控制室的工程师站有两台服务器，也分为主从服务器（名为nm2a 及nm2b），此工程师站分别控制气化、合成及罐区、硫回收三个工段。

二、一起事故及其暴露出的问题2009年12月5日，仪表车间系统维护人员和系统厂家调试人员一起进行锅炉工程师机柜间两台服务器的硬件加密狗重新插拔的工作时，按程序分别对从服务器和主服务器进行重启和备份。

结果出现DCS画面上所有数据都不动且显示为蓝色，操作工无法通过DCS系统进行任何操作，使得正在正常运行的空分装置跳车，锅炉装置紧急压火，造成了一起严重的停车事故。

通过与霍尼韦尔中国总部联系，将相关记录发给对方分析后得出如下结论：服务器通过Experion PKS Control Data Access服务从C200控制器读取数据，所有操作站以客户端的方式从服务器的SQL数据库中读取数据。

霍尼韦尔PKS项目文件备份指南

PKS项目文件备份1.备份Hosts文件在电脑C盘——Windows——System32——drivers——etc文件夹下面找到名为hosts的文件将其进行复制保存2.备份流程图打开C盘，在ProgramData——Honeywell——ExpersionPKS——Client文件夹下找到Abstract流程图文件夹，将其进行复制保存3.备份EMDB在PKS服务器电脑上打开Configuration Studio软件，选择进入SystemName,然后在右侧菜单栏中点击Administrator the system database在弹出的对话框中点击Yes随后弹出EMDB管理面板在左边菜单栏选择EMDB Admin Tasks，点击右侧的Backup Database图标进行数据备份，选择备份存储路径确定即可，然后在相应的路径下即可看到名为XXXX.bak的文件4. 备份ERDB在PKS服务器电脑上打开Configuration Studio软件，选择进入项目例如Server1,然后在右侧菜单栏中点击Administrator the control strategy database在弹出的对话框中点击Yes随后弹出ERDB管理面板在左边菜单栏选择ERDB Admin Tasks，点击右侧的Backup Database图标进行数据备份，选择备份存储路径确定即可，然后在相应的路径下即可看到名为XXXX.bak的文件5.备份Checkpoint文件打开程序组态软件，点到Monitoring在线，选择一个控制器然后右击鼠标，点击Checkpoint——Save Checkpoint Manually然后在弹出的面板中选择要进行备份的控制器并点击按钮，然后点击保存即可随后在C盘的Honeywell文件夹下找到Checkpoint的备份文件进行复制保存6.备份项目文件打开程序组态软件，点击File——Export进行项目文件导出在弹出的对话框中选择要导出的内容点击Export得到类似下图的文件7.备份QuickBuilder文件打开程序组态软件，进入SCADA组态界面，点击File——Export进行项目文件导出选择相应的文件存放路径及内容，点击确定得到类似下图的文件。

霍尼韦尔PKS210系列备份方法

2011年11月15日星期二
Honeywell Confidential and Proprietary
HMI&DSP tips
16
SCADA Points 的备份
在到C:\Program files\Honeywell \Experion PKS \Server\Data\qdb将其备份 C:\ files\ Server\Data\qdb将其备份
2011年11月15日星期二
Honeywell Confidential and Proprietary
HMI&DSP tips
1
Database backup
在当前的PKS R210系统上备份数据文件，大体上分为四个方面 • • • • 基于Windows 环境的备份 Process points 的备份 SCADA Points 的备份基于Station环境的备份
点击 OK!
这样就把内存中的实际使用的点读出来，如下图：我们进行分项Export, 首先以channel 为例。
2011年11月15日星期二
Honeywell Confidential and Proprietary
HMI&DSP tips
22
SCADA Points 的备份
二全部选中如图所示，执行Upload
没有safe view 配置station
用safe view 配置 station
2011年11月15日星期二
Honeywell Confidential and Proprietary
HMI&DSP tips
13
Process points 的备份
•
C:\ files\ Client\System\R210，将用 C:\Program files\Honeywell \Experion PKS \Client\System\R210，将用 C:\ files\ 户自定义的功能健的文件备份出来。例如： C:\Program files\Honeywell Client\System\R210\ \Experion PKS \Client\System\R210\UCR1IKB.stb

霍尼韦尔PKS系统的常见故障及处理分析

霍尼韦尔PKS系统的常见故障及处理分析作者：黄汉群来源：《科学导报·学术》2019年第10期摘要：霍尼韦尔公司研发的PKS系统是一种新型的集散控制系统，该系统能够有效提升系统稳定性，并且相对有号、简单的操作界面使得工作效率显著提升。

但KPS系统也并非完美，其在运行过程中也会出现各种问题，对工作进度造成一定影响。

对此，本文对发生于KPS 系统中的常见故障进行分析并提出处理措施，期为一线工作人员提供一定指导作用。

关键词：霍尼韦尔；PKS系统；故障处理PKS系统是基于Windows Server 2003服务器的集散控制系统，系统整体具有较强稳定性，能够有效实现操作人员、资产管理、过程控制及经营的有机结合[1] 。

PKS系统在运行过程中会出现一些常见故障，这些故障虽不会造成较大危害，但在一定程度上也会影响正常工作进度，故本文对此进行简要分析。

1 常见故障一系统中一对冗余控制器中的备用控制器出现故障，无法正常工作，当前控制系统处于单控制器运行状态。

在此情形下，若唯一处于运行中的单控制器出现故障，便会使所有控制点失控，进而导致装置停车，严重者甚至对工作人员的生命安全造成威胁。

因此，当遇到该问题时必须及时解决，将故障带来的危害降至最低。

造成该故障的原因或有以下几点：（1）控制器内部电子元器件损坏；（2）控制器底板电子元器件损坏；（3）控制器底板保险烧毁；（4）控制器底板24VCD母排电源接触不良；（5）控制系统中存在相同IP地址导致IP地址冲突而无法正常工作；（6）服务器归档数据过于庞大，导致服务器内存量在极短时间内攀升至某一临界点，导致控制器出现“死机”现象；（7）主备控制器在外力干扰下出现切换而导致主控制器出现“死机”现象；（8）操作人员非法操作故障控制器，致使故障控制器无法找到IP地址及服务器。

若该故障由上述原因导致时，需要采取相对应的处理措施：（1）更换控制器；（2）更换底板；（3）更换保险；（4）更换底板；（5）使用Ctools软件对IP地址是否产生重复进行检查；（6）重启控制器；（7）重启控制器；（8）对底板保险及元器件的接触情况、控制器螺丝紧固情况进行检查，并进行重启。

霍尼韦尔PKS系统维护及简单故障处理

二
PKS系统信号测量判断
二
PKS系统信号测量判断
三
PKS系统简单故障处理
• 1、EOD装置8块DO卡件烧毁 • 原因：MCC接线错误，导致220v电经DI继电器串入24V电源负极。（DO卡件经外部24V供电） • 2、服务器切换后无法同步 • 原因：PKS内部服务没有启动或者需同步的数据太多 • 3、PP装置AO卡件频繁切换 • 原因：现场接线松动，导致回路检测失败（负载电阻过高）。 • 4、DMTO及PP装置卡件状态灯不亮 • 原因：未知 • 5、PP装置历史趋势收集报警 • 原因：趋势类型组态错误 • 6、EO罐区IOLINK报警 • 原因：软故障
3
一
PKS系统维护
4
一
PKS系统维护
5
一
（2）station软件 1、冗余检查
PKS系统维护
6
一
（2）station软件 2、系统报警
PKS系统维护
7
一
PKS系统维护
8
一
（2）station软件 3、系统事件
PKS系统维护
9
一
PKS系统维护
10
一
PKS系统维护
11
一
PKS系统维护
12
41
三
PKS系统简单故障处理
4、服务器运行缓慢 •检查存储的文件是否达到硬盘容量的85%。由于运行时间过长，事件归档和历史趋势文件越来越大，造成硬盘空间不足。解决方法：把旧的文件移到另外一个盘里或直接刻录成 DVD光盘，最好有一个计划表，定期清理和备份这些文件，不会造成硬盘容量不足的问题。 •检查服务器硬盘是否有很多的碎片，造成服务器运行性能下降。解决方法，定期的执行磁盘碎片整理。 •服务器运行时过长，内存里很多垃圾文件，使内存运行效率不高，优化内存执行效率。 •使用任务管理器窗口，查看一些没用的程序是否占用过多的 CPU和内存资源，关掉一些跟系统没有关系的程序，尽量的使系统更加纯净。

霍尼韦尔PKS-C300硬件知识介绍

内存与存储
内存容量
霍尼韦尔pks-c300的内存容量较大，能够满足大量数据处理和多任务操作的需求。
内存类型
霍尼韦尔pks-c300采用高速的内存类型，如DDR4，能够提高系统的整体性能。
存储类型与容量
霍尼韦尔pks-c300采用高速的固态硬盘或机械硬盘，容量较大，能够满足大量数据存储的需求。
输入设备的精度和可靠性对整个系统的性能和稳定性具有重要影响。
输出设备
输出设备是用于控制和调节各种设备的设备，例如电机、阀门、加热器等。
控制器通过输出设备将控制信号转换为对被控设备的操作，从而实现系统的控制目标。
ABCD
பைடு நூலகம்
在霍尼韦尔pks-c300中，常见的输出设备包括电动执行器、气动执行器、调节阀等。
霍尼韦尔pks-c300硬件知识介绍
目录
• 霍尼韦尔pks-c300简介 • 霍尼韦尔pks-c300硬件构成 • 霍尼韦尔pks-c300性能参数 • 霍尼韦尔pks-c300安装与配置 • 霍尼韦尔pks-c300使用与维护 • 霍尼韦尔pks-c300与其他产品的比较
01 霍尼韦尔pks-c300简介
模块化设计
该控制器采用模块化设计，可根据实际需求进行灵活配置。
易于编程和调试
霍尼韦尔pks-c300支持多种编程语言和调试工具，方便用户进行编程和调试。
可靠性和安全性
该控制器具有高度的可靠性和安全性，能够保证工业自动化系统的稳定运行。
应用领域
霍尼韦尔pks-c300广泛应用于各种工业自动化领域，如制造业、电力、化工、制药等。
01
兼容性
与其他同类产品相比，霍尼韦尔pksc300具有更广泛的兼容性，可以与多种操作系统和软件集成。

如何恢复服务器B

Restoring Server B from a hardware failure or corrupted databaseThis procedure is used when you are replacing the hardware platform on Server B or performing a clean installation on Server B.AttentionIf using Experion Backup and Restore to restore Server B, refer to the ExperionBackup and Restore Guide for details.To restore server B1.Make sure that Server A is running as Primary.2.Remove Server B from the network (disconnect network cables).3.Shutdown Server B.4.Replace Server B. Do not connected network cables.5.Restore Server B, (install Windows Operating System and Experion Server software).6.Select Start > Control Panel > System and Maintenance > Administrative Tools anddouble-click Services.7.Change Startup Type of Experion PKS System Repository to Disable and then Stop theservice.8.Click OK to Stop Control Data Access service.9.Connect Server B to the network.unch Configuration Studio and connect to the server.On Process Control Strategies category, click Administer the control strategy database.11.In the ERDB Admin Tasks folder, select the Recover the Primary Database.AttentionA loss of view will be encountered on Server A during these steps.12.Click Yes to recover the database.13.Click OK to acknowledge that the recovery is complete.14.Select Enable Replication to start the ERDB replication15.Close the DBAdmin window.16.Click Yes to enable replication.This may take a while, depending on the size of the database.17.Click OK to acknowledge the replication successful message.If the server pair is host to an EMDB, perform steps 18 through 25. If no EMDB is present on the servers, go to step 26.18.In Configuration Studio, connect to the appropriate system.On System Tasks category, click Administer the system database.19.In the EMDB Admin Tasks folder, select the Recover the Primary Database.20.Click Yes to recover the database21.Click OK to acknowledge that the recovery is complete.22.Select Enable Replication to start the EMDB replication.23.Close the DBAdmin window.24.Click Yes to enable replication.This may take a while, depending on the size of the database.25.Click OK to acknowledge the replication successful message.26.On Server B, bring the real time System Repository database into synchronization with ServerA as follows:a.Select Start > Control Panel > System and Security > Administrative Tools anddouble-click Services.b.Change Startup Type of Experion PKS System Repository to Automatic and then Startthe service.c.Start Control Data Access serviced.Close Services.。

Honeywell_PKS系统维护手册

Honeywell_PKS系统维护手册Honeywell PKS系统维护手册第一章日常维护第二章卡件更换第三章控制器第四章 I/O卡件第五章电源第六章颜色代码第七章常见故障第八章常用缩写系统使用维护DCS系统是由系统软、硬件，操作台盘及现场仪表组成的。

系统中任一环节出现问题，均会导致系统部分功能失效或引发控制系统故障，严重时会导致生产停车。

因此，要把构成控制系统的所有设备看成一个整体，进行全面维护管理。

1.1日常维护1.1.1机柜室管理应加强机柜室人员和设备管理。

为保证系统运行在适当条件下，请遵守以下各项：1）密封所有可能引入灰尘、潮气和鼠害或其它有害昆虫的走线孔（坑）等；2）保证空调设备稳定运行，保证室温变化小于+5℃/h，避免由于温度、湿度急剧变化导致在系统设备上的凝露；3）现场与控制室合理隔离，避免现场灰尘进入控制室，同时控制室定时清扫，保持清洁。

4）进入机房、工程师室作业人员严格遵守各项规章制度，进出须换鞋或带鞋套，不得将污物、食品、饮料等带入机房；爱护机房、工程师室内设备，保持机房、工程师室整洁；进入机柜间应关闭手机。

5）过程控制计算机机柜间内禁止使用无线对讲设备。

6）技术组全面负责过程控制计算机的管理，各班组负责过程控制计算机机房、工程师室的日常卫生和日常维护工作。

工程师室内计算机及网络设备的维修由技术组成员负责，班组配合。

技术组成员在维修完设备后应做好设备规格化工作。

7）日光灯完好、灭火器按期检查、室内卫生整洁、操作台（柜）、主机外部、显示器、打印机等卫生清洁、打印机不缺纸、机柜内设备如机柜过滤网清洁、风扇完好，电话机、其他未明确但属于共有的设备等完好。

8）布线层的槽盒盖可以不盖，但应根据规格大小整洁地放置在地面上。

布线层墙壁、电缆进线口应密封，无人时，电灯只保留一组常亮。

9）室内施工管理：本班的设备施工作业由本班完成，外委作业时由本班派人监护（包括分析、检修等工作涉及更改电源时）。

DCS系统霍尼韦尔PKS操作

6) 登录到操作站：了解所使用安全级别的类型：
操作站支持两种安全类型。
基于操作员的安全类型：若你在使用操作站时需要输入用户名和口令或你使用的操作站的用户名、口令与
Windows 的用户名、口令一致，这样，你的安全类型就是基于操作员的。
基于操作站的安全类型：若你在使用操作站时不需要输入用户名和口令，这样，你的安全类型就是基于操
典型的系统画面
流程画面
3) 操作站的类型：有以下几种类型的操作站：操作站类型 Flex Station Console Station 描述此类操作站直接与 Experion PKS 服务器相连。此类操作站可与 Experion PKS 服务器相连也可直接和控制器相连，这样即使服务器不可用， Console Station 仍然可以监控工艺过程。 Console Station Extension 此类操作站直接与 Console Station 相连。
怎样更改口令:
1. 2. 3. 4.
在 Command 中键入 chgpsw ，然后按 ENTER，立即打开口令修改对话框。键入旧的口令后，按 TAB 键。键入新口令，按 TAB 键。重新键入新口令，点击 OK。
怎样 Logging off
12.1.2 网络主要节点说明 1）Station———操作站,人机操作接口功能： � 操作站完成工艺参数的监控，其本身是一基于 WINDOWS 2000 的计算机。DCS 的操作窗口嵌入到 WINDOWS 2000 平台下工作。WINDOWS 2000 的环境设置将影响 DCS 的操作窗口的运行，操作人员不允许改变 Windows，以免造成系统崩溃！操作站另一作用是完成控制系统的组态，由仪表工程师使用专用组态软件完成。

Honeywell PKS DCS系统介绍

现场巡检自动化 IntelaTrac PKS
常规、逻辑、顺序及模型控制
C300/C200 & Profit Loop
冗余和/或远程 I/O
现场移动终端 Mobile PKS
本地控制网
SIL3 安全系统 Safety Manager
无线变送器
过程管理器
基本控制器
XYR5000TM
TPS/TDC3000投资保护
• 每个节点必须有FTE 软件许可证，和双口网卡。 • 交换机
典型光缆--最长2km
主干交换机
族交换机
CAT5 网线–最长100m 长距离可用光缆转换器延伸
FTE节点
FTE节点
FTE软件双网卡
FTE节点 FTE节点以太网节点
21
FTE网络特点总结
¾ 通过系统软件驱动及CISCO交换软件实现工业生产的实时确定性控制，解决了工业以太网长时间困扰的实时数据没有优先级选择的问题 ¾ 以多路由选择逻辑单网的组网方式代替了双网结构，实现了多路由选择、最优路径选择和交换机快速切换。
9
什么是容错以太网（Fault Tolerant Ethernet）（一）
¾ 容错以太网（FTE）是Experion PKS的控制网络，FTE不但提供了容错的特点，也提供了快速网络的相应，及工业以太网的控制应用的安全性。 ¾ 容错以太网（FTE）是冗余网络结构（物理）的单网（逻辑），这种冗余的结构是通过Honeywell的FTE驱动，及商用的网络设备实现的。
24
12
Helping You Manage Your World

25
Experion PKS™ 系统结构工厂数据库 UniformancePHD

霍尼韦尔——Experion PKS Orion解决方案

件、技术、指导及最佳实践、培训及服务
支持。除此之外，霍尼韦尔还宣布Ｅｐｒｎｘｅｉｏ
用性等方式极大地降低了系统生命周期管理成本，最高可达到３％。０
ＥｐｒｎＰｉｎ决方案的其ｘｅｉＫＳＯｒ解ｏｏ他主要特点包括增强型Ｅｐｒｎ量管ｘｅｉ批ｏ理器。这是最快、最智能的批量管理解决方案，可以通过在冗余的控制器中实
诊断功能。
个或多个环路之间实现最长的运行时间。
・
囊ｕｌｌ一！ ■ ：一０ ■０曩藤－ｌｌｌ。一
端口安全功能一允许用户输人
红狮
—
可以访问交换机的ＭＡＣ址，从而通过地限制访问权限来提高安全度。
图尔克Ｂ２冗余电源Ｌ０
近日，图尔克将推出Ｂ２０系统Ｌ０Ｉ／的冗余电源概念。这款冗余电源可以在不
ＸＶＲ１５和ＸＣ支持四核ＩｔｌｏｅＲ１５除ｎｅＣｒｉ— ６５处理器外，还可支持双核Ｉｔｌ７３１ＱＥｎｅ
控工具结合起来，在适应恶劣的环境的同７０型交换机可以支持多达２个９０４
１／０以及２附加吉比特以太网端口，０１０个通过其模块式平台提供多个灵活的光纤／铜线端口选件。该产品具有便捷的配置和监控工具，其中包括一个命令行界面、网络浏览器或ＮＴｏ的ＮＶｉＰ软件，－ｒｎ — ｅＯＣｗ这些配置可以帮助客户实现无缝化的管理

霍尼韦尔(honeywell_pks)详细操作详解(含大量实操图)

1、容错以太网是PKS的控制网络，FTE不但提供了容错的特点，也提供了快速网络的相应，及工业以太网的控制应用的安全性。

FTE（Fault Tolerant Etherent）容错以太网，是冗余网络结构的单网，通过Honeywell的FTE驱动，及商用的网络设备实现的。

FTE网络包括冗余的交换机和电缆。

拓扑：双重并行树形网络在顶部接在一起。

2、交换机之间的级联线（cross link）构成单网。

商用的网络设备指交换机、双口单网卡或单口双网卡。

FTE网络通讯检测画面检测画面启动3、系统必须有控制器、服务器、操作站组成。

4、FTE网络包括冗余交换机和电缆。

树网：连接到A交换机上A口形成的网叫A网（Yellow tree）。

连接到B交换机上B口形成的网叫B网（Green tree）。

Localhost 接收数据节点。

FLEX操作站（F站）：过程数据及相关的报警和事件，还有其他数据信息，直接来自服务器；组态ES-F两种连接方法：固定连接方法（Static）：提供了特定ES-F的一种永久性专用连接。

轮替连接方法（Rotary）：提供了一种按需的连接，适用不需要全日制操作访问时。

Console操作站（C站）：过程数据及相关的报警和事件，直接来自于控制器；其他数据信息来自于服务器；Console Extension操作站（CE）：过程数据及相关的报警和事件，还有其他数据信息，全部信息都来自与C站。

7、一个C300控制器带有两个IOLINK，每个IOLINK最多支持40个IO卡件，而一个控制器最多支持64个IO卡件。

每套C300控制器最多支持64个IO Units（IOU）。

C300控制器必须与控制防火墙连接。

C300控制器主控制器FTE地址设定奇数，备用控制器地址为主控制器的地址+1。

Control Firewall（CF9）控制防火墙：在FTE网络中是成对出现的，8+1口，其中有一个专门的网线路口用于向上连接交换机，其余的8个网口可以连接控制器。

霍尼韦尔PKS系统--如何恢复服务器B

PKS系统数据的备份

PKS系统数据的备份虽然在我们使用PKS系统的过程中使用了一些工具（如：ghost）来帮助我们备份和恢复系统，但我们还是有必要了解对系统的一些重要数据的备份。

一、Server数据的备份1、Experion PKS server database所在目录：c:\Program Files\Honeywell\Experion PKS\server\data2、Enterprise Model database (EMDB)所在目录：c:\Program Files\Honeywell\Experion PKS\Engineering Tools\system\er 3、Engineering Repository (ERDB)所在目录：c:\Program Files\Honeywell\Experion PKS\Engineering Tools\system\er 4、Quick Builder database所在目录：c:\Program Files\Honeywell\Experion PKS\server\data\qdb5、Events database所在目录：c:\Program Files\Honeywell\Experion PKS\server\evtarch6、History archive files (default folder)所在目录：c:\Program Files\Honeywell\Experion PKS\server\archive7、Custom files所在目录：c:\Program Files\Honeywell\Experion PKS\server\user8、Custom applications所在目录：c:\Program Files\Honeywell\Experion PKS\server\user\applic\src9、Report output files所在目录：c:\Program Files\Honeywell\Experion PKS\server\report10、Custom displays所在目录：c:\Program Files\Honeywell\Experion PKS\client\abstract11、BOOTPDATA.TXT所在目录：c:\Program Files\Honeywell\Experion PKS\Engineering Tools\system\bin 12、RSLinx configuration information所在目录：Use the RSLinx backup utility.打开Start>Programs>Rockwell Software>RSLinx>Backup Restore Utility 然后操作备份。

PKS操作站蓝屏快速恢复安装

PKS操作站蓝屏快速恢复安装发布时间：2021-03-15T11:57:08.617Z 来源：《科学与技术》2020年10月30期作者：李晓辉郭金强[导读] 大庆炼化公司润滑油联合装置的控制系统在2013年由TDC3000升级到PKS系统李晓辉郭金强大庆炼化公司电仪运行中心仪表炼油作业区黑龙江大庆 163411摘要：大庆炼化公司润滑油联合装置的控制系统在2013年由TDC3000升级到PKS系统，在近几年的维护中，一个比较典型的故障是操作站硬盘死机蓝屏，这就需要对操作站的系统重新安装恢复。

本文主要针对快速恢复安装Console站的过程做了分析和讲解。

关键词：PKS；C站系统恢复；GHOST ；解绑定0 引言大庆炼化公司炼油生产三部原有4套生产装置，2013年将霍尼韦尔的TPS系统升级为PKS系统，软件版本R410.1。

这4套生产装置的控制系统位于润滑油厂联合主控室内，共设置15台Console操作站。

1 PKS系统及其Console操作站的主要特点Experion PKS新一代的过程自动化系统，集成了过程控制、资产管理功能，融合当今最先进的控制、各种开放的工业标准、最新的计算机网络等技术，将过程控制和安全系统集成为一个单一且统一的结构。

PKS将过程控制网络分成三个层次，负责直接过程控制的节点（比如控制器和现场总线接口模块）连接到第一层。

Experion服务器、Console操作站和ACE节点连接到第二层。

域控制器、厂房级优化器、DSA关联的Experion服务器以及PHD历史记录器连接到第三层。

Console操作站（C站）用于过程数据的监控与操作。

内部有RTDB数据库，但这种数据库只存储过程数据库，只有过程数据来自控制器，其它数据均来自服务器。

其优点是如果服务器故障可继续监控过程数据。

2 操作站死机蓝屏分析在近三年的维护中，出现比较多也比较典型的故障是Console操作站死机蓝屏。

通常情况下Console操作站死机，重新启动或重新安装系统后可以继续使用正常运行。

1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。

系统备份及恢复
推荐的系统备份策略。

系统需要备份的内容:
•ERDB ( 系统的控制组态内容): c:\Program files\Honeywell\Experion PKS\Engineering Tools\System\Er
•Server 实时数据库(操作组态内容): C:\ Program files\Honeywell\ Experion PKS\Server\Data
•操作流程图(包括子图): 用户自定
•Station 设置文件: C:\ Program files \Honeywell\ Experion
PKS\Client\Station\*.stn \system\R**\*.stb
•QB 设置文件: 用户自定义目录
•报表文件(自由格式报表或Excel报表) : 用户自定义目录
•事件或历史数据文件及归档文件(可选择备份或不备): C: \Program files \honeywell\ Experion PKS\Server\Archive
•用户自定义文件: 用户自定义目录
1系统备份介质
建议: 移动硬盘/ 刻录光盘/ 磁带/ 远程网络计算机硬盘
1.1ERDB备份(主Server：ServerB)
●Upload and Update
•Dbadmin – Backup Database 生成主*.bak 文件
•Control Builder—File-Export生成project备份文件.
•Snapshot/Checkpoint files — C:\Honeywell\Engineering
Tools\System\ER\CPM***.snapshot
将以上生成的三类文件拷贝到备份目标盘er目录下.
1.2 Server 数据库(Server同步情况下, 只需备份一个Server)
●C:\Program files\Honeywell\Experion PKS\Server\Data 目录到备份目标
盘。

（不一定能直接copy, 与后台Service有关）。

●bckbld–out filename –tag cda / backup function.(使用pntbld filename恢
复组态内容)
1.3 操作流程图(包括子图)
操作流程图(包括子图)备份到目标盘.
1.5 Station 设置文件(两台Server分别备份,并作标记)
C:\Honeywell\Client\Station\*.stn 拷贝到备份目标盘station目录下
1.6QB 设置文件(备份正式使用的那份文件)
用户自定义目录下*.qdb 文件拷贝到备份目标盘qckbld目录下.
1.7 报表文件(自由格式报表或Excel报表) : C:\Honeywell\Server\Report 下自由
格式报表或用户Excel 报表文件拷贝到备份目标盘Report目录下
1.8事件及历史数据文件和归档文件(可选择备份或不备):
C:\honeywell\Server\data ，Archive 和evtarchive目录拷贝到备份目标盘Archive 目录下.
1.9 用户自定义文件备份到目标盘
2 使用备份恢复系统（适用于冗余Server）
2.1 ServerA 系统恢复(ServerB 工作正常情况下)
•ServerA 重新安装操作系统和PKS软件
•设置Servera与Serverb冗余
•使ServerA 处于Backup 状态
•在Station中(非ServerA station)作Server同步, 恢复Server实时数据库
•在ServerB中Dbadmin--Recover Secondary Database
•ServerB中的流程图拷贝到ServerA响应目录下
•备份盘中ServerA的Station目录下*.stn文件拷贝回ServerA中: C:\Honeywell\Client\Station 目录覆盖同名文件.
•备份盘中ServerA的qckbld目录中*.qdb文件恢复到ServerA相应目录中•报表文件文件恢复到ServerA相应目录中
•历史数据文件从ServerB C:\honeywell\Server\Archive 目录拷贝到ServerA相应Archive目录下.
2.2 ServerB 系统恢复(ServerA 工作正常情况下)
•ServerB 重新安装操作系统和PKS软件
•设置ServerB和ServerA冗余
•使ServerB PKS Server处于Backup 状态
•在Station(非ServerB station) 中作Server同步, 恢复Server实时数据库
•在ServerB中Dbadmin—Recover Primary Database
•ServerA中的流程图拷贝到ServerB相应目录下
•备份盘中ServerB的Station目录下*.stn文件拷贝回ServerB中: C:\Honeywell\Client\Station 目录覆盖同名文件.
•备份盘中ServerB的qckbld目录中*.qdb文件恢复到ServerB相应目录中•报表文件文件恢复到ServerB相应目录中
•历史数据文件从ServerA C:\honeywell\Server\Archive 目录拷贝到ServerB相应Archive目录下.
2.3 ServerA / ServerB 完全恢复(Controller 工作正常)
•ServerA/ServerB 重新安装操作系统和PKS软件
•设置ServerA和ServerB冗余
•在ServerB中, 使用备份盘中的ERDB的备份文件.bak(使用Dbadmin—backup database生成) 在Dbadmin 中使用Restore Database恢复主ERDB数据库.
•备份盘中的流程图拷贝到ServerB相应目录下
•备份盘中ServerB的Station目录下*.stn文件拷贝回ServerB中: C:\Honeywell\Client\Station 目录覆盖同名文件.
•备份盘中ServerB的qckbld目录中*.qdb文件恢复到ServerB相应目录中•报表文件文件恢复到ServerB相应目录中
•历史数据文件从ServerA C:\honeywell\Server\Archive 目录拷贝到ServerB相应Archive目录下.
•Controll Builder 中Load Server Point.后者pntbld 命令建立实时数据库。

•测试ServerB 功能
•当ServerB功能正常时, 使用4.2.1中步骤恢复ServerA。
