串口调试助手代码分析42
C语言串口通信助手代码
该程序全部由C写成没有C++ 更没用MFC完全是自娱自乐给需要的人一个参考#include "stdafx.h"#include <windowsx.h>#include "resource.h"#include "MainDlg.h"#include <windows.h>#include <stdio.h>#include <stdlib.h>HANDLE hComm;//用于获取串口打开函数的返回值（句柄或错误值）OVERLAPPED m_ov;COMSTAT comstat;DWORD m_dwCommEvents;TCHAR cRecs[200],cSends[100]; //接收字符串发送字符串char j=0,*cCom; //接收用统计数据大小变量端口选择BOOL WINAPI Main_Proc(HWND hWnd, UINT uMsg, WPARAM wParam, LPARAM lParam){switch(uMsg){HANDLE_MSG(hWnd, WM_INITDIALOG, Main_OnInitDialog); HANDLE_MSG(hWnd, WM_COMMAND, Main_OnCommand); HANDLE_MSG(hWnd,WM_CLOSE, Main_OnClose);}return FALSE;}/*系统初始化函数*/BOOL Main_OnInitDialog(HWND hwnd, HWND hwndFocus, LPARAM lParam){HWND hwndCombo1=GetDlgItem(hwnd,IDC_COMBO1);ComboBox_InsertString(hwndCombo1,-1,TEXT("COM1"));ComboBox_InsertString(hwndCombo1,-1,TEXT("COM2"));ComboBox_InsertString(hwndCombo1,-1,TEXT("COM3"));ComboBox_InsertString(hwndCombo1,-1,TEXT("COM4"));ComboBox_InsertString(hwndCombo1,-1,TEXT("COM5"));ComboBox_SetCurSel(hwndCombo1,0);void CALLBACK TimerProc (HWND hwnd, UINT message, UINT iTimerID, DWORD dwTime);SetTimer(hwnd,1,1000,TimerProc);return TRUE;}/*监视串口错误时使用的函数*/boolProcessErrorMessage(char* ErrorText){char *Temp = new char[200];LPVOID lpMsgBuf;FormatMessage(FORMAT_MESSAGE_ALLOCATE_BUFFER |FORMAT_MESSAGE_FROM_SYSTEM,NULL,GetLastError(),MAKELANGID(LANG_NEUTRAL, SUBLANG_DEFAULT), // Default language(LPTSTR) &lpMsgBuf,NULL);sprintf(Temp, "WARNING: %s Failed with the following error:\n%s\nPort: %d\n", (char*)ErrorText, lpMsgBuf, "com2"); MessageBox(NULL, Temp, "Application Error", MB_ICONSTOP); LocalFree(lpMsgBuf);delete[] Temp;return true;}boolopenport(char *portname)//打开串口{hComm = CreateFile(portname, //串口号“com1”“com2” 调用方法：bool open; open=openport("com2");GENERIC_READ | GENERIC_WRITE, //允许读写0, //通讯设备必须以独占方式打开0, //无安全属性OPEN_EXISTING, //通讯设备已存在FILE_FLAG_OVERLAPPED, //异步I/O0); //通讯设备不能用模板打开if (hComm == INVALID_HANDLE_VALUE) //如果被占用或是没有打开时返回的是这个错误代码CloseHandle(hComm);return FALSE;}elsereturn true;}boolsetupdcb(intrate_arg)//设置port的属性{DCB dcb;int rate= rate_arg;memset(&dcb,0,sizeof(dcb));if(!GetCommState(hComm,&dcb))//获取当前DCB配置return FALSE;// set DCB to configure the serial portdcb.DCBlength = sizeof(dcb);dcb.BaudRate = rate;dcb.Parity = NOPARITY; //奇偶校验值0~4分别对应无校验、奇校验、偶校验、校验置位、校验清零dcb.fParity = 0; //为1的话激活奇偶校验检查dcb.StopBits = ONESTOPBIT;//停止位个数，0~2分别对应1位、1.5位、2位停止位dcb.ByteSize = 8; //数据位数dcb.fOutxCtsFlow = 0;dcb.fOutxDsrFlow = 0;dcb.fDtrControl = DTR_CONTROL_DISABLE; dcb.fDsrSensitivity = 0;dcb.fRtsControl = RTS_CONTROL_DISABLE; dcb.fOutX = 0;dcb.fInX = 0;dcb.fErrorChar = 0;dcb.fBinary = 1;dcb.fNull = 0;dcb.fAbortOnError = 0;dcb.wReserved = 0;dcb.XonLim = 2;dcb.XoffLim = 4;dcb.XonChar = 0x13;dcb.XoffChar = 0x19;dcb.EvtChar = 0;// set DCBif(!SetCommState(hComm,&dcb))return false;elsereturn true;}/*串口读取相关时间设置*/boolsetuptimeout(DWORDReadInterval,DWORDReadTotalMultiplier,DWORDReadTotalconstant,DW ORDWriteTotalMultiplier,DWORDWriteTotalconstant){COMMTIMEOUTS timeouts;timeouts.ReadIntervalTimeout=ReadInterval; //读取两个字节间隔最大值mS如超过立即返回不再读取timeouts.ReadTotalTimeoutConstant=ReadTotalconstant; //如果同下面一个都为0 则无论是否读到数据都返回// 可以毫秒为单位指定一个乘数，该乘数用来计算读操作的总限时时间timeouts.ReadTotalTimeoutMultiplier=ReadTotalMultiplier; // 以毫秒为单位指定一个常数，用于计算读操作的总限时时间0表示不限时timeouts.WriteTotalTimeoutConstant=WriteTotalconstant;// 写操作延时同上timeouts.WriteTotalTimeoutMultiplier=WriteTotalMultiplier;if(!SetCommTimeouts(hComm, &timeouts))return false;elsereturn true;}intClearn() //清除buff中的内容并返回buff中现有数据量的大小并读取错误原因{DWORD dwError = 0;DWORD BytesRead = 0;ClearCommError(hComm, &dwError, &comstat);return comstat.cbInQue; //返回buff中数据量}/*串口数据接收读取函数*/void ReceiveChar(){BOOL bRead = TRUE;BOOL bResult = TRUE;DWORD dwError = 0;DWORD BytesRead = 0;char i=0,n;char RXBuff;j=0;while (i-n){n=i;Sleep(10);bResult = ClearCommError(hComm, &dwError, &comstat); i=(char)comstat.cbInQue;for (;i>0;i--){if (bRead)bResult = ReadFile(hComm, // Handle to COMM port &RXBuff, // RX Buffer Pointer1, // Read one byte&BytesRead, // Stores number of bytes read&m_ov); // pointer to the m_ov structure// printf("%c",RXBuff);cRecs[j++]=(char)RXBuff;if (!bResult){switch (dwError = GetLastError()){case ERROR_IO_PENDING:{bRead = FALSE;break;}default: break;}elsebRead = TRUE; // close if (bRead)if (!bRead){bRead = TRUE;bResult = GetOverlappedResult(hComm, // Handle to COMM port&m_ov, // Overlapped structure&BytesRead, // Stores number of bytes readTRUE); // Wait flag}}}boolWriteChar(char* m_szWriteBuffer,DWORDm_nToSend) //写字符的函数{BOOL bWrite = TRUE;BOOL bResult = TRUE;DWORD BytesSent = 0;HANDLE m_hWriteEvent;ResetEvent(m_hWriteEvent);if (bWrite){m_ov.Offset = 0;m_ov.OffsetHigh = 0;// Clear bufferbResult = WriteFile(hComm, // Handle to COMM Portm_szWriteBuffer, // Pointer to message buffer in calling finction m_nToSend, // Length of message to send&BytesSent, // Where to store the number of bytes sent&m_ov ); // Overlapped structureif (!bResult){DWORD dwError = GetLastError();switch (dwError){case ERROR_IO_PENDING:{// continue to GetOverlappedResults()BytesSent = 0;bWrite = FALSE;break;}default:// all other error codesbreak;}}} // end if(bWrite)if (!bWrite){bWrite = TRUE;bResult = GetOverlappedResult(hComm, // Handle to COMM port &m_ov, // Overlapped structure&BytesSent, // Stores number of bytes sentTRUE); // Wait flag// deal with the error codeif (!bResult){printf("GetOverlappedResults() in WriteFile()");}} // end if (!bWrite)// Verify that the data size send equals what we tried to send if (BytesSent != m_nToSend){printf("WARNING: WriteFile() error.. Bytes Sent: %d; Message Length: %d\n", BytesSent, strlen((char*)m_szWriteBuffer));}return true;}/*window时间函数回调*/void CALLBACK TimerProc (HWND hwnd, UINT message, UINT iTimerID, DWORD dwTime){SYSTEMTIME time; //定义机构体变量timeGetLocalTime(&time); //取系统时间以指针方式TCHAR strTime[256]; //程序只有一个作用wsprintf(strTime,"%04d-%02d-%02d %02d:%02d:%02d",time.wYear, //就是读取系统时间time.wMonth,time.wDay,time.wHour,time.wMinute,time.wSecond);//然后写进strTimeSetDlgItemText(hwnd,IDC_TIME,strTime); //这个字符串}void Main_OnCommand(HWND hwnd, int id, HWND hwndCtl, UINT codeNotify){switch(id){case IDC_SEND:{GetDlgItemText (hwnd,IDC_EDIT2,cSends,sizeof(cSends)); unsigned n=sizeof(cSends); //n是通知串口将发送字节的长度char send[100];wsprintf (send,"%s",cSends);WriteChar(send,n-1);SetCommMask(hComm, EV_RXCHAR); //监视串口是否接收有数据ReceiveChar(); //读取串口sbuff中数据cRecs[j]='\0'; //将cRecs转为字符串SetDlgItemText(hwnd,IDC_EDIT1,cRecs);} break;/*case IDC_RECEIVE: //暂时未用采用直接显示的方式{}break;*/case IDC_CHECK:{intctr;HWND hwndCombo1=GetDlgItem(hwnd,IDC_COMBO1);ctr = ComboBox_GetCurSel(hwndCombo1);switch (ctr){case 0:cCom="com1";break;case 1:cCom="com2";break;case 2:cCom="com3";break;case 3:cCom="com4";break;case 4:cCom="com5";break;default: cCom="com1";break;}if (openport(cCom)){ SetDlgItemText(hwnd,IDC_EDIT3,"OK !");MessageBox(hwnd,"串口打开成功！","",0); }elseSetDlgItemText(hwnd,IDC_EDIT3,"FAIL");if(setupdcb(9600)&&setuptimeout(1024,0,0,20,1000)) //初始化串口属性波特率9600SetDlgItemText(hwnd,IDC_EDIT4,"串口属性设置成功");elseSetDlgItemText(hwnd,IDC_EDIT4,"串口初始化失败！"); PurgeComm(hComm, PURGE_RXCLEAR | PURGE_TXCLEAR |PURGE_RXABORT | PURGE_TXABORT);}default:break;}}void Main_OnClose(HWND hwnd) {EndDialog(hwnd, 0);}。

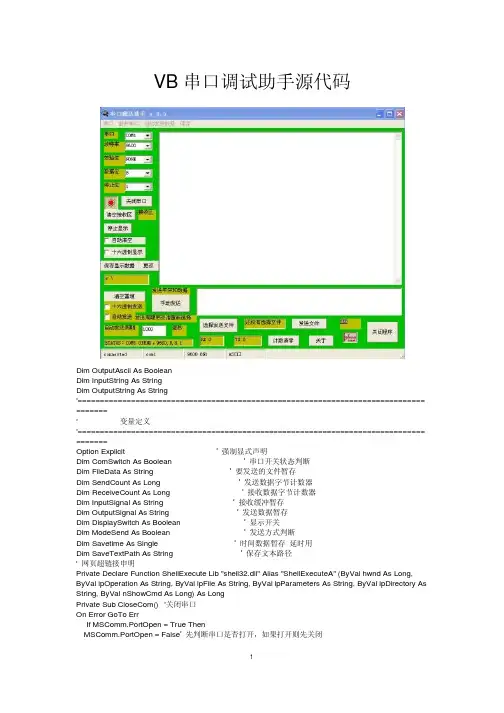

VB串口调试助手源代码
VB串口调试助手源代码Dim OutputAscii As BooleanDim InputString As StringDim OutputString As String'============================================================================== =======' 变量定义'============================================================================== =======Option Explicit ’强制显式声明Dim ComSwitch As Boolean ’串口开关状态判断Dim FileData As String ’要发送的文件暂存Dim SendCount As Long ’发送数据字节计数器Dim ReceiveCount As Long ’接收数据字节计数器Dim InputSignal As String ’接收缓冲暂存Dim OutputSignal As String ’发送数据暂存Dim DisplaySwitch As Boolean ’显示开关Dim ModeSend As Boolean ’发送方式判断Dim Savetime As Single ’时间数据暂存延时用Dim SaveTextPath As String ’保存文本路径' 网页超链接申明Private Declare Function ShellExecute Lib "shell32.dll" Alias "ShellExecuteA" (ByVal hwnd As Long, ByVal lpOperation As String, ByVal lpFile As String, ByVal lpParameters As String, ByVal lpDirectory As String, ByVal nShowCmd As Long) As LongPrivate Sub CloseCom() '关闭串口On Error GoTo ErrIf MSComm.PortOpen = True ThenMSComm.PortOpen = False’先判断串口是否打开，如果打开则先关闭txtstatus.Text = "STATUS：COM Port Cloced" ’串口状态显示mnuconnect.Caption = "断开串口"cmdswitch.Caption = "打开串口"'ImgSwitch.Picture = LoadPicture("f:\我的VB\串口调试软件\图片\guan.jpg") ' 显示串口已经关闭的图标ImgSwitchoff.Visible = TrueImgSwitchon.Visible = FalseErr:End SubPrivate Sub UpdateStatus()If MSComm.PortOpen ThenStatusBar1.Panels(1).Text = "Connected"mnuautosend.Caption = "自动发送"mnuconnect.Caption = "断开串口"ElseStatusBar1.Panels(1).Text = "断开串口"mnuautosend.Caption = "disautosend"mnuconnect.Caption = "打开串口"End IfStatusBar1.Panels(2).Text = "COM" & mPortStatusBar1.Panels(3).Text = MSComm.SettingsIf (OutputAscii) ThenStatusBar1.Panels(4) = "ASCII"ElseStatusBar1.Panels(4) = "HEX"End If'On Error GoTo ErrIf ChkAutoSend.Value = 1 Then ’如果有效则，自动发送If MSComm.PortOpen = True Then ’串口状态判断mnuautosend.Caption = "Dis&autosend"TmrAutoSend.Interval = Val(TxtAutoSendTime) ’设置自动发送时间TmrAutoSend.Enabled = True ’打开自动发送定时器Elsemnuautosend.Caption = "autosend"ChkAutoSend.Value = 0 ’串口没有打开去掉自动发送MsgBox "串口没有打开，请打开串口", 48, "串口调试助手" ' 如果串口没有被打开，提示打开串口End IfElseIf ChkAutoSend.Value = 0 Then ’如果无效，不发送mnuautosend.Caption = "autosend"TmrAutoSend.Enabled = False ’关闭自动发送定时器End IfErr:End SubPrivate Sub CmdSendFile_Click() '发送文件On Error GoTo ErrIf MSComm.PortOpen = True Then ’如果串口打开了，则可以发送数据If FileData = "" Then ’判断发送数据是否为空MsgBox "发送的文件为空", 16, "串口调试助手" ’发送数据为空则提示ElseIf ChkHexReceive.Value = 1 Then ’如果按十六进制接收时，按二进制发送，否则按文本发送MSComm.InputMode = comInputModeBinary ’二进制发送ElseMSComm.InputMode = comInputModeText ’文本发送End IfMSComm.Output = Trim(FileData) ’发送数据ModeSend = True ’设置文本发送方式End IfElseMsgBox "串口没有打开，请打开串口", 48, "串口调试助手" ' 如果串口没有被打开，提示打开串口End IfErr:End SubPrivate Sub Comm_initial(Port As Byte, BaudRate As String, ParityBit As String, DataBit As Integer, StopBit As Integer)On Error GoTo ErrorTrap ' 错误则跳往错误处理If MSComm.PortOpen = True Then MSComm.PortOpen = False’先判断串口是否打开，如果打开则先关闭mPort = Port ’设定端口MSComm.Settings = BaudRate & "," & ParityBit & "," & DataBit & "," & StopBit ' 设置波特率，无校验，8位数据位，1位停止位MSComm.InBufferSize = 1024 ’设置接收缓冲区为1024字节MSComm.OutBufferSize = 4096 ’设置发送缓冲区为4096字节MSComm.InBufferCount = 0 ’清空输入缓冲区MSComm.OutBufferCount = 0 ’清空输出缓冲区MSComm.SThreshold = 1 ’发送缓冲区空触发发送事件MSComm.RThreshold = 1 ’每X个字符到接收缓冲区引起触发接收事件MSComm.OutBufferCount = 0 ’清空发送缓冲区MSComm.InBufferCount = 0 ’滑空接收缓冲MSComm.PortOpen = True ’打开串口If MSComm.PortOpen = True Thentxtstatus.Text = "STATUS：" & cbocom.Text & " OPEND，" & cbobaudrate.Text & "," &Left(cboparitybit.Text, 1) & "," & cbodatabit.Text & "," & cbostopbit.TextElsetxtstatus.Text = "STATUS：COM Port Cloced" ’串口没打开时，提示串口关闭状态End IfExit SubErrorTrap: ’错误处理Select Case Err.NumberCase comPortAlreadyOpen ’如果串口已经打开，则提示MsgBox "没有发现此串口或被占用", 49, "串口调试助手"CloseComCase ElseMsgBox "没有发现此串口或被占用", 49, "串口调试助手"CloseComEnd SelectErr.ClearEnd SubPrivate Sub Comm_reSet(Port As Byte, BaudRate As String, ParityBit As String, DataBit As Integer, StopBit As Integer)On Error GoTo ErrorHint ’错误则跳往错误处理If MSComm.PortOpen = True Then MSComm.PortOpen = False’先判断串口是否打开，如果打开则先关闭mPort = Port ’设定端口MSComm.Settings = BaudRate & "," & ParityBit & "," & DataBit & "," & StopBit ' 设置波特率，无校验，8位数据位，1位停止位MSComm.PortOpen = True ’打开串口If MSComm.PortOpen = True Thencmdswitch.Caption = "关闭串口"'ImgSwitch.Picture = LoadPicture("f:\我的VB\串口调试软件\图片\kai.jpg") ' 显示串口已经打开的图标ImgSwitchoff.Visible = Falsemnuconnect.Caption = "disconnect"ImgSwitchon.Visible = Truetxtstatus.Text = "STATUS：" & cbocom.Text & " OPEND，" & cbobaudrate.Text & "," &Left(cboparitybit.Text, 1) & "," & cbodatabit.Text & "," & cbostopbit.TextElsecmdswitch.Caption = "打开串口"'ImgSwitch.Picture = LoadPicture("f:\我的VB\串口调试软件\图片\guan.jpg") ' 显示串口已经关闭的图标ImgSwitchon.Visible = FalseImgSwitchoff.Visible = Truetxtstatus.Text = "STATUS：COM Port Cloced"End IfExit SubErrorHint: ’错误处理Select Case Err.NumberCase comPortAlreadyOpen ’如果串口已经打开，则提示MsgBox "没有成功，请重试", vbExclamation, "串口调试助手"CloseCom ’调用关闭串口函数Case ElseMsgBox "没有成功，请重试", vbExclamation, "串口调试助手"CloseCom ’调用关闭串口函数End SelectErr.Clear ’清除Err 对象的属性End SubPrivate Sub Command1_Click()End SubPrivate Sub cbobaudrate_Change()Call Comm_reSet(Val(Mid(cbocom.Text, 4, 2)), cbobaudrate.Text, Left(cboparitybit.Text, 1), cbodatabit.Text, cbostopbit.Text) '串口设置End SubPrivate Sub cbocom_Change()Call Comm_reSet(Val(Mid(cbocom.Text, 4, 2)), cbobaudrate.Text, Left(cboparitybit.Text, 1), cbodatabit.Text, cbostopbit.Text) '串口设置End SubPrivate Sub cbodatabit_Change()Call Comm_reSet(Val(Mid(cbocom.Text, 4, 2)), cbobaudrate.Text, Left(cboparitybit.Text, 1), cbodatabit.Text, cbostopbit.Text) '串口设置End SubPrivate Sub cboparitybit_Change()Call Comm_reSet(Val(Mid(cbocom.Text, 4, 2)), cbobaudrate.Text, Left(cboparitybit.Text, 1), cbodatabit.Text, cbostopbit.Text) '串口设置End SubPrivate Sub cbostopbit_Change()Call Comm_reSet(Val(Mid(cbocom.Text, 4, 2)), cbobaudrate.Text, Left(cboparitybit.Text, 1), cbodatabit.Text, cbostopbit.Text) '串口设置End SubPrivate Sub chkautosend_Click()On Error GoTo ErrIf ChkAutoSend.Value = 1 Then ’如果有效则，自动发送If MSComm.PortOpen = True Then ’串口状态判断mnuautosend.Caption = "取消自动发送"TmrAutoSend.Interval = Val(TxtAutoSendTime) ’设置自动发送时间TmrAutoSend.Enabled = True ’打开自动发送定时器ElseChkAutoSend.Value = 0 ’串口没有打开去掉自动发送MsgBox "串口没有打开，请打开串口", 48, "串口调试助手" ' 如果串口没有被打开，提示打开串口End IfElseIf ChkAutoSend.Value = 0 Then ’如果无效，不发送mnuautosend.Caption = "自动发送数据"TmrAutoSend.Enabled = False ’关闭自动发送定时器End IfErr:End SubPrivate Sub cmdamend_Click()Dim spShell As Object ’定义存放引用对象的变量Dim spFolder As Object ’定义存放引用对象的变量Dim spFolderItem As Object ’定义存放引用对象的变量Dim spPath As String ’定义存放的变量On Error GoTo Err ’错误处理，防止取消打开文件夹时报错Const WINDOW_HANDLE = 0Const NO_OPTIONS = 0Set spShell = CreateObject("Shell.Application")Set spFolder = spShell.BrowseForFolder(WINDOW_HANDLE, "选择目录:", NO_OPTIONS,"C:\Scripts")Set spFolderItem = spFolder.SelfspPath = spFolderItem.PathspPath = Replace(spPath, "\", "\") ’ Replace函数的返回值是一个字符串txtsavepath.Text = spPath ’把文件夹路径显示在标签上SaveTextPath = txtsavepath.Text ’路径暂存Err:End SubPrivate Sub CmdClearCounter_Click()On Error GoTo ErrSendCount = 0 ’发送计数器清零ReceiveCount = 0 ’接收计数器清零txtRXcount.Text = "RX:" & 0 ’接收计数txtTXcount.Text = "TX:" & 0 ’发送计数Err:End SubPrivate Sub cmdclearrecieve_Click()TxtReceive.Text = ""End SubPrivate Sub cmdclearsend_Click()txtsend.Text = ""End SubPrivate Sub CmdHelp_Click()FrmHelp.ShowEnd SubPrivate Sub CmdQuit_Click()If MSComm.PortOpen = True Then MSComm.PortOpen = False’先判断串口是否打开，如果打开则先关闭Unload Me ’卸载窗体，并退出程序EndEnd SubPrivate Sub cmdsavedisp_Click()On Error GoTo Err ’错误处理SaveTextPath = txtsavepath ’路径暂存Open txtsavepath & "\1.txt" For Output As #1 ’打开文件’不存在的话会创建文件,如已存在会覆盖’ output 改为append 为追加’改为input 则只读Print #1, Year(Date) & "年" & Month(Date) & "月" & Day(Date) & _"日" & Hour(Time) & "时" & Minute(Time) & "分" & Second(Time) & _"秒" & vbCrLf & TxtReceive.Text + vbCrLf ’把接收区的文本保存文本前加上保存时间（0000年00月00日00时00分00秒）’ vbcrlf 为回车换行Close #1 ’关闭文件txtsavepath = "OK,1.txt Save" ’提示保存成功cmdsavedisp.Enabled = FalseSavetime = Timer ’记下开始的时间While Timer < Savetime + 5 ’循环等待5 - 要延时的时间DoEvents ’转让控制权，以便让操作系统处理其它的事件。

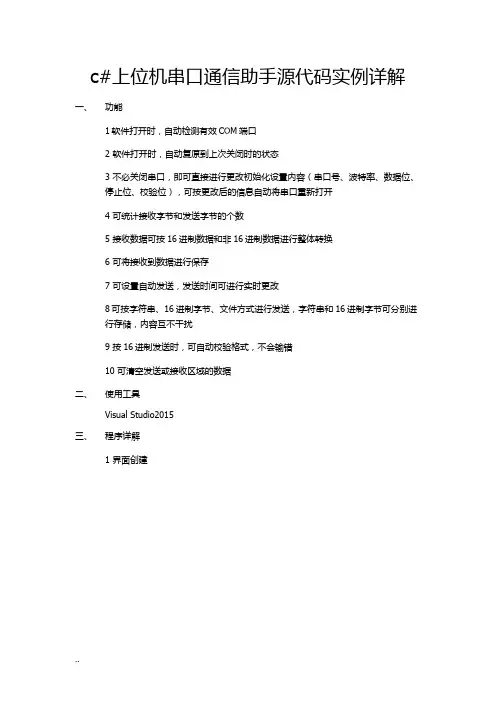

c#上位机串口通信助手源代码详解
