AX100横河无纸记录仪
Yokogawa RD100A RD1800 数字程序控制图表记录仪说明书
100 mm and 180 mm Programmable Chart RecordersRD101A$1465Basic UnitߜDigital and BargraphDisplayߜ1, 2, 3, 4 Continuous Pensor 6 Point Dot PrintingModels (RD1800 Also12, 18, 24 Dot Printing)ߜUniversal InputsThermocouple,RTD, VoltageߜProgrammable InputTypes, Full ScaleRanges, Alarms,Chart SpeedߜPowerful but Easy to UseߜInteractive Displaysfor Easy SetupߜLarge, Bright Dot-MatrixDisplay for Data and UnitsߜCompact—Only 220 mm(8.6") DeepߜSplash Resistant DoorߜFast Dot Printing(6 Channels in asLittle as 10 Seconds)ߜRemovable Terminal Blocks for Easy Wiring ߜOptional Alarms with Remote ControlߜOptional RS-422ACommunicationsߜOptional CE Approval With English, French,German Display Prompts ߜPortable Units(RD100A Only)ߜPen Offset Compensation StandardThe RD100A 100 mm (4") andRD1800 180 mm (7") Series programmable chart recorders provide continuous monitoring of your essential processes. These recorders are designed for ease of use, featuring universal inputs of thermocouple, RTD or voltageinputs. The front panel of each unitfeatures an analog bar graph anddigital display for easy monitoring.The simplified operation of thesepowerful recorders allows for universalinputs that are fully programmablefrom the front panel. Universalinputs allow you to select inputsfreely on-site without setting DIPswitches. Simple front panel keypadoperations program each inputindividually for thermocouple, RTD,DC voltage (mV or V) or contactinput for operation recording.The recorders are designed forease of use. In addition to the clear,easy-to-read analog chart, eachrecorder prints out on the chartpaper the date and time, channelnumber, scale marking, tag number,proper engineering units, chartspeed, alarm value and completeprogram list at programmedintervals or on demand.The RD100A/RD1800 recordersutilize a non-contact ultrasonic penposition transducer for higheraccuracy when compared tostandard pen mechanisms. Thewear-free, brushless DC servo-motor completely eliminates motorbrushes, lead wire and connectors,and is directly mounted to theprinted circuit board. These twofeatures contribute to the long,trouble-free life of these recorders.Optional Communication OutputThe optional RS-422A interface letsyou connect up to 16 units on amultidrop line to a single hostcomputer for datalogging orinput/output of any setup parameter.Versatile Alarm and RemoteControl Functions, OptionalVersatile alarm functions areincluded to select up to four of thefollowing six alarm types: high/lowlimit, deviation high/low limit, rate ofchange high/low. Each can beKTSS-18G-12, $19thermocouple soldseparately. See page A-83.Specificationsprogrammed for each individual channel. Optional alarm relay contact outputs are available with versatile front panel selectable feature. The remote control feature comes with the alarm relays and lets you select any five of the following remote control functions on site through the front keypad: recording start/stop; chart speed change;manual printout start; messageprintout start (up to five user-defined messages).RD1800 shown smaller than actual size.GENERAL SPECIFICATIONS Dimensions:RD1800: 288 W x 288 H x 220 mm D (11.4 x 11.4 x 8.66");RD100A: 144 W x 144 H x 220 mm D (5.67 x 5.67 x 8.66")Weight:RD1800: 4 pen 9.4 kg (20.5 lb); 6 dot 9.1 kg (20 lb); 24 dot 9.6 kg (21.1 lb) approx.; RD100A 1 pen 3.2 kg (7 lb), 2 pen 3.4 kg (7.5 lb),3 pen 3.6 kg (7.9 lb),4 pen 3.8 kg (8.4 lb), 6 dot 3.5 kg (7.7 lb) approx. Case:Drawn steelFront Door:Aluminum die casting Panel Thickness:2 to 26 mm (0.078 x 1.02")Power:90 to 132, 180 to 250 Vac 50/60 Hz standard; Optional 24 Vdc (-24 V) Maximum Power Consumption:70 VA approximatelyAmbient Temperatureand Humidity:0 to 50°C (32 to 122°F), 20 to 80% RH at 5 to 40°C (41 to 104°F) Memory Backup:Lithium battery to preserve setup parametersINPUTReference Junction Accuracy:Type J, K, T, E, N, J DIN, T DIN:±0.5°C; Type R, S, B, C, ±1°C Temperature Coefficients:Effect of ambient temperatureof 10°C (50°F)Digital Display:Within ±0.1% of rdg + 1 digit Recording:Within digitaldisplay ±0.2% of recording span (excluding reference junction) Measurement Accuracy:±0.3% of recording span Performance Under Reference Operating Conditions: Temperature:23°C ±2°C (73°F ±3.6°F)Humidity:55% ±10%Usable Power Voltage:90 to 132, 180 to 250 Vac 50/60 HzWarm Up-time:30 minutes Measurement Intervals:Pen Models:125 ms/channelDot-Models:RD100A: 2.5 sec/6 channels; RD1800: 2.5 sec/24 channels Input Resistance:DC voltage 2 V and lower ranges, TC ranges: 10 MΩmin.; DC voltage 6 V and higher ranges: Approx. 1 MΩInput Bias Current:10 nA max. (approx. 100 nA on a TC input if burnout detection selected) Thermocouple Burnout Detection: On/off programmable for each channel or more detected as open circuit Maximum Input Voltage:2 Vdc or lower and TC ranges: ±10 Vdc continuous; 6 to 20 Vdc ±30 Vdc continuousRECORDING SYSTEMRecording Span:RD100A 100 mm; RD1800 180 mm Pen-writing:Disposal felt pens (analog recording), plotter pens (digital recorder)Dot Printing:6-colorwire dot recordingRecording Paper:RD1800 20 mZ-fold chart; RD100A:16 m Z-fold chartStep Response Time:RD1800 1.5 sec.;RD100A 1 sec. max.Deadband:Pen Model 0.2%of recording span max.Maximum RecordingResolution:Dot printing models0.1 mmRecording Format:Normal, zone andpartial recordingChart Speed:Pen models: 5 to12,000 mm/h (82 increments)Dot printing models 1 to1,500 mm/h (1 mm steps)Analog Recording Cycles:Pen Models: Continuous Dot PrintingModels: 6 dots/10 sec.; 12 dots/15 sec;18 dots/20 sec, 24 dots/30 sec max.Print Cycle Time:Dot PrintingModels:AUTO mode chart speeddetermines analog recording cycle rate;FIX mode recording is done at fastestanalog recording intervalChart Speed Accuracy:Less than±0.1% (chart running more than1000 mm continuously and relatedto grid of the paper)Message Print Out:5 messages, 16 charactersPeriodic Printout:Engineering units(up to 6 alphanumeric), tag marker(up to 7 alphanumeric), scale marker(0/100%), the measured data printList Printout:Prints listing of range settings, alarmsettings, and other parametersManual Printout:Provides a digitalprintout of measured resultsDISPLAY SYSTEMDisplay: VFD 5 x 7" dot matrix,11 character (RD100A)20 characters (RD1800)Display and Status Indicator Items:Channel number, or tag name, alarmtype, measured value, engineeringunits, time, dateBar Graph Display:Measured Value:1% resolution, left-reference or center-zero bar graph display (individuallyprogrammable for each channel)Alarm Display:(with optional alarmfeature) Alarm setting level indicatorchannel number of channel in alarm(Dot-matrix models only)Alarm:Number of Alarm Levels:Four levels/channelTypes:High, low, high-rate of change,low rate of change, delta high, delta low(rate of change alarm time interval:Measurement interval x 1 to 15)Alarm Indications:Shared alarmindicator flashes. In case of dot-printingmodel, alarm status of channel in alarmis also displayedAlarm Recording:Prints channelnumber, alarm type, and time ON orOFF on right side of chartOPTIONAL ALARM RELAYCONTACT OUTPUT ANDREMOTE CONTROLAlarm Relays:4, 6 (all units), 12 and24 points (RD 1800 only); AND or ORoutput programmable. Energize orde-energize on alarm (shared by allrelays). Hold or non-holdRemote Control:Enables any mix ofthe following to be assigned to fivecontact inputs: output programmable,recording start/stop; chart speedchange; manual printout start;message printout start (up to five)Input Signal:TTL, open collector, contactInput Signal Width: 1 sec. minimumContact Capacity:3 A @250 Vac;0.1 A @250 Vdc resistive loadOPTIONAL COMMUNICATIONOUTPUTRS-422A Interface:Conforms toEIA RS-422A. Can be used to outputmeasured values, input and outputsetup parametersAddresses:1 to 16Asynchronous:Start-stopsynchronizationCommunication System:Half duplexWiring:4- or 5-wireData Length:7- or 8-bitParity:odd, even or noneCommunication Rate:75, 150, 300,600,1200, 2400, 4800, 9600 bpsCommunication Mode:ASCII or binary (measured data only)Communication Distance:500 mCE Option: Meets Europeanstandards for EMI interference.Includes programming prompts inFrench, German and English,see ordering block for pricing.mounting brackets, and complete operator’s manual.OMEGACARE SM extended warranty program is available for models shown on this page. OMEGACARE SM covers parts, labor, and equivalent loaners.Ask your sales representative for full details when placing an order.Ordering Example: RD104A-AR-S4-24V,4-pen recorder with 4 alarm relays and remote control, RS-422A output, and 24 Vdc power supply,$2885 + 380 + 185 + 135 = $3585.OCW-3, OMEGACARE SM extends standard 2-year warranty to a total of 5 years ($350),$3585 + 350 = $3935.(Not Field Installable)CANADA www.omega.ca Laval(Quebec) 1-800-TC-OMEGA UNITED KINGDOM www. Manchester, England0800-488-488GERMANY www.omega.deDeckenpfronn, Germany************FRANCE www.omega.fr Guyancourt, France088-466-342BENELUX www.omega.nl Amstelveen, NL 0800-099-33-44UNITED STATES 1-800-TC-OMEGA Stamford, CT.CZECH REPUBLIC www.omegaeng.cz Karviná, Czech Republic596-311-899TemperatureCalibrators, Connectors, General Test and MeasurementInstruments, Glass Bulb Thermometers, Handheld Instruments for Temperature Measurement, Ice Point References,Indicating Labels, Crayons, Cements and Lacquers, Infrared Temperature Measurement Instruments, Recorders Relative Humidity Measurement Instruments, RTD Probes, Elements and Assemblies, Temperature & Process Meters, Timers and Counters, Temperature and Process Controllers and Power Switching Devices, Thermistor Elements, Probes andAssemblies,Thermocouples Thermowells and Head and Well Assemblies, Transmitters, WirePressure, Strain and ForceDisplacement Transducers, Dynamic Measurement Force Sensors, Instrumentation for Pressure and Strain Measurements, Load Cells, Pressure Gauges, PressureReference Section, Pressure Switches, Pressure Transducers, Proximity Transducers, Regulators,Strain Gages, Torque Transducers, ValvespH and ConductivityConductivity Instrumentation, Dissolved OxygenInstrumentation, Environmental Instrumentation, pH Electrodes and Instruments, Water and Soil Analysis InstrumentationHeatersBand Heaters, Cartridge Heaters, Circulation Heaters, Comfort Heaters, Controllers, Meters and SwitchingDevices, Flexible Heaters, General Test and Measurement Instruments, Heater Hook-up Wire, Heating Cable Systems, Immersion Heaters, Process Air and Duct, Heaters, Radiant Heaters, Strip Heaters, Tubular HeatersFlow and LevelAir Velocity Indicators, Doppler Flowmeters, LevelMeasurement, Magnetic Flowmeters, Mass Flowmeters,Pitot Tubes, Pumps, Rotameters, Turbine and Paddle Wheel Flowmeters, Ultrasonic Flowmeters, Valves, Variable Area Flowmeters, Vortex Shedding FlowmetersData AcquisitionAuto-Dialers and Alarm Monitoring Systems, Communication Products and Converters, Data Acquisition and Analysis Software, Data LoggersPlug-in Cards, Signal Conditioners, USB, RS232, RS485 and Parallel Port Data Acquisition Systems, Wireless Transmitters and Receivers。
无纸记录仪73VR3000规格书说明书
主要的功能与特长●模拟量8点、数字量8点共16点的最高数据采样周期为20 ms ；16点的最高采样周期为0.1 s ；64点的最高采样周期为0.5 s●记录的数据保存在闪存卡上●闪存卡插槽位于前端，插拔方便●可用专用应用软件显示和分析所记录的数据●前端面板符合防尘防水IP65标准73VR3000－□－□机型语言N: 日文E: 英文供电电源◆交流电源M2: AC 100 〜 240 V◆直流电源R: DC 24 V注）保存73VR3000的数据时，须预备闪存卡。
请务必使用以下所指定的闪存卡。
使用本公司指定之外的闪存卡时，不在保证范围之内。
·厂商 : Hagiwara Sys-Com·机型 : CFI－□□□□DG·容量 : 128 MB 〜 1 GB·机型代码（例如 : 73VR3000－N－M2）·请用订购表格（No : ESU－7394）指定所使用的I／O模块。
·73VR3000应用软件（机型 : 73VRPAC）CD1盘·安装零件（2个）·嵌式交流电流传感器（机型 : CLSA－□）·嵌式交流电流传感器（机型 : CLSB－□）·专用电缆线（机型 : CLSA－08C）（CLSA－08、12用）·PC设定器连接电缆线（机型 : MCN－CON）·闪存卡（Hagiwa Sys-Com生产）注）相关产品的详细规格，请参照各自的规格书（闪存卡无规格书）。
本产品已停止生产『本产品的替换产品为73VR3100』73VR3000■I／O模块73VR3000使用R3系列的I／O模块。
适用的I／O模块如下所述。
请用订购表格（No : ESU－7394）指定所使用的I／O模块。
详细规格请参照各模块的规格书。
R3－□S 类型SV4: 直流电压信号输入4点SV8: 直流电压信号输入8点SV4A: 直流mV信号输入4点SV8A: 直流mV信号输入8点SV8N: 非隔离直流电压信号输入8点SV16N: 非隔离直流电压信号输入16点SS4: 直流电流信号输入4点SS8: 直流电流信号输入8点SS8N: 非隔离电流信号输入8点SS16N: 非隔离直流电流信号输入16点TS4: 热电偶输入4点TS8: 热电偶输入8点RS4: 热电阻输入4点RS8: 热电阻输入8点PT4: 交流电压信号输入4点CT4: CT输入4点CT4A: CLSA用交流电流信号输入4点CT8A: CLSA用交流电流信号输入8点CT4B: CLSB用交流电流信号输入4点CT8B: CLSB用交流电流信号输入8点PA2: 速度·位置输入2点PA4: 高速脉冲输入4点PA4A: 高速累计脉冲输入4点PA16: 累计脉冲输入16点DA16: 开关量输入16点DC16: 开关量输出16点＊1DM: 填充模块＊2通讯方式S: 单路＊1、开关量输出模块最多可安装2台＊2、R3－DM不能选择通讯方式代码S■使用R3－CT4A、R3－CT8A、R3－CT4B、R3－CT8B 时的注意事项使用R3－□A、R3－□B输入模块时，要用组态软件（机型 : R3CON）变更设定。
横河无纸记录仪DX1000
General Specifications <<Contents>> <<Index>> GS 04L41B01-01E DAQSTATION DX1000OVERVIEWThe DX1000 is a DAQSTATION that displays real-time measured data on a color LCD and saves data on a CompactFlash memory card (CF card). It can be hooked up to network via Ethernet, which enables to inform by E-mail and to monitor on Web site as well as to transfer files by using FTP. Also, it can communicate with Modbus/RTU or Modbus/TCP.It comes with a two, four, six-channel or twelve-channel model. As the input signal, a DC voltage, thermocouple, resistance temperature detector, or contact signal can be set to each channel. The data saved on a CF card can be converted by data conversion software to Lotus 1-2-3, Excel, or ASCII format file, facilitating processing on a PC. Not only this, the Viewer software allows a PC to display waveforms on its screen and to print out wave-forms.STANDARD SPECIFICATIONSGeneral SpecificationsConstructionMounting:Flush panel mounting (on a vertical plane)Mounting may be inclined downward up to30 degrees from a horizontal plane. Allowable panel thickness:2 to 26 mmMaterial:Case: drawn steelBezel: polycarbonateDisplay filter: polycarbonateCase color:Case: Grayish blue green(Munsell 2.0B 5.0/1.7 or equivalent)Bezel: Charcoal grey light(Munsell 10B 3.6/0.3 or equivalent)Front panel:Water and dust-proof*(based on IEC529-IP65 and NEMA No.250TYPE4 for indoor locations (except externalicing test))*Except for side-by-side mounting. Dimensions:144 (W) ϫ144 (H) ϫ224.1 (D) mm144 (W) ϫ144 (H) ϫ228.5 (D)* mm*In case of /H2 or /PM1 option is specified. Weight:approx. 2.9 kg**without optional features InputNumber of inputs:DX1002: two channelsDX1004: four channelsDX1006: six channelsDX1012: twelve channelsMeasurement interval:DX1002, DX1004:125 ms, 250 ms, 25 ms (fast samplingmode*)DX1006, DX1012:1 s (Not available when A/D integrationtime is set to 100 ms), 2 s, 5 s, 125 ms(fast sampling mode*)* A/D integration time is fixed to 1.67 ms in case offast sampling mode.Inputs:DCV (DC voltage), TC (thermocouple), RTD(resistance temperature detector), DI (digitalinput for event recording), DCA (DC currentwith external shunt resistor attached)GS 04L41B01-01E©Copyright November. 20051st Edition Nov. 2005(KP)8th Edition Dec. 2008(KP)All Rights Reserved. Copyright © 2005, Yokogawa Electric Corporation GS 04L41B01-01E 8th Edition Dec. 19,2008-00Input typeRange 0.0 to 1760.0°C0.0 to 1760.0°C0.0 to 1820.0°C–200.0 to 1370.0°C –200.0 to 800.0°C–200.0 to 1100.0°C –200.0 to 400.0°C–270.0 to 1300.0°C 0.0 to 2315.0°C–200.0 to 900.0°C–200.0 to 400.0°C0.0 to 2400.0°C–200.0 to 600.0°C–200.0 to 550.0°C OFF : less than 2.4 VON : more than 2.4 V Contact ON/OFFDCVTCRTD DI*1 R, S, B, K, E, J, T, N: IEC584-1 (1995), DIN IEC584,JIS C 1602-1995*2 W: W-5% Re/W-26% Re (Hoskins Mfg. Co.), ASTM E988*3 L: Fe-CuNi, DIN43710, U: Cu-CuNi, DIN43710*4 WRe: W-3%Re/W-25%Re (Hoskins Mfg. Co.)*5 Pt100: JIS C 1604-1997, IEC 751-1995, DIN IEC751-1996 JPt100: JIS C 1604-1989,JIS C 1606-1989 Measuring current: i = 1mA32 to 3200°F 32 to 3200°F 32 to 3308°F –328 to 2498°F–328.0 to 1472.0°F –328.0 to 2012.0°F–328.0 to 752.0°F –454 to 2372°F32 to 4199°F –328.0 to 1652.0°F –328.0 to 752.0°F 32 to 4352°F –328.0 to 1112.0°F –328.0 to 1022.0°F Measuring range –20.000 to 20.000 mV –60.00 to 60.00 mV –200.00 to 200.00 mV –2.0000 to 2.0000 V –6.000 to 6.000 V –0.800 to 5.200 V –20.000 to 20.000 V –50.00 to 50.00 V20 mV 60 mV 200 mV 2 V 6 V 1-5V 20 V 50 V R *1S *1B *1K *1E *1J *1T *1N *1W *2L *3U *3WRe *4Pt100*5JPt100*5DCV input (TTL)Contact inputA/D integration time:20 ms (50 Hz), 16.7 ms (60 Hz), 100ms (50/60Hz for DX1006/1012), or AUTO selectable (automatic selection by detection of power supply frequency)A/D integration time is fixed to 1.67 ms (600Hz) in case of fast sampling mode.Thermocouple burnout:Burnout upscale/downscale function can be switched on/off (for each channel).Burnout upscale/downscale selectable Normal: Less than 2 k ⍀, Burn out: More than 100 k ⍀Detection current: approx. 10 A1-5V range burnout:Burnout upscale/downscale function can be switched on/off (for each channel).Burnout upscale/downscale selectable Upscale burnout: More than +10% of configured spanDownscale burnout: Less than -5% of configured spanMoving average:Moving average on/off selectable for each channelMoving average cycles 2 to 400 selectableCalculation:Differential computation:Between any two channelsAvailable for DCV, TC, RTD and DI ranges.Linear scaling:Available for DCV, TC, RTD and DI ranges.Scaling limits: -30000 to 30000Decimal point: user-selectableEngineering unit: user-definable, up to 6charactersOver value: Exceeds ؎ 5% of scaling limits (on/off selectable)Square root:Available for DCV range.Scaling limits: -30000 to 30000Decimal point: user-selectableEngineering unit : user-definable, up to 6charactersLow level cut off: 0.0 to 5.0% of display spanOver value: Exceeds ؎ 5% of scaling limits (on/off selectable)1-5VDC scaling:Available for 1-5VDC range.Scaling limits: -30000 to 30000Display span limit: 0.800 to 5.200Decimal point: user-selectableEngineering unit : user-definable, up to 6charactersLow level cut off: Fixed to lower span limit Over value: Exceeds ؎ 5% of scaling limits (on/off selectable)DisplayDisplay unit:5.5-inch TFT color LCD (VGA, 320 x 240pixels)Note)In the part of crystal display, there are some pixelsthat can't always turn on or off. Please understand that the brightness of screen looks uneven because of characteristics of crystal display, but it is not out of order.Display group:Each measurement channel and computation channel can be assigned to display group of the trend, digital and bargraph display.Number of display: 10 groupsNumber of assignable channels for one group: 6 channelsDisplay color:Trend/Bargraph:Selectable from 24 colorsBackground:White or black selectableTrend display:Trend display type:Vertical, horizontal, landscape, horizontal or split selectableNumber of indication channels:6 channels per display (maximum)Number of display:10 displays (10 groups)Line width:1, 2, and 3 pixels selectableScales:Maximum 6 scales.Bargraph, green band area and alarm mark can be displayed on scale display.Number of divisions: Selectable from 4 to 12 or C10 (10 divisions by main scalemark and scale values are displayed on 0,30, 50, 70 and 100% position).Waveform span rate:5, 10, 15, 30, sec.,1, 2, 5, 10, 15, 20, 30min., 1, 2, 4, 10 hours/div selectable(5, 10 sec/div is available for only DX1002and DX1004)Bargraph display:Direction: Vertical or horizontal selectableNumber of indication channels:6 channels per displayNumber of display:10 displays (10 groups)Scales:Green band area and alarm mark can bedisplayed on scale display.Number of divisions: Selectable from 4 to12Reference position: Left, right or center Display renewal rate: 1 sDigital indication:Number of indication channels:6 channels per displayNumber of display:10 displays (10 groups)Display renewal rate: 1 sOverview display:Number of indication channels:Measuring values and alarm status of allchannelsInformation display:Alarm summary display:Display the list of latest 1000 alarmssummary.Jump to historical trend display by cursorpointing.Message summary display:Display the list of latest 450 messages andtime.Jump to historical trend display by cursorpointing.Memory information:Display the file list in internal memory.Jump to historical trend display by cursorpointing.Report information:Display the report data in internal memory. Modbus status:Display the Modbus status.Relay status:Display the on/off status of internal switchand relay output.Stacked bar graph display:Display the periodic sums of report data. Event switch status:Display the event switch status.Log display:Log display types:Login log, error log, communication log,FTP log, Web log, E-mail log, SNTP log,DHCP log, Modbus logTags:Display the tag number and tag comment.Tag number:Number of characters:16 characters maximumTag comment:Number of characters:32 characters maximumMessages:Number of characters:32 characters maximumNumber of messages:100 messages (including 10 free mes-sages)Message adding function:Message can be added on historicaldisplay.Other display contents:Status display area:Date & time (year/month/day,hour:minute:second), batch name (batchnumber + lot number), login user name,display name, internal memory status,status indication iconTrend display area:Grid lines (number of divisions selectablefrom 4 to 12), hour : minutes on grid, triplevels (line widths are selectable from 1, 2and 3 pixels)Data referencing function:Display the retrieved data (display data or event data)from internal or external memory.Display format:Whole display or divided to 2 areasTime axis operation:Display magnification or reduction, scrollby key operationData searching operation:Display the retrieved data from internalmemory by specifying date and time. Display auto scroll function:Display group of monitor display (trenddisplay, bargraph display and digital display)automatically changes in a preset interval(5, 10, 20, 30 s and 1 min).LCD saver function:The LCD backlight automatically dims or off(selectable) if no key is touched for a certainpreset time (can be set from 1, 2, 5, 10, 30,and 60 min).Display register function:Up to 8 display types can be registered withdisplay name.Display auto return function:The display type automatically returns toregisterd display type if no key is touchedfor a certain preset time (can be set from 1,2, 5, 10, 20, 30 and 60 min)Temperature unit:°C or °F selectableCustom display function:Display can be customized by lay outing display parts. Display data is saved in internal memory or external medium.Number of customized display:28 displays maximum (3 in internalmemory and 25 in external medium) Display part:- General parts (digital, bar, label, tagnumber, tag comment, )- Scale parts- Trend parts- List parts (alarm list, message list)- Figure parts (line, rectangle, circle)Edit function:Select parts, grid, edit parts (move, resize,property, copy, paste, layout orderchange, dependency of visual property),All Rights Reserved. Copyright © 2005, Yokogawa Electric Corporation GS 04L41B01-01E8th Edition Dec. 19,2008-00group control, delete, save display Custom display data:Contents:Display contents data (foreach display)Format:TextOutput:External mediumCustom display data save/load:Each or all custom display data file can besaved in specified directory.Custom display data can be loaded fromspecified directory.Data Saving FunctionExternal storage medium:Medium:CompactFlash memory card (CF card)Format:FAT16 or FAT32Internal memory:Medium:Flash memoryCapacity:Selectable from 80MB or 200MBMaximum number of files can be saved:400 files (total number of display data fileand event data file)Manual saving:Data files in internal memory can be saved manually.Selectable form all data saving or selected datasaving.Drive: CF card or USB flash drive (only for USB option) Automatic saving:Display data:Periodic saving to CF cardEvent data:In case of trigger free...Periodic saving toCF cardIn case of using trigger...Save the datawhen sampling is finishedMedia FIFO function :Allows the oldest file to be deleted and thenewest file to be saved if the free space onthe CF card is insufficient (on/off select-able).Data Saving Period:Display data file:Linked with the waveform span rate Event file:Linked with the specified sampling period Event File Sampling Period:DX1002, DX1004:Selectable from 25, 125, 250, 500 ms, and1, 2, 5, 10, 30, 60, 120, 300, 600, 900,1200 and 1800 s*DX1006, DX1012:Selectable from 125, 250, 500 ms, and 1,2, 5, 10, 30, 60, 120, 300, 600, 900, 1200and 1800 s**Sampling period faster than measurement intervalcan not be selected.Measurement data File:The following two file types can be created.Event file (stores instantaneous valuessampled periodically at a specifiedsampling rate)Display data file (stores the maximum andminimum values for each waveform spanrate from among measured data sampledat measurement intervals)Files can be created in the following combinations.(a)Event file + display data file(b)Display data file only(c)Event file onlyData format: YOKOGAWA private format (Binary) Maximum data size per file:8,000,000 byte (8MB)Data per channel:Display data file:Measurement data......4 byte/dataMathematical data......8 byte/dataEvent data file:Measurement data......2 byte/dataMathematical data......4 byte/data Sampling time:The sampling time per file (8MB) during manual data saving can be determined by the formula "number of data items per channel x interval of data saving."This logic is explained in more detail below:1)When handling display data files onlyIf we assume that the number of measuringchannels is 12, the number of computing channelsis 24, and the display update interval is 30 min/div(60 sec waveform span rate), then:Number of data items per channel = 8,000,000bytes/(8 bytes(time stamp) + 12 x 4 bytes + 24 x8 bytes) = 32,258 data itemsSampling time per file = 32,258 x 60 sec =1,935,480 sec = approx. 22 days2)When handling event files onlyIf we assume that the number of measuringchannels is 12, the number of computing channelsis 24, and the data saving interval is 1 sec, then : Number of data items per channel = 8,000,000bytes/(8 bytes(time stamp) + 12 x 2 bytes + 24 x4 bytes) = 62,500 data itemsSampling time per file = 62,500 x 1 sec =62,500 sec = approx. 17 hours3)When handling both display data files and eventfilesThe sampling time is calculated by defining the size of data items in a display data file as 8,000,000bytes and the size of data items in an event data file as 8,000,000 bytes. The method of calculation isthe same as shown above.Examples of Sampling Time for 1 file (8MB)*:*If sampling time exceeds 31 days, data file is divided.All Rights Reserved. Copyright © 2005, Yokogawa Electric Corporation GS 04L41B01-01E8th Edition Dec. 19,2008-00In case measurement ch = 4 ch, mathematical ch = 0 ch Display data file (approx.)Waveform span rate (time/div)Data saving period Sampling time30 s1 s3 days1 min2 s7 days2 min4 s15 days5 min10 s38 days10 min20 s77 daysEvent data file (approx.)Data saving period Sampling time2 s11 days0.5 s2 days1 s5 days125 ms17.4 h5 s28 days10 s57 days 15 s0.5 s46.3 h25 ms3.5 hIn case measurement ch = 12 ch, mathematical ch = 24 ch Display data file (approx.)Waveform span rate (time/div)Data saving period Sampling time 1 min2 s17.9 h5 min10 s3 days20 min40 s14 days30 min1 min22 days1 h2 min44 daysEvent data file (approx.)Data saving period Sampling time10 s7.2 days0.5 s8.7 h125 ms2.2 h15 sNANA25 msNA30 s21 days1 min43 days10 min20 s7 days1 s17.4 hManual sample data:The measuring and computing data can be saved manually to the internal memory and CF card. Trigger:Key operation, communication commandor event action functionData format:TextMax. number of data:400 data (if exceeds 400 data, oldest datais overwritten)Report data (only for MATH option):Types:Hourly, daily, hourly + daily, daily + weekly, and daily + monthlyData format:TextDrive:CF cardTrigger function:Selectable from FREE or TRIG for event data saving. Trigger mode:Selectable from free, single or repeattriggerData length:Selectable from 10, 20, 30 min, 1, 2, 3, 4,6, 8, 12 hour, 1, 2, 3, 5, 7, 10, 14, 31 day Pre trigger:Selectable from 0, 5, 25, 50, 75, 95, 100% Trigger source:Key operation, communication commandor event action functionDisplay hard copy:Trigger:Key operation, communication commandor event action functionData format:png formatDrive/output:CF card or communication interfaceData file retrieving function:Data file in CF card or USB flash drive (only for USB option) can be retrieved and displayed.Retrieved data file:Display data file or event data fileSaving and retrieving of configuration data: Configuration information can be saved and retrieved as text data.Drive:CF card or USB flash drive (only for USBoption)Alarm FunctionNumber of alarm levels:Up to four levels for each channelAlarm types:High and low limits, differential high and lowlimits, high and low rate-of-change limits anddelay high and lowAlarm delay time:1 to 3600 sInterval time of rate-of-change alarms:The measurement interval times 1 to 32 Display:The alarm status (type) is displayed in thedigital value display area upon occurrence ofan alarm. A common alarm indication is alsodisplayed.Alarm display color and display order can bechanged by configured importance level andcolor.Alarming behavior:non-hold or hold-type can be selectable forcommon to all channels.Hysteresis:On/off selectable (common to measurementchannels, mathematical channels or externalchannels)0.0 to 5.0% of display span (or scaling span) Outputs:Output: Internal switch or relay output (optional)Number of internal switch:30 pointsInternal switch action:AND/ORNumber of relay output points:2, 4 or 6 points (optional)Relay action:Energized/deenergized, hold/non-hold,AND/OR, alarm reflash selectable.Alarm no logging function:When alarm occurs, only internal switch orrelay output is activated. There are noalarm display on screen and no record onalarm summary.On/off selectable for each channel andalarm level.Memory:The times of alarm occurrences/recoveries, alarmAll Rights Reserved. Copyright © 2005, Yokogawa Electric Corporation GS 04L41B01-01E8th Edition Dec. 19,2008-00All Rights Reserved. Copyright © 2005, Yokogawa Electric CorporationGS 04L41B01-01E8th Edition Dec. 19,2008-00types, etc. are stored in the memory.Up to 1000 latest alarm events are stored.Alarm annunciator function:Alarm display and relay output based on alarm sequence.Alarm sequence: 3 types (ISA-A-4, ISA-A, ISA-M)First out display function: Not available Event action functionGeneral:Particular action can be executed byparticular event.Number of event action:40 actions can be setEvent list:Level/Edge DescriptionEvent Remote RelayInternal switch Alarm TimerMatch time USER key Level/Edge Level/Edge Level/Edge Level/Edge Edge Edge Edge Action by remote control signal Action by relay operationAction by internal switch operation Action by any alarm Action by timer time upAction by time up of match time timer Action by USER key operation Event switchLevel/EdgeAction by custom display, FUNC display or communication commandAction list:Level/Edge DescriptionAction Memory start/stop Memory start Memory stop Event trigger Alarm ACK Math start/stop Math stop Math resetLevel Edge Edge Edge Edge Level Edge Memory start and stopMemory start Memory stopEvent data sampling start Alarm ACKComputation start and stop Computation start Edge Computation stop Manual sample Edge Computation reset SnapshotEdge Manual sampleMessage input Edge Save display image to external media Waveform span rate changeEdge Message writingDisplay data save LevelChange waveform span rateEvent data save Edge Save currently sampled display data to internal memory as a fileRelative time timer reset Edge Save currently sampled event data to internal memory as a file Display group changeEdge Reset relative time timerTime adjustment EdgeChange to specified display group FlagEdge Adjust internal clock to the nearest hourSetting file loadEdgeLoad setting file from CF card (up to 3 setting files).Math start Level Normal: "0", Event: "1"Alarm display reset Edge Reset alarm display Comment display Edge Display commentFavorite display EdgeDisplay registered favorite screenSecurity functionsGeneral:Login function or key lock function can beset for each key operation or communication operation.Key lock function:On/off and password can be set for each operation key and FUNC operation.Login function:User name and password to login can be er level and number of users:System administrator: 5 users General users:30 users 10 kinds of login mode can be set for general users.Clock Clock:With calendar function (year of grace)Clock accuracy:؎ 10 ppm, excluding a delay (of 1 second,maximum) caused each time the power is turned on.Time setting method:Key operation, communication command,event action function or SNTP client functionTime adjustment method:During memory sample:Adjust 40 ms per second (No influence for measurement period)During memory stop:Adjust at a timeTime zone:Time difference from GMT:Settable from -1300 to 1300Date display format:Selectable from YYYY/MM/DD, MM/DD/YYYY, DD/MM/YYYY or DD.MM.YYYYDST function (summer/winter time):The time at which the daylight savings time adjustment is automatically calculated and munication Functions Electrical specifications:Confirms to IEEE802.3 (DIX specification for Ethernet frames)Connection:Ethernet (10BASE-T)Protocols:TCP, UDP, IP, ICMP, ARP, DHCP, HTTP,FTP, SMTP, SNTP, Modbus, DX privateE-mail inform function:E-mail is sent by events as below.- Alarm occurring/alarm canceling - Recover from power failure - Memory end- Storage medium error, FTP client function error- Specified time period- Report data time up (only for mathematical option)POP before SMTP is available.FTP client function:Data file auto-transfer from DX Transferred data file:Display data file, event data file, report data file and display image fileFTP server function:File transfer from DX, file elimination,directory operation and file list output are available by request from host computer.Web server function:Display image of DX and alarm information can be displayed on web browser.Display the data searching display and report data of DX on web browser.SNTP client function:The time on DX can be synchronized to the time of a SNTP server.SNTP server function:The DX can operate as a SNTP server.DHCP client function:Network address configuration can be obtained automatically from DHCP server.Obtained information:IP address, subnet mask, default gatewayand DNS informationModbus client function:Reading or writing of measurement data onother instruments are available by Modbusprotocol.Mathematical option is required to read thedata from other instruments.Modbus server function:Output of measurement data from DX isavailable by Modbus protocol.Control operation such as message or batchname writing is available.Access control from Modbus client toregister is available by IP filtering function. Setting/measurement server function:Operation, setting or output of measurementdata are available by DX private protocol. Maintenance/test server function:Output connection information or networkinformation of the Ethernet communication. Instrument information server function:Output instrument information such as serialnumber or model name of DX.EtherNet/IP server function:- Reading of measurement data or math-ematical channel data- Reading or writing of external channel data- Reading or writing of communication inputchannelBatch functionGeneral:Data display and data management withbatch name, text field function and batchcomment function are available.Batch name:Batch name can be used as file name of display data, event data and report data.Batch name format:Batch number (max. 32 characters) + lotnumber (max. 8 characters)Use/not use selectable for lot number, on/off selectable for auto increment function Text field function:Field number:1 to 24Field title:Max. 20 charactersField text:Max. 30 charactersBatch comment function:Batch comment is added to display data and eventdata.Batch comment information:3 comments (max. 50 characters) areavailable.Power SupplyRated power supply:100 to 240 VAC (automatic switching) Allowable power supply voltage range:90 to 132 or 180 to 264 VACRated power supply frequency:50/60 Hz (automatic switching)Power consumption:Supply voltage 100 VAC240 VAC LCD off15 VA25 VANormal24 VA32 VAMax.45 VA60 VAAllowable interruption time:Less than 1 cycle of power supply frequency Other SpecificationsMemory backup :A built-in lithium battery backs up the setupparameters (battery life : approximately 10years at room temperature).Insulation resistance:Each terminal to ground terminal:20 M⍀ or greater (at 500 VDC)Dielectric strength:Power supply to ground terminal:2300 VAC (50/60 Hz), 1 minContact output terminal to ground terminal:1600 VAC (50/60 Hz), 1 minMeasuring input terminal to ground terminal:1500 VAC (50/60 Hz), 1 minBetween measuring input terminals:1000 VAC (50/60 Hz), 1 min (except for b-terminal of RTD input of DX1006 andDX1012)Between remote control terminal to ground terminal:1000 VDC, 1 minSafety and EMC StandardsCSA:CSA22.2 No61010-1Installation category II*1, pollution degree 2*2 UL:UL61010-1 (CSA NRTL/C)CE:EMC directive:EN61326-1 compliant, Class A Table 2EN61000-3-2 compliantEN61000-3-3 compliantEN55011 compliant, Class A Group 1 Low voltage directive:EN61010-1 compliant, measurementcategory II*3, pollution degree 2*2C-Tick: EN55011 compliant, Class A Group 1*1: Installation Category (OvervoltageCategory) IIDescribes a number which defines atransient overvoltage condition. It impliesthe regulation for impulse withstand voltage."II" applies to electrical equipment which issupplied from fixed installations likedistribution boards.*2: Pollution DegreeDescribes the degree to which a solid,liquid, or gas which deteriorates dielectricstrength or surface resistivity is adhering."2" applies to normal indoor atmosphere.Normally, only non-conductive pollutionoccurs.*3: Measurement Category IIApplies to measuring circuits connected tolow voltage installation, and electricalinstruments supplied with power from fixedequipment such as electric switchboards. Normal Operating ConditionsPower voltage:90 to 132 or 180 to 250 VACPower supply frequency:50 Hz ؎2%, 60 Hz ؎2%Ambient temperature:0 to 50 °CAmbient humidity:20% to 80% RH (at 5 to 40 °C)Vibration:10 to 60 Hz, 0.2 m/s2 or lessShock:Not acceptableAll Rights Reserved. Copyright © 2005, Yokogawa Electric Corporation GS 04L41B01-01E8th Edition Dec. 19,2008-00。
SWP-ASR100系列无纸记录仪说明书(标准型)
警 告 注 意
操作说明中使用的标志 加粗文字 画面上显示的按键名称或字符串。例:电压 表示可以使用的字符类型 大写字母， 小写字母，
数字，
拼音
操
作
按照数字所指示的步骤进行操作。 此处用于指导初级操作者按顺序进行操作。 有经验的操作者可以不必每项步骤都执行。 对于操作相关的设定内容及限制事项进行说明。 说明设定画面并解释设定内容。这里不对功能做详细的解 释。 有关性能指标方面的详细内容，请参阅第一章。

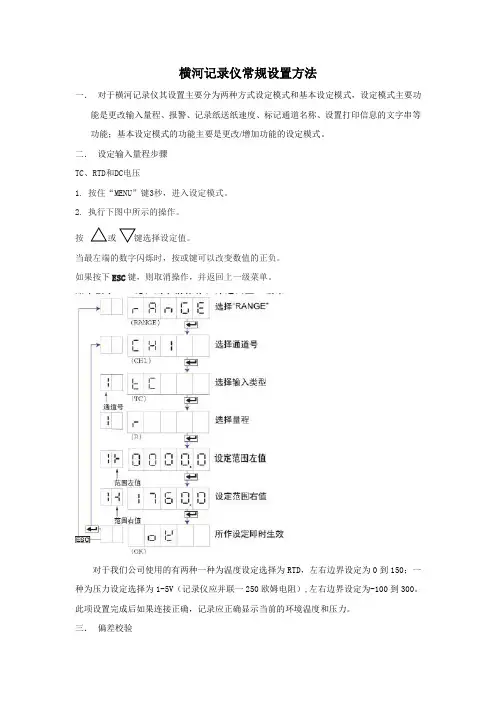

横河记录仪常规设置方法
横河记录仪常规设置方法一．对于横河记录仪其设置主要分为两种方式设定模式和基本设定模式，设定模式主要功能是更改输入量程、报警、记录纸送纸速度、标记通道名称、设置打印信息的文字串等功能；基本设定模式的功能主要是更改/增加功能的设定模式。
二．设定输入量程步骤TC、RTD和DC电压1. 按住“MENU”键3秒，进入设定模式。
2. 执行下图中所示的操作。
按当最左端的数字闪烁时，按或键可以改变数值的正负。
如果按下ESC键，则取消操作，并返回上一级菜单。
对于我们公司使用的有两种一种为温度设定选择为RTD，左右边界设定为0到150；一种为压力设定选择为1-5V（记录仪应并联一250欧姆电阻）,左右边界设定为-100到300。
此项设置完成后如果连接正确，记录应正确显示当前的环境温度和压力。
三．偏差校验设备具有两套温度压力温度显示系统，因此存在偏差是难免的，在确定记录仪确实存在偏差后，通过以下方法可以进行偏差校准：1.按住“MENU”键3秒，进入设定模式。
2.3.偏差可指定的范围为量程中可测量范围的±10%。
例如：对于2V的量程，范围为：-0.4V～0.4V。
对于设定标尺运算的通道，可指定偏差范围为标尺运算范围的±10%。
4.正常情况下，BIAS选项在设定模式下不存在，下面将介绍如何在设定模式下添加此功能：✓✓✓具体操作示意图如下所示：5.6.✓四．输入量程设置1.设定实例( 1 ) 热电偶输入比如，将通道02设置为热电偶类型K，测量温度在-50.0～450.0℃的范围之间。
热电偶类型K的可测量范围是-200.0～1370.0℃。
在-50.0～450.0℃的范围内的测量值将以100mm的宽度记录在记录纸上，那么该记录量程被叫做一个记录范围，并且记录范围最左边和最右边的数值分别称范围左值(Span left)和范围右值(Span right)。
2.设定实例(2)1～5V输入和单位将通道03设定为1～5V的标准信号输入和0.0～500.0%标尺，标尺范围为-19999～30000。
横河川仪_EJA产品介绍
CYS＝YHQ(NYPS)
CYS＝YHQ
ISO9002＋5M(Man Machine Material Method Measurement)
EJA/纪录仪/DCS/分析仪全球同一技术/同一品质同/一管理和同一商标
横河电机株式会社--变送器/记录仪 海外生产基地
YOKOGAWA SICHUAN
EJA变送器生产基地
1 μm形变= 1% 误差
磁场
真空罩y
谐振器 基片
压力
感器组件
接液膜片
高压侧
硅油 低压侧
中心膜片
f L
YOKOGAWA SICHUAN
传感器
硅谐振传感器与压阻式传感器的比较
硅谐振传感器
灵敏度高
压阻式传感器
差压引起的 信号变化 4%
4倍 15 %
0.03 %
温度变化所 引起的信号变化 0.25 %/ 50oC
安全性高 密码设置 电池更换报警 自动关闭电源
BT200
F1 F2 F3 F4
ENTER
打印机打印输出 5节常规电池
单线通讯 无需配电器
YOKOGAW
A YOKOGAWA SICHUAN
Brain/Hart通讯协议比较
协议
参数 选择
协议结构
菜单 结构
数量 类型
数据
Brain BT200
仪表装置
Hart
EJA vs. 其它智能式变送器(1)
误差 (%) 0.8 0.6 0.4 0.2 0 -0.2 -0.4 -0.6 -0.8
0
EJA110A-XM
量程：0～1000mmH2O
35 70 105 140 静压 (Kgf/cm2)
Vaisala RFL100无线数据记录仪用户手册说明书
DOC232151G Vaisala RFL100Wireless Data Logger for Continuous Monitoring SystemsVaisala HUMICAP Humidity and Temperature Logger RFL1001ProbesNo Probe Logger Body Only01 Probe12 probes Available for 2 temperature probes, only22PROBE 1 - Type and calibration Calibration points not customer selectableNone NWhite plastic probe (HMP115)3-point RH, 1-point T15, 50, 75%RH @ 23 °C AWhite plastic probe (HMP115)3-point RH, 3-point T15, 50, 75%RH @ 23 °C and 0, 20, 40 °C BWhite plastic probe (HMP115T)3-point T0, 20, 40 °C CStainless steel probe (HMP110)3-point RH, 1-point T0, 50, 90%RH @ 23 °C DStainless steel probe (HMP110T)1-point T23 °C (Use HEL CALs for addit. temps)EPt100 probe with 0.5 m cable(TMP115)5-point T -90, -45, 0, +45, +90 °C FPt100 probe with 3 m cable(TMP115)5-point T -90, -45, 0, +45, +90 °C GPt100 probe with 3 m cable(TMP115)6-point T -196, -90, -45, 0, +45, +90 °C HCO2 Probe for %-level (GMP251)2-point CO25, 20 % CO2. Background gas setpoint 19.7 %O2, 93 %RH J3PROBE 2 - Type and calibrationNone0White plastic probe (HMP115)3-point RH, 1-point T15, 50, 75%RH @ 23 °C AWhite plastic probe (HMP115)3-point RH, 3-point T15, 50, 75%RH @ 23 °C and 0, 20, 40 °C BWhite plastic probe (HMP115T)3-point T0, 20, 40 °C1Stainless steel probe (HMP110)3-point RH, 1-point T0, 50, 90%RH @ 23 °C CStainless steel probe (HMP110T)1-point T23 °C (Use HEL CALs for addit. temps)2Pt100 probe with 0.5 m cable(TMP115)5-point T -90, -45, 0, +45, +90 °C3Pt100 probe with 3 m cable(TMP115)5-point T -90, -45, 0, +45, +90 °C4Pt100 probe with 3 m cable(TMP115)6-point T -196, -90, -45, 0, +45, +90 °C54Power SupplyNone NPower Supply with EUR-adapter100-240VAC / 5VDC, 7W APower Supply with US-adapter100-240VAC / 5VDC, 7W BPower Supply with UK-adapter100-240VAC / 5VDC, 7W CPower Supply with AUS-adapter100-240VAC / 5VDC, 7W DPower Supply with all adapters100-240VAC / 5VDC, 7W E5Reserved 2None06Sensor protection 1No Sensor Protection For TMP115 and GMP251N7Sensor protection 2No Sensor Protection For TMP1150 HMP115/T Plastic Grid HMP115/T For quick response to change in conditions1Membrane Filter HMP115/T For dust protection2PTFE HMP115/T For harsh conditions, e.g.droplets3 HMP110/T Plastic Grid HMP110/T For quick response to change in conditions4Plastic Grid with Filter HMP110/T For dust protection5Stainless Steel Sintered Filter HMP110/T For harsh conditions6Sintered PTFE-Filter HMP110/T For harsh conditions, e.g.droplets78Region Radio FrequencyFCC + CSA For North America AETSI For Europe EGiteki For Japan J9Battery typeLithium 1,5 V AA size For -20 ... 0 ºC usage and with GMP251210Logger installationMounting bracket For fixed installations with e.g. screws AMounting bracket with magnets For quick installation with magnets; All installation alternatives available B11Probe Extension CableNo Extension Cable 2.5 m M8 M12 Probe splitter is included for CO2 selection03 meter Extension Cable110 meter Externsion Cable23 meter Flat Cable for installations via door seal 33 meter Cable and 3 meter Flat Cable412Probe Mounting AccessoriesNo Mounting accessories Mounting accessories for incubator chambers are included in the CO2 selection N13Thermal Dampener BlockNone01x Thermal Dampener Block For TMP115 probes114Quick GuideNo Guide NMultilingual Guide ATOTALQTYTOTAL VALUEAdditional information:For ACCREDITED Calibration Please Order Item: HELACCRCALFor SPECIAL Calibration Please Order Item: HELSPECIALCALSelections in bold are included in the prices of the basic versions.Selections in italic are available at an extra price.RFL100000000LOGGER ACCESSORIESDRW244769SP5pcs of Mounting BracketASM211527SP5pcs of Magnetic Mounting BracketDRW244766SP5pcs of Battery Covers245679SP RFL100 and AP10 Mounting KitASM214178SP Universal Power Supply 100-240VAC / 5VDCPROBE ACCESSORIESCBL210555-1M5SP Probe Cable 1.5mCBL210555-3MSP Probe Cable 3mCBL210555-10MSP Probe Cable 10mCBL210647SP Flat cable 3mCBL210834SP Probe Splitter M8 M822606710pcs of Probe Mounting Clamps (Heavy Duty)215619Duct installation KitASM213382SP Probe Holder Assembly Set 5pcs225501SP Probe Mounting Clamp226061SP Probe Mounting Flange18350SP2pcs of Hex, Nuts M12x1 Pa 6.6CALIBRATIONSHELACCRCAL Accredited CalibrationHELSPECIALCAL Custom CalibrationPROBE ACCESSORIES HMP110/THMP110Spare Probe Order Code: Z00B0C1A0HMP110T Spare Probe Order Code: Z0B01A0DRW010522SP Plastic GridDRW010525SP Membrane FilterHM46670SP Sintered FilterDRW244938SP PTFE FilterPROBE ACCESSORIES HMP115/THMP115Humidity and Temperature Probe for Data LoggerHMP115T Temperature Probe, 0'C, 20'C, 40'C, for Data LoggerDRW240185SP Plastic GridASM210856SP Membrane Filter219452SP PTFE FilterPROBE ACCESSORIES TMP115TMP115Wide Range Temperature Probe for Data Logger236310SP Thermal Dampener BlockAP10 ACCESSORIES244784SP AC Power with all Adapters245679SP RFL100 and AP10 Mounting KitPROBE ACCESSORIES GMP251GMP251Spare Probe Order Code: B1B0C0N1Restricted。
横河温度计TX1002、TX1003操作手册说明书
手册IM TX10-02C第4版：2006年11月(KP)感谢您购买本仪器。
操作之前请仔细阅读本操作手册，以确保正确的使用。
数字温度计1. 有关安全使用本产品的警示事项■ 本仪器和操作手册使用以下安全符号，以确保使用时的安全。
在仪器背面可以看到此符号，提醒您潜在的危险可致人重伤或死亡，操作员必须遵守本操作手册以避免发生危险。
警告： 此符号在本手册中表示潜在的危险可致人重伤或死亡。
注意： 此符号在本手册中表示潜在的危险可导致严重但可逆的人身伤害或设备损坏。
在某些情况下，存在的危险可与警告符号相关联，但严重程度要小得多。
3. 测量本仪器可连接4种类型的热电偶：K、J、E或T型(出厂时设置为K型)。
使用与探头的TC类型相对应的Ω型接口。
(1) 5部分:"更换电池")。
(2)2秒时间左右，然后出现测量值。
(3) 检查热电偶类型。
如要更改当前设置，关闭电源并按上一页的"选择热电偶类型"部分的指示操作。
(4) 选择输入通道。
(仅限TX1003)按键，然后从通道A、B和A-B中选择一个通道(请参见上一页的"选择通道")。
(5) 将探头连接到输入接口。
如果使用2，将探头连接到在使用的通道。
(6) 结束测量时，按•键重启本仪器并继续测量。
•如果关闭再打开电源，仪器将保持与关闭电源时相同的分辨率(0.1℃或1℃)、输入通道(通道A、B或A-B)和热电偶类型(K、J、E或T)设置。
(7) 其它操作有关其它操作，如显示保持、相对值显示、最大和最小值记录/读取等，请参见上一页的按键操作列表。
提示本仪器的按键操作相对比较简单。
但是，您必须确保仪器没有被误设为非预期的状态。
请注意，正常测量情况下，不会显示"HOLD"、"RCD"、"REL"、"MAX"、"MIN"和"MEM"。
杭州米科传感技术有限公司无纸记录仪使用说明书
4.12.1 系统组态..............................................................................22 4.12.2 记录组态..............................................................................23 4.12.3 显示组态..............................................................................25 4.12.4 输入组态..............................................................................26 4.12.5 模拟输出..............................................................................37 4.12.6 功能列表..............................................................................38 第五章 通讯....................................................................................................38 第六章 质保及售后服务................................................................................45
关于本手册
请将本手册交于操作者阅读。 在操作之前，请熟读本手册，并对产品有深入了解。 本手册只对产品的功能进行阐述，本公司不保证该产品将适合于用 户的某一特殊用途。
日本横河μR20000智能工业有纸记录仪产品说明
干球温度 湿球温度
测量环境试验数据，以简洁易懂的方式显示并记 录多种数据。
环境试验设备的数据显示和记录 (温调室的试验数据采集)
- Cu输入传感器(/N1选配件)等多种输入方式可供选择 - 监视和记录温度，振动时的数据及异常发生时的报警 - 通过连接DAQLOGGER,收集并分析异常发生时的数据
UART 数字 滤波器
Vref RTD放大器
控制器
扫描器控制
EEPROM
符合IP54标准的前罩
卓越的操作性能
◇ VFD 大屏幕点阵显示
(μR10000:101×16, μR20000:181×16) ◇ 显示操作向导,实现对话式设定操作 ◇ 新型记录纸盒,即使在记录过程中,也可
以方便地抽出记录纸浏览查询 ◇ 机内标配高亮度白色LED照明装置
a
b
7 送纸速度变更打印
8 手动打印
c
9 记录开始时间打印
d
* 设定模式中，可选择定时打印，报表打印或不打印。报表打印内容从以下选
e
择：仅每通道的AVE(平均值)、仅MIN(最小值)、仅MAX(最大值)、
f
MIN/MAX/AVE、SUM或INST(瞬时值)
部分压缩扩大记录 可放大记录需要详细记录的部分。
发送到文件服务器。
*即将支持μR20000。
8
能，可满足用户的不同需求，适用于多种应用场合。
μR10000
1
5 4
3
丰富的记录和打印功能
μR20000
8
4笔式机型
5
1
4
8
2 1
2
6
7
9 6通道打点式机型
5 7
6 4
无纸记录仪使用说明书
8
流量积算仪使用说明书
通讯波特率 ↑ 9600 bps
通讯设备号 00
密度类型选择 二十度时密度
二十度时密度 1.2041 kg / m 3
气体湿度值 000 ﹪
通讯波特率，按【确认】键，确认 存储并返回参数项选择状态
按【▲】键，可选择波特率，种类 有：1200，2400，4800，9600
通讯设备号，按【确认】键，确认 存储并返回参数项选择状态
顺序按【修改】【▲】键，修改数 值，按【参数】键，移动小数点
小信号切除值 30. 0000 Pa
小信号切除，按【确认】键，确 认存储并返回参数项选择状态
顺序按【修改】【▲】键，修改数 值，按【参数】键，移动小数点
阻尼系数 04 （N<=20）
阻尼系数，按【确认】键，确认 存储并返回参数项选择状态
顺序按【修改】【▲】键，修改数 值，按【参数】键，移动小数点
输出电流 介质类型
压力 密度 输出电流 介质类型 压力 密度
输出电流 介质类型
输出电流 介质类型
4
流量积算仪使用说明书
以介质为过热蒸汽为例：
流量 4.50 t/h 累积 045.95 t
热量 4.50 GJ/h 热积 045.95 GJ
差压 100. 00 Pa 温度 200.0 ℃
第一屏显示瞬时流量和累积流量， 按 【确认】键进入第二屏
请输入密码 ***
累计量是否清除 否
输入第二级菜单的开锁密码，按 开锁密码：顺序按【修改】【▲】【确认】
键正确，将进入第二级菜单；
三个键。密码正确，将向下执行
累计量的清除，按【确认】键，确 认累计量的清除并返回运行状态
按【▲】键，选择清除状态
横河无纸记录仪DX10002000R4
DX2000
状态显示区域 该区域以图表的形式显示DXAdvanced的运行状态。 曲线显示区域 该区域结合波形曲线，一同显示各通道的标尺值和工程单 位，以及任意信息。
数字显示区域 该区域结合测量值的数字显示，一同显示通道号、标记号 码、工业单位以及各通道的报警状态。
标尺显示区域 显示各通道测量值的标尺。标尺显示区域可以显示彩色标尺 带、报警标志或棒图。
以太网
服务请求 以太网
- 显示数据文件 - 事件数据文件 - 报表文件 - 画面储存文件
主 辅助 FTP服务器
存储器上的文件包括： - 显示数据文件 - 事件数据文件 - 报表文件
FTP服务器
[网络自动设置(DHCP*)功能] *Dynamic Host Configuration Protocol
利用DHCP功能，可以自动进行DXAdvanced的IP地址等网络 设置，可以更方便地利用DXAdvanced的网络功能。
DXAdvanced连接至网络时，会从DHCP服务器自动获取IP地址 等网络设置参数，并且自动注册主机名称至DNS服务器。
DHCP/DNS服务器
IP地址、默认网关、DNS设置等 主机名自动登录
局域网
时间同步
SNTP服务器
时间同步
以太网
时间同步
DXAdvanced (SNTP客户端)
PC (SNTP客户端)
通过USB接口(选配件)，可以将数据保存到USB存储 器中。通过USB存储器可以将数据轻松传输到PC。
外部存储器采用CF卡
所有机型都内置CF卡驱动器，采用大容量高可靠性的 CF卡作为外部存储媒体。最大支持2GB的CF卡。
测量值校正管理功能
利用该功能可以对测量值校正进行日程化管理。根 据预先设置好的日程DXAdvanced上会显示信息，提 醒用户执行测量值校正。该功能非常方便地活用在 Nadcap*相关的热处理应用等领域。
液晶屏迷你无纸记录仪NHR-7100使用说明书
1：以上的第一、二、三、四、五、六报警可根据用户需要，根据组态菜单中报警选项设置所对应得报警触点， 可任意定义其中任何一个报警所对应（一、二、三、四）输入通道中的任何一个通道，报警方式可任设上限或 下限报警。 2：●表示继电器动作（报警） ○表示继电器不动作（不报警） 3：在报警棒图画面下可按“ F1 ”键来切换到1路、2路、3路或4路的报警棒图画面
700～2000℃
0～2300℃ 0～2300℃
信号类型
Cu50 Cu53 C100 P100 BA1 BA2 0～400Ω 线性电阻 0～350Ω （内部保留参数） 30～350Ω （内部保留参数） 0～20mV 0～100mV
量程范围 -50.0～150.0℃ -50.0～150.0℃ -50.0～150.0℃ -200.0～650.0℃ -200.0～600.0℃ -200.0～600.0℃ -9999～99999
协议，RS-485通讯距离可达1公里；RS-232通讯距离可达：15米。
0.2%FS±1d 面板轻触式按键设定；参数设定值密码锁定；设定值断电永久保存。 背光式3.5英寸128*64高分辩率点阵式白屏黑字液晶屏 显示内容可由汉字，数字，过程曲线，棒图等组成，通过面板按键可完成画面 翻页，历史数据前后搜索，曲线时标变更等 1、2、4、6、15、30、60、120、240秒九档可供选择 3天（间隔1秒时）—720天（间隔240秒时） 打印接口为RS-232C，可直接配接SP-A40SH系列串行打印机 环境温度：0～50℃；相对湿度：≤85%RH； 避免强腐蚀气体。 AC 100～240V(开关电源)，50-60HZ； DC 20～29V (开关电源)。 ≤5W -标准卡入式
2、安装尺寸（单位：mm）
尺寸类型 A型 B型 C型
无纸记录仪使用说明书.
使用注意事项：请勿自行维修和拆卸仪器请先将引线与接线端子连接，再与仪表插接。
请在进行下列工作时，务必断开电源后操作1、当连接大地线时2、当对仪器端子接线及插拔端子时仪表上电前请仔细检查接线是否正确无误仪表断电及再次上电的间隔在5秒以上在下列场合应采取适当的屏蔽措施1、靠近电源动力线的场合2、处在强电场或强磁场的场合3、在产生静电或交流接触器干扰等类似的场合 不要将仪表安装在下列场合1、暴露于阳光直射的场合2、温度和湿度超过使用条件的场合3、有腐蚀性气体或可燃性气体的场合4、有大量粉尘、盐及金属性粉末的场合5、水、油及化学液体易溅射到的场合6、有直接震动或冲击的场合装箱清单目录一、概述 (1)二、功能特点 (1)三、技术指标 (2)四、安装与接线 (4)五、仪表运行及操作 (6)六、仪表组态 (15)七、累积功能及累积组态（选配功能） (23)八、流量组态及带温压补偿计算功能（选配功能） (25)九、PID控制组态（选配功能） (30)十、故障分析及排除 (33)一、概述无纸记录仪以其丰富的显示画面、灵活的操作方式以及强大的记录、运算、控制和管理功能，在各行各业中获得了极其广泛的应用。
本产品吸纳了各种国内外无纸记录仪的优点，应用最新的显示技术、微电子技术、数据存储和通讯技术，是一款功能齐全、操作方便、精确可靠、高性价比的产品。
本产品配置丰富，有蓝屏和彩色两种显示屏。
可以接收多种类型的直流电流、电压和电阻信号，实现温度、压力、液面、流量、成分以及力、力矩、位移等物理量的显示、记录、越限监控、报表生成、数据通讯、信号变送以及流量累计等功能。
本产品主要由液晶屏、按键、ARM微处理器为核心的主板、主电源、外供变送器电源、智能通道板、大容量FLASH等构成：可配备不同类型的智能通道板，根据应用要求选择。
内置大容量FLASH，可通过U盘快速将FLASH中的数据转储到计算机中。
内置的FLASH 的容量为64M字节，8通道时若20秒记录一次可记录865天，最快0.1秒记录一次所有通道的数据。
YOKOGAWA Advanced便携式无纸记录仪 MV1000 MV2000 说明书
使用现有的邮件系统发送E-mail 通过现有的邮件服务器(SMTP服务器)发送E-mail
Internet LAN
支持E-mail 的手机
邮件接收
● 使用FTP进行文件传输
通过MVAdvanced的FTP服务器/客户端功能，能够轻松使用文件 服务器进行数据共享和集中数据管理。
FTPਜ਼ࢽీࠀ܋
FTPޜခഗࠀీ
ൣည၂๖
超清晰LCD显示屏。 更加卓越的显示界面！
■ 超清晰宽视角LCD显示屏
通过更宽的查看视角和清晰显示，显著提高可视性。 同时具有亮度调节和LCD保护功能。
ࡗඁׂڦ
MVAdvanced
ࣃ௬ڦਥၳࡕ
■ 丰富的显示功能
၂๖൸၍ൎ࣑
ጲྷݔۯ၂๖
ሡཕ
ࡐۯ
ޤዺቆ߭
ፌമ௬၂๖
၎้ܔक़၂๖
低电压指令： 符合EN61010-1，测量类型II，污染程度2
C-Tick：符合AS/NZS CISPR11，Class A Group 1
● 高耐压半导体继电器 MVAdvanced使用横河电机开发的高耐压半导体继电器作为切换 输入信号的扫描仪。高耐压半导体继电器由实现了1500VDC高耐 压及3nA低漏电流的MOSFET和光电耦合 器构成，能够达到125ms/48ch(MV2048) 的高速扫描，延长了扫描仪的使用寿命, 并且消除了噪声。
通过连接至DAQMASTER系列MW100，可最多增加300个通道输 入。连接简单，仅一键即可完成。
48ch + 300ch = 348ch
MV2000
DAQMASTER MW100
ీݴဆ
可轻松连接PC，实现智能数据分析！
日本横河GP系列便携型无纸记录仪应用手册
防尘防水保证高显示品质
位于触摸屏表面的保护膜，其前后两面均涂有特殊涂层。这样不但可以避 免屏幕划伤，防止化学品和溶剂的腐蚀，还可以保持屏幕的高清显示和抗 强光显示。 * 通过抑制因光干涉产生的牛顿环(同心圆环)，可以提高视觉清晰度。
触摸屏 防水膜
防水膜的构造 触摸屏侧
高光泽AGHC (防强光硬涂层)
移动刻度以查看细节
[专利申请中]
拖动刻度，显示相应的数字值。 可以插入指定的BMP图片，对刻度进行自定义。
放大/缩小 放大 : 在时间轴上放大显示 缩小 : 在时间轴上缩小显示
改变数值位置
拖动
拖动
强大的搜索动能
通过日历和一览画面等丰富的显示功能，可轻松找到想要的数据。
通过日历搜索数据
通过各种汇总搜索数据
可支持的操作系统
Windows XP、Windows Vista、Windows 7
请从网站下载软件! 请从以下网址下载最新版软件: /software/en/
8
报告输出功能和打印输出功能
打印输出功能
可以直接从GP打印报告和快照，而无需通过 PC。
创建报告功能
VGA输出接口 [选件] 外部监视器接口。
6
高度安全
前面板翻盖可以上锁，这样便可防止对电源开关或外存进行错误操作。
7
智能化功能
丰富的网络功能和软件
Web应用使GP与PC系统实现无缝对接
通过网络浏览器(Internet Explorer 6/8)可以实时监视和改变设置。 无需使用专用软件便可建立起远程实时监视系统，设置简单、成本低廉。
大容量内部存储器
支持长时间、多通道记录。
显示数据文件的采样时间 内部存储器 显示更新(分/div) 采样周期(s) 总采样时间
横河G10 G20无纸记录仪
电池 12V DC
GP10 12V DC供电型
便携型 (GP10/GP20)
丰富的网络功能和软件
智能化功能
通过网络浏览器实时远程监视
通过网络浏览器可以实时监视GP和改变设置。 无需使用其他软件便可轻松建立起远程实时监视系统，设置简单、成本低廉。
实时监视画面
可以查看实时监视画面，内容与GP主机上的趋势波形、 数字等显示完全一致。
模拟输入模块
GX90XA-04-H0
GX90XA-06-R1 GX90YA GX90XD GX90YD GX90WD GX90XP
GX90UT
模拟输出模块 数字输入模块 数字输出模块 数字输入/输出模块 脉冲输入模块
PID控制模块
测量/应用
通道数
DC电压、DC电流(连接外部分流电阻)、热电偶、 RTD、接点(半导体继电器扫描型)
型号 GP10
GP20
类型 标准型 标准型 大存储型
最大通道数
通道数因系统构成而异
100ch
仅主机 主机 + 可扩展I/O
0-30 0-100
100ch
仅主机 主机 + 可扩展I/O
0-100 0-100
450ch
仅主机 主机 + 可扩展I/O
0-100 0-450
通道数仅针对模拟输入
各部件名称
GP20
10
DC电压、DC电流(连接外部分流电阻)、热电偶、 接点(低耐压固态继电器扫描型)
10
DC电压、DC电流(连接外部分流电阻)、热电偶、 接点(电磁继电器扫描型)
10
DC电流(mA) (固态继电器扫描型)
10
DC电压、DC电流(连接外部分流电阻)、热电偶、 RTD、接点(单独A/D型)
日本横河系列仪表
2-9-32,Nakacho,Musashino-shi, 东京都武藏野市中町2-9-32
横河电机(中国)商贸有限公司
地址: 中国上海市徐汇区淮海中路1010号嘉华中心(K.WAH CENTRE)28层～29层 邮编: 200031 电话: 021-54051515 传真: 021-54051011 地址： 北京市东城区金宝街89号金宝大厦9层 邮编： 100005 电话：010-85221155 传真：010-85221613 办事处:西安，惠州，苏州，南通，重庆，广州
用于高精度(ห้องสมุดไป่ตู้0.1%)温度控制的UT300系列
用于环境测试装置
高精度、五位数显示的UT551
红绿彩显
大数字测量值显示部分，绿 红彩 显自动切换！状态一目了然。
报警连动
测量值连动
偏差值连动
绿色/红色可固定
正常
UT321/UT351
自动/手动切换运行模式
UT351可直接连接以太网
UP351
两种编程模式
((只只44限8限8cc本h本h 体体))
最最快快2255mmss
1122年年连(连(66续c续chh记)记) 录录
更大
DX1000
2ch/4ch：125ms(高速模式时：25ms)
中中文拼文拼音音对对输输入入应应
方方便便!!!! 简简单单!!!! 6ch/12ch：1s(高速模式时：125ms)
外部存储使用CF卡最大可达2GB。 (标配32MB的CF卡。)
多功能电表通用三相3线式单相2线式单相3线式和三相3线式通用三相4线式通用电压输入110v220v440v1a通用电压输入110v220v440v5a数字输入1点数字输入1点模拟输出1点数字输入1点脉冲输出1点数字输入1点模拟输出1点脉冲输出1点rs485通信rs485通信ethernet通信需量测量需量报警接点输出1点100v240vacdcrst显示abc显示通常为0型号pr300相线额定输入电压电流附加输入输出功能通信功能附加测量功能辅助电源相位显示方式基本规格代码340大数字三段显示使用方便多功能电表高精度025pr300登场
OMEGA RD-MV100 200 无纸式记录仪产品说明书
Paperless RecorderRD-MV102-1Starts at$267314 cm (5.5") TFT Color DisplayRD-MV210-1, $4454, shown smaller than actual size.ߜUp to 12 Channels on RD-MV100ߜUp to 30 Channelson RD-MV200RD-MV204-1Starts at$423426 cm (10.4")TFT Color DisplayߜProgrammable Inputs:RTD, Thermocouple,VoltageߜTFT Color LCD for Better ViewingߜRemovable Storage on 3.5" Floppy Disk, Zip Disk, or PCMCIA ATA Flash Memory Card ߜData Collection Over Ethernet Network (Standard)ߜNetwork-Compatible Sophisticated Software ߜHighly Reliable HardwareToday’s users want mobile capabilities in all types of devices that use information. Cellular phones andnotebook computers are embodiments of this concept of mobility. With the RD-MV100/200 OMEGA is now setting the mobility standard for data loggers.The RD-MV100/200’s internal memory can store approximately 27 hours of continuous data when recording at 1-second intervals with a 6-channel model, or 8 hours when using a20-channel model. The RD-MV100/200is standard equipped with an Ethernet (10BASE-T) port for high-speed communications. The Ethernet capability makes it possible to form a simple network of PCs andRD-MV100/200 units using a hub orconnect the RD-MV100/200 to a LAN.* See page S-18 for details.Common Specifications Removable Storage Medium:3 options (3.5" floppy disk, zip disk, PCMCIA ATA flash memory card) Inputs: DC voltages, thermocouples, resistance temperature detectors, and digital inputs can be mixedRD-MV100 External Dimensions: Approx 225 H x 152 W x 240 mm D(9 x 6 x 9.5")Weight:Approx 4 kg (8.8 lb)RD-MV200 External Dimensions: Approx 338 H x 281 W x 252 mm D(13 x 11 x 10")Weight:Approx 7 kg (15.4 lb)Input Unit:Input Types: Floating unbalanced input, inter-channel isolation; (however, a common terminal is used for b terminals of RTDs)Measurement Intervals:RD-MV102/104/204/208: 125 msRD-MV106/112/210/220/230: 1 second (measurement interval is 2 seconds when the A/D integrating time is setto 100 ms)Input Ranges, Measuring Ranges,and Measurement/Display Accuracy: (Reference operating conditions: 23±2°C; 55 ±10% RH; supply voltage: 90 to 132, 180 to 250 Vac; supply frequency: 50/60 Hz ±1%; warmup time: 30 minutes or longer; performance under conditions, such as vibrations, which do not affect equipment operations)Reference Junction Compensation (RJC): INT (internal)/EXT (external) switching possibleRJC Accuracy:Type R, S, B, C: ±1°C; Type K, J, E, T, N, L, U: ±0.5°C (when measured at 0°C or higher)Maximum Input Voltage:2 Vdc or lower voltage range and thermocouple: ±10 Vdc(continuous); 6 V, 20 Vdc voltage range:±30 Vdc (continuous)Input Resistance: 2 Vdc or lower voltage range and thermocouple: 10 MΩor greater; 6 V, 20 Vdc voltage range: approx 1 MΩInput External Resistance:DC Voltage, Thermocouple Input:2 KΩor lessRTD Input:10 Ωor less per line (equal on all 3 lines)Input Bias Current:10 nA or less Maximum Common Mode Noise Voltage:250 Vac rms (50/60 Hz) Common Mode Rejection Ratio:120 dB (50/60 Hz ±0.1%; 500 Ωunbalanced; negative terminal to ground) Normal Mode Rejection Ratio:40 dB (50/60 Hz ±0.1%) Thermocouple Burnout:SensorON/OFF switching possible; burnout upscale/downscale switching possible CalculationDifference Calculation:Difference calculation between any channels Difference Calculation Range:DCV, TC, RTDLinear Scaling: Scaling range: DCV, TC, RTD; scalable value: -30000 to 30000Square Root Scaling:Scaling range: DCVScalable value: -30000 to 30000Display UnitDisplay Colors: Trend and bar graphdisplays: 12 colors for RD-MV100,16 colors for RD-MV200Background: white or blackTrend Display:Direction:Vertical or horizontalNumber of Windows:Switchingbetween 4 (4 groups)Thickness:1, 2, or 3 dotsWaveform Update Rate:15 or 30seconds (125 ms measurement intervalmodel only); 1, 2, 5, 10, 20, or 30minutes; or 1, 2, 4 hours (per div)Bar Graph Display:Direction: Vertical or horizontalNumber of Windows:Switchingbetween 4 (4 groups)Scale:Can be set in range of 4 to 12Horizontal Bar Graph ReferencePosition:End or centerUpdate Rate:1 secondDigital Display: Update rate: 1 secondOverview Display: Measurement valuesand alarm status on all channelsInformation Display: Alarm summary,message summary, memory information,media information, etc.Other Displayed Information:Memory status, scale values(0, 100%, display ON/OFF switchingcapability); grid (number of divisions canbe set between 4 and 12), and hours:minutes; time (year/month/date,hours/minutes/seconds); trip line(thickness: 1, 2, or 3 dots); Messages(maximum 16 characters, up to 8 types),alarm marksData Reference FunctionData can be played back from internalmemory or a removable storage mediumDisplay Types:Split screen (divided in 2)or whole screen; time axis operations:Zoom-in/-out display, scrollingStorage FunctionsRemovable Storage Drive: A drive forthe following types of media can beselected when you place your order:3.5" floppy disk (2HD), Zip disk, orPCMCIA ATA flash memory cardData Saving Method: Manual saving orauto-savingManual Saving: Saves data when a removable storage medium is inserted Auto-SavingSaving Display Data: Saves data to a removable storage medium periodically (every 10 minutes to 31 days)Saving Event Data: Saves data to a removable storage medium periodically (every 3 minutes to 31 days when trigger is not yet specified)or saves data when sampling period ends (when trigger is specified)Data Saving IntervalsDisplay Data Files: Interval varies according to the waveform update rate Event Data Files:Sampling interval is specifiedEvent Data File Sampling Intervals: RD-MV102/104/204/208: 125, 250,500 ms; 1, 2, 5, 10, 30, 60, or 120 seconds Measurement Data Files: The following two types of files can be created:1. Event data files (to save instantaneousvalues sampled at specified samplingintervals)2. Display data files (to save maximum andminimum values occurring in displayupdate interval in measurement datasampled at measurement interval)The two files can be combined as follows: 1. Event data file (trigger only)plus display data file2. Display data file only3. Event data file onlyData Format: OMEGA®standard format (binary format)Display DataMeasurement Data: 4 bytes per data Calculation Data: 8 bytes per data Event DataMeasurement Data: 2 bytes per data; Calculation Data:4 bytes per data Manual Sampling DataStorage Trigger: Key input or contact input Data Format: ASCII formatMaximum Stored Data: 50 dataTLOG Data (with calculation option only): Time series integrated (totalized) value, maximum value, minimum value, average value, max/min valueStorage Trigger: Data saved when TLOG time is upReport Data (with calculationoption only): Periodic average value, maximum value, minimum value, and integrated (totalized) valueTypes: hourly reports, daily reports, daily + weekly reports, daily + monthly reportsData Format: ASCIIScreen Copying Function Copying Method: Key inputData Format: PNGOutput to: Removable storage medium or online outputTrigger FunctionsEvent Data File: Select FREE, TRIG, or ROTATE mode Display Data + Event Data File:Select TRIG or ROTATE modeTrigger Source: Key input, remotecontrol (optional), alarmPretrigger: Works with event data;0, 5, 25, 50, 75, 95, or 100%Alarm FunctionsMaximum Number: A maximum of4 alarms can be set on each channelAlarm Types: High/low limits,high/low difference limits, rate ofchange increase/decrease limitsRate of Change AlarmTime Interval:Measurement interval x 1 to 15Display: Status (alarm type) andcommon alarm display in digital displayarea when alarm occurs; hold/no holdswitching capabilityHysteresis: ON (0.5% of displayspan)/OFF switching (common toall channels/levels)Outputs: 2, 4, 6, 12, or 24 (12 and 24can be specified for RD-MV200 only)operation excitation/no excitation,hold/no hold switching capabilityStorageStored Information: Alarmoccurrence/clear time, alarm typeNumber of Saved Items:Maximum 120 (most recent)COMMUNICATION FUNCTIONSNetwork Type: Ethernet (10BASE-T)Basic Protocol: TCP/IPFile Transfer Function: Automatictransfer from RD-MV100/200 (FTP clientprotocol); file transfer in response torequest from host computer (FTPserver protocol)Real Time Monitor Function:Real time online monitoring ofRD-MV100/200 measurement data(proprietary protocol)Transferable Files: Display data files,event data files, report data, andscreenshot dataFTP Server Functions: Directoryoperations on a removable storagemedium, file output, file deletion, andinformation on available memory spacein a storage mediumDisplay:RD-MV100: 5.5" TFT color LCD(320 x 240 dots)RD-MV200: 10.4" TFT color LCD(640 x 480 dots)Supply VoltageAC Power Supply: 90 to 132,180 to 250 Vac, 50/60 Hz, 80 VADC Power Supply: 10 to 18 Vdc, 42 VAAmbient:5 to 40°COptional SpecificationsAlarm Output Relay Contacts(/A1, /A2, /A3, /A4, /A5) :250 Vdc/0.1 A (resistance load),250 Vac (50/60 Hz)/3 A. NO-C-NC(excitation/no excitation, AND/OR,hold/no hold switching capability)Serial Communications (/C2, /C3):RS232 or RS422-A/485 (4-wire half-duplex multidrop connection); 1200, 2400,4800, 9600, 19200, 38400 bps; 7 or 8 bits,1 stop bit, odd/even/none parityFail/Memory End Output (/F1):Relay output from back side before starttime specified for display data fileoverwriting or when system abnormalityoccurs (1, 2, 5, 10, 20, 50, or 100 hourscan be specified)Screw Input Terminals (/H3):(/H3 option for RD-MV100 only;specified suffix code for RD-MV200)The standard clamp input terminals arereplaced with screw type input terminalsMathematical Calculation and ReportFunctions (/M1):Addition, subtraction, multiplication, division,square root, absolute value, commonlogarithm, exponent, power, relationships(<, >, =, ≠), logical calculations (AND, OR,NOT, XOR),time series data average;maximum, minimum, and integrated(totalized) values; up to 12 constants can beset for RD-MV100, 30 for RD-MV200Report Types:Hourly reports, dailyreports, daily + weekly reports,daily + monthly reportsCalculation Types:Average,maximum, minimum, and integrated(totalized) valuesRemote Control (/R1):Memory start/stop, event data filetrigger, time adjustment, calculationstart/stop, calculation data reset, manualsampling, message writing, alarm ACKApplication SoftwareDAQSTANDARD (included)DATA VIEWER: Configurationsoftware (see next page)DAQEXPLORER (sold separately)Functions include:Desktop (file transfers, configurations,etc., using operations on desktop); datamonitoring; hardware configurations(online or using a removable storagemedium; data viewer; printout ofplayback data; file conversion to ASCII,Lotus 1-2-3, and MS-Excel formats)RD-MV106-1,$2784, shownsmaller thanactual size.Digital Display Bar Graph DisplayOverview Display Information Display4-Split Screen Data ViewerThe data viewer can be used to convert fileformats and play back data files saved onthe RD-MV100/RD-MV200 (event data,display data, TLOG data files), and data filestransferred to a file server using a protocolsuch as FTP (event data, display data,TLOG data files); the file conversionfunctions let you convert RD-MV100/200data files to ASCII format, as well as theformats of off-the-shelf spreadsheetprograms such as Lotus 1-2-3 andMS-ExcelConfiguration SoftwareThe configuration software can be used toenter various RD-MV100/200 configurations Display TypesCANADA www.omega.ca Laval(Quebec) 1-800-TC-OMEGA UNITED KINGDOM www. Manchester, England0800-488-488GERMANY www.omega.deDeckenpfronn, Germany************FRANCE www.omega.fr Guyancourt, France088-466-342BENELUX www.omega.nl Amstelveen, NL 0800-099-33-44UNITED STATES 1-800-TC-OMEGA Stamford, CT.CZECH REPUBLIC www.omegaeng.cz Karviná, Czech Republic596-311-899TemperatureCalibrators, Connectors, General Test and MeasurementInstruments, Glass Bulb Thermometers, Handheld Instruments for Temperature Measurement, Ice Point References,Indicating Labels, Crayons, Cements and Lacquers, Infrared Temperature Measurement Instruments, Recorders Relative Humidity Measurement Instruments, RTD Probes, Elements and Assemblies, Temperature & Process Meters, Timers and Counters, Temperature and Process Controllers and Power Switching Devices, Thermistor Elements, Probes andAssemblies,Thermocouples Thermowells and Head and Well Assemblies, Transmitters, WirePressure, Strain and ForceDisplacement Transducers, Dynamic Measurement Force Sensors, Instrumentation for Pressure and Strain Measurements, Load Cells, Pressure Gauges, PressureReference Section, Pressure Switches, Pressure Transducers, Proximity Transducers, Regulators,Strain Gages, Torque Transducers, ValvespH and ConductivityConductivity Instrumentation, Dissolved OxygenInstrumentation, Environmental Instrumentation, pH Electrodes and Instruments, Water and Soil Analysis InstrumentationHeatersBand Heaters, Cartridge Heaters, Circulation Heaters, Comfort Heaters, Controllers, Meters and SwitchingDevices, Flexible Heaters, General Test and Measurement Instruments, Heater Hook-up Wire, Heating Cable Systems, Immersion Heaters, Process Air and Duct, Heaters, Radiant Heaters, Strip Heaters, Tubular HeatersFlow and LevelAir Velocity Indicators, Doppler Flowmeters, LevelMeasurement, Magnetic Flowmeters, Mass Flowmeters,Pitot Tubes, Pumps, Rotameters, Turbine and Paddle Wheel Flowmeters, Ultrasonic Flowmeters, Valves, Variable Area Flowmeters, Vortex Shedding FlowmetersData AcquisitionAuto-Dialers and Alarm Monitoring Systems, Communication Products and Converters, Data Acquisition and Analysis Software, Data LoggersPlug-in Cards, Signal Conditioners, USB, RS232, RS485 and Parallel Port Data Acquisition Systems, Wireless Transmitters and Receivers。
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
测量通道数＝ 4ch，运算通道数＝ 0ch 时 仅显示数据文件
显示更新 （分钟 ／div） 1
5
20 30 60 240
保存周期
2
（秒）
10 40 60 120 480
采样时间 （ 约）
41 小时 8 天 34 天 52 天 104 天 416 天
仅事件文件
保 存 周 期 125ms 500ms 1 秒 5 秒
周围温度 ：－ 25～60℃ 湿度 ： 5～95％RH（ 应不结露） 振动 ： 10～60Hz，4．9m／s2 冲击 ： 392 m／s2 以下（包装状态下）
■ 工作条件的影响
动作条件的影响
环境温度 ： 对 10℃之内的变动 ： ±（rdg 的 0．1％± 1digit）以内（DCV，TC）
W＊2
0．0～2315．0℃
L＊3 － 200．0～900．0℃
U＊3 － 200．0～400．0℃
RTD＊5
Pt100＊4 － 200．0～600．0℃ JPt100＊4 － 200．0～550．0℃
电压输入 OFF：2．4V 以下
DI
ON ：2．4V 以上
显示数据文件: 与波形更新率连动
事件文件:
指定采样周期
事件文件采样周期：
AX102，AX104:
125ms，250ms，500ms，1s，2s，5s，
10s，30s，60s，120s
AX106，AX110
1s，2s，5s，10s，30s，60s，120s
测量数据文件：
可生成下述两种文件：
（ 1） 事件文件（ 在指定采样周期内保存采样
RTD（ 热电阻） ，DI（ 动作记录） DCA（ 直流电流，需分流电阻）
横 河 川 仪 有 限 公 司 YOKOGAWASICHUAN
输入量程和测量范围
输入 量程
可测量范围
20mV － 20．00～20．00mV
60mV － 60．00～60．00mV
■ 运输及保管条件
仪表从发货到开始使用的运输，保管以及暂 停使用的运输，保管环境条件。
５
● 电源部分：
额定电源电压 ： 100～240VAC（自动切换） 使用电源电压范围 ：90～132，180～250VAC 额定电源频率 ： 50／60Hz（自动切换） 功耗：
电源电压 100VAC 240VAC
LCD 保护时 平时 最多
14.6VA 20VA
15.3VA 40VA 21VA 53VA
AX102 : 2 通道 AX104 : 4 通道
AX106 : 6 通道 AX110 : 10 通道
测量周期: AX102/AX104： 125ms AX106/AX110 ： 1s（ A/D 积分时间为 100ms 时为
2s） 输入种类： DCV（ 直流电压） ，TC（ 热电偶）
正在测量时:
保存内存数据
测量停止时:
保存未保存的数据
自动保存：
显示数据的保存: 以一定周期（ 10 分钟～31
天） 保存到外部存储媒体
事件数据的保存： 以一定的周期（ 3 分钟～
31 天） 保存到外部存储媒
体（ 自由触发时）
采样结束时保存（ 指定触
发时）
数据保存周期:
接点输入 接点 ON／OFF
＃1 R，S，B，K，E，J，T，N ：IEC584－1（1995），DIN IEC584，JIS C 1602－1995 ＃2 W ：W－5％，Re／W－26％ Re （Hoskins Mfg．Co．），ASTM E988 ＃3 L：Fe－CuNi，DIN43710，U：Cu－CuNi，DIN43710 ＃4 Pt100 ：JIS C 1604－1997，IEC 751－1995，DIN IEC751－1996，JPt100 ：JIS C
运算数据…8byte／1 个数据
事件数据: 测量数据…2byte／ 1 个数据
运算数据…4byte／1 个数据
采样时间举例：
自动保存时， 每个文件（ 1 个 FD） 的采样时间
通过下式求出：
采样时间 ＝ 每个通道的数据数×数据存储周期
对于 AX100： 显示数据文件： 测量通道数 10ch，运算通道数 10ch，显示更新周 期为 30 分钟 ／div（数据保存周期为 60 秒）时： 每个通道的数据数
＝1200000byte／（10 × 4byte＋10 × 8byte） ＝10000 个数据 ＊ ＊ 最多 100000 个数据 每个文件的采样时间 ＝10000 × 60 秒 ＝ 约 7 天 事件文件： 测量通道数 10ch，运算通道数 10ch，数据保存周期 为 1 秒时： 每个通道的数据数 ＝1200000byte／（10 × 2byte＋10 × 4byte） ＝20000 个数据 ＊ ＊ 最多 120000 个数据 每个文件的采样时间 ＝20000 × 1 秒 ＝ 约 5.6 小时 显示数据 ＋ 事件数据： 显示数据文件大小 ＝900000 byte 最多 75000 个数据。 事件数据文件大小 ＝300000 byte 最多 30000 个数据。 最多 75000 个数据。 用上述方法同样可以进行计算。
10～60Hz 0．2m／s2
冲击 ：
不允许
７
通道间干扰 ： 共模抑制比： 串模抑制比：
120dB（输入外部阻抗 500 Ω，向其 他通道 的输入为 30V 时） 120dB（50／60Hz ± 0．1％，500 Ω 不平衡，负极端子 － 地之间） 40dB（50／60Hz ± 0．1％）
则不允许任何操作
在输入用户名，用户 I D ，密码
后，才能进入操作模式登录
并且，为了保护各种设定，通过
密码可以键锁
绝缘阻抗 ：
各端子 － 地 20M Ω以上（ 500VDC）
耐电压：
电源端子 － 地
1500VAC（50／60Hz） 1 分钟
接点输出端子 － 地 1500VAC（50／60Hz） 1分钟
● 其他
时钟：
带日历（ 西历）
通过外部接点可以对时（遥控
附加规格）
时钟精度：
± 100ppm，但不含电源开启时
的延迟（1 秒以下）
电池 ：
设定值通过内置的锂电池（ 寿命
约 10 年，室温下） 保护
键锁功能： 设定 ON／ OFF 及密码
登录功能 ： 电 源 开 启 时 ， 如 果 未 进 行 登 录
串模（50／60Hz） 直流电压… 包含信号的峰值在测量 量程的 1． 2 倍以下 热电偶…… 包含信号的峰值在测量 热电动势的 1． 2 倍以下 热 电 阻 … … 50mV 以下
共模（50／60Hz） 所有量程均为 250VACrms 以下
安装姿势 ： 可前后倾斜 3 0 °以内，左右水平
采样时 （ 约）
间 4．2
小时
16 小时
33 小时
6天
显示数据文件＋事件文件
显示数据文件
显示更新
（分钟 ／div） 1
5
20 30
30 秒 120 秒 41 天 166 天
60 240
保存周期
2
（秒）
10 40
60 120 480
采样 天 39 天 78 天 312 天
１
General
Specifications
IT RECORDER AX100
■ 概 要
AX 系列是将测量数据实时显示在单色液晶画 面上并能将数据保存在 ３ ． ５ 寸软盘或 CF 卡（附加 规格）上的无纸记录仪。可在各个通道任意设定直 流电压输入，热电阻输入，热电偶输入及开关量输 入等。AX100 有 ２ ，４ ，６ ，１ ０ 通道型共 ４ 种。 通过标准软件，对软盘 ／ CF 卡中的数据进行波形， 数字等显示，也可以打印输出。还可转换成 Lotus12-3，Excel 或者 ASCII 格式。
预热时间 ：从接通电源开始 3 0 分钟以上 使用高度 ：2000 米以下
■正常工作条件
电源电压 ： 90～132，180～250VAC
电源频率 ： 50Hz ± 2％，60Hz ± 2％
周围温度 ： 0～50℃（软盘工作时：5～40℃）
周围湿度 ： 20～80％RH（在 5～40℃下）
振动 ：
面板 ： 浅炭灰色( 相当于迈歇尔 1 0 B
外形尺寸 ： 质量：
3.6/0.3) 144(W)× 144(H)× 239(D)mm AX102: 约 3.0kg AX104: 约 3.0kg
AX106: 约 3.0kg AX110: 约 3.0kg
● 输入部分
输入点数 :
1604－1989，JIS C1606－1989 ＃5 测量电流：i ＝ 1mA ＃6 WRe：W－3％，Re／W－25％ Re
３
● 存储功能
外 部 存 储 媒 体 （ 附 加 规 格 ）：
3.5 英寸软盘(2HD)/CF 卡（３２－５１２MB）
数据保存方法:
手动保存或自动保存
手动保存:
通过插入外部存储媒体保存数据
DCV
200mV － 200．0～200．0mV 2V － 2．000～2．000V
6V － 6．000～6．000V
20V － 20．00～20．00V
50V － 50．00～50．00V
R＊1
0．0～1760．0℃
S＊1 0．0～1760．0℃
■ 标准规格
一般规格 ● 构 造
安装方法 :
嵌入式安装（ 垂直面板）
可向后倾斜 3 0 °安装，左右水 平。
安装面板厚 : 2～26mm
材质：外壳 : 钢 板
面板 : 聚 碳 酸 酯 涂装色：
外壳 : 浅兰灰色( 相当于迈歇尔 3 . 1 G Y
