Video Switchers Series 视频切换器 VS系列 中文说明书
V-TECH Video Technology,IncU s e r's M a n u a l中文用户手册Video Switchers Series视频切换器VS系列Video Technology,Inc VS系列 用户操作手册目 录第一章 概述 (1)功能简介 (1)前面板 (2)后面板 (2)技术规格 (3)第二章 安装 (4)第三章 操作指引 (5)第四章 RS-232串口指令及回应 (6)附录 关于产品保修Video Technology,Inc VS系列 第一章 概述第一章 概 述V S系列切换器采用H D-15型V G A接口，主要功能是将多路计算机视频信号进行选择切换输出，支持1920×1200@75等多种计算机信号输入。
此系列产品采用最新的芯片和技术，是针对高端显示需要而开发的专业视频切换器，输出分辨率最高1920×1200@75Hz。
V S系列切换器可将4（6、8、16）路信号从输出通道切换到1路通道上输出。
有信号放大作用，图像清晰，不托尾，不模糊，无重影，性能稳定，可设置为有信号自动切换模式。
广泛用于投影教室、会议室、多功能厅、展示厅、多媒体教室等场所。
VS系列切换器分为：带音频、不带音频两种规格。
功能简介：支持分辨率1920×1200@75、1920×1080@60、1280×1024@60（向下兼容）视频带宽：350MHz（-3dB）音频带宽：1MHz（-3dB）自动循环切换模式4（6、8、16）路VGA视频输入，支持高清信号1080P1路VGA视频输出，支持高清信号1080P4（6、8、16）路非平衡音频输入，1路非平衡音频输出支持前面板控制和RS-232串口远程控制缓冲固定0dB输出视/音频独立切换断电记忆功能标准19”尺寸，安装方式灵活Page1Page2V S系列 前面板由两个数码管和3个功能按键组成，待机时数码管显示当前输入通道数.功能键分别是：确认[ENTER]、取消[ESC]、设置[SET]。

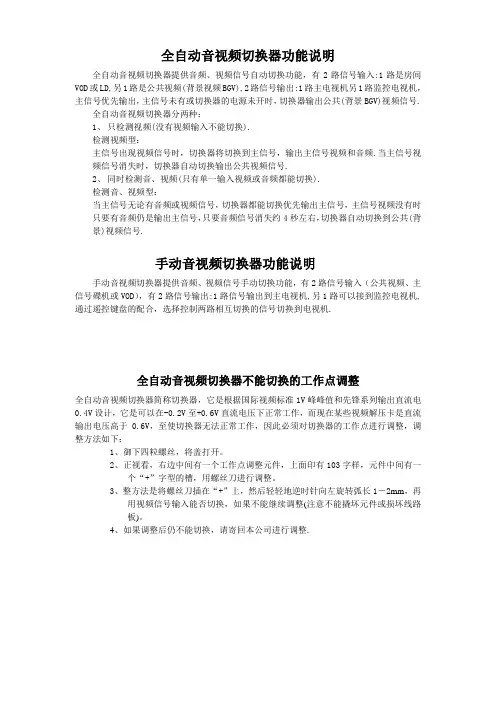

全自动音视频切换器功能说明
全自动音视频切换器功能说明全自动音视频切换器提供音频、视频信号自动切换功能，有2路信号输入:1路是房间VOD或LD,另1路是公共视频(背景视频BGV),2路信号输出:1路主电视机另1路监控电视机，主信号优先输出，主信号未有或切换器的电源未开时，切换器输出公共(背景BGV)视频信号.全自动音视频切换器分两种：1、只检测视频(没有视频输入不能切换).检测视频型：主信号出现视频信号时，切换器将切换到主信号，输出主信号视频和音频.当主信号视频信号消失时，切换器自动切换输出公共视频信号.2、同时检测音、视频(只有单一输入视频或音频都能切换).检测音、视频型：当主信号无论有音频或视频信号，切换器都能切换优先输出主信号，主信号视频没有时只要有音频仍是输出主信号，只要音频信号消失约4秒左右，切换器自动切换到公共(背景)视频信号.手动音视频切换器功能说明手动音视频切换器提供音频、视频信号手动切换功能，有2路信号输入（公共视频、主信号碟机或VOD），有2路信号输出:1路信号输出到主电视机,另1路可以接到监控电视机,通过遥控键盘的配合，选择控制两路相互切换的信号切换到电视机.全自动音视频切换器不能切换的工作点调整全自动音视频切换器简称切换器，它是根据国际视频标准1V峰峰值和先锋系列输出直流电0.4V设计，它是可以在-0.2V至+0.6V直流电压下正常工作，而现在某些视频解压卡是直流输出电压高于0.6V，至使切换器无法正常工作，因此必须对切换器的工作点进行调整，调整方法如下：1、御下四粒螺丝，将盖打开。
2、正视看，右边中间有一个工作点调整元件，上面印有103字样，元件中间有一个“+”字型的槽，用螺丝刀进行调整。
3、整方法是将螺丝刀插在“+”上，然后轻轻地逆时针向左旋转弧长1－2mm，再用视频信号输入能否切换，如果不能继续调整(注意不能撬坏元件或损坏线路板)。
4、如果调整后仍不能切换，请寄回本公司进行调整.。

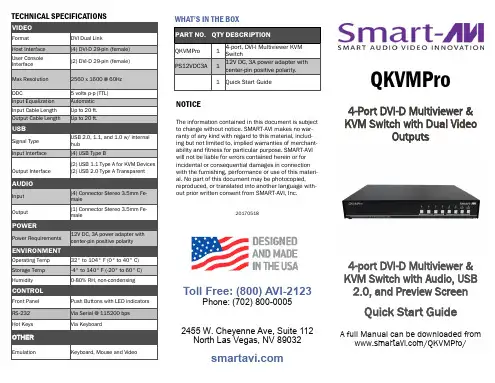

智能AVI QKVMPro 4-端口DVI-D多视图器与KVM切换器说明书
