摩托罗拉MD481无绳电话使用说明书
摩托罗拉MD481无绳电话使用说明书

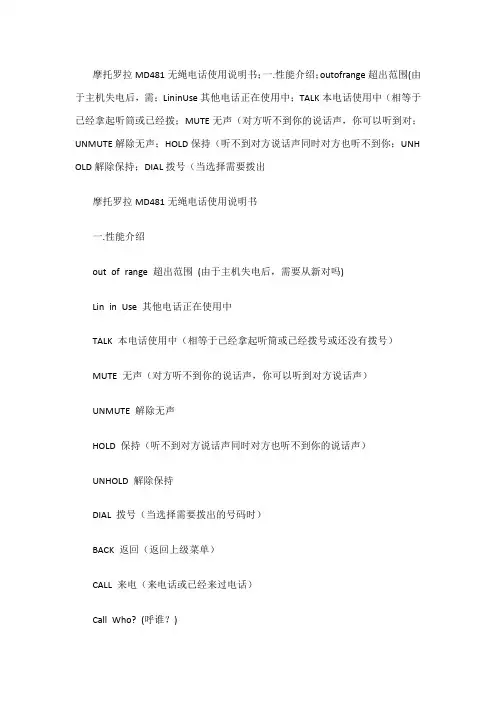

摩托罗拉MD481无绳电话使用说明书；一.性能介绍；outofrange超出范围(由于主机失电后，需；LininUse其他电话正在使用中；TALK本电话使用中（相等于已经拿起听筒或已经拨；MUTE无声（对方听不到你的说话声，你可以听到对；UNMUTE解除无声；HOLD保持（听不到对方说话声同时对方也听不到你；UNH OLD解除保持；DIAL拨号（当选择需要拨出摩托罗拉MD481无绳电话使用说明书一.性能介绍out of range 超出范围(由于主机失电后，需要从新对吗)Lin in Use 其他电话正在使用中TALK 本电话使用中（相等于已经拿起听筒或已经拨号或还没有拨号）MUTE 无声（对方听不到你的说话声，你可以听到对方说话声）UNMUTE 解除无声HOLD 保持（听不到对方说话声同时对方也听不到你的说话声）UNHOLD 解除保持DIAL 拨号（当选择需要拨出的号码时）BACK 返回（返回上级菜单）CALL 来电（来电话或已经来过电话）Call Who? (呼谁？)Answer ON （应答开启）PRIVATE （私人电话本）也就是存在独立子机上电话本二.功能按键介绍：“▲■” 键（播放留言）；播放/停止播放。
“Del” 键（删除留言）；在播放当前留言时，按“Del”键就删除当前播放的留言。
“(ON)flash” 键（通话或拨号）“(OFF)cancel”键（结束或取消）“▲▼” 键（查阅来电）；或选中拨号。
OPTIONS(选项) FORMAT（格式）；号码格式Delete （删除此条来电）Delete all（删除所有来电）Store （储存电话）Private （储存到私人电话本）Shared （储存到共享电话本）“handsfree”键（免提）；免提/听筒“redial” 键（重拨）；再按“▲▼”键，查阅已拨电话或选中重拨电话（预留5组已拨电话）。
“intercom”键（呼叫子机或座机）；可以有选择某话机或全部话机对讲（直线距离50米）。
摩托罗拉电话包用户手册说明书
The Handset
The Motorola ersonal handset enables you to conduct private conversations and use the voice activation dialing (VAD) features. By pressing the button on the internal side of the handset invokes the VAD name and number dialing features.
About This Guide
This user guide introduces you to the components and features of your Bag Phone.
Getting Started
The Bag
The Motorola M900 Bag Phone bag contains the bag phone set in a carry-case.
Power Adaptors
The M900 Bag Phone offers two different types of external power connections:
Cigarette Lighter Power Adaptor (CLA).
The CLA power adaptor allows you to connect the M900 Bag Phone to your car's CLA. To use the M900 Bag Phone with your car's CLA adaptor, connect the adaptor to the DC socket in the front connector panel. Place the cable in the Velcro loop to make sure the connector DC jack won't come out.
Motorola Solutions eVerge 数字无线通信设备说明书
EVX-5300/5400 SERIESDIGITAL MOBILE RADIOSBackOption Board ExpandabilityEVX-Link and EVX-5300EVX-5400EVX-5300F A C TO RY W A R R A N TY 3Y E A RAdditional Features^ 6 Programmable keys^8-Character alpha numeric display (EVX-5400) ^Programmable tri-color LED ^Minimum volume control ^RSSI Indicator (EVX-5400)^Direct channel entry (EVX-5400) ^Lone worker alert ^ARTS ™ & ARTS II ™ ^Emergency alert ^DTMF Speed dial ^Priority scan ^Follow-me scan ^Dual watch^Public address / horn alert^D-Sub 15-pin accessory connector^Radio-to-radio cloningAnalog Mode Features^Voice compander ^Whisper mode^CTCSS/DCS encode/decode ^MDC-1200® encode/decode ^2-Tone encode/decode ^5-Tone encode/decode^DTMF Telephone Interconnect/ANI ^DTMF Paging^Remote stun/kill/revive (5-tone)Digital Mode Features^Basic privacy ^Enhanced privacy^Text messaging (EVX-5400) ^All call, Group call, Individual call ^Direct/Dual Capacity Mode ^Transmit Interrupt ^Site Search ^Escalert^Remote monitor ^PTT ID encode ^Mixed mode scan^One touch access (EVX-5400)^128 Record contact list (EVX-5400)Accessories^MH-67A8J: Standard microphone^MH-75A8J: Keypad microphone (16 keys) ^MD-12A8J: Desktop microphone ^MLS-100: External speaker, 12W ^LF-6: DC Line filter^RMK-5400: Remote Mount Kit*25 kHz will not be available on new equipment in the U.S.A. after 1/1/2013. Specifications are subject to change without notice or obligation.VERTEX STANDARD is a trademark of Vertex Standard LMR, Inc. All other trademarks are the property of their respective owners. ©Vertex Standard LMR, Inc. 2016.NSS_5300/5400_04/2016EVX-5300/5400 SERIESSPECIFICATION SHEET - NORTH AMERICA。
MOTOROLA MICOM中文使用手册
4. 接收声音信号时，可调节 CLARIFIER 使声音自然。本调节对发射频率无效。 5. 电台会保持上次使用的信道，下次开机自动进入。 6. 键盘按动到位时有啪哒感。不要用尖锐物按键以免损坏。 7. 信道选择。两种不同的选择方式：上下箭头和数字键。
钮或按麦克风上的 PTT 键。要扫描少于 10 个信道，在 101 到 110 信道之间不感兴趣的信道 中通过编入 0 来去除其中的频率信息。按 RESET 返回按 SCAN 钮之前使用的信道。
8. 发射 a. 在发射之前先收听。关闭静噪。SQ 钮右上角的灯熄灭。如果是半双工信 道，按 TX/RX 钮监听发射频率的情况。方框将围绕着‘XMIT’直到再 按 RX/TX 钮，或 PTT 钮按下并释放，或 60 秒重设定时器重新设置控制。 如果这信道或频率没人用，扬声器中将听到噪声。如果有人使用，应当改 变信道或等待。 b. 正确握持麦克风 稳定的握住麦克风，网格面对嘴唇约 5cm 距离。 c. 讲话清楚并缓慢 充分按下麦克风侧面的 PTT，功率表图示下面的下划线 出现。如果这信道是单工（收发同频），显示的频率不会改变。如果信道 是半双工（收发不同频），平时显示的是接收频率，PTT 按下去时显示的 是发射频率。用普通声音清楚地缓慢地讲话。说话时观察 RF 功率图示。 产生的 RF 输出大约显示从左至右每一个柱形为 15W 增量。如果天线系 统调谐不合适，产生的反射功率通过从左至右熄灭柱形显示来指示。见下 面图示。
1. 模式 选择下列发射类型之一：SSB，AME。或 PILOT。
2. USB/LSB （可选）选择上边带或下边带用于发射和接收。
3. TX/RX 选择单工（SMPX）或半双工（RCV & XMIT）操作模式。在半双工模式 时也允许监视发射频率。
摩托罗拉MD系列无绳参考使用说明书
摩托罗拉MD 系列中文简易说明 上海函世网络科技有限公司制作第 1 页 共 1 页摩托罗拉MD 系列数字无绳电话简易说明一.按键功能 1.拨通挂断电话(ON)flash 键：拨号/确认按电话号码后按键或按(ON)flash 键后按电话号码 (OFF)cancel 键：挂断/取消 通话完毕按(OFF)cancel 键 退出菜单2．handsfree:扬声功能（免提）按handsfree 键后按电话号码可以直接拨号 3．page:呼叫子机用于主机呼叫或者寻找子机之用。
按下后，子机会发出响声。
此时可接听，或者挂断。
4．intercom:内部通信直接呼叫子机，多个子机的时候可以用此功能。
5．redial:重拨查拨号记录：按redial 键后按“上”“下”键选择。
可重拨以前的号码。
本机可重拨最后五组去电号码，先按ON 键货HANDSFREE 键，之可以重拨最后一组去电。
6．</>Volume:调节音量 按上下键调节 录音部分：7.memo:家人留言,按住memo 键约3秒,听到"嘀"的一声后开始留言,完毕后松后即可播放留言:按▲■键可听取所有留言,当座机inuse/voice mail 指示时,表示有新留言未放听 8. 播放录音或者停止：前一条录音后一条录音9.DEL :删除当前播放的录音播放录音时按DEL 即可删除当前条录音 二．MENU 菜单设置：屏幕下方有左键和右键两个按钮，分别是对应屏幕中左边或者右边的功能键，在不同的子菜单下可能表现为不同的功能键。
.一般表现为左键：SELECT/DONE （选择/确定） 右键为CHANGE （改变设置）或者其他，根据情况改变 按屏幕下方右键按钮即可进入菜单设置。
（左键为直接进入电话簿Phonebook ） 1．Caller ID log :来电记录 查来电记录：按“上”“下”键选择 查拨号记录：按redial 键后按“上”“下”键选择 来电号码储存：按上下翻键查阅来电信息时，如需要存储当前号码，按一下OPTIONS 键，再按两下SELECT 键，按数字键输入英文名字，如有误可以按DELETE 键可删除，按DONE 键确认按EXIT 退出。
无绳电话iris中文说明书
无绳电话iris中文说明书一、安装及充电:首先将电源适配器插入主机底座(中间有一个小按键的底座),底座有两个接口,右边电话图标的接电话线,左边插头图标接电源,连接好插座后,电话机打开电池盖装入两节7号充电电池,插入底座充电12小时以上(电话机插上底座能充电,屏幕显示IRIS 1 右上角的信号灯不闪动，就是安装正常了.如果显示的不是IRIS ,请检查主机座电源是不是接好.)二、新机出厂默认菜单是意大利文，请先换成英文菜单，换菜单方法：按MENU,下翻两次（Portatile）,屏幕按OK确认,下翻7次,屏幕出现Lingua,按OK确认,下翻14次就是English,按OK确认.按挂机键返回.三、电话系统操作1）接听电话：拿起手机，按绿色通话键开始交谈，(如果设置成自动接听,拿起来就会接通) 再按红色挂机键挂机。
2）拔打电话：按话筒键开机，输入所拔号码即可;也可按手机拨号方式:先输入要拨的号码,再按话筒键开机.通话完按挂机键挂机。
3）重播电话：按▲键，再按▲、▼键翻查您最近拨出的10组电话号码.按话筒键开机则自动拔出您要拨的号码。
可按子机最左下角的小喇叭键进行免提通话,再按一次则回到常态4 )呼叫：按座机上的圆形键，所有手机就会发出蜂鸣声。
再按一次此键即停5 ) 通话音量：在通话状态下按▲、▼键调节耳机音量大小(共5级可调)。
6 ) 子机开关：在通常状态下按住R键5秒,则子机关闭.同样操作则子机开启.。
7 ) 键盘锁: 在通常状态下长按住*号键1秒,则子机键盘锁死,再按任意键会显示PRESS *长按一次*键则子机键盘开启8) 子机间通话与转接: （以下只限子母机使用，单机以下功能无效）按1号子机右下角INT键再按2则2号子机鸣叫,此时按2号子机话筒键则可进行双方通话.反之亦然.转接电话操作同前,只是当2号子机鸣叫且按了话筒键后,1号子机须按话筒键关机方可将电话转接到2号子机上.三方通话：当有电话进来后，A机接听后，需要同B机的人一起听电话内容一起说话，可使用三方通话功能，具体方法是：电话进来后，A机接听后，短按int键，再按B机子机号，此时，B机会响铃，B机接听后，A机可听到B机说话，此时B机仅能听到A机说话，不能听到外线说话。
摩托罗拉说明书
目录1 手持终端介绍1.1 motorola mc31902 手持终端日常操作2.1 充电方法2.2 开关机、热启动、冷启动3 手持终端无线网络配置3.1 无线网络配置4 手持终端联机pc机4.1 概述4.2 同步工具安装4.3 手持终端中文字库安装5 手持终端键盘功能设置 6手持终端机故障分析1 手持终端介绍1.1 motorola mc3190motorola 讯宝symbol mc3190数据采集终端作为symbol mc3090手持终端的升级替代产品，mc3190是构建于成功的mc3090之上，mc3190采集器系列分为3100批处理盘点机和包含无线局域网wifi的mc3190条码采集器两款。
新的摩托罗拉mc3190系列可为公司内部的按键应用提供成本高效的移动性和用户舒适度。
符合人体工程学的耐用型 mc3190 提供先进的计算能力以及数据采集能力、增强的安全性以及企业级的运动传感能力。
motorola 讯宝symbol mc3190数据采集终端性能参数：数据采集选项-1d 激光扫描仪、1d/2d 成像仪、dpm 内存 (flash/ram)-128mb ram/256 mb flash 或 128mb ram/512mb flash 处理器 (cpu)-marvell pxa320 @ 624 mhz 操作系统 (os)-microsoft windows mobile 6.1 classic, microsoft windows ce 6.0 pro 无线数据通讯：wpan（支持蓝牙技术）-ii 级、v2.1 增强数据速率 (edr), 集成天线wlan-三重模式 ieee? 802.11a/b/g；经过 ccxv4 认证；支持 ipv6；经过 fips140-2 认证（仅限mc3190）线性一维条码扫描器：光学分辨率-最小元素宽度 4 mil 扫描速率-104（+/- 12）次扫描/秒（双向）使用环境：环境密封-ip54（2 类）工作温度--4°至 122° f/-20°至 50° c 跌落规格-在工作温度范围内，多次从 4 英尺/1.2 米高处跌至水泥地面；满足并超过mil-std 810g 滚落规格-根据 iec 68-2-32，在室温条件下，500 次从 1.64 英尺/0.5 米高滚落（1,000次）2.1 充电方法摩托罗拉的每个手持终端都配了两粒电池，同时配了四位充电座。
摩托罗拉MD481无绳电话使用说明书
摩托罗拉MD481无绳电话简易使用说明书【商品简介】外形银色外观，简洁时尚、典雅大方、充满活力子机两侧防滑条设计，手感舒适超大液晶屏5行字符清晰显示，带高亮度橙色背景灯光手机3X4按键橙色夜光，大按键，方便拨号待机时时间/日期显示无线2.4G数字高清晰传送，抗干扰性强，Hi-Fi音质圆润清晰最新数字通讯技术（SST跳频扩频），保密性更强频道自动搜索/呼叫/查找超静音，无电磁辐射，健康环保多信道，通话前和通话中自动扫描功能独占式通话保密功能，子机通话中主机无法听全部功能都可通过子机操作和DECT兼容、子母机双拨号系统主机可呼叫手机，更可实现主机和手机对讲主、子机之间内部呼叫、通话功能寻呼子机功能（子机放在什么地方找不到，这个功能最有用了）可增加子机，最多增加4个，子机间可内部通话支持3方电话会议铃声来电12种个性和弦铃声选择电话簿贵宾来电专用铃声功能人性化设计，可分别设置白天和晚上的铃声响度，共4档调节，高、中、低、关闭振铃音量、音调控制增大/减小听筒音亮主机有免提通话功能，通话音量9档调节，手机也有免提通话功能，通话音量4档调节来电主机和手机都有来电显示系统(FSK制式)查阅已拨、未接、已接电话号码及快速拨号可存储50组来电号码，重复来电显示，新来电提醒来电回拨功能电话簿功能，子机可存储50组姓名和号码，主机49组30组来电号码储存，10组快速拨号录音底座内置MOTO Tapeless数字式答录系统，15分钟语音储存通话中可录音，录音时间长达15分钟可自录提示语，更可家庭内部留言无人自动应答留言系统，最多可留言99条3个数字语音信箱新留言提示功能异地遥控密码操控功能，在外面也可听取电话留言其它带耳机插孔，附送腰夹，方便交谈，解放你的双手可挂墙壁使用子机长达100小时的待机时间，连续4个小时的通话时间子机低电量自动警报保持/静音按键功能闪断/重拨按键功能日期/时间设置英语/法语/西语/葡语选择【商品附件】子机两个，主机一个，充电座一个，电源两个，电池两个，说明书一本【产品尺寸】座机：17.5 * 12 * 5 cm子机：16.8 * 5.5 * 2.8 cm【使用说明】一、子机按键/开关/指示灯功能说明1． ON/flash 通话键/闪断键：按该键接听来点及拨打，在通话状态时如果你的电话开通了呼叫等待，按该键接听另一个来电。
摩托罗拉双向无线电产品说明书
CDM 1550•LS CDM 1550•LS +Professional SeriesTwo-Way Radios and AccessoriesVHFUHF 200 MHz 700 MHzkeeping one step ahead of your competition. You also need communication tools that deliver immediate, reliable access to the people and information you need to get the job done. And that’s exactly what two-way radio gives you.At the touch of a button, two-way radio lets you talk with one, ten, or more people instantly – providing the individual and team communication you need to maximize productivity and meet your customers’ demands. And when you choose aMotorola radio, you know you’re getting a product designed to meet your requirements as a professional.The Intelligent Radio – So Advanced, It Practically Thinks for YouHigh-performing features combined with versatile trunking capabilities make the CDM1550•LS and CDM1550•LS +two-way radios the smart choice to keep mobile work teams performing at their best. The CDM1550•LS and CDM1550•LS +radios incorporate LTR ®trunking capabilities – offering you wider calling range, faster channel access, greater privacy,and higher user and talkgroup capacity. The CDM1550•LS +also offers innovative PassPort ®trunking. Ideal for users with growing communication needs, PassPort includes all the advantages of LTR trunking plus:• Wider Area Coverage, Seamless Roaming – Automatic switching between networked PassPort sites lets you maintain constant communication over long distances without touching a button• Exceptional Audio Quality – Received Signal StrengthIndicator (RSSI) communication technology utilizes the strongest signal available, giving you optimal sound quality • Superior System Access – Automatic site registration/deregistration can reduce busy channels and enhance system efficiency• Efficient Channel Expansion – Direct frequency assignment allows you to add channels and sites over the air without taking radios out of service• Electronic Serial Number Protection – Helps keep system resources available by preventing unauthorized radio cloningCDM1550•LS with LTR ®TrunkingCDM1550•LS and CDM1550•LS +Radio Features15 PassPort and/or LTR Zones (16 talkgroups each)* 16 or 160 Conventional Channels*RSSI IndicatorDisplays signal strength levelLarge Control ButtonsEasy management of menu, navigation, and exit functions Conventional TalkaroundUnit-to-unit communications, bypassing the repeaterHome Channel RevertAutomatic, one-button return to a preferred talkgroup or channel User-Defined ListsChange scan, phone, and call lists on the fly Voice StorageRecord important messages or personal memos Telephone InterconnectPlace and receive phone calls with the radioMDC1200 Signaling (Encode/Decode) Features on Conventional and LTR Zones*• Caller ID – Identifies incoming callers• Selective Call – Lets you call a specific group or individual • Call Alert – Notifies individual users that you’re trying to reach them • Radio Check – Tells you whether another user’s radio is activated • Message – Allows you to send and receive pre-programmed messagesQuick Call II TM on Conventional Zones*Send and receive information via tone or digital signals Roam Request*Optional manual initiation of roaming function Horn and Lights ActivationNotifies you of calls when you ’re away from your vehicle Additional CDM1550•LS and CDM1550•LS +Mobile Features • 12.5/25 kHz switchable channel spacing*• Remote mountable control head • Data capable• Operates on LTR or LTR and PassPort systems**Only available on certain models. Check with your Motorola Authorized Dealer for availability.Motorola – A Name You Know and TrustFor more than 65 years, Motorola has been an undisputed leader in creating state-of-the-art wireless communications for people like you. The CDM1550•LS and the CDM1550•LS +mobiles uphold that superior standard. What ’s more, each radio is backed by a limited two-year* warranty on parts and labor. So when you select the CDM1550•LS or the CDM1550•LS +mobile, you ’ll experience the same exceptional quality you ’ve come to expect from all Motorola products.*Radio accessories are covered by Motorola ’s one-year accessories warranty.CDM1550•LS +Exceptional Functionality and ConvenienceThe CDM1550•LS and the CDM1550•LS +mobiles utilize the latest in two-way technology to deliver extraordinary performance and ease-of-use, including:• Compact, Ergonomic Design to give you optimal mounting flexibility and durability• 14-Character Alphanumeric Display with User-Friendly Icons to help make the radio ’s information easy to understand • Convenient Menu Navigation so you can program scan,phone, and call lists in virtually no timethe transmissions your radio monitors• Motorola ’s Unique X-Pand ™Audio Enhancement combined with a powerful front-projecting speaker can help reducebackground noise and improve sound qualityThe CDM1550•LS +mobile can also be programmed with both LTR and PassPort trunking systems – allowing a smooth transition when your business requires a more extensive calling area for maximum communication efficiency. The radiooperates on 16 conventional channels as well.Motorola Original ™accessories provide an easy way to turn your CDM1550•LS or CDM1550•LS+ mobile radio into a custom communication solution to fit your business requirements —maximizing on-the-job productivity and efficiency for mobile work teams and individuals.CDM1550•LS CDM1550•LS +Radio AccessoriesTalk However You WantEnhanced Keypad Microphone —AARMN4026You can dial phone numbers on this microphone ’s full keypad, or customize its three programmable buttons with any control head features.Visor Microphone —AARMN4027 Attach this microphone to your visor or hat for hands-free operation of your radio (must be used with an external PTT).Push Button Push-to-Talk —RLN4857 Simply depress the button to talk with other users.Foot Switch Push-to-Talk —RLN4856A handy foot switch provides hands-free PTT functionality.Gooseneck Mount Push-to-Talk —RLN4858This PTT mounts conveniently on your steering wheel column for control that ’s right at your fingertips.Telephone Style Handset —AAREX4617 Conduct private conversations on your radio quietly and discreetly.Get Your Message Across13-Watt Speaker —RSN4001Powerful sound control allows you to increase your radio ’s volume output when working in noisy environments.Take It With YouHigh-Profile Mount —GLN7317Offers a space-saving option for vehicles where every inch counts.Key Lock Mount —RLN4779Securely mounts and locks radio in your vehicle to protect against theft.Power It Up1-25 Watt Power Supply —HPN4002For use with low power radios. Provides power for using mobile radio on a desktop.25-60 Watt Power Supply —HPN4001 For use with low power radios. Provides power for using mobile radio on a desktop.Enhance Your Calling Range200 MHz Wave Roof Mount Antenna — HKAD4001 Mini U 746-794 MHz Wave Rod Antenna —HAF4012450-476 MHz 1/4 Wave Roof Mount Antenna —HAE4003MOTOROLA and the Stylized M Logo are registered in the US Patent and Trademark Office. All other product or service names are the property of their respective owners. © Motorola, Inc. 2002. /cgiss MD-CDM1550LS-03CDM1550•LS and CDM1550•LS +Radio SpecificationsOperating Temperature -30 to +60°C Storage Temperature -55 to +85°C Thermal Shock -40 to +85°C Humidity 95% RH @ 8 Hr.ESDIEC 801-2 KV Water Intrusion IPX4Packing TestImpact TestApplicable MIL-STD 810C810D810EMethods ProceduresMethods ProceduresMethods ProceduresLow Pressure 500.11500.22500.32High Temperature 501.11,2501.21,2501.31,2Low Temperature 502.12502.21,2502.31,2Temperature Shock 503.11503.21503.31Solar Radiation 505.11505.21505.31Rain 506.12506.22506.32Humidity 507.12507.22,3507.33Salt Fog 509.11509.21509.31Dust 510.11510.21510.31Vibration 514.28,10514.31514.41Shock 516.21,5516.31516.41VHF200 MHzUHF700 MHzFrequencies136–174 MHz,217–218 MHz, 403–470 MHz, 746–747 MHz,219–220 MHz,450–512 MHz 762–764 MHz 220–222 MHZ Channel Spacing 12.5/20/25 kHz 12.5 kHz 12.5/20/25 kHz 12.5 kHz Frequency Stability±2.5 ppm±2.5 ppm±2.5 ppm±1.5 ppm(-30°C to +60°C, +25°Ref.)Sensitivity (12 dB SINAD) EIA 0.3 µV 0.23 µV typical 0.30 µV (0.25 µV typical)0.3 µV 0.23 uV typical 0.35 µV (0.3 µV typical)Intermodulation************75dB************75dB78 dB @ 25 kHz 75 dB @ 25 kHz Adjacent Channel Selectivity ************65 dB (TIA 603)************65 dB (TIA 603)80 dB @ 25 kHz 40 dB (TIA 603-A)75 dB @ 25 kHz 40 dB (TIA 603-A)Spurious Rejection************75 dB ************75 dB 80 dB @ 25 kHz 75 dB @ 25 kHz Rated Audio3W Internal 3W Internal 3W Internal 3W Internal (External audio w/4 ohm speaker)13W External 13W External 13W External 13W External Audio Distortion @ Rated Audio 3% typical 3% typical 3% typical 3% typical Hum and Noise -40 dB 12.5 kHz -40 dB -40 dB 12.5 kHz -40 dB -45 dB 25 kHz-45 dB 25 kHzAudio ResponseTIA603 & ETS300 &+1 to -3 dB TIA603 & ETS3000 & +1 to -3 dB CEPT 84 Annex 2CEPT 84 Annex 2Conducted Spurious Emmision -57dBm < 1 GHZ -57dBm < 1 GHz -57dBm < 1 GHZ -57dBm < 1 GHz FCC Part 15-47dBm > 1 GHZ-47 dBm > 1GHz-47dBm > 1 GHZ-47 dBm > 1GHzVHF200 MHzUHF700 MHzFrequencies136–174 MHz217–218 MHz (Talkaround),403–470 MHz 776–777 MHz, 219–220 MHz,450-512 MHz792 –794 MHz,220–221 MHz (Talkaround),746–747 MHz (Talkaround),221–222 MHz 762–764 MHz (Talkaround)Power Output 1–25 W or 25–45 W 1–25 W 1–25 W or 25–40 W 1–15 W Frequency Stability±2.5 ppm ±2.5 ppm ±5 ppm @ 25 kHz ±1.5 ppm (-30°C to +60°C, +25°Ref.)±**************Modulation Limiting±***********±2.5 kHz±***********±2.5 kHz±4.0 @ 20 kHz ±4.0 @ 20 kHz ±5.0 @ 25 kHz ±5.0 @ 25 kHz Conducted and Radiated -36 dBm < 1 GHz -16 dBm -36 dBm < 1 GHz -16 dBm (except – 40 dBm Emissions-30 dBm > 1 GHz -30 dBm > 1 GHz from 1559 to 1610 MHz)Channel Spacing 12.5/20/25 kHz 12.5 kHz12.5/20/25 kHz 12.5 kHzFM Hum & Noise -40 dB 12.5 kHz - 40 dB typical -40 dB typical - 40 dB typical -45 dB 25 kHz Adjacent Channel Power *************-60 dB *************-60 dB -70 dB @ 25 kHz -70 dB @ 25 kHz Audio Response TIA 603 & ETS300 &+1 to -3 dB TIA 603 & ETS300 &+1 to -3 dB CEPT 84 Annex 2CEPT 84 Annex 2Audio Distortion3% typical3% typical 3% typical3% typical FM Modulation Designator 11K0F3E (12.5 kHz)11K0F3E 11K0F3E (12.5 kHz)11K0F3E 16K0F3E (25 kHz)16K0F3E (25 kHz)Adjacent Channel Coupled PowerN/AN/AN/AComplies with 47 CFR 27.53 (d) (1)VHF200 MHz UHF700 MHzChannel Capacity Trunking zone capacity15151515Trunking talkgroup capacity (per zone)16161616Conventional channel capacity 160161616Typical RF Output VHF Low Power 1-25W VHF High Power 25-45W 200 MHz1-25W UHF Low Power 1-25W UHF High Power 25-40W 700 MHZ 1-15WFrequency VHF 136-174 MHz200 MHz 217-218 MHz, 219-222 MHz UHF 403-470 MHz, 450-512 MHz700 MHz746-747 MHz, 762-764 MHz, 776-777 MHz, 792-794 MHz Dimension (H x W x L)VHF/UHF Low Power and 200 MHz 2.34” x 7.05” x 7.32” (60 mm x 179 mm x 186 mm)VHF/UHF High Power and 700 MHz 2.34” x 7.05” x 7.79” (60 mm x 179 mm x 198 mm)WeightVHF/UHF Low Power and 200 MHz 3.15 lbs. (1.43 kg)VHF/UHF High Power and 700 MHz 3.5 lbs. (1.59 kg)Current Drain VHF 200UHF 700Standby.3 A .3 A .3 A .3 A Rx @ rated, external 8 ohm 1.5 A 1.5 A 1.5 A 1.5 A Transmit 7 A @ 25W 7 A @ 25W 8 A @ 25W 7 A @ 15W 13.5 A @ 45W 13.5 A @ 40W FCC DescriptionAZ492FT3796 (25W, 136-174 MHz)AZ492FT3795 (45W, 136-174 MHz)ABZ99FT3081 (25W, 217-218/219-222 MHz)AZ492FT4835 (25W, 403-470 MHz)AZ492FT4830 (40W, 403-470 MHz)AZ492FT4829 (25W, 450-512 MHz)AZ492FT4836 (40W, 450-512 MHz)ABZ99FT5001 (15W, 746-747/762-764/776-777/792-794 MHZ)。
使用说明
Binatone无绳电话使用说明1．所有无绳电话电池出厂仅有少量的电量且充电电池会有记忆，所以第一次使用务必充电充满15个小时再使用，这样会提高电池的寿命。
2．数字无绳电池流行款式现在都是多子机的，对于多子机无绳电话，大的充电底坐即是主机，主机有可能不能打接电话，这可能与以前模拟的子母机有点区别。
因为大的底坐是主机，要发射信号给子机接受，所以当大的底坐没有插电或停电后，子机是无法使用的。
功能介绍打电话输入你想拨打电话号码，如果输错，按清除键删除前一位数字。
如果要删除所有输入，长按清除键，然后按通话键或免提键。
接电话按通话键或免提键挂电话在通话过程中按通话键即挂断电话重拨按通话键或免提键，再按向下键。
重拨最后十组号码中的一组按向下或和向下键选择你要重拨的号码，然后按通话键或免提键重拨。
关闭麦克风在通话过程中按清除键一次，麦克风静音，别人将别不到你的声音如果要恢复，再清除键一次。
存储拨号每个手柄机可存40组号码，最组号码最长可存20个数字。
存一个号码按菜单键显示phonebk按OK键，显示add再按OK键，显示name?输入你想存的英文名称按OK键按OK，显示number?输入你想存储的号码按OK键显示ADD即完成，如果想要返回待机模式，按菜单键删除存储号码按菜单键显示phonebk按OK键，显示add按向下键，显示delete按OK键，按向上或向下键选择你要删除的号码再按OK键即完成。
如果想要返回待机模式，按菜单键拨打存储号码按存储键显示phonebk用向上或向下键选择你要拨打的号码再按通话键或免提键修改存储的号码按菜单键显示phonebk按OK键，显示add按向下键二次，显示modify按OK键，再按向下或向下键选择你要修改号码的名称按OK键按取消键可删除显示的号码，然后输入要修改的正确号码按OK键，显示修改过的号码按OK即完成，如果想要返回待机模式，按菜单键来电显示手柄机可显示30组未接来电，如果号码存在手柄机上，还可以显示来电名称，并且可以显示来电的时间和日期查看来电显示记录按CDS键用向上或向下键查看来电显示记录，按OK键则显示来电的时间和日期如果当你查看到第一条或最后一条记录，将听到嘀的一块叫声。
摩托罗拉 电话机 说明书IT.6C系列
此用户手册可为您提供一切所需的信息，帮助您充 分利用本电话的功能。 要设置您的电话，请遵循后面几页“使用前的准 备”中的简单指示。
重要信息
仅使用自带的电话线。
下列配件齐全吗？
• IT.6XC主机和无绳子机 • 主机的电源适配器
• 电话线
• 说明书
如果您购买的是IT.6XC系列多子机包装，则还将获得以下的额外附 件：
3.9.1 拨打内线电话........................................................................ 16 3.9.2 转接通话............................................................................... 16 3.9.3 三方通话............................................................................... 17 3.10 语音信箱......................................................................................... 17 3.11 键盘锁............................................................................................ 17
来电者间进行三方通话。
需要帮助吗？
如果您在IT.6XC的安装或使用上有任何问题，请拨打4008-838-698联系 客服部门。
或者，您也可以参阅本手册“疑难解答”章节中的说明。
1您必须先向固话网络运营商申请开通来电显示或来电等待服务，方可 享有这些功能。您可能须支付开通费用。
摩托罗拉MD481无绳电话使用说明书
拨号：按电话号码后按(ON)flash键或按(ON)flash键后按电话号码 挂电话：通话完毕按(OFF)cancel键 查来电记录：按“上”“下”键选择 查拨号记录：按redial键后按“上”“下”键选择
按键功能: handsfree:扬声功能,按handsfree键后按电话号码可以直接拨号 memo:家人留言,按住memo键约3秒,听到"嘀"的一声后开始留言,完毕后松后即可 播放留言:按▲■键可听取所有留言,当座机inuse/voice mail指示时,表示有新留言未放听 page:呼叫子机 intercom:呼叫子机或座机对讲 redial:重拨
[Ans mach setup]留言功能 Answer ON/OFF: ON-开 OFF-关
Outgoing Msg: Play OGM:播放留言
Record OGM:自已录制应答留言
Change OGM:改变应答留言 Default OGM:机器默认(英语) Recorded OGM:自已录制的留言
铃声 来电12种个性和弦铃声选择 电话簿贵宾来电专用铃声功能 人性化设计，可分别设置白天和晚上的铃声响度，共4档调节，高、中、低、关闭 振铃音量、音调控制 增大/减小听筒音亮 主机有免提通话功能，通话音量9档调节，手机也有免提通话功能，通话音量4档调节
来电 主机和手机都有来电显示系统(FSK制式) 查阅已拨、未接、已接电话号码及快速拨号 可存储50组来电号码，重复来电显示，新来电提醒 来电回拨功能 电话簿功能，子机可存储50组姓名和号码，主机49组 30组来电号码储存，10组快速拨号
【商品附件】
子机两个，主机一个，充电座一个，电源两个，电池两个，说明书一本
【产品尺寸】
座机：17.5 * 12 * 5 cm 子机：16.8 * 5.5 * 2.8 cm
通用无绳电话说明
美国通用25833 5. 8GHZ 数字无绳电话功能说明各键说明：（由上至下，由左至右）了•机：CALLID-VOL+, 一查阅來电及音帚:调节，TALK 通话、挂断、冋拨，SPEAKER 免提、挂断、|可拨,DELETE 删除，CONF 三方通iS, review 重放留言,play 播放，skip 下 —首,EXIT 返【叫，PAUSE 暂停，REDIAL 重拨,erase 删除ffl R, MEMORY 存储,MUTE 菜单、保密，［NT 对讲,FLASH 闪断,answerer 应答模式 座机:ANSWER ON/OFF 答录开关,1/22种留言,DEL 删除留 n,REVIEW 重放留育,SKIP 下…首,VOL+/-留育音ft,MEMO 内部留言,1/2/3内部留言箱,DO NOT DISTURB 免打扰,LANGUAGE 提示语言,MIN 分钟,HOUR 小时,DAY 星期，1:来电显示按+、一键査看來也 按DELECT 键2次删除该來电，如按住DELETE 犍3秒后再按1次可以删除所有来电 2:电话号码存储（50个）新号存储：了•机按MEMORY 從一按数字键（01至50） -MEMORY 掘一输入英文名字一MEMORY 键一输入号码一MEMORY 键即可 来电存储:按+、一査看來电-MEMORY 犍一按数字键（01至50）即可删除來电：按MEMORY 键一按数字键（01至50） —按DELETE 键2次即叫3:打电话方法（子机放在座机上将切断通话或其他操作而只充电）（木机具有预拨号功能）常规拨号：TAIK 键或免提一拨号码一结束通话按TALK 健或免提（或拨号码一TALK 键或免提一结束通话按TALK 键或免提 存储拨引MEMORY 健一01至50键一TALK 健或免提即可（或TALK 键或免提一MEMORY 键一01至50键即可）巫拨拨号：按TALK 键一按REDIAL 键（或按REDIAL 键一按+—键选择号码（5个）一按TALK 键或免捉键）按memo 程一按住1或2或3伫箱不动一附占内容一抬起丁即可 按I 或2或3信箱号即可： 了机拽 一 「键一2It —拨1必」：i ；即可 在播放留言中按DEL 键： 『•机件播放中按0键 按ANNOUNCE ® 一按住1或2不动一帘汁内容（如果不录•电话接通后听到英文“你好•请在嘀声后留”） 按1或2键： 播：抜2play 键： 「机抜answerer 优一 J 琏 拨2伫KT ；删：按住ANNOUNCE 键不动在“嘀“之后迅速抬起该磁启动：按座机ANSWER ON / OFF 健一按1或2,响铃次数设定：按HITE 键一调+—建至IIA'DSET SETUP —按Ml’TE 键一调一—键至RING TO ANSWER —按MUTE 键一调+ —從选 样响铃次数（5种）一按MUTE 键信息捉醒：按MUTE 键一训+ -键至HANDSET SETUP-按MUTE 健一训+ —键至MESSAGE ALERA 一按MLTE 键一调+—键选 择（ON为开）一按MUTE®遥控代码：按MUTE 键一调+ —键至HANDSET SETUP 一按Ml ：TE 健一调+ T 建至SECI RITY CODE —按MUTE 键一输入3位数 字（111-999） 一按 MUTE 键遥控功能：拨打家电电话一输代码123-2 （播放农人留占）.I （币;复留台），3 （下 个留占）：1：（关闭应答）：任播放中按0 （删除邸言），操作错误将挂斯5：音量调节铃声调节:按RINGER 键一按数字键选择（1高2低3关）一按RINGER 键即可或按MUTE 键一调+—键至HANDSET SETUP —按MUTE 键一调+—扯至RINGER VOLUME 一按MUTE 键一调+—键选择（高 低关）一按MUTE 键铃声种类：拨MUTE 键一调+ _健至HANDSET SETUP 一按MIJTE 键一调+—健全RINGER TONE —按MUTE 键一调+ _键选样（20 种铃声）一按MUTE 琏即可听筒音量：在通话中调V" +、一键（4级）杳阅來电至需拨出的号码-TALK 键或免提键即可 來电冋拨：4：答录功能（2种对外留言，3个内部私人信箱）（家庭内部）录：播删（电话留占）录试听：6：注册子机按 MIITE 键一调 +T建至 HANDSET SETUP一按 MUTE 键一调 + -键.至 REGISTRATION—按 MIJTE 键一调+ —键至 YES-按 Ml TE 键—按住座机卩AGE健3至5秒即可7：解除子机按 \IUTE 键一调 +—健至 HANDSET SETUP—按 MUTE 健一调 +—键至 DEREGISTRATION一按 MUTE 键一调+ —健至 YES—按MITE 键一调+ —健至YES （再次确认）一按MUTE健即可8:按键音设置按MUTE键一调+—健至HANDSET SETUP一按MUTE键一调+—键至KEY TONE—按MUTE键一调+ —徒选择（ON为开，OFF为关）一按MUTE键即町9：语言设置按MUTE键一调+ —健至HANDSET SETUP—抜MIJTE琏一调+ —键至SET IANGUAGE—按MIJTE键一调+ —键选择（1英语2法语3 西班才语）一按MUTE健即可10：手机名称按MUTE f建一调+—键至HANDSET SETUP—按MLTE键一调+—键至KEYTONE一按MUTE键一训+ —键选样（ON为丿|；・OFF为关）一按MUTE键即可11:座机时间设置按住应机MIN键3秒一再连续按MIN键设定分钟,按住座机HOUR键3秒-再连续按HOUR键设定小时,按住座机DAY键3秒一再连续按DAY健设定星期•听时间：按CI1ACK 即可12:座机答录提示语言连续按座机LANGUAGE键选择（英断法语、西班才语）13：免打扰按座机DO NOT DISTURB键（灯亮为开），打入电话将不响铃14：保密功能在通话中如暂时不便对方听到叫•先按MUTE键.恢复通话再按MUTE置即可15：房间监听（2个以上子机）按MUTE從一调+—琏至ROOM MONITOR-^ MUTE健一妆被监听的T•机编号即叽结朿按EDIT键即町16:呼叫功能座机按PAGE键呼叫f机（多了机可对讲）17:对讲功能（2个以上子机）子机按INT键和了机编号,被叫了机按INT健与之对讲18:三方通话（2个以上子机）r机接通外线后按INT键和了机编号于貝他J'机对讲.对讲后任怠访conf健即可三方会谈19：子机耳脉接听（最好选用有开关及音最调节的耳脉;尺寸:2. 5mm）20：电池初次使用连续允电12小时，电吊低提示注意事项：1：本机如接入ADSL线路中必需在本机前加接ADSL分离器（接在PHONE端口），否则会造成电话有杂音或不对码、掉网、不稳定等现象。
摩托拉拉两路通信设备产品说明书
CDM 1550•LS CDM 1550•LS+Professional SeriesTwo-Way Radios and AccessoriesVHF UHF 200 MHz 700 MHzkeeping one step ahead of your competition. You also need communication tools that deliver immediate, reliable access to the people and information you need to get the job done. And that’s exactly what two-way radio gives you.At the touch of a button, two-way radio lets you talk with one, ten, or more people instantly – providing the individual and team communication you need to maximize productivity and meet your customers’ demands. And when you choose aMotorola radio, you know you’re getting a product designed to meet your requirements as a professional.The Intelligent Radio – So Advanced, It Practically Thinks for YouHigh-performing features combined with versatile trunking capabilities make the CDM1550•LS and CDM1550•LS +two-way radios the smart choice to keep mobile work teams performing at their best. The CDM1550•LS and CDM1550•LS +radios incorporate LTR ®trunking capabilities – offering you wide calling range, fast channel access, great privacy,and high user and talkgroup capacity. The CDM1550•LS +also offers innovative PassPort ®trunking. Ideal for users with growing communication needs, PassPort includes all the advantages of LTR trunking plus:• Wide Area Coverage, Seamless Roaming – Automatic switching between networked PassPort sites lets you maintain constant communication over long distances without touching a button• Exceptional Audio Quality – Received Signal StrengthIndicator (RSSI) communication technology utilizes one of the strongest signals available, giving you optimal sound quality• Superior System Access – Automatic site registration/deregistration can reduce busy channels and enhance system efficiency• Efficient Channel Expansion – Direct frequency assignment allows you to add channels and sites over the air without taking radios out of service• Electronic Serial Number Protection – Keeps system resources available by helping to prevent unauthorized radio cloning• Increased Flexibility – Access privileges by Mobile Identification Number* (MIN) allows radios to be directed to specific sites or talkgroups.*Optional PassPort featureCDM1550•LS with LTR ®TrunkingCDM1550•LS and CDM1550•LS +Radio Features15 PassPort and/or LTR Zones (16 talkgroups each)* 16 or 160 Conventional Channels*RSSI IndicatorDisplays signal strength levelLarge Control ButtonsEasy management of menu, navigation, and exit functions Conventional TalkaroundUnit-to-unit communications, bypassing the repeaterHome Channel RevertAutomatic, one-button return to a preferred talkgroup or channel User-Defined ListsChange scan, phone, and call lists on the fly Voice StorageRecord important messages or personal memos Telephone InterconnectPlace and receive phone calls with the radioMDC1200 Signaling (Encode/Decode) Features on Conventional and LTR Zones*• Caller ID – Identifies incoming callers• Selective Call – Lets you call a specific group or individual • Call Alert – Notifies individual users that you ’re trying to reach them • Radio Check – Tells you whether another user ’s radio is activated • Message – Allows you to send and receive pre-programmed messages PassPort Selective Call or Call Alert*Lets you initiate or receive a private call or a private page to a specific userQuick Call II TM on Conventional Zones*Send and receive information via tone or digital signals Roam Request*Optional manual initiation of roaming function Roam Lock*Optional manual lock of the radio onto a site Horn and Lights ActivationNotifies you of calls when you ’re away from your vehicle Additional CDM1550•LS and CDM1550•LS Mobile Features• 12.5/25 kHz switchable channel spacing*• Remote mountable control head • Data capable• Operates on conventional, LTR and PassPort systerms**Only available on certain models. Check with your Motorola Authorized Dealer for availability.Motorola – A Name You Know and TrustFor 75 years, Motorola has been a leader in creating state-of-the-art wireless communications for people like you. The CDM1550•LS and the CDM1550•LS +mobiles uphold that superior standard. What ’s more, each radio is backed by a limited two-year* warranty on parts and labor.So when you select the CDM1550•LS or the CDM1550•LS +mobile, you ’ll experience the same exceptional quality you ’ve come to expect from all Motorola products.*Radio accessories are covered by Motorola ’s one-year accessories warranty.CDM1550•LS +Exceptional Functionality and ConvenienceThe CDM1550•LS and the CDM1550•LS +mobiles utilize the latest in two-way technology to deliver extraordinary performance and ease-of-use, including:• Compact, Ergonomic Design to give you optimal mounting flexibility and durability• 14-Character Alphanumeric Display with User-Friendly Icons to help make the radio ’s information easy to understand • Convenient Menu Navigation so you can program scan,phone, and call lists in virtually no timethe transmissions your radio monitors• Motorola ’s Unique X-Pand ™Audio Enhancement combined with a powerful front-projecting speaker can help reducebackground noise and improve sound quality • Compatible with CES data equipment so that you can configure your radio for specific data applications and needsThe CDM1550•LS +mobile can also be programmed with both LTR and PassPort trunking systems – allowing a smooth transition when your business requires a more extensive calling area for maximum communication efficiency. The radiooperates on 16 or 160 channels as well.Motorola Original ™accessories provide an easy way to turn your CDM1550•LS or CDM1550•LS +mobile radio into a custom communication solution to fit your business requirements —maximizing on-the-job productivity and efficiency for mobile work teams and individuals. Listed below is just a portion of the accessory portfolio available for the CDM1550•LS and CDM1550•LS +. Call today for a complete accessory listing.CDM1550•LS CDM1550•LS+Radio AccessoriesTalk However You WantEnhanced Keypad Microphone —AARMN4026You can dial phone numbers on this microphone ’s full keypad, or customize its three programmable buttons with any control head features.Visor Microphone —AARMN4027Attach this microphone to your visor or hat for hands-free operation of your radio (must be used with an external PTT).Push Button Push-to-Talk —RLN4857Simply depress the button to talk with other users.Foot Switch Push-to-Talk —RLN4856A handy foot switch provides hands-free PTT functionality.Gooseneck Mount Push-to-Talk —RLN4858This PTT mounts conveniently on your steering wheel column for control that ’s right at your fingertips.Telephone Style Handset —AAREX4617 Conduct private conversations on your radio quietly and discreetly.Get Your Message Across13-Watt Speaker —RSN4001Powerful sound control allows you to increase your radio ’s volume output when working in noisy environments.Control Station —RLN5403AThe quick convenient way to convert a CDM Series mobile radio into a fully funtional base station.Take It With YouHigh-Profile Mount —GLN7317Offers a space-saving option for vehicles where every inch counts.Key Lock Mount —RLN4779Securely mounts and locks radio in your vehicle to protect against theft.Power It Up1-25 Watt Power Supply —HPN4002For use with low power radios. Provides power for using mobile radio on a desktop.25-60 Watt Power Supply —HPN4001For use with high power radios. Provides power for using mobile radio on a desktop.Enhance Your Calling Range200 MHz Wave Roof Mount Antenna — HKAD4001140-174 MHz VHF 3dB Gain Roof Mount Antenna —HAD4014494-512 MHz UHF 3.5dB Gain Roof Mount Antenna —HAE4013450-470 MHz UHF 5dB Gain Roof Mount Antenna —RAE4004ARB746-794 MHz 3dB Gain Antenna —RAF4221CDM1550•LS and CDM1550•LS +Radio SpecificationsOperating Temperature -30 to +60°C Storage Temperature -55 to +85°C Thermal Shock -40 to +85°C Humidity 95% RH @ 8 Hr.ESDIEC 801-2 KV Water Intrusion IPX4Packing TestImpact TestApplicable MIL-STD 810C810D810EMethods ProceduresMethods ProceduresMethods ProceduresLow Pressure 500.11500.22500.32High Temperature 501.11,2501.21,2501.31,2Low Temperature 502.12502.21,2502.31,2Temperature Shock 503.11503.21503.31Solar Radiation 505.11505.21505.31Rain 506.12506.22506.32Humidity 507.12507.22,3507.33Salt Fog 509.11509.21509.31Dust 510.11510.21510.31Vibration 514.28,10514.31514.41Shock 516.21,5516.31516.41VHF200 MHzUHF700 MHzFrequencies136–174 MHz,217–218 MHz, 403–470 MHz, 746–747 MHz,219–220 MHz,450–512 MHz 762–764 MHz 220–222 MHZ Channel Spacing 12.5/20/25 kHz 12.5 kHz 12.5/20/25 kHz 12.5 kHz Frequency Stability±2.5 ppm±2.5 ppm±2.5 ppm±1.5 ppm(-30°C to +60°C, +25°Ref.)Sensitivity (12 dB SINAD) EIA 0.3 µV 0.23 µV typical 0.30 µV (0.25 µV typical)0.3 µV 0.23 uV typical 0.35 µV (0.3 µV typical)Intermodulation************75dB************75dB78 dB @ 25 kHz 75 dB @ 25 kHz Adjacent Channel Selectivity ************65 dB (TIA 603)************65 dB (TIA 603)80 dB @ 25 kHz 40 dB (TIA 603-A)75 dB @ 25 kHz 40 dB (TIA 603-A)Spurious Rejection************75 dB ************75 dB 80 dB @ 25 kHz 75 dB @ 25 kHz Rated Audio3W Internal 3W Internal 3W Internal 3W Internal (External audio w/4 ohm speaker)13W External 13W External 13W External 13W External Audio Distortion @ Rated Audio 3% typical 3% typical 3% typical 3% typical Hum and Noise -40 dB 12.5 kHz -40 dB -40 dB 12.5 kHz -40 dB -45 dB 25 kHz-45 dB 25 kHzAudio ResponseTIA603 & ETS300 &+1 to -3 dB TIA603 & ETS3000 & +1 to -3 dB CEPT 84 Annex 2CEPT 84 Annex 2Conducted Spurious Emmision -57dBm < 1 GHZ -57dBm < 1 GHz -57dBm < 1 GHZ -57dBm < 1 GHz FCC Part 15-47dBm > 1 GHZ-47 dBm > 1GHz-47dBm > 1 GHZ-47 dBm > 1GHzVHF200 MHzUHF700 MHzFrequencies136–174 MHz217–218 MHz (Talkaround),403–470 MHz 776–777 MHz, 219–220 MHz,450-512 MHz792 –794 MHz,220–221 MHz (Talkaround),746–747 MHz (Talkaround),221–222 MHz 762–764 MHz (Talkaround)Power Output 1–25 W or 25–45 W 1–25 W 1–25 W or 25–40 W 1–15 W Frequency Stability±2.5 ppm ±2.5 ppm ±5 ppm @ 25 kHz ±1.5 ppm (-30°C to +60°C, +25°Ref.)±**************Modulation Limiting±***********±2.5 kHz±***********±2.5 kHz±4.0 @ 20 kHz ±4.0 @ 20 kHz ±5.0 @ 25 kHz ±5.0 @ 25 kHz Conducted and Radiated -36 dBm < 1 GHz -16 dBm -36 dBm < 1 GHz -16 dBm (except – 40 dBm Emissions-30 dBm > 1 GHz -30 dBm > 1 GHz from 1559 to 1610 MHz)Channel Spacing 12.5/20/25 kHz 12.5 kHz12.5/20/25 kHz 12.5 kHzFM Hum & Noise -40 dB 12.5 kHz - 40 dB typical -40 dB typical - 40 dB typical -45 dB 25 kHz Adjacent Channel Power *************-60 dB *************-60 dB -70 dB @ 25 kHz -70 dB @ 25 kHz Audio Response TIA 603 & ETS300 &+1 to -3 dB TIA 603 & ETS300 &+1 to -3 dB CEPT 84 Annex 2CEPT 84 Annex 2Audio Distortion3% typical3% typical 3% typical3% typical FM Modulation Designator 11K0F3E (12.5 kHz)11K0F3E 11K0F3E (12.5 kHz)11K0F3E 16K0F3E (25 kHz)16K0F3E (25 kHz)Adjacent Channel Coupled PowerN/AN/AN/AComplies with 47 CFR 27.53 (d) (1)VHF200 MHzUHF700 MHzChannel Capacity Trunking zone capacity15151515Trunking talkgroup capacity (per zone)16161616Conventional channel capacity 16 or 1601616 or 16016Typical RF Output VHF Low Power 1-25W VHF High Power 25-45W 200 MHz1-25W UHF Low Power 1-25W UHF High Power 25-40W 700 MHZ 1-15WFrequency VHF 136-174 MHz200 MHz 217-218 MHz, 219-222 MHz UHF 403-470 MHz, 450-512 MHz700 MHz746-747 MHz, 762-764 MHz, 776-777 MHz, 792-794 MHz Dimension (H x W x L)VHF/UHF Low Power and 200 MHz 2.34” x 7.05” x 7.32” (60 mm x 179 mm x 186 mm)VHF/UHF High Power and 700 MHz 2.34” x 7.05” x 7.79” (60 mm x 179 mm x 198 mm)WeightVHF/UHF Low Power and 200 MHz 3.15 lbs. (1.43 kg)VHF/UHF High Power and 700 MHz 3.5 lbs. (1.59 kg)Current Drain VHF 200UHF 700Standby.3 A .3 A .3 A .3 A Rx @ rated, external 8 ohm 1.5 A 1.5 A 1.5 A 1.5 A Transmit 7 A @ 25W 7 A @ 25W 8 A @ 25W 7 A @ 15W 13.5 A @ 45W 13.5 A @ 40W FCC DescriptionAZ492FT3796 (25W, 136-174 MHz)AZ492FT3795 (45W, 136-174 MHz)ABZ99FT3081 (25W, 217-218/219-222 MHz)AZ492FT4835 (25W, 403-470 MHz)AZ492FT4830 (40W, 403-470 MHz)AZ492FT4829 (25W, 450-512 MHz)AZ492FT4836 (40W, 450-512 MHz)ABZ99FT5001 (15W, 746-747/762-764/776-777/792-794 MHZ)MOTOROLA and the Stylized M Logo are registered in the US Patent and Trademark Office. All other product or service names are the property of their respective owners.© Motorola, Inc. 2003./cgissMD-CDM1550LS-04。
摩托罗拉,电话机,说明书EPure(瑞士机)
肯威德 TK-480 481 800 900 MHz 迷你便携式无线电说明书
TK-480/481 — Your Direct Line to Top Performance Kenwood’s new TK-480/481 800 & 900 MHz compact portable offersTrunked Format and FleetSync™ Digital Messaging & Signaling, sufficient to be anintegral part of any radio system where it counts most — in the field. What’s more,the rugged ergonomic design and world-famous Kenwood quality combine to makethis high-performance unit perfect for today’s demanding applications.VERSATILITYTRUNKED FORMATTrunked Format provides both programmable LTR®trunkedand conventional system partitions within the radio for opera-tion on multiple systems. LTR® trunking systems automaticallyprovide communications on any available channel within a poolof channels on each system. The Kenwood TK-480/481 fea-tures all traditional LTR®trunking functions such as SystemScan & Group Scan for multiple system/multiple talk groupcalling, Fixed Priority IDs, Transmit Inhibit and a Decode IDBlock for dispatcher fleet control and monitoring. Conventionalsystem partitions are programmable for multiple channels.Priority Scan permits scanning of all channels and monitoring apriority channel for activity even while receiving a call onanother non-priority channel.1In Trunked Format, priority scanning is only available within one conventional system partitionand it cannot check channels on other programmed conventional or trunked system partitions.LARGE CHANNEL CAPACITYThe TK-480/481 answers the call for large systems, multiplesystems and growing fleet sizes with the large-capacity 32Systems/250 Group IDs2.Trunked Format: Total System and Group memory capacity will vary depending on the totalnumber of Systems, Groups and repeater channels used per system (32 Systems / 250 Groups /600 channel maximums).MULTIPLE SCAN FUNCTIONSTrunked format operation offers system and group scan topermit monitoring of calls on multiple systems and multipletalk groups per system. Priority scanning is available withinprogrammed conventional systems.DTMF SIGNALING & DIALING FEATURESDTMF keypad formats allow manual DTMF encoding forselective calling, system access, remote control applicationsand access to automatic dialing features such as the auto-dialmemory for telephone interconnect and/or integratedradio-PABX systems.FleetSync™ADVANTAGEFleetSync™ DIGITAL MESSAGING & SIGNALING “BASIC”The FleetSync™ “Basic” feature set is included in each radioproviding a cost-effective fleet unit identification, selectivecalling and messaging system for dispatch operations3. Eachradio can have an ID comprised of a Fleet and Unit numberwhich is used for all FleetSync™ signaling and data messaging(250 fleets/4000 units per fleet), allowing large fleets ormultiple fleets to share the same radio system(s).PTT ID is a digital ANI (Automatic Number Identifier), which canbe sent on each PTT using the FleetSync™ ID. An associatedalphanumeric user name can be displayed on an 80-Series basemobile LCD (Caller ID* enabled), a base station decoder unit ordispatch software. Personnel are clearly identifiedduring mission critical tasks so the dispatcher/supervisor canimmediately identify who is talking for efficient fleet manage-ment and call processing.Caller ID*decodes an incoming PTT ID and uses the pre-stored ID List with alphanumeric name tags to identify thecaller in the radio’s LCD. This is available for fleet portablesand mobiles as well as base stations.Caller ID Stack*stores (in volatile memory) the three mostrecently received PTT IDs for recall and review, allowing a userto check for missed voice calls.Extended ID List Capacity (100*)allows a base station radioto select up to 100 target fleet radios by nametag to sendFleetSync™ Selective Calls and Status Messages. Fleet radioscan display up to 100 caller names upon decoding PTT ID’s,(Caller ID enabled), Selective Calls, Status and Text Messages.Extended Status Message List (50*)provides up to 50 pre-stored sixteen-character alphanumeric messages permitting abase to send a larger variety of job task messages. Fleet radioscan display and respond accordingly with complimentaryacknowledgements. Also, special reserved Emergency,Emergency Man-down*, Emergency Mode Off *, Horn Alert(mobiles)* and Radio Stun/Acknowledge/Resurrect statuses areprovided.FleetSync™ “Basic” dispatch features are available using just 80-Series mobile/portablefleet radios and an 80-Series mobile base/control station. More advanced FleetSync™dispatch systems may require the FleetSync™ Enhanced option and FleetSync™-compatibleperipherals and/or software.FleetSync™ DIGITAL MESSAGING & SIGNALING“ENHANCED OPTION”The FleetSync™ Enhanced option extends the FleetSync™Basic feature set to include custom Short Text Messaging,Long Text Messaging (mobiles) and 80-Series PC SerialInterface (mobiles) capability.Short Text Messaging permits fleet radios to receive, store,review and display up to four 48-character text messages(requires compatible base dispatch software)4. Fleets can besent detailed custom text messages, thereby increasing fleetefficiency and productivity even while unattended.Long Text Messaging enables 1024-character text mes-sages to be sent for advanced dispatch calls and job taskingrequirements, giving companion 80-Series fleet mobilesextended data messaging capabilities (requires a compatiblemobile data device and dispatch software).PC Serial Interface enables serialcommunications between an 80-Seriesmobile radio and a FleetSync™compatibleperipheral device or computer applicationfor an advanced FleetSync™ communica-tions system.Short Text Messaging (both portables and mobiles) requiresthe base station mobile to be interfaced with a computer runningFleetSync™-compatible dispatch software.PERFORMANCEIMPRESSIVE SPECIFICATIONS/WORLD-CLASS OPERATIONHigh-stability oscillators, an efficient MOS-FET power moduleand advanced filtering are just some of the features thatgive the TK-480/481 both the performance and power tobe a key component of any well-designed radio system.COMPANDED AUDIO (Both TK-480 & TK-481)Audio compandor noise-reduction technology enhancesaudio clarity on radio systems. Voice intelligence compo-nents are amplified and compressed at the transmit endthen expanded on the receive end to reproduce the originalaudio signal.INTRINSICALLY SAFE ENVIRONMENTSFor reassuring performance in hazardous and volatile envi-ronments, Kenwood offers options and accessories meet-ing the highest level of intrinsically safe specifications.SECURITYENCRYPTION CONTROLEncryption control provides secure voice communicationsfor law enforcement or private security. An internal portpermits addition of modules for voice scrambling from low-level inversion scrambling to high-level encryption types.The radio’s programming also allows both automatic andmanual control for clear and coded modes. (Encryption/scrambler modules and ANI modules cannot be installed inthe same radio)DIGITAL ANI & EMERGENCY OPTIONSFleetSync™ offers built-in digital PTT ID, Emergency andEmergency Man-down Status messages. Optionally, aninternal port permits addition of modules offering otherindustry ANI formats with PTT ID, emergency ANI andemergency man-down operation (GE-Star®and MDC-1200®).The recessed orange PF key and/or an optional tilt switchcan be used to trigger an emergencythus notifying a dispatcher or supervisorof personnel in trouble. (ANI modulesand encryption/ scrambler modulescannot be installed in the same radio)DTMF ANI & EMERGENCYDTMF PTT ID provides an ANI for business and industrialapplications using DTMF type systems. DTMF EmergencyANI is also programmable to enhance personnel safety(PTT ID and Emergency are available in conventional ortrunked operation).EMBEDDED MESSAGEThe radio’s flash memory can store an electronic messagecontaining owner identification, property ID numbers, userand department names, service records, etc. to makeelectronic identification easy even if external labels,markings or factory serial numbers have been removed.OTHER FEATURESLCD AND KEY LIGHT CONTROL TRI-COLOR LED QT, DQT CODED SQUELCHDTMF DECODE HIGH/LOW POWER TALK AROUND BUSY CHANNELLOCKOUT TIME OUT TIMER LOW BATTERY ALERT MINIMUM VOLUMEANNUNCIATION TONE CONTROL PC PROGRAMMING & TUNING PASSWORDPROTECTED PROGRAMMING/CLONING RADIO LOCK PASSWORD KEY LOCKMIL-STD 810C/D/E ENVIRONMENTSFeatures or specifications marked with an asterisk (*) are only available in version 2.0 or later radioproducts. Contact Kenwood for details.TRUNKED FORMAT (Trunked &Conventional Systems)FleetSync™ DIGITAL MESSAGING & SIGNALINGMULTIPLE SCAN FUNCTIONS QT & DQT CODED SQUELCH COMPANDED AUDIO7 PROGRAMMABLE FUNCTION KEYS 10-CHARACTER ALPHANUMERIC ALIAS MIL-STD 810 C, D & EThis has been printed on recycled paper.CL421KP-E-6 (00) 010705B Printed in JapanSpecificationsFrequency rangeRX: 851 ~ 870 MHz RX: 935 ~ 941 MHz TX: 806 ~ 825 MHz,TX: 896 ~ 902 MHz, 851 ~ 870 MHz 935 ~ 941 MHz (Talk Around)(Talk Around)System Max. 32GroupMax. 250 per systemChannel capacity Max. 600(Conventional)PLL channel spacing 25 kHz12.5 kHz(PLL step: 12.5 kHz)Battery voltage7.5 V DC ±20 %Battery life (5-5-90 duty cycle)KNB-16A battery8 hours KNB-17A battery10 hours KNB-21N battery 10.5 hours KNB-22N battery 13 hours Operating temperature -22°F ~ +140°F range(-30°C ~ +60°C)Frequency stability ±0.00025%±0.00015%(-22°F ~ +140°F)Dimensions (W x H x D)2-5/16 x 5-5/16 x 1-5/16 in. (58 x 135 x 34 mm)[projections not included]with KNB-21N batteryWeight (net)17.3 oz. (490 g ) with KNB-21N battery,antenna and belt hookFCC ID ALH22961110ALH22992110FCC complianceFCC part 90RF input impedance 50 ΩSensitivity* (12 dB SINAD)0.30 µVSelectivity*70 dB: ±25 kHz 63 dB: ±12.5 kHz Intermodulation distortion*65 dB: ±25/50 kHz60 dB: ±12.5/25 kHzSpurious response 70 dB (except 1/2 IF)Audio output500 mW at 16Ω, with less than 5% distortion RF power output HI: 2.5 W, LO: 1 WRF output impedance 50 ΩSpurious & harmonics 60 dBModulation 16KØF3E 11KØF3E FM noise 45 dB40 dB Audio distortionLess than 5%Channel frequency spread64 MHz45 MHz Applicable MIL-STDLow Pressure500.1/Procedure I 500.2/Procedure I 500.3/Procedure I High Temperature 501.1/Procedure I, II 501.2/Procedure I, II 501.3/Procedure I, II Low Temperature 502.1/Procedure I 502.2/Procedure I, II 502.3/Procedure I, II Temperature Shock 503.1/Procedure I 503.2/Procedure I 503.3/Procedure I Solar Radiation 505.1/Procedure I 505.2/Procedure I 505.3/Procedure I Rain506.1/Procedure I, II 506.2/Procedure I, II 506.3/Procedure I, II Humidity 507.1/Procedure II 507.2/Procedure II 507.3/Procedure II Salt Fog 509.1/Procedure I 509.2/Procedure I 509.3/Procedure I Dust510.1/Procedure I510.2/Procedure I 510.3/Procedure I Vibration 514.2/Procedure VIII, X 514.3/Procedure I 514.4/Procedure I Shock516.2/Procedure I, II, V516.3/Procedure I, IV516.4/Procedure I, IV* Typical specificationsKenwood reserves the right to change specification and features without prior notice. LTR is a registered trademark of Transcrypt International. FleetSync™is a registered trademark of Kenwood Corporation.GE-STAR is a registered trademark of Ericsson Inc.MDC-1200is a registered trademark of Motorola Inc.。
摩托罗拉蜂窝移动电话系统电话机使用说明（上篇）
摩托罗拉蜂窝移动电话系统电话机使用说明（上篇）
朱辰生;关健
【期刊名称】《河南交通科技》
【年(卷),期】1994(000)002
【总页数】13页(P49-61)
【作者】朱辰生;关健
【作者单位】不详;不详
【正文语种】中文
【中图分类】TN916
【相关文献】
1.蜂窝移动电话机进网质量检验的技术规范简介 [J], 王树甲;
2.摩托罗拉:蜂窝移动电话工业的“大哥大” [J], 子啸;
3.摩托罗拉蜂窝移动电话全国漫游联网的实现方法 [J], 许祁玉
4.摩托罗拉308／328／308C／328C型手持电话机微处理器部分电路图 [J],
5.摩托罗拉V998V8088型移动电话机接收及中频部分电路图 [J], 无
因版权原因，仅展示原文概要，查看原文内容请购买。
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
摩托罗拉MD481无绳电话使用说明书；一.性能介绍；outofrange超出范围(由于主机失电后，需；LininUse其他电话正在使用中；TALK本电话使用中（相等于已经拿起听筒或已经拨；MUTE无声（对方听不到你的说话声，你可以听到对；UNMUTE解除无声；HOLD保持（听不到对方说话声同时对方也听不到你；UNHOLD解除保持；DIAL拨号（当选择需要拨出摩托罗拉MD481无绳电话使用说明书一.性能介绍out of range 超出范围(由于主机失电后，需要从新对吗)Lin in Use 其他电话正在使用中TALK 本电话使用中（相等于已经拿起听筒或已经拨号或还没有拨号）MUTE 无声（对方听不到你的说话声，你可以听到对方说话声）UNMUTE 解除无声HOLD 保持（听不到对方说话声同时对方也听不到你的说话声）UNHOLD 解除保持DIAL 拨号（当选择需要拨出的号码时）BACK 返回（返回上级菜单）CALL 来电（来电话或已经来过电话）Call Who? (呼谁？)Answer ON （应答开启）PRIVATE （私人电话本）也就是存在独立子机上电话本二.功能按键介绍：“▲■”键（播放留言）；播放/停止播放。
“Del”键（删除留言）；在播放当前留言时，按“Del”键就删除当前播放的留言。
“(ON)flash”键（通话或拨号）“(OFF)cancel”键（结束或取消）“▲▼”键（查阅来电）；或选中拨号。
OPTIONS(选项) FORMAT（格式）；号码格式Delete （删除此条来电）Delete all（删除所有来电）Store （储存电话）Private （储存到私人电话本）Shared （储存到共享电话本）“handsfree”键（免提）；免提/听筒“redial”键（重拨）；再按“▲▼”键，查阅已拨电话或选中重拨电话（预留5组已拨电话）。
“intercom”键（呼叫子机或座机）；可以有选择某话机或全部话机对讲（直线距离50米）。
“page”键（呼叫子机）；呼叫所有子机进行对讲(子机无此按键)。
“memo”键（家人留言）；按住“memo”键约3秒,听到"嘀"的一声后开始留言,此时要按住不不放直至录音完毕后再松开“memo”键即可(子机无此按键)。
三.通话状态下功能键介绍：1.MUTE/UNMUTE(受话关/受话开)2.HOLD/UNHOLD（保持/静音）指示灯：1.“in use/voice mail”接听/有留言。
“inuse/voice mail”指示灯闪烁亮时,表示有新留言。
2.“charge/page”充电/呼叫子机四.屏幕菜单介绍：PHONEBK (电话本)SELECT(选择）New Entry(新增联系人)SHARED(共享电话本)OPTIONS（选项）EDIT （编辑）DELETE（删除）SORT PHONEBK （电话按字母顺序）VIEW (查看）FORMAT（显示格式）EXIT（退出）MENU（菜单）:1.Messages （消息）1. Review (消息和菜单介绍)2. Play/stop （播放/停止留言）3. Skip （跳下个播放留言）4. Answr ON/OFF（应答开关）Answer Machine:（应答）ON- 开OFF- 关5. MEMO（家庭留言）Recording Memo（留言录音）6. （无此条菜单）7. Repeat menu （重复介绍菜单）0. Erase(抹去家庭留言)，在播放家庭留言时，按“0”键就直接删除此条家庭留言。
注：进入“Messages”直接按数字键就可以直接使用你需要的功能了。
2.Caller ID log (来电记录)3.Ringer（铃声）:按“SELECT”（选择）Day volume：（白天铃声音量）High（高）、Medium（中）、Low（低）、off（关），按“CHANGE”(改变）Night volume：（晚上铃声音量）High（高）、Medium（中）、Low（低）、off（关），按“CHANGE”（改变）注：off(关)；如晚上“关”21点－6点来电铃声不响但背景灯光会闪烁。
如白天“关”6点－21点来电铃声不响但背景灯光会闪烁。
Ringer tone:（铃声选择）共有15个弦铃声，按“CHANGE”（改变）Phonebook tone:（电话本铃声选择）共有12个弦铃声,按”CHANGE”(改变）Key beeps:（按键声）on（开）off（关）Link to ringer(链接铃声)4.Loc area codes(区号设置)（不推荐使用）Area code1-5000 7 digit000 10 digit000 11 digitName Base (设置座机名字) (子机无此菜单)6.Register (与座机对码)，按“SELECT”再按座机上的“PAGE”键，按10秒钟左右，听到“嘀”一声对码成功。
handset (设置子机名字)（座机无此菜单）8.Date/Time (设置日期/时间)（座机上还多个星期设置）nguage (语言选择)有四种语言（英、法、西班牙、葡萄牙四种语言菜单）无中文。
10.Tone/Pulse （音频/脉冲）11.Monitor room (监听房间)Ready to monitor room (准备监听房间)；被监听的话机要在监听状态，然后在其他话机按“intercom”键，选择被监听话机，就可以清晰听到被监听的房间里声音。
“CANCEL”（取消）12.Intercom setup （留言设置）No auto answer(关闭此功能)After 1 ring(嘟一声后留言)After 3 ring(嘟三声后留言)13.Walkie-Talkie （子机与子机对讲），子机之间对讲功能。
（座机无此菜单）Walkie-Talkie（子机与子机对讲机）按“intercom”键，输入要呼叫的子机号1－4。
注：双方的子机都要在“Walkie-Talkie”对讲状态，呼叫才可以被接收到。
在对方确认后就可以对讲通话了（直线距离20米）。
CANCEL (取消对讲)14.Ans mach setup (应答设置)Answer ON/OFF：（应答开关）ON-开OFF-关Outgoing Msg:（播放应答选择）Play OGM:（播放应答）Record OGM:（录制应答）Change OGM:（改变应答）Default OGM:（话机里默认的英语应答)Recorded OGMOGM （录制的应答）Erase OGM: （抹去录制应答）Ring number:（选择响几声铃声后开始对方留言）3-6 Rings（选择响铃声3-6次）Toll saver（当已有电话留言时，需响铃３次，无留言时需响铃４次以上才启动录音）Security ID:(安全标识)123PHONEBK (电话本)SELECT（选择）SHARED(共享)座机上电话本是共享的电话本只能储存共享电话，从51号开始储存。
子机上电话本可以选择存入“私人”或“共享”电话本。
注：电话本分“Private”(私人)“SHARED”（共享），共享也就是在存入电话号码后在任何话机上都会有此电话号码。
五.功能介绍：·15种个性和弦铃声选择·电话簿来电专用铃声功能，并来电背光闪烁·子机两侧防滑条设计，手感舒适·有背光灯大按键，可以选择键音开或关·四行橘黄色背光显示屏·主机、子机双拨号系统·2.4GH通讯频率抗干扰，数字信号音质绝对极佳·主、子机之间内部呼叫，多机可同时对讲功能，子机与子机对讲功能。
. 有监听功能·可增加子机最多4个·多信道，通话前和通话中自动扫描功能（SST跳频扩频）·最多可保留40组来电号码，重复来电显示，新来电提醒·来电显示(FSK制式)·4行背光LCD屏幕显示，3×4按键背光，待机时间/日期显示及电池容量显示·电话簿的联系人来电有专用铃声并显示电话号码对应的姓名·来电回拨功能·无人接听时自动应答留言系统，最多可留言99条·3个数字语音信箱？（应答、家庭留言、电话留言）·新留言提示功能(座机指示灯闪烁和子机天线指示灯闪烁)屏幕也有留言提示·带耳机插孔（2.5插孔），附送腰夹·电话簿功能，子机可存储50组姓名和号码（1－50），座机49组姓名和号码（50－99）·主机和子机都有免提功能，通话效果极佳；音量可调·可以设置铃声白天或晚上铃声大小或关闭铃声·子机可待机5天（看电池质量）·子机低电量自动警报·保持/静音按键功能（HOLD/UNHOLD）·闪断/重拨按键功能(redial)·可挂墙壁使用（附件）·查阅已拨、未接、已接电话号码及快速拨号（存储5组已拨电话、来电40组电话、未接10组电话）·时钟设定功能（日期、星期、时间）. 电池电量显示功能（座机上的7#电池也是使用可充电池，否则使用其他不可充电池就容易爆炸）六.不足缺失方面：1. 不是独占式，在通话中其他子机或座机也可以接听，无保密可言2. 无电话录音3. 来电无振动4. 无快拨键5. 留言音质较差6. 无智能充电（放在座机上一直是在充电40－45mA）7. 无中文菜单,无中文输入8. 无操作说明书。
