摩托罗拉MOTO602数字无绳电话说明书
摩托罗拉 电话机 说明书it6c系列
3.9.1 拨打内线电话........................................................................ 16 3.9.2 转接通话............................................................................... 16 3.9.3 三方通话............................................................................... 17 3.10 语音信箱......................................................................................... 17 3.11 键盘锁............................................................................................ 17
摩托罗拉两路无线电通讯设备说明书
The Motorola Difference Motorola has developed two-way radios with a number of key factors in mind to provide you with great quality and enhanced value. These key factors represent the essential elements you depend on and expect in your communication – and Motorola brings them all together for you!• Value to ensure you get the most for your communication dollars • Reliability so you can depend on your radio, even in harsh environments• Ease of Use for simple operation and customization• Audio Quality to get your message through loud and clear• Size and Weight to provide convenient installation or easy portability• Battery Life to give you the power you need to communicate – as long as you need• Programmable to customize features of each radio for each user• Range that lets you reach coworkers across the street or across townMotorola – A Name You Know and TrustFor 75 years, Motorola has been a leader in creating state-of-the-art wirelesscommunication for people like you. The PR400 portable and PM400 mobile two-wayradios continue to uphold that standard of excellence that Motorola is known for.Each radio is backed by a limited two-year* warranty on parts and labor. So whenyou select the PR400 or PM400, you will experience the same exceptional quality youhave come to expect from Motorola products.The PR400 and PM400 two-way radios are ideal for many businesses and industries including:• Agriculture• Hospitality• Light Construction• Light Industrial • Manufacturing• Public Administration • Delivery Services • Security • Taxi and Limousine Services • Transportation/Fleet • Utilities *Radio accessories are covered by Motorola’s one-year accessories warranty.• More channels provide you with options, flexibility and control over your communication.• Motorola dealers can help program your favorite features so each portable and mobile radio can be customized to best suit the needs of the individual radio user.• Upgrading is easy because the PR400 and PM400 radios share compatible accessories with some of Motorola’s most popular two-way radios.• All of the PR and PM Series radios come standard withan option board port for future expandability andadded flexibility.• The PR400 is available in three models that vary by display, channels and features so there is a perfect model for every level of manager and employee.• The PR400 and PM400 have a high-quality speaker that provides noticeably clear, crisp audio with minimum distortion at maximum power.• The PM400 offers the most features and channels of any Motorola mobile in our Commercial Series and can be mounted in just about any vehicle. It also serves as an ideal desktop base station in the office or on the factory floor.• Motorola Original®replacement parts are on hand and easily available so radio repairs can be turned around quickly.PR400 and PM400 Radio AccessoriesCustomize Your Radio for Your Specific NeedsChoose from many Motorola Original Accessories or Motorola Certified Accessories to expand the capabilities of your radio and create a truly customized communication solution for your business. Motorola accessories are system-tested with Motorola radios to ensure optimum performance. Ask us how we can help customize your two-way radios with just the right accessories for your communication needs.In addition to the accessories below, Motorola offers a variety of antenna options, such as the UHF Heliflex Stubby Antenna (NAE6522) shown throughout this brochure and VHF Stubby Antenna (HAD9742/HAD9743). Contact us for complete accessory availability.Why Are the PR400 and PM400 Right for You?PR400 RADIO ACCESSORIES • Antenna AccessoriesFor transmission and reception range, choose from a variety of antennas• BatteriesDifferent battery chemistries to best suit your needs• Carry AccessoriesKeep the radio secure and take it with you wherever you need to go• ChargersKeep your Motorola batteries fully powered and ready when you need them• HeadsetsFor hands-free operation so you can do the work you need to do• Surveillance Accessories/Earpieces Enhance privacy and discrete communication • Ear Microphone AccessoriesIdeal for hands-free communication• Remote Speaker MicrophonesTalk or listen without removing the radio from your belt or case PM400 RADIO ACCESSORIES• Microphone Accessories – microphones and speakers Make it easy to hear and be heard• Hands-Free AccessoriesHelp improve operating efficiency so that driversstay focused and keep their hands on the wheel• Desktop Base Station Accessories –power supplies and standsSet up an efficient, centralized base station or dispatch center• Mounting AccessoriesCustomize the mobile’s mounting for any vehicle configuration• Antenna AccessoriesFor transmission and reception range, choosefrom a variety of antennas• Mobile Data AccessoriesAllow your communication system to grow,with Global Positioning Systems, AutomaticVehicle Locator, Mobile Display StatusTerminals and more• Public Address AccessoriesConvert your mobile unit into a public address system for broadcast communication• Alarm AccessoriesProvide a warning or an alert400 PR400 Features • 16 Channels • UHF and VHF Frequencies • Up to 4 Programmable Features • Busy Channel Lockout • Transmit Time-Out Timer • Voice-Operated Transmit (requires voice-activated microphone)• TPL Standard and Non-Standard Reverse Burst (for better compatibility with fleets)• Privacy Codes (42 standard TPL codes, 84 standard DPL codes and non-standard codes)• System Scan and Auto Scan • Single and Dual Priority Scan (frequently scans higher-priority channels)• Revert Scan (radio moves automatically to last landed scan channel when exiting scan mode)• Scan Talkback (respond to transmission while scanning)• Option Board Expandability • Quik-Call II™ Selective Call/Call Alert Decode – Selective Call: Calls a specific group or individual – Call Alert: Notifies a specific group or individual user with an alert tone and lighted LED • MDC1200 Signaling– PTT ID Encode: Sends unique four-digit ID (Caller ID)information when transmitting on the current MDC system – Selective Radio Inhibit Decode: Dispatcher can remotely disable radio to prevent transmission from reaching stolen or inactive radios– Radio Check Decode: Dispatcher can determine remotely if radio is powered on without disturbing user • DTMF Signaling– PTT ID Encode: Sends unique one to eight-digit ID (Caller ID) information when transmitting on the current DTMF system, which can be displayed on radios equipped with DTMF decoding capabilities• 2-Year Standard WarrantyNote:All standard features listed here also are included on theFull Display and Limited Keypad model.16 Channels Antenna Choice of antenna options for your specific needs Large Rotary Channel Selector Fixed rotary knob changes channels quickly and easilyRotary On/Off/Volume ControlTri-Color LED IndicatorIndicates radio status and battery levelsAccessory Connector with Dust CoverConvenient access for audio accessoriesMicrophone/SpeakerLarger, with improved components for enhanced audio3" Belt ClipAttaches radio firmly to beltRugged, Die-Cast ChassisWith polycarbonate housing for greater protectionTwo Programmable Option Buttons (S1, S2)Support up to 4 favorite featuresLarge, Textured Push-to-Talk ButtonEasy to find and use, even when wearing glovesBattery Latch LockSecures battery in case the radio is droppedPR400 Portable with No Display or KeypadPR400 Programmable Features(You can choose up to 4)• High/Low PowerAdjusts transmit power to accommodate user environment• Tight/Loose SquelchTight squelch helps minimize interference from undesiredstrong signals; loose squelch helps weak signals to be heard• Repeater/TalkaroundUnit-to-unit communication, bypassing the repeater• VOX On/OffEnables/disables voice-operated transmit functionality forthe current channel (Can also program VOX headset sidetone)• Option Board On/OffEnables/disables option board functionality for the current personality• Battery IndicatorDisplays battery charge level via LED• Volume SetSets preferred volume level for radio speaker• Nuisance Channel DeleteTemporarily deletes a specific channel from your scan modeif you no longer want to hear activity on that channel• MonitorMonitors the selected channel for any activity• Sticky Permanent MonitorAllows continuous channel monitoring• 2 Memory ChannelsDirect access to up to 2 memory channels• Escalert TMIncreases volume of unanswered alarm alertPR400 Portable Standard Package• Radio• 1600 mAh Slim Lithium-ion Battery• 90-Minute Rapid Charger• 3" Spring Belt Clip• Antenna (VHF Heliflex or UHF Whip)*• User Guide• Safety Manual• 2-Year Radio Warranty*Motorola offers a variety of antenna options, such as the UHF Heliflex Stubby Antenna (NAE6522) shown throughout this brochure and VHFStubby Antenna (HAD9742/HAD9743).400PR400 Additional FeaturesThe Full Display/Limited Keypad model has all of the sameregular and programmable features as the Non Displaymodel plus the following:• 32 Channels • Up to 8 Programmable Features• Supports Up to 16 Scan Lists of Up to 16 Channels Per List • User Editable Standard TPL/DPL Codes • User Editable Scan List • Lights On/Off Keypad and display backlights • Tones On/Off • Call Tone Tagging Tag a special tone for a particular call • Quik Call II TM Signaling – Selective Call Encode: Calls a specific group or individual– Call Alert Encode: Notifies a specific group orindividual user with an alert tone and lighted LED• DTMF Signaling– Selective Call/Call Alert EncodePR400 AdditionalProgrammable Features (You can choose up to 8)• Phone ModeProvides access to telephone interconnect through a repeater• Menu Mode Enter/ExitAccess to radio menu and to select a menu option • Radio CallAllows a user to initiate Quik-Call II TM and/or DTMF Call Alert or Selective Call Encode from a call list • Scan List Edit Allows user to add/remove channels from currentscan list PR400 Portable with Full Display and Limited Keypad32 ChannelsLarge Rotary Channel SelectorContinuous rotary knob changes channels quickly and easilyBacklit 8-Character Alphanumeric Display withUser-Friendly IconsDisplay indicates radio status and battery levels and allows forviewing of channel names and Caller IDs, so users know who’scontacting them on the radioMenu Scroll ButtonsAllow user to change channels and access menu featuresFour Programmable Option Buttons (S1, S2, P1, P2)2 side and 2 front buttons support up to 8 favorite featuresPR400 FEATURESPR400 Additional FeaturesThe Full Display/Full Keypad model has all of thesame regular and programmable features as theNon Display and Limited Keypad models plus thefollowing:• 64 Channels• User Editable Standard and Non-StandardTPL/DPL Codes• Keypad Tones On/Off• Manual Access Repeater:Send DTMF tones to repeater • User Editable Phone List • Speed Dial for Radio Call Encode PR400 Additional Programmable Features (You can choose up to 8)• Speed Dial • Keypad Lock/Unlock Allows user to lock/unlock keypad access to prevent unauthorized phone use PR400 Portable with Full Display and Full Keypad64 Channels Large Rotary Channel Selector Continuous rotary knobchanges channels quicklyand easilyBacklit 8-CharacterAlphanumeric Display withUser-Friendly Icons Display indicates radio statusand battery levels and allowsfor viewing of channel names and Caller IDs, so users know who’s contacting them on the radioMenu Scroll ButtonsAllows user to changechannels and access menufeaturesFull DTMF KeypadFour Programmable Option Buttons (S1, S2, P1, P2)8 favorite features400 PM400 Mobile64 Channels 8-Character Alphanumeric Display with User-Friendly Icons Assign a name to each channel for ease of useUp/Down Channel Selector andMenu Scroll Buttons4-Watt Front-Projecting SpeakerDie-Cast Housing with PolycarbonateOuter Casing4 Programmable Buttons (P1, P2, P3, P4)Customize shortcuts for up to 8 favoritefeatures with a short/long pressRed/Yellow/Green LED Indicators Rotary On/Off/Volume ControlPM400Features• 64 Channels• Up to 8 Programmable Features• VHF and UHF Frequencies• Transmit Time-Out Timer• Busy Channel Lockout • Voice-Operated Transmit (requires voice-activated microphone)• Private-Line/Digital Private-Line Code Editing • TPL Standard and Non-Standard Reverse Burst (for better compatibility with fleets)• Privacy Codes (42 standard TPL codes, 84 standardDPL codes and non-standard codes)• System Scan and Auto Scan • Supports Up to 16 Scan Lists of Up to 16 Channels Each • Single and Dual Priority Scan (frequently scans higher-priority channels)• Revert Scan (radio moves automatically to last landed scan channel when exiting scan mode)• Scan Talkback (respond to transmission while scanning)• Adjustable Backlight Intensity • Quik-Call II TM Signaling Encode/Decode – Selective Call: Calls a specific group or individual – Call Alert: Notifies a specific group or individual user with an alert tone and lighted LED• MDC1200 Signaling– PTT ID Encode/Decode: Sends unique four-digit (Caller ID) information when transmitting on the current MDC system– Selective Radio Inhibit Decode: Dispatcher can remotely disable radio to prevent transmission fromreaching stolen or inactive radios– Radio Check Decode: Dispatcher can determineremotely if radio is powered on withoutdisturbing user– Emergency Encode: Causes an MDC Emergency Signal to be transmitted on the current MDC system • DTMF Signaling– PTT ID Encode: Sends unique one to eight-digit ID (Caller ID) information when transmitting on the current DTMF system, which can be displayed on radios equipped with DTMF decoding capabilities – Selective Call/Call Alert Encode • Call Tone Tagging (special tone for a particular call)• 2-Year Standard WarrantyPM400 Programmable Features (You can choose up to 8)• 2-Channel Home RevertReturns to 1 or 2 favorite channelsPM400 FEATURES • Volume SetSets preferred volume level for radio speaker• Silent Monitor/Open SquelchSilent monitor causes radio to remain silent when there is no channel activity; opensquelch monitor causes “white noise” to be heard when there is no channel activity• Sticky Permanent MonitorAllows continuous channel monitoring• High/Low PowerAdjusts transmit power to accommodate user environment• Repeater TalkaroundUnit-to-unit communication, bypassing the repeater• Local/DistanceLocal mode reduces interference from nearby radios; distance modehelps improve range• Tight/Loose SquelchTight squelch helps minimize interference from undesired strong signals;loose squelch helps weak signals to be heard• Nuisance Channel DeleteTemporarily deletes a specific channel from your scan mode if you nolonger want to hear activity on that channel• Scan On/OffEnables/disables scan mode of operation• VOX On/OffEnables/disables voice-operated transmit function for the current channel• EscalertIncreases volume of unanswered alarm alert• Menu ModeAccess to radio menu and to select a menu option• Option Board On/OffEnables/disables option board functionality for the current personality• Phone ModeProvides access to telephone interconnect through a repeater• Speed DialInitiates a phone call to a preprogrammed recipient with the press of a DTMF key(requires a DTMF keypad microphone)• Radio CallAllows user to initiate Quik-Call II TM and/or DTMF Call Alert orSelective Call Encode from a call list• Scan List EditAllows user to add/remove channels from current scan list• External AlarmActivates a warning or alert by triggering flashing headlights, a sirenor a horn (requires an external alarm accessory and an accessoryconnector pin to be programmed for external alarm through CPS)Standard PM400 Product Package• Radio with Rear-Mounted Connectors for Power, 16-PinAccessory and Mini-U Antenna• Low-Profile Mounting Bracket• Heavy-Duty Microphone with Hang-Up Clip• Standard Power Cable• User Guide• Safety Booklet• 2-Year Standard WarrantyPR400Portable Two-Way Radio Specifications*PR400Portable Two-Way Radio Specifications*Portable Military Standards 810 C, D, E & F*All specifications subject to change without notice.*All specifications subject to change without notice.PM400Mobile Two-Way Radio Specifications *Accelerated Life TestMotorola’s Accelerated Life Test (ALT) is a developmental process of rigorous laboratory testing that simulates years of field use. Motorola has a firm commitment to quality and reliability. These radios have been designed, manufactured and tested to achieve high levels of component and workmanship quality. Motorola radios are designed to minimize costly repairs and downtime. PM400 Mobile Military StandardsFor more information:MOTOROLA, Radius and the Stylized M Logo are registered in the US Patent and TrademarkOffice. All other product or service names are the property of their respective owners.© Motorola, Inc. 2003.https://MD-EUPR400/PM400Motorola’s Commercial, Government and Industrial Solutions Sector (CGISS) is a recipient of the prestigious 2002 Malcolm Baldrige National Quality Award, in recognition of its commitment to performance excellence and quality achievement.。

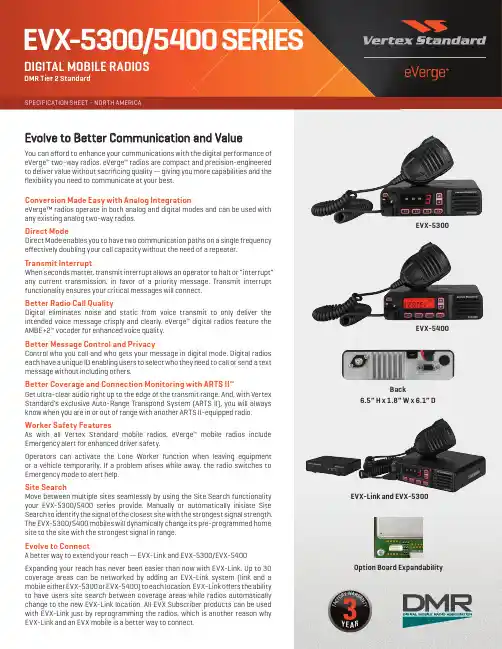

Motorola Solutions eVerge 数字无线通信设备说明书
EVX-5300/5400 SERIESDIGITAL MOBILE RADIOSBackOption Board ExpandabilityEVX-Link and EVX-5300EVX-5400EVX-5300F A C TO RY W A R R A N TY 3Y E A RAdditional Features^ 6 Programmable keys^8-Character alpha numeric display (EVX-5400) ^Programmable tri-color LED ^Minimum volume control ^RSSI Indicator (EVX-5400)^Direct channel entry (EVX-5400) ^Lone worker alert ^ARTS ™ & ARTS II ™ ^Emergency alert ^DTMF Speed dial ^Priority scan ^Follow-me scan ^Dual watch^Public address / horn alert^D-Sub 15-pin accessory connector^Radio-to-radio cloningAnalog Mode Features^Voice compander ^Whisper mode^CTCSS/DCS encode/decode ^MDC-1200® encode/decode ^2-Tone encode/decode ^5-Tone encode/decode^DTMF Telephone Interconnect/ANI ^DTMF Paging^Remote stun/kill/revive (5-tone)Digital Mode Features^Basic privacy ^Enhanced privacy^Text messaging (EVX-5400) ^All call, Group call, Individual call ^Direct/Dual Capacity Mode ^Transmit Interrupt ^Site Search ^Escalert^Remote monitor ^PTT ID encode ^Mixed mode scan^One touch access (EVX-5400)^128 Record contact list (EVX-5400)Accessories^MH-67A8J: Standard microphone^MH-75A8J: Keypad microphone (16 keys) ^MD-12A8J: Desktop microphone ^MLS-100: External speaker, 12W ^LF-6: DC Line filter^RMK-5400: Remote Mount Kit*25 kHz will not be available on new equipment in the U.S.A. after 1/1/2013. Specifications are subject to change without notice or obligation.VERTEX STANDARD is a trademark of Vertex Standard LMR, Inc. All other trademarks are the property of their respective owners. ©Vertex Standard LMR, Inc. 2016.NSS_5300/5400_04/2016EVX-5300/5400 SERIESSPECIFICATION SHEET - NORTH AMERICA。
MD481 MD491摩托罗拉无绳电话简易使用说明书
MD481 MD491摩托罗拉无绳电话简易使用说明书
【商品简介】
外形
银色外观，简洁时尚、典雅大方、充满活力
子机两侧防滑条设计，手感舒适
超大液晶屏5行字符清晰显示，带高亮度橙色背景灯光
手机3X4按键橙色夜光，大按键，方便拨号
待机时时间/日期显示
无线
2.4G数字高清晰传送，抗干扰性强，Hi-Fi音质圆润清晰
最新数字通讯技术（SST跳频扩频），保密性更强
频道自动搜索/呼叫/查找
超静音，无电磁辐射，健康环保
多信道，通话前和通话中自动扫描功能
独占式通话保密功能，子机通话中主机无法听
全部功能都可通过子机操作
和DECT兼容、子母机双拨号系统
主机可呼叫手机，更可实现主机和手机对讲
主、子机之间内部呼叫、通话功能
寻呼子机功能（子机放在什么地方找不到，这个功能最有用了）可增加子机，最多增加4个，子机间可内部通话
支持3方电话会议
铃声
来电12种个性和弦铃声选择
电话簿贵宾来电专用铃声功能
人性化设计，可分别设置白天和晚上的铃声响度，共4档调节，高、中、低、关闭
振铃音量、音调控制
增大/减小听筒音亮
主机有免提通话功能，通话音量9档调节，手机也有免提通话功能，通话音量4档调节来电
主机和手机都有来电显示系统(FSK制式)
查阅已拨、未接、已接电话号码及快速拨号
可存储50组来电号码，重复来电显示，新来电提醒
来电回拨功能
电话簿功能，子机可存储50组姓名和号码，主机49组
30组来电号码储存，10组快速拨号
录音
底座内置MOTO Tapeless数字式答录系统，15分钟语音储存通话中可录音，录音时间长达15分钟。
摩托罗拉C602说明书
摩托罗拉C602数字无绳电话中文说明书一、首先将电源和电话机连接好,然后放入电池充电12小时以上二、电话系统操作1）接听电话：拿起手机，按话筒键开始交谈，再按话筒键挂机。
2）拔打电话：按话筒键开机，输入所拔号码即可;也可按手机拨号方式:先输入要拨的号码,再按话筒键开机.通话完按此键挂机。
3）重播电话：按▲键，再按▲、▼键翻查您最近拨出的10组电话号码.按话筒键开机则自动拔出您要拔的号码。
可按子机中部的小喇叭键进行免提通话,再按一次则回到常态4 )呼叫：按座机上的圆形键，所有手机就会发出蜂鸣声。
再按一次此键即停5 ) 通话音量：在通话状态下按▲、▼键调节耳机音量大小(共5级可调)。
6 ) 子机开关：在通常状态下按住左下角R键5秒,则子机关闭.同样操作则子机开启.。
7 ) 键盘锁: 在通常状态下按住*号键1秒,则子机键盘锁死,按任意键,再按一次*键则子机键盘开启8) 子机间通话与转接: 按1号子机右下角INT键再按2则2号子机鸣叫,此时按2号子机话筒键则可进行双方通话.反之亦然.转接电话操作同前,只是当2号子机鸣叫且按了话筒键后,1号子机须按话筒键关机方可将电话转接到2号子机上.9 ) 铃声选择: A)主机: 按菜单(MENU)键, 按▲、▼键至SETUP 按OK键按▲、▼键至BASE MELODY按OK键进入,按▲、▼键选择您喜爱的铃声(共5种可选),按OK键确认.按C键退出.B)子机:按菜单(MENU)键, 按▲、▼键至HANDSET按OK键进入,按▲、▼键至INT MELODY(内部呼叫铃声)或EXT MELODY(来电铃声),(分别)按OK键进入,按▲、▼键选择您喜爱的铃声后按OK键确认(分别有10种可选),按C键退出.10) 铃音调节: A)主机: 按菜单(MENU)键, 按▲、▼键至SETUP 按OK键(按▲、▼键)至BASE VOLUNE按OK键, 按▲、▼键调整铃音高低(共5级可调)选好后按OK键确认.按C退出 B)子机:按菜单(MENU)键, 按▲、▼键至HANDSET 按OK键进入,按▲、▼键至INT RING VOL(内部呼叫铃声音量)或EXT RING VOL(来电铃声音量), (分别)按OK键进入,按▲、▼键选择您喜爱的铃声大小(分别有6级可调),选好后按OK键确认,按C键退出.11) 音频/脉冲:按菜单(MENU)键, 按▲、▼键至SETUP按OK键按▲、▼键至DIALMODE按OK键进入,按▲、▼键调节TONE DIAL(音频)或PULSE DIAL(脉冲)按OK键确认.按C退出.12) 静音操作:当通话时,按子机左上角的C键(MUTE),屏幕显示MUTE则对方不能听到你的讲话内容;再按一次此键则恢复常态.13)闹钟操作:按菜单(MENU)键, 按▲、▼键至DATE—TIME,按OK键进入,按▲、▼键至ALARM SET按OK键按▲、▼键至ON按OK键进入,依次输入**时(24小时制),**分.输完按OK确认,按C键退出.如需关闭闹钟,则在上述操作中将ON改为OFF后按OK即可.14 ).电话号码薄操作:按菜单(MENU)键, (按▲、▼键)至PHONEBOOK按OK键进入(以下操作在此菜单下进行)A)储存号码:按▲、▼键至ADD ENTRY按OK键,先输入名字(字母)再按OK键,输入电话号码,按OK键确认,则有铃声响起.按▲、▼键调节铃声种类, 按OK 键确认.按C退出.(期间输入出错可按C键删改).自此,此号码来电话时就有了自己个性化的铃声.B)修改号码:按▲、▼键至MODIFY ENTRY按OK键进入,按▲、▼键翻查至需要修改者,可按C键删改后重新输入名字或号码(依A)中操作)C)删除号码:按▲、▼键至DELETE ENTRY按OK进入,按▲、▼键至您要删除电话.按OK键2次即可删除D)查阅及拨打号码薄中电话: 按电话本键后按▲、▼键即可进行翻查,先查到您要找名字,(再按OK键可查号码.)按话筒键即可拨出.三、来电系统操作：1）浏览来电：按▼键, 按▲、▼键及OK键翻阅来电的信息,。
摩托罗拉MD系列无绳参考使用说明书
摩托罗拉MD 系列中文简易说明 上海函世网络科技有限公司制作第 1 页 共 1 页摩托罗拉MD 系列数字无绳电话简易说明一.按键功能 1.拨通挂断电话(ON)flash 键：拨号/确认按电话号码后按键或按(ON)flash 键后按电话号码 (OFF)cancel 键：挂断/取消 通话完毕按(OFF)cancel 键 退出菜单2．handsfree:扬声功能（免提）按handsfree 键后按电话号码可以直接拨号 3．page:呼叫子机用于主机呼叫或者寻找子机之用。
按下后，子机会发出响声。
此时可接听，或者挂断。
4．intercom:内部通信直接呼叫子机，多个子机的时候可以用此功能。
5．redial:重拨查拨号记录：按redial 键后按“上”“下”键选择。
可重拨以前的号码。
本机可重拨最后五组去电号码，先按ON 键货HANDSFREE 键，之可以重拨最后一组去电。
6．</>Volume:调节音量 按上下键调节 录音部分：7.memo:家人留言,按住memo 键约3秒,听到"嘀"的一声后开始留言,完毕后松后即可播放留言:按▲■键可听取所有留言,当座机inuse/voice mail 指示时,表示有新留言未放听 8. 播放录音或者停止：前一条录音后一条录音9.DEL :删除当前播放的录音播放录音时按DEL 即可删除当前条录音 二．MENU 菜单设置：屏幕下方有左键和右键两个按钮，分别是对应屏幕中左边或者右边的功能键，在不同的子菜单下可能表现为不同的功能键。
.一般表现为左键：SELECT/DONE （选择/确定） 右键为CHANGE （改变设置）或者其他，根据情况改变 按屏幕下方右键按钮即可进入菜单设置。
（左键为直接进入电话簿Phonebook ） 1．Caller ID log :来电记录 查来电记录：按“上”“下”键选择 查拨号记录：按redial 键后按“上”“下”键选择 来电号码储存：按上下翻键查阅来电信息时，如需要存储当前号码，按一下OPTIONS 键，再按两下SELECT 键，按数字键输入英文名字，如有误可以按DELETE 键可删除，按DONE 键确认按EXIT 退出。
MD481_MD491摩托罗拉无绳电话简易使用说明书
MD481_MD491摩托罗拉无绳电话简易使用说明书【商品简介】银色外观，简洁时尚、典雅大方、充满活力子机两侧防滑条设计，手感舒适超大液晶屏5行字符清晰显示，带高亮度橙色背景灯光手机3X4按键橙色夜光，大按键，方便拨号待机时时间/日期显示2.4G数字高清晰传送，抗干扰性强，Hi-Fi音质圆润清晰最新数字通讯技术（SST跳频扩频），保密性更强频道自动搜索/呼叫/查找超静音，无电磁辐射，健康环保多信道，通话前和通话中自动扫描功能独占式通话保密功能，子机通话中主机无法听全部功能都可通过子机操作和DECT兼容、子母机双拨号系统主机可呼叫手机，更可实现主机和手机对讲主、子机之间内部呼叫、通话功能寻呼子机功能（子机放在什么地方找不到，这个功能最有用了）可增加子机，最多增加4个，子机间可内部通话支持3方电话会议来电12种个性和弦铃声选择电话簿贵宾来电专用铃声功能人性化设计，可分别设置白天和晚上的铃声响度，共4档调节，高、中、低、关闭振铃音量、音调控制增大/减小听筒音亮主机有免提通话功能，通话音量9档调节，手机也有免提通话功能，通话音量4档调节主机和手机都有来电显示系统(FSK制式)查阅已拨、未接、已接电话号码及快速拨号可存储50组来电号码，重复来电显示，新来电提醒来电回拨功能电话簿功能，子机可存储50组姓名和号码，主机49组30组来电号码储存，10组快速拨号底座内置MOTO Tapeless数字式答录系统，15分钟语音储存通话中可录音，录音时间长达15分钟可自录提示语，更可家庭内部留言无人自动应答留言系统，最多可留言99条3个数字语音信箱新留言提示功能异地遥控密码操控功能，在外面也可听取电话留言带耳机插孔，附送腰夹，方便交谈，解放你的双手可挂墙壁使用子机长达100小时的待机时间，连续4个小时的通话时间子机低电量自动警报保持/静音按键功能闪断/重拨按键功能日期/时间设置英语/法语/西语/葡语选择【商品附件】子机两个，主机一个，充电座一个，电源两个，电池两个，说明书一本【产品尺寸】座机：17.5 * 12 * 5 cm 子机：16.8 * 5.5 * 2.8 cm【使用说明】一、子机按键/开关/指示灯功能说明1． ON/flash 通话键/闪断键：按该键接听来点及拨打，在通话状态时如果你的电话开通了呼叫等待，按该键接听另一个来电。
摩托罗拉说明书
目录1 手持终端介绍1.1 motorola mc31902 手持终端日常操作2.1 充电方法2.2 开关机、热启动、冷启动3 手持终端无线网络配置3.1 无线网络配置4 手持终端联机pc机4.1 概述4.2 同步工具安装4.3 手持终端中文字库安装5 手持终端键盘功能设置 6手持终端机故障分析1 手持终端介绍1.1 motorola mc3190motorola 讯宝symbol mc3190数据采集终端作为symbol mc3090手持终端的升级替代产品，mc3190是构建于成功的mc3090之上，mc3190采集器系列分为3100批处理盘点机和包含无线局域网wifi的mc3190条码采集器两款。
新的摩托罗拉mc3190系列可为公司内部的按键应用提供成本高效的移动性和用户舒适度。
符合人体工程学的耐用型 mc3190 提供先进的计算能力以及数据采集能力、增强的安全性以及企业级的运动传感能力。
motorola 讯宝symbol mc3190数据采集终端性能参数：数据采集选项-1d 激光扫描仪、1d/2d 成像仪、dpm 内存 (flash/ram)-128mb ram/256 mb flash 或 128mb ram/512mb flash 处理器 (cpu)-marvell pxa320 @ 624 mhz 操作系统 (os)-microsoft windows mobile 6.1 classic, microsoft windows ce 6.0 pro 无线数据通讯：wpan（支持蓝牙技术）-ii 级、v2.1 增强数据速率 (edr), 集成天线wlan-三重模式 ieee? 802.11a/b/g；经过 ccxv4 认证；支持 ipv6；经过 fips140-2 认证（仅限mc3190）线性一维条码扫描器：光学分辨率-最小元素宽度 4 mil 扫描速率-104（+/- 12）次扫描/秒（双向）使用环境：环境密封-ip54（2 类）工作温度--4°至 122° f/-20°至 50° c 跌落规格-在工作温度范围内，多次从 4 英尺/1.2 米高处跌至水泥地面；满足并超过mil-std 810g 滚落规格-根据 iec 68-2-32，在室温条件下，500 次从 1.64 英尺/0.5 米高滚落（1,000次）2.1 充电方法摩托罗拉的每个手持终端都配了两粒电池，同时配了四位充电座。
MOTOROLA MICOM中文使用手册
Q. ‘S’
当扫描按钮按下，开启信道扫描时显示。
5
图 3 液晶显示器
B.基本电台操作
本机容易操作。下列简化的的过程是操作电台的指南。在实际操作之前请完整阅读1.打开电源，设置音量。
1.要扫描信道 101-110，按 SCAN。
2.键入信道号。
2.要停止扫描，再按 SCAN 或按一下麦克风上的发射键。
a. 上下箭头。上移信道或下移信道。（A-B）
7
b 数字键盘 1.用户编程的信道（1-120） a)例如调出 115 号信道。按 1 键，频率显示消失，信道数显示‘1’且方框围绕‘CH RCL’ 闪动。再按 1 键和 5 键。显示 115，需要的信道。按 ENTER 键。方框停止闪动。新频率显 示在显示屏的频率部分。
型的频率传播春季与夏季40008000传播范围英里日落后小时数100100100250506008001000150025002502502504007502000250025003000400050000350075060006000150070005025020010005003510060025015005003500750100100150020005007503500400010250250075040001110010005002500日出后小10000100250250250150150015001500750500500500350035003500750750750400040006000150015001500700070007000时数5001004004002000200010010025025015001500500500100015002501500500250075040001002501500500350075040001500700010111213501001002002502501501501500500500500500500350035003500750750750400060006000150015001500700070007000由于大气状况使用的天线类型地线的质量太阳黑子周期和其他变数影响传播摩托罗拉不能保证本产品能工作到表中所列的范围
摩托罗拉,电话机,说明书CT202C
9. 自动 IP ................................................................................18 9.1 保存号码 ..................................................................................... 18
5. 铃声 ....................................................................................14 5.1 设置铃声 ..................................................................................... 14 5.2 设置铃声音量............................................................................. 14
10. 显示屏 ................................................................................19 10.1 调节显示屏对比度 .................................................................... 19
摩托罗拉 电话机 说明书IT.6C系列
此用户手册可为您提供一切所需的信息，帮助您充 分利用本电话的功能。 要设置您的电话，请遵循后面几页“使用前的准 备”中的简单指示。
重要信息
仅使用自带的电话线。
下列配件齐全吗？
• IT.6XC主机和无绳子机 • 主机的电源适配器
• 电话线
• 说明书
如果您购买的是IT.6XC系列多子机包装，则还将获得以下的额外附 件：
3.9.1 拨打内线电话........................................................................ 16 3.9.2 转接通话............................................................................... 16 3.9.3 三方通话............................................................................... 17 3.10 语音信箱......................................................................................... 17 3.11 键盘锁............................................................................................ 17
来电者间进行三方通话。
需要帮助吗？
如果您在IT.6XC的安装或使用上有任何问题，请拨打4008-838-698联系 客服部门。
或者，您也可以参阅本手册“疑难解答”章节中的说明。
1您必须先向固话网络运营商申请开通来电显示或来电等待服务，方可 享有这些功能。您可能须支付开通费用。
Suncorp,电话机,说明书Colombo Two
5. 菜单和功能......................................................................8
5.1 出厂设置 ..............................................................................9
11. 故障排除 .....................................................................13 12. 常规说明 .....................................................................14
2
1. 欢迎 ................................................................................2
1.1 1.2 1.3 功能 .....................................................................................2 盒内配备物 ..........................................................................2 重要事项 ..............................................................................2
7. 电话本 ...........................................................................10
通用无绳电话说明
美国通用25833 5. 8GHZ 数字无绳电话功能说明各键说明：（由上至下，由左至右）了•机：CALLID-VOL+, 一查阅來电及音帚:调节，TALK 通话、挂断、冋拨，SPEAKER 免提、挂断、|可拨,DELETE 删除，CONF 三方通iS, review 重放留言,play 播放，skip 下 —首,EXIT 返【叫，PAUSE 暂停，REDIAL 重拨,erase 删除ffl R, MEMORY 存储,MUTE 菜单、保密，［NT 对讲,FLASH 闪断,answerer 应答模式 座机:ANSWER ON/OFF 答录开关,1/22种留言,DEL 删除留 n,REVIEW 重放留育,SKIP 下…首,VOL+/-留育音ft,MEMO 内部留言,1/2/3内部留言箱,DO NOT DISTURB 免打扰,LANGUAGE 提示语言,MIN 分钟,HOUR 小时,DAY 星期，1:来电显示按+、一键査看來也 按DELECT 键2次删除该來电，如按住DELETE 犍3秒后再按1次可以删除所有来电 2:电话号码存储（50个）新号存储：了•机按MEMORY 從一按数字键（01至50） -MEMORY 掘一输入英文名字一MEMORY 键一输入号码一MEMORY 键即可 来电存储:按+、一査看來电-MEMORY 犍一按数字键（01至50）即可删除來电：按MEMORY 键一按数字键（01至50） —按DELETE 键2次即叫3:打电话方法（子机放在座机上将切断通话或其他操作而只充电）（木机具有预拨号功能）常规拨号：TAIK 键或免提一拨号码一结束通话按TALK 健或免提（或拨号码一TALK 键或免提一结束通话按TALK 键或免提 存储拨引MEMORY 健一01至50键一TALK 健或免提即可（或TALK 键或免提一MEMORY 键一01至50键即可）巫拨拨号：按TALK 键一按REDIAL 键（或按REDIAL 键一按+—键选择号码（5个）一按TALK 键或免捉键）按memo 程一按住1或2或3伫箱不动一附占内容一抬起丁即可 按I 或2或3信箱号即可： 了机拽 一 「键一2It —拨1必」：i ；即可 在播放留言中按DEL 键： 『•机件播放中按0键 按ANNOUNCE ® 一按住1或2不动一帘汁内容（如果不录•电话接通后听到英文“你好•请在嘀声后留”） 按1或2键： 播：抜2play 键： 「机抜answerer 优一 J 琏 拨2伫KT ；删：按住ANNOUNCE 键不动在“嘀“之后迅速抬起该磁启动：按座机ANSWER ON / OFF 健一按1或2,响铃次数设定：按HITE 键一调+—建至IIA'DSET SETUP —按Ml’TE 键一调一—键至RING TO ANSWER —按MUTE 键一调+ —從选 样响铃次数（5种）一按MUTE 键信息捉醒：按MUTE 键一训+ -键至HANDSET SETUP-按MUTE 健一训+ —键至MESSAGE ALERA 一按MLTE 键一调+—键选 择（ON为开）一按MUTE®遥控代码：按MUTE 键一调+ —键至HANDSET SETUP 一按Ml ：TE 健一调+ T 建至SECI RITY CODE —按MUTE 键一输入3位数 字（111-999） 一按 MUTE 键遥控功能：拨打家电电话一输代码123-2 （播放农人留占）.I （币;复留台），3 （下 个留占）：1：（关闭应答）：任播放中按0 （删除邸言），操作错误将挂斯5：音量调节铃声调节:按RINGER 键一按数字键选择（1高2低3关）一按RINGER 键即可或按MUTE 键一调+—键至HANDSET SETUP —按MUTE 键一调+—扯至RINGER VOLUME 一按MUTE 键一调+—键选择（高 低关）一按MUTE 键铃声种类：拨MUTE 键一调+ _健至HANDSET SETUP 一按MIJTE 键一调+—健全RINGER TONE —按MUTE 键一调+ _键选样（20 种铃声）一按MUTE 琏即可听筒音量：在通话中调V" +、一键（4级）杳阅來电至需拨出的号码-TALK 键或免提键即可 來电冋拨：4：答录功能（2种对外留言，3个内部私人信箱）（家庭内部）录：播删（电话留占）录试听：6：注册子机按 MIITE 键一调 +T建至 HANDSET SETUP一按 MUTE 键一调 + -键.至 REGISTRATION—按 MIJTE 键一调+ —键至 YES-按 Ml TE 键—按住座机卩AGE健3至5秒即可7：解除子机按 \IUTE 键一调 +—健至 HANDSET SETUP—按 MUTE 健一调 +—键至 DEREGISTRATION一按 MUTE 键一调+ —健至 YES—按MITE 键一调+ —健至YES （再次确认）一按MUTE健即可8:按键音设置按MUTE键一调+—健至HANDSET SETUP一按MUTE键一调+—键至KEY TONE—按MUTE键一调+ —徒选择（ON为开，OFF为关）一按MUTE键即町9：语言设置按MUTE键一调+ —健至HANDSET SETUP—抜MIJTE琏一调+ —键至SET IANGUAGE—按MIJTE键一调+ —键选择（1英语2法语3 西班才语）一按MUTE健即可10：手机名称按MUTE f建一调+—键至HANDSET SETUP—按MLTE键一调+—键至KEYTONE一按MUTE键一训+ —键选样（ON为丿|；・OFF为关）一按MUTE键即可11:座机时间设置按住应机MIN键3秒一再连续按MIN键设定分钟,按住座机HOUR键3秒-再连续按HOUR键设定小时,按住座机DAY键3秒一再连续按DAY健设定星期•听时间：按CI1ACK 即可12:座机答录提示语言连续按座机LANGUAGE键选择（英断法语、西班才语）13：免打扰按座机DO NOT DISTURB键（灯亮为开），打入电话将不响铃14：保密功能在通话中如暂时不便对方听到叫•先按MUTE键.恢复通话再按MUTE置即可15：房间监听（2个以上子机）按MUTE從一调+—琏至ROOM MONITOR-^ MUTE健一妆被监听的T•机编号即叽结朿按EDIT键即町16:呼叫功能座机按PAGE键呼叫f机（多了机可对讲）17:对讲功能（2个以上子机）子机按INT键和了机编号,被叫了机按INT健与之对讲18:三方通话（2个以上子机）r机接通外线后按INT键和了机编号于貝他J'机对讲.对讲后任怠访conf健即可三方会谈19：子机耳脉接听（最好选用有开关及音最调节的耳脉;尺寸:2. 5mm）20：电池初次使用连续允电12小时，电吊低提示注意事项：1：本机如接入ADSL线路中必需在本机前加接ADSL分离器（接在PHONE端口），否则会造成电话有杂音或不对码、掉网、不稳定等现象。
摩托拉拉两路通信设备产品说明书
CDM 1550•LS CDM 1550•LS+Professional SeriesTwo-Way Radios and AccessoriesVHF UHF 200 MHz 700 MHzkeeping one step ahead of your competition. You also need communication tools that deliver immediate, reliable access to the people and information you need to get the job done. And that’s exactly what two-way radio gives you.At the touch of a button, two-way radio lets you talk with one, ten, or more people instantly – providing the individual and team communication you need to maximize productivity and meet your customers’ demands. And when you choose aMotorola radio, you know you’re getting a product designed to meet your requirements as a professional.The Intelligent Radio – So Advanced, It Practically Thinks for YouHigh-performing features combined with versatile trunking capabilities make the CDM1550•LS and CDM1550•LS +two-way radios the smart choice to keep mobile work teams performing at their best. The CDM1550•LS and CDM1550•LS +radios incorporate LTR ®trunking capabilities – offering you wide calling range, fast channel access, great privacy,and high user and talkgroup capacity. The CDM1550•LS +also offers innovative PassPort ®trunking. Ideal for users with growing communication needs, PassPort includes all the advantages of LTR trunking plus:• Wide Area Coverage, Seamless Roaming – Automatic switching between networked PassPort sites lets you maintain constant communication over long distances without touching a button• Exceptional Audio Quality – Received Signal StrengthIndicator (RSSI) communication technology utilizes one of the strongest signals available, giving you optimal sound quality• Superior System Access – Automatic site registration/deregistration can reduce busy channels and enhance system efficiency• Efficient Channel Expansion – Direct frequency assignment allows you to add channels and sites over the air without taking radios out of service• Electronic Serial Number Protection – Keeps system resources available by helping to prevent unauthorized radio cloning• Increased Flexibility – Access privileges by Mobile Identification Number* (MIN) allows radios to be directed to specific sites or talkgroups.*Optional PassPort featureCDM1550•LS with LTR ®TrunkingCDM1550•LS and CDM1550•LS +Radio Features15 PassPort and/or LTR Zones (16 talkgroups each)* 16 or 160 Conventional Channels*RSSI IndicatorDisplays signal strength levelLarge Control ButtonsEasy management of menu, navigation, and exit functions Conventional TalkaroundUnit-to-unit communications, bypassing the repeaterHome Channel RevertAutomatic, one-button return to a preferred talkgroup or channel User-Defined ListsChange scan, phone, and call lists on the fly Voice StorageRecord important messages or personal memos Telephone InterconnectPlace and receive phone calls with the radioMDC1200 Signaling (Encode/Decode) Features on Conventional and LTR Zones*• Caller ID – Identifies incoming callers• Selective Call – Lets you call a specific group or individual • Call Alert – Notifies individual users that you ’re trying to reach them • Radio Check – Tells you whether another user ’s radio is activated • Message – Allows you to send and receive pre-programmed messages PassPort Selective Call or Call Alert*Lets you initiate or receive a private call or a private page to a specific userQuick Call II TM on Conventional Zones*Send and receive information via tone or digital signals Roam Request*Optional manual initiation of roaming function Roam Lock*Optional manual lock of the radio onto a site Horn and Lights ActivationNotifies you of calls when you ’re away from your vehicle Additional CDM1550•LS and CDM1550•LS Mobile Features• 12.5/25 kHz switchable channel spacing*• Remote mountable control head • Data capable• Operates on conventional, LTR and PassPort systerms**Only available on certain models. Check with your Motorola Authorized Dealer for availability.Motorola – A Name You Know and TrustFor 75 years, Motorola has been a leader in creating state-of-the-art wireless communications for people like you. The CDM1550•LS and the CDM1550•LS +mobiles uphold that superior standard. What ’s more, each radio is backed by a limited two-year* warranty on parts and labor.So when you select the CDM1550•LS or the CDM1550•LS +mobile, you ’ll experience the same exceptional quality you ’ve come to expect from all Motorola products.*Radio accessories are covered by Motorola ’s one-year accessories warranty.CDM1550•LS +Exceptional Functionality and ConvenienceThe CDM1550•LS and the CDM1550•LS +mobiles utilize the latest in two-way technology to deliver extraordinary performance and ease-of-use, including:• Compact, Ergonomic Design to give you optimal mounting flexibility and durability• 14-Character Alphanumeric Display with User-Friendly Icons to help make the radio ’s information easy to understand • Convenient Menu Navigation so you can program scan,phone, and call lists in virtually no timethe transmissions your radio monitors• Motorola ’s Unique X-Pand ™Audio Enhancement combined with a powerful front-projecting speaker can help reducebackground noise and improve sound quality • Compatible with CES data equipment so that you can configure your radio for specific data applications and needsThe CDM1550•LS +mobile can also be programmed with both LTR and PassPort trunking systems – allowing a smooth transition when your business requires a more extensive calling area for maximum communication efficiency. The radiooperates on 16 or 160 channels as well.Motorola Original ™accessories provide an easy way to turn your CDM1550•LS or CDM1550•LS +mobile radio into a custom communication solution to fit your business requirements —maximizing on-the-job productivity and efficiency for mobile work teams and individuals. Listed below is just a portion of the accessory portfolio available for the CDM1550•LS and CDM1550•LS +. Call today for a complete accessory listing.CDM1550•LS CDM1550•LS+Radio AccessoriesTalk However You WantEnhanced Keypad Microphone —AARMN4026You can dial phone numbers on this microphone ’s full keypad, or customize its three programmable buttons with any control head features.Visor Microphone —AARMN4027Attach this microphone to your visor or hat for hands-free operation of your radio (must be used with an external PTT).Push Button Push-to-Talk —RLN4857Simply depress the button to talk with other users.Foot Switch Push-to-Talk —RLN4856A handy foot switch provides hands-free PTT functionality.Gooseneck Mount Push-to-Talk —RLN4858This PTT mounts conveniently on your steering wheel column for control that ’s right at your fingertips.Telephone Style Handset —AAREX4617 Conduct private conversations on your radio quietly and discreetly.Get Your Message Across13-Watt Speaker —RSN4001Powerful sound control allows you to increase your radio ’s volume output when working in noisy environments.Control Station —RLN5403AThe quick convenient way to convert a CDM Series mobile radio into a fully funtional base station.Take It With YouHigh-Profile Mount —GLN7317Offers a space-saving option for vehicles where every inch counts.Key Lock Mount —RLN4779Securely mounts and locks radio in your vehicle to protect against theft.Power It Up1-25 Watt Power Supply —HPN4002For use with low power radios. Provides power for using mobile radio on a desktop.25-60 Watt Power Supply —HPN4001For use with high power radios. Provides power for using mobile radio on a desktop.Enhance Your Calling Range200 MHz Wave Roof Mount Antenna — HKAD4001140-174 MHz VHF 3dB Gain Roof Mount Antenna —HAD4014494-512 MHz UHF 3.5dB Gain Roof Mount Antenna —HAE4013450-470 MHz UHF 5dB Gain Roof Mount Antenna —RAE4004ARB746-794 MHz 3dB Gain Antenna —RAF4221CDM1550•LS and CDM1550•LS +Radio SpecificationsOperating Temperature -30 to +60°C Storage Temperature -55 to +85°C Thermal Shock -40 to +85°C Humidity 95% RH @ 8 Hr.ESDIEC 801-2 KV Water Intrusion IPX4Packing TestImpact TestApplicable MIL-STD 810C810D810EMethods ProceduresMethods ProceduresMethods ProceduresLow Pressure 500.11500.22500.32High Temperature 501.11,2501.21,2501.31,2Low Temperature 502.12502.21,2502.31,2Temperature Shock 503.11503.21503.31Solar Radiation 505.11505.21505.31Rain 506.12506.22506.32Humidity 507.12507.22,3507.33Salt Fog 509.11509.21509.31Dust 510.11510.21510.31Vibration 514.28,10514.31514.41Shock 516.21,5516.31516.41VHF200 MHzUHF700 MHzFrequencies136–174 MHz,217–218 MHz, 403–470 MHz, 746–747 MHz,219–220 MHz,450–512 MHz 762–764 MHz 220–222 MHZ Channel Spacing 12.5/20/25 kHz 12.5 kHz 12.5/20/25 kHz 12.5 kHz Frequency Stability±2.5 ppm±2.5 ppm±2.5 ppm±1.5 ppm(-30°C to +60°C, +25°Ref.)Sensitivity (12 dB SINAD) EIA 0.3 µV 0.23 µV typical 0.30 µV (0.25 µV typical)0.3 µV 0.23 uV typical 0.35 µV (0.3 µV typical)Intermodulation************75dB************75dB78 dB @ 25 kHz 75 dB @ 25 kHz Adjacent Channel Selectivity ************65 dB (TIA 603)************65 dB (TIA 603)80 dB @ 25 kHz 40 dB (TIA 603-A)75 dB @ 25 kHz 40 dB (TIA 603-A)Spurious Rejection************75 dB ************75 dB 80 dB @ 25 kHz 75 dB @ 25 kHz Rated Audio3W Internal 3W Internal 3W Internal 3W Internal (External audio w/4 ohm speaker)13W External 13W External 13W External 13W External Audio Distortion @ Rated Audio 3% typical 3% typical 3% typical 3% typical Hum and Noise -40 dB 12.5 kHz -40 dB -40 dB 12.5 kHz -40 dB -45 dB 25 kHz-45 dB 25 kHzAudio ResponseTIA603 & ETS300 &+1 to -3 dB TIA603 & ETS3000 & +1 to -3 dB CEPT 84 Annex 2CEPT 84 Annex 2Conducted Spurious Emmision -57dBm < 1 GHZ -57dBm < 1 GHz -57dBm < 1 GHZ -57dBm < 1 GHz FCC Part 15-47dBm > 1 GHZ-47 dBm > 1GHz-47dBm > 1 GHZ-47 dBm > 1GHzVHF200 MHzUHF700 MHzFrequencies136–174 MHz217–218 MHz (Talkaround),403–470 MHz 776–777 MHz, 219–220 MHz,450-512 MHz792 –794 MHz,220–221 MHz (Talkaround),746–747 MHz (Talkaround),221–222 MHz 762–764 MHz (Talkaround)Power Output 1–25 W or 25–45 W 1–25 W 1–25 W or 25–40 W 1–15 W Frequency Stability±2.5 ppm ±2.5 ppm ±5 ppm @ 25 kHz ±1.5 ppm (-30°C to +60°C, +25°Ref.)±**************Modulation Limiting±***********±2.5 kHz±***********±2.5 kHz±4.0 @ 20 kHz ±4.0 @ 20 kHz ±5.0 @ 25 kHz ±5.0 @ 25 kHz Conducted and Radiated -36 dBm < 1 GHz -16 dBm -36 dBm < 1 GHz -16 dBm (except – 40 dBm Emissions-30 dBm > 1 GHz -30 dBm > 1 GHz from 1559 to 1610 MHz)Channel Spacing 12.5/20/25 kHz 12.5 kHz12.5/20/25 kHz 12.5 kHzFM Hum & Noise -40 dB 12.5 kHz - 40 dB typical -40 dB typical - 40 dB typical -45 dB 25 kHz Adjacent Channel Power *************-60 dB *************-60 dB -70 dB @ 25 kHz -70 dB @ 25 kHz Audio Response TIA 603 & ETS300 &+1 to -3 dB TIA 603 & ETS300 &+1 to -3 dB CEPT 84 Annex 2CEPT 84 Annex 2Audio Distortion3% typical3% typical 3% typical3% typical FM Modulation Designator 11K0F3E (12.5 kHz)11K0F3E 11K0F3E (12.5 kHz)11K0F3E 16K0F3E (25 kHz)16K0F3E (25 kHz)Adjacent Channel Coupled PowerN/AN/AN/AComplies with 47 CFR 27.53 (d) (1)VHF200 MHzUHF700 MHzChannel Capacity Trunking zone capacity15151515Trunking talkgroup capacity (per zone)16161616Conventional channel capacity 16 or 1601616 or 16016Typical RF Output VHF Low Power 1-25W VHF High Power 25-45W 200 MHz1-25W UHF Low Power 1-25W UHF High Power 25-40W 700 MHZ 1-15WFrequency VHF 136-174 MHz200 MHz 217-218 MHz, 219-222 MHz UHF 403-470 MHz, 450-512 MHz700 MHz746-747 MHz, 762-764 MHz, 776-777 MHz, 792-794 MHz Dimension (H x W x L)VHF/UHF Low Power and 200 MHz 2.34” x 7.05” x 7.32” (60 mm x 179 mm x 186 mm)VHF/UHF High Power and 700 MHz 2.34” x 7.05” x 7.79” (60 mm x 179 mm x 198 mm)WeightVHF/UHF Low Power and 200 MHz 3.15 lbs. (1.43 kg)VHF/UHF High Power and 700 MHz 3.5 lbs. (1.59 kg)Current Drain VHF 200UHF 700Standby.3 A .3 A .3 A .3 A Rx @ rated, external 8 ohm 1.5 A 1.5 A 1.5 A 1.5 A Transmit 7 A @ 25W 7 A @ 25W 8 A @ 25W 7 A @ 15W 13.5 A @ 45W 13.5 A @ 40W FCC DescriptionAZ492FT3796 (25W, 136-174 MHz)AZ492FT3795 (45W, 136-174 MHz)ABZ99FT3081 (25W, 217-218/219-222 MHz)AZ492FT4835 (25W, 403-470 MHz)AZ492FT4830 (40W, 403-470 MHz)AZ492FT4829 (25W, 450-512 MHz)AZ492FT4836 (40W, 450-512 MHz)ABZ99FT5001 (15W, 746-747/762-764/776-777/792-794 MHZ)MOTOROLA and the Stylized M Logo are registered in the US Patent and Trademark Office. All other product or service names are the property of their respective owners.© Motorola, Inc. 2003./cgissMD-CDM1550LS-04。
摩托罗拉,电话机,说明书EPure(瑞士机)
摩托罗拉MOTO602数字无绳电话说明书
摩托罗拉(MOTO)数字无绳电话操作说明（提示：本机只能使用7号充电电池，首次充电需要充足24小时。
）屏幕显示说明：菜单功能介绍：1.: PHONEBOOK (电话本).ADD ENTRY 储存电话号码MODIFY ENTRY 修改已储存电话号码DELETE ENTRY 删除已储存电话号码2.: SETUPBASE VOLLIME 机座音量大小调节（0~5级大小调节）BASE MELODY 机座玲声选择（5种铃声选择）DEL HANDSET 删除手机PIN CODE密码修改DIAL MODE 音频与脉冲调节RECALL 已注册手机查看DEFAULT默认出厂设置ECO MODE 节能模式3.：HANDSET 手柄设置BEEP 1. 按键声音开启/关闭低电量提醒开启/关闭超出范围提醒开启/关闭INT RINGVOL 内部呼叫铃声音量调节EXT RINGVOL 来电音量调节INT MELODY 内部呼叫铃声选择EXT MELODY 来电铃声选择AUTO ANSWER (自动应答) 开启后会自动接听.无主人留言.NAME 手机名称编辑LANGUAGE 语言设置 10种以上语言设置.(默认为英文)KEYLOCK？键盘锁4.：DATE -- TIME 日期/时间调整DATE SET 日期设置CLOCK SET 时间设置ALARM SET 报警开启/关闭5.：REGISTER 注册SELECT BASE 选择机座( 默认为BASE1 )REG BASE 注册(通话声音调节:按一下键.听到拨号音后按键调节.免提也一样)一：接听/挂断来电/ 来电按和接听.按是听筒接听.按是免提接听. 按接听后可以在按转换为免提. 但免提不可以转换为听筒接听的. 需要转接按后输入机器编号.二：内部呼叫说明/待机状态下按后输入机器编号.接听按键.三：储存电话号码/① : 储存新电话号码. 待机状态下.按键三下.然后输入姓名(编辑为英文) 输入完成后按确认.然后在输入需要储存的电话号码.按确认.然后您可以给此电话设置来电铃声.选择好后按确认.(不需要选择直接按确认)② :修改已储存电话号码. 待机状态下.按键两下.在按键一下. 按键两下确认修改.会显示您已储存的电话号码姓名.按键删除然后重新编辑姓名. (如姓名不需要修改.则直接按确认到下一项.同样是按删除后修改.不需要修改则直接按确认.会显示设置铃声.选择需要设置的铃声按确认即可.③ : 删除已储存的电话号码. 待机状态下.按两下.在按键两下.按确认进入. 然后按键.找到您需要删除的电话号码.按键两下.确认删除即可.四：来电铃声以及大小设置/⒈来电铃声设置.待机状态下. 按一下键. 在按键两下.按确认进入.在按键四下. 按确认进入. 然后按键选择您需要设置的来电铃声. 按确认.(共10种铃声设置).⒉来电铃声大小设置. 待机状态下. 按一下键. 在按键两下.按确认进入.在按键两下.按确认.按键选择.( OFF为关闭铃声 )有OFF-1-2-3-4-5的大小设置.在按确认即可.五：内部呼叫铃声以及大小设置/⒈内部铃声设置.待机状态下. 按一下键.在按两下.按确认进入.在按键三下.按确认.然后按键选择需要设置的铃声.按确认即可.⒉内部铃声大小设置.待机状态下.按一下键.在按两下.按确认进入.在按一下.按确认.然后按键选择.按确认即可( OFF为关闭铃声 )有OFF-1-2-3-4-5的大小设置.在按确认即可.六：机座铃声以及大小调节/⒈机座铃声设置 . 待机状态下.按一下键.在按一下键.按确认.在按一下.按确认.然后按键选择铃声. (共5种铃声可选) 按确认即可.⒉机座铃声大小设置 .待机状态下.按一下键.在按一下键.在按键两下. 然后按键选择. 按确认即可.七：日期/时间设置/ ( 时间显示调整可以直接打个电话进去.会自动调整好.) 待机状态下. 按一下键. 在按键三下. 按确认进入. DATE SET为日期设置 CLOCK SET 为时间设置. 选择需要设置的选项按确认进入设置.设置好按确认即可.八：默认出厂设置/ 待机状态下.按一下.在按一下键.按确认.在按两下键.显示DEFAULT.按确认进入.提示需要输入密码.(默认密码为四个零 0000 ) 输入密码后按两下确认.听到提示音后说明默认出厂设置成功.九: 注册手机/ 待机状态下.按一下键.在按一下键.按确认进入.在按一下键.会显示REG BASE (注册手机) 按确认. 显示BASE 1 2 3 4 按数字键选择未注册过的手机编码. 然后按住底座呼叫键不放开. 大概3-5秒后手机会提示要输入密码.( 默认密码为四个零 0000 ) 输入四个零.然后按确认,听到提示音后表明注册成功.。
摩托罗拉C602说明书
摩托罗拉C602数字无绳电话中文说明书一、首先将电源和电话机连接好,然后放入电池充电12小时以上二、电话系统操作1）接听电话：拿起手机，按话筒键开始交谈，再按话筒键挂机。
2）拔打电话：按话筒键开机，输入所拔号码即可;也可按手机拨号方式:先输入要拨的号码,再按话筒键开机.通话完按此键挂机。
3）重播电话：按▲键，再按▲、▼键翻查您最近拨出的10组电话号码.按话筒键开机则自动拔出您要拔的号码。
可按子机中部的小喇叭键进行免提通话,再按一次则回到常态4 )呼叫：按座机上的圆形键，所有手机就会发出蜂鸣声。
再按一次此键即停5 ) 通话音量：在通话状态下按▲、▼键调节耳机音量大小(共5级可调)。
6 ) 子机开关：在通常状态下按住左下角R键5秒,则子机关闭.同样操作则子机开启.。
7 ) 键盘锁: 在通常状态下按住*号键1秒,则子机键盘锁死,按任意键,再按一次*键则子机键盘开启8) 子机间通话与转接: 按1号子机右下角INT键再按2则2号子机鸣叫,此时按2号子机话筒键则可进行双方通话.反之亦然.转接电话操作同前,只是当2号子机鸣叫且按了话筒键后,1号子机须按话筒键关机方可将电话转接到2号子机上.9 ) 铃声选择: A)主机: 按菜单(MENU)键, 按▲、▼键至SETUP 按OK键按▲、▼键至BASE MELODY按OK键进入,按▲、▼键选择您喜爱的铃声(共5种可选),按OK键确认.按C键退出.B)子机:按菜单(MENU)键, 按▲、▼键至HANDSET按OK键进入,按▲、▼键至INT MELODY(内部呼叫铃声)或EXT MELODY(来电铃声),(分别)按OK键进入,按▲、▼键选择您喜爱的铃声后按OK键确认(分别有10种可选),按C键退出.10) 铃音调节: A)主机: 按菜单(MENU)键, 按▲、▼键至SETUP 按OK键(按▲、▼键)至BASE VOLUNE按OK键, 按▲、▼键调整铃音高低(共5级可调)选好后按OK键确认.按C退出 B)子机:按菜单(MENU)键, 按▲、▼键至HANDSET 按OK键进入,按▲、▼键至INT RING VOL(内部呼叫铃声音量)或EXT RING VOL(来电铃声音量), (分别)按OK键进入,按▲、▼键选择您喜爱的铃声大小(分别有6级可调),选好后按OK键确认,按C键退出.11) 音频/脉冲:按菜单(MENU)键, 按▲、▼键至SETUP按OK键按▲、▼键至DIALMODE按OK键进入,按▲、▼键调节TONE DIAL(音频)或PULSE DIAL(脉冲)按OK键确认.按C退出.12) 静音操作:当通话时,按子机左上角的C键(MUTE),屏幕显示MUTE则对方不能听到你的讲话内容;再按一次此键则恢复常态.13)闹钟操作:按菜单(MENU)键, 按▲、▼键至DATE—TIME,按OK键进入,按▲、▼键至ALARM SET按OK键按▲、▼键至ON按OK键进入,依次输入**时(24小时制),**分.输完按OK确认,按C键退出.如需关闭闹钟,则在上述操作中将ON改为OFF后按OK即可.14 ).电话号码薄操作:按菜单(MENU)键, (按▲、▼键)至PHONEBOOK按OK键进入(以下操作在此菜单下进行)A)储存号码:按▲、▼键至ADD ENTRY按OK键,先输入名字(字母)再按OK键,输入电话号码,按OK键确认,则有铃声响起.按▲、▼键调节铃声种类, 按OK 键确认.按C退出.(期间输入出错可按C键删改).自此,此号码来电话时就有了自己个性化的铃声.B)修改号码:按▲、▼键至MODIFY ENTRY按OK键进入,按▲、▼键翻查至需要修改者,可按C键删改后重新输入名字或号码(依A)中操作)C)删除号码:按▲、▼键至DELETE ENTRY按OK进入,按▲、▼键至您要删除电话.按OK键2次即可删除D)查阅及拨打号码薄中电话: 按电话本键后按▲、▼键即可进行翻查,先查到您要找名字,(再按OK键可查号码.)按话筒键即可拨出.三、来电系统操作：1）浏览来电：按▼键, 按▲、▼键及OK键翻阅来电的信息,。
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
摩托罗拉(MOTO)数字无绳电话操作说明
（提示：本机只能使用7号充电电池，首次充电需要充足24小时。
）屏幕显示说明：
菜单功能介绍：
1.: PHONEBOOK (电话本).
ADD ENTRY 储存电话号码
MODIFY ENTRY 修改已储存电话号码
DELETE ENTRY 删除已储存电话号码
2.: SETUP
BASE VOLLIME 机座音量大小调节（0~5级大小调节）BASE MELODY 机座玲声选择（5种铃声选择）
DEL HANDSET 删除手机
PIN CODE密码修改
DIAL MODE 音频与脉冲调节
RECALL 已注册手机查看
DEFAULT默认出厂设置
ECO MODE 节能模式
3.：HANDSET 手柄设置
BEEP 1. 按键声音开启/关闭低电量提醒开启/关闭超出范围提醒开启/关闭
INT RINGVOL 内部呼叫铃声音量调节
EXT RINGVOL 来电音量调节
INT MELODY 内部呼叫铃声选择
EXT MELODY 来电铃声选择
AUTO ANSWER (自动应答) 开启后会自动接听.无主人留言.
NAME 手机名称编辑
LANGUAGE 语言设置 10种以上语言设置.(默认为英文)
KEYLOCK？键盘锁
4.：DATE -- TIME 日期/时间调整
DATE SET 日期设置
CLOCK SET 时间设置
ALARM SET 报警开启/关闭
5.：REGISTER 注册
SELECT BASE 选择机座( 默认为BASE1 )
REG BASE 注册
(通话声音调节:按一下键.听到拨号音后按键调节.免提也一样)
一：接听/挂断来电/ 来电按和接听.按是听筒接听.按
是免提接听. 按接听后可以在按转换为免提. 但免提不可以转换为听筒接听的. 需要转接按后输入机器编号.
二：内部呼叫说明/待机状态下按后输入机器编号.接听按键.
三：储存电话号码/
① : 储存新电话号码. 待机状态下.按键三下.然后输入姓名(编
辑为英文) 输入完成后按确认.然后在输入需要储存的电话号码.按
确认.然后您可以给此电话设置来电铃声.选择好后按确认.(不需要选择直接按确认)
② :修改已储存电话号码. 待机状态下.按键两下.在按键一
下. 按键两下确认修改.会显示您已储存的电话号码姓名.按键删
除然后重新编辑姓名. (如姓名不需要修改.则直接按确认到下一项.
同样是按删除后修改.不需要修改则直接按确认.会显示设置铃声.
选择需要设置的铃声按确认即可.
③ : 删除已储存的电话号码. 待机状态下.按两下.在按键两
下.按确认进入. 然后按键.找到您需要删除的电话号码.按
键两下.确认删除即可.
四：来电铃声以及大小设置/
⒈来电铃声设置.待机状态下. 按一下键. 在按键两下.按确认
进入.在按键四下. 按确认进入. 然后按键选择您需要设置的来电铃声. 按确认.(共10种铃声设置).
⒉来电铃声大小设置. 待机状态下. 按一下键. 在按键两下.按
确认进入.在按键两下.按确认.按键选择.( OFF为关闭
铃声 )有OFF-1-2-3-4-5的大小设置.在按确认即可.
五：内部呼叫铃声以及大小设置/
⒈内部铃声设置.待机状态下. 按一下键.在按两下.按确认
进入.在按键三下.按确认.然后按键选择需要设置的铃声.按
确认即可.
⒉内部铃声大小设置.待机状态下.按一下键.在按两下.按
确认进入.在按一下.按确认.然后按键选择.按确认即可
( OFF为关闭铃声 )有OFF-1-2-3-4-5的大小设置.在按确认即可.
六：机座铃声以及大小调节/
⒈机座铃声设置 . 待机状态下.按一下键.在按一下键.按
确认.在按一下.按确认.然后按键选择铃声. (共5种铃声可选) 按确认即可.
⒉机座铃声大小设置 .待机状态下.按一下键.在按一下键.在
按键两下. 然后按键选择. 按确认即可.
七：日期/时间设置/ ( 时间显示调整可以直接打个电话进去.会自动调
整好.) 待机状态下. 按一下键. 在按键三下. 按确认进入. DATE SET为日期设置 CLOCK SET 为时间设置. 选择需要设置的选项按
确认进入设置.设置好按确认即可.
八：默认出厂设置/ 待机状态下.按一下.在按一下键.按确认.
在按两下键.显示DEFAULT.按确认进入.提示需要输入密码.(默认密
码为四个零 0000 ) 输入密码后按两下确认.听到提示音后说明默认出厂设置成功.
九: 注册手机/ 待机状态下.按一下键.在按一下键.按确认进
入.在按一下键.会显示REG BASE (注册手机) 按确认. 显示
BASE 1 2 3 4 按数字键选择未注册过的手机编码. 然后按住底座呼叫键不放开. 大概3-5秒后手机会提示要输入密码.
( 默认密码为四个零 0000 ) 输入四个零.然后按确认,听到提示音后表明注册成功.。
