12864液晶屏幕使用说明及程序

12864使用说明一、串/并接口1.1 串口接口管脚信号*注释1：如在实际应用中仅使用并口通讯模式，可将PSB 接固定高电平。

*注释2：模块内部接有上电复位电路，因此在不需要经常复位的场合可将该端悬空。

*注释3：如背光和模块共用一个电源，可以将模块上的JA、JK 用焊锡短接。

1.2 并行接口管脚信号*注释1：如在实际应用中仅使用并口通讯模式，可将PSB 接固定高电平。

*注释2：模块内部接有上电复位电路，因此在不需要经常复位的场合可将该端悬空。

*注释3：如背光和模块共用一个电源，可以将模块上的JA、JK 用焊锡短接。

二、模块主要硬件构成说明控制器接口信号说明：2.1、RS，R/W的配合选择决定控制界面的4种模式：2.2、E信号●忙标志BFBF 标志提供内部工作情况.BF=1 表示模块在进行内部操作,此时模块不接受外部指令和数据.BF=0 时, 模块为准备状态,随时可接受外部指令和数据.利用STATUS RD 指令,可以将BF 读到DB7 总线,从而检验模块之工作状态.●字型产生ROM（CGROM）字型产生ROM（CGROM）提供8192 个此触发器是用于模块屏幕显示开和关的控制。

DFF=1 为开显示（DISPLAY ON),DDRAM 的内容就显示在屏幕上，DFF=0 为关显示（DISPLAY OFF)。

DFF 的状态是指令DISPLAY ON/OFF 和RST 信号控制的。

●显示数据RAM（DDRAM）模块内部显示数据 RAM 提供 64×2 个位元组的空间，最多可控制 4 行 16 字（64 个字）的中文字型显示，当写入显示数据 RAM 时，可分别显示 CGROM 与CGRAM 的字型；此模块可显示三种字型，分别是半角英、数字型(16*8)、CGRAM 字型及 CGROM 的中文字型。

三种字型的选择，由在 DDRAM 中写入的编码选择，在0000H—0006H 的编码中（其代码分别是0000、0002、0004、0006 共4 个）将选择 CGRAM 的自定义字型，02H—7FH 的编码中将选择半角英数字的字型，至于A1 以上的编码将自动的结合下一个位元组，组成两个位元组的编码形成中文字型的编码BIG5（A140—D75F），GB（A1A0-F7FFH）。

12864液晶显示源程序(方法2)

main函数：*****12864显示********//***作者：曹江*****//*****时间：2008 8 25 ********/#include<Lcd.h>#include<absacc.h>#include "AT89X51.h"//函数名：main() 主函数//函数参数：无//返回值：无void main(){reset(); //调用复位函数dison_off(1); //开lcd显示set_startline(0); // 从第0行开始从上至下滑动显示clear(); //清屏while(1){display();}}lcd.c子函数：#include "AT89X51.h"#include "Lcd.h"#include "data.h"#define uint unsigned int//函数名：delay() 延时函数//函数参数：uint v//返回值：无void delay(uint v){ uint i;while(v!=0){v--;for(i=125;i>0;i--);}}//函数名：busy_check() 检测忙状态左//函数参数：无//返回值：无void busy_check(void){unsigned char busy;while(busy&0x80){busy=0xff;}}//函数名：reset()复位函数//函数参数：无//返回值：无void reset(){P3_2=0; //接lcd复位端口RSTdelay(1);P3_2=1;delay(1);}//函数名：wcode(c,cs1,cs2)写指令函数//函数参数：uchar c, uchar cs1,uchar cs2//返回值：无void wcode(ucharc,uchar cs1,uchar cs2){busy_check();P3_4=cs1;P3_3=cs2;P3_7=0; //接lcd的rs端P3_6=0; //接lcd的rw端P1=c; //lcd数据端d0-d7P3_5=0; //接lcd的e端delay(5);P3_5=1;delay(5);P3_5=0;}//函数名：wdata(c,cs1,cs2)写数据函数//函数参数：uchar c, uchar cs1,uchar cs2//返回值：无void wdata(ucharc,uchar cs1,uchar cs2){busy_check();P3_4=cs1;P3_3=cs2;P3_7=1;P3_6=0;P1=c;P3_5=0;delay(1);P3_5=1;delay(1);P3_5=0;}//函数名：set_startline(i)设置起始行函数//函数参数：uchar i//返回值：无void set_startline(uchar i)//每次加一使其从第0行开始从上至下滑动显示{i=0xc0+i;wcode(i,0,0); //调用写指令函数}//函数名：set_adr(x,y)设置页值，起始列值函数//函数参数：uchar x，uchar y//返回值：无void set_adr(uchar x ,uchar y){x=x+0xb8; //X位址即页page起始0xb8y=y+0x40; //Y位址即列起始0x40wcode(x,0,0);//调用写函数wcode(y,0,0);}//函数名：dison_off(uint o)开关显示函数//函数参数：uint o//返回值：无void dison_off(uchar o){o=o+0x3e;wcode(o,0,0);}//函数名：clear() 清屏函数//函数参数：无//返回值：无void clear(){uchari,loop;for(i=0;i<8;i++){set_adr(i,0);for(loop=0;loop<64;loop++)wdata(0x00,0,0); //左右半屏同时写0}}//函数名：chinese(x,y,n,cs1,cs2) 汉字函数//函数参数：x,y,n,cs1,cs2 注：x，y为页和列号；n为字号；cs1,cs2为左右屏显示//返回值：无void chinese(ucharx,uchary,ucharn,uchar cs1,uchar cs2){ uchari,loop;for(i=0;i<2;i++){set_adr(x+i,y);//一字分上下两页写for(loop=0;loop<16;loop++){wdata(Chinese_Charcter[n][16*i+loop],cs1,cs2);}}}//函数名：display() 显示函数//函数参数：无//返回值：无void display(){uchar i;for(i=0;i<0xff;i++) //汉字上下滚屏显示{set_startline(i);chinese(0,32,0,1,0); //第0行第1个字“长”，屏左边显示chinese(0,48,1,1,0); //第0行第2个字“江”，屏左边显示chinese(0,0,2,0,1); //第0行第3个字“大”，屏右边显示chinese(0,16,3,0,1); //第0行第4个字“学”，屏右边显示chinese(2,16,4,1,0); //第1行第5个字“电”，屏左边显示chinese(2,32,5,1,0); //第1行第5个字“子”，屏左边显示chinese(2,48,6,1,0); //第1行第6个字“信”，屏左边显示chinese(2,0,7,0,1); //第1行第5个字“息”，屏右边显示chinese(2,16,8,0,1); //第1行第7个字“学”，屏右边显示chinese(2,32,9,0,1); //第1行第8个字“院”，屏右边显示chinese(4,32,10,1,0); //第2行第9个字“电”，屏左边显示chinese(4,48,11,1,0); //第2行第10个字“气”，屏左边显示chinese(4,0,12,0,1); //第2行第11个字“工”，屏右边显示chinese(4,16,13,0,1); //第2行第12个字“程”，屏右边显示chinese(4,32,14,0,1); //第2行第13个字“系”，屏右边显示chinese(6,48,15,1,0); //第6行第21个字“曹”，屏左边显示chinese(6,0,16,0,1); //第6行第22个字“江”，屏右边显示delay(10);i+=5;}}data.h：#ifndef _DATA_H_#define _DATA_H_//**********显示文字部分*********////左右分屏写，同页同行内按左到右顺序写extern uchar code Chinese_Charcter[25][32]={{/*-- 文字: 长--*//*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/0x80,0x80,0x80,0x80,0xFF,0xA0,0xA0,0x90,0x90,0x88,0x84,0x82,0x80,0x80,0x80,0x00, 0x00,0x00,0x00,0x00,0xFF,0x40,0x21,0x12,0x04,0x08,0x10,0x30,0x60,0x20,0x00,0x00, },{/*-- 文字: 江--*//*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/0x10,0x60,0x01,0xC6,0x30,0x00,0x04,0x04,0x04,0xFC,0x04,0x04,0x04,0x04,0x00,0x00, 0x04,0x04,0x7E,0x01,0x20,0x20,0x20,0x20,0x20,0x3F,0x20,0x20,0x20,0x20,0x20,0x00, },{/*-- 文字: 大--*//*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/0x20,0x20,0x20,0x20,0x20,0x20,0xA0,0x7F,0xA0,0x20,0x20,0x20,0x20,0x20,0x20,0x00, 0x00,0x80,0x40,0x20,0x10,0x0C,0x03,0x00,0x01,0x06,0x08,0x30,0x60,0xC0,0x40,0x00, },{/*-- 文字: 学--*//*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/0x40,0x30,0x10,0x12,0x5C,0x54,0x50,0x51,0x5E,0xD4,0x50,0x18,0x57,0x32,0x10,0x00, 0x00,0x02,0x02,0x02,0x02,0x02,0x42,0x82,0x7F,0x02,0x02,0x02,0x02,0x02,0x02,0x00, },{/*-- 文字: 电--*//*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/0x00,0x00,0xF8,0x48,0x48,0x48,0x48,0xFF,0x48,0x48,0x48,0x48,0xF8,0x00,0x00,0x00, 0x00,0x00,0x0F,0x04,0x04,0x04,0x04,0x3F,0x44,0x44,0x44,0x44,0x4F,0x40,0x70,0x00, },{/*-- 文字: 子--*//*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/0x00,0x00,0x02,0x02,0x02,0x02,0x02,0xE2,0x12,0x0A,0x06,0x02,0x00,0x80,0x00,0x00, 0x01,0x01,0x01,0x01,0x01,0x41,0x81,0x7F,0x01,0x01,0x01,0x01,0x01,0x01,0x01,0x00, },{/*-- 文字: 信--*//*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/0x80,0x40,0x30,0xFC,0x07,0x0A,0xA8,0xA8,0xA9,0xAE,0xAA,0xA8,0xA8,0x08,0x08,0x00, 0x00,0x00,0x00,0x7F,0x00,0x00,0x7E,0x22,0x22,0x22,0x22,0x22,0x7E,0x00,0x00,0x00, },{/*-- 文字: 息--*//*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/0x00,0x00,0x00,0xFC,0x54,0x54,0x56,0x55,0x54,0x54,0x54,0xFC,0x00,0x00,0x00,0x00, 0x00,0x20,0x38,0x01,0x3D,0x41,0x41,0x45,0x59,0x41,0x41,0x71,0x00,0x08,0x30,0x00, },{/*-- 文字: 学--*//*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/0x40,0x30,0x10,0x12,0x5C,0x54,0x50,0x51,0x5E,0xD4,0x50,0x18,0x57,0x32,0x10,0x00, 0x00,0x02,0x02,0x02,0x02,0x02,0x42,0x82,0x7F,0x02,0x02,0x02,0x02,0x02,0x02,0x00, },{/*-- 文字: 院--*//*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/0xFE,0x02,0x32,0x4A,0x86,0x0C,0x24,0x24,0x25,0x26,0x24,0x24,0x24,0x0C,0x04,0x00, 0xFF,0x00,0x02,0x04,0x83,0x41,0x31,0x0F,0x01,0x01,0x7F,0x81,0x81,0x81,0xF1,0x00, },{/*-- 文字: 电--*//*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/0x00,0x00,0xF8,0x48,0x48,0x48,0x48,0xFF,0x48,0x48,0x48,0x48,0xF8,0x00,0x00,0x00, 0x00,0x00,0x0F,0x04,0x04,0x04,0x04,0x3F,0x44,0x44,0x44,0x44,0x4F,0x40,0x70,0x00, },{/*-- 文字: 气--*//*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/0x00,0x20,0x10,0x8C,0xA7,0xA4,0xA4,0xA4,0xA4,0xA4,0xA4,0xA4,0x24,0x04,0x04,0x00, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0F,0x30,0x40,0xF0,0x00, },{/*-- 文字: 工--*//*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/0x00,0x00,0x02,0x02,0x02,0x02,0x02,0xFE,0x02,0x02,0x02,0x02,0x02,0x02,0x00,0x00, 0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x3F,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x00, },{/*-- 文字: 程--*//*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/0x10,0x12,0xD2,0xFE,0x91,0x11,0x80,0xBF,0xA1,0xA1,0xA1,0xA1,0xBF,0x80,0x00,0x00, 0x04,0x03,0x00,0xFF,0x00,0x41,0x44,0x44,0x44,0x7F,0x44,0x44,0x44,0x44,0x40,0x00, },{/*-- 文字: 系--*//*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/0x00,0x00,0x02,0x22,0xB2,0xAA,0x66,0x62,0x22,0x11,0x4D,0x81,0x01,0x01,0x00,0x00, 0x00,0x40,0x21,0x13,0x09,0x05,0x41,0x81,0x7F,0x01,0x05,0x09,0x13,0x62,0x00,0x00, },{/*-- 文字: 曹--*//*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/0x02,0x02,0xFA,0xAA,0xAA,0xAA,0xFF,0xAA,0xAA,0xFF,0xAA,0xAA,0xAA,0xFA,0x02,0x00, 0x00,0x00,0x00,0x7E,0x2A,0x2A,0x2A,0x2A,0x2A,0x2A,0x2A,0x2A,0x7E,0x00,0x00,0x00, },{/*-- 文字: 江--*//*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/0x10,0x60,0x01,0xC6,0x30,0x00,0x04,0x04,0x04,0xFC,0x04,0x04,0x04,0x04,0x00,0x00, 0x04,0x04,0x7E,0x01,0x20,0x20,0x20,0x20,0x20,0x3F,0x20,0x20,0x20,0x20,0x20,0x00, },};#endif仿真效果图：。

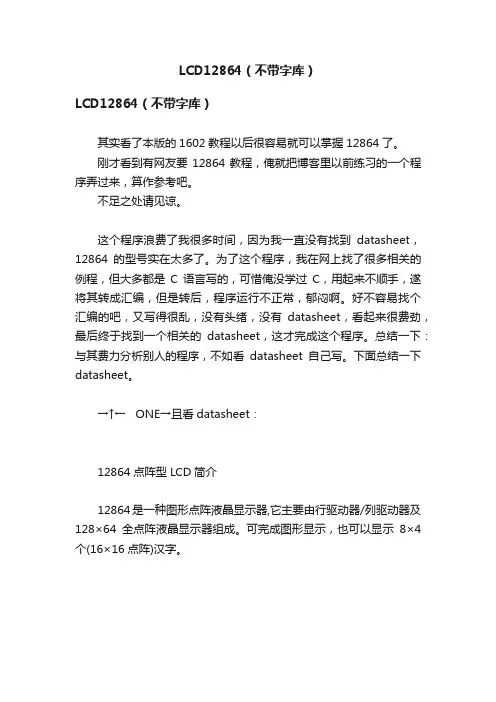

LCD12864（不带字库）

LCD12864（不带字库）LCD12864（不带字库）其实看了本版的1602教程以后很容易就可以掌握12864了。

刚才看到有网友要12864教程，俺就把博客里以前练习的一个程序弄过来，算作参考吧。

不足之处请见谅。

这个程序浪费了我很多时间，因为我一直没有找到datasheet，12864的型号实在太多了。

为了这个程序，我在网上找了很多相关的例程，但大多都是C语言写的，可惜俺没学过C，用起来不顺手，遂将其转成汇编，但是转后，程序运行不正常，郁闷啊。

好不容易找个汇编的吧，又写得很乱，没有头绪，没有datasheet，看起来很费劲，最后终于找到一个相关的datasheet，这才完成这个程序。

总结一下：与其费力分析别人的程序，不如看datasheet自己写。

下面总结一下datasheet。

→↑←ONE→且看datasheet：12864点阵型LCD简介12864是一种图形点阵液晶显示器,它主要由行驱动器/列驱动器及128×64全点阵液晶显示器组成。

可完成图形显示，也可以显示8×4个(16×16点阵)汉字。

在使用12864LCD前先必须了解以下功能器件才能进行编程。

12864内部功能器件及相关功能如下：1. 指令寄存器(IR)IR是用于寄存指令码，与数据寄存器数据相对应。

当D/I=0时，在E信号下降沿的作用下，指令码写入IR。

2．数据寄存器(DR)DR是用于寄存数据的，与指令寄存器寄存指令相对应。

当D/I=1时，在下降沿作用下，图形显示数据写入DR，或在E信号高电平作用下由DR读到DB7∽DB0数据总线。

DR和DDRAM之间的数据传输是模块内部自动执行的。

3．忙标志：BFBF标志提供内部工作情况。

BF=1表示模块在内部操作，此时模块不接受外部指令和数据。

BF=0时，模块为准备状态，随时可接受外部指令和数据。

利用STATUS READ指令，可以将BF读到DB7总线，从检验模块之工作状态。

12864LCD图像滚动演示

uchar gCurRow, gCurCol; //图像当前行、列存储，行高16点，列宽8点
uchar tCurRow, tCurCol; //文本当前行、列存储，行高8点，列宽8点
uchar ShowModeSW; //当前显示模式
unit txthome , grhome;
//--------------------------------------------------------------------------------------------------------------- //LCD控制相关函数
{
if((LCMCW & 0xo3) ==0x03)
break;
}
Return i; //错误时返回0
}
//--------------------------------------------------------------------------------------------------------------- //状态位ST3判断(数据自动写状态)
PG12864液晶的显示控制函数，这些函数在后续案例设计中仍会用到，阅读该文件可参考本
例液晶的技术手册，读者还可以参考Protues自带的汇编版代码。
本例待显示图像的像素信息保存在数组ImageX中，全屏显示需要128*64/8=1024字节，主程序中的两个for循环分别根据LCD_HEIGHT(64)和LCD_WIDTH(16)控制LCD显示，共显示64行，每行显示16字节数据，128个像素点。
12864LCD图像滚动演示
4.14 110401402 李慧
12864LCD图像滚动演示
本例使用了基于T6963C控制芯片的像素可寻址的PG12864液晶显示屏，运行本例是液

学习笔记：12864液晶模块的详细使用

学习笔记：12864液晶模块的详细使用备注：这篇文章是对12864操作的具体介绍，仅限刚接触12864的新手，大神请拍砖，文章写的较散，建议先参考12864手册及控制驱动器ST7920英文手册有个初步理解之后再阅读该篇文章，将会有更深的认识。

强烈建议阅读ST7920英文手册，细节内容里面有详细介绍，中文的12864也是从中译过来的。

本文分三个步骤介绍12864的内部资源原理，指令集详细讲解，以及应用例子。

对12864的所有操作概括起来有4种：1）、读忙状态（同时读出指针地址内容），初始化之后每次对12864的读写均要进行忙检测。

2）、写命令：所有的命令可以查看指令表，后续讲解指令的详细用法。

写地址也是写指令。

3）、写数据：操作对象有DDRAM、CGRAM、GDRAM。

4）、读数据：操作对象也是DDRAM、CGRAM、GDRAM。

对12864的学习首相要了解其内部资源，知道了它里面有哪些东西，你就可以更加方便的使用它。

先介绍几个英文的名字：DDRAM：（Data Display Ram），数据显示RAM，往里面写啥，屏幕就会显示啥。

CGROM：（Character Generation ROM）,字符发生ROM。

里面存储了中文汉字的字模，也称作中文字库，编码方式有GB2312（中文简体）和BIG5（中文繁体）。

笔者使用的是育松电子的QC12864B，讲解以此为例。

CGRAM：（Character Generation RAM），字符发生RAM，，12864内部提供了64×2B的CGRAM，可用于用户自定义4个16×16字符，每个字符占用32个字节。

GDRAM：（Graphic Display RAM）：图形显示RAM，这一块区域用于绘图，往里面写啥，屏幕就会显示啥，它与DDRAM的区别在于，往DDRAM中写的数据是字符的编码，字符的显示先是在CGROM中找到字模，然后映射到屏幕上，而往GDRAM中写的数据时图形的点阵信息，每个点用1bit来保存其显示与否。

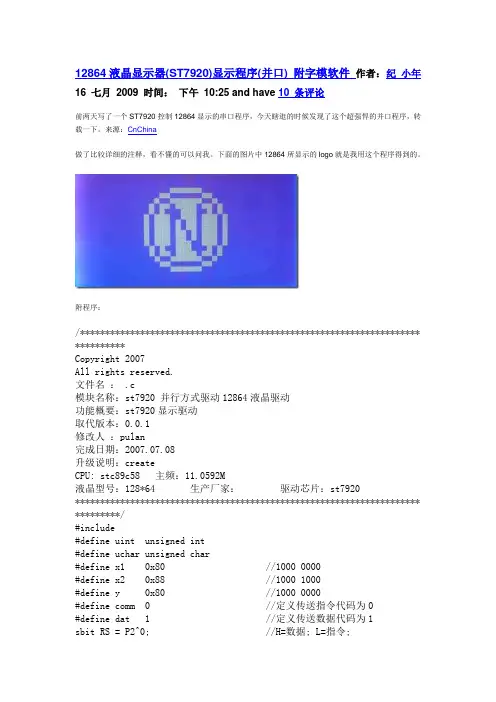

12864液晶显示器(ST7920)显示程序(并口)

12864液晶显示器(ST7920)显示程序(并口) 附字模软件作者：纪小年16 七月2009 时间：下午10:25 and have 10 条评论前两天写了一个ST7920控制12864显示的串口程序，今天瞎逛的时候发现了这个超强悍的并口程序，转载一下。

来源：CnChina做了比较详细的注释，看不懂的可以问我。

下面的图片中12864所显示的logo就是我用这个程序得到的。

附程序：/******************************************************************** **********Copyright 2007All rights reserved.文件名： .c模块名称：st7920 并行方式驱动12864液晶驱动功能概要：st7920显示驱动取代版本：0.0.1修改人：pulan完成日期：2007.07.08升级说明：createCPU: stc89c58 主频：11.0592M液晶型号：128*64 生产厂家：驱动芯片：st7920********************************************************************* *********/#include#define uint unsigned int#define uchar unsigned char#define x1 0x80 //1000 0000#define x2 0x88 //1000 1000#define y 0x80 //1000 0000#define comm 0 //定义传送指令代码为0#define dat 1 //定义传送数据代码为1sbit RS = P2^0; //H=数据; L=指令;sbit RW = P2^1; //H=读操作; L=写操作;sbit E = P2^3; //使能端sbit PSB= P2^4; //H=并口; L=串口;sbit RST= P2^2; //复位信号低电平有效sbit busy=P0^7; //LCD忙信号void wr_lcd (uchar dat_comm,uchar content);void chk_busy (void);void delay (uint us);uchar code tab1[]={"本系列中文模块内""任意位置反白显示""置二级字库，可在""使用更方便更灵活"};uchar code tab31[]={"金鹏科技有限公司""Golden Palm TECH"};uchar code tab32[]={/*-- 调入了一幅图像：F:\梁\画图\HOCO12832.bmp --*//*-- 宽度x高度=128x32 --*/0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00 ,0x00,0x00,0x00,0x1E,0x00,0x00,0x00,0x00,0x00,0x07,0xF0,0x00,0x00,0x00,0x00,0x00 ,0x00,0x00,0x00,0x7F,0x80,0x00,0x00,0x00,0x00,0x18,0x0C,0x00,0x00,0x01,0x00,0x00 ,0x00,0x00,0x01,0xFF,0x80,0x00,0x00,0x00,0x00,0x20,0x00,0x00,0x00,0x13,0x10,0x03 ,0xFE,0x00,0x03,0xFF,0xC0,0x00,0x00,0x00,0x00,0x58,0x00,0x00,0x00,0x3F,0x30,0x1F ,0xFF,0xC0,0x03,0xFF,0xE0,0x00,0x00,0x00,0x00,0x8C,0x03,0xF0,0x00,0x7F,0xE0,0x7C ,0x01,0xE0,0x03,0xFF,0xF0,0x00,0x00,0x00,0x01,0x36,0x06,0xC0,0x00,0x5F,0xC0,0xFF ,0xFC,0x60,0x01,0xFF,0xF0,0x00,0x00,0x00,0x02,0x1B,0x0F,0x80,0x00,0xFF,0x01,0xFE ,0x0F,0x30,0x00,0xEF,0xF0,0x00,0x00,0x00,0x02,0x6D,0x9F,0x00,0x00,0x3E,0x03,0xFF ,0xF1,0x90,0x00,0xFF,0xF8,0x00,0x00,0x00,0x04,0x36,0xFE,0x00,0x01,0xFF,0x07,0xFF ,0xFC,0x90,0x00,0xEF,0xFF,0xFF,0x80,0x00,0x04,0xDB,0x7E,0x00,0x03,0xFF,0x87,0xFF ,0xFC,0xD0,0x00,0x0F,0xFF,0xFF,0xC0,0x00,0x04,0x6D,0xFC,0x00,0x07,0xFF,0x8F,0xFF ,0xFE,0x50,0x00,0x0F,0xFF,0xFF,0xE0,0x00,0x04,0x36,0xFC,0x10,0x07,0xFF,0x8F,0xFF ,0xFE,0x90,0x00,0x0F,0xFF,0xFF,0xE0,0x00,0x04,0x1B,0xF8,0x10,0x07,0xFF,0xCF,0xFF ,0xFE,0x80,0x00,0x0F,0xFF,0xFF,0xF0,0x00,0x04,0x0F,0xF8,0x10,0x07,0xFF,0xFF,0xFF ,0xFA,0x00,0x00,0x07,0xFF,0xFF,0xF0,0x00,0x04,0x07,0xF0,0x10,0x07,0xFF,0xFF,0xFF ,0xFA,0x00,0x00,0xFF,0xFF,0xFF,0xF8,0x00,0x02,0x03,0xF0,0x20,0x07,0xFF,0xFF,0xFF ,0xBA,0x00,0x00,0xFD,0xFF,0xFF,0xFC,0x00,0x02,0x03,0xF0,0x20,0x03,0xFF,0xFF,0xDF ,0xB8,0x00,0x00,0xC1,0xC0,0x3F,0xFC,0x00,0x01,0x01,0xE0,0x40,0x00,0xFF,0xFF,0xDF ,0xB0,0x00,0x00,0x81,0xC0,0x3F,0xCE,0x00,0x00,0x81,0xE0,0x80,0x00,0x7F,0xFF,0xDF ,0xA0,0x00,0x00,0x81,0x80,0x1D,0xCF,0x00,0x00,0x41,0xE1,0x00,0x00,0x3F,0xFF,0x9B ,0x00,0x00,0x01,0x83,0x80,0x1F,0xC7,0x80,0x00,0x21,0xE2,0x00,0x00,0x1F,0xFD,0xB6 ,0x00,0x00,0x01,0xC3,0x00,0x0E,0xE6,0x80,0x00,0x19,0xEC,0x00,0x00,0x07,0xFE,0x20 ,0x00,0x00,0x00,0xC3,0x00,0x07,0x67,0x40,0x00,0x07,0xF0,0x00,0x00,0x03,0x3E,0x00 ,0x00,0x00,0x00,0x02,0x00,0x03,0xE7,0xA0,0x00,0x00,0x00,0x00,0x00,0x02,0x8E,0x00 ,0x00,0x00,0x00,0x06,0x00,0x03,0x83,0x00,0x00,0x00,0x00,0x00,0x00,0x02,0x03,0x00 ,0x00,0x00,0x00,0x06,0x00,0x07,0x03,0x00,0x77,0x46,0x74,0x24,0x80,0x06,0x04,0x00 ,0x00,0x00,0x00,0x1C,0x00,0x06,0x00,0x00,0x55,0x45,0x54,0x57,0x80,0x00,0x00,0x00 ,0x00,0x00,0x00,0x1C,0x00,0x0E,0x00,0x00,0x45,0x45,0x74,0x57,0x80,0x08,0x00,0x00 ,0x00,0x00,0x00,0x00,0x00,0x1C,0x00,0x00,0x55,0x45,0x44,0x74,0x80,0xF0,0x00,0x00 ,0x00,0x00,0x00,0x00,0x00,0x38,0x00,0x00,0x77,0x76,0x47,0x54,0x80,0x00,0x00,0x00 ,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x00,0x00,0x00,0x00,0x00,0x00,0x00 ,0x00,0x00};uchar code tab5[]={/*-- 调入了一幅图像：F:\梁\画图\COCK.bmp --*//*-- 宽度x高度=128x64 --*/0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00 ,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00 ,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00 ,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00 ,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00 ,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x00,0x80,0x00,0x0F,0xFF,0x00,0x00,0x00 ,0x00,0x00,0x00,0x00,0x00,0x00,0x0C,0x43,0x01,0x80,0x00,0x7F,0xFF,0xF0,0x00,0x00 ,0x00,0x00,0x00,0x00,0x00,0x00,0x19,0xFF,0x07,0x00,0x07,0xFF,0xFF,0xFE,0x00,0x00 ,0x00,0x00,0x00,0x00,0x00,0x01,0x3F,0xFC,0x1E,0x00,0x1F,0xFF,0xFF,0xFF,0x80,0x00 ,0x00,0x00,0x00,0x00,0x00,0x01,0xBF,0xFF,0xFC,0x00,0x7F,0xFC,0x00,0x7F,0xC0,0x00 ,0x00,0x00,0x00,0x00,0x00,0x01,0xFF,0xFF,0xF0,0x00,0xFF,0xC0,0x00,0x0F,0xE0,0x00 ,0x00,0x00,0x00,0x00,0x00,0x01,0xFF,0xFF,0xE0,0x03,0xFF,0xFF,0xFC,0x01,0xF0,0x00 ,0x00,0x00,0x00,0x00,0x00,0x01,0xDF,0xFF,0xC0,0x07,0xFF,0xFF,0xFF,0x80,0xF0,0x00 ,0x00,0x00,0x00,0x00,0x00,0x03,0xFF,0xFF,0x00,0x0F,0xFF,0xFF,0xFF,0xE0,0x38,0x00 ,0x00,0x00,0x00,0x00,0x00,0x07,0xFF,0xF8,0x00,0x1F,0xFF,0xF0,0x03,0xF8,0x38,0x00 ,0x00,0x00,0x00,0x00,0x00,0x07,0xFF,0xE0,0x00,0x3F,0xFF,0xFF,0xC0,0x7C,0x18,0x00 ,0x00,0x00,0x00,0x00,0x00,0x04,0x7F,0xF0,0x00,0x3F,0xFF,0xFF,0xF8,0x1E,0x08,0x00 ,0x00,0x00,0x00,0x00,0x00,0x01,0xFF,0xF8,0x00,0x7F,0xFF,0xFF,0xFE,0x0F,0x08,0x00 ,0x00,0x00,0x00,0x00,0x00,0x0F,0xFF,0xFC,0x00,0xFF,0xFF,0xFF,0xFF,0x87,0x08,0x00 ,0x00,0x00,0x00,0x00,0x00,0x1F,0xFF,0xFE,0x00,0xFF,0xFF,0xFF,0xFF,0x83,0x88,0x00 ,0x00,0x00,0x00,0x00,0x00,0x3F,0xFF,0xFE,0x01,0xFF,0xFF,0xFF,0xFF,0xC3,0x88,0x00 ,0x00,0x00,0x00,0x00,0x00,0x7F,0xFF,0xFE,0x01,0xFF,0xFF,0xFF,0xFF,0xE1,0x88,0x00 ,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFE,0x03,0xFF,0xFF,0xFF,0xFF,0xE1,0x88,0x00 ,0x00,0x00,0x00,0x00,0x01,0xFF,0xFF,0xFE,0x03,0xFF,0xFF,0xFF,0xFF,0xF1,0x88,0x00 ,0x00,0x00,0x00,0x00,0x01,0xFF,0xFF,0xFE,0x03,0xFF,0xFF,0xFF,0xFF,0xF3,0x08,0x00 ,0x00,0x00,0x00,0x00,0x01,0xFF,0xFF,0xFF,0x07,0xFF,0xFF,0xFF,0xFF,0xF2,0x10,0x00 ,0x00,0x00,0x00,0x00,0x01,0xFF,0xFF,0xFF,0x8F,0xFF,0xFF,0xFF,0xFF,0xF0,0x20,0x00 ,0x00,0x00,0x00,0x00,0x01,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xF0,0x00,0x00 ,0x00,0x00,0x00,0x00,0x01,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0x70,0x00,0x00 ,0x00,0x00,0x00,0x00,0x01,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFE,0xFF,0x70,0x00,0x00 ,0x00,0x00,0x00,0x00,0x01,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFE,0xFF,0x70,0x00,0x00 ,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0xFF,0xFF,0x7F,0xFF,0x7F,0x20,0x00,0x00 ,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0xFF,0xFF,0xBF,0xFF,0x7F,0x20,0x00,0x00 ,0x00,0x00,0x00,0x00,0x00,0x7F,0xFF,0xFF,0xFF,0xFF,0xDF,0xFF,0x7E,0x20,0x00,0x00 ,0x00,0x00,0x00,0x00,0x00,0x3F,0xFF,0xFF,0xFF,0xFF,0xDF,0xFF,0x3E,0x40,0x00,0x00 ,0x00,0x00,0x00,0x00,0x00,0x1F,0xFF,0xFF,0xFF,0xFF,0xCF,0xFF,0x3C,0x40,0x00,0x00 ,0x00,0x00,0x00,0x00,0x00,0x0F,0xFF,0xFF,0xFF,0xFF,0xCF,0xFE,0x38,0x40,0x00,0x00 ,0x00,0x00,0x00,0x00,0x00,0x07,0xFF,0xFF,0xFF,0xFF,0x8F,0xFE,0x38,0x40,0x00,0x00 ,0x00,0x00,0x00,0x00,0x00,0x01,0xFF,0xFF,0xFF,0xFF,0x8F,0xFE,0x30,0x40,0x00,0x00 ,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0xFF,0x1F,0x7C,0x20,0x40,0x00,0x00 ,0x00,0x00,0x00,0x00,0x00,0x00,0x7F,0xFF,0xFF,0xFE,0x1E,0x78,0x00,0x40,0x00,0x00 ,0x00,0x00,0x00,0x00,0x00,0x00,0x3F,0xFF,0xFF,0xFE,0x1E,0xF0,0x00,0x00,0x00,0x00 ,0x00,0x00,0x00,0x00,0x00,0x00,0x1F,0xFF,0xFF,0xDA,0x3C,0xE0,0x00,0x00,0x00,0x00 ,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xFF,0xFF,0xF2,0x30,0x80,0x00,0x00,0x00,0x00 ,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xFF,0xFF,0xF1,0x20,0x00,0x00,0x00,0x00,0x00 ,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFE,0x7F,0xF0,0x00,0x00,0x00,0x00,0x00,0x00 ,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x7C,0x3F,0xF0,0x00,0x00,0x00,0x00,0x00,0x00 ,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x78,0x1F,0xE0,0x00,0x00,0x00,0x00,0x00,0x00 ,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x72,0x07,0xE0,0x00,0x00,0x00,0x00,0x00,0x00 ,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x70,0x00,0xE0,0x00,0x00,0x00,0x00,0x00,0x00 ,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x60,0x00,0x78,0x00,0x00,0x00,0x00,0x00,0x00 ,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x60,0x00,0x60,0x00,0x00,0x00,0x00,0x00,0x00 ,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0x03,0xF0,0x00,0x00,0x00,0x00,0x00,0x00 ,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x40,0x04,0xD8,0x00,0x00,0x00,0x00,0x00,0x00 ,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x00,0x01,0x08,0x00,0x00,0x00,0x00,0x00,0x00 ,0x00,0x00,0x00,0x00,0x00,0x00,0x02,0x0C,0x02,0x00,0x00,0x00,0x00,0x00,0x00,0x00 ,0x00,0x00,0x00,0x00,0x00,0x00,0x02,0x40,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00 ,0x00,0x00,0x00,0x00,0x00,0x00,0x0C,0x48,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00 ,0x00,0x00,0x00,0x00,0x00,0x00,0x38,0x41,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00 ,0x00,0x00,0x00,0x00,0x00,0x0F,0xE2,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00 ,0x00,0x00,0x00,0x00,0x00,0x00,0x40,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00 ,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00 ,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00 ,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00 ,0x00,0x00};/******************************************************************** *********************** 函数名称：init_lcd* 功能描述：初始化LCD********************************************************************* *********************/void init_lcd (void){RST = 1;PSB = 1;wr_lcd(comm,0x30); //0011 0000 扩充功能设定——8位数据基本指令操作wr_lcd(comm,0x01); //0000 0001 清屏——将DDRAM填满"20H",并且设定DDRAM的地址计数器为"00H"wr_lcd(comm,0x06); //0000 0110 进入点设定——指定在数据的读取与写入时,设定游标的移动方向wr_lcd(comm,0x0c); //0000 1100 游标或显示移位控制——开显示，关游标}/******************************************************************** *********************** 函数名称：chn_disp* 功能描述：显示汉字或字符********************************************************************* *********************/void chn_disp(uchar code *chn){uchar i,j; //i为横坐标,j为纵坐标wr_lcd(comm,0x30); //0011 0000 扩充功能设定——8位数据基本指令操作wr_lcd(comm,0x80); //1000 0000 设定DDRAM地址——0000000for(j=0;j<4;j++) //写四行数据{for(i=0;i<16;i++)wr_lcd(dat,chn[j*16+i]);}}/******************************************************************** *********************** 函数名称：chn_disp1* 功能描述：上半屏显示汉字或字符********************************************************************* *********************/void chn_disp1(uchar code *chn){uchar i,j;wr_lcd(comm,0x30); //0011 0000 扩充功能设定——8位数据基本指令操作wr_lcd(comm,0x80); //1000 0000 设定第一行的DDRAM 地址——0x80j=0; //第一行for(i=0;i<16;i++)wr_lcd(dat,chn[j*16+i]);wr_lcd(comm,0x90); //1001 0000 设定第二行的DDRAM 地址——0x90j=1; //第二行for(i=0;i<16;i++)wr_lcd(dat,chn[j*16+i]);}/******************************************************************** *********************** 函数名称：img_disp* 功能描述：显示图形********************************************************************* *********************/void img_disp(uchar code *img){uchar i,j;for(j=0;j<32;j++) //绘制上半屏{for(i=0;i<8;i++){wr_lcd(comm,0x34); //0011 0100 扩充功能设定——8位数据扩充指令操作绘图开wr_lcd(comm,y+j); //1xxx xxxx 设定绘图RAM——先设定垂直(列)地址AC6 AC5…AC0wr_lcd(comm,x1+i); //1000 0xxx 设定绘图RAM——再设定水平(行)地址AC3AC2AC1AC0wr_lcd(comm,0x30); //0011 0000 扩充功能设定——8位数据基本指令操作wr_lcd(dat,img[j*16+i*2]);wr_lcd(dat,img[j*16+i*2+1]);}}for(j=32;j<64;j++) //绘制下半屏{for(i=0;i<8;i++){wr_lcd(comm,0x34); //0011 0100 扩充功能设定——8位数据扩充指令操作绘图开wr_lcd(comm,y+j-32); //1xxx xxxx 设定绘图RAM——先设定垂直(列)地址AC6 AC5…AC0wr_lcd(comm,x2+i); //1000 1xxx 设定绘图RAM——再设定水平(行)地址AC3AC2AC1AC0wr_lcd(comm,0x30); //0011 0000 扩充功能设定——8位数据基本指令操作wr_lcd(dat,img[j*16+i*2]);wr_lcd(dat,img[j*16+i*2+1]);}}wr_lcd (comm,0x36); //0011 0110 扩充功能设定——8位数据扩充指令操作绘图关}/******************************************************************** *********************** 函数名称：img_disp1* 功能描述：下半屏显示图形********************************************************************* *********************/void img_disp1(uchar code *img){uchar i,j;for(j=0;j<32;j++){for(i=0;i<8;i++){wr_lcd(comm,0x34);wr_lcd(comm,y+j);wr_lcd(comm,x2+i);wr_lcd(comm,0x30);wr_lcd(dat,img[j*16+i*2]);wr_lcd(dat,img[j*16+i*2+1]);}}wr_lcd(comm,0x36);}/******************************************************************** *********************** 函数名称：lat_disp* 功能描述：显示点阵********************************************************************* *********************/void lat_disp(uchar data1,uchar data2){uchar i,j,k,x;x=x1; //1000 0000for(k=0;k<2;k++) //第一次循环x=1000 0000 第二次循环x=1000 1000{for(j=0;j<16;j++){for(i=0;i<8;i++){wr_lcd(comm,0x34); //0011 0100 扩充功能设定——8位数据扩充指令操作绘图开wr_lcd(comm,y+j*2);wr_lcd(comm,x+i);wr_lcd(comm,0x30);wr_lcd(dat,data1);wr_lcd(dat,data1);}for(i=0;i<8;i++){wr_lcd(comm,0x34);wr_lcd(comm,y+j*2+1);wr_lcd(comm,x+i);wr_lcd(comm,0x30);wr_lcd(dat,data2);wr_lcd(dat,data2);}}x=x2;}wr_lcd(comm,0x36);}/******************************************************************** *********************** 函数名称：con_disp* 功能描述：当data1=0xff,data2=0xff时,在x0,y0处反白显示16xl*yl ********************************************************************* *********************/void con_disp(uchar data1,uchar data2,uchar x0,uchar y0,uchar xl,uchar yl){uchar i,j;for(j=0;j< pre> 。

12864液晶显示程序

12864液晶显示程序#include <reg51.h>#include <intrins.h>sbit RS = P2^5;sbit RW = P2^6;sbit E = P2^7;sbit RES = P3^5;#define Lcd_Bus P0 //MCU P1<------> LCM#define FIRST_ADDR 0 //定义字符/汉字显示起始位置unsigned char code zk[]={0x08,0x20,0x1c,0x10,0x1c,0x1c,0xff,0x9e,0x7f,0x1e,0x1c,0x1f,0x3e,0x1f,0x3e,0x1f, 0x77,0x1f,0x41,0x3f,0x00,0x7e,0x00,0xfe,0x83,0xfc,0x7f,0xf8,0x3f,0xf0,0x0f,0xc0, };unsigned char code BMP1[]={/*-- 调入了一幅图像：D:\3033B\3033.bmp --*//*-- 宽度x高度=128x64 --*//*--总共52行数据，每行16个数据--*/0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x0C,0x00,0x00,0x00,0x00,0x00,0x02,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x08,0x00,0x00,0x00,0x00,0x00,0x07,0xF1,0x00,0x03,0x01,0x00,0xF0,0x00,0x00,0x00, 0x18,0x00,0x00,0x00,0x00,0x00,0x04,0x01,0x00,0x03,0x81,0x08,0x98,0x00,0x00,0x00, 0x10,0x1F,0x07,0x06,0x00,0x00,0x08,0x01,0x00,0x04,0x81,0x11,0x88,0x00,0x00,0x00, 0x10,0x21,0x0D,0x83,0xE3,0xC0,0x0F,0x02,0x00,0x04,0xC1,0x31,0x30,0x00,0x00,0x00, 0x10,0x21,0x18,0x83,0x06,0x40,0x09,0x82,0x00,0x0F,0xC1,0x21,0xE0,0x00,0x00,0x00, 0x10,0x2E,0x11,0x86,0x06,0x40,0x00,0x86,0x00,0x08,0x43,0xC3,0xE0,0x00,0x00,0x00, 0x30,0x30,0x11,0x86,0x04,0x40,0x41,0x84,0x10,0x18,0x63,0x82,0x18,0x00,0x00,0x00, 0x20,0x1E,0x1F,0x84,0x04,0x60,0x7E,0x04,0x08,0x10,0x23,0x04,0x0E,0x00,0x00,0x00, 0x3F,0x83,0x00,0xE0,0x00,0x00,0x00,0x00,0x04,0x00,0x00,0x00,0x02,0x00,0x00,0x00, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x00,0x00,0x00,0x00,0x00,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x00,0x00,0x38,0x00,0x00,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x00,0x00,0x6C,0x3C,0x00,0x20,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x00,0x00,0x42,0x22,0x03,0xFD,0x88,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x00,0x00,0x40,0x62,0x00,0x22,0x08,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x00,0x00,0x46,0x42,0x00,0x22,0x08,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x00,0x00,0x44,0x42,0x00,0x23,0x08,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x00,0x00,0x7C,0x26,0x00,0x2D,0xB0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x00,0x00,0x0C,0x3C,0x00,0x38,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x00,0x00,0x08,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x00,0x04,0x08,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x00,0x06,0x18,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x00,0x02,0x30,0x00,0x00,0x00,0x00,0x00,0x01,0xF0,0x00,0x00,0x00,0x00,0x00,0x00, 0x00,0x01,0xE0,0x00,0x00,0x00,0x00,0x00,0x03,0x18,0x08,0x0C,0x30,0xF1,0x08,0x00, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x06,0x08,0x08,0x0C,0x31,0x91,0x08,0x00, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x08,0x08,0x1A,0x71,0x01,0x08,0x00, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x04,0x08,0x13,0xD1,0x01,0x08,0x00, 0x00,0x00,0x08,0x11,0x0A,0x00,0x20,0x20,0x04,0x04,0x18,0x11,0x91,0x01,0x08,0x00, 0x00,0x00,0x04,0x11,0x12,0x31,0x22,0x20,0x04,0x04,0x10,0x11,0x13,0x01,0x08,0x00, 0x00,0x00,0x02,0x1B,0x92,0x31,0x26,0x20,0x04,0x04,0x10,0x10,0x12,0x01,0x08,0x00, 0x3F,0xFF,0xFF,0x0A,0x91,0x73,0x25,0x60,0x04,0x44,0x10,0x10,0x12,0x01,0x08,0x00, 0x00,0x00,0x02,0x0A,0xB1,0x4A,0x35,0x40,0x04,0x34,0x30,0x10,0x13,0x01,0x08,0x00, 0x00,0x00,0x04,0x0E,0x61,0xCA,0x19,0x40,0x04,0x1C,0x20,0x10,0x11,0x19,0x98,0x00, 0x00,0x00,0x08,0x04,0x60,0xCC,0x19,0xCC,0x06,0x0E,0x20,0x10,0x11,0xF0,0xFC,0xC0, 0x00,0x00,0x00,0x04,0x60,0x8C,0x18,0x8C,0x03,0xF3,0xBF,0x80,0x00,0x00,0x00,0xC0, 0x00,0x00,0x00,0x00,0x40,0x80,0x10,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0F,0x83,0x80,0x00,0x00,0x00, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x06,0xC3,0xFC,0x00,0x00, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x08,0x22,0x44,0x00,0x00, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x20,0x08,0x22,0x42,0x00,0x00, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x20,0x08,0x26,0x42,0x00,0x00, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x20,0x08,0x24,0x42,0x00,0x00, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x48,0x64,0x42,0x00,0x00, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x19,0xC4,0x44,0x42,0x00,0x00, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0F,0x03,0x84,0x00,0x00,0x00, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,};unsigned char code BMP[]={0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x00,0x00,0x00,0x00,0x00, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x04,0x20,0x00,0x00,0x00,0x00, 0x1F,0xFF,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x84,0x42,0x00,0x00,0x00,0x00, 0x00,0x00,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x08,0x40,0x84,0x00,0x00,0x00,0x00, 0x00,0x03,0x80,0x00,0x00,0x00,0x00,0x00,0xE0,0x04,0x00,0x08,0x80,0x60,0x00,0x00, 0x00,0x1F,0xFF,0xC0,0x00,0x00,0x00,0x01,0x10,0x02,0x1F,0xC1,0x01,0xD0,0x00,0x38, 0x00,0x00,0x00,0x01,0xFC,0x00,0x00,0x00,0x10,0x00,0x70,0x72,0x01,0x0C,0x00,0x68, 0x00,0x00,0x00,0x00,0x00,0xE0,0x00,0x06,0x13,0x08,0x40,0x08,0x03,0x06,0x00,0xCC, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x18,0x09,0x84,0x80,0x0C,0x1E,0x03,0x89,0x86, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x00,0xC1,0x80,0x04,0x68,0x00,0xFF,0x02, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x20,0x00,0x41,0x00,0x00,0xC0,0x00,0x60,0x00, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x20,0x00,0x61,0x00,0x00,0x80,0x00,0x00,0x00, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x20,0x00,0x31,0x00,0x00,0x80,0x00,0x00,0x00, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x20,0x00,0x0C,0x00,0x00,0x80,0x00,0x00,0x00, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x20,0x00,0x04,0x00,0x01,0x80,0x00,0x00,0x00, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x20,0x00,0x06,0x00,0x01,0x00,0x00,0x00,0x00, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x40,0x00,0x02,0x00,0x02,0x00,0x00,0x00,0x00, 0x00,0x00,0x00,0x38,0x00,0x00,0x00,0xC0,0x00,0x03,0x00,0x02,0x00,0x00,0x00,0x00, 0x00,0x00,0x01,0xE8,0x00,0x00,0x01,0x80,0x00,0x01,0x00,0x00,0x00,0x00,0x00,0x00, 0x00,0x00,0x1A,0x08,0x00,0x00,0x03,0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x00,0x00, 0x00,0x00,0x00,0x08,0x00,0x00,0x02,0x00,0x00,0x00,0xC0,0x00,0x00,0x00,0x00,0x00, 0x00,0x00,0x00,0x08,0x00,0x00,0x02,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x00,0x00,0x00,0x10,0x00,0x00,0x06,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x00,0x00,0x3C,0x18,0x00,0x00,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x00,0x01,0xC0,0x08,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x00,0x03,0x00,0x08,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x00,0x02,0x00,0x0C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x00,0x02,0x00,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x00,0x02,0x00,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x00,0x02,0x00,0x06,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x00,0x02,0x00,0x02,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x00,0x04,0x00,0x02,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x00,0x04,0x00,0x02,0x0E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x01,0xF4,0x00,0x02,0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x01,0x00,0x00,0x01,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x03,0x00,0x00,0x01,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x02,0x00,0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x02,0x00,0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x00,0x00,0x79,0xF8,0x10,0x20,0x00, 0x02,0x00,0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x00,0x00,0x09,0x08,0x10,0x20,0x00, 0x02,0x00,0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x00,0x00,0x09,0x08,0x10,0x20,0x00, 0x06,0x00,0x00,0x00,0x00,0xC0,0x00,0x00,0x00,0x00,0x00,0x79,0xF8,0x10,0x20,0x00, 0x04,0x00,0x00,0x00,0x00,0x40,0x00,0x00,0x00,0x00,0x00,0x40,0x40,0xFD,0xFE,0x00, 0x04,0x00,0x00,0x00,0x00,0x40,0x00,0x00,0x00,0x00,0x00,0x43,0xFC,0x10,0x20,0x00, 0x00,0x00,0x00,0x00,0x00,0x60,0x00,0x00,0x03,0xFF,0xF0,0x42,0x44,0x10,0x60,0x00, 0x00,0x00,0x00,0x00,0x00,0x20,0x00,0x00,0x00,0x00,0x00,0x7A,0x44,0x38,0x70,0x00, 0x00,0x00,0x00,0x00,0x00,0x20,0x00,0x00,0x00,0x00,0x00,0x0B,0xFC,0x74,0xB0,0x00, 0x00,0x00,0x00,0x00,0x00,0x30,0x00,0x00,0x00,0x00,0x00,0x08,0x40,0x54,0xA8,0x00, 0x00,0x00,0x00,0x00,0x00,0x18,0x00,0x00,0x00,0x00,0x00,0x08,0x48,0x91,0x28,0x00, 0x00,0x00,0x00,0x00,0x00,0x08,0x00,0x00,0x00,0x00,0x00,0x08,0x44,0x12,0x26,0x00, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x08,0x7E,0x14,0x24,0x00, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x2B,0xC4,0x10,0x20,0x00, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x00,0x10,0x20,0x00, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, };/*------------------检查忙位-----------------------------*/void chk_busy(){ RS=0;RW=1;E=1;Lcd_Bus=0xff;while((Lcd_Bus&0x80)==0x80);E=0;}/*------------------延时子程序-----------------------------*/void delay(unsigned int t){ unsigned int i,j;for(i=0;i<t;i++)for(j=0;j<10;j++);}/*------------------写命令到LCD------------------------------*/void write_com(unsigned char cmdcode){chk_busy();RS=0;RW=0;E=1;Lcd_Bus=cmdcode;delay(5);////////////////////在数据写入的时候加入适当的延时E=0;delay(5);}/*-------------------写数据到LCD----------------------------*/void write_data(unsigned char Dispdata){chk_busy();RS=1;RW=0;E=1;Lcd_Bus=Dispdata;delay(5);///////////////////在数据写入的时候加入适当的延时E=0;delay(5);}/*------------------初始化LCD屏--------------------------*/void lcdreset(){ delay(2000);write_com(0x30);delay(10); //选择基本指令集write_com(0x30); //选择8bit数据流delay(5);write_com(0x0c); //开显示(无游标、不反白)delay(10);write_com(0x01); //清除显示，并且设定地址指针为00Hdelay(500);write_com(0x06); //指定在资料的读取及写入时，设定游标的移动方向及指定显示的移位delay(0);}/*------------------自定义一个字符代码(一个星星和月亮)--------------------------*/void CGRAM(){ int i;write_com(0x30);write_com(0x40);for(i=0;i<16;i++){write_data(zk[i*2]);write_data(zk[i*2+1]);}}/*------------------显示字符串--------------------------*/void hzkdis(unsigned char code *s){ while(*s>0){ write_data(*s);s++;delay(50);}}/*------------------首屏显示--------------------------*/void ceshi(){write_com(0x01);//清除显示，并且设定地址指针为00Hdelay(5);write_com(0x80);//第一行（如果是地址是：80H，即LCD的第一行的第一个位置显示）hzkdis("----强林单片机");write_com(0x90);//第二行（如果是地址是：90H，即LCD的第二行的第一个位置显示）hzkdis("--技术项目交易网");write_com(0x88);//第三行（如果是地址是：88H，即LCD的第二行的第一个位置显示）hzkdis("LCD12864点阵液晶");write_com(0x9A);//第四行（如果是地址是：98H，即LCD的第二行的第一个位置显示）hzkdis("测试程序");}/*------------------显示图片------------------------2005.11.14.21:20修改---benladn911---*/void Disp_Img(unsigned char code *img){ unsigned int j=0;unsigned char x,y,i;for(i=0;i<9;i+=8)for(y=0;y<32;y++)/*原来为 y<26 ,上下两个半屏不能正常对接显示，导致显示的图片中间有空隙*/ for(x=0;x<8;x++){ write_com(0x36);//功能设置---8BIT控制界面，扩充指令集write_com(y+0x80); //行地址write_com(x+0x80+i); //列地址write_com(0x30);write_data(img[j++]);write_data(img[j++]);}}/*------------------清整个GDRAM空间----------------------------*/void clrgdram(){ unsigned char x,y;for(y=0;y<64;y++)for(x=0;x<16;x++){ write_com(0x34);write_com(y+0x80); //行地址write_com(x+0x80); //列地址write_com(0x30);write_data(0x00);write_data(0x00);}}/*------------------整屏写入数据:全亮，或者竖条-----------------------------*/void lcdfill(unsigned char disdata){ unsigned char x,y;for(y=0;y<32;y++)for(x=0;x<16;x++){ write_com(0x36);write_com(y+0x80); //行地址write_com(x+0x80); //列地址write_com(0x30);write_data(disdata);write_data(disdata);}write_com(0x34);write_com(0x36);}/*------------------显示横-----------------------------*/void Disp_H_Line(){ unsigned char x,y;unsigned char k=0x00;for(y=0;y<32;y++){ k=~k;for(x=0;x<16;x++){ write_com(0x36);write_com(y+0x80); //行地址write_com(x+0x80); //列地址write_com(0x30);write_data(k);write_data(k);};}write_com(0x34);write_com(0x36);}/*------------------显示边框-------------------------------*/void Frame(){unsigned char x,y;lcdfill(0x00);for(x=0;x<9;x+=8)for(y=0;y<32;y++){ write_com(0x36);write_com(y+0x80); //行地址write_com(x+0x80); //列地址write_com(0x30);write_data(0x80);write_data(0x00);write_com(0x36);write_com(y+0x80); //行地址write_com(x+0x87); //列地址write_com(0x30);write_data(0x00);write_data(0x01);}for(y=0;y<2;y++)for(x=0;x<8;x++){write_com(0x36);write_com(y*31+0x80); //行地址write_com(x+0x80+8*y); //列地址write_com(0x30);write_data(0xff);write_data(0xff);}write_com(0x34);write_com(0x36);}/*------------------在第7列的位置加入两条竖线--------------------------*/ void shuxian(){ unsigned char x,y;for(x=0;x<9;x+=8)for(y=0;y<32;y++){ write_com(0x36);write_com(y+0x80); //行地址write_com(x+0x86); //列地址write_com(0x30);write_data(0x00);write_data(0x14);};}/*------------------清屏命令--------------------------*/void clrscreen(){write_com(0x01);delay(10);}/*------------------唐诗《静夜思》--------------------------*/void gushi_display(){ write_com(0x30);clrscreen();write_com(0x80+FIRST_ADDR);hzkdis("床前明月光，");write_com(0x90+FIRST_ADDR);hzkdis("疑是地上霜。

12864显示程序

void Conversion(uint temp_data)
{
Wan=temp_data/10000+0x30 ;
temp_data=temp_data%10000;
Qian=temp_data/1000+0x30 ;
temp_data=temp_data%1000;
Delay5us();
ADXL345_SCL = 0;
Delay5us();
}
ADXL345_RecvACK();
}
/**************************************
{
ADXL345_SDA = 1;
ADXL345_SCL = 1;
Delay5us();
ADXL345_SDA = 0;
Delay5us();
}
void ADXL345_SendACK(bit ack)
{
ADXL345_SDA = ack;
ADXL345_SCL = 1;
Delay5us();
void ADXL345_Single_Write(uchar REG_Address,uchar REG_data)
{
ADXL345_Start();
ADXL345_SendByte(SlaveAddress);
ADXL345_SendByte(REG_Address);
#include<reg52.h>
#include<intrins.h>
#include<math.h>
#include<stdio.h>

多种12864液晶屏显示程序

多种12864液晶屏显示程序（1）#include#define uchar unsigned char#define uint unsigned int#define lcddata P0sbit RS=P2^0;sbit RW=P2^1;sbit E=P2^2;sbit PSB=P2^3;void delayms(uint n)//1T单片机毫秒延时函数{ unsigned int x;while(n--){x=627;while(x--);}}void delayus(uint t)//1T单片机微秒延时函数{ unsigned int a,b;for(b=t;b>0;b--)for(a=3;a>0;a--);}bit lcdbusy() //忙检查{bit result;RS=0;RW=1;E=1;delayus(5);result=(bit)(P0&0x80);E=0;return(result) ;}void writecmd(uchar cmd) //写命令{while(lcdbusy()) ;RS=0;RW=0;E=0;delayus(5);P0=cmd;delayus(10);E=1;delayus(5);E=0;}void writedat(uchar dat) //写数据{while(lcdbusy()) ;RS=1;RW=0;E=0;delayus(5);P0=dat;delayus(10);E=1;delayus(5);E=0;}void print(uchar place,uchar num,uchar *point)//液晶屏显示数组{uchar i,progdata;writecmd(place);for(i=0;i<="">{progdata=*(point+i);writedat(progdata);}}void lcdclear(){unsigned char i;writecmd(0x30);writecmd(0x80);writecmd(0x01);delayus(20);for(i=0;i<64;i++)writedat(' ');}void lcdinit()//液晶屏初始化{PSB=1;//并口方式writecmd(0x30);//基本指令操作delayms(5);writecmd(0x06);//写一个字符后地址指针自动加1 delayms(5);writecmd(0x0c);//开显示，关光标delayms(5);writecmd(0x01);//清屏指令delayms(5);}void main(){lcdinit();print(0x80,3,"战斗机");//起始位，显示汉字数print(0x85,3,"巡洋舰");print(0x8a,4,"航空母舰");while(1);}（2）#include#define uchar unsigned char#define uint unsigned int#define lcddata P0sbit RS=P2^0;sbit RW=P2^1;sbit E=P2^2;sbit PSB=P2^3;void delayms(uint n)//1T单片机毫秒延时函数{ unsigned int x;while(n--){x=627;while(x--);}}void delayus(uint t)//1T单片机微秒延时函数{ unsigned int a,b;for(b=t;b>0;b--)for(a=3;a>0;a--);}bit lcdbusy() //忙检查{bit result;RS=0;RW=1;E=1;delayus(5);result=(bit)(P0&0x80);E=0;return(result) ;}void writecmd(uchar cmd) //写命令{while(lcdbusy()) ;RS=0;RW=0;E=0;delayus(5);P0=cmd;delayus(10);E=1;delayus(5);E=0;}void writedat(uchar dat) //写数据{while(lcdbusy()) ;RS=1;RW=0;E=0;delayus(5);P0=dat;delayus(10);E=1;delayus(5);E=0;}void lcdpos(uchar x,uchar y)//液晶屏显示位置，x轴0~7，y轴0~7 {uchar pos;if(x==0){x=0x80;}else if(x==1){x=0x90;}else if(x==2){x=0x88;}else if(x==3){x=0x98;}pos=x+y;writecmd(pos);}void print(uchar *str) //液晶屏显示数组{while(*str!='\0'){writedat(*str);str++;}}void lcdclear()//液晶屏清屏函数{unsigned char i;writecmd(0x30);writecmd(0x80);writecmd(0x01);delayus(20);for(i=0;i<64;i++)writedat(' ');}void lcdinit()//液晶屏初始化{PSB=1;//并口方式writecmd(0x30);//基本指令操作delayms(5);writecmd(0x06);//写一个字符后地址指针自动加1 delayms(5); writecmd(0x0c);//开显示，关光标delayms(5);writecmd(0x01);//清屏指令delayms(5);}void main(){lcdinit();lcdpos(0,0);//起始位（行数，列数）print("战斗机");lcdpos(0,5);print("巡洋舰");lcdpos(2,2);print("航空母舰");while(1);}（3）#include#define uchar unsigned char#define uint unsigned int#define lcddata P0sbit RS=P2^0;sbit RW=P2^1;sbit E=P2^2;sbit PSB=P2^3;uchar code dis1[]="战斗机"; //液晶屏一行显示8个汉字，16个字节（i=0;i<16;i++）uchar code dis2[]="巡洋舰";uchar code dis3[]="航空母舰";void delayms(uint n)//1T单片机毫秒延时函数{unsigned int x;while(n--){x=627;while(x--);}}void delayus(uint t)//1T单片机微秒延时函数{unsigned int a,b;for(b=t;b>0;b--)for(a=3;a>0;a--);}bit lcdbusy() //忙检查{bit result;RW=1;E=1;delayus(5);result=(bit)(P0&0x80);E=0;return(result) ;}void writecmd(uchar cmd) //写命令{while(lcdbusy()) ;RS=0;RW=0;E=0;delayus(5);P0=cmd;delayus(10);E=1;delayus(5);E=0;}void writedat(uchar dat) //写数据{while(lcdbusy()) ;RS=1;RW=0;E=0;delayus(5);P0=dat;delayus(10);delayus(5);E=0;}void lcdpos(uchar x,uchar y)//液晶屏显示位置，x轴0~7，y轴0~7 {uchar pos;if(x==0){x=0x80;}else if(x==1){x=0x90;}else if(x==2){x=0x88;}else if(x==3){x=0x98;}pos=x+y;writecmd(pos);}void lcdclear()//液晶屏清屏函数{unsigned char i;writecmd(0x30);writecmd(0x80);writecmd(0x01);delayus(20);for(i=0;i<64;i++)writedat(' ');}void lcdinit()//液晶屏初始化{PSB=1;//并口方式writecmd(0x30);//基本指令操作delayms(5);writecmd(0x06);//写一个字符后地址指针自动加1delayms(5);writecmd(0x0c);//开显示，关光标delayms(5);writecmd(0x01);//清屏指令delayms(5);}void main(){uint i;lcdinit();lcdpos(0,0);//起始位（行数，列数）for(i=0;i<6;i++)//占用字节数（一个汉字占两个字节，一个字母、数字、符号占一个字节）writedat(dis1[i]);lcdpos(0,5);for(i=0;i<6;i++)writedat(dis2[i]);lcdpos(2,2);for(i=0;i<8;i++)writedat(dis3[i]);while(1);}（4）#include#define uchar unsigned char#define uint unsigned int#define lcddata P0sbit RS=P2^0;sbit RW=P2^1;sbit E=P2^2;sbit PSB=P2^3;uchar code dis1[]="战斗机"; //液晶屏一行显示8个汉字，16个字节（i=0;i<16;i++）uchar code dis2[]="巡洋舰";uchar code dis3[]="航空母舰";void delayms(uint n)//1T单片机毫秒延时函数{unsigned int x;while(n--){x=627;while(x--);}}void delayus(uint t)//1T单片机微秒延时函数{unsigned int a,b;for(b=t;b>0;b--)for(a=3;a>0;a--);}bit lcdbusy() //忙检查{bit result;RS=0;RW=1;E=1;delayus(5);result=(bit)(P0&0x80);E=0;return(result) ;}void writecmd(uchar cmd) //写命令{while(lcdbusy()) ;RS=0;RW=0;E=0;delayus(5);P0=cmd;delayus(10);E=1;delayus(5);E=0;}void writedat(uchar dat) //写数据{while(lcdbusy()) ;RS=1;RW=0;E=0;delayus(5);P0=dat;delayus(10);E=1;delayus(5);E=0;}void lcdpos(uchar x,uchar y)//液晶屏显示位置，x轴0~7，y轴0~7 {uchar pos;if(x==0){x=0x80;}else if(x==1){x=0x90;}else if(x==2){x=0x88;}else if(x==3){x=0x98;}pos=x+y;writecmd(pos);}void lcdclear()//液晶屏清屏函数{unsigned char i;writecmd(0x30);writecmd(0x80);writecmd(0x01);delayus(20);for(i=0;i<64;i++)writedat(' ');}void lcdinit()//液晶屏初始化{PSB=1;//并口方式writecmd(0x30);//基本指令操作delayms(5);writecmd(0x06);//写一个字符后地址指针自动加1 delayms(5); writecmd(0x0c);//开显示，关光标delayms(5);writecmd(0x01);//清屏指令delayms(5);}void main(){uint i;lcdinit();lcdpos(0,0);//起始位（行数，列数）i=0;while(dis1[i]!='\0'){writedat(dis1[i]);//显示字符i++;}lcdpos(0,5);i=0;while(dis2[i]!='\0'){writedat(dis2[i]);i++;}lcdpos(2,2);i=0;while(dis3[i]!='\0'){writedat(dis3[i]);i++;}while(1); }（5）#include#define uchar unsigned char#define uint unsigned intsbit CS=P2^0; //片选信号sbit SID=P2^1; //数据信号sbit SCLK=P2^2; //时钟信号sbit PSB=P2^3; //串并行选择，H并行，L串行sbit key=P3^0;unsigned char code temp1[]={"战斗机"}; unsigned char code temp2[]={"航空母舰"};void delayms(uint n)//毫秒延时{unsigned int x;while(n--){x=627;while(x--);}}void delay(uint m)//100us延时{unsigned int da,db;for(da=0;da<m;da++)< bdsfid="537" p=""></m;da++)<> for(db=0;db<100;db++);}void sendbyte(uchar bbyte) //发送一个字节{unsigned char i;for(i=0;i<8;i++){SID=bbyte&0x80;SCLK=1;SCLK=0;bbyte<<=1;}}void writechar(bit start,uchar ddata) //写指令或数据{unsigned char start_data,Hdata,Ldata;if(start==0)start_data=0xf8;elsestart_data=0xfa;Hdata=ddata&0xf0;Ldata=(ddata<<4)&0xf0;sendbyte(start_data);delay(5);sendbyte(Hdata);delay(1);sendbyte(Ldata);delay(1);}void lcdsetxy(uchar x,uchar y)//设置LCD显示的起始位置，X 为行，Y为列{uchar address;switch(x){case 0: address = 0x80 + y; break;case 1: address = 0x80 + y; break;case 2: address = 0x90 + y; break;case 3: address = 0x88 + y; break;case 4: address = 0x98 + y; break;default:address = 0x80 + y; break;}writechar(0, address);}void print(uchar X,uchar Y,uchar *s)//中英文字符串显示函数{lcdsetxy( X, Y );while (*s){writechar( 1, *s );s ++;delay(1);}}void lcdclear() //清屏函数{writechar(0,0x01);}void lcdinit(){delay(10);PSB=0;CS=1;writechar(0,0x30); writechar(0,0x0c); writechar(0,0x01); } void main(){lcdinit();print(1,2,temp1);print(3,2,temp2);while(1);}。

12864滚屏

#include <reg51.h>#include <intrins.h>#define uint unsigned int#define uchar unsigned char#define DATA P0 //LCD12864数据线sbit RS=P2^2; // 数据\指令选择sbit RW=P2^1; // 读\写选择sbit EN=P2^0; // 读\写使能sbit cs1=P2^4; // 片选1sbit cs2=P2^3; // 片选2/********************************//* 定义中文字库*//********************************/uchar code Hzk[]={/*-- 文字: 各--*//*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/0x00,0x20,0x20,0x10,0x08,0x8F,0xB4,0x44,0x44,0xA4,0x9C,0x04,0x00,0x00,0x00,0x00, 0x02,0x02,0x02,0x01,0x7F,0x42,0x42,0x42,0x42,0x42,0x42,0x7F,0x01,0x03,0x01,0x00, /*-- 文字: 位--*//*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/0x00,0xC0,0x30,0xEC,0x03,0x2A,0xC8,0x09,0x0A,0x0E,0x08,0xE8,0x48,0x08,0x00,0x00, 0x01,0x00,0x00,0x7F,0x20,0x20,0x20,0x27,0x20,0x30,0x2E,0x21,0x20,0x20,0x20,0x00, /*-- 文字: 单--*//*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/0x00,0x00,0xF8,0x28,0x29,0x2E,0x2A,0xF8,0x28,0x2C,0x2B,0x2A,0xF8,0x00,0x00,0x00, 0x08,0x08,0x0B,0x09,0x09,0x09,0x09,0xFF,0x09,0x09,0x09,0x09,0x0B,0x08,0x08,0x00, /*-- 文字: 机--*//*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/0x08,0x08,0xC8,0xFF,0x48,0x88,0x08,0x00,0xFE,0x02,0x02,0x02,0xFE,0x00,0x00,0x00, 0x04,0x03,0x00,0xFF,0x00,0x41,0x30,0x0C,0x03,0x00,0x00,0x00,0x3F,0x40,0x78,0x00, /*-- 文字: 爱--*//*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/0x00,0x40,0xB2,0x96,0x9A,0x92,0xF6,0x9A,0x93,0x91,0x99,0x97,0x91,0x90,0x30,0x00, 0x40,0x20,0xA0,0x90,0x4C,0x47,0x2A,0x2A,0x12,0x1A,0x26,0x22,0x40,0xC0,0x40,0x00, /*-- 文字: 好--*//*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/0x10,0x10,0xF0,0x1F,0x10,0xF0,0x80,0x82,0x82,0x82,0xF2,0x8A,0x86,0x82,0x80,0x00, 0x80,0x43,0x22,0x14,0x0C,0x73,0x20,0x00,0x40,0x80,0x7F,0x00,0x00,0x00,0x00,0x00, /*-- 文字: 者--*//*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/0x00,0x20,0x24,0x24,0x24,0x24,0xA4,0xBF,0x64,0x24,0x34,0x28,0x26,0x24,0x20,0x00, 0x04,0x04,0x04,0x02,0x02,0xFF,0x49,0x49,0x49,0x49,0x49,0x49,0xFF,0x00,0x00,0x00, /*-- 文字: 你--*/0x80,0x40,0xF0,0x2C,0x43,0x20,0x98,0x0F,0x0A,0xE8,0x08,0x88,0x28,0x1C,0x08,0x00, 0x00,0x00,0x7F,0x00,0x10,0x0C,0x03,0x21,0x40,0x3F,0x00,0x00,0x03,0x1C,0x08,0x00, /*-- 文字: 们--*//*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/0x80,0x40,0xF0,0x1C,0x03,0xF0,0x01,0x0E,0x04,0x00,0x04,0x04,0x04,0xFC,0x00,0x00, 0x00,0x00,0x7F,0x00,0x00,0x7F,0x00,0x00,0x00,0x00,0x00,0x20,0x40,0x3F,0x00,0x00, /*-- 文字: 辛--*//*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/0x80,0x84,0x84,0x94,0xA4,0xC4,0x85,0x86,0x84,0xC4,0xA4,0x94,0x84,0x84,0x80,0x00, 0x00,0x04,0x04,0x04,0x04,0x04,0x04,0xFF,0x04,0x04,0x04,0x04,0x04,0x00,0x00,0x00, /*-- 文字: 苦--*//*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/0x40,0x44,0x44,0x44,0x44,0x5F,0x44,0xF4,0x44,0x44,0x5F,0x44,0x44,0x44,0x44,0x00, 0x00,0x00,0x00,0x7E,0x22,0x22,0x22,0x23,0x22,0x22,0x22,0x7E,0x00,0x00,0x00,0x00, /*-- 文字: 了--*//*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/0x00,0x02,0x02,0x02,0x02,0x02,0x02,0xF2,0x12,0x0A,0x0A,0x06,0x06,0x02,0x00,0x00, 0x00,0x00,0x00,0x00,0x00,0x40,0x80,0x7F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, /*-- 文字: 希--*//*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/0x20,0x20,0x30,0x30,0xA9,0x6A,0x3A,0x24,0xE4,0x2A,0x29,0x30,0x20,0x20,0x20,0x00, 0x08,0x04,0x02,0x01,0x3F,0x01,0x01,0x01,0xFF,0x01,0x21,0x61,0x3F,0x00,0x00,0x00, /*-- 文字: 望--*//*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/0x04,0x04,0xFC,0x85,0x46,0x24,0x04,0x80,0x7E,0x2A,0x2A,0xAA,0xAA,0xFE,0x00,0x00, 0x00,0x40,0x42,0x4A,0x4A,0x4A,0x4A,0x7E,0x4A,0x4A,0x4A,0x4A,0x4A,0x42,0x40,0x00, /*-- 文字: 大--*//*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/0x20,0x20,0x20,0x20,0x20,0x20,0xA0,0x7F,0xA0,0x20,0x20,0x20,0x20,0x20,0x20,0x00, 0x00,0x80,0x40,0x20,0x10,0x0C,0x03,0x00,0x01,0x06,0x08,0x30,0x60,0xC0,0x40,0x00, /*-- 文字: 家--*//*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/0x00,0x18,0x04,0x14,0x94,0x94,0xD5,0xB6,0x14,0x14,0x94,0x04,0x14,0x0C,0x04,0x00, 0x00,0x29,0x29,0x15,0x14,0x4A,0x89,0x44,0x3F,0x06,0x09,0x09,0x10,0x30,0x10,0x00, /*-- 文字: 能--*//*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/0x10,0xB8,0x97,0x92,0x90,0x94,0xB8,0x10,0x00,0x7F,0x48,0x48,0x44,0x74,0x20,0x00, 0x00,0xFF,0x0A,0x0A,0x4A,0x8A,0x7F,0x00,0x00,0x3F,0x44,0x44,0x42,0x72,0x20,0x00, /*-- 文字: 多--*//*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/0x00,0x00,0x00,0x20,0x90,0x88,0x54,0x53,0xA2,0x22,0x12,0x0A,0x06,0x00,0x00,0x00, 0x00,0x81,0x89,0x89,0x44,0x44,0x42,0x25,0x29,0x11,0x11,0x09,0x05,0x03,0x01,0x00, /*-- 文字: 多--*/0x00,0x00,0x00,0x20,0x90,0x88,0x54,0x53,0xA2,0x22,0x12,0x0A,0x06,0x00,0x00,0x00, 0x00,0x81,0x89,0x89,0x44,0x44,0x42,0x25,0x29,0x11,0x11,0x09,0x05,0x03,0x01,0x00, /*-- 文字: 交--*//*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/0x00,0x08,0x88,0x48,0x38,0x28,0x09,0x0E,0x0C,0x08,0x98,0x28,0x68,0x48,0x08,0x00, 0x00,0x80,0x80,0x40,0x41,0x22,0x14,0x18,0x0C,0x16,0x23,0x61,0xC0,0x40,0x00,0x00, /*-- 文字: 流--*//*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/0x10,0x60,0x01,0x86,0x60,0x04,0x44,0x64,0x55,0x4E,0x44,0x64,0xC4,0x04,0x04,0x00, 0x04,0x04,0xFC,0x03,0x40,0x30,0x0F,0x00,0x00,0x7F,0x00,0x3F,0x40,0x40,0x70,0x00, /*-- 文字: 学--*//*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/0x40,0x30,0x10,0x12,0x5C,0x54,0x50,0x51,0x5E,0xD4,0x50,0x18,0x57,0x32,0x10,0x00, 0x00,0x02,0x02,0x02,0x02,0x02,0x42,0x82,0x7F,0x02,0x02,0x02,0x02,0x02,0x02,0x00, /*-- 文字: 习--*//*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/0x00,0x00,0x02,0x02,0x0A,0x12,0x22,0x62,0x02,0x82,0x82,0x42,0x02,0xFE,0x00,0x00, 0x00,0x00,0x04,0x0C,0x04,0x02,0x02,0x01,0x01,0x00,0x20,0x40,0x80,0x7F,0x00,0x00, /*-- 文字: 24 --*//*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, };/****************************************//* 定义ASCII字库8列*16行*//****************************************/uchar code Ezk[]={/*-- 文字: Q --*//*-- 宋体12; 此字体下对应的点阵为：宽x高=8x16 --*/0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,0x0F,0x18,0x24,0x24,0x38,0x50,0x4F,0x00, /*-- 文字: Q --*//*-- 宋体12; 此字体下对应的点阵为：宽x高=8x16 --*/0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,0x0F,0x18,0x24,0x24,0x38,0x50,0x4F,0x00, /*-- 文字: 3 --*//*-- 宋体12; 此字体下对应的点阵为：宽x高=8x16 --*/0x00,0x30,0x08,0x88,0x88,0x48,0x30,0x00,0x00,0x18,0x20,0x20,0x20,0x11,0x0E,0x00, /*-- 文字: 4 --*//*-- 宋体12; 此字体下对应的点阵为：宽x高=8x16 --*/0x00,0x00,0xC0,0x20,0x10,0xF8,0x00,0x00,0x00,0x07,0x04,0x24,0x24,0x3F,0x24,0x00, /*-- 文字: 5 --*//*-- 宋体12; 此字体下对应的点阵为：宽x高=8x16 --*/0x00,0xF8,0x08,0x88,0x88,0x08,0x08,0x00,0x00,0x19,0x21,0x20,0x20,0x11,0x0E,0x00,/*-- 文字: 4 --*//*-- 宋体12; 此字体下对应的点阵为：宽x高=8x16 --*/0x00,0x00,0xC0,0x20,0x10,0xF8,0x00,0x00,0x00,0x07,0x04,0x24,0x24,0x3F,0x24,0x00, /*-- 文字: 1 --*//*-- 宋体12; 此字体下对应的点阵为：宽x高=8x16 --*/0x00,0x10,0x10,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00, /*-- 文字: 5 --*//*-- 宋体12; 此字体下对应的点阵为：宽x高=8x16 --*/0x00,0xF8,0x08,0x88,0x88,0x08,0x08,0x00,0x00,0x19,0x21,0x20,0x20,0x11,0x0E,0x00, /*-- 文字: 2 --*//*-- 宋体12; 此字体下对应的点阵为：宽x高=8x16 --*/0x00,0x70,0x08,0x08,0x08,0x88,0x70,0x00,0x00,0x30,0x28,0x24,0x22,0x21,0x30,0x00, /*-- 文字: 4 --*//*-- 宋体12; 此字体下对应的点阵为：宽x高=8x16 --*/0x00,0x00,0xC0,0x20,0x10,0xF8,0x00,0x00,0x00,0x07,0x04,0x24,0x24,0x3F,0x24,0x00, /*-- 文字: 4 --*//*-- 宋体12; 此字体下对应的点阵为：宽x高=8x16 --*/0x00,0x00,0xC0,0x20,0x10,0xF8,0x00,0x00,0x00,0x07,0x04,0x24,0x24,0x3F,0x24,0x00,/*-- 文字: --*//*-- 宋体12; 此字体下对应的点阵为：宽x高=8x16 --*/0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, /*-- 文字: --*//*-- 宋体12; 此字体下对应的点阵为：宽x高=8x16 --*/0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, /*-- 文字: --*//*-- 宋体12; 此字体下对应的点阵为：宽x高=8x16 --*/0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, /*-- 文字: --*//*-- 宋体12; 此字体下对应的点阵为：宽x高=8x16 --*/0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, /*-- 文字: --*//*-- 宋体12; 此字体下对应的点阵为：宽x高=8x16 --*/0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, /*-- 文字: --*//*-- 宋体12; 此字体下对应的点阵为：宽x高=8x16 --*/0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, };/*状态检查，LCD是否忙*/void CheckState(){uchar dat;//状态信息（判断是否忙）RS=0; // 数据\指令选择，D/I（RS）=“L”，表示DB7∽DB0 为显示指令数据RW=1; //R/W=“H”，E=“H”数据被读到DB7∽DB0do{DATA=0x00;EN=1; //EN下降源_nop_(); //一个时钟延时dat=DATA;EN=0;dat=0x80 & dat; //仅当第7位为0时才可操作(判别busy信号)}while(!(dat==0x00));}/*写命令到LCD中*/SendCommandToLCD(uchar com){CheckState();//状态检查，LCD是否忙RS=0; //向LCD发送命令。

液晶显示12864程序(调试通过)

0x00,0x00,0x07,0xFF,0xFF,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x1F,0xFF,0xFF,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x38,0x0E,0x01,0xFF,0x1F,0xF8,0x00,0x07,0xFE,0x03,0xF8,0x00,0xFF,0xFF,0x00,
0x00,0x3C,0x06,0x01,0xFC,0x1F,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x03,0xFF,0xFF,0xC0,0x00,0x00,0x0F,0xFF,0xFF,0xF0,0x00,0x00,0x1F,
0xFF,0xFF,0xFE,0x00,0x00,0x3F,0xFF,0xFF,0xFF,0x00,0x00,0x7F,0xFF,0xF8,0x07,0x80,
0x00,0x00,0x3F,0xFF,0xFF,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x7F,0xFF,0xFF,0xFE,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x7F,0xF8,0x07,0x80,0x3F,0x01,0xFF,0xF0,0x07,0xE0,0x00,0x07,0xFF,0xF0,0x03,0xF0,
0x00,0x1F,0xFF,0xE0,0x01,0xFF,0x03,0xFF,0xFF,0xC0,0x01,0xFF,0xFF,0xFF,0xFF,0xC0,

12864的液晶显示程序（无字库）

12864的液晶显示程序（无字库）12864.h#ifndef __12864_H__#define __12864_H__#include#include/***************************************利用I/O口模拟点阵液晶所需时序点阵液晶控制端口定义，需根据硬件适当改变****************************************/sbit LCD_RS = P2^0;//控制端口定义sbit LCD_RW = P2^1;sbit LCD_E = P2^2;sbit LCD_CSA = P2^3;//H选通，即高电平有效sbit LCD_CSB = P2^4;#define LCD_Data P0//LCD数据端口8位#define R 1#define L 2/*****************************************函数声明*****************************************/void ReadStatusLCD(unsigned char select);//从LCD读出忙标志位unsigned char ReadDataLCD(unsigned char select);//从LCD 读出数据void WriteDataLCD(unsigned char WDLCD,unsigned char select);//向LED写入数据void WriteCommandLCD(unsigned char WCLCD , unsigned char BusyC,unsigned char select);//向LCD写入命令void LcdReset(void) ;//初始化函数，完成液晶模块的初始设置void clear_LCD(unsigned char select);//清屏函数void Clr_All_Lcd(void);//全清屏函数void set_XY(unsigned char Column,unsigned char Page);//设置数据写入或读出的地址，通过页号和列数可以唯一确定一个地址void xy_Write(unsigned char Column,unsigned char Page,unsigned char dataW);//向指定行列写数据void LcmPutDots(unsigned char Column,unsigned char Page, unsigned char DotByte );//显示点void whiteword(unsigned char Column,unsigned char Page, const unsigned char puts[][16] );//显示16×16点阵的编码void WhiteWord_Com(unsigned char Column,unsigned char Page,unsigned char C_num,unsigned char V_num, unsigned char * puts );//通用的显示函数void Drawing_dot(unsigned char x,unsigned char y);void Drawing_line_vertical(unsigned x);#endif12864.c/****************************************************LCD12864点阵液晶屏，通过I/O口直接控制，采用模拟时序控制****************************************************/#include"12864.h"#include/*********************************************************** 功能：从LCD读取状态位变量：select用于选择LCD屏的左右,1选择左屏，2选择右屏***********************************************************/ void ReadStatusLCD(unsigned char select){switch(select){case 1:{LCD_CSA=1;LCD_CSB=0;break;}//左case 2:{LCD_CSA=0;LCD_CSB=1;break;}//右default: break;}LCD_Data = 0xff;//置位输入口，已实现输入LCD_RS=0;LCD_RW=1;LCD_E=1;//高电平读取数据//_nop_(); //若晶振速度高，可在此作延时处理while(LCD_Data&0x80);//最高位为忙标志,检测忙信号状态LCD_E=0;//_nop_(); //若晶振速度高，可在此作延时处理}/*********************************************************** 功能：从LCD读取数据变量：select用于选择LCD屏的左右,1选择左屏，2选择右屏***********************************************************/ unsigned char ReadDataLCD(unsigned char select){unsigned char dataR;LCD_Data = 0xff;//置位输入口，已实现输入switch(select){case 1:{LCD_CSA=1;LCD_CSB=0;break;}//左case 2:{LCD_CSA=0;LCD_CSB=1;break;}//右default: break;}LCD_RW=1;LCD_RS=1;LCD_E = 1;// 操作允许脉冲信号，高电平读出//_nop_(); //若晶振速度高，可在此作延时处理dataR = LCD_Data;LCD_E= 0;return dataR;}/***********************************************************功能：向LCD写入数据参数：WDLCD待写入的字符数据select用于选择LCD屏的左右,1选择左屏，2选择右屏***********************************************************/void WriteDataLCD(unsigned char WDLCD,unsigned char select){switch(select){case 1:{LCD_CSA=1;LCD_CSB=0;break;}//左case 2:{LCD_CSA=0;LCD_CSB=1;break;}//右default: break;}ReadStatusLCD(select);//检测忙标志LCD_RS = 1;LCD_RW = 0;LCD_Data = WDLCD;LCD_E = 1;//_nop_(); //若晶振速度高，可在此作延时处理LCD_E = 0; //下降沿写入数据//_nop_(); //若晶振速度高，可在此作延时处理}/***********************************************************功能：向LCD写入命令参数：WDLCD待写入的字符数据BusyC是否要检查忙标志位选择标志，1为进行，0为不检测select用于选择LCD屏的左右,1选择左屏，2选择右屏***********************************************************/void WriteCommandLCD(unsigned char WCLCD , unsigned char BusyC,unsigned char select) {if(BusyC) ReadStatusLCD(select);//根据需要检测忙switch(select){case 1:{LCD_CSA=1;LCD_CSB=0;break;}//左case 2:{LCD_CSA=0;LCD_CSB=1;break;}//右default: break;}LCD_Data = WCLCD;LCD_RS = 0;LCD_RW = 0;LCD_E = 1;//_nop_(); //若晶振速度高，可在此作延时处理LCD_E = 0;}/************************************************************** **************** 功能：清显示RAM区（清屏）参数：select为驱动控制器选择1为左2为右*************************************************************** **************** */void clear_LCD(unsigned char select){unsigned char i,j;for(i=0;i<8;i++){ //8页，换页清零WriteCommandLCD( 0xb8|i,1 ,select);//页面地址设置，并分别写入左右模块中WriteCommandLCD( 0x40,1 ,select);//列地址设置，设置为0列，并分别写入左右三个模块中for(j=0;j<64;j++){ //页内清零WriteDataLCD( 0 ,select);}}}/************************************************************** *************** 功能：清LCD左右屏*************************************************************** **************/ void Clr_All_Lcd(void){clear_LCD(1);clear_LCD(2);}/************************************************************** **************** 功能：LCD初始化，分为左，右模块初始化参数：select为驱动控制器选择1为左2为右*************************************************************** **************** */void LcdReset(void){unsigned char i;for(i=0;i<5;i++){WriteCommandLCD( 0xc0,0 ,R);//设置显示起始行为第一行，并分别写入左右模块中,不检测忙标志WriteCommandLCD( 0xc0,0 ,L);//_nop_(); //若晶振速度高，可在此作延时处理}WriteCommandLCD( 0xc0,1 ,R);//设置显示起始行为第一行，并分别写入左右模块中，检测忙标志WriteCommandLCD( 0xc0,1 ,L);WriteCommandLCD( 0x3f,1 ,R);//开显示设置，并分别写入左右模块中WriteCommandLCD( 0x3f,1 ,L);clear_LCD(R);//清左屏clear_LCD(L);//清右屏}/************************************************************** **************** 功能：设置数据写入或读出的地址，通过页号和列数可以唯一确定一个地址参数：Column表示列号，Page表示页号*************************************************************** **************** */void set_XY(unsigned char Column,unsigned char Page){unsigned char x,y;unsigned char select;switch (Column&0x40) //完成左右屏的判断，根据列号完成区分,<64为左屏,>=64为右屏{case 0x00: {select = 1;ReadStatusLCD(select);break;}/*为左区*/case 0x40: {select = 2;ReadStatusLCD(select);break;}/*为右区*/}x = Column&0x3F|0x40; /* col.and.0x3f.or.Set Y Address*/ y = Page&0x07|0xB8; /* row.and.0x07.or.set Page */WriteCommandLCD( y,1 ,select);//设置页面地址WriteCommandLCD( x,1 ,select);//设置列地址}/************************************************************** **************** 功能：根据地址值（页数和列号），写入数据，即写入显示缓冲区，便可以显示在LCD屏上参数：Column表示列号，Page表示页号,dataW表示待写入的数据*************************************************************** **************** */void xy_Write(unsigned char Column,unsigned char Page,unsigned char dataW){set_XY(Column,Page);LCD_RW=0;LCD_RS=1;_nop_();//若晶振速度高，可在此作延时处理LCD_Data = dataW;// 送数据_nop_(); //若晶振速度高，可在此作延时处理LCD_E = 1;_nop_(); //若晶振速度高，可在此作延时处理LCD_E= 0; // 操作允许脉冲信号，下降沿写入}/************************************************************** **************** 功能：用于显示点阵参数：Column表示列号，Page表示页号,*************************************************************** **************** */void LcmPutDots(unsigned char Column,unsigned char Page, unsigned char DotByte ){unsigned char i;i=Column;for(;Page<8;Page++){for(;Column<128;Column++){xy_Write(Column,Page,DotByte);//DotByte = ~DotByte;}Column=i;}}/************************************************************** **************** 功能：在指定列，指定页显示待显示的点阵编码,用于显示16*16点阵码参数：Column表示列号，Page表示页号,puts待显示的点阵编码首指针*************************************************************** **************** */void whiteword(unsigned char Column,unsigned char Page, const unsigned char puts[][16] ){unsigned char i,j;for(i=0;i<2;i++)//此处的2为控制点阵行数，实际点阵行数为2*8=16行，此处的16（对应的点行数）应为8的倍数{for(j=0;j<16;j++)//此处控制每行显示的列数{xy_Write(Column+j,Page+i,puts[i][j]);}}}/****************************************************************************** 功能：在指定列，指定页显示待显示指定点阵的编码参数：Column表示列号，Page表示页号,C_num为显示点阵的行数（物理行8的倍数），V_num 为列（物理列）puts待显示的点阵编码首指针*************************************************************** **************** */void WhiteWord_Com(unsigned char Column,unsigned char Page,unsigned char C_num,unsigned char V_num, unsigned char * puts){unsigned char i,j;for(i=0;i<(C_num/8);i++)//此处的2为控制点阵行数，实际点阵行数为2*8=16行，此处的16（对应的点行数）应为8的倍数{for(j=0;j<="">{xy_Write(Column+j,Page+i,*(puts+i*V_num+j));//注意地址的变化规律}}}/************************************************************** **************** 功能：绘点参数：Column表示列号，Page表示页号,C_num为显示点阵的行数（物理行8的倍数），V_num 为列（物理列）puts待显示的点阵编码首指针*************************************************************** **************** */void Drawing_dot(unsigned char x,unsigned char y){unsigned char y_byte,x_bit,y_bit,reverse_y;//此处y_byte为page，y_bit为具体行号，x_bit 为行号unsigned char dot;reverse_y=63-y;x_bit=x;y_byte=reverse_y/8;y_bit=y%8;// for(;x_bit<128;x_bit++)if(y_bit==0) dot=0x80;if(y_bit==1) dot=0x40;if(y_bit==2) dot=0x20;if(y_bit==3) dot=0x10;if(y_bit==4) dot=0x08;if(y_bit==5) dot=0x04;if(y_bit==6) dot=0x02;if(y_bit==7) dot=0x01;xy_Write(x_bit,y_byte,dot);/* reverse_y=64-y;if(y_bit==7) y_byte=y_byte-1;y_bit=y%8;if(y_byte==(-1)) break;*/}/************************************************************** **************** 功能：绘垂直直线参数：x表示列号*************************************************************** **************** */void Drawing_line_vertical(unsigned char x){xy_Write(x,0,0xff);xy_Write(x,1,0xff);xy_Write(x,2,0xff);xy_Write(x,3,0xff);xy_Write(x,4,0xff);xy_Write(x,5,0xff);xy_Write(x,6,0xff);xy_Write(x,7,0xff);}主程序.c/************************************************************** **************** ****************12864液晶屏上显示"南京绝妙科技发展有限公司，025-******** 开发板欢迎使用"，"0～9"，刷新后重显。

12864液晶屏幕使用说明及程序

12864使用说明一、串/并接口1.1 串口接口管脚信号*注释1：如在实际应用中仅使用并口通讯模式，可将PSB 接固定高电平。

*注释2：模块内部接有上电复位电路，因此在不需要经常复位的场合可将该端悬空。

*注释3：如背光和模块共用一个电源，可以将模块上的JA、JK 用焊锡短接。

1.2 并行接口管脚信号*注释1：如在实际应用中仅使用并口通讯模式，可将PSB 接固定高电平。

*注释2：模块内部接有上电复位电路，因此在不需要经常复位的场合可将该端悬空。

*注释3：如背光和模块共用一个电源，可以将模块上的JA、JK 用焊锡短接。

DFF=1 为开显示（DISPLAY ON),DDRAM 的内容就显示在屏幕上，DFF=0 为关显示（DISPLAY OFF)。

DFF 的状态是指令DISPLAY ON/OFF 和RST 信号控制的。

三种字型的选择，由在 DDRAM 中写入的编码选择，在0000H—0006H 的编码中（其代码分别是 0000、0002、0004、0006 共 4 个）将选择 CGRAM 的自定义字型，02H—7FH 的编码中将选择半角英数字的字型，至于A1 以上的编码将自动的结合下一个位元组，组成两个位元组的编码形成中文字型的编码BIG5（A140—D75F），GB（A1A0-F7FFH）。

LCD12864显示程序(汇编语言)

;实验目的：熟悉12864LCD的使用;12864LCD带中文字库;编程让12864LCD显示公司名称“深圳乾龙盛电子”，公司电话“5”，公司传真“6”;硬件设置：;关断所有拨码开关。

#include<p16f877a.inc>;__CONFIG_DEBUG_OFF&_CP_ALL&_WRT_HALF&_CPD_ON&_LVP_OFF&_BODEN_OFF&_PWRTE_ON&_WDT_OFF&_H S_OSC;芯片配置字，看门狗关，上电延时开，掉电检测关，低压编程关，加密，4M晶体HS振荡 #define RS PORTA,5 ;命令/数据选择#DEFINE RW PORTA,4 ;读/写选择#DEFINE E PORTA,3 ;使能信号#DEFINE PSB PORTA,2 ;并口/串口选择（H/L）#DEFINE RST PORTA,0 ;复位信号;-----------------------------------------------LCD_X EQU 30H ;页地址LCD_Y EQU 31H ;Y地址COUNT EQU 32H ;循环计数用COUNT1 EQU 33H ;循环计数用COUNT2 EQU 34H ;循环计数用POINT EQU 35H ;查表偏移地址POINT1 EQU 36H ;查表偏移地址POINT2 EQU 37H ;查表偏移地址TEMP EQU 38H ;临时寄存器TEMP1 EQU 39H ;临时寄存器;-----------------------------------------------ORG 0000H ;复位地址NOP ;ICD需要的空指令GOTO MAIN ;跳转到主程序;**********************主程序************************MAINBANKSEL TRISACLRF TRISA ;A口输出CLRF TRISD ;D口输出BANKSEL ADCON1MOVLW 06HMOVWF ADCON1 ;A口全为数字口CLRF STATUSBCF RST ;复位LCDCALL DELAY ;延时一段时间BSF RST ;清除复位信号NOPBSF PSB ;并口通讯;**************************初始化**********************MOVLW 30H ;基本指令操作CALL SEND_IMOVLW 01H ;清除显示CALL SEND_IMOVLW 06H ;指定在写入或读取时，光标的移动方向 CALL SEND_IMOVLW 0CH ;开显示，关光标，不闪烁CALL SEND_I;***********************显示汉字************************HAN_WR2CALL CLEAR_P ;清屏HAN_WR2A ;“深圳乾龙盛电子”MOVLW LOW(TAB1A)MOVWF POINTMOVLW HIGH(TAB1A)MOVWF POINT1 ;获取表格的首地址MOVLW 0eH ;数数据字节个数（7个汉字共14字节） MOVWF COUNTMOVLW 81H ;页地址CALL SEND_ICALL QUSHUHAN_WR2B ;“。

12864液晶显示程序.docx

*/*/#include <ieg51.h>#include <intiiiis.h>frdefine uchar unsigned char frdefine umt unsigned mtsbit LCD_RS = P2A0;sbit LCD_RW = P2T;sbit LCD_EN = P2A2;uchai code disl[] = {n I LOVE 8051 MCU n}; uchai code dis2[] = {M TEL:138********H};/*延时子程序void delay(mt nis)mt i; while(nis-)fbr(i = 0; i< 250; i++)_nop_()； _nop_()； _nop_()； _nop_()；严******************************************************************/ 严检查LCD 忙状态/*lcd_busy为1时，忙,等待o lcd-busy为0时，闲，可写指令与数据。

严******************************************************************/bit lcd_busv(){bit result; LCD_RS = 0;LCD_RW=1;LCD_EN= 1;_nop_0;_nop_0;_nop_0;_nop_0;result = (bit)(P0&0x80);LCD_EN = 0; return result;严******************************************************************/ 严写指令数据到LCD严RS=L, RW=L,己=高脉冲，D0-D7=指令码。

严******************************************************************/void lcd_wcmd(uchai- cmd) {while(lcd_busyQ);LCD_RS = 0;LCD_RW = 0;LCD_EN = 0;_nop_();_nop_();P0 = cmd;_nop_();_nop_();_nop_();_nop_0; LCD_EN= 1;_nop_0;_nop_0;_nop_0;_nop_0;LCD_EN = 0;严******************************************************************/ 严写显示数据到LCD严RS=H, RW=L,己=高脉冲，D0-D7=数据。
