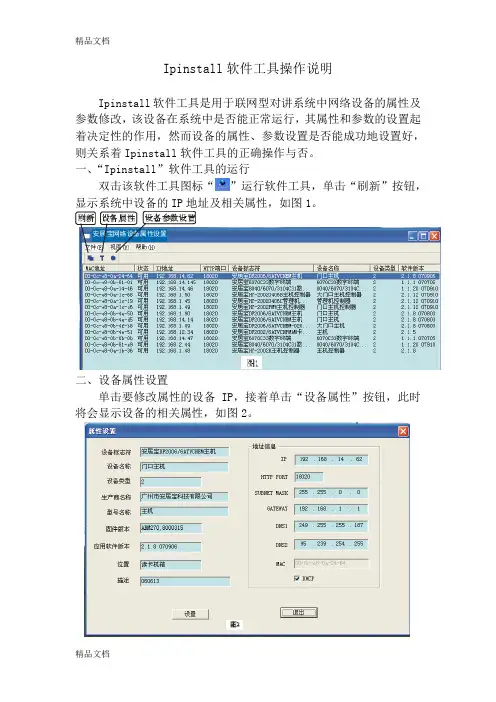

Ipinstall软件工具操作说明word版本

Ipinstall软件工具操作说明Ipinstall软件工具是用于联网型对讲系统中网络设备的属性及参数修改，该设备在系统中是否能正常运行，其属性和参数的设置起着决定性的作用，然而设备的属性、参数设置是否能成功地设置好，则关系着Ipinstall软件工具的正确操作与否。

一、“Ipinstall”软件工具的运行双击该软件工具图标“”运行软件工具，单击“刷新”按钮，显示系统中设备的IP地址及相关属性，如图1。

安居宝网络设备属性设置二、设备属性设置单击要修改属性的设备IP，接着单击“设备属性”按钮，此时将会显示设备的相关属性，如图2。

操作步骤：单击设备IP→单击“设备属性”钮→修改属性→单击“设置”钮→待设备重启。

在设备属性设置项中，可修改的项有IP地址和固件版本。

注：1.设备“IP地址”在系统中是唯一的。

2.设备“固件版本”指的是PCB板间的版本。

三、设备参数设置单击要修改的设备IP，接着单击“设备参数设置”钮，此时将会显示该设备初始参数，如图3。

操作步骤：单击“设备IP”→单击“设备参数设置”钮→修改设备参数→单击“设置”钮→待设备重启。

四、设备软件程序升级在设备参数设置的界面下进行设备的软件程序升级，首先要选择程序的类别，在“程序类别”的下拉列表框中选择对应的设备程序类别，然后打开设备程序，点击“更新”按钮。

操作步骤：单击“设备IP”→单击“设备参数设置”钮→选择程序类别→选择对应的设备程序→单击“更新”钮→待设备重启。

程序软件升级的次序：引导程序→主程序→程序数据。

注：表格中“x”代表程序软件的版本号。

五、注意事项1.在对设备属性或参数修改完时，点击了“设置”按钮后；或者对设备进行程序软件升级时，点击“更新”按钮后，必须等待设备重启成功（可见该设备的IP地址），方可进行下一步对设备属性、参数的修改、程序软件的升级。

2.在对设备属性、参数修改或程序软件升级，需再次操作时，必须关闭当前属性、参数修改窗口，返回至图1窗口，单击“刷新”按钮，直至可见该设备IP地址，方可重新进行设备相关的属性、参数修改或程序软件的升级。

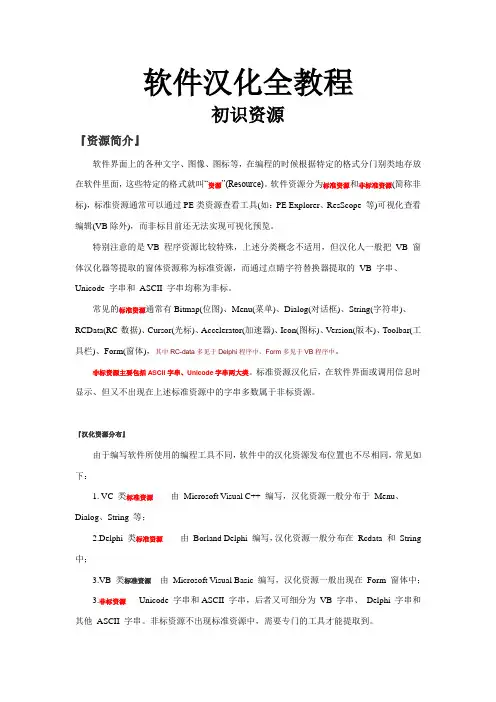

软件汉化教程(完整版)

软件汉化全教程初识资源『资源简介』软件界面上的各种文字、图像、图标等，在编程的时候根据特定的格式分门别类地存放在软件里面，这些特定的格式就叫“资源”(Resource)。

软件资源分为标准资源和非标准资源(简称非标)，标准资源通常可以通过PE类资源查看工具(如：PE Explorer、ResScope 等)可视化查看编辑(VB除外)，而非标目前还无法实现可视化预览。

特别注意的是VB 程序资源比较特殊，上述分类概念不适用，但汉化人一般把VB 窗体汉化器等提取的窗体资源称为标准资源，而通过点睛字符替换器提取的VB 字串、Unicode 字串和ASCII 字串均称为非标。

常见的标准资源通常有Bitmap(位图)、Menu(菜单)、Dialog(对话框)、String(字符串)、RCData(RC-数据)、Cursor(光标)、Accelerator(加速器)、Icon(图标)、Version(版本)、Toolbar(工具栏)、Form(窗体)，其中RC-data多见于Delphi程序中，Form多见于VB程序中。

非标资源主要包括ASCII字串、Unicode字串两大类。

标准资源汉化后，在软件界面或调用信息时显示、但又不出现在上述标准资源中的字串多数属于非标资源。

『汉化资源分布』由于编写软件所使用的编程工具不同，软件中的汉化资源发布位置也不尽相同，常见如下：1. VC 类标准资源由Microsoft Visual C++ 编写，汉化资源一般分布于Menu、Dialog、String 等；2.Delphi 类标准资源由Borland Delphi 编写，汉化资源一般分布在Rcdata 和String 中；3.VB 类标准资源由Microsoft Visual Basic 编写，汉化资源一般出现在Form 窗体中；3.非标资源Unicode 字串和ASCII 字串，后者又可细分为VB 字串、Delphi 字串和其他ASCII 字串。

简体中文自由软件本地化工作指南说明书

简体中文自由软件本地化工作指南Free Software Localization Guide for Chinese (simplified)By Aron Xu and Mingye WangVersion 1.2; Released under CC-BY-NC-SA 3.0 Unported.本文档提供自由软件本地化的一般性指引，主要包含 Gettext翻译的编辑、验证和提交，以及目前较通行的写作风格信息。

目录1工作流程 (1)1.1准备 (1)1.2协调 (1)1.3翻译 (2)1.4提交 (3)1.5语言要求 (3)2PO文件格式和要求 (3)2.1基础信息 (3)2.2文件头 (4)2.3字符转义和格式 (5)2.4排版风格 (6)2.5注释和字符串属性 (8)3工具使用速查 (9)3.1Gettext工具集 (9)3.2Intltool工具集 (9)后记 (10)版本历史Rev. 1.22015-09-12重制ODT。

添加必要注解，删减陈旧内容，今年是2015年。

Rev. 1.12009-11-07更新格式信息。

Rev. 1.02009-08-26初始版本，网页发布于i18n-zh。

感谢GNU计划、LibreOffice和推动LibreOffice产生的乌龟壳公司。

本页的技术用途在于显式定义LibreOffice在首页后原会自动插入的空白页。

1工作流程自由软件翻译的工作流程基本分为准备、协调、翻译、提交四步，不同项目各有不同。

一些翻译平台，如Launchpad，Transifex和Crowdin，提供基于网页的提交方式。

Align 软件工具用户指南说明书

Align: Start, Stop, Continue Guide Regional EntitiesExecutive SummaryTo what level is my work impacted due to this change? ModerateUse this document to familiarize yourself with Regional Entity Align process changes! Align is a new software tool that support the ERO’s vision of a single business process shared across our industry, tracking compliance data through a central hub that integrates CORES registration data with compliance monitoring and enforcement activities. Release 1 will include self-reporting/self-logging, enforcement processing,and mitigation functionality in the Align system, as well as the deployment of the ERO Secure Evidence Locker (ERO SEL). The ERO SEL will be used to collect registered entity-provided evidence as part of the ERO Enterprise’s CMEP activities. Align andthe SEL are built in a way that requires changes to the processes and language youuse today, and this guide will help you understand those changes and what to expectupon our first production release.It is important to note that Align Release 1 will utilize a phased launch approach withthe initial two regions (Texas RE & MRO) going live first with a certain segment oftheir registered entities. The remaining four regions will transition to Alignapproximately 4 to 6 weeks after the initial Release 1 launch. During the transitionyou will complete all monitoring, enforcement, and reporting functions usingexisting tools and processes for regions and registered entities not transitioned toAlign .Overview Start/Stop/Continue What should you start doing? For noncompliance that begins in Align• Performing Self-Log (if applicable based on your regional self-log process) & Self-Report processes in Align • Performing enforcement activities (e.g., Violation Processing, Dismissals, CEs,FFTs, and Settlement/NOCV processes) in Align • Performing mitigating activities & Mitigation Plan tracking and reportingprocesses in Align • Initiating PNCs in Align if discovered through a Self-Certification, PDS, TFE,Compliance Audit, Spot Check, Compliance Investigation or Complaint • If necessary, review associated evidence in the ERO SELImpact ScaleSignificant • Significant impact resulting in fundamental changes in tools and/or processes. You will likely require significant training to perform in your role. In addition, new tasks may be added, orcurrent tasks may be eliminated from your roleModerate• Several ways in which you do your jobs will change. You may have new work, requiring new skills that will potentially require some training Low • Minimal changes to the way you do your jobs. Existing tools and processes will remain in place.Training not required.What should youcontinue doing? Additional DetailsWhat should youstop doing? • Performing processes related to Self-Certifications, Periodic Data Submittals, Technical Feasibility Exceptions, Compliance Audits, Spot Checks, Compliance Investigations and Complaints using existing tools• Performing all Compliance Planning activities (e.g., COP, IRA, ICE) usingexisting processes and tools• Reporting on non-Release 1 activities using existing tools and processes (e.g.,Self-certifications, PDS, Audits, etc.)For noncompliance that began in CITS/CDMS• Performing your enforcement activities (e.g., Violation Processing, Dismissals,CEs, FFTs, and Settlement/NOCV) using existing tools (e.g., WebCDMS, CITS)• Performing your mitigation activities & Mitigation Plan tracking and reportingprocesses using existing tools (e.g., WebCDMS, CITS)• The Align Release 1 Start, Stop, Continue Executive Summary provides only high-level information onprocess, terminology, and tool changes• Please see the section below for detailed information on what processes will be completed in Alignvs. existing toolsFor noncompliance that began in CITS/CDMS • Performing your Self-Log (if applicable based on your regional self-log process) &Self-Report processes using existing tools (e.g., WebCDMS, CITS)• Collecting evidence through legacy toolsDetailed Guides:1. Self-Reporting & Self-LoggingTo what level is my work impacted due to this change? ModerateWhen a Registered Entity has identified a potential non-compliance (PNC), they willcreate the Self-Report in Align. An entity that is approved for self-logging will eitheradd Self-Log items directly into Align or continue submitting Self-Logs via spreadsheetdependent on regional processes.OverviewStart/Stop/Continue What should youstart doing? What should youstop doing? • Provisioning access for Self-Logging in Align if applicable based on yourregional self-log process• Receiving notification that Self-Log & Self Report has been initiated in Align• Initiating preliminary screen process in Align tool• Receiving evidence through the ERO SEL• Receiving notifications that Self-Log (if applicable based on your regional self-logprocess) & Self-Report has been initiated in existing tools (e.g., CITS, WebCDMS,etc.)• Initiating preliminary screen process in existing tools (e.g., CITS, WebCDMS, etc.)• Receiving evidence through legacy toolsFor non-U.S. jurisdictional noncompliance • Receiving notifications that Self-Log & Self-Report has been initiated inexisting tools (e.g., CITS, WebCDMS, etc.)• Initiating preliminary screen process in existing tools (e.g., CITS, WebCDMS,etc.)• Receiving evidence through legacy toolsWhat should youcontinue doing?Additional Details•Self-Reports and Self-Logs allow flexibility to add mitigating activities before or after Registered Entity submits initial report•Whether or not the entity chooses to add mitigating activities to the report, your action in this process is the same; you’ll be notified of the new report and initiate the preliminary screening process •Any Registered Entity can report a PNC through a Self-Report by default•The ability to Self-Log is exclusive to those entities that have been vetted through an evaluation process, and must be provisioning by the CEA in Align•If the entity has not been vetted into the Self-Logging program, they will not have the ability to submit Self-Logs in Align; the vetting process is done outside of Align2.Preliminary Screen & Potential Non-Compliance Review (PNCR)OverviewOnce a Self-Report or Self-Log is submitted by a Registered Entity, it triggers thepreliminary screen and the Potential Non-Compliance Review (PNCR). These aretightly linked and will be reviewed below.To what level is my work impacted due to this change?ModerateStart/Stop/ContinueWhat should you start doing? What should youstop doing? For noncompliance submitted into AlignPreliminary Screen:•Reviewing PNC, within 5 business days of submittal, to:o ensure the reliability standard requirement that was potentiallyviolated was applicable, approved, and in effect at the time of thePNCo check if the PNC violates the same standard and requirements as another possible violation or alleged violation already beingprocessed▪if yes, you may choose to link PNC to existing openenforcement action (OEA)▪if no, evaluate if PNC is a true duplicate, and mark as failedscreen•If PNC passes, marking PNC passed in Align•If PNC fails, marking as failed screen in AlignPotential non-Compliance Review (PNCR):•Completing PNC Review (e.g., Risk Analysis, Root Cause Analysis, Extent of Condition Review) in Align•Making determination on PNC and marking accordingly in Aligno If out of compliance, make all comments and proceed to enforcement activities in Align•If needed, issuing a formal RFI through Align•If necessary, reviewing associated evidence in the ERO SEL•Following existing preliminary screen for U.S. jurisdictional noncompliance using existing tools (e.g., CITS, WebCDMS, etc.)•Follow-up regularly with Registered Entities to ensure you have all required information to arrive at a recommendation for enforcement action •Evaluating the scope, risk impact, root cause, and mitigation of the issue to arrive at a recommendation for enforcement actionFor noncompliance submitted into CITS/CDMS•Following existing PNCR process using existing tools (e.g., CITS, WebCDMS, etc.)•Reviewing evidence through legacy toolsWhat should you continue doing?Additional Details•When you pass screening in Align it will notify NERC and the Registered Entity that a noncompliance exists, and that entity should retain all data and documents for noncompliance •We will no longer use NERC violation IDs. In Align, each record will have a unique ID for the entire process•In Align, the notice of noncompliance will also serve as the NPV3.Enforcement ActivitiesOverviewSubmitting a PNCR will automatically create an Enforcement Action (EA) record inAlign. The EA can then follow several different enforcement pathways. This sectionfocuses on Violation Processing, Dismissals, Compliance Exceptions, Find, Fix & Trackprocesses, and Settlement and Confirmed Violations processes.To what level is my work impacted due to this change? SignificantStart/Stop/ContinueWhat should you start doing? For noncompliance submitted into AlignViolation Processing:•Reviewing risk assessment and analyzing circumstances of PNC in Align •Deciding disposition of PNC (e.g., CE, FFT, dismissal, etc.) in Align•Issuing NAVAPS in Align•Checking to see if Registered Entity has Contested the NAVAPS/NOCV in Align •If applicable, sending RFI to Registered Entity in AlignDismissals:•Confirming if record is Compliance Investigation in Align•If Compliance Investigation, asking NERC to complete review outside of Align •Determining type of dismissal and designating the record accordingly in Align •Sending dismissal letter to Registered Entity in Align•Closing record in AlignCompliance Exception (CE) & Find, Fix, Tack Processes:•Creating disposition record of CE type or FFT and providing rationale in Align •Sending CE or FFT letter to Registered Entity in Align•Sending CE or FFT to NERC for review in Align (if Entity does not opt-out) •Closing record upon completion of 60-day review period and mitigating activities or Mitigation PlanSettlement/Confirmed Violation Process•Issuing NAVAPS to Registered Entity in Align•Uploading executed settlement agreement in Align•Uploading NOP/SNOP, before submitting it to NERC for review, in Align •Marking the Settlement/confirmed violation complete in Align•Sending NOCV to Registered Entity in Align•Closing out Settlement/confirmed violation in Align, and sending a notice of completion to NERC and the Entity•If necessary, reviewing associated evidence in the ERO SELWhat should youstop doing?•N/A4. Mitigation Plans & Mitigating ActivitiesTo what level is my work impacted due to this change? SignificantThe key process change in Mitigation is that the Registered Entity will submit mitigating activities instead of Mitigation Plans by default. If the mitigating activitiesneeds to be converted to a plan, the CEA will make that conversion in Align.The other change to the Mitigation workflow is that Align will replace existing methodsof submission, review, and tracking. Registered Entities will need to stop using existingtools like webCDMS or CITS and stop any manual tracking of mitigation activities.Everything should be submitted, reviewed and tracked in Align.Overview What should youcontinue doing?• Using preexisting rationale and definitions to decide disposition • Calculating the potential penalty and creating a draft settlement agreement in collaboration with the Registered Entity using existing processes and tools • Coordinating regularly with Registered Entity contacts to work through Enforcement workflow • Deciding if the disposition should be changed to a confirmed violation if Registered Entity does not agree to terms of settlement using existing processes and tools For noncompliance submitted into CITS/CDMS • Completing all Enforcement Activities (e.g., Violation Processing, Dismissals, CEs, FFTs, and Settlement/Confirmed violation) using existing tools (e.g., WebCDMS, CITS, etc.) and processes • Reviewing evidence through legacy toolsAdditional Details• A CEA cannot issue any dismissal to a Compliance Investigation before NERC is able to review• NERC does not need a notification of a dismissal; however, it should be visible to them upon login tothe system (i.e., dashboard view)Start/Stop/ContinueWhat should you start doing? For noncompliance submitted into AlignMitigating Activities:•Reviewing mitigating activities in Align•If applicable, requesting revision of mitigating activities in Align•Accepting mitigating activities in Align•Accepting or verifying completion of mitigating activities in Align•If necessary, sending RFI to Registered Entity in AlignMitigation Plans:•If necessary, converting mitigating activities to Mitigation Plan from in Align•Reviewing Mitigation Plan to determine if it will be accepted in Align•If applicable, extending Mitigation Plan review period in Align•Accepting or rejecting Mitigation Plan in Align•Monitoring new facts and circumstances to determine if a Mitigation Plan may need to be revised in Align•If applicable, receiving Mitigation Plan revisions, after acceptance, from Registered Entities in Align•If necessary, reviewing associated evidence in the ERO SELWhat should you stop doing? Mitigating Activities:•Creating, reviewing, and rejecting or approving mitigating activities in existing tools (e.g., CITS, WebCDMS, etc.)Mitigation Plans:•Creating, reviewing, and rejecting or approving Mitigation Plans in existing tools (e.g., CITS, WebCDMS, etc.)•Collecting evidence through legacy toolsWhat should you continue doing? •Coordinating regularly with your Registered Entity to help ensure mitigation activities and Mitigation Plan deadlines are met, and all necessary evidence is providedFor noncompliance submitted into CITS/CDMS and non-U.S. Jurisdictional noncompliance•Creating, reviewing, and rejecting or approving mitigating activities in existing tools (e.g., CITS, WebCDMS, etc.)Mitigation Plans:•Creating, reviewing, and rejecting or approving Mitigation Plans in existing tools (e.g., CITS, WebCDMS, etc.)•Collecting evidence through legacy tools5. Tracking Mitigation PlansTo what level is my work impacted due to this change? ModerateAdditional Details• Mitigating activities will be submitted by default with each PNC• If mitigating activities need to be transitioned to a formal Mitigation Plan, the CEA will need to initiatethe process in Align• Non-US Jurisdiction Mitigation Plans do not go to FERC• A Registered Entity may request the ability to revise their Mitigation Plan at any time by contactingthe regional point of contact(s) outside of Align. The regional point of contact(s) will take action in Align to send back to the Entity for revisiono The reason for requesting a revision may include expanding the scope of the PNC orMitigation Plan due to new information being discovered. The CEA should determine if arevision is appropriate or if a new Self-Report should be createdOnce a Mitigation Plan is submitted, the Registered Entity will begin tracking againstthe plan. They have the ability to update the actual completion date and uploadevidence for verification from submission of plan through verification. At this point,you will begin monitoring progress of the Mitigation Plan in Align. After the RegisteredEntity certifies that their Mitigation Plan is complete, you can choose to accept, verifyor reject the completion.OverviewStart/Stop/Continue What should youstart doing? For noncompliance submitted into Align • Reviewing the submitted Mitigation Plan and confirming the milestones and activities in Align • If Milestone extension is requested, choosing to extend milestone completiondate in Align• If applicable, escalating the disposition path if the Registered Entity is notadhering to their Mitigation Plan in Align • Reviewing evidence submitted with Mitigation Plan to verify completion in Align • Verify that the completion date certified by the Registered Entity is accurate in Align • If applicable, sending RFI to Registered Entity in Align • If necessary, reviewing associated evidence in the ERO SEL6. Self-Certifications, PDS, TFEs, Compliance Audits, Spot Checks, Compliance Investigations, and ComplaintsTo what level is my work impacted due to this change? LowWhat should youstop doing? • N/AWhat should youcontinue doing? •Coordinate regularly with your Registered Entity to help ensure Mitigation Plan deadlines are met, and all necessary evidence is provided For noncompliance submitted into CITS/CDMS and non-U.S. Jurisdictional noncompliance • Tracking Mitigation Plan milestone completion in existing tools (e.g., CITS, WebCDMS, etc.) • Sending requested information via email or secure file transfers • Sending verification letter or notice of plan acceptance in existing tools (e.g., CITS, WebCDMS, etc.) • Continue collecting evidence through legacy tools• Additional Details• The CEA has the option to escalate the disposition path if the Registered Entity is not adhering to theirMitigation Plan• An officer, employee, attorney or other authorized representative at the Registered Entity mustcertify the completion of all activities laid out in the Mitigation PlanThe processes for Self-Certifications, Periodic Data Submittals (PDS), Technical Feasibility Exceptions (TFE), Compliance Audits, Spot Checks, Compliance Investigations, and Complaints will not change due to Align Release 1. Continue to use the current established process & systems for receiving and responding to Self-Certifications, PDS, TFEs, Compliance Audits, Spot Checks, Compliance Investigations and triggering Technical Feasibility Exceptions and Complaints. Overview Start/Stop/Continue What should youstart doing? • Creating a PNC in Align if discovered through a Self-Certification, PDS,Compliance Audit, Spot Check, Compliance Investigation or Complaint7. Support ProcessTo what level is my work impacted due to this change? LowWhat should youstop doing? • Processing PNCs in existing tools if discovered through Self-Certification, PDS,Compliance Audit, Spot Check, Compliance Investigation or Complaint in AlignWhat should youcontinue doing? • Sending, receiving and responding to Self-Certifications, Periodic Data Submittals Self-Certification, PDS, Compliance Audit, Spot Check orCompliance Investigation using existing tools (e.g., CITS, WebCDMS, etc.)• Documenting and tracking TFEs and Complaints using existing tools (e.g.,CITS, WebCDMS, etc.)Additional Details• It is important to note that if a potential Non-Compliance (PNC) is the outcome of one of the aboveactivities during Release 1, that PNC must be initiated in Align. Once new PNC is initiated, follow the new Align process for completionSupport for Align will follow the new ERO Enterprise Application Support Process. Support of enterprise applications, including Align, will follow a disciplined process to ensure requests are handled in a timely manner, and are prioritized according to business importance and criticality. Overview Start/Stop/Continue What should youstart doing? • Requesting and receiving support for the Align application and existing CMEPapplications via a support request ticket (enabled by FootPrints) fornoncompliance started in Align.What should youstop doing? •N/A What should youcontinue doing?• Requesting and receiving support for all existing CMEP applications using current processes and tools for noncompliance started in CITS/CDMS.。

Radial Engineering DAN-RX 用户指南说明书

True to the Music™User GuideDAN-RX™2-Ch Dante ® ReceiverRadial Engineering Ltd.1588 Kebet Way, Port CoquitlamBritish Columbia, Canada, V3C 5M5 Tel: 604-942-1001 • Fax: 604-942-1010Email:******************Table of Contents PageFeatures ...................................................................................1-2Overview.......................................................................................3Getting Started .............................................................................4Making Connections .....................................................................5Using the Headphone Amplifier ....................................................6Block Diagram ..............................................................................7Specifications ...............................................................................8Warranty .......................................................................Back coverCongratulations on purchasing the Radial DiNET DAN-RX™! The DAN-RX is a high-resolution digital-to-analog converter that is designed to connect to a Dante-enabled Ethernet network — seamlessly transferring the audio stream to a pair of balanced audio outputs to feed a PA, recording device or broadcast mixing console.This manual covers the setup and operation of the DAN-RX in various applications. Please take a few minutes to read through and familiarize yourself with the DAN-RX features and functions. If you have any questions that are not covered in this manual, please consult the FAQ section on our website. This is where we post the latest updates. If you still do not find what you are lookingfor,*******************************************and we will do our best to reply in short order.Radial ® DAN-RX™ User GuidefeaTUreS4912378101.HeaDPHone: Sets output level of the headphone amplifi er. Mini 3.5mm (1/8”) TRS headphone output. Works with earbuds and standard headphones.2.SYnC leDs: Red LED is illuminated when unit is powered. Green LED will illuminate once connected to an Ethernet network. Flashing green LED indicates that the DAN-RX is in master clock mode, solid green LED indicates that it is in slave mode.3.eTHerneT PorT: Connects to the Dante network via standard CAT5e or CAT6 Ethernet cable. This port delivers the digital audio signal from the network and powers the DAN-RX when Power over Ethernet (PoE) is available.4.SYS leDs: Red LED illuminates when power is fi rst applied. Switches to green LED once Dante processor becomes active.5.+15V leD: Will illuminate when the DAN-RX is receiving power via the included DC power adapter.6.Poe leD: Will illuminate when the DAN-RX is receiving Power over Ethernet (PoE).567. lefT anD rigHT Xlr oUT: Balanced analog audio outputs. Output level is controlled by audio playback source.8. PoWer: 15VDC connection for use with included Radial power adapter.9.CaBle ClamP: Used to secure the power supply cable (when used) to prevent accidental disconnection.10. no SliP PaD: Provides electrical and mechanical isolation andkeeps the DAN-RX from sliding around.11. groUnD lifT: Lifts pin-1 onboth XLR outputs to eliminate buzz and hum from ground loops. Move the switch to the right (towards the Ethernet input) to lift the ground.11oVerVieWThe Radial DiNET DAN-RX is a professional grade digital-to-analog audio converter designed specifi cally for use with Dante-enabled networks. It allows you to create a stereo audio endpoint at any location within a Dante network, featuring an Ethernet connector to receive the digital signal, and balanced analog outputs to feed mixing consoles, power amplifi ers, or self-powered speakers. High quality 24bit/96kHz converters provide pristine audio and ensure that the digital source content is reproduced as faithfully as possible, and a rugged 14-gauge steel chassis with a bookend design protects the connectors from damage. The DAN-RX also features a built-in headphone amplifi er with an adjustable level control, allowing you to easily check the audio signals, or feed a monitor mix to any destination.The DAN-RX is easy to use, with no setup required on the device itself. It is completely confi gured by Dante Controller, which manages digital audio routing across the Dante network. Dante Controller is a software application by Audinate™ that allows the user to manage all Dante-enabled devices across a network. Use Dante Controller to route audio to the DAN-RX and all other components on the network. Simply plug the DAN-RX into the network and it will automatically appear as an available output device within Dante Controller. The DAN-RX will initially have the name “DiNET-RX-xxxxxx”, where the last 6 digits will be the unique media access control address (MAC address) of your DAN-RX. As this can be changed to a user-generated name using Dante Controller, we recommend writing down the MAC address of your unit in the space provided below for future reference.record your Dan-rX maC address here:DineT-rX-__________________Dante Controller can be downloaded for free at . For latest firmware for the DAN-RX please visit .Dante networkDante networkCat 5e / Cat6geTTing STarTeDBefore making any connections, always ensure your amplifi ers or speakers are either turned down or turned off in order to protect sensitive components from damage due to loud transients that can occur when plugging in or turning on various components.PoWering THe Dan-rXPoePower for the DAN-RX can be provided via power over ethernet (PoE) from a PoE-capable network switch or a separate PoE injector. Once power is available, the side panel PoE LED indicator will illuminate and the DAN-RX will be ready to use.Power SupplyThe included 15VDC power supply is provided for use when PoE is not available. Once you have connected the DAN-RX to the Ethernet switch, plug in the power supply. The side panel +15VDC LED will illuminate and the DAN-RX will be ready to use.eTHerneT ConneCTionThe DAN-RX connects to the Ethernet switch using a standard CAT5e or CAT6 cable. Once the Ethernet switch is connected to a computer running the Dante Controller software, the DAN-RX will appear as anavailable receive device.As a backup option, the DAN-RX is designed to be able to have both PoE and the 15VDC adaptor connected at the same time. If one fails, the otherwill maintain power without switch-over noise.making ConneCTionSConnect two standard low-impedance XLR cables from the LEFT and RIGHT outputs to the inputs of your PA or recording system. These XLR outputs conform to the AES standard and are balanced to drive long cable runs up to 100 meters (300’) without noise, and are suitable for connecting the DAN-RX to professional mixing consoles, preamps and power amplifi ers. The signal level at these outputs is controlled by the audio playback source.imPorTanT noTe: The DAN-RX does not require phantom power tooperate. The DAN-RX is equipped with blocking capacitors to prevent damage from DC voltage, but for best results please ensure that thephantom power is switched off when connecting to the microphoneinput of a mixer.Audio connections for PA system and recording systems usebalanced XLR cables up to 100 meters (300’).USing THe HeaDPHone amPlifierThe DAN-RX is equipped with a dedicated stereo headphone output. The 3.5mm (1/8”) output is designed for both ear buds and standard TRS stereo headphones wired tip-left, ring-right and the sleeve is ground. The volume control on the DAN-RX affects the headphone output only, as it is designed for testing purposes rather than setting the level of the XLR outputs.Be careful! The DAN-RX is designed for professional use. The headphone amplifi er is very powerful and is capable of high sound levels that could damage your hearing. Always ensure the volume control is set to its lowest point (fully counter-clockwise) when plugging in headphones, and slowly increase the level to a satisfactory level. If no signal is present, ensure that audio is routed to the unit via the Dante Controller software.Not all headphones are created equally! Always start at the lowest volume when switching headphones. While the DAN-RX is designed to work with headphones of all different impedances, volume level can change drastically from pair to pair.Headphone Safety Warning Caution: Very Loud Ampliﬁ erAs with all products capable of producing high sound pressure levels (SPL), usersmust be very careful to avoid the hearing damage that may occur from prolonged exposure. This is particularly important when applied to headphones, as prolonged listening at high SPL’s will eventually cause tinnitus and can lead to partial or complete loss of hearing. Please be aware of the recommended exposure limits within your jurisdiction and follow them closely. The user agrees that Radial Engineering Ltd is not liable for any health effects resulting from the use of this product and the user clearly understands that he or she is entirely responsible for the safe and proper use of this product. Please consult the Radial Limited Warranty for further details.BloCk Diagram** Subject to change without notice.SPeCifiCaTionS** Subject to change without notice.Audio Circuit Type: ............................................High current balanced active output device Number of Channels: .. (2)Sample Rate: .....................................................44.1kHz, 48kHz, 88.2kHz, and 96kHz Bit Depth: ...........................................................24 bitFrequency Response: ......................................20Hz-20kHz Idle Channel Noise: ...........................................-108dB Dynamic Range: ...............................................>100dB Channel Separation: ..........................................>75dBGain: ..................................................................8dBu max @ 0dBfs Total Harmonic Distortion + Noise: ....................0.007% @ -6dBfs Output Impedance: ............................................150ΩPower Consumption: .........................................1.25WFeaturesInput Connections: .............................................RJ45 EthernetOutput Connectors: ...........................................2x XLR male, 1x 3.5mm headphone out LED Indicators: ..................................................SYNC, SYS, +15V, and PoEExtras: ...............................................................Headphone amplifier with level controlGeneralPower: ...............................................................15VDC 400mA (included) or PoE Power over Ethernet (PoE) ................................Class 1 IEEE 802.3afFCC Approval: ...................................................Meets FCC Part 15B Class A Construction: .....................................................14-gauge steelFinish:................................................................Durable powder coatWarranty: ..........................................................Radial 3-year, transferableC H A S S I S _G N DU N D F T®THREE YEAR TRANSFERABLE LIMITED WARRANTYRADIAL ENGINEERING LTD. (“Radial”) warrants this product to be free from defects in material and workmanship and will remedy any such defects free of charge according to the terms of this warranty. Radial will repair or replace (at its option) any defective component(s) of this product (excluding fi nish and wear and tear on components under normal use) for a period of three (3) years from the original date of purchase. In the event that a particular product is no longer available, Radial reserves the right to replace the product with a similar product of equal or greater value. In the unlikely event that a defect isuncovered,************************************************************RA number (Return Authorization number) before the 3 year warranty period expires. The product must be returned prepaid in the original shipping container (or equivalent) to Radial or to an authorized Radial repair centre and you must assume the risk of loss or damage. A copy of the original invoice showing date of purchase and the dealer name must accompany any request for work to be performed under this limited and transferable warranty. This warranty shall not apply if the product has been damaged due to abuse, misuse, misapplication, accident or as a result of service or modifi cation by any other than an authorized Radial repair center.THERE ARE NO EXPRESSED WARRANTIES OTHER THAN THOSE ON THE FACE HEREOF AND DESCRIBED ABOVE. NO WARRANTIES WHETHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE SHALL EXTEND BEYOND THE RESPECTIVE WARRANTY PERIOD DESCRIBED ABOVE OF THREE YEARS. RADIAL SHALL NOT BE RESPONSIBLE OR LIABLE FOR ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSS ARISING FROM THE USE OF THIS PRODUCT. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH MAY VARY DEPENDING ON WHERE YOU LIVE AND WHERE THE PRODUCT WAS PURCHASED.Radial ® DAN-RX™ User Guide - Part #: R870 1033 00 / 06-2017 Copyright 2017 Radial Engineering Ltd. All rights reserved. Specifi cations and appearance subject to change without notice.Radial Engineering Ltd.1588 Kebet Way, Port Coquitlam, British Columbia, V3C 5M5 Tel:604-942-1001•Fax:604-942-1010•Email:******************T o meet the requirements of California Proposition 65, it is our responsibility to inform you of the following:Warning: This product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.Please take proper care when handling and consult local government regulations before discarding.。

Redialix 3汉化教程吾爱破解首发

软件汉化高手勿喷，此汉化教程仅适合新手，高手请绕道本文所用到的所有软件都会上传到百度云盘所谓汉化就是，将非中文的软件国语化，我们我们常见的需要汉化软件大部分都是英文的，汉化软件很多，当然一款汉化软件并不能汉化所有的软件，通俗地讲，有的软件需要特定的软件来汉化，而今天所用的本地化软件叫做Radialix 3（以下简称该软件），一款强大的本地化软件，有自动翻译的功能。

具体介绍就不多说了，大家可以百科，下面教程开始1、软件的安装与破解，由于该软件是共享版软件，所以需要破解，切勿用于商业用途，有关软件已经打包好，软件安装包自带破解软件，破解教程也打包好，在这就不多说了。

2、今天要汉化的软件，工作量很大，我想了想，最后还是选择了这款软件，是很实用的软件—WinToolkit，软件界面如下（大家可以看到，动作量很大哟PS：网上已经有汉化版，大家不要灰心）3、打开文件先来认识一下软件界面现在，我们打开文件—新建本地化方案—添加文件点击确定，因为是初级教程，所以后面暂时不用设置然后选择语言，这里选择的当然是简体中文了，然后点击完成我们的文件显示出来了，可以看到有绿色的框和红色的框，绿色的代表已经汉化完成，红色的表示还没有汉化，我们的任务就是红色的框4、开始汉化我在这里，随便点开了一个图中圈出的是软件名，这个一般不需要汉化的，但是如果你想天价版权信息也可以，比如，你改成WinToolKit by 52PoJie 或者你的名字软件支持自动翻译，我们可以使用微软翻译来翻译（谷歌翻译用不了）,有的翻译的还可以，但是太专业的翻译不了，所以翻译完，我们要确认一下是否翻译的得体，符合我们平时的习惯这里我修改了他的翻译，主要是太离谱了，因为是写教程，所以我直译的，下面的的那个我翻译成镜像整合器了然后我们在上边的窗格，可以看到实时翻译。

5、查看成果我们先来看一下我们的汉化成果吧构建目标文件等一会儿，我们会看到和WinToolKit同目录多了一个文件夹zh-CN,打开，我们看到一个dll文件，先不管他，我们这时打开软件可以看到，软件汉化成功了（如果把这个文件夹删了会怎样呢，大家试试吧）看到汉化成果是不是很高兴啊，然后我们完善汉化就行了6、由于是初级入门教程，就先介绍这些，软件很强大，大家自己摸索。

radmin手册

一客户端安装1. 直接执行RADMIN22.exe 自动加载到服务里面，并自动设置为每次开机自运行，安装好缺省密码为：88888888 缺省端口：99882.如果要改动客户端密码和端口，在开始——〉运行里面键入“r_server /setup”会弹出如下窗口。

(在DOS命令行下面执行也可，r_server 接下面的参数需要空格)●Startup mode 设置启动的时是否自动加载●Set password 设置客户端的连接密码●Option 设置客户端的连接端口，还可以设置ip过滤，可以指定ip的服务端才能控制，是否在托盘中显示图标。

请见下图：e IP Filter 为指定ip地址的服务端访问2.port 里面随意更改客户端的端口，（需用任意的端口号，Use default port 不用打构，）使用80，21，等特殊端口，都可3.Hide tray icon 为是否在任务栏的托盘中显示客户端图标3. 设置完上述选项后，需要重起一下客户端才能生效。

●关闭客户端，在运行里面键入r_server /stop(在DOS命令行下面执行也可，r_server 接下面的参数需要空格) 等待5秒钟●启动客户端，在运行里面键入r_server /start(在DOS命令行下面执行也可，r_server 接下面的参数需要空格) 等待5秒钟4. 卸载客户端，请在运行里面键入r_server /uninstall上述只阐述了些基本的设置，详细命令修改请看软件自带的radmin22.txt，里面还有教怎么使用网络安装客户端，有兴趣的可以一起学习一下该软件。

二服务器端设置1.直接运行程序radmin30.exe 该程序会自动解压缩到当前的目录，然后执行radmin30b.exe 文件会弹出如下服务端控制窗口。

点击连接菜单选中，连接到会弹出连接客户端配置界面。

●在项目名称中可以定义该ip地址相应机器的名称，方便记忆●在ip地址和dns名称里面输入需要控制的客户端机器的ip地址●端口里面输入连接的客户端的端口号，需要和该客户端配置的端口号一致，默认端口为9988●点击左面树列中的“远程屏幕”菜单，会让你选择察看客户端的色彩，建议使用16色可以大大提高性能。

AB RSlogix 5 English 软件操作说明

AB RSlogix 5 English 软件操作说明一．在线打开程序1.单击开始 -＞Rockweell Software -＞Rslinx -＞Rslinx Lauch Control Panel -＞选定Start，将弹出Rslinx Gateway窗口。

如图1-1所示。

组态OPC主题复制DDE链接驱动诊断组态驱动RSWho文件打开图1-1 启动画面2.单击 Communications -＞Configure Drivers，或在工具条上单击Configure Drivers(组态驱动)图标。

如图1-2所示。

选定单击3.弹出标题Configure Drivers的窗口。

单击Available Driver Types对话框中的下拉箭头，选择RS-232 DF1 devices(Rslogix 5 English)。

如图1-3所示。

图1-3 选择组态驱动类型4.单击Add NeW按钮，将弹出如图1-4所示。

图1-4 命名驱动5.单击OK，会弹出如图1-5所示。

图1-5 选择驱动内容下拉箭头选定单击选定单击5.单击OK，在Configure Drivers窗口下的列表中出现AB＿DF1-1 DH+ Sta:0 COM1:RUNING字样表示该驱动程序已运行。

如图1-6所示。

RS-232 DF1 Devices驱动已运行。

图1-6驱动程序已运行6.单击Close 回到RSLinx 初使界面，单击Communications-＞RSWho,现在工作区左侧列表中多了AB＿DF1-，Data Highway Plus网络图标,选中右上角Autobrowse 或单击Refresh。

如果驱动组态正常，单击该网络图标，会出面所配置好的设备的图标，如图1-7所示。

图1-7新组建的AB＿DF1-1网络7.单击开始 -＞Rockweell Software -＞Rslogix 5 English -＞Rslogix 5 English -＞选定。

悉亚特Iris Insight用户使用手册(中文版)

Iris Insight 用户使用手册Iris Insight是用于IRIS综合住宅信息系统的智能管理软件。

可用来配置、监控、协调IRIS系统的各类设备及功能。

在提高可操作性的同时，保证了整个系统高效、安全的运行。

1．用户界面菜单栏工具栏页面控制窗信息窗页面工作区图 1 Iris Insight主控制界面登录注销发送IRIS短信时间同步发送GSM短信浏览并呼叫接听开锁挂断浏览并监视取消监视抄表呼叫转移报警静音图 2 工具栏IRIS的用户界面，由菜单栏、工具栏、页面控制窗、信息窗和页面工作区组成。

页面工作区的内容随所选页面的不同而不同，选择主控制台页面后的页面工作区即如上图所示。

可以通过下面两种方式选择不同的页面：❖选择菜单“页面”下的各选项。

图 3 菜单栏中的页面选项❖单击页面控制窗中的各按钮。

2．登录、注销要使用Iris Insight必须首先登陆，登录方法为选择菜单系统>登录或在工具栏单击“”。

图 4 登录Iris Insight在弹出的登录窗口中输入用户名和密码，单击“确定”登录。

图 5 登录窗口注销用户时，选择菜单系统>注销或在工具栏中单击“”。

3．呼叫功能Iris Insight支持呼叫本管理机的住户，接听住户呼叫、并且可以在本管理机查看本机的所有呼叫记录。

呼叫住户在主控制页面工作区选中“输入住户代码”，在按钮右侧的输入框中输入呼叫住户或管理机的代码，然后单击“呼叫”。

接听呼入❖当有住户呼叫本管理机时，在工具栏上单击“”接听。

挂断在通话状态或管理机呼出并等待对方接听状态下，可以通过以下任意一种方式中止当前通话、结束呼叫：❖选择菜单动作>挂断。

❖在工具栏上单击“”。

❖在主控制页面工作区单击“挂断”。

查看呼叫记录系统自动更新呼叫信息，并显示在对讲数据页面工作区的呼叫页面中，如下图所示。

当所选呼叫记录带有图片时，图片将自动缩略显示在右上角的图片窗中，点击“查看”可以查看该图片。

Radialix-软件本地化工具-使用教程

Radialix 是一款功能比较强大的软件本地化工具，支持以 VC++、Delphi、.Net 等语言编写的软件、以及 INI 格式文本文件的本地化。

尤其是它具有非标资源的本地化功能、以及可以设置更多的资源属性。

以下是开发商的描述。

- PE32、PE32+ 文件、.NET 程序集，资源和各类文本文件的本地化- 加载子程序集的 .NET 程序集的本地化- 非标（硬编码）字符串的本地化- IDA 插件- Unicode 支持- 自动翻译、包括模糊翻译- 机器翻译- 翻译验证检查- 对话框、窗体和菜单的所见即所得可视化编辑- 导出和导入 CSV、TMX 和 TXT 文件- 翻译记忆编辑器- XML 格式的方案文件下面是软件界面要汉化编辑一个程序的资源首先要导入这个程序，点击【文件】【新建】【新建本地化方案】在打开的窗口中点击【添加文件】浏览选择要打开的程序弹出【文件属性】窗口中【目标构建操作】选项选择【创建本地话文件】注：如果要编辑非编资源切换到【非标字串】选项勾选【提取非标字串】其他可以保持默认点击【确定】后如果不继续添加需要编辑的程序就在弹出窗口继续点击【下一步】，然后来到语言添加界面双击简体中文添加到下方列表中。

【下一步】继续弹出信息窗口根据提示自行填写一下，也可不填直接点击【完成】.等待程序载入完毕可以发现程序中所有能识别的资源的在左侧窗口列出来了，点击找到相关项目列表后直接在右侧窗口进行编辑即可。

编辑完毕后点选相关项目后右键点选【“切换”只读】等待全部编辑完毕后点击【翻译】菜单栏点击【构建全部】即可在程序原目录生成名字后缀为【_CHS.exe】的程序，这个就是编辑后生成的文件。

（注：文档可能无法思考全面，请浏览后下载，供参考。

可复制、编制，期待你的好评与关注！）。

RSLinx软件使用指南说明书

Course NumberCCPS45Course PurposeThis blended-media course introduces students to the communication capabilities of RSLinx® software through hands-on practice and the interactive simulations of COURSE AGENDADAY 1• Setting Up an SLC 500 System on a DH+ Network • Troubleshooting Program Flow and Interrupt Routines • Troubleshooting STI Routines• Troubleshooting DII RoutinesDAY 2SLC 500 Processors SLC 500 and RSLogix 500 Advanced Maintenance and TroubleshootingWHO SHOULD ATTENDIndividuals who are responsible for maintaining and troubleshooting advanced SLC 500 applications using RSLogix 500® software should attend this course.PREREQUISITESTo successfully complete this course, the following prerequisites are required:• Experience maintaining electrically controlled systems• Experience operating a personal computer within a Microsoft Windows 2000 or Windows XP environment • Completion of the SLC 500 and RSLogix 500Maintenanceand Troubleshooting (Course No. CCPS43)STUDENT MATERIALSTo enhance and facilitate the students’ learningexperiences, the following materials are provided as part of the course package:• Student Manual– Includes the key concepts, definitions, examples, and activities presented in this course • Lab Book–Provides learning activities and hands-on practice. Solutions are included after each exercise for immediate feedback • RSLogix 500 and SLC 500 Procedures Guide– Provides all the steps required to complete common RSLogix 500 software tasks, including the tasks in the exercises. By following the procedures in this job aid, you can immediately apply what is learned in the course to your own job.• SLC 500 and RSLogix 500 Troubleshooting Guide –Contains diagnostic algorithms that efficiently lead the user to possible maintenance and troubleshooting solutionsHANDS-ON PRACTICEDiagnostic and problem-solving skills are sharpened through hands-on exercises using a variety of hardware devices and software applications, including SLC 500 processors, Universal I/O Simulators, PanelView terminals, RSView32 applications, and the Automated System Trainer, a complete hardware system containing real-world inputs and outputs.NEXT LEARNING LEVELOnce you have mastered the maintaining andtroubleshooting skills covered in this course, you may want to expand your application skills and knowledge by attending a maintaining and troubleshooting course focusing on networks.COURSE LENGTH This is a four-day course.Allen-Bradley, Logix5000, PanelView, RSLogix 500, RSView and SLC are trademarks of Rockwell Automation, Inc.Trademarks not belonging to Rockwell Automation are property of their respective companies. Publication GMST10-PP211E -EN-E – January 2020 | Supersedes Publication GMST10-PP211D -EN-E – January 2018Copyright © 2020 Rockwell Automation, Inc. All Rights Reserved. Printed in USA.To be respectful of the environment, Rockwell Automation is transitioning some of its training courses to a paperless format. Students are asked tocomplete downloads and bring personal devices to these classes. A full list of digital/paperless courses is currently available through your local distributor.。

雷迪司软件操作说明

ViewPower用户手册不间断供电系统管理软件目录1. ViewPower 概况 (2)1.1. 简介 (2)1.2. 结构 (2)1.3. 应用软件 (3)1.4. 特征 (3)2.ViewPower 的安装与卸载载 (3)2.1. 系统需求 (3)2.2. 软件安装 (4)2.3. 软件卸载。

(11)3. 服务托盘应用程序 (11)3.1. 开始监测 (12)3.2. 停止监测 (12)3.3. 配置 (12)3.3.1. 端口修改 (12)3.3.2. ViewPower启动和退出设置 (13)3.3.3. 软件升级 (13)3.3.4. 配置保存 (15)3.4. 软件升级 (15)3.5. 调试方式 (16)3.6. 开放监测 (17)3.7. 留言板 (17)3.8. 退出 (18)4. ViewPower GUI界面 (18)4.1. 刷新 (19)4.2. UPS 搜索 (20)4.3. UPS 导航 (21)4.3.1. UPS 监控信息 (21)4.3.2. UPS 远程控制与监视 (22)5. ViewPower 功能菜单 (23)5.1. ViewPower 配置 (23)5.1.1. 密码配置 (23)5.1.2. 存储管理服务配置 (24)5.1.3. Email 配置 (26)5.1.4. 事件动作配置 (28)5.1.5. 局域网唤醒 (29)5.1.6. Com.Port 即插即用配置 (30)5.1.7. 数据设定 (31)5.1.8. ModBus通信设置 (31)5.2. UPS设置 (32)5.2.1.本地关机 (32)5.2.2. 远程关机 (35)5.2.3. 参数设置 (36)5.2.4. 采购信息 (38)5.3. 控制 (39)25.3.1. 实时控制 (39)5.3.2. 定时开/关 (40)5.3.3. 定时电池自我测试 (41)5.4. 视图 (42)5.4.1. 状态 (42)5.4.2. 历史记录 (45)5.5. 格式 (49)5.6. 语言 (49)5.7. 帮助 (49)附录A: 词汇表 (51)1. ViewPower 概况1.1. 简介ViewPower是UPS的管理软件，该软件对家庭用户和企业堪称完美。

【优质文档】诺西基本操作指导书-实用word文档 (10页)

本文部分内容来自网络整理，本司不为其真实性负责，如有异议或侵权请及时联系，本司将立即删除！== 本文为word格式，下载后可方便编辑和修改！ ==诺西基本操作指导书篇一：诺西基本操作指导书--李名杰诺西基本操作指导书诺西远程客户端登陆1、电脑IP地址修改2、打开电脑远程连接（快捷键：Windows+R）3、编辑远程桌面备注：远程客户端最大LISENCE用户数未10个，超过该数量则无法登陆。

登陆ENODEB，查看、修改参数1、登陆BTS Site Manager2、登陆界面后可查看小区状态、告警及告警原因3、点击绿色灯泡，查看CI、PCI、带宽、功率上下行中心频点等4、进入Site Manager后，点击最左边的Commissioning，进入配置介面。

勾选BTS site下BTS，选择Reconfiguration，点击Go to Radio Netwok Configuration page5、查看、修改LNBTS、LNCEL、LNADJ级参数附件为各参数所在级及简介：RL35_Parameter.xls6、功率、TM模式查看、修改篇二：诺西操作快速入门手册NOKIA系统操作快速入门手册1 如果取话务报表 .................................................................. (2)1.1.1 如何通过NOKIA OMC网管来取话务报表 (2)1.1.2 如何通过超级终端来取话务报表 (4)如何提取网络中得基本参数 .................................................................. . (4)基本操作命令 .................................................................. . (5)3.1.1 锁定/解锁小区及载波 .................................................................. .. (5)3.1.2 修改某个小区的频点 .................................................................. (6)3.1.3 如何创建/删除邻区关系 .................................................................. . (6)3.1.4 修改邻区关系相关参数 .................................................................. .. (6)3.1.5 修改某个小区的BSIC码 .................................................................. .. (6)3.1.6 如何创建及删除载波 .................................................................. (7)3.1.7 如何创建及删除BTS ................................................................. (7)3.1.8 如何查看告警信息 .................................................................. . (9)3.1.9 如何查询传输故障 .................................................................. .. (10)MSC侧的相关基本操作 .................................................................. .. (11)4.1.1 如果查看交换数据(LAC/CI)是否创建并放开 (11)4.1.2 如何查看BSC号（MSC中定义的） (11)4.1.3 如何查看或修改MSC下相关功能是否开启 ............................................... 11 2 3 41 如何取话务报表NOKIA话务报表可以通过两种方式，一种是直接通过NOKIA OMC网管来取，另一种可以通过超级终端来取，以下对每个方式进行描述：1.1.1 如何通过NOKIA OMC网管来取话务报表目前NOKIA OMC可以利用XMANAGER软件来进入，需要配置IP地址即可，进入后得主界面为如下图示：（NOKIA OMC 主界面）在以上图片得左上角有个“人”图标就是取报表得按钮，双击它即可进入如下界面：然后输入用户名及密码即可进入报表提取界面了（其中用户名及密码需要向局方咨询）在上图中得取报表主界面中键入“6”，就可以取所想要得报表了，如800报表、163报表、182报表等等。

IX用户指南

IX用户指南iX Developer用户指南简体中文MACN832C,2011-01iX Developer用户指南序言iX Developer软件用于配置iX Panel和在PC坏境下运行的控制应用程序，包括用于EPC（工业PC）的应用程序。

通过iX Developer，您可以轻松创建出合理、灵活且高效的操作面板应用程序，从而为操作员和其他系统适时提供所需信息。

本手册将通过一个示例项目向您介绍iX Developer项目的分步设计过程。

有关详细信息，请参阅iX Developer帮助文件。

Beijer Electronics AB保留随时更改任何信息的权利，但不会同时更新此出版物。

Beijer Electronics AB对于本文档中出现的任何错误均不承担任何责任。

本文档中的所有示例仅用于加深对功能的了解以及提高操作软件的能力。

如果将这些示例用于实际应用，Beijer Electronics AB对由此产生的任何后果不承担任何责任。

鉴于本软件的适用范围广泛，为确保在特定应用中能够正确使用本软件，用户自身必须掌握充足的知识。

应用程序和设备的负责人必须自行确保每项应用在配置和安全性方面均符合所有相关要求、标准和法规。

对于在本软件的安装或使用过程中产生的任何损坏，Beijer Electronics AB不承担任何责任。

Beijer ElectronicsAB禁止任何修改、变动或转换本软件的行为。

目录1简介 (5)1.1控制器 (5)1.1.1变量 (5)1.2手册结构 (5)2安装和启动 (6)2.1系统要求 (6)3新建项目 (8)3.1创建新项目 (8)3.2桌面区域 (9)4控制器变量 (11)4.1添加变量 (11)4.2保存项目 (12)5编辑元件 (13)5.1添加元件 (13)5.2运行项目测试 (14)6浏览和画面跳转 (15)6.1画面浏览 (15)6.2背景画面 (16)6.3运行画面浏览测试 (17)7趋势图 (18)7.1添加实时趋势图 (18)7.2运行实时趋势图测试 (19)7.3趋势图模式 (19)7.4运行历史趋势图测试 (19)8警报管理 (20)8.1警报指示器 (20)8.2警报服务器 (21)8.3警报显示器 (22)8.4运行警报测试 (22)9配方 (23)9.1创建配方变量 (23)9.2新建元件 (25)9.3配方项 (25)9.4保存配方 (26)9.5载入配方 (26)9.6配方数据 (26)9.7运行配方测试 (26)10动态 (27)10.1创建元件 (27)10.2调整元件大小 (28) 10.3为元件设定颜色 (29) 10.4运行动态测试 (29)11脚本 (30)11.1添加元件 (30)11.2脚本标签页 (30) 11.3运行脚本 (31)12内部变量 (32)12.1添加内部变量 (32) 12.2创建模拟数值 (33) 12.3运行内部变量测试 (34) 13元件浏览器 (35)13.1添加图形元素 (35) 13.2使用元件浏览器 (35) 14多文本 (36)14.1配置文本 (36)14.2运行多文本测试 (37) 15用户权限 (38)15.1用户权限设定 (38)15.2访问被拒绝时的登录行为 (39)15.3创建注销按钮 (39)15.4元件用户权限 (40)15.5运行用户权限测试 (40)16功能键 (41)16.1定义功能键操作 (41)16.2定义功能键脚本 (44)16.3运行功能键测试 (44)17对象使用浏览 (45)17.1使用对象使用浏览工具 (45)1简介iX Developer软件用于配置iX Panel和在PC环境下运行的控制应用程序，包括用于来自Beijer Electronics的EPC（工业PC）的应用程序。

Radmin2.1的使用教程

第一章Radmin的初步设置首先我们需要下载Radmin2.1版的安装程序，选择2.1版，因为它比较成熟可靠。

由于是官方认可的软件，所以只要在百度搜索Radmin2.1破解即可，要有注册码的！不推荐下载影子版；一是影子版解压缩时可能会被杀毒软件查杀；二是影子版是完成品，不适合初学者毕竟自己多做些基础工作，可以打下扎实的基本功。

下载后，安装，最好你的系统是WinDows 2000，原因就不多说了。

安装完成后，选择Radmin的设置→选项，这时你会看到弹出一个选项窗口。

下面我们逐个介绍窗口中选项的功能。

首先是IP过滤，对新人而言，我是不建议设置IP过滤的，理由是尽量减少自己暴露的信息，所以，这个选项我们跳过。

其次是端口，默认的端口是4899，我们可以改一下，具体用哪个端口随自己喜好，可以随便编，但注意不要使用139、445、3389、4899这样声名在外的端口，各端口的用途另外查询。

然后就是隐藏托盘标的选项了，不想被控制端的任务栏看见图那就点上吧。

使用日志记录，日志文件名会留痕迹，注意所需选择。

连接确认可以不选，价值不大。

选项设置完成了，再Radmin的设置-设置口令，我们就开始安装服务吧，方法是Radmin 的设置→Install service（安装服务），点一下即可。

第二章被控端的制作首先，在安装目录下找到这几个文件，admdll.dll，r_server.exe，raddrv.dll把它们复制出来；然后，是导出注册表，方法是：开始→运行→输入regedit→在打开的注册表编辑器里找到HKEY_LOCAL_MACHINE→在该项目中找到SOFTWARE项→在这个项目里，我们看到Radmin项，点击选择，在注册表编辑器的工具里，就是左上脚，有一个注册（R），点击→导出注册表文件→注意保存的的文件名radmin.reg。

现在有了上面2步准备的4个文件，我们的被控端就已经好了，强调，做好被控端，最后要注意移除服务哦。

软件本地化流程概述

软件本地化流程概述（上篇）日期：2004-06-23引子随着软件技术不断的发展，越来越多的国外大型商业软件的中文版推向我国市场，满足了用户的对中文语言的使用要求。

软件本地化服务商为了顺利实现软件本地化，一般根据项目的要求，成立软件本地化项目组，制定项目工作流程，通过划分成具体的各项任务按计划实施。

其中，根据具体项目的特点，以及时间、质量和成本要求，制定合理规范的本地化工作流程，是保证项目顺利实施的基础。

从软件本地化服务商的角度，完整的软件本地化项目主要包括：审核和签订项目工作合同，检查项目进度草稿计划，准备项目需要的资源，参加项目启动会议，执行项目的具体任务和项目总结等过程。

其中，实施项目是最为重要的环节，是软件本地化服务商的主要工作内容。

审核项目要求报价单和签订项目工作合同在项目实施前，软件开发商将发送本地化项目的工作要求报价单和/或工作订单。

本地化服务商需要及时审核其内容，包括价格、时间跨度、资源要求、项目工作范围和其他要求（如必要的质量保证步骤）。

在审核要求报价单时，应从以下几方面综合分析：（1）时间分析项目实施时间跨度是否可以接受？是否与当前正在进行和将要进行的其他项目存在冲突？如果冲突，是否可以解决冲突？是否可以按时交付结果？（2）技术分析项目的技术难度有多大？是否有能力解决这些技术问题？是否可以组成合适的项目组？包括项目经理，主管和软件工程师，他们是否能具有项目要求的管理能力和技术背景? 是否已经具备项目要求的软硬件资源？（3）项目的重要性分析该项目是否是新客户的首个项目？是否会有今后的长久合作的可能? 或者是来自老客户的软件升级项目？该客户是否是长期合作的固定客户？是否是公司的重要客户？是否是重要客户的重要产品？（4）成本分析根据以往的项目实施经验，结合报价单提供的报价，分析项目实施需要的综合成本，确定是否可以承受当前的报价。

经过上述综合分析后，软件本地化服务商应尽快与软件开发商确认是否接受或拒绝该项目，或者建议修改某些内容后接受该项目。

1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。

Radialix 是一款功能比较强大的软件本地化工具，支持以 VC++、Delphi、.Net 等语言编写的软件、以及 INI 格式文本文件的本地化。

尤其是它具有非标资源的本地化功能、以及可以设置更多的资源属性。

以下是开发商的描述。

- PE32、PE32+ 文件、.NET 程序集，资源和各类文本文件的本地化
- 加载子程序集的 .NET 程序集的本地化
- 非标（硬编码）字符串的本地化
- IDA 插件
- Unicode 支持
- 自动翻译、包括模糊翻译
- 机器翻译
- 翻译验证检查
- 对话框、窗体和菜单的所见即所得可视化编辑
- 导出和导入 CSV、TMX 和 TXT 文件
- 翻译记忆编辑器
- XML 格式的方案文件
下面是软件界面
要汉化编辑一个程序的资源首先要导入这个程序，点击【文件】【新建】【新建本地化方案】
在打开的窗口中点击【添加文件】浏览选择要打开的程序
弹出【文件属性】窗口中【目标构建操作】选项选择【创建本地话文件】
注：如果要编辑非编资源切换到【非标字串】选项勾选【提取非标字串】
其他可以保持默认点击【确定】后如果不继续添加需要编辑的程序就在弹出窗口继续点击【下一步】，然后来到语言添加界面双击简体中文添加到下方列表中。

【下一步】继续弹出信息窗口根据提示自行填写一下，也可不填直接点击【完成】.
等待程序载入完毕可以发现程序中所有能识别的资源的在左侧窗口列出来了，点击找到相关项目列表后直接在右侧窗口进行编辑即可。

编辑完毕后点选相关项目后右键点选【“切换”只读】
等待全部编辑完毕后点击【翻译】菜单栏点击【构建全部】即可在程序原目录生成名字后缀为【_CHS.exe】的程序，这个就是编辑后生成的文件。

（注：可编辑下载，若有不当之处，请指正，谢谢!）。
