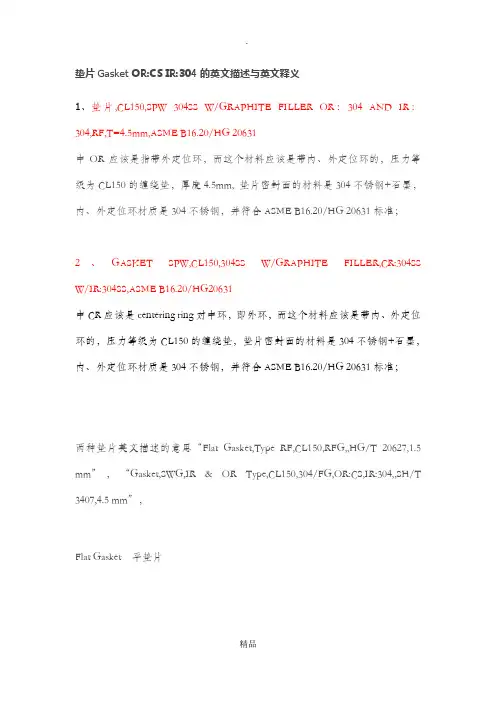

垫片Gasket OR:CS IR:304的英文描述与英文释义
1、垫片,CL150,SPW 304SS W/GRAPHITE FILLER OR：304 AND IR：304,RF,T=4.5mm,ASME B16.20/HG 20631
中OR应该是指带外定位环，而这个材料应该是带内、外定位环的，压力等级为CL150的缠绕垫，厚度4.5mm, 垫片密封面的材料是304不锈钢+石墨，内、外定位环材质是304不锈钢，并符合ASME B16.20/HG 20631标准；
2、GASKET SPW,CL150,304SS W/GRAPHITE FILLER,CR:304SS W/IR:304SS,ASME B16.20/HG20631
中CR应该是centering ring对中环，即外环，而这个材料应该是带内、外定位环的，压力等级为CL150的缠绕垫，垫片密封面的材料是304不锈钢+石墨，内、外定位环材质是304不锈钢，并符合ASME B16.20/HG 20631标准；
两种垫片英文描述的意思“Flat Gasket,Type RF,CL150,RFG,,HG/T 20627,1.5 mm”，“Gasket,SWG,IR & OR Type,CL150,304/FG,OR:CS,IR:304,,SH/T 3407,4.5 mm”，
Flat Gasket 平垫片
Gasket,SWG 缠绕垫片
SWG是spiral wound gasket的缩写。
RF 密封面突面法兰所配垫片
CL150 CLASS150压力等级150
304/FG 304不锈钢钢带+石墨填充带
OR:CS IR:304 外环材质是碳钢，内环材质304不锈钢
RFG Reinforced Flexible Graphite 增强柔性石墨垫
“Flat Gasket,Type RF,CL150,RFG,,HG/T 20627,1.5 mm”
平垫片，密封面突面法兰所配垫片。
压力是CL150，标准是HG/T 20627，厚度1.5mm
“Gasket,SWG,IR & OR Type,CL150,304/FG,OR:CS,IR:304,,SH/T 3407,4.5 mm”
这个类似，304/FG是304不锈钢钢带+石墨填充带。
也就是缠绕垫片。
IR & OR是带内外环。
外环材质是碳钢，内环材质304，标准是SH/T 3407，厚度是4.5 mm
金属缠绕垫片的材料:304 GRAF,IR304什么意思GRAF?/,IR??
304 GRAF,OR:CS,IR:304又是什么意思
看看SH/T3404
IR：inner ring：内环。
金属缠绕垫分为四种，基本型、内环、外环、内外环。
通常用不锈带夹石墨缠绕而成。
LZ可上网搜一下化工部的标准即可明白。
304 GRAF=304+graphite=不锈钢石墨缠绕垫片
解释这个CR与OR到底有什么差别
主要是在于适用的法兰的区分，带CR的适合凸凹面法兰，带OR的适合平面
法兰，而都带的适合突面法兰。
