变频器外文翻译文献

合集下载

变频器-PLC在供水控制系统的应用中英文对照翻译全文

变频器-PLC在供水控制系统的应用中英文对照翻译全文

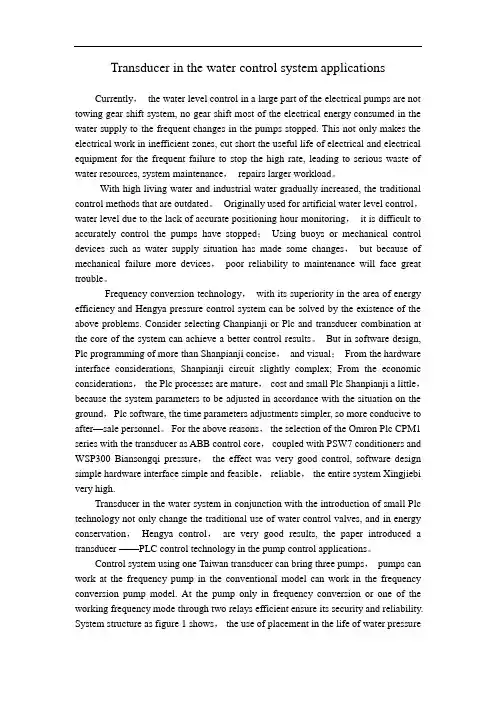

Transducer in the water control system applicationsCurrently,the water level control in a large part of the electrical pumps are not towing gear shift system, no gear shift most of the electrical energy consumed in the water supply to the frequent changes in the pumps stopped. This not only makes the electrical work in inefficient zones, cut short the useful life of electrical and electrical equipment for the frequent failure to stop the high rate, leading to serious waste of water resources, system maintenance,repairs larger workload。

With high living water and industrial water gradually increased, the traditional control methods that are outdated。

Originally used for artificial water level control,water level due to the lack of accurate positioning hour monitoring,it is difficult to accurately control the pumps have stopped;Using buoys or mechanical control devices such as water supply situation has made some changes,but because of mechanical failure more devices,poor reliability to maintenance will face great trouble。

变频器论文参考文献(推荐142个)

变频器论文参考文献(推荐142个)

变频器(Variable-frequency Drive,VFD)是应用变频技术与微电子技术,通过改变电机工作电源频率方式来控制交流电动机的电力控制设备。

变频器主要由整流(交流变直流)、滤波、逆变(直流变交流)、制动单元、驱动单元、检测单元微处理单元等组成。

以下是整理好的关于变频器论文参考文献142个,供大家参考。

变频器论文参考文献一: [1]梁和清,吕阳,王昊诚,王瑞,邱正波. PLC与变频器RS-485串行通讯控制[J/OL]. 锻压装备与制造技术,2018(05):39-42[2019-01-24]. [2]雷春俊,袁川,张岩龙. 基于变频器PID控制的水泵闭环节能改造技术[J/OL]. 石油石化节能,2018(12):60-61+10[2019-01-24]. [3]曾昊. PLC在变频器输出频率控制中的应用[J/OL]. 集成电路应用,2019(01):49-50[2019-01-24]. [4]罗有庆,罗欣. 基于PLC和变频器的龙舌兰纤维针纺机控制[J]. 电世界,2018,59(12):40-42. [5]韩峰,余程. 低电压穿越对给煤机变频器影响的试验与研究[J]. 华电技术,2018,40(11):48-51+79. [6]赵春雷. SM150变频器在红庆河煤矿主井提升机的应用[J]. 煤矿机电,2018(06):70-74+78. [7]姜锋,马彦兵,陈建行,郭培彬. 高压提升机变频器在冀中能源峰峰集团中的应用[J]. 变频器世界,2018(11):97-100. [8]段薇. 基于级联型多电平电压源型变频器PWM调制法的建模仿真[J]. 变频器世界,2018(11):93-96+112. [9]薛峰. 变频器引起空气开关跳闸的故障及对策研究[J]. 山东工业技术,2019(01):205. [10]黄浙丰,豆文举,陈菁. 高压变频器在低浓度瓦斯远距离输送中的应用[J]. 能源与节能,2018(12):46-47+61. [11]饶林森. 变频器中PLC自动控制技术的运用[J]. 山东工业技术,2019(02):156+152. [12]布朋生. 基于有限状态机的变频器启动控制原理分析与实现[J]. 矿山机械,2018,46(12):50-53. [13]李珍珍. 基于变频器的楼宇恒压供水实验模型设计的研究[J]. 电子元器件与信息技术,2018(10):10-13. [14]宋维华. 基于PLC的低压变频器集成监控系统设计[J]. 机械制造与自动化,2018,47(06):167-169+206. [15]佟文明,王云学,贾建国,唐任远. 变频器供电内置式永磁同步电机转子损耗计算与试验[J]. 电工技术学报,2018,33(24):5811-5820. [16]郭奕杉,刘牮,马旭. 基于DSP的变频器能量回馈单元的设计与实现[J]. 信息技术,2018,42(12):41-46. [17]屈勇. 变频器在倾动炉引风机的节能应用[J]. 铜业工程,2018(06):95-97. [18]赵德良. 探讨变频器在电梯工程中的应用[J]. 通讯世界,2019,26(01):154-155. [19]赵洪浪. 高压变频器在高炉炉前除尘风机上的应用[J]. 技术与市场,2019,26(01):169. [20]乔宏琦,吕艳秋,李猛. 变频器过电压故障分析及处理与防护研究[J]. 科技创新与应用,2019(03):132-133. [21]胡亮灯,肖飞,楼徐杰,艾胜,高山. 基于层叠载波调制的三电平H桥变频器输出电压异常跳变分析研究[J]. 中国电机工程学报,2019(01):266-276+341. [22]詹博. 无人天车电气控制系统中的变频器选择与PLC通信[J]. 信息记录材料,2018,19(03):72-74. [23]杨金楼. BPJV1-2000(1400)/3.3矿用隔爆兼本质安全型高压变频器故障分析及处理[J]. 中国矿业,2018,27(02):163-167. [24]赖春林,王然风,王定龙. 三电平矿用组合式防爆变频器研究[J]. 煤炭工程,2018,50(01):137-140. [25]梁金. 矿井提升机变频器谐波检测及抑制策略研究[J]. 煤炭技术,2018,37(01):276-278. [26]李理,王赓,董园. ACS800变频器在铸造起重机主起升机构的应用[J]. 鞍钢技术,2018(01):66-69. [27]张永峰. 6 kV高压变频器降温方案研究及实现[J]. 科学技术与工程,2018,18(02):253-256. [28]武振宇,贠剑虹,张俊乐. 基于“一拖多”高压变频器监控系统改进设计研究[J]. 中国水能及电气化,2018(01):30-33. [29]黄志敏,罗维平,李伟雷. MM420变频器在三层电梯控制系统中的应用研究[J]. 变频器世界,2018(01):94-98. [30]张垒. 论变频器控制永磁同步电机的理论和实践[J]. 变频器世界,2018(01):53-59. 变频器论文参考文献二: [31]李子彦. 火电厂变频器室循环冷却水供冷的通风方案[J]. 电力勘测设计,2018(01):40-44. [32]俞庆涛. 西门子PLC对变频器的7段调速控制电路[J]. 电世界,2018,59(02):44-46+49. [33]屈细红. 变频器内置PID功能在造纸厂消防系统中的应用[J]. 中国造纸,2018,37(02):45-47. [34]罗露,张尉. 氧枪变频器控制抱闸的研究[J]. 冶金自动化,2018,42(01):62-66. [35]张军梁,王兴. 双变频器热备切换应用技术的研究[J]. 石油化工自动化,2018,54(01):35-40. [36]李理,王赓,董园. ACS880系列变频器在330/80 t铸造起重机上的应用[J]. 鞍钢技术,2018(02):66-70. [37]魏列江,严晓岚,李彬杰,魏晓鹏,汤安东. 采用L-M算法对变频器干扰环境下电液控制系统的参数辨识研究[J]. 液压气动与密封,2018,38(03):28-32. [38]白蕾,孟娇娇,辛旗. 基于PLC与变频器的恒压供水系统设计[J]. 电子测量技术,2018,41(04):61-65. [39]周志敏. 变频器的控制方式及应用选型[J]. 变频器世界,2018(02):44-47. [40]张琳,刘宇亮,朱军伟. 基于Matlab的变频器开路故障诊断方法[J]. 测试技术学报,2018,32(01):86-92. [41]陈兰芳,曹怡梅,王义顺,柴山. 基于Compactlogix控制器与Powerflex755变频器双端口双网络通讯的设计与应用[J]. 自动化与仪器仪表,2018(01):179-183. [42]徐彦飞. 高压变频器在硫酸生产系统的节能改造[J]. 硫酸工业,2018(02):47-50. [43]张铮,赵一心. 基于四开关三相变频器的永磁同步电机驱动系统转矩脉动优化控制[J]. 电机与控制应用,2018,45(02):47-55. [44]郭夕琴,武建卫,张海红,丁艳玲. 基于PLC、变频器的恒液位控制系统设计与实现[J]. 江苏科技信息,2018,35(09):60-62. [45]朱光波. 基于S7-300与变频器控制的自动化生产线设计[J]. 装备制造技术,2018(01):197-199+204. [46]徐在德,范瑞祥,潘建兵,曹蓓,邓才波,李升健. 火电厂低压辅机变频器低电压穿越测试装置研究与应用[J]. 电力系统保护与控制,2018,46(08):148-155. [47]刘韵,高长璧. 基于混合模块化多电平变换器的中压变频器设计[J]. 电力电容器与无功补偿,2018,39(02):137-143+149. [48]段志刚,姜一达,张策,金书辉,尤轶. NPC三电平中压大功率变频器设计[J]. 电气传动,2018,48(03):13-16+74. [49]秦冲. 一种基于PLC和变频器的中央空调循环水节能控制系统设计[J]. 现代制造技术与装备,2018(03):167-169. [50]袁江伟,李璟延,施一峰,闫伟,刘腾,丁勇,石祥建. 交流励磁变频器动模系统主回路设计[J]. 水力发电,2018,44(04):68-72+104. [51]胡建. 基于数字变频器与SPLC控制的电梯门机信号接口电路的设计[J]. 软件,2018,39(02):179-183. [52]胡玲笑. 基于PLC、变频器与组态王的“运料小车运动控制系统”综合实训课题的研究[J]. 职业技术,2018,17(04):84-87. [53]鲁西坤,巩银苗,杜庆楠. 交-交变频器自适应控制系统的设计及仿真[J]. 无线互联科技,2018,15(07):40-42. [54]辛平,刘德君,弭洪涛. 电流型变频器实验装置关键技术研究[J]. 实验技术与管理,2018,35(05):95-97. [55]刘勇夫. 施耐德ATV71变频器在炼铁厂管带输送机中的应用[J]. 河北冶金,2018(05):56-59. [56]朱大巍,秦建忠,李杰. 变频器机柜振动特性有限元分析和试验验证[J]. 计算机辅助工程,2018,27(02):53-56. [57]冯庆胜,沈培富,戴淑军. 基于LabVIEW的变频器多段速控制[J]. 测控技术,2018,37(05):147-150. [58]马宁. 变频器在供水系统中的应用[J]. 建材技术与应用,2018(02):24-26. [59]张平,李西哲. PLC故障引起的高压变频器停运分析[J]. 河北电力技术,2018,37(02):53-55. [60]李锋,周邦栋,马猛忠,黄凯. 一起高压变频器滤波电容器爆裂故障分析[J]. 广西电力,2018,41(02):65-67+74. 变频器论文参考文献三: [61]李浩,侯冠男,李长艳. 西门子MM440变频器调速的控制方法[J]. 电工技术,2018(10):17-20. [62]. 变频器世界二十年变频器行业深耕奠定营销服务领导地位[J]. 变频器世界,2018(04):150. [63]刘鹏飞,杨晓辉. 变频器共直流母线在重卷机电控系统的应用[J]. 有色金属加工,2018,47(03):53-54+61. [64]朱顺成. 浅谈变频器和主令开关在石灰窑上料系统中的应用[J]. 纯碱工业,2018(03):31-36. [65]刘晋宏. 基于变频器的微型轨道平台车交流电机调速方法[J]. 轻工科技,2018,34(06):46-47+49. [66]蔡小玲. 变频器IGBT开路故障诊断方法[J]. 自动化应用,2018(04):66-67+75. [67]徐建东,李长伟,郝明,刘树慰. 国产中压变频器在海洋石油平台的应用[J]. 中国修船,2018,31(03):42-46. [68]柴昭一,蒙智峰,汤小伟. 基于塔机变频器在V/F模式下稳定运行的控制研究[J]. 建筑机械,2018(06):60-62. [69]宋远海,周加胜,李克志. 高压变频器主从控制在高压辊磨机上的应用[J]. 变频器世界,2018(05):82-85. [70]潘晓贝. 基于三菱PLC和变频器的多段速控制应用[J]. 安徽电子信息职业技术学院学报,2018,17(03):23-26. [71]闫晓兵. 大功率变频器IGBT并联驱动电路设计[J]. 电子世界,2018(12):153-154. [72]. 2018年变频器公司第一季财报分析[J]. 变频器世界,2018(05):34-37. [73]彭凌杰,肖芳斌. 变频器中制冷剂冷却器结构优化[J]. 制冷与空调,2018,18(06):23-26. [74]刘朝平. 海上油田中压变频器开关电源的国产化研究及应用[J]. 电气应用,2018,37(14):58-61. [75]赵莉,唐小亮,逯乾鹏. 高压变频器低电压穿越功能的实现[J]. 电气应用,2018,37(14):69-72. [76]苏家伟. 一款低成本小功率变频器的设计[J]. 机电工程技术,2018,47(05):79-80+211. [77]柴昭一,蒙智峰,汤小伟. 基于低电压下变频器恒转矩输出的研究[J]. 建筑机械,2018(07):69-72. [78]朱重阳. PLC、触摸屏、变频器之间的通信及其应用[J]. 机电工程技术,2018,47(04):105-107. [79]马莉,王超,宋莉莉. PLC+变频器的自来水厂循环投切恒压供水控制系统设计[J]. 数字技术与应用,2018,36(05):16-19. [80]王卫红,张俊愿,张天富. 变频器驱动下永磁同步电机效率优化的方法[J]. 微电机,2018,51(06):63-66. [81]王旭,齐亮,陈江洪,徐俊. 火力发电用高压变频器拓扑技术的优化[J]. 电机技术,2018(03):21-23+27. [82]王好凝. 基于PLC变频器触摸屏自动生产线控制系统的设计[J]. 科学技术创新,2018(21):188-189. [83]陈永强,张德生. 矢量变频器在油井解卡中的成功应用[J]. 天津科技,2018,45(08):48-50. [84]张娟,蔡永飞,陈东华. 基于PLC与变频器的煤气加压机控制系统的设计与实现[J]. 冶金动力,2018(08):74-78. [85]李稳,车焕. 变频器在C6150~* 3000卧式车床上进行多段速控制的应用[J]. 微电机,2018,51(07):65-67. [86]王亮. 污水处理厂内变频器引起的谐波失真分析和处理措施[J]. 数据通信,2018(04):50-54. [87]黄童毅,周卫华,黄千泽,何林,张威. 用于光伏直驱离心式冷水机组的变频器冷却性能试验研究[J]. 制冷技术,2018,38(03):24-30. [88]郑礼中,衡润来,苏永琢. ABB ACS600多传动变频器电源系统稳压供电实现[J]. 仪表技术,2018(08):50-53. [89]孟彦京,李宏涛,张君燕. 一种新型小电容变频器及其调制技术的研究[J]. 微特电机,2018,46(07):66-70. [90]董旭. 基于FPGA技术的H桥级联型变频器[J]. 电工技术,2018(14):1-3. 变频器论文参考文献四: [91]李云辉,温子胜,宁强. 变频器接地故障分析及处理[J]. 电世界,2018,59(09):44-47. [92]童克波. 浅谈变频器噪声的传播途径及抑制措施[J]. 工业仪表与自动化装置,2018(04):102-104. [93]牛占杰. 高压变频器在LNG冷剂压缩机中的应用[J]. 变频器世界,2018(07):98-102. [94]李晨懿,汪坤,卢文清,徐永海,龙云波. 变频器对不同类型电压暂降的耐受特性研究[J]. 电测与仪表,2018,55(15):1-7. [95]王泽,张凯,陈济民,廖凯文,刘万勋. 应用于模块化多电平变频器的电容电压脉动抑制技术综述[J]. 电工技术学报,2018,33(16):3756-3771. [96]周少泽,李彬彬,王景坤,徐殿国. 改进型模块化多电平高压变频器及其控制方法[J]. 电工技术学报,2018,33(16):3772-3781. [97]郑春娇. MM440变频器在PLC配料搅拌系统中的应用[J]. 工业仪表与自动化装置,2018(04):91-95+101. [98]李定宇,李晓豁. 基于PLC、变频器、触摸屏的三位一体控制系统的设计[J]. 品牌研究,2018(05):147+158. [99]高健. 基于蓄能器和高压变频器的高压水除磷系统节能改造[J]. 冶金自动化,2018,42(05):66-70. [100]徐昌红,余宏翔. 基于Modbus-RTU通讯的工业触摸屏与变频器控制系统[J]. 上海化工,2018,43(09):27-29. [101]刘海鹏. 论高压变频器在炼油装置中的应用[J]. 变频器世界,2018(08):80-85. [102]王达开,常越,王娇娇,杨一睿,张颖聪. 变频器缺相故障检测及相序自适应方法[J]. 电机与控制应用,2018,45(08):110-115+123. [103]郭宏,平朝春,李劭,宁大龙,李锐鹏. 多电平变频器远距离供电系统的电压质量改善[J]. 电气时代,2018(09):39-41. [104]彭建坡. 变频器在水泵控制中的应用与节能[J]. 现代制造技术与装备,2018(08):150+152. [105]徐向伟,陈珍顺. 引风机变频器差动保护误动作原因分析及处理[J]. 内蒙古电力技术,2018,36(03):41-44. [106]王珏. 双PWM三电平变频器的一体化研究[J]. 今日电子,2018(09):58-60. [107]任高飞,孔维超. 中压大功率变频器IGBT并联对输出电流的影响[J]. 变频器世界,2018(08):58-61. [108]马德全. 电站变频器的谐波危害及减少方法[J]. 中国水泥,2018(09):108-110. [109]李兆平,张红娟,靳宝全,高妍,黄飞,王雨星. 矿用高压变频器开关调制优化策略[J]. 工矿自动化,2018,44(11):91-95. [110]黎青. 采煤机变频器无线监控系统设计[J]. 煤矿机电,2018(05):6-9. [111]赵军伟. 基于单片机的中压变频器撬装房散热系统的改进[J]. 石油石化节能,2018,8(08):26-28+71. [112]宋建平. 四象限变频器在煤矿下运带式输送机上的应用研究[J]. 机械管理开发,2018,33(10):125-126+154. [113]赵鹏. 基于双DSP的PWM变频器控制平台研究与设计[J]. 能源技术与管理,2018,43(05):161-163. [114]李继松,袁霏. 基于变频器通信技术的定型机燃烧器安全设计[J]. 纺织科技进展,2018(10):12-15. [115]李庆川. 船舶电力推进变频器过电压抑制方法研究[J]. 舰船科学技术,2018,40(18):88-90. [116]姚旭东,赵富荷,王立春. VACON变频器在起重机防摇控制中的应用[J]. 变频器世界,2018(09):122-125. [117]张震宇,李兴鹤,金辛海. 基于级联式变频器的全阶磁链观测器转速估算[J]. 电力电子技术,2018,52(10):105-108+118. [118]徐胜卫. 变频器技术在火力发电厂节能降耗中的应用[J]. 电工技术,2018(20):5-6+9. [119]董天舒. 变频器行业经济运行分析及未来展望[J]. 电器工业,2018(09):26-29. [120]胡婷婷,周媛奉,李云鹏,刘静. 大功率高压变频器电磁干扰源自动测试系统设计[J]. 自动化与仪器仪表,2018(10):75-78. 变频器论文参考文献五: [121]孙娜. PLC变频器三段速控制编程技巧[J]. 自动化技术与应用,2018,37(09):78-80. [122]韩晓良. 变频器在印刷机械中的应用[J]. 变频器世界,2018(09):113-118. [123]蒋卫良,杨生华,芮丰. 高压变频器在煤矿带式输送机上的应用[J]. 煤炭工程,2018,50(11):67-70. [124]杨敏,张全柱. 矿用三电平变频器驱动电路设计[J]. 华北科技学院学报,2018,15(05):74-77+88. [125]刘涛,王成玉,甘继业. 宝钢四期CDQ吊车变频器制动单元的改造[J]. 冶金能源,2018,37(06):51-53. [126]刘爱军. 浅谈ACS800系列变频器的应用与维护[J]. 云南冶金,2018,47(05):93-97. [127]王居文. 煤矿电牵引采煤机变频器的改造分析[J]. 机电工程技术,2018,47(09):187-189. [128]李瀚瑞. 刮板输送机用变频器设计与应用[J]. 机电工程技术,2018,47(10):135-137. [129]梁剑超. 浅议矿用变频器发展历程及趋势[J]. 机电工程技术,2018,47(10):156-158. [130]郭琳,任娟,顾康. 基于PLC、变频器控制的SJS90型单螺杆挤出机[J]. 现代制造技术与装备,2018(09):167-169. [131]. 德瑞斯ES300变频器在注塑机变频节能改造中的应用[J]. 变频器世界,2018(10):102-105. [132]刘柱,卢剑锋,王一达. 基于模糊控制的隧道射流风机变频器应用和仿真[J]. 现代机械,2018(05):69-72. [133]尹天平. 变频器故障实例分析和处理[J]. 冶金动力,2018(11):5-8+16. [134]常成,宋传学,张雅歌,邵玉龙,周放. 双馈电机驱动电动汽车变频器容量最小化[J]. 吉林大学学报(工学版),2018,48(06):1629-1635. [135]秦冲. PLC与变频器在工业洗衣机中的综合应用研究[J]. 机电工程技术,2018,47(08):121-123. [136]方志星. 超大功率水冷变频器在660MW机组引风机节能改造上的应用[J]. 节能,2018,37(10):23-26. [137]于国江. 变频器在水泵节能改造中的应用分析[J]. 农业科技与信息,2018(22):117-118+121. [138]代科,郑海滨,尹传涛,李洁. 船用中压变频器电气间隙和爬电距离的应用研究[J]. 船电技术,2018,38(11):1-4. [139]王维娜. 基于全阶状态观测器的双馈变频器低穿灭磁控制[J]. 电气传动,2018,48(11):71-74. [140]姚旭东,富魁,王立春. 12脉波变压器对变频器整流的影响及其分析[J]. 变频器世界,2018(10):99-101. [141]刘辉. 给煤机变频器低电压穿越装置的优化配置方案[J]. 电气技术,2018,19(10):59-61+64. [142]郑继远. AB变频器应用中的若干问题及对策[J]. 电世界,2018,59(11):52-55.。

变频器工作原理外文文献翻译、中英文翻译

变频器工作原理外文文献翻译、中英文翻译

外文资料Converter working principleMain circuit is for induction motors provide voltage variable frequency power source power conversion part, the inverter main circuit in general can be divided into two categories [1]: voltage is voltage source DC converter for AC inverter, the DC loop filter is capacitance. Current model is the current source of the direct streamization AC inverter, the DC circuit filter inductance. It consists of three parts, the power supply conversion for DC power rectifier, absorption produced in converter and inverter voltage ripple "flat wave circuit, and DC power converter for AC power" inverter ".(1) rectifier: Recently a lot of use is diode converter, it is the power supply conversion for the DC power supply. Also available two groups of transistor converters constitute a reversible converter, due to its power direction reversible can regeneration operation.(2) the flat wave circuit: in the rectifier DC voltage, containing 6 times the frequency of power supply ripple voltage, furthermore the inverter produces a pulsating current the DC voltage changes. In order to suppress the voltage fluctuation, the inductance and capacitance absorption pulsating voltage (current). Device volume hours, if power supply and a main circuit component in margin can save inductance of the simple flat wave circuit.(3) inverter: Contrary to rectifier, inverter is the DC power conversion is the desired frequency AC power and to determine the time the six switch device turn-on and off you can get 3 phase AC output. By voltage type PWM converter as exemplifying the switching time and voltage waveform.Control circuit is to provide a loop control signal to the asynchronous motor power supply (voltage, frequency) of the main circuit, the frequency, the voltage "operation circuit", the main circuit of the "voltage and current detection circuit, the motor" speed detection circuit, operation circuit of control signal amplification drive circuit ", and the inverter and the motor" protection circuit.(1) arithmetic circuit: the external speed, torque and other instructions with the detection circuit of the current, voltage signal comparison operation, determine the output voltage of the inverter, frequency.(2) voltage, current detection circuit: with the main circuit potential isolation detection voltage, current and so on.(3) driving circuit, driving circuit of main circuit devices. It and control isolation circuit enable device in the main circuit turn-on, turn off.(4) speed detection circuit installed in asynchronous motor shaft machine speed detector (TG, PLG) signal for speed signal into the computing circuit, according to the instruction and operation can make the motor run in the speed command.(5) protection circuit: detection of the main circuit of the voltage, current and so on, when the occurrence of overload or over voltage, etc., in order to prevent the inverter and asynchronous motor damage, so that the inverter to stop working or inhibit voltage, current value.中文翻译变频器工作原理主电路是给异步电动机提供调压调频电源的电力变换部分,变频器的主电路大体上可分为两类[1]:电压型是将电压源的直流变换为交流的变频器,直流回路的滤波是电容。

Frequency conversion power 变频电源 英文文献资料翻译

Frequency conversion power  变频电源  英文文献资料翻译

Frequency conversion power(变频电源)Frequency conversion power is the AC utility by AC and DC and AC conversion for pure sine wave, output, the output voltage and frequency adjustableinside certain limits. It is used in different frequency conversion motor speed controller, different from the gen eral ac voltage stabilizer. The ideal ac power is characteristic of frequency stability, voltag e stability and resistance equal to zero,the voltagewave form distortion for pure sine wa ve.Frequency conversion power is close to ideal ac power, therefore, advanced developed c ountries are increasingly will inverter power supply power, so as to provide the most exce llent with electric power supply environment, facilitate objective appraisal appliances techni cal performance.Frequency conversion power mainly largest categories: linear put largeand SPWM switch.Structurally, frequency converter can be divided into direct and indirect frequency. Dir ectly into a frequency converter and said, it is a kind of frequency alternating current to direct the ac frequency conversion control, for no dc link between the frequency conversio n and indirect form: a has been called into frequency inverter, will be passed through rect ifier ac to dc rectification, again through the inverter frequency converting dc frequency fo rm of variable frequency, therefore thisway is called again have dc link frequency.A general use into inverter switch device is thyristor using automatic voltage is zero and become negative features, thyristor directly on the ac power, thyristor cannaturally shu toff. The process and controlled rectifier, no need for additional element method is simple, reliable operation. But, in a low frequency output waveformin nearly sinusoidal, and for a variable flow, high efficiency, also can achievequadrant operation. But because of this met hod using thyristor amount is more complex, the main circuit, and the output power frequ ency limit by frequency, generally not higher than 1/2 of the grid frequency, so pay a ac indution motor speed inverter in aspects of low power transmission, mainly used for high starting torque,especially the occasion.Pay a converter is currently has been the main form of variable frequency power,this way must through the AC/DC and AC/DC power transformation twice. Efficiency is lower. But the former level does not affect the mains interference, the output waveform after cl ass, wide frequency. The AC/DC converter is always ainto the current inverter power to f orm, the soil must be through the AC/DC and AC/DC power transformation twice. Effi ciency is lower. But the former level does not affect the mains interference, the output wa veform after class, wide frequency.AC/DCAlternating current to direct current, namely to AC/DC transformation. This function transform circuit commonly called rectifier circuit. In the process of transformation of AC/ DC frequency conversion, often introduced to reduce weight and volume of power equipm ent, and improve efficiency, improve the dynamic characteristics,frequency conversion purp oses for decades KHZ to hundreds of KHZ. In the 1970s by frequency 50Hz ac utility p ower to the dc linear manostat development to switch frequency for 20kHz dc switching p ower supply, known as the "revolutionary", but only 20kHz after ten years of switch pow er supply, the frequency conversion to 500kHz above.DC/ACAlternating current, direct current will become namely DC/AC conversion. This function transform circuit, commonly known as the inverter. Inverter circuit can be fixed d c voltage transform for fixed amplitude and frequency of the ac voltage, also will transfor m into its amplitude and frequency adjustable voltage, which often called inverter. Inve rter power electronics device is the important componentof uninterrupted power supply, ele ctricity transmission, and many other equipment m-frequency power of the core, the resear ch work more people's attention, the focus of research is how it is convenient to adjust th e inverter power supply output voltage and frequency, and lower harmonic content, improv ing the output waveform. So far, the lower harmonic content and adjust the output voltage (or frequency) common measures are:1) on the switch tube inverter frequency PWM inverter, make the picture for high frequen cy output as PWM waves.2) by changing the inverter circuit topology structure, in the circuit to reconstruct to wave output waveform, reduce ladder low-order harmonic content.PWM technology is using semiconductor switching device conduction and shut off the dc voltage into voltage pulse, and through the control voltage pulse width to achieve the purpose of variable frequency control technology, a. SPWM sine pulse-width modulation is produced by the control circuit of a group of rectangular pulse width and differ, used to approximate sine sequence voltage wave.For high frequency PWM switch, the higher the frequency, the smaller of harmonic content, but the switch loss is bigger also, unfavorable use in high-power inverter. But oft en require multiple wave reconstruction way to realize the voltage inverter. Waveform reco nstruction, the more the lowest series higher harmonic frequency, but the main circuit and control circuit is more complex, accordingly, the control voltage regulation is not very convenient, so this way in high-power inverter power supply usually only.Using PWM to adjust output voltage and lower harmonic content is currently the mos t popular technologies in small power inverter is widely used, PWM method of generating many.Frequency conversion power adopt PWM technology has two kinds:A preset control mode is switch, also called selective harmonic elimination PWM, theoretical analysis shows that, in 1973, the selective harmonic elimination control strategy can effectively overcome these problems, it only need less switches can be completely eli minate impulse number of large capacity, high order harmonic lowhas achieved very go od filtering effect, switch low frequency and voltage switching loss, utilization rate is high er many advantages, PWM inverter control method of the ideal.Selective harmonic elimination PWM control is a PWM control strategy, the calculation m ethod is: through their basic PWM control Fourier analysis, Fourier series,pulse, for unkno wn displacement of certain harmonic zero, then get a nonlinearequations, the equations for selective harmonic elimination PWM model, according to the results of model, excluding the output control these specific low-order harmonic. The advantages of the selective har monic elimination control for people to recognize and develop a lot of research work, hop e this method of practical application. Unfortunately, so far, selective harmonic elimination method is not really into actual application.According to the ideas, selective harmonic elimination control PWM waves of phase is obtained by solving the model and selective harmonic elimination model is a sine func tion of multivariate nonlinear equations, and its numerical solution of complicated and diff icult process, so that the solution convergence calculation in existing microprocessor (MCU) system in real-time to finish, it is very difficult to a considerable extent restricted in the practical application of selective harmonic elimination method. Now the application of this method to control soil, and its application in the need to adjust the size of the constant fr equency voltage constant-voltage source control is feasible, Certain beforehand calculation or relevant control parameters in the voltage in memory, according to actual needs, the ou tput voltage classification way often requires a lot of storage space, and with the resolutio n of the voltage regulator, with its storage space.Another kind is SPWM scheme, the disadvantages of SPWM is hard to obtain higher amplitude, switch loss is bigger. Through improving the advantage is that it can reduce s witching frequency and low harmonic by adjusting the pulse width to adjust output voltag e. One SPWM inverter mode and divided into three types:(1) controlled rectifier voltage and frequency inverter. V oltage and frequency function in t wo links from control circuit, coordination, simple structure, convenient control. Due to th e input device controlled rectifying, when using link low voltage, large in triggering Angle, low input power factor, besides multi-purpose thyristor inverter type 2 ladder wave commu tation 2 times per week, the inverter, device switch frequency low output harmonic big, of course, controllable devices such as IGBT of PWM control becomes possible, can great ly improve the performance, but the cost is high.(2) Not controlled rectifier voltage rectifying, chopper, inverter frequency modulation mode. Because of using diode rectifier, make the input power factor improvement. Due to the ou tput power link inverter using thyristor, still have the big output harmonic.(3) Is not controlled rectifier rectifier, pulse width modulation (PWM) inverter and realize FM mode voltage. At high power factor in input devices, and adopts high frequency inver ter switch, output and excellent performance. Small harmonicFrequency conversion power application purpose and field:Due to the world, the power indicator export manufacturer needs to supply electric simulation of different countries, for engineers in network design, development, productio n and quality test of product inspection, life, high voltage simulation test applications/provi de pure reliable, low harmonic distortion, high frequency and voltage stability of power ou tput rate of sine wave, Import original electric equipment, users need to China power grid, frequency conversion variable import equipment, Meet avionics and military equipment, th e high demand.Mainly used for manufacturing or export trade business of export products of electric power test, debug and used for precision instrument power supplies. Widely used in home appliance manufacturing, motor, electronics manufacturing, IT industry, computer equipmen t, laboratory, etc.★appliance manufacturers:air conditioning, coffee machine, washing machine, juice extra ctor, microwave oven, tape recorder, refrigerator, DVD, welcome, electric razor etc. Produc t test power.★electronics manufacturers such as: electrical switching power supplies, transformers, elec tronic ballast and AC electric fans, unceasingly, charger, relays, system ofcompressor, moto r and passive components etc. Product test power.★Painted IT industry and computer equipment manufacturers such as: fax, copy machine, shredders, printers, scanners, cd-rw drive, servers, and displays the products such as test power.★Laboratory tests and painted units such as: ac power test and product life andsafety tes ting, emc test and OQC (FQC) test and r&d, product testing and research unit best ac po wer.★aviation/military units such as: the airport facilities, ship, aerospace, military institute of test power. Etc.中文翻译变频电源变频电源是将市电中的交流电经过AC→DC→AC变换, 输出为纯净的正弦波,输出频率和电压一定范围内可调。

外文翻译-变频器基本参数调试

外文翻译-变频器基本参数调试

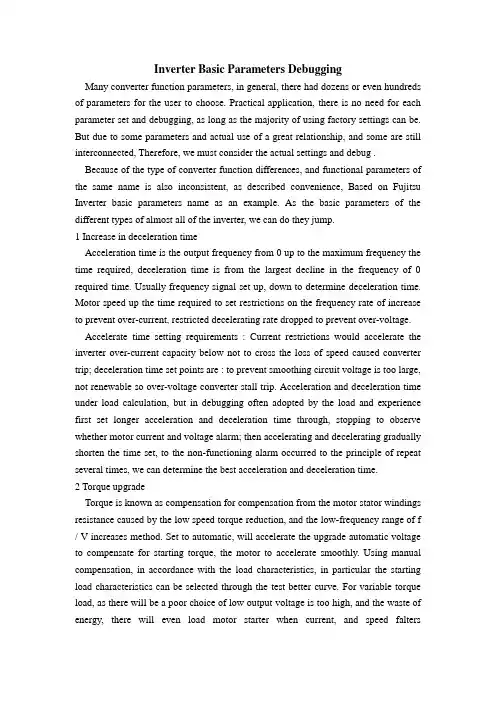

Inverter Basic Parameters DebuggingMany converter function parameters, in general, there had dozens or even hundreds of parameters for the user to choose. Practical application, there is no need for each parameter set and debugging, as long as the majority of using factory settings can be. But due to some parameters and actual use of a great relationship, and some are still interconnected, Therefore, we must consider the actual settings and debug . Because of the type of converter function differences, and functional parameters of the same name is also inconsistent, as described convenience, Based on Fujitsu Inverter basic parameters name as an example. As the basic parameters of the different types of almost all of the inverter, we can do they jump.1 Increase in deceleration timeAcceleration time is the output frequency from 0 up to the maximum frequency the time required, deceleration time is from the largest decline in the frequency of 0 required time. Usually frequency signal set up, down to determine deceleration time. Motor speed up the time required to set restrictions on the frequency rate of increase to prevent over-current, restricted decelerating rate dropped to prevent over-voltage. Accelerate time setting requirements : Current restrictions would accelerate the inverter over-current capacity below not to cross the loss of speed caused converter trip; deceleration time set points are : to prevent smoothing circuit voltage is too large, not renewable so over-voltage converter stall trip. Acceleration and deceleration time under load calculation, but in debugging often adopted by the load and experience first set longer acceleration and deceleration time through, stopping to observe whether motor current and voltage alarm; then accelerating and decelerating gradually shorten the time set, to the non-functioning alarm occurred to the principle of repeat several times, we can determine the best acceleration and deceleration time.2 Torque upgradeTorque is known as compensation for compensation from the motor stator windings resistance caused by the low speed torque reduction, and the low-frequency range of f / V increases method. Set to automatic, will accelerate the upgrade automatic voltage to compensate for starting torque, the motor to accelerate smoothly. Using manual compensation, in accordance with the load characteristics, in particular the starting load characteristics can be selected through the test better curve. For variable torque load, as there will be a poor choice of low output voltage is too high, and the waste of energy, there will even load motor starter when current, and speed faltersphenomenon.3 Electronic Thermal Overload ProtectionThe function of the motor overheating protection setup, It is within the CPU frequency converter operating under the current value and frequency of the motor calculated temperature rise, for the protection of overheating. This function only applies to "drag a" occasion, and "a number of tractors," should be in the retrofitting Motors thermal relay.Electronic thermal protection settings (%)=[ motor rated current (A) / Rated output current converter (A)] × 10 0%.4 Frequency restrictionsThat the inverter output frequency, amplitude threshold. Frequency limitation is to prevent the misoperation or external frequency setting signal failure, which leads to the output frequency is too high or too low. prevent damage to the equipment of a protective function. The application on the actual situation can be set. This function may also be used for the speed limit, if the conveyor belt, due to transportation of materials is not much, To reduce the mechanical and wear belts, use inverter-driven, and will limit frequency inverter settings for a particular frequency, This would enable the conveyor belt running on a fixed, low speed work.5 Frequency OffsetSome deviation is known as the frequency or frequency deviation settings. When their use is by the external frequency analog signal (voltage or current) settings, This function can be adjusted frequency signal set at the lowest level of the output frequency, as illustrated in figure 1. When some frequency transducer signal set for 0%, the error values role of the range 0 ~ HBT, Some converter (such as electricity for homes, Sanken) may also bias polarity settings. Debugging in frequency when the signal is set at 0%, the inverter output frequency is 0 Hz, for xHz. At this time it will be set to the frequency offset the negative xHz will enable inverter output frequency is 0 Hz.6 Set the frequency signal gainThis function only with external analog signal frequency setting was effective. It is used to cover external set voltage and signal transducer voltage (+10 v) the inconsistencies; facilitating simulation setting signal voltage options set, when the analog input signal for a maximum (10 v, 5v or 20mA), the output can be obtained f / V graphics frequency and percentage of this parameter can be set; If external signalsset to 0-5v, if the inverter output frequency of 50Hz ~ 0. Gain signal will be set to 200% can be.7 Torque limitCan be divided into driving torque and braking torque limit restricted. It is based on inverter output voltage and current values, the CPU torque, can increase its deceleration constant speed operation and the impact of load recovery characteristics are significantly improved. Torque limit function for automatic acceleration and deceleration control. Assuming acceleration and deceleration time is less than inertia load time, the motor can be guaranteed in accordance with the torque settings automatically accelerate and decelerate.Driving torque functions provide a powerful starting torque, in steady state operation, the torque control motor functions will turn bad, Motor torque and will limit the maximum value set, when suddenly increased load torque, or even in accelerated time setting off a short time, Inverter is unlikely to cause tripping. Accelerating time setting off a short time, motor torque will not exceed the maximum values. Drivers of large start-up torque advantageous to set to 80 ~ 100% more properly.Braking torque setting numerical smaller, the greater the braking force, acceleration and deceleration for emergency occasions, If braking torque setting numerical Assembly set off alarm occurred pressure phenomena. If braking torque set at 0%, added to the main capacitor will enable the renewable total closer to 0, so that the slowdown in the motor, the non-use of braking deceleration resistance can not turn to stop tripping. But in some loads, such as brake torque set at 0%, the slowdown will be temporary idling, Starting inverters, repeatedly, the current significant fluctuations serious converter Trip will be to attract attention.8 Acceleration and deceleration mode selectionKnown as the acceleration and deceleration curves choice. General converter is linear, nonlinear, and three S curve, usually will choose linear curve; Nonlinear curve applies to variable torque load, such as fan; S curve in constant torque load, slowdown in the rate of change is slow. Settings can load torque characteristic curve corresponding options, but there are exceptions. Debugging a writer in Taiwan Boiler fan of inverters, the first acceleration and deceleration curves choice nonlinear curve, get going on the trip inverter operation, adjusting to change many parameters without results, later renamed the S-curve after the normal. It is the reason : Starting op fan asflue gas flow on its own rotation and inversion as a negative load, This selection of the S-curve, starting just when the frequency increased slowly, in order to avoid a trip to the converter, Of course, this is not starting against DC converter brake function of the method used.9 Torque Vector ControlVector Control is based on the theory that : asynchronous motors and DC motors have the same mechanism of torque. Vector control of the stator current is divided into the current and magnetic torque current, respectively control, while both the synthesis of the stator current output to the motor. Therefore, based on the principle of DC motors available with the same performance. Using torque vector control function, motor in various operating conditions can output maximum torque, especially in the low-speed motor running regional.Now almost all of the inverter by using feedback vector control, As the transducer based on the size and the load current phase of deterioration in compensation, and the motor is the mechanical characteristics are strong, For most occasions have been able to meet the requirements without the external converter installed speed feedback circuit. This function settings, according to the actual situation in the effective and ineffective one can choose.With the transfer function is poor compensation control, whose role is to compensate by load fluctuations caused by the speed deviation can be added corresponding to the load current to the frequency difference. The main function for positioning control.10 Energy-saving controlFans, pumps are reduced torque load, with the speed of that decline, load torque and speed proportional to the square of decreases, and control functions with energy-saving design of the inverter exclusive V / f mode, This model can be improved motor and the inverter efficiency, may reduce the load current automatic converter output voltage, so as to achieve energy-saving purposes, in accordance with the specific circumstances set to be valid or invalid.I need Explained 9、10 these two parameters are very advanced, but some users to upgrade equipment, not simply the opening of these two parameters, that is, after the opening of inverter frequent tripping, suspended after all normal. It is because : (1) original parameters of the inverter and the motor request for the electrical parameters that much difference. (2) for the creation of inadequate understanding of thefunctional parameters, such as energy-saving control function can only be used for V / f controlled manner, not for vector control approaches. (3) the opening of the vector control methods, but no electrical parameters of the manual and automatic settings to read, read or improper methods.From IEEE Trans Automat Control by Engin Yaz变频器基本参数调试变频器功能参数很多,一般都有数十甚至上百个参数供用户选择。

电气自动化 中英文对照 外文翻译 毕业论文

电气自动化 中英文对照 外文翻译 毕业论文

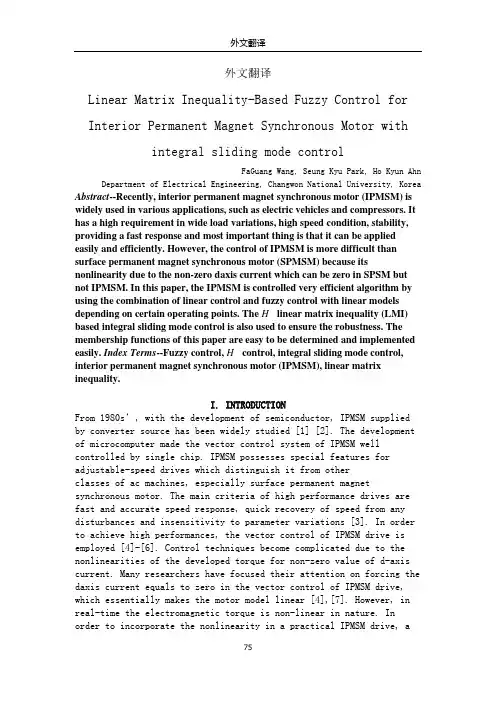

外文翻译Linear Matrix Inequality-Based Fuzzy Control for Interior Permanent Magnet Synchronous Motor with integral sliding mode controlFaGuang Wang, Seung Kyu Park, Ho Kyun Ahn Department of Electrical Engineering, Changwon National University, Korea Abstract--Recently, interior permanent magnet synchronous motor (IPMSM) is widely used in various applications, such as electric vehicles and compressors. It has a high requirement in wide load variations, high speed condition, stability, providing a fast response and most important thing is that it can be applied easily and efficiently. However, the control of IPMSM is more difficult than surface permanent magnet synchronous motor (SPMSM) because its nonlinearity due to the non-zero daxis current which can be zero in SPSM but not IPMSM. In this paper, the IPMSM is controlled very efficient algorithm by using the combination of linear control and fuzzy control with linear models depending on certain operating points. The H linear matrix inequality (LMI) based integral sliding mode control is also used to ensure the robustness. The membership functions of this paper are easy to be determined and implemented easily. Index Terms--Fuzzy control, H control, integral sliding mode control, interior permanent magnet synchronous motor (IPMSM), linear matrix inequality.I. INTRODUCTIONFrom 1980s’, with the development of semiconductor, IPMSM supplied by converter source has been widely studied [1] [2]. The development of microcomputer made the vector control system of IPMSM well controlled by single chip. IPMSM possesses special features for adjustable-speed drives which distinguish it from otherclasses of ac machines, especially surface permanent magnet synchronous motor. The main criteria of high performance drives are fast and accurate speed response, quick recovery of speed from any disturbances and insensitivity to parameter variations [3]. In order to achieve high performances, the vector control of IPMSM drive is employed [4]-[6]. Control techniques become complicated due to the nonlinearities of the developed torque for non-zero value of d-axis current. Many researchers have focused their attention on forcing the daxis current equals to zero in the vector control of IPMSM drive, which essentially makes the motor model linear [4],[7]. However, in real-time the electromagnetic torque is non-linear in nature. In order to incorporate the nonlinearity in a practical IPMSM drive, acontrol technique known as maximum torque per ampere (MTPA) is devised which provides maximum torque with minimum stator current [3]. This MTPA strategy is very important from the limitation of IPMSM and inverter rating points of view, which optimizes the drive efficiency. The problem associated MTPA control technique is that its implementation in real time becomes complicated because there existsa complex relationship between d-axis and q-axis currents. Thus, oneof the main objectives of this paper is to make a new efficientcontrol method for IPMSM and its calculation easy and efficient. The LMI fuzzy H control has been applied and solved the nonlinearity of the IPMSM model to a set of linear model. To increase the robustness for disturbances, an ISMC technique is added to the H controller. By ISMC, the proposed controller gives performances of the H control system without disturbances which satisfy the matching condition. It has a good compatible with linear controllers. T-S fuzzy control [8]is based on the mathematical model which is the combination of local linear models depending on the operating points. Linear controllers are designed for each linear model and they are combined as a controller and make it possible to use linear control theories for nonlinear systems. Linear controls via parallel distributed compensation (PDC) and linear matrix inequality (LMI) is a most popular method considering the stability of the system with PDC [9].H LMI T-S fuzzy controller is considered as a practicalH controller which eliminates the effects of external disturbance below a prescribed level, so that a desired H control performancecan be guaranteed [10-12]. In this paper, the robustness of SMC [13]is added to the H LMI T-S fuzzy controller for the control of IPMSM. We can divide the disturbances in the IPMSM into two parts. Firstpart is that SMC can deal with and other part is dealt by H LMIfuzzy controller. By using ISMC, the robustness of SMC andH performance can be combined. Integral sliding mode control (ISMC) is a kind of SMC which has sliding mode dynamics with the same orderof the controlled system and can have the properties of the other control method.II. H T-S FUZZY CONTROL AND ISMCA. H T-S fuzzy controlConsider a nonlinear system as follows.x(t)=f (x)+g(x)u(t)+w(t) (1)where ||w(t)||≤Wb and Wb is the boundary of disturbance. Dependingon the operating points, the nonlinear system can be expressed as follows.The i-th model is that in the case z1(t) is Mi1 and …and z p(t) isMip ,(2)And H T-S fuzzy feedback controller is ui= -kiX(t) (3)where i=1,2, … ,r and Mij is the fuzzy set and r is the number of model rulesGiven a pair of (x(t),u(t)), the fuzzy systems are inferred as follows:where and μi(z(t)) is themembership for every fuzzy rule.From (1) we get(7)Take (6) into (7), we can get the closed loop systemequations.If we set A present the error boundary of every ruleand satisfy the following condition:In the same way we get:(9)Based on these, the approximation error can bebounded by matrix Ap and Bp . H control performance is:(10)where is the prescribed H norm. If we get theminimized for(10) we can make the effect of w(t) of (1) on x(t) is minimized.If consider the initial condition, the H norm (10) canbe modified as the following form:where P is some symmetric positive definite weighting matrix.The following result is given in [14]:Theorem 1: If system (1) is controlled by T-S fuzzy controller (6), and there is a positive definite matrix P such that(12)then the closed loop system is uniformly ultimately bounded (UUB) and H control performance (11) is guaranteed.It is not easy to obtain P and, fortunately, after small change of (12), it can be solved by LMI toolbox. So we need to do some changes.Assume Utilize the Schur complements for (12), we can get:(13)whereNow the problem changes to find the positive definite matrix L and F to satisfy the condition (13) and we can obtain k j at last. The (13) can be solved by LMI toolbox on computer easily.B. Sliding mode controlThe system (1) with input signal noise or disturbance d(t) is:(14)In the system (14), it can be considered that the disturbance is the summation of two different kinds of disturbancesw(t)=w1(t)+w2(t) (15)where w1(t) satisfies the following matching condition:(16)For the disturbance w1(t) , ISMC gives the desired response of the following system:(17)where x0 represents the state trajectory of the system with the disturbance w2(t) only under H T-S fuzzy control uo . Assume thatw(t) is bounded and that an upper bound can be found as(18)where wmax is a known positive scalar.For system (14), first redesign the control law to beu(t)=u0(t)+u1(t) (19)where is the ideal control defined in (6) and is designed to reject the perturbation term w1(t) .A sliding manifold is defined ass=s0 (x)+z(x) (20)where s,s0 (x), , which consists of two parts: the first part s0(x)is designed as a linear combination of the system states; the second part z introduces the integral term and will be determined below.(21)where initial condition z(0) is determined based on the requirements(0)=0. Different from the conventional design approach, the order of the motion equation in ISMC is equal to the order of the original system, rather than reduced by the dimension of the control input. As a result, robustness of the system can be guaranteed starting from the initial time instance.III. COMBINATION H T-S FUZZY CONTROL ANDINTEGRAL SMCThe mathematic model of an IPMSM in the d-q synchronously rotating reference frame for assumed sinusoidal stator excitation is given as [3]:(22)where p is the differential operator.The overall scheme of the H LMI T-S fuzzy control system is as follows.H LMI T-S fuzzy based ISMC controller designed as following steps. Step.1. utilize the equilibrium point to calculate the error system. System (22) can be presented by state form as:(23)where x1(t) =iq , x2(t) =id , x3(t) =wr ,u10(t) =vq andu20(t) =vd .Based on (23), a reference system can be given as:(24)where f means the required value.Then the following error dynamic system is derived.(25)where e(t)=x(t)-xf (t)Step.2. determine for membership function.For x1 minimum case:For x1 maximum case:For x2 minimum case:For x2 maximum case:The fuzzy rules are as the follows:Rule.1 x1 is minimal and x2 is minimal:M1(t) =E1(t)G1(t) (26)Rule.2 x1 is minimal and x2 is maximal:M2(t) =E1(t)G2(t) (27)Rule.3 x1 is maximal and x2 is minimal:M3(t) =E2(t)G1(t) (28)Rule.4 x1 is maximal and x2 is maximal:M4(t) =E2(t)G2(t) (29)Step.3. obtain the matrixes A and B.Equation (25) can be of the following form:and the value of ( x1lim , x2lim )is based on the rule1 to rule 4, it gets to be x1min,x1max,x2min and x2max .Step.4. calculate controller parameters K using LMI toolbox based on Theorem 1.By LMI, the error systemcontrol input is defined by (6) as(31)where k j is a 1by 3 matrix. Use inequality (13) and Matlab LMI toolbox to calculate out the parameters k j . So that, H T-S fuzzycontroller of the system is where u1 f and u2 fare reference inputs.Step.5. Design ISMC for system.Based on the SMC matching condition the system with disturbance is asfollows: (32)where d(t) is the noise or disturbance.The sliding surface is defined as:(33)x1r and x2r are required output values, x1n and x2n are states of nominalsystem: (34)Assume u1(t)=u10(t)+u1s(t) and u2(t)=u20(t)+u2s(t) .Derivate of slidingsurfaces are:(35)where e1n(t)=x1(t)x1n(t) , e2n(t)=x2(t)x2n(t) , un(t) is the nominalcontrol input and us1 and us2 are sliding control inputs.The sliding controller finally is given out as:(36)where d1max and d1max are the maximal absolute values of disturbance.IV. SIMULATION RESULTSUse the controller design process in above sections with the parameters of Tab.1. Simulation results are:TAB.1. IPMSM PARAMETERS.Fig.2. result of iq with parameter uncertainty and disturbance.Fig.3.result of id with parameter uncertainty and disturbance.Required output values are From the result of Fig.2and Fig.3, we can see that some kind of disturbance can not be solved only by H LMI T-S fuzzy. Combination with ISMC solves this perfectively.V. CONCLUSIONSThe Fuzzy LMI controller is used for IPMSM. It uses the linear models for each operating points. It is shown that only four operating points are enough for the proposed control method. The controller of this paper gives good control performance with only four membership functions which are determined easily. H fuzzy LMI solved theinitial big input for IPMSM from ISMC, while ISMC solved the problem of H fuzzy which is so dependent on fuzzy rules. The final results show that the combination control is efficient and perfect.具有积分滑模控制的内埋式永磁同步电动机基于线性矩阵不等式的模糊控制王发光, Seung Kyu Park, Ho Kyun Ahn韩国昌原国立大学电机工程学系近期摘要,内埋式永磁同步电动机被广泛的用于各种各样的应用中,例如电动汽车和压缩机。

电气类外文翻译

电气类外文翻译

1、外文原文(复印件)A: The Utility Interface with Power Electronic SystemIntroductionWe discussed various powerline disturbances and how power electronic converters can perform as power conditioners and uninterruptible power supplies to prevent these poweline disturbances from disrupting the operation of critical loads such as computers used for controlling important processes, medical equipment, and the like. However, all power electronic converters (including those used to protect critical loads) can add to the inherent powerline disturbances by distorting the utility waveform due to harmonic currents injected into the utility grid and by producing electromagnetic interference, To illustrate the problems due to current harmonics ih in the input current i s of a power electronic load, consider the simple block diagram of Fig. 1-6A-1. Due to the finite (non-zero) internal impedance of the utility source which is simply represented by Ls in Fig. l-6A-1, the voltage waveform at the point of common coupling to the other loads will become distorted, which may cause them to malfunction. In addition to the voltage waveform distortion, some other problems due to the harmonic currents are as follows: additional heating and possibly overvoltages (due to resonance conditions) in the utility's distribution and transmission equipment, errors in metering and malfunction of utility relays, interference with communication and control signals, and so on. In addition to these problems, phase-controlled converters cause notches in the utility voltage waveform and many draw power at a very low displacement power factor which results in a very poor power factor of operation.The foregoing discussion shows that the proliferation of power electronic systems and loads has the potential for significant negative impact on the utilities themselves, as well as on their customers. One approach to minimize this impact is to filter the harmonic currents and the electromagnetic interference (EMI) produced by the power electronic loads. A better alternative, in spite of a small increase in the initial cost, may be to design the power electronic equipment such that the harmoniccurrents and the EMI are prevented or minimized from being generated in the first place. Both, the concerns about the utility interface and the design of power electronic equipment to minimize these concerns are discussed here.Generation of Current HarmonicsIn most power electronic equipment, such as switch-mode dc power supplies, uninterruptible power supplies (UPS), and ac and dc motor drives, ac-to-dc converters are used as the interface with the utility voltage source. Commonly, a line-frequency diode rectifier bridge as shown in Fig.1-6A-2 is used to convert line frequency ac into dc. The rectifier output is a dc voltage whose average magnitude Ud is uncontrolled.A large filter capacitor is used at the rectifier output to reduce the ripple in the dc voltage Ud. The dc voltage Ud and the dc current Id are unipolar and unidirectional, respectively. Therefore, the power flow is always from the utility ac input to the dc side. These line-frequency rectifiers with a falter capacitor at the dc side were discussed in detail in other section.A class of power electronic systems utilizes line-frequency thyristor-controlled ac-to-dc converters as the utility interface. In these converters, which were discussed in detail, the average dc output voltage Ud is controllable in magnitude and polarity, but the dc current Id remains unidirectional. Because of the reversible polarity of the dc voltage, the power flow through these converters is reversible. As was pointed out, the trend is to use these converters only at very high power levels, such as in high-voltage dc transmission systems. Because of the very high power levels, the techniques to ffdter the current harmonics and to improve the power factor of operation are quite different in these converters, as discussed in other section, than those for the line-frequency diode rectifiers.The diode rectifiers are used to interface with both the single-phase and the three-phase utility voltages. Typical ac current waveforms with minimal filtering were shown in other section. Typical harmonics in a single-phase input current waveform are listed in Table 1-6A-1, where the harmonic currents Ih are expressed as a ratio of the fundamental current Il. As is shown by Table 1-6A-l, such current waveformsconsist of large harmonic magnitudes. Therefore, for a finite internal per-phase source impedance Ls, the voltage distortion at the point of common coupling in Fig. 1-6A-1 can be substantial. The higher the internal source inductance Ls, the greater would be the voltage distortion.Current Harmonics and Power FactorAs we discussed in other section, the power factor PF at which an equipment operates is the product of the current ratio Il / Is and the displacement power factor DPF:In Eq. (1-6A-I), the displacement power factor equals the cosine of the angle Φ1. The current ratio Il / Is in Eq. (1-6A-l) is the ratio of the rms value of the fundamental frequency current component to the rms value of the total current. The power factor indicates how effectively the equipment draws power from the utility; at a low power factor of operation for a given voltage and power level, the current drawn by the equipment will be large, thus requiting increased volt-ampere ratings of the utility equipment such as transformers, transmission lines, and generators. The importance of the high power factor has been recognized by residential and office equipment manufacturers for their own benefit to maximize the power available from a wall outlet. For example from a 120V, 15A electrical circuit in a building, the maximum power available is 1.8 kW, provided the power factor is unity. The maximum power that can be drawn without exceeding the 15A limit decreases with decreasing power factor. The foregoing arguments indicate the responsibility and desirability on the part of the equipment manufacturers and users to design power electronic equipment with a high power factor of operation. This requires that the displacement power factor DPF should be high in Eq. (1-6A-I). Moreover, the current harmonics should be low to yield a high current ratio I1 / Is in Eq. (1-6A- 1).B: A Three-phase Pre-converter for Induction HeatingMOSFETBridge InvertersIntroductionHigh frequency power supplies, based on MOSFET bridge inverters, are already widely used for induction heating applications. These units require dc input voltages of about 400V to allow efficient operation of the MOSFETs employed. This supply voltage is usually obtained by using a three-phase rectifier stage, appropriate smoothing components or by employing thyristor phase- angle control to the mains supply. This kind of mains frequency power supply allows output power control of the induction heater, but it suffers from highly distorted input current waveforms with a low power factor. New legislation has been proposed to limit the maximum magnitude of harmonics drawn from the mains supply and different strategies have been suggested to reduce mains pollution.Investigations have been made to replace mains frequency power supplies by switched mode pre-converters. Switched mode converters can be designed to draw sinusoidal input currents thus avoiding the need for large and expensive mains frequency filters. At the same time these converters provide output power control and implementation of a small size high frequency isolation transformer. Power factor corrected three-phase ac-dc switched mode converter systems have usually been obtained using three identical single-phase converters with a common output filter. These systems overcome problems of mains pollution, but suffer from the disadvantage of a relatively large number of components and the need for complicated control and synchronization circuits. To reduce component costs, a structure based on a boost converter with three-phase input diode rectifier has been suggested. However, when operated direct-off-line from a three-phase 415V mains supply, this structure leads to high output voltages above lkV.In this paper, a novel method to achieve power factor correction for three-phase ac to dc power converters is described. The proposed topology is based on the buck converter and allows therefore output voltages to be below the maximum input voltage. The proposed topology utilizes a three- phase diode rectifier at the mains input and a single active switching device. The active switching device operates underzero-current switching conditions, resulting in very high converter efficiencies and low RFI emissions.Zero-current switching technique allows semiconductor devices to be operated at much higher switching frequencies and with reduced drive requirements compared with conventional switched mode operation.The proposed single-ended resonant converter with three-phase diode rectifier offers good opportunities for medium power, ac to dc applications. It combines simplicity and ease of control with high converter efficiency and high output power capabilities. It will be shown in the paper, that these characteristics make the converter very suitable as a direct replacement for the conventional mains frequency power supply used to supply induction heating MOSFET bridge inverters.General DescriptionA block diagram of the proposed induction heating system is shown in Fig. 1-6B-1. Block 1 represents the pre-converter that produces the dc supply voltage to feed to the RF MOSFET bridge inverter. Its output voltage should be controllable over a wide range to control the output power of the inverter and it must be able to operate with a wide range of load resistance to compensate load changes of the induction heating inverter stage. The pre-converter should operate direct-off-line from a three-phase 415V mains supply, drawing sinusoidal input current waveforms with a power factor approaching unity.Block 2 shows the RF MOSFET bridge inverter.The required maximum supply voltage of the MOSFET bridge lies between 300V and 400V. Block 3 represents the control and protection circuit used to stabilise the output power and to allow reliable operation of the induction heater in an industrial environment.Principle of Converter OperationA circuit diagram of the proposed three-phase ac to dc converter topology is shown in Fig. 1- 6B-2. The converter input currents are filtered through the input inductors L1, L2, L3. These inductors are designed so that the converter input currents are approximately constant over a whole switching cycle.During the OFF time of switch S, all three capacitors are charged by the inputcurrents I1, I2,I3. Consequently the three capacitor voltages Uc1, Uc1, Uc1 begin simultaneously to increase at a rate proportional to their respective input currents. If discontinuous operation is assumed the initial voltages of all capacitors C1, C2, C3 are zero when the switch ceases conducting. Hence, the peak voltage across each capacitor at the end of the OFF interval is proportional to their respective phase input current during the same OFF interval. Since capacitor voltages always begin at zero, it means that their average values during OFF time are linearly dependent on the phase input currents.During the ON time of switch S the energy stored in the three input capacitors C1, C2 and C3 is discharged through the six rectifier diodes VD1 –VD6, the switch S and the resonant inductor Lr. The rate of current decrease is dependent on the phase currents I1, I2, I3 and the switch current I0. The average value of the capacitor voltages Uc1, Uc2, Uc3 during the ON time are not linearly dependant on their phase input currents.To draw sinusoidal input currents from the mains supply the converter must draw input currents averaged over each switching cycle which are proportional to the phase voltages. Assuming steady state converter operation, the average phase input voltages over each switching cycle must be equal to the appropriate average input capacitor voltages during the switch OFF time plus the average input capacitor voltages during the switch ON time.Average input capacitor voltages during the switch OFF time have been shown to be proportional to the phase input currents, but during the switch ON time this is not true. However, if the switch ON time of the converter is mucteshorter than the switch OFF time, then the shape of the phase input currents will approach a sinusoidal waveform with unity power factor.2、外文资料翻译译文A:效用界面与电力电子系统介绍我们之前介绍了许多种电力线的干扰情况和电力系统转换器是如何在作为电力调节器和电力电子变换器时,用来防止那些电力线扰动干扰操作的临界荷载,例如电脑用于控制重要步骤,医疗设备,以及类似其他情况。

【机械类文献翻译】变频器和单片机的基本知识

【机械类文献翻译】变频器和单片机的基本知识

Basic Knowledge of Inverters and Single-chip Frequency AC motor speed control used as the principal means have been used in a wide range of applications in the industrial area .It has a wide range of speed, steady speed and high precision, fast dynamic response for a wide range of technical performance and reliable operation has been gradually replace the DC motor speed control system. There are three main control types of inverter: first,through the operator panel inverter, that is, through the operation panel to change the output frequency and other operating parameters.Second, in the frequency converter analog input 0 ~ 10V or 4 ~ 20mA signal.Control the output frequency by changing the size of input analog converter.Third,control the communications port through the inverter.The first scene in general is used for manual adjustment and parameter settings,The latter two kinds of methods are mostly used for automatic regulation and remote control. Commonly PLC, DCS and other control systems in industrial area are applicable to the conditions of inverter interface control module,which can facilitate the realization of the closed-loop converter automatic control.They are more commonly used in large and medium-sized control systems. For some small experimental device and embedded control device, besides controlling the frequency converter, the processor generally also need to deal with keyboard input, display, data acquisition and other work such as process control.Such control is more suitable for single-chip control system as the core.When it comes to the PLC in the form of additional operating panel. It can achieve the function but the cost is too high,So it should not be used.Using single-chip control inverter can choose the last two kinds of methods.The advantage of the use of communication control full control function. By the appropriate level-shifting inverter circuit suitable for the form of communication ,then it can communicate with the inverter.The hardware is simple. The connection between them facilitate a small number of connections. The disadvantage is the need to understand the communication protocol converter in order to control the programming,and the software design is complex. As inverter for different brands of communication interfaces and communication protocols are different, there is no uniform standard can only be developed for a frequency converter,which reduces the choice varieties of frequency converter,and the applicability is limited. As for the analog input control, then almost all of the inverter can support.Although in more single function,it can achieve the main functions of the varies speed.And it can meet the use requirements of the majority of occasions,so it is universal.The most commonly used method of analog input speed is through potentiometer to adjust the frequency.That is, to change the analog input voltage value to achieve the purpose of speed regulation.Although the use of a mechanical potentiometer is simple, but easy to wear and has no enough long-term stability.Besides there is one of the greatest shortcomings is that it is only suitable for manual adjustment. Automatic adjustment can not be achieved.Digital Potentiometers used to replace mechanical potentiometers in single-chip control not only achieve simple VVVF manually, but also in accordance with PID closed-loop control to achieve automatic control.It can be regarded as a good way of a full-featured single-chip to control the inverter.Single-chip componentsIn addition to operation, single-chip also need complete control. Therefore, counting and timing can not be separated. As a result, single-chip is setted with the counter and timer settings. So far here, we already know the basic components of single-chip, that is, single-chip is setted by the CPU, read-only memory, read-write memory, input / output components and so on. In fact there is also a single-chip clock circuit, which during the operation and control of single-chip can be carried out rhythmically. In addition, there are the so-called "interrupt system"” janitor's room".When the single-chip microcomputer to control the parameters of the object need to reach a certain state to intervene,then the janitor's room can be communicated to the CPU.So that CPU in accordance with the priorities of external affairs to take appropriate counter-measures.Single-chip instruction set and assembly language programSingle-chip microcomputer has been described in front of the main component,these parts constitute single-chip hardware. The so-called hardware, is to see, can be touched and received. However, having such a hardware only means having the possibility of the realization of the calculation and control. Truly single-chip microcomputer to calculate and control can also be co-ordination of software. Software refers to various procedures. Only the correct procedure would be deposited in a variety of single-chip, it can work effectively. Therefore, single-chip microcomputer can automatically computing and control, it is precisely because people control the realization of the calculation steps with a step-by-step order form, that is deposited in a pre-instructions to the memory.In the CPU's control, the single-chip will be a command to check out, and the translation and implementation.All of these take a number, send a few, the sum of deposit, etc. are a few operations.We have implemented requires a computer to operate with a variety of forms to write down the order, which is instruction. But how can we identify them and to perform these operations? This is a single-chip in the design by the designers of the instruction given to it by decision. A command corresponds to a basic operation.All the commands that single-chip can implement is the single-chip systems. different types of single-chip have different command systems.When use the single-chip, the prior that should be the problem to be solved is a series of commands. These instructions must be selected to identify and implement single-chip instructions. Single-chip customers to solve their own problems by the instructions, known as the source, for the procedure. Opcode instructions are usually divided into two major parts ,which are operation of the computer and operand.Operation of the computer code means the implementation of any operation, that is, the function of command.Operand means participate in the operation or operand address is located. Because single-chip is a programmable devices,which recognize only the binary code.In order operation single-chip, single-chip microcomputer system in all directions must be in the form of binary code to represent.MCS-51 single-chip has 8-bit word length.Sometimes, it can not fully complete a certain operation using only one expressed bytes. Therefore, there is not only single-byte instruction, but also a number of byte instructions in the instruction. By a series of binary 0 and 1 components, there is no obvious characteristics, poor memory, difficult to understand and easy to make mistakes. Therefore, the direct use of it is very difficult to write procedures. Thus, people use some Mnemonic –usually the English abbreviation of the command function to replace opcode. In this way, there are clear instructions for each action features, easy to memory and understanding,and not prone to error.Mnemonic used to prepare the process is called assembly language program. However, Mnemonic prepared to facilitate understanding of the process can be recognized only single-chip binary machine code, so, in order to allow single-chip can "understand" the assembly language program be replaced by a procedure consisting of binary machine code.The species of the conversion process, known as compilation. Compiled can be achieved through manual look-up table method. We also can draw on PC machine through the so-called "cross-assembler" to complete. Posed by the binary process, once the user has entered a single-chip, and then start thesingle-chip, it can enter the process to implement the mandate.The CPU of 8051 single-chip is made of the controller and the composition operator.CalculatorCalculator completes the binary arithmetic / logic operations as the core components.Together with registers, accumulator, register, the program marks the state of processor registers and Boolean. Accumulator is a mark of eight registers, which is the most frequently working CPU register. In arithmetic and logic operations, the accumulator is often temporary in a pre-computing operands, and computing and then save the results. Register is primarily for multiplication and division operations. Register is also a mark of eight registers, used to store some results of the characteristics of computing,such as binary, by-bit.ControllerController is the nerve center of the CPU, which includes the timing control logic circuit, an instruction register, decoder, address pointer and program counter, stack pointer and so on. Here the program counter is of a mark of sixteen registers. To make the single-chip operate implementation of a program, it is necessary to advance the program into an area of memory. Single-chip action should be taken out of a sequence of instructions to be implemented. Therefore, there must be a circuit to find out where the command module address,and the circuit is the program counter. When the single-chip operate implementation of procedures, put into the program counter with the instruction of the first the address.When it took out a command for each, the program counter automatically increase the content of 1,and point to the next instruction address.So that the implementation of directives can be operated in order. Only when encountered the transfer of command procedures, subroutine call instructions, or face failure, the program counter need go to places. 8051 CPU's designated address from the memory module out of the corresponding instruction bytes of storage on the instruction register.Then, the instructions in instruction register decoder code has been translated into various forms of control signals, these signals with the single-chip clock oscillator generated clock pulse in the timing and control circuit in combination to form a certain period of time by changing the beat level and the clock,which is the so-called control of information.It in the Internal coordination of CPU data transfers between registers, and do other computing operations.MemoryMemory is another important component of memory storage of single-chip. In each memory cell can be located an eight binary information.It is usually presented with two 16-band information,and this is the contents of memory. Memory of the memory cell address and the contents of memory cells are different from the two concepts. They can not be confused.变频器和单片机的基本知识变频调速作为交流电机调速的主要手段已经在工业领域中应用的十分广泛,其具有的调速范围宽、稳速精度高、动态响应快、适用范围广、运行可靠等技术性能,已逐步取代直流电机调速系统。

电动机控制中英文对照外文翻译文献

电动机控制中英文对照外文翻译文献

电动机控制中英⽂对照外⽂翻译⽂献电动机控制中英⽂对照外⽂翻译⽂献(⽂档含英⽂原⽂和中⽂翻译)原⽂:Control of Electric winchFor motor control, we know the best way is to use the style buttons to move the many simple manual console. And this console, in some applications may still be a good choice, as some complex control headache can also be used. This article describes in your design, build or purchase winch controller, you have the motor's basic electrical equipment and you will need to address the user interface command addressed.First, the manual should be a manual control console type, so if you remove your finger buttons, hoist will stop. In addition, each control station equipped with an emergency need to brake, hoist the emergency brake to cut off all power, not just the control circuit. Think about it, if the hoist at the stop, it did not stop, you do need a way to cut off the fault line protection power. Set the table in the control of a key operated switch, is also a very good idea, especially in the line leading to the workstation can not control, you can use the switch.(in the design of the console, even the simplest manual console, but also consider setting by specialized personnel to operate the safe operation of the keys.) Constant speed motor controlFor a fixed speed winch actual control device is a three-phase starter. Turn the motor is reversed, by a simple switch controlled phase transformation sequence from ABC to CBA. These actions are completed by two three-pole contactor-style, and they are interlocked, so that they can not be simultaneously closed. NEC, required in addition to overload and short circuit protection devices. To protect the motor against overload due to mechanical effects caused by overheating in the heat to be installed inside the starter overload delay device. When the heat overload delay device overheating, it has a long double off the metal motor power. In addition In addition, you can also select a thermistor can be installed in the motor winding way, it can be used to monitor motor temperature changes. For the short-circuit protection, we generally used by motor fuses to achieve.A linear current independent contactors, the contactors are configured should be more than the current main circuit contactor, so as to achieve the purpose of redundancy. This sets the current contactor is controlled by the security circuit, such as: emergency brake and the more-way limits.We can use the limit switches to achieve the above operation. When you reach the end of the normal travel limit position, the hoist will stop, and you can only move the winch in the opposite direction (ie, the direction away from the limit position.) There is also need for a more limited way just in case, due to electrical or mechanical problems, leaving the operation of hoist limit bit more than normal. If you run into more limiter, linear contactor will open, therefore, can not be driven winch will exceed this limit position. If this happens, you need to ask a professional technician to check the lead to meet the more specific reasons limiter. Then, you can use thestarter toggle switch inside the elastic recovery process to deal with more problems, rather than tripping device or a hand-off the current contacts.A necessary condition for speedOf course, the simple fixed speed starter is replaced by variable speed drives. This makes things start to get interesting again! At a minimum, you need to add a speed control dial operation platform. Joystick is a better user interface, because it makes you move parts of a more intuitive control.Unfortunately, you can not just from your local console to send commands to control the old variable speed drives, in addition, you can not want it in the initial stages, will be able to enhance the safe and reliable and decentralized facilities. Most of the variable speed drive can not achieve these requirements, because they are not designed to do upgrading work. Drivers need to be set to release the brake before the motor can generate torque, and when parking, that is, before the revocation of torque, the brake will be the first action.For many years, DC motors and drives provide a number of common solutions, such as when they are in a variety of speeds with good torque characteristics. For most of the hoist of the large demand for DC motor is very expensive, and that the same type of AC motor than the much more expensive. Although the early AC drives are not very useful, as they have a very limited scope of application of the speed, but produced only a small low-speed torque. Now, with the DC drives the development of low cost and a large number of available AC motors has led to a communication-driven revolution.Variable speed AC drives in two series. Frequency converter has been widely known and, indeed, easy to use. These drives convert AC into DC, and then, and then convert it back to exchange, the exchange after the conversion is a different frequency. If the drive produced the exchange of 30Hz, 60Hz a normal motor will run at half speed. Theoretically, this is very good, but in practice, this will have a lot of problems. First of all, a typical linear motor 60Hz frequencies below 2Hz 3Hz area or there will be errors, and start cog (that urgent push, yank), or parking. This will limit your speed range lower than 20:1, almost not adapted to the operational phase of the fine adjustment. Second, many low-cost converter is not able to provide the rated torque at low speeds. Use of these drives, will result in the rapid move to upgrade the components or complete failure, precisely, when you try to upgrade a stable scientific instruments, you do not want to see this situation. Some new inverter is a closed-loop system (to get feedback from the motor to provide a more accurate speed control), and the motor will work quite well.Another series of AC drives is the flow vector type drive. These components require installation of the spindle motor encoder, encoder makes use of these drivescan accurately monitor the rotation of the motor armature. Processor accurately measured magnetic flux vector values that are required to make the armature at a given speed rotation. These drives allow infinite speed, so you actually can produce at zero speed to rated torque. These drives provide precise speed and position control, so these drives in high performance applications to be welcomed.(Based on PLC controllers provide system status and control options. This screen shows the operator full access to the nine-story elevator enhance the control panel.) PLC-based systemsIs the full name of a PLC programmable logic controller. First of all, PLC controller developed to replace the fifties and sixties-based industrial control system relay, they work in harsh industrial indoor environments. These are modular systems that have a large variety of I / O modules. The modular system can easily achieve the semi-custom hardware configuration assembled, and the resulting configuration is also very reasonable price. These modules include: position control module, the counter, A / D and D / A converter, and a variety of physical state or physical contact with closed output module. Large number of different types of I / O components and PLC module property makes it an effective way to assemble custom and semi custom control system.The biggest shortcoming of PLC systems is the lack of the real number of display to tell you what is being done and the PLC on the PLC program to help you.T he first is professional entertainment for the large-scale PLC system is one of the original in Las Vegas, MGM (now Bailey Company) of the riding and carriage system. Many manufacturers offer a standard PLC-based semi-automated acoustic systems and a host of signs, set the location of the command line interpreter, and the upgrading of the control system is also available. Using standard modules to set user-defined system configuration capability is based on the PLC controller of the greatest advantage.High-end controllerFor complex transmission, the controller became complex, more than speed, time and location control. They include complex instructions to write and record the movement contour, and the processing can immediately run the ability to multi-point instructions.Many large opera house is toward the direction of point lift system, where each one is equipped with a rope to enhance independent winches, rope equivalent to those of each dimmer circuit. When more than one hoist is used to enhance the individual part, the hoist must be fully synchronous, or the load to shift, so will lead to a separate winch becomes the risk of overload. Control system must be able to be selected to keep pace winch, or a hoist winch is not able to maintain synchronization with the other, can provide the same high-speed parking capacity. For a typical speed of 240 ft / min and a winch to maintain the rate of error of between 1 / 8 points of equipment, you only have less than three microseconds of time to identify problems and try to correct the error The hoist speed, make sure you fail, you start all the winch stop the group. This will require a large amount of computation, fast I / O interface, and easy to use to write software.For large rope control system has two very different solutions. The first is to use a separate console, the problem in general terms, this console should be installed in the appropriate location of the operator perspective. However, this not only from one angle to another angle, but still can not get an instruction to another instruction from the control. These difficulties have been partially resolved. Installed in different locations through the use of video cameras, and these cameras connected to the three-dimensional display graphics, these graphics enables the operator to observe from the perspective of any of the three coordinates in the expected direction of rope movement. These operators can make from a console for him at the actualangle, or closed circuit camera practical perspective, to observe the movement of the rope on the screen. For the complex interrelated moving parts, makes the implementation of the above observation Failure to control and find out easier. Another solution to the problem is a distributed system that uses multiple light console. This will allow the different operators in the same way the different aspects of control gear, we have improved the manual control device. A vivid example is the flower in a vegetable market in central London, the Royal Opera House, the program uses the above, where the control console 240 with ten motors. Each console has five playback device, and has been open, so that each motor has been assigned to a single console. An operator and a console can control all the devices, however, often may be running a console platform screen upgrade, another console is a console on the transmission device, and the third console is used to the necessary backgroundin the background image down.(edge-type portable console allows the operator many advantages from the start to control the movement of the machine, and provide three-dimensional image display.)ConclusionA huge change in the rope control system, a workstation has been developed from a push-button to complex multi-user computerized control system. When the control system to buy rope, you can always find to meet your needs. Control system performance is the most important security and reliability. These are the true value of the property, and you can expect the price to buy a suitable way of security. With a certain product manufacturers to work, he will make you know how to install it. And he will make contact with you and the users, those users have with similar requests.译⽂:电动卷扬机的控制对于电动机的控制,我们所知道的最好的⽅式就是使⽤由许多点动式按钮组成的简单的⼿⼯操作台。

外文翻译--恒压供水变频器-精品

外文翻译--恒压供水变频器-精品

Constant pressure water supply frequency changerThe transistor frequency changer not only overcame has formerly exchanged velocity modulation many shortcomings, moreover the velocity modulation performance might compare favorably with the direct current motor velocity modulation performance. The three-phase asynchronous motor has the service to be convenient, merit and so on price small advantage, power and rotational speed adapt breadth, its frequency conversion velocity modulation technology in the miniaturization, the low cost and the redundant reliable aspect holds the obvious superiority. To the end of the 80's, the alternating current machine frequency conversion velocity modulation technology rapidly develops into a mature technology, it will supply the alternating current machine the labor frequency alternating current supply to turn direct current after the diode rectification, again by component and so on IGBT or GTR module counter will turn the alternating current supply which the frequency might move, will drive the electrical machinery by this power source to move under the speed change condition, and automatic suitable strain load condition. After it changed in the traditional industry the electrical machinery to start only can by the rated power, decide the rotational speed the sole movement way, thus achieved the energy conservation goal. The modern frequency conversion velocity modulation technology applies in the electric power water pump water supply system.Because the frequency conversion velocity modulation has the velocity modula -tion the physical characteristics well, efficiency high, velocity modulation scope -wide, precision high, adjusting character curve smooth, may continual realize, the steady velocity modulation, the volume small, the maintenance simple is conven -ient, the automated level higher a series of prominent merits but time people's favor. When it applies especially in the air blower, the water pump and so on the large capacity load, may obtain the energy conservation effect which other velocity modulation ways is unable to compare. The frequency conversion velocity modulation system main equipment is provides the frequency conversion power source the frequency changer, the frequency changer may divide into exchange - direct current - to exchange the frequency changer and the exchange - exchan ges the frequency changer two big kinds, at present domestic mostly uses hands over - is straight - hands over the frequency changer.Has been published since the general frequency changer, the frequency conversion velocity modulation technology obtained the widespread application in each domain. The frequency conversion modulates velocity the permanent water level feed water equipment by its energy conservation, security, high quality merit and so on water supply quality, caused our country to supply water the profession technical equip level to start from the beginning of the 90's to experience a leap. The constant pressure, the permanent water level water supply velocity modula -tion system realization water pump electrical machinery step less speed regulation, rests on with the water level change regulator system movement parameter, in the water consumption change regulator system movement parameter, changes when the water consumption maintains the hydraulic pressure to be constant and the water level constantly by satisfies the water used request, is now most advanced, the reasonable energy conservation water supply system. Obtained the very big development in the practical application. Along with the electric power electronic technology rapid development, the frequency changer function more and more is also strong. Fully uses each kind of function which in the frequency changer sets, to the reasonable design frequency conversion velocity modulation constant pressure feed water equipment, reduces the cost, guaranteed aspect and so on product quality has the extremely vital significance.In the short several years, the frequency conversion velocity modulation constant pressure water supply system experienced the developing process which consummated gradually, the early time has pumped the velocity modulation constant pressure system to pump only the velocity modulation system to replace gradually. Although only pumps the velocity modulation system design simple reliable, but because only pumps the electrical machinery depth velocity modulation to create the water pump, the electrical machinery operating efficiency lowly, but pumps the velocity modulation system investment more to save, the operating efficiency is high, by the actual proof is the most superior system design, very quickly develops into the leading product. The Semen’s frequency changer design level compares with various brands frequency changer, the function is formidable, impeccable! If again can from the design consider will service convenient to the future, The nature and enhanced the components in the manufacture selection the quality is most ideal.The Semen’s frequency changer rectification unit pressure resistance is 1200V. Ifcan use pressure resistance 1600V the rectification unit, I thought can enhance the stability greatly and reduce the failure rate.Guards against the disturbance the measure to wait for strengthens, Semen’s frequency changer sometimes can but control because of the disturbance question the host the board or I/The O port burnt.The constant pressure water supply series frequency conversion voltmeters is for the air blower, pumps kind, current capacity and the special-purpose frequency conversion voltmeters the pressure control characteristic specially and so on air compressor which but develops. This aircraft type has the general frequency changer the basic function.This product design had mainly considered the energy conservation and the automated request, in sets at the automatic energy conservation, PID, simple PLC and function and so on RS485 communication connection, may facilitate and PLC, the computer or the main line carries on the communication, the convenient customer operation and the monitoring, at the same time this company also specially developed one kind to process the constant pressure water supply specially the control panel, might conveniently be used together with the far biography pressure gauge.First, frequency conversion constant pressure water supply characteristic:1st, the frequency conversion constant pressure for the hydro-energy automatic 24 hour maintenances constant pressure, and automatically starts the relay pump according to the pressure signal, the step less -adjustment pressure, the water supply quality is good, compares with the traditional water supply, cannot create the pipe network to burst and the water cock resonance effect.2nd, the start is smooth, reduces the electrical machinery water pump the impact, lengthened the electrical machinery and the water pump service life, has avoided in the traditional water supply impingement phenomenon.3rd, uses the frequency conversion constant pressure water supply protection function completely, the movement is reliable, has owes presses, has pressed, has flowed, protection function and so on the heat.5th, may according to the user need, choose each kind of attachment function, for example: The electrical machinery fixed time takes turns, function and so on dormancy.Second, principle of work:The frequency conversion constant pressure water supply system uses a potentiometer hypothesis pressure (also to be possible to use kneading board interior hypothesis pressure), uses a pressure transmitter (feedback is 4-20mA) examines in thepipe network the pressure, the pressure transmitter sends in the signal the frequency changer PID return route, after PID return route processing, sends out a water volume to increase or the reduced signal, controls the motor rotational speed. Like in certain delay time, pressure insufficiency or oversized, then does work the frequency through PLC/The frequency conversion cut, causes the actual pipe network pressure to be consistent with the hypothesis pressure.Moreover, along with the water consumption reduction, the frequency changer automatic reduction output frequency, has achieved the energy conservation goal. Third, applicable scope:Uses the frequency conversion constant pressure water supply, has the highly effective energy conservation, the pressure stable, movement reliable, operation simple, installment convenient, occupying a land area of few, the noise is low, does not have the pollution, invests lowly, benefit higher merit. Is suitable specially for:1. Place the and so on guesthouse, office, apartment, inhabitant plot life gives the heat of hydration water heating system.2. The high-rise construction, the large-scale civil construction fire prevention gives the aqueous system.3. Industry and mining production enterprise.4. Each kind of running water factory.恒压供水变频器晶体管变频器不但克服了以往交流调速的许多缺点,而且调速性能可以和直流电动机的调速性能相媲美。

变频器的英文译名是VFD(Variable-frequency Drive),这可能

变频器的英文译名是VFD(Variable-frequency Drive),这可能

变频器的英文译名是VFD(Variable-frequency Drive),这可能是现代科技由中文反向译为英文的为数不多实例之一。

(但VFD也可解释为Vacuum fluorescent display,真空荧光管,故这种译法并不常用)。

变频器是应用变频技术与微电子技术,通过改变电机工作电源频率方式来控制交流电动机的电力控制设备。

变频器在中、韩等亚洲地区受日本厂商影响而曾被称作VVVF (Variable Voltage Variable Frequency Inverter)。

变频器的频率给定方式变频器常见的频率给定方式主要有:操作器键盘给定、接点信号给定、模拟信号给定、脉冲信号给定和通讯方式给定等。

这些频率给定方式各有优缺点,必须按照实际的需要进行选择设置,同时也可以根据功能需要选择不同频率给定方式之间的叠加和切换。

变频器基础原理知识1、什么是变频器?变频器是利用电力半导体器件的通断作用将工频电源变换为另一频率的电能控制装置,能实现对交流异步电机的软起动、变频调速、提高运转精度、改变功率因数、过流/过压/过载保护等功能。

国内技术较领先的品牌有汇川、正弦、德瑞斯、英威腾、欧瑞、蓝海华腾、欣灵、紫日、阿尔法、上海亚泰等。

2、PWM和PAM的不同点是什么?PWM是英文Pulse Width Modulation(脉冲宽度调制)缩写,按一定规律改变脉冲列的脉冲宽度,以调节输出量和波形的一种调制方式。

PAM是英文Pulse Amplitude Modulation (脉冲幅值调制) 缩写,是按一定规律改变脉冲列的脉冲幅度,以调节输出量值和波形的一种调制方式。

3、电压型与电流型有什么不同?变频器的主电路大体上可分为两类:电压型是将电压源的直流变换为交流的变频器,直流回路的滤波是电容;电流型是将电流源的直流变换为交流的变频器,其直流回路滤波是电感。

4、为什么变频器的电压与频率成比例的改变?任何电动机的电磁转矩都是电流和磁通相互作用的结果,电流是不允许超过额定值的,否则将引起电动机的发热。

关于plc外文翻译

关于plc外文翻译

外文翻译中文变频器的工作原理一、基础知识1、概述各国使用的交流供电电源,无论是用于家庭还是用于工厂,其电压和频率均200V/60Hz(50Hz)或100V/60Hz(50Hz),等等。

通常,把电压和频率固定不变的交流电变换为电压或频率可变的交流电的装置称作“变频器”。

为了产生可变的电压和频率,该设备首先要把电源的交流电变换为直流电(DC)。

把直流电(DC)变换为交流电(AC)的装置,其科学术语为“inverter”(逆变器)。

由于变频器设备中产生变化的电压或频率的主要装置叫“inverter”,故该产品本身就被命名为“inverter”,即:变频器,变频器也可用于家电产品。

使用变频器的家电产品中不仅有电机(例如空调等),还有荧光灯等产品。

用于电机控制的变频器,既可以改变电压,又可以改变频率。

但用于荧光灯的变频器主要用于调节电源供电的频率。

汽车上使用的由电池(直流电)产生交流电的设备也以“inverter”的名称进行出售。

变频器的工作原理被广泛应用于各个领域。

例如计算机电源的供电,在该项应用中,变频器用于抑制反向电压、频率的波动及电源的瞬间断电。

2. 电机的旋转速度为什么能够自由地改变?r/min电机旋转速度单位:每分钟旋转次数,也可表示为rpm.例如:4极电机60Hz 1,800 [r/min],4极电机50Hz 1,500 [r/min],电机的旋转速度同频率成比例。

本文中所指的电机为感应式交流电机,在工业领域所使用的大部分电机均为此类型电机。

感应式交流电机(以后简称为电机)的旋转速度近似地确决于电机的极数和频率。

由电机的工作原理决定电机的极数是固定不变的。

由于该极数值不是一个连续的数值(为2的倍数,例如极数为2,4,6),所以不适和改变该值来调整电机的速度。

另外,频率是电机供电电源的电信号,所以该值能够在电机的外面调节后再供给电机,这样电机的旋转速度就可以被自由的控制。

因此,以控制频率为目的的变频器,是做为电机调速设备的优选设备。

外文翻译--变频器使用浅谈-精品

外文翻译--变频器使用浅谈-精品

The frequency converter is used and discussed lightl yThe asynchronous motor is such main power equipment of manufacturing enterprise as electricity , chemical industry ,etc.. As the high energy consumption equipment, its output power can't be up to the change pro rata of load, majority can only turn on through guard or valve degree regulate , but the energy that the motor consumes does not change much, thus cause very great energy to loss . In recent years, one that is with the maturity of the production technology of the frequency converter and range of application of frequency converter is extensive day by day, use the frequency converter to carry on technology to transform to the motor power into the energy-conserving , high-efficiency important means of every enterprise.1. Frequency conversion adjusts the speed principlen=60 f(1-s)/p (1) In the typen---Rotational speed of the asynchronous motor;f---Frequency of the asynchronous motor ;s---The motor is transfered to the difference rate ;p---Logarithm very much of the motor。

变频器外文翻译文献

变频器外文翻译文献

变频器外文翻译文献变频器外文翻译文献(文档含中英文对照即英文原文和中文翻译)外文:Converter reference design(1)Converter Selection:Selection to determine the frequency converter when the following points:1) The purpose of a variable frequency; constant pressure to control or constant current control.2) the load converter types such as leaves or pump volume pumps, with special attention to load the performance curve, the performance curve of the decision of the ways and means.3) the frequency converter and load matchingVoltage match: a rated voltage converter with a rated voltage line with the load. Current matches: ordinary pump, the rated current inverter and motor rated current match. For special load such as deep-water pumps, and so on need to refer to the electrical performance parameters to determine the most current inverter current and Guozainengli.Torque match: in this case constant torque load or slow down when the device may have occurred.4) the use of high-speed motor drive inverter, because of the high-speed motor, anti-small, high harmonics lead to increased output current value increases. So for high-speed motor inverter Selection, its capacity to be slightly larger than the ordinary motor selection.5) If the frequency converter to a long cable run, this time to take measures to curb the long cable to the impact of capacitivecoupling, inadequate efforts to avoid converter, so in this case, the drive to enlarge the capacity of a file or the converter Output installed output reactor.6) For the application of some special occasions, such as high temperatures, high altitude, at this time would cause the down converter capacity, the drive to enlarge the capacity of a block.(2) inverter control schematic design:1) First confirmation of the installation environment ConverterOperating temperature: high-power converter is the internal electronic components, vulnerable to the effects of temperature, product general requirementsfor 0 ~ 55 ℃, but in order to ensure the safe, reliable, the use of room to be taken into account, the best control in 40 ℃below. In the control box, the converter box should generally be installed in the upper and strictly comply with the Manual of installation requirements, absolutely not be allowed to heating elements or components easily fever close to the converter installed at the bottom.Ambient temperature: the temperature is too high and large temperature changes, within easy converter there is dew, the insulation properties will be greatly reduced,or even short-circuit caused the accident. When necessary, to be added to the desiccant in the box and heater. In water treatment, generally heavier than water vapor, if the temperature changes, then this problem would be more prominent.Corrosive gases: the use of the environment if the corrosive gas concentrations, will not only lead corrosion of components, printed circuit boards, but it will also accelerate the aging of plastic devices, reducing insulation properties.Vibration and shock: the control cabinet with converter by vibration and mechanical shocks will cause electrical connection is bad. Huaian thermoelectric there such a problem. Apart from raising the control cabinet at this time of the mechanical strength, vibration and shock away from the source, we must also use seismic rubber pad fixed within and outside the control cabinet, such as electromagnetic switches have a vibration components. Equipment operation after a period of time and should conduct inspections and maintenance.Electromagnetic interference: Inverter at work due to rectification and frequency, produce around a lot of electromagnetic interference, these high-frequency electromagnetic waves in the vicinity of the instrument, apparatus, a certain interference. Therefore, the cabinet instrumentation and electronic systems, it should be optional metal, shielding the inverter instrument interference. All the components should be reliable grounding, in addition, the electrical components, equipment andinstrumentation should use the connectivity between the shielding control cables, and the shield should be grounded. If handled properly electromagnetic interference, often cause the entire system does not work, leading to the control unit failure or damage.2) Drives and determine the distance between the electrical cables and wiring methodsDrives and motor the short distance should be as much as possible. This reduces the capacitance of the cable, reducing the emission source of interference.Control cables optional shielded cable, power cable or optional shielding from the cable converter to use all the threadsof the electrical shield.Electric cables should be independent of the other cable alignment, the minimum distance of 500 mm. At the same time should avoid the electrical cables and other long-running cable lines, in order to reduce the output voltage inverter rapid changes in the electromagnetic interference. If the control cables and power cables cross, as far as possible so that they cross the 90-degree angle. Converter and analog signals on the line and back to the main line of separation of alignment, even in the case also in the control cabinet.And the analog signal converter line the best choice of unshielded twisted pair, shielded power cables selection of the three-core cable (its specifications than ordinary electrical cables in the files) or to comply with the user manual converter.3) inverter control schematicsMain circuit: the role of reactor is to prevent the high-frequency converter harmonic power through the input circuit to return to the grid by the impact of other electronic devices, in accordance with the capacity size converter to decide whether to increase reactor; filter Converter is installed in the output, the output of high-frequency converter to reduce harmonics, when the electrical inverter to the longer distance, we should install filters. Although the frequency converter itself has all kinds of protection, but the lack of protection is not perfect, the main circuit breaker played overload, lack the same protection, selection, in accordance with the capacity to choose the frequency converter. Converter itself can be used to replace thermal overload protection relay.Control loop: the frequency with the frequency manually switch to the failure frequency can be manually cut-operation,not because of output voltage, frequency and frequency-be interlocked.4) Inverter groundingInverter correct grounding is to improve the system stability, the ability to inhibit an important means of noise. Inverter grounding resistance grounding terminal of the smaller the better, the grounding wire cross-section of not less than 4 mm, the length of not more than 5 m. Inverter should be grounded and power equipment to the sites separately, not in total. The shield signal converter from one end of the grounding end, the other floating air. Inverter and control of electrical between the same counter.(3) Inverter Control DesignConverter should be installed in the control cabinet internal control counters in the design should pay attention to the following issues1) heat: Inverter fever is the internal loss. In the frequency converter in the main part of the loss mainly to the main circuit, or about 98 percent, accounting for 2% of control circuits. In order to ensure reliable operation of the normal inverter, Thermal must inverter are usually used for cooling fan; converter fan of the contents of the converter box can be removed internal heat, if the fan does not work, should immediately stop inverter Operation; the high-power inverter also need to increase control Guishang fan, Control of the wind, to design a reasonable, all outlet into the net to set up dust, exhaust open, to avoid over the counter in a swirl, in a fixed location dust Accumulation, according to the statement converter ventilation fans to select the match, fans installed to the attention of earthquake problems.2) the problem of electromagnetic interferenceConverter in its work due to rectification and frequency, produce around a lot of electromagnetic interference, these high-frequency electromagnetic waves in the vicinity of the instrument, apparatus, a certain interference, and will produce high harmonics, the high harmonics will be available for adoption Xinhua loop into the whole power supply network, thus affecting other instruments. If the power inverter system as a whole lot of more than 25 percent, to be considered the anti-jamming measures to control supply.When the system in the high-frequency welding machine such as the impact load, electroplating power, the converter itself will appear as interference protection, to consider the whole system of power quality problems.3) protection issues need to pay attention to the following pointsWaterproof anti-condensation: If the converter on the scene, the need to pay attention to the frequency converter Guishang not have the flange or other pipeline leak, the inverter can not be near the water splash, sum up the scene OEM Switchgear Kits & level of security to IP43 above.BOOT: All outlet into the net to set up dust debris into the barrier floc, dust network should be designed to be removable, to facilitate the clean-up, maintenance. Dust of the grid network in accordance with the specific circumstances at the scene determined that dust around the net and Control Department to handle the combination of tight.Anti-corrosive gases: the chemical industry in this relatively Most of this can be on the frequency counters in the control room.(4) converter cable normsSignal lines and power lines must be separately alignment: the use of analog signal converter for remote control, in order to reduce the analog converter and other equipment from the interference, please control signal converter line with the strong electric circuit (H Circuit-and-loop) separate alignment. Distance should be 30 cm above. Even in the control cabinet, the same connection to maintain such a standard. The signal converter and the control should not be longer than the road back to 50 m. Signal lines and power lines must be placed in different metal pipe or metal hose internal: connect PLC and the signal converter if not placed in metal tubes, Drives and vulnerable to external interference equipment; because the converter No built-in the reactor, so the converter input and output level of external power line will have a very strong interference, placing the signal lines of metal or metal hose has to be extended to the inverter control terminal, to ensure that the signal Line and the complete separation of power lines.1) analog control signal line should use two-strands shielding line, cable specifications for 0.75 mm2. When the wiring must pay attention to, to the extent possible, the cable Baoxian short (5-7 mm or so), while Bao Xian after the shield should wrap insulating tape to prevent shielding lines and other equipment contact with the introduction of interference.2) To improve the simple wiring and reliability, signal recommend the use of online video pressure bar.(5) converter and the operation of the relevant parameters setInverter setting parameters, the parameters of each have a certain range of options, often encountered in the use of individual set of parameters for misconduct, leading converterdoes not work phenomenon.Control: that is, speed control, transferred from the control, PID control or other means. T o take control, according to the general control precision, the need for static or dynamic identification.Running a minimum of: that is, the minimum speed motor running, the motor running at low speed, its poor performance cooling, electrical long run on low speed, it can cause burning motor. And at low speed, the cable will increase in the current, cable will lead to fever.The maximum operating frequency: the general maximum frequency converter to 60 Hz, and some even to 400 Hz, high-frequency will enable high-speed motor operation, which the ordinary motor, its bearings can not be over-speed long run, whether the motor rotor To be capable of such a centrifugal force.Carrier frequency: the higher the carrier frequency setting its high harmonics greater weight, and the length of cable, the electrical heating, cable converter fever fever and other factors are closely related.Electrical parameters: the frequency converter to set parameters of the motor power, current, voltage, speed, maximum frequency, these parameters can be directly in the motor nameplate.FH: In a frequency point, there may be a resonance phenomenon, particularly in the relatively high when the entire device in control of the compressor, thecompressor to avoid the surge point.(6) common fault analysis1) flow failure: over-current fault can be divided into acceleration, deceleration, constant speed over-current. May bedue to the increase in frequency converter too little time to slow down, load mutations, the unequal distribution of load, output short-circuit, and other causes. At this time can be extended by the general acceleration and deceleration time, reduce the load of mutations, plus braking energy components, load distribution design, the lines to be checked. If off-load converter ora failure that has been Central converter inverter circuits, to be replaced converter.2) overload fault: overload fault, including frequency and overload the electrical overload. May be accelerated their time is too short, too low voltage power grids, Fuzaiguochong and other causes. General can be accelerated through the extension of time to extend the braking time, such as check-voltage power grid. Fuzaiguochong, selected motor and inverter can not drag the load, but also may be due to poor machinery lubrication caused. If the former is the need to replace high-power motors and inverter, if the latter will have to carry out maintenance on production machinery.3) under-voltage: the importation of some of the power inverter that there are problems, need to check before you can run.变频器设计使用参考(1)变频器选型:变频器选型时要确定以下几点:1) 采用变频的目的;恒压控制或恒流控制等。

机械 外文翻译 外文文献 英文文献 直流电动机调速控制

机械 外文翻译 外文文献 英文文献 直流电动机调速控制

Speed Control of DC MotorAbstract Conditioning system is characterized in that output power to maintain stability.Different speed control system can use a different brake system,high starting and braking torque,quick response and quick adjustment range of degree requirements of DC drive system,the use of the electric braking mode.Depends on the speed control of DC motor armature voltage and flux.To zero speed,or U=0orΦ=∞.The latter is impossible,it only changes through the armature voltage to reduce speed.To speed to a higher value can increase or decrease the UΦ.Keyword DC Speed Feedback BrakeRegulator SystemsA regulator system is one which normally provides output power in its steady-state operation.For example,a motor speed regulator maintains the motor speed at a constant value despite variations in load torque.Even if the load torque is removed,the motor must provide sufficient torque to overcome the viscous friction effect of the bearings.Other forms of regulator also provide output power;A temperature regulator must maintain the temperature of,say,an oven constant despite the heat loss in the oven.A voltage regulator must also maintain the output voltage constant despite variation in the load current.For any system to provide an output,e.g.,speed,temperature,voltage,etc.,an error signal must exist under steady-state conditions.Electrical BrakingIn many speed control systems,e.g.,rolling mills,mine winders,etc.,the load has to be frequently brought to a standstill and reversed.The rate at which the speed reduces following a reduced speed demand is dependent on the stored energy and the braking system used.A small speed control system(sometimes known as a velodyne)can employ mechanical braking,but this is not feasible with large speed controllers since it is difficult and costly to remove the heat generated.The various methods of electrical braking available are:(1)Regenerative braking.(2)Eddy current braking.(3)Dynamic braking.(4)Reverse current braking(plugging)Regenerative braking is the best method,though not necessarily the most economic. The stored energy in the load is converted into electrical energy by the work motor (acting temporarily as a generator)and is returned to the power supply system.The su pply system thus acts as a”sink”into which the unwanted energy is delivered.Providing the supply system has adequate capacity,the consequent rise in terminal voltage will be small during the short periods of regeneration.In the Ward-Leonard method of speed control of DC motors,regenerative braking is inherent,but thyristor drives have to be arranged to invert to regenerate.Induction motor drives can regenerate if the rotor shaft is driven faster than speed of the rotating field.The advent of low-cost variable-frequency supplies from thyristor inverters have brought about considerable changes in the use of induction motors in variable speed drives.Eddy current braking can be applied to any machine,simply by mounting a copper or aluminum disc on the shaft and rotating it in a magnetic field.The problem of removing the heat generated is severe in large system as the temperature of the shaft, bearings,and motor will be raised if prolonged braking is applied.In dynamic braking,the stored energy is dissipated in a resistor in the circuit.When applied to small DC machines,the armature supply is disconnected and a resistor is connected across the armature(usually by a relay,contactor,or thyristor).The field voltage is maintained,and braking is applied down to the lowest speed.Induction motors require a somewhat more complex arrangement,the stator windings being disconnected from the AC supply and reconnected to a DC supply.The electrical energy generated is then dissipated in the rotor circuit.Dynamic braking is applied to many large AC hoist systems where the braking duty is both severe and prolonged.DC Motor Speed ControlThe basis of all methods of DC motor speed control is derived from the equations:E∝ΦωU=E+I Ra athe terms having their usual meanings.If the IaRa drop is small,the equations approximate to U∝Φωorω=UΦ。

  1. 1、下载文档前请自行甄别文档内容的完整性,平台不提供额外的编辑、内容补充、找答案等附加服务。
  2. 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
  3. 3、如文档侵犯您的权益,请联系客服反馈,我们会尽快为您处理(人工客服工作时间:9:00-18:30)。

变频器外文翻译文献(文档含中英文对照即英文原文和中文翻译)外文:Converter reference design(1)Converter Selection:Selection to determine the frequency converter when the following points:1) The purpose of a variable frequency; constant pressure to control or constant current control.2) the load converter types such as leaves or pump volume pumps, with special attention to load the performance curve, the performance curve of the decision of the ways and means.3) the frequency converter and load matchingVoltage match: a rated voltage converter with a rated voltage line with the load. Current matches: ordinary pump, the rated current inverter and motor rated current match. For special load such as deep-water pumps, and so on need to refer to the electrical performance parameters to determine the most current inverter current and Guozainengli.Torque match: in this case constant torque load or slow down when the device may have occurred.4) the use of high-speed motor drive inverter, because of the high-speed motor, anti-small, high harmonics lead to increased output current value increases. So for high-speed motor inverter Selection, its capacity to be slightly larger than the ordinary motor selection.5) If the frequency converter to a long cable run, this time to take measures to curb the long cable to the impact of capacitive coupling, inadequate efforts to avoid converter, so in this case, the drive to enlarge the capacity of a file or the converter Output installed output reactor.6) For the application of some special occasions, such as high temperatures, high altitude, at this time would cause the down converter capacity, the drive to enlarge the capacity of a block.(2) inverter control schematic design:1) First confirmation of the installation environment ConverterOperating temperature: high-power converter is the internal electronic components, vulnerable to the effects of temperature, product general requirementsfor 0 ~ 55 ℃, but in order to ensure the safe, reliable, the use of room to be taken into account, the best control in 40 ℃below. In the control box, the converter box should generally be installed in the upper and strictly comply with the Manual of installation requirements, absolutely not be allowed to heating elements or components easily fever close to the converter installed at the bottom.Ambient temperature: the temperature is too high and large temperature changes, within easy converter there is dew, the insulation properties will be greatly reduced,or even short-circuit caused the accident. When necessary, to be added to the desiccant in the box and heater. In water treatment, generally heavier than water vapor, if the temperature changes, then this problem would be more prominent.Corrosive gases: the use of the environment if the corrosive gas concentrations, will not only lead corrosion of components, printed circuit boards, but it will also accelerate the aging of plastic devices, reducing insulation properties.Vibration and shock: the control cabinet with converter by vibration and mechanical shocks will cause electrical connection is bad. Huaian thermoelectric there such a problem. Apart from raising the control cabinet at this time of the mechanical strength, vibration and shock away from the source, we must also use seismic rubber pad fixed within and outside the control cabinet, such as electromagnetic switches have a vibration components. Equipment operation after a period of time and should conduct inspections and maintenance.Electromagnetic interference: Inverter at work due to rectification and frequency, produce around a lot of electromagnetic interference, these high-frequency electromagnetic waves in the vicinity of the instrument, apparatus, a certain interference. Therefore, the cabinet instrumentation and electronic systems, it should be optional metal, shielding the inverter instrument interference. All the components should be reliable grounding, in addition, the electrical components, equipment andinstrumentation should use the connectivity between the shielding control cables, and the shield should be grounded. If handled properly electromagnetic interference, often cause the entire system does not work, leading to the control unit failure or damage.2) Drives and determine the distance between the electrical cables and wiring methodsDrives and motor the short distance should be as much as possible. This reduces the capacitance of the cable, reducing the emission source of interference.Control cables optional shielded cable, power cable or optional shielding from the cable converter to use all the threads of the electrical shield.Electric cables should be independent of the other cable alignment, the minimum distance of 500 mm. At the same time should avoid the electrical cables and other long-running cable lines, in order to reduce the output voltage inverter rapid changes in the electromagnetic interference. If the control cables and power cables cross, as far as possible so that they cross the 90-degree angle. Converter and analog signals on the line and back to the main line of separation of alignment, even in the case also in the control cabinet.And the analog signal converter line the best choice of unshielded twisted pair, shielded power cables selection of the three-core cable (its specifications than ordinary electrical cables in the files) or to comply with the user manual converter.3) inverter control schematicsMain circuit: the role of reactor is to prevent the high-frequency converter harmonic power through the input circuit to return to the grid by the impact of other electronic devices, in accordance with the capacity size converter to decide whether to increase reactor; filter Converter is installed in the output, the output of high-frequency converter to reduce harmonics, when the electrical inverter to the longer distance, we should install filters. Although the frequency converter itself has all kinds of protection, but the lack of protection is not perfect, the main circuit breaker played overload, lack the same protection, selection, in accordance with the capacity to choose the frequency converter. Converter itself can be used to replace thermal overload protection relay.Control loop: the frequency with the frequency manually switch to the failure frequency can be manually cut-operation, not because of output voltage, frequency and frequency-be interlocked.4) Inverter groundingInverter correct grounding is to improve the system stability, the ability to inhibit an important means of noise. Inverter grounding resistance grounding terminal of the smaller the better, the grounding wire cross-section of not less than 4 mm, the length of not more than 5 m. Inverter should be grounded and power equipment to the sites separately, not in total. The shield signal converter from one end of the grounding end, the other floating air. Inverter and control of electrical between the same counter.(3) Inverter Control DesignConverter should be installed in the control cabinet internal control counters in the design should pay attention to the following issues1) heat: Inverter fever is the internal loss. In the frequency converter in the main part of the loss mainly to the main circuit, or about 98 percent, accounting for 2% of control circuits. In order to ensure reliable operation of the normal inverter, Thermal must inverter are usually used for cooling fan; converter fan of the contents of the converter box can be removed internal heat, if the fan does not work, should immediately stop inverter Operation; the high-power inverter also need to increase control Guishang fan, Control of the wind, to design a reasonable, all outlet into the net to set up dust, exhaust open, to avoid over the counter in a swirl, in a fixed location dust Accumulation, according to the statement converter ventilation fans to select the match, fans installed to the attention of earthquake problems.2) the problem of electromagnetic interferenceConverter in its work due to rectification and frequency, produce around a lot of electromagnetic interference, these high-frequency electromagnetic waves in the vicinity of the instrument, apparatus, a certain interference, and will produce high harmonics, the high harmonics will be available for adoption Xinhua loop into the whole power supply network, thus affecting other instruments. If the power inverter system as a whole lot of more than 25 percent, to be considered the anti-jammingmeasures to control supply.When the system in the high-frequency welding machine such as the impact load, electroplating power, the converter itself will appear as interference protection, to consider the whole system of power quality problems.3) protection issues need to pay attention to the following pointsWaterproof anti-condensation: If the converter on the scene, the need to pay attention to the frequency converter Guishang not have the flange or other pipeline leak, the inverter can not be near the water splash, sum up the scene OEM Switchgear Kits & level of security to IP43 above.BOOT: All outlet into the net to set up dust debris into the barrier floc, dust network should be designed to be removable, to facilitate the clean-up, maintenance. Dust of the grid network in accordance with the specific circumstances at the scene determined that dust around the net and Control Department to handle the combination of tight.Anti-corrosive gases: the chemical industry in this relatively Most of this can be on the frequency counters in the control room.(4) converter cable normsSignal lines and power lines must be separately alignment: the use of analog signal converter for remote control, in order to reduce the analog converter and other equipment from the interference, please control signal converter line with the strong electric circuit (H Circuit-and-loop) separate alignment. Distance should be 30 cm above. Even in the control cabinet, the same connection to maintain such a standard. The signal converter and the control should not be longer than the road back to 50 m. Signal lines and power lines must be placed in different metal pipe or metal hose internal: connect PLC and the signal converter if not placed in metal tubes, Drives and vulnerable to external interference equipment; because the converter No built-in the reactor, so the converter input and output level of external power line will have a very strong interference, placing the signal lines of metal or metal hose has to be extended to the inverter control terminal, to ensure that the signal Line and the complete separation of power lines.1) analog control signal line should use two-strands shielding line, cable specifications for 0.75 mm2. When the wiring must pay attention to, to the extent possible, the cable Baoxian short (5-7 mm or so), while Bao Xian after the shield should wrap insulating tape to prevent shielding lines and other equipment contact with the introduction of interference.2) To improve the simple wiring and reliability, signal recommend the use of online video pressure bar.(5) converter and the operation of the relevant parameters setInverter setting parameters, the parameters of each have a certain range of options, often encountered in the use of individual set of parameters for misconduct, leading converter does not work phenomenon.Control: that is, speed control, transferred from the control, PID control or other means. To take control, according to the general control precision, the need for static or dynamic identification.Running a minimum of: that is, the minimum speed motor running, the motor running at low speed, its poor performance cooling, electrical long run on low speed, it can cause burning motor. And at low speed, the cable will increase in the current, cable will lead to fever.The maximum operating frequency: the general maximum frequency converter to 60 Hz, and some even to 400 Hz, high-frequency will enable high-speed motor operation, which the ordinary motor, its bearings can not be over-speed long run, whether the motor rotor To be capable of such a centrifugal force.Carrier frequency: the higher the carrier frequency setting its high harmonics greater weight, and the length of cable, the electrical heating, cable converter fever fever and other factors are closely related.Electrical parameters: the frequency converter to set parameters of the motor power, current, voltage, speed, maximum frequency, these parameters can be directly in the motor nameplate.FH: In a frequency point, there may be a resonance phenomenon, particularly in the relatively high when the entire device in control of the compressor, thecompressor to avoid the surge point.(6) common fault analysis1) flow failure: over-current fault can be divided into acceleration, deceleration, constant speed over-current. May be due to the increase in frequency converter too little time to slow down, load mutations, the unequal distribution of load, output short-circuit, and other causes. At this time can be extended by the general acceleration and deceleration time, reduce the load of mutations, plus braking energy components, load distribution design, the lines to be checked. If off-load converter ora failure that has been Central converter inverter circuits, to be replaced converter.2) overload fault: overload fault, including frequency and overload the electrical overload. May be accelerated their time is too short, too low voltage power grids, Fuzaiguochong and other causes. General can be accelerated through the extension of time to extend the braking time, such as check-voltage power grid. Fuzaiguochong, selected motor and inverter can not drag the load, but also may be due to poor machinery lubrication caused. If the former is the need to replace high-power motors and inverter, if the latter will have to carry out maintenance on production machinery.3) under-voltage: the importation of some of the power inverter that there are problems, need to check before you can run.变频器设计使用参考(1)变频器选型:变频器选型时要确定以下几点:1) 采用变频的目的;恒压控制或恒流控制等。
