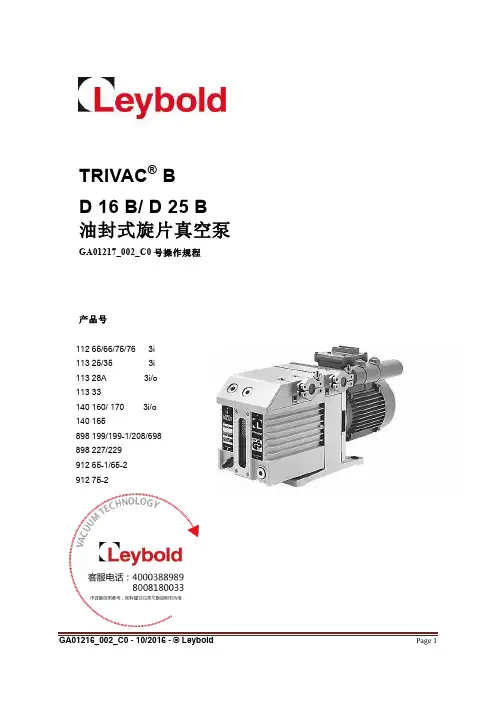

Leybold TRIVAC B D 16 B D 25 B 油封式旋片真空泵操作规程说明书
TRIVAC® BD 16 B/ D 25 B 油封式旋片真空泵GA01217_002_C0号操作规程产品号113 25/353i113 28A 3i/o113 33140 160/ 1703i/o140 165898 199/199-1/208/698898 227/229912 65-1/65-2912 75-2目录安全信息 (5)0.1 机械危害 (5)0.2 电气危害 (5)0.3 热危害 (5)0.4 材料和物质所引起的危害 (6)0.5 着火危险 (6)0.6 噪声危害 (7)0.7 泵损坏的危险 (7)TRIV AC B ATEX 类别3 i 和3 i/o 真空泵 (8)运行于危险爆炸区域的操作指导 (8)泵的分类和标记 (8)相关符号的解释 (8)保护措施 (9)附加安全措施 (10)1.说明 (11)1.1 功能 (13)1.2 润滑油 (15)1.3所供设备 (15)1.4技术参数 (16)1.5 附件 (25)2. 运输和贮存 (26)3. 安装 (26)3.1 放置 (26)3.2 符合规定的使用 (27)3.2.1 不符合规定的使用 (28)3.3 连接至系统 (29)3.4 电气连接 (30)3.4.1 泵带单相交流电机 (30)3.4.2 泵带三相交流电机 (30)3.5 连接Atex电机 (32)3.5.1 安装信息概要 (34)3.5.2 固定耦合器 (35)3.5.3 固定电机 (36)3.5.4 电气连接 (36)4. 操作 (37)4.1介质兼容性 (37)4.2启动 (37)4.3运行 (38)4.3.1 抽除非可凝性气体和蒸汽 (38)4.3.2 抽除可凝性气体和蒸汽 (38)4.3.3 运行温度 (38)4.4停泵 (39)4.4.1 控制系统/电源故障 (39)5维护 (40)5.1 维护计划 (41)5.2莱宝真空售后服务 (42)5.3监视油位 (42)5.3.1 检查油的状态 (42)5.4换油 (43)5.5清洁进口滤网 (44)5.6 拆/装内部油雾分离器 (45)5.7电动机的拆卸和重新组装 (47)5.7.1 检查联轴器 (47)5.8 更换轴封 (47)5.9 拆卸和重新装配泵模块 (49)5.9.1 拆卸泵模块 (49)5.9.2 重新装配泵模块 (50)6 故障排除 (51)7. 易损件和备件 (53)8. 废物处置 (53)本公司保留修改设计和规定数据的权利。
莱宝产品手册
概述 莱宝真空阀 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 产品 “微型”阀门 综述 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 角阀和直通阀，波纹管密封，多种驱动器 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 ISO - KF法兰真空阀 综述 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 DN 16 ISO-KF 到 DN 50 ISO-KF 角阀，波纹管密封，手动操作 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 直通阀，波纹管密封，手动操作 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 角阀，波纹管密封（电磁）气动 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 直通阀，波纹管密封（电磁）气动 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 角阀和直通阀，电磁操作 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 ISO - K法兰真空阀 综述 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 DN 63 ISO-K 到 DN 160 ISO-K 角阀，波纹管密封 手动操作 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 电磁气动操作. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 DN 250 ISO-K 角阀，波纹管密封，电磁气动操作 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 DN 400 到 DN 1000 大角阀 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 ISO - KF / ISO - K / CF 法兰真空阀 综述 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 DN 10 ISO-KF 到 DN 40 ISO-KF or ISO-K SECUVAC真空安全阀 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 抗干扰抑制套件. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 泄压阀 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 断电破空阀，电磁 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 粗调可变漏率阀，无隔离阀. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 带隔离阀的可变漏率阀 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 破空阀 手动操作 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 电磁气动操作. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 真空锁和密封阀 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 球阀 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
真空机组使用说明及注意事项(三篇)
真空机组使用说明及注意事项一真空机组开机流程1、启动VB150维持泵，然后打开出口阀。
当电阻计2真空度达到5帕以下时，启动扩散泵加热。
2、启动VB200旋片泵，打开旁通阀；当电阻计1真空度达到xx 帕以下时，开启2ZJP300罗茨泵，进行预抽。
3、扩散泵加热50分钟以上且电离计真空达到5帕以下时，先关闭旁通阀，再打开主阀，进行主抽。
4、关闭2ZJP300罗茨泵，30秒后关闭VB200旋片泵。
二真空机组关机流程1、关闭主阀。
2、启动-----关机程序。
三真空机组使用注意事项1、真空机组在使用的整个过程中，必须保证水路、气路完整通畅。
2、必须严格按照真空机组的开机、关机流程，进行操作。
3、扩散泵加热过程中，若不慎断水。
应先关闭扩散泵电源，再关闭主阀。
然后摘下扩散泵电炉加热器，并使用电风扇进行降温。
在这过程中，要一直保持VB150维持泵和出口阀处于开启状态。
4、扩散泵加热过程中，若VB150维持泵出现故障不工作，应先关闭出口阀，然后启动VB200旋片泵，再启动2ZJP300罗茨泵，打开维持阀进行主抽。
真空机组使用说明及注意事项（二）一、真空机组的概述真空机组是一种用于产生、维持和控制特定压力范围内的真空的设备。
它主要由真空泵、真空计、阀门等组成，通过这些设备的协作实现真空的生成和控制，为实验室、生产工艺或其他应用提供所需的真空环境。
二、真空机组的使用说明1. 安装位置选定真空机组安装应选择通风良好、干燥且无尘、无震动的场所。
要避免阳光直射和高温环境，以确保机组正常运行和延长使用寿命。
2. 电源和电气连接在使用真空机组之前，确认电源电压和频率与机组要求一致。
正确接地电源线，并按照接线图连接电源。
3. 维护保养真空机组应定期进行维护保养，包括清洁除尘、润滑和更换易损件等。
特别注意保持泵内干燥，防止泵叶生锈和腐蚀，影响真空度。
4. 开机前准备在启动真空机组之前，应检查各个部件是否正常，确保泵油达到标准液位，检查阀门是否关闭，以及泵是否连接好并无漏气。
莱宝产品手册
目录阀门与附件概述莱宝真空阀 3 产品“微型”阀门综述 6 角阀和直通阀，波纹管密封，多种驱动器7 ISO - KF法兰真空阀综述9 DN 16 ISO-KF 到DN 50 ISO-KF角阀，波纹管密封，手动操作10 直通阀，波纹管密封，手动操作11 角阀，波纹管密封（电磁）气动12 直通阀，波纹管密封（电磁）气动14 角阀和直通阀，电磁操作16 ISO - K法兰真空阀综述18 DN 63 ISO-K 到DN 160 ISO-K角阀，波纹管密封手动操作19 电磁气动操作21 DN 250 ISO-K角阀，波纹管密封，电磁气动操作23 DN 400 到DN 1000大角阀25 ISO - KF / ISO - K / CF 法兰真空阀综述27 DN 10 ISO-KF 到DN 40 ISO-KF or ISO-KSECUVAC真空安全阀28抗干扰抑制套件30 泄压阀31 断电破空阀，电磁32 粗调可变漏率阀，无隔离阀33 带隔离阀的可变漏率阀34 破空阀手动操作35 电磁气动操作36 真空锁和密封阀37 球阀39 电磁气动操作阀附件先导阀40 干扰抑制套件40 DN 250 ISO - K电磁线圈41涡轮分子泵特殊阀42 DN 16 CF 到DN 63 CFUHV全金属角阀UHV全金属角阀，两侧都带活套法兰44 UHV全金属可变漏率阀45 插板阀，配ISO - KF/CF/ISO - F法兰综述46 微型插板阀，ISO - KF，手动操作（活节杆）47 微型UHV插板阀，ISO - KF和CF手动操作（手轮）49 电磁气动操作51 HV插板阀，ISO - F手动操作53 电磁气动操作55 UHV插板阀，CF，手动操作57 UHV插板阀，电磁气动操作ISO - F法兰59 CF法兰61 法兰和真空连接件63 穿通密封接头64莱宝真空概述莱宝真空阀莱宝真空旨在通过提供各种隔离元所有应用都有以下共同要求：根据各种用途选择和设计的阀门与件和阀门满足客户与该类元件设计有关 真空保护元件体现了莱宝真空长期以来 - 轻巧地打开，振动很小 在真空工程方面的经验。

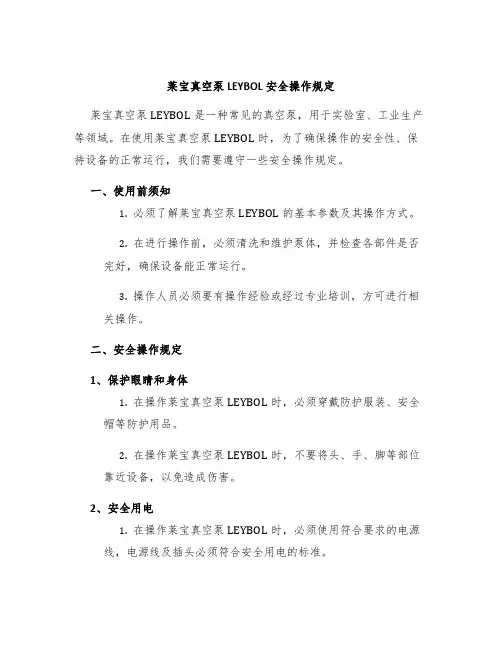

莱宝真空泵LEYBOL安全操作规定
莱宝真空泵LEYBOL安全操作规定莱宝真空泵LEYBOL是一种常见的真空泵，用于实验室、工业生产等领域。
在使用莱宝真空泵LEYBOL时，为了确保操作的安全性、保持设备的正常运行，我们需要遵守一些安全操作规定。
一、使用前须知1.必须了解莱宝真空泵LEYBOL的基本参数及其操作方式。
2.在进行操作前，必须清洗和维护泵体，并检查各部件是否完好，确保设备能正常运行。
3.操作人员必须要有操作经验或经过专业培训，方可进行相关操作。
二、安全操作规定1、保护眼睛和身体1.在操作莱宝真空泵LEYBOL时，必须穿戴防护服装、安全帽等防护用品。
2.在操作莱宝真空泵LEYBOL时，不要将头、手、脚等部位靠近设备，以免造成伤害。
2、安全用电1.在操作莱宝真空泵LEYBOL时，必须使用符合要求的电源线，电源线及插头必须符合安全用电的标准。
2.保持电源线和插头干净，防止受潮、受损引起电流过大等危险。
3、操作泵体1.在操作莱宝真空泵LEYBOL时，必须熟练掌握各部位的操作方法和注意事项，按照设备说明书进行操作。
2.严格使用莱宝真空泵LEYBOL所配套的各类阀门、附件等设备，禁止私自拆卸和更改。
3.使用莱宝真空泵LEYBOL时，应严格按照所需真空度进行操作。
4.长时间连续使用莱宝真空泵LEYBOL时，应注意泵体温度，防止过热。
4、泵体的维护保养1.操作完毕后，对真空泵进行彻底清洗和检查，以防止污染设备和对下一次使用造成影响。
2.莱宝真空泵LEYBOL的机油定期更换，可以根据操作时间或设备说明书规定的操作十次后进行机油更换。
3.莱宝真空泵LEYBOL的滤芯定期更换，建议每2-3个操作时间进行更换。
三、常见故障解决方法1.泵体振动过大如果发现泵体振动过大，可能是由于泵罩摆放不平，罩体未紧固或泵体叶轮不均匀等原因造成，应及时处理。
2.泵体备压困难如果泵体备压困难，则需要检查阀门是否完好，防止密封不良等情况。
3.泵体漏气如果发现泵体漏气现象，需要检查密封的各个部位和出口阀门是否完好，如不完好，则需要及时更换。

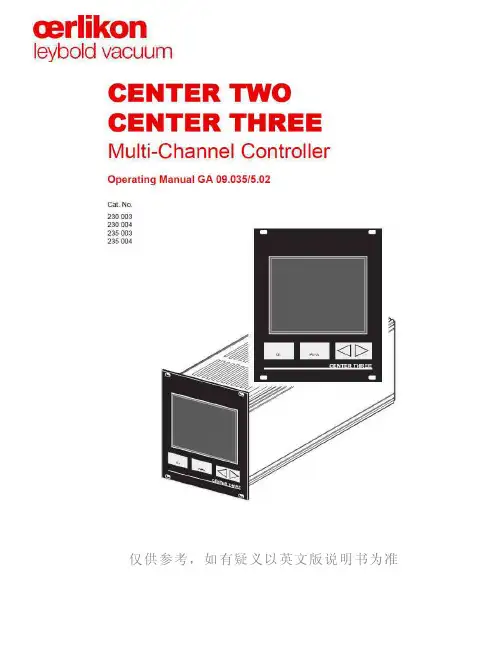

莱宝真空产品说明书Center Two-Three 真空规管控制器
