CATIA 快捷键的设置方法
Catia小技巧(2)

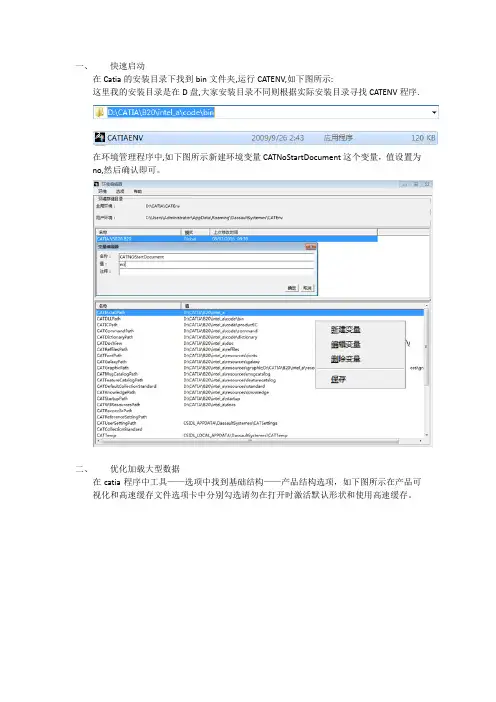

一、快速启动在Catia的安装目录下找到bin文件夹,运行CATENV,如下图所示:这里我的安装目录是在D盘,大家安装目录不同则根据实际安装目录寻找CATENV程序.在环境管理程序中,如下图所示新建环境变量CATNoStartDocument这个变量，值设置为no,然后确认即可。
二、优化加载大型数据在catia程序中工具——选项中找到基础结构——产品结构选项，如下图所示在产品可视化和高速缓存文件选项卡中分别勾选请勿在打开时激活默认形状和使用高速缓存。
高速缓存的文件目录与大小大家可以自己定义三、 自定义设置1. 设置快捷键Catia 程序中工具——自定义选项中打开命令选项卡，如下图所示，寻找自己需要的命令然后自定义快捷方式。
2.自定义工具栏Catia程序中工具——自定义选项中打开工具栏选项卡，如下图所示寻找自己需要的工具栏并添加进当前模块。
四、开启管理员模式在Catia环境设置中设置如下两个变量的变量值。
（值为储存路径，可自行设置，建议使用catia目录下的）右键桌面的catia启动图标，在属性——目标路径按下列方式添加“空格-admin”开启管理员模式。
成功后如下图所示会弹出提示。
D:\CATIA\B20\intel_a\code\bin\CATSTART.exe -run "CNEXT.exe " -env CATIA.V5R20.B20-direnv "D:\CATIA\CATEnv" -nowindowD:\CATIA\B20\intel_a\code\bin\CATSTART.exe -run "CNEXT.exe -admin" -envCATIA.V5R20.B20 -direnv "D:\CATIA\CATEnv" -nowindow进入管理员模式后就可以修改默认的设置了，主要用于2维图的字体，线型，箭头类型等设置。
