日立存储设备操作维护手册。

合集下载

日立虚拟存储平台VSP E990产品说明书

DATA SHEE TWe Deliver Trusted Capabilities That Won’t Break the BankWith Hitachi Virtual Storage Platform E990 and the rest of our midrange storage family, we provide agile and automated data center technology. These systems enable you to cost-effectively meet your users’ current digital expectations and give them the ability to address future challenges as application data needs and service levels evolve. With time-tested, proven availability and scalability, we deliver infrastructure solutions that help you maximize your data center advantage. Give your federal agency the per-formance that large enterprises rely on to satisfy the demands of real-time, data-hungry applications. VSP E990’s NVMe architecture delivers consistent, industry-leading, low-microsecond latency, reduces the transaction costs of latency-critical applications and delivers predictable performance to optimize stor-age resources.Use analytics based on Hitachi Ops Center to properly analyze your operating envi-ronment to highlight your most demanding workloads for critical applications, such as online transaction processing databases, virtual desktop infrastructure (VDI) or artifi-cial intelligence (AI) based analytics. These tasks can best leverage the low latency benefits of VSP E990 with NVMe, while improving your data management produc-tivity and driving down infrastructure costs.Take advantage of the advanced capa-bilities in the VSP E990 across all of yourdata center storage assets through vir-tualization pioneered by Hitachi. Storagevirtualization gives you a common man-agement control point for multiple storagesystems, which drives increased adminis-trative efficiencies. Data services, like datareduction, automation and metrocluster-ing, that are available with VSP E990 areextended to virtualized storage systemsto give them more value and an extendedlife cycle.Enterprise AgilityBuilding upon our successful portfolio ofall-flash data solutions, the NVMe archi-tecture of the VSP E990 is powered bythe same Hitachi Storage VirtualizationOperating System RF (SVOS RF) oper-ating system that protects our largestcustomers. This means you can manageand replicate your data between SVOS RFsystems and avoid creating silos of data.VSP E990 scales up to 1.4PB of NVMeflash capacity and 5.79M IOPS of perfor-mance, allowing for massive consolidationof workloads, which leads to cost sav-ings for you. Response times as low as64 microseconds mean applications willrun at speeds that will drive efficienciesthroughout your business. (See Table 1.)Hitachi Vantara has designed intelligenceinto our adaptive data reduction tech-nology, which means that you can rundata reduction with confidence with allyour applications, even the ones that arethe most performance hungry. With ourproven data reduction capabilities, VSPE990 allows organizations to adopt allNVMe today and make effective use ofour 4:1 sight-unseen effective capacityguarantee plus our 7:1 total efficiencyguarantee.Legendary Hitachi ResilienceVSP E990 builds on 57 years of Hitachiengineering experience, offering you asuperior range of continuity options andthe best reliability in the industry. We backthis up with the industry’s first and mostcomprehensive 100% data availabilityguarantee. You can trust your data withHitachi. Excellence is in our DNA.Hitachi Virtual Storage Platform E990: All-Flash NVMe Speed and Efficiencyscalability.Our active-active controller architecture pro-tects your business against local faults and performance issues. Full metroclustering with our global-active device between data centers up to 500km apart gives you peace of mind. Make the most of your investments by replicating to a third data center using Hitachi Universal Replicator software, which offers bidirectional replication. Migrate data from older systems nondisruptively, so operations can continue, nonstop. All the while, you can monitor your system in the cloud via Hitachi Remote Ops, to proac-tively predict and prevent downtime.What about your application’s business continuity and recovery? VSP E990 is inte-grated with Hitachi Ops Center Protector, which provides application-aware snap-shots, copy data management and instant recovery. Ops Center Protector even delivers continuity in the public cloud, so you can recover from a data disaster in sec-onds, not hours!Artificial Intelligence, Real IT ImpactSimplifying the management, provision-ing and performance of data platformscan become a demanding, never-ending cycle. Hitachi Ops Center delivers anAI-operations-based management suitefor all Hitachi VSP systems and virtualized storage environments, using the latest AI and machine learning (ML) capabilities to improve IT operations. With integrated con-figuration, analytics, automation and data protection capabilities, Ops Center simpli-fies day-to-day administrative, optimization and management orchestration for VSPE990. Your staff can be freed to focus on innovation and tactical business efforts. Hitachi Ops Center Analyzer uses MLto continuously monitor the entire data path, from virtual machine (VM) to stor-age, to ensure resources are meeting their required service level agreements (SLAs) for mission-critical applications. If bottle-neck issues do arise, Ops Center Analyzer identifies, diagnoses and prescribes recommended changes to rapidly resolvethe issue. The software also offers pre-dictive analytics to streamline complexdecision-making for better planning offuture storage requirements or to optimizequality of service (QoS).Management automation is a critical aspectof improving IT operational efficiency.Hitachi Ops Center Automator orchestratesthe agile delivery of VSP E990 storageresources to enable a cloudlike, IT-resourcedelivery model. This approach providesrapid deployment of new infrastructureresources, based on best practices, andensures consistent data resiliency poli-cies. Hitachi Ops Center consolidates thenumber of management tools required toautomate resource delivery, lower operatingexpenditure (opex) costs and deliver greaterIT operational efficiencies for VSP E990storage environments.TABLE 1. HITACHI VIRTUAL STORAGE PLATFORM E990 — SPECIFICATIONS(continued on next page)HITACHI is a trademark or registered trademark of Hitachi, Ltd. VSP is a trademark or registered trademark of Hitachi Vantara Corporation. All other trademarks, service marks, and company names are properties of their respective owners.DS-593-A BTD April 2020Hitachi Vantara FederalCorporate Headquarters11950 Democracy Drive, Suite 200Reston, VA 20190 USAContact Information USA: 1-703-787-2900Global: 1-844-943-7333/support-centerWe are Hitachi Vantara FederalWe guide our customers from what’s now to what’s next by solving their digital challenges. Working alongside eachcustomer, we apply our unmatched industrial and digital capabilities to their data and applications to bene it both government and society.TABLE 1. HITACHI VIRTUAL STORAGE PLATFORM E990 — SPECIFICATIONSNotes:* The Total Efficiency Guarantee of up to 7:1 for the VSP E990 covers savings from data deduplication, compression, thin provisioning and snapshots.** RAID-1 selection mirrors blocks across two drives and then creates a striped set across multiple drive pairs.This is commonly referred to as RAID-1+0. 1MB = 1,000,000 bytes, 1MiB = 1,048,576 bytesNVMe = nonvolatile memory express, SSD = solid state disk, iSCSI = Internet Small Computer Systems Interface。

Hitachi 数据系统商品说明书

Copyright © 2012, 2016, Hitachi, Ltd., Hitachi Data Systems Corporation, ALL RIGHTS RESERVEDNotice: No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, or stored in a database or retrieval system for any purpose without the express written permission of Hitachi Data Systems Corporation (hereinafter referred to as "Hitachi Data Systems").Hitachi Data Systems reserves the right to make changes to this document at any time without notice and assumes no responsibility for its use. Hitachi Data Systems products and services can only be ordered under the terms and conditions of Hitachi Data Systems' applicable agreements. All of the features described in this document may not be currently available. Refer to the most recent product announcement or contact your local Hitachi Data Systems sales office for information on feature and product availability.This document contains the most current information available at the time of publication. When new and/or revised information becomes available, this entire document will be updated and distributed to all registered users.Hitachi Data Systems is a registered trademark and service mark of Hitachi, Ltd., and the Hitachi Data Systems design mark is a trademark and service mark of Hitachi, Ltd. All other brand or product names are or may be trademarks or service marks of and are used to identify products or services of their respective owners.RN-92NAS075-181Hitachi File Services Manager for Hitachi NAS Platform F1000 Series 5.3.3-00 Release NotesCopyright © 2012, 2015, Hitachi, Ltd., Hitachi Data Systems Corporation, ALL RIGHTS RESERVED 2Table of ContentsAbout This Document ................................................................................. 3 Intended Audience .................................................................................... 3 Getting Help ............................................................................................. 3 About This Release .................................................................................... 3 How to obtain a copy ................................................................................. 3 New Features and Important Enhancements ................................................. 3 New System and Hardware Requirements ..................................................... 4 Manual Corrections .................................................................................... 4 Restrictions .............................................................................................. 4 Operating System Requirements ................................................................. 4 Required Web browser ............................................................................... 8 Required Programs for Processing Node ........................................................ 8 Memory and Disk Space Requirements ......................................................... 9 Fixed Problems ......................................................................................... 9 Usage Precautions ..................................................................................... 9 Notes on Installation ................................................................................ 10 Documentation (10)Copyright © 2012, 2015, Hitachi, Ltd., Hitachi Data Systems Corporation, ALL RIGHTS RESERVED3About This DocumentThis document provides late-breaking information about the Hitachi File Services Manager for Hitachi NAS Platform F. It includes information that was not available at the time the technical documentation for this product was published, as well as a list of known problems and solutions.Intended AudienceThis document is intended for customers and Hitachi Data Systems authorized service partners who license and use the Hitachi File Services Manager for Hitachi NAS Platform F.Getting HelpHitachi Data Systems Support Connect is the destination for technical support of products and solutions sold by Hitachi Data Systems. To contact technical support, log on to Hitachi Data Systems Support Connect for contact information: https:///en_us/contact-us.html .Hitachi Data Systems Community is a global online community for HDScustomers, partners, independent software vendors, employees, and prospects. It is the destination to get answers, discover insights, and make connections. Join the conversation today! Go to , register, and complete your profile.About This ReleaseThese release notes cover the Hitachi File Services Manager for Hitachi NAS Platform F version 5.3.3-00.How to obtain a copyThis firmware can be downloaded or ordered from The Download Center (TDC) in the Technical Information Service Center (TISC).New Features and Important EnhancementsTable 1 New Features and Important EnhancementsCopyright © 2012, 2015, Hitachi, Ltd., Hitachi Data Systems Corporation, ALL RIGHTS RESERVED 4New System and Hardware RequirementsN/AManual CorrectionsNone.Restrictions∙ When Advanced ACL type is enabled on the [Create and Share File System]dialog box, validity of characters for user and group of Export point owner is not checked. ∙ If you use filter function of sub window on Shares tab, the filtering for the attribute: Capacity Management Directory, might not work properly. ∙ If DNS setting is skipped in the setting wizard, a host name cannot be specified for [NTP Server] at the time setting. A host name for NTP server can be set on the [Time Setup] page or timeset command.Operating System RequirementsTable 2 Supported platforms for Hitachi File Services Manager managementserverCopyright © 2012, 2015, Hitachi, Ltd., Hitachi Data Systems Corporation, ALL RIGHTS RESERVED5Copyright © 2012, 2015, Hitachi, Ltd., Hitachi Data Systems Corporation, ALL RIGHTS RESERVED 6Table 3 Supported platforms for Hitachi File Services Manager managementconsoleCopyright © 2012, 2015, Hitachi, Ltd., Hitachi Data Systems Corporation, ALL RIGHTS RESERVED7Copyright © 2012, 2015, Hitachi, Ltd., Hitachi Data Systems Corporation, ALL RIGHTS RESERVED 8Required Web browserTable 4 Supported Web browser for Hitachi File Services Managermanagement console#1: The version of the target management node should be Hitachi NAS Platform 03-00-01-00 or later. #2: The version of the target management node should be Hitachi NAS Platform 4.1.0-00 or later.#3: The version of the target management node should be Hitachi NAS Platform 4.2.0-00 or later.#4: x means that it does not depend on the version x.#5: The version of the target management node should be Hitachi NAS Platform 3.2.1-00 or later.#6: Supported platforms for Hitachi File Services Manager management console is only Red Hat Enterprise Linux.#7: If an operation to open a different window or tab is performed, an unnecessary window may be opened concurrently. For the case, see the usage precaution.Required Programs for Processing NodeHitachi NAS Platform is required on the network node controllers.Copyright © 2012, 2015, Hitachi, Ltd., Hitachi Data Systems Corporation, ALL RIGHTS RESERVED9Memory and Disk Space RequirementsThe following table lists memory and disk space requirements for Hitachi File Services Manager:Table 5 Hitachi File Services Manager RequirementsFixed ProblemsNone.Usage Precautions1. Precaution of install the related programs in the same computer as Hitachi File Services ManagerWhen installing the following programs into the same computer as Hitachi File Services Manager, upgrading is required to the following version: (1) Hitachi Device Manager 7.5.0-02 or later.(2) Hitachi Compute Systems Manager 7.5.1-00 or later. (3) JP1/Automatic Operation 10-10 or later.(4) SVP software for VSP Gx00 series which can coexist with HFSM is version83-03-01-XX/XX or later2. Precaution of HCP Settings in Configuration WizardThe namespace named system-backup-data is allocated automatically forBackups of the system construction information, and the information is backed up.3. Precaution of update installation for Hitachi NAS Platform F earlier than4.0.0-00One tenant becomes available to use from several systems. When themigrating data to HCP had been used before update, please confirm to the HCP administrator that the namespace named system-backup-data is already created.4. Usage precaution for Internet Explorer 11.0 as Management consoleCopyright © 2012, 2015, Hitachi, Ltd., Hitachi Data Systems Corporation, ALL RIGHTS RESERVED 10An operation to open different window or tab by a click of anchor or button on the window may cause an unnecessary window (such as blank or in transition window) to be opened concurrently. In this case, close the unnecessarywindow. If this problem persists, create a new Windows user account and then operate the browser with the new user.In addition, when the operating system of the management console isWindows Server 2012 R2, Windows 8.1 or Windows 10, white line under tab in dialogue, black line under the tab in the main console might be displayed, however those lines do not affect the operation of the management console.5. Precaution for management console operationWhen multiple LUs to be used as Virtual Server user LUs are selected, characters displayed in [LU Type] may not be fully displayed on theconfirmation windows of [Create Virtual Server] and [Edit Virtual Server] depending on the browser being used.If a part of characters is not displayed, adjust the window size to correctly display the characters.Notes on InstallationNoneDocumentation∙ Hitachi NAS Platform F1000 Series Installation and Configuration Guide ∙ Hitachi NAS Platform F1000 Series Cluster Administrator's Guide ∙ Hitachi NAS Platform F1000 Series CLI Administrator's Guide ∙ Hitachi NAS Platform F1000 Series Error Codes∙ Hitachi NAS Platform F1000 Series Cluster Troubleshooting Guide∙ Hitachi NAS Platform F1000 Series Cluster Getting Started Guide for Virtual NAS ∙ Hitachi NAS Platform F1000 Series Cluster Getting Started Guide。

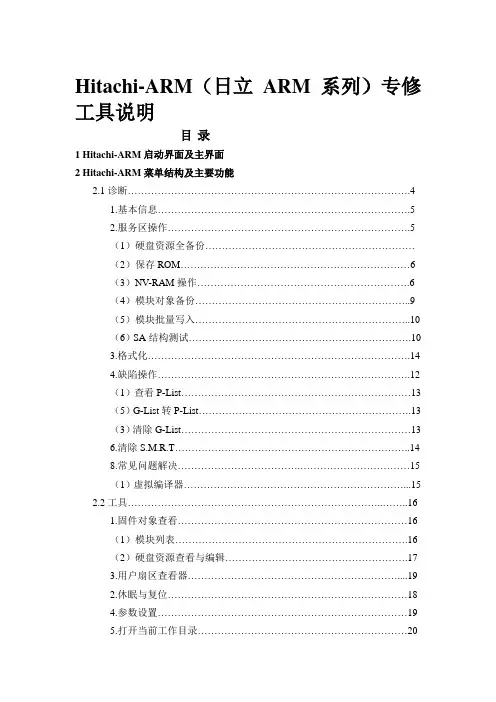

Hitachi-ARM(日立ARM系列)教学

Hitachi-ARM（日立ARM系列）专修工具说明目录1 Hitachi-ARM启动界面及主界面2 Hitachi-ARM菜单结构及主要功能2.1诊断 (4)1.基本信息 (5)2.服务区操作 (5)（1）硬盘资源全备份………………………………………………………（2）保存ROM (6)（3）NV-RAM操作 (6)（4）模块对象备份 (9)（5）模块批量写入 (10)（6）SA结构测试 (10)3.格式化 (14)4.缺陷操作 (12)（1）查看P-List (13)（5）G-List转P-List (13)（3）清除G-List (13)6.清除S.M.R.T (14)8.常见问题解决 (15)（1）虚拟编译器 (15)2.2工具 (16)1.固件对象查看 (16)（1）模块列表 (16)（2）硬盘资源查看与编辑 (17)3.用户扇区查看器 (19)2.休眠与复位 (18)4.参数设置 (19)5.打开当前工作目录 (20)Hitachi-ARM启动界面及主界面程序启动时首先会弹出读取倒计时对话框进行启动前的初始化工作，若初始化成功将进入硬盘型号选择界面如图1。

图1（Hitachi-ARM启动界面）程序会自动检测系列，如果系列检测失败，则需要用户手动选择系列。

程序将会根据此系列号加载技术密钥、以及读取模块列表等固件信息。

启动之前用户可以勾选从文件加载模块目录，以及探测技术密钥。

选择好硬盘系列号后点击“确定”按钮即进入Hitachi-ARM主界面，如果技术密钥加载失败，若用户勾选了“探测技术密钥”程序将尝试使用所有可能密钥启动硬盘。

若用户勾选了从文件加载模块目录程序将直接将用户所选的文件加载到模块列表中，如图2。

图2（Hitachi-ARM主界面）硬盘启动过程中的初始化信息将在日志页显示，包括加载的技术密钥、加载的模块列表等基本信息。

Hitachi-ARM菜单结构及主要功能Hitachi-ARM系列硬盘专修工具主要菜单为“诊断”和“工具”菜单。

日立HDSAMS500维护

存储系统的日常维护
1、存储设备的日常维护
（1）从外观上观察，如果硬件有故障，存储设备会发出长鸣的报警声，而且前面板的Error黄色灯或Alarm红色灯会亮；
（2）使用IE或其他浏览器，输入存储的IP，可直接进行观察（IE不能用proxy）；
（3）点击任何变色（红色）的图标，可准确定位损坏部件的具体位置；
（4）点击左侧的“Warning Information”和“Information Message”，可看见具体报警信息；产品报修时，需要将这些信息发送电子邮件给HDS的维护工程师。

报警信息会在Warning Information文本框中显示：
存储设备开机
（1）在确定连接正常，以及电压、电流正常的情况下，打开Cache Battery 开关，开关在磁盘控制柜的正面下方，左右各1个；
（2）再给磁盘柜加电。

开关在机箱的背面，每个磁盘柜有2个AC电源开关，等待直到所有磁盘柜的Ready灯亮；
（3）打开磁盘控制器的电源开关；
（4）打开磁盘控制器正面的总控开关MainSwitch，开关位置在磁盘控制柜正面的右上角；
存储设备关机
（1）确保所有访问该存储的I/O全部停止；
（2）关掉磁盘控制柜的总控开关MainSwitch，开关位置在磁盘控制器正面的右上角；
（3）等待磁盘控制柜前面的Ready灯熄灭（同时需要检查控制柜的Cache Power灯熄灭）；
（4）关掉磁盘控制柜的电源开关，开关在机箱的背面，共2个；然后逐个关闭磁盘柜的电源开关；
（5）关掉Cache Battery开关，开关在磁盘控制柜的正面下方，左右各1个；（6）备注：如果存储设备需要断电的话，则关机时一定要把电池关上，否则电池长时间消耗可能会损坏。

日立RCU G 40WHZ-E水冷式冷水机组 - 螺杆式 - 安装、使用、维护手册说明书

HITACHI安装、使用、维护说明书日立牌水冷式冷水机组— 螺杆式 —Model 型号RCU(G)40WHZ(-E) RCU(G)300WHZ(-E) RCU(G)50WHZ(-E) RCU(G)340WHZ(-E) RCU(G)60WHZ(-E) RCU(G)380WHZ(-E) RCU(G)80WHZ(-E) RCU(G)410WHZ(-E) RCU(G)100WHZ(-E) RCU(G)450WHZ(-E) RCU(G)120WHZ(-E) RCU(G)490WHZ(-E) RCU(G)140WHZ(-E) RCU(G)530WHZ(-E) RCU(G)150WHZ(-E) RCU(G)570WHZ(-E) RCU(G)170WHZ(-E) RCU(G)600WHZ(-E) RCU(G)180WHZ(-E) RCU(G)640WHZ(-E) RCU(G)200WHZ(-E) RCU(G)680WHZ(-E) RCU(G)220WHZ(-E) RCU(G)720WHZ(-E) RCU(G)260WHZ(-E) RCU(G)760WHZ(-E)注意：在使用此冷水机组之前，请仔细阅读该手册，并请保存完好，供以后参考。

获取更多资料微信搜索蓝领星球重要通知z日立对产品的设计和性能将不断进行改良，规格如有更改，恕不另行通知。

z日立对每一个可能的情况导致有潜在的危险不作预测。

z没有书面允许，此说明书不得翻印。

z信号字句（危险、警告和小心）用于鉴定危险性的级别，有关各信号字句所提示的危险性解释如下：警告可能导致严重个人受伤或死亡的直接危险。

危险危险或不安全的操作可能导致严重个人受伤或死亡。

小心危险或不安全的操作可能导致轻微个人受伤、产品或财物损害。

注意：对使用或维修有帮助的资料。

z如有需要，请联络您所聘用的承建商或日立分销商。

z此水冷式冷水机组是根据以下温度设计，冷水机组应在此范围内使用：工作范围（ ℃）最高最低冷却水出水温度 R22：40R407C：3722冷冻水出水温度 20 5z此说明书为水冷式冷水机组的永久部件，应妥善保存。

日立存储调试详细步骤-HUS130

硬件连接方法：两根sas线机头A控制器0口连扩展柜A控IN口机头B控0口连扩展柜B控IN口光纤线连接AB控上方两个光口即可（AB控一共4根线）开机方法找小棍长按MAN-SW按钮三秒等待5分钟待前面灯全变成绿色第一步：在笔记本中安装Hitachi Storage Navigator Modular 2软件在印有Hitachi Storage Navigator Modular 2 for windows光盘上可以找到\Windows_GUI\HSNM2-2170-W-GUI-P01.exe 并执行安装过程中要求输入IP地址可以直接下一步第二步:连接存储连接存储将网线直连到存储第一个控制器最右侧的网口也就是印有网络图标的网口（非印有小扳手的网口）设置本机IP为192.168.0.*网段IP ping 192.168.0.16 是否可以通打开IE 地址栏输入：http://127.0.0.1:23015/StorageNavigatorModular/Login账号：system密码：manager进入后会有一个向导第二页输入控制器IP地址即可：Controller 0：192.168.0.16（输入一个就可以）直接下一步第三步：激活LICENSE点击新添加的存储进入存储管理页面右下角会有蓝色Install license 点击进入插入纸张上印有HUS 130字样的license光盘（有两张自己试试哪一张好使）点击Key File后面的浏览找到光盘中的激活文件（就一个）点击OK激活完成第四步:做RAID先做个热备盘在左侧Settings下面有Drive Settings 下面Spare Drives 里面Add Spare Drive 把最后一块盘做成热背叛再做RAID 点击左侧GROUPS--volumes 右边会有RAID GROUPS进入下方会有CREATE RG按钮进入第一个空是组名（随便）RAID模式（RAID5）磁盘配置方式（6D+1P）就是六个数据盘加一个校验盘下面选择手动制作MANUAL SELECTION里面选硬盘你选的6D+1P就选7块盘一共36块硬盘用了一块做热备还剩35块盘每个RAID5用7块盘那么我们就做5个RAID5第五步：制作volume为了测试我们先分20个VOLUME每个100G在VOLUMES选项卡下点CREATE VOL进入RAID GROUP是选在哪个RAID组上做VOL:是序号CAPACITY:是大小（测试用就每个先分100GB）点OK下一页让配置MAPPING 不用管可以点create more vol按钮继续建立VOLUME为了测试用建立20个VOLUME我们就将这20个volume平均建立在5个RAID组上也有快速建立的方式在第一页有个建立VOLUME向导你可以尝试下第一个是多大第二个是分几个第六步：建立MAPPING左侧GROUPS下面有HOST GROUPS里面有HOST GROUP SECURITY选项卡能看到八个端口全部选择上点击change host group security按钮选中YES点OK这样就能显示出来连接进来的光线设备的WWN号点击HOSTGROUPS选项卡随便点一个HOSTGROUP的蓝字进入点击右上角的EDIT HOST GROUP选择所有的PORT 并把FORCED SET TO ALL SELECTED PORTS前面的勾打上先将WWNS里面扫到的所有设备添加进来再把VOLUMES选项卡里面的所有VOLUMES添加进来最后在OPTIONS选项卡里把PLATFORM:项变成WINDOWS然后OK第七步：改变端口模式左侧SETTINGS下面FC SETTINGS里面点击一个端口蓝色字段进入点击右上角按钮EDIT FC PORT进入将TOPOLOGY项改成POINT-TO-POINT 按OK依次将8个端口全部改完注意：服务器的HBA卡也要改成POINT-TO-POINT模式进入服务器BIOS找到EMULEX的卡在里面有个CONFIG某某（好像是倒数第三项）进去有个TOPOLOGY 把这项一样改成POINT-TO-POINT模式第八步：重启存储点最左侧ARRAYS选上存储设备点下面reboot array 大概10分钟重启完毕。

HDS高端阵列开关机步骤v1.2

7. 切断电源后的上电步骤
确认备份电池开关处于 Enable 状态。开磁盘阵列机柜 AC BOX 的断路器。此时⑧BS-ON 灯（黄色）亮。执行正常开机步骤。参考“2. 正常开机步骤” 。通过 SVP 检查磁盘阵列状态。如果②ALARM（红色）或③MESSAGE（黄色）指示灯亮，立刻通知 HDS 支持工程师。
HDS 高端阵列维护及操作手册
第一章前言
本文档适用于 HDS 高端阵列的维护操作，包括 USP/NSC55 系列、 USPV/USPVM 系列以及 VSP 系列。本文档只是简要介绍部分维护操作，详细操作步骤及说明请参考维护手册。文档的有关示意图和菜单来自 USPV，其它型号产品可能有所不同，请参考维护手册。在维护过程中出现任何异常情况，立刻反馈给 HDS 支持工程师，或通过服务热线 4006786783 联系 HDS 值班工程师。注意：在磁盘阵列出现异常关机后，不能关备份电池的开关。（不适用于 VSP）注意：所有维护操作需要按照 SVP 的步骤实施，不要在磁盘阵列关机状态下实施部件更换操作。

2. 正常开机步骤
将操作面板的 PS 左边开关 ⑩ ENABLE 和右边开关 ⑾ ON/OFF 往上拨 (Enable+ON)，此时⑨PS-ON 指示灯亮（绿色），磁盘系统将顺序自动上电。约 20 分钟后①READY 灯（绿色）亮，磁盘阵列上电完成。通过 SVP 检查磁盘阵列状态。如果②ALARM（红色）或③MESSAGE（黄色）指示灯亮，立刻通知 HDS 支持工程师。在服务器实施相关的检查和操作，确认服务器能正常访问存储设备。

HDS存储系统简介及日常维护介绍 VSP

202051037故障信息提取及反馈序列号及型号hitachimodeldkcxxxxxmfg32272202051038故障信息提取及反馈报修modelserial联系人电话siteidsimpletracesvpsimmicrocodeversionsantopologygetconfigapplicationprchdscallcentercustomerservicerephitrack202051039hdlm多路径管理软件提供访问san存储的故障冗余功能支持hds和emc产品通过主机的多hba卡实现路径故障切换和负载均衡提供应用程序的可用性实施故障路径的自动切换可与其它多路径软件共存windowswindowsunixlinuxunixlinux202051040故障路径自动切换提供系统可靠故障切换和故障恢复路径状态自动检查simplefailoverstoragestorageapplicationsapplicationsvolumevolumehdlmhdlmstandbystandbyfailurefailurereductionbalancingpathsbalancingpathsstoragestorageloadbalancingapplicationsapplicationsvolumevolumehdlmhdlmserverserverserverserverfailurefailure202051041负载均衡提高系统性能hdlm分散负载到多个路径loadloadbalancingbalancingloadloadbalancingbalancingstoragestorageapplicationsapplicationsvolumesvolumesstoragestorageapplicationsapplicationsregulardriverregulardriverhdlmhdlmwithoutloadbalancingloadbalancingbottleneckserverserverserverservervolumesvolumes202051042webbasedguisimplifiesmanagementhdlm有图形管理介面lanserversserverssansanhitachistoragesystemhitachistoragesystemco

日立光纤存储HDS_AMS安装配置手册中文版

第一章安装配置本章主要描述通过管理软件对存储进行配置和设置。

1.通过浏览器直接访问AMS2000存储，则进行基本状态的检查和相关的维护；2.存储的配置需要通过Storage Navigator Management 2进行（简称SNM2，下同）;3.AMS2000存储的管理是三层结构，浏览器－》服务器－》存储，SNM2是服务器软件，客户端使用浏览器方式进行。

1.1 安装管理软件AMS2000系列管理软件的安装说明：1．SNM2软件可以支持多种平台，包括Windows系列和Linux，本文以Windows为例进行说明；2．SNM2有Web和CLI两种方式，本文以Web方式说明；3．Server: Windows XP/2003/Vista/2008 with 1.5GB free disk.4．Browser: IE6.0 (SP1) or IE7.0. The 64-bit IE is not supported.5．JRE: JRE 1.6.0_10. The 64-bit JRE is not supported.6．如果Sever已经安装HiCommand其它软件，安装之前需要停了这些软件的Services。

7．建议SNM2安装在没有使用AMS2000磁盘的服务器。

8．建议安装SNM2的Windows不要使用休眠等电源管理功能。

9．可以实施Update安装，相同版本的Update安装视作Uninstall。

10．安装时，需要输入SNM2的IP，不要输入127.0.0.1或localhost1.1.1 安装过程安装过程按照画面提示进行输入相关信息；注意一定要输入你的笔记本（或者服务器）的固定IP地址，该IP地址必须能与存储进行互通的（同一个网段是好主意）1.1.2 SNM2服务器端服务的操作•建议不要使用Windows的图形界面启动或停止SNM2的Services•c:\Program Files\HiCommand\Base\bin\hcmdssrv.exe /startKAPM06440-I The HiRDB service has already StartedKAPM05007-I Already started service. Service-name HBase Storage Mgmt Web serviceKAPM05007-I Already started service. service-name =HBase Storage MgmtCommon service.•c:\Program Files\HiCommand\Base\bin\hcmdssrv.exe /stopKAPM05017-I Succeeded in stopping of service. Service -name =HBase storage mgmt common service.KAPM05017-I Succeeded in stopping of service. Service -name=HBase storage mgmt web service.KAPM06441-I The HiRDB services has already stopped1.1.3 客户端Java需求：•JRE 1.6.0_10 or newer不需要设置•less than 1.6.0_10–Start◊Settings◊Control Panel.–From the Control Panel, select the Java.–Click View of the upper position in the Java tab.–Enter “-Xmx192m”–(“-Xmx216m” when the Hitachi Storage Navigator Modular 2 is version 7.00 or later)1.2 启动界面http://<IP address>:23015/StorageNavigatorModular/登陆用户名/密码：1.3 注册存储SNM2软件初次使用时尚无存储进行管理，软件会自动提示注册存储；如果SNM2原来已经有存储在使用，则点击Add Array，弹出以下画面，执行四个流程：Introduction Screen > Search Array Screen > Add Array Screen> Finish ScreenIntroduction Screen解释SNM2注册存储的说明。

日立存储设备操作维护手册

日立存储设备操作维护手册日立数据系统有限公司(HDS)2009年11月17日目录第一部分硬件部分（高端、中端和低端的日立存储三种情况分别写） (3)1.日立存储的配置界面的登录方法。

(3)2.创建RAID组、划分LUN、初始化磁盘的步骤，在端口上划分DISK组，将主机的端口的WWN号加到相应的DISK组中的步骤。

(5)3.在高端存储中配置TURECOPY的步骤。

(10)4.在高端存储中配置SHADOWIMAGE的步骤。

(11)5.系统告警灯的位置以及告警灯的显示方式，如何登陆系统查看系统告警，常见的告警代码及处理方法。

(11)第二部分软件部分 (13)1.AIX操作系统和HP-UNIX操作系统安装HDLM多路径管理软件的步骤。

(13)2.HDLM多路径管理软件安装完成后，配置磁盘多路径参数的步骤，日常维护的命令。

.. 143.HUR 相关参数配置 (15)4.HUR 的日常维护 (16)第一部分硬件部分（高端、中端和低端的日立存储三种情况分别写）（*中端和低端相同）1.日立存储的配置界面的登录方法。

高端存储1. Windows 远程桌面，输入SVP地址，登录SVP。

(Administrator/raid-login)2. 在SVP的IE中输入http://localhost登录Stoage Navigator (root/root)中端存储1.HDS AMS2000存储管理软件是通过一台Windows服务器安装管理软件后进行管理●需要一台Windows Server 2003操作系统服务器(建议为英文版，在安装其中一个版本的管理软件时，中文版本Windows Server 2003下安装过程出现乱码)●需要JAVA 6.0软件●安装过程比较简单，没有复杂的配置2.配置完成后，可以通过WEB方式进行远程管理，比较方便●管理地址为：http://manage_server_IP:23015/StorageNavigatorModular/有个奇怪的情况，就是管理地址中最后一个”/”必须填上，否则无法打开页面。

2-HUSVM磁盘阵列产品说明书-v3.2

Hitachi Unified Storage VM（HUS VM）日立高端统一存储产品介绍日立数据系统有限公司2019年11月目录一. 概述 (1)二. HDS HUS VM技术的技术优势 (5)2.1统一存储 (5)2.2全新一代H I-S TAR交换架构 (8)2.3通用处理器单元MP (10)2.4C ACHE的设计 (11)2.5强大的扩展能力 (13)2.6存储管理功能 (13)三. HUS VM软件包 (14)3.1B ASIC O PERATING S YSTEM-（基本操作系统） (14)3.2H ITACHI C OMMAND S UITE M OBILITY（数据移动和灵活性） (17)3.3H ITACHI C OMMAND S UITE A NALYTICS(高级分析和监控软件包) (19)3.4H ITACHI L OCAL R EPLICATION（本地数据保护） (21)3.5H ITACHI R EMOTE R EPLICATION（远程数据保护） (23)四. HDS HUS VM产品技术指标 (27)4.1H ITACHI U NIFIED S TORAGE VM规格:主机端口 (27)4.2H ITACHI U NIFIED S TORAGE VM规格:可用性 (27)4.3H ITACHI U NIFIED S TORAGE VM规格:支持的操作系统 (28)4.4H ITACHI U NIFIED S TORAGE VM规格:物理特性 (28)4.5H ITACHI U NIFIED S TORAGE VM规格:软件 (30)4.6外接存储系统兼容列表（存储虚拟化） (32)五. HUS VM 场地准备要求 (38)5.1HUS VM环境要求 (38)5.2HUS VM电源要求 (39)5.3HUS VM模块装配图示 (41)5.4HUS VM控制器图示 (42)5.5HUS VM设备尺寸及机柜摆放 (43)一.概述日立数据解决方案价值定位今天的数据中心，除了需要面对数据量的急剧增长以及存储基础架构的复杂性之外，如何在统一存储架构中支持多种数据（块数据、文件数据、对象数据）的综合存储需求也是目前大部分企业普遍面临的问题，企业需要在满足传统的高可用性、性能、可扩展性之外，能够从容应对管理、运维以及SLO要求。

HDS VSP G200售后维护手册备课讲稿

11
© Hitachi Data Systems Corporation 2015. All rights reserved.
创建RAID组，资源池pool
本次配置38*600GB 10k 硬盘，共创建2个资源池：pool0和pool1。
Pool0：RAID10，约 1TB容量，规划存储数据库
SVP，windows7 用户名/密码： SVP/raid-login
Device manager 用户名/密码： Maintenance/raidmaintenance
7
© Hitachi Data Systems Corporation 2015. All rights reserved.
G200售后维护手册
G200售后维护手册
1. G200基本功能介绍
2. G200日常维护操作 3. HDS售后工作流程
2
© Hitachi Data Systems Corporation 2015. All rights reserved.
VSP 全系列产品
通用软件和管理
存储操作系统Biblioteka （SVOS）适用于全统
线产品
一
1. G200基本功能介绍
2. G200日常维护操作 3. HDS售后工作流程
8
© Hitachi Data Systems Corporation 2015. All rights reserved.
G200日常维护操作
▪ 存储开关机 ▪ 许可证管理 ▪ 在线升级微码 ▪ 热备盘设置 ▪ FC/iSCSI端口设置 ▪ 创建RAID组、资源池Pool ▪ 创建主机组，映射服务器 ▪ 更换备件（硬盘/控制器）
9g200日常维护操作?存储开关机?许可证管理?在线升级微码?热备盘设置?fciscsi端口设置?创建raid组资源池pool?创建主机组映射服务器?更换备件硬盘控制器?hitachidatasystemscorporation2015

Hitachi

HitachiHitachi-IBM固件说明本文档来源于MRT固件实验室更多信息请访问我们的网站1．日立硬盘术语解释1.ROM（只读存储器）：是一种只能读出事先所存数据的固态半导体存储器。

其特性是必须使用专用设备对其进行烧录，如编程器、芯片烧写器等。

2.NV-RAM（非易失性随机存储器）：存储单元的内容可按需随意取出或存入，且存取的速度与存储单元的位置无关的存储器。

这种存储器在断电时将丢失其存储内容，故主要用于存储短时间使用的程序。

3.型号：硬盘型号不仅表示了的家族还记录了硬盘的技术参数。

日立硬盘的格式为HDSxxxxxxxxxxxx/HTSxxxxxxxxxxxx。

HDS表示3.5〞大盘，HTS则表示2.5〞笔记本盘。

4.SN（Serial Number）：即产品序列号，是为了验证“产品的合法身份”而引入的一个概念，它是用来保障用户的正版权益，享受合法服务的。

5.固件版本（Firmware）：固件版本是指官方发布的固件的版本号，里面包含了应用部分的更新和基带部分的更新6.SA（服务区）：硬盘的固件一部分存放在ROM和NV-RAM中，更多的是存储在硬盘的盘片上，因此硬盘的盘片一般分为SA（服务区）和用户区（User area），SA区在出厂时就存储有固件数据，通常为各个模块。

用户区才是用户可以使用的区域，一般用户读写数据都是操作的用户区。

7.SA入口地址：SA入口地址即服务区入口地址，该地址标记了模块固件的起始地址在盘片的哪个LBA，该地址一般存储在NV-RAM中，因此NV-RAM中该地址如果不正确，通常无法加载模块列表。

2．日立硬盘盘标解释3．日立硬盘启动过程Hitachi-IBM系列硬盘的固件引导程序位于PCB板上的ROM芯片中，包括控制电机的伺服部分也在ROM中，而NV-RAM中保存了硬盘的配置信息，包括启动标示、磁头位图、服务区入口地址、用户区入口地址、SA适配信息等。

其启动过程和计算机的启动过程类似，首先，由ROM进行加电初始化并引导NV-RAM从硬盘的服务区加载必要模块，如：ATA微程序模块、P-List、G-List、CHNL、ZONE等。

日立硬盘专修工具使用特别说明

在装有效率源西数专修程序的电脑中安装卡巴斯基或小红伞等杀毒软件，否则会无法安装驱动或正常运行程序，需先将其卸载并换成瑞星等杀毒软件方可使用。
• 当硬盘就绪后，并不会自动在状态栏中显示其相应的参数，需单击其左侧的第一个空白按钮才可。
特别说明
特别说明
• （接上）（2）MODEL相同，同一个系列硬盘其固件区和数据区配置信息相似，因此相同MODEL的NVRAM匹配成功率更高。
• （3）硬盘电路板上标识码的前两行字符相同也代表这些硬盘具有相同的NVRAM版本。
特别说明
• 由于NVRAM信息在日立/IBM硬盘数据恢复中非常重要，所以在将硬盘转入到安全模式后，应先在“NVROM操作”界面中单击 “读取NVRAM”按钮对其内容进行备份。
特别说明
• NVRAM称为非易失性随机存储器。它是半导体存储器——非易失性或非发挥性存储器，即NVM中的一员，具有可随机读写信息和断电信息不丢失的巨大优势，但其价格昂贵。目前日立存储公司是全球硬盘产品中最先使用NVRAM作为关键信息存储介质的硬盘厂家。
特别说明
• 在日立硬盘的NVRAM中存储了该硬盘的磁头数量、固件区起始地址、ROM覆盖模块的效验和以及盘片适配参数等重要信息，它位于硬盘电路板上。
特别说明
• （接上）这样每块硬盘需配合自己的 NVRAM才能工作，一旦硬盘的NVRAM存储信息损坏或丢失，操作系统以及工具软件都将无法识别硬盘，更无法进入到硬盘固件区进行操作，硬盘将陷入瘫痪状态，硬盘的维修和数据恢复也就无从谈起。
特别说明
• 在效率源日立专修程序中提供了维修 NVRAM的功能，运用这一功能可以按照每个硬盘自己的数据结构及存储结构等特征对丢失的NVRAM数据进行重新配置，使其自动恢复出原来的匹配数据，从而达到修复并还原NVRAM数据的目的，进而使硬盘数据得到完全恢复，让硬盘能重新使用。

Hitachi 存储 adapter 说明书

© 2016 Hitachi, Ltd. All rights reserved.RN-90ADPTR013-09 Apr 20161Hitachi Storage Adapter for Microsoft ® SQL Server Remote BLOB Storagev01.13.0 Release NotesContentsAbout this Document ........................................................................ 2 Intended Audience............................................................................ 2 Getting Help .................................................................................... 2 Hardware and Software Support ......................................................... 3 About This Release ........................................................................... 5 Changes in This Release .................................................................... 5 Known Problems .............................................................................. 5 Documentation ................................................................................ 6 Copyrights and Licenses .. (7)© 2016 Hitachi, Ltd. All rights reserved. RN-90ADPTR013-09 Apr 20162About this DocumentThis document provides the latest information about the Hitachi Storage Adapter for Microsoft SQL Server Remote BLOB Storage. It includes information that was not available at the time the technical documentation for this product was published, as well as a list of known problems and solutions.Intended AudienceThis document is intended for customers and Hitachi, Ltd. partners who license and use the Hitachi Storage Adapter for Microsoft SQL Server Remote Blob Storage.Getting HelpNo technical support license is required for Hitachi Content Platform (HCP).The Hitachi Data Systems Support Center staff is available 24 hours a day, seven days a week. Provisions for patches and fixes are restricted to normal business hours, 8 a.m. to 5 p.m. PST. If you need technical support, log on to the Hitachi Data Systems Portal contact information: https:// . If you purchased this product from an authorized Hitachi Data Systems reseller, contact that reseller for support.Before calling the Hitachi Data Systems Support Center, please provide as much information about the problem as possible, including:The circumstances surrounding the error or failure.The exact content of any error message(s) displayed on theHardware and Software SupportNote This release supports only the software and hardwarelisted below.Supported Software© 2016 Hitachi, Ltd. All rights reserved. RN-90ADPTR013-09 Apr 20163Supported Hardware© 2016 Hitachi, Ltd. All rights reserved. RN-90ADPTR013-09 Apr 20164© 2016 Hitachi, Ltd. All rights reserved. RN-90ADPTR013-09 Apr 20165About This ReleaseSee the new features in the following change list.Changes in This ReleaseNew FeaturesAdded support for new VSP Gx00 UnifiedAdded support for new VSP Fx00Added support for new HCP 7.2.0 GA version.Added support for new HNAS 12.6 GA version. Added support for HCP 7.1 Retention PolicyKnown ProblemsDocumentationRelated DocumentHitachi Storage Adapter for Microsoft® SQL Server Remote BLOBStorage User’s Guide (MK-90ADPTR012-07).© 2016 Hitachi, Ltd. All rights reserved. RN-90ADPTR013-09 Apr 20166Copyrights and Licenses© 2016 Hitachi, Ltd. All rights reserved. No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, or stored in a database or retrieval system for any purpose without the express written permission of Hitachi, Ltd.Hitachi, Ltd., reserves the right to make changes to this document at any time without notice and assumes no responsibility for its use. This document contains the most current information available at the time of publication. When new or revised information becomes available, this entire document will be updated and distributed to all registered users.Some of the features described in this document might not be currently available. Refer to the most recent product announcement for information about feature and product availability, or contact Hitachi Data Systems Corporation at https://.Notice: Hitachi, Ltd., products and services can be ordered only under theterms and conditions of the applicable Hitachi Data Systems Corporation agreements. The use of Hitachi, Ltd., products is governed by the terms of your agreements with Hitachi Data Systems Corporation.Hitachi is a registered trademark of Hitachi, Ltd., in the United States and other countries. Hitachi Data Systems is a registered trademark and service mark of Hitachi, Ltd., in the United States and other countries.Archivas, Essential NAS Platform, HiCommand, Hi-Track, ShadowImage, Tagmaserve, Tagmasoft, Tagmasolve, Tagmastore, TrueCopy, Universal Star Network, and Universal Storage Platform are registered trademarks of HitachiData Systems Corporation.AIX, AS/400, DB2, Domino, DS6000, DS8000, Enterprise Storage Server, ESCON, FICON, FlashCopy, IBM, Lotus, MVS, OS/390, RS6000, S/390, Systemz9, System z10, Tivoli, VM/ESA, z/OS, z9, z10, zSeries, z/VM, and z/VSE are registered trademarks or trademarks of International Business Machines Corporation.All other trademarks, service marks, and company names in this document or website are properties of their respective owners.Microsoft product screen shots are reprinted with permission from Microsoft Corporation.© 2016 Hitachi, Ltd. All rights reserved. RN-90ADPTR013-09 Apr 20167。

日立可适应模块化存储 2100 说明书

D A T A S HE E TCorporate Headquarters750 Central ExpresswaySanta Clara, California 95050-2627 USA Regional Contact InformationAmericas: +1 408 970 1000 or info@Europe, Middle East and Africa: +44 (0) 1753 618000 or info.emea@Asia Pacific: +852 3189 7900 or hds.marketing.apac@Hitachi is a registered trademark of Hitachi, Ltd., in the United States and other countries. Hitachi Data Systems is a registered trademark and service mark of Hitachi, Ltd., in the United States and other countries.IBM, z/OS and AIX are registered trademarks of International Business Machines Corporation. All other trademarks, service marks and company names in this document or website are properties of their respective owners.Notice: This document is for informational purposes only, and does not set forth any warranty, expressed or implied, concerning any equipment or service offered or to be offered by Hitachi Data Systems Corporation.© Hitachi Data Systems Corporation 2011. All Rights Reserved. DS-070-J DG June 2011Figure 1. QStar writes primary archive copy to Hitachi Content Platform while supporting secondary and tertiary copies on other targets.Physical Characteristics Raw capacity 313TB (2TB, 7200 RPM SAS or SATA)78TB (600GB, 10K or 15K RPM SAS)Internal disk drives 300GB SAS (10K RPM, 2.5 in.) 600GB SAS (10K RPM, 2.5 in.) 300GB SAS (15K RPM, 3.5 in.) 450GB SAS (15K RPM, 3.5 in.) 600GB SAS (15K RPM, 3.5 in.)(1) 1TB SATA II (7200 RPM, 3.5 in.) 2TB SATA II (7200 RPM, 3.5 in.)2TB SAS (7200 RPM, 3.5 in.)Internal flash drives 200GB (SAS)Host interfaces Fibre Channel: 8Gb/seciSCSI: GigE or 10GigEMinimum/maximum number 4 – 159 (7200 RPM or 10K RPM) of disk drives4 – 136 (15K RPM)Maximum number of flash drives 30Model upgrade options Hitachi Adaptable Modular Storage 2300, Hitachi Adaptable ModularStorage 2500Number of controllers 2Host connection options 4 Fibre Channel or 8 Fibre Channelor 4 Fibre Channel and 4 iSCSIMaximum attached hosts through 1024 virtual ports SAS links16Maximum number of LUNs 2048Maximum LUN size 60TBRAID Support■ RAID-0 (SAS drives only) ■ RAID-1 ■ RAID-1+0■ RAID-5■ RAID-6Maximum number of RAID groups50AvailabilityNondisruptive component replacement Major FRU Nondisruptive hot-pluggable disks YES Nondisruptive microcode updates YES Hi-Track ® Remote Monitoring systemYES Performance Controller cache(per system) 4GB – 8GB Cache binding Cache residency manager featureLogical partitioning Cache partition manager featureSoftwareManagement software Hitachi Storage Navigator Modular2 programCommon APIs YES — across Hitachi data storage systems Thin provisioningHitachi Dynamic Provisioning software Remote copy (over IP and Fibre Hitachi TrueCopy ® Synchronous and Hitachi Channel networks)TrueCopy Extended Distance softwarePoint-in-time copy Hitachi ShadowImage ® Replication and Hitachi Copy-on-Write Snapshot software Backup Hitachi Data Protection Suite,powered by CommVault ®Heterogeneous data replication Hitachi Dynamic Replicator software LUN change ownership LUN manager feature LUN security SAN security feature LUN grow/LUN shrink YES Online RAID group expansion YESMove data between RAID groupsModular volume migration featureSystem security Account authentication and audit logging feature Host Storage Domains Virtual storage ports and multiple LUN0/port featureStorage system–based “write once, Hitachi Data Retention Utility software read many” (WORM) data protection Storage management security SSL/TLS Maintenance port security SSL/TLS SNMP agent support YES Performance monitorYESHeterogeneous SAN management Hitachi Command Suite softwareOperating Systems Support Note: All capacities are based on 1GB = 1,000,000,000 bytes; 1TB = 1000GB (1)600GB SAS (15K RPM) drive is optionally available with data encryption software.■ M icrosoft Windows 2000, Windows Server 2003, Windows Server 2008, Hyper-V ■ V Mware ■ I BM ® AIX ®■ H P-UXHitacHi adaptable Modular Storage 2100 SpecificationS■ H P Tru64 UNIX ■ N ovell NetWare ■ O racle Enterprise Linux ■ R ed Hat ■ S USE ■ A sianux ■ H P OpenVMS ■ A pple MAC OS ■ I BM z/OS ®, when externally attached to models of the Hitachi Universal Storage Platform ® family■ Sun Solaris■■Audit logging tracks all system changes.■■Self-encrypting drive option adds data security.■■Hitachi Data Retention Utility software protects data from overwrites or era-sures for long periods of time.。
