通力货梯安装布线图
图解电梯安装过程（经典教材，你值得珍藏）
图解电梯安装过程（经典教材，你值得珍藏）电梯下货到工地
这是轨道
电梯要安装到这十八楼里
空空的井道
安装一节轨道后安装下梁
安装立柱
安装底板
安装上梁和滑轮
再安装临时用的跳板，便于安装轨道
机房开孔
安装主机
安装控制柜
吊装配重架
安装钢丝
主机钢丝安装完毕
井道多了钢丝和随行电缆
操作盘安装就可以开动电梯了
安装主轨副轨先要安装好提升机提轨道用
主轨安装先打孔（安置房井道土建比较粗糙）
安装底码
安装支架用校导尺校准（自制的校导尺粗糙但很精准）
最后焊接主轨就校好了
安装上一节主轨
副轨打孔
副轨底码安装
副轨支架安装
校准并焊牢
辛辛苦苦总算主副轨道顶
到顶把随行电缆卡安装
安装好轨道的井道
对重架
门和框组装完毕
安装好的门
开呼梯孔
安装呼梯板
轿厢安装，第一步把轿定吊起
井道外拼轿壁
移到轿底组装好轿壁
轿顶落下
轿壁校准
轿厢安装完毕
轿厢安装完毕
安装门机
○1设备到货——○2土建检查——○3机房、井道移交——○4到货吊机——○5开箱点验——○6开工——○7工字钢安装——○8机房主机安装——○9导轨安装——○10厅门——○11厅门封堵——○12轿厢对重、组装轿厢及其他功能配件——○13脚手架拆除——○14电气
接线——○15慢车调试——○16呼梯盒及层显底盒——○17快车调试——○18验收
•【如何订阅本平台】。
kone安装布线图(1.0版)
图 纸 线 号 L N PE
端 子 AC1 AC2 PE
D
夹绳器控制器
TVV3(2*0.75+1*1.5)
D
TVV2(2*0.75) 限速器 上行超速保护开关 11 12 图 纸 线 号 11 12 电 缆 线 号 1 2 图 纸 线 号 CS1 CS2 端 子 CS1 CS2
C
TVV6(6*0.75) 夹绳器控制器 端 子 CS1 CS3 1CL+ 2CL+ CL图 纸 线 号 CS1 CS3 1CL+ 2CL+ CL电 缆 线 号 1 2 3 G G 图 纸 线 号 CS1 CS3 1CL+ 2CL+ CL动作线圈 端 子 开关常开触点 夹绳器
夹绳器控制器
C
B
B
本图适用于VVVF电梯
设计 审核
A
马星
机房布线
A
标准化 批准
1 2
通力电 梯有限公司
3
图号
4
G3002009(B)
5
版本
A
页码
6
1
© 2009 通力电梯有限公司
版权所有 1 (18)
KONE 1000 Freight Elevator
微机控制调速电梯安装布线图
1 2 3 4 5 6
H
MA
AMP-480708
2 3 4
G
G
分支电缆 MR 02 A M P - 4 8 0 7 0 9 控制柜 接插件 针号 5 6 G TVV3(2*0.75+1*1.5) 图 纸 线 号 135 106 PE 电 缆 线 号 1 2 G 135 106 PE 限速器开关 限速器 图 纸 线 号
通力电梯主板xc12接线说明

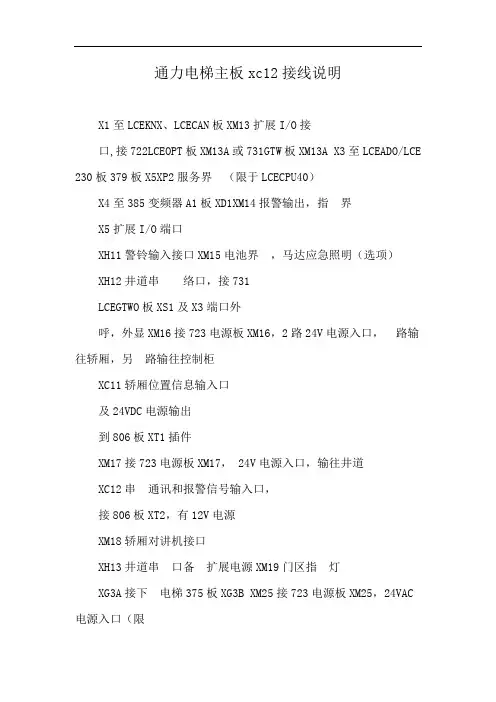

通力电梯主板xc12接线说明X1至LCEKNX、LCECAN板XM13扩展I/O接口,接722LCEOPT板XM13A或731GTW板XM13A X3至LCEADO/LCE 230板379板X5XP2服务界⾯（限于LCECPU40）X4至385变频器A1板XD1XM14报警输出，指⾯界⾯X5扩展I/O端口XH11警铃输入接口XM15电池界⾯，马达应急照明（选项）XH12井道串⾯⾯络口，接731LCEGTWO板XS1及X3端口外呼，外显XM16接723电源板XM16，2路24V电源入口，⾯路输往轿厢，另⾯路输往控制柜XC11轿厢位置信息输入口及24VDC电源输出到806板XT1插件XM17接723电源板XM17， 24V电源入口，输往井道XC12串⾯通讯和报警信号输入口，接806板XT2，有12V电源XM18轿厢对讲机接口XH13井道串⾯口备⾯扩展电源XM19门区指⾯灯XG3A接下⾯电梯375板XG3B XM25接723电源板XM25，24VAC 电源入口（限于CPU40）XM11至RDF紧急电动按钮XDB RS232服务界⾯（LCECPU40⾯⾯）XM12OSG马达界⾯XC20接806板XT2/9-10针脚LCEADO/LCE230板（安全回路和ADO/ACL）上插件 379板连接器描述连接器描述X5到LCECPU板X3XM7XM7/2-3轿厢照明输入电源连到同块板XC4/2-3XD1到驱动单元的395驱动模块接触器XD5XM9备⾯线端⾯XM1控制柜急停按钮XC1轿厢安全回路，接806板XT4XM2紧急电动运⾯按钮RDF XC3输出230VAC门机电源及备⾯线到轿厢，接806板XT3XM3到轿厢限速器安全开关XC4从同板XM7输入，轿厢照明电源输出XM4到对重限速器开关XH1底坑停⾯、涨紧轮、缓冲器安全回路XM5接723板XM5，提供2路 230VAC电源输入，其中⾯路为门机电源XM5/4- XM5/5，另⾯路为机房急停，厅门等安全回路XM5/1-XM5/2XH2到层门安全回路F11A安全回路保险丝K1主接触器（main relay）LCECCB/LCECCBN/LCECCBN2板（轿顶连接板）上插件 806板连接器描述连接器描述XT1到LCECPU板XC11，24VDC电源输入及轿厢位置信号XB21A门区信号（30）XT2到LCECPU板XC12XB22上平层开关（61：U）XT3接379板XC3，XT3/3及4针脚为230VAC门机电源输XB23下平层开关（61：N）XB24B门区（B30）入，1及2针脚为备⾯XT4到379板XC1XB25上强迫减速开关（77：U）XT5到379板X C1XB26下强迫减速开关（77：N）XT6检修XB27同步开关限位开关（7 7：S）XT8接390模块10及11针脚，230VAC轿厢照明及风扇电源输入XB28门机控制电缆（84）接门机板X1，包括提供24V电源给门机板X1（从375板XC11来的24V电源）XT11接389板XW,另⾯端接称重装置XB50XB29光幕A信号输入, 接门机板X1XT12接机房选项模块板LOC板XC40XB30B门操作，B门机控制电缆（B84）XB1极限开关（51）XB31B门光幕信号输入（B90）XB2安全钳开关（52）XB32应急电源（227）XB3轿顶检修开关及轿顶急停XB33备⾯XB4B门停⾯开关（B41）如有XB34轿顶的应急照明，未使⾯XB5安全锁（53）如有XB35报警铃（65）XB6安全窗（57）XB36接门机板XB7A门触点，轿门安全回路，接机板D2XB40轿厢内的停⾯开关（40）XB41防漏电（73：1）XB8B门安全回路（B87）如有XB42防漏电（73：2）XB9备⾯XB43接线夹A（67）XB10XB44接线夹B（67）XB11绝缘测试，不使⾯XB45服务驱动的极限开关（68:：U）XB12轿顶检修XB46禁⾯读LCECCN信息XB13轿顶230VAC电源插座（45）XB50称重装置（64）XB14轿厢照明电源输出（44）XB51从806板XT3来的230VAC电源，提供给外部XB15轿厢风扇电源输出（43）XB52+24VDC输入，输出低电压信号XB16A门机电源输出，接门机板D1(X19)XB53轿顶编码器界⾯XB17B门机电源XB55+24VDC输出XB18接到站钟XS1以及引出接头端⾯接轿厢操作⾯板LCECOB板XS1，XB56从806板XT3来的230VAC额外电源2 XP2服务⾯作的插座LCECOB 轿厢操作⾯板 32板接口功能XS1 XS2串⾯通讯及增加扩展板接口，串⾯输入输出XS1接80 6板XB18，为到站钟接口（如有到站钟）XC3轿内显⾯接口，楼层显⾯XC7轿内应急照明XC9轿内报警按钮XC10开门按钮XC11关门按钮XC12轿厢消防开关按钮（备⾯）XC13轿厢通风装置控制开关XC14轿厢照明控制开关XC15电梯脱离服务轿内控制开关，锁梯开关XC16优先内呼开关XC17开关门延时（不⾯）XC18轿厢对讲装置，五⾯通话XC18轿厢对讲装置，五⾯通话XC19警报灯XC31:1---8轿厢内呼按钮接口（24VDC）L1 绿光，供电正常L2 红光控制板故障或损坏板上跳线设置：PIN 1 2为A门服务楼层，PIN 2 3为B门服务楼层（如有）。
巨人通力电梯图纸说明

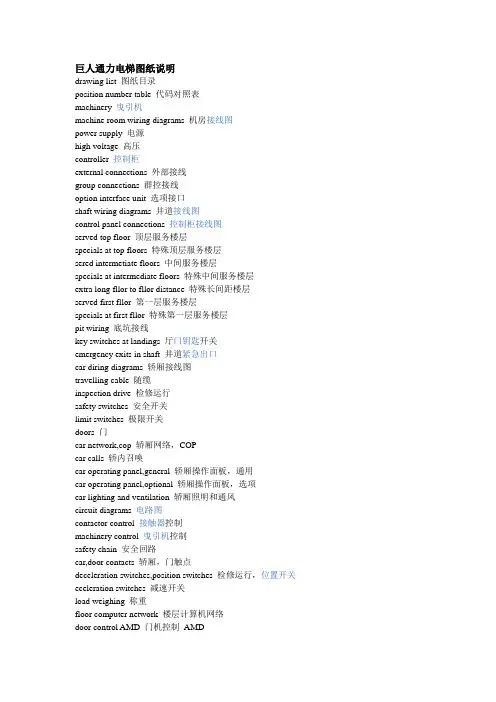

巨人通力电梯图纸说明drawing list 图纸目录position number table 代码对照表machinery 曳引机machine room wiring diagrams 机房接线图power supply 电源high voltage 高压controller 控制柜external connections 外部接线group connections 群控接线option interface unit 选项接口shaft wiring diagrams 井道接线图control panel connections 控制柜接线图served top floor 顶层服务楼层specials at top floors 特殊顶层服务楼层sered intermetiate floors 中间服务楼层specials at intermediate floors 特殊中间服务楼层extra long fllor to fllor distance 特殊长间距楼层served first fllor 第一层服务楼层specials at first fllor 特殊第一层服务楼层pit wiring 底坑接线key switches at landings 厅门钥匙开关emergency exits in shaft 井道紧急出口car diring diagrams 轿厢接线图travelling cable 随缆inspection drive 检修运行safety switches 安全开关limit switches 极限开关doors 门car network,cop 轿厢网络，COP car calls 轿内召唤car operating panel,general 轿厢操作面板，通用car operating panel,optional 轿厢操作面板，选项car lighting and ventilation 轿厢照明和通风circuit diagrams 电路图contactor control 接触器控制machinery control 曳引机控制safety chain 安全回路car,door contacts 轿厢，门触点deceleration switches,position switches 检修运行，位置开关eceleration switches 减速开关load weighing 称重floor computer network 楼层计算机网络door control AMD 门机控制AMD car and shaft light 轿厢和井道照明emergency lighting and alarm 应急照明和警报remote alarm 远程报警optional circuit diagrams 功能选项电路图wiring between option boards 选项板间接线option board 功能选项板monitoring and command system 监控和指令系统firemans drive 消防运行emergency power drive 紧急电源驱动lift announcer 电梯语音报locking of car calls 内呼锁定locking of landing calls 外呼锁定attendant service 司机服务emergency battery drive 紧急电池驱动traffic supervision display 运载流量监察显intercom system 对讲机系统vanes diagram 井道飞器布置图shaft layout,lowest floors 底层井道布置图shaft layout,top floors 顶层井道布置图shaft layout,dummy floors 假楼层井道布置图control panel layout 控制柜布置图shaft electrification panel 井道电器控制柜maintenance access panel 维保控制屏DWG. NO. 图号ISSUE 版本control panel assembly 控制柜总成position number table 代码对照表hoisting motor 曳引马达thermistors 热敏电阻tachome ter 测速发电机brake solenoid 抱闸线圈door zone switch 门区开关car call buttons 内呼按钮I/O-board lcecob LCECOB 输入输出板attendant switch 司机开关attendent down 司机下attendent up 司机上door open button 开门按钮door close button 关门按钮door extension time 关门延时priority drive switch 优先服务开关switch for car lighting 轿厢照明开关switch for car fan 轿厢风扇开关locking switch 锁开关alarm button 警报按钮stop switch on car roof 轿顶急停开关switch for inspection drive 检修运行开关inspection button up 检修上行按钮inspection button down 检修下行按钮inspection button run 检修运行按钮car fan 轿厢风扇car lighting 轿厢照明emergency lighting 应急照明socket on car roof 轿顶电源插座final limit switch in car 轿厢极限开关safety gear contact 安全嵌触点emergency exit contact 紧急出口触点impules switch up 感应平层开关上impules switch down 感应平层开关下blocking divice 锁定装置ladder contact 轿顶机械锁触点load weighing device 称重装置alarm buzzer on car roof 轿顶报警器out of service switch 锁梯开关firema n's SWitCh 消防开关deceleration switch up 减速开关上deCeleration sWitCh doWn 减速开关下synChronizntion sWitCh 同步开关safety edge ContaCt 安全触板触点door operator 门机door motor 门机马达car door contact 轿门触点doorphotocell,transmitter 红外线发射端door photocell,receiver 红外线接收端photocell device 红外线装置car position indicator 轿厢显示器alarm received light 警报接收指示灯loudspeaker for elevator speech unit 语音报站扬声器overload indication 超载指示intercom device 对讲机prl-l call switch 厅站优先开关prl-h/hel call switch 医梯优先运行开关out of service switch 退出服务开关concealed door contact 隐藏门触点shaft door contact 厅门触点shaft door lock contact 厅门锁触点tension weight contact 涨紧轮触点buffer contact 缓冲器触点overspeed governor contact for car 轿厢限速器触点overspeed governor contact for counterweightcar 对重限速器触点firema n's SWitCh 消防开关button for shaft light 井道照明按钮alarm bell 警铃Water sensor 积水传感器shaft lighting 井道照明soCket in shaft pit 底坑电源插座in use light 运行指示灯out of serviCe light 退出服务指示灯Car pos. indiCator at floors 层站显示器fire deteCtion at landings 厅站火警探测器floors board lCefCb 楼层电脑板LCEFCB main ContaCtor 主接触器auxiliary ContaCtor 辅助接触器isolating sWitCh 主开关main sWitCh 辅助开关Control panel light 控制柜照明lighting sWitCh 照明开关emergenCybatter 应急电池remote alarm board lceral 远程报警板LCERAL earth fault relay 漏电继电器control current transformer 电流感应器shaft lighting relay 井道照明继电器switch for recall drive 紧急电动运行开关recall drive button up 紧急电动运行上recall drive button down 紧急电动运行下recall drive button run 紧急电动运行运行socket 插座car lighting fuse 轿厢照明保险door zone indication 门区指示灯braking resistor 制动电阻serial interface board 串行接口板cpu-board lcecpu CPU 板LCECPU safety circuit board lce230/lceADO 安全回路板LCE230/LCEADO drive module 驱动模块network filter 网络过滤器connection contactor 接通接触器expansion board lceopt 选项功能板LCEOPT power supply board 电源板gateway board lcegtw 群控电源信号板LCEGTW can-board lcecan CAN 板LCECAN elevator speech unit 电梯语音报站car controller board lceccb 轿厢控制板LCECCB expansion board lcecceb 扩展板LCECCEB door zone contactor 门区接触器speed measurement contactor 速度测量接触器supervisory contactor 监察接触器accurate levelling relay 精确平层继电器emergency battery drive 紧急电池驱动maintenance access panel 维保控制屏shaft electrification panel 井道电器控制柜。
巨人通力电梯图纸说明

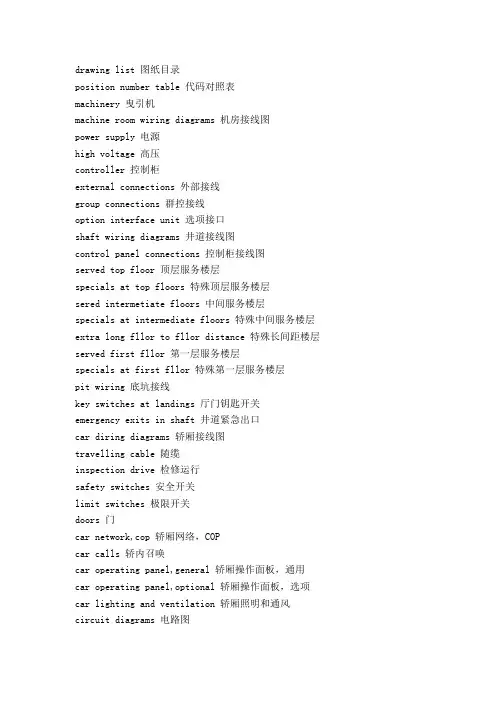

drawing list 图纸目录position number table 代码对照表machinery 曳引机machine room wiring diagrams 机房接线图power supply 电源high voltage 高压controller 控制柜external connections 外部接线group connections 群控接线option interface unit 选项接口shaft wiring diagrams 井道接线图control panel connections 控制柜接线图served top floor 顶层服务楼层specials at top floors 特殊顶层服务楼层sered intermetiate floors 中间服务楼层specials at intermediate floors 特殊中间服务楼层extra long fllor to fllor distance 特殊长间距楼层served first fllor 第一层服务楼层specials at first fllor 特殊第一层服务楼层pit wiring 底坑接线key switches at landings 厅门钥匙开关emergency exits in shaft 井道紧急出口car diring diagrams 轿厢接线图travelling cable 随缆inspection drive 检修运行safety switches 安全开关limit switches 极限开关doors 门car network,cop 轿厢网络，COPcar calls 轿内召唤car operating panel,general 轿厢操作面板，通用car operating panel,optional 轿厢操作面板，选项car lighting and ventilation 轿厢照明和通风circuit diagrams 电路图contactor control 接触器控制machinery control 曳引机控制safety chain 安全回路car,door contacts 轿厢，门触点deceleration switches,position switches 检修运行，位置开关eceleration switches 减速开关load weighing 称重floor computer network 楼层计算机网络door control AMD 门机控制 AMDcar and shaft light 轿厢和井道照明emergency lighting and alarm 应急照明和警报remote alarm 远程报警optional circuit diagrams 功能选项电路图wiring between option boards 选项板间接线option board 功能选项板monitoring and command system 监控和指令系统firemans drive 消防运行emergency power drive 紧急电源驱动lift announcer 电梯语音报locking of car calls 内呼锁定locking of landing calls 外呼锁定attendant service 司机服务emergency battery drive 紧急电池驱动traffic supervision display 运载流量监察显intercom system 对讲机系统vanes diagram 井道飞器布置图shaft layout,lowest floors 底层井道布置图shaft layout,top floors 顶层井道布置图shaft layout,dummy floors 假楼层井道布置图control panel layout 控制柜布置图shaft electrification panel 井道电器控制柜maintenance access panel 维保控制屏DWG. NO. 图号ISSUE 版本control panel assembly 控制柜总成position number table 代码对照表hoisting motor 曳引马达thermistors 热敏电阻tachome ter 测速发电机brake solenoid 抱闸线圈door zone switch 门区开关car call buttons 内呼按钮I/O-board lcecob LCECOB输入输出板attendant switch 司机开关attendent down 司机下attendent up 司机上door open button 开门按钮door close button 关门按钮door extension time 关门延时priority drive switch 优先服务开关switch for car lighting 轿厢照明开关switch for car fan 轿厢风扇开关locking switch 锁开关alarm button 警报按钮stop switch on car roof 轿顶急停开关switch for inspection drive 检修运行开关inspection button up 检修上行按钮inspection button down 检修下行按钮inspection button run 检修运行按钮car fan 轿厢风扇car lighting 轿厢照明emergency lighting 应急照明socket on car roof 轿顶电源插座final limit switch in car 轿厢极限开关safety gear contact 安全嵌触点emergency exit contact 紧急出口触点impules switch up 感应平层开关上impules switch down 感应平层开关下blocking divice 锁定装置ladder contact 轿顶机械锁触点load weighing device 称重装置alarm buzzer on car roof 轿顶报警器out of service switch 锁梯开关fireman`s switch 消防开关deceleration switch up 减速开关上deceleration switch down 减速开关下synchronizntion switch 同步开关safety edge contact 安全触板触点door operator 门机door motor 门机马达car door contact 轿门触点door photocell,transmitter 红外线发射端door photocell,receiver 红外线接收端photocell device 红外线装置car position indicator 轿厢显示器alarm received light 警报接收指示灯loudspeaker for elevator speech unit 语音报站扬声器overload indication 超载指示intercom device 对讲机prl-l call switch 厅站优先开关prl-h/hel call switch 医梯优先运行开关out of service switch 退出服务开关concealed door contact 隐藏门触点shaft door contact 厅门触点shaft door lock contact 厅门锁触点tension weight contact 涨紧轮触点buffer contact 缓冲器触点overspeed governor contact for car 轿厢限速器触点overspeed governor contact for counterweightcar 对重限速器触点fireman`s switch 消防开关button for shaft light 井道照明按钮alarm bell 警铃water sensor 积水传感器shaft lighting 井道照明socket in shaft pit 底坑电源插座in use light 运行指示灯out of service light 退出服务指示灯car pos. indicator at floors 层站显示器fire detection at landings 厅站火警探测器floors board lcefcb 楼层电脑板LCEFCBmain contactor 主接触器auxiliary contactor 辅助接触器isolating switch 主开关main switch 辅助开关control panel light 控制柜照明lighting switch 照明开关emergency batter 应急电池remote alarm board lceral 远程报警板LCERALearth fault relay 漏电继电器control current transformer 电流感应器shaft lighting relay 井道照明继电器switch for recall drive 紧急电动运行开关recall drive button up 紧急电动运行上recall drive button down 紧急电动运行下recall drive button run 紧急电动运行运行socket 插座car lighting fuse 轿厢照明保险door zone indication 门区指示灯braking resistor 制动电阻serial interface board 串行接口板cpu-board lcecpu CPU板LCECPUsafety circuit board lce230/lceADO 安全回路板LCE230/LCEADO drive module 驱动模块network filter 网络过滤器connection contactor 接通接触器expansion board lceopt 选项功能板LCEOPTpower supply board 电源板gateway board lcegtw 群控电源信号板LCEGTW can-board lcecan CAN板LCECANelevator speech unit 电梯语音报站car controller board lceccb 轿厢控制板LCECCB expansion board lcecceb 扩展板LCECCEBdoor zone contactor 门区接触器speed measurement contactor 速度测量接触器supervisory contactor 监察接触器accurate levelling relay 精确平层继电器emergency battery drive 紧急电池驱动maintenance access panel 维保控制屏shaft electrification panel 井道电器控制柜。
