SD卡内部构造与工作原理(附加基于Atmega128单片机SD卡读写程序)1、简介:SD卡(Secure Digital Memory Card)是一种为满足安全性、容量、性能和使用环境等各方面的需求而设计的一种新型存储器件,SD卡允许在两种模式下工作,即SD模式和SPI模式,本系统采用SPI模式。

本小节仅简要介绍在SPI模式下,STM32处理器如何读写SD卡,女口果读者如希望详细了解SD卡,可以参考相关资料。

SD卡内部结构及引脚如下图所示:/[ /1 1 1 M N 1 H,I T 1 FDAT2CMD CLK DATOCD/DAT3Inierface driver DAT1OCR£3l:01I 01X127:0]K RCA(15:0]o DSR[15:0]* CSD[12":O]* SCRK551O1*interfacecon^iollerre:eruoipot^Memor,1' core interface re^etSD卡内部图JPG2、SD卡管脚图:1 iMIN门2禹卞I-■■■- -II15 6250 9MRJFy工<D2™5>DD CLL VSS DATJ&ATilock Ros11iOOtn n?D IDw r i- f eSD卡图JPG3、SPI模式下SD各管脚名称为: sd卡:SPI模式下SD各管脚名称为JPG注般SD有两种模式:SD模式和SPI模式,管脚定义如下:(A)、SD MODE 1、CD/DATA3 2、CMD 3、VSS1 4、VDD 5、CLK6、VSS27、DATA08、DATA19、DATA22、DI3、VSS4、VDD5、(B)、SPI MODE 1、CSSCLK 6、VSS2 7、DO 8、RSV 9、RSVSD 卡主要引脚和功能为:CLK :时钟信号,每个时钟周期传输一个命令或数据位,频率可在0〜25MHz之间变化,SD卡的总线管理器可以不受任何限制的自由产生0〜25MHz的频率;CMD :双向命令和回复线,命令是一次主机到从卡操作的开始,命令可以是从主机到单卡寻址,也可以是到所有卡;回复是对之前命令的回答,回复可以来自单卡或所有卡;DAT0〜3:数据线,数据可以从卡传向主机也可以从主机传向卡。

2812DSP-02DSP芯片的结构

2812DSP-02DSP芯片的结构

计算机信息工程学院
DSP技术及应用
’281x硬件结构
281x系列芯片的结构
串行接口外设
- 串行外设接口(SPI) 两个串行通信接口(SCI),标准的UART 2 - 增强型局域网络控制器(eCAN)
- 多通道缓冲串口(McBSP)
计算机信息工程学院
DSP技术及应用
’281x硬件结构
281x系列芯片的结构
12位ADC,16通道
- 2个8通道的输入多路转换器 - 两个采样保持器
2
- 单个/双路同步采样 - 高速通道转换速率:80ns/12.5MSPS
最多有56个可编程通用输入输出(GPIO)引脚
计算机信息工程学院
F281x 功能框图
DSP技术及应用
’281x硬件结构
2.2 CPU结构与寄存器
第2讲 281x芯片的结构
计算机信息工程学院
DSP技术及应用
’281x硬件结构
内容提要
TMS320X281x芯片是一种特殊结构的微处理器, 为了快速地实现数字信号处理运算,采用了流水 线指令执行结构和相应的并行处理结构,可在一 个周期内对数据进行高速的算术运算和逻辑运算。
2
• 本讲主要介绍TMS320X281x芯片的硬件结构。
计算机信息工程学院
TMS320X281x Block Diagram
Program Bus Boot Boot ROM ROM Event Manager A Event Manager B 12-bit ADC Watchdog
A(18-0)
22 32 32 32
Sectored Sectored Flash Flash
- 四个独立的片选端
计算机信息工程学院

SD卡引脚 电路图及工作原理介绍

SD卡引脚 电路图及工作原理介绍

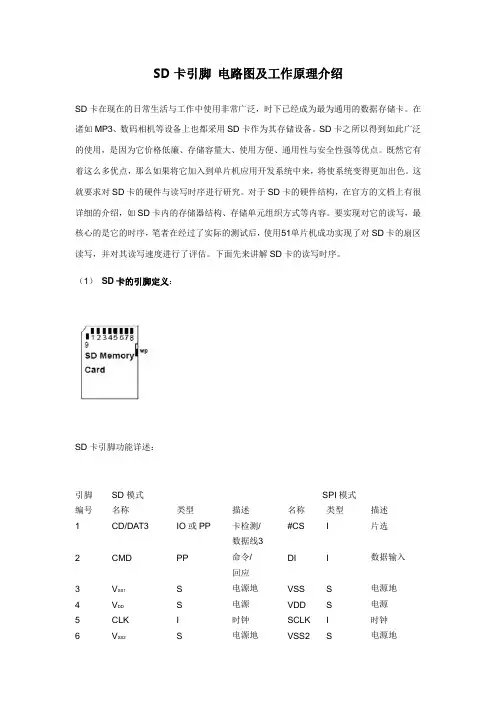

SD卡引脚电路图及工作原理介绍SD卡在现在的日常生活与工作中使用非常广泛,时下已经成为最为通用的数据存储卡。
