ArcGIS三大文件格式解析

ArcGIS三大文件格式解析

Shape数据

1. shp存储几何要素的空间信息，即XY坐标

2.shx存储了有关.shp存储的索引信息，即shp中空间数据的存储方式，XY坐标的输

入点在哪里，有多少XY坐标对等信息

3.dbf存储地理数据的属性信息的dBase表

4.prj存储了文件的空间参考信息，如坐标系统等

5.shp.xml对元数据浏览后生成的xml元数据文件

6.sbn和sbx存储对shapefile的空间索引，加速空间数据的读取

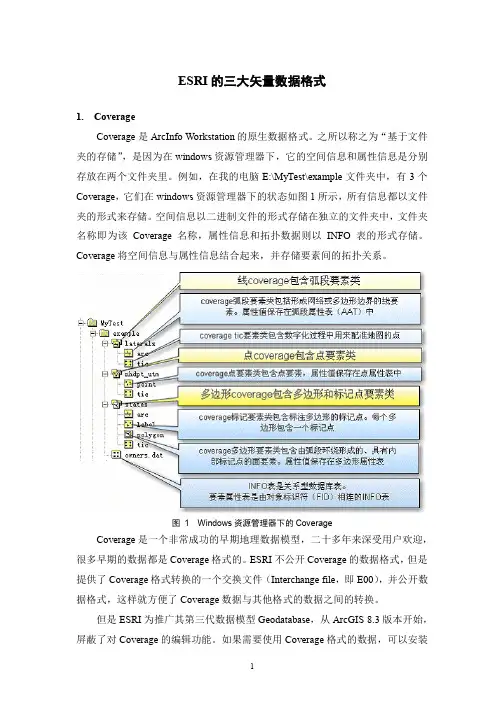

Coverage数据

1.aat弧段属性表，记录弧段的起点和终点坐标信息

2.adf为coverage格式，包括lab.adf、arc.adf、sec.adf、pal.adf、cnt.adf、tic.adf、lnk.adf、

bnd.adf都记录了坐标信息，arx.adf、pax.adf为索引文件和pat.adf、aat.adf为属性文件

3.pat点属性表，记录lable点的坐标信息

4.tic控制点，用于配准地图的点

5.aux保存栅格文件自身不能保存的辅助信息，包括彩色地图信息，直方图或表格，

坐标系统，变换信息，投影信息

6.rrd保存影像金字塔信息索引，加速显示和漫游

7.dat属性信息

8.nit属性表定义文件

9.dir属性表路径管理文件，用于关联dat和nit

Geodatabase数据

∙adf - ARC/INFO coverage data file

∙agf - Atlas GIS native binary geodataset file

∙ain - attribute index file

∙aih - attribute index file

∙alg - ER Mapper algorithm

∙apr - ArcView Project File (ODB format)

∙avl - legend template file (ODB format)

∙avp - palette file (ODB format)

∙ave - Avenue script

∙avx - ArcView extension file (ODB format)

∙ai - Adobe Illlustrator picture file

∙bat - DOS batch file

∙bil - image file (band interleaved by line)

∙bip - image file (band interleaved by pixel)

∙blw - world file for bil image

∙bmp - Windows bitmap image file

∙bpw - world file for bip or bmp images

∙bsq - image file (band sequential)

∙bqw - world file for bsq image

∙ c - C programming language source code filename

∙cat - UNIX hyperhelp supporting file

∙cgm - Computer Graphics Metafile

∙cls - geocoding classification file

∙cnt - help file contents

∙dat - generic data file extension dat - INFO attribute file

∙db - Object Database File (also ODB)

∙dbf - dBASE tabular data file

∙dbf - Shapefile attribute table file

∙dbg - problem debug log file

∙dcp - default codepage file

∙dct - geocoding dictionary file

∙dec - UNIX hyperhelp supporting file

∙def - defaults file (North Arrows, Layout Templates, etc) (ODB format) ∙dem - Digital Elevation Model file

∙dgn - Design drawing file (Intergraph)

∙dir - INFO directory manager file

∙dlg - Digital Line Graph file

∙dll - Windows Dynamic Link Library file

∙doc - MS-Word, MS-Wordpad document file

∙dtd - UNIX hyperhelp supporting file

∙dwg - Drawing file (AutoCAD)

∙dxf - Drawing exchange file

∙e00 - ARC/INFO export file

∙ecw - ER Mapper Enhanced Compressed Wavelet

∙eps - Encapsulated PostScript

∙ers - ER Mapper raster file format

∙exe - DOS/Windows executable file

∙fbn - spatial index file for read-only datasets

∙fbx - spatial index file for read-only datasets

∙fls - Windows help supporting file

∙ftg - UNIX help supporting file

∙fts - UNIX help supporting file

∙gen - ARC/INFO UnGenerate format

∙gfw - world file for gif image

∙gif - image file (CompuServe)

∙hdr - header file (for ArcView extensions or TIF images)

∙hlp - Windows help file

∙htm - WWW file (hypertext markup, 3-character DOS version)

∙html- WWW file (hypertext markup language, UNIX version)

∙ico - Icon file

∙idx - geocoding index for read-only datasets

∙img - ERDAS Imagine image file
