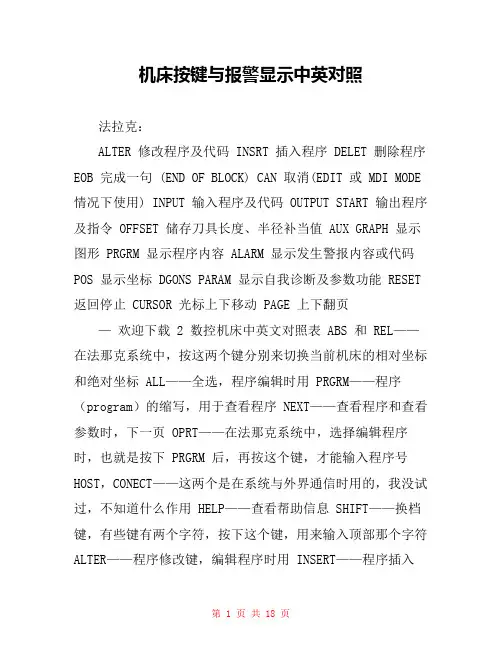

机床按键与报警显示中英对照

法拉克：ALTER 修改程序及代码INSRT 插入程序DELET 删除程序EOB 完成一句 (END OF BLOCK)CAN 取消(EDIT 或 MDI MODE 情况下使用) INPUT 输入程序及代码OUTPUT START 输出程序及指令OFFSET 储存刀具长度、半径补当值AUX GRAPH 显示图形PRGRM 显示程序容ALARM 显示发生警报容或代码POS 显示坐标DGONS PARAM 显示自我诊断及参数功能RESET 返回停止CURSOR 光标上下移动PAGE 上下翻页数控机床中英文对照表ABS和REL——在法那克系统中，按这两个键分别来切换当前机床的相对坐标和绝对坐标ALL——全选，程序编辑时用PRGRM——程序（program）的缩写，用于查看程序NEXT——查看程序和查看参数时，下一页OPRT——在法那克系统中，选择编辑程序时，也就是按下PRGRM后，再按这个键，才能输入程序号HOST，CONECT——这两个是在系统与外界通信时用的，我没试过，不知道什么作用HELP——查看帮助信息SHIFT——换档键，有些键有两个字符，按下这个键，用来输入顶部那个字符ALTER——程序修改键，编辑程序时用INSERT——程序插入键，编辑程序时用EOB——程序结束符，在编辑程序时，没段程序结束时，要加这个符号CAN——取消键，用来取消输入INPUT——输入键，用来输入程序或参数POS——按此键显示当前机床位置画面PROS——按此键显示当前程序画面OFFSET——按此键显示刀具偏置画面SETTING——按此键显示刀具偏置设定画面SYSTEM——按此键显示系统信息及系统状态画面GRAPH——按此键显示加工时刀具轨迹的图形画面CUSTOM——按此键显示用户宏程序画面手动数据输入 (MDI)直接数字控制方法 (DNC)控制器单元或机控制器单元（MCU常见机床报警信息中英文对照T WORD ERROR （T 码错误）LOW OIL LEVEL （油位低）SPINPLE FAULT （主轴故障）SPINDLE ALARM （主轴报警）EXTERNAL EMG STOP （急停按钮被按下）AC NOT READY （交流盘未准备好）SPINPLE LUBE FAULT （主轴润滑故障）T CODE ERROR （T代码出错，非法T代码）M CODE ERROR （M代码出错，非法M代码）SERVO NOT READY （伺服未准备好）NC NOT READY（NC没准备好）TURRET FAULT （转塔故障）TURRET LIMIT （转塔限位）DC 24V OPEN （直流24断开）+24V NOT READY（+24V没准备好）GRAR DRIFT （档位漂移）PLEASE AXIS RETURN HOME（轴未回零）PLEASE DRUM RETURN HOME（刀库未回零）AIRPRESSFAILURE（气压故障）UNCL TOOL FALL（松刀失败）AIR PRESSURE DROP （压缩空气压力过低）CLAMP TOOL FALL（夹刀失败）DRUM NOT PARKED（刀库未在原值）X ZERO POINT NOT REACHED （X 轴未回零）Y ZERO POINT NOT REACHED （Y 轴未回零）Z ZERO POINT NOT REACHED （Z轴未回零）4TH ZERO POINT NOT REACHED （第4轴未回零）X AXIS OVERTRAVL（X轴超限）Y AXIS OVERTRAVL （Y轴超限）Z AXIS OVERTRAVL （Z轴超限）COUNTER SWITCH REEOR （计数开关故障）MASTERT RANSFER OVER TEMP （主变压器过热）Z AXIS NOT AT FIRST REF POSITION （Z轴未在第一参考点）SPINDLE ORIENTATION FALLURE （主轴定向失败）TOOL DESENT OR TOOL DATA REEOR （刀具数据错误）PLEASE UNLOAD THE TOOL ON SPRINELK （请卸下主轴上的刀）PLEASE LOAD TOOL ON APINDLE （请装上主轴上的刀）A AXIS UNCLAMP FAIL （A 轴松开失败）A AXIS CLAMP FAIL （A 轴夹紧失败）DRUM OUT TO APRONDLEIS FALL （刀库摆向换刀位失败）MG SWING OVERLOAD（刀库摆动过载）DRUM BACK PARK IS FALL （刀库摆回原始位失败）TURRENT MOTOR1 OVERLOAD （刀库移动电机过载）COOLANT MOTOR OVERLOAD （冷却泵过载）DRUM ATC FAULT （自动换刀失败）TOOLS UNLOCKED （刀具未锁紧）BATTERY ALARM （电池报警）DRUM POSITION SWITCH ERROR （刀库位置检测开关故障）DRUM NOW NOT AT PARK （刀库未在原始位置）IT DANGOU TO MOVE DRUM （刀库禁动）POT UO FAILOR POT NOT AT UP POSITION （刀套未在水平位）POT DOWN FAIL （刀套翻下动作失败）IT IS DANGOUR TO MOVE ARM （机械手禁动）THE SPINDLE STATU IS ERROR （主轴状态错误）ARM MOTOR OR ARM SWITCH FALL （机械手或机械手开关故障）CENTRE LUBRICATION FALL （中心润滑故障）THE WORK NOT CLAMPED （工件未夹紧）AUTO TOOL CHANGE FAULT （自动换刀失败）TOOL DATA OUT OF RANGE （指令刀具号超出围）THE ORDER TOOL NOW IN SPINDLE （目标刀具在主轴上）THE THREE SPINDLE SWITCH FAULT （主轴上的接近开关）THE CENTRE COOLANT IS LOWER （刀具冷泵液位过低）DRUM RETURN 1# POSITION FAULT （刀库自动回零失败）SPINDLE OVERLOAD （主轴过载）TURRENT MOTOR OVERLOAD （刀盘转动电机过载）CHIP CONVEYER OVERLOAD （拉屑器过载）HARD LIMIT OR SERVO ALARM （硬限位或伺服报警）NO LUB OIL （无润滑油）INDEX HEAD UNLOCKED （分度头未锁紧）MT NOT READY（机床没准备好）MG OVERLOAD （刀库过载）LUB EMPTY（润滑无油）AIR PRESSURE（气压不足）COOLANT NOT READY（冷却没准备好）LUBE EMPTY（油雾油位低，润滑油位低）LUB PRESSURE LOW（润滑压力低）CONVEY VERLOAD（排屑过载）LUB OVERLOAD（润滑过载）LUBE PRESSURE LOW（油雾压力低）SERIAL SPINDLE ALARM (串行主轴报警)NC BATTERY LOW ALARM(NC电池低报警)MAGAZINE MOVE LIMIT SWITCH ERRORSPINDLE TOOL UNLAMP POSITION LIMIT SWITCH ERROR MAGAZINE NOT IN POSITION OR SENSOR ERRORAIR PRESSURE LOW ALARM(气压低报警)MOTOR OVERLOAD(电机过载)T CODE > MAGAZINE TOOLST CODE < 1 ERROR5TH AXIS HARDWARE OVERTRAVER LIMIT ERRORDOOR IS OPENED(开门)LUB PRESSURE SWITCH ERROR(油压开关错误) SPINDLE OIL COOLANT UNIT ERRORSPINDLE LOAD ABNORMAL（主轴负荷异常）TRANSDUCER ALARM（传感器报警）BED-HEAD LUBRICATE OFF（床头润滑关闭）EMG OFFHYDRAULIC CHUCK PRESS LOW（液压夹头压力低）HYDRAULIC TAIL PRESS LOW（液压尾座压力低）LUB 0IL LOW（油压低）TURRET CODE ERROR（转塔码错误）TURRET RUN OVERTIME（转塔运行超时）MANUAL HANDLE INTERRUPTTRY TO RUN SPINDLE WHILE CHUCK NOT LOCKTRY TO RUN SPINDLE WHILE TAIL NOT LOCKSPINDLE NEUTRAL GEARMAGAZINE ADJUSTHYDRAULIC NOT RUNSAFETY DOOR BE OPENEDSAFETY DOOR NOT CLOSENOT ALL AXIS HAVE GONE BACK REFIN ADJUST,IGNORE GOING BACK REFAFTER EXCHANGE TOOL,CYCLE STARTATC MOTOR QF16 OFFX AXIS IS LOCKED（X 轴被锁定）Y AXIS IS LOCKED（Y 轴被锁定）Z AXIS IS LOCKED（Z 轴被锁定）A AXIS IS LOCKED（A 轴被锁定）SPINDLE MOTOR FAN QF26 OFF(主轴电机风扇QF26关闭)SPINDLE ORIENTATION INCOMPLETE（主轴定位不完全）M FUNCTION NOT COMPLETE（M 功能无法完成）SPINDLE NOT IN GEAR POSITION（齿轮不在主轴位置）SPINDLE NOT CHANGED TO LOW GEAR（主轴没有变为低档）SPINDLE NOT CHANGED TO HIGH GRAR（主轴没有变为高档）MAG NOT BACKWARDSPINDLE TOOL NOT CLAMPSPINDLE TOOL NOT UNCLAMPMAG NOT IN POSITIONMAG DOES NOT ROTATEMAG DOES NOT STOP RUNNINGA AXIS HAVE NOT CLAMPEDA AXIS HAVE NOT UNCLAMPEDSET D499=1,"MAG.JOG" SWITCH ONHYDRAULIC MOTOR QF7 OFF（液压马达QF7关闭）HYDRAULIC TEMPRETURE HIGH（液压使用温度高）HYDRAULIC FILTER BLOCKED（液压过滤器阻止）HYDRAULIC OIL LEVEL LOW（液压油位低）HYDRAULIC FAN QF8 OFF（液压风扇QF8关闭）HELIX CONYER QF9 OR QF10 OFFCHAIN CONYER QF11 OFFCOOLANT MOTOR QF12 OFF（冷却液电机QF12关闭）COOLNT LEVEL LOW,CYCLE STOP AFTER 20 MINUTESINNER COOLANT BLOCK（冷却堵塞）SPINDLE COOLANT MOTOR QF14 OFF（主轴冷却液电机QF14关闭）INNER COOLANT QF13 OFF（冷却液QF13关闭）MAG MOTOR QF15 OFFCABINET COOLANT EQUIP QF20 OFFOIL GATHER QF24 OFFAIR PRESSURE LOW（低气压）SPINDLE COOLANT MOTOR FAULT（主轴冷却液电机故障）LUB.OIL IS LOW（润滑油低）DOOR OPEN（门打开）FRONT DOOR(R) OPEN（前门打开）LEFT DOOR OPEN（左门打开）LUBRICATION OIL QF23 OFF（润滑油QF23关闭）LUBRICATION PRESS LOW（润滑油位低）IN ADJUST,MAG CAN'T EXCHANGE T（在调整，刀库不能交换T）NOT ALL DOOR CLOSED（门没有全部关闭）IN M06,MAG NOT READY（在M06，刀库未准备好）MAGAZINE NOT READY（刀库未准备好）POCKET NOT HORIZANTALIN M06,Z NOT BACK TO 2ND REFIN M06,Z AXIS NOT IN PSW1ATC NOT IN ZERO POSITIONSPINDLE ORIENTATION UNCOMPLETEPOCKET NOT HOR./MAG NOT BCKWRDPOCKET NOT VER./MAG NOT FORWRDUNCLAMP TOOL HAS NOT COMPLETEDCLAMP TOOL HAS NOT COMPLETEDAIM TOOL NO. IS WRONGMAG NOT BACKWARDAFTER RETRACT,SET R.T.BACK OFFZNOT IN PSW2,FORBID ATC RUNNINGD499 EQUAL 1MAG.JOG SOFT SWITCH IS ONZ NOT IN PSW2,FORBID MAG FORWARDCHEKE SPINDLE MODULE ALARMOIL WATER SEPARATOR QF24 OFFSET THE SOFT SWITCH MAG.JOG OFFSET D499 TO 0 设定D499为0K PARAM ABOUT MAG SET IS WRONG 关于MAG的K参数设定错误MECHANICAL BRAKE NOT RELEASED机床抱闸没有松开MECHANICAL BRAKE IS WRONG 机床抱闸错误PLEASE ADD LUB.OIL 请加润滑油PROBE BATTERY VOLTAGE IS LOW 探头电池电压低PROBE IS ERR 探头错误PARAMETER WRITE ENABLE（参数写使能）PMC EDIT ENABLE（PMC编辑使能）CHECK LUB ROUTINSPINDLE GEAR SIGNAL MISS 主轴档位信号消失T_CLAMPED_SIGNAL MISS T夹紧信号消失SP OVERRIDE SWITCH DISCONNECTION 主轴倍率开关断路FEED OVERRIDE SWITCH DISCONNECTION 进给倍率开关断路THE TOTAL NUMBER OF POCKETS SET ERRCHANGE T STOPED BECAUSE NO AIR 因为缺少压空交换停止THE COOLANT WATER TOO LOW,ADD COOLANT WATER AT ONCE 冷却水少立即加水COOLANT LEVEL LOW,ADD COOLANT WATER 冷却水液位低PLEASE REPLACE CNC BATTERY QUICKLY 请立即更换CNC 电池SIEMENS常用缩略语A Output 输出ASCII American Standard Code for Information Interchange 美国信息交换标准代码AV Preparation for work 运行准备BA Operating mode 运行方式BAG Operating mode groups 运行方式组BB Ready for operation 准备好运行BCD Binary Coded Decimals 二-十进制BHG Hand-held terminal 手提终端BOF User interface 用户接口CNC Computerized Numerical Control 计算机化数字控制CP Communication Processor 通迅处理器CPU Central Processing Unit 计算机中央处理装置CR Carriage Return 托架折回CSB Central Service Board(PLC module) 中央维护板，PLC 模块CTS Clear To Send 发送使能DAU Digital-Analog Converter 数模转换器DB Data Block 数据块DIN German Industrial Standards 德国工业标准DIO Data Input/Output 数据输入/输出DRF Differential Resolver Function 差分功能DRY Dry Run 空运行DSB Decoding Single Block 译码单段DSR Data Send Ready 备用输入DW Data Word 数据字E Input 输入EIA-Code Special tape code,number of holes per characters always odd 特殊纸带码，每个字符的孔数为奇数EPROM Programm memory with fixed program 有固定程序的程序存储器E/R Controlled Supply and Energy Recovery Module 可控电源和能量恢复模块ETC ETC key:Extension of the softkey bar in the same menuETC 键：同级菜单扩展键FDB Product designation database 产品指定数据库FIFO First in First Out 先进先出FRA Frame module 帧频模块FRAME Coordinate conversion with the components zerooffset，rotation，scaling，mirror-imaging 坐标换算，具有零点偏置，坐标旋转，标度功能和镜向功能FRK Cutter radius compensation 铣刀半径补偿FST Feed Stop 停止进给GUD Global User Data 全体用户数据HMS High-Resolution Measuring System 高分辨率测量系统HSA Main Spindle Drive 主轴驱动HW Hardware 硬件IM Interface Module 接口模块IM-S/R Interface Module(S=send/R=receive) 接口模块，S=发送/R=接收INC Increment 步进增量ISO-Code Special tape code,number of holes per character always even特殊纸带码，每个字符的孔数为偶数K1...k4 Channel 1 to Channel 4 通道1 到通道4KOP Ladder Diagram 梯形图KV Loop-Gain Factor 增益系数KUE Transformation Ratio 传动比LCD Liquid Crystal Display 液晶显示LED Light Emitting Diode 发光二极管显示LUD Local User Data 局部用户数据MB Megabyte 兆字节MD Machine Data 机床数据MK Measuring Circuit 测量回路MDA Manual Data Automatic 手动输入，自动执行MLFB Machine-readable product designation 机器可识别的产品代号MMC Man Machine Communication:User interface of the numerical controlsystem for operation,programming and simulation 人机通讯：系统操作界面，用操作，编程和模拟MPF Main Program File：NC part program(main program)NC 零件程序，主程序MPI Multi Point Interface 多点通讯接口MSTT Machine control panel 机床控制面板NC Numerical Control 数字控制NCK Numerical Control Kernel(numerical krnel with block preparation,traversing range etc.) 数字控制核心：具有程序段预处理,运行围等等NCU Numerical Control Unit 数控单元NURBS Non Uniform Rational B Spline 非均值有理B 样条NV Zero Offset 零点偏置OEM Original Equipment Manufacturer 原设备制造商OP Operator Panel 操作面板OPI Operator Panel Interface 操作面板接口PC Personal Comprter 个人计算机PCMCIA Personal Computer Menory Card International Association 接口协议PG Programming Device 编程器PLC Programmable Logic Control 可编程逻辑控制器PRT Program Test 程序测试RAM Random Access Memory 随机存取存储器RISC Reduced Instruction Set Computer 处理器，具有指令组小、通过能力强ROV Rapid Override 快速修调RPA R Parameters Active(NCK memoty area for R parameter numbers)R 参数有效，NCK 中用于R 参数号的存储器区RTS Request To Send(control signal from serial data interfaces)发送请求：来自串行接口的控制信号SBL Single Block 单段SBL2 Single Block Decoding 译码单段SEA Setting Data Active(memory area for setting data in NCK)设定数据有效：用于NCK 中设定数据的存储区SD Setting Data 设定数据SKP Skip Block 程序段跳跃SM Signal Module 信号模块SPF Sub Program File 子程序文件SPS Programmable Logic Controller 可编程逻辑控制器SRK Cutter Radius Compensation 刀尖半径补偿SSFK Leadscrew Error Compensation 丝杠螺距误差补偿SSI Serial Synchronous Interface 串行同步接口SW Software 软件TEA Testing Data Active(with reference to the machine data) 测试数据有效：与机床数据有关TO Tool Offset 刀具补偿TOA Tool Offset Active(memory area for tool offset) 刀具补偿有效，用于刀补的存储区TRANSMIT Transform Milling intoTurning(coordinate conversion onturning machines for milling)铣床转换为车床：车床坐标换算用于铣削加工VSA Feed drive(spindle) 主轴进给驱动V Bit type PLC variable PLC变量类型：位VB Byte type PLC variablePLC变量类型：字节WKZ Tool 刀具WZ Tool 刀具WZK Tool offset 刀具补偿ZOA Zero Offset Active(memory area for zero offsets)零点偏置有效：零点偏置存储区。
